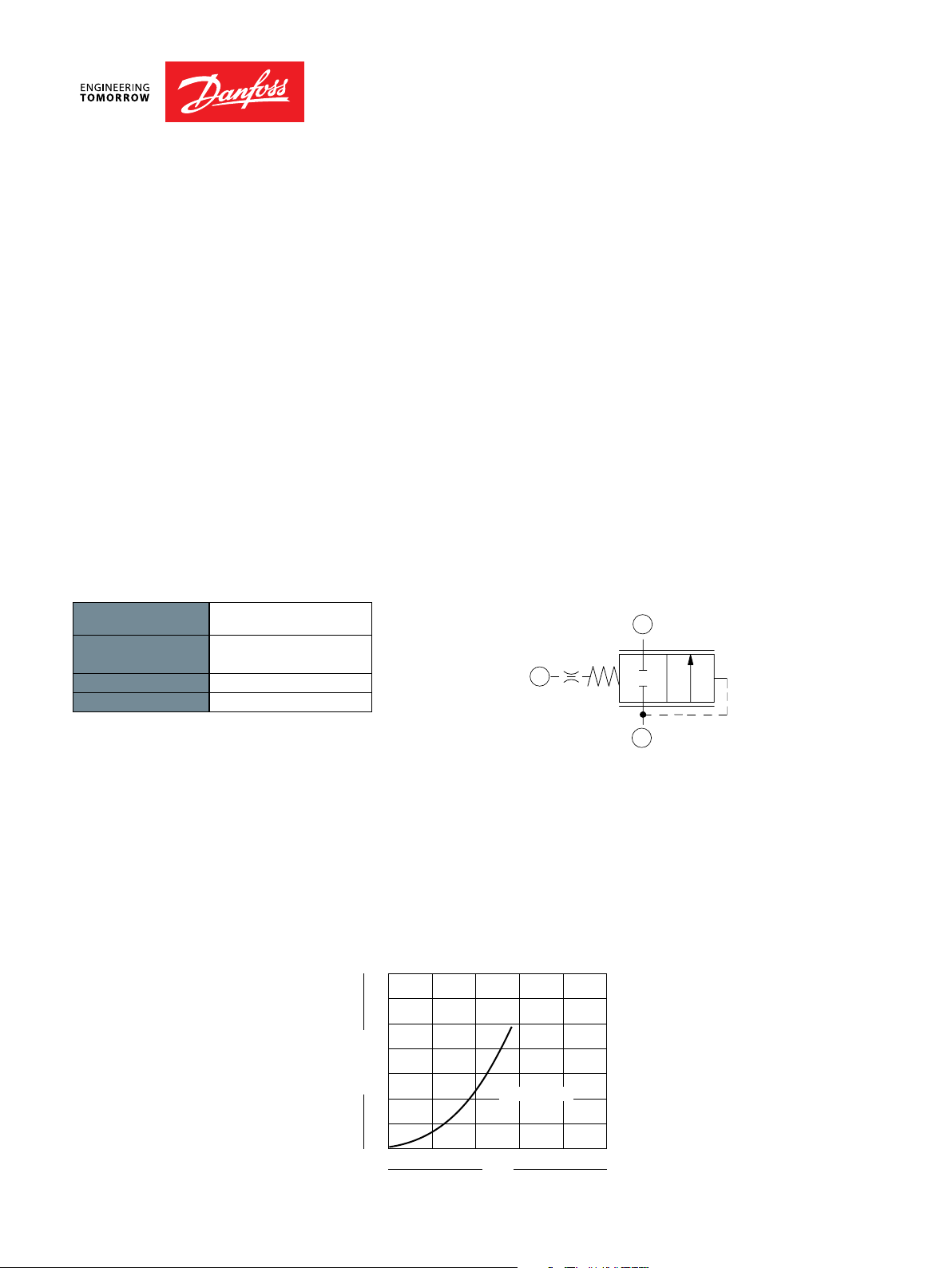

Logic Elements Technical Information
Spool Type
CP700-1
OPERATION
The CP700-1 is a 10-size, normally-closed, pilot-to-close, spool-type,
spring biased dierential-sensing logic element. It will modulate
ow from 1 to 2 based on the spring control pressure, inlet pressure
at port 1, and pilot pressure at port 3.
APPLICATION
Common applications include load-sensing bypass compensator for a xed
displacement pump with single or multiple actuators as well as bypass-type
pressure-compensated ow control. Eective use of logic elements is a key to
designing cost-eective circuits, and is limited only by the imagination of the
designer.
SPECIFICATION
Rated pressure 210 bar [3045 psi]
Rated ow at 7 bar
[100 psi]
Weight 0.12 kg [0.27 lb]
Cavity SDC10-3
50 l/min
[13 US gal/min]
PERFORMANCE CURVE
psi bar
203
174
145
116
87
58
29
Theoretical performance
154 SUS (33 cSt) hyd. oil @ 100° F (38° C)
14
12
10
8
6
Press ure drop
4
2
SCHEMATIC
2
3
1
Fully opened
BC332375783111en-000101 • February 2020
0
40 60 80 100
20L/min
5.3US gal/min
Flow
10.6 15.9 21.1 26.4
LE - 19
Logic Elements Technical Information
[1.82]
[0.75]
Spool Type
CP700-1
DIMENSION
mm [in]
1
EXAMPLE CIRCUITS
Cross-sectional view
23
7/8-14 UNF
46.2
19.1
h 1.00 in
41-47 N.m
t
[30-35 lbf.ft]
Double Acng Cylinder with Proporonal Speed
Control, Unloading Valve and Circuit Relief
ORDERING
INFORMATION
Seals
B=Buna-N 120027
V=Viton 120028
Housing and portsHousing P/N
0=No Housing No Housing
SE3B=AL,3/8 BSP SDC10-3-SE-3B
SE4B=AL,1/2 BSP SDC10-3-SE-4B
6S = AL, #6 SAE CP10-3-6S
8S = AL, #8 SAE CP10-3-8S
Other housings available
BC332375783111en-000101 • February 2020
Proporonal Bypass Flow Control
CP700-1-B-8S-080
Seal kit
Dump and Relief Valve for a Fixed Pump
Differential
Control
Pressure
bar[psi]
040=2.8[40]
080=5.5[80]
110=7.6[110]
150=10.3 [150]
190=13.1 [190]
LE - 20
