Danfoss CCM Data sheet

Data Sheet

Electric regulating valve
Type CCM

Expansion and gas bypass valve for CO

2

The CCM is an electrically operated valve
designed specically for operation in CO

systems. The valve is capable of functioning
both as an expansion valve, and as a gas bypass
valve with back-pressure regulation in
subcritical applications.

The pressure rating allows for operation in
environments where system standby capability
is required without the need for auxiliary
cooling systems during servicing or power
outages.

Features:

• Up to 90 bar (1305 psi) working pressure to
accomodate CO2 system pressures during

standstill conditions.

• Precise positioning for optimal control of
intermediate pressures in transcritical CO

systems or liquid injection in heat
exchangers.

• MOPD up to 50 bar (725 psi).

• Combined stainless steel butt weld/solder
connections for installation in copper piped
systems (K65 alloy or standard) as well as
steel piped systems.

• Standard M12 connector for simple and
exible connection to the motor driver.

• For manual operation and service of the CCM
an AST-g service driver is available. For further
information please contact Danfoss
(Commercial Refrigeration and Air
Conditioning Controls).

• UL recognized.

2

2

AI213386426013en-000601

From cases

AKS
2050

AKS 2050

EKC
326A

ICMTS

To cases

CCM

Danfoss

R64-2046.11

CCM

AKS 33

AKS 11

EKC 316A

EVR

GBC

GBC

Electric regulating valve, type CCM

Applications

The CCM can be used in a variety of applications within CO2 refrigeration systems. Typically it is used as a gas bypass
valve in a transcritical CO2 booster system or as an expansion valve.

Figure 1: Application 1

A gas bypass valve is typically used to regulate the intermediate pressure in a transcritical CO2 refrigeration system.
By venting ashgas generated after the transcritical expansion, the pressure can be kept at a safe level for all
components situated in the liquid lines of a transcritical CO2 system. For use in the gas bypass application the
EKC326A controller is recommended.

Figure 2: Application 2

A liquid expansion valve is typically used for injection in plate heat exchangers of CO2/CO2 cascades, or as an
expansion valve for CO2 evaporators. For the liquid injection applications CCM is used with EKC 316A controller.

© Danfoss | Climate Solutions | 2021.03 AI213386426013en-000601 | 2

Parameter

CCM

Compatibility

R744

MOPD

50 bar (725 psi)

Max. working pressure (PS/MWP)

90 bar (1305 psi)

Refrigerant temperature range

(1)

–40°C to 60°C (–40°F to 140°F)

Ambient temperature

–40°C to 60°C (–40°F to 140°F)

Material of construction

Stainless steel

Parameter

CCM

Motor enclosure

IP 67

Stepper motor type

Bi-polar - permanent magnet

Step mode

2 phase full step

Phase resistance

52Ω ±10%

Phase inductance

85 mH

Holding current

Depends on application
Full current allowed (100% duty cycle)

Step angle

7.5° (motor),

0.9° (lead screw),
Gearing ration 8.5:1. (38/13)2:1

Nominal voltage

(Constant voltage drive) 12 V dc -4% +15%, 150 steps/sec.

Phase current

(Using chopper drive) 100 mA RMS -4% +15%,

Max. total power

Voltage / current drive: 5.5 / 1.3 W (UL: NEC class 2)

Step rate

150 steps/sec. (constant voltage drive)
0-300 steps/sec. 300 recommended (chopper current drive)

Total steps

CCM 10, 20, 30
CCM 40

2625 [+160 / -0] steps
3530 [+160 / -0] steps

Total stroke

13 mm / 16 mm (0.5 in. / 0.6 in.)

Full travel time

CCM 10, 20, 30
CCM 40

17 / 8.5 sec. (voltage / current)
23 / 11.5 sec. (voltage / current)

Lifting height

CCM 10, 20, 30
CCM 40

13 mm (0.5 in.)
16 mm (0.6 in.)

Reference position

Overdriving against the full close position

Electrical connection

4 wire 0.5 mm

2

(0.02 in2), 0.3 m (1 ft) long cable

Electric regulating valve, type CCM

Product specication

Technical data

Table 1: Technical data

(1)

(1)

Measured at inlet of the valve

Measured at inlet of the valve

Electrical data

Table 2: Electrical data

© Danfoss | Climate Solutions | 2021.03 AI213386426013en-000601 | 3

X

Y

XXXXXX

Y

Opening %

% of capacity full open

X

Y

X

Y

Opening %

% of capacity full open

X

Y

X

Y

Opening %

% of capacity full open

X

Y

X

Y

Opening %

% of capacity full open

CCM valve Connector

Cable plug

Danfoss
93G300.10

4

Black

4

Danfoss
93G301.10

3

White32

Green21

Red

1

Connection 1

Wire Color

Connection 2

Pin Out

CLOSING

STEP

Coil I (B)

Coil II (A)

OPENING

Red

Green

White

Black

1+-+-2+--+3-+-+4-++-1+-+-

Electric regulating valve, type CCM

Stepper motor switch sequence

Table 3: Stepper motor switch sequence

Table 4: Stepper motor switch sequence

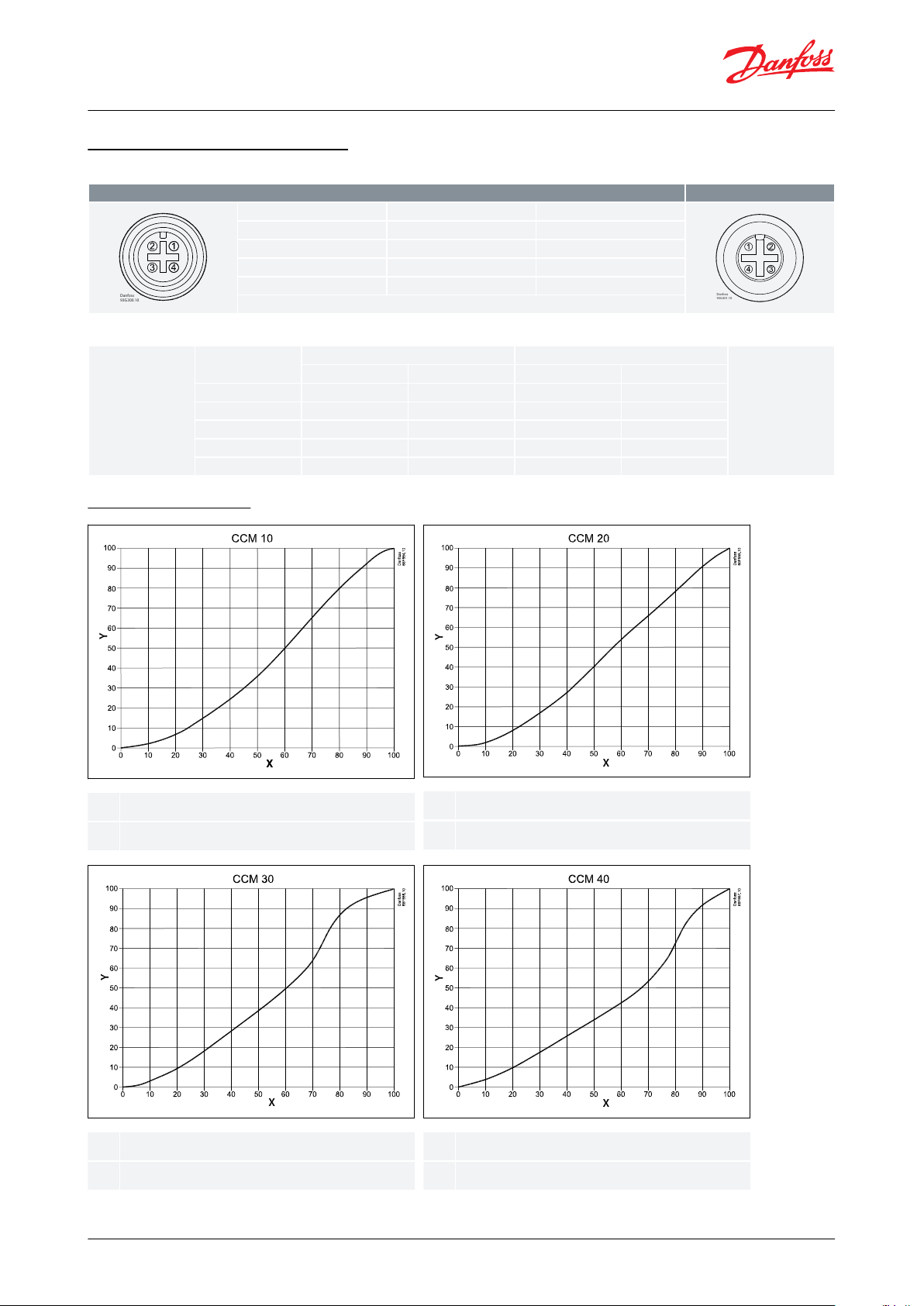

Flow characteristics

© Danfoss | Climate Solutions | 2021.03 AI213386426013en-000601 | 4

12345678910Cable

Glass seal

Motor housing

Stepper motor

Bearing

Spindle

Insert

Valve piston

Valve seat

Valve port

Electric regulating valve, type CCM

Valve selection based on capacity calculation

As for extended capacity calculations and valve selection based on capacities and refrigerants, please refer to
Coolselector®2. Rated and extended capacities are calculated with the Coolselector®2 calculation engine to ARI
standards with the ASEREP equations based on laboratory measurements of selected valves.

Download Coolselector®2 for free at coolselector.danfoss.com.

Design and materials

Figure 3: Design and materials

© Danfoss | Climate Solutions | 2021.03 AI213386426013en-000601 | 5

A

B

C

D

ABCDProduct type Code no.

Manufacturing date

Meters/Feets

Country

34G209.10

49 mm / 1.9 inch

Ø 6.3 mm / 1/4 inch

35 mm / 1.4 inch

2 + 0.089 meters / 6.6 + 0.3 feet
8 +0.3 meters / 26.2 +1 feet

34G210.10

A2 black

A1 white

B1 red

B2 green

34G211.10

Features

Description

Jacket

PVC - black

Cable outer sheath

Oil - resistant

Water proof rating

IP 67

Operating temperature range

-40 – +80 °C

Wire type

Twisted pair, cross section 20 AWG / 0.5 mm2

Cable outer diameter

7.0 mm

Minimum bending radius

10 x cable diameter

Cable combustibility / test

Flame retardant / VW-1 / CSA FT - 1

M12 standard

EN 61076-2-101

Reference standard

UL style 2464 and DIN VDE 0812

LVD directive

73/23/EEC and 93/68/EEC

Electric regulating valve, type CCM

M12 angle cable

M12 angle female connector is intended for use with a standard M12 male connector, available on stepper motor
valves.

This cable is designed to oer high exibility and small outer diameters with tensile strength. The angle way M12
cable consist of paired, twisted wires, which decreases mutual inuence between signals transmitted along the
cable and reduces inuence of external sources of interference. The cables thus provides a higher degree of
protection against lost steps compared to other cables.

Identication

Figure 4: Identication

Connections

Table 5: Connections

Specication

Table 6: Specication

Dimension and weight

Figure 5: Dimensions

© Danfoss | Climate Solutions | 2021.03 AI213386426013en-000601 | 6

Type

H1H2H3L1ØD1

Weight

mm

in.mmin.mmin.mmin.mmin.kglb.

CCM

26.21120

4.7

225

8.9532.1622.4

1.8

4

Electric regulating valve, type CCM

Figure 6: Dimension and weight

Table 7: Dimension and weight

For further information please contact Danfoss

© Danfoss | Climate Solutions | 2021.03 AI213386426013en-000601 | 7

Type

Kv m3/h

Connections (Combi)

Code nos single pack

Weld

(1)

[in]

Solder ODF x ODF [in]

CCM 10

0.8

1/2 x 1/2

5/8 x 5/8

027H7188

CCM 20

1.7

3/4 x 3/4

7/8 x 7/8

027H7187

CCM 30

2.5

1 x 1

1 1/8 x 1 1/8

027H7186

CCM 40

4.2

1 x 1

1 1/8 x 1 1/8

027H7185

Type

Description

Code number

AST-G

Manual valve driver for service

034G0013

Type

Description

Code number

AST

Actuator for CCM CO2 valve

027H7184

-

O-ring spare part kit for CCM/CCMT (2 O-rings)

027H7230

Cable

Cable length (L)

Insulation

Packing format

Code no.

PVC - black

2 + 0.089 m / 6.6 +0.3 ft

SR-PVC

Single pack

034G7073

8 + 0.3 m / 26.2 +1 ft

SR-PVC

Single pack

034G7074

Electric regulating valve, type CCM

Ordering

Valve incl. actuator - Single pack

Table 8: Valve incl. actuator - Single pack

(1)

(1)

OD according to EN 10220

OD according to EN 10220

Accessories

Table 9: Accessories

Spareparts

Table 10: Spareparts

Ordering

Table 11: Ordering

© Danfoss | Climate Solutions | 2021.03 AI213386426013en-000601 | 8
