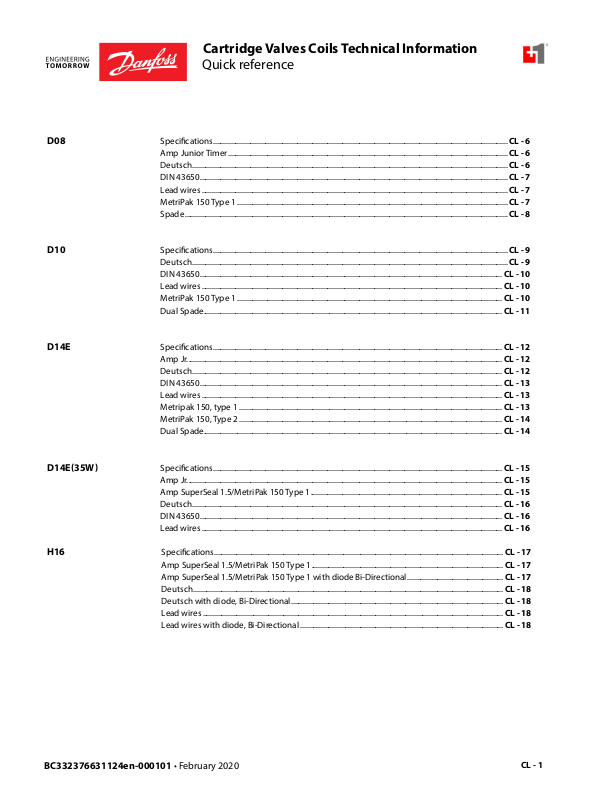

Cartridge Valves Coils Technical Information
Quick reference
D08 Specications ............................................................................................................................................................. CL - 6
Amp Junior Timer ..................................................................................................................................................... CL - 6
Deutsch ........................................................................................................................................................................ CL - 6
DIN 43650 ....................................................................................................................................................................CL - 7
Lead wires ................................................................................................................................................................... CL - 7
MetriPak 150 Type 1 ................................................................................................................................................ CL - 7
Spade ............................................................................................................................................................................ CL - 8
D10 Specications ............................................................................................................................................................. CL - 9
Deutsch ........................................................................................................................................................................ CL - 9
DIN 43650 ................................................................................................................................................................. CL - 10
Lead wires ................................................................................................................................................................ CL - 10
MetriPak 150 Type 1 ............................................................................................................................................. CL - 10
Dual Spade ............................................................................................................................................................... CL - 11
D14E Specications .......................................................................................................................................................... CL - 12
Quick Reference
Amp Jr. .......................................................................................................................................................................CL - 12
Deutsch ..................................................................................................................................................................... CL - 12
DIN 43650 ................................................................................................................................................................. CL - 13
Lead wires ................................................................................................................................................................ CL - 13
Metripak 150, type 1 ............................................................................................................................................ CL - 13
MetriPak 150, Type 2 ............................................................................................................................................ CL - 14
Dual Spade ............................................................................................................................................................... CL - 14
D14E35W Specications .......................................................................................................................................................... CL - 15
Amp Jr. .......................................................................................................................................................................CL - 15
Amp SuperSeal 1.5/MetriPak 150 Type 1 ...................................................................................................... CL - 15
Deutsch ..................................................................................................................................................................... CL - 16
DIN 43650 ................................................................................................................................................................. CL - 16
Lead wires ................................................................................................................................................................ CL - 16
Amp SuperSeal 1.5/MetriPak 150 Type 1 ...................................................................................................... CL - 17
Amp SuperSeal 1.5/MetriPak 150 Type 1 with diode Bi-Directional ................................................... CL - 17
Deutsch ..................................................................................................................................................................... CL - 18
Deutsch with diode, Bi-Directional ................................................................................................................. CL - 18
Lead wires ................................................................................................................................................................ CL - 18
Lead wires with diode, Bi-Directional ............................................................................................................ CL - 18
BC332376631124en-000101 • February 2020
CL - 1
Cartridge Valves Coils Technical Information
Quick reference
M13 Specications .......................................................................................................................................................... CL - 19
Amp Jr. .......................................................................................................................................................................CL - 19
Amp Jr w/diode...................................................................................................................................................... CL - 19
Amp SuperSeal 1.5/MetriPak 150 Type 1 ...................................................................................................... CL - 20
Amp SuperSeal 1.5/MetriPak 150 Type 1 w/diode .................................................................................... CL - 20
Deutsch .................................................................................................................................................................... .CL - 20
Deutsch w/diode ................................................................................................................................................... CL - 20
ISO 4400 (DIN 43650) ........................................................................................................................................... CL - 21
Lead wires ................................................................................................................................................................ CL - 21
Lead wires w/diode .............................................................................................................................................. CL - 21
M16 Specications .......................................................................................................................................................... CL - 22
Amp Jr. .......................................................................................................................................................................CL - 22
Amp Jr w/diode...................................................................................................................................................... CL - 22
Amp SuperSeal 1.5/MetriPak 150 Type 1 ...................................................................................................... CL - 23
Amp SuperSeal 1.5/MetriPak 150 Type 1 w/diode .................................................................................... CL - 23
Deutsch ..................................................................................................................................................................... CL - 23
Deutsch w/diode ................................................................................................................................................... CL - 23
ISO 4400 (DIN 43650) ........................................................................................................................................... CL - 24
Lead wires ................................................................................................................................................................ CL - 24
Lead wires w/diode .............................................................................................................................................. CL - 24
M19
M19P
Specications .......................................................................................................................................................... CL - 25
ISO 4400 (DIN 43650) ........................................................................................................................................... CL - 25
Lead Wires ................................................................................................................................................................ CL - 26
Deutsch ..................................................................................................................................................................... CL - 26
Deutsch w/diode ................................................................................................................................................... CL - 26
Amp Jr ...................................................................................................................................................................... CL - 27
Amp Jr w/diode ..................................................................................................................................................... CL - 27
Specications .......................................................................................................................................................... CL - 28
Deutsch ..................................................................................................................................................................... CL - 28
ISO 4400 (DIN 43650) ........................................................................................................................................... CL - 28
Lead wires ................................................................................................................................................................ CL - 29
Amp Jr ....................................................................................................................................................................... CL - 29
PDCV03 Specications .......................................................................................................................................................... CL - 30
DIN 43650 ................................................................................................................................................................. CL - 30
Deutsch ..................................................................................................................................................................... CL - 30
Lead wires ................................................................................................................................................................ CL - 30
Quick Reference
BC332376631124en-000101 • February 2020
CL - 2
Cartridge Valves Coils Technical Information
Quick reference
PDCV05 Specications .......................................................................................................................................................... CL - 31
ISO 4400 (DIN 43650) ........................................................................................................................................... CL - 31
Deutsch connector on lead wires .................................................................................................................... CL - 31
Lead wires ................................................................................................................................................................ CL - 31
R13 Specications .......................................................................................................................................................... CL - 32
Amp SuperSeal 1.5/MetriPak 150 Type 1 ...................................................................................................... CL - 32
Amp SuperSeal 1.5/MetriPak 150 Type 1 w/diode .................................................................................... CL - 32
Deutsch ..................................................................................................................................................................... CL - 33
Deutsch w/diode ................................................................................................................................................... CL - 33
Lead wires ................................................................................................................................................................ CL - 33
Lead wires w/diode .............................................................................................................................................. CL - 34
MetriPak 150, type 2 ............................................................................................................................................. CL - 34
MetriPak 150, type 2 w/diode ........................................................................................................................... CL - 34
R16 Specications .......................................................................................................................................................... CL - 35
Amp SuperSeal 1.5/MetriPak 150 Type 1 ...................................................................................................... CL - 35
Amp SuperSeal 1.5/MetriPak 150 Type 1 w/diode .................................................................................... CL - 35
Quick Reference
Deutsch ..................................................................................................................................................................... CL - 36
Deutsch w/diode ................................................................................................................................................... CL - 36
Lead wires ................................................................................................................................................................ CL - 36
Lead wires w/diode .............................................................................................................................................. CL - 37
MetriPak 150, type 2 ............................................................................................................................................. CL - 37
MetriPak 150, type 2 w/diode ........................................................................................................................... CL - 37
Coils Valve Tube Outer Diameter Coil Type Wattage Diode 10 VDC 12 VDC 20 VDC 24 VDC 110 / 220 VAC
D08 0.500 inch Standard 16 X X X X Internally Rectied
D10 0.625 inch Standard 16 & 30 X X X X Internally Rectied
M13 13 mm Standard 20 Unidirectional X X X X External Rectier Needed
M16 16 mm Standard 26 Unidirectional X X X X External Rectier Needed
M19 19 mm Standard 33 Unidirectional X X External Rectier Needed
D14E 0.875 inch Robust 30 X X X X
D14E (35W) 0.875 inch Robust 35 X X
R13 13 mm Robust 16 Bi-directional X X X X
R16 16 mm Robust 20 Bi-directional X X X X
H16 16mm Robust 29 Bi-directional X X
M19P 19 mm (proportional) Robust 22 X X
BC332376631124en-000101 • February 2020
CL - 3
Cartridge Valves Coils Technical Information
Application notes
COIL TERMINATION SPECIFICATIONS
Danfoss ICS coils can be ordered with fully encapsulated diodes. Diodes are used in electrical circuits to protect delicate downstream electronic components from power surges originating from the coil. Danfoss ICS standard coils employ uni-directional, polarity diodes. This means the installer must be careful not to reverse the “+” and “–“ terminals. If this should happen, the electrical current will destroy the diode and render the coil unusable. Danfoss ICS coils have a “1” and “2” molded in the connector for proper identication of the poles. If AC coils are used, external rectication is required (except D08 and D10, which are internally rectied).
Danfoss ICS Robust Coils R13, R16 and H16 employ bi-directional, transient voltage suppression diodes. Like standard coils, the diode is fully encapsulated in the plastic covering of the coil. Unlike standard coil diodes, bi-directional diodes are non-polarity dependent. Making electrical connections with Robust Coils is extremely easy because there is no danger of reversing the polarity.
Code Termination Specications
A DIN 43650 DIN 43650A/ISO 4400 standard electrical connector (includes connector for cartridge valves only)
AJ Amp Junior Integral to coil
AS Amp SuperSeal 1.5
(also conforms to
MetriPak 150 Type 1)
C Conduit Two 18 AWG wires, 457 mm [18 in] long with 1/2-14 NPT internal thread for conduit
DE Deutsch Integral to coil; mating connector is Deutsch IPD (Industrial Products Division) Part Number DT06-2S
DED Deutsch with diode Integral to coil; mating connector is Deutsch IPD (Industrial Products Division) Part Number DT06-2S
DN DIN 43650 DIN 43650A / ISO 4400 standard electrical connector
DN1 DIN 43650 “DN” with connector (for cartridge valves only)
DP Dual Post Two No. 8-32UNC screw terminals 9.5 mm [0.375 in] long
DT04 Deutsch Integral to coil; mating connector is Deutsch IPD (Industrial Products Division) Part Number DT06-2S
E1 DIN 43650 DIN 43650A / ISO 4400 standard electrical connector
E2 DIN 43650 with diode DIN 43650A / ISO 4400 standard electrical connector
E3 Amp Junior Integral to coil
E4 Amp Junior with
diode
E5 DIN 43650 with
rectier
E8 Lead wires Two 18 AWG wires, 457 mm [18 in] long
Integral to coil; mating connector is Delphi-Packard Part Number 12052641
Integral to coil
DIN 43650A / ISO 4400 standard electrical connector
Application Notes
BC332376631124en-000101 • February 2020
CL - 4
Application Notes
Cartridge Valves Coils Technical Information
Application notes
COIL TERMINATION SPECIFICATIONS continued
Code Termination Specications
E9 Lead wires with
diode
E10 Deutsch (on leads) On two 18 AWG lead wires, 203 mm [8 in] long with protective braid; mating connector is Deutsch IPD
E11 Deutsch (on leads)
with diode
E12 Deutsch Integral to coil; mating connector is Deutsch IPD (Industrial Products Division) Part Number DT06-2S
E13 Deutsch with diode Integral to coil; mating connector is Deutsch IPD (Industrial Products Division) Part Number DT06-2S
FL &
FL600
FLD Flying leads with
H DIN 43650 DIN 43650A / ISO 4400 standard electrical connector
L Lead Wires Two 18 AWG wires, 457 mm [18 in] long
M2 Metri-Pak 150 Type
M3 Metri-Pak 150 Type 2 Integral to coil; mating connector is Delphi-Packard Part Number 12040753
S Dual Spade Two 6.35 mm [0.25 in] wide Type 1B spade terminals per SAE J858A
S1 Single Spade One 6.35 mm [0.25 in] wide Type 1B spade terminal per SAE J858A with internal ground
SP
WPF Weatherpack Female On 150 mm [6 in] lead wires; mating connector is Delphi-Packard Part Number 12010973
WPM Weatherpack Male On 150 mm [6 in] lead wires; mating connector is Delphi-Packard Part Number 12015792
WPMD Weatherpack Male
Flying leads Two 18 AWG wires, 600 mm [24 in] long
diode
1 (also conforms to
Amp SuperSeal 1.5)
Dual Spade (M13 &
M16 coils)
Single Post (D08 &
D10 coils)
with diode
Two 18 AWG wires, 457 mm [18 in] long
(Industrial Products Division) Part Number DT06-2S
On two 18 AWG lead wires, 203 mm [8 in] long with protective braid; mating connector is Deutsch IPD
(Industrial Products Division) Part Number DT06-2S
Two 18 AWG wires, 600 mm [24 in] long
Integral to coil; mating connector is Delphi-Packard Part Number 12052641
Two 6.35 mm [0.25 in] wide Type 1B spade terminals per SAE J858A
One No. 8-32UNC Screw Terminals 9.5 mm [0.375 in] long with internal ground
On 150 mm [6 in] lead wires; mating connector is Delphi-Packard Part Number 12015792
Not all connectors available with all coils. Consult individual coil data sheets for details.
PLUS+1™ COMPLIANT Danfoss ICS solenoid valves are PLUS+1™ compliant. PLUS+1 compliance means our coils
are directly compatible with the PLUS+1 machine control architecture. Adding solenoid valves to your application using PLUS+1 GUIDE software is as easy as drag-and-drop. Software development that used to take months can now be done in just a few hours. For more information on PLUS+1 GUIDE, www.powersolutions.danfoss.com/Products/ MobileElectronics/PLUS1Compliance. The table below details available GUIDE function blocks for controlling Danfoss ICS coils.
GUIDE function blocks
On-o 10106088
On-o-on 10106102
Two-way proportional 10106103
Three-way proportional 10106104
BC332376631124en-000101 • February 2020
CL - 5
Cartridge Valves Coils Technical Information
56.6
[2.23]
12
56.6
[2.23]
12
D08
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
TERMINALS
• Duty cycle rating: 100% at 133% of rated voltage
• Magnet wire insulation: (200°C )
• Ambient temperature: -30 to 60 °C [-22 to 140 °F]
• Diodes are available; contact your Danfoss ICS representative.
• Environmental protection: IP65
• All AC coils are internally rectied
16 watt coils
Voltage (V) 10 VDC 12 VDC 20 VDC 24 VDC 110 VAC 220 VAC
Resistance (Ohms) @
20 °C [68 °F]
Current draw (A) @
20 °C [68 °F]
Color Green Grey Blue Black Black Black
Amp Junior Code AJ
6.3 9 25 36 900 3600
1.6 1.33 0.8 0.67 0.13 0.07
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D08-16W-10D-AJ
12 VDC 16 D08-16W-12D-AJ
20 VDC 16 D08-16W-20D-AJ
24 VDC 16 D08-16W-24D-AJ
Amp Junior w/Diode Code AJD
BC332376631124en-000101 • February 2020
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D08-16W-10D-AJD
12 VDC 16 D08-16W-12D-AJD
20 VDC 16 D08-16W-20D-AJD
24 VDC 16 D08-16W-24D-AJD
CL - 6
Cartridge Valves Coils Technical Information
12
60.7
[2.39]
45.2
[1.78]
12
D08
TERMINALS (continued)
Deutsch Code DE
Deutsch w/Diode Code DED
45.2
[1.78]
60.7
[2.39]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D08-16W-10D-DE
12 VDC 16 D08-16W-12D-DE
20 VDC 16 D08-16W-20D-DE
24 VDC 16 D08-16W-24D-DE
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D08-16W-10D-DED
12 VDC 16 D08-16W-12D-DED
20 VDC 16 D08-16W-20D-DED
24 VDC 16 D08-16W-24D-DED
DIN 43650 Code H
18.8
[0.74]
Lead wires Code L
18.8
[0.74]
BC332376631124en-000101 • February 2020
457.2 mm [18 in] long
457.2 mm [18 in] long
18 gauge
50.5
[1.99]
18 gauge
50.5
[1.99]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D08-16W-10D-H
12 VDC 16 D08-16W-12D-H
20 VDC 16 D08-16W-20D-H
24 VDC 16 D08-16W-24D-H
110 VAC 16 D08-16W-120A-H
220 VAC 16 D08-16W-240A-H
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D08-16W-10D-L
12 VDC 16 D08-16W-12D-L
20 VDC 16 D08-16W-20D-L
24 VDC 16 D08-16W-24D-L
CL - 7
Cartridge Valves Coils Technical Information
D08
TERMINALS (continued)
MetriPak 150 Type 1 Code M2
Spade Code S
6
[0.24]
15
[0.59]
44
[1.74]
17.8
[0.70]
10
[0.40]
60
[2.20]
49.3
[1.94]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D08-16W-10D-M2
12 VDC 16 D08-16W-12D-M2
20 VDC 16 D08-16W-20D-M2
24 VDC 16 D08-16W-24D-M2
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D08-16W-10D-S
12 VDC 16 D08-16W-12D-S
20 VDC 16 D08-16W-20D-S
24 VDC 16 D08-16W-24D-S
BC332376631124en-000101 • February 2020
CL - 8
Cartridge Valves Coils Technical Information
D10 16 watt coils
Percent RatedVoltage
2
2
D10
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
• Duty cycle rating: 100% at 133% of rated voltage
• Magnet wire insulation: (200°C )
• Ambient temperature: -30 to 90 °C [-22 to 194 °F]
• Diodes are available; contact your Danfoss ICS representative.
• Environmental protection: IP65
• All AC coils are internally rectied
100
90
Minimum Pull-in
80
Voltage
70
60
50
40
30
20
10
0
Ambient Temperature (deg C )
-10
-20 70% 80% 90% 100% 110% 120% 130% 140%
Maximum
Operating Limit
16 watt coils
Voltage (V) 10 VDC 12 VDC 20 VDC 24 VDC 110 VAC 220 VAC
Resistance (Ohms) @
6.3 9 25 36 900 3600
20 °C [68 °F]
Current draw (A) at
1.6 1.33 0.8 0.67 0.13 0.07
25 °C [68 °F]
Color Green Grey Blue Black Black Black
30 watt coils
Voltage (V) 10 VDC 12 VDC 20 VDC 24 VDC 110 VAC 220 VAC
Resistance (Ohms) @
20 °C [68 °F]
Current draw (A) @
20 °C [68 °F]
Color Green Grey Blue Black Black Black
3.3 4.8 13 19 480 1920
3 2.5 1.5 1.25 0.25 0.13
TERMINALS
Deutsch Code DE
Deutsch w/diode Code DED
BC332376631124en-000101 • February 2020
68.33
[2.690]
68.33
[2.690]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D10-16W-10D-DE
12 VDC 16 D10-16W-12D-DE
20 VDC 16 D10-16W-20D-DE
24 VDC 16 D10-16W-24D-DE
10 VDC 30 D10-30W-10D-DE
1
12 VDC 30 D10-30W-12D-DE
20 VDC 30 D10-30W-20D-DE
24 VDC 30 D10-30W-24D-DE
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D10-16W-10D-DED
12 VDC 16 D10-16W-12D-DED
20 VDC 16 D10-16W-20D-DED
1
24 VDC 16 D10-16W-24D-DED
10 VDC 30 D10-30W-10D-DED
12 VDC 30 D10-30W-12D-DED
20 VDC 30 D10-30W-20D-DED
24 VDC 30 D10-30W-24D-DED
CL - 9
Cartridge Valves Coils Technical Information
D10
TERMINALS (continued)
DIN 43650 Code H
Lead wires Code L
Din(43650 connector)
Two 18 awg leads extending 457.2 mm [18 in] min
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D10-16W-10D-H
12 VDC 16 D10-16W-12D-H
20 VDC 16 D10-16W-20D-H
24 VDC 16 D10-16W-24D-H
110 VAC 16 D10-16W-120A-H
220 VAC 16 D10-16W-240A-H
10 VDC 30 D10-30W-10D-H
12 VDC 30 D10-30W-12D-H
20 VDC 30 D10-30W-20D-H
24 VDC 30 D10-30W-24D-H
110 VAC 30 D10-30W-120A-H
220 VAC 30 D10-30W-240A-H
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D10-16W-10D-L
12 VDC 16 D10-16W-12D-L
20 VDC 16 D10-16W-20D-L
24 VDC 16 D10-16W-24D-L
10 VDC 30 D10-30W-10D-L
12 VDC 30 D10-30W-12D-L
20 VDC 30 D10-30W-20D-L
24 VDC 30 D10-30W-24D-L
MetriPak 150 Type 1 Code M2
66.70
[2.626]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D10-16W-10D-M2
12 VDC 16 D10-16W-12D-M2
20 VDC 16 D10-16W-20D-M2
24 VDC 16 D10-16W-24D-M2
10 VDC 30 D10-30W-10D-M2
12 VDC 30 D10-30W-12D-M2
20 VDC 30 D10-30W-20D-M2
24 VDC 30 D10-30W-24D-M2
BC332376631124en-000101 • February 2020
CL - 10
Cartridge Valves Coils Technical Information
D10
TERMINALS (continued)
Dual Spade Code S
14.25
M3-0.5 threaded insert
6.4 [0.25] minimum
[0.561]
good thread
[0.228]
16.94
[0.667]
5.79
28.35
[1.116]
SAE type 1B 1/4 wide per SAE J858A
66.78
[2.629]
56.52
[2.225]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 D10-16W-10D-S
12 VDC 16 D10-16W-12D-S
20 VDC 16 D10-16W-20D-S
24 VDC 16 D10-16W-24D-S
10 VDC 30 D10-30W-10D-S
12 VDC 30 D10-30W-12D-S
20 VDC 30 D10-30W-20D-S
24 VDC 30 D10-30W-24D-S
BC332376631124en-000101 • February 2020
CL - 11
Cartridge Valves Coils Technical Information
%
Ambient temperature °c
[Ø0.88]
]
D14E
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
TERMINALS
• Duty cycle rating: 100% at 133% of rated voltage and 50°C [122°F]
• Magnet wire insulation: (200°C)
• Ambient temperature: -40 to 50 °C [-40 to 112 °F]
• Diodes are available; contact your Danfoss ICS representative.
• Environmental protection:
IP69K: DE and L connectors IP67: AJ, M2, and M3 connectors IP65: all other connectors
Ambient temperature versus % rated voltage
Min pull-in voltage
120
100
80
60
40
20
-0
-20
-40 70% 80% 90% 100%110%120%130%140
% Rated voltage applied
30 watt coils
Voltage (V) 10 VDC 12 VDC 20 VDC 24 VDC
Resistance (Ohms) @
20 °C [68 °F]
Current draw (A) @
20 °C [68 °F]
Color Green Gray Blue Yellow
Amp Jr. Code AJ
3.3 4.8 13 19
3 2.5 1.5 1.25
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 30 D14E-30W-10D-AJ
42.4
[1.67]
12 VDC 30 D14E-30W-12D-AJ
20 VDC 30 D14E-30W-20D-AJ
24 VDC 30 D14E-30W-24D-AJ
100% Operating level
Ø22.2
59.0
[2.32]
Deutsch Code DE
59.0
[2.32]
BC332376631124en-000101 • February 2020
Ø44.9
[Ø1.77]
Ø44.9
[Ø1.77]
43.2
[1.70]
Ø22.2
[Ø0.88
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 30 D14E-30W-10D-DE
12 VDC 30 D14E-30W-12D-DE
20 VDC 30 D14E-30W-20D-DE
24 VDC 30 D14E-30W-24D-DE
CL - 12
Cartridge Valves Coils Technical Information
59.0
[2.32]
Ø44.9
[Ø1.77]
Ø22.2
[Ø0.88]
39.8 [1.57]
457
[18]
Ø22.2
[Ø0.88]
Ø44.9
[Ø1.77]
40.5 [1.60]
59.0
[2.32]
59.0
[2.32]
Ø44.9
[Ø1.77]
Ø22.2
[Ø0.88]
39.8 [1.57]
457
[18]
D14E
TERMINALS (continued)
Deutsch w/diode Code DED
59.0
[2.32]
DIN 43650 Code H
Pin 1 Pin 2
Ø44.9
[Ø1.77]
43.2
[1.70]
Ø22.2
[Ø0.88]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 30 D14E-30W-10D-DED
12 VDC 30 D14E-30W-12D-DED
20 VDC 30 D14E-30W-20D-DED
24 VDC 30 D14E-30W-24D-DED
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 30 D14E-30W-10D-H
12 VDC 30 D14E-30W-12D-H
20 VDC 30 D14E-30W-20D-H
24 VDC 30 D14E-30W-24D-H
Lead wires Code L
Lead wires w/diode Code DLD
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 30 D14E-30W-10D-L
12 VDC 30 D14E-30W-12D-L
20 VDC 30 D14E-30W-20D-L
24 VDC 30 D14E-30W-24D-L
Part numbers
Voltage (V) Power (W) Part Number
1
2
10 VDC 30 D14E-30W-10D-DLD
12 VDC 30 D14E-30W-12D-DLD
20 VDC 30 D14E-30W-20D-DLD
24 VDC 30 D14E-30W-24D-DLD
BC332376631124en-000101 • February 2020
CL - 13
Cartridge Valves Coils Technical Information
[Ø1.77]
[Ø0.88]
D14E
TERMINALS (continued)
Metripak 150, type 1 Code M2
59.1 [2.33]
MetriPak 150, Type 2 Code M3
Ø44.9
40.4
[1.59]
Ø22.3
[Ø0.88]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 30 D14E-30W-10D-M2
12 VDC 30 D14E-30W-12D-M2
20 VDC 30 D14E-30W-20D-M2
24 VDC 30 D14E-30W-24D-M2
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 30 D14E-30W-10D-M3
12 VDC 30 D14E-30W-12D-M3
20 VDC 30 D14E-30W-20D-M3
24 VDC 30 D14E-30W-24D-M3
Dual Spade Code S
59.0
[2.32]
Ø44.9 [Ø1.77]
43.1
[1.70]
Ø22.2
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 30 D14E-30W-10D-S
12 VDC 30 D14E-30W-12D-S
20 VDC 30 D14E-30W-20D-S
24 VDC 30 D14E-30W-24D-S
BC332376631124en-000101 • February 2020
CL - 14
Cartridge Valves Coils Technical Information
[Ø0.88]
[Ø1.77]
D14E(35W)
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
TERMINALS
• Magnet wire insulation: (200°C)
• Maximum continuous current 1.8 A (at 12 V) 0.9 A (at 24 V)
• Ambient temperature: -40 to 50 °C [-40 to 122 °F]
• Environmental protection:
IP69K: DE and FL connectors IP67: AJ and AS connectors IP65: all other connectors
• Used only on proportional valves with current control
35 watt coils
Voltage (V) 12 VDC 24 VDC
Resistance (Ohms) @
20 °C [68 °F]
Current draw (A) @
20 °C [68 °F]
Color Gray Yellow
4.1 17
2.9* 1.4*
*Maximum continuous current is 1.8A (12VDC) and 0.9 A (24 VDC)
Amp Jr. Code AJ
42.4
[1.67]
Part numbers
Voltage (V) Power (W) Part Number
12 VDC 35 D14E-12D-1.8A-AJ
24 VDC 35 D14E-24D-0.9A-AJ
59.0
[2.32]
Amp SuperSeal 1.5/MetriPak 150 Type 1 Code AS
59.1 [2.33]
BC332376631124en-000101 • February 2020
Ø44.9 [Ø1.77]
Ø44.9
Ø22.2
40.4
[1.59]
Ø22.3
[Ø0.88]
Part numbers
Voltage (V) Power (W) Part Number
12 VDC 35 D14E-12D-1.8A-AS
24 VDC 35 D14E-24D-0.9A-AS
CL - 15
Cartridge Valves Coils Technical Information
]
]
[Ø1.77]
[2.32]
D14E(35W)
TERMINALS (continued)
Deutsch Code DE
59.0
[2.32]
DIN 43650 Code DN
59.0
[2.32]
Ø44.9
[Ø1.77]
Ø44.9
43.2
[1.70]
Ø22.2
[Ø0.88
40.5
[1.60]
Ø22.2
[Ø0.88
Part numbers
Voltage (V) Power (W) Part Number
12 VDC 35 D14E-12D-1.8A-DE
24 VDC 35 D14E-24D-0.9A-DE
Part numbers
Voltage (V) Power (W) Part Number
12 VDC 35 D14E-12D-1.8A-DN
24 VDC 35 D14E-24D-0.9A-DN
Lead wires Code FL
59.0
Ø44.9
[Ø1.77]
457
[18]
39.8 [1.57]
Ø22.2 [Ø0.88]
Part numbers
Voltage (V) Power (W) Part Number
12 VDC 35 D14E-12D-1.8A-FL
24 VDC 35 D14E-24D-0.9A-FL
BC332376631124en-000101 • February 2020
CL - 16
Cartridge Valves Coils Technical Information
H16
SPECIFICATIONS • Duty cycle: 100% at 115% of rated voltage
at 40°C [104°F]
• Magnet wire insulation: (200°C)
• Ambient temperature range: -20 to 40 °C [-4 to 104 °F]
• Environmental protection rating:
IP69K: AS, DE, FL and M3
• Input voltage range: 85% to 115% of rated voltage
• Optional bi-directional transient voltage suppression diodes: Non polarity dependent, 51 volt nominal breakdown voltage
• Weight: 0.34 kg [0.75 lb]
ELECTRICAL SPECIFICATIONS
TERMINALS
29 watt coils
Voltage (V) 12 VDC 24 VDC
Resistance (Ohms) @ 20 °C [68 °F] 4.8 19.8
Current draw (A) @ 20 °C [68 °F] 2.48 1.21
Amp SuperSeal 1.5/MetriPak 150 Type 1 Code AS
Amp SuperSeal 1.5/MetriPak 150 Type 1 w/Diode Bi-Directional Code ASDB
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 4.8 H16-12D-29W-AS
24 19.8 H16-24D-29W-AS
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 4.8 H16-12D-29W-AS-DB
24 19.8 H16-24D-29W-AS-DB
BC332376631124en-000101 • February 2020
CL - 17
Cartridge Valves Coils Technical Information
H16
TERMINALS (continued)
Deutsch Code DE
Deutsch w/Diode, Bi-Directional Code DEDB
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 4.8 H16-12D-29W-DE
24 19.8 H16-24D-29W-DE
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 4.8 H16-12D-29W-DE-DB
24 19.8 H16-24D-29W-DE-DB
Lead wires Code FL
Lead wires w/Diode, Bi-Directional Code FLDB
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 4.8 H16-12D-29W-FL
24 19.8 H16-24D-29W-FL
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 4.8 H16-12D-29W-FL-DB
24 19.8 H16-24D-29W-FL-DB
BC332376631124en-000101 • February 2020
CL - 18
Cartridge Valves Coils Technical Information
140
Ambient Te
mperature (deg C)
Pin 2 Pin 1 Pin 2 Pin 1
M13
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
• Duty cycle: 100% at 115% of rated voltage at 40°C [104°F]
• Magnet wire insulation: (200°C)
• Ambient temperature range: -20 to 40 °C [-4 to 104 °F]
• Environmental protection rating:
IP69K: DE IP67: AJ , AS, and M3 term IP65: FL and DN
• Input voltage range: 85% to 115% of rated voltage
• Temperature rise at 115% of rated voltage:
100
90
Minimum
80
Pull-in
70
Voltage
60 50
40 30 20
10
0
-10
-20 70 80 90 100 110 120 130
M1320 watt Coil
Continuous
Operating
Limit
Percent Rated Voltage
130°C [266°F] above ambient
• AC coils require external rectier
• Weight: 0.2 kg [0.44 lb]
20 watt coils
Voltage (V) 10 VDC 12 VDC 20 VDC 24 VDC 110 VAC 220 VAC
Resistance (Ohms) @
20 °C [68 °F]
Current draw (A) @
20 °C [68 °F]
5 7.2 20 29 530 2306
2 1.67 1 0.83 0.18 0.085
TERMINALS
Amp Jr. Code AJ
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 M13-10D-20W-AJ
16.9 [0.67]
29.1[1.15]
12 VDC 20 M13-12D-20W-AJ
20 VDC 20 M13-20D-20W-AJ
24 VDC 20 M13-24D-20W-AJ
17115431
45.5 [1.79]
M13-10D-20W-AJ
39.3[1.55]
Amp Jr. w/diode Code AJD
59.5 [2.34]
Ø13.15 [0.518]
32.8[1.29]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 M13-10D-20W-AJD
16.9 [0.67]
29.1[1.15]
12 VDC 20 M13-12D-20W-AJD
20 VDC 20 M13-20D-20W-AJD
24 VDC 20 M13-24D-20W-AJD
45.5 [1.79]
17115431
M13-10D-20W-AJ
39.3[1.55]
59.5 [2.34]
Ø13.15 [0.518]
32.8[1.29]
BC332376631124en-000101 • February 2020
CL - 19
Cartridge Valves Coils Technical Information
39.3 [1.55]
45.5 [1.79]
Ø13.15 [0.518]
32.8[1.29]
29.1
[1.15]
64.9[2.55]
17115471
M13-10D-20W-AS
Pin 2
Pin 1
45.5 [1.79]
39.3 [1.55]
32.8[1.29]
Ø13.15 [0.518]
29.1[1.15]
64.9 [2.55]
M13-10D-20W-DE-D
17116561
Pin 1
Pin 2
2
1
M13
TERMINALS (continued)
Amp SuperSeal 1.5/MetriPak 150 Type 1 Code AS
Amp SuperSeal 1.5/MetriPak 150 Type 1 w/diode Code ASD
45.5 [1.79]
17115471
M13-10D-20W-AS
39.3 [1.55]
64.9[2.55]
29.1
[1.15]
Ø13.15 [0.518]
32.8[1.29]
Pin
Pin 1
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 M13-10D-20W-AS
12 VDC 20 M13-12D-20W-AS
20 VDC 20 M13-20D-20W-AS
24 VDC 20 M13-24D-20W-AS
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 M13-10D-20W-ASD
12 VDC 20 M13-12D-20W-ASD
20 VDC 20 M13-20D-20W-ASD
24 VDC 20 M13-24D-20W-ASD
Deutsch Code DE
Deutsch w/diode Code DED
17116561
45.5 [1.79]
M13-10D-20W-DE-D
39.3 [1.55]
64.9 [2.55]
29.1[1.15]
Ø13.15 [0.518]
32.8[1.29]
Pin
Pin 2
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 M13-10D-20W-DE
12 VDC 20 M13-12D-20W-DE
20 VDC 20 M13-20D-20W-DE
24 VDC 20 M13-24D-20W-DE
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 M13-10D-20W-DED
12 VDC 20 M13-12D-20W-DED
20 VDC 20 M13-20D-20W-DED
24 VDC 20 M13-24D-20W-DED
BC332376631124en-000101 • February 2020
CL - 20
Cartridge Valves Coils Technical Information
32.8 [1.29]
9.0 [0.35]
32.8 [1.29]
TWOLEADS
TWO LEADS
32.8 [1.29]
M13
TERMINALS (continued)
ISO 4400 (DIN 43650) Code DN
17113971
45.5 [1.79]
M13-12D-20W-DN
39.3 [1.55]
Ø13.15 [0.518]
Lead wires Code FL
Ø1.2 [0.05]
Ø2.0 [0.08]
16.8[0.66]
45.5 [1.79]
EXTENDING 593±10
M13-10D-20W-FL
[23.4±.4]
17115491
14.8 [0.58]
29.1[1.15]
29.1
[1.15]
LENGTH
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 M13-10D-20W-DN
12 VDC 20 M13-12D-20W-DN
20 VDC 20 M13-20D-20W-DN
24 VDC 20 M13-24D-20W-DN
110 VAC* 18.5 M13-110A-18.5W-DN
220 VAC* 17 M13-220A-17W-DN
*External rectier needed
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 M13-10D-20W-FL
12 VDC 20 M13-12D-20W-FL
20 VDC 20 M13-20D-20W-FL
24 VDC 20 M13-24D-20W-FL
39.3[1.55]
Ø13.15 [0.518]
Lead wires w/diode Code FLD
EXTENDING 593±10
Ø1.2 [0.05]
Ø2.0 [0.08]
16.8 [0.66]
17116641
45.5 [1.79]
M13-10D-20W-FL-D
39.3 [1.55]
Ø13.15 [0.518]
[23.4±.4]
29.1[1.15]
Red (+)Black (-)
LENGTH
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 M13-10D-20W-FLD
12 VDC 20 M13-12D-20W-FLD
20 VDC 20 M13-20D-20W-FLD
24 VDC 20 M13-24D-20W-FLD
BC332376631124en-000101 • February 2020
CL - 21
Cartridge Valves Coils Technical Information
140%
Ambient Temperature
(deg
C)
1711XXXX
M16-10D-26W-AJ
32.5 [1.28]
44.5 [1.75
25.0 [0.98]
37.5 [1.48]
50.2 [1.98]
Ø39.0[1.54]
Ø16.15[0.638]
Pin 1 Pin 2
1711XXXX
M16-10D-26W-AJ
32.5 [1.28]
44.5 [1.75
25.0 [0.98]
37.5 [1.48]
50.2 [1.98]
Ø39.0[1.54]
Ø16.15[0.638]
Pin 1 Pin 2
M16
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
• Duty cycle: 100% at 115% of rated voltage at 40°C [104°F]
• Magnet wire insulation: (200°C)
• Ambient temperature range: -20 to 40 °C [-4 to 104 °F]
• Environmental protection rating:
IP69K: DE IP67: AJ , AS, and M3 term IP65: FL and DN
• Input voltage range: 85% to 115% of rated voltage
100
90
80
Minimum Pull-
70 60 50 40 30 20 10
0
-10
70%
in Voltage
80%
M1626watt coil
Continuous
Operating Limit
90% 100% 110% 120% 130%
Percent Rated Voltage
• Temperature rise at 115% of rated voltage: 130°C [266°F] above ambient
• AC coils require external rectier
• Weight: 0.24 kg [0.53 lb]
26 watt coils
Voltage (V) 10 VDC 12 VDC 20 VDC 24 VDC 110 VAC 220 VAC
Resistance (Ohms) @
20 °C [68 °F]
Current draw (A) @
20 °C [68 °F]
4 5.6 15 22 420 1600
2.5 2.14 1.33 1.1 0.27 0.12
TERMINALS
Amp Jr. Code AJ
Amp Jr. w/diode Code AJD
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 26 M16-10D-26W-AJ
12 VDC 26 M16-12D-26W-AJ
20 VDC 26 M16-20D-26W-AJ
24 VDC 26 M16-24D-26W-AJ
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 26 M16-10D-26W-AJD
12 VDC 26 M16-12D-26W-AJD
20 VDC 26 M16-20D-26W-AJD
24 VDC 26 M16-24D-26W-AJD
BC332376631124en-000101 • February 2020
CL - 22
Cartridge Valves Coils Technical Information
57.8[2.28]
[0.636]
[0.636]
[0.636]
57.8[2.28]
M16
TERMINALS (continued)
Amp SuperSeal 1.5/MetriPak 150 Type 1 Code AS
38.3[1.51]
Ø39.0 [1.54]
1711XXXX
M16-10D-26W-AS
50.2 [1.98]
25.0 [0.98]
Pin 2Pin 1
Ø16.15
37.5[1.48]
Amp SuperSeal 1.5/MetriPak 150 Type 1 w/diode Code ASD
38.3[1.51]
Ø39.0 [1.54]
1711XXXX
M16-10D-26W-AS
25.0 [0.98]
Pin 2Pin 1
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 26 M16-10D-26W-AS
12 VDC 26 M16-12D-26W-AS
20 VDC 26 M16-20D-26W-AS
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 26 M16-10D-26W-ASD
12 VDC 26 M16-12D-26W-ASD
20 VDC 26 M16-20D-26W-ASD
24 VDC 26 M16-24D-26W-ASD
50.2 [1.98]
Deutsch Code DE
Ø39.0[1.54]
1711XXXX
M16-10D-26W-DE-D
50.2[1.98]
Deutsch w/diode Code DED
Ø39.0[1.54]
1711XXXX
M16-10D-26W-DE-D
64.5[2.54]
45.0[1.77]
25.0[0.98]
Pin 1 Pin 2
64.5[2.54]
45.0[1.77]
25.0[0.98]
Pin 1 Pin 2
Ø16.15 [0.636]
37.5[1.48]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 26 M16-10D-26W-DE
12 VDC 26 M16-12D-26W-DE
20 VDC 26 M16-20D-26W-DE
24 VDC 26 M16-24D-26W-DE
Ø16.15
37.5[1.48]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 26 M16-10D-26W-DED
12 VDC 26 M16-12D-26W-DED
20 VDC 26 M16-20D-26W-DED
24 VDC 26 M16-24D-26W-DED
50.2[1.98]
BC332376631124en-000101 • February 2020
Ø16.15
37.5[1.48]
CL - 23
Cartridge Valves Coils Technical Information
32.5
TWO LEADS EXTENDING
1711XXXX
M16-10D-26W-FL-D
50.2 [1.98]
Ø39.0[1.54]
32.5 [1.28]
Ø2.0 [0.08]
Ø1.2 [0.05]
LENGTH
51.5[2.03]
25.0[0.98]
Ø16.15 [0.636]
37.5[1.48]
TWO LEADS EXTENDING 593 mm ±10[24.3±.4] MIN.
Black (-) Red (+)
M16
TERMINALS (continued)
ISO 4400 (DIN 43650) Code DN
17.7[0.70]
Ø39.0[1.54]
1711XXXX
M16-10D-26W-DN
50.2[1.98]
Ø16.15 [0.636]
37.5[1.48]
Lead wires Code FL
593 mm ±10[24.3±.4] MIN.
Ø1.2 [0.05]
Ø2.0 [0.08]
[1.28]
1711XXXX
M16-10D-26W-FL-D
44.5 [1.75]
25.0[0.98]
51.5[2.03]
25.0[0.98]
Black (-) Red (+)
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 26 M16-10D-26W-DN
12 VDC 26 M16-12D-26W-DN
20 VDC 26 M16-20D-26W-DN
24 VDC 26 M16-24D-26W-DN
110 VAC* 22 M16-110A-22W-DN
220 VAC* 20 M16-220A-20W-DN
*External rectier needed
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 26 M16-10D-26W-FL
12 VDC 26 M16-12D-26W-FL
20 VDC 26 M16-20D-26W-FL
24 VDC 26 M16-24D-26W-FL
LENGTH
50.2 [1.98]
Ø39.0[1.54]
Lead wires w/diode Code FLD
Ø16.15 [0.636]
37.5[1.48]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 26 M16-10D-26W-FLD
12 VDC 26 M16-12D-26W-FLD
20 VDC 26 M16-20D-26W-FLD
24 VDC 26 M16-24D-26W-FLD
BC332376631124en-000101 • February 2020
CL - 24
Cartridge Valves Coils Technical Information
M19
SPECIFICATIONS
• Duty cycle: 100% at 115% of rated voltage at 40°C [104° F]
• Magnet wire insulation: (200° C)
• Ambient temperature range: -20° to 40° C [-4° to 104° F]
• Environmental protection rating: IP65 (DN &FL), IP67 (AJ, AJD), IP69K (DE, DED)
• Input voltage range: 85% to 115% of rated voltage
• Temperature rise at 115% of rated voltage: 130° C [266° F] above ambient temperature
• Weight: 0.37 kg [0.82 lb]
• AC Coils require external rectier
ELECTRICAL SPECIFICATIONS
TERMINALS
ISO 4400 (DIN 43650) Code DN
Voltage 12 VDC 24 VDC 110 VAC 220 VAC
Resistance (Ohms) @ 20° C [68F]
Current draw (A) at 25° C [68° F]
4.4 17 287 1190
2.76 1.38 0.337 0.163
Voltage (V) Power (W) Part Number
12VDC 33 M19-12D-33W-DN
24VDC 33 M19-24D-33W-DN
110VAC* 33 M19-110RA-33W-DN
220VAC* 33 M19-220RA-33W-DN
* External rectier needed
BC332376631124en-000101 • February 2020
CL - 25
Cartridge Valves Coils Technical Information
M19
LEAD WIRES CODE FL
DEUTSCH CODE DE
Voltage (V) Power (W) Part Number
12VDC 33 M19-12D-33W-AJ
24VDC 33 M19-24D-33W-AJ
Voltage (V) Power (W) Part Number
12VDC 33 M19-12D-33W-DE
24VDC 33 M19-24D-33W-DE
DEUTSCH WITH DIODE CODE DED
Pin 1
BC332376631124en-000101 • February 2020
Voltage (V) Power (W) Part Number
12VDC 33 M19-12D-33W-DED
24VDC 33 M19-24D-33W-DED
Pin 2
CL - 26
AMP JR. CODE AJ
Cartridge Valves Coils Technical Information
M19
Voltage (V) Power (W) Part Number
12VDC 33 M19-12D-33W-AJ
24VDC 33 M19-24D-33W-AJ
AMP JR. WITH DIODE CODE AJD
Voltage (V) Power (W) Part Number
12VDC 33 M19-12D-33W-AJD
24VDC 33 M19-24D-33W-AJD
Pin 2
Pin 1
BC332376631124en-000101 • February 2020
CL - 27
Cartridge Valves Coils Technical Information
M19P
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
TERMINALS
• Magnet wire insulation: (200°C)
• Duty cycle rating: 100%
• Maximum continuous current 1.8 A (at 12 V) 0.9 A (at 24 V)
• Ambient temperature range: -20 to 40 °C [-4 to 104 °F]
• Environmental protection: IP69K (DE connector), IP65 (all other connectors)
• Weight: 0.37 kg [0.82 lb]
• Used only on proportional valves with current control
22 watt coils
Voltage (V) 12 VDC 24 VDC
Resistance (Ohms) @ 20 °C [68 °F] 3.7 16
Current draw (A) @ 20 °C [68 °F] 3.2* 1.5*
* Maximum continuous current 1.8 A (12 VDC) 0.9 A (at 24 VDC)
Deutsch Code DE
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 VDC 3.7 M19P-12D-1.8A-DE
12L VDC (IS2) 7.2 M19P-12D-1.1A-DE
24 VDC 15.5 M19P-24D-0.9A-DE
24 L VDC (IS2) 28.8 M19P-24D-0.55A-DE
(IS2) Used with PRV10-IS2 and PRV12-IS2 proportional valves
ISO 4400 (DIN 43650) Code DN
BC332376631124en-000101 • February 2020
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 VDC 3.7 M19P-12D-1.8A-DN
24 VDC 15.5 M19P-24D-0.9A-DN
CL - 28
Cartridge Valves Coils Technical Information
M19P
TERMINALS (continued)
Lead wires Code FL
Amp Jr. Code AJ
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 VDC 3.7 M19P-12D-1.8A-FL
24 VDC 16 M19P-24D-0.9A-FL
Part numbers
Voltage (V) Resistance (Ohm) Part Number
12 VDC 3.7 M19P-12D-1.8A-AJ
24 VDC 15.5 M19P-24D-0.9A-AJ
BC332376631124en-000101 • February 2020
CL - 29
Cartridge Valves Coils Technical Information
27.5
[1.08]
44.0
[1.73]
PDCV03
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
TERMINALS
• Duty cycle rating: 100%
• Magnet wire insulation: (200°C )
• Ambient temperature: -30 to 50 °C [-22 to 122 °F]
• Diodes are available; contact your Danfoss ICS representative.
• Environmental protection: IP67 (E12 connector), IP65 (all other connectors)
• Input voltage tolerance: ± 10%
40 watt coils
Voltage (V) 12 VDC 24 VDC
Resistance (Ohms) @
20 °C [68 °F]
3.6 14
DIN 43650 Code E1
46.0
[1.81]
34.0
[1.34]
Part numbers
Voltage (V) Power (W) Part Number
12 VDC 40 158-8063
24 VDC 40 158-8065
Deutsch Code E12
Part numbers
Voltage (V) Power (W) Part Number
12 VDC 40 158-8067
24 VDC 40 11079667
Lead wires Part numbers
Voltage (V) Power (W) Part Number
12 VDC 40 158-8090
24 VDC 40 158-8091
BC332376631124en-000101 • February 2020
CL - 30
Cartridge Valves Coils Technical Information
[2.44]
200
[7.9]
74.1
[2.92]
62.0
[2.44]
31.1
[1.22]
42.8
[1.68]
Ø
Ø
200 [7.9]
74.1
[2.92]
62.0
[2.44]
Ø
31.1
[1.22]
42.8
[1.68]
Ø
PDCV05
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
TERMINALS
• Duty cycle rating: 100% at 100% of rated current at 50°C [122 ° F]
• Magnet wire insulation: (200°C) Ambient temperature: -20 to +50 C [-4 to +122 deg F]
• Environmental protection: IP65
• Weight: 0.45kg [1.0 lb]
30 watt coils
Voltage (V) 12 VDC 24 VDC
Resistance (Ohms) @
2.3 13
20 °C [68 °F]
Current draw (A) @
2.5 1.25
20 °C [68 °F]
ISO 4400 (DIN 43650) Part numbers
Voltage (V) Power (W) Part Number
12 VDC 30 158-8096
24 VDC 30 158-8097
74.1
[2.92]
42.8
[1.68]
31.1
[1.22]
62.0
Duetsch connector on lead wires Code E10
Lead wires
Part numbers
Voltage (V) Power (W) Part Number
12 VDC 30 Consult factory
24 VDC 30 Consult factory
Part numbers
Voltage (V) Power (W) Part Number
12 VDC 30 158-8092
24 VDC 30 158-8093
BC332376631124en-000101 • February 2020
CL - 31
Cartridge Valves Coils Technical Information
%
Ambient temperature °c
R13
SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
TERMINALS
• Duty cycle: 100% at 133% of rated voltage and 70°C [158°F]
• Magnet wire insulation: (200°C)
• Ambient temperature range: -40 to +70 °C [-40 to 158 °F]
• Environmental rating:
IP69K: AS, DE, FL and M3
• Input voltage range: 75% to 133% of rated voltage
• Optional bi-directional, transient voltage suppression diodes: Non polarity dependent, 51 volt nominal breakdown
Ambient temperature versus % rated voltage
Min pull-in voltage
120
100
80
60
40
20
-0
-20
-40 70% 80% 90% 100%110%120%130%140
voltage.
• Weight: 0.22 kg [0.49 lb]
16 watt coils
Voltage (V) 10 VDC 12 VDC 20 VDC 24 VDC
Resistance (Ohms) @
20 °C [68 °F]
Current draw (A) @
20 °C [68 °F]
Color Green Gray Blue Yellow
Amp SuperSeal 1.5/MetriPak 150 Type 1 Code AS
2
1
41.5 REF
6.2 9 25 36
1.62 1.34 0.81 0.67
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 R13-10D-16W-AS
12 VDC 16 R13-12D-16W-AS
20 VDC 16 R13-20D-16W-AS
24 VDC 16 R13-24D-16W-AS
[1.64]
R13-12D­16W-AS
Nm
COIL
NUT
4-6
TORQUE
100% Operating level
% Rated voltage applied
42.5
[1.67]
Ø13.1 [0.52]
35.8
[1.41]
Amp SuperSeal 1.5/MetriPak 150 Type 1 w/Diode Bi-Directional
38.8
[1.53]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 R13-10D-16W-ASDB
2
BC332376631124en-000101 • February 2020
Ø13.1 [0.52]
35.8
[1.41]
1
41.5 REF [1.64]
R13-12D­16W-AS-D
Nm
38.8
[1.53]
12 VDC 16 R13-12D-16W-ASDB
NUT
4-6
TORQUE
COIL
42.5
[1.67]
20 VDC 16 R13-20D-16W-ASDB
24 VDC 16 R13-24D-16W-ASDB
CL - 32
Cartridge Valves Coils Technical Information
Flying Leads
R13
TERMINALS (continued)
Deutsch Code DE
12
44.4REF [1.75]
Ø13.1 [0.52]
35.8
[1.41]
2
[1.53]
Deutsch w/Diode, Bi-Directional Code DEDB
12
44.4REF [1.75]
Ø13.1 [0.52]
35.8
[1.41]
2
[1.53]
38.8
16W-DE-D
38.8
R13-12D­16W-DE
Nm
COIL
R13-12D-
Nm
COIL
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 R13-10D-16W-DE
12 VDC 16 R13-12D-16W-DE
NUT
4-6
TORQUE
42.5
[1.67]
20 VDC 16 R13-20D-16W-DE
24 VDC 16 R13-24D-16W-DE
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 R13-10D-16W-DEDB
12 VDC 16 R13-12D-16W-DEDB
NUT
4-6
TORQUE
42.5
[1.67]
20 VDC 16 R13-20D-16W-DEDB
24 VDC 16 R13-24D-16W-DEDB
Lead wires Code FL
Ø13.1 [0.52]
35.8
[1.41]
47.1 REF [1.85]
Color Black AWG 18 Insulation: Cross-linked Polypropelene Length: 450 mm [17.71 in]
R13-12D-
1
16W-FL
38.8
[1.53]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 R13-10D-16W-FL
12 VDC 16 R13-12D-16W-FL
20 VDC 16 R13-20D-16W-FL
24 VDC 16 R13-24D-16W-FL
NUT
4-6
Nm
TORQUE
COIL
42.5
[1.67]
BC332376631124en-000101 • February 2020
CL - 33
Cartridge Valves Coils Technical Information
Flying Leads
[1.53]
[1.41]
42.5 [1.67]
35.8 [1.41]
62.8 [2.47]
35.8 [1.41]
62.8 [2.47]
R13
TERMINALS (continued)
Lead wires w/Diode, Bi-Directional Code FLDB
Positive Red Negative Black AWG 18 Insulation:
Ø13.1 [0.52]
35.8
47.1 REF [1.85]
Cross-linked Polypropelene Length: 450 mm [17.71 in]
1
38.8
R13-12D­16W-FL-D
Nm
COIL
MetriPak 150, type 2 Code M3
41.5 [1.64]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 R13-10D-16W-FLDB
12 VDC 16 R13-12D-16W-FLDB
20 VDC 16 R13-20D-16W-FLDB
24 VDC 16 R13-24D-16W-FLDB
NUT
4-6
TORQUE
42.5
[1.67]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 R13-10D-16W-M3
12 VDC 16 R13-12D-16W-M3
20 VDC 16 R13-20D-16W-M3
24 VDC 16 R13-24D-16W-M3
38.8 [1.53] Ø 13.2 [0.52]
MetriPak 150, type 2 w/Diode Bi-Directional Code M3DB
42.5 [1.67]
41.5 [1.64]
38.8 [1.53] Ø 13.2 [0.52]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 16 R13-10D-16W-M3DB
12 VDC 16 R13-12D-16W-M3DB
20 VDC 16 R13-20D-16W-M3DB
24 VDC 16 R13-24D-16W-M3DB
BC332376631124en-000101 • February 2020
CL - 34
SPECIFICATIONS
%
Ambient temperature °c
Cartridge Valves Coils Technical Information
R16
• Duty cycle: 100% at 133% of rated voltage and 70°C [158°F]
• Magnet wire insulation: (200°C)
• Ambient temperature range: -40 to +70 °C [-40 to 158 °F]
• Environmental rating:
IP69K: AS, DE, FL and M3
• Input voltage range: 75% to 133% of rated voltage
• Optional bi-directional transient voltage suppression diodes: Non polarity dependent, 51 volt nominal breakdown voltage
• Weight: 0.34 kg [0.75 lb]
Ambient temperature versus % rated voltage
Min pull-in voltage
120
100
80
60
40
20
-0
-20
-40 70% 80% 90% 100%110%120%130%140
% Rated voltage applied
100% Operating level
ELECTRICAL SPECIFICATIONS
TERMINALS
20 watt coils
Voltage (V) 10 VDC 12 VDC 20 VDC 24 VDC
Resistance (Ohms) @
20 °C [68 °F]
Current draw (A) @
20 °C [68 °F]
Color Green Gray Blue Yellow
Amp SuperSeal 1.5/MetriPak 150 Type 1 Code AS
2
Ø16.1 [0.63]
39.6
[1.56]
1
Amp SuperSeal 1.5/MetriPak 150 Type 1 w/Diode, Bi-Directional Code ASDB
2
1
43.5 REF
4.8 6.9 20 28
2.08 1.74 1.01 0.85
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 R16-10D-20W-AS
12 VDC 20 R16-12D-20W-AS
20 VDC 20 R16-20D-20W-AS
24 VDC 20 R16-24D-20W-AS
43.5 REF [1.71]
R16-12D­20W-AS
49.8
[1.96]
NUT
Nm
9-11
TORQUE
COIL
47.1
[1.85]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 R16-10D-20W-ASDB
12 VDC 20 R16-12D-20W-ASDB
20 VDC 20 R16-20D-20W-ASDB
24 VDC 20 R16-24D-20W-ASDB
[1.71]
R16-12D­20W-AS-D
Nm
COIL
NUT
9-11
TORQUE
47.1
[1.85]
Ø16.1 [0.63]
39.6
[1.56]
BC332376631124en-000101 • February 2020
49.8
[1.96]
CL - 35
Cartridge Valves Coils Technical Information
Flying Leads
[1.96]
R16
TERMINALS (continued)
Deutsch Code DE
12
46.4REF [1.83]
Ø16.1 [0.64]
39.6
[1.56]
2
Deutsch w/diode Bi-Directional Code DEDB
12
46.4REF [1.83]
Ø16.1 [0.64]
39.6
[1.56]
2
R16-12D­20W-DE
49.8
[1.96]
R16-12D­20W-DE
49.8
[1.96]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 R16-10D-20W-DE
12 VDC 20 R16-12D-20W-DE
NUT
9-11
Nm
TORQUE
COIL
47.1
[1.85]
20 VDC 20 R16-20D-20W-DE
24 VDC 20 R16-24D-20W-DE
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 R16-10D-20W-DEDB
12 VDC 20 R16-12D-20W-DEDB
NUT
9-11
Nm
TORQUE
COIL
47.1
[1.85]
20 VDC 20 R16-20D-20W-DEDB
24 VDC 20 R16-24D-20W-DEDB
Lead wires Code FL
Ø16.1 [0.63]
39.6
[1.55]
49.0 REF [1.93]
Color Black AWG 18 Insulation: Cross-linked Polypropelene Length: 450 mm [17.71 in]
1
49.8
R16-12D­20W-FL
Nm
COIL
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 R16-10D-20W-FL
12 VDC 20 R16-12D-20W-FL
20 VDC 20 R16-20D-20W-FL
24 VDC 20 R16-24D-20W-FL
NUT
9-11
TORQUE
47.1
[1.85]
P104 582
BC332376631124en-000101 • February 2020
CL - 36
Cartridge Valves Coils Technical Information
Flying Leads
[1.96]
67.0 [2.64]
67.0 [2.64]
R16
TERMINALS (continued)
Lead wires w/diode Code FLDB
Color Black AWG 18 Insulation: Cross-linked
[1.93]
Polypropelene Length: 450 mm [17.71 in]
Ø16.1 [0.63]
39.6
[1.55]
49.0 REF
MetriPak 150, type 2 Code M3
47.1 [1.85]
43.5 [1.71]
1
49.8
R16-12D-
20W-FL
Nm
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 R16-10D-20W-FLDB
12 VDC 20 R16-12D-20W-FLDB
20 VDC 20 R16-20D-20W-FLDB
24 VDC 20 R16-24D-20W-FLDB
NUT
9-11
TORQUE
COIL
47.1
[1.85]
P104 582
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 R16-10D-20W-M3
12 VDC 20 R16-12D-20W-M3
20 VDC 20 R16-20D-20W-M3
24 VDC 20 R16-24D-20W-M3
49.8 [1.96]
MetriPak 150, type 2 w/diode Bi-Directional Code M3DB
47.1 [1.85]
49.8 [1.96]
Ø 16.2 [0.64]
39.6 [1.56]
Part numbers
Voltage (V) Power (W) Part Number
10 VDC 20 R16-10D-20W-M3DB
12 VDC 20 R16-12D-20W-M3DB
20 VDC 20 R16-20D-20W-M3DB
24 VDC 20 R16-24D-20W-M3DB
43.5 [1.71]
Ø 16.2 [0.64]
39.6 [1.56]
BC332376631124en-000101 • February 2020
CL - 37
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
