Cartridge Valves Cavities Technical Information
Quick Reference
AVAILABLE CAVITIES
Cavity Page
SDC08-2 CA - 3
SDC08-3 CA - 4
SDC08-4 CA - 5
SDC10-2 CA - 6
SDC10-3 CA - 7
SDC10-3S CA - 8
SDC10-4 CA - 9
SDC10-5 CA - 10
SDC12-2 CA - 11
SDC12-3 CA - 13
SDC16-2 CA - 14
SDC16-3 CA - 15
SDC16-3S CA - 16
SDC20-2 CA - 17
SDC20-3 CA - 18
SDC20-4 CA - 19
CP04-2 CA - 20
CP04-3 CA - 21
CP08-3L CA - 22
CP12-2 CA - 12
CP12-3 CA - 23
CP12-3M CA - 24
CP12-3S CA - 25
CP12-4 CA - 26
CP16-4 (interchangeable with SDC16-4) CA - 27
CP20-3S CA - 28
NCS04/2 CA - 29
NCS04/3 CA - 30
NCS06/2 CA - 31
NCS06/3 CA - 32
NCS06/4 CA - 33
NCS12/2 CA - 34
NCS12/3 CA - 35
NCS12/4 CA - 36
NCS12/5 CA - 37
VME06 CA - 38
VME07 CA - 39
VME08 CA - 40
FC-144 CA - 41
FC-304 CA - 42
FC-336 CA - 43
ISO D03 CA - 44
ISO D05 CA - 45
BC332376530122en-000101 • February 2020
CA - 1
Cartridge Valves Cavities Technical Information
Application Notes
OVERVIEW
The following pages show details for Danfoss ICS standard valve cavities. These cavities
are designed around SAE standard O-ring thread ports. In many cases these cavities are
interchangeable with cavities used by other manufacturers. The table below is intended
as a guide for cartridge valve interchanges.
Cavity crossover table
Command
Delta
Danfoss ICS Thread
CP04-2 7/16-20 NO NO NO
CP04-3 NO NO NO
CP07-3 5/8-18 YES YES YES
SDC08-2
SDC08-3 YES YES YES YES YES YES
SDC08-3S YES YES YES YES YES YES
CP08-3L
SDC08-4 YES YES YES YES YES YES
SDC10-2
SDC10-3 YES YES YES YES YES YES
SDC10-3S YES YES YES YES YES
SDC10-4 YES YES YES YES YES YES
SDC12-2 NO NO YES* NO NO
CP12-2
CP12-3S NO NO NO NO NO
CP12-3 NO NO YES NO NO
CP12-4 NO NO NO NO NO
SDC16-2
SDC16-3S YES YES YES YES YES
SDC16-3 YES YES YES YES YES
SDC16-4 &
CP16-4
(Interchangeable)
3/4-16
7/8-14
1 1/16-12
1 5/16-12
Power
YES YES YES YES YES YES
YES YES YES YES YES YES
NO NO YES* NO NO
Eaton-
Vickers HydraForce Parker
YES YES YES YES YES
YES YES YES YES YES
Sterling
[Parker]
[Bucher]
Controls
Applications Notes
SDC20-2
CP20-3S NO
SDC20-3 YES
SDC20-4 YES
*Cavities are not 100% compatible, but all Danfoss ICS cartridges will work in HF cavity.
Please note that most manufacturers have many non-standard cavities and that details
are subject to change. Compare cavity details before interchanging cartridges.
BC332376530122en-000101 • February 2020
YES YES
1 5/8-12
CA - 2
Cartridge Valves Cavities Technical Information
SDC08-2
Dimensions
Detail X
mm [in]
Lengths:
Form tools
Model code Material
number
Finishing tool SDC-08-2-FT 11027180
Roughing tool SDC-08-2-RT 11027181
Housings
BC332376530122en-000101 • February 2020
Order Code Description Ports Page
CP08-2-4S Aluminum Housing SAE #4 HS - 68
CP08-2-6S Aluminum Housing SAE #6 HS - 68
CP08-2-6S-2CR Aluminum Housing - Crossover SAE #6 -
CP08-2-8S-2CR Aluminum Housing - Crossover SAE #8 -
CP08-2-8S-2PL Aluminum Housing - Parallel SAE #8 -
CP08-2-S4S Steel Housing SAE #4 HS - 68
SDC08-2-DG-2B Aluminum Housing, Two #2 Ports 3/8 BSP HS - 64
SDC08-2-DG-3B Aluminum Housing, Two #1 Ports 3/8 BSP HS - 65
SDC08-2-LG1-3B Aluminum Housing 1/4 BSP HS - 66
SDC08-2-LG2-3B Aluminum Housing 3/8 BSP HS - 67
CA - 3
Cartridge Valves Cavities Technical Information
SDC08-3
Dimensions
Detail X
mm [in]
Lengths:
Form tools Housings
Model code Material
number
Finishing tool SDC-08-3-FT 11027182
Roughing tool SDC-08-3-RT 11027183
Order Code Description Ports Page
CP08-3-4S Aluminum Housing SAE #4 HS - 71
CP08-3-6S Aluminum Housing SAE #6 HS - 71
CP08-3-S4S Steel Housing SAE #4 HS - 71
CP08-3-S6S Steel Housing SAE #6 HS - 71
SDC08-3-HI-2B Aluminum Housing, Two #1 Ports 1/4 BSP HS - 69
SDC08-3-SE-2B Aluminum Housing 1/4 BSP HS - 70
SDC08-3-SE-3B Aluminum Housing 3/8 BSP HS - 70
`
BC332376530122en-000101 • February 2020
CA - 4
Cartridge Valves Cavities Technical Information
SDC08-4
Dimensions
Detail X
mm [in]
Lengths:
Form tools Housings
Model code Material
number
Finishing tool SDC-08-4-FT 11027184
Roughing tool SDC-08-4-RT 11027185
Order Code Description Ports Page
CP08-4-4S Aluminum Housing SAE #4 HS - 72
CP08-4-6S Aluminum Housing SAE #6 HS - 72
SDC08-4-L-2B Aluminum Housing 1/4 BSP HS - 73
BC332376530122en-000101 • February 2020
CA - 5
Cartridge Valves Cavities Technical Information
SDC10-2
Dimensions
mm [in]
Lengths:
Detail X
Form tools Housings
Model code Material
number
Finishing tool SDC-10-2-FT 11027186
Roughing tool SDC-10-2-RT 11027187
Order Code Description Ports Page
CP10-2-10S-2CR Aluminum Housing SAE #10 -
CP10-2-6S Aluminum Housing SAE #6 HS - 77
CP10-2-8S Aluminum Housing SAE #8 HS - 77
CP10-2-8S-2PL Parallel housing SAE #8 -
CP10-2-S6S Steel Housing SAE #6 HS - 77
CP10-2-S8S Steel Housing SAE #8 HS - 77
SDC10-2-3B Aluminum Housing 3/8 BSP HS - 74
SDC10-2-4B Aluminum Housing 1/2 BSP HS - 75
SDC10-2-S3B Steel Housing 3/8 BSP HS - 74
SDC10-2-S4B Steel Housing 1/2 BSP HS - 75
SDC10-2-LG1-4B Aluminum Housing, Two #2 Ports 1/2 BSP HS - 78
SDC10-2-LG2-4B Aluminum Housing, Two #1 Ports 1/2 BSP HS - 79
BC332376530122en-000101 • February 2020
CA - 6
Cartridge Valves Cavities Technical Information
SDC10-3
Dimensions
mm [in]
Lengths:
Detail X
Form tools Housings
Model code Material
number
Finishing tool SDC-10-3-FT 11027188
Roughing tool SDC-10-3-RT 11027119
Order Code Description Ports Page
CP10-3-6S Aluminum Housing SAE #6 HS - 80
CP10-3-8S Aluminum Housing SAE #8 HS - 80
CP10-3-S6S Steel Housing SAE #6 HS - 80
CP10-3-S8S Steel Housing SAE #8 HS - 80
SDC10-3-SI-3B Aluminum Housing, Two #1 Ports 3/8 BSP HS - 82
SDC10-3-SI-4B Aluminum Housing, Two #1 Ports 1/2 BSP HS - 83
SDC10-3-SE-3B Aluminum Housing 3/8 BSP HS - 85
SDC10-3-SE-4B Aluminum Housing 1/2 BSP HS - 84
BC332376530122en-000101 • February 2020
CA - 7
Cartridge Valves Cavities Technical Information
SDC10-3S
Dimensions
mm [in]
Form tools Housings
Model code Material
number
Finishing tool SDC-10-3S-FT 11027120
Roughing tool SDC-10-3S-RT 11027121
Order Code Description Ports Page
SDC10-3S-SE-3B Aluminum Housing 3/8 BSP HS - 86
SDC10-3S-SE-4B Aluminum Housing 1/2 BSP HS - 86
SDC10-3S-10S/6S Aluminum Housing, Pilot at Port #3 SAE #10 HS - 87
SDC10-3S-8S/6S Aluminum Housing, Pilot at Port #3 SAE #8 HS - 87
SDC10-3S-6S/6S Aluminum housing, pilot at Port #3 SAE #6 HS - 87
SDC10-3S-S8S/6S Ductile Housing, Pilot at Port #3 SAE #8 HS - 87
SDC10-3S-S4B/2B Ductile Housing, Pilot at Port #3 1/2 BSP HS - 87
BC332376530122en-000101 • February 2020
CA - 8
Cartridge Valves Cavities Technical Information
SDC10-4
Dimensions
Detail X
mm [in]
Lengths:
Form tools Housings
Order Code Description Ports Page
Model code Material
number
Finishing tool SDC-10-4-FT 11027192
Roughing tool SDC-10-4-RT 11027193
CP10-4-6S Aluminum Housing SAE #6 HS - 90
CP10-4-6S-X1 Aluminum Housing, No Port #1 SAE #6 HS - 90
CP10-4-8S Aluminum Housing SAE #8 HS - 90
CP10-4-8S-X1 Aluminum Housing, No Port #1 SAE #8 HS - 90
CP10-4-S6S Steel Housing SAE #6 HS - 90
CP10-4-S8S Steel Housing SAE #8 HS - 90
SDC10-4-HD-3B Aluminum Housing, No Port #1 3/8 BSP HS - 91
SDC10-4-L-3B Aluminum Housing 3/8 BSP HS - 92
SDC10-4-L-4B Aluminum Housing 1/2 BSP HS - 93
BC332376530122en-000101 • February 2020
CA - 9
Cartridge Valves Cavities Technical Information
SDC10-5
Dimensions
Detail X
mm [in]
Lengths:
Form tools Housings
Order Code Description Ports Page
Model code Material number
Finishing tool Consult factory -
Roughing tool Consult factory -
SDC10-5-6S Aluminum Housing SAE #6 -
SDC10-5-8S Aluminum Housing SAE #8 -
SDC10-5-S8S Steel Housing SAE #8 -
SDC10-5-L3B Aluminum Housing 3/8 BSP -
SDC10-5-L4B Aluminum Housing 1/2 BSP -
SDC10-5-S4B Steel Housing 1/2 BSP -
BC332376530122en-000101 • February 2020
CA - 10
Cartridge Valves Cavities Technical Information
SDC12-2
Dimensions
mm [in]
Lengths:
Detail X
C
Caution
SDC12-2 and CP12-2 cavities are not interchangeable.
Dierences in sealing area depth may lead to leakage
if the wrong valve is used with this cavity. Use only the
specied cavity for each valve.
Form tools Housings
Model code Material
number
Finishing tool SDC-12-2-FT 11027194
Roughing tool SDC-12-2-RT 11027195
Order Code Description Ports Page
SDC12-2-DG-4B Aluminum Housing 1/2 BSP HS - 102
SDC12-2-DG-6B Aluminum Housing 3/4 BSP HS - 98
SDC12-2-LG1-6B Aluminum Housing, Two #2 Ports 3/4 BSP HS - 101
SDC12-2-LG2-6B Aluminum Housing, Two #1 Ports 3/4 BSP HS - 100
SDC12-2-10S Aluminum housing #10 SAE HS - 99
SDC12-2-12S Aluminum housing #12 SAE HS - 99
BC332376530122en-000101 • February 2020
CA - 11
Cartridge Valves Cavities Technical Information
C
Caution

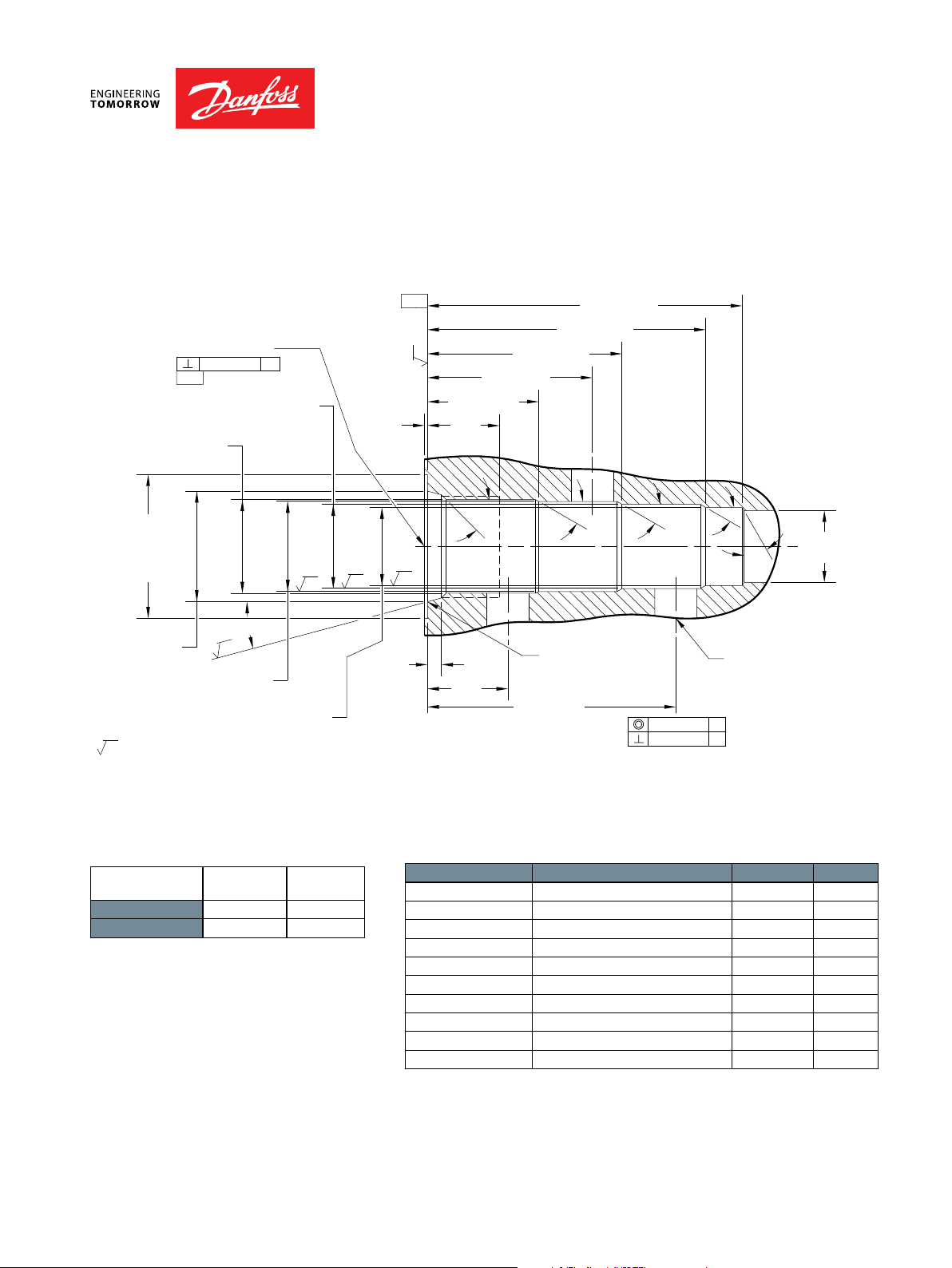

CP12-2
Dimensions
1 1/16 - 12 UN-2B
-A-
a
38.10 D.
[1.500]
SPOTFACE
a
29.18 [1.149]
29.29 [1.153]
B0.03 [0.001]
24.69 [0.972]
24.79 [0.976]
D.
a
22.23 [0.875]
22.28 [0.877]
SDC12-2 and CP12-2 cavities are not interchangeable.
Dierences in sealing area depth may lead to leakage
if the wrong valve is used with this cavity. Use only the
specied cavity for each valve.
D.
[0.031]
15°
3.30 [0.130]
3.68 [0.145]
D.
0.79
-B-
3.2
[125]
36.32 [1.430]
19.1
[0.75]
45°
24.6
[0.969]
46.84 [1.844]
30°
29°
19.05 [0.750] D.
0.13 [0.005]
0.25 [0.010]
a
All dimensions in mm [inches]
.05 [.002] D.
R.
A
B.03 [.001]
mm [in]
19.05
D. max.
[0.750]
Tolerances (unless otherwise noted)
2 place dim.±.25 (0.01)
3 place dim.±.13 (0.005)
angles ±.5
= 1.6 [63]
Form tools
Model
code
Finishing tool CP-12-2-FT 310005
Roughing tool CP-12-2-RT 310022
Material
number
BC332376530122en-000101 • February 2020
Housings
Order Code Description Ports Page
CP12-2-10S Aluminum Housing SAE #10 HS - 97
CP12-2-12S Aluminum Housing SAE #12 HS - 97
CP12-2-S10S Steel Housing SAE #10 HS - 97
CP12-2-S12S Steel Housing SAE #12 HS - 97
CP12-2-4B Aluminum housing 1/2 BSP HS - 97
CP12-2-6B Aluminum housing 3/4 BSP HS - 97
CP12-2-S4B Steel housing 1/2 BSP HS - 96
CP12-2-S6B Steel housing 3/4 BSP HS - 97
CA - 12
Cartridge Valves Cavities Technical Information
SDC12-3
Dimensions
mm [in]
___________________________________________________________
SDC12-3 and CP12-3 are not interchangeable. A cartridge designed
to t the SDC12-3 cavity will t in the CP12-3 cavity but there is risk of
the top backup ring between port 1 and port 2 not being covered in
the cavity. If the cartridge has pressure at port 1 the risk of the back up
ring extruding exists.
___________________________________________________________
Form tools
Model code Material number
Finishing tool Consult Factory
Roughing tool Consult Factory
BC332376530122en-000101 • February 2020
Order Code Description Ports Page
SDC12-3-10S Aluminum Housing SAE #10 -
SDC12-3-12S Aluminum Housing SAE #12 -
SDC12-3-S10S Ductile Housing SAE #10 -
SDC12-3-S12S Ductile Housing SAE #12 -
SDC12-3-HE-3/4 Aluminum Housing 3/4 BSP -
SDC12-3-HE-1/2 Aluminum Housing 1/2 BSP -
CA - 13
Cartridge Valves Cavities Technical Information
SDC16-2
Dimensions
mm [in]
Lengths:
Detail X
Form tools Housings
Model code Material
number
Finishing tool SDC-16-2-FT 11027196
Roughing tool SDC-16-2-RT 11027197
Order Code Description Ports Page
CP16-2-12S Aluminum Housing SAE #12 HS - 108
CP16-2-16S Aluminum Housing SAE #16 HS - 108
CP16-2-S16S Steel Housing SAE #16 HS - 108
SDC16-2-HG1-8B Aluminum Housing, Two #2 Ports 1 BSP HS - 109
SDC16-2-HG2-8B Aluminum Housing, Two #1 Ports 1 BSP HS - 110
SDC16-2-HG-6B Aluminum Housing 3/4 BSP -
SDC16-2-HG-8B Aluminum Housing 1 BSP -
BC332376530122en-000101 • February 2020
CA - 14
Cartridge Valves Cavities Technical Information
SDC16-3
Dimensions
mm [in]
Lengths:
Detail X
Form tools Housings
Model code Material
number
Finishing tool SDC-16-3-FT 11027198
Roughing tool SDC-16-3-RT 11027199
Order Code Description Ports Page
CP16-3-12S Aluminum Housing SAE #12 HS - 114
CP16-3-16S Aluminum Housing SAE #16 HS - 114
SDC16-3-HE-6B Aluminum Housing 3/4 BSP HS - 112
SDC16-3-HE-8B Aluminum Housing 1 BSP HS - 111
SDC16-3-HI-8B Aluminum Housing, Two #1 Ports 1 BSP HS - 113
BC332376530122en-000101 • February 2020
CA - 15
Cartridge Valves Cavities Technical Information
SDC16-3S
Dimensions
mm [in]
Lengths:
Detail X
Form tools Housings
Model code Material
number
Finishing tool SDC-16-3S-FT 11027234
Roughing tool SDC-16-3S-RT 11027235
Order Code Description Ports Page
CP16-3S-12S/4S Aluminum Housing, Pilot at Port #3 SAE #12, #4 HS - 115
CP16-3S-16S/4S Aluminum Housing, Pilot at Port #3 SAE #16, #4 HS - 115
CP16-3S-6B/2B Aluminum Housing, Pilot at Port #3 3/4 BSP, 1/4 BSP HS - 115
CP16-3S-8B/2B Aluminum Housing, Pilot at Port #3 1 BSP, 1/4 BSP HS - 115
BC332376530122en-000101 • February 2020
CA - 16
Cartridge Valves Cavities Technical Information
SDC20-2
Dimensions
mm [in]
Lengths:
Detail X
Form tools Housings
Model code Material
number
Finishing tool SDC-20-2-FT 11027236
Roughing tool SDC-20-2-RT 11027237
Order Code Description Ports Page
CP20-2-10B Aluminum Housing 1 1/4 BSP HS - 121
CP20-2-16S Aluminum Housing SAE #16 HS - 121
CP20-2-20S Aluminum Housing SAE #20 HS - 121
CP20-2-8B Aluminum Housing 1 BSP HS - 121
BC332376530122en-000101 • February 2020
CA - 17
Cartridge Valves Cavities Technical Information
SDC20-3
Dimensions
Lengths:
mm [in]
Detail X
Form tools Housings
Model code Material
number
Finishing tool SDC-20-3-FT 11027238
Roughing tool SDC-20-3-RT 11027239
Order Code Description Ports Page
CP20-3-10B Aluminum Housing 1 1/4 BSP HS - 122
CP20-3-10B/2B1 Aluminum Housing, Pilot at Port #3 1 1/4 BSP, 1/4 BSP HS - 122
CP20-3-16S Aluminum Housing SAE #16 HS - 122
CP20-3-16S/4S1 Aluminum Housing, Pilot at Port #3 SAE #16, #4 HS - 122
CP20-3-20S Aluminum Housing SAE #20 HS - 122
CP20-3-20S/4S1 Aluminum Housing, Pilot at Port #3 SAE #20, #4 HS - 122
CP20-3-8B Aluminum Housing 1 BSP HS - 122
CP20-3-8B/2B1 Aluminum Housing, Pilot at Port #3 1 BSP, 1/4 BSP HS - 122
BC332376530122en-000101 • February 2020
CA - 18
Cartridge Valves Cavities Technical Information

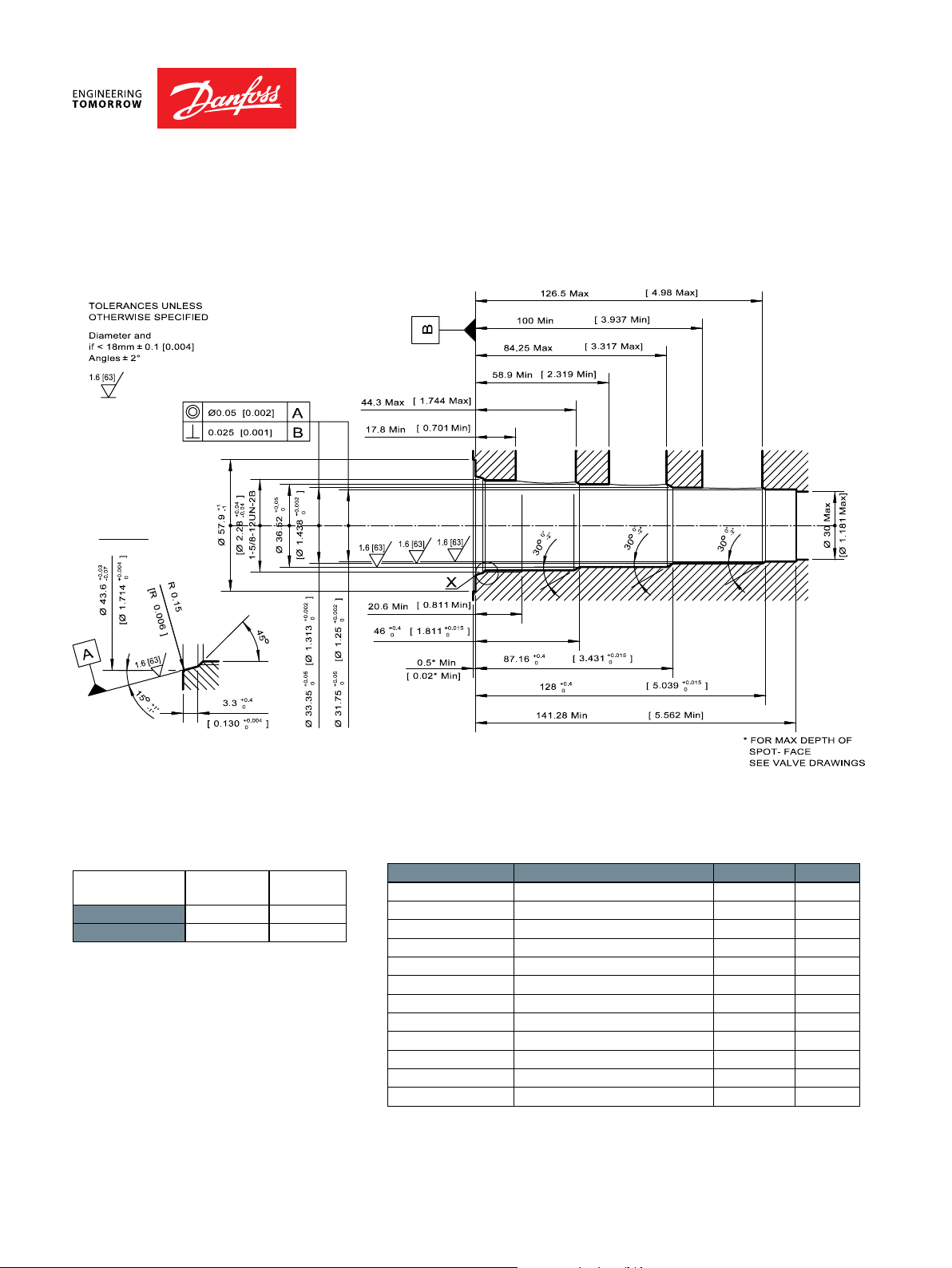

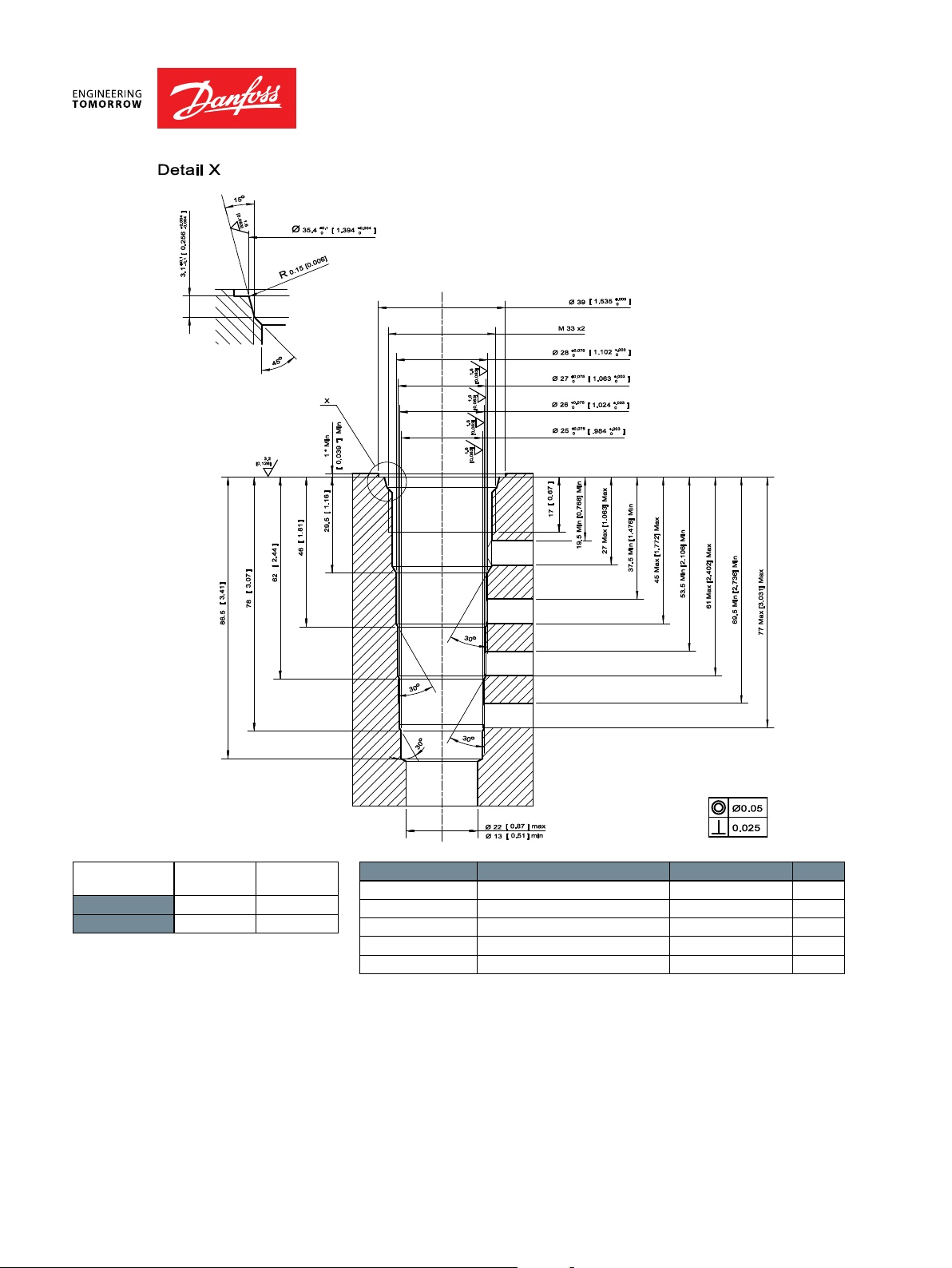

SDC20-4
Dimensions
Detail X
mm [in]
Lengths:
Form tools Housings
Model code Material
number
Finishing tool SDC-20-4-FT 11027240
Roughing tool SDC-20-4-RT 11027241
Order Code Description Ports Page
CP20-4-10B Aluminum Housing 1 1/4 BSP HS - 123
CP20-4-10B-X1 Aluminum Housing, No Port #1 1 1/4 BSP HS - 123
CP20-4-16S Aluminum Housing SAE #16 HS - 123
CP20-4-16S/4S Aluminum Housing, Pilot at Port #1 SAE #16, #4 HS - 123
CP20-4-16S-X1 Aluminum Housing, No Port #1 SAE #16 HS - 123
CP20-4-20S Aluminum Housing SAE #20 HS - 123
CP20-4-20S/4S Aluminum Housing, Pilot at Port #1 SAE #20, #4 HS - 123
CP20-4-20S-X1 Aluminum Housing, No Port #1 SAE #20 HS - 123
CP20-4-8B Aluminum Housing 1 BSP HS - 123
CP20-4-8B-X1 Aluminum Housing, No Port #1 1 BSP HS - 123
CP20-4-S16S Steel Housing SAE #16 HS - 123
CP20-4-S16S-X1 Steel Housing, No Port #1 SAE #16 HS - 123
BC332376530122en-000101 • February 2020
CA - 19
Cartridge Valves Cavities Technical Information
max.
CP04-2
Dimensions
7/16 - 20 UNF-2B
-A-
a
9.73 [0.383]
9.86 [0.388]
15.88 D.
[0.625]
SPOTFACE
a
12.37 [0.487]
12.50 [0.492]
mm [in]
B0.03 [0.001]
-B-
D.
12°
14°
D.
2.36 [0.093]
2.74 [0.108]
0.79
[0.031]
3.2
[125]
17.68 [0.696]
45°
11.1
[0.438]
11.4
[0.45]
31.75 [1.250]
30°
0.13 [0.005]
0.25 [0.010]
29°
5.16 [0.203] D.
R.
6.35
[0.250]
D.
= 1.6 [63]
Form tools
Model Code Material Number
Finishing tool CP-04-2-FT 310027
Roughing tool CP-04-2-RT 310038
a
7.92 [0.312]
7.98 [0.314]
D.
.05 [.002] D.
a
All dimensions in mm [inches]
Tolerances (unless otherwise noted)
A
2 place dim.±.25 (0.01)
B.03 [.001]
3 place dim.±.13 (0.005)
angles ±.5
Housings
Order Code Description Ports Page
CP04-2-2B Aluminum Housing 1/4 BSP HS - 8
CP04-2-4S Aluminum Housing SAE #4 HS - 8
BC332376530122en-000101 • February 2020
CA - 20
Cartridge Valves Cavities Technical Information
a
CP04-3
Dimensions
7/16 - 20 UNF-2B
12.37 [0.487]
12.50 [0.492]
15.88 D.
[0.625]
SPOTFACE
a
-A-
a
D.
9.73 [0.383]
9.86 [0.388]
8.71 [0.343]
8.76 [0.345]
12°
14°
D.
mm [in]
B0.03 [0.001]
D.
2.36 [0.093]
2.74 [0.108]
0.79
[0.031]
-B-
3.2
[125]
15.21
[0.599]
10.3
[0.406]
11.4
[0.45]
29.36 [1.156]
24.6 [0.969]
45°
38.10 [1.500]
30°
6.35 [0.250] D.
TYP. 2
0.13 [0.005]
0.25 [0.010]
30°
R.
29°
6.35
[0.250]
D. max.
a
7.92 [0.312]
7.98 [0.314]
D.
.05 [.002] D.
a
All dimensions in mm [inches]
Tolerances (unless otherwise noted)
A
2 place dim. ± .25 (0.01)
B.03 [.001]
3 place dim. ± .13 (0.005)
angles ±.5
= 1.6 [63]
Form tools Housings
Model Code Material Number
Finishing tool CP-04-3-FT 310028
Roughing tool CP-04-3-RT 310037
Order Code Description Ports Page
CP04-3-2B Aluminum Housing 1/4 BSP HS - 9
CP04-3-4S Aluminum Housing SAE #4 HS - 9
BC332376530122en-000101 • February 2020
CA - 21
Cartridge Valves Cavities Technical Information
R
CP08-3L
Dimensions
a
= 1.6 [63]
3/4 - 16 UNF-2B
-A-
20.60 [0.811]
20.73 [0.816]
26.97 D.
[1.062]
SPOTFACE
a
17.32 [0.682]
17.53 [0.690]
a
15.88 [0.625]
15.93 [0.627]
D.
15°
a
14.27 [0.562]
14.33 [0.564]
mm [in]
-B-
B0.03 [0.001]
3.2
D.
D.
D.
[125]
0.79
[0.031]
2.54 [0.100]
2.92 [0.115]
45.72 [1.800] ± 0.064 [0.0025]
38.10 [1.500]
31.0 [1.219]
19.05 [0.750]
45°
0.13 [0.005]
11.4
[0.45]
14.3
[0.563]
0.25 [0.010]
30°
30°
5.56 [0.219] D.
R.
.05 [.002] D.
a
All dimensions in mm [inches]
9.53 [0.375] D.
0.51 [0.020] C/
9.53
D. max.
[0.375]
Tolerances (unless otherwise noted)
A
2 place dim.±.25 (0.01)
B.03 [.001]
3 place dim.±.13 (0.005)
angles ±.5
Form tools Housings
Model code Material
number
Finishing tool CP-08-3L-FT 11027088
Roughing tool CP-08-3L-RT 11027089
Order Code Description Ports Page
CP08-3L-2B Aluminum Housing 1/4 BSP HS - 11
CP08-3L-3B Aluminum Housing 3/8 BSP HS - 11
CP08-3L-4S Aluminum Housing SAE #4 HS - 11
CP08-3L-6S Aluminum Housing SAE #6 HS - 11
BC332376530122en-000101 • February 2020
CA - 22
Cartridge Valves Cavities Technical Information
max.
a
CP12-3
19.05
[0.750]
mm [in]
D.
Dimensions
1 1/16 - 12 UN-2B
B0.03 [0.001]
-A-
a
29.18 [1.149]
29.29 [1.153]
23.80 [0.937]
23.85 [0.939]
D.
D.
38.10
[1.500 D.]
SPOTFACE
15°
a
24.69 [0.972]
24.79 [0.976]
D.
a
22.23 [0.875]
22.28 [0.877]
___________________________________________________________
SDC12-3 and CP12-3 are not interchangeable. A cartridge designed
to t the SDC12-3 cavity will t in the CP12-3 cavity but there is risk of
the top backup ring between port 1 and port 2 not being covered in
the cavity. If the cartridge has pressure at port 1 the risk of the back up
ring extruding exists.
___________________________________________________________
3.30 [0.130]
3.68 [0.145]
D.
[0.031]
-B-
3.2
[125]
53.2 [2.094]
36.58 [1.440]0.79
45°
19.1
[0.75]
24.6 [0.969]
.05 [.002] D.
a
All dimensions in mm [inches]
75.39 [2.968]
63.50 [2.500]
A
B.03 [.001]
30°
30°
15.88 [0.625] D.
TYP. 2
0.13 [0.005]
0.25 [0.010]
Tolerances (unless otherwise noted)
2 place dim.±.25 (0.01)
3 place dim.±.13 (0.005)
angles ±.5
R.
29°
= 1.6 [63]
Form tools
Model code Material
number
Finishing tool CP-12-3-FT 310007
Roughing tool CP-12-3-RT 310033
BC332376530122en-000101 • February 2020
Housings
Order Code Description Ports Page
CP12-3-10S Aluminum Housing SAE #10 HS - 12
CP12-3-12S Aluminum Housing SAE #12 HS - 12
CP12-3-4B Aluminum Housing 1/2 BSP HS - 12
CP12-3-6B Aluminum Housing 3/4 BSP HS - 12
CP12-3-S10S Steel Housing SAE #10 HS - 12
CP12-3-S12S Steel Housing SAE #12 HS - 12
CA - 23
Cartridge Valves Cavities Technical Information
[0.844 D ± .010]
a
CP12-3M
Dimensions
1 1/16 - 12 UN-2B
-A-
29.18 [1.149]
29.29 [1.153]
38.10
[1.500 D.]
SPOTFACE
a
24.69 [0.972]
24.79 [0.976]
= 1.6 [63]
a
23.80 [0.937]
23.85 [0.939]
D.
a
B0.03 [0.001]
D.
15°
D.
22.23 [0.875]
22.28 [0.877]
D.
[125]
[0.031]
3.30 [0.130]
3.68 [0.145]
-B-
3.2
53.2 [2.094]
36.58 [1.440]0.79
45°
19.1
[0.75]
24.6 [0.969]
75.39 [2.968]
63.50 [2.500]
103.1 [4.06]
30°
15.88 [0.625] D.
TYP. 3
0.13 [0.005]
0.25 [0.010]
90.5 [3.562]
.05 [.002] D.
a
All dimensions in mm [inches]
30°
R.
A
B.03 [.001]
29°
Tolerances (unless otherwise noted)
2 place dim.±.25 (0.01)
3 place dim.±.13 (0.005)
angles ±.5
mm [in]
21.43 ± .25
Form tools
Model code
Finishing tool
Roughing tool
BC332376530122en-000101 • February 2020
Housings
Order Code Description Ports Page
CP12-3M-10S Aluminum Housing SAE #10 HS - 13
CP12-3M-12S Aluminum Housing SAE #12 HS - 13
CP12-3M-6B Aluminum Housing 3/4 BSP HS - 13
CA - 24
Cartridge Valves Cavities Technical Information
max.
CP12-3S
Dimensions
1 1/16 - 12 UN-2B
a
29.18 [1.149]
29.29 [1.153]
38.10 D.
[1.500]
SPOTFACE
-A-
D.
a
24.69 [0.972]
24.79 [0.976]
B0.03 [0.001]
a
23.80 [0.937]
23.85 [0.939]
15°
D.
a
22.23 [0.875]
22.28 [0.877]
mm [in]
-B-
48.26 [1.900]
3.2
D.
3.30 [0.130]
3.68 [0.145]
D.
[125]
0.79
[0.031]
17.5
[0.688]
22.10
[0.870]
16.8
[0.66]
37.3 [1.469]
45°
57.15 [2.250]
30°
6.35 [0.250] D.
0.13 [0.005]
0.25 [0.010]
15.88 [0.625] D.
30°
29°
R.
16.66
[0.656]
D.
= 1.6 [63]
Form tools
Model code Material
number
Finishing tool CP-12-3S-FT 310006
Roughing tool CP-12-3S-RT 310020
.05 [.002] D.
a
All dimensions in mm [inches]
Tolerances (unless otherwise noted)
A
2 place dim. ± .25 (0.01)
B.03 [.001]
3 place dim. ± .13 (0.005)
angles ±.5
Housings
Order Code Description Ports Page
CP12-3S-10S/4S Aluminum Housing, Pilot at Port #3 SAE #10, #4 HS - 14
CP12-3S-12S/4S Aluminum Housing, Pilot at Port #3 SAE #12, #4 HS - 14
CP12-3S-4B/2B Aluminum Housing, Pilot at Port #3 1/2 BSP, 1/4 BSP HS - 14
CP12-3S-6B/2B Aluminum Housing, Pilot at Port #3 3/4 BSP, 1/4 BSP HS - 14
BC332376530122en-000101 • February 2020
CA - 25
Cartridge Valves Cavities Technical Information
max.
a
wise noted)

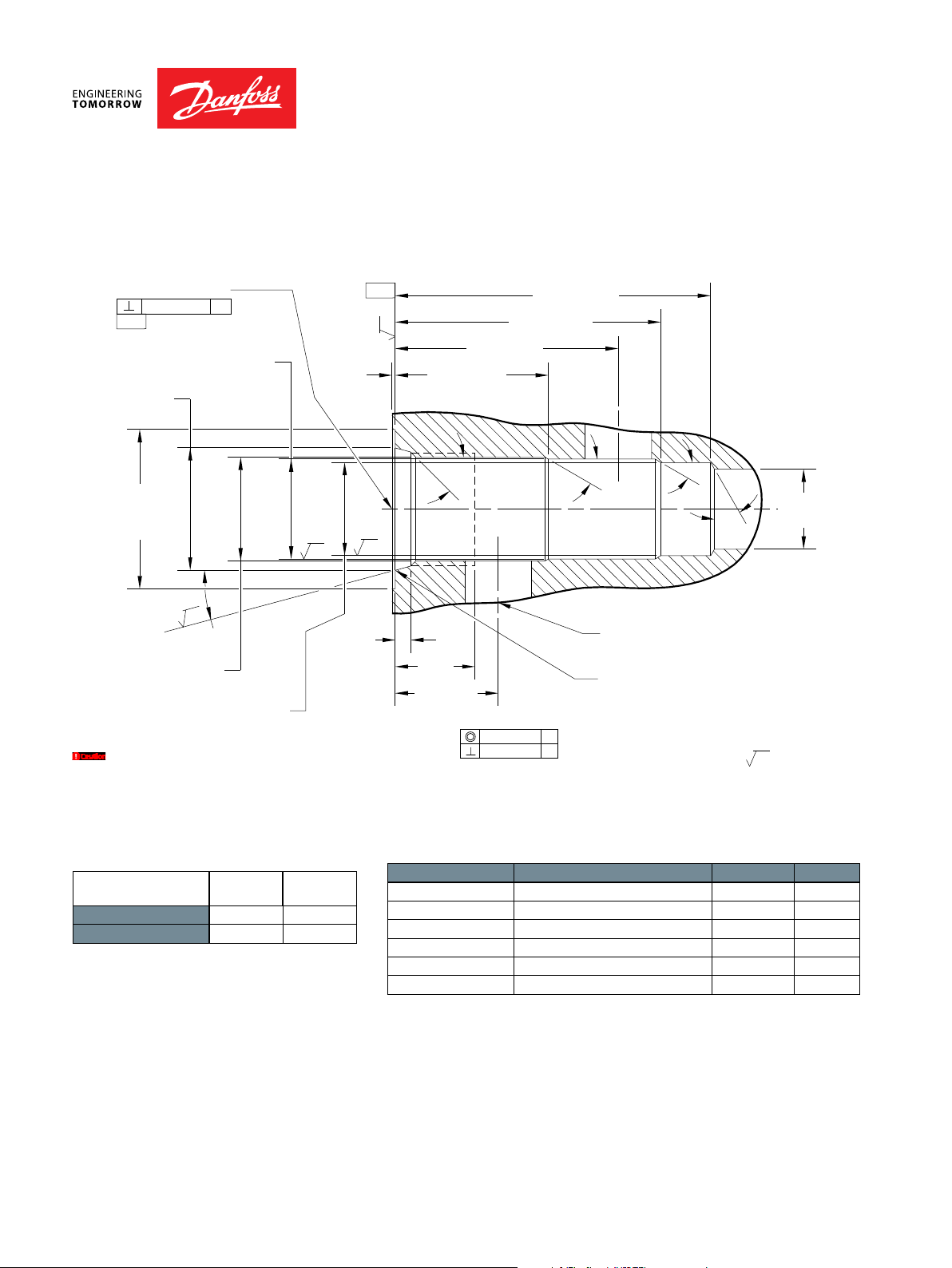

CP12-4
CP12-4
Dimensions
a
24.69 [0.972]
24.79 [0.976]
38.10 D.
[1.500]
SPOTFACE
29.18 [1.149]
29.29 [1.153]
= 1.6 [63]
1 1/16 - 12 UN-2B
-A-
D.
a
D.
a
23.80 [0.937]
23.85 [0.939]
22.23 [0.875]
22.28 [0.877]
15°
B0.03 [0.001]
D.
a
20.62 [0.812]
20.68 [0.814]
D.
D.
[125]
0.79
[0.031]
3.30 [0.130]
3.68 [0.145]
3.2
-B-
43.7 [1.719]
29.46 [1.160]
19.1
[0.75]
45°
21.4
[0.844]
73.66 [2.900]
51.56 [2.030]
0.13 [0.005]
0.25 [0.010]
65.9 [2.594]
83.34 [3.281]
30°
R.
a
All dimensions in mm [inches]
30°
.05 [.002] D.
30°
29°
11.13 [0.438] D.
TYP. 3
Tolerances (unless other
A
2 place dim.±.25 (0.01)
B.03 [.001]
3 place dim.±.13 (0.005)
angles ±.5
19.05
[0.750]
mm [in]
D.
Form tools Housings
Model code Material
number
Finishing tool CP-12-4-FT 11027091
Roughing tool CP-12-4-RT 11027090
BC332376530122en-000101 • February 2020
Order Code Description Ports Page
CP12-4-10S Aluminum Housing SAE #10 HS - 15
CP12-4-10S/4S Aluminum Housing, Pilot at Port #1 SAE #10, #4 HS - 15
CP12-4-10S-X1 Aluminum Housing, No Port #1 SAE #10 HS - 15
CP12-4-3B Aluminum Housing 3/8 BSP HS - 15
CP12-4-3B-X1 Aluminum Housing, No Port #1 3/8 BSP HS - 15
CP12-4-4B Aluminum Housing 1/2 BSP HS - 15
CP12-4-4B-X1 Aluminum Housing, No Port #1 1/2 BSP HS - 15
CP12-4-8S Aluminum Housing SAE #8 HS - 15
CP12-4-8S/4S Aluminum Housing, Pilot at Port #1 SAE #10, #4 HS - 15
CP12-4-8S-X1 Aluminum Housing, No Port #1 SAE #8 HS - 15
CA - 26
Cartridge Valves Cavities Technical Information
max.
a
wise noted)

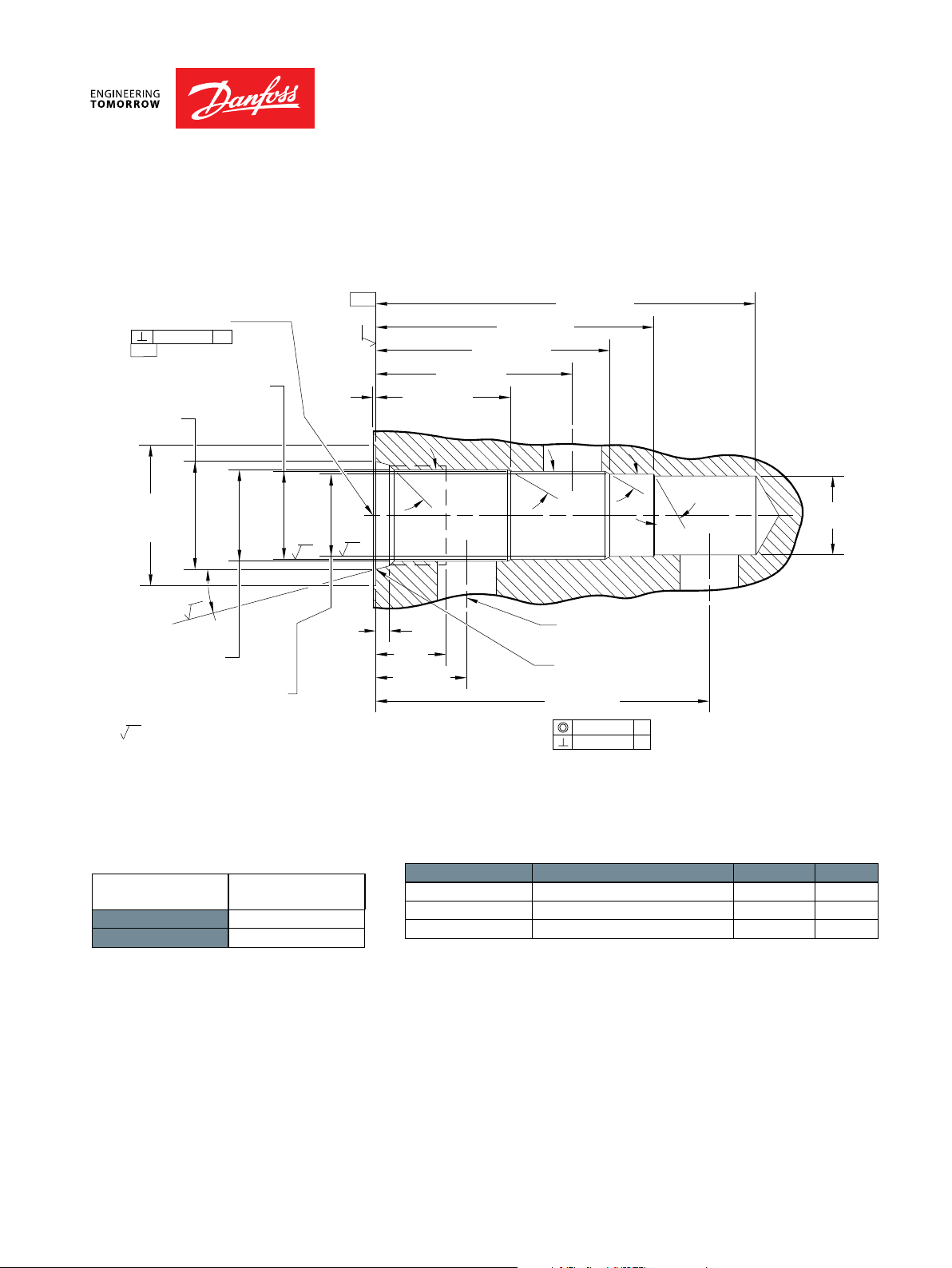

CP16-4 (interchangeable with SDC16-4)
Dimensions
a
31.29 [1.232]
31.39 [1.236]
44.45 D.
[1.750]
SPOTFACE
35.53 [1.399]
35.64 [1.403]
1 5/16 - 12 UN-2B
-A-
a
27.00 [1.063]
27.05 [1.065]
D.
15°
D.
a
28.60 [1.126]
28.65 [1.128]
a
25.43 [1.001]
25.48 [1.003]
mm [in]
-B-
B0.03 [0.001]
D.
D.
D.
3.2
[125]
0.79
[0.031]
3.30 [0.130]
3.68 [0.145]
53.2 [2.094]
35.56 [1.400]
22.4
[0.88]
45°
0.13 [0.005]
0.25 [0.010]
24.6
[0.969]
64.26 [2.530]
81.8 [3.219]
103.99 [4.094]
92.08 [3.625]
30°
R.
15.88 [0.625] D.
TYP. 3
30°
.05 [.002] D.
a
All dimensions in mm [inches]
A
B.03 [.001]
30°
29°
Tolerances (unless other
2 place dim.±.25 (0.01)
3 place dim.±.13 (0.005)
19.05
[0.750]
= 1.6 [63]
angles ±.5
D.
Form tools Housings
Model code Material
number
Finishing tool CP-16-4-FT 11027092
Roughing tool CP-16-4-RT 11027093
BC332376530122en-000101 • February 2020
Order Code Description Ports Page
CP16-4-12S Aluminum Housing SAE #12 HS - 19
CP16-4-12S-X1 Aluminum Housing, No Port #1 SAE #12 HS - 18
CP16-4-16S Aluminum Housing SAE #16 HS - 19
CP16-4-16S-X1 Aluminum Housing, No Port #1 SAE #16 HS - 18
CP16-4-6B Aluminum Housing 3/4 BSP HS - 19
CP16-4-8B Aluminum Housing 1 BSP HS - 19
CA - 27
Cartridge Valves Cavities Technical Information
a

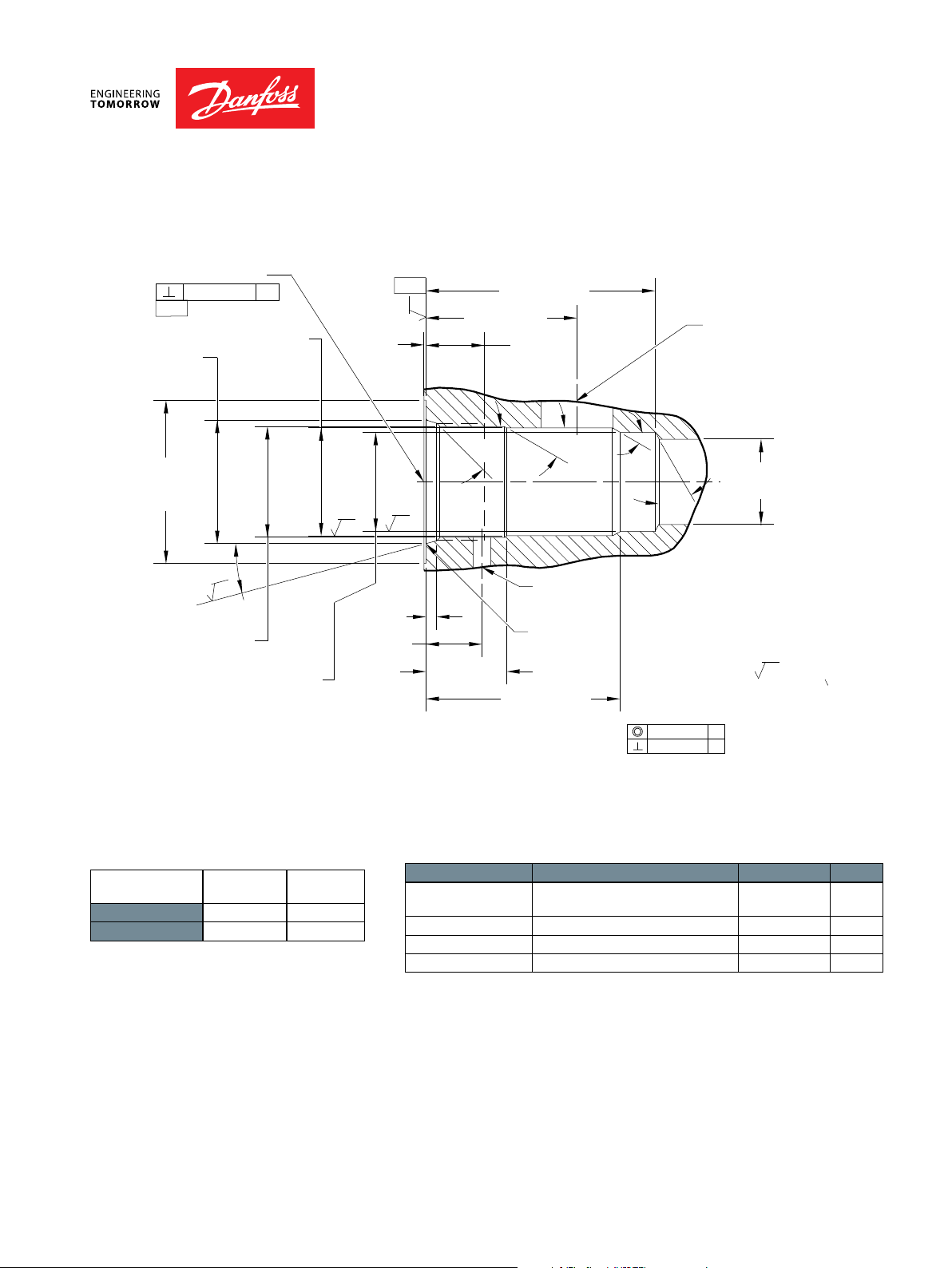

CP20-3S
Dimensions
1 5/8 - 12 UN-2B
43.54 [1.714]
43.64 [1.718]
57.66 D.
[2.270]
SPOTFACE
a
39.07 [1.538]
39.17 [1.542]
-A-
a
38.10 [1.500]
38.18 [1.503]
D.
a
B0.03 [0.001]
15°
D.
34.93 [1.375]
34.98 [1.377]
mm [in]
-B-
3.2
D.
3.35 [0.132]
3.73 [0.147]
19.8 [0.781]
D.
[125]
0.79
[0.031]
28.58
[1.125]
80.98 [3.188]
53.2 [2.094]
20.6
[0.81]
45°
68.58 [2.700]
30°
6.35 [0.250] D.
0.13 [0.005]
0.25 [0.010]
25.40 [1.000] D.
30°
29°
R.
28.58
[1.125]
D. max.
= 1.6 [63]
.05 [.002] D.
a
All dimensions in mm [inches]
Tolerances (unless otherwise noted)
A
2 place dim. ±.25 (0.01)
B.03 [.001]
3 place dim. ±.13 (0.005)
angles ±.5
Form tools Housings
Model code Material
number
Finishing tool CP-20-3S-FT 11013235
Roughing tool CP-20-3S-RT 11013233
Order Code Description Ports Page
CP20-3S-10B/2B Aluminum Housing, Pilot at Port #3 1 1/4 BSP, 1/4
BSP
CP20-3S-16S/4S Aluminum Housing, Pilot at Port #3 SAE #16, #4 HS - 20
CP20-3S-20S/4S Aluminum Housing, Pilot at Port #3 SAE #20, #4 HS - 20
CP20-3S-8B/2B Aluminum Housing, Pilot at Port #3 1 BSP, 1/4 BSP HS - 20
HS - 20
BC332376530122en-000101 • February 2020
CA - 28

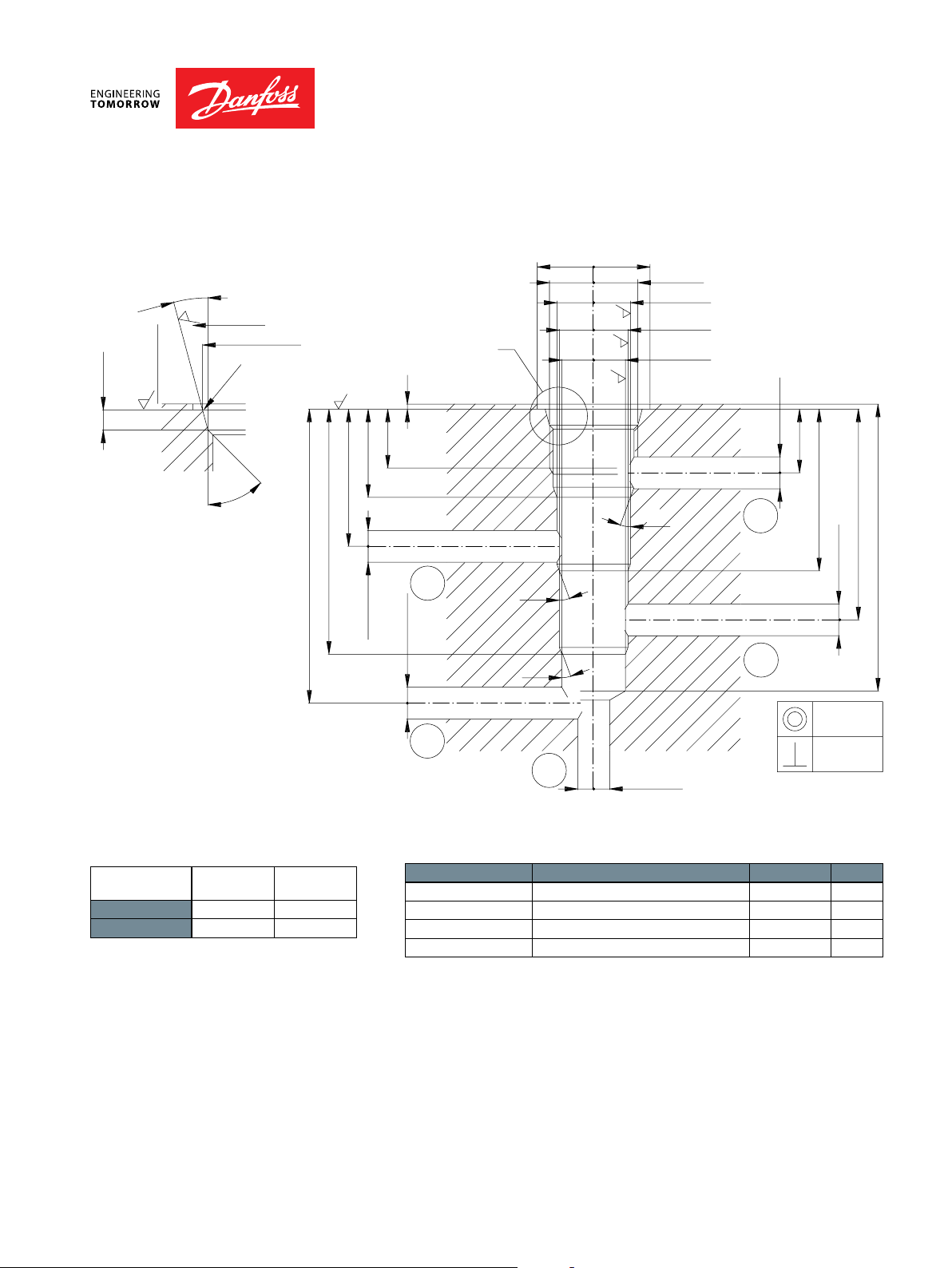

Cartridge Valves Cavities Technical Information
+ 0.10
+ 0.004
NCS04/2
Dimensions
15°
]
- 0.004
[0.130
- 0.10
3.2
3.3
[0.126]
Detail "X"
[0.063]
1
.6
Ø23 [0.906]
Ø19.8
45°
+ 0.10
[0.78 ]
0
R 0.1 [0.004]
+ 0.004
0
3.2
[0.126]
28
mm [in]
Ø23 [0.90]
M 18x1.5
"X"
12
1*
[0.47]
[0.39]
18
[0.71]
[1.10]
1.6
Ø15
[0.063]
20°
1
Ø6.5 min.
[0.256]
+ 0.05
0
+ 0.002
[0.59 ]
0
13 [0.51]
Ø6.5 [0.256]min.
27 [1.06]
2
Ø0.05
[0.002]
0.025
[0.001]
1
Ø6.5 [0.256]min.
Ø14 [ 0.55]max.
Form tools Housings
Model code Material
number
Finishing tool NCS-04-2-FT 11027154
Roughing tool NCS-04-2-RT 11027155
Order Code Description Ports Page
NCS04/2-DG-1/4 Aluminum Housing 1/4 BSP HS - 24
NCS04/2-DG-4S Aluminum Housing SAE #4 HS - 24
NCS04/2-DG-6S Aluminum Housing SAE #6 HS - 24
NCS04/2-LG1-1/4 Aluminum Housing, Two #2 Ports 1/4 BSP HS - 25
NCS04/2-LG1-4S Aluminum Housing, Two #2 Ports SAE #4 HS - 25
NCS04/2-LG1-6S Aluminum Housing, Two #2 Ports SAE #6 HS - 25
NCS04/2-LG2-1/4 Aluminum Housing, Two #1 Ports 1/4 BSP HS - 23
NCS04/2-LG2-4S Aluminum Housing, Two #1 Ports SAE #4 HS - 23
NCS04/2-LG2-6S Aluminum Housing, Two #1 Ports SAE #6 HS - 23
BC332376530122en-000101 • February 2020
CA - 29
Cartridge Valves Cavities Technical Information
+ 0.10
+ 0.004
NCS04/3
Dimensions
15°
- 0.004
[0.130 ]
- 0.10
3.2
3.3
[0.126]
Detail "X"
[0.063]
1.6
Ø23 [0.90]
Ø19.8
45°
+ 0.10
[0.780 ]
0
R 0.1 [0.004]
+ 0.004
mm [in]
Ø23 [0.90]
M 18x1.5
+ 0.05
+ 0.002
[0.59 ]
Ø15
0
+ 0.05
0
+ 0.002
[0.55 ]
0
0
13 [0.51]
Ø6.5 [0.256] min.
3
33 [1.30]
43 [1.69]
0
12 [0.47]
3.2
[0.126]
28 [1.10]
42 [1.65]
1 [0.04]*
18 [0.70]
"X"
2
20°
.063]
1.6
0
Ø14
[
1.6
[0.063]
20°
Ø 0.05
1
Ø6.5 [0.256] min.
Form tools Housings
Model code Material
number
Finishing tool NCS-04-3-FT 11027156
Roughing tool NCS-04-3-RT 11027157
Order Code Description Ports Page
NCS04/3-DI-1/4 Alum. Hsg., 2 Cavities w/#3 Ports Conn. 1/4 BSP HS - 27
NCS04/3-DI-3/8 Alum. Hsg., 2 Cavities w/#3 Ports Conn. 3/8 BSP HS - 27
NCS04/3-DL-1/4 Alum. Hsg., 2 Cavities w/#1 Ports Conn. 1/4 BSP HS - 28
1
Ø6.5 [0.256] min.
Ø14 [0.55] max.
Ø6.5 [0.256] min.
[0.002]
0.025
[0.001]
NCS04/3-DL-4S Alum. Hsg., 2 Cavities w/#1 Ports Conn. SAE #4 HS - 28
NCS04/3-DL-6S Alum. Hsg., 2 Cavities w/#1 Ports Conn. SAE #6 HS - 28
NCS04/3-SE-1/4 Aluminum Housing 1/4 BSP HS - 29
NCS04/3-SE-4S Aluminum Housing SAE #4 HS - 29
NCS04/3-SE-6S Aluminum Housing SAE #6 HS - 29
NCS04/3-SI-1/4 Aluminum Housing, Two #1 Ports 1/4 BSP HS - 26
NCS04/3-SI-4S Aluminum Housing, Two #1 Ports SAE #4 HS - 30
NCS04/3-SI-6S Aluminum Housing, Two #1 Ports SAE #6 HS - 30
BC332376530122en-000101 • February 2020
CA - 30
Cartridge Valves Cavities Technical Information
+ 0.10
+ 0.004
NCS06/2
Dimensions
]
- 0.004
[0.130
- 0.10
0.5 [0.020] x45°
3.2
3.3
[0.126]
Detail "X"
Ø28
Ø23
1.6
[0.063]
45°
+ 0.15
[0.906 ]
0
+ 0.006
mm [in]
Ø28 [1.10]
[0.063]
M 22x1.5
+ 0.05
Ø19
30°
[0.75 ]
0
+ 0.002
0
Ø9.5 [0.37] max.
15
[0.60]
32
[1.26]
2
Ø0.05
[0.002]
0
"X"
1.6
33 [1.30]
13
21 [0.83]
1*
[0.51]
[0.39]
1
0.025
[0.001]
Ø9.5 [0.37] max.
1
Ø9.5 [0.37] min.
Ø17 [0.70] max.
Form tools Housings
Model code Material
number
Finishing tool NCS-06-2-FT 11027158
Roughing tool NCS-06-2-RT 11027159
Order Code Description Ports Page
NCS06/2-DG-1/2 Aluminum Housing 1/2 BSP HS - 35
NCS06/2-DG-3/8 Aluminum Housing 3/8 BSP HS - 34
NCS06/2-DG-6S Aluminum Housing SAE #6 HS - 34
NCS06/2-DG-8S Aluminum Housing SAE #8 HS - 35
NCS06/2-LG1-1/2 Aluminum Housing, Two #2 Ports 1/2 BSP HS - 37
NCS06/2-LG1-3/8 Aluminum Housing, Two #2 Ports 3/8 BSP HS - 38
NCS06/2-LG1-8S Aluminum Housing, Two #2 Ports SAE #8 HS - 37
NCS06/2-LG2-1/2 Aluminum Housing, Two #1 Ports 1/2 BSP HS - 33
NCS06/2-LG2-3/8 Aluminum Housing, Two #1 Ports 3/8 BSP HS - 36
NCS06/2-LG2-6S Aluminum Housing, Two #1 Ports SAE #6 HS - 36
NCS06/2-LG2-8S Aluminum Housing, Two #1 Ports SAE #8 HS - 33
BC332376530122en-000101 • February 2020
CA - 31
Cartridge Valves Cavities Technical Information
+ 0.004
NCS06/3
Dimensions
]
- 0.004
[0.130
- 0.10
+ 0.10
0.5 [0.020] x45°
3.2
3.3
[0.126]
Detail "X"
Ø28 [1.10]
Ø23
1.6
[0.063]
45°
+ 0.15
0
+ 0.006
[0.906 ]
0
3.2
[0.126]
33 [1.30]
50 [1.97]
13
21 [0.83]
1*
[0.51]
[0.39]
2
"X"
30°
Ø28 [1.10]
mm [in]
M 22x1.5
+ 0.002
+ 0.05
[0.75 ]
Ø19
0
0
+ 0.002
30°
Ø18
+ 0.05
0
[0.71 ]
0
Ø9.5 [0.37] max.
15
[0.60]
39
3
[1.54]
51
[2.00]
1.6
[0.063]
1.6
[0.063]
1
Ø9.5 [0.37] max.
1
Ø6.5 [0.26] min.
Ø17 [0.67] max.
Ø9.5 [0.37] max.
Ø0.05
[0.002]
0.025
[0.001]
Form tools Housings
Order Code Description Ports Page
Model code Material
number
Finishing tool NCS-06-3-FT 11027160
Roughing tool NCS-06-3-RT 11027161
NCS06/3-DL-1/2 Alum. Hsg., 2 Cavities w/#1 Ports Conn. 1/2 BSP HS - 39
NCS06/3-DL-3/8 Alum. Hsg., 2 Cavities w/#1 Ports Conn. 3/8 BSP HS - 46
NCS06/3-DL-6S Alum. Hsg., 2 Cavities w/#1 Ports Conn. SAE #6 HS - 46
NCS06/3-DL-8S Alum. Hsg., 2 Cavities w/#1 Ports Conn. SAE #8 HS - 39
NCS06/3-LD-6S Aluminum Housing, No Port #1 SAE #6 HS - 40
NCS06/3-LD-8S Aluminum Housing, No Port #1 SAE #8 HS - 41
NCS06/3-SE-1/2 Aluminum Housing 1/2 BSP HS - 42
NCS06/3-SE-3/8 Aluminum Housing 3/8 BSP HS - 43
NCS06/3-SE-6S Aluminum Housing SAE #6 HS - 43
NCS06/3-SE-8S Aluminum Housing SAE #8 HS - 42
NCS06/3-SI-1/2 Aluminum Housing, Two #1 Ports 1/2 BSP HS - 45
NCS06/3-SI-3/8 Aluminum Housing, Two #1 Ports 3/8 BSP HS - 44
NCS06/3-SI-6S Aluminum Housing, Two #1 Ports SAE #6 HS - 44
NCS06/3-SI-8S Aluminum Housing, Two #1 Ports SAE #8 HS - 45
BC332376530122en-000101 • February 2020
CA - 32
Cartridge Valves Cavities Technical Information
+ 0.10
+ 0.004
NCS06/4
Dimensions
]
- 0.004
[0.130
- 0.10
3.2
3.3
0.5 [0.020] x45°
[0.126]
Detail "X"
Ø28 [1.10]
Ø23
1.6
[0.063]
45°
+ 0.15
[0.906 ]
0
+ 0.006
0
69 [2.72]
57 [2.24]
3.2
[0.126]
33 [1.30]
mm [in]
Ø28 [1.10]
M 22x1.5
+ 0.002
+ 0.05
[0.75 ]
Ø19
1.6
"X"
1*
[0.39]
13
[0.51]
[0.063]
Ø18
1.6
[0.063]
Ø17
1.6
[0.063]
21 [0.83]
30°
3
30°
Ø9.5 [0.37] max.
Ø9.5 [0.37] max.
30°
0
+ 0.05
0
+ 0.05
0
0
+ 0.002
[0.71 ]
0
+ 0.002
[0.67 ]
0
2
4
Ø9.5 [0.37] max.
15
[0.60]
39
[1.54]
51
[2.00]
68
[2.68]
Ø0.05
1
1
Ø9.5 [0.37] min.
Ø16 [0.63] max.
Ø9.5 [0.37] max.
[0.002]
0.025
[0.001]
Form tools Housings
Model code Material
number
Finishing tool NCS-06-4-FT 11027172
Roughing tool NCS-06-4-RT 11027173
Order Code Description Ports Page
NCS06/4-L-1/2 Aluminum Housing 1/2 BSP HS - 49
NCS06/4-L-3/8 Aluminum Housing 3/8 BSP HS - 50
NCS06/4-L-6S Aluminum Housing SAE #6 HS - 50
NCS06/4-L-8S Aluminum Housing SAE #8 HS - 49
NCS06/4-LD-1/2 Aluminum Housing, No Port #1 1/2 BSP HS - 48
NCS06/4-LD-3/8 Aluminum Housing, No Port #1 3/8 BSP HS - 47
BC332376530122en-000101 • February 2020
CA - 33
Cartridge Valves Cavities Technical Information
+ 0.10
3.1 [0.12 ]
+ 0.004
NCS12/2
Dimensions
15°
- 0.004
- 0.10
3.2
[0.126]
Detail "X"
[0.063]
1.6
Ø39 [1.54]
+ 0.10
Ø35.4
45°
+ 0.004
[1.394 ]
0
R 0.15 [0.006]
mm [in]
Ø39 [1.54]
M 33x2
+ 0.075
+ 0.003
[1.10 ]
[0.063]
30°
Ø28
0
0
Ø13 [0.51] max.
21
[0.83]
42 [1.65]
2
Ø0.05
[0.002]
0.025
[0.001]
0
17
30 [1.18]
1 [0.04]*
[0.67]
3.2
[0.126]
46 [1.81]
"X"
1.6
1
Ø13 [0.51] max.
1
Form tools Housings
Ø13 [0.51] min.
Ø27 [1.06] max.
Order Code Description Ports Page
Model code Material
number
Finishing tool NCS-12-2-FT 11027174
Roughing tool NCS-12-2-RT 11027175
NCS12/2-DG-1/2 Aluminum Housing 1/2 BSP HS - 51
NCS12/2-DG-12S Aluminum Housing SAE #12 HS - 51
NCS12/2-DG-3/4 Aluminum Housing 3/4 BSP HS - 51
NCS12/2-DG-8S Aluminum Housing SAE #8 HS - 51
NCS12/2-LG1-12S Aluminum Housing, Two #2 Ports SAE #12 HS - 53
NCS12/2-LG1-8S Aluminum Housing, Two #2 Ports SAE #8 HS - 53
NCS12/2-LG2-1/2 Aluminum Housing, Two #1 Ports 1/2 BSP HS - 53
NCS12/2-LG2-12S Aluminum Housing, Two #1 Ports SAE #12 HS - 53
NCS12/2-LG2-3/4 Aluminum Housing, Two #1 Ports 3/4 BSP HS - 53
NCS12/2-LG2-8S Aluminum Housing, Two #1 Ports SAE #8 HS - 53
BC332376530122en-000101 • February 2020
CA - 34
Cartridge Valves Cavities Technical Information
+ 0.10
3.1 [0.12 ]
+ 0.004
NCS12/3
Dimensions
°
15
- 0.004
- 0.10
3.2
[0.126]
Detail "X"
[0.063]
1.6
Ø39 [1.54]
+ 0.10
Ø35.4
45°
+ 0.004
[1.394 ]
0
R 0.15 [0.006]
0
3.2
[0.126]
67 [2.64]
30 [1.18]
46 [1.81]
17
1 [0.04]*
[0.67]
mm [in]
Ø39 [1.54]
M 33x2
+ 0.075
+ 0.003
[1.10 ]
Ø28
0
0
"X"
2
30°
1.6
[0.063]
1.6
[0.063]
30°
Ø27
+ 0.075
0
+ 0.003
[1.06 ]
0
Ø13 [0.51] max.
21
[0.83]
3
55 [2.17]
71 [2.80]
Ø13 [0.51] max.
1
Ø13 [0.51] max.
1
Ø13 [0.51] min.
Ø26 [1.02] max.
Ø0.05
[0.002]
0.025
[0.001]
Form tools Housings
Model code Material
number
Finishing tool NCS12-3-FT 11027176
Roughing tool NCS12-3-RT 11027177
Order Code Description Ports Page
NCS12/3-DL-1/2 Alum. Hsg., 2 Cavities w/#1 Ports Conn. 1/2 BSP HS - 55
NCS12/3-DL-12S Alum. Hsg., 2 Cavities w/#1 Ports Conn. SAE #12 HS - 54
NCS12/3-DL-3/4 Alum. Hsg., 2 Cavities w/#1 Ports Conn. 3/4 BSP HS - 56
NCS12/3-DL-8S Alum. Hsg., 2 Cavities w/#1 Ports Conn. SAE #8 HS - 54
NCS12/3-SE-1 Aluminum Housing 1/2 BSP HS - 57
NCS12/3-SE-12S Aluminum Housing SAE #12 HS - 57
NCS12/3-SE-3/4 Aluminum Housing 3/4 BSP HS - 57
NCS12/3-SE-8S Aluminum Housing SAE #8 HS - 57
NCS12/3-SI-1 Aluminum Housing, Two #1 Ports 1/2 BSP HS - 58
NCS12/3-SI-12S Aluminum Housing, Two #1 Ports SAE #12 HS - 58
NCS12/3-SI-3/4 Aluminum Housing, Two #1 Ports 3/4 BSP HS - 58
NCS12/3-SI-8S Aluminum Housing, Two #1 Ports SAE #8 HS - 58
BC332376530122en-000101 • February 2020
CA - 35
Cartridge Valves Cavities Technical Information
+ 0.10
3.1 [0.12 ]
+ 0.004
NCS12/4
Dimensions
15°
- 0.004
- 0.10
3.2
[0.126]
Detail "X"
[0.063]
1.6
Ø39 [1.54]
Ø35.4
+ 0.10
45°
+ 0.004
[1.394 ]
0
R 0.15 [0.006]
mm [in]
Ø39 [1.54]
M 33x2
+ 0.075
+ 0.003
[1.10 ]
Ø28
0
0
1.6
[0.063]
0
3.2
[0.126]
17
1 [0.04]*
[0.67]
"X"
1.6
[0.063]
1.6
[0.063]
30 [1.18]
46 [1.81]
80 [3.15]
96 [3.78]
Ø13 [0.51] max.
3
Ø13 [0.51] max.
30°
30°
30°
Ø27
Ø26
+ 0.075
+ 0.075
0
0
+ 0.003
[1.06 ]
0
+ 0.003
[1.02 ]
0
Ø13 [0.51] max.
21
[0.83]
55 [2.17]
4
71 [2.80]
92 [3.62]
Ø13 [0.51] max.
2
Ø0.05
[0.002]
1
1
Ø13 [0.51] min.
0.025
[0.001]
Ø26 [1.02] max.
Form tools
Model code Material
number
Finishing tool NCS-12-4-FT 11027178
Roughing tool NCS-12-4-RT 11027179
Housings
Order Code Description Ports Page
NCS12/4-HD-1 Aluminum Housing, No Port #1 1/2 BSP HS - 61
NCS12/4-L-1 Aluminum Housing 1/2 BSP HS - 59
NCS12/4-L-12S Aluminum Housing SAE #12 HS - 60
NCS12/4-L-3/4 Aluminum Housing 3/4 BSP HS - 59
BC332376530122en-000101 • February 2020
CA - 36
Dimensions
Cartridge Valves Cavities Technical Information
NCS12/5
mm [in]
Form tools
Model code Material
number
Finishing tool NCS-12-5-FT 11143088
Roughing tool NCS-12-5-RT 11143089
Housings
Order Code Description Ports Page
NCS12/5-6B/3B Aluminum Housing, Pilot at Port 5 1/2 BSP, 3/8 BSP HS - 62
NCS12/5-10S/6S Aluminum Housing, Pilot at Port 5 SAE #10, #6 HS - 63
NCS12/5-12S/6S Aluminum Housing, Pilot at Port 5 SAE #12, #6 HS - 63
NCS12/5-S10S/6S Ductile Housing, Pilot at Port #5 SAE #10, #6 HS - 63
NCS12/5-S12S/6S Ductile Housing, Pilot at Port #5 SAE #12, #6 HS - 63
BC332376530122en-000101 • February 2020
CA - 37

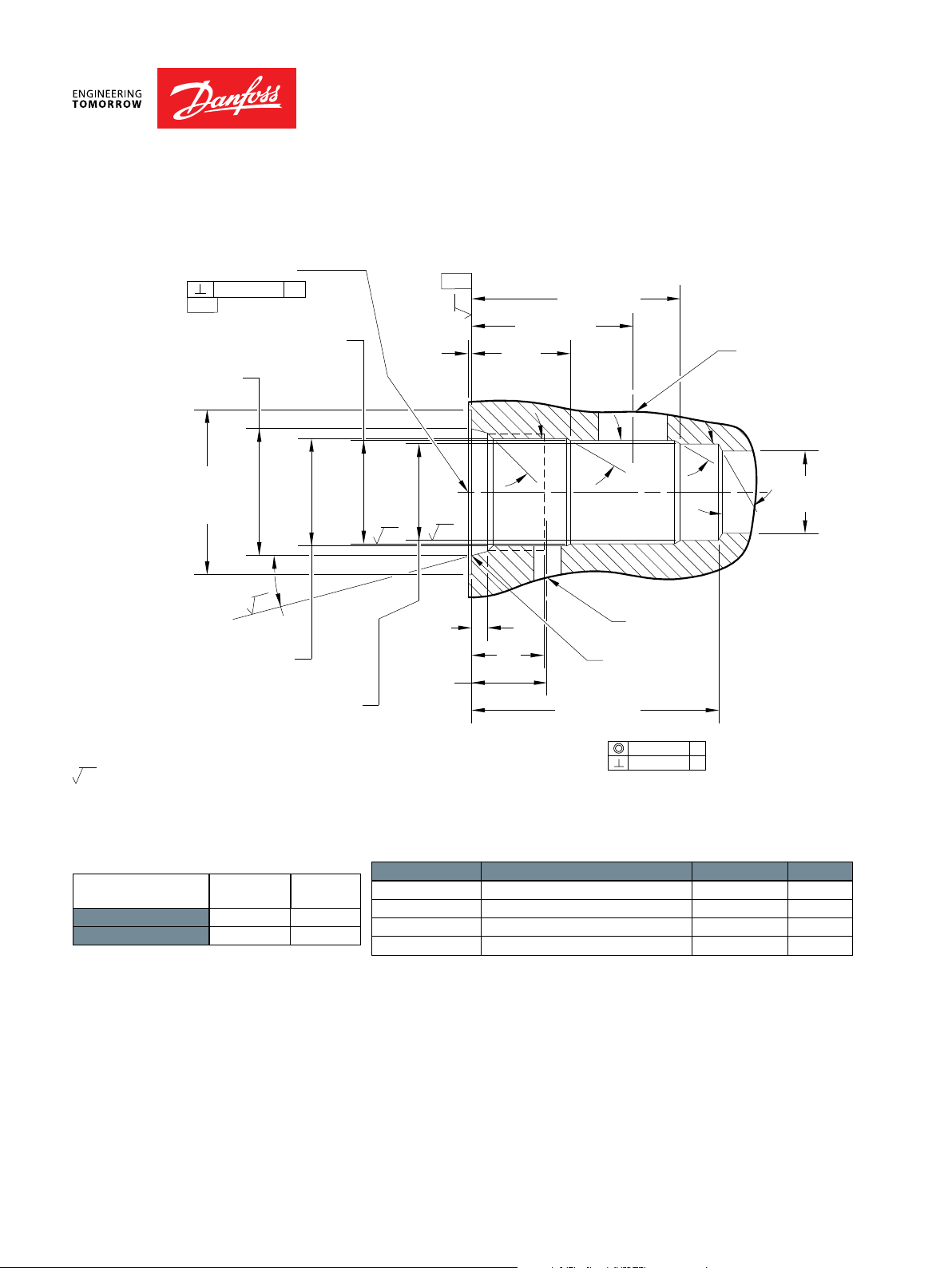

Cartridge Valves Cavities Technical Information
VME06
Dimensions
mm [in]
I
Form tools Housings
Model code Material
number
Finishing tool VME-06-FT 11027242
Roughing tool VME-06-RT 11027243
Order Code Description Ports Page
VME 06-DG-3B Aluminum Housing 3/8 BSP HS - 125
VME 06-DG-6S Aluminum Housing SAE #6 HS - 125
VME 06-LG-3B Aluminum Housing 3/8 BSP HS - 124
VME 06-LG-6S Aluminum Housing SAE #6 HS - 124
BC332376530122en-000101 • February 2020
CA - 38
Cartridge Valves Cavities Technical Information
VME07
Dimensions
Hex 27
54-60 N m
[40-44 lbf ft]
32
[1.26]
mm [in]
M 24 X 1.5
2
1
55
[2.17]
Form tools Housings
Model code Material
number
Finishing tool VME-07-FT 11027244
Roughing tool VME-07-RT 11027245
Order Code Description Ports Page
VME 07-DG-4B Aluminum Housing 1/2 BSP HS - 126
VME 07-DG-8S Aluminum Housing SAE #8 HS - 126
VME 07-LG-4B Aluminum Housing 1/2 BSP HS - 127
VME 07-LG-8S Aluminum Housing SAE #8 HS - 127
BC332376530122en-000101 • February 2020
CA - 39
Cartridge Valves Cavities Technical Information
VME08
Dimensions
mm [in]
Lengths:
Form tools Housings
Model code Material
number
Finishing tool VME-08-FT 11027246
Roughing tool VME-09-RT 11027247
Order Code Description Ports Page
VME 08-DG-12S Aluminum Housing SAE #12 HS - 129
VME 08-DG-6B Aluminum Housing 3/4 BSP HS - 129
VME 08-LG-12S Aluminum Housing SAE #12 HS - 128
VME 08-LG-6B Aluminum Housing 3/4 BSP HS - 128
BC332376530122en-000101 • February 2020
CA - 40
Cartridge Valves Cavities Technical Information
Free-flow
[0.81]
FC-144
Dimensions
9.7 [0.38]
11.2 [0.44]
mm [in]
26.2
[1.03]
Ø
26.2
[1.03]
11.2
[0.44]
In-line installation
30°
19.1
[0.75]
20.6
[0.81]
13.5
[0.53]
Insert
Right angle
installations
Outlet
Cartridge canberetained by bolted valve,
subplate orastraight thread plug
Inlet
Free-flow
11.2
[0.44]
Inlet
Outlet
30°
9.7 [0.38]
11.2 [0.44]
Ø
Form tools
Model code Material
Finishing tool FC-144-FT
Roughing tool FC-144-RT
number
19.1
[0.75]
20.6
Insert
19.1
[0.75]
Insert
20.6
[0.81]
BC332376530122en-000101 • February 2020
CA - 41

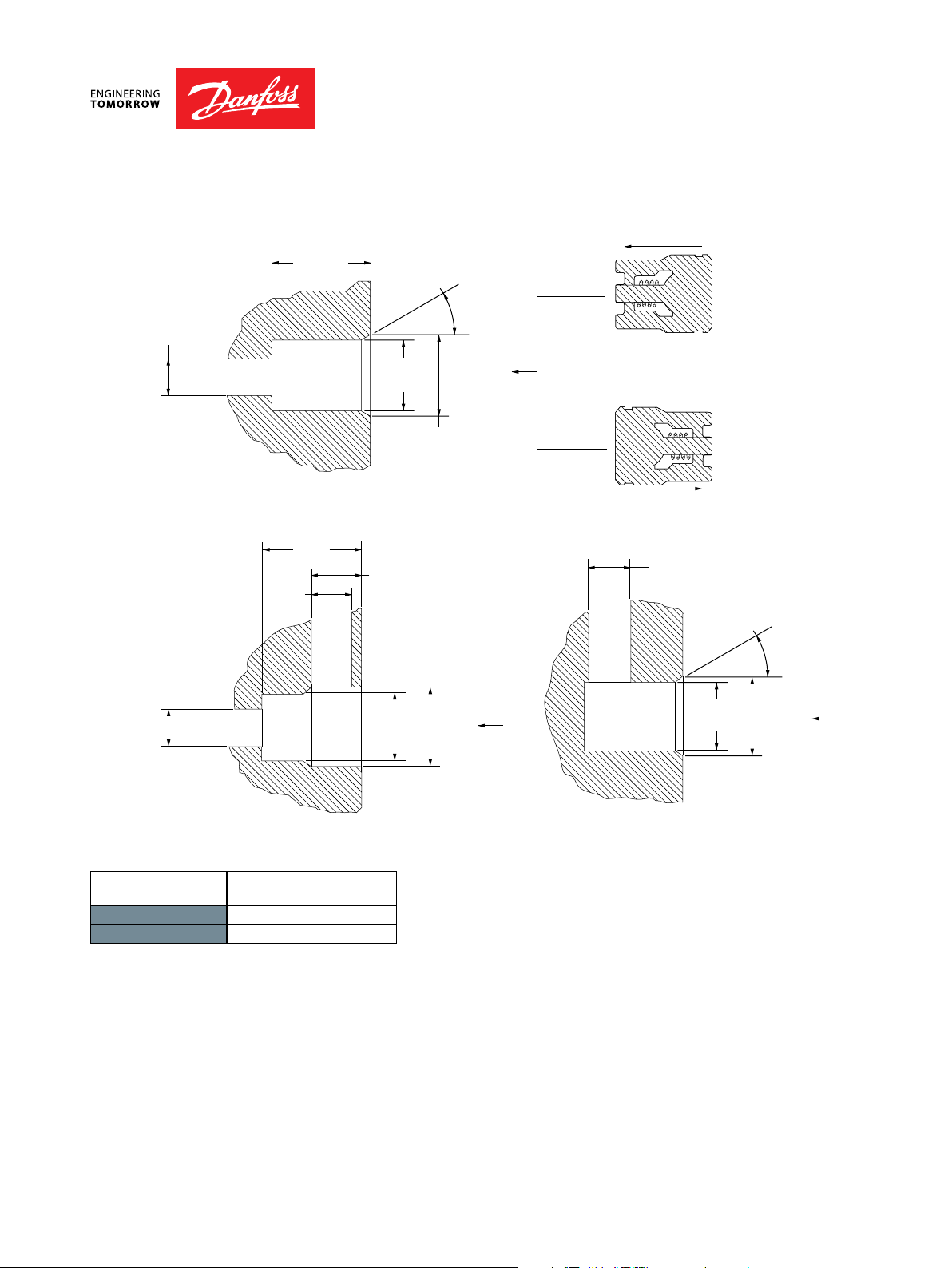

Cartridge Valves Cavities Technical Information
FC-304
Dimensions
14.0 [0.55]
15.8 [0.62]
mm [in]
Free-flow
40.1
[1.58]
Ø
40.1
[1.58]
15.8
[0.62]
In-line installation
30.2
[1.19]
[1.25]
19.1
[0.75]
30°
Insert
31.8
Right angle
installations
Outlet
Cartridgecan be retained by bolted valve,
subplateorastraightthread plug
Inlet
Free-flow
15.8
[0.62]
Inlet
Outlet
30°
14.0 [0.55]
15.8 [0.62]
Ø
Form tools
Model code Material
Finishing tool FC-304-FT
Roughing tool FC-304-RT
number
30.2
[1.19]
31.8
[1.25]
Insert
30.2
[1.19]
Insert
31.8
[1.25]
BC332376530122en-000101 • February 2020
CA - 42
Cartridge Valves Cavities Technical Information
FC-336
Dimensions
mm [in]
Form tools
Model code Material
number
Finishing tool FC-336-FT 310219
Roughing tool FC-336-RT 11027248
BC332376530122en-000101 • February 2020
Housings
Order Code Description Ports Page
FC336-4S Aluminum Housing SAE #4 -
CA - 43
Cartridge Valves Cavities Technical Information
ISO D03
Dimensions
25.91
[1.020]
4.83
[0.190]
15.49
[0.610]
[0.840]
12.70
[0.500]
21.34
30.48
[1.200]
A
mm [in]
10-24 UNC-2BM5)(typ.4
0.76
[0.030]
T
30.99
B
P
[1.220]
31.75
[1.250]
6.35 [0.250] Ø
typ. 4
33.02
[1.300]
40.39
[1.590]
4.06 [0.16] Ø
5.08 [0.20] deep
Housings
Order Code Description Ports Page
UDPS-06-AL ISO D03 Subplate, Aluminum #8 SAE HS - 21
UDPS-06-DI ISO D03 Subplate, Ductile Iron #8 SAE -
BC332376530122en-000101 • February 2020
CA - 44
Cartridge Valves Cavities Technical Information

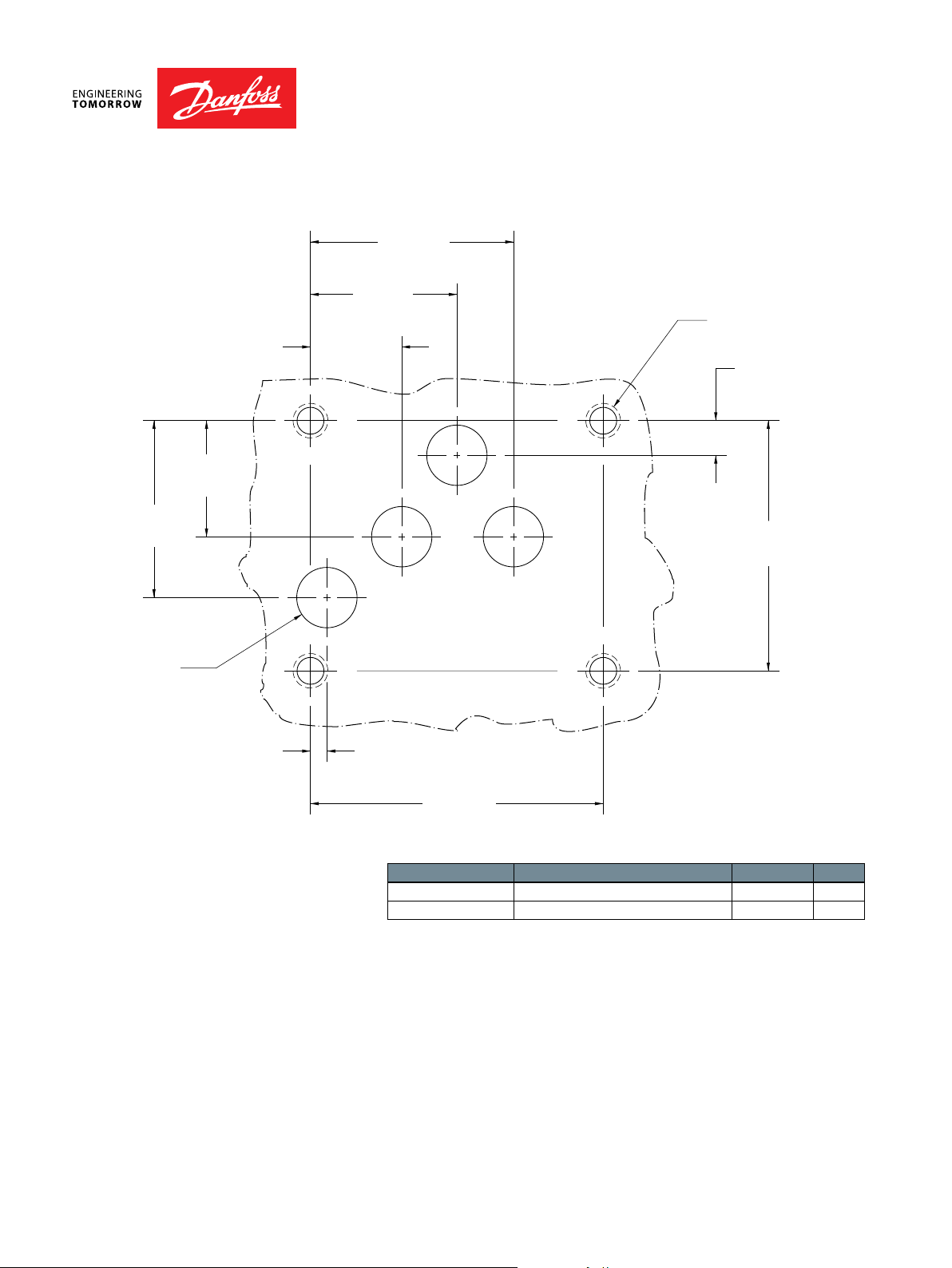

ISO D05
Dimensions
[1.280]
32.51
21.34
[0.840]
16.76
[0.660]
T
26.92
[1.060]
37.34
[1.470]
mm [in]
1/4-20 UNC-2B (M6) typ. 4
6.35
[0.250]
P
45.97
A
B
[1.810]
11.13 [0.438] Ø
typ. 4
3.05
[0.120]
53.85
[2.120]
Housings
Order Code Description Ports Page
UDPS-10-AL ISO D05 Subplate, Aluminum #8 SAE HS - 22
UDPS-10-DI ISO D05 Subplate, Ductile Iron #8 SAE -
BC332376530122en-000101 • February 2020
CA - 45
Loading...
