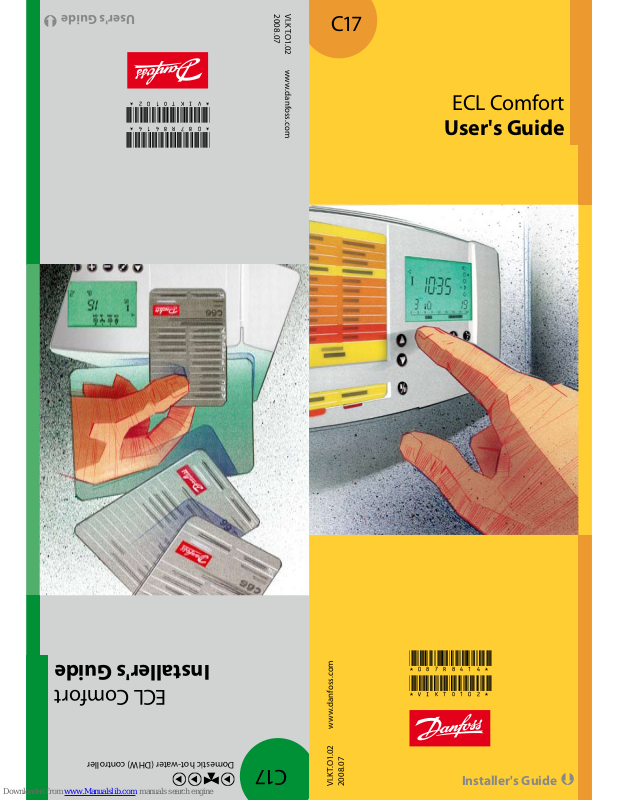

C17
C17
VI.KT.O1.02
2008.07
VI.KT.O1.02
2008.07
www.danfoss.com
User's Guide
Installer's Guide
www.danfoss.com
ECL Comfort
Installer's Guide
ECL Comfort
User's Guide
*087R8414*
*VIKTO102*
*087R8414*
*VIKTO102*
Domestic hot-water (DHW) controller
The shown diagram is a fundamental and simplied example and
does not contain all components that are necessary in a system.
If the system you are about to install diers from the shown
diagram of a standard system, feel free to sketch an outline for
comparison. Adaptation of systems, see section 10.
Circuit
indicator
Circuit
selector
Shift
button
Adjust-
ment
Controller
mode
This guide is associated with ECL Card 087B4730
Installer:
By:
Date:
Controller mode
Manual operation (used only at maintenance
and service)
Scheduled operation
Constant comfort temperature
Constant saving temperature
Standby mode
Arrow buttons. Switch between the lines of the ECL
Card.
Shift button. Switches between temperatures,
changeover points etc.
Adjust temperatures and values etc.
Circuit selector for switching between the circuits.
Safety Note
To avoid injury of persons and damages to the device, it is absolutely
necessary to read and observe these instructions carefully.
Necessary assembly, start-up, and maintenance work must be performed by
qualied and authorized personnel only.
Display indications, controlled units, C17
1
ON
1
A B C D
2
ON
3
ON
A: P1 Blank = OFF ON = ON
B: M1 = Opens = Closes
C: P2 Blank = OFF ON = ON
D: P3 Blank = OFF ON = ON
List of components:
ECL Comfort 300
S1 Supply temperature sensor
S2 DHW charging temperature sensor
S3 DHW temperature sensor
S4 Return temperature sensor
S5
Lower tank temperature sensor
S6
Upper tank temperature sensor
P1 Circulation pump, primary circuit
P2 DHW charging pump
P3 DHW circulation pump
M1 Motorized control valve
Table of Contents
Sections in the Installer’s Guide
The documentation for the ECL Comfort controller is
composed of numbered sections. Only sections relevant to
your ECL Comfort controller are included here.
Before you start
Installation
10 Identifying the system type
11 Mounting the ECL Comfort controller
12 Electrical connections 230 V a.c.
14 Connecting and placing the temperature sensors
15 Inserting the ECL Card
Basic Set-up
16 Adjusting the ECL Card settings
17 Setting the time and date - line A
18 Monitoring temperatures and system units - line B
19 Manual control - line B
20 Monitoring temperatures and system units - line B
26 Control parameters - lines 4-7
27 Cut-in and cut-out temperature at DHW charging
- lines 1-2
Control & Overviews
29 Check list
30 ECL Card settings
31 Service parameters
Extended Service
32 Adjusting the service parameters
Miscellaneous
34 Copying with the ECL Card
User's Guide (turn the guide over for sections 1-7)
1 C
hoose your favorite display
2 S
elect circuit mode
3 S
et your DHW charging temperature
4 S
et your personal schedule
5 A
dvantages of the ECL Card
6 H
ot points
7 D
enitions
Disposal instruction:
This product should be dismantled and its
components sorted, if possible, in various
groups before recycling or disposal.
Always follow the local disposal regulations.
VI.KT.O1.02
Card C17
2008.07
Sketch your application
The ECL Comfort controller series is designed for a wide
range of heating, domestic hot-water (DHW) and cooling
systems with dierent congurations and capacities.
If your system diers from the diagrams shown in section
10, you may want to make a sketch of the system about to
be installed. This makes it easier to use the Installer’s Guide,
which will guide you step-by-step from installation to nal
adjustments before the end-user takes over.
The controller is pre-programmed with factory settings that are
shown in the relevant sections of this guide.
However, you might come across some settings that are not listed
in this instruc tion. These settings could be related either to recent
updates or the use of optional modules (which are described in
the instructions in question).
How to use this guide
This guide is divided into two parts:
• User’s Guide: Yellow sections 1-7
• Installer's Guide: Grey sections 10 and onwards
The application C17 is very exible. These are the basic principles:
Typically, the tank temperature (S6) is adjusted according to your
requirements. The charging temperature sensor (S2) is the most
important sensor. The desired charging temperature at S2 is set in
the ECL controller (line C, yellow side).
If the measured DHW temperature (S6) is lower than the desired
charging temperature minus the cut-in dierence, charging
starts. The charging pump, P2, is switched ON.
When the measured DHW temperature (S5) is higher than the
desired charging temperature minus the cut-out dierence,
charging stops.
The motorized control valve (M1) is opened gradually when the
charging temperature is lower than the desired charging
temperature and vice versa.
Typically, the return temperature (S4) to the district heating
supply should be as low as possible. If not so, the desired
charging temperature can be adjusted.
The S1 temperature can correct the proportional band (Xp).
Typically, the Xp must be increased at a rising S1 temperature.
The S3 temperature gives a feedback to the DHW charging
temperature (S2). If the S3 temperature is too low, the desired
temperature at S2 will be increased.
Before you start
Installation
Identifying the system type
10a
The ECL Comfort controller is a universal controller that can
be used for various systems. Based on the shown standard
systems, it is possible to congure additional systems.
In this section you nd the most frequently used systems. If
your system is not quite as shown below, nd the diagram
which has the best resemblance with your system and make
your own combinations.
The functions can only be realized with ECL Comfort 300 and as of
controller version 1.08.
10.1 Full installation, external DHW circulation
10.2 Full installation, internal DHW circulation
System diagrams in this instruction are principal drawings and do
not contain all components which are necessary in your systems.
Installation
10b
10.3 Minimum installation
10.4 Minimum installation, district heating
System diagrams in this instruction are principal drawings and do
not contain all components which are necessary in your systems.
Installation
For easy access, you should mount the ECL Comfort
controller near the system. Select one of the three
following methods:
• Mounting on a wall
• Mounting on a DIN rail
• Mounting in a panel
Screws and rawlplugs are not supplied.
Mounting on a wall
Socket for mounting on wall: Order code No. 087B1149.
Mount the terminal box on a wall with a smooth surface.
Establish the electrical connections and position the
controller in the box. Secure the controller with the xing
screw.
Mounting on a DIN rail
Mounting kit: Order code No. 087B1145.
A mounting kit is necessary to mount the box with the
controller on a DIN rail.
Mounting in a panel
Connector set: Order code No. 087B1148.
The panel plate thickness must not exceed 3 mm.
Prepare a cut-out with the dimensions 93 x 139 mm. Pull o
the right side of the lid by means of a screwdriver.
Insert the controller into the panel cut-out and x it with the
two locks which are placed diagonally in two corners of the
controller.
Mounting the ECL Comfort
controller
11a
Installation
11b
Installation
Electrical connections 230 V a.c. - in general
12a
230 V a.c. connections
Optio nal
Installation
Terminal Description Max. load
1 L Supply voltage 230 V a.c.
2 N Supply voltage 230 V a.c.
3 M1 Actuator - open 0.2 A / 230 V a.c.
4 M1
Actuator - close
alt. thermo actuator
0.2 A / 230 V a.c.
5
230 V a.c. supply voltage for
M1
6
Not to be used.
Do not establish any
connections!
7
8
9 P1
Circulation pump, primary
circuit
4 (2) A / 230 V a.c.
10
230 V a.c. supply for pump
relay R1
11 P2 DHW charging pump 4 (2) A / 230 V a.c.
12
230 V a.c. supply for pump
relay R2
13 P3 DHW circulation pump 4 (2) A / 230 V a.c.
14
230 V a.c. supply for pump
relay R3
Option:
Relay module ECA 80 (contacts: max. load 4 (2) A / 230 V a.c.)
25 (R4) Alarm relay output
Wire cross section: 0.75 - 1.5 mm
2
Electrical connections
Max. 2 x 1.5 mm2 wires can be inserted into each screw terminal.
Incorrect connection can damage the TRIAC outputs. Max. load
(terminals 3, 4, (6 and 7)) 0.2 A / 230 V a.c.!
12b
Installation
Electrical connections 24 V a.c. - in general
13a
24 V a.c. connections
Installation
13b
Terminal Description Max. load
1 L1 Supply voltage 24 V a.c.
2 L2 Supply voltage 24 V a.c.
3 M1 Actuator - open 1 A / 24 V a.c.
4 M1
Actuator - close
alt. thermo actuator
1 A / 24 V a.c.
5 24 V a.c. supply voltage for M1
6
Not to be used.
Do not establish any
connections!
7
8
9 K1
Relay for circulation pump,
primary circuit
4 (2) A / 24 V a.c.
10 24 V a.c. supply for K1
11 K2 Relay for DHW charging pump 4 (2) A / 24 V a.c.
12 24 V a.c. supply for K2
13 K3
Relay for DHW circulation
pump
4 (2) A / 24 V a.c.
14 24 V a.c. supply for K3
Option:
Relay module ECA 80 (contacts: max. load 4 (2) A / 24 V a.c.)
25 (R4) Alarm relay output
Wire cross section: 0.75 - 1.5 mm
2
Electrical connections
Max. 2 x 1.5 mm2 wires can be inserted into each screw terminal.
Incorrect connection can damage the TRIAC outputs. Max. load
(terminals 3, 4, (6 and 7)) 1 A / 24 V a.c.!
Installation
Connecting the temperature sensors and the bus
Terminal Description Type (recomm.)
15 and 16 System device bus*
17 and 16 S1 Supply temperature sensor
ESM-11 / ESMC /
ESMU
18 and 16 S2
DHW charging temperature
sensor
ESM-11 / ESMC /
ESMU
19 and 16 S3 DHW temperature sensor
ESM-11 / ESMC /
ESMU
20 and 16 S4 Return temperature sensor
ESM-11 / ESMC /
ESMU
21 and 16 S5
Lower tank temperature
sensor**
ESM-11 / ESMC /
ESMU
22 and 16 S6
Upper tank temperature
sensor**
ESM-11 / ESMC /
ESMU
* The system device bus is onl y active when the address 15 (line 199)
is chosen.
** If onl y one DHW temperature sensor is used, it must be connected to
terminal 22 as S6.
Establish the jumper from 16 to common terminal.
Wire cross section for sensor connections:
Min. 0.4 mm
2
Total cable length: Max. 125 m (all sensors incl. system device
bus)
Cable lengths of more than 125 m may cause noise sensibility
(EMC).
Connecting and placing the
temperature sensors
14a
Installation
It is important that the sensors are mounted in the correct
position in your system.
The temperature sensor mentioned below are sensors used
for the ECL Comfort 200 and 300 series which not all will be
needed for your application!
Outdoor temperature sensor (ESMT)
The outdoor sensor should be mounted on that side of the
building where it is less likely to be exposed to direct
sunshine. It should not be placed close to doors, windows or
air outlets.
Flow temperature sensor (ESMU, ESM-11 or ESMC)
Place the sensor max. 15 cm from the mixing point. In
systems with heat exchanger, Danfoss recommends that the
ESMU-type to be inserted into the exchanger ow outlet.
Make sure that the surface of the pipe is clean and even
where the sensor is mounted.
Return temperature sensor (ESMU, ESM-11 or ESMC)
The return sensor should always be placed in / on a pipe with
return water ow.
Room temperature sensor (ESM-10, ECA 60 / 62 room
panel or ECA 61 / 63 remote control)
Place the room sensor in the room where the temperature is
to be controlled. Do not place it on outside walls or close to
radiators, windows or doors.
DHW temperature sensor (ESMU or ESMB-12)
Place the DHW temperature sensor according to the
manufacturer’s specication.
Boiler temperature sensor (ESMU, ESM-11 or ESMC)
Place the sensor according to the boiler manufacturer’s
specication.
Flow / air duct temperature sensor (ESM-11, ESMB-12,
ESMC or ESMU types)
Place the sensor so that it measures a representative
temperature.
Slab temperature sensor (ESMB-12)
Place the sensor in the slab.
Valid for ESM-11: Do not move the sensor after it has been
fastened in order to avoid damage to the sensor element.
14b
Installation
14c
Override
For an active override, you have to choose the mode
“scheduled operation”! Input S1 ... S6 (ECL Card C14 only uses
S5) can be used for override purposes (section 32, line 141).
Connection example without ECA 9010
If the override switch has goldplated contacts, you can
choose one of the following solutions or a combination of
both:
(C14 = 21 only) (C14 = 21 only)
Closed switch: Closed switch:
Comfort temperature Setback temperature
Open switch: Open switch:
Scheduled op eration Scheduled ope ration
Connection example with ECA 9010
The ECA 9010 module is powered by the system device bus,
which means that the bus must be active. The bus is activated
by setting the controller address to 15 (line 199). To avoid
inuence from contact resistance, the use of ECA 9010 is
recommended.
Comfor t Sav ing
Red
Brown
Green S1 .. . S6 (C14 = S5 onl y)
Installation
14c
Installation
How to insert your ECL Card the rst time
After the power has been switched on, open the lid on the
front side of the controller.
Place the ECL Card with the yellow side facing you. This
enables the controller to read the ECL Card data. The
controller immediately starts to copy the application type
and factory settings from the ECL Card. After copying, the
display will show you the application type. After approx. 10
sec. the display will change to display line C.
Display example:
Software
version, ECL
Card
Line
Circuit
Time
Outdoor
temp.
C
C 99
Y
0
P
C 73
05 109
8
0 3 6 9 12 15 18 21 24
1
023
5
C
3
Application t ype
Software ve rsion,
controller
Desired room tem p.
The controller is now ready to be set to control your system.
If the display keeps showing CPY, see section 34b.
Inserting the ECL Card
15a
Installation
Understanding the ECL Card
The ECL Card contains factory settings for a standard
system. If the actual system diers from the standard
system, the controller must be adjusted accordingly. After
the adjustment, the new settings should be stored on the
ECL Card.
For ECL Card copying and daily use including adjustment
of temperatures and schedules, insert the ECL Card with
the yellow side facing you.
For system set-up adjustments, the grey side of the ECL
Card - the installer’s side - must be facing you.
As a main rule, the ECL Card should always remain in the
controller during service, maintenance and setting.
If the card is removed or left in the controller with the grey
side facing you, please note that:
• After approx. 25 min.:
- The controller cannot be operated.
- The controller reverts to display C (section 1).
• The ECL Card must not be exposed to direct heat or
sunshine.
If several controllers are installed in the system you can
write a title on the ECL Card with a permanent ink pen.
Do not remove the ECL Card while copying. The data on the
ECL Card can be damaged!
When you store your personal settings on your ECL Card, the
factory settings will be overridden.
15b
The grey
side of the
ECL Card
Basic set-up
General principles
When the controller is connected and operating you can
check and adjust all or some of the basic settings. Turn the
ECL Card so that the grey side is facing you (see the example
below).
Use the arrow buttons to move from line to line of
the ECL Card, for example line 2:
Circuit
Line
Setting
to be
adjusted
1
1
ON2ON
09
2
04
2
3
ON
Value in range indicator
Use the plus / minus buttons to adjust the
settings.
In some displays more than one setting or value
can be adjusted. Use the shift button to switch
between the options.
The circuit selector shifts between circuit I
and II. You can adjust all settings and service
parameters individually.
Update of the ECL Card after maintenance and service
All new settings can be stored on the ECL Card. For details
about copying, see section 34.
Adjusting the ECL Card
settings
16
The grey
side of the
ECL Card
Basic set-up
Actual time
Year
08
01
5 720
5
A
3
1
Month, day
Use the shift button to switch between minutes,
hours, years, months and days.
Set the correct time and date.
In case of a power break, which lasts longer than 12 hours, the
time and the date have to be set again. All other settings are
stored as programmed.
Use the yellow side of the card to change the schedules.
See User’s Guide, section 4.
Setting the time and date line A
17
The grey
side of the
ECL Card
Basic set-up
Controlled units
DHW
charging
temp.
(S2)
2
1
956
B
3
1
ON
2
ON
DHW temp.
(S3)
Push and hold the shift button to see:
- the desired DHW charging temperature
- the desired DHW temperature.
The activity of the motorized control valve is shown as arrows
below the valve symbol. When the circulation pump is
operating, it is indicated as ON below the pump symbol.
If a sensor is not mounted or is disconnected, the display will
indicate it as “- -”.
If the sensor is short-circuited, the display will indicate
it as “- - -“.
If you are in doubt, remove the controller and check the
ohmic value between the relevant terminals.
Relationship between temperature and ohmic value
-50
800
900
1000
1100
1200
1300
1400
1500
1600
-25 0 25 50 75 100 125 150
°C
Ω
Ω
805
845
883
922
961
1000
1039
1078
1117
1155
1194
1232
1271
1309
1347
1385
1423
1462
1501
1539
1578
°C
-50
-40
-30
-20
-10
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
Monitoring temperatures
and system units - line B
18
The grey
side of the
ECL Card
Basic set-up
Shift to manual mode.
Controlled units
2
1
956
B
3
1
ON
2
ON
Controller mode
Choose the unit you want to control. The selected
unit symbol will blink.
Controlled units are switched OFF or ON when
the relevant button is pushed.
The motorized actuator (gear motor)
closes or opens the controlled unit as long as
the relevant button is pushed. If pushed for more
than 3 seconds, the actuator continues to close or
open the valve.
The thermo actuator
activates the valve as long as the button is
pushed. If pushed for more than 3 seconds, the
actuator continues to open the valve.
Check the activation direction of the actuator either by
looking at it or by feeling whether the temperature of the
actual pipe changes as expected.
This operation applies to both circuits, if available.
During manual operation, all control functions are deactivated.
Manual control line B
19
The grey
side of the
ECL Card
Basic set-up
Choose circuit II for the readout of the supply and
return temperatures.
Supply
temp.
(S1)
1
33
B
08
3
ON
1
ON
2
ON
Return
temp.
(S4)
20a
Monitoring temperatures and
system units - line B (circuit II)
The grey
side of the
ECL Card
Basic set-up
20b
The grey
side of the
ECL Card
Basic set-up
Control parameters lines 4-7
26a
4 Proportional band, Xp
Circuit Setting range Factory setting
I 1 ... 250 K 80 / 180 K
Line
Xp
1
0
4
8
0 081
1
3
ON
2
ON
1
ON
8
Setting to be adjusted
Xp
2
Set the proportional band.
A higher value will result in a stable but slow
control of the ow temperature.
If you want to adjust the Xp1 and Xp2, push the
shift button once or twice.
65 90
Xp
Xp
Xp
C
o
2
1
Xp is a function of the supply temperature (sensor
S1). If a S1 sensor is not connected, the Xp value
will equal Xp1.
5 Integration time, Tn
Circuit Setting range Factory setting
I 5 ... 999 sec. 30 sec.
Set a long integration time to obtain a slow but
stable reaction to deviations.
A short integration time will make the controller
react fast but with less stability
6 Running time of the motorized control valve
Circuit Setting range Factory setting
I 5 ... 250 sec. 35 sec.
Set the running time of the motorized control
valve according to the example. This is the time it
takes the controlled unit to move from fully closed
to fully open position.
How to calculate the running time of a motorized
control valve
The running time of the motorized control valve is calculated
using the following methods:
Seated valves
Running time = Valve stroke (mm) x actuator speed (sec. / mm)
Example: 5.0 mm x 15 sec. / mm = 75 sec.
Rotating valves
Running time = Turning degrees x actuator speed (sec. / degr.)
Example: 90 degrees x 2 = 180 sec.
S1 - T supply
The grey
side of the
ECL Card
Basic set-up
26b
7 Neutral zone, Nz
Circuit Setting range Factory setting
I 0 ... 9 K 3 K
Set the neutral zone to a high value if you can
accept a high variation in ow temperature.
When the actual ow temperature is within the
neutral zone, the controller does not activate the
motorized valve.
The neutral zone is symmetrical around the desired ow
temperature value, i.e. half the value is above and half the value is
below this temperature.
Control parameters (lines 4 -7) are overruled if thermo actuator is
chosen (OFF).
If you want to tune the PI regulation precisely, you can
use the following method:
• Set the integration time (line 5) to its max. value
(999 sec.).
• Decrease the value for the proportional band (line 4) until the
system starts hunting with a constant amplitude (it might be
necessary to force the system by setting an extreme value).
• Find the critical time period on the temperature recording or
use a stop watch.
Temp.
Critica l time period
Time
This time period will be characteristic for the system, and you can
evaluate the set tings from this critical period.
Integration time = 0.85 x critical time period
Proportional band = 2.2 x proportional band value in the
critical time period.
If the regulation seems to be too slow, you can decrease the
proportional band value by 10%.
Make sure there is a consumption when you set the parameters.
The grey
side of the
ECL Card
Basic set-up
The controller can control the DHW temperature with either
one or two tank temperature sensor(s). The controller will
automatically register the number of sensors.
1 Cut-out temperature dierence - (lower sensor)*
Circuit Setting range Factory setting
I 1 ... 99 K 15 K
Set the dierence between the desired charging temperature and
cut-out temperature (charging stop) .
Set the dierence.
Example:
Desired charging temperature (section 3): 60 °C
Cut-out dierence: 15 K
Calculated cut-out temperature (60-15) = 45 °C
2 Cut-in temperature dierence - (upper sensor)*
Circuit Setting range Factory setting
I 1 ... 99 K 20 K
Set the dierence between the desired charging temperature and
cut-in temperature (charging start).
Set the dierence.
Example:
Desired charging temperature (section 3): 60 °C
Cut-in dierence: 20 K
Calculated cut-in temperature (60-20) = 40 °C
* In case o f two sensors.
Cut-in and cut-out temperature
at DHW charging - lines 1-2
27a
The grey
side of the
ECL Card
Basic set-up
One sensor (S6)
Temp.
Cut-ou t dierence - l ine 1
Cut-in di erence - li ne 2
Cut-ou t
Time
P2
Chargi ng
temper ature
S6
Cut-in
If you only have one sensor installed (S6), this sensor will measure
the cut-out temperature as well as the cut-in temperature.
Two sensors (S5 + S6)
Temp.
Cut-ou t dierence - l ine 1
Cut-in di erence - li ne 2
Cut-in
Cut-ou t
Time
Chargi ng
temper ature
S6
S5
The DHW temperature will var y between the cut-in and the cutout temperatures.
Example:
Cut-in dierence: 15 K
Cut-out dierence: 20 K
Variation: 5 K
27b
P2
Control & overviews
Is the ECL Comfort controller ready for use?
Make sure that the correct power supply is
connected to terminals 1 (Live) and 2 (Neutral). See
section 12 or 13.
Check that the required actuators, pumps, fans,
dampers and burners are connected to the correct
terminals. See sections 12 or 13.
Check that all sensors are connected to the correct
terminals. See section 14.
Mount the controller and switch on the power.
Insert the ECL Card with the yellow side facing you
and push , if necessary. See section 15.
Choose manual operation as controller mode. See
section 2.
Check that valves open and close, and that
required pumps, fans, dampers and burners start
and stop when operated manually. See section 19.
Having completed the manual operation check,
choose scheduled operation as controller mode.
Check that the temperatures shown in display A
and B match the actual sensors. See section 1.
Check list
29a
Control & overviews
Adapting the ECL Comfort controller to the
system
Turn the ECL Card so that the grey side faces you
and push , if necessary.
Set the time and the date (line A). See section 17.
Check that all settings in the controller (sections 30
and 31) are set or that the factory settings comply
with your requirements.
If your system diers from the diagram shown on the
cover, you should check and alter your service parameters, if
necessary.
Check that the system settings mentioned in
section 10 have been set correctly.
29b
Control & overviews
ECL Card settings
30
A Time and date Section 17
B System information Sections 18 & 19
C
Setting ranges Factory settings Your settings
1
Cut-out temperature dierence
1 ... 99 K 15 K
See section 27
2
Cut-in temperature dierence
1 ... 99 K 20 K
See section 27
3
4
Proportional band, Xp
1 ... 250 K 80 / 180 K
See section 26
5
Integration time, Tn
5 ... 999 sec. 30 sec.
See section 26
6
Running time of the motorized control
valve
5 ... 250 sec. 35 sec.
See section 26
7
Neutral zone, Nz
0 ... 9 K 3 K
See section 26
Control & overviews
ECL Card settings
(circuit II)
30b
A Time and date Section 17
B System information Sections 18 & 19
C
Setting ranges Factory settings Your settings
1
2
3
4
5
6
7
Control & overviews
Service parameters (10-199)
31a
Circuit I (DHW)
Lines Setting ranges Factory settings Your settings
22 Pump exercise
ON / OFF ON
23 Valve exercise
ON / OFF ON
24 Gear motor / thermo actuator
ON / OFF ON
30 Return temperature limitation, S4
10 ... 110 °C 60 °C °C
35 Return temperature inuence, max.
-9.9 ... 0 ... 9.9 0.0
36 Return temperature inuence, min.
-9.9 ... 0 ... 9.9 0.0
37 Time constant for return temperature
limitation
OFF / 1 ... 50 25
40 DHW charging pump post-run (P2)
0 ... 9 min. 1 min. min.
44 Max. DHW charging time
0 ... 250 min. 0 min. min.
45 DHW charging deactivation time
0 ... 250 min. 0 min. min.
52 Compensation of heat loss in
circulation circuit
ON / OFF ON
54 Activation / deactivation of DHW
circulation pump (P3) at anti-bacteria
function
ON / OFF OFF
55 Activation / deactivation of DHW
circulation pump (P3) during DHW
charging
ON / OFF OFF
67 Adaptive function of S2 DHW charging
temperature during DHW charging
OFF / 1 ... 50 20
78 Desired temperature for anti-bacteria
function
OFF / 1 ... 100 °C OFF °C
80 Anti-bacteria function period
5 ... 250 min. 120 min. min.
83 Daily / weekly anti-bacteria function
ON / OFF ON
141 Override input selection
OFF / 1 ... 6 OFF
147 Acceptable temperature deviation
below desired DHW charging temp.
OFF / 1 ...30 K OFF K
148 Acceptable temperature deviation
above desired DHW charging temp.
OFF / 1 ...30 K 5 K K
149 Time interval Δt
ALARM
before activation
of alarm function
1 ... 99 min. 10 min. min.
152 Max. temperature at S2 during DHW
charging
10 ... 110 80
Control & overviews
Service parameters (10-199)
31b
Circuit I (DHW)
Lines Setting ranges Factory settings Your settings
174 Motor protection
OFF / 10 ... 59 min. OFF min.
196 Service pin LON
ON / OFF OFF
197 LON reset
ON / OFF ON
198 Daylight saving time changeover
ON / OFF ON
199 Master / slave address
0 ... 9, 15 15
The grey
side of the
ECL Card
Extended service
In addition to the settings in line 1 to 7 on the grey side of the
ECL Card, there is an extended service menu from line 10 and
onwards.
Push repeatedly to reach the lines numbered 10
and onwards.
Line
0
01
Value
Range indicator
Now you can move to any line of your choice.
Set the parameter value.
You can select any of the two circuits no matter
what line you are in. You will not necessarily enter
the same line number. See the service parameters
in section 31.
Check that you have entered all the required settings in
circuit I - and circuit II, if available.
If you want to copy the new settings to the ECL Card
(recommended by Danfoss), see section 34.
Make a note of your new settings in the parameter list in section
31.
When you have entered all your personal settings, turn the ECL
Card over so that the yellow side faces you.
Adjusting the service
parameters
32
The grey
side of the
ECL Card
Extended service
32a
Service parameter(s) 22-30
22 Pump exercise
Circuit Setting range Factory setting
I ON / OFF ON
Exercises the pump to avoid blocking in periods without cooling
demand.
ON: The pump is switched ON for 1 minute every
third day around noon.
OFF: The pump exercise is not active.
23 Valve exercise
Circuit Setting range Factory setting
I ON / OFF ON
Exercises the valve to avoid blocking in periods without heat
demand.
ON: The valve receives a signal to open and close
every third day around noon.
OFF: The valve exercise is not active.
24 Gear motor / thermo actuator
Circuit Setting range Factory setting
I ON / OFF ON
Choose the actuator type for your valve.
ON: Gear motor
OFF: Thermo actuator (ABV type)
Control parameters (lines 4 -7) are overruled if thermo actuator is
chosen (OFF).
30 Return temperature limitation, sensor S4
Circuit Setting range Factory setting
I 10 ... 110 °C 60 °C
Set the limitation temperature at S4.
Set the limitation temperature.
When the temperature at S4 falls below or gets higher than
the set value, the desired DHW charging temperature is
changed. The inuence is set in lines 35 and 36.
The grey
side of the
ECL Card
Extended service
35 Return temperature inuence, max.
Circuit Setting range Factory setting
I -9.9 ... 0 ... 9.9 0.0
Set the inuence from the return temperature on the desired DHW
charging temperature.
Set the inuence of the max. return temperature
(set in line 30).
Inuence higher than 0:
The desired DHW charging temperature is
increased, when the return temperature gets
higher than the set limit.
Inuence lower than 0:
The desired DHW charging temperature is
decreased, when the return temperature gets
higher than the set limit.
0
Inue nce
Max. li mitation > 0
Limit Return t emp.
Max. li mitation < 0
Example
The limitation temperature is set to 25 °C.
The inuence is set to -2.0.
The actual return temperature is 2 degrees too high.
Result:
The desired DHW charging temperature is changed by -2.0 x 2 =
-4 degrees.
Normally, the set ting in line 35 is lower than 0 in district heating
systems to avoid a too high return temperature.
Typically, the setting in line 35 is 0 in boiler systems because a
higher return temperature is acceptable (see also line 36).
32b
Service parameter(s) 35
The grey
side of the
ECL Card
Extended service
36 Return temperature inuence - min. limitation
Circuit Setting range Factory setting
I -9.9 ... 0 ... 9.9 0.0
Set the inuence from the return temperature on the desired DHW
charging temperature.
Set the inuence of the min. return temperature
limitation (set in line 30 or lines 31-34).
Inuence higher than 0:
The desired DHW charging temperature is
increased, when the return temperature gets
below the set limit.
Inuence lower than 0:
The desired DHW charging temperature is
decreased, when the return temperature gets
below the set limit.
0
Inue nce
Min. li mitation > 0
Return l imit Return te mp.
Min. li mitation < 0
Example
The limitation temperature is set to 25 °C.
The inuence is set to 2.0.
The actual return temperature is 2 degrees too low.
Result:
The desired DHW charging temperature temperature is changed
by 2.0 x 2 = 4 degrees.
Normally, the set ting in line 36 is 0 in district heating systems
because a lower return temperature is acceptable.
Typically, the setting in line 36 is higher than 0 in boiler systems to
avoid a too low return temperature (see also line 35).
Service parameter(s) 36
32c
The grey
side of the
ECL Card
Extended service
32d
Service parameter(s) 37-44
37 Time constant for return temperature limitation
Circuit Setting range Factory setting
I OFF / 1 ... 50 25
Controls how fast the actual return temperature adapts to the
desired return temperature limitation.
Adjust the time constant for the return limitation.
The setting will eliminate the dierence
between the acceptable and the actual return
temperature.
The dierence is integrated to adjust the desired
ow temperature.
OFF: The desired ow temperature will not be
adjusted any further.
1: The desired ow temperature will be
adjusted quickly.
50: The desired ow temperature will be
adjusted slowly.
40 DHW charging pump post-run (P2)
Circuit Setting range Factory setting
I 0 ... 9 min. 1 min.
The DHW charging pump can continue to run af ter charging to
utilize the remaining heat in the heat exchanger / boiler.
0: The pump stops immediately after
charging.
1 ... 9: The time the pump runs after the charging
has ended.
When the DHW charging pump runs after the
charging of the DHW tank has stopped, the heat in
the exchanger can be utilized to a better extent.
44 Max. DHW charging time
Circuit Setting range Factory setting
I 0 ... 250 min. 0 min.
When the set max. DHW charging time expires, the charging is
deactivated.
0: No max. DHW charging time.
1 ... 250:
The charging is deactivated when the set
time expires.
The grey
side of the
ECL Card
Extended service
Service parameter(s) 45-55
32e
45 DHW charging deactivation time
Circuit Setting range Factory setting
I 0 ... 250 min. 0 min.
If the charging time has reached its maximum (line 44), the
charging is deactivated for the set time.
0: No deactivation time.
1 ... 250:
When the DHW charging time has reached
its maximum, DHW can only be charged
again when the deactivation time has
expired.
52 Compensation of heat loss in circulation circuit
Circuit Setting range Factory setting
I ON / OFF ON
Choose to compensate for the heat loss of the circulation circuit.
ON: The circulation circuit is kept warm by the
storage tank.
The motorized control valve (M1) is closed.
OFF: The circulation circuit is kept warm by the
heat exchanger.
The motorized control valve (M1) is active to
keep the charging temperature constant.
54 Activation / deactivation of DHW circulation pump
(P3) at anti-bacteria function
Circuit Setting range Factory setting
I ON / OFF OFF
At anti-bacteria function, the pump can be deactivated
independently of the schedule.
ON: The pump always operates according to
schedule II.
OFF: The pump is deactivated at anti-bacteria
function, independently of the schedule.
55 Activation / deactivation of DHW circulation pump
(P3) during DHW charging
Circuit Setting range Factory setting
I ON / OFF OFF
At DHW charging, the pump can be deactivated independently of
the schedule.
ON: The pump always operates according to
schedule II.
OFF: The pump is deactivated at DHW charging,
independently of the schedule.
The grey
side of the
ECL Card
Extended service
32f
Service parameter(s) 67
67 Adaptive function of S2 DHW charging temperature
during DHW charging
Circuit Setting range Factory setting
I OFF / 1 ... 50 20
The setting will eliminate the dierence between the desired
DHW charging temperature (S2) and the DHW temperature (S3)
by integrating the dierence and adjusting the desired S2 ow
temperature.
OFF: The desired DHW charging temperature will
not be adjusted any further.
1: The desired DHW charging temperature will
be adjusted quickly.
50: The desired DHW charging temperature will
be adjusted slowly.
By setting a value (1 … 50) in line 67, the S2 temperature is
increased gradually to ensure a correct DHW temperature (S3).
When looking in the menu B, the desired charging temperature
(at S2) will be higher than the value for the desired charging
temperature, set in menu C (yellow side). This can indicate that
the heat exchanger is not transferring the heat in an optimal way
(limescale).
Max. temp.
Desired DHW
charging
temp.
Line 67 = OFF
C
o
S2
S3
Time
Line 152
Line C
Max. temp.
Desired
DHW
charging
temp.
Line 67 > OFF
C
o
S2
S3
Time
Line 152
Line C
For max. temperature at S2 during DHW charging, see also line
152.
The grey
side of the
ECL Card
Extended service
Service parameter(s) 78-83
32g
78 Desired temperature for anti-bacteria function
Circuit Setting range Factory setting
I OFF / 1 ... 100 °C OFF
Set the desired temperature for the anti-bacteria function. The
DHW will be charged daily or once a week at the set temperature
to protect against bacteria. The function is always active on
Mondays from 00:00 and the DHW is charged according to the
period set in line 80.
OFF: The anti-bacteria function is not active.
1 ... 100:
The anti-bacteria function is active at the
desired temperature.
80 Anti-bacteria function period
Circuit Setting range Factory setting
I 5 ... 250 min. 120 min.
Set the period for the anti-bacteria function. When the set time
expires, the anti-bacteria function is stopped.
5 ... 250:
The anti-bacteria function is active for the
set period.
The function is activated in line 78 by setting the desired antibacteria temperature.
83 Daily / weekly anti-bacteria function
Circuit Setting range Factory setting
I ON / OFF ON
Choose whether the anti-bacteria function is to be active daily or
weekly.
ON: The anti-bacteria function is active once a
day (from 00:00).
OFF: The anti-bacteria function is active once a
week (Mondays from 00:00).
The grey
side of the
ECL Card
Extended service
Service parameter(s) 141
32h
141 Override input selection
Circuit Setting range Factory setting
I OFF / 1 ... 6 OFF
Choose an unused temperature sensor input for overriding the
schedule for circuit I and / or circuit II.
The override can be activated for comfort or setback mode.
For override the controller's mode must be in 'scheduled
operation'!
OFF: The controller's schedule is not overridden.
1 ... 6: Select an unused sensor input S1 ... S6 for
the override of the circuit in question.
Connection example
If the override switch has gold-plated contacts, you can
choose one of the following solutions:
Closed switch:
Comfort temperature
Closed switch:
Setback tempe rature
Changeover switch:
Setback or comfort temperature
Connection example with ECA 9010
(used if the override switch does not have gold-plated
contacts).
16 - Brown
15 - Red
Green (S1 ... S6)
The ECA 9010 module is powered by the system device bus, which
means that the bus must be active. The bus is activated by setting
the controller address to 15 (line 199).
The grey
side of the
ECL Card
Extended service
Service parameter(s) 147
32i
147 Acceptable temperature deviation below desired
DHW charging temperature (ΔT1
ALARM
)
Circuit Setting range Factory setting
I OFF / 1 ... 30 K OFF
The alarm is activated if the actual DHW charging temperature
drops too much below the desired temperature. The max.
deviation ΔT1
ALARM
is set here.
This condition must last longer than the time interval Δt
ALARM
(line 149).
See also line 148.
OFF: The alarm function and the alarm relay of
the additional module ECA 80 are not active.
1 ... 30:
The alarm function is active if the actual
temperature falls below the acceptable
deviation.
30
Flow temp .
ΔT1
ALARM
(line 147)
Desir ed temp.
No alarm i f the
desir ed temp.
< 30 °C
The alarm signal can only be sent via the module ECA 80.
Time
The grey
side of the
ECL Card
Extended service
Service parameter(s) 148
32j
148 Acceptable temperature deviation above the desired
DHW charging temperature (ΔT2
ALARM
)
Circuit Setting range Factor y setting
I 1 ... 30 K 5 K
The alarm is activated if the actual DHW charging temperature
rises too much above the desired temperature. The max.
deviation ΔT2
ALARM
is set here.
This condition must last longer than the time interval Δt
ALARM
(line 149).
This alarm can only be activated if the value in line 147 is set to
1 ... 30 K.
1 ... 30: The alarm function is active if the actual
temperature rises above the acceptable
deviation.
30
Flow temp .
ΔT2
ALARM
(line 148)
Desir ed temp.
No alarm i f the
desir ed temp.
< 30 °C
The alarm signal can only be sent via the module ECA 80.
Time
The grey
side of the
ECL Card
Extended service
32k
Service parameter(s) 149-152
149 Time interval Δt
ALARM
before activation
of alarm function
Circuit Setting range Factory setting
I 1 ... 99 min. 10 min.
If an alarm condition from either line 147 or 148 is present for a
longer time than the time interval Δt
ALARM
, the alarm function is
activated.
1 ... 99: Time interval Δt
ALARM
.
If you choose OFF in line 147, the alarm function in lines 148 and
149 is not activated.
The alarm signal can only be sent via the module ECA 80.
Alarm
Temp.
Actual t emp.
(S2)
Line 148
Desir edtemp.
(S2)
Line 147
Δt
ALARM
Line 149
Δt
ALARM
Line 149
Time
152 Max. temperature at S2 during DHW charging
Circuit Setting range Factory setting
I 10 ... 110 80
The desired DHW charging temperature at S2 is limited to the set
value.
Set the max. acceptable temperature at sensor S2.
The grey
side of the
ECL Card
Extended service
32l
Service parameter(s) 174-198
196 Service pin - LON
Circuit Setting range Factory setting
I ON / OFF OFF
This setting is only used in connection with LON communication
(see the documentation for the used communication unit).
197 LON reset
Circuit Setting range Factory setting
I ON / OFF ON
This setting is only used in connection with LON communication
(see the documentation for the used communication unit).
198 Daylight saving time changeover
Circuit Setting range Factory setting
I ON / OFF ON
Choose whether you want the change to summer / winter time to
be automatic or manual.
ON: The controller’s built-in clock automatically
changes + / - one hour on the standardized
days for daylight saving time changeover for
Central Europe.
OFF: You change manually between summer and
winter time by setting the clock backward
or forward.
174 Motor protection
Circuit Setting range Factory setting
I OFF / 10 ... 59 min. OFF
Prevents the controller from unstable temperature control (and
resulting actuator oscillations). This can occur when there is
no DHW tapping, i.e. when the load is only due to the DHW
circulation, or when the heating demand in the heating circuit
is very low. The motor protection increases the lifetime of all
involved components.
OFF: Motor protection is not activated.
10 ... 59:
Motor protection is activated after the set
activation delay.
A high value should be used for DHW
installations with many consumers.
The grey
side of the
ECL Card
Extended service
32m
Service parameter(s) 199
199 Master / slave address
Circuit Setting range Factory setting
I 0 ... 9, 15 15
The setting is relevant when more controllers are working in the
same ECL Comfort system (connected via the system device bus
(ECL Comfort BUS)).
0: The slave receives information about the
system time.
1 ... 9: The slave receives information about the
system time.
The slave sends information about the
desired ow temperature (at S2) to the
master.
15: The controller is master. The master sends
information about the system time.
The master receives the desired ow
temperature information from the slaves
with addresses 1 ... 9.
The bus is active and connected ECAs
(max. 2) are powered.
The ECL Comfort controllers can be connected via the bus to
perform a larger system.
Each slave must be congured with its own address (1 ... 9).
However, more slaves can have the address 0 if they only have
to receive information about compensation temperature and
system time.
The settings 10 ... 14 are not to be used.
The yellow
side of the
ECL Card
Miscellaneous
34a
Copying with the ECL Card
Check the ECL Card and the software generations (see
following example).
Insert the ECL Card with the yellow side facing you.
Go to line 8 (is not displayed), which is the rst line
below line 7.
Application t ype
Software
version,
ECL Card
C 73
05 109
Software ve rsion,
controller
Store new controller settings on the ECL Card
All new settings* can be stored on the ECL Card. Insert the
ECL Card with the yellow side facing you.
Go to line 9 (is not displayed), which is the second
line below line 7.
Card
C
C 99
Y
0
P
Controller
Copying direction
Accept to copy settings from controller to
ECL Card.
When the copying is nished, the controller returns to display
line C.
* Time a nd date settings are not stored on the ECL Card.
Do not remove the ECL Card while copying. The data on the ECL
Card can be damaged!
If you have copied your personal settings to the ECL Card, you
cannot restore the factory settings!
The yellow
side of the
ECL Card
Miscellaneous
Copy personal settings to additional controller(s) in
identical systems
Ensure that the other controller(s) use(s) the same ECL Card
type. (If this is not the case, please read section 15).
Insert the ECL Card, which contains the personal settings,
with the yellow side facing you.
Go to line 9 (is not displayed), which is the second
line below line 7.
Select the copying direction (from the card to the
controller).
Card Controller
Copying direction
C
C 99
Y
0
P
Copy.
Store new ECL Card application in the controller
If you insert an ECL Card with another application type, it is
necessary to copy it to your controller.
Insert the ECL Card with the yellow side facing you. The
controller will keep showing CPY.
Card Controller
Copying direction
C
C 99
Y
0
P
Copy.
Do not remove the ECL Card while copying. The data on the ECL
Card can be damaged!
34b
7a
Denitions
Air duct temperature
Temperature measured in the air duct where the temperature is
to be controlled.
Balance temperature
This setpoint is the basis for the ow / air duct temperature. The
balance temperature can be adjusted by the room temperature,
the compensation temperature and the return temperature.
The balance temperature is only active if a room temperature
sensor is connected.
Comfort operation
Normal temperature in the system controlled by the schedule.
During heating the ow temperature in the system is higher
to maintain the desired room temperature. During cooling the
ow temperature in the system is lower to maintain the desired
room temperature.
Comfort temperature
Temperature maintained in the circuits during comfort periods.
Normally during daytime.
Compensation temperature
A measured temperature inuencing the ow temperature
reference / balance temperature.
Controller mode indicator
Black arrow to the right of the symbols indicating the present
mode.
Desired room temperature
Temperature which is set as the desired room temperature.
The temperature can only be controlled by the ECL Comfort
controller if a room temperature sensor is installed.
If a sensor is not installed, the set desired room temperature
however still inuences the ow temperature.
In both cases the room temperature in each room is typically
controlled by radiator thermostats / valves.
Desired temperature
Temperature based on a setting or a controller calculation.
Dew point temperature
Temperature at which the humidity in the air condensates.
Factory settings
Settings stored on the ECL Card to simplify the set up of your
controller the rst time.
Flow temperature
Temperature measured in the ow at any time.
Flow temperature reference
Temperature calculated by the controller on basis of the
outdoor temperature and inuences from the room and / or
return temperatures. This temperature is used as a reference for
the control.
Heating circuit
The circuit for heating the room / building.
Heating curve
A curve showing the relationship between actual outdoor
temperature and required ow temperature.
DHW circuit
The circuit for heating the domestic hot water (DHW).
7b
Humidity, relative
This value (stated in %) refers to the indoor moisture content
compared to the max. moisture content. The relative humidity
is measured by the ECA 62 / 63 and is used for the calculation of
the dew point temperature.
Limitation temperature
Temperature that inuences the desired ow / balance
temperature.
Pt 1000 sensor
All sensors used with the ECL Comfort controller are based
on the Pt 1000 type. The resistance is 1000 ohm at 0 °C and it
changes with 3.9 ohm / degree.
Optimization
The controller optimizes the start time of the scheduled
temperature periods. Based on the outdoor temperature, the
controller automatically calculates when to start in order to
reach the comfort temperature at the set time. The lower the
outdoor temperature, the earlier the start time.
Return temperature
The temperature measured in the return inuences the desired
ow temperature.
Room temperature sensor
Temperature sensor placed in the room (reference room,
typically the living room) where the temperature is to be
controlled.
Room temperature
Temperature measured by the room temperature sensor, room
panel or remote control. The room temperature can only be
controlled directly if a sensor is installed. The room temperature
inuences the desired ow temperature.
Schedule
Schedule for periods with comfort and setback / saving
temperatures. The schedule can be made individually for each
week day and may consist of up to 3 comfort periods per day.
Setback / saving temperature
Temperature maintained in the heating / DHW circuit during
setback temperature periods.
State / mode indicators
White arrow to the left of the symbols (sun / moon). The white
arrow indicates the present state, comfort (sun) or setback /
saving (moon), when the controller is in scheduled operation
mode.
The black arrow symbol indicates the mode of the controller.
Time line / bar
Line with numbers representing the hours. Below the time
line, time bars represent scheduled periods with comfort
temperature. The bar is divided into half hour sections.
Weather compensation
Flow temperature control based on the outdoor temperature.
The control is related to a user-dened cooling curve.
The denitions apply to the Comfort 200 as well as ECL Comfort
300 series. Consequently, you might come across expressions
that are not mentioned in your guide.
The time shown in the display is one hour o?
See the summer time changeover in line 198, section 32.
The time shown in the display is not correct?
The internal clock may have been reset, if there has been a
power break for more than 12 hours.
Set time and date.
See section 17.
The ECL Card is lost?
Switch the power o and on again to see the
system type and the software generation of the controller.
Order a replacement from your Danfoss representative.
Insert the new ECL Card with the yellow side facing you and
make sure that you copy your personal settings from the
controller to the ECL Card.
See section 34.
The room temperature is too low?
Make sure that the radiator thermostat does not limit the
room temperature.
If you still cannot obtain the desired room temperature by
adjusting the radiator thermostats, the ow temperature
is too low. Increase the desired room temperature (section
3). If this does not help, adjust the heating curve / balance
temperature (section 20).
The room temperature is too high during saving
periods?
Make sure that the max. ow temperature limitation is not
too low. See section 22.
The temperature is unstable?
Check that the ow temperature sensor is correctly
connected and in the right place. Adjust the control
parameters (section 26).
If the controller has a room temperature signal, see section
23.
The controller does not operate and the control
valve is closed?
Check that the ow temperature sensor is measuring the
correct value, see section 1.
Check the inuence from other measured temperatures.
Hot points
6a
How to make an extra comfort period in the
schedule?
You can make an additional comfort period by pushing the
shift and + buttons simultaneously for 2 seconds.
See section 4.
How to remove a comfort period in the schedule?
You can remove a comfort period by pushing the shift and
- buttons simultaneously for 2 seconds.
See section 4.
How to restore your personal settings?
Insert the ECL Card with the yellow side facing you. Go to line
9 (is not displayed), which is the second line below line 7.
Select copy direction 'card to controller' (left to right) by
using the shift button. Push the + button to copy.
See section 5.
This is a collection of frequently asked questions for the ECL
Comfort 200 as well as ECL Comfort 300 series. Consequently,
you might come across some questions that do not apply to your
application.
6b
The yellow
side of the
ECL Card
Save your personal settings to the ECL Card
Go to line 9 (is not displayed), which is the second
line below line 7.
Card
C
C 99
Y
0
P
Copying direction
Controller
Accept to copy personal settings from the
controller to the ECL Card.
The controller will return to display line C when the copying is
completed. This takes approx. 15 seconds.
By saving your personal settings* to the ECL Card, you have
ensured that your settings will not be lost if the controller
settings are changed by mistake.
* Time and date settings are not stored on the ECL Card.
Prevent unauthorized operation
One of the primary advantages of the controller is the
setting security.
If you remove the ECL Card, and the ECL Comfort controller is
not operated during the next 25 minutes (approx.):
- the controller returns to display line C (section 1)
- further changes are not possible
- the controller continues its operation
When the ECL Card is inserted with the yellow side
facing you, the controller can be operated again.
Do not remove the ECL Card while copying. The data on the
ECL Card can be damaged!
If you have copied your personal settings to the ECL Card, you
cannot restore the factory settings!
Advantages of the
ECL Card
5a
The yellow
side of the
ECL Card
Restore ECL Card data
After establishing your favorite temperatures, comfort
periods etc., and after copying these to the ECL Card, you can
set alternative settings.
Insert the ECL Card and make the temporary settings,
e.g. for holidays, but do not copy these. To restore your
favorite settings, copy these from the ECL Card to the
controller. Insert the ECL Card.
Go to line 9 (is not displayed), which is the second
line below line 7.
Card
C
C 99
Y
0
P
Copying direction
Controller
Choose to copy the ECL Card to the controller
(from left to right).
Copy
Do not remove the ECL Card while copying. The data on the
ECL Card can be damaged!
5b
The yellow
side of the
ECL Card
Monitor the current schedules
Select between lines 1-7 (Monday, Tuesday ......
Sunday) to see your individual schedules.
Line
Circuit
Changeover time
Periods with comfor t temp. are
shown as black bars
Time line
Change the schedules
Select appropriate day.
The changeover p oint blinks
Adjust the rst blinking changeover point, if
required. The end of the bar moves, extending or
reducing the comfort period.
Shift to next changeover point and adjust
accordingly.
Change the schedule for circuit II
Select circuit II to view or change the schedule.
Use the same method for changes as for circuit I.
4a
Set your personal schedule
The yellow
side of the
ECL Card
4b
Add an extra comfort period
Push the shift and + button simultaneously for
2 seconds.
The new perio d appears
Adjust the new period.
Remove a comfort period
Select the period to be removed (blinking
changeover point)
Push shift and - buttons simultaneously for
2 seconds.
Cancel changes in your personal settings
Push - and + buttons simultaneously for
2 seconds to restore the factory settings of the
actual schedule.
The yellow
side of the
ECL Card
During scheduled operation (clock), the state indicator (a
white arrow) will show you the control mode of the selected
circuit.
The mode can be set dierently for each circuit by means of
the function selector. However, if manual operation (hand) is
chosen, this mode will apply to all circuits.
State indicator
(white arrow)
02
Function selec tor
(black arrow)
Function selector. Push the button to change the
mode of the circuit. The black arrow shows you
which of the modes you have chosen.
What do the symbols mean?
Manual operation
Used only at maintenance and service.
Scheduled operation
This is the normal mode. The temperature is
controlled according to your schedule with
automatic changeover to / from comfort and
saving temperature periods.
Constant comfort temperature
The schedule is not in operation. Use this mode
when a constant comfort temperature is desired.
Constant saving temperature
The schedule is not in operation. Use this mode
when you are away on holiday, etc.
Standby
The circuit is stopped.
Select circuit mode
2
The yellow
side of the
ECL Card
Set your DHW charging
temperature
3
Circuit I:
Setting the desired DHW charging temperature
55
Desired DHW
temp. in comfort
mode
01
Desired DHW
temp. in setback
mode
Select the constant comfort mode.
Set the desired DHW temperature for the comfort
mode.
Select the constant setback mode.
Set the desired DHW temperature for the setback
mode.
Select the desired mode (section 2).
Choose the display C for daily operations.
The yellow
side of the
ECL Card
1a
Choose your favorite display
(circuit I)
Choose the display - A, B, or C - for daily
operations.
DHW temperature - display A
Line
Circuit
Upper tank temp. (S6)
05
6
A
5
Lower tank temp.
(S5)
System information - display B
Line
Circuit
DHW
charging
temp. (S2)
State of controlled unit s
2 956
B
1
3
ON
2
ON
1
ON
DHW temp.
(S3)
Push and hold the shift button to see:
- the desired DHW charging temperature
- the desired DHW temperature.
Today's schedule - display C
Line
Circuit
Time
8
0 3 6 9 12 15 18 21 24
1
46
5
C
3
Today's schedule
Desired
DHW charging
temp. (S2)
The controller automatically reverts to display C if the card has
been reinserted or the power supply has been interrupted.
If the temperature value is displayed as "- -", the sensor in
question is not connected. "- - -" means that the sensor is shortcircuited.
The yellow
side of the
ECL Card
Choose the display - A, B, or C - for daily
operations.
Display A
Line
Circuit
A
System information - display B
Line
Circuit
Supply
temp. (S1)
State of controlled unit s
B
80 33
1
3
ON
2
ON
1
ON
Return
temp. (S4)
Today’s schedule - display C
Line
Circuit
Time
8
0 3 6 9 12 15 18 21 24
1 5
C
3
Today's schedule
The controller automatically reverts to display C if the card has
been reinserted or the power supply has been interrupted.
If the temperature value is displayed as "- -", the sensor in
question is not connected. "- - -" means that the sensor is shortcircuited.
Choose your favorite display
(schedule II)
1b
Save energy - save money - improve
your comfort temperature
The ECL Comfort controller is designed by Danfoss for
the automatic temperature control of heating, hot-water,
ventilation and cooling systems.
Some of the advantages of the ECL Comfort controller system
are:
• Secure control and the optimum use of energy resources.
• Control of system temperatures according to seasonal
changes and variations in outdoor temperatures.
• Setback temperature periods and low energy consumption
while you are out or asleep save heating costs.
Operating the ECL Comfort controller in general
When operating the controller it is advisable to keep the lid
open in order to view the entire display.
During operation the ECL Card must be inserted with the
yellow side facing you.
The ECL Card, which is equipped with a memory chip, is
simple and easy to handle.
The ECL Card is divided vertically into two columns each
representing a circuit.
Horizontally the ECL Card is divided into lines that
represent the dierent control and programming options
for the two circuits. Each line is shown in the display of the
controller, which gives you an instant overview of the
operation, settings etc.
How to use the ECL Comfort User's Guide
This guide provides you with an easy instruction for the ECL
Comfort controller.
The Installer's Guide, the grey section (turn the guide over),
contains the complete list of factory settings and various
detailed adjustments that ensure an ecient and continuous
operation of your system.
Table of Contents
Daily use
Section
1 Choose your favorite display
2 Select circuit mode
3 Set your DHW charging temperature
4 Set your personal schedule
5 Advantages of the ECL Card
6 Hot points
7 Denitions
The documentation for the ECL Comfort controller is composed
of numbered sections. Only sections that are relevant to your
ECL Comfort controller are included here.
Installer's Guide:
Grey sections 10 and onwards. Turn the guide over.
The functions can only be realized with ECL Comfort 300 and as of
controller version 1.08.
Your personal schedule:
Factory set tings are grey.
6-8 16-22
8-23
6-8 16-22
8-23
Schedule II 0 3 6 9 12 15 18 21 24
1 Monday
2 Tuesday
3 Wednesday
4 Thursday
5 Friday
6 Saturday
7 Sunday
DHW 0 3 6 9 12 15 18 21 24
1 Monday
2 Tuesday
3 Wednesday
4 Thursday
5 Friday
6 Saturday
7 Sunday
Loading...
