Danfoss C12L-EZ Data sheet

Data Sheet

Micro Plate Heat Exchanger
Type C12L-EZ

For more ecient Cooling & Heating systems

40% heat transfer increase compared to
traditional shbone design.

The C12L-EZ is an economizer optimized for
R410A for use in VRF, heat pump and bus A/C
etc., and also can be used as evaporator for
chiller with a capacity under 5.5KW. Inspired by
sh scales, Z-pattern channel plate technology
pushes the performance of heat exchangers to
the limits by fully mixing the liquid and gas
refrigerant through a “zigzag” ow, which
increases the heat transfer coecient by 40%
compared with traditional shbone design at
the same evaporating temperature. At the
same time, inheriting from the dimple features,
C12L-EZ reducesthe amount of material used.
To meet demands for higher seasonal

eciency, the C12L-EZ is designed to work
eciently and increase comfort in modern

buildings without increasing the carbon
footprint. Helping A/C units perform more
eciently, it reduces both energy costs and
environmental impact. The low hold-up volume
reduces the system refrigerant charge and
oers valuable savings.

Features:

• Improved heat transfer - equals higher
eciency chillers

• Minimal hold-up volume - equals less
refrigerant charge

• Smaller footprint - enables more compact size

• High heat transfer and minimal refrigerant
charge - equals a reduced CO2 footprint

AI358947313897en-000101

a

Applications
C: chiller
D: universal
H: heat pump
HDW: heat pump double wall

d

Specic duty
E= evaporator
C= condenser
Plate design

Omit

L: L-type
M: M-type
H: H-type
W: W-type
X: Asymmetric
Z: Z ow

Conguration

Omit: single

D: Dual circuit
U: Mixing chamber

e

Distributor version

Omit

B
F
Plate stacking sequence

Omit: a-b-a…
R: b-a-b…

b
Platform* 22,30,55,62,118…
*heat exchanging surface per plate 1/1000 m²

c

Pressure Service

Omit: 30bar
L: 45/49bar

f

Number of plates**

**Rule:

-Single: even number

-Dual: even number not multiple of 4

Micro plate heat exchanger, type C12L-EZ

Portfolio overview

• C12L-EZ: High eciency economizer and evaporator optimized for R410A.

• C12L-EZ-R: Evaporator with extremely low pressure drop secondary side

Table 1: Designation

Application

The C12L-EZ is an economizer optimized for VRF system in R410A; it can be applied also as evaporator in high
density refrigerants. The “-R” version is an evaporator for application where its’ required a low water pressured drop
secondary side

Media

Refrigerants

R410A, R452B, R454B, R407C
For other refrigerants please contact your Danfoss Sales representative.

Product specication

Dimensions

Figure 1: Dimensions

© Danfoss | Climate Solutions | 2021.02 AI358947313897en-000101 | 2

Item

Material

Specication

Cover plates

Stainless steel

AISI 304L

Plates

Stainless steel

AISI 316L / AISI 304L

Connections

Stainless steel

AISI 304L

Brazing ller

Pure copper

Cu

Q4

Q1

H1 H4

H3

H2

Q2

Q3

Micro plate heat exchanger, type C12L-EZ

Operating conditions

Preconditions:

N = number of plates
Max number of plates: 60

Pressure and temperature data*:

Min. working temperature: -196 °C (-320 °F)
Max. working temperature: 200 °C (390 °F)
Max. working pressure: 49 bar (711psi) refrigerant side
*For details, refer to the topic. Third party approvals

Weight*

C12L-EZ(-R): 0.28+0.023xN [kg] / 0.617+0.051xN [lb]
N: Number of Plate
*Excluding connections and accessories

Material specication

Table 2: Standard materials

Other material combinations are available on request. Please contact your Danfoss sales representative for more
information.

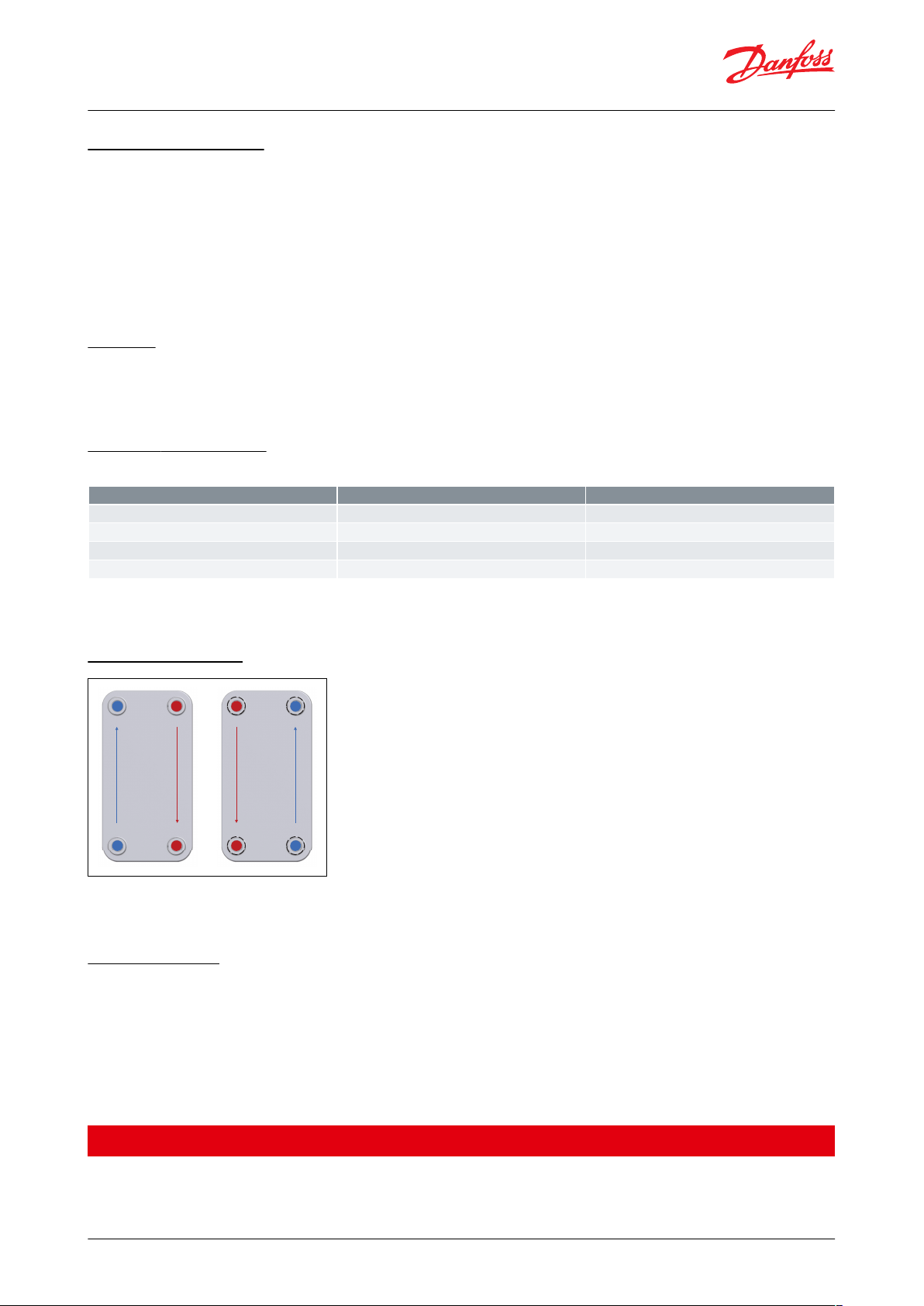

Conguration ow

Parallel ow:
Q1 - Q2 [H1 - H2]: brine/secondary side
Q3 - Q4 [H3 - H4]: refrigerant/primary side

Hold up volume

C12L-EZ:

Q1-Q2: 8.39xN/2 [ml]
Q3-Q4: 9.25x(N-2)/2 [ml]

C12L-EZ-R:

Q1-Q2: 9.25xN/2 [ml]
Q3-Q4: 8.39x(N-2)/2 [ml]
N: Number of Plate

Ordering

Global or local standard code numbers can be accessed via Store.Danfoss.com on local subsites, with full set of
technical data as well as relevant assets such as documentation and drawings.

© Danfoss | Climate Solutions | 2021.02 AI358947313897en-000101 | 3

Circuits

Connection type options

Connection size option [in.]

Q1 - Q2 (water-brine side) & Q3-Q4(Refrigerant side)

BSP Gas male

½, ¾

BSP Gas female

½

DIN R male

½, ¾

NPT

½, ¾

Soldering

¼,

3

⁄8, ½, 5⁄8, ¾

Stud bolt position

Bolt sizes

40 mm, middle

M6 x 20

Micro plate heat exchanger, type C12L-EZ

Conguring and calculating products

C12(L)-EZ(-R) can be easily customized based on the application needs; model size can be evaluated using Hexact
software. For details, product conguration and code creation please contact your Danfoss Sales representative.

Mechanical connections

Accessories and spare parts

MPHE products are not serviceable, i.e. cannot be taken apart and repaired, and there are no spare parts program.
As for accessories, stud bolts, feet on front and/or back cover plates for mounting support and handling are
available upon request.

Table 3: Stud bolts:

Contact your Danfoss sales representative for further information.

Certicates, declarations, and approvals

The list contains all certicates, declarations, and approvals for this product type. Individual code number may have
some or all of these approvals, and certain local approvals may not appear on the list.

Some approvals may change over time. You can check the most current status at danfoss.com or contact your local
Danfoss representative if you have any questions.

Third party approvals

The list contains all approvals registered for this product type. Individual code numbers may have some or all of
these approvals, some local approvals may not be in the list, and approvals change over time. Check status on
www.danfoss.com or contact your local Danfoss representative if in doubt.

All MPHE and BPHE are certied to European Pressure Equipment Directive (PED) and are approved by Underwriters
Laboratories (UL).

© Danfoss | Climate Solutions | 2021.02 AI358947313897en-000101 | 4
