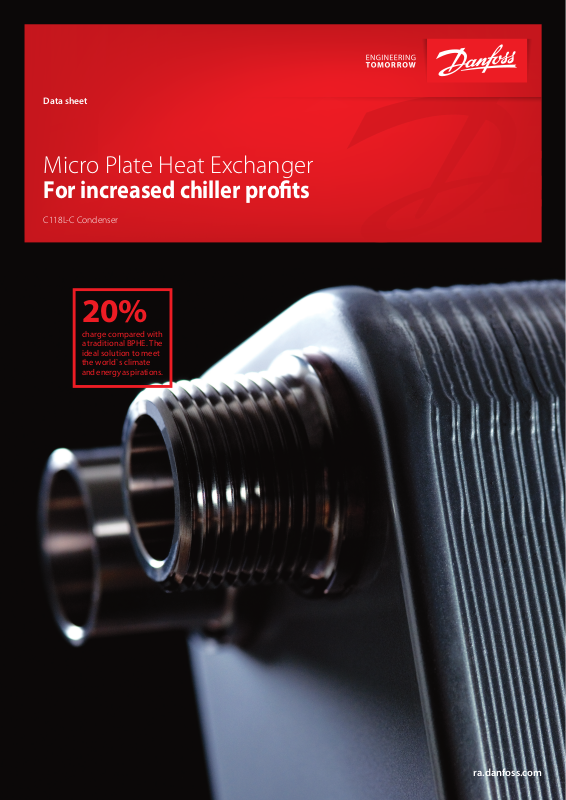

Danfoss C118L-C Data sheet

Data sheet

Micro Plate Heat Exchanger

For increased chiller prots

C118L-C Condenser

20%

charge compared with
a traditional BPHE. The
ideal solution to meet
the world`s climate
and energy aspirations.

ra.danfoss.com

C118L-C Condenser
Micro Plate Heat Exchanger

Introduction

Key features

Q4 Q1

Q4 Q1

519

613

Q3 Q2

Q3 Q2

92

186

The C118L-C is a condenser optimised for R410A for use in high-eciency chillers with capacities of 40-200 kW. The heat exchanger features

innovative Micro Plate technology that improves heat transfer and reduces the amount of material used.

To meet demands for higher seasonal eciency, the C118L-C is designed to work eciently and increase comfort in modern buildings
without increasing the carbon footprint. Helping chillers perform more eciently, it reduces both energy costs and environmental impact.

The low hold-up volume reduces the system refrigerant charge and oers valuable savings.

• Minimal hold-up volume: Less refrigerant charge.

• High heat transfer: For more ecient chillers.

• Smaller footprint: Enabling more compact chillers.

• Reduced CO2 footprint: Environmentally friendly with high heat transfer and minimal refrigerant charge.

15.5+1.74 x n 29/48

H1 H4

H1 H4

H2 H3

H2 H3

Technical data

n = number of plates

Standard
materials

Standard
connections

Third part
approvals

Accessories
– stud bolts

Accessibility

evaporators

Min. working temperature: -196°C
Max. working temperature: 200°C
Max. working pressure: 45 bar
Hold-up volume: Q1-Q2/ Q3-Q4 (l): 0.151×n/2 / 0.151×(n-2)/2
Weight (kg): 7.94+0.26×n Max. no. of plates: 200

Cover plates: AISI 304
Connections: AISI 304

Other material combinations are available on request. Please contact your Danfoss sales representative for more information.

Standard connections as per below are optimised for this product as condenser in chiller system. For other connections, please contact your
Danfoss representative.

Q3 (Refrigerant outlet): soldering 5/8”, 3/4”, 7/8” or 1 1/8”
Q4 (Refrigerant inlet): soldering 1 1/8”, 1 3/8”, 1 5/8” or 2 1/8”
Q1-Q2 (Water side): External threaded G 1 1/2”, G 2” or Victaulic 2”

Europe: Pressure Equipment Directive (PED). America: Underwriters Laboratory Inc (UL). The third party approvals stated are standard for all our
products. For details of other existing approvals or to discuss how we can meet your local needs, please contact your Danfoss representative.

Stud bolts on front and/or back cover plates for mounting support are available upon request. Contact your Danfoss sales representative for
further information.

We will help you set up a logistics solution that will meet your needs.

A corresponding Micro Plate heat exchanger for evaporator duties (C118L-E) is also available.Corresponding

Plates: AISI 316
Brazing ller: Pure copper

DKQB.PD.310.Q5.02 © Copyright Danfoss RC-MDP | sw | 08 2014
