Fact sheet
C117L-EZD Evaporator
Micro Plate Heat Exchanger
21%
lower hold-up
volume
enables significant
reduction in
refreigerant charge
www.danfoss.com
danfoss.com

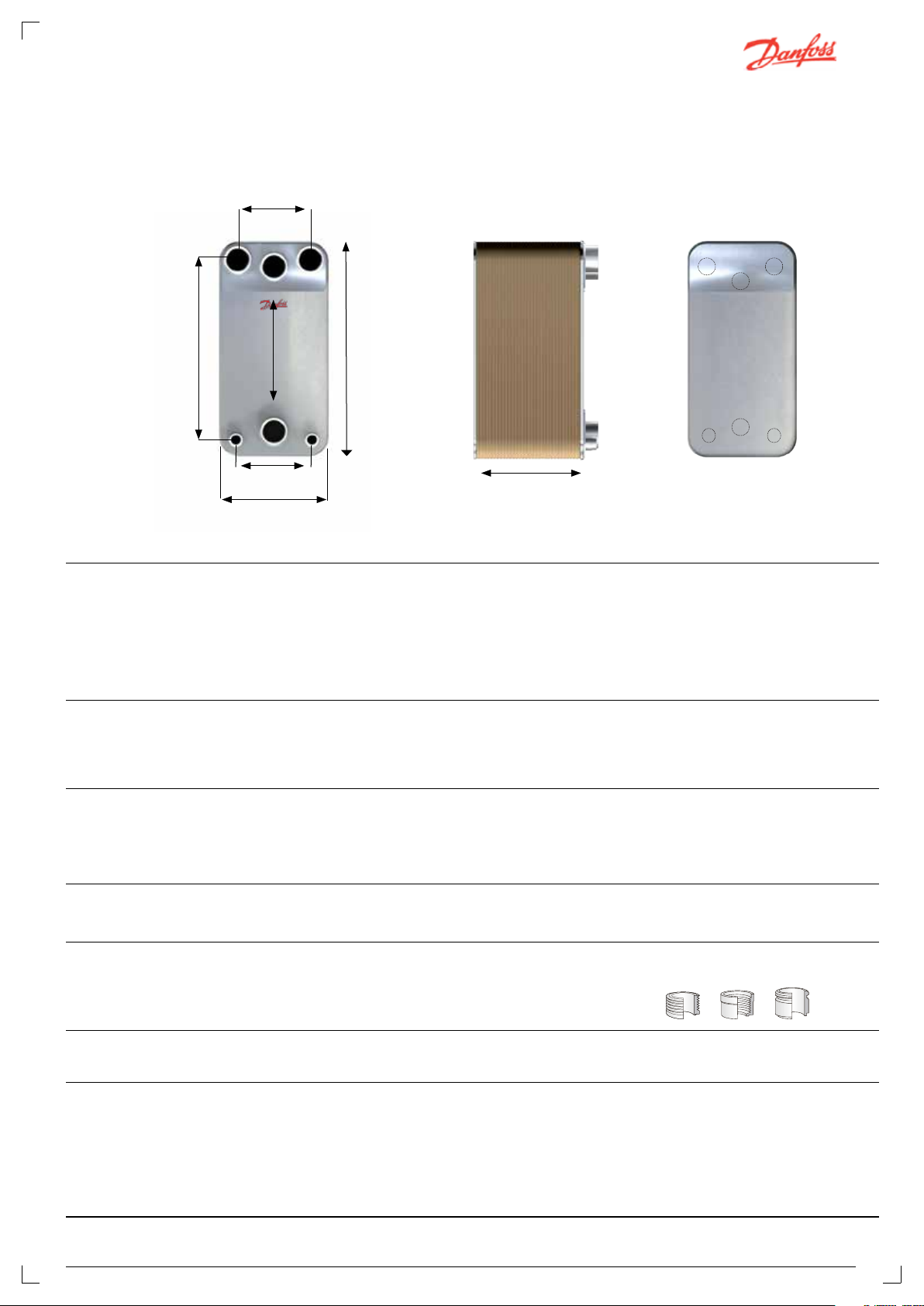

C117L-EZD Evaporator
Micro Plate Heat Exchanger (MPHE)
164
[6.5”]
INTRODUCTION
KEY FEATURES
Q4
Q1
Q6
H6
H4
H1
374
409
[16.1”]
Q3
[14.7”]
Q2
Q5
486
[19.1”]
H5
H2
H3
172
[6.8”]
246
13+1.64*NoP
[0.51+0.065*NoP]
[9.7”]
The C117L-EZD is an evaporator optimized for R410A for use in high-efficiency chillers with capacities of 70-250 kW, and standard efficiency
chillers with capacities of 70-300 kW.
The Z-pattern channel plate technology pushes the per formance of heat exchangers to the limits by fully mixing the liquid and gas
refrigerant through a “zigzag” flow, which increases the heat transfer coefficient. At the same time, inheriting from the dimple plate pattern of
the previous generation of MPHE, C117L-EZD reduces the water side pressure drop and the amount of material used. In the reversible mode of
the chiller as a condenser, C117L-EZD also has outstanding performance.
To meet demands for higher seasonal efficiency, the C117L-EZD is designed to work efficiently and increase comfort in modern commercial
buildings without increasing the carbon footprint. Helping chillers perform more efficiently, it reduces both energy costs and environmental
impact. The low hold-up volume reduces the system refrigerant charge and offers valuable savings.
- Improved heat transfer - equals higher efficiency chillers
- Reduced water side pressure drop - equals higher efficiency chillers
- Minimal hold-up volume - equals less refrigerant charge
- Smaller footprint - enables more compact chillers
- High heat transfer and minimal refrigerant charge - equals a reduced CO2 footprint
TECHNICAL DATA
n = NUMBER O F PLATES
STANDARD
MATERIALS
STANDARD
CONNECTIONS
THIRD- PARTY
APPROVALS
ACCESSORIES
– STUD BOLTS
Danfoss can accept no responsibility for possible errors in cat alogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to produc ts
already on order provided that such alterations can be made without consequent changes being necessary in specifications already agree d.
All trademarks in this material are the proper ty of the respec tive companies. Danfoss and the Danfoss lo gotype are trademarks of Danfoss A/S. All right s reserved.
520H11697 | DKQB.PD.310.1D.02
Min. working temperature: -196°C
Max. working temperature: 200°C
Max. working pressure: 45 bar (refrigerant side) / 25 bar (water side)*
Hold-up volume: Q1-Q2 (l): 0.163×n/2/Q3-Q4 & Q5-Q6 (l): 0.128(n-2)/4
Weight (kg): 6.15+0.27xn Max. no. of plates: 250
* A lower pressure ver sion (30 bar) also avaialbale
Cover plates: AISI 304L
Connections: AISI 304L
Other material combinations are available on request. Please contact your Danfoss sales representative for more information.
Standard connections as below are optimzed for this product as an evaporator in chiller systems. For other connections, please contact your
Danfoss representative, (Internal threaded, R thread (BSPT), NPT and Victaulic are also available).
Q3-Q5 (Refrigerant inlet): soldering 3/8”, 1/2”, 5/8”3/4”, 7/8”, 1” or 1 1/8”
Q4-Q6 (Refrigerant outlet): soldering 1/2”, 5/8”, 3/4” , 7/8”, 1 1/8”, 1 3/8”, 1 1/2”, 2” or 2 1/2”
Q1-Q2 (Water side): External threaded G 1/2”, G 3/4”, G 1”, G 1 1/4”, G 1 1/2” , 2” or 2 1/2”
Europe: Pressure Equipment Directive (PED). America: Underwriters Laboratory Inc (UL). The third party approvals stated are standard for all our
products. For details of other existing approvals or to discuss how we can meet your local needs, please contact your Danfoss representative.
Stud bolts, feet and hooks on front and/or back cover plates for mounting support and handling are available upon request. Contact your
Danfoss sales representative for further information.
Plates: AISI 316L
Brazing filler: Pure copper
