Danfoss AK-XM 208B Installation guide
Instructions

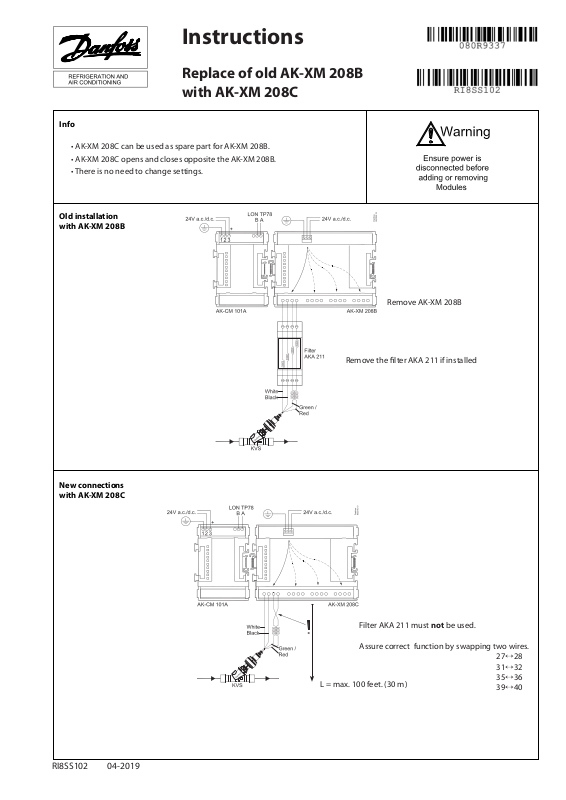

Replace of old AK-XM 208B with AK-XM 208C
Info
• AK-XM 208C can be used as spare part for AK-XM 208B.
• AK-XM 208C opens and closes opposite the AK-XM 208B.
• There is no need to change settings.
Old installation with AK-XM 208B
Remove AK-XM 208B
Remove the filter AKA 211 if installed
New connections with AK-XM 208C
Filter AKA 211 must not be used.
Assure correct function by swapping two wires.
|
27↔28 |
|
|
31↔32 |
|
L = max. 100 feet. (30 m) |
35↔36 |
|
39↔40 |
||
|
RI8SS102 04-2019
Check the
correct open/close function
1. Remove the power supply to the communication module AK-CM 101A
2.Check the valve is closeing
(If it is already closed, it will remain closed)
3.Connect the power supply again.
By reconnecting power to the AK-CM 101A module the stepper module start calibrating the valve to closed position.
If wires are wrongly connected the valve is opening to 100%.
The Product contains electrical components
And may not be disposed together with domestic waste. Equipment must be separate collected with Electrical and Electronic waste. According to Local and currently valid legislation.
<![endif]>ADAP-KOOL®
2 |
Instructions RI8SS102 © Danfoss 04/2019 |
AK-XM 208C |
