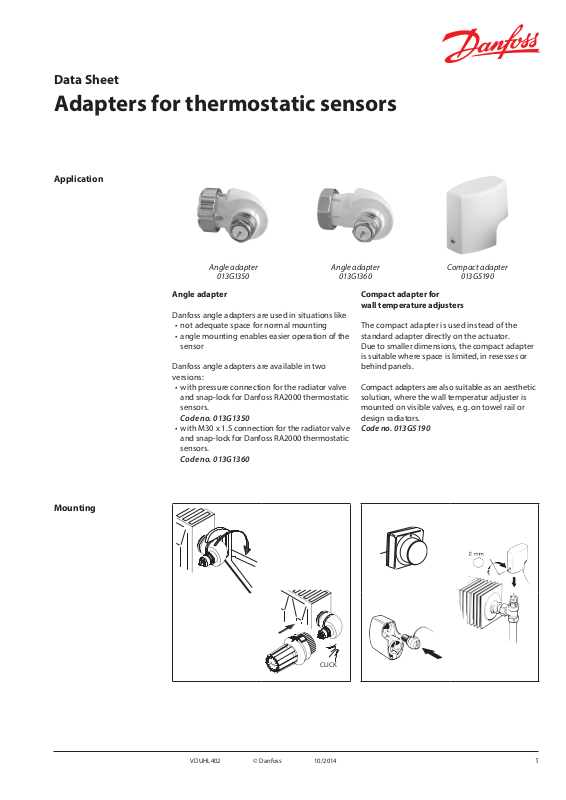

Data Sheet
Adapters for thermostatic sensors
Application
Angle adapter |
Angle adapter |
Compact adapter |
013G1350 |
013G1360 |
013G5190 |
Angle adapter
Danfoss angle adapters are used in situations like
•not adequate space for normal mounting
•angle mounting enables easier operation of the sensor
Danfoss angle adapters are available in two versions:
•with pressure connection for the radiator valve and snap-lock for Danfoss RA2000 thermostatic sensors.
Code no. 013G1350
•with M30 x 1.5 connection for the radiator valve and snap-lock for Danfoss RA2000 thermostatic sensors.
Code no. 013G1360
Compact adapter for
wall temperature adjusters
The compact adapter is used instead of the standard adapter directly on the actuator.
Due to smaller dimensions, the compact adapter is suitable where space is limited, in resesses or behind panels.
Compact adapters are also suitable as an aesthetic solution, where the wall temperatur adjuster is mounted on visible valves, e.g. on towel rail or design radiators.
Code no. 013G5190
Mounting
CLICK
VDUHL402 |
© Danfoss |
10/2014 |
1 |
Data Sheet |
Adapters for thermostatic sensors |
|
|
Dimensions
Angle adapter |
Angle adapter |
Compact-adapter 013G5190 |
|
013G1360 |
013G1350 |
||
for wall temperature adjusters |
|||
for M30 x 1.5 connection |
for Danfoss RA sensors |
||
|
2 |
VDUHL402 |
© Danfoss |
10/2014 |
