Parts Manual

Variable Displacement Motors

Series 51-1: 60cc, 80cc and 110cc

powersolutions.danfoss.com

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Contents

General Information

Order code

Cartridge ange, 60cc

Cartridge ange, 80cc

Cartridge ange, 110cc

DIN ange, 60cc

DIN ange, 80cc

DIN ange, 110cc

Service parts identication ............................................................................................................................................. 5

Nameplate ............................................................................................................................................................................5

Date code ..............................................................................................................................................................................6

Service bulletins..................................................................................................................................................................6

Procedure to identify a part ............................................................................................................................................6

Order code ............................................................................................................................................................................7

Common parts ................................................................................................................................................................8-9

Special hardware ......................................................................................................................................................... 8-13

Common parts ...........................................................................................................................................................14-15

Special hardware .......................................................................................................................................................14-19

Common parts ...........................................................................................................................................................20-21

Special hardware .......................................................................................................................................................20-25

Common parts ...........................................................................................................................................................26-27

Special hardware .......................................................................................................................................................26-27

Common parts ...........................................................................................................................................................28-29

Special hardware .......................................................................................................................................................28-31

Common parts ...........................................................................................................................................................32-33

Special hardware .......................................................................................................................................................32-35

SAE ange, 60cc

SAE ange, 80cc

SAE ange, 110cc

Maximum displacement

End cap

Threshold/range

Charge relief

Output shaft

Common parts ...........................................................................................................................................................36-37

Special hardware .......................................................................................................................................................36-39

Common parts ...........................................................................................................................................................40-41

Special hardware .......................................................................................................................................................40-43

Common parts ...........................................................................................................................................................44-45

Special hardware .......................................................................................................................................................44-47

Maximum displacement common parts ..........................................................................................................48-49

Maximum displacement ......................................................................................................................................... 48-49

End cap, 60cc ..............................................................................................................................................................50-51

End cap, 80cc ..............................................................................................................................................................52-53

End cap, 110cc ............................................................................................................................................................54-55

Threshold/range .............................................................................................................................................................. 55

Charge relief ................................................................................................................................................................56-59

Shaft, 60cc .................................................................................................................................................................... 58-59

Shaft, 80cc .................................................................................................................................................................... 60-61

Shaft, 110cc .................................................................................................................................................................60-61

2

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Contents

Control

Servo supply

Loop ushing system

Control ramp

Orice

Minimum displacement

PCOR adjuster

Electric 2-position (B1, B2, B3, B4 and B7) ........................................................................................................ 62-63

Electric 2-position (C3, C6, E0, E1, E2 and E3) .................................................................................................. 64-65

Electric 2-position (E7, F1 and F2) ....................................................................................................................... 66-67

Hydraulic 2-position (N1)........................................................................................................................................66-67

Electric-hydraulic 2-position porportional pressure compensator (P7 and P8) .................................68-69

Electric-hydraulic 2-position pressure compensator (T1 and T2) ............................................................68-69

Electric 2-position (T5 and T7) .............................................................................................................................. 70-71

Pressure compensator (TA) .................................................................................................................................... 70-71

Hydraulic 2-position with pressure compensator (TH)................................................................................70-71

Electric 2-position (V0, V2 and V9) ......................................................................................................................72-73

Servo pressure supply ............................................................................................................................................74-81

Loop ushing ..............................................................................................................................................................80-81

Control ramp ..................................................................................................................................................................... 83

Orice ............................................................................................................................................................................82-83

51*060-1 minimum displacement ...................................................................................................................... 84-85

51*080-1 minimum displacement ...................................................................................................................... 86-87

51*110-1 minimum displacement ...................................................................................................................... 86-87

PCOR adjuster ................................................................................................................................................................... 87

Overhaul seal kit

Service bulletins

51*060-1 seal kit .............................................................................................................................................................. 88

51*080-1 seal kit .............................................................................................................................................................. 88

51*110-1 seal kit .............................................................................................................................................................. 89

SB-1998-086 (gasket to O-ring at housing interface) ......................................................................................... 90

SB-1999-059 (thread change on DIN shaft assemblies) .................................................................................... 91

SB-2000-044 (loop ushing spring and spring seat change) .......................................................................... 92

SB-2001-015 (synch shaft kit) ...................................................................................................................................... 93

SB-2002-001 (end cap/control interface seal) ................................................................................................. 94-95

SB-2003-007 (80cc piston rings) ................................................................................................................................ 96

SB-2004-004 (end cap gasket) .................................................................................................................................... 97

SB-2004-013 (110cc lip seal) ........................................................................................................................................ 98

SB-2005-012 (60 and 80cc SAE and DIN shaft seal)............................................................................................ 99

SB-2009-005 (bearing housing redesign, 80cc) ..................................................................................................100

SB-2009-006 (bearing housing redesign, 60cc) ..................................................................................................101

SB-2009-019 (bearing housing redesign, 110cc) ...............................................................................................102

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

3

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

General information

Service parts
indentication

The following information and procedure is used to identify the module group, item number,
manufacture date, part number, and part name of the parts included in the Series 51-1 variable
displacement motors.

The parts listed include all parts which may be used when performing either “Minor Repairs”,
“Major Repairs” or “Conversions” on the Series 51-1motors.

Nameplate Each unit will have a nameplate axed to the

housing. The nameplate will include the following
information.

Model Code
The Danfoss model code completely denes the
specic unit and must be used when ordering parts
to service this product.

Model Number
The Danfoss model number is used by the factory in
manufacturing. On repeat orders, a complete unit
can be ordered by the model number.

Serial Number
The Danfoss serial number is used to identify the
manufacture date and the unit sequence in the
build. The serial number is also used to identify the
units warranty time period.

Model No./Ident No.

Model Code

Serial No.

51V080-1-R-C7-N-E1-

N-99-12-12345

Made in Germany

83010005

B1-N-N-U1-NNN­038-AA-F0-00-00

The letter code indicates the location of original
manufacture (assembly). “N” indicates the unit was
originally assembled in Neumuenster, Germany.

The rst number (2 digits) indicates the year of
manufacture. (“01” would indicate the unit was
manufactured in 2001)

The second number (2 digits) indicates the calendar
week of manufacture.

The third number (5 digits) is a sequential number
used to identify a specic unit.

4

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

General information

Date code

Service bulletins A Service Bulletin Number (SB-_ _ _ _ - _ _ _) may follow the “Part Name” of the part you desire. You

Procedure to identify a part General

The date code is dened as the year and week of manufacture. The same item number may list more
than one part number. This indicates that there is more than one conguration for that item number.
You will see that there are dierent date codes for the dierent part numbers. Find the date code of
your unit from the nameplate to determine which service part number you need to order.

EXAMPLE: The service part desired is Item L40.

Order Date Date
Code Item Begin End Part Number Part Name Usage

V L40 06-14 519021 Lip seal (SB-2005-012) 1

L40 98-06 06-13 673525 Lip seal 1

All units using this order code with a date code of 98-06 and up to and including 06-13, must use part
number “673525”. All units with a date code of 06-14 and newer must use part number “519021.”.

must read that Service Bulletin prior to ordering that part. The information contained in these Service
Bulletins, as of the print date of this bulletin, are included at the end of this manual. Service Bulletins
contain more detailed information such as interchangeability, what additional parts are involved, etc.
It is suggested that you add additional Service Bulletins to this manual as you recieve them.

The modular design of L frame Reverse motors result in a simplied service parts list and part number
identication procedure.

The same item numbers are used for same part names on all units within a product type. (Example:
The lip seal - Item L40, has the same item number on all motors.)

A part number that has another number following it in parentheses is done to make this a world wide
manual. The rst number is sold in Germany. The number in parentheses is sold in the United States.
(Example: 664524 (9005110-9000), customers would order 9005110-9000 if ordering the part in the
United States.)

Example of a part identication
The nameplate on a Series 51-1 motor has an Order Code of 51V080-1 R C7 N E1 B1 N N U1 NNN 038
AA F0 00 00. Use the following procedures to determine the part number of the drive shaft used on
this motor.

1) Referring to the shaft module in the Order Code (see page 7), the shaft option for this motor is
identied by the code “C7”. (51V080-1 R C7 N E1 B1 N N U1 NNN 038 AA F0 00 00)

2) Referring to the Service Parts List, nd the shaft group. Next nd the order code that relates to this
unit, which is “C7”. The shaft is found to be item QL10 and part number 11100427 if a speed ring is not
required. The shaft is found to be item QL11 and part number 11100428 if a speed ring is required.

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

5

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Notes

6

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

VZ

Order code

GLFM NJST WYPK

5 1

V 0 8 0 R1

-

S 1 2 N

NTH C

1

N

N NN0 4

0

A A E

4X

0 0 1 1

Product

Flange

Frame Size

End Cap

Shaft

Maximum Displacement

Control

Servo Press. Supply & Press. Comp. Override

Threshold/Range

Control Ramp

Orifice

Special Hardware

Minimum Displacement

High Pressure Setting

Charge Relief

Threshold Setting

PCOR Setting

P100 538E

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

7

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

L80

*L40

*L50C

*B80C

Prior to

N-09-46

L80

L750

L70

L035

W30

B05

W37

*QW30

W30

(ADF)

*QW30

W30

*L82

(ADA)

*QW30

W30

B70

L81

(ACB & ACG)

B50

QC05

L95

(ABA)

Q020

B10

B71

*L82

N-09-46

& beyond

L81

*QL81

W10

*B80C

*L40

L035

L80

L70

*QL81

L81

C10

E100 665E

* = included in base motor seal kit Q210

8

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Cartridge ange, 60cc common parts

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

C B05 98-06 507563 Valve segment 1
B50 98-06 9004800-3708 Pin 2
B70 98-06 664524 (9005110-9000) Plug assembly 1
B71 98-06 664524 (9005110-9000) Plug assembly 1
B80C 98-06 726927 O-ring 1
C10 98-06 515366 Bearing plate 1
L035 09-46 11038245 Bearing housing (SB-2009-006) 1
L035 98-06 09-45 11009204 Bearing housing 1
L40 06-23 519021 Lip seal 1
L40 98-06 06-22 9008000-0114 Lip seal 1
L50C 98-06 09-45 501879 O-ring (SB-2009-006) 1
L70 98-06 710855 Screw, M8 X 35 8
L80 09-46 915280 Retaining ring (SB-2009-006) 1
L80 98-06 09-45 392456 Retaining ring 2
L81 09-46 11056747 Shaft log (SB-2009-006) 2
L81 98-06 09-45 501120 Retaining ring 1
L82 98-06 501019 Gasket 1
L95 98-06 09-45 501116 Distance ring (SB-2009-006) 1
L750 98-06 09-45 510482 Seal carrier assembly (SB-2009-006) 1
Q020 98-06 517308 Synch shaft kit (SB-2001-015) 1
QC05 98-06 732719 Cylinder block assembly 1
QL81 09-46 039297 (9004201-1200) O-ring 2

Cartridge ange, 60cc special hardware

ABA B10 98-06 501103 Housing with speed sensor port 1
W10 98-06 11132980 Speed ring 1
W30 98-06 140644 Plug assembly 1

ACB B10 98-34 501103 Housing with speed sensor port 1
QW30 98-34 085043 (9004201-3700) O-ring 1
W10 98-34 11132980 Speed ring 1
W30 98-34 KPPG26408 Speed sensor 1

ACG B10 03-38 501103 Housing with speed sensor port 1
QW30 03-38 085043 (9004201-3700) O-ring 1
W10 03-38 11132980 Speed ring 1
W30 03-38 KPPG22408 Speed sensor 1

ADA B10 98-20 501103 Housing with speed sensor port 1
QW30 98-20 085043 (9004201-3700) O-ring 1
W10 98-20 11132980 Speed ring 1
W30 98-20 KPPG256 Speed sensor 1

ADF B10 99-47 515888 Housing with speed sensor port 1
QW30 99-47 085043 (9004201-3700) O-ring 1
W10 99-47 11132980 Speed ring 1
W30 99-47 KPPG35808 Speed sensor 1
W37 99-47 395822 (9007315-0603) Screw, M6 X 12 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

9

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(AWG)

*QW30

W37

W30

*QW30

W37

W30

(AWD, AWE, AWH,

AWJ & AWK)

W30

(ANA)

*QW30

W30

(AKA)

W10

B10

*QW30

W30

(ADJ)

E100 666E

* = included in base motor seal kit Q210

10

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Cartridge ange, 60cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

ADJ B10 00-12 501103 Housing with speed sensor port 1
QW30 00-12 085043 (9004201-3700) O-ring 1
W10 00-12 11132980 Speed ring 1
W30 00-12 KPPG256 Speed sensor 1

AKA B10 98-06 501103 Housing with speed sensor port 1
W10 98-06 11132980 Speed ring 1
W30 98-06 140644 Plug assembly 1

ANA B10 08-06 501103 Housing with speed sensor port 1
QW30 08-06 085043 (9004201-3700) O-ring 1
W10 08-06 11132980 Speed ring 1
W30 08-06 KPPG23703 Speed sensor 1

AWD B10 01-01 519235 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11132980 Speed ring 1
W30 01-01 KPPG36708B Speed sensor 1
W37 01-01 395822 (9007315-0603) Screw, M6 x 12 1

AWE B10 01-01 519235 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11132980 Speed ring 1
W30 01-01 KPPG36708B Speed sensor 1
W37 01-01 395822 (9007315-0603) Screw, M6 x 12 1

AWG B10 01-01 519235 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11132980 Speed ring 1
W30 01-01 520997/P Speed sensor plug assembly 1
W37 01-01 395822 (9007315-0603) Screw, M6 x 12 1

AWH B10 01-01 519235 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11132980 Speed ring 1
W30 01-01 KPPG36708B Speed sensor 1
W37 01-01 395822 (9007315-0603) Screw, M6 x 12 1

AWJ B10 01-01 515888 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11132980 Speed ring 1
W30 01-01 KPPG37708 Speed sensor 1
W37 01-01 395822 (9007315-0603) Screw, M6 x 12 1

AWK B10 01-01 515888 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11132980 Speed ring 1
W30 01-01 KPPG36708B Speed sensor 1
W37 01-01 395822 (9007315-0603) Screw, M6 x 12 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

11

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

*QW30

W37

W10

W30

(AWS)

*QW30

W37

B10

W30

(AWP & AWT)

(DAA, DDB, DDF, DDH & NNN)

B10

* = included in base motor seal kit Q210

E103 200E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

12

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Cartridge ange, 60cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

AWP B10 06-13 515888 Housing with speed sensor port 1
QW30 06-13 085043 (9004201-3700) O-ring 1
W10 06-13 11132980 Speed ring 1
W30 06-13 KPPG39708 Speed sensor 1
W37 06-13 395822 (9007315-0603) Screw, M6 x 12 1

AWS B10 06-13 515888 Housing with speed sensor port 1
QW30 06-13 085043 (9004201-3700) O-ring 1
W10 06-13 11132980 Speed ring 1
W30 06-13 520997/P Speed sensor plug assembly 1
W37 06-13 395822 (9007315-0603) Screw, M6 x 12 1

AWT B10 07-28 519235 Housing with speed sensor port 1
QW30 07-28 085043 (9004201-3700) O-ring 1
W10 07-28 11132980 Speed ring 1
W30 07-28 11028312 Speed sensor 1
W37 07-28 395822 (9007315-0603) Screw, M6 x 12 1

DAA B10 05-23 505526 Housing 1

DDB B10 03-07 505526 Housing 1

DDF B10 05-05 11000381 Housing, no minimum angle adjust port 1

DDH B10 07-42 505526 Housing 1

NNN B10 98-06 505526 Housing 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

13

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

L80

*L40

*L50C

*B80C

L80

L750

Prior to

N-98-33

L82

(ACB, ACE & ACG)

L81

L95

*L85

N-98-33 to

N-09-50

L81

*L90

L035

L95

L70

N-09-51

& beyond

L81

*QL81

L035

L70

*B80C

L80

*L40

L70

*QL81

14

W30

B05

*QW30

W30

C10

(ABA)

B70

B50

Q020

QC05

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

*L85

B10

B71

*L90

W10

L035

E100 282E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

L81

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Cartridge ange, 80cc common parts

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

C B05 98-06 507986 Valve segment 1
B50 98-06 9004800-3708 Pin 2
B70 98-06 664524 (9005110-9000) Plug assembly 1
B71 98-06 664524 (9005110-9000) Plug assembly 1
B80C 98-06 502205 O-ring 1
C10 98-06 515367 Bearing plate 1
L035 09-51 11038813 Bearing housing (SB-2009-005) 1
L035 98-34 09-50 11009382 Bearing housing (SB-1998-086) 1
L035 98-06 98-33 501109 Bearing housing 1
L40 06-23 519021 Lip seal 1
L40 98-06 06-22 9008000-0114 Lip seal 1
L50C 98-06 09-50 501879 O-ring 1
L70 98-06 710855 Screw 8
L80 09-51 915280 Retaining ring (SB-2009-005) 1
L80 98-06 09-50 392456 Retaining ring 2
L81 09-51 11056747 Shaft log (SB-2009-005) 2
L81 98-06 09-50 371625 Retaining ring (SB-2009-005) 1
L82 98-06 98-33 507259 Gasket 1
L85 98-34 11121325 O-ring (SB-1998-086) 1
L90 98-34 512678 O-ring (SB-1998-086) 1
L95 98-06 09-50 501117 Distance ring (SB-1998-086 & SB-2009-005) 1
L750 98-06 09-50 510482 Seal carrier assembly (SB-2009-005) 1
QC05 98-06 360362 Cylinder block assembly 1
QL81 09-46 039297 (9004201-1200) O-ring 2
Q020 98-06 517309 Synch shaft kit (SB-2001-015) 1

Cartridge ange, 80cc special hardware

ABA B10 98-40 512677 Housing with speed sensor port 1
W10 98-40 11100013 Speed ring 1
W30 98-40 140644 Plug assembly 1

ACB B10 98-40 512677 Housing with speed sensor port 1
QW30 98-40 085043 (9004201-3700) O-ring 1
W10 98-40 11100013 Speed ring 1
W30 98-40 KPPG26408 Speed sensor 1

ACE B10 01-36 512677 Housing with speed sensor port 1
QW30 01-36 085043 (9004201-3700) O-ring 1
W10 01-36 11100013 Speed ring 1
W30 01-36 KPPG26408 Speed sensor 1

ACG B10 09-13 512677 Housing with speed sensor port 1
QW30 09-13 085043 (9004201-3700) O-ring 1
W10 09-13 11100013 Speed ring 1
W30 09-13 KPPG22408 Speed sensor 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

15

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

*QW30

W37

W30

(AWE, AWF,

AWL & AWR)

W30

(ANA & ANC)

*QW30

(AGA & AKC)

W10

B10

W30

*QW30

W30

(ADA)

E103 201E

* = included in base motor seal kit Q210

16

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Cartridge ange, 80cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

ADA B10 98-30 512677 Housing with speed sensor port 1
QW30 98-30 085043 (9004201-3700) O-ring 1
W10 98-30 11100013 Speed ring 1
W30 98-30 KPPG256 Speed sensor 1

AGA B10 98-34 512677 Housing with speed sensor port (SB-1998-086) 1
W10 98-06 11100013 Speed ring 1
W30 98-06 140644 Plug assembly 1

AKC B10 00-04 512677 Housing with speed sensor port 1
W10 00-04 11100013 Speed ring 1
W30 00-04 140644 Plug assembly 1

ANA B10 08-06 512677 Housing with speed sensor port 1
QW30 08-06 085043 (9004201-3700) O-ring 1
W10 08-06 11100013 Speed ring 1
W30 08-06 KPPG23703 Speed sensor 1

ANC B10 02-13 512677 Housing with speed sensor port 1
QW30 02-13 085043 (9004201-3700) O-ring 1
W10 02-13 11100013 Speed ring 1
W30 02-13 KPPG26708 Speed sensor 1

AWE B10 02-13 517815 Housing with speed sensor port 1
QW30 02-13 085043 (9004201-3700) O-ring 1
W10 02-13 11100013 Speed ring 1
W30 02-13 KPPG36708B Speed sensor 1
W37 02-13 395822 (9007315-0603) Screw, M6 x 12 1

AWF B10 02-13 517815 Housing with speed sensor port 1
QW30 02-13 085043 (9004201-3700) O-ring 1
W10 02-13 11100013 Speed ring 1
W30 02-13 KPPG36708B Speed sensor 1
W37 02-13 395822 (9007315-0603) Screw, M6 x 12 1

AWL B10 05-26 517815 Housing with speed sensor port 1
QW30 05-26 085043 (9004201-3700) O-ring 1
W10 05-26 11100013 Speed ring 1
W30 05-26 KPPG37708 Speed sensor 1
W37 05-26 395822 (9007315-0603) Screw, M6 x 12 1

AWR B10 06-13 517815 Housing with speed sensor port 1
QW30 06-13 085043 (9004201-3700) O-ring 1
W10 06-13 11100013 Speed ring 1
W30 06-13 KPPG39708 Speed sensor 1
W37 06-13 395822 (9007315-0603) Screw, M6 x 12 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

17

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(DBA, DDB, DDD, DDE, DDH & NNN)

B10

E103 202E

18

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Cartridge ange, 80cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

DBA B10 98-30 512676 Housing 1

DDB B10 98-34 512676 Housing 1

DDD B10 98-34 512676 Housing 1

DDE B10 98-34 512676 Housing 1

DDH B10 98-34 512676 Housing 1

NNN B10 98-34 512676 Housing 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

19

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

B05

W3

Variable Displacement Motor

L80

*L40

*L50C

*B80C

Prior to

N-10-20

L80

L750

L70

L035

(ADA)

*QW30

0

W30

(ACB, ACE & ACG)

*QW30

*L82

W30

(ABA)

B70

B50

L81

L95

Q020

B10

B71

*L82

N-10-20

& beyond

L81

*QL81

W10

*B80C

*L40

L035

L80

L70

*QL81

L81

20

QC05

C10

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E103 203E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Cartridge ange, 110cc common parts

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

C B05 98-06 507458 Valve segment 1
B50 98-06 9004800-3708 Pin 2
B70 98-06 664524 (9005110-9000) Plug assembly 1
B71 98-06 664524 (9005110-9000) Plug assembly 1
B80C 98-06 502206 O-ring 1
C10 98-06 515368 Bearing plate 1
L035 10-20 11038814 Bearing housing (SB-2009-019) 1
L035 98-06 10-19 11009383 Bearing housing 1
L40 05-41 519022 Lip seal (SB-2004-013) 1
L40 98-06 05-40 341735 Lip seal 1
L50C 98-06 10-19 507116 (9004104-1580) O-ring (SB-2009-019) 1
L70 98-06 727586 Screw 8
L80 10-20 392423 Retaining ring (SB-2009-019) 1
L80 98-06 10-19 739037 Retaining ring 2
L81 10-20 11056747 Bearing log (SB-2009-019) 2
L81 98-06 10-19 504732 Retaining ring 1
L82 98-06 501113 Gasket 1
L95 98-06 10-19 501118 Distance ring 1
L750 98-06 10-19 510484 Seal carrier assembly (SB-2004-013 & SB-2009-019) 1
Q020 98-06 516485 Synch shaft kit (SB-2001-015) 1
QC05 98-06 355883 Cylinder block assembly 1
QL81 10-20 039297 (9004201-1200) O-ring 2

Cartridge ange, 110cc special hardware

ABA B10 98-06 501105 Housing with speed sensor port 1
W10 98-06 11132981 Speed ring 1
W30 98-06 140644 Plug assembly 1

ACB B10 00-18 501105 Housing with speed sensor port 1
QW30 00-18 085043 (9004201-3700) O-ring 1
W10 00-18 11132981 Speed ring 1
W30 00-18 KPPG26408 Speed sensor 1

ACE B10 01-36 501105 Housing with speed sensor port 1
QW30 01-36 085043 (9004201-3700) O-ring 1
W10 01-36 11132981 Speed ring 1
W30 01-36 KPPG26408 Speed sensor 1

ACG B10 09-02 501105 Housing with speed sensor port 1
QW30 09-02 085043 (9004201-3700) O-ring 1
W10 09-02 11132981 Speed ring 1
W30 09-02 KPPG22408 Speed sensor 1

ADA B10 98-29 501105 Housing with speed sensor port 1
QW30 98-29 085043 (9004201-3700) O-ring 1
W10 98-29 11132981 Speed ring 1
W30 98-29 KPPG256 Speed sensor 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

21

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(AWG)

*QW30

W37

W30

*QW30

W37

(AWF, AWH &

AWN)

W30

(ANA & ANC)

*QW30

W30

(AGA & AKA)

W10

B10

W30

*QW30

W30

(ADD & ADJ)

22

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E100 666E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Cartridge ange, 110cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

ADD B10 98-30 501105 Housing with speed sensor port 1
QW30 98-30 085043 (9004201-3700) O-ring 1
W10 98-30 11132981 Speed ring 1
W30 98-30 KPPG256 Speed sensor 1

ADJ B10 00-12 501105 Housing with speed sensor port 1
QW30 00-12 085043 (9004201-3700) O-ring 1
W10 00-12 11132981 Speed ring 1
W30 00-12 KPPG256 Speed sensor 1

AGA B10 98-06 501105 Housing with speed sensor port 1
W10 98-06 11132981 Speed ring 1
W30 98-06 140644 Plug assembly 1

AKA B10 98-06 501105 Housing with speed sensor port 1
W10 98-06 11132981 Speed ring 1
W30 98-06 140644 Plug assembly 1

ANA B10 01-15 501105 Housing with speed sensor port 1
QW30 01-15 085043 (9004201-3700) O-ring 1
W10 01-15 11132981 Speed ring 1
W30 01-15 KPPG23703 Speed sensor 1

ANC B10 02-13 501105 Housing with speed sensor port 1
QW30 02-13 085043 (9004201-3700) O-ring 1
W10 02-13 11132981 Speed ring 1
W30 02-13 KPPG26708 Speed sensor 1

AWF B10 02-13 517816 Housing with speed sensor port 1
QW30 02-13 085043 (9004201-3700) O-ring 1
W10 02-13 11132981 Speed ring 1
W30 02-13 KPPG36708B Speed sensor 1
W37 02-13 395822 (9007315-0603) Screw, M6 x 12 1

AWG B10 05-26 517816 Housing with speed sensor port 1
QW30 05-26 085043 (9004201-3700) O-ring 1
W10 05-26 11132981 Speed ring 1
W30 05-26 520997/P Speed sensor plug assembly 1
W37 05-26 395822 (9007315-0603) Screw, M6 x 12 1

AWH B10 06-13 517816 Housing with speed sensor port 1
QW30 06-13 085043 (9004201-3700) O-ring 1
W10 06-13 11132981 Speed ring 1
W30 06-13 KPPG36708B Speed sensor 1
W37 06-13 395822 (9007315-0603) Screw, M6 x 12 1

AWN B10 06-13 517816 Housing with speed sensor port 1
QW30 06-13 085043 (9004201-3700) O-ring 1
W10 06-13 11132981 Speed ring 1
W30 06-13 KPPG33703 Speed sensor 1
W37 06-13 395822 (9007315-0603) Screw, M6 x 12 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

23

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

B10

(DBA, DDD, DDH & NNN)

E103 202E

24

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Cartridge ange, 110cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

DBA B10 98-06 505530 Housing 1

DDD B10 01-36 505530 Housing 1

DDH B10 07-41 505530 Housing 1

NNN B10 98-06 505530 Housing 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

25

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

B05

W30

*QW30

W37

W30

B50

B50

QC05

(AWU)

*QW30

Q020

(ADA)

B70

W30

*QW30

B71

(ACJ & ANA)

*L50D

W10

B10

L70

*L40

L35

B05

C10

C10

(NNN)

B70

B50

B50

Q020

B71

QC05

* = included in base motor seal kit Q210

B10

*L50D

L70

*L40

L35

E100 342E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

26

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

DIN ange, 60cc common parts

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

D B05 98-06 507563 Valve segment 1
B50 98-06 9004800-3708 Pin 2
B70 98-06 664524 (9005110-9000) Plug assembly 1
B71 98-06 664524 (9005110-9000) Plug assembly 1
C10 98-06 515366 Bearing plate 1
L35 98-06 520314 Flange, DIN (SB-2005-012) 1
L40 06-14 519021 Lip seal (SB-2005-012) 1
L40 98-06 06-13 673525 (9008000-0114) Lip seal 1
L50D 98-06 767962 O-ring 1
L70 98-06 506969 Screw 8
QC05 98-06 732719 Cylinder block assembly 1
Q020 98-06 517308 Synch shaft kit (SB-2001-015) 1

DIN ange, 60cc special hardware

ACJ B10 10-11 504577 Housing with speed sensor port 1
QW30 10-11 085043 (9004201-3700) O-ring 1
W10 10-11 11132980 Speed ring 1
W30 10-11 KPPG15408 Speed sensor assembly 1

ADA B10 08-22 504577 Housing with speed sensor port 1
QW30 08-22 085043 (9004201-3700) O-ring 1
W10 08-22 11132980 Speed ring 1
W30 08-22 KPPG156 Speed sensor assembly 1

ANA B10 09-07 504577 Housing with speed sensor port 1
QW30 09-07 085043 (9004201-3700) O-ring 1
W10 09-07 11132980 Speed ring 1
W30 09-07 KPPG13703 Speed sensor assembly 1

AWU B10 08-22 520352 Housing with speed sensor port 1
QW30 08-22 085043 (9004201-3700) O-ring 1
W10 08-22 11132980 Speed ring 1
W30 08-22 KPPG456 Speed sensor assembly 1

NNN B10 98-06 776013 Housing 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

27

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(ADA & ADJ)

B05

W30

*QW30

B50

B50

QC05

W30

*QW30

B70

Q020

(ACB & ANA)

(ABA, AKA

B10

B71

L70

*L40

& AKB)

W30

L35

*L50D

W10

(AMB)

L70

B05

C10

Q020

C10

B50

B50

QC05

B70

W30

*QW30

B71

*L40

W37

L35

*L50D

W10

B10

E100 341E

28

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

DIN ange, 80cc common parts

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

D B05 98-06 507986 Valve segment 1
B50 98-06 9004800-3708 Pin 2
B70 98-06 664524 (9005110-9000) Plug assembly 1
B71 98-06 664524 (9005110-9000) Plug assembly 1
C10 98-06 515367 Bearing plate 1
L35 98-06 520315 Flange, DIN (SB-2005-012) 1
L40 06-14 519021 Lip seal (SB-2005-012) 1
L40 98-06 06-13 673525 (9008000-0114) Lip seal 1
L50D 98-06 767962 O-ring 1
L70 98-06 506969 Screw 8
QC05 98-06 360362 Cylinder block assembly 1
Q020 98-06 517309 Synch shaft kit (SB-2001-015) 1

DIN ange, 80cc special hardware

ABA B10 01-01 504586 Housing with speed sensor port 1
W10 01-01 11100013 Speed ring 1
W30 01-01 140644 Plug assembly 1

ACB B10 08-27 504586 Housing with speed sensor port 1
QW30 08-27 085043 (9004201-3700) O-ring 1
W10 08-27 11100013 Speed ring 1
W30 08-27 KPPG16408 Speed sensor assembly 1

ADA B10 01-17 504586 Housing with speed sensor port 1
QW30 01-17 085043 (9004201-3700) O-ring 1
W10 01-17 11100013 Speed ring 1
W30 01-17 KPPG156 Speed sensor assembly 1

ADJ B10 01-17 504586 Housing with speed sensor port 1
QW30 01-17 085043 (9004201-3700) O-ring 1
W10 01-17 11100013 Speed ring 1
W30 01-17 KPPG156 Speed sensor assembly 1

AKA B10 01-17 504586 Housing with speed sensor port 1
W10 01-17 11100013 Speed ring 1
W30 01-17 140644 Plug assembly 1

AKB B10 08-38 504586 Housing with speed sensor port 1
W10 08-38 11100013 Speed ring 1
W30 08-38 140644 Plug assembly 1

AMB B10 04-25 520354 Housing with speed sensor port 1
QW30 04-25 085043 (9004201-3700) O-ring 1
W10 04-25 11100013 Speed ring 1
W30 04-25 11046847 Speed sensor assembly 1
W37 04-25 395822 (9007315-0603) Screw, M6 x 12 1

ANA B10 09-07 504586 Housing with speed sensor port 1
W10 09-07 11100013 Speed ring 1
W30 09-07 KPPG13703 Speed sensor assembly 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

29

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(AWM & AWV)

W37

W30

(AVB & AWG)

*QW30

W30

L70

B05

C10

B50

B50

QC05

B70

Q020

*QW30

W37

B71

*L50D

W10

B10

(DDL & NNN)

*L50D

*L40

L35

L70

*L40

30

B05

B70

B50

B50

Q020

B71

QC05

C10

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

L35

B10

E103 204E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

DIN ange, 80cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

AVB B10 09-09 520354 Housing with speed sensor port 1
QW30 09-09 085043 (9004201-3700) O-ring 1
W10 09-09 11100013 Speed ring 1
W30 09-09 520997 Speed sensor plug assembly 1
W37 09-09 395822 (9007315-0603) Screw, M6 x 12 1

AWG B10 01-01 520354 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11100013 Speed ring 1
W30 01-01 520997 Speed sensor plug assembly 1
W37 01-01 395822 (9007315-0603) Screw, M6 x 12 1

AWM B10 05-46 520354 Housing with speed sensor port 1
QW30 05-46 085043 (9004201-3700) O-ring 1
W10 05-46 11100013 Speed ring 1
W30 05-46 KPPG456 Speed sensor assembly 1
W37 05-46 395822 (9007315-0603) Screw, M6 x 12 1

AWV B10 08-22 520354 Housing with speed sensor port 1
QW30 08-22 085043 (9004201-3700) O-ring 1
W10 08-22 11100013 Speed ring 1
W30 08-22 KPPG456 Speed sensor assembly 1
W37 08-22 395822 (9007315-0603) Screw, M6 x 12 1

DDL B10 10-07 776070 Housing without speed sensor port 1

NNN B10 92-01 776070 Housing without speed sensor port 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

31

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

B05

W30

*QW30

(ADA & ADH)

B50

B50

Q020

QC05

W30

*QW30

B70

(ANA)

B71

L70

*L40

(ABA & AKD)

W30

L35

*L50D

W10

B10

B05

C10

W30

Q020

C10

*QW30

(AWM)

W37

W30

W37

*QW30

B70

B50

B50

QC05

* = included in base motor seal kit Q210

(AWG)

B71

L70

*L40

L35

*L50D

W10

B10

E103 205E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

32

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

DIN ange, 110cc common parts

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

D B05 98-06 507458 Valve segment 1
B50 98-06 9004800-3708 Pin 2
B70 98-06 664524 (9005110-9000) Plug assembly 1
B71 98-06 664524 (9005110-9000) Plug assembly 1
C10 98-06 515368 Bearing plate 1
L35 05-45 520316 Flange, DIN (SB-2004-013) 1
L40 05-41 519022 Lip seal (SB-2004-013) 1
L40 98-06 05-40 341735 Lip seal 1
L50D 98-06 729285 O-ring 1
L70 98-06 064493 Screw 8
Q020 98-06 516485 Synch shaft kit (SB-2001-015) 1
QC05 98-06 355883 Cylinder block assembly 1

DIN ange, 110cc special hardware

ABA B10 98-06 504598 Housing with speed sensor port 1
W10 98-06 11132981 Speed ring 1
W30 98-06 140644 Plug assembly 1

ADA B10 01-27 504598 Housing with speed sensor port 1
QW30 01-27 085043 (9004201-3700) O-ring 1
W10 01-27 11132981 Speed ring 1
W30 01-27 KPPG156 Speed sensor 1

ADH B10 00-12 504598 Housing with speed sensor port 1
QW30 00-12 085043 (9004201-3700) O-ring 1
W10 00-12 11132981 Speed ring 1
W30 00-12 KPPG156 Speed sensor 1

AKD B10 98-06 504598 Housing with speed sensor port 1
W10 98-06 11132981 Speed ring 1
W30 98-06 140644 Plug assembly 1

ANA B10 09-07 504598 Housing with speed sensor port 1
QW30 09-07 085043 (9004201-3700) O-ring 1
W10 09-07 11132981 Speed ring 1
W30 09-07 KPPG13703 Speed sensor 1

AWG B10 01-01 518915 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11132981 Speed ring 1
W30 01-01 520997 Speed sensor plug assembly 1
W37 01-01 395822 (9007315-0603) Screw, M6 x 12 1

AWM B10 01-01 518915 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11132981 Speed ring 1
W30 01-01 KPPG456 Speed sensor 1
W37 01-01 395822 (9007315-0603) Screw, M6 x 12 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

33

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(DDM, DDN & NNN)

B10

34

E103 202E

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

DIN ange, 110cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

DDM B10 10-23 774778 Housing without speed sensor port 1

DDN B10 13-12 774778 Housing without speed sensor port 1

NNN B10 98-06 774778 Housing without speed sensor port 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

35

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

W30

*QW30

(ADA)

*W30

B50

B50

(ABA & AKE)

W30

*QW30

B70

Q020

B71

(ACB, ACK

& ANA)

W10

B10

*L50V

L70

L35

*L40

*B80V

Q010

L70

B05

C10

QC05

B50

B50

QC05

B70

Q020

W30

*QW30

B71

W37

(AWM)

B10

W10

*L50V

L35

*L40

*B80V

Q010

36

B05

C10

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E100 283E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

SAE ange, 60cc common parts

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

V B05 98-06 507563 Valve segment 1
B50 98-06 9004800-3708 Pin 2
B70 98-06 664524 (9005110-9000) Plug assembly 1
B71 98-06 664524 (9005110-9000) Plug assembly 1
B80V 98-06 930511 O-ring 1
C10 98-06 515366 Bearing plate 1
L35 98-06 520318 Flange, SAE (SB-2005-012) 1
L40 06-14 519021 Lip seal (SB-2005-012) 1
L40 98-06 06-13 673525 (9008000-0114) Lip seal 1
L50V 98-06 917088 O-ring 1
L70 98-06 506969 Screw 8
QC05 98-06 732719 Cylinder block assembly 1
Q010 98-06 771618 Shaft seal kit 1
Q020 98-06 517308 Synch shaft kit (SB-2001-015) 1

SAE ange, 60cc special hardware

ABA B10 98-06 504575 Housing with speed sensor port 1
W10 98-06 11132980 Speed ring 1
W30 98-06 140644 Plug assembly 1

ACB B10 94-04 504575 Housing with speed sensor port 1
QW30 94-04 085043 (9004201-3700) O-ring 1
W10 94-04 11132980 Speed ring 1
W30 94-04 KPPG16408 Speed sensor assembly 1

ACK B10 94-04 504575 Housing with speed sensor port 1
QW30 94-04 085043 (9004201-3700) O-ring 1
W10 94-04 11132980 Speed ring 1
W30 94-04 KPPG17708 Speed sensor assembly 1

ADA B10 01-27 504575 Housing with speed sensor port 1
QW30 01-27 085043 (9004201-3700) O-ring 1
W10 01-27 11132980 Speed ring 1
W30 01-27 KPPG156 Speed sensor assembly 1

AKE B10 00-08 504575 Housing with speed sensor port 1
W10 00-08 11132980 Speed ring 1
W30 00-08 140644 Plug assembly 1

ANA B10 05-51 504575 Housing with speed sensor port 1
QW30 05-51 085043 (9004201-3700) O-ring 1
W10 05-51 11132980 Speed ring 1
W30 05-51 KPPG13703 Speed sensor assembly 1

AWM B10 05-51 520356 Housing with speed sensor port 1
QW30 05-51 085043 (9004201-3700) O-ring 1
W10 05-51 11132980 Speed ring 1
W30 05-51 KPPG456 Speed sensor assembly 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

37

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(DAA, DDE, DDH & NNN)

L35

B10

*L50V

*L40

*B80V

Q010

38

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E103 156E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

SAE ange, 60cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

DAA B10 05-25 503875 Housing with speed sensor port 1

DDE B10 07-33 503875 Housing with speed sensor port 1

DDH B10 07-42 503875 Housing with speed sensor port 1

NNN B10 98-06 503875 Housing with speed sensor port 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

39

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

W30

*QW30

(ADA)

B50

B50

*W30

Q020

(ABA &

AKE)

W30

B70

*QW30

B71

(AAA, ACB,

ACE & ACH)

W10

B10

L70

*B80V

L35

*L40

*L50V

Q010

B05

C10

QC05

* = included in base motor seal kit Q210

E100 248E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

40

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

SAE ange, 80cc common parts

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

V B05 98-06 507986 Valve segment 1
B50 98-06 9004800-3708 Pin 2
B70 98-06 664524 (9005110-9000) Plug assembly 1
B71 98-06 664524 (9005110-9000) Plug assembly 1
B80V 98-06 930511 O-ring 1
C10 98-06 515367 Bearing plate 1
L35 98-06 519195 Flange, SAE (SB-2005-012) 1
L40 06-14 519021 Lip seal (SB-2005-012) 1
L40 98-06 06-13 673525 (9008000-0114) Lip seal 1
L50V 98-06 767962 O-ring 1
L70 98-06 746594 Screw 8
QC05 98-06 360362 Cylinder block assembly 1
Q010 98-06 771055 Shaft seal kit 1
Q020 98-06 517309 Synch shaft kit (SB-2001-015) 1

SAE ange, 80cc special hardware

AAA B10 04-13 504584 Housing with speed sensor port 1
QW30 04-13 085043 (9004201-3700) O-ring 1
W10 04-13 11100013 Speed ring 1
W30 04-13 KPPG12508 Speed sensor assembly 1

ABA B10 98-40 504584 Housing with speed sensor port 1
W10 98-40 11100013 Speed ring 1
W30 98-40 140644 Plug assembly 1

ACB B10 00-07 504584 Housing with speed sensor port 1
QW30 00-07 085043 (9004201-3700) O-ring 1
W10 00-07 11100013 Speed ring 1
W30 00-07 KPPG16408 Speed sensor assembly 1

ACE B10 00-34 504584 Housing with speed sensor port 1
QW30 00-34 085043 (9004201-3700) O-ring 1
W10 00-34 11100013 Speed ring 1
W30 00-34 KPPG16408 Speed sensor assembly 1

ACH B10 04-17 504584 Housing with speed sensor port 1
QW30 04-17 085043 (9004201-3700) O-ring 1
W10 04-17 11100013 Speed ring 1
W30 04-17 KPPG16708 Speed sensor assembly 1

ADA B10 01-01 504584 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11100013 Speed ring 1
W30 01-01 KPPG156 Speed sensor assembly 1

AKE B10 07-46 504584 Housing with speed sensor port 1
W10 07-46 11100013 Speed ring 1
W30 07-46 140644 Plug assembly 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

41

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

B70

*QW30

W30

*QW30

W37

W30

B10

(ANA & ANC)

W10

(AWM)

L35

L35

B70

B70

W10

B10

(DAA, DDD, DDH,

DDK & NNN)

B10

L35

E103 206E

* = included in base motor seal kit Q210

42

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

SAE ange, 80cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

ANA B10 09-07 504584 Housing with speed sensor port 1
QW30 09-07 085043 (9004201-3700) O-ring 1
W10 09-07 11100013 Speed ring 1
W30 09-07 KPPG13703 Speed sensor assembly 1

ANC B10 02-13 504584 Housing with speed sensor port 1
QW30 02-13 085043 (9004201-3700) O-ring 1
W10 02-13 11100013 Speed ring 1
W30 02-13 KPPG16708 Speed sensor assembly 1

AWM B10 08-31 518992 Housing with speed sensor port 1
QW30 08-31 085043 (9004201-3700) O-ring 1
W30 08-31 KPPG456 Speed sensor assembly 1
W37 08-31 395822 (9007315-0603) Screw, M6 x 12 1

DAA B10 07-43 503877 Housing without speed sensor port 1

DDD B10 00-34 503877 Housing without speed sensor port 1

DDH B10 07-27 503877 Housing without speed sensor port 1

DDK B10 09-06 503877 Housing without speed sensor port 1

NNN B10 98-06 503877 Housing without speed sensor port 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

43

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

L70

(ADA & ADD)

L35

W30

*QW30

(ABA, AGA

*W30

B70

& AKE)

W30

*QW30

(ACF &

ANA)

*L40

*L50V

*B80V

B05

C10

B50

B50

QC05

Q020

Q010

W10

B10

B71

44

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E103 142E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

SAE ange, 110cc common parts

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

V B05 98-06 507458 Valve segment (SB-1996-005 & SB-1997-030) 1
B50 98-06 9004800-3708 Pin 2
B70 98-06 664524 (9005110-9000) Plug assembly 1
B71 98-06 664524 (9005110-9000) Plug assembly 1
B80V 98-06 729285 O-ring 1
C10 98-06 515368 Bearing plate 1
L35 05-45 520319 Flange, SAE (SB-2004-013) 1
L40 05-41 519022 Lip seal (SB-2004-013) 1
L40 98-06 05-40 341735 Lip seal 1
L50V 98-06 717462 O-ring 1
L70 98-06 064493 Screw 8
Q010 98-06 773184 Shaft seal kit 1
Q020 98-06 516485 Synch shaft kit (SB-2001-015) 1
QC05 98-06 355883 Cylinder block assembly 1

SAE ange, 110cc special hardware

ABA B10 98-06 504595 Housing with speed sensor port 1
W10 98-06 11132981 Speed ring 1
W30 98-06 140644 Plug assembly 1

ACF B10 03-37 504595 Housing with speed sensor port 1
QW30 03-37 085043 (9004201-3700) O-ring 1
W10 03-37 11132981 Speed ring 1
W30 03-37 KPPG16708 Speed sensor 1

ADA B10 01-01 504595 Housing with speed sensor port 1
QW30 01-01 085043 (9004201-3700) O-ring 1
W10 01-01 11132981 Speed ring 1
W30 01-01 KPPG156 Speed sensor 1

ADD B10 99-04 504595 Housing with speed sensor port 1
QW30 99-04 085043 (9004201-3700) O-ring 1
W10 99-04 11132981 Speed ring 1
W30 99-04 KPPG156 Speed sensor 1

AGA B10 97-31 504595 Housing with speed sensor port 1
W10 97-31 11132981 Speed ring 1
W30 97-31 140644 Plug assembly 1

AKE B10 07-27 504595 Housing with speed sensor port 1
W10 07-27 11132981 Speed ring 1
W30 07-27 140644 Plug assembly 1

ANA B10 09-07 504595 Housing with speed sensor port 1
QW30 09-07 085043 (9004201-3700) O-ring 1
W10 09-07 11132981 Speed ring 1
W30 09-07 KPPG13703 Speed sensor 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

45

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(DBA, DDB, DDH & NNN)

B10

46

E103 202E

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

SAE ange, 110cc special hardware

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

DBA B10 98-06 727297 Housing without speed sensor port 1

DDB B10 03-07 727297 Housing without speed sensor port 1

DDH B10 07-27 727297 Housing without speed sensor port 1

NNN B10 98-06 727297 Housing without speed sensor port 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

47

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

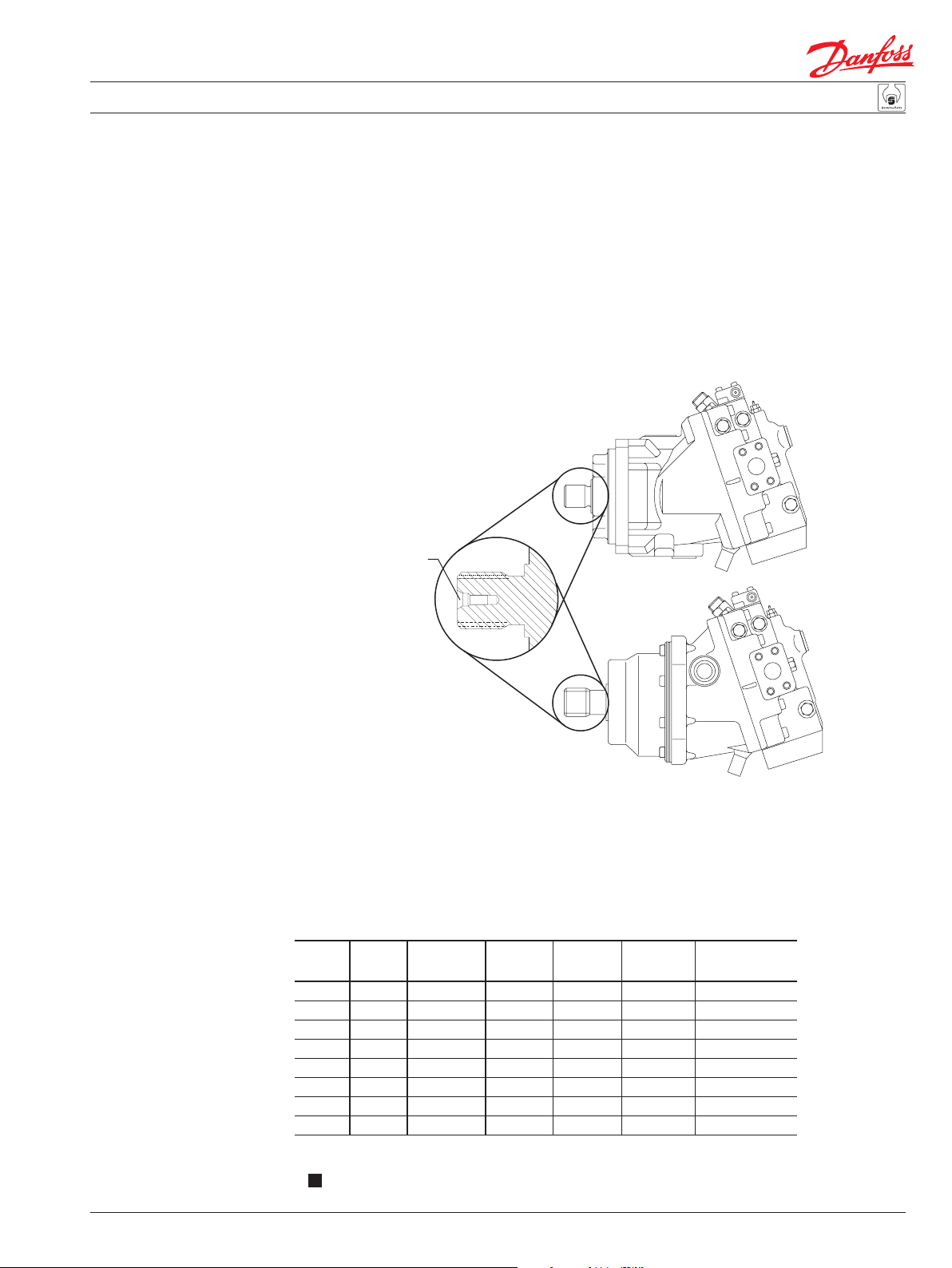

(A, B, C, D & E)

(B for 80cc)

48

F310

F300

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

F310

F310

F300

E100 326E

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Maximum displacement, 60cc

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

A F300 98-06 506969 Screw, M8 x 25 1
F310 98-06 780890 Spacer sleeve, 3.5mm 1

B F300 98-06 506969 Screw, M8 x 25 1
F310 98-06 781948 Spacer sleeve, 6.5mm 1

C F300 98-06 746594 Screw, M8 x 30 1
F310 98-06 519658 Spacer sleeve, 9.7mm 1

D F300 12-23 746594 Screw, M8 x 30 1
F310 12-23 11117180 Spacer sleeve, 12.9mm 1

E F300 98-06 746594 Screw, M8 x 30 1
F310 98-06 521256 Spacer sleeve, 15.7mm 1

N No parts

Maximum displacement, 80cc

A F300 98-06 506969 Screw, M8 x 25 1
F310 98-06 780890 Spacer sleeve, 3.5mm 1

B F300 98-06 506969 Screw, M8 x 25 1
F310 98-06 11064423 Spacer sleeve, 3.1mm 1
F311 98-06 515498 Spacer sleeve, 3.9mm 1

C F300 98-06 506969 Screw, M8 x 25 1
F310 98-06 521208 Spacer sleeve, 10.5mm 1

D F300 98-06 746594 Screw, M8 x 30 1
F310 98-06 11000676 Spacer sleeve, 14.0mm 1

N No parts

Maximum displacement, 110cc

A F300 98-06 506969 Screw, M8 x 25 1
F310 98-06 515498 Spacer sleeve, 3.9mm 1

B F300 98-06 506969 Screw, M8 x 25 1
F310 98-06 513262 Spacer sleeve, 7.7mm 1

C F300 98-06 506969 Screw, M8 x 25 1
F310 98-06 11038079 Spacer sleeve, 11.5mm 1

D F300 12-14 746594 Screw, M8 x 30 1
F310 12-14 11114051 Spacer sleeve, 15.3mm 1

E F300 98-06 746594 Screw, M8 x 30 1
F310 98-06 508571 Spacer sleeve, 19.0mm 1

N No parts

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

49

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

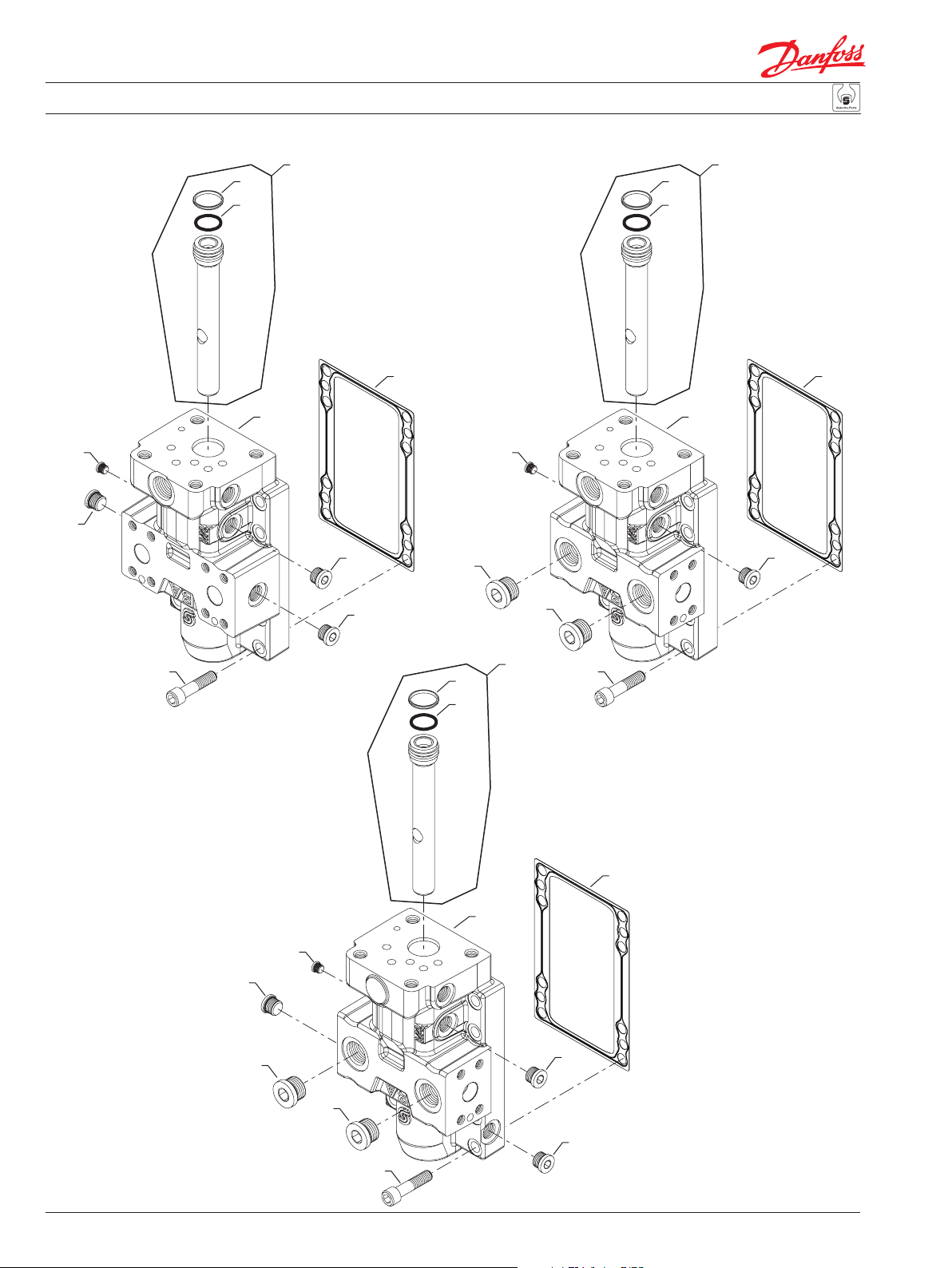

F20

F20

Variable Displacement Motor

G18

G12

*F10

*F11

G10

(A & K)

G12

G12

*G60

G80

G18

G80

*F10

*F11

(H & R)

*G60

G10

G12

G34

G14

G80

G18

G80

*F10

*F11

G10

F20

G34

(J)

*G60

G12

50

G34

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

G14

E103 207E

* = included in base motor seal kit Q210

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

End cap, 60cc

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

A F10 98-06 508134 Seal ring 1
F11 98-06 504207 O-ring 1
F20 98-06 508186 Servo piston assembly 1
G10 98-06 516905 End cap, axial ports 1
G12 98-06 140644 Plug assembly 3
G18 98-06 11040532 Plug assembly 1
G34 98-06 672295 Screw, M10 x 45 8
G60 98-06 515733 Gasket 1

H F10 98-06 508134 Seal ring 1
F11 98-06 504207 O-ring 1
F20 98-06 508186 Servo piston assembly 1
G10 98-06 516920 End cap, side ports 1
G12 98-06 140644 Plug assembly 1
G18 98-06 11040532 Plug assembly 1
G34 98-06 672295 Screw, M10 x 45 8
G60 98-06 515733 Gasket 1
G80 98-06 315325 (9005110-8700) Plug assembly 2

J F10 98-06 508134 Seal ring 1
F11 98-06 504207 O-ring 1
F20 98-06 508186 Servo piston assembly 1
G10 98-06 11001832 End cap, side ports 1
G12 98-06 140644 Plug assembly 1
G14 98-06 140644 Plug assembly 2
G18 98-06 11040532 Plug assembly 1
G34 98-06 672295 Screw, M10 x 45 8
G60 98-06 515733 Gasket 1
G80 98-06 315325 (9005110-8700) Plug assembly 2

K F10 98-06 508134 Seal ring 1
F11 98-06 504207 O-ring 1
F20 98-06 508186 Servo piston assembly 1
G10 98-06 11041995 End cap, axial metric ports 1
G12 98-06 140644 Plug assembly 3
G18 98-06 11040532 Plug assembly 1
G34 98-06 672295 Screw, M10 x 45 8
G60 98-06 515733 Gasket 1

R F10 98-06 508134 Seal ring 1
F11 98-06 504207 O-ring 1
F20 98-06 508186 Servo piston assembly 1
G10 98-06 516902 End cap, side ports 1
G12 98-06 140644 Plug assembly 1
G18 98-06 11040532 Plug assembly 1
G34 98-06 672295 Screw, M10 x 45 8
G60 98-06 515733 Gasket 1
G80 98-06 315325 (9005110-8700) Plug assembly 2

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

51

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(A) (H & R)

G18

G12

*F10

*F11

G10

F20

G12

G12

*G60

G80

F20

*F10

*F11

*G60

G10

G18

G12

G80

G34

G34

E103 208E

* = included in base motor seal kit Q210

52

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

End cap, 80cc

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

A F10 98-06 508136 Seal ring 1
F11 98-06 504208 O-ring 1
F20 98-06 508181 Servo piston assembly 1
G10 98-06 516907 End cap, axial ports 1
G12 98-06 140644 Plug assembly 3
G18 98-06 11040532 Plug assembly 1
G34 98-06 672295 Screw 8
G60 98-06 517237 Gasket 1

H F10 98-06 508136 Seal ring 1
F11 98-06 504208 O-ring 1
F20 98-06 508181 Servo piston assembly 1
G10 98-06 516921 End cap, side ports 1
G12 98-06 140644 Plug assembly 1
G18 98-06 11040532 Plug assembly 1
G34 98-06 672295 Screw 8
G60 98-06 517237 Gasket 1
G80 98-06 664524 (9005110-9000) Plug assembly 2

R F10 98-06 508136 Seal ring 1
F11 98-06 504208 O-ring 1
F20 98-06 508181 Servo piston assembly 1
G10 98-06 516903 End cap, side ports 1
G12 98-06 140644 Plug assembly 1
G18 98-06 11040532 Plug assembly 1
G34 98-06 672295 Screw 8
G60 98-06 517237 Gasket 1
G80 98-06 664524 (9005110-9000) Plug assembly 2

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

53

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(A) (H & R)

G18

G12

*F10

*F11

G10

F20

G12

G12

*G60

G80

F20

*F10

*F11

*G60

G10

G18

G12

G80

G34

G34

E103 208E

54

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

End cap, 110cc

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

A F10 98-06 648345 Seal ring 1
F11 98-06 315242 O-ring 1
F20 98-06 508187 Servo piston assembly 1
G10 98-06 515697 End cap, axial ports 1
G12 98-06 140644 Plug assembly 3
G18 98-06 11040532 Plug assembly 1
G34 98-06 283325 Screw 8
G60 98-06 516124 Gasket 1

H F10 98-06 648345 Seal ring 1
F11 98-06 315242 O-ring 1
F20 98-06 508187 Servo piston assembly 1
G10 98-06 516923 End cap, side ports 1
G12 98-06 140644 Plug assembly 1
G18 98-06 11040532 Plug assembly 1
G34 98-06 283325 Screw 8
G60 98-06 516124 Gasket 1
G80 98-06 664524 (9005110-9000) Plug assembly 2

R F10 98-06 648345 Seal ring 1
F11 98-06 315242 O-ring 1
F20 98-06 508187 Servo piston assembly 1
G10 98-06 516904 End cap, side ports 1
G12 98-06 140644 Plug assembly 1
G18 98-06 11040532 Plug assembly 1
G34 98-06 283325 Screw 8
G60 98-06 516124 Gasket 1
G80 98-06 664524 (9005110-9000) Plug assembly 2

Threshold/range

N No parts

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

55

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

QK10

(99)

*K50

QK10

*K51

(E4, E6, F0, F3,

G0, G3 & H0)

*K50

QK10

*K51

(A0, A3,B0 & B3)

*K50

56

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E100 285E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Charge pressure relief

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

99 K50 98-02 01-17 001149 (9004201-6200) O-ring 1
QK10 98-02 01-17 8510012 Charge relief valve kit 1

A0 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510253 Cartridge kit, 13 bar, 11 l/min 1

A3 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510256 Cartridge kit, 13 bar, 16 l/min 1

B0 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 11020552 Cartridge kit, 13 bar, 22 l/min 1

B3 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510243 Cartridge kit, 13 bar, 27 l/min 1

E4 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510261 Cartridge kit, 16 bar, 4 l/min 1

E6 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510252 Cartridge kit, 16 bar, 7 l/min 1

F0 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510259 Cartridge kit, 16 bar, 11 l/min 1

F3 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510262 Cartridge kit, 16 bar, 16 l/min 1

G0 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510260 Cartridge kit, 16 bar, 22 l/min 1

G3 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510263 Cartridge kit, 16 bar, 27 l/min 1

H0 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510258 Cartridge kit, 16 bar, 35 l/min 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

57

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

QK10

*K51

(N4 & N6)

QL10

*K50

*K50

QK10

(NN)

(C6, D1, D2 & S1)

QL11

58

Q030

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Q030

with speed ring

E103 209E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Charge pressure relief

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

N4 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 8510255 Cartridge kit, 13 bar, 4 l/min 1

N6 K50 97-25 001149 (9004201-6200) O-ring 1
K51 97-25 085043 (9004201-3700) O-ring 1
QK10 97-25 11097072 Cartridge kit, 13 bar, 7 l/min 1

NA No parts

NN K50 97-25 001149 (9004201-6200) O-ring 1
QK10 97-25 11097045 Loop ushing defeated kit 1

Shaft, 60cc

C6 QL10 98-06 11100425 Shaft, 21 tooth spline without speed ring 1
QL11 98-06 11100426 Shaft, 21 tooth spline with speed ring 1
Q030 98-06 11100632 Piston ring kit 1

D1 QL10 98-06 11100443 Shaft, 14 t. spline without speed ring (SB-1999-059) 1
QL11 98-06 11100444 Shaft, 14 tooth spline with speed ring (SB-1999-059) 1
Q030 98-06 11100632 Piston ring kit 1

D2 QL10 98-06 11100447 Shaft, 16 t. spline without speed ring (SB-1999-059) 1
QL11 98-06 11100448 Shaft, 16 tooth spline with speed ring (SB-1999-059) 1
Q030 98-06 11100632 Piston ring kit 1

S1 QL10 98-06 11100478 Shaft, 14 t. spline without speed ring 1
QL11 98-06 11100479 Shaft, 14 tooth spline with speed ring 1
Q030 98-06 11100632 Piston ring kit 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

59

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

80cc

(C6, C7, D2, D3 & S1)

QL10

QL11

QL10

Q030

Q030

Q030

with speed ring

110cc

(C8, D3, D4 & F1)

QL11

Q030

60

with speed ring

E103 210E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Shaft, 80cc

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

C6 QL10 98-06 11110217 Shaft, 21 tooth spline without speed ring 1
QL11 98-06 11110218 Shaft, 21 tooth spline with speed ring 1
Q030 03-48 11100633 Piston ring kit (SB-2003-007) 1
Q030 98-06 03-47 11174675 Piston ring kit (SB-2017-030) 1

C7 QL10 98-06 11100427 Shaft, 23 tooth spline without speed ring 1
QL11 98-06 11100428 Shaft, 23 tooth spline with speed ring 1
Q030 03-48 11100633 Piston ring kit (SB-2003-007) 1
Q030 98-06 03-47 11174675 Piston ring kit (SB-2017-030) 1

D2 QL10 98-06 11100449 Shaft, 16 tooth spline without speed ring (SB-1999-059) 1
QL11 98-06 11100450 Shaft, 16 tooth spline with speed ring (SB-1999-059) 1
Q030 03-48 11100633 Piston ring kit (SB-2003-007) 1
Q030 98-06 03-47 11174675 Piston ring kit (SB-2017-030) 1

D3 QL10 98-06 11100451 Shaft, 18 t. spline without speed ring (SB-1999-059) 1
QL11 98-06 11100452 Shaft, 18 tooth spline with speed ring (SB-1999-059) 1
Q030 03-48 11100633 Piston ring kit (SB-2003-007) 1
Q030 98-06 03-47 11174675 Piston ring kit (SB-2017-030) 1

S1 QL10 98-06 11100481 Shaft, 14 tooth spline without speed ring 1
QL11 98-06 11100482 Shaft, 14 tooth spline with speed ring 1
Q030 03-48 11100633 Piston ring kit (SB-2003-007) 1
Q030 98-06 03-47 11174675 Piston ring kit (SB-2017-030) 1

Shaft, 110cc

C8 QL10 98-06 11100429 Shaft, 27 t. spline without speed ring (SB-1999-059) 1
QL11 98-06 11100430 Shaft, 27 tooth spline with speed ring (SB-1999-059) 1
Q030 98-06 11100634 Piston ring kit 1

D3 QL10 98-06 11100453 Shaft, 18 t. spline without speed ring (SB-1999-059) 1
QL11 98-06 11100454 Shaft, 18 tooth spline with speed ring (SB-1999-059) 1
Q030 98-06 11100634 Piston ring kit 1

D4 QL10 98-06 11100455 Shaft, 21 t. spline without speed ring (SB-1999-059) 1
QL11 98-06 11100456 Shaft, 21 tooth spline with speed ring (SB-1999-059) 1
Q030 98-06 11100634 Piston ring kit 1

F1 QL10 98-06 11100435 Shaft, 13 tooth spline without speed ring 1
QL11 98-06 11100436 Shaft, 13 tooth spline with speed ring 1
Q030 98-06 11100634 Piston ring kit 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

61

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(B1 & B2)

QM200

(B3 & B4)

QM200

QM100

(B7)

QM200

M1

M150

M1

QM100

M1

QM100

Used prior to 03-28

G42

G36

M18

M18

M16

M18

M18

M18

M10

M16

M18

*G420

62

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E100 286E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Electric-hyraulic 2-position control

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5
G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1

B1 M1 98-13 502404 Solenoid valve, 12 volt, DIN connector 1
M10 98-13 511347 Control housing 1
M16 98-13 140644 Plug assembly 2
M18 98-13 11040532 Plug assembly 6
M150 98-13 503499 Screw, M12 x 45 4
QM100 98-13 520337 Solenoid valve seal kit 1
QM200 98-13 11146863 Coil kit, 12 volt, DIN connector 1

B2 M1 98-30 504114 Solenoid valve, 24 volt, DIN connector 1
M10 98-30 511347 Control housing 1
M16 98-30 140644 Plug assembly 2
M18 98-30 11040532 Plug assembly 6
M150 98-30 503499 Screw, M12 x 45 4
QM100 98-30 520337 Solenoid valve seal kit 1
QM200 98-30 11146864 Coil kit, 24 volt, DIN connector 1

B3 M1 07-07 519465/P Solenoid valve, 12 volt, Deutsch connector 1
M10 07-07 511347 Control housing 1
M16 07-07 140644 Plug assembly 2
M18 07-07 11040532 Plug assembly 6
M150 07-07 503499 Screw, M12 x 45 4
QM100 07-07 520337 Solenoid valve seal kit 1
QM200 07-07 11013048 Coil kit, 12 volt, Deutsch connector 1

B4 M1 07-21 521226/P Solenoid valve, 24 volt, Deutsch connector 1
M10 07-21 511347 Control housing 1
M16 07-21 140644 Plug assembly 2
M18 07-21 11040532 Plug assembly 6
M150 07-21 503499 Screw, M12 x 45 4
QM100 07-21 520337 Solenoid valve seal kit 1
QM200 07-21 11013049 Coil kit, 24 volt, Deutsch connector 1

B7 M1 98-06 507952 Solenoid valve, 12 volt, Jet connector 1
M10 98-06 511347 Control housing 1
M16 98-06 140644 Plug assembly 2
M18 98-06 11040532 Plug assembly 6
M150 98-06 503499 Screw, M12 x 45 4
QM100 98-06 520337 Solenoid valve seal kit 1
QM200 98-06 11146866 Coil kit, 12 volt, Jet connector 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

63

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(C3, C6, & E0)

QM200

(E1 & E2)

QM200

M1

QM100

M1

Used prior to 03-28

G42

G36

QM100

M18

M18

M16

M18

M150

M18

M10

M16

*G420

64

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E100 287E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Electric-hyraulic 2-position control

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5
G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1

C3 M1 99-01 519465/P Solenoid valve, 12 volt, Deutsch connector 1
M10 99-01 506712 Control housing 1
M16 99-01 140644 Plug assembly 2
M18 99-01 11040532 Plug assembly 4
M150 99-01 503499 Screw, M12 x 45 4
QM100 99-01 520337 Solenoid valve seal kit 1
QM200 99-01 11013048 Coil kit, 12 volt, Deutsch connector 1

C6 M1 00-21 516538/P Solenoid valve, 24 volt, Metr-Pack connector 1
M10 00-21 506712 Control housing 1
M16 00-21 140644 Plug assembly 2
M18 00-21 11040532 Plug assembly 4
M150 00-21 503499 Screw, M12 x 45 4
QM100 00-21 520337 Solenoid valve seal kit 1
QM200 00-21 11146867 Coil kit, 24 volt, Metr-Pack connector 1

E0 M1 99-01 521045 Solenoid valve, 24 volt, Deutsch connector 1
M10 99-01 506712 Control housing 1
M16 99-01 140644 Plug assembly 2
M18 99-01 11040532 Plug assembly 4
M150 99-01 503499 Screw, M12 x 45 4
QM100 99-01 520337 Solenoid valve seal kit 1
QM200 99-01 11146869 Coil kit, 24 volt, Deutsch connector 1

E1 M1 98-30 502404 Solenoid valve, 12 volt, DIN connector 1
M10 98-30 506712 Control housing 1
M16 98-30 140644 Plug assembly 2
M18 98-30 11040532 Plug assembly 4
M150 98-30 503499 Screw, M12 x 45 4
QM100 98-30 520337 Solenoid valve seal kit 1
QM200 98-30 11146863 Coil kit, 12 volt, DIN connector 1

E2 M1 98-30 504114 Solenoid valve, 24 volt, DIN connector 1
M10 98-30 506712 Control housing 1
M16 98-30 140644 Plug assembly 2
M18 98-30 11040532 Plug assembly 4
M150 98-30 503499 Screw, M12 x 45 4
QM100 98-30 520337 Solenoid valve seal kit 1
QM200 98-30 11146864 Coil kit, 24 volt, DIN connector 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

65

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(E7)

QM200

(E3, F1 & F2)

QM200

M1

QM100

QM100

M1

Used prior to 03-28

G42

G36

(N1)

M18

M18

M150

M16

M18

M150

M18

M10

M16

*G420

66

Used prior to 03-28

G42

G36

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

M16

M18

M10

M16

*G420

* = included in base motor seal kit Q210

E103 211E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Electric-hyraulic 2-position control

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5
G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1

E3 M1 10-15 519465/P Solenoid valve, 12 volt, Deutsch connector 1
M10 10-15 506712 Control housing 1
M16 10-15 140644 Plug assembly 2
M18 10-15 11040532 Plug assembly 4
M150 10-15 503499 Screw, M12 x 45 4
QM100 10-15 520337 Solenoid valve seal kit 1
QM200 10-15 11013048 Coil kit, 12 volt, Deutsch connector 1

E7 M1 98-30 507952 Solenoid valve, 12 volt, Jet connector 1
M10 98-30 506712 Control housing 1
M16 98-30 140644 Plug assembly 2
M18 98-30 11040532 Plug assembly 4
M150 98-30 503499 Screw, M12 x 45 4
QM100 98-30 520337 Solenoid valve seal kit 1
QM200 98-30 11146866 Coil kit, 12 volt, Jet connector 1

F1 M1 98-30 502404 Solenoid valve, 12 volt, DIN connector 1
M10 98-30 506713 Control housing 1
M16 98-30 140644 Plug assembly 2
M18 98-30 11040532 Plug assembly 4
M150 98-30 503499 Screw, M12 x 45 4
QM100 98-30 520337 Solenoid valve seal kit 1
QM200 98-30 11146863 Coil kit, 12 volt, DIN connector 1

F2 M1 98-30 504114 Solenoid valve, 24 volt, DIN connector 1
M10 98-30 506713 Control housing 1
M16 98-30 140644 Plug assembly 2
M18 98-30 11040532 Plug assembly 4
M150 98-30 503499 Screw, M12 x 45 4
QM100 98-30 520337 Solenoid valve seal kit 1
QM200 98-30 11146864 Coil kit, 24 volt, DIN connector 1

Hydraulic 2-position

N1 M10 98-30 507696 Control housing 1
M16 98-30 140644 Plug assembly 2
M18 98-30 11040532 Plug assembly 1
M150 98-30 503499 Screw, M12 x 45 4

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

67

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(P7 & P8)

QM200

M18

M200

M1

M240

M26

*M224

M225

*M223

M1

M200

QM200

(T1 & T2)

M18

M240

M26

M225

*M224

*M223

68

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E100 288E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Electric 2-position

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

P7 M1 01-01 11026438 Solenoid valve, 12 volt, Jet connector 1
M18 01-01 11040532 Plug assembly 1
M26 01-01 518382 Spring 1
M200 01-01 11026450 Coil kit, 12 volt, Jet connector 1
M223 01-01 085043 (9004201-3700) O-ring 1
M224 01-01 732479 (9004105-0100) O-ring 1
M225 01-01 509360 Pressure compensator adjuster 1
M240 01-01 11138479 Piston 1
QM200 01-01 11121251 Coil nut kit 1

P8 M1 01-01 11026440 Solenoid valve, 24 volt, Jet connector 1
M18 01-01 11040532 Plug assembly 1
M26 01-01 518382 Spring 1
M200 01-01 11026451 Coil kit, 24 volt, Jet connector 1
M223 01-01 085043 (9004201-3700) O-ring 1
M224 01-01 732479 (9004105-0100) O-ring 1
M225 01-01 509360 Pressure compensator adjuster 1
M240 01-01 11138479 Piston 1
QM200 01-01 11121251 Coil nut kit 1

T1 M1 98-30 11026435 Solenoid valve, 12 volt, DIN connector 1
M18 98-30 11040532 Plug assembly 1
M26 98-30 518382 Spring 1
M200 98-30 11026448 Coil kit, 12 volt, DIN connector 1
M223 98-30 085043 (9004201-3700) O-ring 1
M224 98-30 732479 (9004105-0100) O-ring 1
M225 98-30 509360 Pressure compensator adjuster 1
M240 98-30 11138479 Piston 1
QM200 98-30 11121273 Coil nut kit 1

T2 M1 98-30 11026436 Solenoid valve, 24 volt, DIN connector 1
M18 98-30 11040532 Plug assembly 1
M26 98-30 518382 Spring 1
M200 98-30 11026449 Coil kit, 24 volt, DIN connector 1
M223 98-30 085043 (9004201-3700) O-ring 1
M224 98-30 732479 (9004105-0100) O-ring 1
M225 98-30 509360 Pressure compensator adjuster 1
M240 98-30 11138479 Piston 1
QM200 98-30 11121273 Coil nut kit 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

69

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

M1

M200

M200

QM200

QM200

(T5)

(T7)

M18

M18

M240

M26

M225

*M224

*M223

M1TA

M18

M1

M240

M26

*M224

M18

*QM180

(TA) (TH)

M250

M240

M26

*M224

M225

*M223

M240

M225

*M223

M26

M225

*M224

*M223

E100 289E

* = included in base motor seal kit Q210

70

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Electric-2-position

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

T5 M1 01-01 11047613 Solenoid valve, 12 volt 1
M18 01-01 11040532 Plug assembly 1
M26 01-01 518382 Spring 1
M200 01-01 11047612 Coil kit, 12 volt 1
M223 01-01 085043 (9004201-3700) O-ring 1
M224 01-01 732479 (9004105-0100) O-ring 1
M225 01-01 509360 Pressure compensator adjuster 1
M240 01-01 11138479 Piston 1
QM200 01-01 11121272 Coil nut kit 1

T7 M1 98-30 519468 Solenoid valve, 12 volt, Jet connector 1
M18 01-01 11040532 Plug assembly 1
M26 01-01 518382 Spring 1
M200 01-01 519467 Coil kit, 12 volt, Jet connector 1
M223 01-01 085043 (9004201-3700) O-ring 1
M224 01-01 732479 (9004105-0100) O-ring 1
M225 01-01 509360 Pressure compensator adjuster 1
M240 01-01 11138479 Piston 1
QM200 01-01 11121272 Coil nut kit 1

Pressure compensator

TA M1TA 98-30 140644 Plug assembly 1
M18 98-30 11040532 Plug assembly 1
M26 98-30 518382 Spring 1
M223 98-30 085043 (9004201-3700) O-ring 1
M224 98-30 732479 (9004105-0100) O-ring 1
M225 98-30 509360 Pressure compensator adjuster 1
M240 98-30 11140483 Piston 1

Hydraulic-2-position

TH M18 98-30 511244 Spool locator plug assembly 1
M26 98-30 518382 Spring 1
M223 98-30 085043 (9004201-3700) O-ring 1
M224 98-30 732479 (9004105-0100) O-ring 1
M225 98-30 509360 Pressure compensator adjuster 1
M240 98-30 11140483 Piston 1
M250 98-30 11140491 Spool 1
QM180 98-30 039297 O-ring 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

71

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

M31

M306

(V0 & V9)

QM200

M31

M31

M31

M31

M31

M306

M1

QM200

QM100

(V2)

M18

M18

M150

M16

M18

M18

M18

M16

M18

*G420

M150

72

QM100

M1

M18

M18

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

M16

M18

M18

M18

M16

M18

*G420

E103 212E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Electric-Hydraulic 2-position

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

V0 G420 04-25 512411 Gasket/O-ring seal 1
M1 04-25 521226/P Solenoid valve, 24 volt, Deutsch connector 1
M10 04-25 11034149 Control housing 1
M16 04-25 140644 Plug assembly 2
M18 04-25 11040532 Plug assembly 6
M31 04-25 395822 Screw, M6 x 12 3
M150 04-25 503499 Screw, M12 x 45 4
M306 04-25 11034150 Guard 1
QM100 04-25 520337 Solenoid valve seal kit 1
QM200 04-25 11013049 Coil kit, 24 volt, Deutsch connector 1

V2 G420 10-45 512411 Gasket/O-ring seal 1
M1 10-45 11087515 Solenoid valve, 24 volt 1
M10 10-45 11034149 Control housing 1
M16 10-45 140644 Plug assembly 2
M18 10-45 11040532 Plug assembly 6
M31 10-45 395822 Screw, M6 x 12 3
M150 10-45 503499 Screw, M12 x 45 4
M306 10-45 11034150 Guard 1
QM100 10-45 520337 Solenoid valve seal kit 1
QM200 10-45 11146868 Coil kit, 24 volt 1

V9 G420 04-25 512411 Gasket/O-ring seal 1
M1 04-25 519465/P Solenoid valve, 12 volt, Deutsch connector 1
M10 04-25 11034149 Control housing 1
M16 04-25 140644 Plug assembly 2
M18 04-25 11040532 Plug assembly 6
M31 04-25 395822 Screw, M6 x 12 3
M150 04-25 503499 Screw, M12 x 45 4
M306 04-25 11034150 Guard 1
QM100 04-25 520337 Solenoid valve seal kit 1
QM200 04-25 11013048 Coil kit, 12 volt, Deutsch connector 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

73

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

N180

N160

NT43

NT40

N12

G42

G36

Used prior to 03-28

N12

(C2)

NT43

N12

N12

*G420

N12

N10

N12

N26

N12

NT42

N12

N160

N12

NT40

G42

G36

Used prior to 03-28

NT430

*QNT43

N180

N12

(CA)

N12

*QNT43

N12

*G420

N12

NT430

N12

N12

N12

N10

N26

NT42

NT

QM200

M200

Used prior to 03-28

G42

G36

N12

NT43

N180

N160

N12

(D1)

NT43

N12

N12

*G420

N12

N12

N12

N12

N10

N26

NT42

NT41

NT40

E100 290E

* = included in base motor seal kit Q210

74

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Servo pressure supply

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

B1 & B3 No parts

C2 G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5
G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1
N10 98-30 510547 Control housing 1
N12 98-30 11040532 Plug assembly 8
N26 98-30 140644 Plug assembly 1
NT40 98-30 140644 Plug assembly 2
NT42 98-30 11140484 Piston 1
NT43 98-30 11040532 Plug assembly 2
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2

CA G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5
G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1
N10 98-30 510547 Control housing 1
N12 98-30 11040532 Plug assembly 8
N26 98-30 140644 Plug assembly 1
NT42 98-30 11140485 Piston 1
NT430 98-30 511244 Spool locator plug assembly 2
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2
QNT43 98-30 039297 (9004201-1200) O-ring 2

D1 G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5
G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1
M200 98-30 11026448 Coil kit, 12 volt, DIN connector 1
N10 98-30 510547 Control housing 1
N12 98-30 11040532 Plug assembly 8
N26 98-30 140644 Plug assembly 1
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2
NT 98-30 11026435 Solenoid valve, 12 volt, DIN connector 1
NT40 98-30 140644 Plug assembly 1
NT41 98-30 518382 Spring 1
NT42 98-30 11049310 Piston 1
NT43 98-30 11040532 Plug assembly 2
QM200 98-30 11121273 Solenoid valve seal kit 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

75

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(D2)

QM200

(D3)

QM200

M200

NT

(D7)

NT

M200

QM200

NT

Used prior to 03-28

G42

G36

M200

N12

NT43

N160

N12

N180

NT43

N12

N12

*G420

N12

N12

N12

N12

N10

N26

NT42

NT41

NT40

E103 213E

Enlarged bold type item

* = included in base motor seal kit Q210

76

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Servo pressure supply

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

D2 G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5
G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1
M200 98-30 11026449 Coil kit, 24 volt, DIN connector 1
N10 98-30 510547 Control housing 1
N12 98-30 11040532 Plug assembly 8
N26 98-30 140644 Plug assembly 1
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2
NT 98-30 11026436 Solenoid valve, 24 volt, DIN connector 1
NT40 98-30 140644 Plug assembly 1
NT41 98-30 518382 Spring 1
NT42 98-30 11141888 Piston 1
NT43 98-30 11040532 Plug assembly 2
QM200 98-30 11121273 Solenoid valve seal kit 1

D3 G420 08-22 512411 Gasket/O-ring seal 1
M200 08-22 11047612 Coil kit, 12 volt 1
N10 08-22 510547 Control housing 1
N12 08-22 11040532 Plug assembly 8
N26 08-22 140644 Plug assembly 1
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2
NT 08-22 11047613 Solenoid valve, 12 volt 1
NT40 08-22 140644 Plug assembly 1
NT41 08-22 518382 Spring 1
NT42 08-22 11141888 Piston 1
NT43 08-22 11040532 Plug assembly 2
QM200 08-22 11121272 Solenoid valve seal kit 1

D7 G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5
G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1
M200 98-30 519467 Coil kit, 12 volt, Jet connector 1
N10 98-30 510547 Control housing 1
N12 98-30 11040532 Plug assembly 8
N26 98-30 140644 Plug assembly 1
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2
NT 98-30 519468 Solenoid valve, 12 volt, Jet connector 1
NT40 98-30 140644 Plug assembly 1
NT41 98-30 518382 Spring 1
NT42 98-30 11141888 Piston 1
NT43 98-30 11040532 Plug assembly 2
QM200 98-30 11121272 Solenoid valve seal kit 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

77

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

N26

Used prior to 03-28

G42

G36

NTL5

N160

(L5)

N180

N12

N12

*G420

N12

N12

N12

N10

N26

Used prior to 03-28

G42

G36

N26

NTN5

N160

(N5)

N180

NTN5

N12

N12

*G420

N12

N12

N12

N10

N26

NT

QM200

M200

Used prior to 03-28

G42

G36

N12

(P7 & P8)

N160

NT43

N12

N180

NT43

N12

N12

*G420

N12

N12

N12

N12

N10

N26

NT42

NT41

NT40

E100 292E

78

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Servo pressure supply

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5

L5 G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1
N10 98-30 511208 Control housing 1
N12 98-30 11040532 Plug assembly 5
N26 98-30 140644 Plug assembly 2
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2
NTL5 98-30 913897 Set screw 1

N5 G420 09-02 512411 Gasket/O-ring seal 1
N10 09-02 511208 Control housing 1
N12 09-02 11040532 Plug assembly 5
N26 09-02 140644 Plug assembly 2
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2
NTN5 09-02 913897 Set screw 2

NN No parts

P7 G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1
M200 01-01 519467 Coil kit, 12 volt, Jet connector 1
N10 01-01 510547 Control housing 1
N12 01-01 11040532 Plug assembly 8
N26 01-01 140644 Plug assembly 1
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2
NT 01-01 519468 Solenoid valve, 12 volt, Jet connector 1
NT40 01-01 140644 Plug assembly 1
NT41 01-01 518382 Spring 1
NT42 01-01 11141888 Piston 1
NT43 01-01 11040532 Plug assembly 2
QM200 01-01 11121272 Solenoid valve seal kit 1

P8 G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1
M200 01-01 11003626 Coil kit, 24 volt, Jet connector 1
N10 01-01 510547 Control housing 1
N12 01-01 11040532 Plug assembly 8
N26 01-01 140644 Plug assembly 1
N160 98-30 085183 Screw, M12 x 35 2
N180 98-30 914127 (9007314-1213) Screw, M12 x 60 2
NT 01-01 11003624 Solenoid valve, 24 volt, Jet connector 1
NT40 01-01 140644 Plug assembly 1
NT41 01-01 518382 Spring 1
NT42 01-01 11141888 Piston 1
NT43 01-01 11040532 Plug assembly 2
QM200 01-01 11121272 Solenoid valve seal kit 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

79

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(R5)

N180

N160

(AA & DB)

*QG20

Used prior to 03-28

G42

G20

K14

G36

N26

NTR5

N12

N12

*G420

N12

N12

N12

N10

N26

80

K18

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

(AA)

K14

K18

*QG20

(DB)

K19

*QG20

G20

E103 214E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

G20

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Servo pressure supply

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

R5 G36 98-30 03-27 364976 O-ring, 60cc (SB-2002-001) 1
G36 98-30 03-27 507998 O-ring, 80cc (SB-2002-001) 1
G36 98-30 03-27 506754 O-ring, 110cc (SB-2002-001) 1
G42 98-30 03-27 754580 O-ring (SB-2002-001) 5
G420 03-28 512411 Gasket/O-ring seal (SB-2002-001) 1
N10 09-02 511208 Control housing 1
N12 98-30 11040532 Plug assembly 5
N26 98-30 140644 Plug assembly 2
N160 98-30 085183 Screw 2
N180 98-30 914127 (9007314-1213) Screw 2
NTR5 98-30 913897 Set screw 1

Loop ushing

AA G20 98-30 518016 Plug assembly 2
K14 98-30 513596 Spring seat assembly 2
K18 98-30 365544 Shuttle spool 1
QG20 98-30 085043 (9004201-3700) O-ring 2

DB G20 98-30 518016 Plug assembly 2
K14 98-30 513596 Spring seat assembly 1
K18 98-30 365544 Shuttle spool 1
K19 98-30 11020889 Spacer 1
QG20 98-30 085043 (9004201-3700) O-ring 2

Control ramp

N No parts

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

81

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(U1, U2 & U4)

T3

(U5)

T2

U5

(U3)

T3

U5

(X1)

T3

U5

U5

E100 293E

82

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Orice

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

U0 No parts

U1 T2 98-30 578542 Orice plug, 0.8, M6 x 8 1
T3 98-30 578542 Orice plug, 0.8, M6 x 8 1

U2 T2 98-30 507042 Orice plug, 1.5, M6 x 8 1
T3 98-30 507042 Orice plug, 1.5, M6 x 8 1

U3 T3 98-30 508014 Orice plug, 1.0, M6 x 8 1
T5 98-30 511825 Orice plug, 0.6, M6 x 8 2

U4 T2 98-30 679316 Orice plug, 0.5, M6 x 8 1
T3 98-30 679316 Orice plug, 0.5, M6 x 8 1

U5 U5 98-30 511825 Orice plug, 0.6, M6 x 8 2

X1 T3 98-30 679316 Orice plug, 0.5, M6 x 8 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

83

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(012-036)

Y10

*Y20

Q120

(038-M36)

Y40

Y10

*Y20

Y40

(N14-N38)

Q120

E100 294E

84

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

51*060-1 minimum displacement

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

012-029 Q120 98-06 770834 Safety cap, green 1
Y10 98-06 750638 Set screw, M10 x 65 1
Y20 98-06 042432 Seal nut, M10 1

030-036 Q120 98-06 770834 Safety cap, green 1
Y10 98-06 749556 Set screw, M10 x 80 1
Y20 98-06 042432 Seal nut, M10 1

038 Q120 98-06 770834 Safety cap, green 1
Y10 98-06 041103 Set screw, M10 x 40 1
Y20 98-06 042432 Seal nut, M10 1
Y40 98-06 521646 Spacer, 26.5 mm 1

040 Q120 98-06 770834 Safety cap, green 1
Y10 98-06 041103 Set screw, M10 x 40 1
Y20 98-06 042432 Seal nut, M10 1
Y40 98-06 521613 Spacer, 28.5 mm 1

043 Q120 98-06 770834 Safety cap, green 1
Y10 98-06 041103 Set screw, M10 x 40 1
Y20 98-06 042432 Seal nut, M10 1
Y40 98-06 11048012 Spacer, 31.6 mm 1

044 Q120 98-06 770834 Safety cap, green 1
Y10 98-06 041103 Set screw, M10 x 40 1
Y20 98-06 042432 Seal nut, M10 1
Y40 98-06 11047320 Spacer, 32.6 mm 1

M36 Q120 98-06 770834 Safety cap, green 1
Y10 98-06 041103 Set screw, M10 x 40 1
Y20 98-06 042432 Seal nut, M10 1
Y40 98-06 11028509 Spacer, 24.4 mm 1

N14 Y40 98-06 11037656 Spacer, 3.0 mm 1

N16 Y40 98-06 11000384 Spacer, 5.0 mm 1

N20 Y40 98-06 515909 Spacer, 9 mm 1

N25 Y40 98-06 11000385 Spacer, 13.5 mm 1

N38 Y40 98-06 521646 Spacer, 26.5 mm 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

85

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

(016-074) (080)

Y40

Y10

*Y20

Q120

Y10

*Y20

Q120

86

* = included in base motor seal kit Q210

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

E100 215E

Enlarged bold type item

numbers are recommended

part to stock for servicing.

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

51*080-1 minimum displacement

Order Date Date Qty. per
code Item begin end Part number Part name model/kit

016-035 Q120 98-06 770834 Safety cap 1
Y10 98-06 750638 Set screw, M10 x 65 1
Y20 98-06 042432 Seal nut, M10 1

036-054 Q120 98-06 770834 Safety cap 1
Y10 98-06 749556 Set screw, M10 x 80 1
Y20 98-06 042432 Seal nut, M10 1

51*110-1 minimum displacement

022-046 Q120 98-06 770842 Safety cap 1
Y10 98-06 350090 Set screw, M12 x 70 1
Y20 98-06 076042 Seal nut, M12 1

047-074 Q120 98-06 770842 Safety cap 1
Y10 98-06 076109 Set screw, M12 x 80 1
Y20 98-06 076042 Seal nut, M12 1

080 Q120 98-06 770842 Safety cap 1
Y10 98-06 11106517 Set screw, M12 x 50 1
Y20 98-06 076042 Seal nut, M12 1
Y40 98-06 517630 Spacer, 38.2 mm 1

PCOR adjuster

00-AA No parts

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

87

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Variable Displacement Motor

Overhaul seal kit, S51-1 60 cc

Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
Q210 98-06 11122326 Overhaul seal kit, S51-1 60cc 1
B80C 98-06 726927 O-ring 1
B80V 98-06 930511 O-ring 1
F10 98-06 508134 Seal ring 1
F11 98-06 504207 O-ring 1
G420 03-08 512411 Gasket/O-ring seal (SB-2002-001) 1
G60 98-06 515733 End cap gasket 1
K50 98-06 001149 (9004201-6200) O-ring 1
K51 98-06 085043 (9004201-3700) O-ring 1
L40 09-46 519021 Lip seal (SB-2009-006) 1
L40 98-06 09-45 9008000-0114 Lip seal 1
L50C 98-06 501879 O-ring 1
L50D 98-06 767962 O-ring 1
L50V 98-06 917088 O-ring 1
L82 98-06 501019 Gasket 1
M223 98-06 085043 (9004201-3700) O-ring 1
M224 98-06 732479 (9004105-0100) O-ring 1
QG20 98-06 085043 (9004201-3700) O-ring 2
QL81 98-06 039297 (9004201-1200) O-ring 2
QM180 98-06 039297 (9004201-1200) O-ring 1
QNT43 98-06 039297 (9004201-1200) O-ring 2
QW30 98-06 085043 (9004201-3700) O-ring 1
Y20 98-06 042432 Seal nut, M10 1

Overhaul seal kit, S51-1 80 cc

Q210 98-06 11122327 Overhaul seal kit, S51-1 80cc 1
B80C 98-06 502205 O-ring 1
B80V 98-06 930511 O-ring 1
F10 98-06 508136 Seal ring 1
F11 98-06 504208 O-ring 1
G420 03-08 512411 Gasket/O-ring seal (SB-2002-001) 1
G60 98-06 517237 End cap gasket 1
K50 98-06 001149 (9004201-6200) O-ring 1
K51 98-06 085043 (9004201-3700) O-ring 1
L40 06-23 519021 Lip seal (SB-2009-005) 1
L40 98-06 06-22 9008000-0114 Lip seal 1
L50C 98-06 501879 O-ring 1
L50D 98-06 767962 O-ring 1
L50V 98-06 767962 O-ring 1
L85 98-06 11121325 O-ring 1
L90 98-06 512678 O-ring 1
M223 98-06 085043 (9004201-3700) O-ring 1
M224 98-06 732479 (9004105-0100) O-ring 1
QG20 98-06 085043 (9004201-3700) O-ring 2
QL81 98-06 039297 (9004201-1200) O-ring 2
QM180 98-06 039297 (9004201-1200) O-ring 1
QNT43 98-06 039297 (9004201-1200) O-ring 2
QW30 98-06 085043 (9004201-3700) O-ring 1
Y20 98-06 042432 Seal nut, M10 1

88

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Overhaul seal kit, S51-1 110 cc

Order Date Date Qty. per
Code Item Begin End Part Number Part Name Model/Kit
Q210 98-06 11122328 Overhaul seal kit, S51-1 110cc 1
B80C 98-06 502206 O-ring 1
B80V 98-06 729285 O-ring 1
F10 98-06 648345 Seal ring 1
F11 98-06 315242 O-ring 1
G420 03-08 512411 Gasket/O-ring seal (SB-2002-001) 1
G60 98-06 516124 End cap gasket 1
K50 98-06 001149 (9004201-6200) O-ring 1
K51 98-06 085043 (9004201-3700) O-ring 1
L40 05-41 519022 Lip seal (SB-2004-013) 1
L40 98-06 05-40 341735 Lip seal 1
L50C 98-06 10-19 507116 (9004104-1580) O-ring (SB-2009-019) 1
L50D 98-06 729285 O-ring 1
L50V 98-06 717462 O-ring 1
L82 98-06 501113 Gasket 1
M223 98-06 085043 (9004201-3700) Gasket 1
M224 98-06 732479 (9004105-0100) O-ring 1
QG20 98-06 085043 (9004201-3700) O-ring 2
QL81 98-06 039297 (9004201-1200) O-ring 2
QM180 98-06 039297 (9004201-1200) O-ring 1
QNT43 98-06 039297 (9004201-1200) O-ring 2
QW30 98-06 085043 (9004201-3700) O-ring 1
Y20 98-06 076042 Seal nut, M12 1

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

89

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

O-

o

N94-42

N98-33

Service Bulletin: SB-1998-086

Products aected

Subject

Description As a joint sealing improvement, Sauer-Danfoss is changing the type of seal between the housings on

Series 51 & 51-1: 80cc cartridge motors

Change from gasket to O-ring sealing at interface between housings.

Series 51 cartridge type motors in the 80cc frame size. With this change, two O-rings are incorporated
into the design replacing the gasket. This design is similar, but with dierent size O-rings to the two
O-ring design originally used on the 80cc cartridge motor, prior to the incorporation of the speed
sensor option (see SB-1998-035). Both housings have been changed so they are not individually
interchangeable with the “gasket” design housings. The “gasket” design housings and gasket part
numbers will remain available as service parts.

and beyond

Bearing Housing

Distance ring

Retaining ring

rings

N94-42

thru

N98-32

Prior t

To

To

Gasket

Models aected

Serial numbers

Part numbers aected

Parts disposition Non-interchangeable (as individual parts)

All 80cc Series 51 & 51-1 cartridge motors

Change became eective at serial number N-98-33-xxxxx

Description Before N-94-42 N-94-42 thru N-98-32 N-98-33 & beyond
Main housing 734855 505527 w/o PPU 512676 w/o PPU
Main housing 501104 w/PPU 512677 w/PPU
Bearing housing 734632 501109 512679
Retaining ring N/A 371625 371625
Gasket N/A 507259 N/A
O-ring 916759 N/A 502205
O-ring 279570 N/A 512678
Distance ring 734913 501117 501117

Main Housing

90

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

T

Service Bulletin: SB-1999-059

Products aected

Subject

Description

Series 51: 60cc, 80cc, 110cc, and 160cc motors

Thread change at customer end of DIN shaft assemblies.

As a product improvement, Sauer-Danfoss has changed the threaded hole at the customer end of DIN
shaft assemblies to metric threads. Metric shaft assemblies will now have a metric threaded hole. To
aid in identifying this change, new shaft assembly part numbers have been released. The new shaft
assemblies are interchangeable with the previous shaft assemblies. The previous shaft assembly part
numbers will become obsolete.

DIN configuration

hreaded hole

Cartridge configuration

Models aected

Serial numbers

Part numbers aected

Parts disposition

All 60, 80, 110, and 160cc motors (Series 51 and 51-1) with DIN shaft assemblies

See table below

Frame Shaft Previous New Bolt size Bolt size Eective after
size code p/n p/n FROM TO serial number

60cc D1 747931 513034 7/16 - 14 M10 x 1.5 N-99-17-xxxxx
60cc D2 787622 513033 7/16 - 14 M10 x 1.5 N-99-52-xxxxx
80cc D2 742213 513037 7/16 - 14 M10 x 1.5 N-99-13-xxxxx
80cc D3 783399 513035 7/16 - 14 M10 x 1.5 N-99-12-xxxxx
110cc D3 787663 513039 5/8 - 11 M12 x 1.75 N-99-16-xxxxx
110cc D4 749192 513038 5/8 - 11 M12 x 1.75 N-99-17-xxxxx
160cc D4 787689 513041 5/8 - 11 M12 x 1.75 N-99-16-xxxxx
160cc D5 749226 513040 5/8 - 11 M12 x 1.75 N-99-39-xxxxx

Interchangeable

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

91

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

From:

T

Service Bulletin: SB-2000-044

Products aected

Subject

Description

All Series 51 & 51-1 motors

Change to spring and spring seat at ends of loop ushing shuttle spool.

As a product improvement, and to ease assembly, the spring and spring seat at the ends of the loop
ushing shuttle spool have been changed. The new spring and spring seat clip together. The old
spring and spring seat are interchangeable with the new spring and spring seat as an assembly only.

The old spring seat will become obsolete and no longer available as a service part. The old spring will
remain available as a service part.

o:

Models aected

Serial numbers

Part numbers aected

Parts disposition

92

All Series 51 and 51-1 variable motors

This change became eective at serial number N-00-50-xxxxx

From: Spring part number 4350286 and spring seat part number 4800353

To: Spring seat assembly part number 513596

Interchangeable - as an assembly only

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Service Bulletin: SB-2001-015

Products aected

Subject

Description

All Series 51 & 51-1 motors

Incorporation of symmetrical rollers on the synchronizing shaft

As a product improvement and to improve ease of assembly, Sauer-Danfoss has changed the design
of the rollers used on the synchronizing shaft in Series 51 and 51-1 motors. The new rollers are
symmetrical, in that they can be assembled either direction on the synchronizing shaft. The old rollers
were asymmetrical and had to be assembled only one way. The synchronizing shaft has also been
changed to accept the symmetrical rollers. The legs for the rollers are now longer in length.

A service kit is available to replace the old design synchronizing shaft and rollers, which are obsolete
and no longer available as service parts. The pins at each end of the synchronizing shaft are still the
same parts.

Old Style New Style

Models aected

Serial numbers

Part numbers aected

Parts disposition

All Series 51 and 51-1 motors

Eective after N-01-39-xxxxx

Frame size Old kit part number New kit part number

60cc 771675 517308
80cc 771121 517309
110cc 773267 516485
160cc 776823 517310
250cc 776831 517311

Interchangeable; as an assembly only
Use parts in stock

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

93

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

O-ring spotface

506754 for 110-1

Service Bulletin: SB-2002-001

Products aected

Subject

Description

All Series 51 & 51-1 motors

Sealing change to end cap/control interface

The sealing is improved between the end cap and controls or multi-function blocks on all Series 51
and 51-1 motors. This change replaces individual O-rings with a gasket that incorporates imbedded
rubber seal rings.. The O-ring spot faces are removed from the end cap mounting face. There is no
change to controls’ and multi-function blocks’ sealing surface.

New end cap part numbers allow better control of this change. Old end cap part numbers are
obsolete. You cannot use the new gasket with old end caps and you cannot use the O-rings with new
end caps. Control and multi-function block kit now include the O-rings and the new gasket.

Old style

(with O-ring spotface)

(without O-ring spotface)

New style

Mounting

surface

O-rings

(3) 754580

O-rings

634968 for 60, 80, and 110

364976 for 160

707737 for 250
364976 for 60-1
507998 for 80-1

O-rings

(3) 79273

Mounting

surface

Gasket

94

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Service Bulletin: SB-2002-001

Models aected

Serial numbers

Part numbers aected

All Series 51 and 51-1 motors

See table below

End cap Frame Old part New part Manufacture Gasket
code size number number date code part number

R and T 60 504226 516057 N-03-14-xxxxx 511810
A 60 504228 515695 N-03-12-xxxxx 511810
R 60-1 506563 516902 N-03-39-xxxxx 512411
A 60-1 506564 516905 N-03-28-xxxxx 512411
H 60-1 510643 516920 N-03-28-xxxxx 512411
R and T 80 504230 515056 N-03-14-xxxxx 511810
A 80 504232 515696 N-03-27-xxxxx 511810
R 80-1 507976 516903 N-03-39-xxxxx 512411
A 80-1 507977 516907 N-03-39-xxxxx 512411
H 80-1 507978 516921 N-03-39-xxxxx 512411
R and T 110 504235 516058 N-03-14-xxxxx 511810
A 110 504237 513592 N-03-01-xxxxx 511810
R 110-1 506601 516904 N-03-39-xxxxx 512411
A 110-1 506602 515697 N-03-39-xxxxx 512411
H 110-1 510634 516923 N-03-39-xxxxx 512411
R 160 504239 516059 N-03-07-xxxxx 511851
A 160 504242 513543 N-03-01-xxxxx 511851
R 250 504244 516060 N-03-07-xxxxx 511851
A 250 504246 513544 N-03-08-xxxxx 511851

Parts disposition

Non-interchangeable;
Order replacement parts

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

95

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Piston ring kit

Previous design

New design

Service Bulletin: SB-2003-007

Products aected

Subject

Description

Series 51 and 51-1: 80cc, motors

Piston ring

The piston ring design has changed in all Series 51 - 80 cc motor shaft assemblies. There are now three
thin rings in the piston ring groove. The piston ring groove has also changed to accommodate the new
rings. The piston ring groove is now slightly narrower and deeper. The old rings will not t into the new
pistons and the new rings will not t into the old pistons. The old piston ring kits will remain available
for service parts.

Piston ring kit

Models aected

Serial numbers

Part numbers aected

Parts disposition Non-interchangeable;

96

All Series 51 and 51-1, 80 cc motors

This change became eective with serial number N-03-47-xxxxx

New piston ring kit p/n 516275
Old piston ring kit p/n 771162
The shaft assembly part numbers remain the same.

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Old gasket New gasket

Service Bulletin: SB-2004-004

Products aected

Subject

Description

All Series 51 and 51-1 motors

End cap change

Sauer-Danfoss has made a quality improvement change to the gasket sealing the end cap and
housing joint. The gasket changed from paper to a rubber coated metal gasket with a raised bead
to aid sealing properties. The new gasket is interchangeable with the old gasket. The old gasket will
become obsolete and no longer available for service.

Models aected

Serial numbers

Part numbers aected

Parts disposition

Series 51 and 51-1 motors, all sizes (60, 80, 110, 160, and 250 cc)

This change became eective at series numbers: N-05-48-xxxxx = 60 cc
N-04-19-xxxxx = 80 cc
N-05-48-xxxxx = 110 cc
N-04-21-xxxxx = 160 cc
N-04-36-xxxxx = 250 cc

Frame size Old part number New part number

60 cc 501198 515733

80 cc 501199 517237

110 cc 501200 516124

160 cc 501201 519806

250 cc 501202 515735

Interchangeable;
Revise exiting part orders

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

97

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

SAE

Service Bulletin: SB-2004-013

Products aected

Subject

Description

Series 51; 110, 160 & 250 cc motors and 51-1; 110 cc motors

New shaft lip seal

As a product improvement, Sauer-Danfoss is changing the shaft lip seal in the series 51; 110, 160, &
250 cc motors and in the series 51-1; 110 cc motors. The new seal requires a change to the mounting
ange seal bore in SAE & DIN ange options, and the seal carrier used in cartridge motors. The seal
carrier assembly part number does not change and is interchangeable with previously built cartridge
motors.

The old mounting ange and seal carrier will become obsolete and no longer available. The old lip seal
will remain available for service.

Mounting flange

Lip seal

Lip seal

Seal carrier
assembly

DIN

Bearing housing

Mounting flange

Models aected

Serial numbers

Part numbers aected

Parts disposition

Cartridge

Lip seal

All series 51 -110, 160, and 250 cc motors and 51-1 -110 cc motors.

This change became eective at serial number: N-05-45-xxxxx

Frame size Old ange New ange Old seal New seal

51D110 (DIN) 774737 520316 341735 519022

51V110 (SAE) 366534 520319 341735 519022

51D160 (DIN) 510543 520317 341735 519022

51D160 (SAE) 356261 519417 341735 519022

51V250 (SAE) 511051 519418 341735 519022

Non-interchangeable
Use parts in stock
Order replacement parts
Revise existing part orders

98

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

Lip seal

Mounting flange

Service Bulletin: SB-2005-012

Products aected

Subject

Description

Series 51 & 51-1 60 and 80cc motors (SAE & DIN ange only)

Shaft seal change

Sauer-Danfoss is continuing to globalize its entire product line. The change to a new shaft seal in the
series 51 and 51-1; 60 and 80 cc motors with SAE or DIN mounting ange is part of this eort. The new
seal is not interchangeable with the old seal. The new seal has a smaller diameter ( 60 mm instead of

63.5 mm). The mounting ange has also changed to accept the new seal. The old anges will become
obsolete and no longer available for service. The old seal will remain available for service.

Models aected

Serial numbers

Part numbers aected

Parts disposition

All series 51 and 51-1; 60 and 80 cc motors with SAE or DIN mounting ange

This change became eective at serial number N-06-13-xxxxx.

Old part number New part number Description

673525 / 9008000-0114 519021 Seal

763540 520318 Flange, 60cc, SAE

754895 / 521619 519195 Flange, 80cc, SAE

764076 / 521618 11000888 Flange, 80cc, SAE

775973 520314 Flange, 60cc, DIN

776039 520315 Flange, 80cc, DIN

Non-interchangeable;
Order replacement parts

AX00000081en-US | 520L0770 • Rev 0302 • April 2016

99

Parts Manual Series 51-1: 60cc, 80cc and 110cc Variable Displacement Motor

t retainer plug

Seal retaining ring

Old design New design

Service Bulletin: SB-2009-005

Products aected

Subject

Description

Series 51 & 51-1 80 cc cartridge motors

Redesign of bearing housing

In an eort to communize the assembly of bent axis motors, the cartridge bearing housing for the
series 51 and 51-1 motors has been changed. The new design uses two special plugs to retain the
shaft assembly in the housing rather than a spacer ring and retaining ring. The shaft seal hardware
has also changed. The new seal design has the lip seal pressed directly into the housing and held in
place with a single retaining ring. The old seal design had an O-ring on a seal carrier assembly with
two retaining rings holding the seal carrier in place. The lip seal does not change. The new housing
will have improved clearances for use in dierent planetary gearboxes. The old and new housings are
not interchangeable. The old housing, spacer ring, spacer retaining ring, seal carrier assembly and
retaining rings that held the seal carrier in place will remain available for service..

Lip seal

Seal carrier O-ring

Seal retaining ring

Seal carrier assembly

Seal retaining ring

Lip seal

Shaft retainer plug

Bearing housing

Models aected

Serial numbers

Part numbers aected

Parts disposition

Spacer ring

Spacer retaining ring

All series 51 and 51-1 80cc Cartridge motors.

This change became eective at serial number N09-51-XXXXX. (14 Dec 2009)

Description Old part number Replacement part number

Bearing housing 11009204 11038245

Spacer retaining ring 501120 11056747 (retainer plugs)(2)

Seal carrier assembly 510482 No longer used

Lip seal 519021 No Change

Seal retaining ring 392456 (2) 915280 (1)

Spacer ring 501116 No longer used

Seal carrier O-ring 501879 No longer used

Non-interchangeable
Use parts in stock for repair of units built before serial number N09-46-xxxxx
Order replacement parts
Revise existing part orders

Shaf

Bearing housing

100

AX00000081en-US | 520L0770 • Rev 0302 • April 2016
