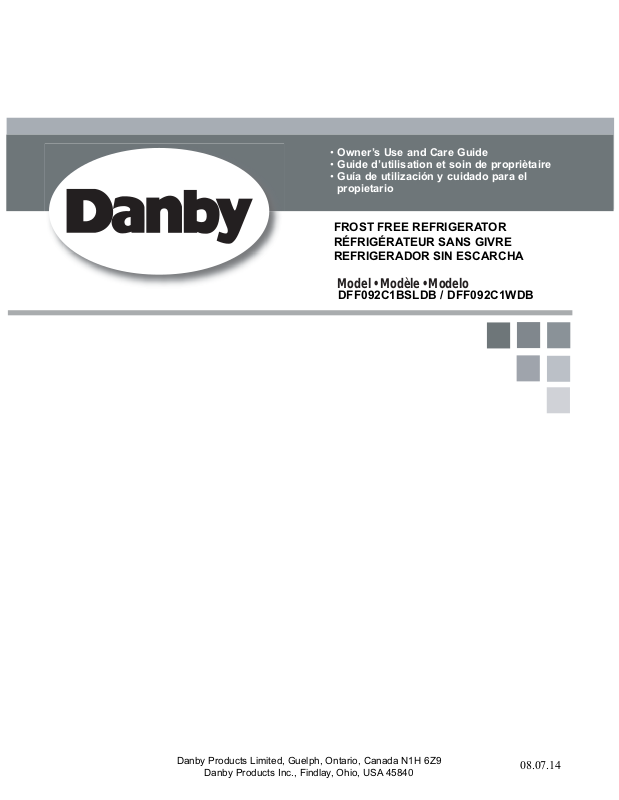

Danby DFF092C1WDB User Manual [en, es, fr]

08.07.14

Model • Modèle • Modelo

• Owner’s Use and Care Guide

• Guide d’utilisation et soin de propriètaire

• Guía de utilización y cuidado para el

propietario

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9

Danby Products Inc., Findlay, Ohio, USA 45840

DFF092C1BSLDB / DFF092C1WDB

FROST FREE REFRIGERATOR RÉFRIGÉRATEUR SANS GIVRE REFRIGERADOR SIN ESCARCHA

FROST FREE REFIGERATOR

Owner’s Use and Care Guide...........................1-9

• Important Safety Information

• Installation Instructions

• Features

• Operating Instructions

• Care and Maintenance

• Troubleshooting

• Warranty

RÉFRIGÉRATEUR SANS GIVRE

Guide d’utilisation et soin de

propriètaire.....................................................10-19

• Consignes de sécurité importantes

• Instructions d’installation

• Caractéristiques

• Consignes d’operation

• Soins et entretien

• Dépannage

• Garantie

REFRIGERADOR SIN ESCARCHA

Guía de utilización y cuidado para el

propietario......................................................20-29

• Instrucciones de seguridad importantes

• Instrucciones de instalación

• Caracteristicas

• Instrucciones operadoras

• Cuidado y mantenimiento

• Solución sugerida

• Garantia

CONTENTS

TABLE DES MATIÈRES

----

ÍNDICE

CAUTION:

PRECAUTION :

PRECAUCION:

Read and follow all safety rules and operating instructions before first use of this product.

Veuillez lire attentivement les consignes de sécurité et les instructions d’utilisation avant l’utilisation initiale de ce produit.

Lea y observe todas las reglas de seguridad y las instrucciones de operación antes de usar este producto por primera vez.

Model • Modèle • Modelo DFF092C1BSLDB / DFF092C1WDB

IMPORTANT SAFETY INFORMATION

ELECTRICAL

REQUIREMENTS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

An empty refrigerator is a very dangerous attraction to children. Remove the gasket, latches, lids or doors from unused appliances, or take some other action that will guarantee the appliance harmless.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator:

• Take off the doors.

• Leave the shelves in place so that children may not easily climb in.

DON’T WAIT! DO IT NOW!

IMPORTANT WARNING!

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

DO NOT USE AN EXTENSION CORD

Use an exclusive 115V wall outlet. Do not connect your refrigerator to extension cords or together with any other appliance in the same wall outlet. Do not splice the cord.

SAVE THESE INSTRUCTIONS!

Please ensure that component parts shall be replaced with like components and that servicing shall be done by factory authorized service personnel, so as to minimize the risk of possible ignition due to incorrect parts or improper service.

Risk of fire or explosion due to puncturing of refrigerant tubing. Do not use sharp objects to aid in defrost. Please handle with care. Keep flammable materials and vapors such as gasoline away from the refrigerator. Use nonflammable cleaner.

Disposal of this unit should be in accordance with federal and local regulations.

WARNING! EXPLOSION HAZARD!

Remove exterior and interior packings, wipe the outside thoroughly with a soft dry cloth and the inside with a wet, lukewarm cloth. Avoid placing the unit in a narrow recess or near any heat source, direct sunlight, or moisture. Let air circulate freely around the unit. Keep the rear of the refrigerator 2 inches away from the wall.

Location

1) Select a place with a strong, level floor.

2) Allow 2 inches of space between the back of the

refrigerator and any adjacent wall.

3) Avoid direct sunlight and heat. Direct sunlight

may affect the acrylic coating. Heat sources nearby will cause higher electricity consumption.

The refrigerating system in this refrigerator is a “Frost Free” system. This type of system requires no user intervention (i.e. defrosting) other than selecting required cooling temperatures and the usual care and maintenance.

To avoid vibration, the unit must be set level. This is accomplished by adjusting the front leveling leg, located under the refrigerator.

NOTES:

•

This appliance is intended for FREE-STANDING INSTALLATION ONLY, and is NOT intended to be built-in.

• Before connecting this appliance to electrical power supply, leave it to stand for approx. 24 hours, which will reduce the possibility of malfunction in the cooling system due to transport handling.

• This appliance is approved for INDOOR USE

ONLY and is NOT intended for outdoor operation.

IMPORTANT:

AMBIENT TEMPERATURES BELOW 50º F (10º C) WILL AFFECT THE OPERATION OF YOUR REFRIGERATOR. WHEN THE UNIT IS PLACED IN AN AREA WHERE THE TEMPERATURE DROPS LOWER THAN 50º F (10º C), SET THE TEMPERATURE CONTROL SELECTORS TO “MAX” IN BOTH THE REFRIGERATOR AND FREEZER SECTIONS.

NOTE:

IF THE UNIT IS UNPLUGGED, HAS LOST POWER, OR IS TURNED OFF, YOU MUST WAIT 3 TO 5 MINUTES BEFORE RESTARTING THE UNIT. IF YOU ATTEMPT TO RESTART BEFORE THIS TIME DELAY, THE REFRIGERATORFREEZER WILL NOT START.

INSTALLATION INSTRUCTIONS

DOOR AND HINGE REMOVAL

1. Unplug refrigerator or disconnect power.

2. Keep both doors closed until you are ready to lift them free from the cabinet. NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door

magnets to hold the doors in place while you are working.

3. Remove the parts for the top hinge as shown in Top Hinge graphic. Lift the freezer door from the cabinet.

4. Remove the parts for the center hinge as shown in the Center Hinge graphic. Lift the refrigerator door free

from the cabinet.

5. Remove the parts for the bottom hinge as shown in the Bottom Hinge graphic. DOOR REVERSAL CABINET

1. Remove the cover of upper hinge hole from left side and move them to opposite side (see Graphic 1).

2. Remove hole plugs from left side and move them to opposite side (see Graphic 2)

Your refrigerator is built with a reversible door. You have the choice of either opening it from the left or the right side. In order to reverse the opening direction of your door, please follow these simple instructions:

IMPORTANT

Before you begin, unplug refrigerator or disconnect power. Remove food and any adjustable door or utility bins from doors.

DOOR REVERSAL

INSTRUCTIONS

INSTALLATION INSTRUCTIONS

DOORS

1. Remove door hinge hole plug from the top of freezer and refrigerator door (see graphic 4)

2. Remove the door stop from refrigerator door and move to the other side (see graphic 5)

3. Take out the left door stop of freezer door and screw from the accessory bag and fix it on the handle

(see graphic 3)

NOTE: The left door and the right door stop of the freezer door are different. They can’t replace each other. DOOR AND HINGE REPLACEMENT

1. Replace the parts for the bottom hinge as shown (see Bottom Hinge graphic). Tighten screws. Replace the

refrigerator door. NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

2. Assemble the parts for the center hinge as shown and tighten all screws (see Center Hinge graphic). Replace the freezer door.

3. Assemble the parts for the top hinge as shown (see Top Hinge graphic). Do not tighten screws completely.

4. Line up the doors so that the bottom of the freezer door aligns evenly with the top of the refrigerator door.

Tighten all screws.

INSTALLATION INSTRUCTIONS (cont’d)

DOOR REVERSAL

INSTRUCTIONS

FINAL STEPS

1. Check all holes to make sure that hole plugs and screws are in place.

2. Plug in refrigerator or reconnect power.

3. Reset the controls (see “temperature control” section).

4. Return all removable door parts to doors and food to product

Top Hinge

1. Cover of upper hinge hole

1. Top hinge cover

2. Top hinge spindle

3. Top hinge

Center Hinge

1. Center hinge space

2. Center hinge

3. Screws

4. Bush

Bottom Hinge

1. Door stop

2. Door stop screw

3. Door stop pole

4. Bottom hinge

5. Bottom hinge screws

6. Adjustable feet

1. Hole plugs

1. Left door stop

2. Door stop screw

1. Door hinge hole plug

1. Door stop

2. Door stop screw

Accessory bag

1) Interior Light

2) Refrigerator Temperature Control

3) Freezer Temperature Control

4) Removable Refrigerator Shelves

5) Glass Crisper Cover

6) Crisper

7) Wire Freezer Shelf

8) Freezer Basket

9) Refrigerator Door Shelves (2)

10) CANSTOR

Door Liner: Holds 355ml cans of

pop, juice, or beer.

11) 2 Liter Bottle Storage

FEATURES

ICE CUBE TRAY

The ice cube tray is flexible. Twist tray to remove the ice cubes. If the ice cube tray is frozen solid, run a little water over the tray. Never use a knife or other metal instruments to remove the ice cube tray, as this may damage the evaporator.

3 4

OPERATING INSTRUCTIONS

TEMPERATURE

CONTROLS

REFRIGERATOR

CONTROL

FREEZER

CONTROL

Your refrigerator has a separate control for regulating the temperature for each section independently. The temperature controls (Fig. A) are located at the rear of refrigerator section.

• The first time you turn the unit on, set the temperature control to “MAX” in refrigerator section and “MAX” in freezer section.

• The range of the temperature controls are from position “MIN”

to “MAX” (MIN being the warmest and MIN being the coldest). We recommend starting at the mid-point for both the refrigerator and freezer, and after a period of 24 to 48 hours (to allow for cooling) adjust if necessary.

Fig. B

Fig. A

Please follow the steps below

We recommend that you start by unplugging your refrigerator unit.

1. Take off the light cover by flicking the bottom tab up (the bottom tab is located at the bottom middle of the light cover).

2. Take out the LED display by pulling it down and unhooking it from the port, it is best to use your thumb on the front of the LED and you fingers at the back near the port.

3. Put in the new LED by inserting it into the port.

4. Once the LED is secured, put the cover back on by inserting the two top tabs in to their slots and pushing

the bottom tab back into place, you should hear a quiet click. Once you have secured the light cover back on, you can plug your refrigerator back in.

Take off the light cover by flicking up bottom tab

You will see the LED display

Unhook the LED display using your thumb and fingers

Hook the new LED display to the port

Bottom tab

Pull the LED display down

Top tabs

Put the cover back on

CHANGING LED

LIGHT

FEATURES

MAX

MIN

CARE AND MAINTENANCE

Cooling System

This refrigerator is inclusive of a “Frost Free” type cooling system, which means you never have to defrost the freezer compartment. Defrosting is done automatically by means of a defrost heating element and a defrost timer factory-programmed to operate (cycle) after approximately 3 hours of continuous compressor cycling. The defrost water is routed into a defrost pan located directly above the compressor, where it then evaporates.

Cleaning

Before cleaning the refrigerator or freezer, always disconnect the refrigerator from the power supply. To clean the inside, use a soft cloth and a solution of a tablespoon baking soda to one quart (4 cups) of water, or a mild soap suds solution or mild detergent. Wash ice cube tray, drip tray, and glide out shelves in a mild detergent solution, then wipe dry with a soft cloth. Clean the outside with a damp soft cloth and some mild detergent or appliance cleaner.

Setting the Thermostat

The thermostat setting can be adjusted from WARM (warmest) setting through COLD (coldest) setting in both the refrigerator and freezer. We recommend setting the thermostat at the medium (middle) setting indicated by “•”. However, if you find this setting inadequate for your cooling requirements, adjust as needed by rotating the thermostat knobs. To locate the thermostat control knobs, refer to “Features”.

For short vacation periods, leave the control knob at the usual setting. During longer absences:

a) remove all food.

b) disconnect from electrical outlet.

c) clean the refrigerator thoroughly, including

defrost pan.

d) leave the door open to avoid possible formations

of condensation, mold, or odors.

Power Failure

Most power failures are corrected within a couple of hours, and will not affect your refrigerator temperatures. However, you should minimize the number times you open the door while the power is off. During power failures of longer duration, take steps to protect your food.

If You Move

Remove, or securely fasten down, all loose items inside the refrigerator. To avoid damaging the leveling legs, turn them all the way into the base.

Some Important Rules for the Correct Use of the Refrigerator

• Never place hot foods in the refrigerator.

• Beverages should be stored in sealed containers.

• Foods to be stored for a long time should be wrapped in cellophane or polyethylene, or kept in glass containers. Never place spoiled food in the refrigerator.

• Don’t overload the refrigerator.

• Don’t open the door unless necessary.

• Should the refrigerator be stored without use for long periods, it is suggested, after careful clean ing, to leave the door ajar to allow the air to circulate inside the unit in order to avoid the possible formations of condensation, mold, or odors.

Food Storage Suggestions:

Fresh Food Compartment-

• Never cover food compartment shelves with aluminum foil or any other shelf covering material which may prevent air circulation.

• Always remove porous store wrapping paper from meats, poultry, and fish. Meats should be wrapped individually and placed in a dish for storage. Wrap fish and poultry in foil or heavy waxed paper. Most fish should be used the same day of purchase. Packaged meats such as ham, bacon, dried beef, or frankfurter, store best in their original packages.

• Allow warm foods to cool to room temperature

before placing them in the refrigerator.

• Always cover open dishes of food, especially leftovers. Use leftovers within 2 or 3 days.

Vegetable Crisper

The tray at the bottom of the refrigerator is covered to retain moisture. The crisper compartment will enable you to store vegetables and fruits which would otherwise dry out rapidly.

TROUBLESHOOTING

Occasionally, a minor problem may arrise, and a service call may not be necessary- use this troubleshooting guide for a possible solution. If the unit continues to operate improperly, call an authorized service depot or Danby’s Toll Free Number for assistance.

Tel: 1-800-26- (1-800-263-2629).

PROBLEM POSSIBLE CAUSE SOLUTION

1) Unit does not work.

• No power to unit.

• Power cord is unplugged.

• Wrong voltage is being used.

• Check connection of power cord at power source.

• Plug in unit.

• Use proper voltage.

2) Refrigerator running too frequently.

• Temperature control too high.

• Door not closed.

• Hot food inserted.

• Doors open too long/often.

• Close proximity to heat source or direct sunlight.

• Adjust settings as needed.

• Close the door securely.

• Cool food before inserting.

• Minimize door openings/duration.

• DO NOT place unit close to heat sources or in direct sunlight.

3) Internal temperature too cold.

• Temperature control too high.

• Adjust settings as needed.

4) Internal temperature not cold enough.

• No power to unit.

• Power cord is unplugged.

• Wrong voltage is being used.

• Temperature control too low.

• Hot food inserted.

• Doors open too long/often.

• Air flow obstruction.

• Close proximity to heat source or direct sunlight.

• Check connection of power cord at power source.

• Plug in unit.

• Use proper voltage.

• Check/adjust settings as needed.

• Cool food before inserting.

• Minimize door openings/duration.

• Allow room for air to circulate around the unit.

• DO NOT place unit close to heat sources or in direct sunlight.

5) Freezer not cold enough.

• Temperature control too warm.

• Door not closed.

• Hot food inserted.

• Doors open too long/often.

• Wrong voltage is being used.

• Adjust settings as needed.

• Close door securely.

• Cool food before insterting.

• Minimize door openings/ duration.

• Use proper voltage.

6) Light will not work.

• No power to unit.

• Power cord is unplugged.

• Bulb is loose/needs replacing.

• Door switch is stuck.

• Check connection of power cord to power source.

• Plug in unit.

• Tighten or replace bulb.

• Check the switch for obstructions, clean if necessary.

+ 22 hidden pages
