Danby DBC93BLSDD User Manual [en, es, fr]

Model • Modèle • Modelo DBC93BLSDD

BEVERAGE CENTER CENTRE DE BREUVAGES CENTRO DE BEBIDAS

Owner’s Use and Care Guide Guide d’utilisation et soins de Propriètaire Guía utilice y cuide del Propietario

•

V2.09.11 DM

BEVERAGE CENTER

Owner’s Use and Care Guide ............................

• Safety Instructions

• Installation Instructions

• Operating Instructions

• Care and Maintenance

• Troubleshooting

• Warranty

CENTRE DE BREUVAGES

Guide d’utiliser et soin de propriètaire .............

• Consignes de Sécurité Important

• Instructions d’installation

• Consignes d’utilisation

• Soins et entretien

• Dépannage

• Garantie

2- 10

11-19

CENTRO DE BEBIDAS

Guide d’utiliser et soin de propriètaire .............

• Instrucciones de Seguridad Importantes

• Instrucciones D’Instalacion

• Operación

• Limpieza y Mantenimiento

• Solución Sugerida

• Garantia

20-28

CONTENTS

CAUTION

Read and follow all safety rules and operating instructions before first use of this product.

Veuillez lire attentivement les consignes de sécurité et les instructions d’utilisation avant l’utilisation initiale de ce produit.

PRECAUTION

Lea y observe todas las reglas de seguridad y las instrucciones de operación antes de usar este producto por primera vez.

PRECAUCION

Welcome to the Danby family. We’re proud of our quality products, and we believe in dependable service; like you will find in this owner’s use and care guide, and like you will receive from our friendly customer service department. Best of all, you will experience these values each and every time you use your Danby appliance. That’s important, because your new appliance will be a part of your family for a long time.

For easy reference, may we suggest that you attach a copy of your sales receipt to this page, and note the information below; you will need this information to obtain service under warranty.

Model No:

Serial No:

Date Purchased:

Before you call for service, there are a few things you can do to help us serve you better.

Read this Owner’s Use and Care Guide:

It contains instructions to help you use and maintain your appliance properly.

If you received a damaged appliance:

Immediately contact the builder (or dealer) that sold you the Beverage Center.

Save time and money:

Check the Trouble shooting section before calling. This section helps you solve common problems that may occur.

If you do need service, you can relax knowing help is only a phone call away.

Need Help?

Tel: 1-800-26-

(1-800-263-2629)

WELCOME

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

An empty beverage center is a very dangerous attraction to children. Remove either the gasket or lid from unused appliances, or take some other action that will guarantee it harmless.

IMPORTANT WARNING

WARNING

Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

DANGER: Risk off child entrapment. Before you

throw away your old beverage center / refrigerator / freezer etc:

• Take off the doors.

• Leave the shelves in place so that children may not easily climb in.

DON’T WAIT DO IT NOW!

SAVE THESE INSTRUCTIONS

DO NOT USE AN EXTENSION CORD

Use an exclusive wall outlet. Do not connect your beverage center to extension cords or together with any other appliance in the same wall outlet.

• Do not operate this appliance if it has a damaged power cord or plug, if it is not working properly, or if the appliance

has been damaged or dropped. Do not splice the power cord that is equipped with this appliance.

• Keep power cord away from heated surfaces.

• Do not immerse power cord, plug or the appliance itself in water.

• Do not use this product near water- for example, in a wet basement, near a swimming pool or near a sink.

• Do not use corrosive chemicals or vapors in thisappliance.

• Use this appliance only for its intended use, as described in this manual.

• Do not store perishable food items such as (but not limited to) meats and dairy products in your Beverage Center.

• Store beverage in sealed containers only.

• See door surface cleaning instructions in the “Care and Cleaning” section(s) of this manual.

• Do not cover or block any openings on the appliance.

• This appliance is intended for household use only. Do not attempt to operate or store this appliance outdoors.

• This appliance should be serviced only by qualified service personnel. Contact nearest authorized service facility for

examination, repair or adjustment.

ELECTRICAL REQUIREMENTS

READ ALL SAFETY INFORMATION BEFORE USING

IMPORTANT SAFETY INFORMATION

SAFETY PRECAUTIONS

Extreme Weight Hazard! Use 2 or more people when moving the beverage center.

WARNING

5 In.

INSTALLATION INSTRUCTIONS

LEVELING INSTRUCTIONS

It is important that your beverage center is level. To level the beverage center:

1) Move the beverage center to its final location.

2) Have someone gently lean on the front of the

beverage center to take some of the weight off of the leveling leg.

3) Turn the leveling leg clockwise to raise, and counter-

clockwise to lower the beverage center. Continue in this manner until the beverage center is level.

LOCATION

DO...

• Select a location with a strong, level floor.

• Allow for 5 inches of space between the back of the appliance and any adjacent wall.

• Avoid direct sunlight and heat. Direct sunlight may affect the acrylic coating; heat sources nearby will cause higher electricity consumption.

DO NOT...

• Use this appliance outdoors: This appliance is intended for household use only. Do not attempt to

operate or store this appliance outdoors.

• Build this appliance into an enclosure: This appliance

is designed for a Free-Standing application only

and is not intended to be “Built-In”.

1) Tempered Glass Door: Tinted for UV protection while still

allowing for easy interior viewing.

2) Thermostat Dial: (Externally mounted rear wall

thermostat) For controlling the temperature inside the beverage center. Turns the motor (compressor) on /off as soon as the temperature rises/falls above/below the set cooling level.

3) Magnetic Door Gaskets: Tight fitting seals retain all the

cooling power and humidity levels.

4) Plastic Coated Shelves: Odor resistant, rustproof, and

removable for easy cleaning.

5) Leveling Leg.

6) Interior Light (not shown): Illuminates the compartment

when the door is opened.

INSTALLATION INSTRUCTIONS

DOOR REVERSAL INSTRUCTIONS

OPERATING INSTRUCTIONS

FEATURES

DEFROSTING: Your beverage center is designed with an “Auto-Cycle” defrost system.What is Auto Cycle defrost?

The refrigerated surfaces of the fresh food compartment defrost automatically during the “off” cycle of the cold control (thermostat). Defrost water from the fresh food compartment is disposed of automatically, by means of being channeled onto a drip tray located on the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

Fig. 2

Fig. 1

OPERATING INSTRUCTIONS

CONTROLS OF YOUR BEVERAGE CENTER

To start the beverage center, turn the temperature control to the position corresponding to your desired cooling level. The beverage center temperature will vary depending on the quantity of bottles stored, and on the frequency with which the door is opened.

SETTING THE TEMPERATURE:

The temperature of the beverage center compartment is controlled by adjusting/setting the thermostat control knob, located on the exterior rear wall of the unit. To start the beverage center and achieve maximum cooling quickly;

• Turn the temperature control knob clockwise to the furthest (maximum) setting on the darker blue (wide) section of the graduated control dial.

• Allow the unit to run at this setting for 3-4 hours.

• When maximum cooling is achieved, turn back the temperature control knob to a desired setting on the graduated blue control dial. See Fig.1.

• To turn off the beverage center (no cooling) rotate the control knob to the “0” (off) position. See Fig. 2. Turn the control to the “OFF” (0) position to temporarily disconnect the cooling cycle. When the beverage center is not to be used for long periods of time, disconnect from power and leave the door partially open.

NOTE: Wait 3 to 5 minutes before restarting if operation has been interrupted.

Interior Light:

To manually operate the light, depress the interior light toggle switch situated on the left side of the interior light housing, located on the ceiling inside the unit; this will allow the interior light to remain on while the door is closed.

OPERATING INSTRUCTIONS

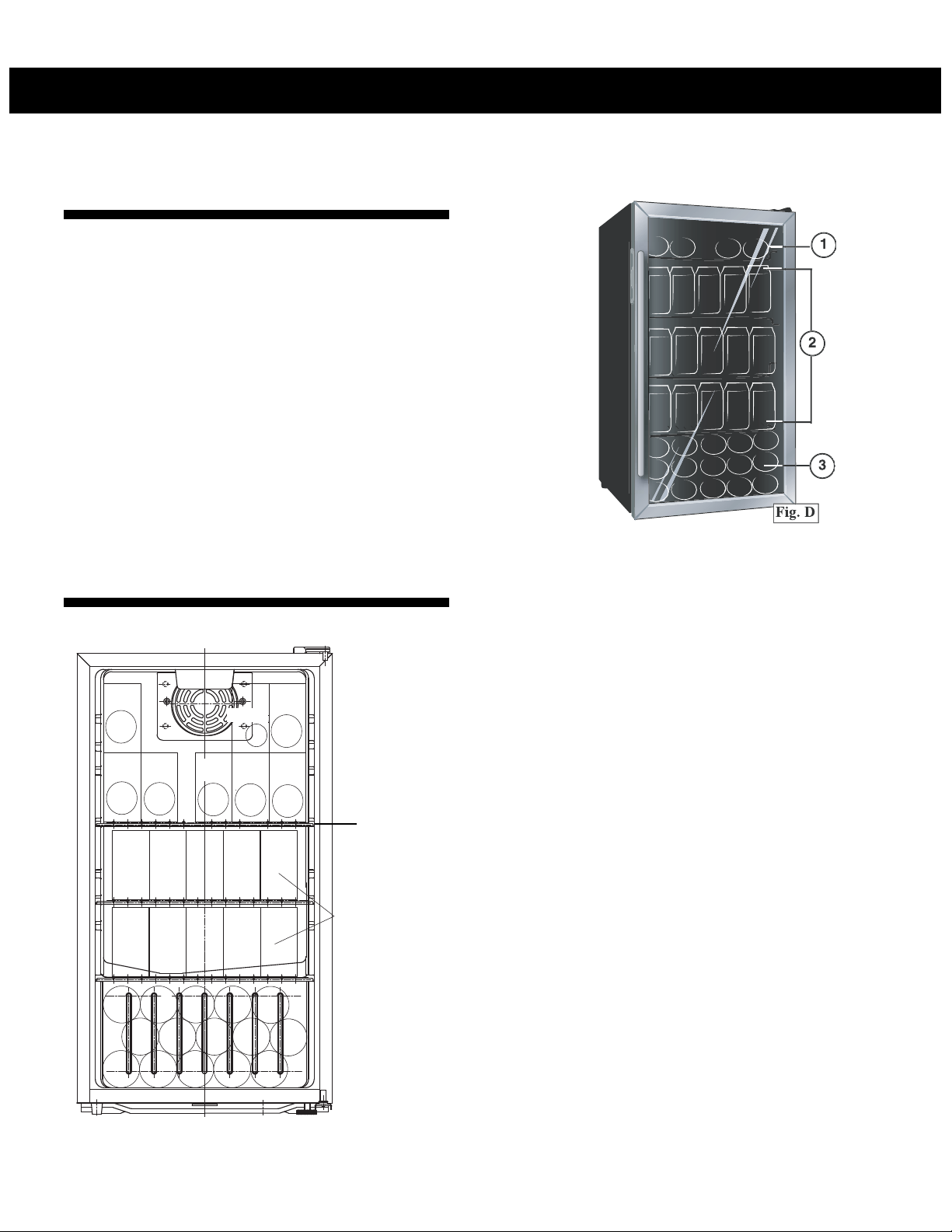

BEVERAGE STORAGE 113 (355mL cans)

In order to stock as depicted, follow these stocking instructions:

1) The first shelf holds eight (8) 355mL cans, when laid

horizontally 2 across and two deep on either side of the gap in middle of shelf (as seen in Fig.D).

2) The next three shelves hold 25 cans each, when

arranged vertically, 5 cans across, 5 cans deep.

3) The bottom section of your beverage center holds 30

cans, when laid horizontally, 5 cans across, 2 cans deep and 3 cans high.

When the above instructions are followed your beverage center can achieve a storage capacity of 113 (355mL) cans.

BEVERAGE STORAGE 120 (355mL cans)

Please see image below for storing 120 (355mL cans):

5 CANS

DEEP

5 CANS

DEEP

5 CANS

DEEP

5 CANS

DEEP

5 CANS

DEEP

5 CANS

DEEP

5 CANS

DEEP

5 CANS

DEEP

The first shelf holds 40 cans.

The next three shelves hold 25 cans each, 5 cans across, 5 cans deep.

The bottom section of your beverage center holds 30 cans, when laid horizontally, 5 cans across, 2 cans deep and 3 cans high.

Note: For the unit to accomodate 120 cans (355mL), it will be necessary to remove the first shelf.

Loading: 40 + 25 + 25 + 30 = 120 cans (355 ml)

Allow the beverage center door to remain open for a few minutes after manual cleaning to air out and dry the inside of the beverage center.

NOTE: Be certain the power is off before cleaning any part of this appliance.

Never use any commercial or abrasive cleaners or sharp objects on any part of the beverage center.

Walls, Floor, Inside Window, and Shelves:

Some water deposits and dust can be removed with a dry paper towel, others may require a damp cloth.

Do not use cleaners containing ammonia or alcohol on the beverage center. Ammonia or alcohol can damage the appearance of the appliance.

Outer Case:

It’s important to keep the area clean where the door seals against the unit. Clean this area with a sudsy cloth. Rinse and then dry.

Door surface:

Use only mild, non-abrasive detergents applied with a clean sponge or soft cloth. Rinse well.

Control Panel and Door:

Wipe with a damp cloth and dry thoroughly. Do not use cleaning sprays, large amounts of soap and water, abrasive or sharp objects on the panel they can damage it. Some paper towels may also scratch the control panel and door glass.

CARE AND MAINTENANCE

HOW TO CLEAN THE INSIDE

HOW TO CLEAN THE OUTSIDE

To remove a rack from its locked position, lift the rear of the rack upward and then slide the rack out from the unit, as shown in Fig. E.

To re-install, ensure the rack is resting securely on the support brackets, and push the rack inward until it locks into

place.

Do not cover any part of the rack with aluminum foil or any other material that will prevent adequate air circulation within the unit.

IMPORTANT

Fig. E

SHELF INSTRUCTIONS

OPERATING INSTRUCTIONS
