Daikin FXMQ50PVE, FXMQ63PVE, FXMQ80PVE, FXMQ100PVE, FXMQ125PVE Technical Data Manual

technical data

air conditioning systems

Concealed ceiling unit

FXMQ-PVE

EEDEN08-204

2e

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

TABLE OF CONTENTS

FXMQ-PVE

1 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4 Control systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

5 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Cooling capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Heating capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

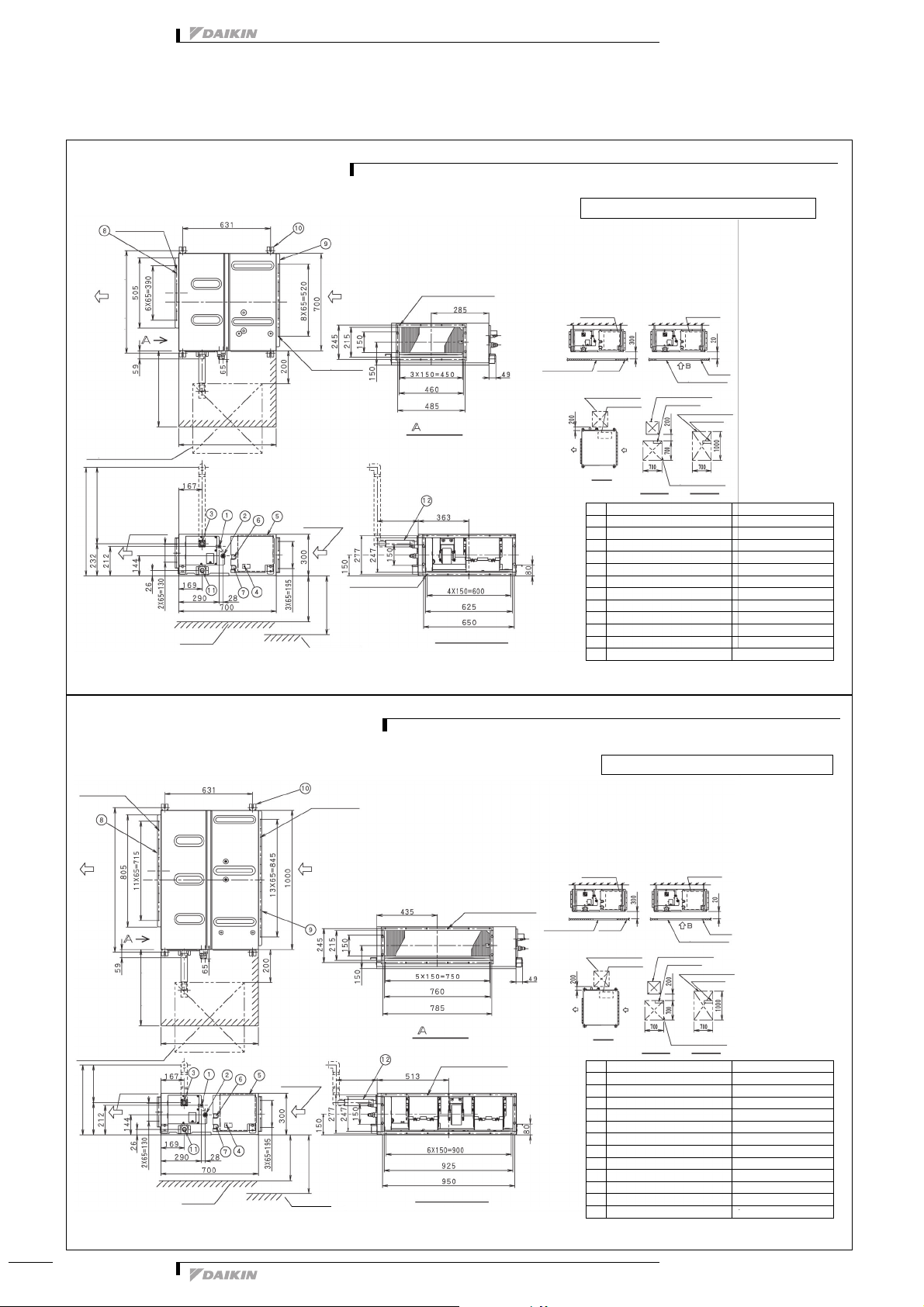

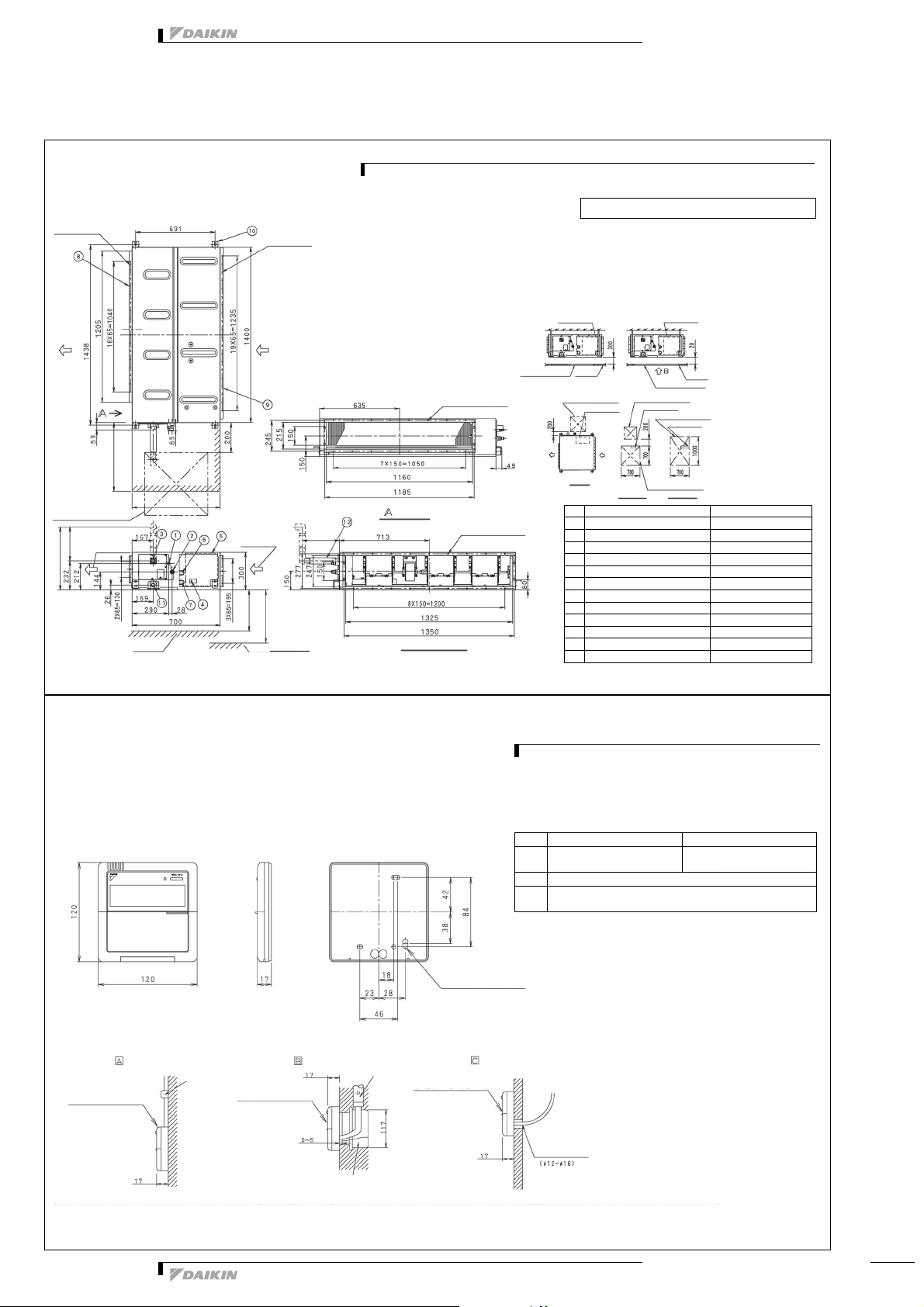

6 Dimensional drawing & centre of gravity . . . . . . . . . . . . . . . . . . . . . . . 10

Dimensional drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

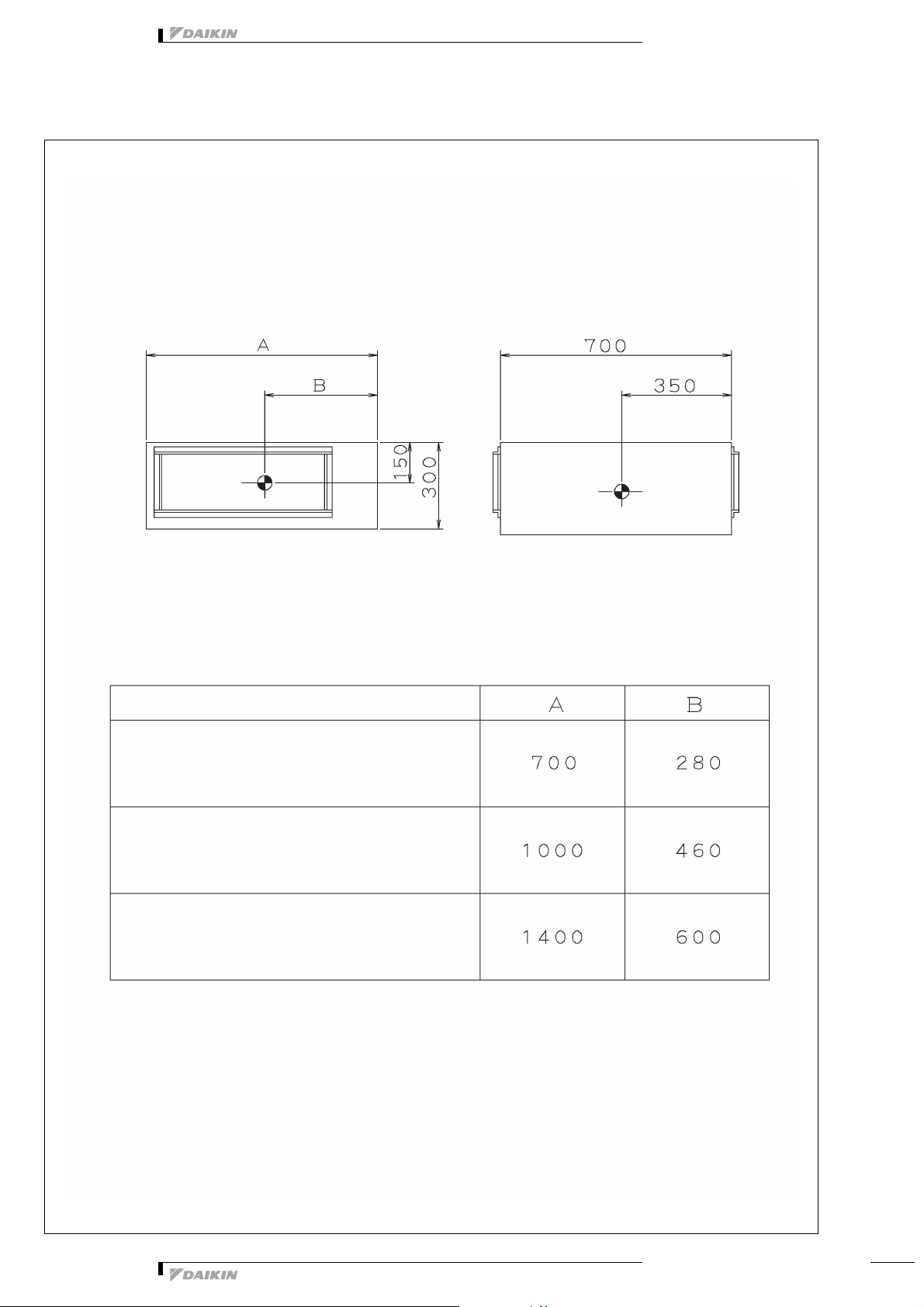

Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

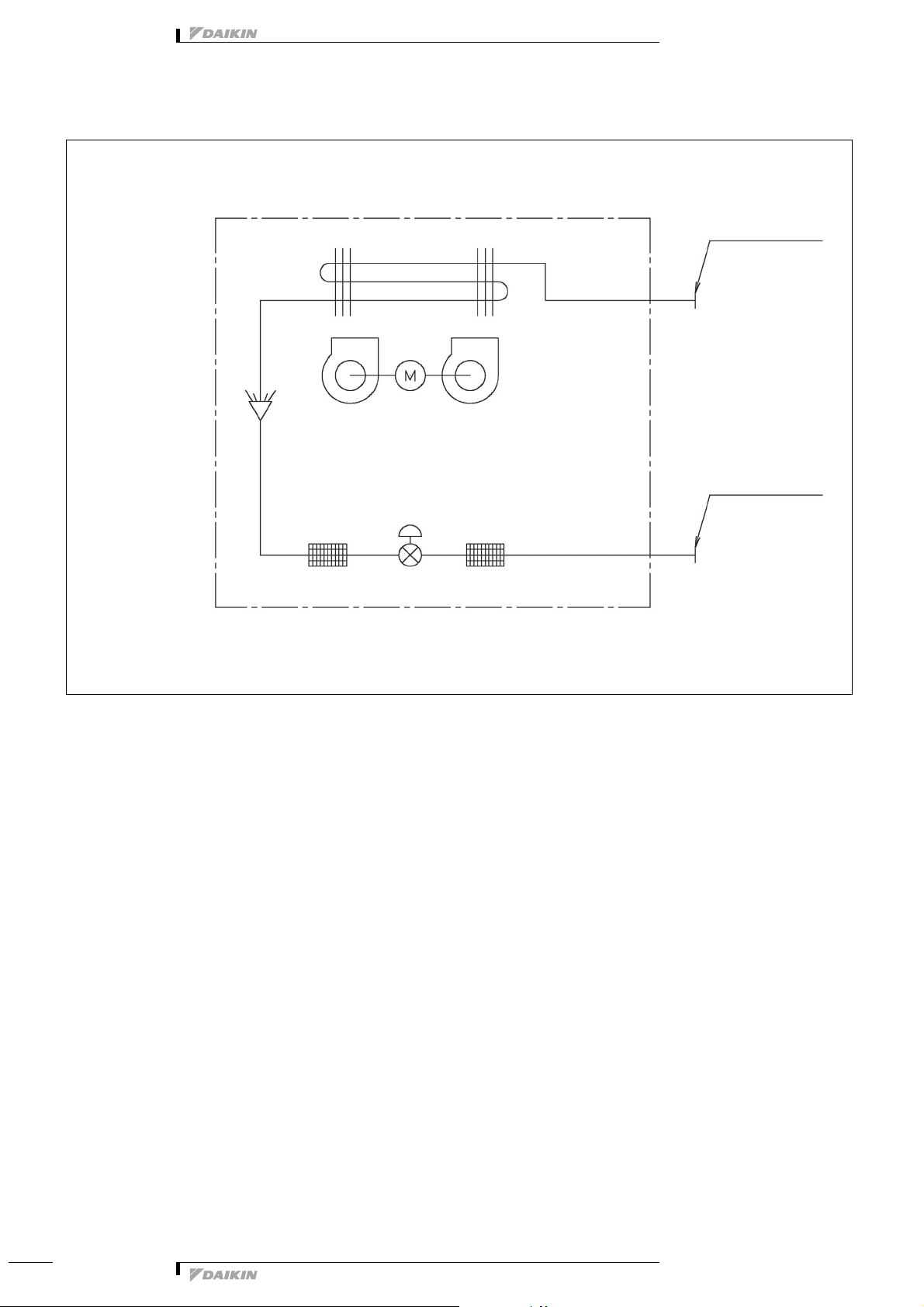

7 Piping diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

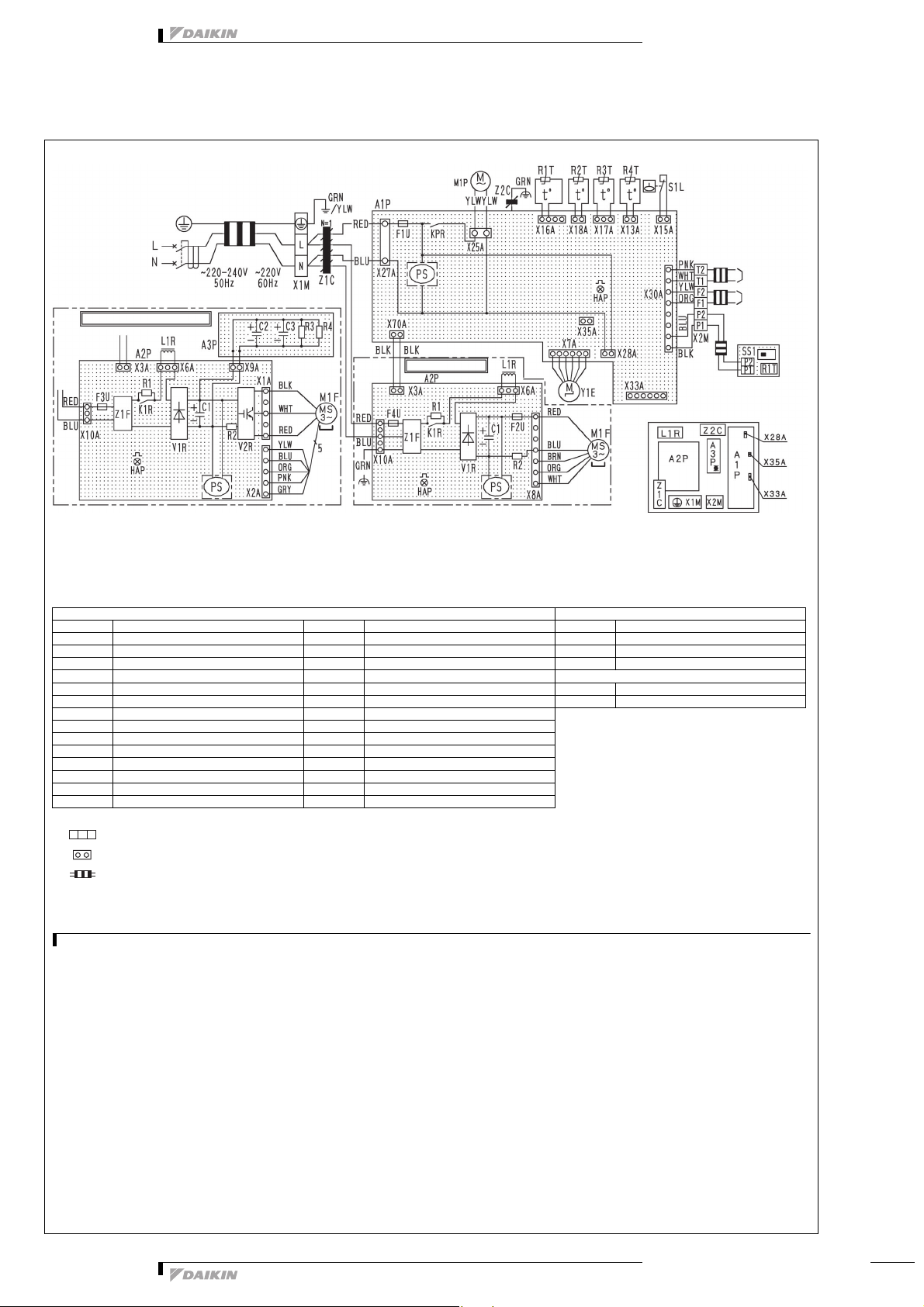

8 Wiring diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Wiring diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

9 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Sound pressure spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

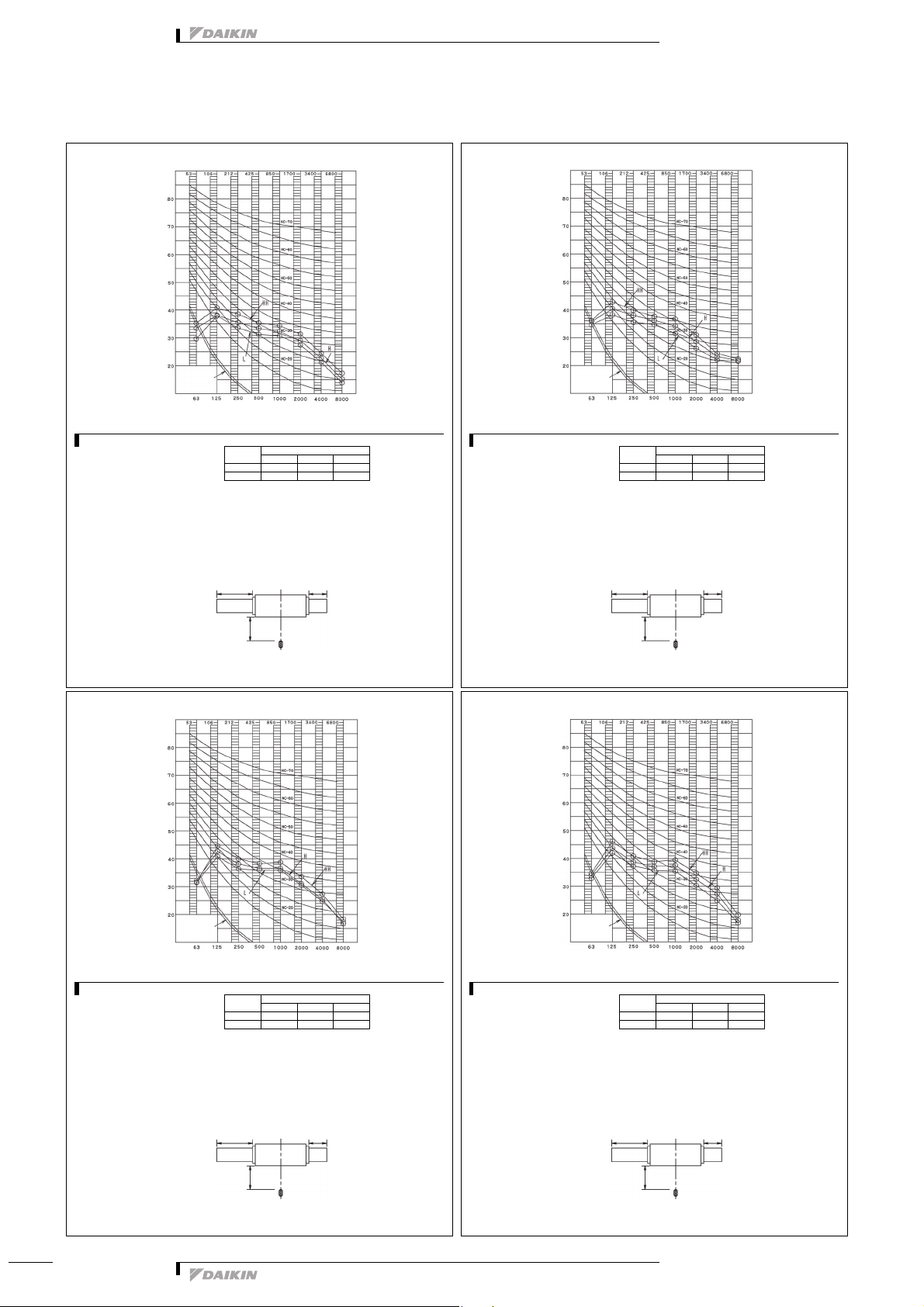

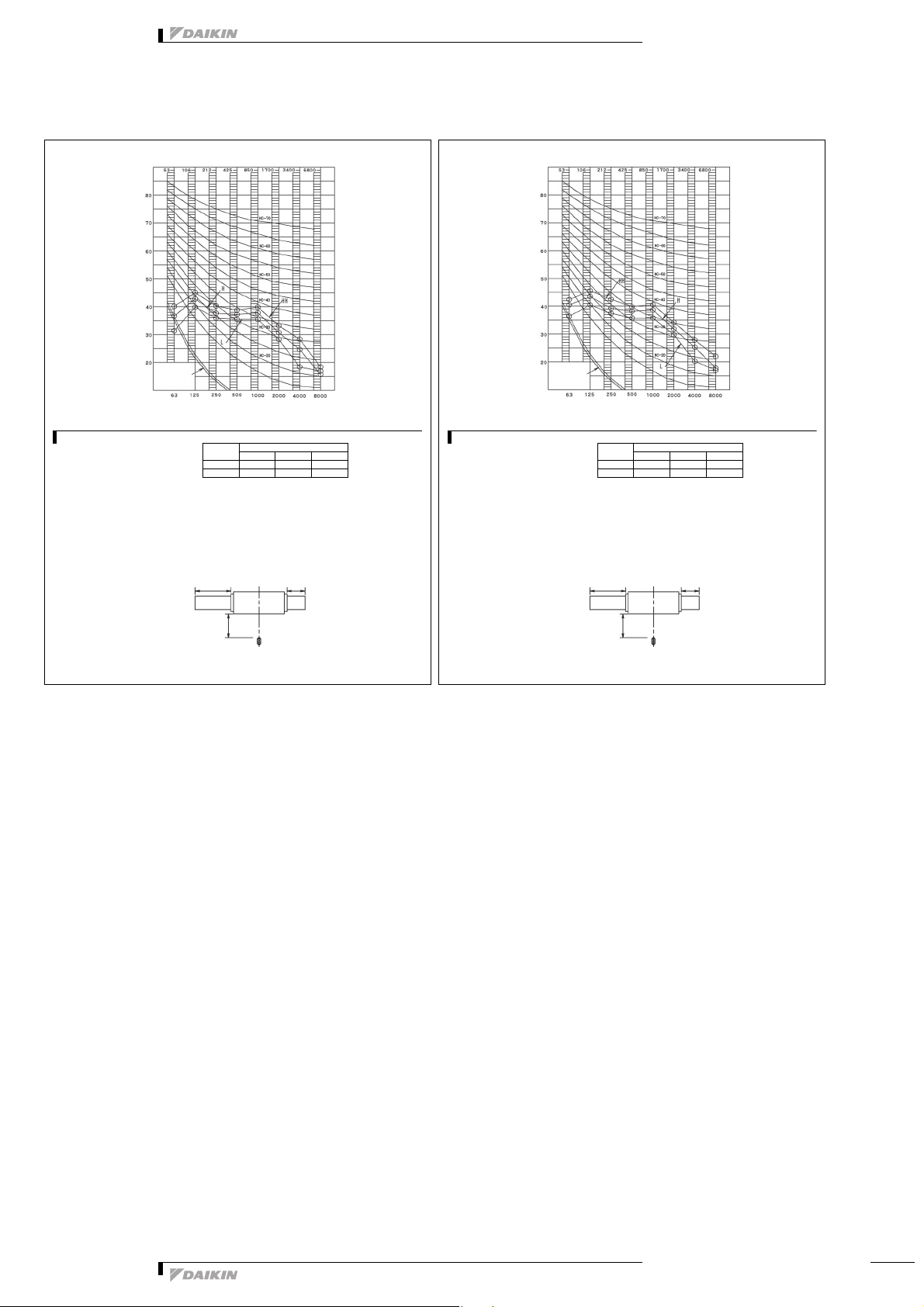

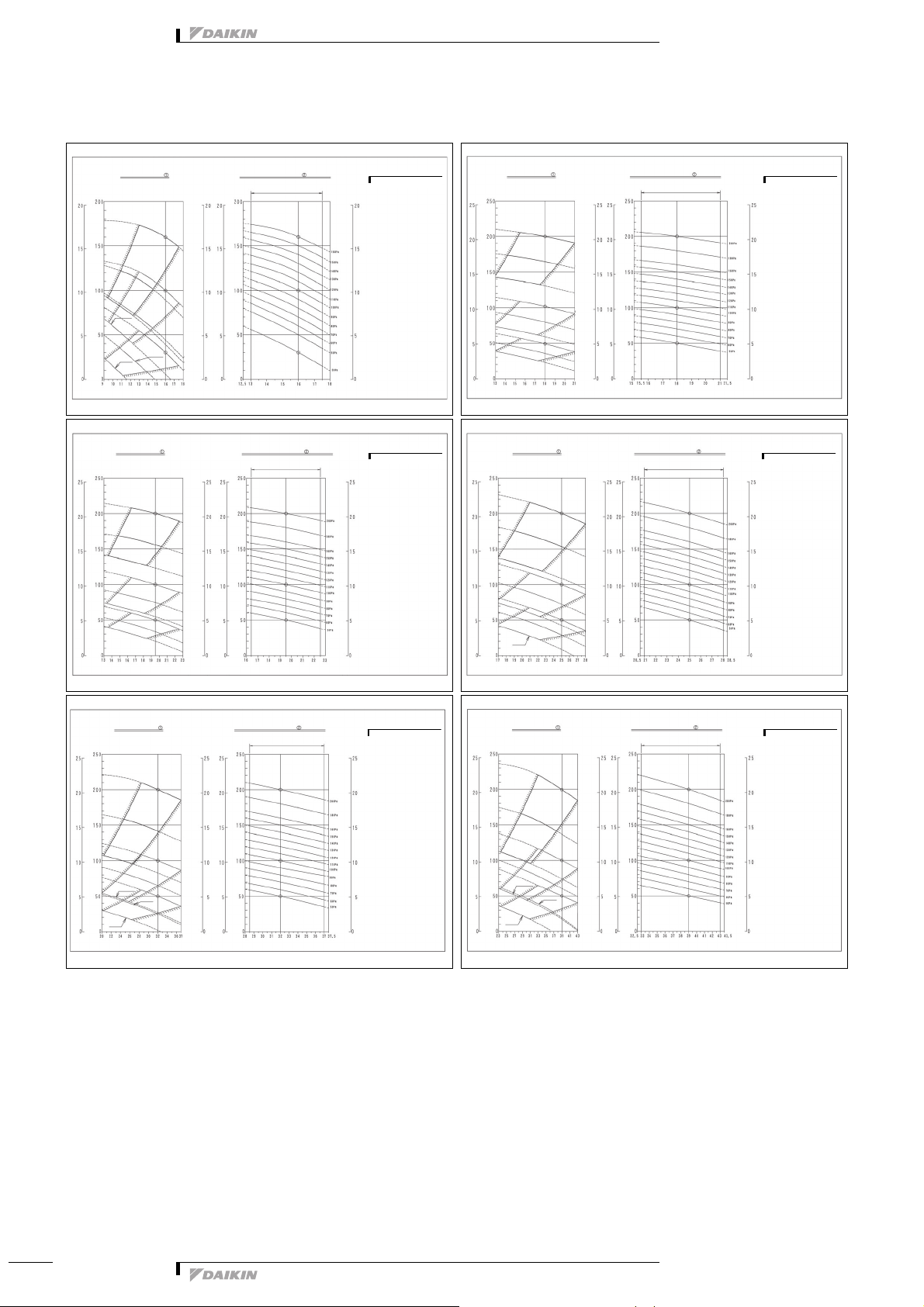

10 Fan characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

•VRV® Systems • Indoor Units

1

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

1 Specifications

Indoor Unit VRV Systems FXMQ-PVEConcealed C

1-1 TECHNICAL SPECIFICATIONS FXMQ40PVE FXMQ50PVE FXMQ63PVE FXMQ80PVE FXMQ100PVE FXMQ125PVE

Capacity Cooling kW 4.5 5.6 7.1 9.0 11.2 14.0

Heating kW 5.0 6.3 8.0 10.0 12.5 16.0

Power Input Cooling kW 0.194 (1)

0.193 (2)

Heating kW 0.182 0.203 0.218 0.286 0.364 0.449

Casing Material Galvanised steel plate

Dimensions Unit Height mm 300 300 300 300 300 300

Width mm 700 1,000 1,000 1,000 1,400 1,400

Depth mm 700 700 700 700 700 700

Weight Unit kg 28 36 36 36 46 46

Heat
Exchanger

Fan Type Sirocco fan

Air Flow Rate Cooling High high m³/min 16 18 19.5 25 32 39

Fan External static

Piping
connections

Refrigerant control Electronic expansion valve

Temperature control Microprocessor thermostat for cooling and heating

Safety devices Fuse

Standard
Accessories

Legend (1) 50Hz, 220-240V

Notes Nominal cooling capacities are based on following conditions: return air temperature: 27°CDB/19°CWB; outdoor

DimensionsNr of Rows 333333

Fin Pitch mm 1.75 1.75 1.75 1.75 1.75 1.75

Face
Area

Nr of Stages 16 16 16 16 16 16

High m³/min 13 16.5 17.5 22.5 27 33

Low m³/min 11 15 16 20 23 28

pressure

Motor Output

Liquid (OD) Type Flare connection

Gas Type Flare connection

Drain Diameter mm VP25 (I.D. 32/O.D. 25)

Standard Accessories Operation manual

High Pa 160 200 200 200 200 200

Standard Pa 100 100 100 100 100 100

Low Pa 30 50 50 50 50 50

(high)

Drive Direct drive

Diameter mm 6.35 9.52 9.52 9.52 9.52 9.52

Diameter mm 12.7 15.9 15.9 15.9 15.9 15.9

m² 0.148 0.249 0.249 0.249 0.383 0.383

W 140 350 350 350 350 350

temperature: 35°CDB; standard external static pressure: 100Pa; equivalent refrigerant piping: 7.5m (horizontal)

Nominal heating capacities are based on following conditions: return air temperature: 20°CDB; outdoor temperature:

7°CDB/6°CWB; standard external static pressure: 100Pa; equivalent refrigerant piping: 7.5m (horizontal)

Capacities are net, including a deduction for cooling (an addition for heating) for indoor fan motor heat.

External static pressure is changeable in 13 or 14 stages within the ( ) range by the remote control.

Air filter is not standard accessory, but please mount it in the duct system of the suction side. Select its colorimetric

0.215 (1)

0.214 (2)

0.230 (1)

0.229 (2)

Fan driver overload protector

Installation manual

Drain hose

Sealing pads

Insulation for fitting

Clamp metal

Air discharge flange

Air suction flange

(2) 60Hz, 220V

method(gravity method) 50% or more.

0.298 (1)

0.297 (2)

Clamps

Washer

Screws

0.376 (1)

0.375 (2)

0.461 (1)

0.460 (2)

132

•VRV® Systems • Indoor Units

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

1 Specifications

1-2 ELECTRICAL SPECIFICATIONS FXMQ40PVE FXMQ50PVE FXMQ63PVE FXMQ80PVE FXMQ100PVE FXMQ125PVE

Power Supply Name VE

Phase 1~

Frequency Hz 50/60

Voltage V 220-240/220

Current Minimum circuit amps

(MCA)

Maximum fuse amps (MFA) A 16 16 16 16 16 16

Full load amps (FLA) A 1.1 1.3 1.4 1.8 2.3 2.7

Voltage range Minimum V -10%

Maximum V +10%

Notes Voltage range : units are suitable for use on electrical systems where voltage supplied to unit terminals is not below

A 1.4 1.6 1.8 2.3 2.9 3.4

or above listed range limits.

Maximum allowable voltage range variation between phases is 2%.

MCA/MFA : MCA = 1.25 x FLA

MFA is smaller than or equal to 4 x FLA

Next lower standard fuse rating minimum 16A

Select wire size based on the MCA

Instead of a fuse, use a circuit breaker

•VRV® Systems • Indoor Units

133

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

2 Safety device settings

FXMQ-P

Safety devices 40 50 63 80 100 125

PC boad fuse 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A 250V 3.15A

FXMQ-PVE

PC boad fuse (Fan driver)

Drain pump thermal fuse

250V 5A 250V 6.3A 250V 6.3A 250V 6.3A 250V 6.3A 250V 6.3A

145 145 145 145 145 145

3 Options

FXMQ-P

Model DUCT TYPE

Item FXMQ40PVE FXMQ50PVE FXMQ63PVE FXMQ80PVE FXMQ100PVE FXMQ125PVE

High efficiency filter 65% KAF372AA56 KAF372AA80 KAF372AA160

90% KAF373AA56 KAF373AA80 KAF373AA160

Filter chamber KDDF37AA56 KDDF37AA80 KDDF37AA160

long life replacement filter KAF371AA56 KAF371AA80 KAF371AA160

Long life replacement filter chamber kit KAF375AA56 KAF375AA80 KAF375AA160

Service panel KTBJ25K56W KTBJ25K80W KTBJ25K160W

KTBJ25K56F KTBJ25K80F KTBJ25K160F

KTBJ25K56T KTBJ25K80T KTBJ25K160T

Air discharge adapter KDAJ25K56A KDAJ25K80A KDAJ25K160A

3D034597E

NOTE

1 See the latest for the modification marks

3D060443

134

•VRV® Systems • Indoor Units

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

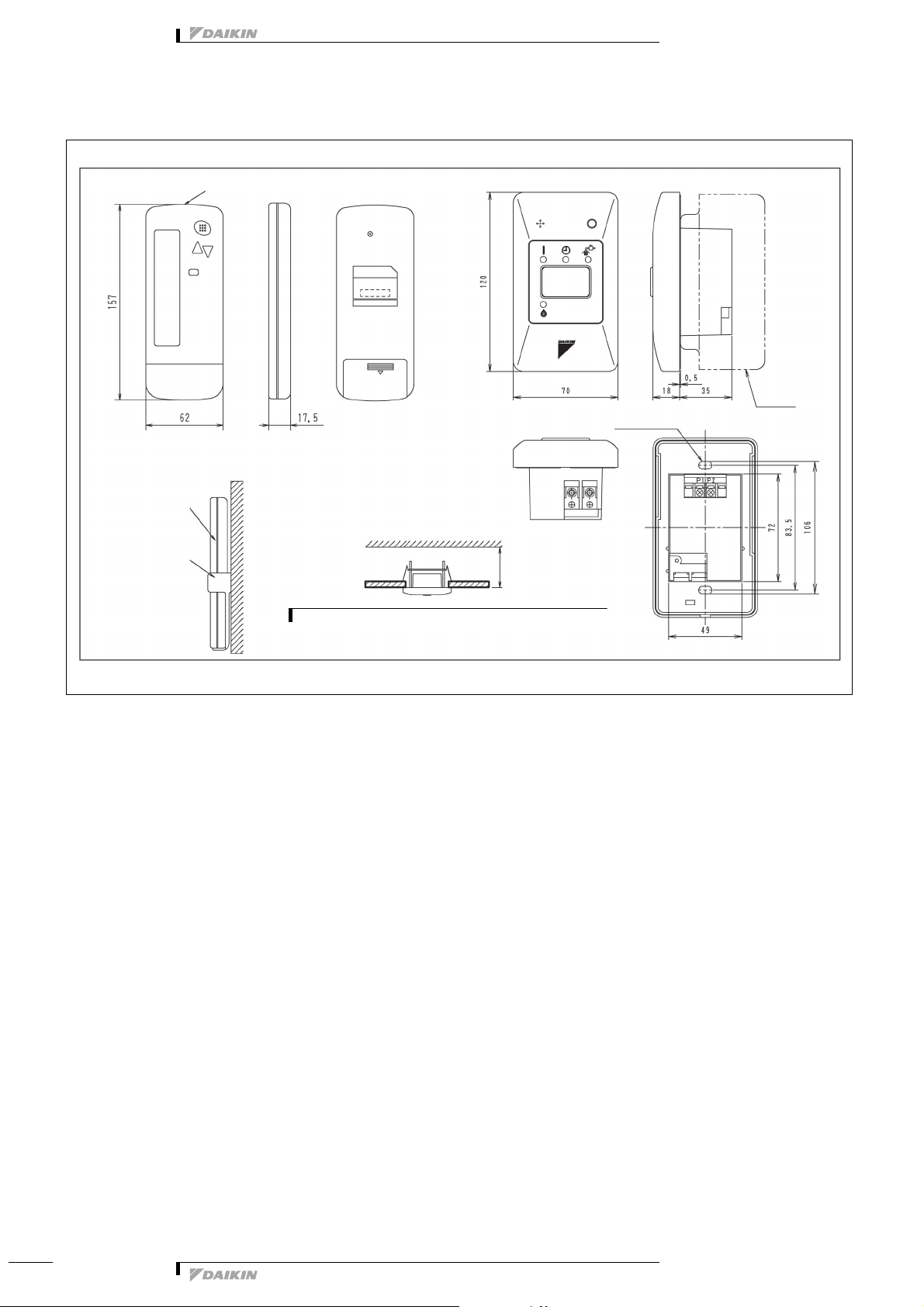

4 Control systems

FXMQ-P

No.

Item

Type

FXMQ~PVE

BRC4C65
BRC4C66

1 Remote control

Wireless

H/P
C/O

Wired BRC1D52
2 Simplified remote control BRC2C51
3 Remote control for hotel use BRC3A61
4 Adaptor for wiring KRP1C64

5-1 Wiring adaptor for electrical appendices (1) KRP2A61
5-1 Wiring adaptor for electrical appendices (2) KRP4AA51

6 Remote sensor KRCS01-1B

Note 2, 3

7 Mounting plate for adapter PCB

KRP4A96

8 Central remote control DCS302CA61

8-1 Electrical box with earth terminal (3 blocks) KJB311AA

9 Unified on/off control DSC301BA61

9-1 Electrical box with earth terminal (2 blocks) KJB212AA

Noise filter

9-2

KEK26-1A

(for electromagnetic interface use only)

10 Schedule timer DST301BA61

11

External control adaptor for outdoor unit

DTA104A61

(Must be installed on indoor units)

NOTES

1 Mounting plate (No.7) is necessary for each adapter marked .
2 Up to 2 adapters can be fixed for each mounting plate.
3 Only one mounting plate can be installed for each indoor unit.

3D060455

•VRV® Systems • Indoor Units

135

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

5 Capacity tables

5 - 1 Cooling capacity tables

FXMQ-P

Unit
size

40 4.5 10.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.4 3.9 5.7 4.0

50 5.6 10.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.7 4.8 7.1 4.3

63 7.1 10.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 8.5 5.8 9.0 6.4

80 9.0 10.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 10.8 7.4 11.4 7.4

capacity

air temp.

°CDB TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC

12.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.4 3.9 5.6 4.0

14.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.4 3.9 5.5 4.0

16.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.4 3.9 5.5 3.9

18.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.3 3.9 5.4 3.9

20.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.2 3.8 5.3 3.9

21.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.2 3.8 5.3 3.8

23.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.1 3.8 5.2 3.8

25.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.0 3.7 5.1 3.8

27.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 5.0 3.7 5.1 3.7

29.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.8 3.8 4.9 3.7 5.0 3.7

31.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.7 3.8 4.8 3.6 4.9 3.6

33.0 3.0 2.9 3.6 3.4 4.2 3.8 4.5 3.8 4.6 3.7 4.7 3.6 4.8 3.6

35.0 3.0 2.9 3.6 3.4 4.2 3.2 4.5 3.8 4.6 3.7 4.7 3.5 4.8 3.6

37.0 3.0 2.9 3.6 3.4 4.2 3.2 4.4 3.8 4.5 3.6 4.6 3.5 4.7 3.5

39.0 3.0 2.9 3.6 3.4 4.2 3.2 4.4 3.7 4.4 3.6 4.5 3.4 4.6 3.5

12.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.7 4.8 7.0 4.3

14.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.7 4.8 6.9 4.2

16.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.7 4.8 6.8 4.1

18.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.6 4.7 6.7 4.1

20.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.5 4.7 6.6 4.0

21.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.4 4.6 6.6 4.0

23.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.4 4.6 6.5 4.0

25.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.3 4.5 6.4 3.9

27.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 6.0 4.6 6.2 4.5 6.3 3.8

29.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 5.9 4.6 6.1 4.4 6.2 3.8

31.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 5.9 4.6 6.0 4.4 6.1 3.7

33.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 5.8 4.5 5.9 4.3 6.0 3.7

35.0 3.8 3.6 4.5 4.1 5.2 4.5 5.6 4.6 5.7 4.5 5.8 4.3 5.9 3.6

37.0 3.8 3.6 4.5 4.1 5.2 4.5 5.5 4.6 5.6 4.4 5.7 4.2 5.8 3.6

39.0 3.8 3.6 4.5 4.1 5.2 4.5 5.4 4.5 5.5 4.4 5.6 4.2 5.8 3.5

12.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 8.5 5.8 8.9 6.3

14.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 8.5 5.8 8.7 6.3

16.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 8.5 5.8 8.6 6.3

18.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 8.3 5.8 8.5 6.2

20.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 8.2 5.7 8.4 6.2

21.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 8.2 5.7 8.3 6.2

23.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 8.1 5.6 8.2 6.1

25.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 7.9 5.6 8.1 6.1

27.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.6 5.6 7.8 5.5 8.0 6.1

29.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.5 5.6 7.7 5.4 7.9 6.0

31.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.4 5.5 7.6 5.4 7.8 6.0

33.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.3 5.5 7.5 5.3 7.6 5.9

35.0 4.8 4.2 5.7 4.9 6.6 5.4 7.1 5.5 7.2 5.4 7.4 5.3 7.5 5.9

37.0 4.8 4.2 5.7 4.9 6.6 5.4 7.0 5.5 7.1 5.4 7.2 5.2 7.4 5.9

39.0 4.8 4.2 5.7 4.9 6.6 5.4 6.9 5.4 7.0 5.3 7.1 5.1 7.3 5.8

12.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 10.8 7.4 11.2 7.4

14.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 10.8 7.4 11.1 7.3

16.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 10.7 7.4 10.9 7.2

18.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 10.6 7.3 10.8 7.2

20.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 10.4 7.2 10.6 7.1

21.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 10.4 7.2 10.6 7.1

23.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 10.2 7.1 10.4 7.0

25.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 10.1 7.0 10.3 6.9

27.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.6 7.1 9.9 7.0 10.1 6.9

29.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.5 7.1 9.8 6.9 10.0 6.8

31.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.4 7.0 9.6 6.8 9.8 6.7

33.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.3 7.0 9.5 6.7 9.7 6.7

35.0 6.1 5.3 7.2 6.1 8.4 6.9 9.0 7.0 9.1 6.9 9.3 6.6 9.5 6.6

37.0 6.1 5.3 7.2 6.1 8.4 6.9 8.9 6.9 9.0 6.8 9.2 6.6 9.4 6.5

39.0 6.1 5.3 7.2 6.1 8.4 6.9 8.7 6.8 8.8 6.7 9.0 6.5 9.3 6.5

14.0WB 16.0WB 18.0WB 19.0WB 20.0WB 22.0WB 24.0WB

20.0DB 23.0DB 26.0DB 27.0DB 28.0DB 30.0DB 32.0DB

Outdoor

Nominal

Indoor air temperature

TC: Total capacity;kW – SHC: Sensible capacity;kW

CA08A050

136

•VRV® Systems • Indoor Units

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

5 Capacity tables

5 - 1 Cooling capacity tables

FXMQ-P

Unit
size

100 11.2 10.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 13.4 9.0 14.2 8.9

125 14.0

capacity

air temp.

°CDB TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC

12.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 13.4 9.0 14.0 8.9

14.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 13.4 9.0 13.8 8.8

16.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 13.3 9.0 13.6 8.7

18.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 13.2 8.9 13.4 8.6

20.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 13.0 8.8 13.2 8.5

21.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 12.9 8.8 13.2 8.5

23.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 12.7 8.7 13.0 8.4

25.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 12.5 8.6 12.8 8.3

27.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.7 12.3 8.5 12.6 8.2

29.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.9 8.6 12.2 8.4 12.4 8.1

31.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.7 8.5 12.0 8.3 12.2 8.0

33.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.5 8.5 11.8 8.2 12.1 7.9

35.0 7.6 6.4 9.0 7.3 10.5 8.3 11.2 8.5 11.3 8.4 11.6 8.1 11.9 7.8

37.0 7.6 6.4 9.0 7.3 10.5 8.3 11.0 8.4 11.2 8.3 11.4 8.0 11.7 7.7

39.0 7.6 6.4 9.0 7.3 10.5 8.3 10.8 8.3 11.0 8.2 11.2 7.9 11.5 7.6

10.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 16.7 11.1 17.7 11.1

12.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 16.7 11.1 17.5 11.0

14.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 16.7 11.1 17.2 10.9

16.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 16.7 11.1 17.0 10.8

18.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 16.4 11.0 16.8 10.7

20.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 16.2 10.9 16.6 10.6

21.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 16.1 10.9 16.4 10.5

23.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 15.9 10.8 16.2 10.4

25.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 15.6 10.6 16.0 10.3

27.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.8 15.4 10.5 15.8 10.2

29.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.9 10.7 15.2 10.4 15.5 10.1

31.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.6 10.6 15.0 10.3 15.3 10.0

33.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.4 10.5 14.7 10.2 15.1 9.8

35.0 9.4 8.0 11.3 9.2 13.1 10.3 14.0 10.5 14.2 10.4 14.5 10.1 14.9 9.7

37.0 9.4 8.0 11.3 9.2 13.1 10.3 13.8 10.4 13.9 10.3 14.3 10.0 14.6 9.6

39.0 9.4 8.0 11.3 9.2 13.1 10.3 13.5 10.3 13.7 10.2 14.1 9.9 14.4 9.5

14.0WB 16.0WB 18.0WB 19.0WB 20.0WB 22.0WB 24.0WB

20.0DB 23.0DB 26.0DB 27.0DB 28.0DB 30.0DB 32.0DB

Outdoor

Nominal

Indoor air temperature

TC: Total capacity;kW – SHC: Sensible capacity;kW

CA08A050

•VRV® Systems • Indoor Units

137

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

5 Capacity tables

5 - 2 Heating capacity tables

FXMQ-P

Unit size

40 5.0

50 6.3

63 8.0

80 10.0

Nominal
capacity

TC: Total capacity;kW – SHC: Sensible capacity;kW

Outdoor air temp.

°CDB °CWBKWKWKWKWKWKW

-19.8 -20.0 3.0 2.9 2.9 2.9 2.9 2.9

-18.8 -19.0 3.0 3.0 3.0 3.0 3.0 3.0

-16.7 -17.0 3.2 3.2 3.2 3.2 3.2 3.2

-14.7 -15.0 3.4 3.4 3.4 3.4 3.4 3.4

-12.6 -13.0 3.6 3.6 3.6 3.5 3.5 3.5

-10.5 -11.0 3.7 3.7 3.7 3.7 3.7 3.7

-9.5 -10.0 3.8 3.8 3.8 3.8 3.8 3.8

-8.5 -9.1 3.9 3.9 3.9 3.9 3.9 3.9

-7.0 -7.6 4.0 4.0 4.0 4.0 4.0 4.0

-5.0 -5.6 4.2 4.2 4.2 4.2 4.2 4.2

-3.0 -3.7 4.4 4.4 4.4 4.4 4.4 4.4

0.0 -0.7 4.7 4.6 4.6 4.6 4.6 4.4

3.0 2.2 4.9 4.9 4.9 4.8 4.7 4.4

5.0 4.1 5.1 5.1 5.0 4.8 4.7 4.4

7.0 6.0 5.2 5.2 5.0 4.8 4.7 4.4

9.0 7.9 5.4 5.3 5.0 4.8 4.7 4.4

11. 0 9.8 5.6 5.3 5.0 4.8 4.7 4.4

13.0 11 .8 5.6 5.3 5.0 4.8 4.7 4.4

15.0 13.7 5.6 5.3 5.0 4.8 4.7 4.4

-19.8 -20.0 3.7 3.7 3.7 3.7 3.7 3.7

-18.8 -19.0 3.8 3.8 3.8 3.8 3.8 3.8

-16.7 -17.0 4.1 4.0 4.0 4.0 4.0 4.0

-14.7 -15.0 4.3 4.3 4.3 4.2 4.2 4.2

-12.6 -13.0 4.5 4.5 4.5 4.5 4.5 4.5

-10.5 -11.0 4.7 4.7 4.7 4.7 4.7 4.7

-9.5 -10.0 4.8 4.8 4.8 4.8 4.8 4.8

-8.5 -9.1 4.9 4.9 4.9 4.9 4.9 4.9

-7.0 -7.6 5.1 5.1 5.1 5.1 5.1 5.1

-5.0 -5.6 5.3 5.3 5.3 5.3 5.3 5.3

-3.0 -3.7 5.5 5.5 5.5 5.5 5.5 5.5

0.0 -0.7 5.9 5.9 5.8 5.8 5.8 5.5

3.0 2.2 6.2 6.2 6.2 6.1 5.9 5.5

5.0 4.1 6.4 6.4 6.3 6.1 5.9 5.5

7.0 6.0 6.6 6.6 6.3 6.1 5.9 5.5

9.0 7.9 6.8 6.7 6.3 6.1 5.9 5.5

11. 0 9.8 7.0 6.7 6.3 6.1 5.9 5.5

13.0 11 .8 7.1 6.7 6.3 6.1 5.9 5.5

15.0 13.7 7.1 6.7 6.3 6.1 5.9 5.5

-19.8 -20.0 4.7 4.7 4.7 4.7 4.7 4.7

-18.8 -19.0 4.9 4.9 4.8 4.8 4.8 4.8

-16.7 -17.0 5.1 5.1 5.1 5.1 5.1 5.1

-14.7 -15.0 5.4 5.4 5.4 5.4 5.4 5.4

-12.6 -13.0 5.7 5.7 5.7 5.7 5.7 5.7

-10.5 -11.0 6.0 6.0 6.0 6.0 6.0 5.9

-9.5 -10.0 6.1 6.1 6.1 6.1 6.1 6.1

-8.5 -9.1 6.3 6.3 6.2 6.2 6.2 6.2

-7.0 -7.6 6.5 6.5 6.4 6.4 6.4 6.4

-5.0 -5.6 6.8 6.7 6.7 6.7 6.7 6.7

-3.0 -3.7 7.0 7.0 7.0 7.0 7.0 7.0

0.0 -0.7 7.5 7.4 7.4 7.4 7.4 7.0

3.0 2.2 7.9 7.8 7.8 7.7 7.5 7.0

5.0 4.1 8.1 8.1 8.0 7.7 7.5 7.0

7.0 6.0 8.4 8.4 8.0 7.7 7.5 7.0

9.0 7.9 8.7 8.5 8.0 7.7 7.5 7.0

11. 0 9.8 8.9 8.5 8.0 7.7 7.5 7.0

13.0 11 .8 9.0 8.5 8.0 7.7 7.5 7.0

15.0 13.7 9.0 8.5 8.0 7.7 7.5 7.0

-19.8 -20.0 5.9 5.9 5.9 5.9 5.9 5.8

-18.8 -19.0 6.1 6.1 6.0 6.0 6.0 6.0

-16.7 -17.0 6.4 6.4 6.4 6.4 6.4 6.4

-14.7 -15.0 6.8 6.8 6.8 6.7 6.7 6.7

-12.6 -13.0 7.1 7.1 7.1 7.1 7.1 7.1

-10.5 -11.0 7.5 7.5 7.5 7.5 7.4 7.4

-9.5 -10.0 7.7 7.7 7.6 7.6 7.6 7.6

-8.5 -9.1 7.8 7.8 7.8 7.8 7.8 7.8

-7.0 -7.6 8.1 8.1 8.1 8.1 8.0 8.0

-5.0 -5.6 8.4 8.4 8.4 8.4 8.4 8.4

-3.0 -3.7 8.8 8.8 8.7 8.7 8.7 8.7

0.0 -0.7 9.3 9.3 9.3 9.3 9.3 8.7

3.0 2.2 9.8 9.8 9.8 9.7 9.4 8.7

5.0 4.1 10.2 10.1 10.0 9.7 9.4 8.7

7.0 6.0 10.5 10.5 10.0 9.7 9.4 8.7

9.0 7.9 10.8 10.6 10.0 9.7 9.4 8.7

11. 0 9.8 11 .2 10.6 10.0 9.7 9.4 8.7

13.0 11 .8 11. 3 10.6 10.0 9.7 9.4 8.7

15.0 13.7 11 .3 10.6 10.0 9.7 9.4 8.7

16.0 18.0 20.0 21.0 22.0

Indoor air temperature

24.0

CA08A056

138

•VRV® Systems • Indoor Units

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

5 Capacity tables

5 - 2 Heating capacity tables

FXMQ-P

TC: Total capacity;kW – SHC: Sensible capacity;kW

Unit size

100 12.5 -19.8 -20.0 7.4 7.4 7.3 7.3 7.3 7.3

125 16.0 -19.8 -20.0 9.4 9.4 9.4 9.4 9.4 9.3

Nominal
capacity

Outdoor air temp.

°CDB °CWBKWKWKWKWKWKW

-18.8 -19.0 7.6 7.6 7.6 7.5 7.5 7.5

-16.7 -17.0 8.0 8.0 8.0 8.0 8.0 8.0

-14.7 -15.0 8.5 8.5 8.4 8.4 8.4 8.4

-12.6 -13.0 8.9 8.9 8.9 8.9 8.9 8.8

-10.5 -11.0 9.4 9.3 9.3 9.3 9.3 9.3

-9.5 -10.0 9.6 9.6 9.5 9.5 9.5 9.5

-8.5 -9.1 9.8 9.8 9.7 9.7 9.7 9.7

-7.0 -7.6 10.1 10.1 10.1 10.1 10.1 10.0

-5.0 -5.6 10.6 10.5 10.5 10.5 10.5 10.5

-3.0 -3.7 11.0 11.0 10.9 10.9 10.9 10.9

0.0 -0.7 11.6 11.6 11.6 11.6 11.6 10.9

3.0 2.2 12.3 12.3 12.2 12.1 11.7 10.9

5.0 4.1 12.7 12.7 12.5 12.1 11.7 10.9

7.0 6.0 13.1 13.1

9.0 7.9 13.5 13.3 12.5 12.1 11.7 10.9

11.0 9.8 14.0 13.3 12.5 12.1 11.7 10.9

13.0 11.8 14.1 13.3 12.5 12.1 11.7 10.9

15.0 13.7 14.1 13.3 12.5 12.1 11.7 10.9

-18.8 -19.0 9.7 9.7 9.7 9.7 9.6 9.6

-16.7 -17.0 10.3 10.3 10.2 10.2 10.2 10.2

-14.7 -15.0 10.9 10.8 10.8 10.8 10.8 10.7

-12.6 -13.0 11.4 11.4 11.4 11.4 11.3 11.3

-10.5 -11.0 12.0 12.0 11.9 11.9 11.9 11.9

-9.5 -10.0 12.3 12.2 12.2 12.2 12.2 12.2

-8.5 -9.1 12.5 12.5 12.5 12.5 12.4 12.4

-7.0 -7.6 13.0 12.9 12.9 12.9 12.9 12.8

-5.0 -5.6 13.5 13.5 13.5 13.4 13.4 13.4

-3.0 -3.7 14.1 14.0 14.0 14.0 14.0 13.9

0.0 -0.7 14.9 14.9 14.8 14.8 14.8 13.9

3.0 2.2 15.7 15.7 15.7 15.5 15.0 13.9

5.0 4.1 16.3 16.2 16.0 15.5 15.0 13.9

7.0 6.0 16.8 16.8

9.0 7.9 17.3 17.0 16.0 15.5 15.0 13.9

11.0 9.8 17.9 17.0 16.0 15.5 15.0 13.9

13.0 11.8 18.1 17.0 16.0 15.5 15.0 13.9

15.0 13.7 18.1 17.0 16.0 15.5 15.0 13.9

16.0 18.0 20.0 21.0 22.0

Indoor air temperature

24.0

12.5 12.1 11.7 10.9

16.0 15.5 15.0 13.9

CA08A056

•VRV® Systems • Indoor Units

139

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

6 Dimensional drawing & centre of gravity

6 - 1 Dimensional drawing

FXMQ40P

NOTES

Air Outlet

20-ø 4.7 hole

(All around)

(Suspention bolt position)

1 Location of MANUFACTURE’S LABEL: Control box

surface

2 Mount the air filter at the su ction side.

(Select its colorimethod (gravity method) 50% or more)

3 Do not locate things should not be wet under the indoor

unit.
Dews may droop when humidity reaches over 80%, or a
drain gets stuck, or air filters are not clean.

12 - 8x12 oblong hole

Air Inlet

(All around)

4 Space for Service Works

According to any one of below 1) - 3), secure a space for service works, such
as, checking and maintenance of control box and drain pumps, etc.

1) One inspection hatch (450x450) on the control box side and a space of 300mm or
more under the unit. (Fig.A)

2) One inspection hatch (450x450) on the control box side and 2 (two) inspection
hatches under the unit (Arrow view B-1)

3) 3 (three) inspection hatches under the unit and the control box. (Arrow view B-2)

Control box

<Inspection hatch>
(Ceiling opening)

Control box

Inspection hatch 450 or more

Adjustable

700 or more

(467 or less)

Air outlet

FXMQ50,63,80P

30-ø 4.7 hole

(All around)

450 or more

(service space)

Ceiling

(Suspention bolt position)

700 or more

(service space)

or less

26-ø 4.7 hole

(All around)

Air Inlet
(Note 2)

300 or more

(Note 4)

Floor surface

ceiling)

(A case without the

36-ø 4.7 hole

(All around)

View

(From the Air Outlet)

300 or less

14 - 8x12 oblong hole

(All around)

(From the air inlet)

NOTES

1 Location of MANUFACTURE’S LABEL: Control box

surface

2 Mount the air filter at the suction side.

(Select its colorimethod (gravity method) 50% or
more)

3 Do not locate things should not be wet under the

indoor unit.
Dews may droop when humidity reaches over 80%,
or a drain gets stuck, or air filters are not clean.

Inspection hatch

Ceiling

Inspection hatch (°450)

Control box

Air
outlet

Fig. A

12 Drain hose (accessory) O.D. ø 32 (outlet)
11 Socket (for maintenance)
10 Hook For M10

9 Air suction flange
8 Air discharge flange
7 Power supply connection
6 Interunit wiring connection
5 Control box (inside)
4 Ground terminal (in control box) M4
3 Drain pipe connection
2 Gas pipe connection ø 12.7 flale connection
1 Liquid pipe connection ø 6.4 flale connection

ITEM

4 Space for Service Works

According to any one of below 1) - 3), secure a space for service works, such
as, checking and maintenance of control box and drain pumps, etc.

1) One inspection hatch (450x450) on the control box side and a space of

2) One inspection hatch (450x450) on the control box side and 2 (two)

3)

Ceiling

Inspection hatch

Inspection hatch (450mmx450mm)

Control box

Inspection hatch 3

Control box

or lessor more

Air
inlet

or more

Inspection hatch 2

View B-1

or more

View B-2

VP25 (O.D. ø 32 /I.D. ø 25)

VP25 (O.D. ø 32 /I.D. ø 25)

PART NAME REMARK

3D060160

300mm or more under the unit. (Fig.A)

inspection hatches under the unit (Arrow view B-1)
3 (three) inspection hatches under the unit and the control box. (Arrow view B-2)

140

Air Outlet

Inspection hatch 450 or more

Air outlet

Adjustable

700 or Less

(467 or more)

<Inspection hatch>
(Ceiling opening)

Inspection hatch (450mmx450mm)

Air
inlet

or more

View B-1

Control box

Inspection hatch

Control box

Inspection hatch 3

Control box

or lessor more

Inspection hatch 2

View B-2

Ceiling

or more

VP25 (O.D. ø 32 /I.D. ø 25)

VP25 (O.D. ø 32 /I.D. ø 25)

Inspection hatch

Air
outlet

Control box

Ceiling

Inspection hatch (°450)

Control box

Fig. A

12 Drain hose (accessory) O.D. ø 32 (outlet)
11 Socket (for maintenance)
10 Hook For M10

9 Air suction flange
8 Air discharge flange
7 Power supply connection
6 Interunit wiring connection
5 Control box (inside)
4 Ground terminal (in control box) M4
3 Drain pipe connection
2 Gas pipe connection ø 15.9 flale connection
1 Liquid pipe connection ø 9.5 flale connection

ITEM

PART NAME REMARK

Air Inlet

16 - 8x12 oblong hole
(All around)

or less

450 or more

(service space)

700 or more

(service space)

Ceiling

Air Inlet
(Note 2)

300 or more

(Note 4)

Floor surface

2500 or more

300 or less

ceiling)

(A case without the

View

(From the Air Outlet)

18 - 8x12 oblong hole

(From the air inlet)

(All around)

3D060161

•VRV® Systems • Indoor Units

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

6 Dimensional drawing & centre of gravity

6 - 1 Dimensional drawing

FXMQ100,125P

NOTES

40-ø 4.7 hole

(All around)

(Suspention bolt position)

48-ø 4.7 hole

(All around)

1 Location of MANUFACTURE’S LABEL:

Control box surface

2 Mount the air filter at the suction side.

(Select its colorimethod (gravity method) 50% or
more)

3 Do not locate things should not be wet under the

indoor unit.
Dews may droop when humidity reaches over 80%,
or a drain gets stuck, or air filters are not clean.

4 Space for Service Works

Control box

According to any one of below 1) - 3), secure a space for service works, such
as, checking and maintenance of control box and drain pumps, etc.

1) One inspection hatch (450x450) on the control box side and a space of
300mm or more under the unit. (Fig.A)

2) One inspection hatch (450x450) on the control box side and 2 (two)
inspection hatches under the unit (Arrow view B-1)
3 (three) inspection hatches under the unit and th e control box. (Arrow view B-2)

3)

<Inspection hatch>
(Ceiling opening)

Control box

Air Outlet

450 or more

(service space)

700 or more

Inspection hatch 450 or more

Air outlet

Adjustable

700 or Less

(467 or more)

FXMQ100,125P

FXMQ-P

40-ø 4.7 hole

(All around)

(service space)

Ceiling

(Suspention bolt position)

• REMOTE CONTROL DIMENSIONS

Air Outlet

450 or more

(service space)

• INSTALLATION METHO D

700 or more

EXPOSED BODY, EXPOSED CORD

Inspection hatch 450 or more

Remote control

Air outlet

Adjustable

700 or Less

(467 or more)

(service space)

Ceiling

Staple

Air Inlet

or less

Air Inlet
(Note 2)

300 or more

(Note 4)

2500 or more

Floor surface

Air Inlet

or less

Remote control

Air Inlet
(Note 2)

300 or more

(Note 4)

2500 or more

Floor surface

300 or less

ceiling)

(A case without the

48-ø 4.7 hole

(All around)

EXPOSED BODY, EMBEDDED CORD

300 or less

(Between

remote control

and control box)

ceiling)

(A case without the

Control box

Inspection hatch

20 - 8x12 oblong hole
(All around)

View

(From the Air Outlet)

(From the air inlet)

20 - 8x12 oblong hole

(All around)

NOTES

1 Location of MANUFACTURE’S LABEL:

Control box surface

2 Mount the air filter at the suction side.

(Select its colorimethod (gravity method) 50% or
more)

3 Do not locate things should not be wet under the

indoor unit.
Dews may droop when humidity reaches over 80%,
or a drain gets stuck, or air filters are not clean.

1 Remote control cord and staple are not attached. They are field

• Specifications of cord

Type

Size
Total

length

Inspection hatch

20 - 8x12 oblong hole
(All around)

Cord oulet hole

View

Conduit

(From the Air Outlet)

Remote control

(From the air inlet)

EXPOSED BODY, EMBEDDED CODE

20 - 8x12 oblong hole

(All around)

Ceiling

Inspection hatch (°450)

Control box

Air
outlet

Fig. A

12 Drain hose (accessory) O.D. ø 32 (outlet)
11 Socket (for maintenance)
10 Hook For M10

9 Air suction flange
8 Air discharge flange
7 Power supply connection
6 Interunit wiring connection
5 Control box (inside)
4 Ground terminal (in control box) M4
3 Drain pipe connection
2 Gas pipe connection ø 15.9 flale connection
1 Liquid pipe connection ø 9.5 flale connection

ITEM

PART NAME REMARK

4 Space for Service Works

NOTE

According to any one of below 1) - 3), secure a space for service works, such
as, checking and maintenance of control box and drain pumps, etc.

1) One inspection hatch (450x450) on the control box side and a space of

supplied parts.

300mm or more under the unit. (Fig.A)

2) One inspection hatch (450x450) on the control box side and 2 (two)
inspection hatches under the unit (Arrow view B-1)
3 (three) inspection hatches under the unit and th e control box. (Arrow view B-2)

3)

Inspection hatch (450mmx450mm)

Air
inlet

or more

View B-1

Inspection hatch

Control box

Inspection hatch 3

Control box

or lessor more

Inspection hatch 2

View B-2

Ceiling

or more

For Australia For other countries

Shield wire
(insulated thickness: 1mm or more)

Control box

<Inspection hatch>
(Ceiling opening)

Vinyl cord with sheath or cable
(insulated thickness: 1mm or more)

Control box

0.75~1.25mm²

500m

Ceiling

Inspection hatch (°450)

Control box

Air
outlet

Fig. A

12 Drain hose (accessory) O.D. ø 32 (outlet)
11 Socket (for maintenance)
10 Hook For M10

9 Air suction flange
8 Air discharge flange
7 Power supply connection
6 Interunit wiring connection

Through hole

5 Control box (inside)
4 Ground terminal (in control box) M4
3 Drain pipe connection
2 Gas pipe connection ø 15.9 flale connection
1 Liquid pipe connection ø 9.5 flale connection

ITEM

PART NAME REMARK

Inspection hatch (450mmx450mm)

Air
inlet

or more

View B-1

Inspection hatch

Control box

Inspection hatch 3

Control box

or lessor more

Inspection hatch 2

View B-2

Ceiling

or more

VP25 (O.D. ø 32 /I.D. ø 25)

VP25 (O.D. ø 32 /I.D. ø 25)

3D060162

VP25 (O.D. ø 32 /I.D. ø 25)

VP25 (O.D. ø 32 /I.D. ø 25)

3D028952

3D060162

•VRV® Systems • Indoor Units

141

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

6 Dimensional drawing & centre of gravity

6 - 1 Dimensional drawing

FXMQ100,125P

FXMQ-P

• REMOTE CONTROL DIMENSIONS

40-ø 4.7 hole

(All around)

(Suspention bolt position)

Transmitting part

48-ø 4.7 hole

(All around)

NOTES

1 Location of MANUFACTURE’S LABEL:

Control box surface

2 Mount the air filter at the suction side.

(Select its colorimethod (gravity method) 50% or
more)

3 Do not locate things should not be wet under the

indoor unit.
Dews may droop when humidity reaches over 80%,
or a drain gets stuck, or air filters are not clean.

• RECEIVER DETAIL

4 Space for Service Works

Control box

According to any one of below 1) - 3), secure a space for service works, such
as, checking and maintenance of control box and drain pumps, etc.

1) One inspection hatch (450x450) on the control box side and a space of
300mm or more under the unit. (Fig.A)

2) One inspection hatch (450x450) on the control box side and 2 (two)
inspection hatches under the unit (Arrow view B-1)
3 (three) inspection hatches under the unit and th e control box. (Arrow view B-2)

3)

<Inspection hatch>
(Ceiling opening)

Control box

Air Outlet

450 or more

• REMOTE CONTROL HOLDER

(service space)

INSTALLATION PROCEDURE
(INSTALLATION TO WALL SURFACE)

Liquid crystal remote

Adjustable

(467 or more)

control (wireless)

Air outlet

Remote control holder

Inspection hatch 450 or more

700 or Less

(service space)

Ceiling

700 or more

Air Inlet

20 - 8x12 oblong hole
(All around)

or less

79

• Service space for ceiling installation

Air Inlet
(Note 2)

300 or more

(Note 4)

Floor surface

300 or less

NOTE

ceiling)

2500 or more

(A case without the

1 Do not install more than 3 receivers in the vicinity of one another.

With 4 or more units, there is always the possibility of malfunction.

View

(From the Air Outlet)

(From the air inlet)

20 - 8x12 oblong hole

(All around)

more than 90

(Service space)

Inspection hatch

Air
outlet

Ceiling

Inspection hatch (°450)

Control box

Inspection hatch (450mmx450mm)

2 - 5x9 Slot

Air
inlet

Fig. A

12 Drain hose (accessory) O.D. ø 32 (outlet)
11 Socket (for maintenance)
10 Hook For M10

9 Air suction flange
8 Air discharge flange
7 Power supply connection
6 Interunit wiring connection
5 Control box (inside)
4 Ground terminal (in control box) M4
3 Drain pipe connection
2 Gas pipe connection ø 15.9 flale connection
1 Liquid pipe connection ø 9.5 flale connection

ITEM

or more

View B-1

PART NAME REMARK

Inspection hatch

Control box

Inspection hatch 3

Control box

or lessor more

Inspection hatch 2

View B-2

(Ceiling opening)

Ceiling

or more

VP25 (O.D. ø 32 /I.D. ø 25)

VP25 (O.D. ø 32 /I.D. ø 25)

Switch box

(Field supplied parts)

(Ceiling opening)

3D007898B

3D060162

142

•VRV® Systems • Indoor Units

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

6 Dimensional drawing & centre of gravity

6 - 2 Centre of gravity

FXMQ-P

FXMQ40P

FXMQ50•63•80P

FXMQ100•125P

MODEL NAME

•VRV® Systems • Indoor Units

4D060438

143

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

7 Piping diagram

FXMQ-P

Filter

Electronic expansion valve

Heat exchanger

Gas pipe connection port

Fan

Liquid pipe connection port

Filter

4D034245C

144

•VRV® Systems • Indoor Units

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

8 Wiring diagram

8 - 1 Wiring diagram

FXMQ-P

WIRING DIAGRAM

Power
supply

For FXMQ50PVE • 63PVE • 80PVE • 10 0PVE • 125PVE

To X70A(A1P)

To X1M

For FXMQ20PVE • 25PVE •320PVE • 40PVE

Input from outside
Note 2.

Transmission wiring
central remote
control
Note 1.

Wired remote control

(optional accessory)

EL. COMPO. BOX (INDOOR)

❈

Only FXMQ50PVE • 63PVE • 80PVE • 100PVE • 125PVE

A1P Printed circuit board R1 Resistor (current limiting) X28A Connector (power supply for wiring)
A2P Printed circuit board (Fan) R2 Current sensing device X33A Connector (for wiring)
A3P Printed circuit board (Capacitor) R3, R4 Resistor (electric discharge) X35A Connector (adapter)

C1,C2,C3 Capacitor R1T Thermistor (suction air)

F1U Fuse (T, 3,15A, 250V) R2T Thermistor (liquid) Wired remote control
F2U Fuse (T, 5A, 250V) R3T Thermistor (gas) R1T Thermistor (air)
F3U Fuse (T, 6,3A, 250V) R4T Thermistor (discharge air) SS1 Selector switch (main/sub)
F4U Fuse (T, 6,3A, 250V) S1L Float switch
HAP

Light emitting diode (service monitor-green) (A1P, A2P)
KPR Magnetic relay V2R Power module
K1R Magnetic relay X1M Terminal strip (power supply)
L1R Reactor X2M Terminal strip (control)
M1F Motor (fan) Y1E Electronic expansion valve
M1P Motor (drain pump) Z1C,Z2C Noise filter (ferrite core)

PS Switching power supply (A1P, A2P) Z1F Noise filter

Indoor unit Connector optional accessory

V1R Diode bridge

: Terminal Colors: RED: Red BRN: Brown ORG: Orange

: Connector BLK: Black GRY: Gray GRN: Green

: Field wiring WHT: White BLU: Blue

YLW: Yellow PNK: Pink

NOTES

1 In case of using central remote control, connect it to the unit in accordance with the attached installation manual.
2 When connecting the input wires from outside, forced off or on/off control operation can be selected by remote control.

In details, refer to the installation manual attached the unit.

3D058783

•VRV® Systems • Indoor Units

145

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

9 Sound data

9 - 1 Sound pressure spectrum

FXMQ40P

Octave band sound pressure level dB(0dB=0.0002μ bar)

Approximate
threshold hearing
for continuous
noise

Octave band center frequency (Hz)

NOTES

1 Over All (dB) :

(B, G, N is already rectified)

2 Operating conditons:

• Power source: 220-240V 50Hz / 220V 60Hz

• Cooling - Return air temperature: 27°C DB, 19°C WB

• Heating - Return air temperature: 20°C DB, 15°C WB

• External static Pressure: 100Pa

3 Measuring place: Anechoic cham ber

4 Location of microphone

Outdoor temperature: 35°C DB, 24°C WB

Outdoor temperature: 7°C DB, 6°C WB

Discharge Suction

Scale

Air flow rate

HH H L
A 39.0 37.0 35.0
C 45.0 42.0 41.0

1m2m

DuctDuct

4D060446

FXMQ50P

Octave band sound pressure level dB(0dB=0.0002μ bar)

Approximate
threshold hearing
for continuous
noise

Octave band center frequency (Hz)

NOTES

1 Over All (dB) :

(B, G, N is already rectified)

2 Operating conditons:

• Power source: 220-240V 50Hz / 220V 60Hz

• Cooling - Return air temperature: 27°C DB, 19°C WB

• Heating - Return air temperature: 20°C DB, 15°C WB

• External static Pressure: 100Pa

3 Measuring place: Anechoic cham ber

4 Location of microphone

Outdoor temperature: 35°C DB, 24°C WB

Outdoor temperature: 7°C DB, 6°C WB

Discharge Suction

Scale

Air flow rate

HH H L
A 41.0 39.0 37.0
C 46.0 44.0 42.0

1m2m

DuctDuct

4D060428

1,5m

5 Operation noise differs with operation and ambient options

FXMQ63P

Octave band sound pressure level dB(0dB=0.0002μ bar)

Approximate
threshold hearing
for continuous
noise

Octave band center frequency (Hz)

NOTES

1 Over All (dB) :

(B, G, N is already rectified)

2 Operating conditons:

• Power source: 220-240V 50Hz / 220V 60Hz

• Cooling: Return air temperature: 27°C DB, 19°C WB

• Heating: Return air temperature: 20°C DB, 15°C WB

• External static Pressure: 100Pa

3 Measuring place: Anechoic cham ber

4 Location of microphone

Outdoor temperature: 35°C DB, 24°C WB

Outdoor temperature: 7°C DB, 6°C WB

Discharge Suction

Scale

HH H L
A 42.0 40.0 38.0
C 48.0 46.0 44.0

Microphone

Air flow rate

1,5m

Microphone

5 Operation noise differs with operation and ambient conditions.

FXMQ80P

Octave band sound pressure level dB(0dB=0.0002μ bar)

Approximate
threshold hearing
for continuous
noise

4D060447

NOTES

1 Over All (dB) :

(B, G, N is already rectified)

2 Operating conditons:

• Power source: 220-240V 50Hz / 220V 60Hz

• Cooling: Return air temperature: 27°C DB, 19°C WB

• Heating: Return air temperature: 20°C DB, 15°C WB

• External static Pressure: 100Pa

3 Measuring place: Anechoic cham ber

1m2m

DuctDuct

4 Location of microphone

Outdoor temperature: 35°C DB, 24°C WB

Outdoor temperature: 7°C DB, 6°C WB

Octave band center frequency (Hz)

Scale

A 43.0 41.0 39.0
C 49.0 47.0 45.0

Discharge Suction

Air flow rate

HH H L

1m2m

DuctDuct

4D060429

146

1,5m

Microphone

5 Operation noise differs with operation and ambient conditions.

•VRV® Systems • Indoor Units

1,5m

Microphone

5 Operation noise differs with operation and ambient conditions.

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

9 Sound data

9 - 1 Sound pressure spectrum

FXMQ100P

Octave band sound pressure level dB(0dB=0.0002μ bar)

Approximate
threshold hearing
for continuous
noise

Octave band center frequency (Hz)

NOTES

1 Over All (dB) :

(B, G, N is already rectified)

2 Operating conditons:

• Power source: 220-240V 50Hz / 220V 60Hz

• Cooling: Return air temperature: 27°C DB, 19°C WB

• Heating: Return air temperature: 20°C DB, 15°C WB

• External static Pressure: 100Pa

3 Measuring place: Anechoic cham ber

4 Location of microphone

Outdoor temperature: 35°C DB, 24°C WB

Outdoor temperature: 7°C DB, 6°C WB

Discharge Suction

Scale

Air flow rate

HH H L
A 43.0 41.0 39.0
C 49.0 46.0 44.0

1m2m

DuctDuct

4D060448

FXMQ125P

Octave band sound pressure level dB(0dB=0.0002μ bar)

Approximate
threshold hearing
for continuous
noise

Octave band center frequency (Hz)

NOTES

1 Over All (dB) :

(B, G, N is already rectified)

2 Operating conditons:

• Power source: 220-240V 50Hz / 220V 60Hz

• Cooling: Return air temperature: 27°C DB, 19°C WB

• Heating: Return air temperature: 20°C DB, 15°C WB

• External static Pressure: 100Pa

3 Measuring place: Anechoic cham ber

4 Location of microphone

Outdoor temperature: 35°C DB, 24°C WB

Outdoor temperature: 7°C DB, 6°C WB

Discharge Suction

Scale

Air flow rate

HH H L
A 44.0 42.0 40.0
C 50.0 48.0 45.0

1m2m

DuctDuct

4D060449

1,5m

Microphone

5 Operation noise differs with operation and ambient conditions.

1,5m

Microphone

5 Operation noise differs with operation and ambient conditions.

•VRV® Systems • Indoor Units

147

• Indoor Units • CONCEALED CEILING UNIT • FXMQ-PVE

10 Fan characteristics

FXMQ40P

Fan characteristics

(mmH2O) (Pa) (mmH2O) (mmH2O) (Pa) (mmH2O)

)
6
e

t
o
N

(
P
S
E

f
o
t

i

)

(mmH2O)

m

P

i

l

S

r

E

e

p

x

p

a

U

m

(

E
f
o

t

i

P

m

i

S

l

E

r
e

g

p

n

i

p

t
a

U

r

(

L(rating ESP)

External static pressure

P

S

E

f

o
t

i

m

i

l

)

r

P

e

S

p

p

E

U

L (min ESP)

n

i

m

(

o

t

i

m

i

l

r

e

w

o

L

)

P

S

E

n

i

m

(

Air flow (m3/min)

HH
(max ESP)

P

S

of E

t

)

mi

i

P

l

S

er

E

Low

max

P

(

S

)

HH

P

S

(rating ESP)

E
f

o

t

i

)

m

i

P

l

H

S

r

e

E

(max ESP)

w

g

o

n

i

L

t

a

r

(

H

H (min ESP)

(rating ESP)
L

(max ESP)

P

S

E

f

HH
(min ESP)

(mmH

O) (mmH2O) (mmH2O)

2

(For local setting of remote control)

Range of available air flow rate in ªHH¼

External static pressure

Fan characteristics

max ESP

rating EPS

min EPS

Air flow (m3/min)

FXMQ63P

Fan characteristics

(mmH2O) (Pa) (mmH2O) (mmH2O) (Pa) (mmH2O)

)
6
e

t

(mmH2O)

o
N

(

P
S
E

f
o
t

i

)

m

P

i

l

S

r

E

e
p

x

p

a

U

m

(

P

fES

to

External static pressure

imi

l

SP)

per

ng E

i

Up

(rat

P

S

E

f

o

t

i
m

i

l

r

)

e

P

p

S

p

E

U

n

i

m

(

Air flow (m3/min)

HH
(max ESP)

P

S
E
f

o
t

i

)

m

i

l

P

H

r

S

e

E

(max ESP)

w

x

o

a

L

m

(

L
(max ESP)

HH
(rating ESP)

P

S

f E

t o

mi

i

)

l

P

r

e

S

ow

L

ng E

ati

r

(

H
(rating ESP)

L

P

S

(rating ESP)

E

f

to

i

m

i

l

er

HH

)

Low

P

S

(min ESP)

E

n

i

m

(

H
(min ESP)

L
(min ESP)

(mmH

O) (mmH2O) (mmH2O)

2

Fan characteristics

(For local setting of remote control)

Range of available air flow rate in ªHH¼

External static pressure

Air flow (m3/min)

max ESP

rating EPS

min EPS

(note7)

FXMQ100P

Fan characteristics

(mmH2O) (Pa) (mmH2O) (mmH2O) (Pa) (mmH2O)

)

6
e

t

o
N

(
P
S

HH

E

P

(max ESP)

f

S

o

E

t

f

i

)

o

m

t

P

i

i

l

)

S

m

r

i

l

P

E

e

r

S

p

x

E

p

a

we

x

U

o

m

a

(

L

m

(

H
(max ESP)

P

S

HH

t of E

(rating ESP)

i

m

i

)

l

P

r

e

S

E

ow

g

L

n

ati

L

r

(

(max ESP)

H
(rating ESP)

H (min ESP)

HH

P

S

E

(min ESP)

tof

i

m

i

l

er

)

P

S

E

n

O) (mmH2O) (mmH2O)

(mmH

2

(mmH2O)

External static pressure

P)

S

L(rating ESP)

Upper limit of ESP

(rating E

P

S

E

f

o

t

i
m

i

l

r

e

)

p

P

p

S

U

E
n

i

m

(

ow

L

i

m

(

L (min ESP)

Air flow (m3/min)

Fan characteristics

(For local setting of remote control)

Range of available air flow rate in ªHH¼

External static pressure

Air flow (m3/min)

max ESP

rating EPS

min EPS

(note7)

1 As for this machine, setting is possible

2 Fan characteristics c shows a fan

3 Fan characteristics d (for field setting

4 Please choose ESP setting by using

(note7)

5 The remote control can be used to

6 ESP: External Static Pressure
7 The value in this figure shows ESP in

1 As for this machine, setting is possible

2 Fan characteristics c shows a fan

3 Fan characteristics d (for field setting

4 Please choose ESP setting by using

5 The remote control can be used to

6 ESP: External Static Pressure
7 The value in this figure shows ESP in

1 As for this machine, setting is possible

2 Fan characteristics c shows a fan

3 Fan characteristics d (for field setting

4 Please choose ESP setting by using

5 The remote control can be used to

6 ESP: External Static Pressure
7 The value in this figure shows ESP in

NOTES

by 13 position of ESP

characteristic at the time of the
“maximum ESP” “rating ESP”
“minimum ESP” as a representative.

of remote control) shows a fan
characteristic of each ESP of field
setting possible air flow “HH”.

fan characteristics c and fan
characteristics d by the resistance of
a connect duct.

change “HH” “H” and “L”.

rating air flow.

3D060456

NOTES

by 14 position of ESP

characteristic at the time of the
“maximum ESP” “rating ESP”
“minimum ESP” as a representative.

of remote control) shows a fan
characteristic of each ESP of field
setting possible air flow “HH”.

fan characteristics c and fan
characteristics d by the resistance of
a connect duct.

change “HH” “H” and “L”.

rating air flow.

3D060458

NOTES

by 14 position of ESP

characteristic at the time of the
“maximum ESP” “rating ESP”
“minimum ESP” as a representative.

of remote control) shows a fan
characteristic of each ESP of field
setting possible air flow “HH”.

fan characteristics c and fan
characteristics d by the resistance of
a connect duct.

change “HH” “H” and “L”.

rating air flow.

3D060460

FXMQ50P

Fan characteristics

(mmH2O) (Pa) (mmH2O) (mmH2O) (Pa) (mmH2O)

)

6

(mmH2O)

e

t

o
N

(

P
S

E
f
o

t

i

)

m

i

P

l

S

r
e

E

p

x

p

a

U

m

(

P
S
E

f

o
t

i

)

External static pressure

m

P

i

l

S

r

E

e

p

g

p

n

i

t

U

a

r

(

P

S

E

f

o

t

i

m

i

l

r

e

)

p

P

p

S

U

E
n

i

m

(

Air flow (m3/min)

HH

P

S

(max ESP)

E

f
o
t

i

)

m

i

l

P

r

S

e

E

w

x

o

a

L

m

(

H
(max ESP)

L
(max ESP)

HH
(rating ESP)

P

S

E

f

o

t

i
m

i

l

)

r

P

e

S

w

E

H

o

g

L

n

i

t

(rating ESP)

a

r

(

L
(rating ESP)

P

S

E

HH

f

o

t

i

m

i

l

r

e

w

(min ESP)

o

L

)

P

S

E

n

i

m

(

H
(min ESP)

L
(min ESP)

(mmH

O) (mmH2O) (mmH2O)

2

(For local setting of remote control)
Range of available air flow rate in ªHH¼

External static pressure

Fan characteristics

max ESP

max ESP

rating EPS

min EPS

Air flow (m3/min)

FXMQ80P

Fan characteristics

(mmH2O) (Pa) (mmH2O) (mmH2O) (Pa) (mmH2O)

)
6
e

t
o

N

(mmH2O)

(

P

S
E
f

o
t

i

)

m

i

P

l

S

r

E

e
p

x

p

a

U

m

(

P

S

E

f

o
t

i

)

m

i

P

l

S

r

External static pressure

e

E

p

g

p

n

i

U

t
a

r

(

P

S

E

f

o

t

i

m

i

l

r

e

)

p

P

p

S

U

E

n

i
m

(

L
(

L (min ESP)

Air flow (m3/min)

HH
(max ESP)

P

S
E
f

o
t

i

m

)

H

i

l

P

r

S

(max ESP)

e

E

w

x

o

a

L

m

(

L
(max ESP)

HH
(rating ESP)

P

S

E

f

o

t

i
m

i

l

)

r

e

P

S

w

o

E

L

g

n

i

t

a

r

(

H
(rating ESP)

HH

P

S

E

f

o

t

i

m

i

l

r

(min ESP)

e

w

o

)

P

S

E

n

i

m

(mmH

O) (mmH2O) (mmH2O)

2

Fan characteristics

(For local setting of remote control)

Range of available air flow rate in ªHH¼

External static pressure

Air flow (m3/min)

max ESP

rating EPS

min EPS

(note7)

FXMQ125P

Fan characteristics

(mmH2O) (Pa) (mmH2O) (mmH2O) (Pa) (mmH2O)

)

6
e

t
o

N

(
P
S

E
f

(mmH2O)

o
t

i

m

i

l
r
e

p

x

p

a

U

m

(

P

External static pressure

fES

to

i
m

i

SP)

rl

pe

ngE

i

L(rating ESP)

Up

(rat

P

S

E

f

o

t

i
m

i

l

r

e

)

p

P

p

S

U

E

n

i

m

(

Low

i

m

(

L (min ESP)

Air flow (m3/min)

HH

)

(max ESP)

P

P

S

S

E

E

f
o
t

i

)

m

i

l

P

r

S

E

we

x

o

a

L

m

(

H
(max ESP)

P
S

t of E

i

m

i

)

l

P

r

e

S

E

ow

g

L

n

ati

r

(

L
(max ESP)

H

H (min ESP)

(rating ESP)
HH

P

S

E

(min ESP)

of

t

i

m

i

l

er

)

P

S

E

n

O) (mmH2O) (mmH2O)

(mmH

2

(For local setting of remote control)
Range of available air flow rate in ªHH¼

External static pressure

Fan characteristics

Air flow (m3/min)

max ESP

rating EPS

min EPS

(note7)

NOTES

1 As for this machine, setting is possible

by 14 position of ESP

2 Fan characteristics c shows a fan

characteristic at the time of the
“maximum ESP” “rating ESP”
“minimum ESP” as a representative.

3 Fan characteristics d (for field setting

of remote control) shows a fan
characteristic of each ESP of field
setting possible air flow “HH”.

(note7)

4 Please choose ESP setting by using

fan characteristics c and fan
characteristics d by the resistance of
a connect duct.

5 The remote control can be used to

(note7)

change “HH” “H” and “L”.
6 ESP: External Static Pressure
7 The value in this figure shows ESP in

rating air flow.

NOTES

1 As for this machine, setting is possible

by 14 position of ESP

2 Fan characteristics c shows a fan

characteristic at the time of the

“maximum ESP” “rating ESP”

“minimum ESP” as a representative.

3 Fan characteristics d (for field setting

of remote control) shows a fan

characteristic of each ESP of field

setting possible air flow “HH”.

4 Please choose ESP setting by using

fan characteristics c and fan

characteristics d by the resistance of

a connect duct.

5 The remote control can be used to

change “HH” “H” and “L”.

6 ESP: External Static Pressure
7 The value in this figure shows ESP in

rating air flow.

NOTES

1 As for this machine, setting is possible

by 14 position of ESP
2 Fan characteristics c shows a fan

characteristic at the time of the

“maximum ESP” “rating ESP”

“minimum ESP” as a representative.
3 Fan characteristics d (for field setting

of remote control) shows a fan

characteristic of each ESP of field

setting possible air flow “HH”.
4 Please choose ESP setting by using

fan characteristics c and fan

characteristics d by the resistance of

a connect duct.
5 The remote control can be used to

change “HH” “H” and “L”.
6 ESP: External Static Pressure
7 The value in this figure shows ESP in

rating air flow.

3D060457

3D060459

3D060461

148

•VRV® Systems • Indoor Units

2e

Daikin’s unique position as a manufacturer of air
conditioning equipment, compressors and
refrigerants has led to its close involvement in
environmental issues. For several years Daikin
has had the intension to become a leader in the
provision of products that have limited impact
on the environment. This challenge demands
the eco design and development of a wide
range of products and an energy management
system, resulting in energy conservation and a
reduction of waste.

Naamloze Vennootschap
Zandvoordestraat 300
B-8400 Oostende, Belgium
www.daikin.eu
BTW: BE 0412 120 336
RPR Oostende

Daikin Europe N.V. is approved by LRQA for its
Quality Management System in accordance with the
ISO9001 standard. ISO9001 pertains to quality
assurance regarding design, development,
manufacturing as well as to services related to the
product.

ISO14001 assures an effective environmental
management system in order to help protect human
health and the environment from the potential
impact of our activities, products and services and to
assist in maintaining and improving the quality of the
environment.

Daikin units comply with the European
regulations that guarantee the safety of
the product.

®

products are not within the scope of the

VRV
Eurovent certification programme.

The present publication is drawn up by way of information only and
does not constitute an offer binding upon Daikin Europe N.V.. Daikin
Europe N.V. has compiled the content of this publication to the best
of its knowledge. No express or implied warranty is given for the
completeness, accuracy, reliability or fitness for particular purpose of
its content and the products and services presented therein.
Specifications are subject to change without prior notice. Daikin
Europe N.V. explicitly rejects any liability for any direct or indirect
damage, In the broadest sense, arising from or related to the use
and/or interpretation of this publication. All content is copyrighted
by Daikin Europe N.V..

ÈEEDEN08-204aËÍ

EEDEN08-204 • 01/2008 • Copyright © Daikin

Prepared in Belgium by Lannoo (www.lannooprint.be), a company whose concern for

the environmont is set in the EMAS and ISO 14001 systems.

Responsible Editor: Daikin Europe N.V., Zandvoordestraat 300, B- 8400 Oostende
