TECHNICAL MANUAL
Split Unit Air Conditioner
Ceiling Concealed Series
FDM-C, FDB-C, FDYM-C, FDYB-C Series
— Cooling only & Heatpump [50Hz] —
R22
Page 2
Page 3
Table of Contents
Table of Contents
Nomenclature......................................................................................................................1
Indoor ............................................................................................................................1
Outdoor ..........................................................................................................................1
Product Line-Up .............................................................................................................2
Application Information .....................................................................................................4
Operating Range ...........................................................................................................4
Refrigerant Circuit Diagrams .........................................................................................5
Installation Guideline ................................................................................................... 11
Sound Data ........................................................................................................................17
Sound Power Level .....................................................................................................17
Sound Pressure Level .................................................................................................18
NC Curve ..................................................................................................................... 19
Selection Process.............................................................................................................28
Engineering & Physical Data ...........................................................................................46
Performance Data .............................................................................................................60
Calculation Steps .........................................................................................................60
Performance Tables .....................................................................................................62
Outlines & Dimensions ..................................................................................................125
Wiring Diagrams .............................................................................................................130
Service & Maintenance ..................................................................................................148
Troubleshooting .............................................................................................................150
Page 4
Nomenclature
1
Nomenclature
Indoor
FD(Y)(B)(M) 10 C X V1
Power Supply
V1: 1 phase 50 Hz 220-240V
Production
X: OYLM
Product Series
C: C Series
Capacity
10: 10000 Btu/hr
Model
FDM: Ceiling Concealed Standard Static (Cooling Only)
FDYM: Ceiling Concealed Standard Static (Heatpump)
FDB: Ceiling Concealed Low Static (Cooling Only)
FDYB: Ceiling Concealed Low Static (Heatpump)
Outdoor
R(Y) 10 C X V1
Power Supply
V1: 1 phase 50 Hz 220-240V
Y1: 3 phase 50 Hz 380-415V
Production
X: OYLM
Product Series
C: C Series
D: D Series
Capacity
10: 10000 Btu/hr
Model
R: Single Split Condensing Unit (Cooling Only)
RY: Single Split Condensing Unit (Heatpump)
Page 5
Nomenclature
2
Product Line-Up
Indoor Unit
FD(Y)M / FD(Y)B
Nomenclature
Classifi cation
Handset
PCB
Fin
Refrigerant Control
Air Purifi cation
Others
BRC51A62
BRC51A61
L208A EC
L208A AP
Bare Aluminium
Cap Tube
Without Cap Tube
Air Filter
Built-in Filter Rail
COOLING
FDM10CXV1 XXXXX
FDM15CXV1 XXXXX
FDM20CXV1 XXXXX
FDM25CXV1 XXXXX
FDM28CXV1 X X X X X X
FDM30CXV1 X X X X X X
FDM38CXV1 X X X X X X
FDM40CXV1 X X X X X X
FDM50CXV1 X X X X X X
FDM60CXV1 X X X X X X
FDB10CXV1 XXXXX
FDB15CXV1 XXXXX
FDB20CXV1 XXXXX
FDB25CXV1 XXXXX
FDB30CXV1 X X X X X X
FDB40CXV1 X X X X X X
FDB50CXV1 X X X X X X
FDB60CXV1 X X X X X X
HEATPUMP
FDYM10CXV1 X X X X X
FDYM15CXV1 X X X X X
FDYM20CXV1 X X X X X
FDYM25CXV1 X X X X X
FDYM28CXV1 X X X X X X
FDYM30CXV1 X X X X X X
FDYM38CXV1 X X X X X X
FDYM40CXV1 X X X X X X
FDYM50CXV1 X X X X X X
FDYM60CXV1 X X X X X X
FDYB10CXV1 X X X X X
FDYB15CXV1 X X X X X
FDYB20CXV1 X X X X X
FDYB25CXV1 X X X X X
FDYB30CXV1 X X X X X X
FDYB40CXV1 X X X X X X
FDYB50CXV1 X X X X X X
FDYB60CXV1 X X X X X X
Page 6
Nomenclature
3
Outdoor Unit
R(Y)
Nomenclature
Classifi cation
Refrigerant
Control
Fin
Safety
Devices
Compressor
Others
Cap Tube
TXV
Hydrophilic (Blue)
Hydrophilic (Gold)
Bare Aluminium
Contactor
High Pressure Switch
Low Pressure Switch
Phase Sequencer
Scroll
Rotary
Drain Elbow
COOLING ONLY
R10CXV1 X X X
R10CGXV1 X X X
R15CXV1 X X X
R15CGXV1 X X X
R20CXV1 X X X
R20CGXV1 X X X
R25CXV1 X X X
R25CGXV1 X X X
R28CXV1 X X
R28CGXV1 X X
R30DXV1 X X X X X
R30DGXV1 X X X X X
R30DXY1 X X X X X X
R30DGXY1 X X X X X X
R35DXV1 X X X X X
R35DGXV1 X X X X X
R40DXV1 X X X X X
R40DGXV1 X X X X X
R40DXY1 X X X X X X
R40DGXY1 X X X X X X
R50DXY1 X X X X X X
R50DGXY1 X X X X X X
R61DXY1 X X X X X X
R61DGXY1 X X X X X X
HEATPUMP
RY10CXV1 X X X X
RY10CGXV1 X X X X
RY15CXV1 X X X X
RY15CGXV1 X X X X
RY18CXV1 X X X X
RY18CGXV1 X X X X
RY20CXV1 X X X X
RY20CGXV1 X X X X
RY25CXV1 X X X X
RY25CGXV1 X X X X
RY28CXV1 X X X X
RY28CGXV1 X X X X
RY30DXV1 X X X X X X X
RY30DGXV1 X X X X X X X
RY30DXY1 X X X X X X X X
RY30DGXY1 X X X X X X X X
RY35DXV1 X X X X X X X
RY35DGXV1 X X X X X X X
RY40DXV1 X X X X X X
RY40DGXV1 X X X X X X
RY40DXY1 X X X X X X X
RY40DGXY1 X X X X X X X
RY50DXY1 X X X X X X X
RY50DGXY1 X X X X X X X
RY61DXY1 X X X X X X X
RY61DGXY1 X X X X X X X
Page 7
4
Application Information
Application Information
Operating Range
Ensure the operating temperature is in allowable range.
Cooling
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Outdoor
DB (°C)
46
43
19
14 19 23 Indoor WB (°C)
Heating
The use of your air conditioner
outside the range of working
temperature and humidity can
result in serious failure.
Outdoor
WB (°C)
18
15 20 27 Indoor DB (°C)
10
-9
Page 8
5
Application Information
Refrigerant Circuit Diagrams
Model: FDM10/15CXV1 – R10/15CXV1 / FDM20CXV1 – R20CXV1
FDB10/15CXV1 – R10/15CXV1 / FDB20CXV1 – R20CXV1
COOLING OPERATION
3 WAY
VALVE
DISCHARGE
ACCUMULATOR
COMPRESSOR
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
2 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
INDOOR UNIT OUTDOOR UNIT
Model: FDM25CXV1 – R25CXV1
FDB25CXV1 – R25CXV1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
DISCHARGE
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
Page 9
6
Application Information
Model: FDM28CXV1 – R28CXV1 / FDM30CXV1 – R28CXV1
FDB30CXV1 – R28CXV1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
DISCHARGE
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
3 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
Model: FDM28/30CXV1 – R30DXV1 / FDM30CXV1 – R30DXY1 / FDM38/40CXV1 – R35/40DXV1 /
FDM38/40CXV1 – R40DXY1 / FDM50CXV1 – R50DXY1
FDB30CXV1 – R30DXV1 / FDB30CXV1 – R30DXY1 / FDB40CXV1 – R35/40DXV1 /
FDB40CXV1 – R40DXY1 / FDB50CXV1 – R50DXY1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
DISCHARGE
ACCUMULATOR
LOW
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
3 WAY
VALVE
3 WAY
VALVE
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
COMPRESSOR
Page 10
7
Application Information
Model: FDM60CXV1 – R61DXY1
FDB60CXV1 – R61DXY1
COOLING OPERATION
INDOOR UNIT OUTDOOR UNIT
ACCUMULATOR
LOW
PRESSURE
SWITCH
HIGH
PRESSURE
SWITCH
3 WAY
VALVE
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
DISCHARGE
COMPRESSOR
3 WAY
VALVE
Model: FDYM10CXV1 – RY10CXV1 / FDYM20CXV1 – RY18CXV1
FDYB10CXV1 – RY10CXV1 / FDYB20CXV1 – RY18CXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
2 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
Page 11
8
Application Information
Model: FDYM15CXV1 – RY15CXV1 / FDYM20CXV1 – RY20CXV1
FDYB15CXV1 – RY15CXV1 / FDYB20CXV1 – RY20CXV1
COOLING OPERATION
HEATING OPERATION
INDOOR UNIT OUTDOOR UNIT
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
HEATING CAP
TUBE
CHECK
VALVE
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
2 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
Model: FDYM25CXV1 – RY25CXV1 / FDYM28/30CXV1 – RY28CXV1
FDYB25CXV1 – RY25CXV1 / FDYB30CXV1 – RY28CXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
3 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
Page 12
9
Application Information
Model: FDYM28/30CXV1 – RY30DXV1 / FDYM28/30CXV1 – RY30DXY1 / FDYM38/40CXV1 – RY35DXV1
FDYB30CXV1 – RY30DXV1 / FDYB30CXV1 – RY30DXY1 / FDYB40CXV1 – RY35DXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER
BIFLOW
TXV
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
DISCHARGE
4 WAY VALVE
HIGH
PRESSURE
SWITCH
ACCUMULATOR
COMPRESSOR
3 WAY
VALVE
Model: FDYM38/40CXV1 – RY40DXV1 / FDYM38/40CXV1 – RY40DXY1 / FDYM50CXV1 – RY50DXY1
FDYB40CXV1 – RY40DXV1 / FDYB40CXV1 – RY40DXY1 / FDYB50CXV1 – RY50DXY1
ACCUMULATOR
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
HEATING CAP. TUBE
ACCESS
VALVE
STRAINER
COOLING
CAP. TUBE
CHECK
VALVE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
3 WAY
VALVE
DISCHARGE
4 WAY VALVE
HIGH
PRESSURE
SWITCH
COMPRESSOR
Page 13
10
Application Information
Model: FDYM60CXV1 – RY61DXY1
FDYB60CXV1 – RY61DXY1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
HEATING CAP. TUBE
STRAINER
CHECK VALVE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY VALVE
PIPING
GAS
PIPING
LIQUID
3 WAY
VALVE
DISCHARGE
STRAINER
STRAINER
CHECK
VALVE
COOLING
CAP. TUBE
4 WAY VALVE
HIGH PRESSURE
SWITCH
ACCUMULATOR
COMPRESSOR
Page 14
11
Application Information
Installation Guideline
Sharp edges and coil surfaces are potential injury hazard. Avoid from contact with them.
(1) Installation of Indoor Unit
Preliminary Survey
Electrical supply and installation is to confi rm to local authority’s (e.g. National Electrical Board) codes and
regulations.
Voltage supply fl uctuation must not exceed ± 10% of rated voltage. Electricity supply lines must be
independent of welding transformers which can cause high supply fl uctuation.
Ensure that the location is convenient for wiring, piping and drainage.
The indoor unit must be installed in such that free from any obstacles in path of cool air discharge and
warm air return, and must allow spreading or air throughout the room (near the centre of the room).
Clearance must be provided for the indoor unit from the wall and obstacles as shown in the fi gure.
Use the hanger supplied with the unit.
Ensure the support is strong enough to withstand the weight of the unit.
Use the supplied drain socket to connect the drain pipe (the drain socket is only available for
FD(Y)M10CXV1 / FD(Y)B10CXV1 to FD(Y)M25CXV1 / FD(Y)B25CXV1)
Install the unit in such a way that
the condensate water can flow
out smoothly.
The diagrams below show the screws position for duct work connection.
•
•
•
•
•
•
•
•
Page 15
12
Application Information
(2) Installation of Outdoor Unit
As condensing temperature rises, evaporating temperature rises and cooling capacity drops. In order to achieve
maximum cooling capacity, the location selected for outdoor unit should fulfi ll the following requirements:
Install the condensing (outdoor) unit in a way such that hot air distributed by the outdoor condensing unit
cannot be drawn in again (as in the case of short circuit of hot discharge air). Allow suffi cient space for
maintenance around the unit.
Ensure that there is no obstruction of air fl ow into or out of the unit. Remove obstacles which block air
intake or discharge.
The location must be well ventilated, so that the unit can draw in and distribute plenty of air thus lowering
the condensing temperature.
A place capable of bearing the weight of the outdoor unit and isolating noise and vibration.
A place protected from direct sunlight. Otherwise use an awning for protection, if necessary.
The location must not be susceptible to dust or oil mist.
Installation Clearance
Outdoor units must be installed such that there is no short circuit of the hot discharge air or obstruction to
smooth air fl ow. Select the coolest possible place where intake air should not be hotter than the outside
temperature (max. 45˚C).
ALL MODEL A B C D
Minimum Distance 300 mm 1000 mm 300 mm 500 mm
If the condensing unit is operated in an atmosphere containing oils (including machine oils), salt
(coastal area), sulphide gas (near hot spring, oil refi nery plant), such substances may lead to
failure of the unit.
•
•
•
•
•
•
•
Page 16
13
Application Information
(3) Cable Size
Model Unit
FDM10CXV1
FDB10CXV1
FDM15CXV1
FDB15CXV1
FDM20CXV1
FDB20CXV1
FDM25CXV1
FDB25CXV1
FDM28CXV1
R10CXV1 R15CXV1 R20CXV1 R25CXV1 R28CXV1
Power supply cable size
Number of wire
mm
2
1.5
3
1.5
3
2.5
3
2.5
3
2.5
3
Interconnection cable size
Number of wire
mm
2
1.5
3
1.5
3
2.5
3
2.5
3
2.5
3
Recommended fuse A 10 10 16 20 20
Model Unit
FDM28CXV1
FDM30CXV1
FDB30CXV1
FDM38CXV1
R30DXV1 R28CXV1 R30DXV1 R30DXY1 R35DXV1
Power supply cable size
Number of wire
mm
2
4.0
3
2.5
3
4.0
3
1.5
5
4.0
3
Interconnection cable size
Number of wire
mm
2
2.5
4
2.5
3
2.5
4
1.5
4
2.5
4
Recommended fuse A 25 20 25 10 25
Model Unit
FDM38CXV1
FDM40CXV1
FDB40CXV1
FDM40CXV1
FDB40CXV1
R40DXV1 R40DXY1 R35DXV1 R40DXV1 R40DXY1
Power supply cable size
Number of wire
mm
2
4.0
3
1.5
5
4.0
3
4.0
3
1.5
5
Interconnection cable size
Number of wire
mm
2
2.5
4
1.5
4
2.5
4
2.5
4
1.5
4
Recommended fuse A 25 10 25 25 10
Model Unit
FDM50CXV1
FDB50CXV1
FDM60CXV1
FDB60CXV1
R50DXY1 R61DXY1
Power supply cable size
Number of wire
mm
2
2.5
5
2.5
5
Interconnection cable size
Number of wire
mm
2
2.5
4
2.5
4
Recommended fuse A 16 20
Model Unit
FDYM10CXV1
FDYB10CXV1
FDYM15CXV1
FDYB15CXV1
FDYM20CXV1
FDYB20CXV1
FDYM20CXV1
FDYB20CXV1
FDYM25CXV1
FDYB25CXV1
RY10CXV1 RY15CXV1 RY18CXV1 RY20CXV1 RY25CXV1
Power supply cable size
Number of wire
mm
2
1.5
3
1.5
3
2.5
3
2.5
3
2.5
3
Interconnection cable size
Number of wire
mm
2
1.5
5
1.5
5
2.5
5
2.5
5
2.5
5
Recommended fuse A 10 10 16 16 20
Page 17
14
Application Information
Model Unit
FDYM28CXV1 FDYM28CXV1
FDYM30CXV1
FDYB30CXV1
RY28CXV1 RY30DXV1 RY30DXY1 RY28CXV1
Power supply cable size
Number of wire
mm
2
2.5
3
4.0
3
1.5
5
2.5
3
Interconnection cable size
Number of wire
mm
2
2.5
5
2.5
4 & 3
1.5
4 & 3
2.5
5
Recommended fuse A 20 25 10 20
Model Unit
FDYM30CXV1
FDYB30CXV1
FDYM38CXV1 FDYM38CXV1
RY30DXV1 RY30DXY1 RY35DXV1 RY40DXV1 RY40DXY1
Power supply cable size
Number of wire
mm
2
4.0
3
1.5
5
4.0
3
4.0
3
1.5
5
Interconnection cable size
Number of wire
mm
2
2.5
4 & 3
1.5
4 & 3
2.5
4 & 3
2.5
4 & 3
1.5
4 & 3
Recommended fuse A 25 10 25 25 10
Model Unit
FDYM40CXV1
FDYB40CXV1
FDYM40CXV1
FDYB40CXV1
FDYM50CXV1
FDYB50CXV1
FDYM60CXV1
FDYB60CXV1
RY35DXV1 RY40DXV1 RY40DXY1 RY50DXY1 RY61DXY1
Power supply cable size
Number of wire
mm
2
4.0
3
4.0
3
1.5
5
2.5
5
2.5
5
Interconnection cable size
Number of wire
mm
2
2.5
4 & 3
2.5
4 & 3
1.5
4 & 3
1.5
4 & 3
1.5
4 & 3
Recommended fuse A 25 25 10 16 16
Page 18
15
Application Information
(4) Refrigerant Piping
Maximum Pipe and Maximum Number of Bends
When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends
increases, system piping resistance to the refrigerant fl ow increases, thus lowering the cooling capacity,
and as the result the font compressor may become defective. Always choose the shortest path and follow
the recommendation as tabulated below:
Model
Indoor
FDM10/15CXV1
FDYM10/15CXV1
FDB10/15CXV1
FDYB10/15CXV1
FDM20/25CXV1
FDYM20/25CXV1
FDB20/25CXV1
FDYB20/25CXV1
FDM28/30CXV1
FDYM28/30CXV1
FDB30CXV1
FDYB30CXV1
Outdoor
R(Y)10/15CXV1 R(Y)20/25CXV1 R(Y)28CXV1
R(Y)30DXV1 /
R(Y)30DXY1
Max. Length, m 12 15 15 45
Max. Elevation, m 5 8 8 25
Max. No. of Bends 10 10 10 10
Model
Indoor
FDM38/40/50CXV1
FDYM38/40/50CXV1
FDB40/50CXV1
FDYB40/50CXV1
FDM60CXV1
FDYM60CXV1
FDB60CXV1
FDYB60CXV1
Outdoor
R(Y)35/40DXV1
R(Y)40/50DXY1
R(Y)61DXY1
Max. Length, m 45 35
Max. Elevation, m 25 15
Max. No. of Bends 10 10
Piping Sizes (Flare connection type)
Piping sizes are as follows:
R22
Model R(Y)10CXV1 R(Y)15CXV1
R20CXV1 /
RY18/20CXV1
R(Y)25CXV1
Liquid, mm / in 6.35 / 1/4 6.35 / 1/4 6.35 / 1/4 9.52 / 3/8
Suction, mm / in 9.52 / 3/8 12.70 / 1/2 15.88 / 5/8 15.88 / 5/8
Model
R(Y)28CXV1 /
R(Y)30DXV1 /
R(Y)30DXY1
R(Y)35/40DXV1 /
R(Y)40DXY1
R(Y)50DXY1 R(Y)61DXY1
Liquid, mm / in 9.52 / 3/8 9.52 / 3/8 9.52 / 3/8 12.70 / 1/2
Suction, mm / in 15.88 / 5/8 19.05 / 3/4 19.05 / 3/4 19.05 / 3/4
•
Page 19
16
Application Information
(5) Additional Charge
The refrigerant charge has already charged into the outdoor unit. For the piping length of 7.6m, additional
refrigerant charge after vacuuming is not necessary.
When the piping length is more than 7.6m, please use the table below (unit in gram).
R22 – Cooling Only
Indoor
FDM10CXV1
FDB10CXV1
FDM15CXV1
FDB15CXV1
FDM20CXV1
FDB20CXV1
FDM25CXV1
FDB25CXV1
FDM28CXV1
Outdoor R10CXV1 R15CXV1 R20CXV1 R25CXV1 R28CXV1
Add. Charge, g/m 16 16 16 39 41
Indoor FDM28CXV1
FDM30CXV1
FDB30CXV1
FDM30CXV1
FDB30CXV1
FDM38CXV1
Outdoor R30DXV1 R28CXV1 R30DXV1 R30DXY1 R35DXV1
Add. Charge, g/m 56 41 41 55 54
Indoor FDM38CXV1
FDM40CXV1
FDB40CXV1
FDM40CXV1
FDB40CXV1
Outdoor R40DXV1 R40DXY1 R35DXV1 R40DXV1 R40DXY1
Add. Charge, g/m 40 41 54 55
Indoor
FDM50CXV1
FDB50CXV1
FDM60CXV1
FDB60CXV1
Outdoor R50DXY1 R61DXY1
Add. Charge, g/m 54 102
R22 – Heatpump
Indoor
FDYM10CXV1
FDYB10CXV1
FDYM15CXV1
FDYB15CXV1
FDYM20CXV1
FDYB20CXV1
FDYM20CXV1
FDYB20CXV1
FDYM25CXV1
FDYB25CXV1
Outdoor RY10CXV1 R15CXV1 RY18CXV1 RY20CXV1 RY25CXV1
Add. Charge, g/m 22 22 16 16 40
Indoor FDYM28CXV1 FDYM28CXV1
FDYM30CXV1
FDYB30CXV1
Outdoor RY28CXV1 RY30DXV1 RY30DXY1 RY28CXV1
Add. Charge, g/m 41 41 41
Indoor
FDYM30CXV1
FDYB30CXV1
FDYM38CXV1 FDYM38CXV1
Outdoor RY30DXV1 RY30DXY1 RY35DXV1 RY40DXV1 RY40DXY1
Add. Charge, g/m 55 41 57 57
Indoor
FDYM40CXV1
FDYB40CXV1
FDYM40CXV1
FDYB40CXV1
FDYM50CXV1
FDYB50CXV1
FDYM60CXV1
FDYB60CXV1
Outdoor RY35DXV1 RY40DXV1 RY40DXY1 RY50DXY1 RY61DXY1
Add. Charge, g/m 57 55 41 56 106
The additional refrigerant charge amount recommended is a guideline for longer piping application. The
actual charge required may be different from the guideline due to different application and variation in site
conditions.
•
•
Page 20
17
Sound Data
Sound Data
Sound Pressure Level
Model Speed
1/1 Octave Sound Pressure (dB, ref 20μPa)
Overall
(dBA)
Noise
Criteria
125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz
FD(Y)M10CXV1
High
43 35 35 30 26 18 13 36 30
Med
43 34 34 28 25 17 12 35 29
Low
42 31 31 27 22 14 9 33 25
FD(Y)M15CXV1
High
46 40 40 33 29 21 17 40 35
Med
45 38 38 31 27 18 14 38 33
Low
40 33 33 26 21 11 9 33 28
FD(Y)M20CXV1
High
47 41 43 35 31 24 19 42 38
Med
47 41 41 34 31 23 18 41 36
Low
47 39 39 33 29 21 16 40 34
FD(Y)M25CXV1
High
48 41 40 35 31 24 19 41 35
Med
47 39 39 34 29 22 17 40 34
Low
44 35 35 30 25 17 12 36 30
FD(Y)M28CXV1
S. High 48 45 42 38 34 29 26 44 37
High 45 42 39 35 31 26 22 41 34
Med 42 38 37 32 28 22 17 38 32
Low 36 33 33 27 23 16 11 34 27
FD(Y)M30CXV1
S. High 54 50 46 45 40 34 30 49 44
High 50 45 43 42 37 31 26 46 41
Med 45 40 40 38 32 26 20 42 37
Low 42 36 37 33 28 22 15 38 32
FD(Y)M38CXV1
S. High 56 57 53 50 46 41 36 55 49
High 54 51 48 46 41 36 31 51 45
Med 51 48 46 45 37 32 26 48 44
Low 47 45 44 41 34 28 22 45 40
FD(Y)M40CXV1
S. High 56 49 49 46 41 37 32 51 45
High 54 47 47 45 39 35 29 49 44
Med 49 42 43 41 35 31 24 45 40
Low 45 39 41 37 30 26 18 41 36
FD(Y)M50CXV1
S. High 56 50 50 49 44 38 33 53 48
High 54 49 49 48 43 37 32 52 47
Med 53 47 46 47 40 35 29 50 46
Low 51 45 44 44 36 32 26 47 43
FD(Y)M60CXV1
S. High 57 50 51 51 46 39 35 55 50
High 55 49 49 50 44 37 33 53 49
Med 53 46 47 47 39 34 28 50 46
Low 51 43 44 43 35 30 24 47 42
Model Measuring location
FD(Y)M10CXV1
FD(Y)M15CXV1
FD(Y)M20CXV1
FD(Y)M25CXV1
FD(Y)M28CXV1
FD(Y)M30CXV1
FD(Y)M38CXV1
FD(Y)M40CXV1
FD(Y)M50CXV1
FD(Y)M60CXV1
FD(Y)B10CXV1
FD(Y)B15CXV1
FD(Y)B20CXV1
FD(Y)B25CXV1
FD(Y)B30CXV1
FD(Y)B40CXV1
FD(Y)B50CXV1
FD(Y)B60CXV1
Page 21
18
Sound Data
Sound Pressure Level
Model Speed
1/1 Octave Sound Pressure (dB, ref 20μPa)
Overall
(dBA)
Noise
Criteria
125Hz 250Hz 500Hz 1kHz 2kHz 4kHz 8kHz
FD(Y)B10CXV1
High
39 35 33 28 23 16 12 33 28
Med
36 29 30 25 19 12 11 30 24
Low
31 24 25 19 13 7 10 25 20
FD(Y)B15CXV1
High
42 36 36 29 25 16 9 36 31
Med
39 33 33 27 19 9 6 33 28
Low
33 27 28 19 12 6 5 28 22
FD(Y)B20CXV1
High
44 39 37 31 28 20 15 38 32
Med
43 39 36 30 27 19 14 37 31
Low
43 36 34 28 25 16 10 35 29
FD(Y)B25CXV1
High
47 38 39 34 30 23 18 40 34
Med
46 37 38 33 29 22 17 39 33
Low
42 33 34 29 24 15 10 35 29
FD(Y)B30CXV1
S. High
45 42 39 35 31 26 22 41 34
High
47 38 39 34 30 23 18 40 34
Med
46 37 38 33 29 22 17 39 33
Low
42 36 36 29 25 16 11 36 31
FD(Y)B40CXV1
S. High
47 43 42 38 35 29 24 43 37
High
45 42 39 35 31 26 22 41 34
Med
42 41 37 34 31 29 23 40 33
Low
42 38 37 32 28 22 17 38 32
FD(Y)B50CXV1
S. High
50 45 43 42 37 31 26 46 41
High
49 43 42 39 35 29 24 44 38
Med
47 43 41 38 35 27 23 43 37
Low
47 41 40 37 32 27 22 42 36
FD(Y)B60CXV1
S. High
58 46 45 44 40 33 26 48 43
High
58 45 45 43 37 31 24 47 42
Med
58 44 45 42 36 30 23 46 42
Low
56 42 43 41 35 30 23 45 40
Model Measuring location
FD(Y)M10CXV1
FD(Y)M15CXV1
FD(Y)M20CXV1
FD(Y)M25CXV1
FD(Y)M28CXV1
FD(Y)M30CXV1
FD(Y)M38CXV1
FD(Y)M40CXV1
FD(Y)M50CXV1
FD(Y)M60CXV1
FD(Y)B10CXV1
FD(Y)B15CXV1
FD(Y)B20CXV1
FD(Y)B25CXV1
FD(Y)B30CXV1
FD(Y)B40CXV1
FD(Y)B50CXV1
FD(Y)B60CXV1
Page 22
19
Sound Data
NC Curve
FD(Y)M10CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
L
M
FD(Y)M15CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
L
M
Page 23
20
Sound Data
FD(Y)M20CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
NC-20
L
H
M
FD(Y)M25CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
M
L
Page 24
21
Sound Data
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
NC-40
NC-35
NC-30
NC-20
NC-45
NC-50
NC-25
Measured in anechoic room at 1.5m below the centre of the unit
Tested with 2m length duct at the air discharge outlet and air return inlet
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
FD(Y)M28CXV1
SH
H
M
L
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
NC-40
NC-35
NC-20
NC-45
NC-50
NC-30
NC-25
Measured in anechoic room at 1.5m below the centre of the unit
Tested with 2m length duct at the air discharge outlet and air return inlet
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
FD(Y)M30CXV1
SH
H
M
L
Page 25
22
Sound Data
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
NC-40
NC-35
NC-25
NC-20
NC-45
NC-50
NC-30
Measured in anechoic room at 1.4m below the centre of the unit
Tested with 2m length duct at the air discharge outlet and air return inlet
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
FD(Y)M38CXV1
SH
H
M
L
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
NC-40
NC-20
NC-45
NC-50
NC-25
NC-30
NC-35
FD(Y)M40CXV1
Measured in anechoic room at 1.4m below the centre of the unit
Tested with 2m length duct at the air discharge outlet and air return inlet
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
SH
H
L
M
Page 26
23
Sound Data
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
NC-40
NC-25
NC-20
NC-45
NC-50
SH
L
NC-30
H
M
NC-35
FD(Y)M50CXV1
Measured in anechoic room at 1.5m below the centre of the unit
Tested with 2m length duct at the air discharge outlet and air return inlet
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
NC-40
NC-20
NC-45
NC-50
SH
L
NC-25
NC-30
H
M
NC-35
FD(Y)M60CXV1
Measured in anechoic room at 1.5m below the centre of the unit
Tested with 2m length duct at the air discharge outlet and air return inlet
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
Page 27
24
Sound Data
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
FD(Y)B10CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
H
M
L
Sound pressure level (dB, ref 20Pa)
FD(Y)B15CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
H
M
L
Page 28
25
Sound Data
FD(Y)B20CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
M
L
FD(Y)B25CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
M
L
Page 29
26
Sound Data
FD(Y)B30CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
NC-20
H
SH
M
L
FD(Y)B40CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
SH
M
L
Page 30
27
Sound Data
FD(Y)B50CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
SH
M
L
FD(Y)B60CXV1
0
10
20
30
40
50
60
70
125 250 500 1000 2000 4000 8000
Octave-band frequency (Hz)
Sound pressure level (dB, ref 20Pa)
NC-20
NC-30
NC-25
NC-35
NC-40
NC-45
NC-50
NC-55
H
SH
M
L
Page 31
28
Selection Process

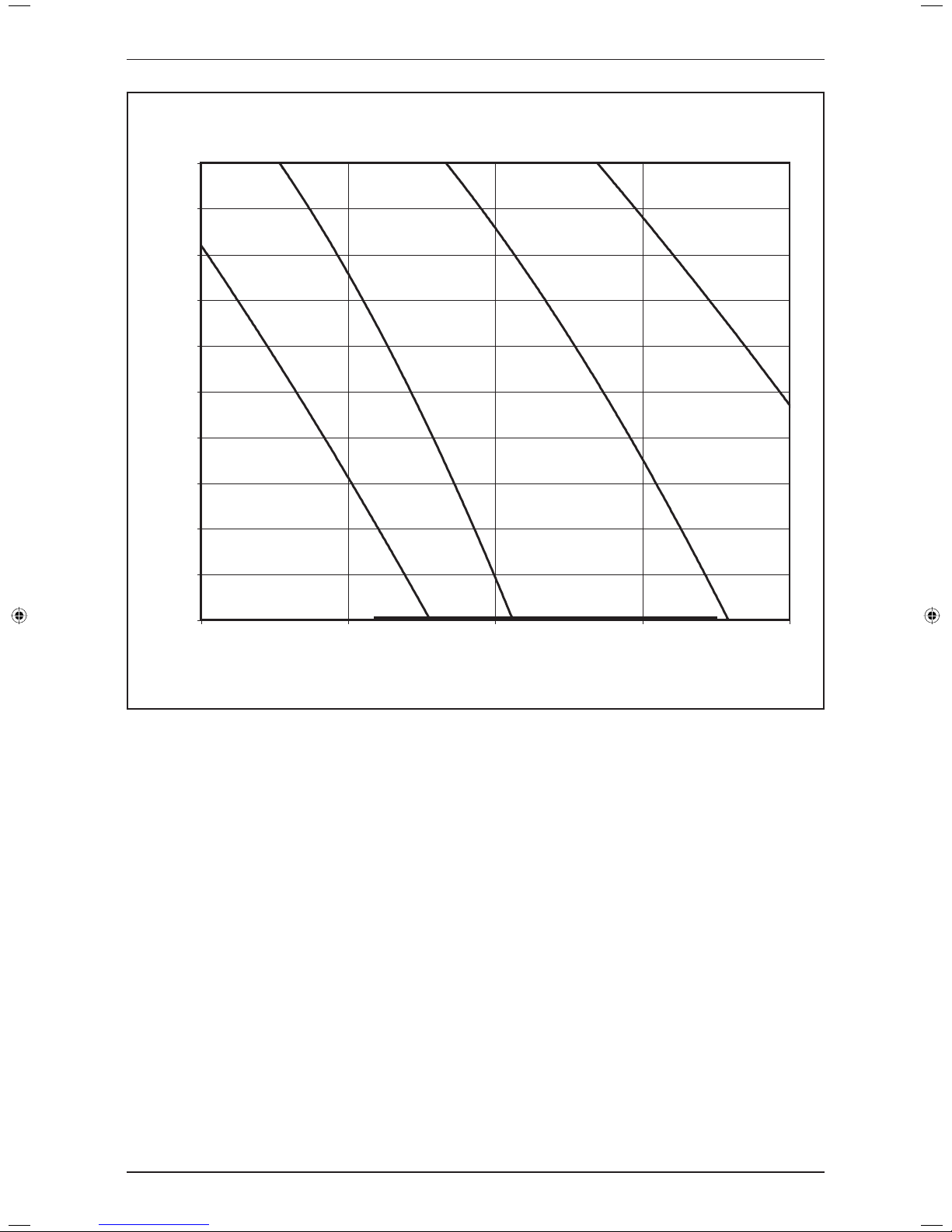

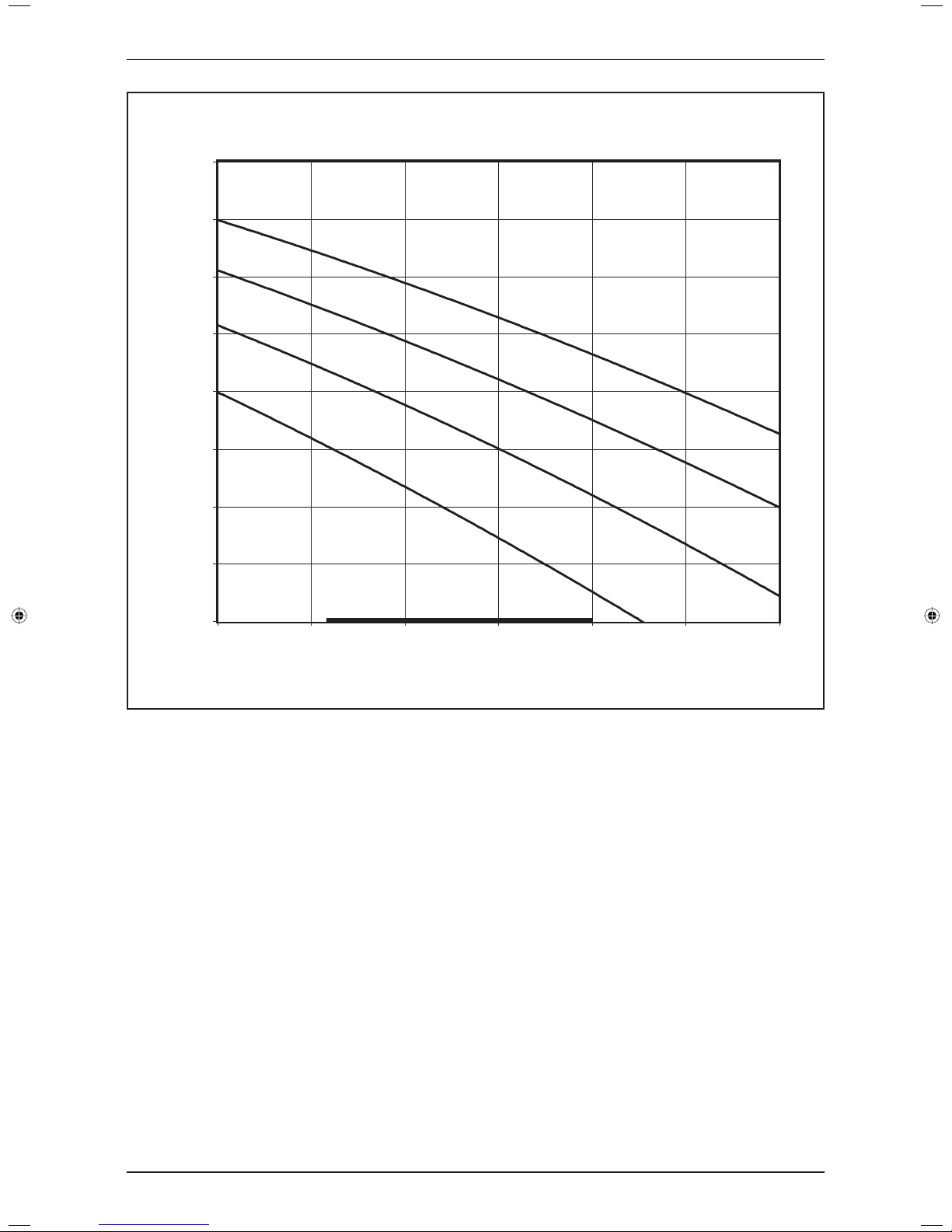

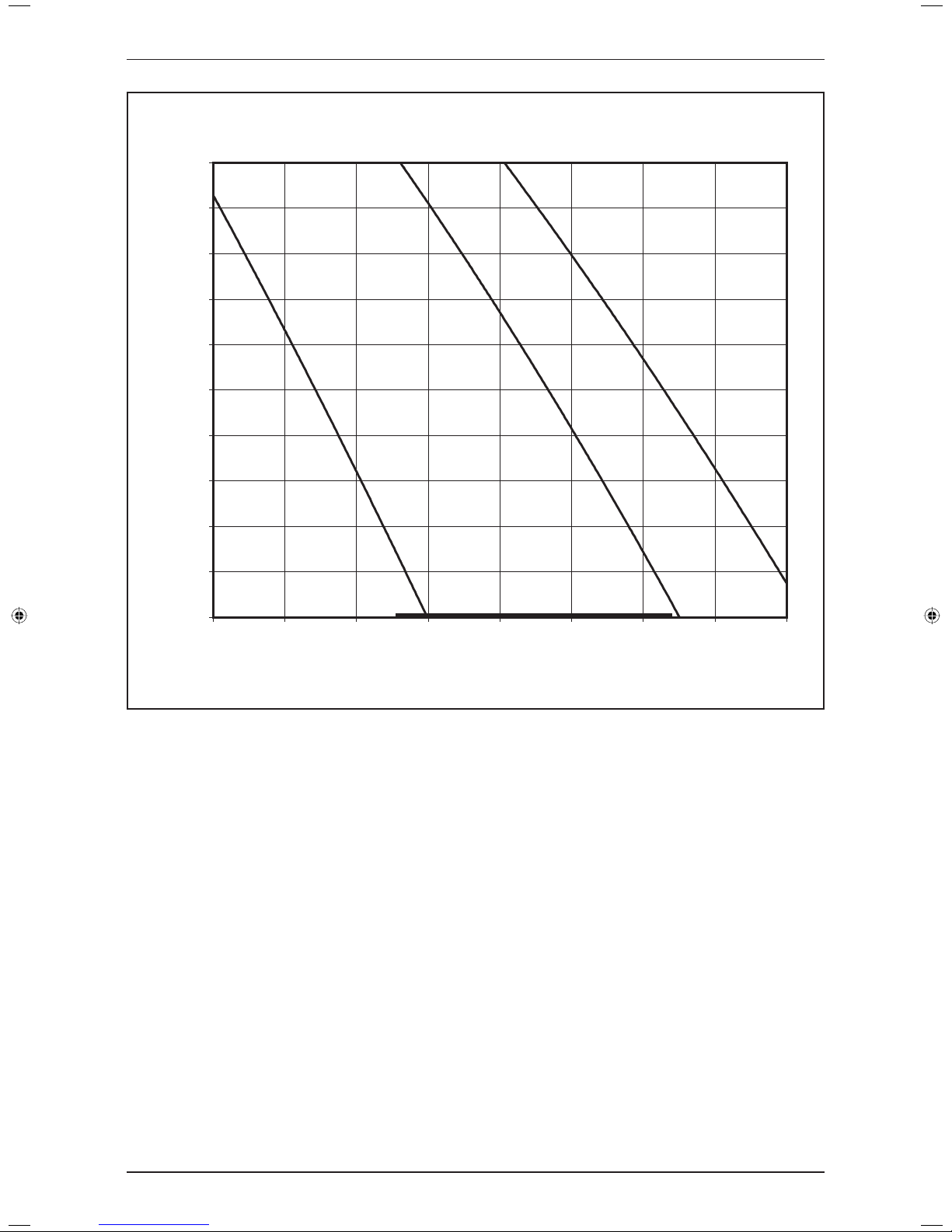

Selection Process

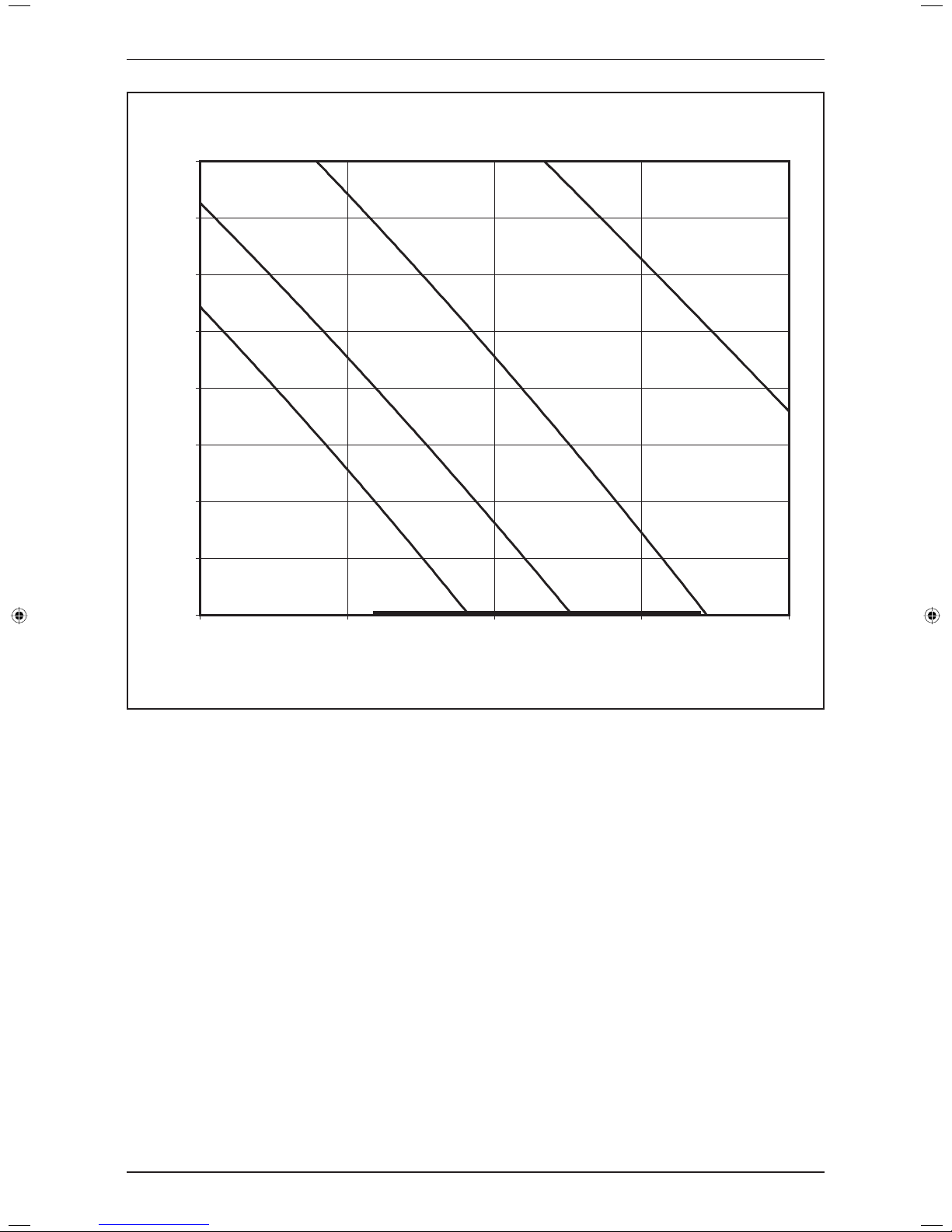

Blower Performance Curve
FD(Y)M10CXV1
0
1
2
3
4
5
6
7
8
150 200 250 300 350
Air Flow (CFM)
External Static Pressure (mm wg)
H
M
L
Page 32
29
Selection Process
External Static Pressure (mm wg)
FD(Y)M15CXV1
0
1
2
3
4
5
6
7
8
300 350 400 450 500 550 600
Air Flow (CFM)
H
M
L
Page 33
30
Selection Process

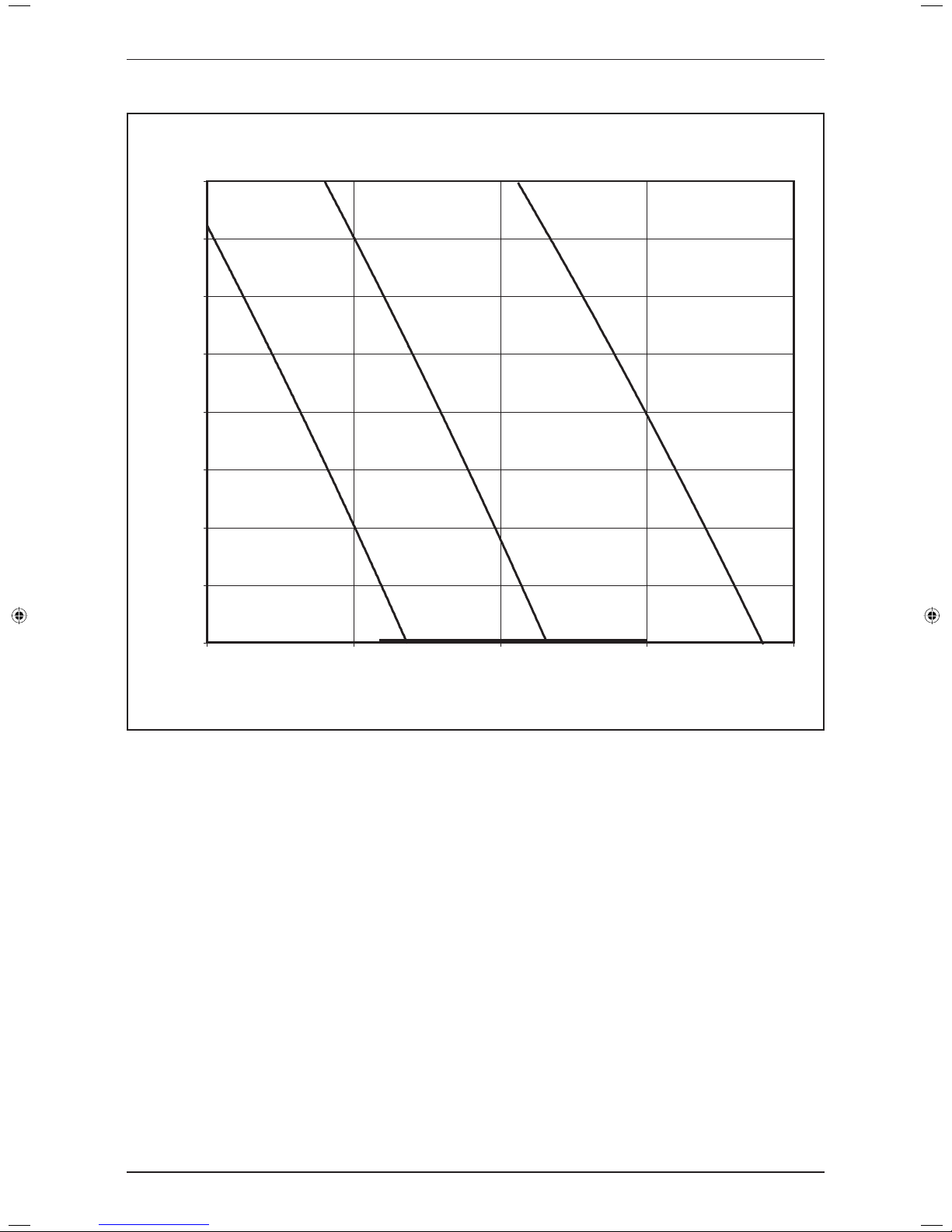

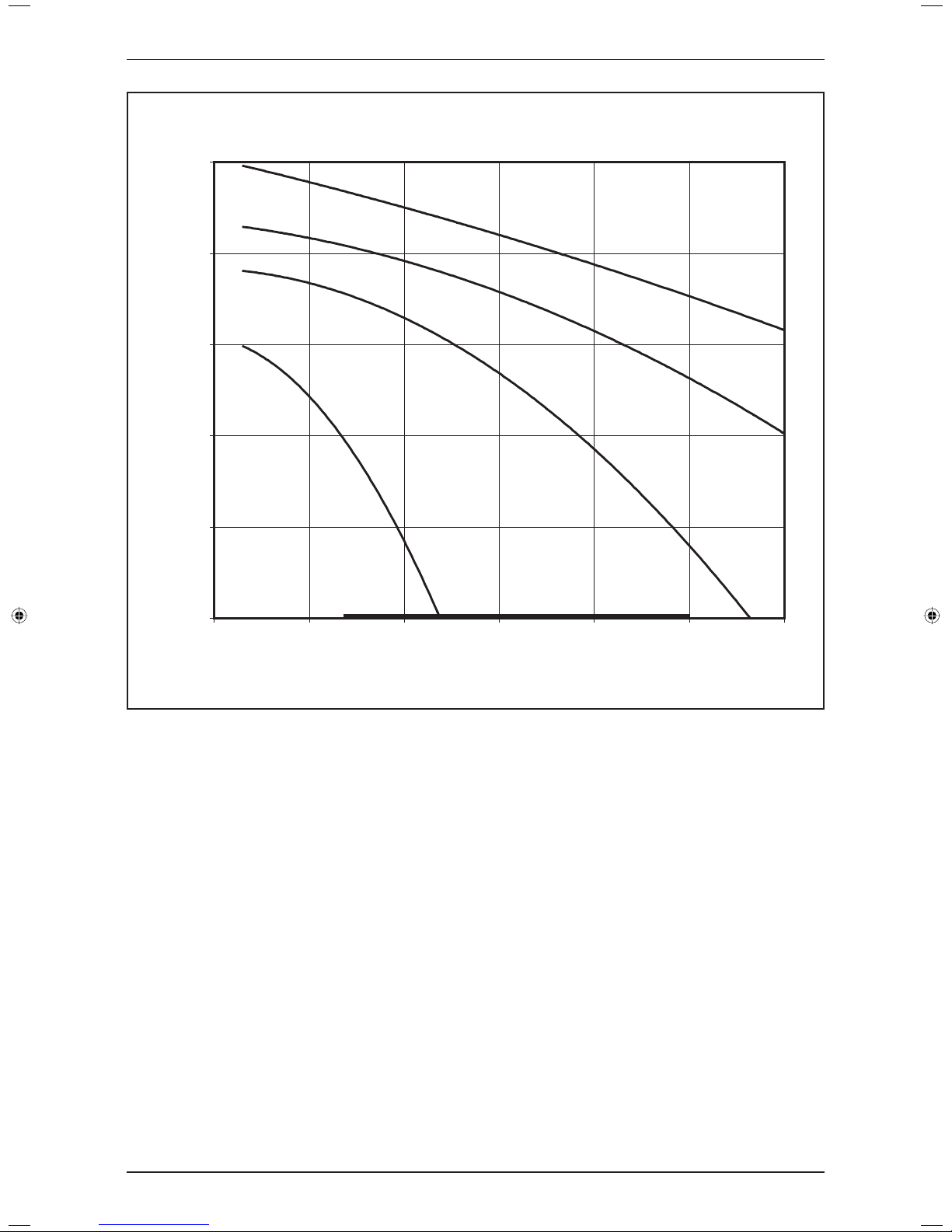

FD(Y)M20CXV1
H
M
L
0
1
2
3
4
5
6
7
8
500 550 600 650 700 750
External Static Pressure (mm wg)
Air Flow (CFM)
Page 34
31
Selection Process

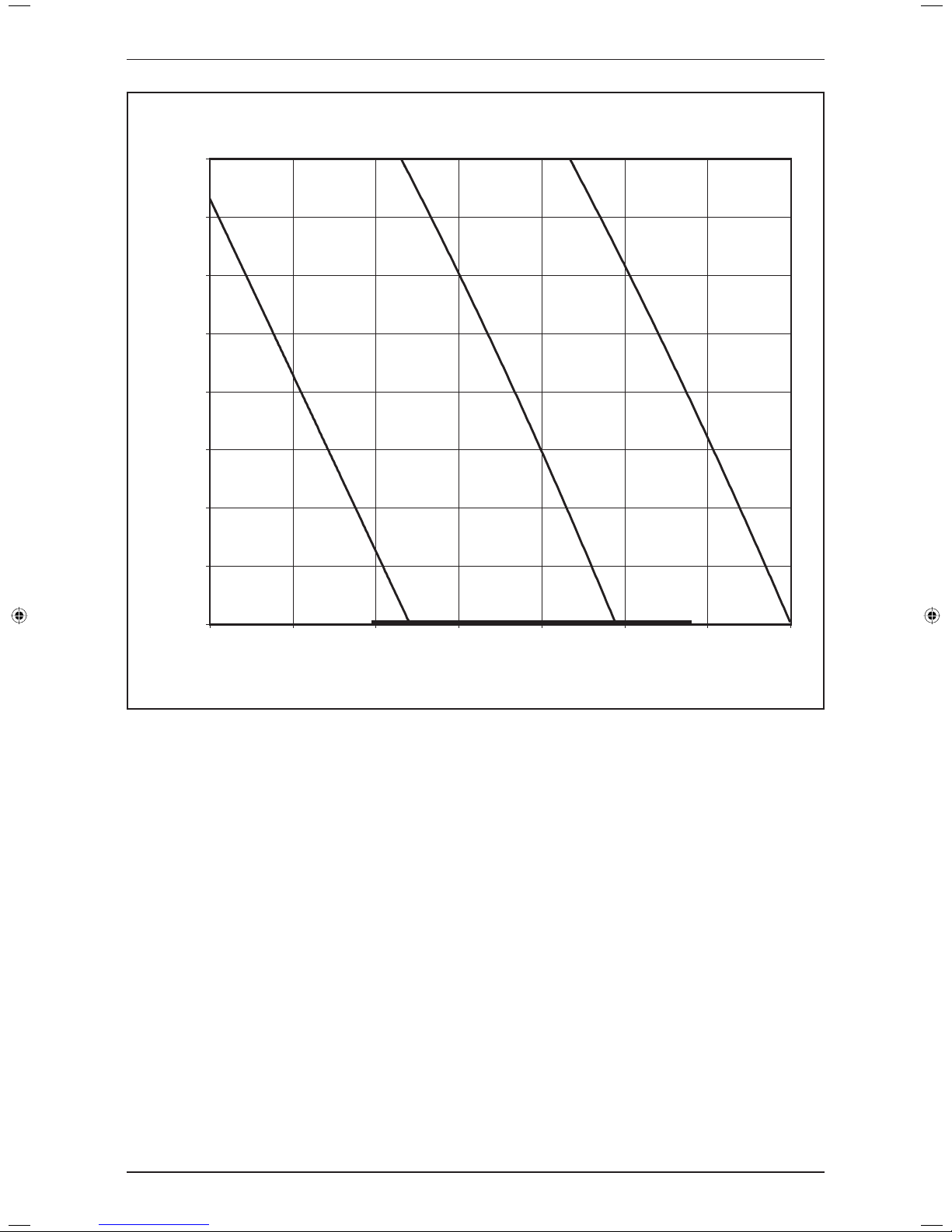

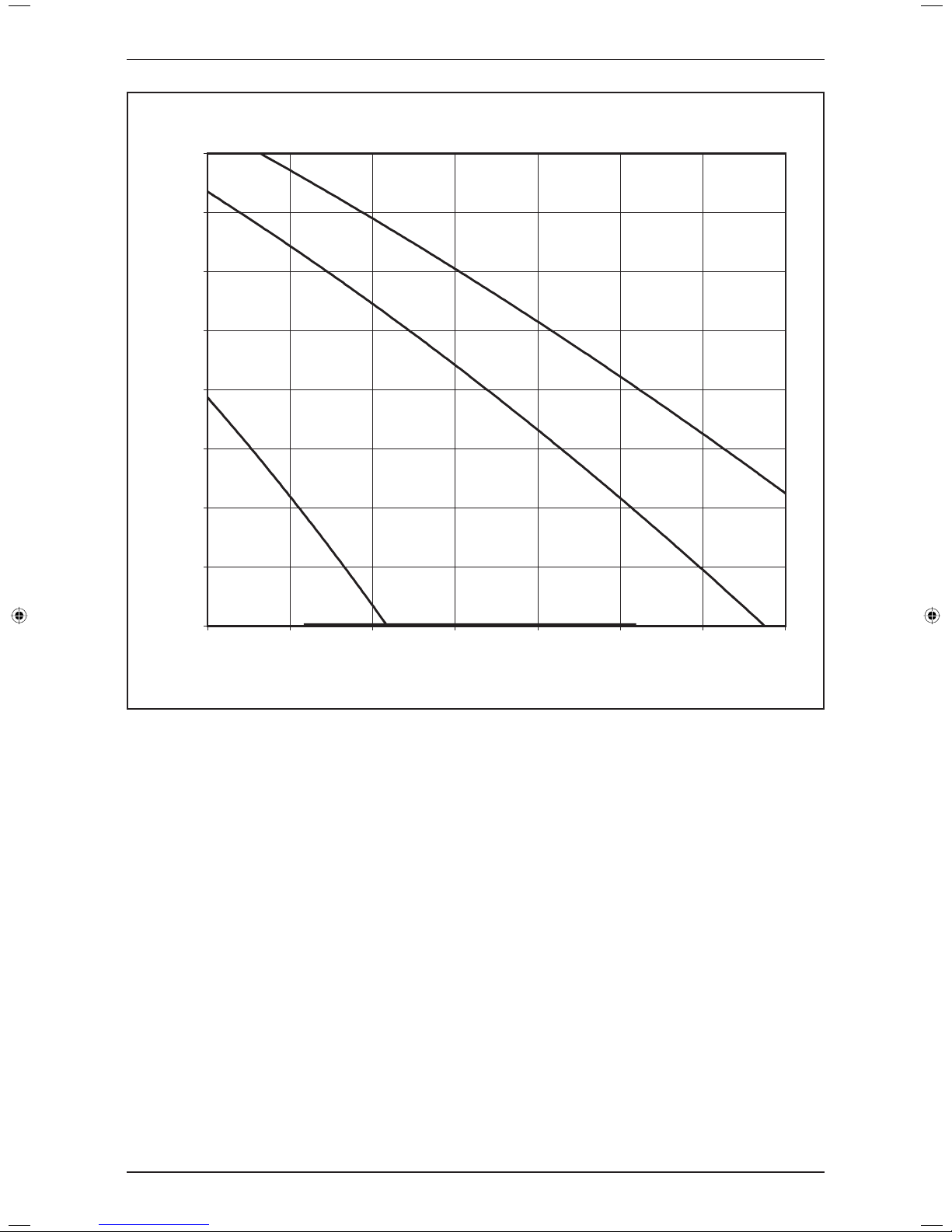

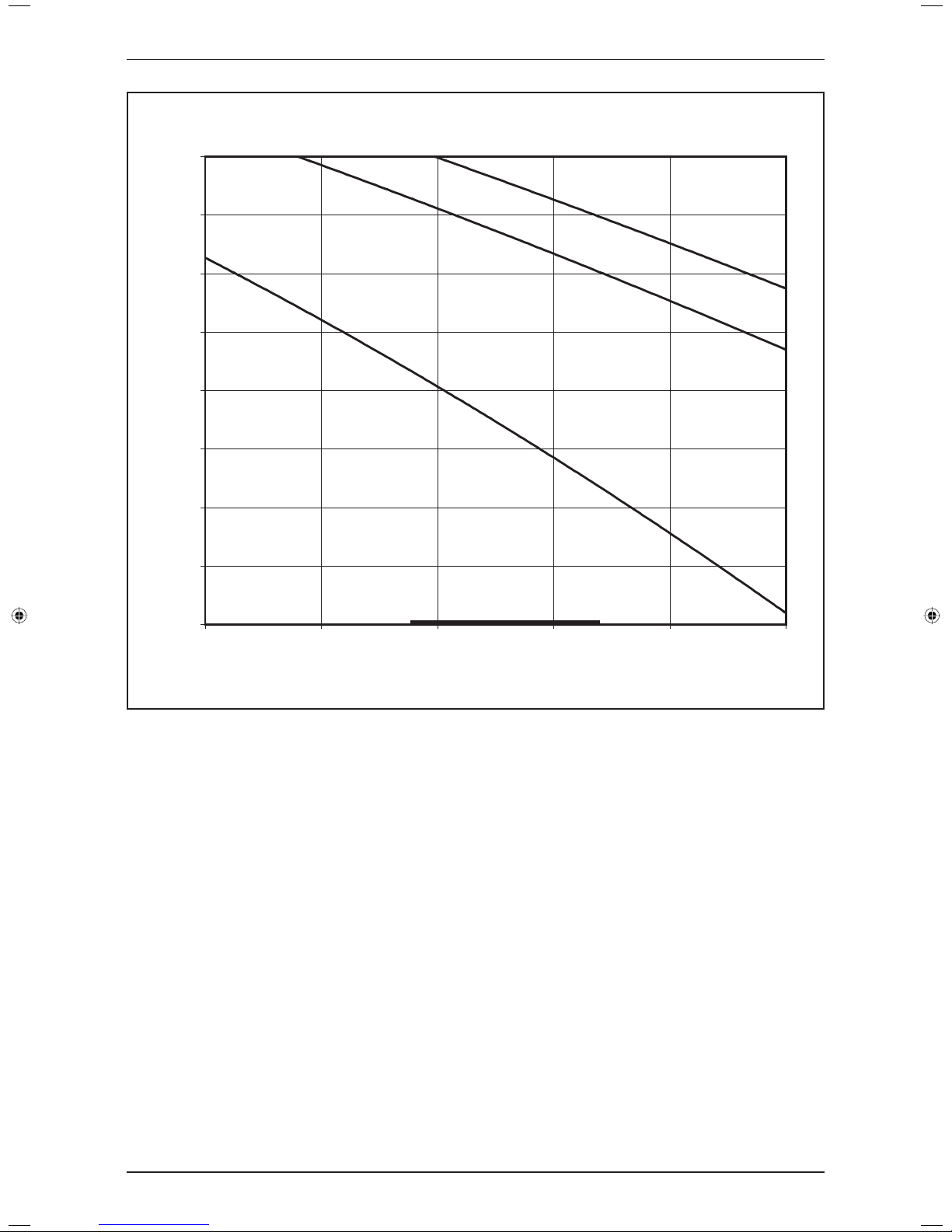

FD(Y)M25CXV1
H
M
L
External Static Pressure (mm wg)
Air Flow (CFM)
0
1
2
3
4
5
6
7
8
550 600 650 700 750 800 850 900
Page 35
32
Selection Process

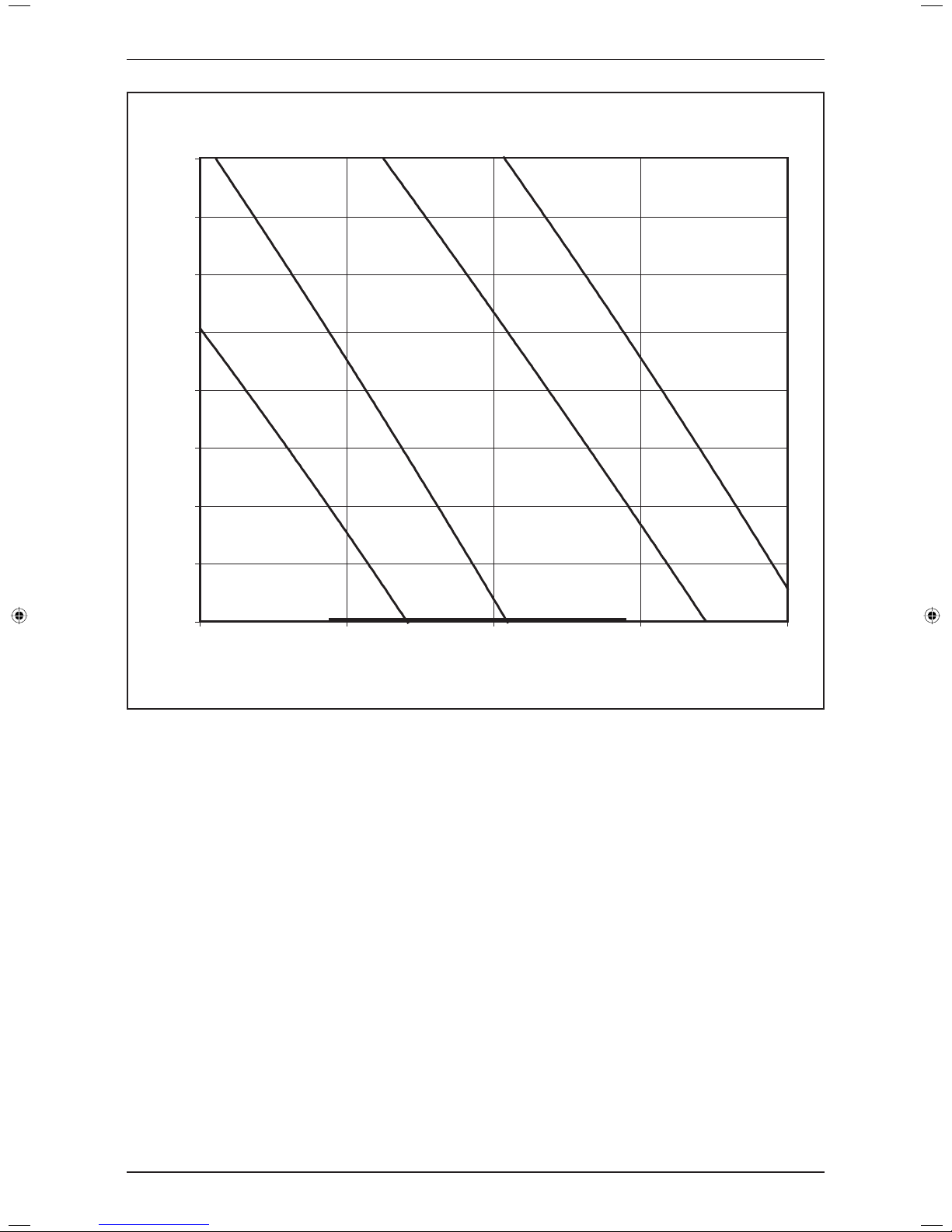

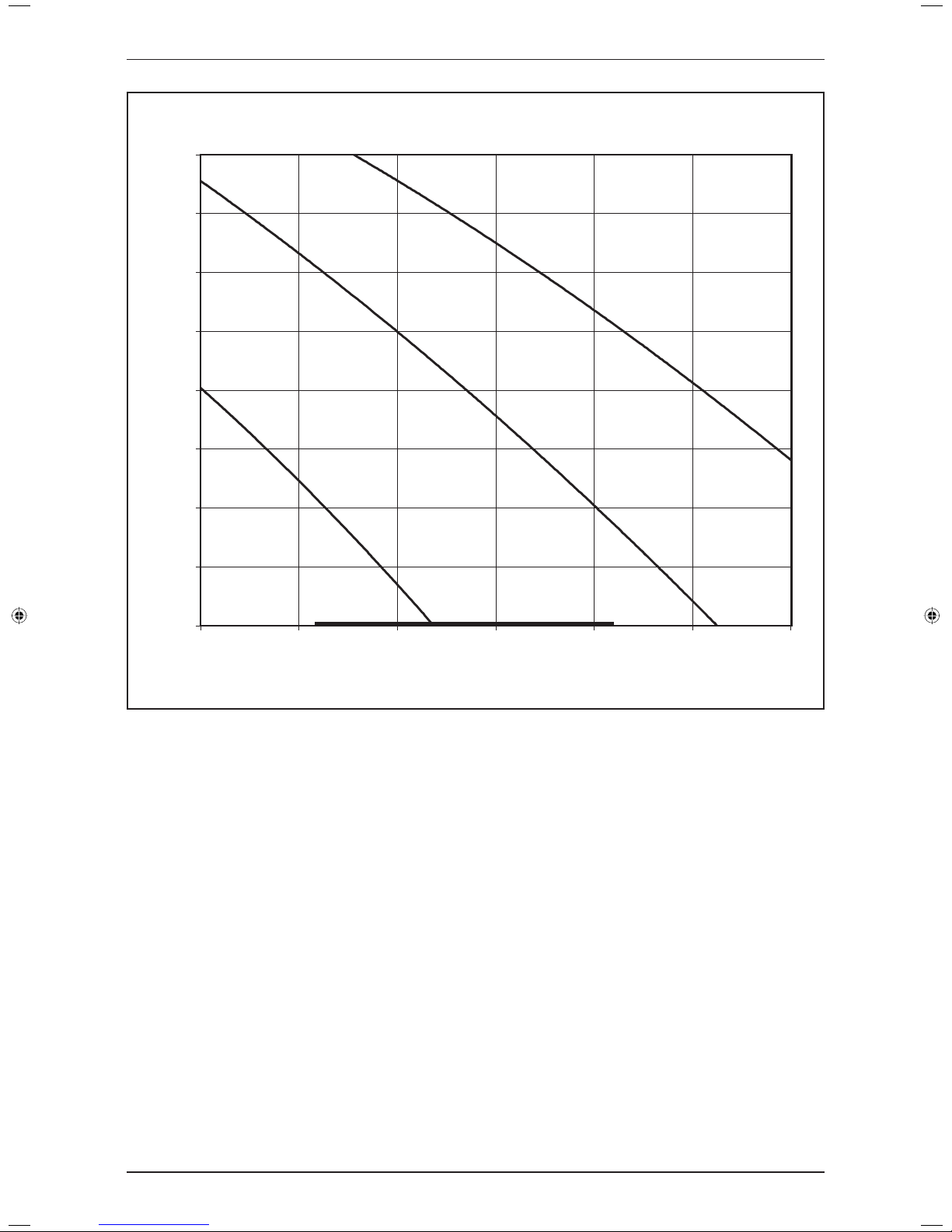

FD(Y)M28CXV1
External Static Pressure (mm wg)
Air Flow (CFM)
0
2
4
6
8
10
12
14
16
650 700 750 800 850 900 950
L
M
H
SH
Page 36
33
Selection Process
L
M
H
SH

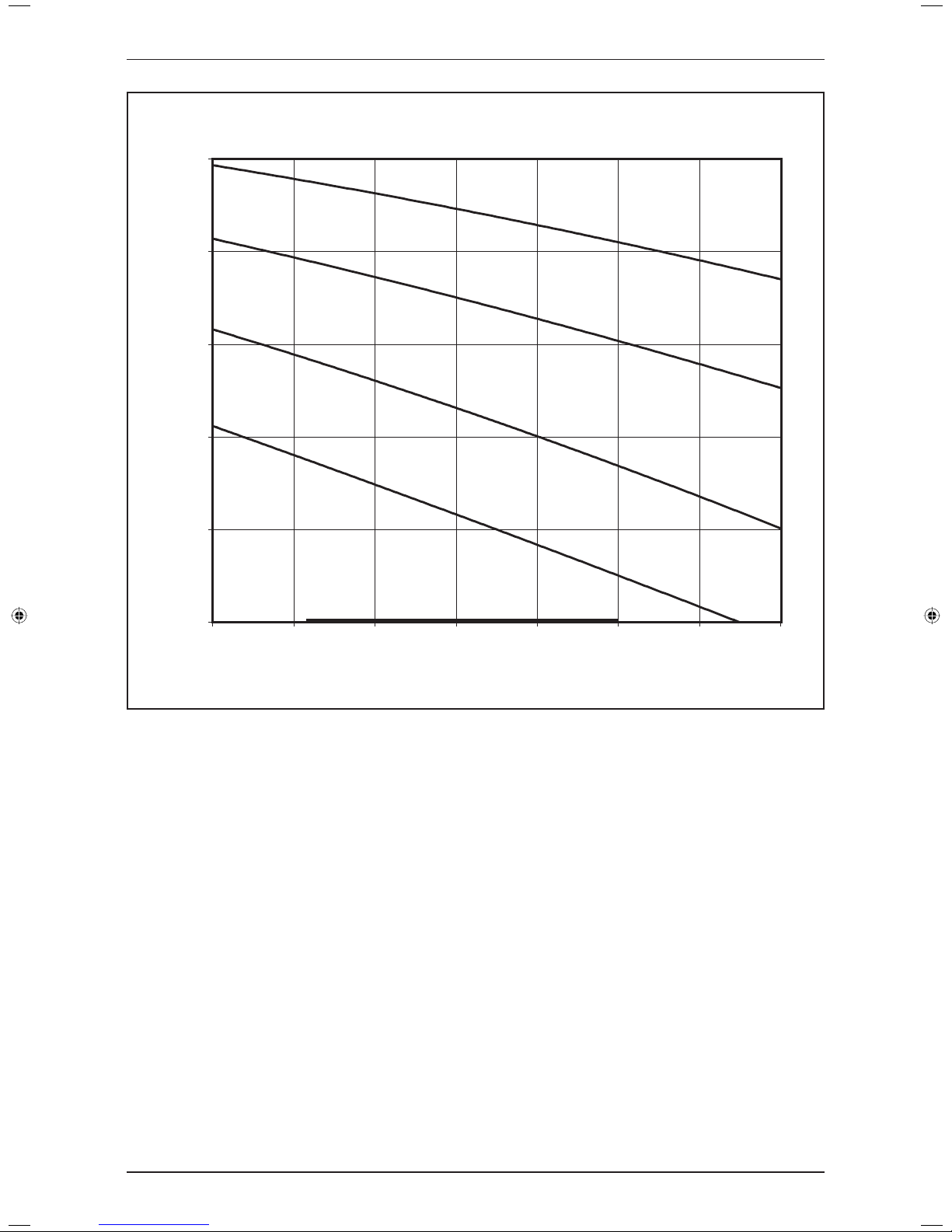

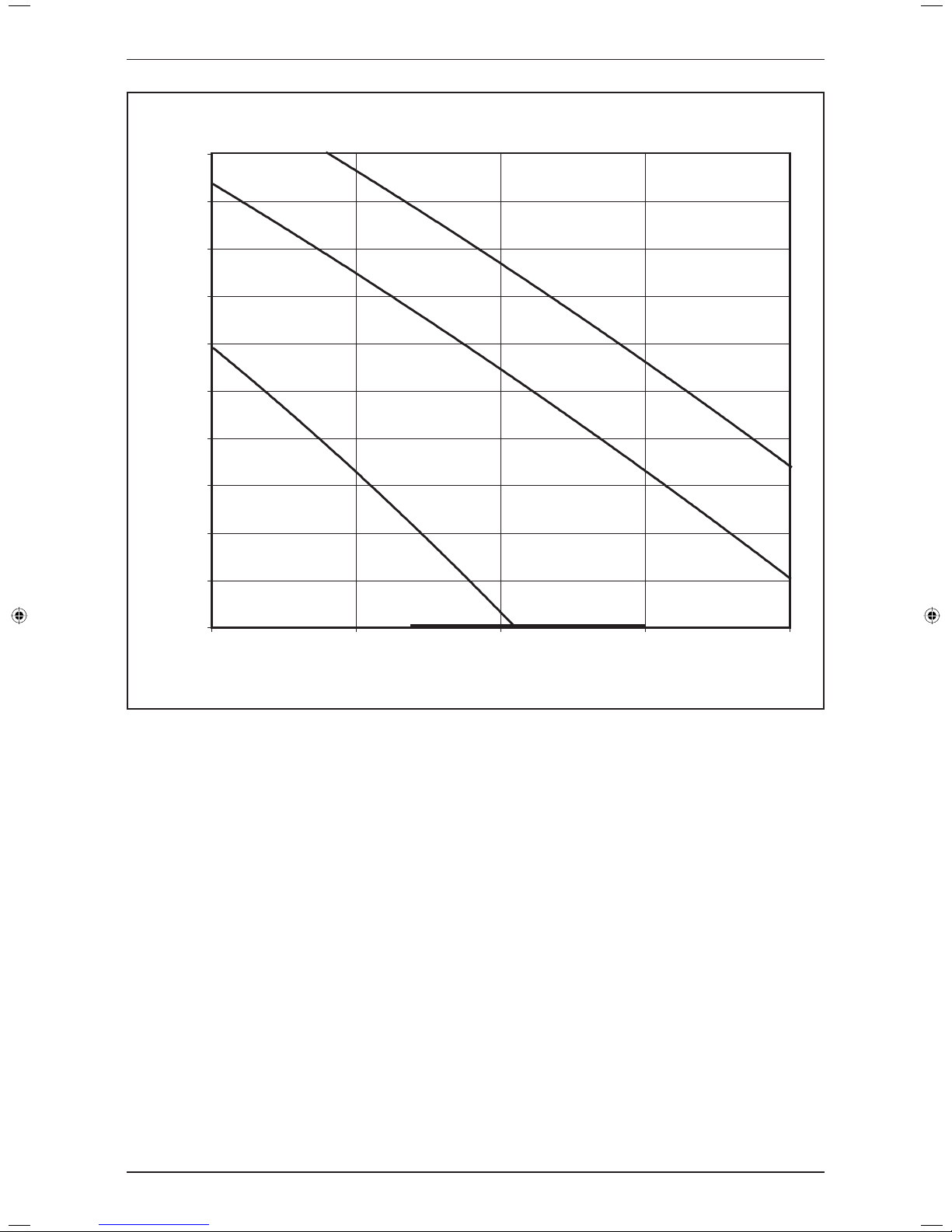

FD(Y)M30CXV1
External Static Pressure (mm wg)
Air Flow (CFM)
0
5
10
15
20
25
650 700 750 800 850 900 950 1000
Page 37
34
Selection Process

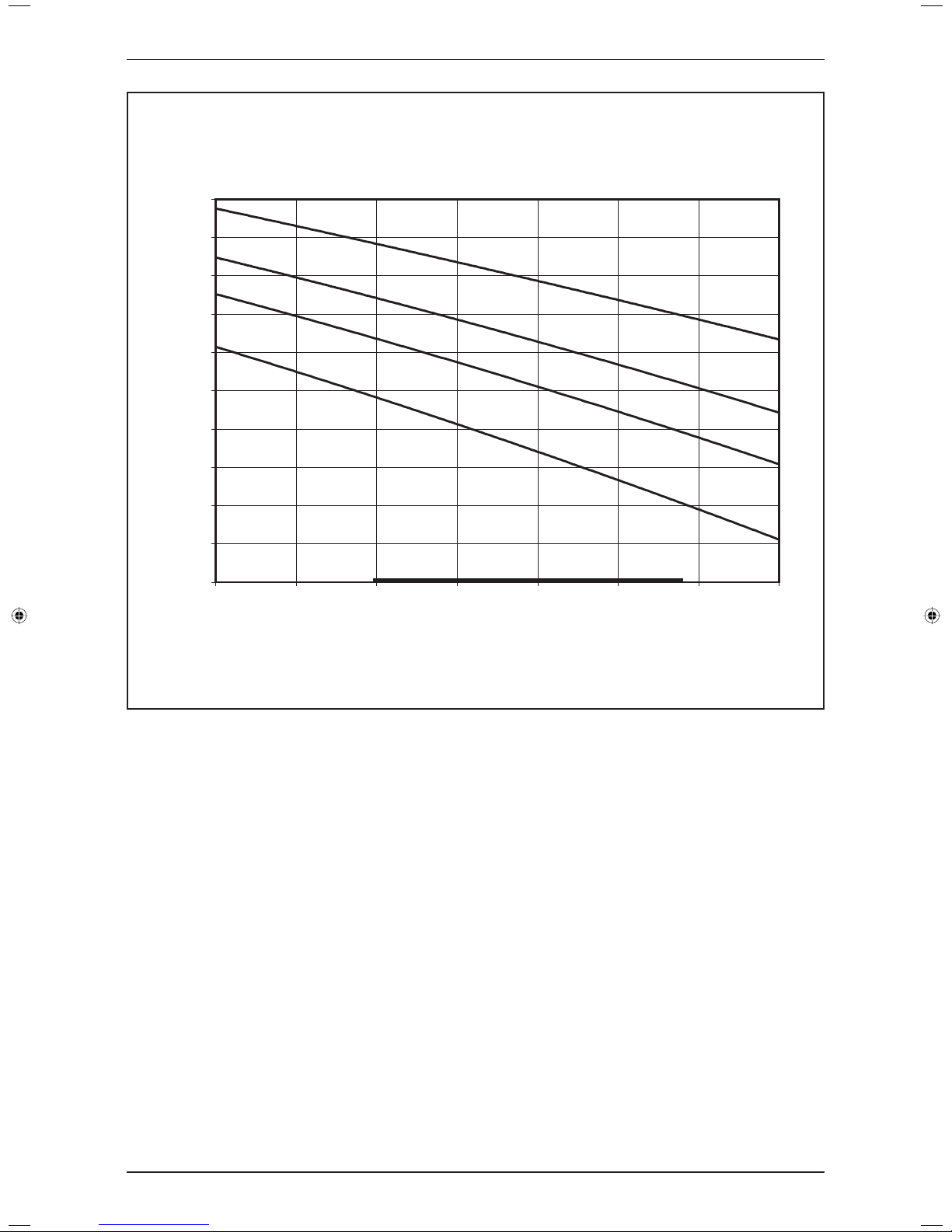

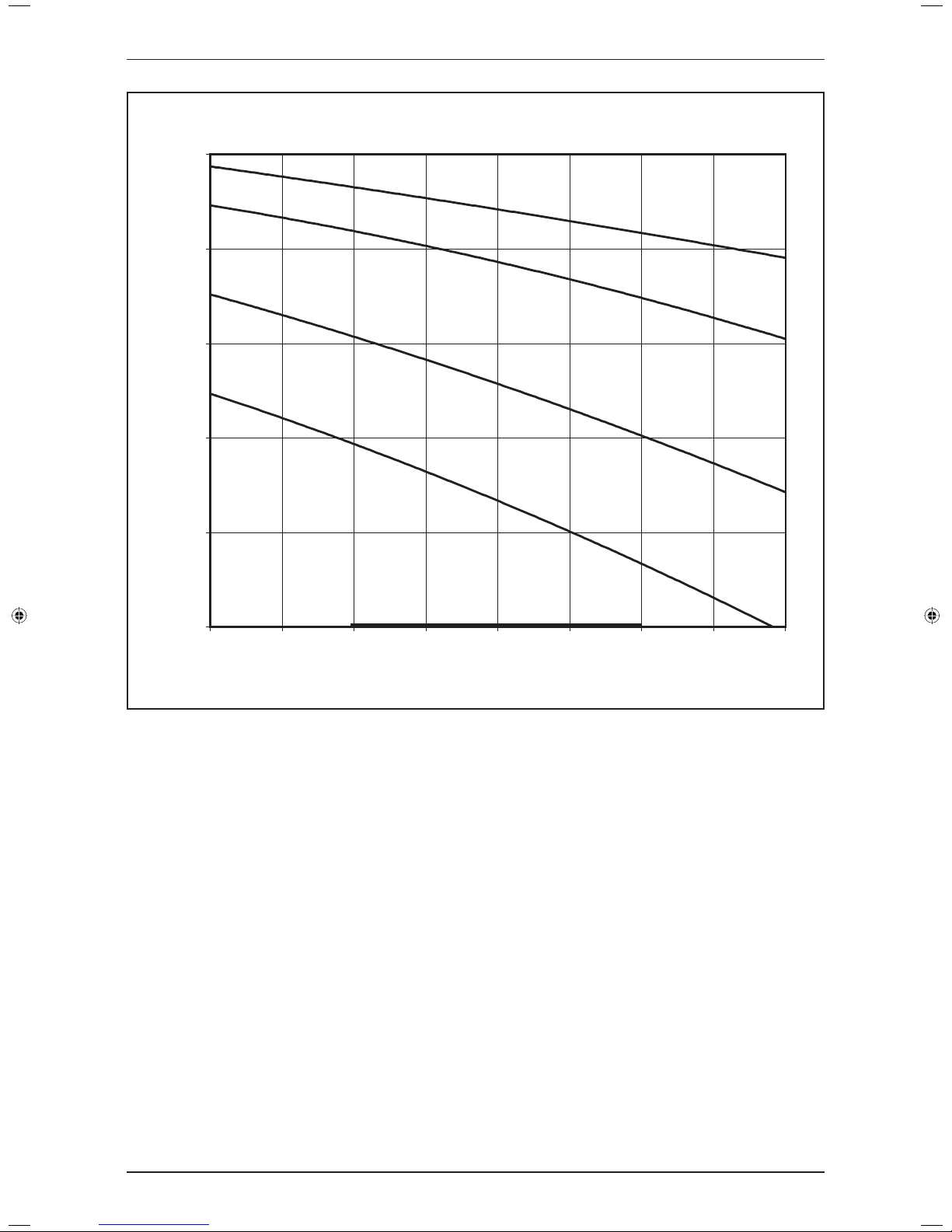

FD(Y)M38CXV1
External Static Pressure (mm wg)
Air Flow (CFM)
0
2
4
6
8
10
12
14
16
18
20
1250 1300 1350 1400 1450 1500 1550 1600
L
M
H
SH
Page 38
35
Selection Process

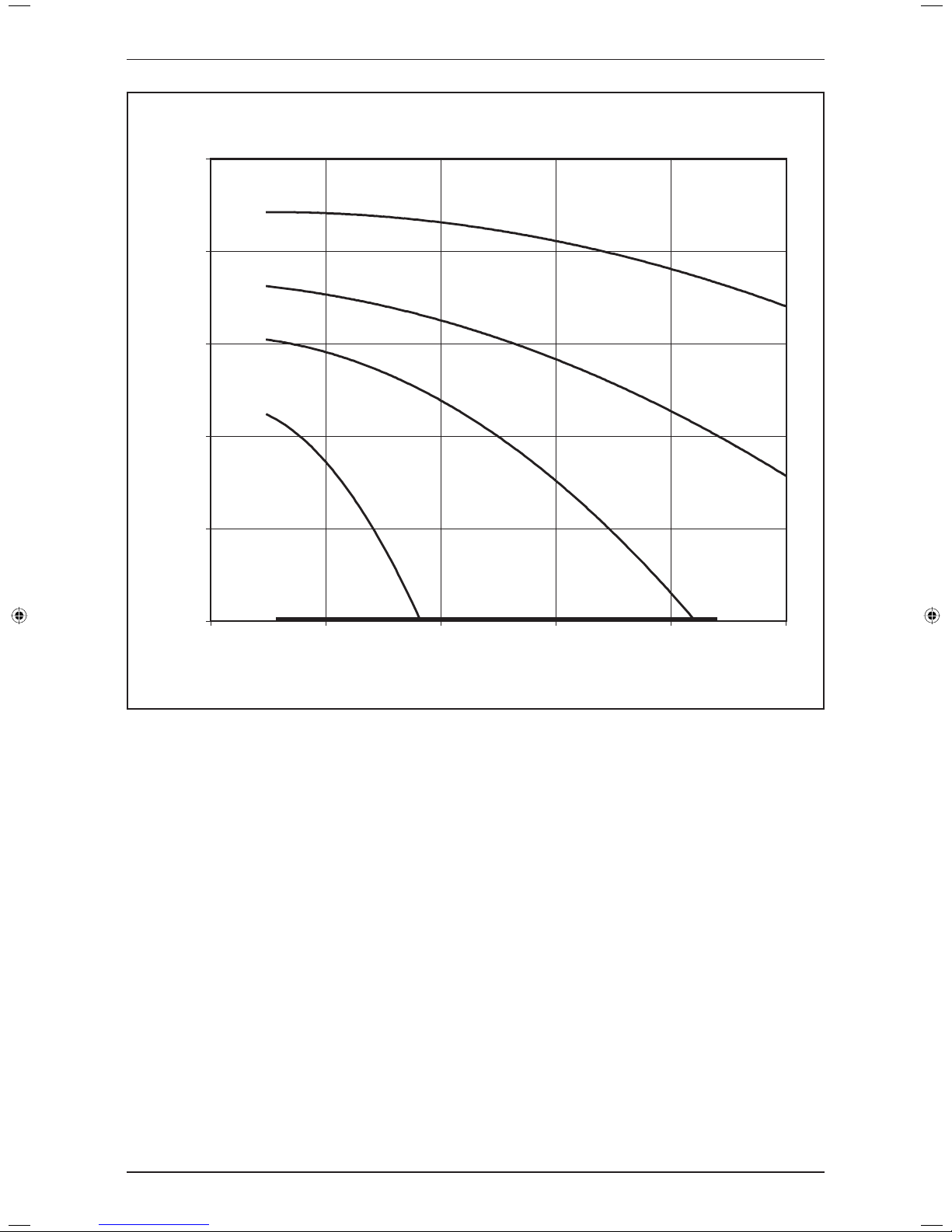

FD(Y)M40CXV1
External Static Pressure (mm wg)
Air Flow (CFM)
0
5
10
15
20
25
800 850 900 950 1000 1050 1100 1150 1200
L
M
H
SH
Page 39
36
Selection Process
FD(Y)M50CXV1
External Static Pressure (mm wg)
Air Flow (CFM)
0
5
10
15
20
25
1150 1250 1350 1450 1550 1650
L
M
H
SH
Page 40
37
Selection Process
FD(Y)M60CXV1
External Static Pressure (mm wg)
Air Flow (CFM)
0
5
10
15
20
25
1150 1250 1350 1450 1550 1650 1750
L
M
H
SH
Page 41
38
Selection Process

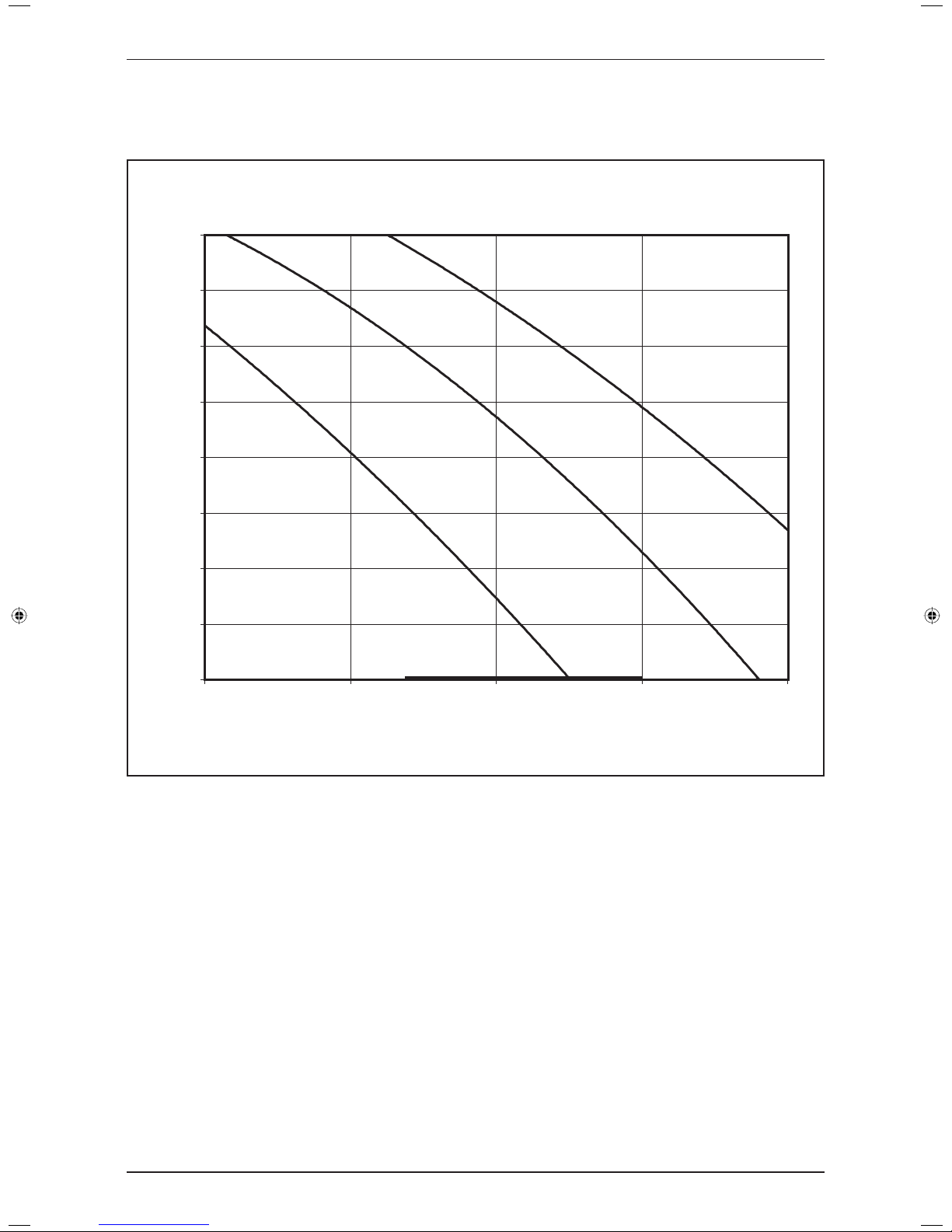

Blower Performance Curve
FD(Y)B10CXV1
Air Flow (CFM)
External Static Pressure (mm wg)
0
0.5
1
1.5
2
2.5
3
3.5
4
150 200 250 300 350
L
M
H
Page 42
39
Selection Process
FD(Y)B15CXV1
Air Flow (CFM)
External Static Pressure (mm wg)
0
0.5
1
1.5
2
2.5
3
3.5
4
250 300 350 400 450 500 550 600
L
M
H
Page 43
40
Selection Process
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
500 550 600 650 700
L
M
H
FD(Y)B20CXV1
Air Flow (CFM)
External Static Pressure (mm wg)
Page 44
41
Selection Process
FD(Y)B25CXV1
Air Flow (CFM)
External Static Pressure (mm wg)
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
450 500 550 600 650 700 750 800 850
L
M
H
Page 45
42
Selection Process
0
1
2
3
4
5
6
7
8
650 750 850 950 1050
L
M
H
SH
FD(Y)B30CXV1
Air Flow (CFM)
External Static Pressure (mm wg)
Page 46
43
Selection Process
FD(Y)B40CXV1
Air Flow (CFM)
External Static Pressure (mm wg)
0
1
2
3
4
5
6
7
8
850 950 1050 1150 1250
L
M
H
SH
Page 47
44
Selection Process

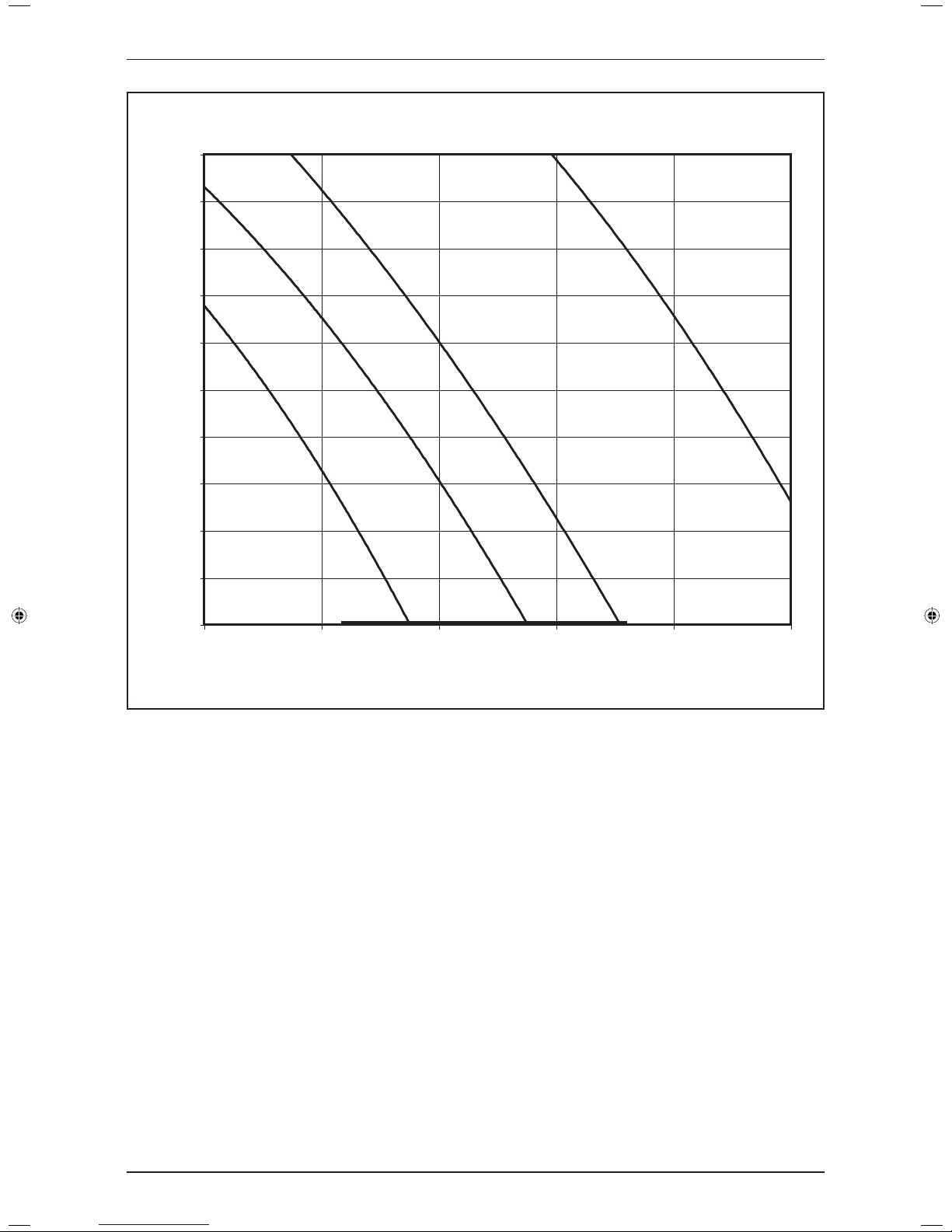

FD(Y)B50CXV1
Air Flow (CFM)
External Static Pressure (mm wg)
0
1
2
3
4
5
6
7
8
9
10
1150 1250 1350 1450 1550 1650
L
M
H
SH
Page 48
45
Selection Process
FD(Y)B60CXV1
Air Flow (CFM)
External Static Pressure (mm wg)
0
1
2
3
4
5
6
7
8
9
10
1350 1450 1550 1650 1750
L
M
H
SH
Page 49
46
Engineering & Physical Data
Engineering & Physical Data
Engineering Data – R22 MODEL
MODEL
INDOOR UNIT FDM10CXV1 FDM15CXV1 FDM20CXV1
OUTDOOR UNIT R10CXV1 R15CXV1 R20CXV1
NOMINAL COOLING CAPACITY
Btu/h 9500 12300 19000
W 2780 3600 5570
NOMINAL TOTAL INPUT POWER (COOLING) W 900 1267 1895
NOMINAL RUNNING CURRENT (COOLING) A 4.02 5.68 8.33
EER W/W 3.17 2.94 3.05
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE
REFRIGERANT CHARGE kg 0.63 0.75 1.35
MODEL
INDOOR UNIT FDYM10CXV1 FDYM15CXV1 FDYM20CXV1 FDYM20CXV1
OUTDOOR UNIT RY10CXV1 RY15CXV1 RY18CXV1 RY20CXV1
NOMINAL COOLING CAPACITY
Btu/h 9500 12300 18000 19000
W 2780 3600 5280 5570
NOMINAL HEATING CAPACITY
Btu/h 9500 12000 18500 19800
W 2780 3515 5420 5800
NOMINAL TOTAL INPUT POWER (COOLING) W 900 1267 1910 1895
NOMINAL TOTAL INPUT POWER (HEATING) W 790 1062 1750 1745
NOMINAL RUNNING CURRENT (COOLING) A 4.02 5.68 8.50 8.33
NOMINAL RUNNING CURRENT (HEATING) A 3.52 4.78 7.80 8.13
EER W/W 3.17 2.94 2.87 3.05
COP W/W 3.63 3.44 3.23 3.27
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE
REFRIGERANT CHARGE kg 0.63 0.93 0.85 1.35
POWER SOURCE V/Ph/Hz 220-240/1/50 220-240/1/50 220 - 240 / 1 / 50 220-240/1/50
REFRIGERANT TYPE R22 R22 R22 R22
INDOOR UNIT
CONTROL
AIR DISCHARGE DUCTED DUCTED DUCTED DUCTED
OPERATION SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET
AIR FLOW
HIGH l/s / CFM 142/300 241/510 330 / 700 330 / 700
MEDIUM l/s / CFM 135/285 231/490 319 / 675 319/ 675
LOW l/s / CFM 123/260 189/400 302 / 640 302/ 640
EXTERNAL STATIC PRESSURE (H/M/L) Pa (in.wg.)
49 / 44 / 36
(0.2 / 0.18 / 0.14)
49 / 42 / 28
(0.2 / 0.17 / 0.11)
49 / 45 / 41
(0.2 / 0.18 / 0.16)
49 / 45 / 41
(0.2 / 0.18 / 0.16)
SOUND PRESSURE LEVEL (H/M/L) dBA 36 / 35 / 33 40 / 38/ 33 42 / 41 / 40 42 / 41 / 40
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 261 x 765 x 411 261 x 905 x 411 261 x 1065 x 411 261 x 1065 x 411
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 376 x 951 x 541 376 x 1091 x 541 376 x 1251 x 541 376 x 1251 x 541
UNIT WEIGHT kg 17 21 22 22
CONDENSATE DRAIN SIZE mm 19.1 19.1 19.1 19.1
FAN
TYPE CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP20 IP20 IP20 IP20
INSULATION GRADE CLASS B CLASS B CLASS B CLASS B
RATED INPUT POWER W 89 160 170 170
RATED RUNNING CURRENT A 0.40 0.78 0.79 0.79
MOTOR OUTPUT W 38 72 80 80
POLES 4466
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 9.52 9.52 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.115 0.143 0.176 0.176
ROW 3333
AIR QUALITY FILTER
TYPE
WASHABLE SARANET FILTER WASHABLE SARANET FILTER WASHABLE SARANET FILTER WASHABLE SARANET FILTER
QUANTITY pc 1111
CASING COLOUR
WITHOUT POWDER PAINT WITHOUT POWDER PAINT WITHOUT POWDER PAINT WITHOUT POWDER PAINT
OUTDOOR UNIT
AIR FLOW l/s / CFM 396 / 840 453 / 960 614 / 1300 614 / 1300
SOUND PRESSURE LEVEL dBA 46 49 51 51
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 540 x 700 x 250 540 x 700 x 250 651 x 855 x 328 651 x 855 x 328
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 620 x 810 x 330 620 x 810 x 330 810 x 990 x 415 810 x 990 x 415
UNIT WEIGHT
COOLING ONLY
kg
28 28 - 47
HEATPUMP 30 30 43 47
PIPE
CONNECTION
TYPE FLARE VALVE FLARE VALVE FLARE VALVE FLARE VALVE
SIZE
LIQUID mm 6.35 6.35 6.35 6.35
GAS mm 9.52 12.70 15.88 15.88
FAN
TYPE PROPELLER PROPELLER PROPELLER PROPELLER
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP23 IP23 IP23 IP23
INSULATION GRADE CLASS B CLASS B CLASS F CLASS F
RATED INPUT POWER W 57 76 77 80
RATED RUNNING CURRENT A 0.25 0.33 0.34 0.36
MOTOR OUTPUT W 21 30 32 32
POLES 6666
COMPRESSOR
TYPE ROTARY ROTARY ROTARY ROTARY
OIL TYPE
ATMOS NM56M or
SUNISO 4GDID
ATMOS NM56M or
SUNISO 4GDID
ATMOS NM56M or
SUNISO 4GDID
ATMOS NM56M or
SUNISO 4GDID
OIL AMOUNT cm
3
320 350 670 670
R
RATED INPUT POWER (COOLING) W 754 1031 - 1645
RATED RUNNING CURRENT (COOLING)
A 3.37 4.57 - 7.18
RY
RATED INPUT POWER (COOLING) W 754 1031 1663 1645
RATED INPUT POWER (HEATING) W 644 826 1503 1495
RATED RUNNING CURRENT (COOLING)
A 3.37 4.57 7.37 7.18
RATED RUNNING CURRENT (HEATING)
A 2.87 3.67 6.67 6.98
LOCKED ROTOR AMP. A 20 25 32 34
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
R DIAMETER mm 7.00 7.00 7.00 7.00
RY DIAMETER mm 7.00 9.52 7.00 7.00
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.36 0.36 0.52 0.52
ROW 1112
CASING COLOUR LIGHT GREY LIGHT GREY LIGHT GREY LIGHT GREY
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 7°C DB / 6°C WB
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 50
47
Engineering & Physical Data
Engineering Data - R22 MODEL
MODEL
INDOOR UNIT FDM25CXV1 FDM28CXV1 FDM28CXV1
OUTDOOR UNIT R25CXV1 R28CXV1 R30DXV1
NOMINAL COOLING CAPACITY
Btu/h 23500 27000 28000
W 6890 7913 8206
NOMINAL TOTAL INPUT POWER (COOLING) W 2616 3091 2821
NOMINAL RUNNING CURRENT (COOLING) A 11.70 15.10 12.92
EER W/W 2.69 2.64 3.01
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP.TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE
REFRIGERANT CHARGE kg 1.50 1.75 1.60
MODEL
INDOOR UNIT FDYM25CXV1 FDYM28CXV1 FDYM28CXV1 FDYM28CXV1
OUTDOOR UNIT RY25CXV1 RY28CXV1 RY30DXV1 RY30DXY1
NOMINAL COOLING CAPACITY
Btu/h 23500 27000 30000 30000
W 6890 7913 8792 8792
NOMINAL HEATING CAPACITY
Btu/h 24000 28000 30000 30000
W 7030 8206 8792 8792
NOMINAL TOTAL INPUT POWER (COOLING) W 2616 3091 3090 3070
NOMINAL TOTAL INPUT POWER (HEATING) W 2536 2638 3060 3040
NOMINAL RUNNING CURRENT (COOLING) A 11.70 15.10 14.70 5.10
NOMINAL RUNNING CURRENT (HEATING) A 11.50 13.40 14.60 5.00
EER W/W 2.69 2.64 2.94 2.96
COP W/W 2.83 3.23 2.97 2.99
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE
OUTDOOR CAP. TUBE
+ TXV
OUTDOOR CAP. TUBE
+ TXV
REFRIGERANT CHARGE kg 1.50 1.83 2.15 2.15
POWER SOURCE V/Ph/Hz 220 - 240 / 1 / 50 220 - 240 / 1 / 50 220 - 240 / 1 / 50 380 - 415 / 3 / 50
REFRIGERANT TYPE R22 R22 R22 R22
INDOOR UNIT
CONTROL
AIR DISCHARGE DUCTED DUCTED DUCTED DUCTED
OPERATION SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET
AIR FLOW
SUPER HIGH l/s / CFM - 401 / 850 401 / 850 401 / 850
HIGH l/s / CFM 345 / 730 382 / 810 382 / 810 382 / 810
MEDIUM l/s / CFM 311 / 660 363 / 770 363 / 770 363 / 770
LOW l/s / CFM 274 / 580 335 / 710 335 / 710 335 / 710
EXTERNAL STATIC PRESSURE (H/M/L) Pa (in.wg.)
49 / 43 / 30
(0.2 / 0.17 / 0.12)
98 / 78 / 68 / 59
(0.4 / 0.3 / 0.3 / 0.2)
98 / 78 / 68 / 59
(0.4 / 0.3 / 0.3 / 0.2)
98 / 78 / 68 / 59
(0.4 / 0.3 / 0.3 / 0.2)
SOUND PRESSURE LEVEL (H/M/L) dBA 41 / 40 / 36 44 / 41 / 38 / 34 44 / 41 / 38 / 34 44 / 41 / 38 / 34
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 261 x 1200 x 411 285 x 932 x 600 285 x 932 x 600 285 x 932 x 600
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 376 x 1386 x 541 343 x 1138 x 690 343 x 1138 x 690 343 x 1138 x 690
UNIT WEIGHT kg 25 38 38 38
CONDENSATE DRAIN SIZE mm 19.1 19.1 19.1 19.1
FAN
TYPE CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP20 IP21 IP21 IP21
INSULATION GRADE CLASS B CLASS B CLASS B CLASS B
RATED INPUT POWER W 181 284 284 393
RATED RUNNING CURRENT A 0.82 1.33 1.33 1.33
MOTOR OUTPUT W 90 320 320 320
POLES 4444
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 9.52 9.52 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.203 0.24 0.24 0.24
ROW 3333
AIR QUALITY FILTER
TYPE
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
QUANTITY pc 1222
CASING COLOUR
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
OUTDOOR UNIT
AIR FLOW l/s / CFM 755 / 1600 741 / 1570 1605 / 3400 1605 / 3400
SOUND PRESSURE LEVEL dBA 52 58 58 58
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 753 x 855 x 328 753 x 855 x 328 852 x 1030 x 400 852 x 1030 x 400
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 810 x 990 x 415 810 x 990 x 415 1010 x 1180 x 514 1010 x 1180 x 514
UNIT WEIGHT kg 57 57 95 95
PIPE
CONNECTION
TYPE FLARE VALVE FLARE VALVE FLARE VALVE FLARE VALVE
SIZE
LIQUID mm 9.52 9.52 9.52 9.52
GAS mm 15.88 15.88 15.88 15.88
FAN
TYPE PROPELLER PROPELLER PROPELLER PROPELLER
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP23 IP23 IP54 IP54
INSULATION GRADE CLASS F CLASS F CLASS F CLASS F
RATED INPUT POWER W 123 124 257 257
RATED RUNNING CURRENT A 0.53 0.54 1.10 1.10
MOTOR OUTPUT W 60 66 145 145
POLES 6688
COMPRESSOR
TYPE ROTARY ROTARY SCROLL SCROLL
OIL TYPE
ATMOS NM56M or
SUNISO 4GDID
ATMOS M60 or SUNISO
4GDID
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
OIL AMOUNT cm
3
670 1130 1240 1240
R
RATED INPUT POWER (COOLING) W 2312 2683 2280 -
RATED RUNNING CURRENT
(COOLING)
A 10.30 13.20 10.50 -
RY
RATED INPUT POWER (COOLING) W 2312 2683 2549 2420
RATED INPUT POWER (HEATING) W 2232 2230 2519 2390
RATED RUNNING CURRENT
(COOLING)
A 10.30 13.20 12.30 4.29
RATED RUNNING CURRENT
(HEATING)
A 10.10 11.50 12.20 4.19
LOCKED ROTOR AMP. A 56 62 82 40
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 7.00 7.00 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.203 0.240 0.870 0.870
ROW 3322
CASING COLOUR LIGHT GREY LIGHT GREY LIGHT GREY LIGHT GREY
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 7°C DB / 6°C WB
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 51
48
Engineering & Physical Data
Engineering Data - R22 MODEL
MODEL
INDOOR UNIT FDM30CXV1 FDM30CXV1 FDM30CXV1 FDM38CXV1
OUTDOOR UNIT R28CXV1 R30DXV1 R30DXY1 R35DXV1
NOMINAL COOLING CAPACITY
Btu/h 28000 29000 29000 35000
W 8206 8499 8499 10257
NOMINAL TOTAL INPUT POWER (COOLING) W 3153 2799 2855 3443
NOMINAL RUNNING CURRENT (COOLING) A 15.50 13.10 5.16 16.52
EER W/W 2.80 3.29 3.22 3.23
REFRIGERANT CONTROL (EXPANSION DEVICE) INDOOR CAP. TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE
REFRIGERANT CHARGE kg 1.75 1.60 1.60 2.00
MODEL
INDOOR UNIT FDYM30CXV1 FDYM30CXV1 FDYM30CXV1 FDYM38CXV1
OUTDOOR UNIT RY28CXV1 RY30DXV1 RY30DXY1 RY35DXV1
NOMINAL COOLING CAPACITY
Btu/h 28000 30000 30000 35000
W 8206 8792 8792 10257
NOMINAL HEATING CAPACITY
Btu/h 29000 30000 30000 36000
W 8499 8792 8792 10550
NOMINAL TOTAL INPUT POWER (COOLING) W 2997 3145 3125 3572
NOMINAL TOTAL INPUT POWER (HEATING) W 2562 3115 3095 3303
NOMINAL RUNNING CURRENT (COOLING) A 15.50 15.00 5.16 16.50
NOMINAL RUNNING CURRENT (HEATING) A 13.80 14.90 5.06 16.50
EER W/W 2.80 3.00 3.02 3.11
COP W/W 3.38 3.03 3.06 3.48
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE
OUTDOOR CAP. TUBE
+ TXV
OUTDOOR CAP. TUBE
+ TXV
OUTDOOR CAP. TUBE
+ TXV
REFRIGERANT CHARGE kg 1.83 2.15 2.15 2.00
POWER SOURCE V/Ph/Hz 220-240/1/50 220 - 240 / 1 / 50 220 - 240 / 1 / 50 220 - 240 / 1 / 50
REFRIGERANT TYPE R22 R22 R22 R22
INDOOR UNIT
CONTROL
AIR DISCHARGE DUCTED DUCTED DUCTED DUCTED
OPERATION SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET
AIR FLOW
SUPER HIGH l/s / CFM 425 / 900 425 / 900 425 / 900 727 / 1540
HIGH l/s / CFM 392 / 830 392 / 830 392 / 830 694 / 1470
MEDIUM l/s / CFM 359 / 760 359 / 760 359 / 760 670 / 1420
LOW l/s / CFM 335 / 710 335 / 710 335 / 710 637 / 1350
EXTERNAL STATIC PRESSURE (H/M/L) Pa (in.wg.)
206 / 167 / 127 / 88
(0.8 / 0.7 / 0.5 / 0.4)
206 / 167 / 127 / 88
(0.8 / 0.7 / 0.5 / 0.4)
206 / 167 / 127 / 88
(0.8 / 0.7 / 0.5 / 0.4)
137 / 118 / 108 / 88
(0.6 / 0.5 / 0.4 / 0.4)
SOUND PRESSURE LEVEL (H/M/L) dBA 49 / 46 / 42 / 38 49 / 46 / 42 / 38 49 / 46 / 42 / 38 55 / 51 / 48 / 45
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 378 x 929 x 541 378 x 929 x 541 378 x 929 x 541 315 x 1257 x 638
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 415 x 1126 x 631 415 x 1126 x 631 415 x 1126 x 631 355 x 1461 x 727
UNIT WEIGHT kg 39 39 39 41
CONDENSATE DRAIN SIZE mm 19.1 19.1 19.1 19.1
FAN
TYPE CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP21 IP21 IP21 IP21
INSULATION GRADE CLASS B CLASS B CLASS B CLASS B
RATED INPUT POWER W 393 393 393 720
RATED RUNNING CURRENT A 1.72 1.72 1.72 3.03
MOTOR OUTPUT W 310 310 310 470
POLES 4444
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 9.52 9.52 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.277 0.277 0.277 0.34
ROW 3333
AIR QUALITY FILTER
TYPE
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
QUANTITY pc 2222
CASING COLOUR
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
OUTDOOR UNIT
AIR FLOW l/s / CFM 741 / 1570 1605 / 3400 1605 / 3400 1605 / 3400
SOUND PRESSURE LEVEL dBA 58 58 58 58
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 753 x 855 x 328 852 x 1030 x 400 852 x 1030 x 400 852 x 1030 x 400
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 810 x 990 x 415 1010 x 1180 x 514 1010 x 1180 x 514 1010 x 1180 x 514
UNIT WEIGHT kg 57 95 95 95
PIPE
CONNECTION
TYPE FLARE VALVE FLARE VALVE FLARE VALVE FLARE VALVE
SIZE
LIQUID mm 9.52 9.52 9.52 9.52
GAS mm 15.88 15.88 15.88 19.05
FAN
TYPE PROPELLER PROPELLER PROPELLER PROPELLER
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP23 IP54 IP54 IP54
INSULATION GRADE CLASS F CLASS B CLASS B CLASS B
RATED INPUT POWER W 124 257 257 257
RATED RUNNING CURRENT A 0.54 1.10 1.10 1.10
MOTOR OUTPUT W 66 145 145 145
POLES 6888
COMPRESSOR
TYPE ROTARY SCROLL SCROLL SCROLL
OIL TYPE
ATMOS M60 or SUNISO
4GDID
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
OIL AMOUNT cm
3
1130 1240 1240 1240
R
RATED INPUT POWER (COOLING) W 2636 2149 2205 2466
RATED RUNNING CURRENT
(COOLING)
A 13.20 10.3 4.22 12.40
RY
RATED INPUT POWER (COOLING) W 2480 2495 2475 2595
RATED INPUT POWER (HEATING) W 2045 2465 2445 2326
RATED RUNNING CURRENT
(COOLING)
A 13.20 12.20 4.22 12.40
RATED RUNNING CURRENT
(HEATING)
A 11.50 12.10 4.12 12.40
LOCKED ROTOR AMP. A 66 82 82 97
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 7.00 9.52 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.61 0.87 0.87 0.87
ROW 2222
CASING COLOUR LIGHT GREY LIGHT GREY LIGHT GREY LIGHT GREY
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 7°C DB / 6°C WB
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 52
49
Engineering & Physical Data
Engineering Data - R22 MODEL
MODEL
INDOOR UNIT FDM38CXV1 FDM38CXV1 FDM40CXV1 FDM40CXV1
OUTDOOR UNIT R40DXV1 R40DXY1 R35DXV1 R40DXV1
NOMINAL COOLING CAPACITY
Btu/h 38000 38000 33500 38000
W 11137 11137 9818 11140
NOMINAL TOTAL INPUT POWER (COOLING) W 3706 3656 3405 3555
NOMINAL RUNNING CURRENT (COOLING) A 18.10 6.47 16.40 18.50
EER W/W 3.24 3.29 3.16 3.42
REFRIGERANT CONTROL (EXPANSION DEVICE) INDOOR CAP. TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE
REFRIGERANT CHARGE kg 2.40 2.48 2.00 2.40
MODEL
INDOOR UNIT FDYM38CXV1 FDYM38CXV1 FDYM40CXV1 FDYM40CXV1
OUTDOOR UNIT RY40DXV1 RY40DXY1 RY35DXV1 RY40DXV1
NOMINAL COOLING CAPACITY
Btu/h 37000 38000 33500 37500
W 10800 11100 9818 11000
NOMINAL HEATING CAPACITY
Btu/h 40000 41000 35000 40000
W 11700 12000 10257 11700
NOMINAL TOTAL INPUT POWER (COOLING) W 3850 3750 3265 3800
NOMINAL TOTAL INPUT POWER (HEATING) W 3700 3600 3265 3700
NOMINAL RUNNING CURRENT (COOLING) A 18.00 6.32 16.40 18.00
NOMINAL RUNNING CURRENT (HEATING) A 17.80 6.14 16.40 17.70
EER W/W 3.03 3.20 3.30 3.13
COP W/W 3.42 3.61 3.45 3.44
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE
OUTDOOR CAP. TUBE
+ TXV
OUTDOOR CAP. TUBE
REFRIGERANT CHARGE kg 2.60 2.60 2.00 2.60
POWER SOURCE V/Ph/Hz 220 - 240 / 1 / 50 380 - 415 / 3 / 50 220 - 240 / 1 / 50 220 - 240 / 1 / 50
REFRIGERANT TYPE R22 R22 R22 R22
INDOOR UNIT
CONTROL
AIR DISCHARGE DUCTED DUCTED DUCTED DUCTED
OPERATION SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET
AIR FLOW
SUPER HIGH l/s / CFM 727 / 1540 727 / 1540 519 / 1100 519 / 1100
HIGH l/s / CFM 694 / 1470 694 / 1470 500 / 1060 500 / 1060
MEDIUM l/s / CFM 670 / 1420 670 / 1420 467 / 990 467 / 990
LOW l/s / CFM 637 / 1350 637 / 1350 425 / 900 425 / 900
EXTERNAL STATIC PRESSURE (H/M/L) Pa (in.wg.)
137 / 118 / 108 / 88
(0.6 / 0.5 / 0.4 / 0.4)
137 / 118 / 108 / 88
(0.6 / 0.5 / 0.4 / 0.4)
206 / 176 / 127 / 93
(0.8 / 0.7 / 0.5 / 0.4)
206 / 176 / 127 / 93
(0.8 / 0.7 / 0.5 / 0.4)
SOUND PRESSURE LEVEL (H/M/L) dBA 55 / 51 / 48 / 45 55 / 51 / 48 / 45 51 / 49 / 45 / 41 51 / 49 / 45 / 41
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 315 x 1257 x 638 315 x 1257 x 638 378 x 1045 x 541 378 x 1045 x 541
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 355 x 1461 x 727 355 x 1461 x 727 415 x 1245 x 631 415 x 1245 x 631
UNIT WEIGHT kg 41 41 42 42
CONDENSATE DRAIN SIZE mm 19.1 19.1 19.1 19.1
FAN
TYPE CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP21 IP21 IP21 IP21
INSULATION GRADE CLASS B CLASS B CLASS B CLASS B
RATED INPUT POWER W 720 720 405 405
RATED RUNNING CURRENT A 3.03 3.03 1.76 1.76
MOTOR OUTPUT W 470 470 355 355
POLES 4444
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 9.52 9.52 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.34 0.34 0.31 0.31
ROW 3333
AIR QUALITY FILTER
TYPE
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
QUANTITY pc 2222
CASING COLOUR
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
OUTDOOR UNIT
AIR FLOW l/s / CFM 1605 / 3400 1605 / 3400 1605 / 3400 1605 / 3400
SOUND PRESSURE LEVEL dBA 58 58 58 58
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 852 x 1030 x 400 852 x 1030 x 400 852 x 1030 x 400 852 x 1030 x 400
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 1010 x 1180 x 514 1010 x 1180 x 514 1010 x 1180 x514 1010 x 1180 x 514
UNIT WEIGHT kg 100 100 95 100
PIPE
CONNECTION
TYPE FLARE VALVE FLARE VALVE FLARE VALVE FLARE VALVE
SIZE
LIQUID mm 9.52 9.52 9.52 9.52
GAS mm 19.05 19.05 19.05 19.05
FAN
TYPE PROPELLER PROPELLER PROPELLER PROPELLER
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP54 IP54 IP54 IP54
INSULATION GRADE CLASS B CLASS B CLASS B CLASS B
RATED INPUT POWER (R) W 257 257 257 257
RATED RUNNING CURRENT (R) A 1.10 1.10 1.10 1.10
RATED INPUT POWER (RY) W 335 335 257 276
RATED RUNNING CURRENT (RY) A
1.58 1.58 1.10 1.34
MOTOR OUTPUT W
145 145 145 145
POLES 8888
COMPRESSOR
TYPE SCROLL SCROLL SCROLL SCROLL
OIL TYPE
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
OIL AMOUNT cm
3
1240 1240 1240 1240
R
RATED INPUT POWER (COOLING) W 2729 2679 2743 2893
RATED RUNNING CURRENT (COOLING)
A 14 5.09 13.5 15.6
RY
RATED INPUT POWER (COOLING) W 2795 2695 2603 3119
RATED INPUT POWER (HEATING) W 2645 2545 2603 3019
RATED RUNNING CURRENT (COOLING)
A 13.40 4.78 13.50 14.90
RATED RUNNING CURRENT (HEATING)
A 13.20 4.60 13.50 14.60
LOCKED ROTOR AMP. A 11448 97114
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
R DIAMETER mm 9.52 7.00 9.52 9.52
RY DIAMETER mm 7.00 7.00 9.52 7.00
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.87 0.87 0.87 0.87
ROW 2222
CASING COLOUR LIGHT GREY LIGHT GREY LIGHT GREY LIGHT GREY
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 7°C DB / 6°C WB
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 53
50
Engineering & Physical Data
Engineering Data - R22 MODEL
MODEL
INDOOR UNIT FDM40CXV1 FDM50CXV1 FDM60CXV1
OUTDOOR UNIT R40DXY1 R50DXY1 R61DXY1
NOMINAL COOLING CAPACITY
Btu/h 38000 48000 56000
W 11140 14100 16410
NOMINAL TOTAL INPUT POWER (COOLING) W 4050 4950 6010
NOMINAL RUNNING CURRENT (COOLING) A 6.26 8.21 10.00
EER W/W 2.97 3.05 2.91
REFRIGERANT CONTROL (EXPANSION DEVICE) INDOOR CAP. TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE
REFRIGERANT CHARGE kg 2.48 2.45 5.00
MODEL
INDOOR UNIT FDYM40CXV1 FDYM50CXV1 FDYM60CXV1
OUTDOOR UNIT RY40DXY1 RY50DXY1 RY61DXY1
NOMINAL COOLING CAPACITY
Btu/h 37500 48000 56000
W 11000 14100 16410
NOMINAL HEATING CAPACITY
Btu/h 40000 50000 56000
W 11700 14700 16410
NOMINAL TOTAL INPUT POWER (COOLING) W 3700 5200 6010
NOMINAL TOTAL INPUT POWER (HEATING) W 3600 4550 4980
NOMINAL RUNNING CURRENT (COOLING) A 6.43 8.53 10.00
NOMINAL RUNNING CURRENT (HEATING) A 6.26 7.75 8.80
EER W/W 3.23 2.89 2.91
COP W/W 3.55 3.48 3.57
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE
INDOOR & OUTDOOR
CAP. TUBE
REFRIGERANT CHARGE kg 2.60 2.50 5.00
POWER SOURCE V/Ph/Hz 380 - 415 / 3 / 50 380 - 415 / 3 / 50 380 - 415 / 3 / 50
REFRIGERANT TYPE R22 R22 R22
INDOOR UNIT
CONTROL
AIR DISCHARGE DUCTED DUCTED DUCTED
OPERATION SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET
AIR FLOW
SUPER HIGH l/s / CFM 519 / 1100 750 / 1590 779 / 1650
HIGH l/s / CFM 500 / 1060 651 / 1380 722 / 1530
MEDIUM l/s / CFM 467 / 990 604 / 1280 675 / 1430
LOW l/s / CFM 425 / 900 571 / 1210 609 / 1290
EXTERNAL STATIC PRESSURE (H/M/L) Pa (in.wg.)
206 / 176 / 127 / 93
(0.8 / 0.7 / 0.5 / 0.4)
176 / 157 / 137 / 108
(0.7 / 0.6 / 0.6 / 0.4)
176 / 157 / 137 / 98
(0.7 / 0.6 / 0.6 / 0.4)
SOUND PRESSURE LEVEL (H/M/L) dBA 51 / 49 / 45 / 41 53 / 52 / 50 / 47 55 / 53 / 50 / 47
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 378 x 1045 x 541 378 x 1299 x 541 378 x 1499 x 541
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 415 x 1245 x 631 415 x 1497 x 631 415 x 1701 x 631
UNIT WEIGHT kg 42 54 62
CONDENSATE DRAIN SIZE mm 19.1 19.1 19.1
FAN
TYPE CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
DRIVE DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP21 IP 21 IP 21
INSULATION GRADE CLASS B CLASS B CLASS B
RATED INPUT POWER W 405 498 643
RATED RUNNING CURRENT A 1.76 2.22 2.90
MOTOR OUTPUT W 355 373 500
POLES 444
COIL
TUBE
MATERIAL COPPER COPPER COPPER
DIAMETER mm 9.52 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.31 0.4 0.47
ROW 333
AIR QUALITY FILTER
TYPE
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
QUANTITY pc 222
CASING COLOUR
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
OUTDOOR UNIT
AIR FLOW l/s / CFM 1605 / 3400 1605 / 3400 1793 / 3800
SOUND PRESSURE LEVEL dBA 58 58 61
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 852 x 1030 x 400 852 x 1030 x 400 852 x 1030 x 400
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 1010 x 1180 x 514 1010 x 1180 x 514 1010 x 1180 x 514
UNIT WEIGHT kg 100 105 108
PIPE
CONNECTION
TYPE FLARE VALVE FLARE VALVE FLARE VALVE
SIZE
LIQUID mm 9.52 9.52 12.70
GAS mm 19.05 19.05 19.05
FAN
TYPE PROPELLER PROPELLER PROPELLER
DRIVE DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP54 IP 54 IP 54
INSULATION GRADE CLASS B CLASS B CLASS F
RATED INPUT POWER (R) W 257 257 272
RATED RUNNING CURRENT (R) A 1.10 1.10 1.28
RATED INPUT POWER (RY) W 276 276 272
RATED RUNNING CURRENT (RY) A 1.34 1.34 1.28
MOTOR OUTPUT W 145 145 145
POLES 888
COMPRESSOR
TYPE SCROLL SCROLL SCROLL
OIL TYPE
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
OIL AMOUNT cm
3
1240 1950 1705
R
RATED INPUT POWER (COOLING) W 3388 4195 5095
RATED RUNNING CURRENT (COOLING)
A 5.31 7.10 8.61
RY
RATED INPUT POWER (COOLING) W 3019 4426 5095
RATED INPUT POWER (HEATING) W 2919 3776 4065
RATED RUNNING CURRENT (COOLING)
A 5.40 7.34 8.61
RATED RUNNING CURRENT (HEATING)
A 5.23 6.56 7.41
LOCKED ROTOR AMP. A 48 59 74
COIL
TUBE
MATERIAL COPPER COPPER COPPER
DIAMETER mm 7.00 7.00 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.87 0.87 0.84
ROW 223
CASING COLOUR LIGHT GREY LIGHT GREY LIGHT GREY
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 7°C DB / 6°C WB
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 54
51
Engineering & Physical Data
Engineering Data - R22 MODEL
MODEL
INDOOR UNIT FDB10CXV1 FDB15CXV1 FDB20CXV1
OUTDOOR UNIT R10CXV1 R15CXV1 R20CXV1
NOMINAL COOLING CAPACITY
Btu/h 9500 12300 19000
W 2780 3600 5570
NOMINAL TOTAL INPUT POWER (COOLING) W 894 1256 1879
NOMINAL RUNNING CURRENT (COOLING) A 3.99 5.63 8.25
EER W/W 3.15 2.91 3.01
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE OUTDOOR CAP.TUBE OUTDOOR CAP.TUBE
REFRIGERANT CHARGE kg 0.63 0.60 1.35
MODEL
INDOOR UNIT FDYB10CXV1 FDYB15CXV1 FDYB20CXV1 FDYB20CXV1
OUTDOOR UNIT RY10CXV1 RY15CXV1 RY18CXV1 RY20CXV1
NOMINAL COOLING CAPACITY
Btu/h 9500 12300 18000 19000
W 2780 3600 5280 5570
NOMINAL HEATING CAPACITY
Btu/h 9500 12000 18500 19800
W 2780 3515 5420 5800
NOMINAL TOTAL INPUT POWER (COOLING) W 894 1256 1894 1879
NOMINAL TOTAL INPUT POWER (HEATING) W 784 1051 1734 1829
NOMINAL RUNNING CURRENT (COOLING) A 3.99 5.63 8.50 8.25
NOMINAL RUNNING CURRENT (HEATING) A 3.49 4.73 7.80 8.05
EER W/W 3.15 2.91 2.83 3.01
COP W/W 3.59 3.40 3.18 3.23
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE
REFRIGERANT CHARGE kg 0.63 0.93 0.85 1.35
POWER SOURCE V/Ph/Hz 220 - 240 / 1 / 50 220 - 240 / 1 / 50 220 - 240 / 1 / 50 220 - 240 / 1 / 50
REFRIGERANT TYPE R22 R22 R22 R22
INDOOR UNIT
CONTROL
AIR DISCHARGE DUCTED DUCTED DUCTED DUCTED
OPERATION SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET
AIR FLOW
HIGH l/s / CFM 142 / 300 255 / 540 307 / 650 307 / 650
MEDIUM l/s / CFM 130 / 275 236 / 500 302 / 640 302 / 640
LOW l/s / CFM 106 /225 179 / 380 269 / 570 269 / 570
EXTERNAL STATIC PRESSURE (H/M/L) Pa (in.wg.)
10 / 8 / 5
(0.04 / 0.03 / 0.02)
10 / 8 / 5
(0.04 / 0.03 / 0.02)
20 / 19 / 15
(0.08 / 0.07 / 0.06)
20 / 19 / 15
(0.08/ 0.07 / 0.06)
SOUND PRESSURE LEVEL (H/M/L) dBA 33 / 30 / 25 36 / 33 / 28 38 / 37 / 35 38 / 37 / 35
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 261 x 765 x 411 261 x 905 x 411 261 x 1065 x 411 261 x 1065 x 411
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 376 x 951 x 541 376 x 1091 x 541 376 x 1251 x 541 376 x 1251 x 541
UNIT WEIGHT kg 17 21 22 22
CONDENSATE DRAIN SIZE mm 19.1 19.1 19.1 19.1
FAN
TYPE CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP 20 IP 20 IP 20 IP 20
INSULATION GRADE CLASS B CLASS B CLASS B CLASS B
RATED INPUT POWER W 68 106 132 132
RATED RUNNING CURRENT A 0.30 0.47 0.58 0.58
MOTOR OUTPUT W 20 40 60 60
POLES 4466
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 9.52 9.52 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.115 0.143 0.176 0.176
ROW 3333
AIR QUALITY FILTER
TYPE
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
QUANTITY pc 1111
CASING COLOUR
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
OUTDOOR UNIT
AIR FLOW l/s / CFM 396 / 840 453 / 960 614 / 1300 614 / 1300
SOUND PRESSURE LEVEL dBA 46 49 51 51
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 540 x 700 x 250 540 x 700 x 250 651 x 855 x 328 651 x 855 x 328
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 620 x 810 x 330 620 x 810 x 330 810 x 990 x 415 810 x 990 x 415
UNIT WEIGHT
COOLING ONLY
kg
28 28 - 47
HEATPUMP 30 30 43 47
PIPE
CONNECTION
TYPE FLARE VALVE FLARE VALVE FLARE VALVE FLARE VALVE
SIZE
LIQUID mm 6.35 6.35 6.35 6.35
GAS mm 9.52 12.70 15.88 15.88
FAN
TYPE PROPELLER PROPELLER PROPELLER PROPELLER
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP23 IP23 IP23 IP23
INSULATION GRADE CLASS B CLASS B CLASS F CLASS F
RATED INPUT POWER W 57 76 77 80
RATED RUNNING CURRENT A 0.25 0.33 0.34 0.36
MOTOR OUTPUT W 21 30 32 32
POLES 6666
COMPRESSOR
TYPE ROTARY ROTARY ROTARY ROTARY
OIL TYPE
ATMOS NM56M or
SUNISO 4GDID
ATMOS NM56M or
SUNISO 4GDID
ATMOS NM56M or
SUNISO 4GDID
ATMOS NM56M or
SUNISO 4GDID
OIL AMOUNT cm
3
320 350 670 670
R
RATED INPUT POWER (COOLING) W 769 1074 - 1667
RATED RUNNING CURRENT
(COOLING)
A 3.44 4.83 - 7.31
RY
RATED INPUT POWER (COOLING) W 769 1074 1685 1667
RATED INPUT POWER (HEATING) W 659 869 1525 1617
RATED RUNNING CURRENT
(COOLING)
A 3.44 4.83 7.58 7.31
RATED RUNNING CURRENT
(HEATING)
A 2.94 3.93 6.88 7.11
LOCKED ROTOR AMP. A 20 25 32 34
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
R DIAMETER mm 7777
RY DIAMETER mm 7 9.52 7 7
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.36 0.36 0.52 0.52
ROW 1112
CASING COLOUR LIGHT GREY LIGHT GREY LIGHT GREY LIGHT GREY
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 7°C DB / 6°C WB
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 55
52
Engineering & Physical Data
Engineering Data - R22 MODEL
MODEL
INDOOR UNIT FDB25CXV1 FDB30CXV1 FDB30CXV1 FDB30CXV1
OUTDOOR UNIT R25CXV1 R28CXV1 R30DXV1 R30DYV1
NOMINAL COOLING CAPACITY
Btu/h 23500 28000 29000 29000
W 6890 8206 8499 8499
NOMINAL TOTAL INPUT POWER (COOLING) W 2589 3124 2770 2826
NOMINAL RUNNING CURRENT (COOLING) A 11.60 15.50 12.90 5.11
EER W/W 2.69 2.67 3.13 3.06
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP.TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE
REFRIGERANT CHARGE kg 1.50 1.75 1.60 1.60
MODEL
INDOOR UNIT FDYB25CXV1 FDYB30CXV1 FDYB30CXV1 FDYB30CXV1
OUTDOOR UNIT RY25CXV1 RY28CXV1 RY30DXV1 RY30DXY1
NOMINAL COOLING CAPACITY
Btu/h 23500 28000 30000 30000
W 6890 8206 8792 8792
NOMINAL HEATING CAPACITY
Btu/h 24000 29000 30000 30000
W 7030 8499 8792 8792
NOMINAL TOTAL INPUT POWER (COOLING) W 2589 3124 3116 3096
NOMINAL TOTAL INPUT POWER (HEATING) W 2509 2700 3086 3066
NOMINAL RUNNING CURRENT (COOLING) A 11.70 15.50 14.80 5.20
NOMINAL RUNNING CURRENT (HEATING) A 11.50 13.80 14.70 5.10
EER W/W 2.69 2.67 2.87 2.89
COP W/W 2.84 3.21 2.90 2.92
REFRIGERANT CONTROL (EXPANSION DEVICE) OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE
OUTDOOR CAP. TUBE
+ TXV
OUTDOOR CAP. TUBE
+ TXV
REFRIGERANT CHARGE kg 1.50 1.83 2.15 2.15
POWER SOURCE V/Ph/Hz 220 - 240 / 1 / 50 220 - 240 / 1 / 50 220 - 240 / 1 / 50 380 - 415 / 3 / 50
REFRIGERANT TYPE R22 R22 R22 R22
INDOOR UNIT
CONTROL
AIR DISCHARGE DUCTED DUCTED DUCTED DUCTED
OPERATION SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET
AIR FLOW
SUPER HIGH l/s / CFM - 444 / 940 444 / 940 444 / 940
HIGH l/s / CFM 363 / 770 415 / 880 415 / 880 415 / 880
MEDIUM l/s / CFM 340 / 720 373 / 790 373 / 790 373 / 790
LOW l/s / CFM 274 / 580 349 / 740 349 / 740 349 / 740
EXTERNAL STATIC PRESSURE (SH/H/M/L) Pa (in.wg.)
20 / 18 / 11
(0.08 / 0.07 / 0.04)
49 / 39 / 29 / 20
(0.20 / 0.16 / 0.12 / 0.08)
49 / 39 / 29 / 20
(0.20 / 0.16 / 0.12 / 0.08)
49 / 39 / 29 / 20
(0.20 / 0.16 / 0.12 / 0.08)
SOUND PRESSURE LEVEL (H/M/L) dBA 40 / 39 / 35 41 / 40 / 39 / 36 41 / 40 / 39 / 36 41 / 40 / 39 / 36
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 261 x 1200 x 411 378 x 929 x 541 378 x 929 x 541 378 x 929 x 541
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 376 x 1386 x 541 415 x 1126 x 631 415 x 1126 x 631 415 x 1126 x 631
UNIT WEIGHT kg 25 39 39 39
CONDENSATE DRAIN SIZE mm 19.1 19.1 19.1 19.1
FAN
TYPE CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP20 IP 20 IP 20 IP 20
INSULATION GRADE CLASS B CLASS B CLASS B CLASS B
RATED INPUT POWER W 161 249 249 249
RATED RUNNING CURRENT A 0.70 1.09 1.09 1.09
MOTOR OUTPUT W 80 100 100 100
POLES 4444
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 9.52 9.52 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.203 0.277 0.277 0.277
ROW 3333
AIR QUALITY FILTER
TYPE
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
QUANTITY pc 1222
CASING COLOUR
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
OUTDOOR UNIT
AIR FLOW l/s / CFM 755 / 1600 741 / 1570 1605 / 3400 1605 / 3400
SOUND PRESSURE LEVEL dBA 52 58 58 58
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 753 x 855 x 328 753 x 855 x 328 852 x 1030 x 400 852 x 1030 x 400
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 810 x 990 x 415 810 x 990 x 415 1010 x 1180 x 514 1010 x 1180 x 514
UNIT WEIGHT kg 57 57 95 95
PIPE
CONNECTION
TYPE FLARE VALVE FLARE VALVE FLARE VALVE FLARE VALVE
SIZE
LIQUID mm 9.52 9.52 9.52 9.52
GAS mm 15.88 15.88 15.88 15.88
FAN
TYPE PROPELLER PROPELLER PROPELLER PROPELLER
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP23 IP23 IP54 IP54
INSULATION GRADE CLASS F CLASS F CLASS B CLASS B
RATED INPUT POWER W 123 124 257 257
RATED RUNNING CURRENT A 0.53 0.54 1.10 1.10
MOTOR OUTPUT W 60 66 145 145
POLES 6688
COMPRESSOR
TYPE ROTARY ROTARY SCROLL SCROLL
OIL TYPE
ATMOS NM56M or
SUNISO 4GDID
ATMOS M60 or SUNISO
4GDID
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
OIL AMOUNT cm
3
700 1130 1240 1240
R
RATED INPUT POWER (COOLING) W 2305 2751 2264 2320
RATED RUNNING CURRENT
(COOLING)
A 10.40 13.90 10.7 4.38
RY
RATED INPUT POWER (COOLING) W 2305 2751 2610 2590
RATED INPUT POWER (HEATING) W 2225 2327 2580 2560
RATED RUNNING CURRENT
(COOLING)
A 10.50 13.90 12.60 4.47
RATED RUNNING CURRENT
(HEATING)
A 10.30 12.20 12.50 4.37
LOCKED ROTOR AMP. A 54 66 82 40
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 7 7 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.203 0.61 0.87 0.87
ROW 3222
CASING COLOUR LIGHT GREY LIGHT GREY LIGHT GREY LIGHT GREY
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 7°C DB / 6°C WB
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 56
53
Engineering & Physical Data
Engineering Data - R22 MODEL (Low Static)
MODEL
INDOOR UNIT FDB40CXV1 FDB40CXV1 FDB40CXV1 FDB50CXV1
OUTDOOR UNIT R35DXV1 R40DXV1 R40DXY1 R50DXY1
NOMINAL COOLING CAPACITY
Btu/h 33500 38000 38000 48000
W 9818 11140 11140 14100
NOMINAL TOTAL INPUT POWER (COOLING) W 3350 3500 3897 4859
NOMINAL RUNNING CURRENT (COOLING) A 16.40 18.20 5.64 7.86
EER W/W 2.99 3.24 2.91 2.97
REFRIGERANT CONTROL (EXPANSION DEVICE) INDOOR CAP. TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE INDOOR CAP. TUBE
REFRIGERANT CHARGE kg 2.00 2.40 2.48 2.45
MODEL
INDOOR UNIT FDYB40CXV1 FDYB40CXV1 FDYB40CXV1 FDYB50CXV1
OUTDOOR UNIT RY35DXV1 RY40DXV1 RY40DXY1 RY50DXY1
NOMINAL COOLING CAPACITY
Btu/h 33500 37500 37500 48000
W 9818 11000 11100 14100
NOMINAL HEATING CAPACITY
Btu/h 35000 40000 40000 50000
W 10257 11700 11700 14700
NOMINAL TOTAL INPUT POWER (COOLING) W 3210 3700 3650 5087
NOMINAL TOTAL INPUT POWER (HEATING) W 3210 3650 3550 4437
NOMINAL RUNNING CURRENT (COOLING) A 16.40 17.50 6.35 8.15
NOMINAL RUNNING CURRENT (HEATING) A 16.40 17.40 6.17 7.37
EER W/W 3.12 3.02 3.07 2.84
COP W/W 3.26 3.27 3.36 3.4
REFRIGERANT CONTROL (EXPANSION DEVICE)
OUTDOOR CAP. TUBE
+ TXV
OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE OUTDOOR CAP. TUBE
REFRIGERANT CHARGE kg 2.00 2.60 2.60 2.50
POWER SOURCE V/Ph/Hz 220 - 240 / 1 / 50 220 - 240 / 1 / 50 380 - 415 / 3 / 50 380 - 415 / 3 / 50
REFRIGERANT TYPE R22 R22 R22 R22
INDOOR UNIT
CONTROL
AIR DISCHARGE DUCTED DUCTED DUCTED DUCTED
OPERATION SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET SLM WIRED HANDSET
AIR FLOW
SUPER HIGH l/s / CFM 562 / 1190 562 / 1190 562 / 1190 713 / 1510
HIGH l/s / CFM 500 / 1060 500 / 1060 500 / 1060 628 / 1330
MEDIUM l/s / CFM 472 / 1000 472 / 1000 472 / 1000 618 / 1310
LOW l/s / CFM 458 / 970 458 / 970 458 / 970 599 / 1270
EXTERNAL STATIC PRESSURE (H/M/L) Pa (in.wg.)
49 / 39 / 29 / 20
(0.20 / 0.16 / 0.12 / 0.08)
49 / 39 / 29 / 20
(0.20 / 0.16 / 0.12 / 0.08)
49 / 39 / 29 / 20
(0.20 / 0.16 / 0.12 / 0.08)
78 / 59 / 39 / 20
(0.31 / 0.24 / 0.16 / 0.08)
SOUND PRESSURE LEVEL (H/M/L) dBA 43 / 41 / 40 / 38 43 / 41 / 40 / 38 43 / 41 / 40 / 38 46 / 44 / 43 / 42
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 378 x 1045 x 541 378 x 1045 x 541 378 x 1045 x 541 378 x 1299 x 541
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 415 x 1245 x 631 415 x 1245 x 631 415 x 1245 x 631 415 x 1497 x 631
UNIT WEIGHT kg 42 42 42 54
CONDENSATE DRAIN SIZE mm 19.1 19.1 19.1 19.1
FAN
TYPE CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL CENTRIFUGAL
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP 20 IP 20 IP 20 IP 20
INSULATION GRADE CLASS B CLASS B CLASS B CLASS B
RATED INPUT POWER W 310 310 310 441
RATED RUNNING CURRENT A 1.35 1.35 1.35 1.93
MOTOR OUTPUT W 150 150 150 230
POLES 4444
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
DIAMETER mm 9.52 9.52 9.52 9.52
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.31 0.31 0.31 0.4
ROW 3333
AIR QUALITY FILTER
TYPE
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
WASHABLE SARANET
FILTER
QUANTITY pc 2222
CASING COLOUR
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
WITHOUT POWDER
PAINT
OUTDOOR UNIT
AIR FLOW l/s / CFM 1605 / 3400 1605 / 3400 1605 / 3400 1605 / 3400
SOUND PRESSURE LEVEL dBA 58 58 58 58
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 852 x 1030 x 400 852 x 1030 x 400 852 x 1030 x 400 852 x 1030 x 400
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 1010 x 1180 x514 1010 x 1180 x 514 1010 x 1180 x 514 1010 x 1180 x 514
UNIT WEIGHT kg 95 100 100 105
PIPE
CONNECTION
TYPE FLARE VALVE FLARE VALVE FLARE VALVE FLARE VALVE
SIZE
LIQUID mm 9.52 9.52 9.52 9.52
GAS mm 19.05 19.05 19.05 19.05
FAN
TYPE PROPELLER PROPELLER PROPELLER PROPELLER
DRIVE DIRECT DIRECT DIRECT DIRECT
FAN MOTOR
TYPE INDUCTION INDUCTION INDUCTION INDUCTION
INDEX OF PROTECTION (IP) IP54 IP54 IP54 IP 54
INSULATION GRADE CLASS B CLASS B CLASS B CLASS F
RATED INPUT POWER (R) W 257 257 257 257
RATED RUNNING CURRENT (R) A 1.10 1.10 1.10 1.10
RATED INPUT POWER (RY) W 257 276 276 276
RATED RUNNING CURRENT (RY) A 1.10 1.34 1.34 1.34
MOTOR OUTPUT W 145 145 145 145
POLES 8888
COMPRESSOR
TYPE SCROLL SCROLL SCROLL SCROLL
OIL TYPE
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
MINERAL
(Sontex 200 LT)
OIL AMOUNT cm
3
1240 1240 1240 1950
R
RATED INPUT POWER (COOLING) W 2783 2933 3330 4161
RATED RUNNING CURRENT (COOLING)
A 14.00 15.8 4.82 6.85
RY
RATED INPUT POWER (COOLING) W 2643 3114 3064 4370
RATED INPUT POWER (HEATING) W 2643 3064 2964 3720
RATED RUNNING CURRENT (COOLING)
A 14.00 14.80 5.45 7.06
RATED RUNNING CURRENT (HEATING)
A 14.00 14.70 5.27 6.28
LOCKED ROTOR AMP. A 97 114 48 59
COIL
TUBE
MATERIAL COPPER COPPER COPPER COPPER
R DIAMETER mm 9.52 9.52 7 7
RY DIAMETER mm 9.52 7 7 7
FIN
MATERIAL ALUMINIUM ALUMINIUM ALUMINIUM ALUMINIUM
FACE AREA m
2
0.87 0.87 0.87 0.87
ROW 2222
CASING COLOUR LIGHT GREY LIGHT GREY LIGHT GREY LIGHT GREY
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 7°C DB / 6°C WB
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 57
54
Engineering & Physical Data
Engineering Data - R22 MODEL
MODEL
INDOOR UNIT FDB60CXV1
OUTDOOR UNIT R61DXY1
NOMINAL COOLING CAPACITY
Btu/h 56000
W 16410
NOMINAL TOTAL INPUT POWER (COOLING) W 5800
NOMINAL RUNNING CURRENT (COOLING) A 9.83
EER W/W 2.89
REFRIGERANT CONTROL (EXPANSION DEVICE) INDOOR CAP. TUBE
REFRIGERANT CHARGE kg 5.00
MODEL
INDOOR UNIT FDYB60CXV1
OUTDOOR UNIT RY61DXY1
NOMINAL COOLING CAPACITY
Btu/h 56000
W 16410
NOMINAL HEATING CAPACITY
Btu/h 56000
W 16410
NOMINAL TOTAL INPUT POWER (COOLING) W 5884
NOMINAL TOTAL INPUT POWER (HEATING) W 4854
NOMINAL RUNNING CURRENT (COOLING) A 9.83
NOMINAL RUNNING CURRENT (HEATING) A 8.63
EER W/W 2.85
COP W/W 3.46
REFRIGERANT CONTROL (EXPANSION DEVICE)
INDOOR & OUTDOOR
CAP. TUBE
REFRIGERANT CHARGE kg 5.00
POWER SOURCE V/Ph/Hz 380 - 415 / 3 / 50
REFRIGERANT TYPE R22
INDOOR UNIT
CONTROL
AIR DISCHARGE DUCTED
OPERATION SLM WIRED HANDSET
AIR FLOW
SUPER HIGH l/s / CFM 802 / 1700
HIGH l/s / CFM 765 / 1620
MEDIUM l/s / CFM 717 / 1520
LOW l/s / CFM 694 / 1470
EXTERNAL STATIC PRESSURE (H/M/L) Pa (in.wg.)
69 / 49 / 29 / 20
(0.28 / 0.20 / 0.12 / 0.08)
SOUND PRESSURE LEVEL (H/M/L) dBA 48 / 47 / 46 / 45
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 378 x 1499 x 541
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 415 x 1701 x 631
UNIT WEIGHT kg 62
CONDENSATE DRAIN SIZE mm 19.1
FAN
TYPE CENTRIFUGAL
DRIVE DIRECT
FAN MOTOR
TYPE INDUCTION
INDEX OF PROTECTION (IP) IP 20
INSULATION GRADE CLASS B
RATED INPUT POWER W 558
RATED RUNNING CURRENT A 2.43
MOTOR OUTPUT W 300
POLES 4
COIL
TUBE
MATERIAL COPPER
DIAMETER mm 9.52
FIN
MATERIAL ALUMINIUM
FACE AREA m
2
0.47
ROW 3
AIR QUALITY FILTER
TYPE
WASHABLE SARANET
FILTER
QUANTITY pc 2
CASING COLOUR
WITHOUT POWDER
PAINT
OUTDOOR UNIT
AIR FLOW l/s / CFM 1793 / 3800
SOUND PRESSURE LEVEL dBA 61
UNIT DIMENSION HEIGHT X WIDTH X DEPTH mm 852 x 1030 x 400
PACKING DIMENSION HEIGHT X WIDTH X DEPTH mm 1010 x 1180 x 514
UNIT WEIGHT kg 108
PIPE
CONNECTION
TYPE FLARE VALVE
SIZE
LIQUID mm 12.70
GAS mm 19.05
FAN
TYPE PROPELLER
DRIVE DIRECT
FAN MOTOR
TYPE INDUCTION
INDEX OF PROTECTION (IP) IP 54
INSULATION GRADE CLASS F
RATED INPUT POWER W 272
RATED RUNNING CURRENT A 1.28
MOTOR OUTPUT W 145
POLES 8
COMPRESSOR
TYPE SCROLL
OIL TYPE
MINERAL
(Sontex 200 LT)
OIL AMOUNT cm
3
1705
R
RATED INPUT POWER (COOLING) W 4970
RATED RUNNING CURRENT
(COOLING)
A 8.59
RY
RATED INPUT POWER (COOLING) W 5054
RATED INPUT POWER (HEATING) W 4024
RATED RUNNING CURRENT
(COOLING)
A 8.59
RATED RUNNING CURRENT
(HEATING)
A 7.39
LOCKED ROTOR AMP. A 74
COIL
TUBE
MATERIAL COPPER
R DIAMETER mm 9.52
RY DIAMETER mm 9.52
FIN
MATERIAL ALUMINIUM
FACE AREA m
2
0.84
ROW 3
CASING COLOUR LIGHT GREY
ALL UNITS ARE BEING TESTED AND COMPLY TO ISO 5151 (NON-DUCTED UNIT) OR ISO 13253 (DUCTED UNIT).
COOLING HEATING
INDOOR: 27°C DB / 19°C WB INDOOR: 20°C DB
OUTDOOR: 35°C DB / 24°C WB OUTDOOR: 7°C DB / 6°C WB
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 58
55
Engineering & Physical Data
Safety Device
MODEL
INDOOR
FDM10CXV1
FDB10CXV1
FDM15CXV1
FDB15CXV1
OUTDOOR R10CXV1 R15CXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR
FDM20CXV1
FDB20CXV1
FDM25CXV1
FDB25CXV1
OUTDOOR R20CXV1 R25CXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR FDM28CXV1
OUTDOOR R28CXV1 R30DXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE N/A NC
OPEN kPa / psi N/A 2937 / 426
CLOSE kPa / psi N/A 2413 / 350
LOW PRESSURE SWITCH
TYPE N/A NC
OPEN kPa / psi N/A 124 / 18
CLOSE kPa / psi N/A 193 / 28
PHASE SEQUENCER N/A N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A N/A
MODEL
INDOOR
FDM30CXV1
FDB30CXV1
OUTDOOR R28CXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR
FDM30CXV1
FDB30CXV1
OUTDOOR R30DXV1 R30DXY1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 2937 / 426 2937 / 426
CLOSE kPa / psi 2413 / 350 2413 / 350
LOW PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 124 / 18 124 / 18
CLOSE kPa / psi 193 / 28 193 / 28
PHASE SEQUENCER N/A YES
DISCHARGE THERMOSTAT SETTING °C / °F N/A 130 / 266
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 59
56
Engineering & Physical Data
MODEL
INDOOR FDM38CXV1
OUTDOOR R35DXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC
OPEN kPa / psi 2937 / 426
CLOSE kPa / psi 2413 / 350
LOW PRESSURE SWITCH
TYPE NC
OPEN kPa / psi 124 / 18
CLOSE kPa / psi 193 / 28
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR FDM38CXV1
OUTDOOR R40DXV1 R40DXY1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 2937 / 426 2937 / 426
CLOSE kPa / psi 2413 / 350 2413 / 350
LOW PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 124 / 18 124 / 18
CLOSE kPa / psi 193 / 28 193 / 28
PHASE SEQUENCER N/A YES
DISCHARGE THERMOSTAT SETTING °C / °F N/A 130 / 266
MODEL
INDOOR
FDM40CXV1
FDB40CXV1
OUTDOOR R35DXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC
OPEN kPa / psi 2937 / 426
CLOSE kPa / psi 2413 / 350
LOW PRESSURE SWITCH
TYPE NC
OPEN kPa / psi 124 / 18
CLOSE kPa / psi 193 / 28
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR
FDM40CXV1
FDB40CXV1
OUTDOOR R40DXV1 R40DXY1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 2937 / 426 2937 / 426
CLOSE kPa / psi 2413 / 350 2413 / 350
LOW PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 124 / 18 124 / 18
CLOSE kPa / psi 193 / 28 193 / 28
PHASE SEQUENCER N/A YES
DISCHARGE THERMOSTAT SETTING °C / °F N/A 130 / 266
MODEL
INDOOR UNIT
FDM50CXV1
FDB50CXV1
FDM60CXV1
FDB60CXV1
OUTDOOR UNIT R50DXY1 R61DXY1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC
OPEN kPa / psi 2937 / 426
CLOSE kPa / psi 2413 / 350
LOW PRESSURE SWITCH
TYPE NC
OPEN kPa / psi 124 / 18
CLOSE kPa / psi 193 / 28
PHASE SEQUENCER YES
DISCHARGE THERMOSTAT SETTING °C / °F 130 / 266
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 60
57
Engineering & Physical Data
MODEL
INDOOR
FDYM10CXV1
FDYB10CXV1
FDYM15CXV1
FDYB15CXV1
OUTDOOR RY10CXV1 RY15CXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR
FDYM20CXV1
FDYB20CXV1
OUTDOOR RY18CXV1 RY20CXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR
FDYM25CXV1
FDYB25CXV1
FDYM28CXV1
OUTDOOR RY25CXV1 RY28CXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR FDYM28CXV1
OUTDOOR RY30DXV1 RY30DXY1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 2937 / 426 2937 / 426
CLOSE kPa / psi 2413 / 350 2413 / 350
LOW PRESSURE SWITCH
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
PHASE SEQUENCER N/A YES
DISCHARGE THERMOSTAT SETTING °C / °F N/A 130 / 266
MODEL
INDOOR
FDYM30CXV1
FDYB30CXV1
OUTDOOR RY28CXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 61
58
Engineering & Physical Data
MODEL
INDOOR
FDYM30CXV1
FDYB30CXV1
OUTDOOR RY30DXV1 RY30DXY1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 2937 / 426 2937 / 426
CLOSE kPa / psi 2413 / 350 2413 / 350
LOW PRESSURE SWITCH
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
PHASE SEQUENCER N/A YES
DISCHARGE THERMOSTAT SETTING °C / °F N/A 130 / 266
MODEL
INDOOR FDYM38CXV1
OUTDOOR RY35DXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC
OPEN kPa / psi 2937 / 426
CLOSE kPa / psi 2413 / 350
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR FDYM38CXV1
OUTDOOR RY40DXV1 RY40DXY1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 2937 / 426 2937 / 426
CLOSE kPa / psi 2413 / 350 2413 / 350
LOW PRESSURE SWITCH
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
PHASE SEQUENCER N/A YES
DISCHARGE THERMOSTAT SETTING °C / °F N/A 130 / 266
MODEL
INDOOR
FDYM40CXV1
FDYB40CXV1
OUTDOOR RY35DXV1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC
OPEN kPa / psi 2937 / 426
CLOSE kPa / psi 2413 / 350
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER N/A
DISCHARGE THERMOSTAT SETTING °C / °F N/A
MODEL
INDOOR
FDYM40CXV1
FDYB40CXV1
OUTDOOR RY40DXV1 RY40DXY1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC NC
OPEN kPa / psi 2937 / 426 2937 / 426
CLOSE kPa / psi 2413 / 350 2413 / 350
LOW PRESSURE SWITCH
TYPE N/A N/A
OPEN kPa / psi N/A N/A
CLOSE kPa / psi N/A N/A
PHASE SEQUENCER N/A YES
DISCHARGE THERMOSTAT SETTING °C / °F N/A 130 / 266
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 62
59
Engineering & Physical Data
MODEL
INDOOR
FDYM50CXV1
FDYB50CXV1
FDYM60CXV1
FDYB60CXV1
OUTDOOR RY50DXY1 RY61DXY1
SAFETY
DEVICE
HIGH PRESSURE SWITCH
TYPE NC
OPEN kPa / psi 2937 / 426
CLOSE kPa / psi 2413 / 350
LOW PRESSURE SWITCH
TYPE N/A
OPEN kPa / psi N/A
CLOSE kPa / psi N/A
PHASE SEQUENCER YES
DISCHARGE THERMOSTAT SETTING °C / °F 130 / 266
ALL SPECIFICATIONS ARE SUBJECTED TO CHANGE BY THE MANUFACTURER WITHOUT PRIOR NOTICE.
Page 63
60
Performance Data
Performance Data
Calculation Steps
Interpolation method can be used to get the total
cooling capacity, TC and sensible cooling capacity,
SC and power input, PI at those temperatures which
are not stated out in the table. Extrapolation method
is not allowed to be used.
Example:
Model: FDM10CXV1 – R10CXV1
Indoor Condition: 25°C DB, 17°C WB
Outdoor Condition: 37°C DB
Fan Speed: High
Solution:
Based on the Performance Table,
1. Refer to the Indoor DB column,
25°C is located between 24°C & 27°C
for 16°C WB.
25°C is located between 24°C & 27°C
for 19°C WB.
Thus, Interpolation needs to be applied.
2. Refer to the Indoor WB column,
17°C is located between 16°C & 19°C
for 25°C DB.
Thus, Interpolation needs to be applied.
3. Refer to the Outdoor DB column,
37°C is located between 35°C & 40°C.
Thus, Interpolation needs to be applied.
-
-
-
-
-
-
-
1st Step
Interpolation of Indoor WB
Find TC, SC & PI
(a) Indoor: 25°C DB, 16°C WB
Outdoor: 35°C DB
(b) Indoor: 25°C DB, 19°C WB
Outdoor: 35°C DB
(c) Indoor: 25°C DB, 16°C WB
Outdoor: 40°C DB
(d) Indoor: 25°C DB, 19°C WB
Outdoor: 40°C DB
2nd Step
Interpolation of Indoor DB
Find TC, SC & PI
(a) Indoor: 25°C DB, 17°C WB
Outdoor: 35°C DB
(b) Indoor: 25°C DB, 17°C WB
Outdoor: 40°C DB
3rd Step
Interpolation of Outdoor DB
Find TC, SC & PI
(a) Indoor: 25°C DB, 17°C WB
Outdoor: 37°C DB
Details of Calculation:
1st Step:
To obtain the TC, SC & PI for
(a) Indoor Condition: 25°C DB, 16°C WB
Outdoor Condition: 35°C DB
EWB EDB
Outdoor temperature
35°C
TC SC PI
16
24 3.20 3.20 1.27
25
x
1
y
1
z
1
27 3.30 3.30 1.27
By Interpolation Method
⇒
25°C – 24°C
=
x1 – 3.20kW
27°C – 24°C 3.30kW – 3.20kW
⇒ x1 = 3.23kW
Similarly,
y1 = 3.23kW
z1 = 1.27kW
Page 64
61
Performance Data
(b) Indoor Condition: 25°C DB, 16°C WB
Outdoor Condition: 35°C DB
EWB EDB
Outdoor temperature
35°C
TC SC PI
19
24 3.51 2.57 1.29
25
x
2
y
2
z
2
27 3.52 2.99 1.29
By Interpolation Method
⇒
25°C – 24°C
=
x
2
– 3.51kW
27°C – 24°C 3.52kW – 3.51kW
⇒ x2 = 3.51kW
Similarly,
y2 = 2.71kW
z2 = 1.29kW
Repeat the same process for (c) & (d) in 1st Step
(c) x3 = 2.98 kW; y3 = 2.98 kW; z3 = 1.38 kW (d) x4 = 3.22 W; y4 = 2.53 kW; z4 = 1.40 kW
2nd Step:
To obtain the TC, SC & PI for
(a) Indoor Condition: 25°C DB, 17°C WB
Outdoor Condition: 35°C DB
EWB EDB
Outdoor temperature
35°C
TC SC PI
16
25
3.23 3.23 1.27
17
x
5
y
5
z
5
19 3.51 2.71 1.29
By Interpolation Method
⇒
17°C – 16°C
=
x5 – 3.23kW
19°C – 16°C 3.51kW – 3.23kW
⇒ x5 = 3.32kW
Similarly,
y5 = 3.06kW
z5 = 1.28kW
Repeat the same process for (b) in 2nd Step
(c) x6 = 3.06 kW; y6 = 2.83 kW; z6 = 1.39 kW
3rd Step:
To obtain the TC, SC & PI for
(a) Indoor Condition: 25°C DB, 17°C WB
Outdoor Condition: 37°C DB
EWB EDB
Outdoor temperature
35°C 37°C 40°C
TC SC PI TC SC PI TC SC PI
25 17 3.32 3.06 1.28 x y z 3.06 2.83 1.39
By Interpolation Method
⇒
37°C – 35°C
=
x – 3.32kW
40°C – 35°C 3.06kW – 3.32kW
⇒ x = 3.22kW
Similarly,
y = 2.97kW
z = 1.35kW
Page 65
62
Performance Data
Performance Tables
R22 Cooling Only
Model: FDM10CXV1 - R10CXV1 / FDB10CXV1 - R10CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
260 /
225
16°C
21°C 2.62 1.83 0.68 2.53 1.78 0.74 2.44 1.74 0.80 2.34 1.69 0.87 2.15 1.57 0.94 1.98 1.48 1.04
24°C 2.63 2.19 0.68 2.53 2.14 0.74 2.44 2.09 0.80 2.34 2.04 0.87 2.15 1.91 0.94 1.99 1.80 1.04
27°C 2.65 2.49 0.69 2.56 2.43 0.74 2.47 2.37 0.80 2.38 2.31 0.87 2.19 2.15 0.95 2.04 2.02 1.04
30°C 2.73 2.73 0.69 2.65 2.65 0.75 2.57 2.57 0.81 2.49 2.49 0.88 2.30 2.30 0.95 2.16 2.16 1.05
19°C
24°C 2.89 1.71 0.69 2.79 1.67 0.75 2.69 1.62 0.81 2.58 1.58 0.88 2.37 1.47 0.96 2.19 1.38 1.06
27°C 2.89 1.96 0.69 2.79 1.91 0.75 2.69 1.87 0.82 2.58 1.82 0.88 2.38 1.71 0.96 2.20 1.62 1.06
30°C 2.90 2.41 0.70 2.80 2.36 0.75 2.70 2.31 0.82 2.60 2.25 0.88 2.39 2.11 0.96 2.22 2.00 1.06
33°C 2.93 2.93 0.70 2.84 2.84 0.75 2.75 2.75 0.82 2.65 2.65 0.89 2.45 2.45 0.96 2.29 2.29 1.07
22°C
27°C 3.18 1.67 0.71 3.07 1.63 0.77 2.96 1.59 0.83 2.84 1.55 0.90 2.62 1.44 0.98 2.42 1.36 1.08
30°C 3.18 2.04 0.71 3.07 2.00 0.77 2.96 1.95 0.83 2.84 1.90 0.90 2.62 1.78 0.98 2.42 1.69 1.08
33°C 3.18 2.38 0.71 3.07 2.34 0.77 2.96 2.29 0.83 2.85 2.24 0.90 2.62 2.11 0.98 2.43 2.00 1.08
36°C 3.20 2.70 0.71 3.09 2.65 0.77 2.98 2.59 0.83 2.87 2.53 0.90 2.65 2.38 0.98 2.46 2.25 1.08
285 /
275
16°C
21°C 2.73 1.91 0.69 2.63 1.86 0.75 2.53 1.81 0.81 2.43 1.76 0.88 2.23 1.64 0.95 2.05 1.54 1.05
24°C 2.74 2.32 0.69 2.64 2.26 0.75 2.54 2.21 0.81 2.44 2.15 0.88 2.24 2.01 0.95 2.07 1.90 1.05
27°C 2.77 2.63 0.69 2.68 2.57 0.75 2.58 2.50 0.81 2.49 2.43 0.88 2.30 2.26 0.96 2.14 2.11 1.05
30°C 2.88 2.88 0.70 2.80 2.80 0.75 2.72 2.72 0.82 2.63 2.63 0.89 2.43 2.43 0.97 2.28 2.28 1.07
19°C
24°C 3.01 1.81 0.70 2.90 1.76 0.76 2.79 1.71 0.82 2.68 1.67 0.89 2.46 1.55 0.97 2.27 1.46 1.07
27°C 3.01 2.08 0.70 2.90 2.03 0.76 2.79 1.99 0.82 2.68 1.94 0.89 2.46 1.81 0.97 2.28 1.72 1.07
30°C 3.02 2.57 0.70 2.92 2.51 0.76 2.81 2.45 0.82 2.71 2.39 0.89 2.49 2.24 0.97 2.31 2.11 1.07
33°C 3.08 3.08 0.70 2.98 2.98 0.76 2.89 2.89 0.83 2.79 2.79 0.90 2.58 2.58 0.98 2.42 2.42 1.08
22°C
27°C 3.30 1.77 0.71 3.19 1.73 0.77 3.07 1.68 0.84 2.95 1.64 0.91 2.71 1.53 0.99 2.50 1.44 1.09
30°C 3.31 2.17 0.71 3.19 2.12 0.77 3.07 2.08 0.84 2.95 2.03 0.91 2.71 1.90 0.99 2.51 1.80 1.09
33°C 3.31 2.54 0.71 3.20 2.49 0.77 3.08 2.44 0.84 2.96 2.39 0.91 2.72 2.24 0.99 2.52 2.13 1.09
36°C 3.33 2.87 0.72 3.22 2.82 0.78 3.11 2.76 0.84 3.00 2.70 0.91 2.77 2.52 0.99 2.58 2.38 1.09
300
16°C
21°C 2.83 1.99 0.70 2.72 1.94 0.75 2.62 1.89 0.81 2.51 1.84 0.88 2.30 1.71 0.96 2.12 1.61 1.06
24°C 2.84 2.42 0.70 2.74 2.36 0.75 2.64 2.30 0.82 2.53 2.24 0.88 2.32 2.09 0.96 2.15 1.97 1.06
27°C 2.89 2.77 0.70 2.79 2.70 0.76 2.70 2.63 0.82 2.60 2.54 0.89 2.41 2.36 0.97 2.24 2.20 1.07
30°C 3.03 3.03 0.70 2.94 2.94 0.76 2.85 2.85 0.83 2.76 2.76 0.90 2.56 2.56 0.98 2.39 2.39 1.08
19°C
24°C 3.11 1.91 0.71 3.00 1.86 0.77 2.89 1.82 0.83 2.77 1.77 0.90 2.54 1.65 0.98 2.35 1.55 1.07
27°C 3.12 2.21 0.71 3.01 2.16 0.77 2.90 2.11 0.83 2.78 2.06 0.90 2.55 1.92 0.98 2.36 1.82 1.08
30°C 3.15 2.72 0.71 3.04 2.66 0.77 2.93 2.60 0.83 2.82 2.53 0.90 2.59 2.37 0.98 2.41 2.23 1.08
33°C 3.22 3.22 0.71 3.12 3.12 0.77 3.03 3.03 0.84 2.93 2.93 0.91 2.71 2.71 0.99 2.54 2.54 1.09
22°C
27°C 3.42 1.87 0.72 3.29 1.83 0.78 3.17 1.78 0.85 3.04 1.73 0.92 2.80 1.62 0.99 2.58 1.53 1.10
30°C 3.42 2.30 0.72 3.30 2.26 0.78 3.18 2.21 0.85 3.05 2.16 0.92 2.80 2.02 1.00 2.59 1.92 1.10
33°C 3.43 2.70 0.72 3.32 2.65 0.78 3.19 2.60 0.85 3.07 2.54 0.92 2.82 2.38 1.00 2.62 2.26 1.10
36°C 3.47 3.05 0.72 3.36 2.99 0.78 3.24 2.93 0.85 3.12 2.85 0.92 2.89 2.66 1.00 2.69 2.51 1.11
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 66
63
Performance Data
Model: FDM15CXV1 - R15CXV1 / FDB15CXV1 - R15CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
400 /
380
16°C
21°C 3.39 2.34 0.96 3.27 2.28 1.04 3.15 2.22 1.13 3.03 2.15 1.22 2.78 2.00 1.33 2.57 1.88 1.46
24°C 3.40 2.80 0.96 3.28 2.74 1.04 3.16 2.67 1.13 3.03 2.61 1.22 2.78 2.43 1.33 2.58 2.30 1.46
27°C 3.43 3.17 0.96 3.31 3.10 1.04 3.20 3.03 1.13 3.08 2.95 1.23 2.84 2.75 1.33 2.64 2.58 1.47
30°C 3.53 3.53 0.97 3.43 3.43 1.05 3.33 3.33 1.14 3.22 3.22 1.24 2.98 2.98 1.34 2.79 2.79 1.48
19°C
24°C 3.74 2.18 0.98 3.61 2.13 1.06 3.48 2.07 1.15 3.34 2.01 1.24 3.07 1.87 1.35 2.84 1.77 1.49
27°C 3.75 2.50 0.98 3.61 2.44 1.06 3.48 2.39 1.15 3.35 2.33 1.24 3.07 2.18 1.35 2.84 2.06 1.49
30°C 3.75 3.08 0.98 3.62 3.02 1.06 3.50 2.95 1.15 3.36 2.88 1.25 3.10 2.69 1.35 2.87 2.55 1.49
33°C 3.80 3.80 0.98 3.67 3.67 1.06 3.55 3.55 1.15 3.43 3.43 1.25 3.18 3.18 1.36 2.97 2.97 1.50
22°C
27°C 4.12 2.14 1.00 3.98 2.08 1.08 3.83 2.03 1.17 3.68 1.98 1.27 3.39 1.84 1.38 3.13 1.74 1.52
30°C 4.12 2.60 1.00 3.98 2.55 1.08 3.83 2.49 1.17 3.68 2.43 1.27 3.39 2.28 1.38 3.14 2.16 1.52
33°C 4.12 3.04 1.00 3.98 2.98 1.08 3.84 2.92 1.17 3.69 2.86 1.27 3.39 2.69 1.38 3.14 2.55 1.52
36°C 4.14 3.45 1.00 4.00 3.38 1.08 3.86 3.31 1.17 3.72 3.24 1.27 3.43 3.03 1.38 3.19 2.88 1.52
490 /
500
16°C
21°C 3.53 2.44 0.97 3.40 2.38 1.05 3.28 2.31 1.14 3.14 2.25 1.23 2.88 2.09 1.34 2.66 1.97 1.47
24°C 3.54 2.96 0.97 3.42 2.89 1.05 3.29 2.82 1.14 3.15 2.75 1.23 2.90 2.57 1.34 2.68 2.42 1.48
27°C 3.59 3.36 0.97 3.47 3.28 1.05 3.35 3.20 1.14 3.23 3.10 1.24 2.98 2.88 1.35 2.77 2.70 1.48
30°C 3.74 3.74 0.98 3.63 3.63 1.06 3.52 3.52 1.15 3.40 3.40 1.25 3.15 3.15 1.36 2.95 2.95 1.50
19°C
24°C 3.89 2.31 0.99 3.75 2.25 1.07 3.61 2.19 1.16 3.47 2.13 1.26 3.18 1.98 1.36 2.94 1.87 1.50
27°C 3.90 2.66 0.99 3.76 2.60 1.07 3.62 2.54 1.16 3.47 2.48 1.26 3.19 2.32 1.36 2.95 2.19 1.50
30°C 3.92 3.28 0.99 3.78 3.21 1.07 3.65 3.14 1.16 3.51 3.06 1.26 3.23 2.86 1.37 2.99 2.70 1.51
33°C 3.98 3.98 0.99 3.86 3.86 1.07 3.74 3.74 1.17 3.61 3.61 1.27 3.35 3.35 1.38 3.13 3.13 1.52
22°C
27°C 4.28 2.26 1.01 4.13 2.21 1.09 3.97 2.15 1.18 3.81 2.09 1.28 3.50 1.95 1.39 3.24 1.84 1.53
30°C 4.28 2.77 1.01 4.13 2.71 1.09 3.98 2.65 1.18 3.82 2.59 1.28 3.51 2.43 1.39 3.25 2.30 1.53
33°C 4.29 3.25 1.01 4.14 3.19 1.09 3.99 3.12 1.18 3.83 3.05 1.28 3.52 2.86 1.39 3.27 2.72 1.53
36°C 4.32 3.67 1.01 4.18 3.60 1.09 4.03 3.53 1.18 3.88 3.44 1.29 3.58 3.22 1.40 3.34 3.04 1.54
510 /
540
16°C
21°C 3.66 2.54 0.98 3.53 2.48 1.06 3.39 2.41 1.15 3.25 2.35 1.24 2.98 2.19 1.35 2.75 2.06 1.49
24°C 3.68 3.09 0.98 3.55 3.02 1.06 3.41 2.94 1.15 3.28 2.87 1.25 3.01 2.68 1.35 2.78 2.52 1.49
27°C 3.74 3.54 0.98 3.62 3.45 1.06 3.50 3.35 1.15 3.37 3.25 1.25 3.12 3.01 1.36 2.90 2.81 1.50
30°C 3.93 3.93 0.99 3.81 3.81 1.07 3.70 3.70 1.17 3.57 3.57 1.27 3.31 3.31 1.37 3.09 3.09 1.52
19°C
24°C 4.03 2.44 1.00 3.89 2.38 1.08 3.74 2.32 1.17 3.59 2.26 1.27 3.29 2.10 1.37 3.04 1.98 1.51
27°C 4.04 2.82 1.00 3.90 2.76 1.08 3.75 2.69 1.17 3.60 2.63 1.27 3.31 2.46 1.37 3.05 2.33 1.51
30°C 4.08 3.47 1.00 3.93 3.40 1.08 3.79 3.32 1.17 3.65 3.24 1.27 3.36 3.02 1.38 3.12 2.85 1.52
33°C 4.16 4.16 1.00 4.04 4.04 1.09 3.92 3.92 1.18 3.79 3.79 1.28 3.51 3.51 1.39 3.28 3.28 1.54
22°C
27°C 4.42 2.39 1.01 4.27 2.33 1.10 4.11 2.28 1.19 3.94 2.22 1.29 3.62 2.07 1.40 3.35 1.95 1.54
30°C 4.43 2.94 1.01 4.27 2.89 1.10 4.11 2.82 1.19 3.95 2.76 1.29 3.63 2.58 1.40 3.36 2.45 1.54
33°C 4.45 3.45 1.02 4.29 3.39 1.10 4.14 3.32 1.19 3.97 3.24 1.29 3.66 3.04 1.40 3.39 2.89 1.55
36°C 4.49 3.89 1.02 4.35 3.82 1.10 4.20 3.74 1.20 4.05 3.65 1.30 3.74 3.40 1.41 3.49 3.20 1.56
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2.
shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 67
64
Performance Data
Model: FDM20CXV1 - R20CXV1 / FDB20CXV1 - R20CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
640 /
570
16°C
21°C 5.25 3.62 1.44 5.07 3.53 1.56 4.88 3.43 1.69 4.68 3.33 1.83 4.30 3.10 1.98 3.97 2.92 2.19
24°C 5.26 4.34 1.44 5.07 4.24 1.56 4.89 4.14 1.69 4.69 4.03 1.83 4.31 3.77 1.98 3.99 3.56 2.19
27°C 5.30 4.92 1.44 5.13 4.80 1.56 4.95 4.69 1.69 4.76 4.57 1.83 4.39 4.25 1.99 4.09 3.99 2.20
30°C 5.47 5.47 1.45 5.31 5.31 1.57 5.15 5.15 1.70 4.98 4.98 1.85 4.62 4.62 2.01 4.32 4.32 2.22
19°C
24°C 5.80 3.38 1.46 5.59 3.29 1.58 5.39 3.21 1.72 5.17 3.12 1.86 4.76 2.90 2.02 4.40 2.73 2.22
27°C 5.80 3.87 1.46 5.60 3.78 1.58 5.39 3.69 1.72 5.18 3.60 1.86 4.76 3.37 2.02 4.40 3.19 2.23
30°C 5.81 4.77 1.46 5.61 4.67 1.58 5.41 4.57 1.72 5.20 4.46 1.86 4.79 4.17 2.02 4.45 3.94 2.23
33°C 5.88 5.88 1.47 5.69 5.69 1.59 5.50 5.50 1.72 5.31 5.31 1.87 4.92 4.92 2.03 4.60 4.60 2.24
22°C
27°C 6.38 3.31 1.49 6.16 3.23 1.61 5.93 3.15 1.75 5.70 3.06 1.90 5.24 2.85 2.06 4.85 2.69 2.27
30°C 6.38 4.03 1.49 6.16 3.95 1.61 5.93 3.86 1.75 5.70 3.76 1.90 5.24 3.52 2.06 4.85 3.34 2.27
33°C 6.38 4.71 1.49 6.16 4.62 1.61 5.94 4.53 1.75 5.70 4.43 1.90 5.25 4.16 2.06 4.87 3.95 2.27
36°C 6.40 5.34 1.49 6.19 5.23 1.62 5.98 5.12 1.75 5.76 5.01 1.90 5.31 4.70 2.06 4.94 4.46 2.28
675 /
640
16°C
21°C 5.47 3.77 1.45 5.27 3.68 1.57 5.07 3.58 1.70 4.86 3.48 1.84 4.46 3.24 2.00 4.11 3.05 2.21
24°C 5.48 4.58 1.45 5.28 4.47 1.57 5.09 4.37 1.70 4.88 4.26 1.85 4.48 3.97 2.00 4.15 3.75 2.21
27°C 5.55 5.20 1.46 5.36 5.08 1.58 5.18 4.95 1.71 4.99 4.80 1.85 4.61 4.46 2.01 4.29 4.17 2.22
30°C 5.78 5.78 1.47 5.61 5.61 1.59 5.44 5.44 1.72 5.26 5.26 1.87 4.88 4.88 2.03 4.56 4.56 2.24
19°C
24°C 6.02 3.57 1.48 5.81 3.48 1.60 5.59 3.39 1.73 5.36 3.30 1.88 4.93 3.07 2.04 4.55 2.89 2.24
27°C 6.03 4.11 1.48 5.82 4.02 1.60 5.60 3.93 1.73 5.37 3.84 1.88 4.94 3.59 2.04 4.56 3.40 2.25
30°C 6.06 5.07 1.48 5.85 4.96 1.60 5.64 4.85 1.74 5.42 4.73 1.88 4.99 4.42 2.04 4.63 4.18 2.25
33°C 6.16 6.16 1.48 5.97 5.97 1.61 5.78 5.78 1.74 5.59 5.59 1.89 5.18 5.18 2.06 4.84 4.84 2.27
22°C
27°C 6.62 3.49 1.50 6.38 3.41 1.63 6.15 3.33 1.77 5.90 3.24 1.91 5.42 3.02 2.08 5.02 2.85 2.29
30°C 6.62 4.29 1.50 6.39 4.20 1.63 6.15 4.11 1.77 5.91 4.01 1.92 5.43 3.76 2.08 5.02 3.56 2.29
33°C 6.64 5.03 1.50 6.40 4.93 1.63 6.17 4.83 1.77 5.93 4.73 1.92 5.45 4.43 2.08 5.05 4.21 2.29
36°C 6.68 5.68 1.51 6.46 5.57 1.63 6.24 5.46 1.77 6.01 5.33 1.92 5.54 4.99 2.09 5.17 4.71 2.30
700 /
650
16°C
21°C 5.67 3.94 1.46 5.46 3.84 1.58 5.25 3.73 1.72 5.03 3.63 1.86 4.62 3.38 2.02 4.25 3.18 2.22
24°C 5.70 4.78 1.47 5.49 4.67 1.59 5.28 4.55 1.72 5.07 4.44 1.86 4.66 4.14 2.02 4.30 3.90 2.23
27°C 5.79 5.48 1.47 5.60 5.34 1.59 5.41 5.19 1.72 5.22 5.03 1.87 4.82 4.66 2.03 4.49 4.35 2.24
30°C 6.08 6.08 1.48 5.90 5.90 1.61 5.72 5.72 1.74 5.53 5.53 1.89 5.12 5.12 2.06 4.78 4.78 2.27
19°C
24°C 6.24 3.78 1.49 6.01 3.68 1.61 5.78 3.59 1.75 5.55 3.49 1.89 5.09 3.25 2.05 4.70 3.07 2.26
27°C 6.26 4.37 1.49 6.03 4.27 1.61 5.80 4.17 1.75 5.57 4.07 1.90 5.11 3.80 2.06 4.73 3.60 2.26
30°C 6.31 5.38 1.49 6.08 5.26 1.62 5.87 5.14 1.75 5.64 5.01 1.90 5.19 4.68 2.06 4.82 4.41 2.27
33°C 6.44 6.44 1.50 6.26 6.26 1.63 6.06 6.06 1.76 5.86 5.86 1.92 5.43 5.43 2.08 5.08 5.08 2.30
22°C
27°C 6.84 3.69 1.52 6.60 3.61 1.64 6.35 3.52 1.78 6.10 3.43 1.93 5.60 3.20 2.09 5.18 3.02 2.31
30°C 6.86 4.55 1.52 6.61 4.47 1.64 6.37 4.37 1.78 6.11 4.27 1.93 5.61 4.00 2.10 5.19 3.79 2.31
33°C 6.88 5.34 1.52 6.64 5.24 1.65 6.40 5.13 1.78 6.15 5.02 1.94 5.66 4.70 2.10 5.24 4.46 2.31
36°C 6.94 6.02 1.52 6.73 5.92 1.65 6.49 5.79 1.79 6.26 5.64 1.94 5.78 5.26 2.11 5.40 4.95 2.33
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2.
shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 68
65
Performance Data
Model: FDM25CXV1 - R25CXV1 / FDB25CXV1 - R25CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
580
16°C
21°C 6.50 4.35 1.99 6.27 4.24 2.15 6.03 4.12 2.33 5.79 4.01 2.52 5.32 3.73 2.74 4.91 3.51 3.02
24°C 6.51 5.21 1.99 6.27 5.09 2.15 6.04 4.97 2.33 5.80 4.85 2.53 5.33 4.53 2.74 4.93 4.27 3.02
27°C 6.56 5.91 1.99 6.34 5.77 2.15 6.12 5.64 2.33 5.89 5.49 2.53 5.43 5.11 2.75 5.05 4.80 3.03
30°C 6.76 6.76 2.00 6.56 6.56 2.17 6.37 6.37 2.35 6.16 6.16 2.55 5.71 5.71 2.77 5.34 5.34 3.06
19°C
24°C 7.17 4.06 2.02 6.92 3.96 2.19 6.66 3.85 2.37 6.40 3.75 2.57 5.88 3.49 2.79 5.44 3.29 3.07
27°C 7.17 4.65 2.02 6.92 4.54 2.19 6.67 4.44 2.37 6.40 4.33 2.57 5.89 4.05 2.79 5.44 3.84 3.07
30°C 7.18 5.74 2.02 6.93 5.61 2.19 6.69 5.49 2.37 6.44 5.36 2.57 5.93 5.01 2.79 5.50 4.74 3.08
33°C 7.27 7.27 2.02 7.03 7.03 2.19 6.80 6.80 2.38 6.57 6.57 2.58 6.08 6.08 2.80 5.68 5.68 3.10
22°C
27°C 7.88 3.98 2.06 7.61 3.88 2.23 7.33 3.78 2.41 7.05 3.68 2.62 6.48 3.43 2.84 6.00 3.23 3.13
30°C 7.89 4.85 2.06 7.61 4.74 2.23 7.34 4.64 2.41 7.05 4.53 2.62 6.48 4.24 2.84 6.00 4.02 3.13
33°C 7.89 5.66 2.06 7.62 5.55 2.23 7.34 5.44 2.42 7.05 5.33 2.62 6.49 5.00 2.84 6.02 4.75 3.13
36°C 7.92 6.42 2.06 7.66 6.29 2.23 7.39 6.16 2.42 7.12 6.02 2.62 6.57 5.65 2.85 6.11 5.36 3.14
660 /
720
16°C
21°C 6.76 4.54 2.01 6.52 4.42 2.17 6.27 4.30 2.35 6.01 4.18 2.55 5.52 3.89 2.76 5.09 3.67 3.04
24°C 6.78 5.51 2.01 6.54 5.38 2.17 6.29 5.25 2.35 6.04 5.12 2.55 5.55 4.78 2.77 5.13 4.51 3.05
27°C 6.86 6.26 2.01 6.63 6.11 2.18 6.40 5.95 2.36 6.17 5.78 2.56 5.70 5.37 2.78 5.31 5.02 3.07
30°C 7.15 7.15 2.03 6.94 6.94 2.19 6.73 6.73 2.38 6.51 6.51 2.58 6.03 6.03 2.81 5.64 5.64 3.10
19°C
24°C 7.45 4.29 2.04 7.18 4.19 2.21 6.91 4.08 2.39 6.63 3.96 2.59 6.09 3.69 2.81 5.63 3.48 3.10
27°C 7.46 4.95 2.04 7.19 4.84 2.21 6.92 4.73 2.39 6.65 4.61 2.59 6.11 4.31 2.81 5.65 4.08 3.10
30°C 7.50 6.10 2.04 7.23 5.97 2.21 6.98 5.84 2.40 6.71 5.69 2.60 6.18 5.32 2.82 5.73 5.03 3.11
33°C 7.62 7.62 2.05 7.39 7.39 2.22 7.15 7.15 2.41 6.92 6.92 2.61 6.41 6.41 2.84 5.99 5.99 3.14
22°C
27°C 8.18 4.20 2.08 7.89 4.11 2.25 7.60 4.00 2.44 7.30 3.89 2.64 6.71 3.63 2.87 6.20 3.43 3.16
30°C 8.19 5.16 2.08 7.90 5.05 2.25 7.61 4.94 2.44 7.31 4.82 2.64 6.72 4.52 2.87 6.21 4.29 3.16
33°C 8.21 6.04 2.08 7.92 5.93 2.25 7.63 5.81 2.44 7.33 5.68 2.65 6.74 5.33 2.87 6.25 5.06 3.16
36°C 8.26 6.83 2.08 7.99 6.70 2.26 7.71 6.56 2.45 7.43 6.41 2.65 6.86 6.00 2.88 6.39 5.66 3.18
730 /
770
16°C
21°C 7.01 4.74 2.02 6.75 4.62 2.19 6.49 4.49 2.37 6.22 4.37 2.57 5.71 4.07 2.78 5.26 3.83 3.07
24°C 7.05 5.75 2.02 6.79 5.62 2.19 6.53 5.48 2.37 6.27 5.34 2.57 5.76 4.98 2.79 5.32 4.70 3.07
27°C 7.16 6.59 2.03 6.93 6.42 2.20 6.69 6.24 2.38 6.45 6.05 2.58 5.96 5.61 2.81 5.56 5.23 3.10
30°C 7.52 7.52 2.05 7.30 7.30 2.22 7.07 7.07 2.41 6.84 6.84 2.61 6.33 6.33 2.84 5.92 5.92 3.13
19°C
24°C 7.72 4.54 2.06 7.44 4.43 2.22 7.15 4.32 2.41 6.86 4.20 2.61 6.30 3.91 2.83 5.81 3.69 3.12
27°C 7.74 5.26 2.06 7.46 5.13 2.23 7.18 5.01 2.41 6.89 4.89 2.62 6.33 4.58 2.84 5.85 4.33 3.13
30°C 7.80 6.47 2.06 7.53 6.33 2.23 7.26 6.18 2.42 6.98 6.03 2.62 6.42 5.63 2.85 5.96 5.31 3.14
33°C 7.97 7.97 2.07 7.74 7.74 2.24 7.50 7.50 2.43 7.25 7.25 2.64 6.72 6.72 2.87 6.28 6.28 3.17
22°C
27°C 8.47 4.44 2.09 8.17 4.35 2.27 7.86 4.24 2.46 7.54 4.13 2.67 6.93 3.85 2.89 6.40 3.64 3.18
30°C 8.48 5.48 2.09 8.18 5.37 2.27 7.87 5.26 2.46 7.56 5.14 2.67 6.94 4.81 2.89 6.42 4.56 3.19
33°C 8.51 6.42 2.10 8.22 6.31 2.27 7.92 6.17 2.46 7.61 6.04 2.67 7.00 5.66 2.90 6.48 5.37 3.19
36°C 8.59 7.25 2.10 8.32 7.12 2.28 8.03 6.96 2.47 7.74 6.79 2.68 7.15 6.33 2.91 6.67 5.96 3.21
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2.
shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 69
66
Performance Data
Model: FDM28CXV1 - R28CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710
16°C
21°C 7.46 4.86 2.35 7.20 4.73 2.54 6.93 4.60 2.75 6.65 4.47 2.98 6.11 4.16 3.24 5.64 3.91 3.57
24°C 7.47 5.82 2.35 7.21 5.68 2.54 6.94 5.55 2.75 6.66 5.41 2.98 6.12 5.06 3.24 5.66 4.77 3.57
27°C 7.53 6.60 2.35 7.28 6.45 2.54 7.02 6.29 2.76 6.76 6.13 2.99 6.24 5.71 3.25 5.80 5.36 3.58
30°C 7.76 7.76 2.36 7.54 7.54 2.56 7.31 7.31 2.78 7.07 7.07 3.01 6.56 6.56 3.27 6.14 6.14 3.62
19°C
24°C 8.23 4.54 2.39 7.94 4.42 2.58 7.65 4.30 2.80 7.35 4.18 3.03 6.75 3.89 3.29 6.24 3.67 3.63
27°C 8.24 5.19 2.39 7.95 5.07 2.58 7.65 4.96 2.80 7.35 4.84 3.03 6.76 4.52 3.29 6.25 4.29 3.63
30°C 8.25 6.40 2.39 7.96 6.27 2.58 7.68 6.13 2.80 7.39 5.98 3.04 6.80 5.59 3.30 6.31 5.29 3.63
33°C 8.35 8.35 2.39 8.07 8.07 2.59 7.81 7.81 2.81 7.55 7.55 3.05 6.98 6.98 3.31 6.53 6.53 3.66
22°C
27°C 9.05 4.44 2.43 8.74 4.33 2.63 8.42 4.22 2.85 8.09 4.11 3.09 7.44 3.83 3.36 6.89 3.61 3.70
30°C 9.06 5.41 2.43 8.74 5.30 2.63 8.42 5.17 2.85 8.09 5.05 3.09 7.44 4.73 3.36 6.89 4.48 3.70
33°C 9.06 6.32 2.43 8.75 6.20 2.63 8.43 6.08 2.85 8.10 5.95 3.09 7.45 5.59 3.36 6.91 5.31 3.70
36°C 9.09 7.17 2.43 8.79 7.02 2.63 8.49 6.88 2.86 8.18 6.72 3.10 7.54 6.30 3.36 7.01 5.98 3.71
770
16°C
21°C 7.76 5.06 2.37 7.48 4.93 2.56 7.20 4.80 2.77 6.90 4.67 3.01 6.33 4.35 3.26 5.84 4.09 3.60
24°C 7.78 6.15 2.37 7.50 6.00 2.56 7.22 5.86 2.78 6.93 5.71 3.01 6.37 5.33 3.27 5.89 5.03 3.60
27°C 7.88 6.98 2.38 7.61 6.82 2.57 7.35 6.64 2.79 7.09 6.45 3.02 6.54 5.99 3.28 6.10 5.60 3.62
30°C 8.21 8.21 2.39 7.97 7.97 2.59 7.73 7.73 2.81 7.48 7.48 3.05 6.93 6.93 3.31 6.47 6.47 3.66
19°C
24°C 8.55 4.79 2.41 8.25 4.67 2.61 7.94 4.55 2.82 7.62 4.42 3.06 7.00 4.12 3.32 6.46 3.89 3.66
27°C 8.57 5.52 2.41 8.26 5.40 2.61 7.95 5.27 2.82 7.63 5.15 3.06 7.01 4.81 3.32 6.48 4.56 3.66
30°C 8.61 6.81 2.41 8.31 6.66 2.61 8.01 6.51 2.83 7.70 6.35 3.07 7.09 5.94 3.33 6.58 5.61 3.67
33°C 8.75 8.75 2.42 8.48 8.48 2.62 8.21 8.21 2.84 7.94 7.94 3.09 7.35 7.35 3.35 6.88 6.88 3.70
22°C
27°C 9.39 4.69 2.45 9.06 4.58 2.66 8.73 4.46 2.88 8.38 4.34 3.12 7.70 4.05 3.39 7.12 3.82 3.73
30°C 9.41 5.76 2.45 9.07 5.64 2.66 8.74 5.51 2.88 8.39 5.38 3.12 7.71 5.04 3.39 7.13 4.78 3.73
33°C 9.42 6.75 2.45 9.10 6.62 2.66 8.76 6.48 2.88 8.42 6.34 3.13 7.74 5.95 3.39 7.18 5.65 3.74
36°C 9.48 7.62 2.46 9.17 7.48 2.66 8.85 7.32 2.89 8.53 7.15 3.14 7.87 6.69 3.40 7.34 6.32 3.75
810
16°C
21°C 8.05 5.28 2.39 7.75 5.15 2.58 7.45 5.01 2.80 7.15 4.87 3.03 6.55 4.54 3.29 6.04 4.27 3.62
24°C 8.09 6.42 2.39 7.80 6.27 2.59 7.50 6.11 2.80 7.20 5.95 3.04 6.61 5.56 3.29 6.11 5.24 3.63
27°C 8.22 7.36 2.40 7.95 7.17 2.60 7.68 6.97 2.81 7.41 6.75 3.05 6.84 6.25 3.31 6.38 5.84 3.66
30°C 8.63 8.63 2.42 8.38 8.38 2.62 8.12 8.12 2.84 7.85 7.85 3.09 7.27 7.27 3.35 6.79 6.79 3.70
19°C
24°C 8.86 5.07 2.43 8.54 4.94 2.63 8.21 4.82 2.85 7.88 4.69 3.09 7.23 4.37 3.35 6.67 4.12 3.69
27°C 8.88 5.86 2.43 8.56 5.73 2.63 8.24 5.59 2.85 7.91 5.46 3.09 7.26 5.10 3.35 6.71 4.83 3.69
30°C 8.96 7.22 2.43 8.64 7.06 2.64 8.33 6.90 2.86 8.01 6.72 3.10 7.38 6.28 3.36 6.85 5.92 3.71
33°C 9.15 9.15 2.45 8.88 8.88 2.65 8.61 8.61 2.88 8.33 8.33 3.12 7.71 7.71 3.39 7.21 7.21 3.75
22°C
27°C 9.72 4.96 2.47 9.37 4.85 2.68 9.02 4.73 2.90 8.66 4.60 3.15 7.95 4.29 3.41 7.35 4.06 3.76
30°C 9.74 6.11 2.47 9.39 6.00 2.68 9.04 5.87 2.91 8.68 5.73 3.15 7.97 5.37 3.42 7.37 5.09 3.76
33°C 9.77 7.16 2.48 9.44 7.04 2.68 9.09 6.89 2.91 8.73 6.74 3.16 8.03 6.31 3.42 7.44 5.99 3.77
36°C 9.86 8.09 2.48 9.55 7.94 2.69 9.22 7.77 2.92 8.89 7.57 3.17 8.21 7.06 3.44 7.66 6.65 3.80
850
16°C
21°C 8.04 5.33 2.41 7.76 5.20 2.60 7.48 5.07 2.81 7.18 4.94 3.05 6.60 4.60 3.33 6.10 4.34 3.70
24°C 8.07 6.51 2.41 7.78 6.37 2.60 7.50 6.24 2.81 7.21 6.09 3.05 6.63 5.69 3.33 6.14 5.37 3.70
27°C 8.21 7.47 2.42 7.95 7.28 2.61 7.70 7.09 2.82 7.44 6.88 3.07 6.89 6.50 3.35 6.44 6.13 3.72
30°C 8.65 8.65 2.44 8.40 8.40 2.63 8.16 8.16 2.85 7.91 7.91 3.10 7.34 7.34 3.38 6.87 6.87 3.76
19°C
24°C 8.85 5.11 2.45 8.55 4.99 2.64 8.24 4.87 2.86 7.92 4.74 3.10 7.29 4.43 3.38 6.74 4.19 3.75
27°C 8.88 5.93 2.45 8.57 5.80 2.64 8.26 5.68 2.86 7.94 5.55 3.10 7.31 5.21 3.38 6.76 4.94 3.75
30°C 8.92 7.36 2.46 8.62 7.20 2.65 8.33 7.05 2.86 8.03 6.88 3.11 7.42 6.43 3.39 6.91 6.06 3.76
33°C 9.16 9.16 2.47 8.90 8.90 2.66 8.65 8.65 2.88 8.39 8.39 3.13 7.79 7.79 3.42 7.30 7.30 3.80
22°C
27°C 9.73 5.01 2.50 9.39 4.90 2.69 9.07 4.78 2.91 8.72 4.66 3.16 8.03 4.36 3.44 7.44 4.12 3.81
30°C 9.75 6.20 2.50 9.42 6.07 2.69 9.08 5.94 2.91 8.74 5.82 3.16 8.05 5.46 3.44 7.46 5.19 3.81
33°C 9.77 7.30 2.50 9.44 7.17 2.69 9.10 7.04 2.91 8.77 6.91 3.16 8.08 6.49 3.44 7.51 6.17 3.82
36°C 9.87 8.28 2.51 9.55 8.11 2.70 9.24 7.94 2.92 8.94 7.75 3.18 8.28 7.24 3.46 7.75 6.83 3.84
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 70
67
Performance Data
Model: FDM28CXV1 - R30DXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710
16°C
21°C 8.00 4.57 2.62 7.71 4.46 2.62 7.41 4.34 2.67 7.11 4.22 2.75 6.79 4.10 2.92 6.40 3.94 3.17
24°C 8.03 5.55 2.62 7.74 5.43 2.62 7.44 5.31 2.68 7.14 5.18 2.75 6.83 5.05 2.92 6.44 4.88 3.17
27°C 8.13 6.41 2.62 7.86 6.26 2.63 7.60 6.09 2.68 7.33 5.91 2.76 7.06 5.70 2.94 6.73 5.44 3.20
30°C 8.54 6.88 2.64 8.30 6.68 2.65 8.04 6.48 2.71 7.78 6.28 2.79 7.51 6.06 2.97 7.16 5.79 3.23
19°C
24°C 8.80 4.56 2.65 8.49 4.44 2.66 8.17 4.33 2.72 7.84 4.21 2.79 7.49 4.09 2.97 7.07 3.95 3.22
27°C 8.83 5.56 2.65 8.51 5.44 2.66 8.19 5.32 2.72 7.86 5.19 2.80 7.52 5.07 2.98 7.09 4.91 3.23
30°C 8.87 6.50 2.65 8.55 6.37 2.66 8.25 6.24 2.72 7.93 6.09 2.80 7.61 5.94 2.98 7.21 5.73 3.24
33°C 9.05 7.25 2.66 8.78 7.06 2.68 8.52 6.86 2.74 8.25 6.65 2.82 7.96 6.43 3.01 7.61 6.15 3.27
22°C
27°C 9.66 4.51 2.69 9.32 4.40 2.71 8.97 4.29 2.77 8.61 4.18 2.85 8.24 4.07 3.03 7.78 3.92 3.29
30°C 9.68 5.53 2.69 9.34 5.42 2.71 8.99 5.30 2.77 8.64 5.18 2.85 8.27 5.06 3.03 7.81 4.91 3.29
33°C 9.71 6.49 2.69 9.37 6.37 2.71 9.02 6.25 2.77 8.66 6.13 2.85 8.30 6.00 3.04 7.85 5.84 3.29
36°C 9.77 7.39 2.69 9.44 7.24 2.71 9.12 7.10 2.78 8.79 6.94 2.86 8.46 6.75 3.05 8.07 6.50 3.32
770
16°C
21°C 8.21 4.82 2.63 7.91 4.69 2.64 7.60 4.57 2.69 7.29 4.44 2.76 6.96 4.31 2.94 6.56 4.14 3.18
24°C 8.24 5.85 2.63 7.94 5.72 2.64 7.63 5.59 2.69 7.32 5.45 2.76 7.00 5.31 2.94 6.60 5.12 3.19
27°C 8.34 6.76 2.63 8.06 6.59 2.64 7.79 6.41 2.70 7.52 6.21 2.77 7.24 6.00 2.96 6.90 5.71 3.21
30°C 8.77 7.25 2.65 8.51 7.04 2.67 8.25 6.82 2.73 7.98 6.60 2.81 7.70 6.37 2.99 7.34 6.09 3.25
19°C
24°C 9.03 4.80 2.66 8.70 4.68 2.67 8.37 4.56 2.73 8.04 4.43 2.81 7.68 4.30 2.99 7.25 4.15 3.24
27°C 9.06 5.86 2.66 8.73 5.73 2.68 8.40 5.60 2.73 8.06 5.46 2.81 7.71 5.33 2.99 7.27 5.16 3.24
30°C 9.10 6.85 2.67 8.77 6.71 2.68 8.46 6.57 2.74 8.13 6.41 2.81 7.80 6.24 3.00 7.39 6.02 3.25
33°C 9.28 7.63 2.67 9.00 7.44 2.69 8.73 7.22 2.75 8.45 7.00 2.84 8.16 6.76 3.03 7.80 6.46 3.29
22°C
27°C 9.91 4.75 2.70 9.56 4.64 2.72 9.20 4.52 2.78 8.83 4.40 2.86 8.45 4.28 3.05 7.98 4.12 3.31
30°C 9.94 5.83 2.70 9.58 5.70 2.72 9.22 5.58 2.78 8.85 5.45 2.87 8.47 5.32 3.05 8.00 5.15 3.31
33°C 9.96 6.84 2.70 9.61 6.71 2.72 9.25 6.58 2.79 8.88 6.45 2.87 8.51 6.31 3.05 8.04 6.13 3.31
36°C
10.03
7.78 2.71 9.69 7.63 2.73 9.35 7.47 2.79 9.01 7.30 2.88 8.67 7.10 3.07 8.27 6.83 3.33
810
16°C
21°C 8.35 5.00 2.64 8.05 4.87 2.65 7.74 4.74 2.70 7.42 4.60 2.77 7.09 4.46 2.95 6.67 4.28 3.20
24°C 8.39 6.07 2.64 8.08 5.93 2.65 7.77 5.79 2.70 7.45 5.65 2.77 7.13 5.50 2.95 6.72 5.30 3.20
27°C 8.49 7.01 2.64 8.21 6.83 2.65 7.93 6.64 2.71 7.65 6.44 2.78 7.37 6.21 2.97 7.02 5.91 3.22
30°C 8.92 7.52 2.66 8.66 7.30 2.68 8.40 7.07 2.74 8.12 6.84 2.82 7.83 6.60 3.00 7.47 6.30 3.26
19°C
24°C 9.19 4.98 2.67 8.86 4.85 2.68 8.52 4.72 2.74 8.18 4.59 2.82 7.82 4.46 3.00 7.37 4.29 3.25
27°C 9.22 6.07 2.67 8.89 5.94 2.69 8.55 5.80 2.74 8.21 5.66 2.82 7.85 5.52 3.00 7.40 5.34 3.26
30°C 9.26 7.10 2.68 8.93 6.96 2.69 8.61 6.81 2.75 8.28 6.64 2.83 7.94 6.47 3.01 7.52 6.23 3.27
33°C 9.45 7.92 2.68 9.17 7.71 2.70 8.89 7.49 2.76 8.60 7.25 2.85 8.31 7.00 3.04 7.94 6.69 3.30
22°C
27°C
10.09
4.93 2.71 9.73 4.81 2.73 9.36 4.69 2.79 8.99 4.56 2.87 8.60 4.43 3.06 8.12 4.27 3.32
30°C
10.12
6.05 2.71 9.75 5.91 2.73 9.39 5.78 2.79 9.01 5.65 2.88 8.62 5.51 3.06 8.14 5.33 3.32
33°C
10.14
7.09 2.71 9.78 6.96 2.73 9.41 6.82 2.80 9.04 6.68 2.88 8.66 6.54 3.06 8.18 6.35 3.32
36°C
10.21
8.07 2.72 9.86 7.91 2.74 9.52 7.74 2.80 9.17 7.56 2.89 8.83 7.35 3.08 8.42 7.07 3.35
850
16°C
21°C 8.45 5.12 2.64 8.14 4.99 2.65 7.83 4.85 2.70 7.51 4.71 2.78 7.17 4.56 2.95 6.75 4.38 3.20
24°C 8.49 6.22 2.65 8.17 6.07 2.65 7.86 5.93 2.71 7.54 5.78 2.78 7.21 5.63 2.96 6.80 5.42 3.20
27°C 8.59 7.18 2.65 8.30 7.00 2.66 8.02 6.80 2.71 7.74 6.59 2.79 7.45 6.35 2.97 7.10 6.05 3.23
30°C 9.03 7.70 2.67 8.76 7.47 2.68 8.49 7.24 2.74 8.22 7.00 2.82 7.93 6.76 3.01 7.56 6.44 3.27
19°C
24°C 9.30 5.10 2.68 8.96 4.97 2.69 8.62 4.84 2.75 8.27 4.70 2.83 7.91 4.56 3.01 7.46 4.39 3.26
27°C 9.33 6.22 2.68 8.99 6.08 2.69 8.65 5.94 2.75 8.30 5.80 2.83 7.94 5.65 3.01 7.49 5.46 3.26
30°C 9.37 7.28 2.68 9.03 7.13 2.69 8.71 6.97 2.75 8.37 6.80 2.83 8.03 6.62 3.01 7.61 6.38 3.27
33°C 9.56 8.12 2.69 9.27 7.90 2.71 8.99 7.67 2.77 8.71 7.42 2.85 8.40 7.16 3.04 8.03 6.84 3.31
22°C
27°C
10.21
5.05 2.72 9.84 4.93 2.74 9.47 4.80 2.80 9.10 4.67 2.88 8.70 4.53 3.07 8.22 4.36 3.32
30°C
10.23
6.20 2.72 9.87 6.06 2.74 9.50 5.92 2.80 9.12 5.78 2.88 8.73 5.63 3.07 8.24 5.46 3.33
33°C
10.26
7.27 2.72 9.89 7.13 2.74 9.52 6.99 2.80 9.14 6.84 2.88 8.76 6.69 3.07 8.28 6.49 3.33
36°C
10.33
8.27 2.72 9.97 8.10 2.74 9.63 7.93 2.81 9.28 7.74 2.89 8.93 7.52 3.08 8.52 7.23 3.35
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 71
68
Performance Data
Model: FDM30CXV1 - R28CXV1 / FDB30CXV1 - R28CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710 /
740
16°C
21°C 7.74 5.77 2.40 7.47 5.62 2.59 7.19 5.47 2.81 6.90 5.31 3.04 6.34 4.94 3.30 5.85 4.65 3.64
24°C 7.75 6.91 2.40 7.47 6.75 2.59 7.20 6.59 2.81 6.91 6.43 3.04 6.35 6.01 3.30 5.87 5.67 3.64
27°C 7.81 7.81 2.40 7.55 7.55 2.60 7.29 7.29 2.81 7.01 7.01 3.05 6.47 6.47 3.31 6.02 6.02 3.65
30°C 8.05 8.05 2.41 7.82 7.82 2.61 7.58 7.58 2.83 7.34 7.34 3.07 6.80 6.80 3.34 6.36 6.36 3.69
19°C
24°C 8.54 5.39 2.43 8.24 5.25 2.63 7.94 5.11 2.85 7.62 4.97 3.10 7.00 4.63 3.36 6.48 4.36 3.70
27°C 8.54 6.16 2.43 8.24 6.02 2.63 7.94 5.89 2.86 7.63 5.74 3.10 7.01 5.37 3.36 6.48 5.09 3.70
30°C 8.56 7.61 2.43 8.26 7.44 2.64 7.97 7.28 2.86 7.67 7.10 3.10 7.06 6.64 3.36 6.55 6.29 3.71
33°C 8.66 8.66 2.44 8.38 8.38 2.64 8.10 8.10 2.87 7.83 7.83 3.11 7.24 7.24 3.38 6.77 6.77 3.73
22°C
27°C 9.39 5.27 2.48 9.07 5.15 2.68 8.74 5.02 2.91 8.40 4.88 3.16 7.72 4.55 3.42 7.15 4.29 3.77
30°C 9.40 6.43 2.48 9.07 6.29 2.68 8.74 6.15 2.91 8.40 6.00 3.16 7.72 5.62 3.42 7.15 5.33 3.77
33°C 9.40 7.50 2.48 9.07 7.36 2.68 8.74 7.22 2.91 8.40 7.07 3.16 7.73 6.63 3.43 7.17 6.30 3.78
36°C 9.43 8.51 2.48 9.12 8.34 2.69 8.80 8.17 2.92 8.48 7.99 3.16 7.82 7.49 3.43 7.27 7.10 3.79
760 /
790
16°C
21°C 8.05 6.01 2.42 7.76 5.86 2.61 7.47 5.70 2.83 7.16 5.54 3.07 6.57 5.16 3.33 6.06 4.86 3.67
24°C 8.08 7.30 2.42 7.78 7.13 2.62 7.49 6.96 2.83 7.19 6.78 3.07 6.61 6.33 3.33 6.11 5.97 3.67
27°C 8.17 8.17 2.42 7.90 7.90 2.62 7.63 7.63 2.84 7.35 7.35 3.08 6.79 6.79 3.35 6.32 6.32 3.69
30°C 8.51 8.51 2.44 8.27 8.27 2.64 8.01 8.01 2.87 7.75 7.75 3.11 7.18 7.18 3.38 6.72 6.72 3.73
19°C
24°C 8.87 5.69 2.46 8.55 5.55 2.66 8.23 5.40 2.88 7.90 5.25 3.12 7.26 4.90 3.39 6.70 4.61 3.73
27°C 8.89 6.55 2.46 8.57 6.41 2.66 8.25 6.26 2.88 7.92 6.12 3.13 7.27 5.72 3.39 6.72 5.41 3.74
30°C 8.93 8.08 2.46 8.62 7.91 2.66 8.31 7.73 2.89 7.99 7.54 3.13 7.36 7.05 3.40 6.83 6.66 3.75
33°C 9.08 9.08 2.47 8.80 8.80 2.67 8.52 8.52 2.90 8.24 8.24 3.15 7.63 7.63 3.42 7.13 7.13 3.78
22°C
27°C 9.75 5.57 2.50 9.40 5.44 2.71 9.05 5.30 2.94 8.69 5.16 3.19 7.99 4.81 3.46 7.39 4.54 3.81
30°C 9.76 6.84 2.50 9.41 6.69 2.71 9.06 6.55 2.94 8.70 6.39 3.19 8.00 5.99 3.46 7.40 5.68 3.81
33°C 9.77 8.01 2.50 9.44 7.86 2.71 9.09 7.70 2.94 8.73 7.53 3.19 8.03 7.07 3.46 7.45 6.71 3.81
36°C 9.84 9.06 2.51 9.52 8.88 2.72 9.19 8.70 2.95 8.85 8.50 3.20 8.17 7.95 3.47 7.61 7.50 3.83
830 /
880
16°C
21°C 8.35 6.28 2.44 8.04 6.12 2.64 7.73 5.95 2.85 7.41 5.79 3.09 6.80 5.39 3.36 6.27 5.07 3.70
24°C 8.39 7.63 2.44 8.09 7.44 2.64 7.78 7.26 2.86 7.47 7.07 3.10 6.86 6.60 3.36 6.34 6.22 3.70
27°C 8.53 8.53 2.45 8.25 8.25 2.65 7.97 7.97 2.87 7.68 7.68 3.11 7.10 7.10 3.38 6.62 6.62 3.73
30°C 8.95 8.95 2.47 8.69 8.69 2.67 8.42 8.42 2.90 8.15 8.15 3.15 7.54 7.54 3.42 7.05 7.05 3.78
19°C
24°C 9.19 6.02 2.48 8.86 5.87 2.68 8.52 5.72 2.90 8.17 5.56 3.15 7.50 5.19 3.42 6.92 4.89 3.76
27°C 9.22 6.96 2.48 8.88 6.80 2.68 8.55 6.65 2.91 8.21 6.48 3.15 7.53 6.06 3.42 6.96 5.74 3.77
30°C 9.29 8.57 2.48 8.96 8.38 2.69 8.64 8.19 2.91 8.31 7.99 3.16 7.65 7.46 3.43 7.10 7.03 3.78
33°C 9.49 9.49 2.50 9.22 9.22 2.70 8.93 8.93 2.93 8.64 8.64 3.19 8.00 8.00 3.46 7.48 7.48 3.82
22°C
27°C
10.08
5.89 2.52 9.72 5.76 2.73 9.36 5.61 2.96 8.98 5.47 3.21 8.25 5.10 3.48 7.63 4.82 3.84
30°C
10.10
7.26 2.53 9.74 7.12 2.74 9.38 6.97 2.96 9.00 6.81 3.21 8.27 6.38 3.49 7.65 6.04 3.84
33°C
10.14
8.51 2.53 9.79 8.36 2.74 9.43 8.18 2.97 9.06 8.00 3.22 8.33 7.50 3.49 7.72 7.12 3.85
36°C
10.23
9.61 2.53 9.91 9.43 2.75 9.57 9.22 2.98 9.22 9.00 3.23 8.52 8.39 3.51 7.95 7.90 3.87
900 /
940
16°C
21°C 8.35 6.33 2.46 8.05 6.18 2.65 7.76 6.03 2.87 7.45 5.87 3.11 6.85 5.47 3.39 6.32 5.15 3.77
24°C 8.37 7.74 2.46 8.08 7.57 2.65 7.79 7.41 2.87 7.49 7.23 3.12 6.88 6.76 3.40 6.37 6.37 3.77
27°C 8.51 8.51 2.47 8.25 8.25 2.66 7.99 7.99 2.88 7.72 7.72 3.13 7.15 7.15 3.42 6.68 6.68 3.80
30°C 8.97 8.97 2.49 8.72 8.72 2.69 8.47 8.47 2.91 8.21 8.21 3.16 7.61 7.61 3.45 7.12 7.12 3.84
19°C
24°C 9.18 6.07 2.50 8.87 5.92 2.69 8.55 5.78 2.91 8.22 5.63 3.16 7.56 5.26 3.45 7.00 4.97 3.83
27°C 9.21 7.04 2.50 8.89 6.89 2.70 8.57 6.75 2.92 8.24 6.60 3.17 7.58 6.18 3.45 7.02 5.87 3.83
30°C 9.26 8.74 2.51 8.95 8.56 2.70 8.65 8.38 2.92 8.34 8.18 3.17 7.69 7.64 3.46 7.17 7.17 3.84
33°C 9.50 9.50 2.52 9.23 9.23 2.72 8.97 8.97 2.94 8.70 8.70 3.20 8.08 8.08 3.49 7.58 7.58 3.88
22°C
27°C
10.09
5.95 2.55 9.75 5.81 2.75 9.41 5.68 2.97 9.05 5.54 3.22 8.33 5.18 3.51 7.72 4.90 3.89
30°C
10.12
7.36 2.55 9.77 7.21 2.75 9.42 7.06 2.97 9.07 6.91 3.22 8.35 6.48 3.51 7.74 6.16 3.89
33°C
10.14
8.67 2.55 9.79 8.52 2.75 9.45 8.37 2.97 9.10 8.20 3.23 8.38 7.71 3.51 7.79 7.32 3.90
36°C
10.24
9.83 2.56 9.91 9.63 2.76 9.59 9.43 2.98 9.28 9.20 3.24 8.59 8.59 3.53 8.04 8.04 3.92
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 72
69
Performance Data
Model: FDM30CXV1 - R30DXV1 / FDB30CXV1 - R30DXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710 /
740
16°C
21°C 8.02 5.98 2.13 7.73 5.82 2.30 7.45 5.66 2.49 7.15 5.50 2.70 6.56 5.12 2.93 6.06 4.82 3.23
24°C 8.03 7.16 2.13 7.74 6.99 2.30 7.46 6.83 2.49 7.16 6.66 2.70 6.58 6.22 2.93 6.08 5.87 3.23
27°C 8.09 8.09 2.13 7.82 7.82 2.30 7.55 7.55 2.50 7.26 7.26 2.71 6.70 6.70 2.94 6.23 6.23 3.24
30°C 8.34 8.34 2.14 8.10 8.10 2.32 7.85 7.85 2.51 7.60 7.60 2.73 7.05 7.05 2.97 6.59 6.59 3.28
19°C
24°C 8.84 5.58 2.16 8.53 5.44 2.34 8.22 5.29 2.53 7.89 5.14 2.75 7.25 4.79 2.98 6.71 4.51 3.29
27°C 8.85 6.38 2.16 8.54 6.24 2.34 8.22 6.10 2.53 7.90 5.95 2.75 7.26 5.57 2.98 6.71 5.27 3.29
30°C 8.86 7.88 2.16 8.56 7.71 2.34 8.25 7.54 2.54 7.94 7.36 2.75 7.31 6.88 2.99 6.78 6.51 3.29
33°C 8.97 8.97 2.17 8.67 8.67 2.35 8.39 8.39 2.54 8.11 8.11 2.76 7.50 7.50 3.00 7.01 7.01 3.31
22°C
27°C 9.73 5.46 2.20 9.39 5.33 2.38 9.05 5.20 2.58 8.69 5.05 2.80 8.00 4.71 3.04 7.40 4.44 3.35
30°C 9.73 6.66 2.20 9.39 6.51 2.38 9.05 6.37 2.58 8.70 6.21 2.80 8.00 5.82 3.04 7.40 5.52 3.35
33°C 9.74 7.77 2.20 9.40 7.62 2.38 9.06 7.47 2.58 8.70 7.32 2.80 8.01 6.87 3.04 7.42 6.53 3.35
36°C 9.77 8.81 2.20 9.44 8.64 2.39 9.12 8.46 2.59 8.79 8.27 2.81 8.10 7.75 3.05 7.53 7.36 3.36
760 /
790
16°C
21°C 8.34 6.23 2.15 8.04 6.07 2.32 7.73 5.91 2.51 7.42 5.74 2.72 6.81 5.35 2.96 6.28 5.03 3.26
24°C 8.36 7.56 2.15 8.06 7.38 2.32 7.76 7.21 2.52 7.45 7.03 2.73 6.84 6.56 2.96 6.32 6.19 3.26
27°C 8.46 8.46 2.15 8.18 8.18 2.33 7.90 7.90 2.52 7.61 7.61 2.74 7.03 7.03 2.97 6.55 6.55 3.28
30°C 8.82 8.82 2.17 8.56 8.56 2.35 8.30 8.30 2.55 8.03 8.03 2.76 7.44 7.44 3.00 6.96 6.96 3.32
19°C
24°C 9.19 5.89 2.18 8.86 5.75 2.36 8.53 5.60 2.56 8.18 5.44 2.77 7.52 5.07 3.01 6.94 4.78 3.31
27°C 9.20 6.79 2.18 8.87 6.64 2.36 8.54 6.49 2.56 8.20 6.33 2.77 7.53 5.92 3.01 6.96 5.61 3.32
30°C 9.25 8.37 2.18 8.92 8.19 2.36 8.60 8.01 2.56 8.28 7.81 2.78 7.62 7.31 3.02 7.07 6.90 3.33
33°C 9.40 9.40 2.19 9.11 9.11 2.37 8.82 8.82 2.58 8.53 8.53 2.80 7.90 7.90 3.04 7.39 7.39 3.35
22°C
27°C
10.09
5.77 2.22 9.74 5.63 2.41 9.38 5.49 2.61 9.00 5.34 2.83 8.27 4.98 3.07 7.65 4.70 3.38
30°C
10.11
7.08 2.22 9.75 6.93 2.41 9.39 6.78 2.61 9.01 6.62 2.83 8.28 6.20 3.07 7.66 5.88 3.38
33°C
10.12
8.30 2.22 9.77 8.14 2.41 9.41 7.97 2.61 9.04 7.80 2.83 8.32 7.32 3.07 7.71 6.95 3.38
36°C
10.19
9.38 2.23 9.86 9.20 2.41 9.51 9.01 2.62 9.17 8.80 2.84 8.46 8.24 3.08 7.89 7.77 3.40
830 /
880
16°C
21°C 8.65 6.50 2.16 8.33 6.33 2.34 8.01 6.17 2.53 7.68 5.99 2.75 7.04 5.58 2.98 6.49 5.25 3.28
24°C 8.69 7.90 2.17 8.38 7.71 2.34 8.06 7.52 2.54 7.74 7.32 2.75 7.10 6.83 2.98 6.56 6.44 3.29
27°C 8.83 8.83 2.17 8.54 8.54 2.35 8.25 8.25 2.55 7.96 7.96 2.76 7.35 7.35 3.00 6.85 6.85 3.31
30°C 9.27 9.27 2.19 9.00 9.00 2.37 8.73 8.73 2.57 8.44 8.44 2.80 7.81 7.81 3.04 7.30 7.30 3.35
19°C
24°C 9.52 6.23 2.20 9.17 6.08 2.38 8.82 5.92 2.58 8.46 5.76 2.80 7.77 5.37 3.03 7.17 5.07 3.34
27°C 9.54 7.21 2.20 9.20 7.05 2.38 8.86 6.88 2.58 8.50 6.71 2.80 7.80 6.28 3.04 7.21 5.94 3.34
30°C 9.62 8.88 2.20 9.28 8.68 2.39 8.95 8.48 2.59 8.61 8.27 2.81 7.93 7.73 3.04 7.36 7.28 3.36
33°C 9.83 9.83 2.21 9.54 9.54 2.40 9.25 9.25 2.61 8.95 8.95 2.83 8.29 8.29 3.07 7.75 7.75 3.39
22°C
27°C
10.44
6.10 2.24
10.07
5.96 2.43 9.69 5.81 2.63 9.30 5.66 2.85 8.55 5.28 3.09 7.90 4.99 3.41
30°C
10.46
7.52 2.24
10.09
7.38 2.43 9.71 7.22 2.63 9.32 7.05 2.85 8.57 6.60 3.09 7.92 6.26 3.41
33°C
10.50
8.81 2.24
10.14
8.66 2.43 9.76 8.47 2.64 9.38 8.29 2.86 8.63 7.77 3.10 8.00 7.37 3.42
36°C
10.59
9.95 2.25
10.26
9.77 2.44 9.91 9.55 2.64 9.55 9.32 2.87 8.83 8.69 3.12 8.23 8.18 3.44
900 /
940
16°C
21°C 8.64 6.55 2.18 8.34 6.40 2.35 8.04 6.24 2.54 7.72 6.08 2.76 7.09 5.66 3.01 6.55 5.33 3.35
24°C 8.67 8.01 2.19 8.36 7.84 2.35 8.06 7.67 2.55 7.75 7.49 2.77 7.13 7.01 3.01 6.60 6.60 3.35
27°C 8.82 8.82 2.19 8.55 8.55 2.36 8.27 8.27 2.56 8.00 8.00 2.78 7.41 7.41 3.03 6.92 6.92 3.37
30°C 9.29 9.29 2.21 9.03 9.03 2.38 8.77 8.77 2.58 8.50 8.50 2.81 7.88 7.88 3.06 7.38 7.38 3.41
19°C
24°C 9.51 6.29 2.22 9.18 6.14 2.39 8.86 5.99 2.59 8.51 5.84 2.81 7.83 5.45 3.06 7.25 5.15 3.40
27°C 9.54 7.29 2.22 9.21 7.14 2.39 8.88 6.99 2.59 8.54 6.83 2.81 7.85 6.41 3.06 7.27 6.08 3.40
30°C 9.59 9.06 2.22 9.27 8.86 2.40 8.95 8.67 2.59 8.63 8.47 2.82 7.97 7.91 3.07 7.42 7.42 3.41
33°C 9.84 9.84 2.24 9.56 9.56 2.41 9.29 9.29 2.61 9.01 9.01 2.84 8.37 8.37 3.10 7.85 7.85 3.44
22°C
27°C
10.45
6.17 2.26
10.09
6.02 2.44 9.74 5.88 2.64 9.37 5.74 2.86 8.63 5.36 3.11 8.00 5.07 3.45
30°C
10.48
7.62 2.26
10.12
7.47 2.44 9.76 7.31 2.64 9.39 7.16 2.86 8.65 6.71 3.12 8.02 6.38 3.45
33°C
10.50
8.98 2.27
10.14
8.82 2.44 9.78 8.67 2.64 9.42 8.50 2.86 8.68 7.98 3.12 8.07 7.58 3.46
36°C
10.60 10.18
2.27
10.26
9.98 2.45 9.93 9.77 2.65 9.61 9.53 2.88 8.90 8.90 3.13 8.33 8.33 3.48
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 73
70
Performance Data
Model: FDM30CXV1 - R30DXY1 / FDB30CXV1 - R30DXY1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710 /
740
16°C
21°C 8.02 5.98 2.17 7.73 5.82 2.35 7.45 5.66 2.54 7.15 5.50 2.76 6.56 5.12 2.99 6.06 4.82 3.30
24°C 8.03 7.16 2.17 7.74 6.99 2.35 7.46 6.83 2.54 7.16 6.66 2.76 6.58 6.22 2.99 6.08 5.87 3.30
27°C 8.09 8.09 2.17 7.82 7.82 2.35 7.55 7.55 2.55 7.26 7.26 2.76 6.70 6.70 3.00 6.23 6.23 3.31
30°C 8.34 8.34 2.18 8.10 8.10 2.36 7.85 7.85 2.56 7.60 7.60 2.78 7.05 7.05 3.02 6.59 6.59 3.34
19°C
24°C 8.84 5.58 2.20 8.53 5.44 2.39 8.22 5.29 2.58 7.89 5.14 2.80 7.25 4.79 3.04 6.71 4.51 3.35
27°C 8.85 6.38 2.20 8.54 6.24 2.39 8.22 6.10 2.59 7.90 5.95 2.80 7.26 5.57 3.04 6.71 5.27 3.35
30°C 8.86 7.88 2.20 8.56 7.71 2.39 8.25 7.54 2.59 7.94 7.36 2.81 7.31 6.88 3.05 6.78 6.51 3.36
33°C 8.97 8.97 2.21 8.67 8.67 2.39 8.39 8.39 2.60 8.11 8.11 2.82 7.50 7.50 3.06 7.01 7.01 3.38
22°C
27°C 9.73 5.46 2.24 9.39 5.33 2.43 9.05 5.20 2.64 8.69 5.05 2.86 8.00 4.71 3.10 7.40 4.44 3.42
30°C 9.73 6.66 2.24 9.39 6.51 2.43 9.05 6.37 2.64 8.70 6.21 2.86 8.00 5.82 3.10 7.40 5.52 3.42
33°C 9.74 7.77 2.24 9.40 7.62 2.43 9.06 7.47 2.64 8.70 7.32 2.86 8.01 6.87 3.10 7.42 6.53 3.42
36°C 9.77 8.81 2.25 9.44 8.64 2.43 9.12 8.46 2.64 8.79 8.27 2.86 8.10 7.75 3.11 7.53 7.36 3.43
760 /
790
16°C
21°C 8.34 6.23 2.19 8.04 6.07 2.37 7.73 5.91 2.56 7.42 5.74 2.78 6.81 5.35 3.01 6.28 5.03 3.32
24°C 8.36 7.56 2.19 8.06 7.38 2.37 7.76 7.21 2.57 7.45 7.03 2.78 6.84 6.56 3.02 6.32 6.19 3.33
27°C 8.46 8.46 2.20 8.18 8.18 2.37 7.90 7.90 2.57 7.61 7.61 2.79 7.03 7.03 3.03 6.55 6.55 3.35
30°C 8.82 8.82 2.21 8.56 8.56 2.39 8.30 8.30 2.60 8.03 8.03 2.82 7.44 7.44 3.06 6.96 6.96 3.38
19°C
24°C 9.19 5.89 2.22 8.86 5.75 2.41 8.53 5.60 2.61 8.18 5.44 2.83 7.52 5.07 3.07 6.94 4.78 3.38
27°C 9.20 6.79 2.23 8.87 6.64 2.41 8.54 6.49 2.61 8.20 6.33 2.83 7.53 5.92 3.07 6.96 5.61 3.38
30°C 9.25 8.37 2.23 8.92 8.19 2.41 8.60 8.01 2.61 8.28 7.81 2.84 7.62 7.31 3.08 7.07 6.90 3.39
33°C 9.40 9.40 2.24 9.11 9.11 2.42 8.82 8.82 2.63 8.53 8.53 2.85 7.90 7.90 3.10 7.39 7.39 3.42
22°C
27°C
10.09
5.77 2.27 9.74 5.63 2.45 9.38 5.49 2.66 9.00 5.34 2.88 8.27 4.98 3.13 7.65 4.70 3.45
30°C
10.11
7.08 2.27 9.75 6.93 2.45 9.39 6.78 2.66 9.01 6.62 2.89 8.28 6.20 3.13 7.66 5.88 3.45
33°C
10.12
8.30 2.27 9.77 8.14 2.46 9.41 7.97 2.66 9.04 7.80 2.89 8.32 7.32 3.13 7.71 6.95 3.45
36°C
10.19
9.38 2.27 9.86 9.20 2.46 9.51 9.01 2.67 9.17 8.80 2.90 8.46 8.24 3.14 7.89 7.77 3.47
830 /
880
16°C
21°C 8.65 6.50 2.21 8.33 6.33 2.39 8.01 6.17 2.58 7.68 5.99 2.80 7.04 5.58 3.04 6.49 5.25 3.35
24°C 8.69 7.90 2.21 8.38 7.71 2.39 8.06 7.52 2.59 7.74 7.32 2.81 7.10 6.83 3.04 6.56 6.44 3.35
27°C 8.83 8.83 2.22 8.54 8.54 2.40 8.25 8.25 2.60 7.96 7.96 2.82 7.35 7.35 3.06 6.85 6.85 3.38
30°C 9.27 9.27 2.23 9.00 9.00 2.42 8.73 8.73 2.63 8.44 8.44 2.85 7.81 7.81 3.10 7.30 7.30 3.42
19°C
24°C 9.52 6.23 2.24 9.17 6.08 2.43 8.82 5.92 2.63 8.46 5.76 2.85 7.77 5.37 3.09 7.17 5.07 3.41
27°C 9.54 7.21 2.24 9.20 7.05 2.43 8.86 6.88 2.63 8.50 6.71 2.86 7.80 6.28 3.10 7.21 5.94 3.41
30°C 9.62 8.88 2.25 9.28 8.68 2.43 8.95 8.48 2.64 8.61 8.27 2.86 7.93 7.73 3.11 7.36 7.28 3.42
33°C 9.83 9.83 2.26 9.54 9.54 2.45 9.25 9.25 2.66 8.95 8.95 2.89 8.29 8.29 3.13 7.75 7.75 3.46
22°C
27°C
10.44
6.10 2.29
10.07
5.96 2.48 9.69 5.81 2.68 9.30 5.66 2.91 8.55 5.28 3.15 7.90 4.99 3.47
30°C
10.46
7.52 2.29
10.09
7.38 2.48 9.71 7.22 2.68 9.32 7.05 2.91 8.57 6.60 3.16 7.92 6.26 3.48
33°C
10.50
8.81 2.29
10.14
8.66 2.48 9.76 8.47 2.69 9.38 8.29 2.92 8.63 7.77 3.16 8.00 7.37 3.48
36°C
10.59
9.95 2.29
10.26
9.77 2.49 9.91 9.55 2.70 9.55 9.32 2.93 8.83 8.69 3.18 8.23 8.18 3.51
900 /
940
16°C
21°C 8.64 6.55 2.23 8.34 6.40 2.40 8.04 6.24 2.59 7.72 6.08 2.82 7.09 5.66 3.07 6.55 5.33 3.41
24°C 8.67 8.01 2.23 8.36 7.84 2.40 8.06 7.67 2.60 7.75 7.49 2.82 7.13 7.01 3.07 6.60 6.60 3.42
27°C 8.82 8.82 2.24 8.55 8.55 2.41 8.27 8.27 2.61 8.00 8.00 2.84 7.41 7.41 3.09 6.92 6.92 3.44
30°C 9.29 9.29 2.26 9.03 9.03 2.43 8.77 8.77 2.63 8.50 8.50 2.86 7.88 7.88 3.12 7.38 7.38 3.47
19°C
24°C 9.51 6.29 2.27 9.18 6.14 2.44 8.86 5.99 2.64 8.51 5.84 2.87 7.83 5.45 3.12 7.25 5.15 3.46
27°C 9.54 7.29 2.27 9.21 7.14 2.44 8.88 6.99 2.64 8.54 6.83 2.87 7.85 6.41 3.12 7.27 6.08 3.47
30°C 9.59 9.06 2.27 9.27 8.86 2.44 8.95 8.67 2.64 8.63 8.47 2.87 7.97 7.91 3.13 7.42 7.42 3.48
33°C 9.84 9.84 2.28 9.56 9.56 2.46 9.29 9.29 2.66 9.01 9.01 2.90 8.37 8.37 3.16 7.85 7.85 3.51
22°C
27°C
10.45
6.17 2.31
10.09
6.02 2.49 9.74 5.88 2.69 9.37 5.74 2.92 8.63 5.36 3.18 8.00 5.07 3.52
30°C
10.48
7.62 2.31
10.12
7.47 2.49 9.76 7.31 2.69 9.39 7.16 2.92 8.65 6.71 3.18 8.02 6.38 3.52
33°C
10.50
8.98 2.31
10.14
8.82 2.49 9.78 8.67 2.69 9.42 8.50 2.92 8.68 7.98 3.18 8.07 7.58 3.53
36°C
10.60 10.18
2.32
10.26
9.98 2.50 9.93 9.77 2.70 9.61 9.53 2.93 8.90 8.90 3.20 8.33 8.33 3.55
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 74
71
Performance Data
Model: FDM38CXV1 - R35DXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
1350
16°C
21°C
10.00
6.54 3.19 9.63 6.38 3.20 9.27 6.21 3.26 8.89 6.04 3.35 8.49 5.86 3.56 7.99 5.64 3.87
24°C
10.04
7.94 3.19 9.67 7.77 3.20 9.31 7.59 3.27 8.93 7.41 3.35 8.54 7.22 3.57 8.05 6.98 3.87
27°C
10.16
9.18 3.20 9.83 8.95 3.21 9.50 8.71 3.28 9.16 8.45 3.37 8.83 8.16 3.59 8.41 7.78 3.90
30°C
10.68
9.84 3.22
10.37
9.56 3.24
10.06
9.28 3.31 9.73 8.98 3.41 9.38 8.67 3.63 8.95 8.29 3.95
19°C
24°C
11.00
6.52 3.23
10.61
6.36 3.25
10.21
6.20 3.32 9.80 6.03 3.41 9.37 5.86 3.63 8.83 5.65 3.94
27°C
11.04
7.95 3.24
10.64
7.78 3.25
10.24
7.61 3.32 9.83 7.43 3.41 9.40 7.25 3.63 8.87 7.03 3.94
30°C
11.09
9.30 3.24
10.69
9.11 3.25
10.31
8.92 3.32 9.91 8.72 3.42 9.51 8.50 3.64 9.01 8.20 3.95
33°C
11.31 10.37
3.25
10.97 10.11
3.27
10.64
9.82 3.34
10.31
9.51 3.45 9.95 9.20 3.67 9.51 8.80 4.00
22°C
27°C
12.07
6.46 3.28
11.65
6.30 3.30
11.21
6.15 3.38
10.77
5.98 3.48
10.31
5.82 3.70 9.73 5.61 4.01
30°C
12.10
7.92 3.28
11.67
7.75 3.30
11.24
7.58 3.38
10.80
7.41 3.48
10.33
7.24 3.70 9.76 7.02 4.02
33°C
12.14
9.29 3.28
11.71
9.12 3.31
11.27
8.95 3.38
10.83
8.77 3.48
10.37
8.59 3.71 9.81 8.35 4.02
36°C
12.22 10.57
3.29
11.80 10.36
3.31
11.40 10.16
3.39
10.99
9.93 3.49
10.58
9.66 3.72
10.08
9.31 4.05
1420
16°C
21°C
10.26
6.89 3.21 9.88 6.72 3.22 9.50 6.54 3.28 9.11 6.35 3.37 8.70 6.16 3.58 8.20 5.92 3.89
24°C
10.30
8.37 3.21 9.92 8.18 3.22 9.54 8.00 3.28 9.15 7.80 3.37 8.75 7.60 3.59 8.25 7.33 3.89
27°C
10.42
9.67 3.21
10.08
9.43 3.23 9.74 9.17 3.29 9.39 8.89 3.39 9.05 8.58 3.61 8.62 8.18 3.92
30°C
10.96 10.37
3.24
10.64 10.07
3.25
10.31
9.77 3.33 9.97 9.45 3.42 9.62 9.12 3.65 9.18 8.71 3.97
19°C
24°C
11.29
6.87 3.25
10.88
6.70 3.26
10.47
6.52 3.33
10.04
6.34 3.43 9.60 6.16 3.65 9.06 5.93 3.96
27°C
11.32
8.38 3.25
10.91
8.19 3.27
10.50
8.01 3.34
10.08
7.82 3.43 9.64 7.63 3.65 9.09 7.39 3.96
30°C
11.37
9.80 3.25
10.97
9.60 3.27
10.57
9.40 3.34
10.16
9.17 3.44 9.75 8.94 3.66 9.24 8.62 3.97
33°C
11.60 10.93
3.26
11.26 10.64
3.28
10.92 10.34
3.36
10.57 10.01
3.46
10.20
9.67 3.69 9.75 9.25 4.02
22°C
27°C
12.39
6.80 3.30
11.95
6.64 3.32
11.50
6.47 3.40
11.04
6.30 3.49
10.56
6.12 3.72 9.98 5.90 4.03
30°C
12.42
8.34 3.30
11.98
8.16 3.32
11.53
7.98 3.40
11.07
7.80 3.50
10.59
7.61 3.72
10.00
7.38 4.04
33°C
12.45
9.79 3.30
12.01
9.60 3.32
11.56
9.42 3.40
11.10
9.23 3.50
10.63
9.03 3.73
10.05
8.78 4.04
36°C
12.54 11.14
3.30
12.11 10.92
3.33
11.69 10.69
3.41
11.26 10.44
3.51
10.84 10.16
3.74
10.34
9.78 4.07
1470
16°C
21°C
10.44
7.15 3.22
10.06
6.97 3.23 9.67 6.78 3.29 9.27 6.58 3.38 8.86 6.38 3.60 8.34 6.13 3.90
24°C
10.49
8.68 3.22
10.10
8.48 3.23 9.71 8.29 3.30 9.32 8.08 3.38 8.91 7.87 3.60 8.40 7.59 3.90
27°C
10.61 10.03
3.23
10.26
9.78 3.24 9.91 9.51 3.31 9.56 9.21 3.40 9.21 8.89 3.62 8.77 8.46 3.93
30°C
11.15 10.76
3.25
10.83 10.44
3.27
10.50 10.12
3.34
10.15
9.79 3.44 9.79 9.45 3.66 9.34 9.01 3.98
19°C
24°C
11.49
7.13 3.26
11.07
6.94 3.28
10.65
6.76 3.35
10.22
6.57 3.44 9.77 6.38 3.66 9.22 6.14 3.97
27°C
11.53
8.69 3.26
11.11
8.50 3.28
10.69
8.30 3.35
10.26
8.10 3.44 9.81 7.90 3.66 9.25 7.64 3.97
30°C
11.58 10.17
3.27
11.16
9.95 3.28
10.76
9.74 3.35
10.34
9.50 3.45 9.92 9.25 3.67 9.40 8.92 3.99
33°C
11.81 11.33
3.28
11.46 11.04
3.30
11.11 10.72
3.37
10.75 10.37
3.48
10.38 10.02
3.71 9.92 9.57 4.03
22°C
27°C
12.61
7.06 3.31
12.16
6.88 3.33
11.70
6.71 3.41
11.24
6.52 3.51
10.75
6.34 3.73
10.15
6.10 4.05
30°C
12.64
8.66 3.31
12.19
8.46 3.33
11.73
8.27 3.41
11.26
8.08 3.51
10.78
7.88 3.74
10.18
7.63 4.05
33°C
12.68 10.15
3.31
12.22
9.96 3.34
11.77
9.76 3.41
11.30
9.56 3.51
10.82
9.35 3.74
10.23
9.08 4.06
36°C
12.76 11.55
3.32
12.32 11.32
3.34
11.90 11.08
3.42
11.46 10.82
3.52
11.04 10.52
3.76
10.52 10.12
4.08
1540
16°C
21°C
10.56
7.33 3.23
10.18
7.14 3.24 9.79 6.94 3.30 9.38 6.74 3.39 8.96 6.53 3.60 8.44 6.27 3.91
24°C
10.61
8.90 3.23
10.22
8.69 3.24 9.83 8.49 3.30 9.43 8.27 3.39 9.01 8.05 3.61 8.50 7.76 3.91
27°C
10.73 10.28
3.23
10.38 10.02
3.25
10.03
9.74 3.31 9.67 9.43 3.41 9.32 9.09 3.63 8.88 8.66 3.94
30°C
11.28 11.02
3.25
10.95 10.70
3.27
10.62 10.37
3.35
10.27 10.02
3.44 9.91 9.67 3.67 9.45 9.22 3.99
19°C
24°C
11.62
7.30 3.27
11.20
7.11 3.28
10.78
6.92 3.35
10.34
6.73 3.45 9.89 6.53 3.67 9.33 6.28 3.98
27°C
11.66
8.91 3.27
11.24
8.70 3.29
10.81
8.50 3.36
10.38
8.29 3.45 9.92 8.08 3.67 9.36 7.82 3.98
30°C
11.71 10.42
3.27
11.29 10.20
3.29
10.88
9.97 3.36
10.47
9.73 3.46
10.03
9.47 3.68 9.51 9.12 3.99
33°C
11.95 11.61
3.28
11.59 11.31
3.30
11.24 10.97
3.38
10.88 10.62
3.48
10.51 10.25
3.71
10.04
9.79 4.04
22°C
27°C
12.76
7.23 3.32
12.30
7.05 3.34
11.84
6.87 3.42
11.37
6.68 3.52
10.88
6.48 3.74
10.27
6.24 4.06
30°C
12.79
8.87 3.32
12.33
8.67 3.34
11.87
8.47 3.42
11.40
8.27 3.52
10.91
8.06 3.74
10.30
7.81 4.06
33°C
12.83 10.40
3.32
12.37 10.20
3.34
11.90 10.00
3.42
11.43
9.79 3.52
10.95
9.57 3.75
10.35
9.29 4.06
36°C
12.91 11.84
3.32
12.47 11.60
3.35
12.03 11.35
3.43
11.60 11.08
3.53
11.16 10.77
3.76
10.64 10.35
4.09
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 75
72
Performance Data
Model: FDM38CXV1 - R40DXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
1350
16°C
21°C
10.51
7.83 2.82
10.13
7.63 3.05 9.76 7.42 3.30 9.37 7.21 3.58 8.60 6.71 3.88 7.94 6.31 4.28
24°C
10.52
9.38 2.82
10.15
9.17 3.05 9.77 8.95 3.30 9.38 8.73 3.58 8.62 8.15 3.88 7.97 7.69 4.28
27°C
10.60 10.60
2.82
10.25 10.25
3.05 9.89 9.89 3.31 9.52 9.52 3.59 8.78 8.78 3.89 8.17 8.17 4.30
30°C
10.93 10.93
2.83
10.62 10.62
3.07
10.29 10.29
3.33 9.96 9.96 3.61 9.23 9.23 3.93 8.64 8.64 4.34
19°C
24°C
11.59
7.31 2.86
11.18
7.13 3.10
10.77
6.94 3.36
10.35
6.74 3.64 9.51 6.28 3.95 8.79 5.91 4.35
27°C
11.60
8.37 2.86
11.19
8.18 3.10
10.78
7.99 3.36
10.35
7.80 3.64 9.52 7.30 3.95 8.80 6.91 4.35
30°C
11.61 10.33
2.86
11.21 10.11
3.10
10.82
9.88 3.36
10.41
9.64 3.64 9.58 9.02 3.95 8.89 8.54 4.36
33°C
11.75 11.75
2.87
11.37 11.37
3.11
11.00 11.00
3.37
10.63 10.63
3.66 9.83 9.83 3.97 9.19 9.19 4.39
22°C
27°C
12.75
7.16 2.91
12.31
6.99 3.16
11.86
6.81 3.42
11.40
6.62 3.71
10.48
6.17 4.02 9.70 5.82 4.43
30°C
12.75
8.72 2.91
12.31
8.54 3.16
11.86
8.34 3.42
11.40
8.15 3.71
10.48
7.63 4.03 9.70 7.23 4.44
33°C
12.76 10.19
2.91
12.32
9.99 3.16
11.87
9.80 3.42
11.41
9.59 3.71
10.50
9.01 4.03 9.73 8.56 4.44
36°C
12.80 11.55
2.92
12.38 11.32
3.16
11.95 11.09
3.43
11.51 10.84
3.72
10.62 10.16
4.04 9.87 9.64 4.45
1420
16°C
21°C
10.93
8.16 2.84
10.53
7.95 3.07
10.13
7.74 3.33 9.72 7.52 3.61 8.92 7.01 3.91 8.23 6.59 4.31
24°C
10.96
9.91 2.84
10.57
9.68 3.07
10.17
9.45 3.33 9.76 9.21 3.61 8.97 8.59 3.92 8.29 8.11 4.32
27°C
11.09 11.09
2.85
10.72 10.72
3.08
10.35 10.35
3.34 9.98 9.98 3.62 9.21 9.21 3.93 8.58 8.58 4.34
30°C
11.55 11.55
2.87
11.22 11.22
3.11
10.88 10.88
3.37
10.53 10.53
3.66 9.75 9.75 3.98 9.12 9.12 4.39
19°C
24°C
12.04
7.72 2.89
11.61
7.53 3.13
11.17
7.33 3.39
10.72
7.13 3.67 9.85 6.65 3.98 9.10 6.26 4.39
27°C
12.06
8.90 2.89
11.63
8.70 3.13
11.19
8.50 3.39
10.75
8.30 3.67 9.87 7.76 3.99 9.13 7.35 4.39
30°C
12.12 10.97
2.89
11.70 10.74
3.13
11.28 10.50
3.39
10.85 10.24
3.68 9.99 9.57 3.99 9.26 9.05 4.40
33°C
12.32 12.32
2.90
11.94 11.94
3.14
11.56 11.56
3.41
11.18 11.18
3.70
10.36 10.36
4.02 9.68 9.68 4.44
22°C
27°C
13.23
7.56 2.94
12.76
7.38 3.19
12.29
7.20 3.45
11.80
7.00 3.74
10.84
6.53 4.06
10.03
6.16 4.47
30°C
13.24
9.28 2.94
12.78
9.09 3.19
12.30
8.88 3.45
11.81
8.68 3.75
10.86
8.13 4.06
10.04
7.71 4.48
33°C
13.27 10.87
2.94
12.81 10.67
3.19
12.34 10.45
3.46
11.85 10.23
3.75
10.90
9.59 4.07
10.11
9.11 4.48
36°C
13.35 12.29
2.95
12.92 12.06
3.20
12.47 11.81
3.47
12.01 11.53
3.76
11.08 10.79
4.08
10.33 10.18
4.50
1470
16°C
21°C
11.33
8.52 2.86
10.91
8.30 3.10
10.50
8.08 3.35
10.06
7.86 3.64 9.23 7.32 3.94 8.51 6.89 4.35
24°C
11.39 10.35
2.87
10.98 10.10
3.10
10.56
9.86 3.36
10.14
9.60 3.64 9.31 8.96 3.95 8.60 8.44 4.35
27°C
11.57 11.57
2.88
11.19 11.19
3.11
10.82 10.82
3.37
10.43 10.43
3.66 9.64 9.64 3.97 8.98 8.98 4.39
30°C
12.15 12.15
2.90
11.80 11.80
3.14
11.43 11.43
3.41
11.06 11.06
3.70
10.24 10.24
4.02 9.56 9.56 4.44
19°C
24°C
12.47
8.17 2.91
12.02
7.97 3.15
11.56
7.76 3.41
11.09
7.55 3.70
10.18
7.04 4.01 9.40 6.64 4.42
27°C
12.51
9.45 2.91
12.06
9.24 3.15
11.60
9.02 3.42
11.14
8.80 3.71
10.23
8.23 4.02 9.45 7.78 4.43
30°C
12.61 11.63
2.92
12.16 11.38
3.16
11.73 11.12
3.43
11.28 10.84
3.72
10.39 10.12
4.03 9.64 9.54 4.44
33°C
12.88 12.88
2.93
12.51 12.51
3.18
12.12 12.12
3.45
11.72 11.72
3.75
10.86 10.86
4.07
10.16 10.16
4.49
22°C
27°C
13.68
7.99 2.97
13.20
7.82 3.21
12.70
7.62 3.48
12.19
7.42 3.78
11.20
6.92 4.10
10.35
6.54 4.51
30°C
13.71
9.85 2.97
13.22
9.67 3.22
12.73
9.45 3.48
12.22
9.24 3.78
11.22
8.65 4.10
10.38
8.20 4.51
33°C
13.76 11.55
2.97
13.28 11.34
3.22
12.80 11.11
3.49
12.29 10.86
3.79
11.31 10.18
4.11
10.48
9.66 4.52
36°C
13.88 13.04
2.98
13.45 12.80
3.23
12.98 12.52
3.50
12.52 12.21
3.80
11.56 11.39
4.13
10.79 10.72
4.55
1540
16°C
21°C
11.33
8.59 2.89
10.93
8.38 3.11
10.53
8.18 3.37
10.11
7.96 3.66 9.29 7.42 3.99 8.58 6.99 4.43
24°C
11.36 10.50
2.89
10.96 10.28
3.12
10.57 10.05
3.37
10.16
9.81 3.66 9.34 9.18 3.99 8.65 8.65 4.44
27°C
11.55 11.55
2.90
11.20 11.20
3.13
10.84 10.84
3.38
10.48 10.48
3.68 9.71 9.71 4.01 9.07 9.07 4.47
30°C
12.17 12.17
2.93
11.83 11.83
3.16
11.49 11.49
3.42
11.14 11.14
3.72
10.33 10.33
4.06 9.67 9.67 4.51
19°C
24°C
12.46
8.24 2.94
12.03
8.04 3.17
11.60
7.85 3.42
11.15
7.65 3.72
10.26
7.14 4.05 9.49 6.75 4.50
27°C
12.50
9.55 2.94
12.06
9.35 3.17
11.63
9.16 3.43
11.19
8.95 3.72
10.29
8.39 4.05 9.52 7.97 4.50
30°C
12.56 11.87
2.95
12.14 11.61
3.17
11.73 11.37
3.43
11.31 11.09
3.73
10.44 10.37
4.06 9.73 9.73 4.51
33°C
12.90 12.90
2.96
12.52 12.52
3.19
12.18 12.18
3.46
11.81 11.81
3.76
10.97 10.97
4.10
10.28 10.28
4.56
22°C
27°C
13.70
8.08 3.00
13.23
7.89 3.23
12.76
7.71 3.49
12.28
7.52 3.79
11.31
7.03 4.12
10.48
6.65 4.57
30°C
13.73
9.99 3.00
13.26
9.79 3.23
12.79
9.58 3.49
12.31
9.38 3.79
11.33
8.80 4.12
10.50
8.36 4.57
33°C
13.76 11.77
3.00
13.29 11.56
3.23
12.82 11.36
3.49
12.34 11.13
3.79
11.38 10.46
4.13
10.57
9.94 4.58
36°C
13.89 13.34
3.01
13.45 13.07
3.24
13.02 12.80
3.51
12.59 12.49
3.81
11.66 11.66
4.15
10.91 10.91
4.61
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 76
73
Performance Data
Model: FDM38CXV1 - R40DXY1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
1350
16°C
21°C
10.51
7.83 2.78
10.13
7.63 3.00 9.76 7.42 3.25 9.37 7.21 3.53 8.60 6.71 3.83 7.94 6.31 4.22
24°C
10.52
9.38 2.78
10.15
9.17 3.01 9.77 8.95 3.26 9.38 8.73 3.53 8.62 8.15 3.83 7.97 7.69 4.22
27°C
10.60 10.60
2.78
10.25 10.25
3.01 9.89 9.89 3.26 9.52 9.52 3.54 8.78 8.78 3.84 8.17 8.17 4.24
30°C
10.93 10.93
2.80
10.62 10.62
3.03
10.29 10.29
3.28 9.96 9.96 3.57 9.23 9.23 3.87 8.64 8.64 4.28
19°C
24°C
11.59
7.31 2.82
11.18
7.13 3.06
10.77
6.94 3.31
10.35
6.74 3.59 9.51 6.28 3.89 8.79 5.91 4.29
27°C
11.60
8.37 2.82
11.19
8.18 3.06
10.78
7.99 3.31
10.35
7.80 3.59 9.52 7.30 3.90 8.80 6.91 4.29
30°C
11.61 10.33
2.82
11.21 10.11
3.06
10.82
9.88 3.31
10.41
9.64 3.59 9.58 9.02 3.90 8.89 8.54 4.30
33°C
11.75 11.75
2.83
11.37 11.37
3.07
11.00 11.00
3.32
10.63 10.63
3.61 9.83 9.83 3.92 9.19 9.19 4.33
22°C
27°C
12.75
7.16 2.87
12.31
6.99 3.11
11.86
6.81 3.37
11.40
6.62 3.66
10.48
6.17 3.97 9.70 5.82 4.37
30°C
12.75
8.72 2.87
12.31
8.54 3.11
11.86
8.34 3.38
11.40
8.15 3.66
10.48
7.63 3.97 9.70 7.23 4.38
33°C
12.76 10.19
2.87
12.32
9.99 3.11
11.87
9.80 3.38
11.41
9.59 3.66
10.50
9.01 3.97 9.73 8.56 4.38
36°C
12.80 11.55
2.88
12.38 11.32
3.12
11.95 11.09
3.38
11.51 10.84
3.67
10.62 10.16
3.98 9.87 9.64 4.39
1420
16°C
21°C
10.93
8.16 2.80
10.53
7.95 3.03
10.13
7.74 3.28 9.72 7.52 3.56 8.92 7.01 3.86 8.23 6.59 4.26
24°C
10.96
9.91 2.80
10.57
9.68 3.03
10.17
9.45 3.29 9.76 9.21 3.56 8.97 8.59 3.86 8.29 8.11 4.26
27°C
11.09 11.09
2.81
10.72 10.72
3.04
10.35 10.35
3.30 9.98 9.98 3.58 9.21 9.21 3.88 8.58 8.58 4.28
30°C
11.55 11.55
2.83
11.22 11.22
3.07
10.88 10.88
3.32
10.53 10.53
3.61 9.75 9.75 3.92 9.12 9.12 4.33
19°C
24°C
12.04
7.72 2.85
11.61
7.53 3.08
11.17
7.33 3.34
10.72
7.13 3.62 9.85 6.65 3.93 9.10 6.26 4.33
27°C
12.06
8.90 2.85
11.63
8.70 3.08
11.19
8.50 3.34
10.75
8.30 3.62 9.87 7.76 3.93 9.13 7.35 4.33
30°C
12.12 10.97
2.85
11.70 10.74
3.09
11.28 10.50
3.35
10.85 10.24
3.63 9.99 9.57 3.94 9.26 9.05 4.34
33°C
12.32 12.32
2.86
11.94 11.94
3.10
11.56 11.56
3.36
11.18 11.18
3.65
10.36 10.36
3.97 9.68 9.68 4.38
22°C
27°C
13.23
7.56 2.90
12.76
7.38 3.14
12.29
7.20 3.41
11.80
7.00 3.69
10.84
6.53 4.01
10.03
6.16 4.41
30°C
13.24
9.28 2.90
12.78
9.09 3.14
12.30
8.88 3.41
11.81
8.68 3.70
10.86
8.13 4.01
10.04
7.71 4.41
33°C
13.27 10.87
2.90
12.81 10.67
3.15
12.34 10.45
3.41
11.85 10.23
3.70
10.90
9.59 4.01
10.11
9.11 4.42
36°C
13.35 12.29
2.91
12.92 12.06
3.15
12.47 11.81
3.42
12.01 11.53
3.71
11.08 10.79
4.03
10.33 10.18
4.44
1470
16°C
21°C
11.33
8.52 2.83
10.91
8.30 3.06
10.50
8.08 3.31
10.06
7.86 3.59 9.23 7.32 3.89 8.51 6.89 4.29
24°C
11.39 10.35
2.83
10.98 10.10
3.06
10.56
9.86 3.31
10.14
9.60 3.59 9.31 8.96 3.90 8.60 8.44 4.29
27°C
11.57 11.57
2.84
11.19 11.19
3.07
10.82 10.82
3.33
10.43 10.43
3.61 9.64 9.64 3.92 8.98 8.98 4.33
30°C
12.15 12.15
2.86
11.80 11.80
3.10
11.43 11.43
3.36
11.06 11.06
3.65
10.24 10.24
3.97 9.56 9.56 4.38
19°C
24°C
12.47
8.17 2.87
12.02
7.97 3.11
11.56
7.76 3.37
11.09
7.55 3.65
10.18
7.04 3.96 9.40 6.64 4.36
27°C
12.51
9.45 2.87
12.06
9.24 3.11
11.60
9.02 3.37
11.14
8.80 3.66
10.23
8.23 3.97 9.45 7.78 4.37
30°C
12.61 11.63
2.88
12.16 11.38
3.12
11.73 11.12
3.38
11.28 10.84
3.67
10.39 10.12
3.98 9.64 9.54 4.38
33°C
12.88 12.88
2.89
12.51 12.51
3.14
12.12 12.12
3.40
11.72 11.72
3.70
10.86 10.86
4.01
10.16 10.16
4.43
22°C
27°C
13.68
7.99 2.93
13.20
7.82 3.17
12.70
7.62 3.44
12.19
7.42 3.73
11.20
6.92 4.04
10.35
6.54 4.45
30°C
13.71
9.85 2.93
13.22
9.67 3.17
12.73
9.45 3.44
12.22
9.24 3.73
11.22
8.65 4.04
10.38
8.20 4.45
33°C
13.76 11.55
2.93
13.28 11.34
3.18
12.80 11.11
3.44
12.29 10.86
3.73
11.31 10.18
4.05
10.48
9.66 4.46
36°C
13.88 13.04
2.94
13.45 12.80
3.19
12.98 12.52
3.45
12.52 12.21
3.75
11.56 11.39
4.07
10.79 10.72
4.49
1540
16°C
21°C
11.33
8.59 2.85
10.93
8.38 3.07
10.53
8.18 3.32
10.11
7.96 3.61 9.29 7.42 3.93 8.58 6.99 4.37
24°C
11.36 10.50
2.85
10.96 10.28
3.07
10.57 10.05
3.32
10.16
9.81 3.61 9.34 9.18 3.94 8.65 8.65 4.38
27°C
11.55 11.55
2.86
11.20 11.20
3.08
10.84 10.84
3.34
10.48 10.48
3.63 9.71 9.71 3.96 9.07 9.07 4.41
30°C
12.17 12.17
2.89
11.83 11.83
3.11
11.49 11.49
3.37
11.14 11.14
3.67
10.33 10.33
4.00 9.67 9.67 4.45
19°C
24°C
12.46
8.24 2.90
12.03
8.04 3.12
11.60
7.85 3.38
11.15
7.65 3.67
10.26
7.14 4.00 9.49 6.75 4.44
27°C
12.50
9.55 2.90
12.06
9.35 3.13
11.63
9.16 3.38
11.19
8.95 3.67
10.29
8.39 4.00 9.52 7.97 4.44
30°C
12.56 11.87
2.91
12.14 11.61
3.13
11.73 11.37
3.39
11.31 11.09
3.68
10.44 10.37
4.01 9.73 9.73 4.45
33°C
12.90 12.90
2.92
12.52 12.52
3.15
12.18 12.18
3.41
11.81 11.81
3.71
10.97 10.97
4.04
10.28 10.28
4.50
22°C
27°C
13.70
8.08 2.96
13.23
7.89 3.18
12.76
7.71 3.44
12.28
7.52 3.74
11.31
7.03 4.07
10.48
6.65 4.51
30°C
13.73
9.99 2.96
13.26
9.79 3.19
12.79
9.58 3.45
12.31
9.38 3.74
11.33
8.80 4.07
10.50
8.36 4.51
33°C
13.76 11.77
2.96
13.29 11.56
3.19
12.82 11.36
3.45
12.34 11.13
3.74
11.38 10.46
4.07
10.57
9.94 4.52
36°C
13.89 13.34
2.97
13.45 13.07
3.20
13.02 12.80
3.46
12.59 12.49
3.76
11.66 11.66
4.09
10.91 10.91
4.54
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 77
74
Performance Data
Model: FDM40CXV1 - R35DXV1 / FDB40CXV1 - R35DXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
900 /
970
16°C
21°C 9.56 6.50 3.16 9.21 6.33 3.16 8.86 6.17 3.23 8.50 6.00 3.31 8.12 5.82 3.52 7.65 5.60 3.82
24°C 9.60 7.89 3.16 9.25 7.71 3.17 8.90 7.54 3.23 8.54 7.36 3.32 8.16 7.17 3.53 7.70 6.93 3.83
27°C 9.71 9.11 3.16 9.40 8.89 3.17 9.09 8.65 3.24 8.76 8.39 3.33 8.44 8.10 3.55 8.04 7.73 3.86
30°C
10.21
9.77 3.18 9.92 9.49 3.20 9.62 9.21 3.27 9.31 8.92 3.37 8.98 8.61 3.59 8.56 8.23 3.90
19°C
24°C
10.52
6.47 3.20
10.14
6.31 3.21 9.76 6.15 3.28 9.37 5.99 3.37 8.96 5.82 3.59 8.45 5.61 3.89
27°C
10.56
7.90 3.20
10.18
7.72 3.21 9.80 7.55 3.28 9.40 7.38 3.37 8.99 7.20 3.59 8.48 6.98 3.90
30°C
10.60
9.23 3.20
10.23
9.05 3.22 9.86 8.86 3.29 9.48 8.66 3.38 9.09 8.44 3.60 8.62 8.15 3.91
33°C
10.82 10.30
3.21
10.50 10.03
3.23
10.18
9.75 3.31 9.86 9.45 3.41 9.52 9.13 3.63 9.09 8.74 3.95
22°C
27°C
11.55
6.41 3.24
11.14
6.26 3.27
10.73
6.10 3.34
10.30
5.94 3.44 9.86 5.78 3.66 9.31 5.57 3.97
30°C
11.58
7.86 3.25
11.17
7.69 3.27
10.75
7.53 3.34
10.33
7.36 3.44 9.88 7.18 3.66 9.33 6.97 3.97
33°C
11.61
9.22 3.25
11.20
9.05 3.27
10.78
8.88 3.35
10.36
8.71 3.44 9.92 8.53 3.67 9.38 8.29 3.98
36°C
11.69 10.49
3.25
11.29 10.29
3.27
10.90 10.08
3.35
10.51
9.85 3.45
10.12
9.59 3.68 9.64 9.24 4.00
990 /
1000
16°C
21°C 9.81 6.85 3.17 9.45 6.67 3.18 9.09 6.49 3.24 8.71 6.31 3.33 8.33 6.12 3.54 7.84 5.88 3.84
24°C 9.85 8.31 3.17 9.49 8.12 3.18 9.13 7.94 3.25 8.75 7.74 3.33 8.37 7.54 3.55 7.89 7.28 3.85
27°C 9.97 9.60 3.18 9.64 9.36 3.19 9.32 9.11 3.26 8.99 8.83 3.35 8.65 8.52 3.57 8.25 8.12 3.88
30°C
10.48 10.29
3.20
10.17 10.00
3.22 9.86 9.70 3.29 9.54 9.38 3.39 9.20 9.06 3.61 8.78 8.65 3.92
19°C
24°C
10.79
6.82 3.21
10.41
6.65 3.23
10.01
6.48 3.30 9.61 6.30 3.39 9.18 6.12 3.61 8.66 5.89 3.91
27°C
10.83
8.32 3.22
10.44
8.13 3.23
10.05
7.95 3.30 9.64 7.76 3.39 9.22 7.57 3.61 8.69 7.33 3.92
30°C
10.88
9.73 3.22
10.49
9.53 3.23
10.11
9.33 3.30 9.72 9.11 3.40 9.32 8.87 3.62 8.84 8.56 3.93
33°C
11.10 10.85
3.23
10.77 10.57
3.25
10.44 10.26
3.32
10.11
9.94 3.43 9.76 9.60 3.65 9.32 9.18 3.97
22°C
27°C
11.85
6.75 3.26
11.43
6.59 3.28
11.00
6.42 3.36
10.56
6.25 3.46
10.11
6.07 3.68 9.54 5.86 3.99
30°C
11.88
8.28 3.26
11.45
8.10 3.28
11.03
7.93 3.36
10.59
7.74 3.46
10.13
7.55 3.68 9.57 7.32 3.99
33°C
11.91
9.72 3.26
11.49
9.53 3.29
11.06
9.35 3.36
10.62
9.16 3.46
10.17
8.97 3.68 9.62 8.71 4.00
36°C
11.99 11.06
3.27
11.58 10.84
3.29
11.18 10.62
3.37
10.78 10.37
3.47
10.37 10.09
3.70 9.89 9.71 4.02
1060
16°C
21°C 9.99 7.10 3.18 9.62 6.92 3.19 9.25 6.73 3.26 8.87 6.54 3.34 8.47 6.34 3.56 7.98 6.08 3.86
24°C
10.03
8.62 3.19 9.66 8.42 3.20 9.29 8.23 3.26 8.91 8.02 3.35 8.52 7.81 3.56 8.03 7.53 3.86
27°C
10.15
9.96 3.19 9.81 9.71 3.20 9.48 9.44 3.27 9.14 9.14 3.36 8.81 8.81 3.58 8.39 8.39 3.89
30°C
10.67 10.67
3.21
10.36 10.36
3.23
10.04 10.04
3.30 9.71 9.71 3.40 9.37 9.37 3.62 8.93 8.93 3.94
19°C
24°C
10.99
7.08 3.23
10.59
6.89 3.24
10.19
6.71 3.31 9.78 6.53 3.40 9.35 6.33 3.62 8.81 6.10 3.93
27°C
11.03
8.63 3.23
10.63
8.44 3.24
10.23
8.24 3.31 9.81 8.05 3.41 9.38 7.84 3.62 8.85 7.59 3.93
30°C
11.08 10.09
3.23
10.68
9.88 3.25
10.29
9.67 3.32 9.89 9.44 3.41 9.49 9.19 3.63 8.99 8.86 3.94
33°C
11.30 11.25
3.24
10.96 10.96
3.26
10.63 10.63
3.34
10.29 10.29
3.44 9.93 9.93 3.67 9.49 9.49 3.99
22°C
27°C
12.06
7.01 3.27
11.63
6.84 3.30
11.20
6.66 3.37
10.75
6.48 3.47
10.29
6.29 3.69 9.71 6.06 4.00
30°C
12.09
8.59 3.27
11.66
8.40 3.30
11.22
8.21 3.37
10.77
8.02 3.47
10.31
7.82 3.69 9.74 7.58 4.01
33°C
12.13 10.08
3.28
11.69
9.89 3.30
11.25
9.69 3.38
10.81
9.49 3.47
10.35
9.29 3.70 9.79 9.02 4.01
36°C
12.21 11.47
3.28
11.79 11.24
3.30
11.38 11.00
3.38
10.97 10.74
3.49
10.56 10.45
3.71
10.06 10.04
4.04
1100 /
1190
16°C
21°C
10.10
7.28 3.19 9.73 7.08 3.20 9.36 6.89 3.26 8.97 6.69 3.35 8.57 6.49 3.56 8.07 6.22 3.86
24°C
10.15
8.83 3.19 9.77 8.63 3.20 9.40 8.43 3.27 9.02 8.21 3.35 8.62 7.99 3.57 8.13 7.70 3.87
27°C
10.27 10.21
3.20 9.93 9.93 3.21 9.59 9.59 3.28 9.25 9.25 3.37 8.91 8.91 3.59 8.49 8.49 3.90
30°C
10.79 10.79
3.22
10.48 10.48
3.24
10.16 10.16
3.31 9.82 9.82 3.41 9.48 9.48 3.63 9.04 9.04 3.95
19°C
24°C
11.12
7.25 3.23
10.72
7.06 3.25
10.31
6.87 3.32 9.89 6.68 3.41 9.46 6.48 3.63 8.92 6.23 3.93
27°C
11.16
8.84 3.23
10.75
8.64 3.25
10.34
8.44 3.32 9.93 8.24 3.41 9.49 8.02 3.63 8.95 7.76 3.94
30°C
11.21 10.34
3.24
10.80 10.12
3.25
10.41
9.90 3.32
10.01
9.66 3.42 9.60 9.40 3.64 9.10 9.06 3.95
33°C
11.43 11.43
3.25
11.09 11.09
3.27
10.75 10.75
3.34
10.41 10.41
3.45
10.05 10.05
3.67 9.60 9.60 3.99
22°C
27°C
12.20
7.18 3.28
11.77
7.00 3.30
11.33
6.82 3.38
10.87
6.63 3.48
10.41
6.44 3.70 9.82 6.20 4.01
30°C
12.24
8.81 3.28
11.80
8.61 3.30
11.35
8.41 3.38
10.90
8.21 3.48
10.43
8.01 3.70 9.85 7.75 4.02
33°C
12.27 10.33
3.28
11.83 10.13
3.31
11.39
9.93 3.38
10.93
9.72 3.48
10.47
9.50 3.71 9.90 9.22 4.02
36°C
12.35 11.75
3.29
11.93 11.51
3.31
11.51 11.27
3.39
11.10 11.00
3.49
10.68 10.68
3.72
10.18 10.18
4.05
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 78
75
Performance Data
Model: FDM40CXV1 - R40DXV1 / FDB40CXV1 - R40DXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
900 /
970
16°C
21°C
10.51
6.83 2.70
10.14
6.65 2.92 9.76 6.47 3.16 9.37 6.29 3.43 8.60 5.85 3.72 7.94 5.50 4.10
24°C
10.52
8.18 2.70
10.15
7.99 2.92 9.77 7.81 3.16 9.38 7.61 3.43 8.62 7.11 3.72 7.97 6.71 4.11
27°C
10.60
9.27 2.71
10.25
9.06 2.93 9.89 8.85 3.17 9.52 8.62 3.44 8.78 8.03 3.73 8.17 7.54 4.12
30°C
10.93 10.93
2.72
10.62 10.62
2.94
10.29 10.29
3.19 9.96 9.96 3.47 9.24 9.24 3.77 8.64 8.64 4.16
19°C
24°C
11.59
6.38 2.74
11.18
6.22 2.97
10.77
6.05 3.22
10.35
5.88 3.49 9.51 5.48 3.79 8.79 5.16 4.17
27°C
11.60
7.30 2.74
11.19
7.13 2.97
10.78
6.97 3.22
10.35
6.80 3.49 9.52 6.36 3.79 8.80 6.03 4.18
30°C
11.62
9.00 2.75
11.21
8.81 2.97
10.82
8.62 3.22
10.41
8.41 3.49 9.58 7.86 3.79 8.89 7.44 4.18
33°C
11.75 11.75
2.75
11.37 11.37
2.98
11.00 11.00
3.23
10.63 10.63
3.51 9.83 9.83 3.81 9.19 9.19 4.21
22°C
27°C
12.75
6.24 2.79
12.31
6.09 3.03
11.86
5.94 3.28
11.40
5.78 3.56
10.48
5.38 3.86 9.70 5.07 4.25
30°C
12.75
7.61 2.79
12.31
7.45 3.03
11.86
7.28 3.28
11.40
7.10 3.56
10.48
6.65 3.86 9.70 6.31 4.25
33°C
12.76
8.88 2.79
12.32
8.72 3.03
11.87
8.54 3.28
11.41
8.37 3.56
10.50
7.85 3.86 9.73 7.46 4.26
36°C
12.80 10.07
2.80
12.38
9.87 3.03
11.95
9.67 3.29
11.52
9.45 3.57
10.62
8.86 3.87 9.87 8.41 4.27
990 /
1000
16°C
21°C
10.93
7.12 2.73
10.54
6.94 2.95
10.14
6.75 3.19 9.72 6.56 3.46 8.92 6.11 3.75 8.23 5.75 4.14
24°C
10.96
8.64 2.73
10.57
8.44 2.95
10.17
8.24 3.19 9.76 8.03 3.46 8.97 7.49 3.76 8.29 7.07 4.14
27°C
11.09
9.82 2.73
10.72
9.59 2.96
10.35
9.34 3.20 9.98 9.06 3.48 9.21 8.42 3.77 8.58 7.88 4.17
30°C
11.56 11.56
2.75
11.22 11.22
2.98
10.88 10.88
3.23
10.53 10.53
3.51 9.75 9.75 3.81 9.12 9.12 4.21
19°C
24°C
12.04
6.74 2.77
11.61
6.57 3.00
11.18
6.40 3.25
10.73
6.22 3.52 9.85 5.80 3.82 9.10 5.46 4.21
27°C
12.06
7.76 2.77
11.63
7.59 3.00
11.20
7.42 3.25
10.75
7.24 3.52 9.87 6.77 3.82 9.13 6.41 4.21
30°C
12.12
9.57 2.77
11.70
9.37 3.00
11.28
9.16 3.25
10.85
8.93 3.53 9.99 8.35 3.83 9.27 7.89 4.22
33°C
12.32 12.32
2.78
11.95 11.95
3.02
11.57 11.57
3.27
11.18 11.18
3.55
10.36 10.36
3.86 9.68 9.68 4.26
22°C
27°C
13.23
6.60 2.82
12.76
6.44 3.06
12.29
6.28 3.31
11.80
6.11 3.59
10.84
5.70 3.90
10.03
5.38 4.29
30°C
13.25
8.09 2.82
12.78
7.93 3.06
12.30
7.75 3.31
11.82
7.57 3.59
10.86
7.09 3.90
10.05
6.73 4.29
33°C
13.27
9.49 2.82
12.81
9.30 3.06
12.34
9.11 3.32
11.85
8.92 3.60
10.90
8.37 3.90
10.11
7.94 4.30
36°C
13.35 10.72
2.83
12.92 10.52
3.07
12.47 10.30
3.32
12.02 10.06
3.61
11.09
9.41 3.91
10.34
8.88 4.32
1060
16°C
21°C
11.33
7.43 2.75
10.92
7.24 2.97
10.50
7.05 3.22
10.06
6.85 3.49 9.23 6.38 3.78 8.51 6.01 4.17
24°C
11.39
9.03 2.75
10.98
8.81 2.98
10.57
8.60 3.22
10.14
8.37 3.49 9.31 7.81 3.79 8.60 7.37 4.18
27°C
11.58 10.35
2.76
11.20 10.08
2.99
10.82
9.80 3.24
10.43
9.49 3.51 9.64 8.79 3.81 8.98 8.21 4.21
30°C
12.16 12.16
2.78
11.80 11.80
3.01
11.44 11.44
3.27
11.06 11.06
3.55
10.24 10.24
3.86 9.56 9.56 4.26
19°C
24°C
12.47
7.13 2.79
12.02
6.95 3.02
11.57
6.77 3.28
11.10
6.59 3.55
10.18
6.14 3.85 9.40 5.79 4.24
27°C
12.51
8.25 2.79
12.06
8.06 3.03
11.61
7.87 3.28
11.14
7.68 3.56
10.23
7.18 3.86 9.45 6.79 4.25
30°C
12.61 10.15
2.80
12.17
9.93 3.03
11.73
9.70 3.29
11.28
9.46 3.56
10.39
8.83 3.87 9.64 8.32 4.26
33°C
12.89 12.89
2.81
12.51 12.51
3.05
12.13 12.13
3.31
11.73 11.73
3.59
10.86 10.86
3.90
10.16 10.16
4.31
22°C
27°C
13.69
6.97 2.85
13.20
6.82 3.08
12.71
6.65 3.34
12.19
6.47 3.62
11.20
6.04 3.93
10.35
5.70 4.33
30°C
13.72
8.59 2.85
13.23
8.43 3.08
12.73
8.25 3.34
12.22
8.06 3.62
11.23
7.55 3.93
10.38
7.16 4.33
33°C
13.76 10.07
2.85
13.29
9.90 3.09
12.80
9.69 3.35
12.30
9.47 3.63
11.31
8.88 3.94
10.48
8.43 4.34
36°C
13.89 11.37
2.86
13.45 11.17
3.10
12.99 10.92
3.36
12.52 10.65
3.65
11.57
9.93 3.96
10.79
9.35 4.37
1100 /
1190
16°C
21°C
11.33
7.49 2.77
10.93
7.31 2.99
10.53
7.13 3.23
10.12
6.94 3.51 9.30 6.47 3.83 8.59 6.10 4.25
24°C
11.37
9.16 2.78
10.96
8.96 2.99
10.57
8.77 3.23
10.16
8.56 3.51 9.34 8.01 3.83 8.65 7.55 4.26
27°C
11.56 10.51
2.78
11.20 10.24
3.00
10.84
9.97 3.25
10.48
9.68 3.53 9.71 9.14 3.85 9.07 8.63 4.28
30°C
12.18 12.18
2.81
11.84 11.84
3.03
11.50 11.50
3.28
11.14 11.14
3.57
10.33 10.33
3.89 9.67 9.67 4.33
19°C
24°C
12.47
7.19 2.82
12.04
7.01 3.04
11.61
6.85 3.29
11.16
6.67 3.57
10.26
6.23 3.89 9.50 5.89 4.31
27°C
12.50
8.33 2.82
12.07
8.16 3.04
11.64
7.99 3.29
11.19
7.81 3.57
10.29
7.32 3.89 9.52 6.95 4.32
30°C
12.56 10.35
2.83
12.14 10.13
3.04
11.74
9.92 3.29
11.31
9.68 3.58
10.44
9.05 3.90 9.73 8.53 4.33
33°C
12.90 12.90
2.84
12.53 12.53
3.06
12.18 12.18
3.32
11.81 11.81
3.61
10.97 10.97
3.93
10.29 10.29
4.37
22°C
27°C
13.70
7.05 2.87
13.23
6.88 3.10
12.77
6.73 3.35
12.28
6.56 3.63
11.31
6.13 3.95
10.48
5.80 4.39
30°C
13.73
8.72 2.88
13.26
8.54 3.10
12.79
8.36 3.35
12.31
8.18 3.64
11.33
7.67 3.96
10.51
7.30 4.39
33°C
13.76 10.27
2.88
13.29 10.09
3.10
12.82
9.91 3.35
12.35
9.71 3.64
11.38
9.13 3.96
10.58
8.67 4.39
36°C
13.89 11.64
2.88
13.45 11.41
3.11
13.02 11.17
3.36
12.60 10.89
3.65
11.67 10.18
3.98
10.92
9.61 4.42
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 79
76
Performance Data
Model: FDM40CXV1 - R40DXY1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
900
16°C
21°C
10.51
6.83 3.08
10.14
6.65 3.33 9.76 6.47 3.60 9.37 6.29 3.91 8.60 5.85 4.24 7.94 5.50 4.67
24°C
10.52
8.18 3.08
10.15
7.99 3.33 9.77 7.81 3.61 9.38 7.61 3.91 8.62 7.11 4.24 7.97 6.71 4.68
27°C
10.60
9.27 3.08
10.25
9.06 3.33 9.89 8.85 3.61 9.52 8.62 3.92 8.78 8.03 4.25 8.17 7.54 4.69
30°C
10.93 10.93
3.10
10.62 10.62
3.35
10.29 10.29
3.64 9.96 9.96 3.95 9.24 9.24 4.29 8.64 8.64 4.74
19°C
24°C
11.59
6.38 3.13
11.18
6.22 3.38
10.77
6.05 3.67
10.35
5.88 3.98 9.51 5.48 4.31 8.79 5.16 4.75
27°C
11.60
7.30 3.13
11.19
7.13 3.38
10.78
6.97 3.67
10.35
6.80 3.98 9.52 6.36 4.32 8.80 6.03 4.76
30°C
11.62
9.00 3.13
11.21
8.81 3.39
10.82
8.62 3.67
10.41
8.41 3.98 9.58 7.86 4.32 8.89 7.44 4.76
33°C
11.75 11.75
3.13
11.37 11.37
3.40
11.00 11.00
3.68
10.63 10.63
4.00 9.83 9.83 4.34 9.19 9.19 4.79
22°C
27°C
12.75
6.24 3.18
12.31
6.09 3.45
11.86
5.94 3.74
11.40
5.78 4.05
10.48
5.38 4.40 9.70 5.07 4.85
30°C
12.75
7.61 3.18
12.31
7.45 3.45
11.86
7.28 3.74
11.40
7.10 4.06
10.48
6.65 4.40 9.70 6.31 4.85
33°C
12.76
8.88 3.18
12.32
8.72 3.45
11.87
8.54 3.74
11.41
8.37 4.06
10.50
7.85 4.40 9.73 7.46 4.85
36°C
12.80 10.07
3.19
12.38
9.87 3.45
11.95
9.67 3.74
11.52
9.45 4.06
10.62
8.86 4.41 9.87 8.41 4.86
990
16°C
21°C
10.93
7.12 3.10
10.54
6.94 3.36
10.14
6.75 3.64 9.72 6.56 3.94 8.92 6.11 4.28 8.23 5.75 4.71
24°C
10.96
8.64 3.11
10.57
8.44 3.36
10.17
8.24 3.64 9.76 8.03 3.95 8.97 7.49 4.28 8.29 7.07 4.72
27°C
11.09
9.82 3.11
10.72
9.59 3.37
10.35
9.34 3.65 9.98 9.06 3.96 9.21 8.42 4.30 8.58 7.88 4.75
30°C
11.56 11.56
3.14
11.22 11.22
3.40
10.88 10.88
3.68
10.53 10.53
4.00 9.75 9.75 4.34 9.12 9.12 4.80
19°C
24°C
12.04
6.74 3.16
11.61
6.57 3.42
11.18
6.40 3.70
10.73
6.22 4.01 9.85 5.80 4.35 9.10 5.46 4.80
27°C
12.06
7.76 3.16
11.63
7.59 3.42
11.20
7.42 3.70
10.75
7.24 4.01 9.87 6.77 4.35 9.13 6.41 4.80
30°C
12.12
9.57 3.16
11.70
9.37 3.42
11.28
9.16 3.71
10.85
8.93 4.02 9.99 8.35 4.36 9.27 7.89 4.81
33°C
12.32 12.32
3.17
11.95 11.95
3.44
11.57 11.57
3.73
11.18 11.18
4.05
10.36 10.36
4.40 9.68 9.68 4.85
22°C
27°C
13.23
6.60 3.21
12.76
6.44 3.48
12.29
6.28 3.77
11.80
6.11 4.09
10.84
5.70 4.44
10.03
5.38 4.89
30°C
13.25
8.09 3.21
12.78
7.93 3.48
12.30
7.75 3.78
11.82
7.57 4.09
10.86
7.09 4.44
10.05
6.73 4.89
33°C
13.27
9.49 3.22
12.81
9.30 3.48
12.34
9.11 3.78
11.85
8.92 4.10
10.90
8.37 4.45
10.11
7.94 4.90
36°C
13.35 10.72
3.22
12.92 10.52
3.49
12.47 10.30
3.79
12.02 10.06
4.11
11.09
9.41 4.46
10.34
8.88 4.92
1060
16°C
21°C
11.33
7.43 3.13
10.92
7.24 3.39
10.50
7.05 3.67
10.06
6.85 3.97 9.23 6.38 4.31 8.51 6.01 4.75
24°C
11.39
9.03 3.13
10.98
8.81 3.39
10.57
8.60 3.67
10.14
8.37 3.98 9.31 7.81 4.32 8.60 7.37 4.76
27°C
11.58 10.35
3.14
11.20 10.08
3.40
10.82
9.80 3.69
10.43
9.49 4.00 9.64 8.79 4.34 8.98 8.21 4.79
30°C
12.16 12.16
3.17
11.80 11.80
3.43
11.44 11.44
3.73
11.06 11.06
4.04
10.24 10.24
4.39 9.56 9.56 4.85
19°C
24°C
12.47
7.13 3.18
12.02
6.95 3.44
11.57
6.77 3.73
11.10
6.59 4.05
10.18
6.14 4.39 9.40 5.79 4.83
27°C
12.51
8.25 3.18
12.06
8.06 3.45
11.61
7.87 3.73
11.14
7.68 4.05
10.23
7.18 4.39 9.45 6.79 4.84
30°C
12.61 10.15
3.19
12.17
9.93 3.45
11.73
9.70 3.74
11.28
9.46 4.06
10.39
8.83 4.41 9.64 8.32 4.86
33°C
12.89 12.89
3.20
12.51 12.51
3.47
12.13 12.13
3.77
11.73 11.73
4.09
10.86 10.86
4.45
10.16 10.16
4.91
22°C
27°C
13.69
6.97 3.24
13.20
6.82 3.51
12.71
6.65 3.81
12.19
6.47 4.13
11.20
6.04 4.48
10.35
5.70 4.93
30°C
13.72
8.59 3.24
13.23
8.43 3.51
12.73
8.25 3.81
12.22
8.06 4.13
11.23
7.55 4.48
10.38
7.16 4.93
33°C
13.76 10.07
3.25
13.29
9.90 3.52
12.80
9.69 3.81
12.30
9.47 4.14
11.31
8.88 4.49
10.48
8.43 4.94
36°C
13.89 11.37
3.25
13.45 11.17
3.53
12.99 10.92
3.83
12.52 10.65
4.15
11.57
9.93 4.51
10.79
9.35 4.97
1100
16°C
21°C
11.33
7.49 3.16
10.93
7.31 3.40
10.53
7.13 3.68
10.12
6.94 4.00 9.30 6.47 4.36 8.59 6.10 4.84
24°C
11.37
9.16 3.16
10.96
8.96 3.40
10.57
8.77 3.68
10.16
8.56 4.00 9.34 8.01 4.36 8.65 7.55 4.85
27°C
11.56 10.51
3.17
11.20 10.24
3.42
10.84
9.97 3.70
10.48
9.68 4.02 9.71 9.14 4.39 9.07 8.63 4.88
30°C
12.18 12.18
3.20
11.84 11.84
3.45
11.50 11.50
3.74
11.14 11.14
4.06
10.33 10.33
4.43 9.67 9.67 4.93
19°C
24°C
12.47
7.19 3.21
12.04
7.01 3.46
11.61
6.85 3.74
11.16
6.67 4.06
10.26
6.23 4.43 9.50 5.89 4.92
27°C
12.50
8.33 3.22
12.07
8.16 3.46
11.64
7.99 3.75
11.19
7.81 4.07
10.29
7.32 4.43 9.52 6.95 4.92
30°C
12.56 10.35
3.22
12.14 10.13
3.47
11.74
9.92 3.75
11.31
9.68 4.07
10.44
9.05 4.44 9.73 8.53 4.93
33°C
12.90 12.90
3.24
12.53 12.53
3.49
12.18 12.18
3.78
11.81 11.81
4.11
10.97 10.97
4.48
10.29 10.29
4.98
22°C
27°C
13.70
7.05 3.27
13.23
6.88 3.53
12.77
6.73 3.81
12.28
6.56 4.14
11.31
6.13 4.51
10.48
5.80 5.00
30°C
13.73
8.72 3.28
13.26
8.54 3.53
12.79
8.36 3.82
12.31
8.18 4.14
11.33
7.67 4.51
10.51
7.30 5.00
33°C
13.76 10.27
3.28
13.29 10.09
3.53
12.82
9.91 3.82
12.35
9.71 4.15
11.38
9.13 4.51
10.58
8.67 5.00
36°C
13.89 11.64
3.28
13.45 11.41
3.54
13.02 11.17
3.83
12.60 10.89
4.16
11.67 10.18
4.53
10.92
9.61 5.03
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 80
77
Performance Data
Model: FDB40CXV1 - R40DXY1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
970
16°C
21°C
10.51
6.83 2.96
10.14
6.65 3.20 9.76 6.48 3.47 9.37 6.29 3.76 8.60 5.85 4.08 7.94 5.51 4.50
24°C
10.52
8.18 2.96
10.15
8.00 3.20 9.77 7.81 3.47 9.38 7.61 3.76 8.62 7.11 4.08 7.97 6.71 4.50
27°C
10.60
9.28 2.97
10.25
9.07 3.21 9.89 8.85 3.48 9.52 8.63 3.77 8.78 8.03 4.09 8.17 7.54 4.52
30°C
10.93 10.93
2.98
10.62 10.62
3.23
10.29 10.29
3.50 9.96 9.96 3.80 9.24 9.24 4.13 8.64 8.64 4.56
19°C
24°C
11.59
6.38 3.01
11.18
6.22 3.26
10.77
6.05 3.53
10.35
5.88 3.83 9.51 5.48 4.15 8.79 5.16 4.58
27°C
11.60
7.30 3.01
11.19
7.13 3.26
10.78
6.97 3.53
10.35
6.80 3.83 9.52 6.36 4.15 8.80 6.03 4.58
30°C
11.62
9.01 3.01
11.21
8.82 3.26
10.82
8.62 3.53
10.41
8.41 3.83 9.58 7.87 4.16 8.89 7.44 4.58
33°C
11.75 11.75
3.02
11.37 11.37
3.27
11.00 11.00
3.54
10.63 10.63
3.85 9.83 9.83 4.18 9.19 9.19 4.61
22°C
27°C
12.75
6.24 3.06
12.31
6.09 3.32
11.86
5.94 3.60
11.40
5.78 3.90
10.48
5.38 4.23 9.70 5.08 4.66
30°C
12.75
7.61 3.06
12.31
7.45 3.32
11.86
7.28 3.60
11.40
7.11 3.90
10.48
6.65 4.23 9.70 6.31 4.66
33°C
12.76
8.89 3.06
12.32
8.72 3.32
11.87
8.54 3.60
11.41
8.37 3.90
10.50
7.86 4.23 9.73 7.46 4.67
36°C
12.80 10.08
3.07
12.38
9.88 3.32
11.95
9.67 3.60
11.52
9.46 3.91
10.62
8.87 4.24 9.87 8.41 4.68
1000
16°C
21°C
10.93
7.12 2.99
10.54
6.94 3.23
10.14
6.76 3.50 9.72 6.56 3.79 8.92 6.11 4.11 8.23 5.75 4.54
24°C
10.96
8.65 2.99
10.57
8.44 3.23
10.17
8.24 3.50 9.76 8.03 3.80 8.97 7.50 4.12 8.29 7.07 4.54
27°C
11.09
9.82 3.00
10.72
9.59 3.24
10.35
9.35 3.51 9.98 9.07 3.81 9.21 8.42 4.14 8.58 7.88 4.57
30°C
11.56 11.56
3.02
11.22 11.22
3.27
10.88 10.88
3.54
10.53 10.53
3.85 9.75 9.75 4.18 9.12 9.12 4.62
19°C
24°C
12.04
6.74 3.04
11.61
6.57 3.29
11.18
6.40 3.56
10.73
6.22 3.86 9.85 5.80 4.19 9.10 5.47 4.61
27°C
12.06
7.76 3.04
11.63
7.59 3.29
11.20
7.42 3.56
10.75
7.24 3.86 9.87 6.77 4.19 9.13 6.41 4.62
30°C
12.12
9.58 3.04
11.70
9.37 3.29
11.28
9.16 3.57
10.85
8.93 3.87 9.99 8.35 4.20 9.27 7.89 4.63
33°C
12.32 12.32
3.05
11.95 11.95
3.31
11.57 11.57
3.59
11.18 11.18
3.89
10.36 10.36
4.23 9.68 9.68 4.67
22°C
27°C
13.23
6.60 3.09
12.76
6.44 3.35
12.29
6.28 3.63
11.80
6.11 3.94
10.84
5.70 4.27
10.03
5.38 4.70
30°C
13.25
8.10 3.09
12.78
7.93 3.35
12.30
7.75 3.63
11.82
7.57 3.94
10.86
7.09 4.27
10.05
6.73 4.71
33°C
13.27
9.49 3.09
12.81
9.31 3.35
12.34
9.12 3.64
11.85
8.92 3.94
10.90
8.37 4.28
10.11
7.95 4.71
36°C
13.35 10.73
3.10
12.92 10.52
3.36
12.47 10.30
3.64
12.02 10.06
3.95
11.09
9.42 4.29
10.34
8.88 4.73
1060
16°C
21°C
11.33
7.43 3.01
10.92
7.24 3.26
10.50
7.05 3.53
10.06
6.85 3.82 9.23 6.38 4.15 8.51 6.01 4.57
24°C
11.39
9.03 3.02
10.98
8.82 3.26
10.57
8.60 3.53
10.14
8.37 3.83 9.31 7.82 4.15 8.60 7.37 4.58
27°C
11.58 10.35
3.02
11.20 10.08
3.27
10.82
9.80 3.55
10.43
9.50 3.85 9.64 8.80 4.18 8.98 8.21 4.61
30°C
12.16 12.16
3.05
11.80 11.80
3.30
11.44 11.44
3.58
11.06 11.06
3.89
10.24 10.24
4.23 9.56 9.56 4.67
19°C
24°C
12.47
7.13 3.06
12.02
6.95 3.31
11.57
6.77 3.59
11.10
6.59 3.89
10.18
6.14 4.22 9.40 5.80 4.65
27°C
12.51
8.25 3.06
12.06
8.06 3.32
11.61
7.87 3.59
11.14
7.68 3.90
10.23
7.18 4.23 9.45 6.79 4.66
30°C
12.61 10.15
3.07
12.17
9.93 3.32
11.73
9.70 3.60
11.28
9.46 3.91
10.39
8.83 4.24 9.64 8.33 4.67
33°C
12.89 12.89
3.08
12.51 12.51
3.34
12.13 12.13
3.63
11.73 11.73
3.94
10.86 10.86
4.28
10.16 10.16
4.72
22°C
27°C
13.69
6.97 3.12
13.20
6.82 3.38
12.71
6.65 3.66
12.19
6.47 3.97
11.20
6.04 4.31
10.35
5.71 4.74
30°C
13.72
8.60 3.12
13.23
8.43 3.38
12.73
8.25 3.66
12.22
8.06 3.97
11.23
7.55 4.31
10.38
7.16 4.75
33°C
13.76 10.08
3.12
13.29
9.90 3.39
12.80
9.69 3.67
12.30
9.48 3.98
11.31
8.88 4.32
10.48
8.43 4.76
36°C
13.89 11.38
3.13
13.45 11.17
3.40
12.99 10.92
3.68
12.52 10.65
4.00
11.57
9.94 4.34
10.79
9.35 4.79
1190
16°C
21°C
11.33
7.49 3.04
10.93
7.31 3.27
10.53
7.13 3.54
10.12
6.95 3.85 9.30 6.47 4.19 8.59 6.10 4.66
24°C
11.37
9.16 3.04
10.96
8.97 3.28
10.57
8.77 3.54
10.16
8.56 3.85 9.34 8.01 4.20 8.65 7.56 4.66
27°C
11.56 10.51
3.05
11.20 10.25
3.29
10.84
9.98 3.56
10.48
9.68 3.87 9.71 9.15 4.22 9.07 8.63 4.70
30°C
12.18 12.18
3.08
11.84 11.84
3.32
11.50 11.50
3.60
11.14 11.14
3.91
10.33 10.33
4.26 9.67 9.67 4.74
19°C
24°C
12.47
7.19 3.09
12.04
7.02 3.33
11.61
6.85 3.60
11.16
6.67 3.91
10.26
6.23 4.26 9.50 5.89 4.73
27°C
12.50
8.34 3.09
12.07
8.16 3.33
11.64
7.99 3.60
11.19
7.81 3.91
10.29
7.32 4.26 9.52 6.96 4.73
30°C
12.56 10.35
3.10
12.14 10.13
3.34
11.74
9.92 3.61
11.31
9.68 3.92
10.44
9.05 4.27 9.73 8.53 4.75
33°C
12.90 12.90
3.11
12.53 12.53
3.36
12.18 12.18
3.64
11.81 11.81
3.95
10.97 10.97
4.31
10.29 10.29
4.79
22°C
27°C
13.70
7.05 3.15
13.23
6.89 3.39
12.77
6.73 3.67
12.28
6.56 3.98
11.31
6.13 4.34
10.48
5.80 4.81
30°C
13.73
8.72 3.15
13.26
8.54 3.40
12.79
8.36 3.67
12.31
8.18 3.99
11.33
7.68 4.34
10.51
7.30 4.81
33°C
13.76 10.27
3.15
13.29 10.09
3.40
12.82
9.91 3.67
12.35
9.71 3.99
11.38
9.13 4.34
10.58
8.67 4.81
36°C
13.89 11.64
3.16
13.45 11.41
3.41
13.02 11.17
3.69
12.60 10.90
4.01
11.67 10.19
4.36
10.92
9.61 4.84
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 81
78
Performance Data
Model: FDM50CXV1 - R50DXY1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
1210
16°C
21°C
13.30
9.41 3.76
12.83
9.17 4.07
12.35
8.92 4.41
11.86
8.67 4.78
10.89
8.06 5.18
10.05
7.59 5.71
24°C
13.32 11.27
3.76
12.84 11.01
4.07
12.37 10.76
4.41
11.87 10.49
4.78
10.91
9.80 5.18
10.09
9.24 5.72
27°C
13.42 12.78
3.77
12.98 12.49
4.08
12.52 12.20
4.42
12.05 11.88
4.79
11.12 11.06
5.20
10.34 10.34
5.74
30°C
13.84 13.84
3.79
13.44 13.44
4.10
13.03 13.03
4.45
12.61 12.61
4.83
11.69 11.69
5.24
10.94 10.94
5.79
19°C
24°C
14.67
8.79 3.82
14.16
8.57 4.14
13.64
8.34 4.48
13.10
8.10 4.86
12.04
7.55 5.27
11.13
7.11 5.81
27°C
14.68 10.06
3.82
14.16
9.83 4.14
13.64
9.60 4.48
13.11
9.37 4.86
12.05
8.77 5.27
11.14
8.30 5.81
30°C
14.70 12.41
3.82
14.19 12.14
4.14
13.69 11.87
4.49
13.17 11.59
4.87
12.13 10.84
5.28
11.25 10.26
5.82
33°C
14.88 14.88
3.83
14.39 14.39
4.15
13.93 13.93
4.50
13.45 13.45
4.88
12.45 12.45
5.31
11.63 11.63
5.86
22°C
27°C
16.14
8.60 3.89
15.58
8.39 4.21
15.01
8.18 4.57
14.43
7.96 4.96
13.27
7.42 5.38
12.28
6.99 5.92
30°C
16.14 10.48
3.89
15.59 10.26
4.21
15.01 10.03
4.57
14.43
9.79 4.96
13.27
9.16 5.38
12.28
8.69 5.92
33°C
16.15 12.24
3.89
15.59 12.01
4.22
15.03 11.77
4.57
14.44 11.53
4.96
13.29 10.82
5.38
12.31 10.28
5.93
36°C
16.21 13.88
3.89
15.67 13.61
4.22
15.13 13.32
4.58
14.58 13.03
4.97
13.44 12.21
5.39
12.50 11.59
5.94
1280
16°C
21°C
13.83
9.81 3.79
13.33
9.56 4.10
12.83
9.30 4.44
12.31
9.04 4.82
11.29
8.42 5.23
10.42
7.92 5.76
24°C
13.88 11.91
3.80
13.38 11.63
4.11
12.88 11.35
4.45
12.36 11.07
4.82
11.35 10.32
5.23
10.49
9.74 5.77
27°C
14.04 13.53
3.81
13.57 13.21
4.12
13.10 12.87
4.46
12.63 12.49
4.84
11.66 11.60
5.26
10.86 10.85
5.80
30°C
14.63 14.63
3.83
14.20 14.20
4.15
13.77 13.77
4.50
13.32 13.32
4.89
12.35 12.35
5.31
11.54 11.54
5.86
19°C
24°C
15.24
9.28 3.86
14.70
9.05 4.17
14.15
8.81 4.52
13.58
8.57 4.90
12.47
7.99 5.32
11.52
7.53 5.86
27°C
15.27 10.69
3.86
14.72 10.45
4.18
14.17 10.22
4.52
13.60
9.98 4.91
12.50
9.33 5.32
11.55
8.83 5.87
30°C
15.34 13.19
3.86
14.81 12.90
4.18
14.28 12.61
4.53
13.73 12.31
4.92
12.64 11.51
5.33
11.73 10.87
5.88
33°C
15.60 15.60
3.88
15.12 15.12
4.20
14.64 14.64
4.56
14.15 14.15
4.95
13.11 13.11
5.37
12.26 12.26
5.93
22°C
27°C
16.75
9.09 3.93
16.16
8.87 4.26
15.56
8.65 4.61
14.94
8.42 5.00
13.73
7.85 5.42
12.70
7.41 5.97
30°C
16.77 11.15
3.93
16.17 10.92
4.26
15.57 10.68
4.61
14.95 10.43
5.00
13.74
9.77 5.43
12.71
9.27 5.98
33°C
16.80 13.07
3.93
16.21 12.82
4.26
15.62 12.56
4.62
15.00 12.29
5.01
13.80 11.53
5.43
12.79 10.94
5.99
36°C
16.90 14.77
3.94
16.35 14.49
4.27
15.78 14.19
4.63
15.21 13.86
5.02
14.03 12.97
5.45
13.08 12.24
6.01
1380
16°C
21°C
14.34 10.24
3.83
13.82
9.98 4.14
13.29
9.71 4.48
12.74
9.44 4.86
11.68
8.79 5.27
10.77
8.28 5.81
24°C
14.42 12.44
3.83
13.90 12.14
4.14
13.37 11.85
4.49
12.83 11.54
4.86
11.79 10.76
5.28
10.89 10.15
5.81
27°C
14.65 14.25
3.84
14.17 13.89
4.16
13.69 13.50
4.51
13.20 13.08
4.89
12.20 12.12
5.31
11.37 11.31
5.86
30°C
15.39 15.39
3.87
14.94 14.94
4.20
14.48 14.48
4.55
14.00 14.00
4.94
12.96 12.96
5.37
12.11 12.11
5.93
19°C
24°C
15.79
9.82 3.89
15.22
9.58 4.21
14.64
9.33 4.56
14.04
9.08 4.94
12.89
8.46 5.36
11.90
7.98 5.91
27°C
15.84 11.36
3.89
15.27 11.10
4.21
14.69 10.84
4.56
14.10 10.58
4.95
12.95
9.89 5.37
11.96
9.36 5.92
30°C
15.97 13.98
3.90
15.40 13.68
4.22
14.85 13.36
4.58
14.28 13.03
4.96
13.15 12.17
5.38
12.21 11.47
5.94
33°C
16.31 16.31
3.92
15.83 15.83
4.25
15.35 15.35
4.61
14.84 14.84
5.00
13.75 13.75
5.44
12.86 12.86
6.00
22°C
27°C
17.33
9.60 3.96
16.71
9.39 4.29
16.08
9.16 4.65
15.43
8.92 5.04
14.18
8.32 5.47
13.10
7.86 6.02
30°C
17.36 11.84
3.96
16.74 11.62
4.29
16.11 11.36
4.65
15.47 11.11
5.05
14.21 10.40
5.47
13.14
9.86 6.03
33°C
17.42 13.88
3.97
16.82 13.64
4.30
16.20 13.35
4.66
15.56 13.05
5.06
14.32 12.24
5.48
13.27 11.61
6.04
36°C
17.58 15.67
3.98
17.03 15.38
4.31
16.44 15.05
4.68
15.85 14.67
5.08
14.64 13.69
5.51
13.66 12.89
6.08
1590
16°C
21°C
14.34 10.33
3.86
13.83 10.08
4.16
13.33
9.83 4.50
12.81
9.57 4.89
11.77
8.92 5.33
10.87
8.40 5.92
24°C
14.39 12.62
3.87
13.88 12.35
4.16
13.38 12.08
4.50
12.86 11.80
4.89
11.83 11.03
5.33
10.95 10.41
5.93
27°C
14.63 14.48
3.88
14.18 14.11
4.18
13.73 13.73
4.52
13.27 13.27
4.92
12.29 12.29
5.36
11.48 11.48
5.97
30°C
15.42 15.42
3.91
14.98 14.98
4.22
14.55 14.55
4.57
14.10 14.10
4.97
13.08 13.08
5.42
12.24 12.24
6.02
19°C
24°C
15.78
9.90 3.93
15.24
9.67 4.23
14.69
9.43 4.57
14.12
9.19 4.97
12.99
8.59 5.41
12.02
8.12 6.01
27°C
15.83 11.48
3.93
15.28 11.24
4.23
14.73 11.01
4.58
14.16 10.76
4.97
13.03 10.09
5.41
12.06
9.58 6.01
30°C
15.91 14.27
3.93
15.37 13.96
4.24
14.86 13.66
4.58
14.32 13.34
4.98
13.22 12.47
5.43
12.32 11.75
6.03
33°C
16.33 16.33
3.95
15.86 15.86
4.26
15.42 15.42
4.62
14.95 14.95
5.02
13.89 13.89
5.48
13.02 13.02
6.09
22°C
27°C
17.35
9.71 4.00
16.75
9.49 4.31
16.16
9.27 4.66
15.55
9.04 5.06
14.32
8.45 5.51
13.27
7.99 6.11
30°C
17.38 12.01
4.00
16.79 11.76
4.31
16.20 11.52
4.66
15.58 11.27
5.06
14.35 10.57
5.51
13.30 10.05
6.11
33°C
17.43 14.15
4.01
16.83 13.90
4.32
16.23 13.65
4.67
15.63 13.38
5.07
14.41 12.58
5.51
13.39 11.95
6.12
36°C
17.59 16.04
4.01
17.03 15.72
4.33
16.48 15.39
4.68
15.95 15.01
5.09
14.77 14.03
5.54
13.82 13.24
6.15
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 82
79
Performance Data
Model: FDB50CXV1 - R50DXY1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
1270
16°C
21°C
13.30 9.42 3.69 12.83 9.17 3.99 12.35 8.93 4.33 11.86 8.67 4.69 10.89 8.07 5.09 10.05 7.59 5.61
24°C
13.32 11.28 3.69 12.84 11.02 4.00 12.37 10.76 4.33 11.87 10.50 4.69 10.91 9.80 5.09 10.09 9.25 5.61
27°C
13.42 12.79 3.70 12.98 12.50 4.00 12.52 12.20 4.34 12.05 11.89 4.70 11.12 11.06 5.10 10.34 10.34 5.63
30°C
13.84 13.84 3.72 13.44 13.44 4.02 13.03 13.03 4.36 12.61 12.61 4.74 11.69 11.69 5.15 10.94 10.94 5.69
19°C
24°C
14.67 8.79 3.75 14.16 8.57 4.06 13.64 8.34 4.40 13.10 8.11 4.77 12.04 7.55 5.18 11.13 7.11 5.71
27°C
14.68 10.06 3.75 14.16 9.83 4.06 13.64 9.61 4.40 13.11 9.38 4.77 12.05 8.77 5.18 11.14 8.31 5.71
30°C
14.70 12.41 3.75 14.19 12.15 4.06 13.69 11.88 4.40 13.17 11.59 4.78 12.13 10.84 5.18 11.25 10.26 5.72
33°C
14.88 14.88 3.76 14.39 14.39 4.07 13.93 13.93 4.42 13.45 13.45 4.80 12.45 12.45 5.21 11.63 11.63 5.75
22°C
27°C
16.14 8.61 3.82 15.58 8.40 4.14 15.01 8.19 4.49 14.43 7.96 4.87 13.27 7.42 5.28 12.28 7.00 5.82
30°C
16.14 10.49 3.82 15.59 10.26 4.14 15.01 10.03 4.49 14.43 9.79 4.87 13.27 9.17 5.28 12.28 8.69 5.82
33°C
16.15 12.25 3.82 15.59 12.02 4.14 15.03 11.78 4.49 14.44 11.53 4.87 13.29 10.83 5.28 12.31 10.29 5.82
36°C
16.21 13.89 3.82 15.67 13.61 4.14 15.13 13.33 4.49 14.58 13.03 4.88 13.44 12.22 5.29 12.50 11.59 5.83
1310
16°C
21°C
13.83 9.82 3.73 13.33 9.56 4.03 12.83 9.31 4.36 12.31 9.05 4.73 11.29 8.42 5.13 10.42 7.93 5.66
24°C
13.88 11.92 3.73 13.38 11.64 4.03 12.88 11.36 4.37 12.36 11.07 4.74 11.35 10.33 5.14 10.49 9.75 5.66
27°C
14.04 13.53 3.74 13.57 13.22 4.04 13.10 12.88 4.38 12.63 12.49 4.75 11.66 11.60 5.16 10.86 10.86 5.69
30°C
14.63 14.63 3.76 14.20 14.20 4.08 13.77 13.77 4.42 13.32 13.32 4.80 12.35 12.35 5.21 11.54 11.54 5.76
19°C
24°C
15.24 9.29 3.79 14.70 9.05 4.10 14.15 8.82 4.44 13.58 8.58 4.82 12.47 7.99 5.22 11.52 7.53 5.75
27°C
15.27 10.70 3.79 14.72 10.46 4.10 14.17 10.22 4.44 13.60 9.98 4.82 12.50 9.33 5.23 11.55 8.83 5.76
30°C
15.34 13.20 3.79 14.81 12.91 4.11 14.28 12.62 4.45 13.73 12.31 4.83 12.64 11.51 5.24 11.73 10.88 5.77
33°C
15.60 15.60 3.80 15.12 15.12 4.12 14.64 14.64 4.47 14.15 14.15 4.86 13.11 13.11 5.28 12.26 12.26 5.82
22°C
27°C
16.75 9.09 3.86 16.16 8.88 4.18 15.56 8.65 4.53 14.94 8.42 4.91 13.73 7.85 5.33 12.70 7.41 5.87
30°C
16.77 11.16 3.86 16.17 10.93 4.18 15.57 10.68 4.53 14.95 10.43 4.91 13.74 9.77 5.33 12.71 9.27 5.87
33°C
16.80 13.07 3.86 16.21 12.82 4.18 15.62 12.56 4.53 15.00 12.29 4.92 13.80 11.53 5.33 12.79 10.95 5.88
36°C
16.90 14.78 3.87 16.35 14.50 4.19 15.78 14.20 4.54 15.21 13.87 4.93 14.03 12.98 5.35 13.08 12.24 5.90
1330
16°C
21°C
14.34 10.24 3.76 13.82 9.98 4.06 13.29 9.72 4.40 12.74 9.45 4.77 11.68 8.80 5.17 10.77 8.28 5.70
24°C
14.42 12.44 3.76 13.90 12.15 4.07 13.37 11.85 4.41 12.83 11.54 4.78 11.79 10.77 5.18 10.89 10.15 5.71
27°C
14.65 14.26 3.77 14.17 13.89 4.08 13.69 13.50 4.42 13.20 13.09 4.80 12.20 12.12 5.21 11.37 11.32 5.75
30°C
15.39 15.39 3.80 14.94 14.94 4.12 14.48 14.48 4.47 14.00 14.00 4.85 12.96 12.96 5.27 12.11 12.11 5.82
19°C
24°C
15.79 9.82 3.82 15.22 9.58 4.13 14.64 9.33 4.48 14.04 9.08 4.85 12.89 8.47 5.27 11.90 7.99 5.80
27°C
15.84 11.37 3.82 15.27 11.11 4.14 14.69 10.85 4.48 14.10 10.58 4.86 12.95 9.89 5.27 11.96 9.36 5.81
30°C
15.97 13.99 3.83 15.40 13.68 4.14 14.85 13.37 4.49 14.28 13.03 4.87 13.15 12.17 5.29 12.21 11.47 5.83
33°C
16.31 16.31 3.85 15.83 15.83 4.17 15.35 15.35 4.52 14.84 14.84 4.91 13.75 13.75 5.34 12.86 12.86 5.89
22°C
27°C
17.33 9.61 3.89 16.71 9.40 4.21 16.08 9.16 4.57 15.43 8.92 4.95 14.18 8.33 5.37 13.10 7.86 5.91
30°C
17.36 11.85 3.89 16.74 11.62 4.22 16.11 11.37 4.57 15.47 11.11 4.96 14.21 10.40 5.37 13.14 9.86 5.92
33°C
17.42 13.88 3.90 16.82 13.64 4.22 16.20 13.35 4.58 15.56 13.06 4.96 14.32 12.24 5.38 13.27 11.62 5.93
36°C
17.58 15.68 3.90 17.03 15.39 4.23 16.44 15.05 4.59 15.85 14.68 4.98 14.64 13.69 5.41 13.66 12.89 5.97
1510
16°C
21°C
14.34 10.33 3.79 13.83 10.08 4.08 13.33 9.83 4.42 12.81 9.57 4.80 11.77 8.92 5.23 10.87 8.41 5.81
24°C
14.39 12.63 3.80 13.88 12.36 4.09 13.38 12.09 4.42 12.86 11.80 4.80 11.83 11.04 5.23 10.95 10.41 5.82
27°C
14.63 14.48 3.81 14.18 14.12 4.10 13.73 13.73 4.44 13.27 13.27 4.83 12.29 12.29 5.27 11.48 11.48 5.86
30°C
15.42 15.42 3.84 14.98 14.98 4.14 14.55 14.55 4.48 14.10 14.10 4.88 13.08 13.08 5.32 12.24 12.24 5.91
19°C
24°C
15.78 9.91 3.86 15.24 9.67 4.15 14.69 9.44 4.49 14.12 9.20 4.88 12.99 8.59 5.31 12.02 8.12 5.90
27°C
15.83 11.49 3.86 15.28 11.25 4.16 14.73 11.01 4.49 14.16 10.77 4.88 13.03 10.09 5.32 12.06 9.59 5.90
30°C
15.91 14.27 3.86 15.37 13.97 4.16 14.86 13.67 4.50 14.32 13.34 4.89 13.22 12.47 5.33 12.32 11.76 5.92
33°C
16.33 16.33 3.88 15.86 15.86 4.19 15.42 15.42 4.53 14.95 14.95 4.93 13.89 13.89 5.38 13.02 13.02 5.98
22°C
27°C
17.35 9.72 3.93 16.75 9.49 4.23 16.16 9.27 4.58 15.55 9.04 4.97 14.32 8.45 5.41 13.27 8.00 6.00
30°C
17.38 12.02 3.93 16.79 11.77 4.24 16.20 11.53 4.58 15.58 11.28 4.97 14.35 10.58 5.41 13.30 10.06 6.00
33°C
17.43 14.16 3.93 16.83 13.91 4.24 16.23 13.66 4.58 15.63 13.39 4.97 14.41 12.58 5.41 13.39 11.95 6.00
36°C
17.59 16.04 3.94 17.03 15.73 4.25 16.48 15.40 4.60 15.95 15.02 5.00 14.77 14.04 5.44 13.82 13.25 6.04
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 83
80
Performance Data
Model: FDM60CXV1 - R61DXY1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
1290
16°C
21°C
15.99
9.94 5.57
15.41
9.69 5.58
14.83
9.43 5.69
14.22
9.17 5.85
13.58
8.90 6.22
12.79
8.56 6.74
24°C
16.06 12.07
5.57
15.47 11.80
5.59
14.89 11.54
5.70
14.28 11.26
5.85
13.66 10.97
6.22
12.88 10.60
6.75
27°C
16.25 13.94
5.58
15.72 13.60
5.60
15.20 13.23
5.72
14.66 12.84
5.88
14.12 12.39
6.26
13.45 11.82
6.80
30°C
17.08 14.95
5.62
16.59 14.52
5.65
16.09 14.09
5.77
15.56 13.64
5.94
15.01 13.18
6.33
14.32 12.59
6.88
19°C
24°C
17.60
9.90 5.64
16.97
9.66 5.67
16.33
9.41 5.79
15.67
9.16 5.95
14.99
8.90 6.33
14.13
8.58 6.86
27°C
17.66 12.08
5.64
17.02 11.82
5.67
16.39 11.56
5.79
15.73 11.29
5.95
15.04 11.02
6.33
14.18 10.68
6.87
30°C
17.73 14.13
5.65
17.10 13.84
5.67
16.49 13.56
5.80
15.86 13.24
5.96
15.21 12.91
6.35
14.42 12.46
6.89
33°C
18.09 15.75
5.66
17.56 15.35
5.70
17.03 14.92
5.83
16.49 14.45
6.01
15.92 13.97
6.41
15.21 13.37
6.97
22°C
27°C
19.32
9.81 5.72
18.63
9.57 5.76
17.94
9.33 5.89
17.23
9.09 6.06
16.49
8.84 6.46
15.57
8.53 7.00
30°C
19.36 12.03
5.73
18.68 11.77
5.76
17.98 11.52
5.90
17.27 11.26
6.07
16.53 10.99
6.46
15.61 10.66
7.01
33°C
19.42 14.11
5.73
18.73 13.85
5.77
18.04 13.59
5.90
17.32 13.32
6.07
16.59 13.05
6.47
15.69 12.69
7.01
36°C
19.55 16.05
5.73
18.88 15.74
5.78
18.23 15.43
5.91
17.58 15.08
6.09
16.92 14.68
6.49
16.13 14.13
7.06
1430
16°C
21°C
16.41 10.47
5.60
15.81 10.20
5.61
15.20
9.93 5.72
14.58
9.65 5.88
13.93
9.36 6.25
13.11
8.99 6.78
24°C
16.48 12.71
5.60
15.87 12.43
5.61
15.27 12.14
5.73
14.64 11.85
5.88
14.00 11.54
6.26
13.20 11.13
6.79
27°C
16.67 14.69
5.61
16.13 14.32
5.63
15.58 13.93
5.75
15.03 13.51
5.91
14.48 13.03
6.29
13.79 12.42
6.84
30°C
17.53 15.75
5.65
17.02 15.29
5.67
16.50 14.83
5.80
15.96 14.35
5.97
15.39 13.86
6.37
14.69 13.23
6.92
19°C
24°C
18.06 10.43
5.67
17.41 10.17
5.69
16.75
9.91 5.82
16.07
9.63 5.98
15.36
9.36 6.36
14.49
9.01 6.90
27°C
18.12 12.73
5.67
17.46 12.44
5.70
16.80 12.17
5.82
16.12 11.88
5.98
15.42 11.58
6.37
14.54 11.22
6.91
30°C
18.20 14.88
5.68
17.54 14.58
5.70
16.91 14.27
5.83
16.26 13.93
5.99
15.59 13.57
6.38
14.78 13.09
6.93
33°C
18.57 16.60
5.69
18.01 16.17
5.73
17.46 15.70
5.86
16.91 15.20
6.04
16.32 14.69
6.44
15.60 14.05
7.01
22°C
27°C
19.82 10.33
5.75
19.11 10.08
5.79
18.40
9.83 5.92
17.66
9.56 6.10
16.90
9.29 6.49
15.96
8.96 7.04
30°C
19.87 12.67
5.75
19.16 12.40
5.79
18.44 12.12
5.93
17.71 11.84
6.10
16.95 11.56
6.49
16.01 11.20
7.04
33°C
19.93 14.86
5.76
19.21 14.58
5.80
18.49 14.31
5.93
17.76 14.02
6.11
17.01 13.72
6.50
16.08 13.33
7.05
36°C
20.06 16.91
5.76
19.37 16.58
5.81
18.70 16.24
5.94
18.02 15.86
6.12
17.35 15.43
6.53
16.54 14.85
7.10
1530
16°C
21°C
16.70 10.86
5.62
16.09 10.58
5.63
15.47 10.30
5.74
14.83 10.00
5.90
14.17
9.70 6.27
13.34
9.31 6.80
24°C
16.78 13.19
5.62
16.15 12.89
5.64
15.54 12.59
5.75
14.90 12.27
5.90
14.25 11.95
6.28
13.43 11.52
6.81
27°C
16.97 15.24
5.63
16.41 14.85
5.65
15.86 14.44
5.77
15.30 14.00
5.93
14.73 13.50
6.32
14.03 12.85
6.86
30°C
17.84 16.34
5.67
17.32 15.86
5.70
16.79 15.38
5.82
16.24 14.87
5.99
15.67 14.35
6.39
14.94 13.69
6.94
19°C
24°C
18.38 10.82
5.69
17.72 10.55
5.72
17.05 10.27
5.84
16.35
9.98 6.00
15.64
9.69 6.39
14.74
9.32 6.92
27°C
18.44 13.20
5.69
17.77 12.91
5.72
17.10 12.61
5.84
16.41 12.31
6.01
15.69 11.99
6.39
14.80 11.61
6.93
30°C
18.53 15.44
5.70
17.86 15.12
5.72
17.21 14.79
5.85
16.55 14.44
6.01
15.87 14.06
6.40
15.04 13.55
6.95
33°C
18.90 17.22
5.71
18.33 16.76
5.75
17.77 16.28
5.89
17.21 15.76
6.06
16.61 15.21
6.47
15.87 14.54
7.03
22°C
27°C
20.18 10.72
5.77
19.45 10.46
5.81
18.73 10.19
5.95
17.98
9.91 6.12
17.20
9.62 6.51
16.24
9.27 7.06
30°C
20.23 13.15
5.78
19.50 12.86
5.82
18.77 12.57
5.95
18.02 12.27
6.12
17.25 11.97
6.52
16.29 11.59
7.07
33°C
20.28 15.42
5.78
19.56 15.12
5.82
18.83 14.83
5.95
18.07 14.53
6.13
17.31 14.21
6.52
16.37 13.80
7.08
36°C
20.42 17.55
5.78
19.71 17.20
5.83
19.03 16.83
5.97
18.34 16.44
6.15
17.66 15.98
6.55
16.83 15.37
7.12
1650
16°C
21°C
16.90 11.13
5.63
16.28 10.84
5.64
15.66 10.54
5.76
15.01 10.24
5.91
14.34
9.92 6.29
13.50
9.52 6.82
24°C
16.97 13.52
5.63
16.34 13.20
5.65
15.72 12.89
5.76
15.08 12.56
5.92
14.42 12.23
6.29
13.59 11.79
6.82
27°C
17.17 15.61
5.64
16.61 15.21
5.66
16.05 14.79
5.78
15.48 14.33
5.94
14.91 13.81
6.33
14.20 13.15
6.88
30°C
18.05 16.74
5.68
17.52 16.25
5.71
16.99 15.75
5.84
16.43 15.22
6.01
15.85 14.68
6.40
15.12 14.00
6.96
19°C
24°C
18.60 11.09
5.70
17.92 10.80
5.73
17.24 10.52
5.85
16.55 10.22
6.01
15.82
9.91 6.40
14.92
9.54 6.94
27°C
18.66 13.53
5.70
17.98 13.22
5.73
17.30 12.92
5.86
16.60 12.60
6.02
15.87 12.28
6.40
14.97 11.87
6.95
30°C
18.74 15.82
5.71
18.07 15.49
5.74
17.41 15.15
5.86
16.74 14.78
6.03
16.05 14.39
6.42
15.22 13.86
6.97
33°C
19.12 17.64
5.73
18.54 17.17
5.76
17.98 16.67
5.90
17.41 16.13
6.08
16.81 15.57
6.48
16.06 14.87
7.05
22°C
27°C
20.41 10.98
5.79
19.68 10.71
5.83
18.94 10.43
5.96
18.19 10.14
6.13
17.40
9.85 6.53
16.43
9.48 7.08
30°C
20.46 13.47
5.79
19.73 13.17
5.83
18.99 12.87
5.96
18.23 12.56
6.14
17.45 12.25
6.53
16.48 11.86
7.08
33°C
20.52 15.80
5.79
19.79 15.49
5.83
19.04 15.19
5.97
18.29 14.87
6.14
17.52 14.54
6.54
16.56 14.11
7.09
36°C
20.66 17.98
5.80
19.95 17.61
5.84
19.25 17.24
5.98
18.56 16.82
6.16
17.86 16.35
6.57
17.03 15.72
7.14
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 84
81
Performance Data
Model: FDB60CXV1 - R61DXY1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
1470
16°C
21°C
15.48 10.96
4.41
14.93 10.67
4.77
14.37 10.38
5.16
13.80 10.08
5.60
12.67
9.38 6.07
11.70
8.83 6.69
24°C
15.50 13.12
4.41
14.95 12.82
4.77
14.39 12.52
5.16
13.82 12.21
5.60
12.70 11.40
6.08
11.74 10.76
6.70
27°C
15.62 14.87
4.41
15.10 14.54
4.78
14.57 14.19
5.17
14.02 13.83
5.61
12.94 12.87
6.09
12.04 12.04
6.72
30°C
16.10 16.10
4.44
15.64 15.64
4.80
15.16 15.16
5.21
14.68 14.68
5.66
13.60 13.60
6.14
12.73 12.73
6.79
19°C
24°C
17.07 10.23
4.48
16.47
9.97 4.85
15.87
9.70 5.25
15.24
9.43 5.70
14.01
8.78 6.18
12.95
8.27 6.81
27°C
17.08 11.70
4.48
16.48 11.44
4.85
15.88 11.18
5.25
15.25 10.91
5.70
14.02 10.20
6.18
12.96
9.66 6.81
30°C
17.11 14.44
4.48
16.52 14.13
4.85
15.93 13.82
5.26
15.33 13.49
5.70
14.11 12.61
6.19
13.10 11.94
6.82
33°C
17.31 17.31
4.49
16.75 16.75
4.86
16.21 16.21
5.27
15.65 15.65
5.72
14.48 14.48
6.22
13.54 13.54
6.86
22°C
27°C
18.78 10.01
4.56
18.13
9.77 4.94
17.47
9.52 5.35
16.79
9.26 5.81
15.44
8.63 6.30
14.29
8.14 6.94
30°C
18.79 12.20
4.56
18.14 11.94
4.94
17.47 11.67
5.35
16.79 11.39
5.81
15.44 10.66
6.30
14.29 10.11
6.94
33°C
18.80 14.25
4.56
18.15 13.98
4.94
17.49 13.70
5.35
16.80 13.42
5.81
15.46 12.60
6.30
14.33 11.97
6.95
36°C
18.86 16.16
4.56
18.24 15.83
4.94
17.60 15.51
5.36
16.96 15.16
5.82
15.64 14.22
6.32
14.54 13.49
6.96
1520
16°C
21°C
16.10 11.42
4.45
15.52 11.13
4.81
14.93 10.83
5.21
14.32 10.53
5.65
13.14
9.80 6.12
12.12
9.22 6.75
24°C
16.15 13.86
4.45
15.57 13.54
4.81
14.99 13.22
5.21
14.38 12.88
5.65
13.21 12.02
6.13
12.21 11.34
6.76
27°C
16.34 15.75
4.46
15.79 15.38
4.82
15.25 14.98
5.23
14.70 14.54
5.67
13.57 13.50
6.16
12.65 12.63
6.80
30°C
17.02 17.02
4.49
16.53 16.53
4.86
16.03 16.03
5.27
15.51 15.51
5.73
14.37 14.37
6.22
13.43 13.43
6.87
19°C
24°C
17.74 10.81
4.52
17.11 10.53
4.89
16.46 10.26
5.30
15.80
9.98 5.75
14.51
9.30 6.23
13.41
8.76 6.87
27°C
17.77 12.45
4.52
17.13 12.17
4.89
16.49 11.90
5.30
15.83 11.61
5.75
14.55 10.86
6.24
13.45 10.28
6.87
30°C
17.85 15.35
4.53
17.23 15.02
4.90
16.61 14.68
5.31
15.98 14.33
5.76
14.71 13.39
6.25
13.65 12.65
6.89
33°C
18.15 18.15
4.54
17.60 17.60
4.92
17.04 17.04
5.34
16.47 16.47
5.80
15.26 15.26
6.30
14.26 14.26
6.95
22°C
27°C
19.49 10.58
4.60
18.80 10.33
4.99
18.10 10.07
5.40
17.38
9.80 5.86
15.98
9.14 6.36
14.78
8.62 7.00
30°C
19.51 12.98
4.60
18.82 12.71
4.99
18.12 12.43
5.41
17.40 12.14
5.86
16.00 11.37
6.36
14.80 10.79
7.00
33°C
19.55 15.21
4.61
18.87 14.92
4.99
18.18 14.62
5.41
17.46 14.31
5.87
16.06 13.42
6.37
14.89 12.74
7.01
36°C
19.67 17.20
4.61
19.03 16.87
5.00
18.37 16.52
5.42
17.70 16.14
5.89
16.33 15.10
6.39
15.23 14.24
7.05
1620
16°C
21°C
16.70 11.92
4.48
16.08 11.61
4.85
15.47 11.31
5.25
14.82 10.99
5.69
13.60 10.24
6.17
12.53
9.63 6.80
24°C
16.78 14.48
4.49
16.17 14.14
4.85
15.56 13.79
5.26
14.93 13.43
5.70
13.72 12.53
6.18
12.67 11.81
6.81
27°C
17.05 16.59
4.50
16.50 16.16
4.87
15.94 15.71
5.28
15.37 15.23
5.73
14.20 14.11
6.22
13.23 13.17
6.86
30°C
17.91 17.91
4.54
17.38 17.38
4.92
16.85 16.85
5.33
16.29 16.29
5.79
15.09 15.09
6.29
14.09 14.09
6.95
19°C
24°C
18.38 11.43
4.56
17.71 11.15
4.93
17.04 10.86
5.34
16.34 10.57
5.79
15.00
9.85 6.28
13.85
9.29 6.92
27°C
18.43 13.22
4.56
17.77 12.92
4.94
17.10 12.62
5.35
16.41 12.31
5.80
15.07 11.51
6.29
13.93 10.89
6.93
30°C
18.58 16.27
4.57
17.92 15.92
4.95
17.28 15.55
5.36
16.62 15.16
5.81
15.30 14.16
6.31
14.21 13.35
6.96
33°C
18.98 18.98
4.59
18.43 18.43
4.98
17.86 17.86
5.40
17.27 17.27
5.86
16.00 16.00
6.37
14.96 14.96
7.03
22°C
27°C
20.16 11.18
4.64
19.45 10.94
5.03
18.72 10.66
5.45
17.96 10.38
5.91
16.50
9.69 6.41
15.25
9.15 7.06
30°C
20.21 13.78
4.64
19.49 13.52
5.03
18.75 13.23
5.45
18.00 12.93
5.91
16.54 12.11
6.41
15.30 11.48
7.06
33°C
20.28 16.15
4.65
19.57 15.87
5.04
18.85 15.54
5.46
18.11 15.20
5.92
16.66 14.24
6.43
15.44 13.52
7.08
36°C
20.46 18.24
4.66
19.82 17.91
5.05
19.13 17.52
5.48
18.44 17.08
5.95
17.04 15.93
6.46
15.90 15.00
7.12
1700
16°C
21°C
16.69 12.02
4.53
16.10 11.73
4.87
15.52 11.44
5.27
14.90 11.14
5.73
13.69 10.38
6.24
12.65
9.78 6.94
24°C
16.75 14.69
4.53
16.15 14.38
4.88
15.57 14.07
5.27
14.97 13.73
5.73
13.76 12.84
6.25
12.75 12.12
6.94
27°C
17.02 16.85
4.54
16.50 16.43
4.89
15.97 15.97
5.30
15.44 15.44
5.76
14.30 14.30
6.28
13.36 13.36
6.99
30°C
17.94 17.94
4.58
17.44 17.44
4.94
16.94 16.94
5.35
16.41 16.41
5.82
15.22 15.22
6.35
14.25 14.25
7.06
19°C
24°C
18.37 11.52
4.60
17.73 11.25
4.96
17.10 10.98
5.36
16.44 10.70
5.82
15.12
9.99 6.34
13.99
9.45 7.04
27°C
18.42 13.37
4.61
17.78 13.09
4.96
17.14 12.81
5.36
16.48 12.53
5.82
15.16 11.74
6.34
14.03 11.15
7.04
30°C
18.51 16.60
4.61
17.89 16.25
4.96
17.29 15.90
5.37
16.67 15.52
5.84
15.38 14.51
6.36
14.33 13.68
7.07
33°C
19.00 19.00
4.63
18.46 18.46
5.00
17.94 17.94
5.41
17.40 17.40
5.88
16.16 16.16
6.42
15.15 15.15
7.13
22°C
27°C
20.19 11.30
4.69
19.49 11.04
5.05
18.81 10.79
5.46
18.10 10.52
5.93
16.66
9.83 6.45
15.44
9.30 7.15
30°C
20.23 13.98
4.69
19.54 13.69
5.05
18.85 13.41
5.47
18.13 13.12
5.93
16.70 12.31
6.46
15.48 11.70
7.16
33°C
20.28 16.47
4.70
19.58 16.18
5.06
18.89 15.89
5.47
18.19 15.58
5.94
16.76 14.64
6.46
15.58 13.91
7.17
36°C
20.47 18.66
4.70
19.82 18.29
5.07
19.18 17.91
5.49
18.56 17.47
5.96
17.19 16.33
6.49
16.08 15.41
7.21
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling Capacity (kW)
SC: Sensible Cooling Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB without pressure trip.
Page 85
82
Performance Data
R22 Heatpump
Model: FDYM10CXV1 - RY10CXV1 / FDYB10CXV1 - RY10CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
260 /
225
16°C
21°C 2.62 1.83 0.68 2.53 1.78 0.74 2.44 1.74 0.80 2.34 1.69 0.87 2.15 1.57 0.94 1.98 1.48 1.04
24°C 2.63 2.19 0.68 2.53 2.14 0.74 2.44 2.09 0.80 2.34 2.04 0.87 2.15 1.91 0.94 1.99 1.80 1.04
27°C 2.65 2.49 0.69 2.56 2.43 0.74 2.47 2.37 0.80 2.38 2.31 0.87 2.19 2.15 0.95 2.04 2.02 1.04
30°C 2.73 2.73 0.69 2.65 2.65 0.75 2.57 2.57 0.81 2.49 2.49 0.88 2.30 2.30 0.95 2.16 2.16 1.05
19°C
24°C 2.89 1.71 0.69 2.79 1.67 0.75 2.69 1.62 0.81 2.58 1.58 0.88 2.37 1.47 0.96 2.19 1.38 1.06
27°C 2.89 1.96 0.69 2.79 1.91 0.75 2.69 1.87 0.82 2.58 1.82 0.88 2.38 1.71 0.96 2.20 1.62 1.06
30°C 2.90 2.41 0.70 2.80 2.36 0.75 2.70 2.31 0.82 2.60 2.25 0.88 2.39 2.11 0.96 2.22 2.00 1.06
33°C 2.93 2.93 0.70 2.84 2.84 0.75 2.75 2.75 0.82 2.65 2.65 0.89 2.45 2.45 0.96 2.29 2.29 1.07
22°C
27°C 3.18 1.67 0.71 3.07 1.63 0.77 2.96 1.59 0.83 2.84 1.55 0.90 2.62 1.44 0.98 2.42 1.36 1.08
30°C 3.18 2.04 0.71 3.07 2.00 0.77 2.96 1.95 0.83 2.84 1.90 0.90 2.62 1.78 0.98 2.42 1.69 1.08
33°C 3.18 2.38 0.71 3.07 2.34 0.77 2.96 2.29 0.83 2.85 2.24 0.90 2.62 2.11 0.98 2.43 2.00 1.08
36°C 3.20 2.70 0.71 3.09 2.65 0.77 2.98 2.59 0.83 2.87 2.53 0.90 2.65 2.38 0.98 2.46 2.25 1.08
285 /
275
16°C
21°C 2.73 1.91 0.69 2.63 1.86 0.75 2.53 1.81 0.81 2.43 1.76 0.88 2.23 1.64 0.95 2.05 1.54 1.05
24°C 2.74 2.32 0.69 2.64 2.26 0.75 2.54 2.21 0.81 2.44 2.15 0.88 2.24 2.01 0.95 2.07 1.90 1.05
27°C 2.77 2.63 0.69 2.68 2.57 0.75 2.58 2.50 0.81 2.49 2.43 0.88 2.30 2.26 0.96 2.14 2.11 1.05
30°C 2.88 2.88 0.70 2.80 2.80 0.75 2.72 2.72 0.82 2.63 2.63 0.89 2.43 2.43 0.97 2.28 2.28 1.07
19°C
24°C 3.01 1.81 0.70 2.90 1.76 0.76 2.79 1.71 0.82 2.68 1.67 0.89 2.46 1.55 0.97 2.27 1.46 1.07
27°C 3.01 2.08 0.70 2.90 2.03 0.76 2.79 1.99 0.82 2.68 1.94 0.89 2.46 1.81 0.97 2.28 1.72 1.07
30°C 3.02 2.57 0.70 2.92 2.51 0.76 2.81 2.45 0.82 2.71 2.39 0.89 2.49 2.24 0.97 2.31 2.11 1.07
33°C 3.08 3.08 0.70 2.98 2.98 0.76 2.89 2.89 0.83 2.79 2.79 0.90 2.58 2.58 0.98 2.42 2.42 1.08
22°C
27°C 3.30 1.77 0.71 3.19 1.73 0.77 3.07 1.68 0.84 2.95 1.64 0.91 2.71 1.53 0.99 2.50 1.44 1.09
30°C 3.31 2.17 0.71 3.19 2.12 0.77 3.07 2.08 0.84 2.95 2.03 0.91 2.71 1.90 0.99 2.51 1.80 1.09
33°C 3.31 2.54 0.71 3.20 2.49 0.77 3.08 2.44 0.84 2.96 2.39 0.91 2.72 2.24 0.99 2.52 2.13 1.09
36°C 3.33 2.87 0.72 3.22 2.82 0.78 3.11 2.76 0.84 3.00 2.70 0.91 2.77 2.52 0.99 2.58 2.38 1.09
300
16°C
21°C 2.83 1.99 0.70 2.72 1.94 0.75 2.62 1.89 0.81 2.51 1.84 0.88 2.30 1.71 0.96 2.12 1.61 1.06
24°C 2.84 2.42 0.70 2.74 2.36 0.75 2.64 2.30 0.82 2.53 2.24 0.88 2.32 2.09 0.96 2.15 1.97 1.06
27°C 2.89 2.77 0.70 2.79 2.70 0.76 2.70 2.63 0.82 2.60 2.54 0.89 2.41 2.36 0.97 2.24 2.20 1.07
30°C 3.03 3.03 0.70 2.94 2.94 0.76 2.85 2.85 0.83 2.76 2.76 0.90 2.56 2.56 0.98 2.39 2.39 1.08
19°C
24°C 3.11 1.91 0.71 3.00 1.86 0.77 2.89 1.82 0.83 2.77 1.77 0.90 2.54 1.65 0.98 2.35 1.55 1.07
27°C 3.12 2.21 0.71 3.01 2.16 0.77 2.90 2.11 0.83 2.78 2.06 0.90 2.55 1.92 0.98 2.36 1.82 1.08
30°C 3.15 2.72 0.71 3.04 2.66 0.77 2.93 2.60 0.83 2.82 2.53 0.90 2.59 2.37 0.98 2.41 2.23 1.08
33°C 3.22 3.22 0.71 3.12 3.12 0.77 3.03 3.03 0.84 2.93 2.93 0.91 2.71 2.71 0.99 2.54 2.54 1.09
22°C
27°C 3.42 1.87 0.72 3.29 1.83 0.78 3.17 1.78 0.85 3.04 1.73 0.92 2.80 1.62 0.99 2.58 1.53 1.10
30°C 3.42 2.30 0.72 3.30 2.26 0.78 3.18 2.21 0.85 3.05 2.16 0.92 2.80 2.02 1.00 2.59 1.92 1.10
33°C 3.43 2.70 0.72 3.32 2.65 0.78 3.19 2.60 0.85 3.07 2.54 0.92 2.82 2.38 1.00 2.62 2.26 1.10
36°C 3.47 3.05 0.72 3.36 2.99 0.78 3.24 2.93 0.85 3.12 2.85 0.92 2.89 2.66 1.00 2.69 2.51 1.11
Model: FDYM10CXV1 - RY10CXV1 / FDYB10CXV1 - RY10CXV1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 1.202 1.202 1.497 1.497 1.596 1.596 2.679 2.679 3.269 3.269 3.565 3.565 3.860 3.860
17°C 1.173 1.173 1.467 1.467 1.565 1.565 2.670 2.670 3.180 3.180 3.465 3.465 3.750 3.750
19°C 1.145 1.145 1.437 1.437 1.535 1.535 2.661 2.661 3.091 3.091 3.366 3.366 3.640 3.640
21°C 1.117 1.117 1.408 1.408 1.505 1.505 2.652 2.652 3.002 3.002 3.266 3.266 3.531 3.531
23°C 1.113 1.113 1.384 1.384 1.474 1.474 2.521 2.521 2.913 2.913 3.167 3.167 3.421 3.421
25°C 1.109 1.109 1.360 1.360 1.444 1.444 2.390 2.390 2.824 2.824 3.068 3.068 3.311 3.311
27°C 1.105 1.105 1.337 1.337 1.414 1.414 2.259 2.259 2.735 2.735 2.968 2.968 3.201 3.201
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 86
83
Performance Data
Model: FDYM15CXV1 - RY15CXV1 / FDYB15CXV1 - RY15CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
400 /
380
16°C
21°C 3.39 2.34 0.96 3.27 2.28 1.04 3.15 2.22 1.13 3.03 2.15 1.22 2.78 2.00 1.33 2.57 1.88 1.46
24°C 3.40 2.80 0.96 3.28 2.74 1.04 3.16 2.67 1.13 3.03 2.61 1.22 2.78 2.43 1.33 2.58 2.30 1.46
27°C 3.43 3.17 0.96 3.31 3.10 1.04 3.20 3.03 1.13 3.08 2.95 1.23 2.84 2.75 1.33 2.64 2.58 1.47
30°C 3.53 3.53 0.97 3.43 3.43 1.05 3.33 3.33 1.14 3.22 3.22 1.24 2.98 2.98 1.34 2.79 2.79 1.48
19°C
24°C 3.74 2.18 0.98 3.61 2.13 1.06 3.48 2.07 1.15 3.34 2.01 1.24 3.07 1.87 1.35 2.84 1.77 1.49
27°C 3.75 2.50 0.98 3.61 2.44 1.06 3.48 2.39 1.15 3.35 2.33 1.24 3.07 2.18 1.35 2.84 2.06 1.49
30°C 3.75 3.08 0.98 3.62 3.02 1.06 3.50 2.95 1.15 3.36 2.88 1.25 3.10 2.69 1.35 2.87 2.55 1.49
33°C 3.80 3.80 0.98 3.67 3.67 1.06 3.55 3.55 1.15 3.43 3.43 1.25 3.18 3.18 1.36 2.97 2.97 1.50
22°C
27°C 4.12 2.14 1.00 3.98 2.08 1.08 3.83 2.03 1.17 3.68 1.98 1.27 3.39 1.84 1.38 3.13 1.74 1.52
30°C 4.12 2.60 1.00 3.98 2.55 1.08 3.83 2.49 1.17 3.68 2.43 1.27 3.39 2.28 1.38 3.14 2.16 1.52
33°C 4.12 3.04 1.00 3.98 2.98 1.08 3.84 2.92 1.17 3.69 2.86 1.27 3.39 2.69 1.38 3.14 2.55 1.52
36°C 4.14 3.45 1.00 4.00 3.38 1.08 3.86 3.31 1.17 3.72 3.24 1.27 3.43 3.03 1.38 3.19 2.88 1.52
490 /
500
16°C
21°C 3.53 2.44 0.97 3.40 2.38 1.05 3.28 2.31 1.14 3.14 2.25 1.23 2.88 2.09 1.34 2.66 1.97 1.47
24°C 3.54 2.96 0.97 3.42 2.89 1.05 3.29 2.82 1.14 3.15 2.75 1.23 2.90 2.57 1.34 2.68 2.42 1.48
27°C 3.59 3.36 0.97 3.47 3.28 1.05 3.35 3.20 1.14 3.23 3.10 1.24 2.98 2.88 1.35 2.77 2.70 1.48
30°C 3.74 3.74 0.98 3.63 3.63 1.06 3.52 3.52 1.15 3.40 3.40 1.25 3.15 3.15 1.36 2.95 2.95 1.50
19°C
24°C 3.89 2.31 0.99 3.75 2.25 1.07 3.61 2.19 1.16 3.47 2.13 1.26 3.18 1.98 1.36 2.94 1.87 1.50
27°C 3.90 2.66 0.99 3.76 2.60 1.07 3.62 2.54 1.16 3.47 2.48 1.26 3.19 2.32 1.36 2.95 2.19 1.50
30°C 3.92 3.28 0.99 3.78 3.21 1.07 3.65 3.14 1.16 3.51 3.06 1.26 3.23 2.86 1.37 2.99 2.70 1.51
33°C 3.98 3.98 0.99 3.86 3.86 1.07 3.74 3.74 1.17 3.61 3.61 1.27 3.35 3.35 1.38 3.13 3.13 1.52
22°C
27°C 4.28 2.26 1.01 4.13 2.21 1.09 3.97 2.15 1.18 3.81 2.09 1.28 3.50 1.95 1.39 3.24 1.84 1.53
30°C 4.28 2.77 1.01 4.13 2.71 1.09 3.98 2.65 1.18 3.82 2.59 1.28 3.51 2.43 1.39 3.25 2.30 1.53
33°C 4.29 3.25 1.01 4.14 3.19 1.09 3.99 3.12 1.18 3.83 3.05 1.28 3.52 2.86 1.39 3.27 2.72 1.53
36°C 4.32 3.67 1.01 4.18 3.60 1.09 4.03 3.53 1.18 3.88 3.44 1.29 3.58 3.22 1.40 3.34 3.04 1.54
510 /
540
16°C
21°C 3.66 2.54 0.98 3.53 2.48 1.06 3.39 2.41 1.15 3.25 2.35 1.24 2.98 2.19 1.35 2.75 2.06 1.49
24°C 3.68 3.09 0.98 3.55 3.02 1.06 3.41 2.94 1.15 3.28 2.87 1.25 3.01 2.68 1.35 2.78 2.52 1.49
27°C 3.74 3.54 0.98 3.62 3.45 1.06 3.50 3.35 1.15 3.37 3.25 1.25 3.12 3.01 1.36 2.90 2.81 1.50
30°C 3.93 3.93 0.99 3.81 3.81 1.07 3.70 3.70 1.17 3.57 3.57 1.27 3.31 3.31 1.37 3.09 3.09 1.52
19°C
24°C 4.03 2.44 1.00 3.89 2.38 1.08 3.74 2.32 1.17 3.59 2.26 1.27 3.29 2.10 1.37 3.04 1.98 1.51
27°C 4.04 2.82 1.00 3.90 2.76 1.08 3.75 2.69 1.17 3.60 2.63 1.27 3.31 2.46 1.37 3.05 2.33 1.51
30°C 4.08 3.47 1.00 3.93 3.40 1.08 3.79 3.32 1.17 3.65 3.24 1.27 3.36 3.02 1.38 3.12 2.85 1.52
33°C 4.16 4.16 1.00 4.04 4.04 1.09 3.92 3.92 1.18 3.79 3.79 1.28 3.51 3.51 1.39 3.28 3.28 1.54
22°C
27°C 4.42 2.39 1.01 4.27 2.33 1.10 4.11 2.28 1.19 3.94 2.22 1.29 3.62 2.07 1.40 3.35 1.95 1.54
30°C 4.43 2.94 1.01 4.27 2.89 1.10 4.11 2.82 1.19 3.95 2.76 1.29 3.63 2.58 1.40 3.36 2.45 1.54
33°C 4.45 3.45 1.02 4.29 3.39 1.10 4.14 3.32 1.19 3.97 3.24 1.29 3.66 3.04 1.40 3.39 2.89 1.55
36°C 4.49 3.89 1.02 4.35 3.82 1.10 4.20 3.74 1.20 4.05 3.65 1.30 3.74 3.40 1.41 3.49 3.20 1.56
Model: FDYM15CXV1 - RY15CXV1 / FDYB15CXV1 - RY15CXV1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 1.493 1.493 1.873 1.873 1.999 1.999 3.392 3.392 4.152 4.152 4.532 4.532 4.912 4.912
17°C 1.454 1.454 1.834 1.834 1.961 1.961 3.378 3.378 4.039 4.039 4.406 4.406 4.773 4.773
19°C 1.416 1.416 1.796 1.796 1.923 1.923 3.364 3.364 3.926 3.926 4.279 4.279 4.633 4.633
21°C 1.377 1.377 1.758 1.758 1.885 1.885 3.350 3.350 3.813 3.813 4.153 4.153 4.493 4.493
23°C 1.375 1.375 1.729 1.729 1.846 1.846 3.186 3.186 3.699 3.699 4.026 4.026 4.353 4.353
25°C 1.374 1.374 1.699 1.699 1.808 1.808 3.023 3.023 3.586 3.586 3.900 3.900 4.214 4.214
27°C 1.372 1.372 1.670 1.670 1.770 1.770 2.860 2.860 3.473 3.473 3.773 3.773 4.074 4.074
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 87
84
Performance Data
Model: FDYM20CXV1 - RY18CXV1 / FDYB20CXV1 - RY18CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
640 /
570
16°C
21°C 4.98 3.43 1.45 4.80 3.34 1.57 4.63 3.25 1.70 4.44 3.16 1.84 4.08 2.94 2.00 3.76 2.77 2.20
24°C 4.99 4.11 1.45 4.81 4.02 1.57 4.63 3.92 1.70 4.45 3.82 1.84 4.09 3.57 2.00 3.78 3.37 2.21
27°C 5.03 4.66 1.45 4.86 4.55 1.57 4.69 4.45 1.70 4.51 4.33 1.85 4.16 4.03 2.01 3.87 3.79 2.21
30°C 5.18 5.18 1.46 5.03 5.03 1.58 4.88 4.88 1.72 4.72 4.72 1.86 4.38 4.38 2.02 4.10 4.10 2.23
19°C
24°C 5.49 3.20 1.47 5.30 3.12 1.60 5.11 3.04 1.73 4.90 2.95 1.88 4.51 2.75 2.03 4.17 2.59 2.24
27°C 5.50 3.67 1.47 5.30 3.58 1.60 5.11 3.50 1.73 4.91 3.42 1.88 4.51 3.20 2.04 4.17 3.03 2.24
30°C 5.51 4.52 1.48 5.32 4.43 1.60 5.13 4.33 1.73 4.93 4.23 1.88 4.54 3.95 2.04 4.21 3.74 2.25
33°C 5.57 5.57 1.48 5.39 5.39 1.60 5.22 5.22 1.74 5.04 5.04 1.88 4.66 4.66 2.05 4.36 4.36 2.26
22°C
27°C 6.04 3.14 1.50 5.84 3.06 1.63 5.62 2.98 1.76 5.40 2.90 1.91 4.97 2.70 2.07 4.60 2.55 2.29
30°C 6.05 3.82 1.50 5.84 3.74 1.63 5.62 3.66 1.76 5.40 3.57 1.91 4.97 3.34 2.07 4.60 3.17 2.29
33°C 6.05 4.46 1.50 5.84 4.38 1.63 5.63 4.29 1.76 5.41 4.20 1.91 4.98 3.95 2.08 4.61 3.75 2.29
36°C 6.07 5.06 1.50 5.87 4.96 1.63 5.66 4.86 1.77 5.46 4.75 1.92 5.03 4.45 2.08 4.68 4.22 2.29
675 /
640
16°C
21°C 5.18 3.58 1.46 4.99 3.48 1.58 4.80 3.39 1.71 4.61 3.30 1.86 4.23 3.07 2.02 3.90 2.89 2.22
24°C 5.20 4.34 1.47 5.01 4.24 1.58 4.82 4.14 1.72 4.63 4.03 1.86 4.25 3.76 2.02 3.93 3.55 2.23
27°C 5.26 4.93 1.47 5.08 4.82 1.59 4.91 4.69 1.72 4.73 4.55 1.87 4.37 4.23 2.03 4.07 3.96 2.24
30°C 5.48 5.48 1.48 5.32 5.32 1.60 5.16 5.16 1.74 4.99 4.99 1.89 4.62 4.62 2.05 4.32 4.32 2.26
19°C
24°C 5.71 3.38 1.49 5.50 3.30 1.61 5.30 3.21 1.75 5.08 3.12 1.89 4.67 2.91 2.05 4.31 2.74 2.26
27°C 5.72 3.90 1.49 5.51 3.81 1.61 5.31 3.72 1.75 5.09 3.64 1.89 4.68 3.40 2.05 4.33 3.22 2.26
30°C 5.74 4.81 1.49 5.54 4.70 1.61 5.35 4.60 1.75 5.14 4.49 1.90 4.73 4.19 2.06 4.39 3.96 2.27
33°C 5.84 5.84 1.50 5.66 5.66 1.62 5.48 5.48 1.76 5.30 5.30 1.91 4.91 4.91 2.07 4.59 4.59 2.29
22°C
27°C 6.27 3.31 1.52 6.05 3.24 1.64 5.83 3.15 1.78 5.59 3.07 1.93 5.14 2.86 2.09 4.75 2.70 2.31
30°C 6.28 4.07 1.52 6.06 3.98 1.64 5.83 3.89 1.78 5.60 3.80 1.93 5.15 3.56 2.09 4.76 3.38 2.31
33°C 6.29 4.76 1.52 6.07 4.67 1.64 5.85 4.58 1.78 5.62 4.48 1.93 5.17 4.20 2.10 4.79 3.99 2.31
36°C 6.33 5.38 1.52 6.12 5.28 1.65 5.91 5.17 1.79 5.70 5.05 1.94 5.25 4.73 2.10 4.90 4.46 2.32
700 /
650
16°C
21°C 5.37 3.73 1.48 5.17 3.64 1.60 4.98 3.54 1.73 4.77 3.44 1.87 4.37 3.21 2.03 4.03 3.02 2.24
24°C 5.40 4.53 1.48 5.20 4.43 1.60 5.01 4.32 1.73 4.81 4.20 1.88 4.41 3.92 2.04 4.08 3.70 2.24
27°C 5.49 5.20 1.48 5.31 5.06 1.60 5.13 4.92 1.74 4.94 4.77 1.89 4.57 4.42 2.05 4.26 4.12 2.26
30°C 5.76 5.76 1.50 5.59 5.59 1.62 5.42 5.42 1.76 5.24 5.24 1.91 4.85 4.85 2.07 4.53 4.53 2.29
19°C
24°C 5.91 3.58 1.50 5.70 3.49 1.62 5.48 3.40 1.76 5.26 3.31 1.91 4.83 3.08 2.07 4.46 2.91 2.28
27°C 5.93 4.14 1.50 5.72 4.05 1.63 5.50 3.95 1.76 5.28 3.85 1.91 4.85 3.60 2.07 4.48 3.41 2.28
30°C 5.98 5.10 1.50 5.77 4.98 1.63 5.56 4.87 1.77 5.35 4.75 1.91 4.92 4.43 2.08 4.57 4.18 2.29
33°C 6.11 6.11 1.51 5.93 5.93 1.64 5.75 5.75 1.78 5.56 5.56 1.93 5.15 5.15 2.10 4.81 4.81 2.32
22°C
27°C 6.49 3.50 1.53 6.26 3.42 1.66 6.02 3.34 1.79 5.78 3.25 1.95 5.31 3.03 2.11 4.91 2.86 2.32
30°C 6.50 4.32 1.53 6.27 4.23 1.66 6.03 4.14 1.80 5.79 4.05 1.95 5.32 3.79 2.11 4.92 3.59 2.33
33°C 6.52 5.06 1.53 6.30 4.97 1.66 6.07 4.87 1.80 5.83 4.76 1.95 5.36 4.46 2.12 4.97 4.23 2.33
36°C 6.58 5.71 1.53 6.38 5.61 1.66 6.16 5.48 1.80 5.93 5.35 1.96 5.48 4.99 2.13 5.11 4.70 2.35
Model: FDYM20CXV1 - RY18CXV1 / FDYB20CXV1 - RY18CXV1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 2.597 2.597 3.151 3.151 3.335 3.335 5.366 5.366 6.474 6.474 7.028 7.028 7.582 7.582
17°C 2.556 2.556 3.094 3.094 3.274 3.274 5.299 5.299 6.299 6.299 6.833 6.833 7.367 7.367
19°C 2.516 2.516 3.038 3.038 3.213 3.213 5.231 5.231 6.124 6.124 6.637 6.637 7.151 7.151
21°C 2.475 2.475 2.982 2.982 3.151 3.151 5.164 5.164 5.948 5.948 6.442 6.442 6.935 6.935
23°C 2.447 2.447 2.929 2.929 3.090 3.090 4.958 4.958 5.773 5.773 6.246 6.246 6.720 6.720
25°C 2.419 2.419 2.876 2.876 3.028 3.028 4.751 4.751 5.597 5.597 6.051 6.051 6.504 6.504
27°C 2.390 2.390 2.823 2.823 2.967 2.967 4.545 4.545 5.422 5.422 5.855 5.855 6.289 6.289
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 88
85
Performance Data
Model: FDYM20CXV1 - RY20CXV1 / FDYB20CXV1 - RY20CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
640 /
570
16°C
21°C 5.25 3.62 1.44 5.07 3.53 1.56 4.88 3.43 1.69 4.68 3.33 1.83 4.30 3.10 1.98 3.97 2.92 2.19
24°C 5.26 4.34 1.44 5.07 4.24 1.56 4.89 4.14 1.69 4.69 4.03 1.83 4.31 3.77 1.98 3.99 3.56 2.19
27°C 5.30 4.92 1.44 5.13 4.80 1.56 4.95 4.69 1.69 4.76 4.57 1.83 4.39 4.25 1.99 4.09 3.99 2.20
30°C 5.47 5.47 1.45 5.31 5.31 1.57 5.15 5.15 1.70 4.98 4.98 1.85 4.62 4.62 2.01 4.32 4.32 2.22
19°C
24°C 5.80 3.38 1.46 5.59 3.29 1.58 5.39 3.21 1.72 5.17 3.12 1.86 4.76 2.90 2.02 4.40 2.73 2.22
27°C 5.80 3.87 1.46 5.60 3.78 1.58 5.39 3.69 1.72 5.18 3.60 1.86 4.76 3.37 2.02 4.40 3.19 2.23
30°C 5.81 4.77 1.46 5.61 4.67 1.58 5.41 4.57 1.72 5.20 4.46 1.86 4.79 4.17 2.02 4.45 3.94 2.23
33°C 5.88 5.88 1.47 5.69 5.69 1.59 5.50 5.50 1.72 5.31 5.31 1.87 4.92 4.92 2.03 4.60 4.60 2.24
22°C
27°C 6.38 3.31 1.49 6.16 3.23 1.61 5.93 3.15 1.75 5.70 3.06 1.90 5.24 2.85 2.06 4.85 2.69 2.27
30°C 6.38 4.03 1.49 6.16 3.95 1.61 5.93 3.86 1.75 5.70 3.76 1.90 5.24 3.52 2.06 4.85 3.34 2.27
33°C 6.38 4.71 1.49 6.16 4.62 1.61 5.94 4.53 1.75 5.70 4.43 1.90 5.25 4.16 2.06 4.87 3.95 2.27
36°C 6.40 5.34 1.49 6.19 5.23 1.62 5.98 5.12 1.75 5.76 5.01 1.90 5.31 4.70 2.06 4.94 4.46 2.28
675 /
640
16°C
21°C 5.47 3.77 1.45 5.27 3.68 1.57 5.07 3.58 1.70 4.86 3.48 1.84 4.46 3.24 2.00 4.11 3.05 2.21
24°C 5.48 4.58 1.45 5.28 4.47 1.57 5.09 4.37 1.70 4.88 4.26 1.85 4.48 3.97 2.00 4.15 3.75 2.21
27°C 5.55 5.20 1.46 5.36 5.08 1.58 5.18 4.95 1.71 4.99 4.80 1.85 4.61 4.46 2.01 4.29 4.17 2.22
30°C 5.78 5.78 1.47 5.61 5.61 1.59 5.44 5.44 1.72 5.26 5.26 1.87 4.88 4.88 2.03 4.56 4.56 2.24
19°C
24°C 6.02 3.57 1.48 5.81 3.48 1.60 5.59 3.39 1.73 5.36 3.30 1.88 4.93 3.07 2.04 4.55 2.89 2.24
27°C 6.03 4.11 1.48 5.82 4.02 1.60 5.60 3.93 1.73 5.37 3.84 1.88 4.94 3.59 2.04 4.56 3.40 2.25
30°C 6.06 5.07 1.48 5.85 4.96 1.60 5.64 4.85 1.74 5.42 4.73 1.88 4.99 4.42 2.04 4.63 4.18 2.25
33°C 6.16 6.16 1.48 5.97 5.97 1.61 5.78 5.78 1.74 5.59 5.59 1.89 5.18 5.18 2.06 4.84 4.84 2.27
22°C
27°C 6.62 3.49 1.50 6.38 3.41 1.63 6.15 3.33 1.77 5.90 3.24 1.91 5.42 3.02 2.08 5.02 2.85 2.29
30°C 6.62 4.29 1.50 6.39 4.20 1.63 6.15 4.11 1.77 5.91 4.01 1.92 5.43 3.76 2.08 5.02 3.56 2.29
33°C 6.64 5.03 1.50 6.40 4.93 1.63 6.17 4.83 1.77 5.93 4.73 1.92 5.45 4.43 2.08 5.05 4.21 2.29
36°C 6.68 5.68 1.51 6.46 5.57 1.63 6.24 5.46 1.77 6.01 5.33 1.92 5.54 4.99 2.09 5.17 4.71 2.30
700 /
650
16°C
21°C 5.67 3.94 1.46 5.46 3.84 1.58 5.25 3.73 1.72 5.03 3.63 1.86 4.62 3.38 2.02 4.25 3.18 2.22
24°C 5.70 4.78 1.47 5.49 4.67 1.59 5.28 4.55 1.72 5.07 4.44 1.86 4.66 4.14 2.02 4.30 3.90 2.23
27°C 5.79 5.48 1.47 5.60 5.34 1.59 5.41 5.19 1.72 5.22 5.03 1.87 4.82 4.66 2.03 4.49 4.35 2.24
30°C 6.08 6.08 1.48 5.90 5.90 1.61 5.72 5.72 1.74 5.53 5.53 1.89 5.12 5.12 2.06 4.78 4.78 2.27
19°C
24°C 6.24 3.78 1.49 6.01 3.68 1.61 5.78 3.59 1.75 5.55 3.49 1.89 5.09 3.25 2.05 4.70 3.07 2.26
27°C 6.26 4.37 1.49 6.03 4.27 1.61 5.80 4.17 1.75 5.57 4.07 1.90 5.11 3.80 2.06 4.73 3.60 2.26
30°C 6.31 5.38 1.49 6.08 5.26 1.62 5.87 5.14 1.75 5.64 5.01 1.90 5.19 4.68 2.06 4.82 4.41 2.27
33°C 6.44 6.44 1.50 6.26 6.26 1.63 6.06 6.06 1.76 5.86 5.86 1.92 5.43 5.43 2.08 5.08 5.08 2.30
22°C
27°C 6.84 3.69 1.52 6.60 3.61 1.64 6.35 3.52 1.78 6.10 3.43 1.93 5.60 3.20 2.09 5.18 3.02 2.31
30°C 6.86 4.55 1.52 6.61 4.47 1.64 6.37 4.37 1.78 6.11 4.27 1.93 5.61 4.00 2.10 5.19 3.79 2.31
33°C 6.88 5.34 1.52 6.64 5.24 1.65 6.40 5.13 1.78 6.15 5.02 1.94 5.66 4.70 2.10 5.24 4.46 2.31
36°C 6.94 6.02 1.52 6.73 5.92 1.65 6.49 5.79 1.79 6.26 5.64 1.94 5.78 5.26 2.11 5.40 4.95 2.33
Model: FDYM20CXV1 - RY20CXV1 / FDYB20CXV1 - RY20CXV1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 2.506 2.506 3.124 3.124 3.330 3.330 5.597 5.597 6.834 6.834 7.452 7.452 8.071 8.071
17°C 2.446 2.446 3.062 3.062 3.267 3.267 5.574 5.574 6.648 6.648 7.245 7.245 7.841 7.841
19°C 2.386 2.386 2.999 2.999 3.204 3.204 5.550 5.550 6.462 6.462 7.037 7.037 7.612 7.612
21°C 2.326 2.326 2.937 2.937 3.140 3.140 5.527 5.527 6.276 6.276 6.829 6.829 7.382 7.382
23°C 2.319 2.319 2.887 2.887 3.077 3.077 5.258 5.258 6.089 6.089 6.621 6.621 7.153 7.153
25°C 2.311 2.311 2.838 2.838 3.014 3.014 4.990 4.990 5.903 5.903 6.413 6.413 6.923 6.923
27°C 2.304 2.304 2.789 2.789 2.951 2.951 4.722 4.722 5.717 5.717 6.205 6.205 6.694 6.694
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 89
86
Performance Data
Model: FDYM25CXV1 - RY25CXV1 / FDYB25CXV1 - RY25CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
580
16°C
21°C 6.50 4.35 1.99 6.27 4.24 2.15 6.03 4.12 2.33 5.79 4.01 2.52 5.32 3.73 2.74 4.91 3.51 3.02
24°C 6.51 5.21 1.99 6.27 5.09 2.15 6.04 4.97 2.33 5.80 4.85 2.53 5.33 4.53 2.74 4.93 4.27 3.02
27°C 6.56 5.91 1.99 6.34 5.77 2.15 6.12 5.64 2.33 5.89 5.49 2.53 5.43 5.11 2.75 5.05 4.80 3.03
30°C 6.76 6.76 2.00 6.56 6.56 2.17 6.37 6.37 2.35 6.16 6.16 2.55 5.71 5.71 2.77 5.34 5.34 3.06
19°C
24°C 7.17 4.06 2.02 6.92 3.96 2.19 6.66 3.85 2.37 6.40 3.75 2.57 5.88 3.49 2.79 5.44 3.29 3.07
27°C 7.17 4.65 2.02 6.92 4.54 2.19 6.67 4.44 2.37 6.40 4.33 2.57 5.89 4.05 2.79 5.44 3.84 3.07
30°C 7.18 5.74 2.02 6.93 5.61 2.19 6.69 5.49 2.37 6.44 5.36 2.57 5.93 5.01 2.79 5.50 4.74 3.08
33°C 7.27 7.27 2.02 7.03 7.03 2.19 6.80 6.80 2.38 6.57 6.57 2.58 6.08 6.08 2.80 5.68 5.68 3.10
22°C
27°C 7.88 3.98 2.06 7.61 3.88 2.23 7.33 3.78 2.41 7.05 3.68 2.62 6.48 3.43 2.84 6.00 3.23 3.13
30°C 7.89 4.85 2.06 7.61 4.74 2.23 7.34 4.64 2.41 7.05 4.53 2.62 6.48 4.24 2.84 6.00 4.02 3.13
33°C 7.89 5.66 2.06 7.62 5.55 2.23 7.34 5.44 2.42 7.05 5.33 2.62 6.49 5.00 2.84 6.02 4.75 3.13
36°C 7.92 6.42 2.06 7.66 6.29 2.23 7.39 6.16 2.42 7.12 6.02 2.62 6.57 5.65 2.85 6.11 5.36 3.14
660 /
720
16°C
21°C 6.76 4.54 2.01 6.52 4.42 2.17 6.27 4.30 2.35 6.01 4.18 2.55 5.52 3.89 2.76 5.09 3.67 3.04
24°C 6.78 5.51 2.01 6.54 5.38 2.17 6.29 5.25 2.35 6.04 5.12 2.55 5.55 4.78 2.77 5.13 4.51 3.05
27°C 6.86 6.26 2.01 6.63 6.11 2.18 6.40 5.95 2.36 6.17 5.78 2.56 5.70 5.37 2.78 5.31 5.02 3.07
30°C 7.15 7.15 2.03 6.94 6.94 2.19 6.73 6.73 2.38 6.51 6.51 2.58 6.03 6.03 2.81 5.64 5.64 3.10
19°C
24°C 7.45 4.29 2.04 7.18 4.19 2.21 6.91 4.08 2.39 6.63 3.96 2.59 6.09 3.69 2.81 5.63 3.48 3.10
27°C 7.46 4.95 2.04 7.19 4.84 2.21 6.92 4.73 2.39 6.65 4.61 2.59 6.11 4.31 2.81 5.65 4.08 3.10
30°C 7.50 6.10 2.04 7.23 5.97 2.21 6.98 5.84 2.40 6.71 5.69 2.60 6.18 5.32 2.82 5.73 5.03 3.11
33°C 7.62 7.62 2.05 7.39 7.39 2.22 7.15 7.15 2.41 6.92 6.92 2.61 6.41 6.41 2.84 5.99 5.99 3.14
22°C
27°C 8.18 4.20 2.08 7.89 4.11 2.25 7.60 4.00 2.44 7.30 3.89 2.64 6.71 3.63 2.87 6.20 3.43 3.16
30°C 8.19 5.16 2.08 7.90 5.05 2.25 7.61 4.94 2.44 7.31 4.82 2.64 6.72 4.52 2.87 6.21 4.29 3.16
33°C 8.21 6.04 2.08 7.92 5.93 2.25 7.63 5.81 2.44 7.33 5.68 2.65 6.74 5.33 2.87 6.25 5.06 3.16
36°C 8.26 6.83 2.08 7.99 6.70 2.26 7.71 6.56 2.45 7.43 6.41 2.65 6.86 6.00 2.88 6.39 5.66 3.18
730 /
770
16°C
21°C 7.01 4.74 2.02 6.75 4.62 2.19 6.49 4.49 2.37 6.22 4.37 2.57 5.71 4.07 2.78 5.26 3.83 3.07
24°C 7.05 5.75 2.02 6.79 5.62 2.19 6.53 5.48 2.37 6.27 5.34 2.57 5.76 4.98 2.79 5.32 4.70 3.07
27°C 7.16 6.59 2.03 6.93 6.42 2.20 6.69 6.24 2.38 6.45 6.05 2.58 5.96 5.61 2.81 5.56 5.23 3.10
30°C 7.52 7.52 2.05 7.30 7.30 2.22 7.07 7.07 2.41 6.84 6.84 2.61 6.33 6.33 2.84 5.92 5.92 3.13
19°C
24°C 7.72 4.54 2.06 7.44 4.43 2.22 7.15 4.32 2.41 6.86 4.20 2.61 6.30 3.91 2.83 5.81 3.69 3.12
27°C 7.74 5.26 2.06 7.46 5.13 2.23 7.18 5.01 2.41 6.89 4.89 2.62 6.33 4.58 2.84 5.85 4.33 3.13
30°C 7.80 6.47 2.06 7.53 6.33 2.23 7.26 6.18 2.42 6.98 6.03 2.62 6.42 5.63 2.85 5.96 5.31 3.14
33°C 7.97 7.97 2.07 7.74 7.74 2.24 7.50 7.50 2.43 7.25 7.25 2.64 6.72 6.72 2.87 6.28 6.28 3.17
22°C
27°C 8.47 4.44 2.09 8.17 4.35 2.27 7.86 4.24 2.46 7.54 4.13 2.67 6.93 3.85 2.89 6.40 3.64 3.18
30°C 8.48 5.48 2.09 8.18 5.37 2.27 7.87 5.26 2.46 7.56 5.14 2.67 6.94 4.81 2.89 6.42 4.56 3.19
33°C 8.51 6.42 2.10 8.22 6.31 2.27 7.92 6.17 2.46 7.61 6.04 2.67 7.00 5.66 2.90 6.48 5.37 3.19
36°C 8.59 7.25 2.10 8.32 7.12 2.28 8.03 6.96 2.47 7.74 6.79 2.68 7.15 6.33 2.91 6.67 5.96 3.21
Model: FDYM25CXV1 - RY25CXV1 / FDYB25CXV1 - RY25CXV1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 3.204 3.204 3.940 3.940 4.185 4.185 6.883 6.883 8.355 8.355 9.091 9.091 9.827 9.827
17°C 3.141 3.141 3.865 3.865 4.107 4.107 6.822 6.822 8.128 8.128 8.838 8.838 9.547 9.547
19°C 3.078 3.078 3.791 3.791 4.028 4.028 6.760 6.760 7.901 7.901 8.585 8.585 9.268 9.268
21°C 3.015 3.015 3.716 3.716 3.950 3.950 6.699 6.699 7.674 7.674 8.331 8.331 8.989 8.989
23°C 2.992 2.992 3.652 3.652 3.872 3.872 6.406 6.406 7.447 7.447 8.078 8.078 8.709 8.709
25°C 2.970 2.970 3.588 3.588 3.794 3.794 6.112 6.112 7.220 7.220 7.825 7.825 8.430 8.430
27°C 2.947 2.947 3.523 3.523 3.715 3.715 5.819 5.819 6.993 6.993 7.572 7.572 8.150 8.150
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 90
87
Performance Data
Model: FDYM28CXV1 - RY28CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710
16°C
21°C 7.46 4.86 2.35 7.20 4.73 2.54 6.93 4.60 2.75 6.65 4.47 2.98 6.11 4.16 3.24 5.64 3.91 3.57
24°C 7.47 5.82 2.35 7.21 5.68 2.54 6.94 5.55 2.75 6.66 5.41 2.98 6.12 5.06 3.24 5.66 4.77 3.57
27°C 7.53 6.60 2.35 7.28 6.45 2.54 7.02 6.29 2.76 6.76 6.13 2.99 6.24 5.71 3.25 5.80 5.36 3.58
30°C 7.76 7.76 2.36 7.54 7.54 2.56 7.31 7.31 2.78 7.07 7.07 3.01 6.56 6.56 3.27 6.14 6.14 3.62
19°C
24°C 8.23 4.54 2.39 7.94 4.42 2.58 7.65 4.30 2.80 7.35 4.18 3.03 6.75 3.89 3.29 6.24 3.67 3.63
27°C 8.24 5.19 2.39 7.95 5.07 2.58 7.65 4.96 2.80 7.35 4.84 3.03 6.76 4.52 3.29 6.25 4.29 3.63
30°C 8.25 6.40 2.39 7.96 6.27 2.58 7.68 6.13 2.80 7.39 5.98 3.04 6.80 5.59 3.30 6.31 5.29 3.63
33°C 8.35 8.35 2.39 8.07 8.07 2.59 7.81 7.81 2.81 7.55 7.55 3.05 6.98 6.98 3.31 6.53 6.53 3.66
22°C
27°C 9.05 4.44 2.43 8.74 4.33 2.63 8.42 4.22 2.85 8.09 4.11 3.09 7.44 3.83 3.36 6.89 3.61 3.70
30°C 9.06 5.41 2.43 8.74 5.30 2.63 8.42 5.17 2.85 8.09 5.05 3.09 7.44 4.73 3.36 6.89 4.48 3.70
33°C 9.06 6.32 2.43 8.75 6.20 2.63 8.43 6.08 2.85 8.10 5.95 3.09 7.45 5.59 3.36 6.91 5.31 3.70
36°C 9.09 7.17 2.43 8.79 7.02 2.63 8.49 6.88 2.86 8.18 6.72 3.10 7.54 6.30 3.36 7.01 5.98 3.71
770
16°C
21°C 7.76 5.06 2.37 7.48 4.93 2.56 7.20 4.80 2.77 6.90 4.67 3.01 6.33 4.35 3.26 5.84 4.09 3.60
24°C 7.78 6.15 2.37 7.50 6.00 2.56 7.22 5.86 2.78 6.93 5.71 3.01 6.37 5.33 3.27 5.89 5.03 3.60
27°C 7.88 6.98 2.38 7.61 6.82 2.57 7.35 6.64 2.79 7.09 6.45 3.02 6.54 5.99 3.28 6.10 5.60 3.62
30°C 8.21 8.21 2.39 7.97 7.97 2.59 7.73 7.73 2.81 7.48 7.48 3.05 6.93 6.93 3.31 6.47 6.47 3.66
19°C
24°C 8.55 4.79 2.41 8.25 4.67 2.61 7.94 4.55 2.82 7.62 4.42 3.06 7.00 4.12 3.32 6.46 3.89 3.66
27°C 8.57 5.52 2.41 8.26 5.40 2.61 7.95 5.27 2.82 7.63 5.15 3.06 7.01 4.81 3.32 6.48 4.56 3.66
30°C 8.61 6.81 2.41 8.31 6.66 2.61 8.01 6.51 2.83 7.70 6.35 3.07 7.09 5.94 3.33 6.58 5.61 3.67
33°C 8.75 8.75 2.42 8.48 8.48 2.62 8.21 8.21 2.84 7.94 7.94 3.09 7.35 7.35 3.35 6.88 6.88 3.70
22°C
27°C 9.39 4.69 2.45 9.06 4.58 2.66 8.73 4.46 2.88 8.38 4.34 3.12 7.70 4.05 3.39 7.12 3.82 3.73
30°C 9.41 5.76 2.45 9.07 5.64 2.66 8.74 5.51 2.88 8.39 5.38 3.12 7.71 5.04 3.39 7.13 4.78 3.73
33°C 9.42 6.75 2.45 9.10 6.62 2.66 8.76 6.48 2.88 8.42 6.34 3.13 7.74 5.95 3.39 7.18 5.65 3.74
36°C 9.48 7.62 2.46 9.17 7.48 2.66 8.85 7.32 2.89 8.53 7.15 3.14 7.87 6.69 3.40 7.34 6.32 3.75
810
16°C
21°C 8.05 5.28 2.39 7.75 5.15 2.58 7.45 5.01 2.80 7.15 4.87 3.03 6.55 4.54 3.29 6.04 4.27 3.62
24°C 8.09 6.42 2.39 7.80 6.27 2.59 7.50 6.11 2.80 7.20 5.95 3.04 6.61 5.56 3.29 6.11 5.24 3.63
27°C 8.22 7.36 2.40 7.95 7.17 2.60 7.68 6.97 2.81 7.41 6.75 3.05 6.84 6.25 3.31 6.38 5.84 3.66
30°C 8.63 8.63 2.42 8.38 8.38 2.62 8.12 8.12 2.84 7.85 7.85 3.09 7.27 7.27 3.35 6.79 6.79 3.70
19°C
24°C 8.86 5.07 2.43 8.54 4.94 2.63 8.21 4.82 2.85 7.88 4.69 3.09 7.23 4.37 3.35 6.67 4.12 3.69
27°C 8.88 5.86 2.43 8.56 5.73 2.63 8.24 5.59 2.85 7.91 5.46 3.09 7.26 5.10 3.35 6.71 4.83 3.69
30°C 8.96 7.22 2.43 8.64 7.06 2.64 8.33 6.90 2.86 8.01 6.72 3.10 7.38 6.28 3.36 6.85 5.92 3.71
33°C 9.15 9.15 2.45 8.88 8.88 2.65 8.61 8.61 2.88 8.33 8.33 3.12 7.71 7.71 3.39 7.21 7.21 3.75
22°C
27°C 9.72 4.96 2.47 9.37 4.85 2.68 9.02 4.73 2.90 8.66 4.60 3.15 7.95 4.29 3.41 7.35 4.06 3.76
30°C 9.74 6.11 2.47 9.39 6.00 2.68 9.04 5.87 2.91 8.68 5.73 3.15 7.97 5.37 3.42 7.37 5.09 3.76
33°C 9.77 7.16 2.48 9.44 7.04 2.68 9.09 6.89 2.91 8.73 6.74 3.16 8.03 6.31 3.42 7.44 5.99 3.77
36°C 9.86 8.09 2.48 9.55 7.94 2.69 9.22 7.77 2.92 8.89 7.57 3.17 8.21 7.06 3.44 7.66 6.65 3.80
850
16°C
21°C 8.04 5.33 2.41 7.76 5.20 2.60 7.48 5.07 2.81 7.18 4.94 3.05 6.60 4.60 3.33 6.10 4.34 3.70
24°C 8.07 6.51 2.41 7.78 6.37 2.60 7.50 6.24 2.81 7.21 6.09 3.05 6.63 5.69 3.33 6.14 5.37 3.70
27°C 8.21 7.47 2.42 7.95 7.28 2.61 7.70 7.09 2.82 7.44 6.88 3.07 6.89 6.50 3.35 6.44 6.13 3.72
30°C 8.65 8.65 2.44 8.40 8.40 2.63 8.16 8.16 2.85 7.91 7.91 3.10 7.34 7.34 3.38 6.87 6.87 3.76
19°C
24°C 8.85 5.11 2.45 8.55 4.99 2.64 8.24 4.87 2.86 7.92 4.74 3.10 7.29 4.43 3.38 6.74 4.19 3.75
27°C 8.88 5.93 2.45 8.57 5.80 2.64 8.26 5.68 2.86 7.94 5.55 3.10 7.31 5.21 3.38 6.76 4.94 3.75
30°C 8.92 7.36 2.46 8.62 7.20 2.65 8.33 7.05 2.86 8.03 6.88 3.11 7.42 6.43 3.39 6.91 6.06 3.76
33°C 9.16 9.16 2.47 8.90 8.90 2.66 8.65 8.65 2.88 8.39 8.39 3.13 7.79 7.79 3.42 7.30 7.30 3.80
22°C
27°C 9.73 5.01 2.50 9.39 4.90 2.69 9.07 4.78 2.91 8.72 4.66 3.16 8.03 4.36 3.44 7.44 4.12 3.81
30°C 9.75 6.20 2.50 9.42 6.07 2.69 9.08 5.94 2.91 8.74 5.82 3.16 8.05 5.46 3.44 7.46 5.19 3.81
33°C 9.77 7.30 2.50 9.44 7.17 2.69 9.10 7.04 2.91 8.77 6.91 3.16 8.08 6.49 3.44 7.51 6.17 3.82
36°C 9.87 8.28 2.51 9.55 8.11 2.70 9.24 7.94 2.92 8.94 7.75 3.18 8.28 7.24 3.46 7.75 6.83 3.84
Page 91
88
Performance Data
Model: FDYM28CXV1 - RY28CXV1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 3.629 3.629 4.552 4.552 4.859 4.859 8.241 8.241 10.085 10.085 11.008 11.008 11.930 11.930
17°C 3.536 3.536 4.459 4.459 4.766 4.766 8.099 8.099 9.810 9.810 10.700 10.700 11.590 11.590
19°C 3.443 3.443 4.366 4.366 4.673 4.673 7.957 7.957 9.535 9.535 10.393 10.393 11.251 11.251
21°C 3.350 3.350 4.273 4.273 4.580 4.580 7.816 7.816 9.260 9.260 10.086 10.086 10.912 10.912
23°C 3.345 3.345 4.202 4.202 4.487 4.487 7.532 7.532 8.985 8.985 9.779 9.779 10.573 10.573
25°C 3.340 3.340 4.131 4.131 4.395 4.395 7.249 7.249 8.710 8.710 9.472 9.472 10.233 10.233
27°C 3.336 3.336 4.060 4.060 4.302 4.302 6.965 6.965 8.435 8.435 9.165 9.165 9.894 9.894
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 92
89
Performance Data
Model: FDYM28CXV1 - RY30DXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710
16°C
21°C 8.29 5.40 2.35 8.00 5.26 2.54 7.70 5.12 2.75 7.39 4.97 2.98 6.79 4.63 3.24 6.27 4.35 3.57
24°C 8.30 6.47 2.35 8.01 6.32 2.54 7.71 6.17 2.75 7.40 6.02 2.98 6.80 5.62 3.24 6.29 5.30 3.57
27°C 8.37 7.33 2.35 8.09 7.17 2.54 7.81 7.00 2.76 7.51 6.82 2.99 6.93 6.34 3.25 6.45 5.96 3.58
30°C 8.63 8.63 2.36 8.38 8.38 2.56 8.13 8.13 2.78 7.86 7.86 3.01 7.29 7.29 3.27 6.82 6.82 3.62
19°C
24°C 9.15 5.04 2.39 8.83 4.91 2.58 8.50 4.78 2.80 8.17 4.65 3.03 7.50 4.33 3.29 6.94 4.08 3.63
27°C 9.15 5.77 2.39 8.83 5.64 2.58 8.51 5.51 2.80 8.17 5.38 3.03 7.51 5.03 3.29 6.95 4.76 3.63
30°C 9.17 7.12 2.39 8.85 6.97 2.58 8.54 6.81 2.80 8.21 6.65 3.04 7.56 6.22 3.30 7.02 5.88 3.63
33°C 9.28 9.28 2.39 8.97 8.97 2.59 8.68 8.68 2.81 8.39 8.39 3.05 7.76 7.76 3.31 7.25 7.25 3.66
22°C
27°C
10.06
4.93 2.43 9.72 4.82 2.63 9.36 4.69 2.85 9.00 4.57 3.09 8.27 4.25 3.36 7.66 4.01 3.70
30°C
10.07
6.01 2.43 9.72 5.89 2.63 9.36 5.75 2.85 9.00 5.62 3.09 8.27 5.26 3.36 7.66 4.98 3.70
33°C
10.07
7.02 2.43 9.72 6.89 2.63 9.37 6.75 2.85 9.00 6.61 3.09 8.28 6.21 3.36 7.68 5.90 3.70
36°C
10.10
7.96 2.43 9.77 7.80 2.63 9.43 7.64 2.86 9.09 7.47 3.10 8.38 7.01 3.36 7.79 6.65 3.71
770
16°C
21°C 8.63 5.63 2.37 8.31 5.48 2.56 8.00 5.34 2.77 7.67 5.19 3.01 7.04 4.83 3.26 6.49 4.55 3.60
24°C 8.65 6.83 2.37 8.34 6.67 2.56 8.03 6.51 2.78 7.70 6.35 3.01 7.08 5.92 3.27 6.54 5.59 3.60
27°C 8.76 7.76 2.38 8.46 7.58 2.57 8.17 7.38 2.79 7.88 7.16 3.02 7.27 6.65 3.28 6.78 6.22 3.62
30°C 9.12 9.12 2.39 8.86 8.86 2.59 8.59 8.59 2.81 8.31 8.31 3.05 7.70 7.70 3.31 7.20 7.20 3.66
19°C
24°C 9.50 5.33 2.41 9.16 5.19 2.61 8.82 5.06 2.82 8.47 4.92 3.06 7.78 4.58 3.32 7.18 4.32 3.66
27°C 9.52 6.13 2.41 9.18 6.00 2.61 8.84 5.86 2.82 8.48 5.72 3.06 7.79 5.35 3.32 7.21 5.07 3.66
30°C 9.57 7.57 2.41 9.23 7.40 2.61 8.90 7.24 2.83 8.56 7.06 3.07 7.88 6.60 3.33 7.31 6.24 3.67
33°C 9.73 9.73 2.42 9.43 9.43 2.62 9.13 9.13 2.84 8.83 8.83 3.09 8.17 8.17 3.35 7.64 7.64 3.70
22°C
27°C
10.44
5.21 2.45
10.07
5.09 2.66 9.70 4.96 2.88 9.31 4.83 3.12 8.56 4.50 3.39 7.92 4.25 3.73
30°C
10.45
6.40 2.45
10.09
6.27 2.66 9.71 6.13 2.88 9.33 5.98 3.12 8.57 5.60 3.39 7.93 5.32 3.73
33°C
10.47
7.50 2.45
10.11
7.35 2.66 9.74 7.20 2.88 9.36 7.05 3.13 8.61 6.61 3.39 7.98 6.28 3.74
36°C
10.54
8.48 2.46
10.20
8.31 2.66 9.84 8.14 2.89 9.48 7.95 3.14 8.75 7.44 3.40 8.16 7.02 3.75
810
16°C
21°C 8.94 5.87 2.39 8.62 5.72 2.58 8.29 5.57 2.80 7.94 5.42 3.03 7.28 5.04 3.29 6.72 4.75 3.62
24°C 8.99 7.14 2.39 8.66 6.97 2.59 8.34 6.80 2.80 8.00 6.62 3.04 7.35 6.18 3.29 6.79 5.82 3.63
27°C 9.14 8.18 2.40 8.84 7.97 2.60 8.54 7.74 2.81 8.23 7.50 3.05 7.61 6.95 3.31 7.09 6.49 3.66
30°C 9.59 9.59 2.42 9.31 9.31 2.62 9.03 9.03 2.84 8.73 8.73 3.09 8.08 8.08 3.35 7.55 7.55 3.70
19°C
24°C 9.84 5.63 2.43 9.49 5.49 2.63 9.13 5.35 2.85 8.76 5.21 3.09 8.04 4.85 3.35 7.42 4.58 3.69
27°C 9.87 6.52 2.43 9.52 6.37 2.63 9.16 6.22 2.85 8.79 6.07 3.09 8.07 5.67 3.35 7.46 5.37 3.69
30°C 9.96 8.02 2.43 9.60 7.84 2.64 9.26 7.67 2.86 8.90 7.47 3.10 8.20 6.98 3.36 7.61 6.58 3.71
33°C
10.17 10.17
2.45 9.87 9.87 2.65 9.57 9.57 2.88 9.25 9.25 3.12 8.57 8.57 3.39 8.02 8.02 3.75
22°C
27°C
10.80
5.51 2.47
10.42
5.39 2.68
10.03
5.25 2.90 9.62 5.12 3.15 8.84 4.77 3.41 8.17 4.51 3.76
30°C
10.83
6.79 2.47
10.44
6.66 2.68
10.05
6.52 2.91 9.64 6.37 3.15 8.86 5.97 3.42 8.19 5.66 3.76
33°C
10.86
7.96 2.48
10.49
7.82 2.68
10.10
7.66 2.91 9.70 7.49 3.16 8.93 7.02 3.42 8.27 6.66 3.77
36°C
10.96
8.99 2.48
10.62
8.83 2.69
10.25
8.63 2.92 9.88 8.42 3.17 9.13 7.85 3.44 8.52 7.39 3.80
850
16°C
21°C 8.94 5.92 2.41 8.62 5.78 2.60 8.31 5.64 2.81 7.98 5.49 3.05 7.34 5.12 3.33 6.78 4.82 3.70
24°C 8.97 7.24 2.41 8.65 7.09 2.60 8.34 6.93 2.81 8.02 6.77 3.05 7.37 6.33 3.33 6.83 5.97 3.70
27°C 9.12 8.30 2.42 8.84 8.10 2.61 8.56 7.88 2.82 8.27 7.65 3.07 7.66 7.23 3.35 7.16 6.82 3.72
30°C 9.61 9.61 2.44 9.34 9.34 2.63 9.07 9.07 2.85 8.79 8.79 3.10 8.16 8.16 3.38 7.63 7.63 3.76
19°C
24°C 9.84 5.68 2.45 9.50 5.54 2.64 9.16 5.41 2.86 8.81 5.27 3.10 8.10 4.92 3.38 7.49 4.65 3.75
27°C 9.87 6.59 2.45 9.52 6.45 2.64 9.18 6.31 2.86 8.83 6.17 3.10 8.12 5.79 3.38 7.52 5.50 3.75
30°C 9.92 8.18 2.46 9.58 8.01 2.65 9.26 7.84 2.86 8.93 7.65 3.11 8.24 7.15 3.39 7.68 6.74 3.76
33°C
10.18 10.18
2.47 9.89 9.89 2.66 9.61 9.61 2.88 9.32 9.32 3.13 8.66 8.66 3.42 8.12 8.12 3.80
22°C
27°C
10.81
5.57 2.50
10.44
5.44 2.69
10.08
5.32 2.91 9.69 5.18 3.16 8.93 4.84 3.44 8.27 4.58 3.81
30°C
10.84
6.89 2.50
10.47
6.75 2.69
10.10
6.61 2.91 9.72 6.46 3.16 8.95 6.06 3.44 8.29 5.77 3.81
33°C
10.86
8.12 2.50
10.49
7.97 2.69
10.12
7.83 2.91 9.75 7.68 3.16 8.98 7.21 3.44 8.35 6.85 3.82
36°C
10.97
9.20 2.51
10.62
9.02 2.70
10.27
8.83 2.92 9.94 8.61 3.18 9.21 8.05 3.46 8.62 7.60 3.84
Page 93
90
Performance Data
Model: FDYM28CXV1 - RY30DXV1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 3.942 3.942 4.829 4.829 5.125 5.125 8.381 8.381 10.157 10.157 11.045 11.045 11.933 11.933
17°C 3.868 3.868 4.740 4.740 5.030 5.030 8.379 8.379 9.882 9.882 10.738 10.738 11.594 11.594
19°C 3.795 3.795 4.650 4.650 4.935 4.935 8.376 8.376 9.606 9.606 10.430 10.430 11.255 11.255
21°C 3.722 3.722 4.560 4.560 4.839 4.839 8.374 8.374 9.330 9.330 10.123 10.123 10.915 10.915
23°C 3.690 3.690 4.480 4.480 4.744 4.744 7.941 7.941 9.054 9.054 9.815 9.815 10.576 10.576
25°C 3.658 3.658 4.401 4.401 4.648 4.648 7.508 7.508 8.779 8.779 9.508 9.508 10.237 10.237
27°C 3.627 3.627 4.321 4.321 4.553 4.553 7.076 7.076 8.503 8.503 9.200 9.200 9.897 9.897
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 94
91
Performance Data
Model: FDYM28CXV1 - RY30DXY1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710
16°C
21°C 8.29 5.40 2.33 8.00 5.26 2.52 7.70 5.12 2.73 7.39 4.97 2.96 6.79 4.63 3.21 6.27 4.35 3.54
24°C 8.30 6.47 2.33 8.01 6.32 2.52 7.71 6.17 2.73 7.40 6.02 2.96 6.80 5.62 3.22 6.29 5.30 3.55
27°C 8.37 7.33 2.34 8.09 7.17 2.53 7.81 7.00 2.74 7.51 6.82 2.97 6.93 6.34 3.22 6.45 5.96 3.56
30°C 8.63 8.63 2.35 8.38 8.38 2.54 8.13 8.13 2.76 7.86 7.86 2.99 7.29 7.29 3.25 6.82 6.82 3.59
19°C
24°C 9.15 5.04 2.37 8.83 4.91 2.57 8.50 4.78 2.78 8.17 4.65 3.01 7.50 4.33 3.27 6.94 4.08 3.60
27°C 9.15 5.77 2.37 8.83 5.64 2.57 8.51 5.51 2.78 8.17 5.38 3.02 7.51 5.03 3.27 6.95 4.76 3.61
30°C 9.17 7.12 2.37 8.85 6.97 2.57 8.54 6.81 2.78 8.21 6.65 3.02 7.56 6.22 3.28 7.02 5.88 3.61
33°C 9.28 9.28 2.38 8.97 8.97 2.57 8.68 8.68 2.79 8.39 8.39 3.03 7.76 7.76 3.29 7.25 7.25 3.63
22°C
27°C
10.06
4.93 2.41 9.72 4.82 2.61 9.36 4.69 2.83 9.00 4.57 3.07 8.27 4.25 3.33 7.66 4.01 3.67
30°C
10.07
6.01 2.41 9.72 5.89 2.61 9.36 5.75 2.83 9.00 5.62 3.07 8.27 5.26 3.33 7.66 4.98 3.67
33°C
10.07
7.02 2.41 9.72 6.89 2.61 9.37 6.75 2.83 9.00 6.61 3.07 8.28 6.21 3.34 7.68 5.90 3.68
36°C
10.10
7.96 2.42 9.77 7.80 2.62 9.43 7.64 2.84 9.09 7.47 3.08 8.38 7.01 3.34 7.79 6.65 3.69
770
16°C
21°C 8.63 5.63 2.35 8.31 5.48 2.55 8.00 5.34 2.76 7.67 5.19 2.99 7.04 4.83 3.24 6.49 4.55 3.57
24°C 8.65 6.83 2.35 8.34 6.67 2.55 8.03 6.51 2.76 7.70 6.35 2.99 7.08 5.92 3.25 6.54 5.59 3.58
27°C 8.76 7.76 2.36 8.46 7.58 2.55 8.17 7.38 2.77 7.88 7.16 3.00 7.27 6.65 3.26 6.78 6.22 3.60
30°C 9.12 9.12 2.38 8.86 8.86 2.57 8.59 8.59 2.79 8.31 8.31 3.03 7.70 7.70 3.29 7.20 7.20 3.64
19°C
24°C 9.50 5.33 2.39 9.16 5.19 2.59 8.82 5.06 2.81 8.47 4.92 3.04 7.78 4.58 3.30 7.18 4.32 3.64
27°C 9.52 6.13 2.39 9.18 6.00 2.59 8.84 5.86 2.81 8.48 5.72 3.04 7.79 5.35 3.30 7.21 5.07 3.64
30°C 9.57 7.57 2.40 9.23 7.40 2.59 8.90 7.24 2.81 8.56 7.06 3.05 7.88 6.60 3.31 7.31 6.24 3.65
33°C 9.73 9.73 2.40 9.43 9.43 2.60 9.13 9.13 2.83 8.83 8.83 3.07 8.17 8.17 3.33 7.64 7.64 3.68
22°C
27°C
10.44
5.21 2.44
10.07
5.09 2.64 9.70 4.96 2.86 9.31 4.83 3.10 8.56 4.50 3.36 7.92 4.25 3.71
30°C
10.45
6.40 2.44
10.09
6.27 2.64 9.71 6.13 2.86 9.33 5.98 3.10 8.57 5.60 3.37 7.93 5.32 3.71
33°C
10.47
7.50 2.44
10.11
7.35 2.64 9.74 7.20 2.86 9.36 7.05 3.11 8.61 6.61 3.37 7.98 6.28 3.71
36°C
10.54
8.48 2.44
10.20
8.31 2.65 9.84 8.14 2.87 9.48 7.95 3.12 8.75 7.44 3.38 8.16 7.02 3.73
810
16°C
21°C 8.94 5.87 2.37 8.62 5.72 2.57 8.29 5.57 2.78 7.94 5.42 3.01 7.28 5.04 3.27 6.72 4.75 3.60
24°C 8.99 7.14 2.38 8.66 6.97 2.57 8.34 6.80 2.78 8.00 6.62 3.02 7.35 6.18 3.27 6.79 5.82 3.61
27°C 9.14 8.18 2.38 8.84 7.97 2.58 8.54 7.74 2.79 8.23 7.50 3.03 7.61 6.95 3.29 7.09 6.49 3.63
30°C 9.59 9.59 2.40 9.31 9.31 2.60 9.03 9.03 2.82 8.73 8.73 3.07 8.08 8.08 3.33 7.55 7.55 3.68
19°C
24°C 9.84 5.63 2.41 9.49 5.49 2.61 9.13 5.35 2.83 8.76 5.21 3.07 8.04 4.85 3.33 7.42 4.58 3.66
27°C 9.87 6.52 2.41 9.52 6.37 2.61 9.16 6.22 2.83 8.79 6.07 3.07 8.07 5.67 3.33 7.46 5.37 3.67
30°C 9.96 8.02 2.42 9.60 7.84 2.62 9.26 7.67 2.84 8.90 7.47 3.08 8.20 6.98 3.34 7.61 6.58 3.68
33°C
10.17 10.17
2.43 9.87 9.87 2.63 9.57 9.57 2.86 9.25 9.25 3.10 8.57 8.57 3.37 8.02 8.02 3.72
22°C
27°C
10.80
5.51 2.46
10.42
5.39 2.66
10.03
5.25 2.89 9.62 5.12 3.13 8.84 4.77 3.39 8.17 4.51 3.74
30°C
10.83
6.79 2.46
10.44
6.66 2.66
10.05
6.52 2.89 9.64 6.37 3.13 8.86 5.97 3.39 8.19 5.66 3.74
33°C
10.86
7.96 2.46
10.49
7.82 2.67
10.10
7.66 2.89 9.70 7.49 3.14 8.93 7.02 3.40 8.27 6.66 3.75
36°C
10.96
8.99 2.47
10.62
8.83 2.67
10.25
8.63 2.90 9.88 8.42 3.15 9.13 7.85 3.42 8.52 7.39 3.77
850
16°C
21°C 8.94 5.92 2.40 8.62 5.78 2.58 8.31 5.64 2.79 7.98 5.49 3.03 7.34 5.12 3.30 6.78 4.82 3.67
24°C 8.97 7.24 2.40 8.65 7.09 2.58 8.34 6.93 2.79 8.02 6.77 3.03 7.37 6.33 3.31 6.83 5.97 3.67
27°C 9.12 8.30 2.40 8.84 8.10 2.59 8.56 7.88 2.80 8.27 7.65 3.05 7.66 7.23 3.33 7.16 6.82 3.70
30°C 9.61 9.61 2.43 9.34 9.34 2.62 9.07 9.07 2.83 8.79 8.79 3.08 8.16 8.16 3.36 7.63 7.63 3.74
19°C
24°C 9.84 5.68 2.44 9.50 5.54 2.62 9.16 5.41 2.84 8.81 5.27 3.08 8.10 4.92 3.36 7.49 4.65 3.73
27°C 9.87 6.59 2.44 9.52 6.45 2.62 9.18 6.31 2.84 8.83 6.17 3.08 8.12 5.79 3.36 7.52 5.50 3.73
30°C 9.92 8.18 2.44 9.58 8.01 2.63 9.26 7.84 2.84 8.93 7.65 3.09 8.24 7.15 3.37 7.68 6.74 3.74
33°C
10.18 10.18
2.45 9.89 9.89 2.64 9.61 9.61 2.86 9.32 9.32 3.11 8.66 8.66 3.40 8.12 8.12 3.78
22°C
27°C
10.81
5.57 2.48
10.44
5.44 2.67
10.08
5.32 2.89 9.69 5.18 3.14 8.93 4.84 3.42 8.27 4.58 3.79
30°C
10.84
6.89 2.48
10.47
6.75 2.68
10.10
6.61 2.89 9.72 6.46 3.14 8.95 6.06 3.42 8.29 5.77 3.79
33°C
10.86
8.12 2.49
10.49
7.97 2.68
10.12
7.83 2.89 9.75 7.68 3.14 8.98 7.21 3.42 8.35 6.85 3.79
36°C
10.97
9.20 2.49
10.62
9.02 2.68
10.27
8.83 2.90 9.94 8.61 3.16 9.21 8.05 3.44 8.62 7.60 3.82
Page 95
92
Performance Data
Model: FDYM28CXV1 - RY30DXY1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 3.942 3.942 4.829 4.829 5.125 5.125 8.381 8.381 10.157 10.157 11.045 11.045 11.933 11.933
17°C 3.868 3.868 4.740 4.740 5.030 5.030 8.379 8.379 9.882 9.882 10.738 10.738 11.594 11.594
19°C 3.795 3.795 4.650 4.650 4.935 4.935 8.376 8.376 9.606 9.606 10.430 10.430 11.255 11.255
21°C 3.722 3.722 4.560 4.560 4.839 4.839 8.374 8.374 9.330 9.330 10.123 10.123 10.915 10.915
23°C 3.690 3.690 4.480 4.480 4.744 4.744 7.941 7.941 9.054 9.054 9.815 9.815 10.576 10.576
25°C 3.658 3.658 4.401 4.401 4.648 4.648 7.508 7.508 8.779 8.779 9.508 9.508 10.237 10.237
27°C 3.627 3.627 4.321 4.321 4.553 4.553 7.076 7.076 8.503 8.503 9.200 9.200 9.897 9.897
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 96
93
Performance Data
Model: FDYM30CXV1 - RY28CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710
16°C
21°C
7.74 5.77 2.28 7.47 5.62 2.46 7.19
5.47 2.67 6.90 5.31 2.89 6.34 4.94 3.14 5.85 4.65 3.46
24°C
7.75 6.91 2.28 7.47 6.75 2.46 7.20
6.59 2.67 6.91 6.43 2.89 6.35 6.01 3.14 5.87 5.67 3.46
27°C
7.81 7.81 2.28 7.55 7.55 2.47 7.29
7.29 2.67 7.01 7.01 2.90 6.47 6.47 3.15 6.02 6.02 3.47
30°C
8.05 8.05 2.29 7.82 7.82 2.48 7.58
7.58 2.69 7.34 7.34 2.92 6.80 6.80 3.18 6.36 6.36 3.51
19°C
24°C
8.54 5.39 2.31 8.24 5.25 2.50 7.94
5.11 2.71 7.62 4.97 2.94 7.00 4.63 3.19 6.48 4.36 3.52
27°C
8.54 6.16 2.31 8.24 6.02 2.50 7.94
5.89 2.71 7.63 5.74 2.94 7.01 5.37 3.19 6.48 5.09 3.52
30°C
8.56 7.61 2.31 8.26 7.44 2.51 7.97
7.28 2.72 7.67 7.10 2.95 7.06 6.64 3.20 6.55 6.29 3.53
33°C
8.66 8.66 2.32 8.38 8.38 2.51 8.10
8.10 2.72 7.83 7.83 2.96 7.24 7.24 3.21 6.77 6.77 3.55
22°C
27°C
9.39 5.27 2.36 9.07 5.15 2.55 8.74
5.02 2.77 8.40 4.88 3.00 7.72 4.55 3.25 7.15 4.29 3.59
30°C
9.40 6.43 2.36 9.07 6.29 2.55 8.74
6.15 2.77 8.40 6.00 3.00 7.72 5.62 3.26 7.15 5.33 3.59
33°C
9.40 7.50 2.36 9.07 7.36 2.55 8.74
7.22 2.77 8.40 7.07 3.00 7.73 6.63 3.26 7.17 6.30 3.59
36°C
9.43 8.51 2.36 9.12 8.34 2.56 8.80
8.17 2.77 8.48 7.99 3.01 7.82 7.49 3.26 7.27 7.10 3.60
760
16°C
21°C
8.05 6.01 2.30 7.76 5.86 2.48 7.47
5.70 2.69 7.16 5.54 2.92 6.57 5.16 3.16 6.06 4.86 3.49
24°C
8.08 7.30 2.30 7.78 7.13 2.49 7.49
6.96 2.69 7.19 6.78 2.92 6.61 6.33 3.17 6.11 5.97 3.49
27°C
8.17 8.17 2.30 7.90 7.90 2.49 7.63
7.63 2.70 7.35 7.35 2.93 6.79 6.79 3.18 6.32 6.32 3.51
30°C
8.51 8.51 2.32 8.27 8.27 2.51 8.01
8.01 2.73 7.75 7.75 2.96 7.18 7.18 3.22 6.72 6.72 3.55
19°C
24°C
8.87 5.69 2.34 8.55 5.55 2.53 8.23
5.40 2.74 7.90 5.25 2.97 7.26 4.90 3.22 6.70 4.61 3.55
27°C
8.89 6.55 2.34 8.57 6.41 2.53 8.25
6.26 2.74 7.92 6.12 2.97 7.27 5.72 3.22 6.72 5.41 3.55
30°C
8.93 8.08 2.34 8.62 7.91 2.53 8.31
7.73 2.74 7.99 7.54 2.98 7.36 7.05 3.23 6.83 6.66 3.56
33°C
9.08 9.08 2.35 8.80 8.80 2.54 8.52
8.52 2.76 8.24 8.24 2.99 7.63 7.63 3.25 7.13 7.13 3.59
22°C
27°C
9.75 5.57 2.38 9.40 5.44 2.58 9.05
5.30 2.79 8.69 5.16 3.03 7.99 4.81 3.28 7.39 4.54 3.62
30°C
9.76 6.84 2.38 9.41 6.69 2.58 9.06
6.55 2.79 8.70 6.39 3.03 8.00 5.99 3.29 7.40 5.68 3.62
33°C
9.77 8.01 2.38 9.44 7.86 2.58 9.09
7.70 2.80 8.73 7.53 3.03 8.03 7.07 3.29 7.45 6.71 3.62
36°C
9.84 9.06 2.38 9.52 8.88 2.58 9.19
8.70 2.80 8.85 8.50 3.04 8.17 7.95 3.30 7.61 7.50 3.64
830
16°C
21°C
8.35 6.28 2.32 8.04 6.12 2.50 7.73
5.95 2.71 7.41 5.79 2.94 6.80 5.39 3.19 6.27 5.07 3.51
24°C
8.39 7.63 2.32 8.09 7.44 2.51 7.78
7.26 2.72 7.47 7.07 2.95 6.86 6.60 3.19 6.34 6.22 3.52
27°C
8.53 8.53 2.33 8.25 8.25 2.52 7.97
7.97 2.73 7.68 7.68 2.96 7.10 7.10 3.21 6.62 6.62 3.55
30°C
8.95 8.95 2.35 8.69 8.69 2.54 8.42
8.42 2.76 8.15 8.15 2.99 7.54 7.54 3.25 7.05 7.05 3.59
19°C
24°C
9.19 6.02 2.35 8.86 5.87 2.55 8.52
5.72 2.76 8.17 5.56 2.99 7.50 5.19 3.25 6.92 4.89 3.58
27°C
9.22 6.96 2.36 8.88 6.80 2.55 8.55
6.65 2.76 8.21 6.48 3.00 7.53 6.06 3.25 6.96 5.74 3.58
30°C
9.29 8.57 2.36 8.96 8.38 2.56 8.64
8.19 2.77 8.31 7.99 3.00 7.65 7.46 3.26 7.10 7.03 3.59
33°C
9.49 9.49 2.37 9.22 9.22 2.57 8.93
8.93 2.79 8.64 8.64 3.03 8.00 8.00 3.29 7.48 7.48 3.63
22°C
27°C
10.08
5.89 2.40 9.72 5.76 2.60 9.36
5.61 2.82 8.98 5.47 3.05 8.25 5.10 3.31 7.63 4.82 3.65
30°C
10.10
7.26 2.40 9.74 7.12 2.60 9.38
6.97 2.82 9.00 6.81 3.06 8.27 6.38 3.31 7.65 6.04 3.65
33°C
10.14
8.51 2.40 9.79 8.36 2.60 9.43
8.18 2.82 9.06 8.00 3.06 8.33 7.50 3.32 7.72 7.12 3.66
36°C
10.23
9.61 2.41 9.91 9.43 2.61 9.57
9.22 2.83 9.22 9.00 3.07 8.52 8.39 3.34 7.95 7.90 3.68
900
16°C
21°C
8.35 6.33 2.34 8.05 6.18 2.52 7.76
6.03 2.72 7.45 5.87 2.96 6.85 5.47 3.23 6.32 5.15 3.58
24°C
8.37 7.74 2.34 8.08 7.57 2.52 7.79
7.41 2.73 7.49 7.23 2.96 6.88 6.76 3.23 6.37 6.37 3.59
27°C
8.51 8.51 2.35 8.25 8.25 2.53 7.99
7.99 2.74 7.72 7.72 2.98 7.15 7.15 3.25 6.68 6.68 3.61
30°C
8.97 8.97 2.37 8.72 8.72 2.55 8.47
8.47 2.77 8.21 8.21 3.01 7.61 7.61 3.28 7.12 7.12 3.65
19°C
24°C
9.18 6.07 2.38 8.87 5.92 2.56 8.55
5.78 2.77 8.22 5.63 3.01 7.56 5.26 3.28 7.00 4.97 3.64
27°C
9.21 7.04 2.38 8.89 6.89 2.56 8.57
6.75 2.77 8.24 6.60 3.01 7.58 6.18 3.28 7.02 5.87 3.64
30°C
9.26 8.74 2.38 8.95 8.56 2.57 8.65
8.38 2.78 8.34 8.18 3.02 7.69 7.64 3.29 7.17 7.17 3.65
33°C
9.50 9.50 2.39 9.23 9.23 2.58 8.97
8.97 2.80 8.70 8.70 3.04 8.08 8.08 3.32 7.58 7.58 3.69
22°C
27°C
10.09
5.95 2.42 9.75 5.81 2.61 9.41
5.68 2.82 9.05 5.54 3.06 8.33 5.18 3.33 7.72 4.90 3.70
30°C
10.12
7.36 2.42 9.77 7.21 2.61 9.42
7.06 2.82 9.07 6.91 3.07 8.35 6.48 3.34 7.74 6.16 3.70
33°C
10.14
8.67 2.43 9.79 8.52 2.61 9.45
8.37 2.83 9.10 8.20 3.07 8.38 7.71 3.34 7.79 7.32 3.70
36°C
10.24
9.83 2.43 9.91 9.63 2.62 9.59
9.43 2.84 9.28 9.20 3.08 8.59 8.59 3.35 8.04 8.04 3.73
Page 97
94
Performance Data
Model: FDYM30CXV1 - RY28CXV1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 3.859 3.859 4.849 4.849 5.179 5.179 8.810 8.810 10.791 10.791 11.781 11.781 12.772 12.772
17°C 3.757 3.757 4.749 4.749 5.080 5.080 8.572 8.572 10.497 10.497 11.453 11.453 12.408 12.408
19°C 3.656 3.656 4.650 4.650 4.981 4.981 8.333 8.333 10.202 10.202 11.124 11.124 12.045 12.045
21°C 3.554 3.554 4.550 4.550 4.882 4.882 8.095 8.095 9.908 9.908 10.795 10.795 11.682 11.682
23°C 3.552 3.552 4.475 4.475 4.782 4.782 7.883 7.883 9.614 9.614 10.466 10.466 11.319 11.319
25°C 3.549 3.549 4.400 4.400 4.683 4.683 7.671 7.671 9.319 9.319 10.137 10.137 10.955 10.955
27°C 3.547 3.547 4.325 4.325 4.584 4.584 7.459 7.459 9.025 9.025 9.808 9.808 10.592 10.592
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 98
95
Performance Data
Model: FDYB30CXV1 - RY28CXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
740
16°C
21°C 7.74 5.77 2.37 7.47 5.62 2.57 7.19 5.47 2.78 6.90 5.31 3.01 6.34 4.94 3.27 5.85 4.65 3.61
24°C 7.75 6.91 2.37 7.47 6.75 2.57 7.20 6.59 2.78 6.91 6.43 3.02 6.35 6.01 3.27 5.87 5.67 3.61
27°C 7.81 7.81 2.38 7.55 7.55 2.57 7.29 7.29 2.79 7.01 7.01 3.02 6.47 6.47 3.28 6.02 6.02 3.62
30°C 8.05 8.05 2.39 7.82 7.82 2.59 7.58 7.58 2.81 7.34 7.34 3.05 6.80 6.80 3.31 6.36 6.36 3.66
19°C
24°C 8.54 5.39 2.41 8.24 5.25 2.61 7.94 5.11 2.83 7.62 4.97 3.07 7.00 4.63 3.33 6.48 4.36 3.67
27°C 8.54 6.16 2.41 8.24 6.02 2.61 7.94 5.89 2.83 7.63 5.74 3.07 7.01 5.37 3.33 6.48 5.09 3.67
30°C 8.56 7.61 2.41 8.26 7.44 2.61 7.97 7.28 2.83 7.67 7.10 3.07 7.06 6.64 3.33 6.55 6.29 3.67
33°C 8.66 8.66 2.42 8.38 8.38 2.62 8.10 8.10 2.84 7.83 7.83 3.08 7.24 7.24 3.35 6.77 6.77 3.70
22°C
27°C 9.39 5.27 2.46 9.07 5.15 2.66 8.74 5.02 2.88 8.40 4.88 3.13 7.72 4.55 3.39 7.15 4.29 3.74
30°C 9.40 6.43 2.46 9.07 6.29 2.66 8.74 6.15 2.88 8.40 6.00 3.13 7.72 5.62 3.39 7.15 5.33 3.74
33°C 9.40 7.50 2.46 9.07 7.36 2.66 8.74 7.22 2.88 8.40 7.07 3.13 7.73 6.63 3.39 7.17 6.30 3.74
36°C 9.43 8.51 2.46 9.12 8.34 2.66 8.80 8.17 2.89 8.48 7.99 3.13 7.82 7.49 3.40 7.27 7.10 3.75
790
16°C
21°C 8.05 6.01 2.40 7.76 5.86 2.59 7.47 5.70 2.80 7.16 5.54 3.04 6.57 5.16 3.30 6.06 4.86 3.64
24°C 8.08 7.30 2.40 7.78 7.13 2.59 7.49 6.96 2.81 7.19 6.78 3.04 6.61 6.33 3.30 6.11 5.97 3.64
27°C 8.17 8.17 2.40 7.90 7.90 2.60 7.63 7.63 2.82 7.35 7.35 3.06 6.79 6.79 3.32 6.32 6.32 3.66
30°C 8.51 8.51 2.42 8.27 8.27 2.62 8.01 8.01 2.84 7.75 7.75 3.08 7.18 7.18 3.35 6.72 6.72 3.70
19°C
24°C 8.87 5.69 2.43 8.55 5.55 2.63 8.23 5.40 2.85 7.90 5.25 3.10 7.26 4.90 3.36 6.70 4.61 3.70
27°C 8.89 6.55 2.43 8.57 6.41 2.64 8.25 6.26 2.86 7.92 6.12 3.10 7.27 5.72 3.36 6.72 5.41 3.70
30°C 8.93 8.08 2.44 8.62 7.91 2.64 8.31 7.73 2.86 7.99 7.54 3.10 7.36 7.05 3.37 6.83 6.66 3.71
33°C 9.08 9.08 2.45 8.80 8.80 2.65 8.52 8.52 2.87 8.24 8.24 3.12 7.63 7.63 3.39 7.13 7.13 3.74
22°C
27°C 9.75 5.57 2.48 9.40 5.44 2.69 9.05 5.30 2.91 8.69 5.16 3.16 7.99 4.81 3.42 7.39 4.54 3.77
30°C 9.76 6.84 2.48 9.41 6.69 2.69 9.06 6.55 2.91 8.70 6.39 3.16 8.00 5.99 3.42 7.40 5.68 3.77
33°C 9.77 8.01 2.48 9.44 7.86 2.69 9.09 7.70 2.91 8.73 7.53 3.16 8.03 7.07 3.43 7.45 6.71 3.78
36°C 9.84 9.06 2.48 9.52 8.88 2.69 9.19 8.70 2.92 8.85 8.50 3.17 8.17 7.95 3.44 7.61 7.50 3.80
880
16°C
21°C 8.35 6.28 2.41 8.04 6.12 2.61 7.73 5.95 2.83 7.41 5.79 3.07 6.80 5.39 3.32 6.27 5.07 3.66
24°C 8.39 7.63 2.42 8.09 7.44 2.61 7.78 7.26 2.83 7.47 7.07 3.07 6.86 6.60 3.33 6.34 6.22 3.67
27°C 8.53 8.53 2.42 8.25 8.25 2.62 7.97 7.97 2.84 7.68 7.68 3.09 7.10 7.10 3.35 6.62 6.62 3.70
30°C 8.95 8.95 2.45 8.69 8.69 2.65 8.42 8.42 2.87 8.15 8.15 3.12 7.54 7.54 3.39 7.05 7.05 3.74
19°C
24°C 9.19 6.02 2.45 8.86 5.87 2.66 8.52 5.72 2.88 8.17 5.56 3.12 7.50 5.19 3.38 6.92 4.89 3.73
27°C 9.22 6.96 2.46 8.88 6.80 2.66 8.55 6.65 2.88 8.21 6.48 3.12 7.53 6.06 3.39 6.96 5.74 3.73
30°C 9.29 8.57 2.46 8.96 8.38 2.66 8.64 8.19 2.89 8.31 7.99 3.13 7.65 7.46 3.40 7.10 7.03 3.75
33°C 9.49 9.49 2.47 9.22 9.22 2.68 8.93 8.93 2.91 8.64 8.64 3.16 8.00 8.00 3.43 7.48 7.48 3.79
22°C
27°C
10.08
5.89 2.50 9.72 5.76 2.71 9.36 5.61 2.94 8.98 5.47 3.18 8.25 5.10 3.45 7.63 4.82 3.80
30°C
10.10
7.26 2.50 9.74 7.12 2.71 9.38 6.97 2.94 9.00 6.81 3.19 8.27 6.38 3.45 7.65 6.04 3.80
33°C
10.14
8.51 2.50 9.79 8.36 2.71 9.43 8.18 2.94 9.06 8.00 3.19 8.33 7.50 3.46 7.72 7.12 3.81
36°C
10.23
9.61 2.51 9.91 9.43 2.72 9.57 9.22 2.95 9.22 9.00 3.20 8.52 8.39 3.48 7.95 7.90 3.84
940
16°C
21°C 8.35 6.33 2.44 8.05 6.18 2.62 7.76 6.03 2.84 7.45 5.87 3.08 6.85 5.47 3.36 6.32 5.15 3.74
24°C 8.37 7.74 2.44 8.08 7.57 2.63 7.79 7.41 2.84 7.49 7.23 3.09 6.88 6.76 3.36 6.37 6.37 3.74
27°C 8.51 8.51 2.45 8.25 8.25 2.64 7.99 7.99 2.85 7.72 7.72 3.10 7.15 7.15 3.38 6.68 6.68 3.76
30°C 8.97 8.97 2.47 8.72 8.72 2.66 8.47 8.47 2.88 8.21 8.21 3.13 7.61 7.61 3.42 7.12 7.12 3.80
19°C
24°C 9.18 6.07 2.48 8.87 5.92 2.67 8.55 5.78 2.89 8.22 5.63 3.14 7.56 5.26 3.41 7.00 4.97 3.79
27°C 9.21 7.04 2.48 8.89 6.89 2.67 8.57 6.75 2.89 8.24 6.60 3.14 7.58 6.18 3.42 7.02 5.87 3.79
30°C 9.26 8.74 2.48 8.95 8.56 2.67 8.65 8.38 2.89 8.34 8.18 3.14 7.69 7.64 3.42 7.17 7.17 3.81
33°C 9.50 9.50 2.50 9.23 9.23 2.69 8.97 8.97 2.91 8.70 8.70 3.17 8.08 8.08 3.46 7.58 7.58 3.84
22°C
27°C
10.09
5.95 2.53 9.75 5.81 2.72 9.41 5.68 2.94 9.05 5.54 3.19 8.33 5.18 3.48 7.72 4.90 3.85
30°C
10.12
7.36 2.53 9.77 7.21 2.72 9.42 7.06 2.94 9.07 6.91 3.20 8.35 6.48 3.48 7.74 6.16 3.86
33°C
10.14
8.67 2.53 9.79 8.52 2.72 9.45 8.37 2.95 9.10 8.20 3.20 8.38 7.71 3.48 7.79 7.32 3.86
36°C
10.24
9.83 2.53 9.91 9.63 2.73 9.59 9.43 2.96 9.28 9.20 3.21 8.59 8.59 3.50 8.04 8.04 3.88
Page 99
96
Performance Data
Model: FDYB30CXV1 - RY28CXV1
Heating Mode
ID DB
Outdoor WB
-9°C -6°C -5°C 6°C 12°C 15°C 18°C
TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW) TC (kW) SC (kW)
15°C 3.859 3.859 4.849 4.849 5.179 5.179 8.810 8.810 10.791 10.791 11.781 11.781 12.772 12.772
17°C 3.757 3.757 4.749 4.749 5.080 5.080 8.572 8.572 10.497 10.497 11.453 11.453 12.408 12.408
19°C 3.656 3.656 4.650 4.650 4.981 4.981 8.333 8.333 10.202 10.202 11.124 11.124 12.045 12.045
21°C 3.554 3.554 4.550 4.550 4.882 4.882 8.095 8.095 9.908 9.908 10.795 10.795 11.682 11.682
23°C 3.552 3.552 4.475 4.475 4.782 4.782 7.883 7.883 9.614 9.614 10.466 10.466 11.319 11.319
25°C 3.549 3.549 4.400 4.400 4.683 4.683 7.671 7.671 9.319 9.319 10.137 10.137 10.955 10.955
27°C 3.547 3.547 4.325 4.325 4.584 4.584 7.459 7.459 9.025 9.025 9.808 9.808 10.592 10.592
Frost Region
Remark:
AFR: Air fl ow rate (CFM)
EWB: Entering Wet Bulb Temp. (°C)
EDB: Entering Dry Bulb Temp. (°C)
TC: Total Cooling / Heating Capacity (kW)
SC: Sensible Cooling / Heating Capacity (kW)
PI: Power Input (kW)
Notes:
1. Ratings shown are net capacities.
2. shows nominal capacities.
3. Direct interpolation is permissible. Do not extrapolate.
4. Unit is able to operate at ambient from 19°C to 46°C DB (cooling) / -9°C to 18°C WB (heating) without pressure trip.
Page 100
97
Performance Data
Model: FDYM30CXV1 - RY30DXV1 / FDYB30CXV1 - RY30DXV1
Cooling Mode
AFR
(CFM)
EWB EDB
Outdoor temperature
19°C 25°C 30°C 35°C 40°C 46°C
TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI TC SC PI
710 /
740
16°C
21°C 8.29 6.18 2.39 8.00 6.02 2.58 7.70 5.86 2.80 7.39 5.69 3.04 6.79 5.30 3.29 6.27 4.98 3.63
24°C 8.30 7.40 2.39 8.01 7.23 2.59 7.71 7.06 2.80 7.40 6.89 3.04 6.80 6.43 3.29 6.29 6.07 3.63
27°C 8.37 8.37 2.39 8.09 8.09 2.59 7.81 7.81 2.81 7.51 7.51 3.04 6.93 6.93 3.30 6.45 6.45 3.65
30°C 8.63 8.63 2.41 8.38 8.38 2.60 8.12 8.12 2.82 7.86 7.86 3.07 7.29 7.29 3.33 6.82 6.82 3.68
19°C
24°C 9.15 5.77 2.43 8.83 5.63 2.63 8.50 5.48 2.85 8.17 5.32 3.09 7.50 4.96 3.35 6.94 4.67 3.69
27°C 9.15 6.60 2.43 8.83 6.45 2.63 8.51 6.31 2.85 8.17 6.15 3.09 7.51 5.76 3.35 6.95 5.45 3.69
30°C 9.17 8.15 2.43 8.85 7.98 2.63 8.54 7.80 2.85 8.21 7.61 3.09 7.56 7.12 3.36 7.02 6.74 3.70
33°C 9.28 9.28 2.43 8.97 8.97 2.64 8.68 8.68 2.86 8.39 8.39 3.10 7.76 7.76 3.37 7.25 7.25 3.72
22°C
27°C
10.06
5.65 2.47 9.71 5.51 2.68 9.36 5.37 2.90 8.99 5.23 3.15 8.27 4.87 3.42 7.66 4.59 3.76
30°C
10.07
6.88 2.47 9.72 6.74 2.68 9.36 6.58 2.90 9.00 6.43 3.15 8.27 6.02 3.42 7.66 5.71 3.76
33°C
10.07
8.04 2.47 9.72 7.89 2.68 9.37 7.73 2.90 9.00 7.57 3.15 8.28 7.11 3.42 7.68 6.75 3.77
36°C
10.10
9.12 2.47 9.77 8.93 2.68 9.43 8.75 2.91 9.09 8.56 3.16 8.38 8.02 3.42 7.79 7.61 3.78
760 /
790
16°C
21°C 8.63 6.44 2.41 8.31 6.28 2.61 8.00 6.11 2.82 7.67 5.94 3.06 7.04 5.53 3.32 6.49 5.20 3.66
24°C 8.65 7.82 2.41 8.34 7.64 2.61 8.03 7.46 2.83 7.70 7.27 3.06 7.08 6.78 3.32 6.54 6.40 3.66
27°C 8.76 8.76 2.42 8.46 8.46 2.62 8.17 8.17 2.83 7.88 7.88 3.08 7.27 7.27 3.34 6.77 6.77 3.69
30°C 9.12 9.12 2.43 8.86 8.86 2.64 8.59 8.59 2.86 8.31 8.31 3.11 7.70 7.70 3.37 7.20 7.20 3.72
19°C
24°C 9.50 6.10 2.45 9.16 5.94 2.65 8.82 5.79 2.87 8.47 5.63 3.12 7.77 5.25 3.38 7.18 4.94 3.72
27°C 9.52 7.02 2.45 9.18 6.87 2.65 8.84 6.71 2.87 8.48 6.55 3.12 7.79 6.13 3.38 7.20 5.80 3.73
30°C 9.57 8.66 2.45 9.23 8.47 2.66 8.90 8.29 2.88 8.56 8.08 3.12 7.88 7.56 3.39 7.31 7.14 3.74
33°C 9.72 9.72 2.46 9.43 9.43 2.67 9.13 9.13 2.89 8.82 8.82 3.14 8.17 8.17 3.41 7.64 7.64 3.77
22°C
27°C
10.44
5.97 2.50
10.07
5.83 2.70 9.70 5.68 2.93 9.31 5.53 3.18 8.56 5.16 3.45 7.92 4.86 3.80
30°C
10.45
7.32 2.50
10.09
7.17 2.70 9.71 7.01 2.93 9.32 6.85 3.18 8.57 6.41 3.45 7.93 6.09 3.80
33°C
10.47
8.58 2.50
10.11
8.42 2.71 9.74 8.25 2.93 9.35 8.07 3.18 8.61 7.57 3.45 7.98 7.19 3.80
36°C
10.54
9.70 2.50
10.20
9.52 2.71 9.84 9.32 2.94 9.48 9.10 3.19 8.75 8.52 3.46 8.16 8.04 3.82
830 /
880
16°C
21°C 8.94 6.72 2.43 8.62 6.55 2.63 8.29 6.38 2.85 7.94 6.20 3.09 7.28 5.78 3.35 6.72 5.44 3.69
24°C 8.99 8.17 2.43 8.66 7.98 2.63 8.34 7.78 2.85 8.00 7.58 3.09 7.35 7.07 3.35 6.79 6.67 3.69
27°C 9.14 9.14 2.44 8.84 8.84 2.64 8.54 8.54 2.86 8.23 8.23 3.11 7.61 7.61 3.37 7.09 7.09 3.72
30°C 9.59 9.59 2.46 9.31 9.31 2.67 9.03 9.03 2.89 8.73 8.73 3.14 8.08 8.08 3.41 7.55 7.55 3.77
19°C
24°C 9.84 6.45 2.47 9.49 6.29 2.67 9.13 6.13 2.90 8.76 5.96 3.14 8.04 5.56 3.41 7.42 5.24 3.75
27°C 9.87 7.46 2.47 9.52 7.29 2.68 9.16 7.12 2.90 8.79 6.95 3.15 8.07 6.50 3.41 7.46 6.15 3.76
30°C 9.96 9.18 2.48 9.60 8.98 2.68 9.26 8.78 2.91 8.90 8.56 3.15 8.20 7.99 3.42 7.61 7.53 3.77
33°C
10.17 10.17
2.49 9.87 9.87 2.70 9.57 9.57 2.93 9.25 9.25 3.18 8.57 8.57 3.45 8.02 8.02 3.81
22°C
27°C
10.80
6.31 2.52
10.42
6.17 2.73
10.03
6.02 2.96 9.62 5.86 3.20 8.84 5.47 3.48 8.17 5.16 3.83
30°C
10.83
7.78 2.52
10.44
7.63 2.73
10.05
7.46 2.96 9.64 7.29 3.21 8.86 6.83 3.48 8.19 6.48 3.83
33°C
10.86
9.11 2.52
10.49
8.96 2.73
10.10
8.77 2.96 9.70 8.57 3.21 8.93 8.04 3.48 8.27 7.63 3.84
36°C
10.96 10.29
2.53
10.62 10.10
2.74
10.25
9.88 2.97 9.88 9.64 3.23 9.13 8.99 3.50 8.52 8.46 3.86
900 /
940
16°C
21°C 8.94 6.78 2.45 8.63 6.62 2.64 8.31 6.46 2.86 7.99 6.28 3.11 7.34 5.86 3.38 6.78 5.52 3.76
24°C 8.97 8.29 2.46 8.65 8.11 2.64 8.34 7.94 2.86 8.02 7.75 3.11 7.37 7.25 3.39 6.83 6.83 3.76
27°C 9.12 9.12 2.46 8.84 8.84 2.65 8.56 8.56 2.87 8.27 8.27 3.12 7.66 7.66 3.41 7.16 7.16 3.79
30°C 9.61 9.61 2.49 9.34 9.34 2.68 9.07 9.07 2.90 8.79 8.79 3.16 8.16 8.16 3.44 7.63 7.63 3.83
19°C
24°C 9.84 6.50 2.50 9.50 6.35 2.69 9.16 6.20 2.91 8.81 6.04 3.16 8.10 5.64 3.44 7.49 5.33 3.82
27°C 9.87 7.54 2.50 9.52 7.38 2.69 9.19 7.23 2.91 8.83 7.07 3.16 8.12 6.63 3.44 7.52 6.29 3.82
30°C 9.92 9.37 2.50 9.59 9.17 2.69 9.26 8.97 2.91 8.93 8.76 3.16 8.24 8.19 3.45 7.68 7.68 3.83
33°C
10.18 10.18
2.51 9.89 9.89 2.71 9.61 9.61 2.93 9.32 9.32 3.19 8.66 8.66 3.48 8.12 8.12 3.87
22°C
27°C
10.82
6.38 2.54
10.44
6.23 2.74
10.08
6.09 2.96 9.70 5.94 3.21 8.93 5.55 3.50 8.27 5.25 3.88
30°C
10.84
7.89 2.54
10.47
7.73 2.74
10.10
7.57 2.96 9.72 7.40 3.22 8.95 6.94 3.50 8.29 6.60 3.88
33°C
10.86
9.29 2.55
10.49
9.13 2.74
10.12
8.97 2.97 9.75 8.79 3.22 8.98 8.26 3.50 8.35 7.85 3.89
36°C
10.97 10.53
2.55
10.62 10.32
2.75
10.28 10.11
2.98 9.94 9.86 3.23 9.21 9.21 3.52 8.62 8.62 3.91
Loading...
