Installer reference guide

R32 Split series

2MXM68N2V1B

3MXM40N2V1B9 3MXM40N2V1B8 3MXM52N2V1B9 3MXM52N2V1B8 3MXM68N2V1B9 3AMXM52N2V1B9

4MXM68N2V1B9 4MXM80N2V1B9

5MXM90N2V1B9 3AMXF52A2V1B9

3MXF52A2V1B9 3MXF68A2V1B9

Table of contents

1 About the documentation 4

1.1 About this document ...................................................................................................................................................... 4

2 General safety precautions 5

2.1 About the documentation .............................................................................................................................................. 5

2.1.1 Meaning of warnings and symbols ................................................................................................................ 5

2.2 For the installer............................................................................................................................................................... 6

2.2.1 General ........................................................................................................................................................... 6

2.2.2 Installation site ............................................................................................................................................... 7

2.2.3 Refrigerant — in case of R410A or R32.......................................................................................................... 11

2.2.4 Brine................................................................................................................................................................ 12

2.2.5 Water .............................................................................................................................................................. 13

2.2.6 Electrical ......................................................................................................................................................... 13

3 Specific installer safety instructions 16

4 About the box 21

4.1 Overview: About the box ................................................................................................................................................ 21

4.2 Outdoor unit ................................................................................................................................................................... 21

4.2.1 To unpack the outdoor unit ........................................................................................................................... 21

4.2.2 To remove the accessories from the outdoor unit........................................................................................ 22

5 About the unit 24

5.1 Overview: About the unit ............................................................................................................................................... 24

5.2 Identification ................................................................................................................................................................... 24

5.2.1 Identification label: Outdoor unit .................................................................................................................. 24

6 Unit installation 25

6.1 Preparing the installation site......................................................................................................................................... 25

6.1.1 Installation site requirements of the outdoor unit........................................................................................ 26

6.1.2 Additional installation site requirements of the outdoor unit in cold climates............................................ 28

6.2 Opening the unit ............................................................................................................................................................. 29

6.2.1 About opening the unit .................................................................................................................................. 29

6.2.2 To open the outdoor unit ............................................................................................................................... 29

6.3 Mounting the outdoor unit............................................................................................................................................. 29

6.3.1 About mounting the outdoor unit ................................................................................................................. 29

6.3.2 Precautions when mounting the outdoor unit .............................................................................................. 30

6.3.3 To provide the installation structure ............................................................................................................. 30

6.3.4 To install the outdoor unit ............................................................................................................................. 31

6.3.5 To provide drainage........................................................................................................................................ 31

6.3.6 To prevent the outdoor unit from falling over .............................................................................................. 32

7 Piping installation 33

7.1 Preparing refrigerant piping ........................................................................................................................................... 33

7.1.1 Refrigerant piping requirements.................................................................................................................... 33

7.1.2 Refrigerant piping insulation .......................................................................................................................... 34

7.1.3 Refrigerant piping length and height difference ........................................................................................... 35

7.2 Connecting the refrigerant piping .................................................................................................................................. 36

7.2.1 About connecting the refrigerant piping ....................................................................................................... 36

7.2.2 Precautions when connecting the refrigerant piping .................................................................................... 36

7.2.3 Guidelines when connecting the refrigerant piping ...................................................................................... 38

7.2.4 Pipe bending guidelines ................................................................................................................................. 38

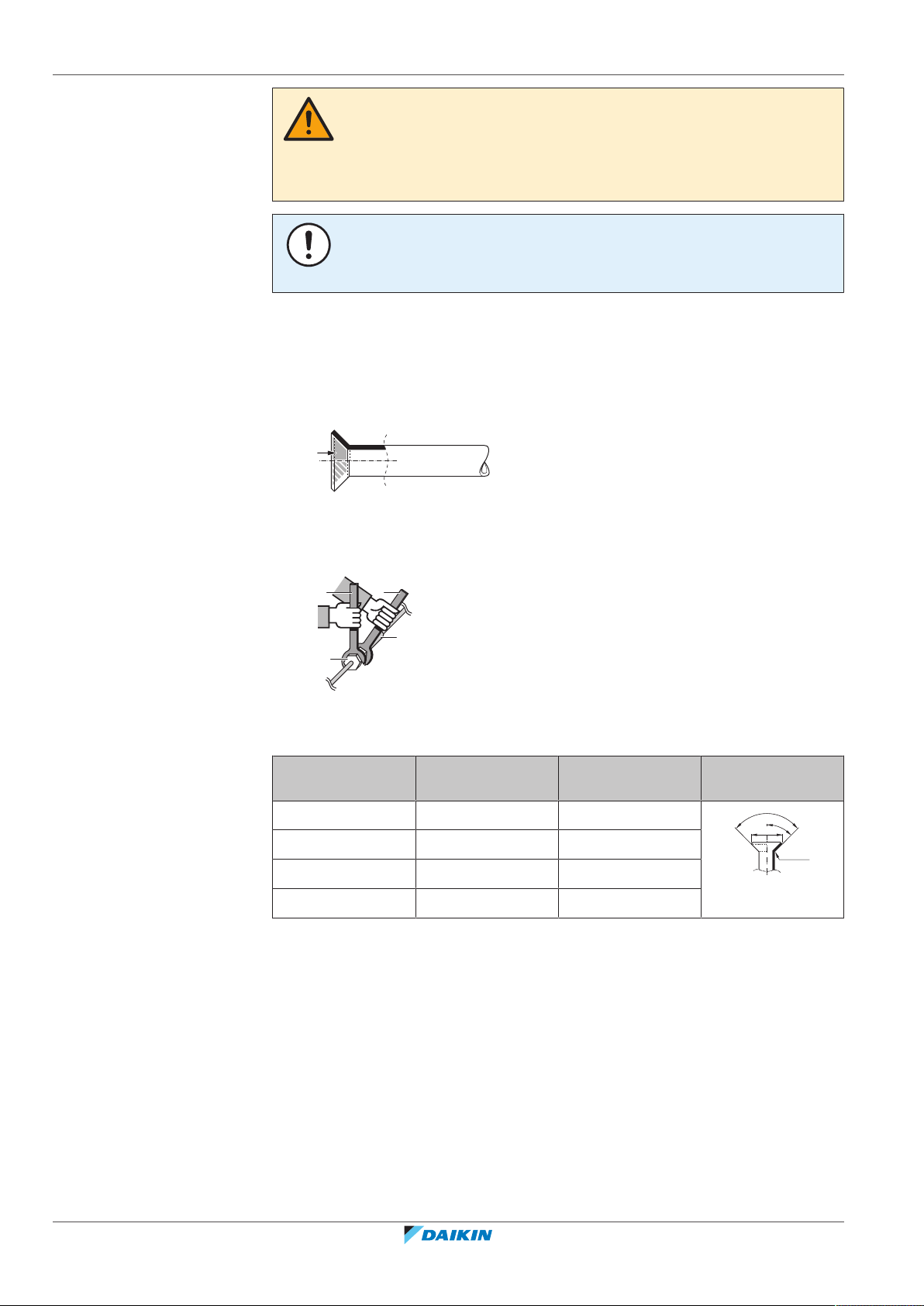

7.2.5 To flare the pipe end ...................................................................................................................................... 39

7.2.6 Connections between outdoor and indoor unit using reducers ................................................................... 39

7.2.7 Using the stop valve and service port ............................................................................................................ 42

7.2.8 To connect the refrigerant piping to the outdoor unit ................................................................................. 43

7.3 Checking the refrigerant piping...................................................................................................................................... 44

7.3.1 About checking the refrigerant piping ........................................................................................................... 44

7.3.2 Precautions when checking the refrigerant piping........................................................................................ 44

7.3.3 To check for leaks ........................................................................................................................................... 45

7.3.4 To perform vacuum drying............................................................................................................................. 45

Installer reference guide

8 Charging refrigerant 47

8.1 About charging refrigerant ............................................................................................................................................. 47

8.2 About the refrigerant...................................................................................................................................................... 48

8.3 Precautions when charging refrigerant.......................................................................................................................... 49

8.4 To determine the additional refrigerant amount .......................................................................................................... 49

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

Table of contents

8.5 To determine the complete recharge amount .............................................................................................................. 49

8.6 To charge additional refrigerant..................................................................................................................................... 50

8.7 To fix the fluorinated greenhouse gases label ............................................................................................................... 50

9 Electrical installation 51

9.1 About connecting the electrical wiring .......................................................................................................................... 51

9.1.1 Precautions when connecting the electrical wiring....................................................................................... 51

9.1.2 Guidelines when connecting the electrical wiring......................................................................................... 53

9.1.3 Specifications of standard wiring components.............................................................................................. 54

9.2 To connect the electrical wiring to the outdoor unit..................................................................................................... 55

10 Finishing the outdoor unit installation 57

10.1 To finish the outdoor unit installation............................................................................................................................ 57

10.2 To close the outdoor unit ............................................................................................................................................... 57

11 Configuration 58

11.1 About standby electricity saving function ...................................................................................................................... 58

11.1.1 To turn on standby electricity saving function .............................................................................................. 58

11.2 About priority room function ......................................................................................................................................... 59

11.2.1 To set the priority room function................................................................................................................... 59

11.3 About night quiet mode.................................................................................................................................................. 59

11.3.1 To turn on the night quiet mode.................................................................................................................... 59

11.4 About heat mode lock .................................................................................................................................................... 60

11.4.1 To turn on heat mode lock............................................................................................................................. 60

11.5 About cool mode lock ..................................................................................................................................................... 60

11.5.1 To turn on cool mode lock ............................................................................................................................. 60

12 Commissioning 62

12.1 Overview: Commissioning .............................................................................................................................................. 62

12.2 Precautions when commissioning .................................................................................................................................. 62

12.3 Checklist before commissioning ..................................................................................................................................... 62

12.4 Checklist during commissioning ..................................................................................................................................... 63

12.5 Trial operation and testing ............................................................................................................................................. 63

12.5.1 About wiring error check................................................................................................................................ 64

12.5.2 To perform a test run ..................................................................................................................................... 65

12.6 Starting up the outdoor unit........................................................................................................................................... 65

13 Hand-over to the user 66

14 Maintenance and service 67

14.1 Overview: Maintenance and service .............................................................................................................................. 67

14.2 Maintenance safety precautions .................................................................................................................................... 67

14.3 Checklist for yearly maintenance of the outdoor unit ................................................................................................... 67

14.4 About the compressor .................................................................................................................................................... 68

15 Troubleshooting 69

15.1 Overview: Troubleshooting ............................................................................................................................................ 69

15.2 Precautions when troubleshooting ................................................................................................................................ 69

15.3 Solving problems based on symptoms ........................................................................................................................... 69

15.3.1 Symptom: Indoor units fall, vibrate or make noise ....................................................................................... 69

15.3.2 Symptom: The unit is NOT heating or cooling as expected........................................................................... 70

15.3.3 Symptom: Water leakage............................................................................................................................... 70

15.3.4 Symptom: Electrical leakage .......................................................................................................................... 70

15.3.5 Symptom: Priority room setting does NOT function ..................................................................................... 70

15.3.6 Symptom: Unit does NOT function or burn damage..................................................................................... 70

15.4 Solving problems based on LED behaviour .................................................................................................................... 71

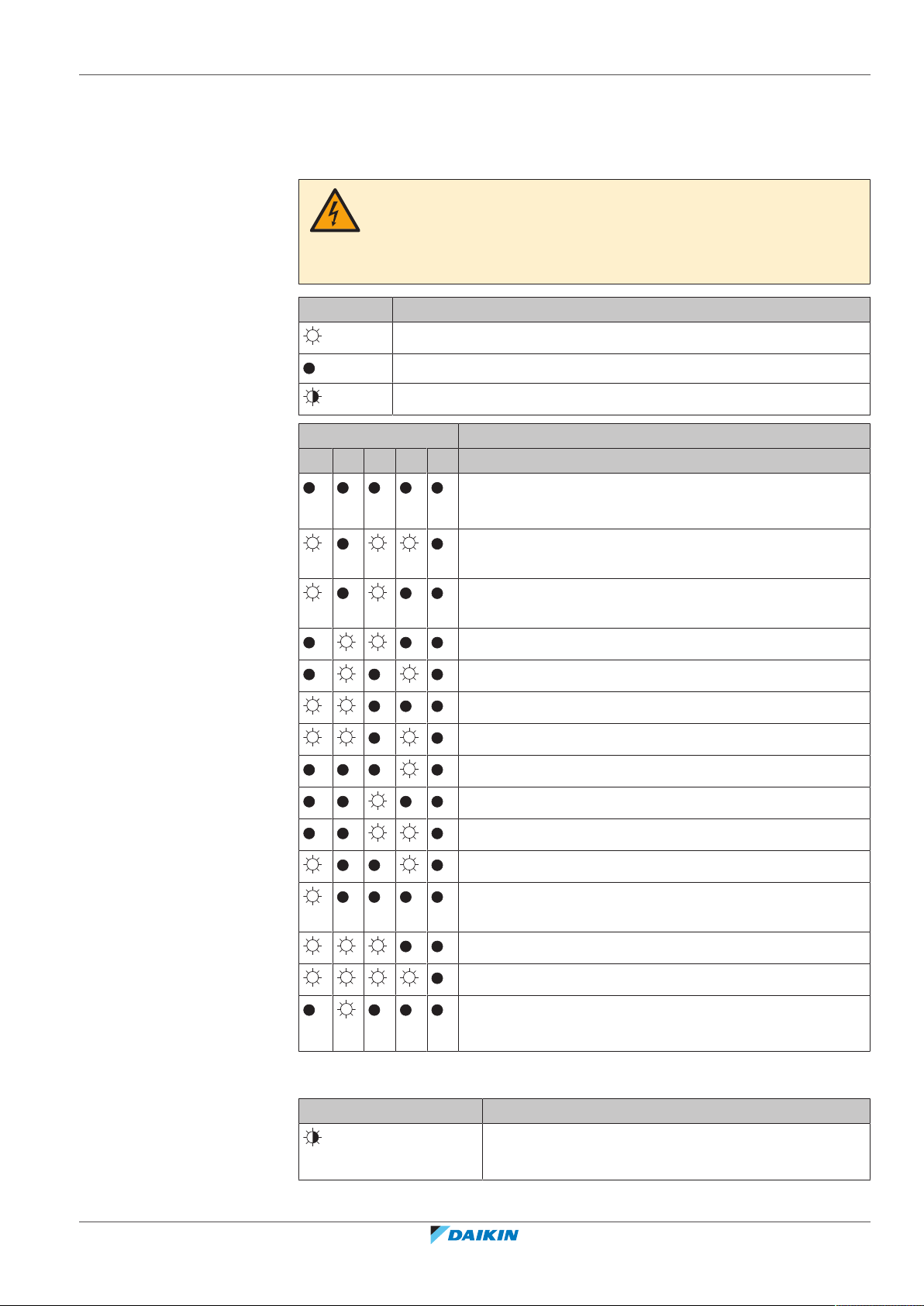

15.4.1 Fault diagnosis using LED on outdoor unit PCB ............................................................................................. 71

16 Disposal 73

16.1 Overview: Disposal.......................................................................................................................................................... 73

16.2 To pump down ................................................................................................................................................................ 73

16.3 To start and stop forced cooling..................................................................................................................................... 74

17 Technical data 76

17.1 Wiring diagram................................................................................................................................................................ 76

17.1.1 Unified wiring diagram legend....................................................................................................................... 76

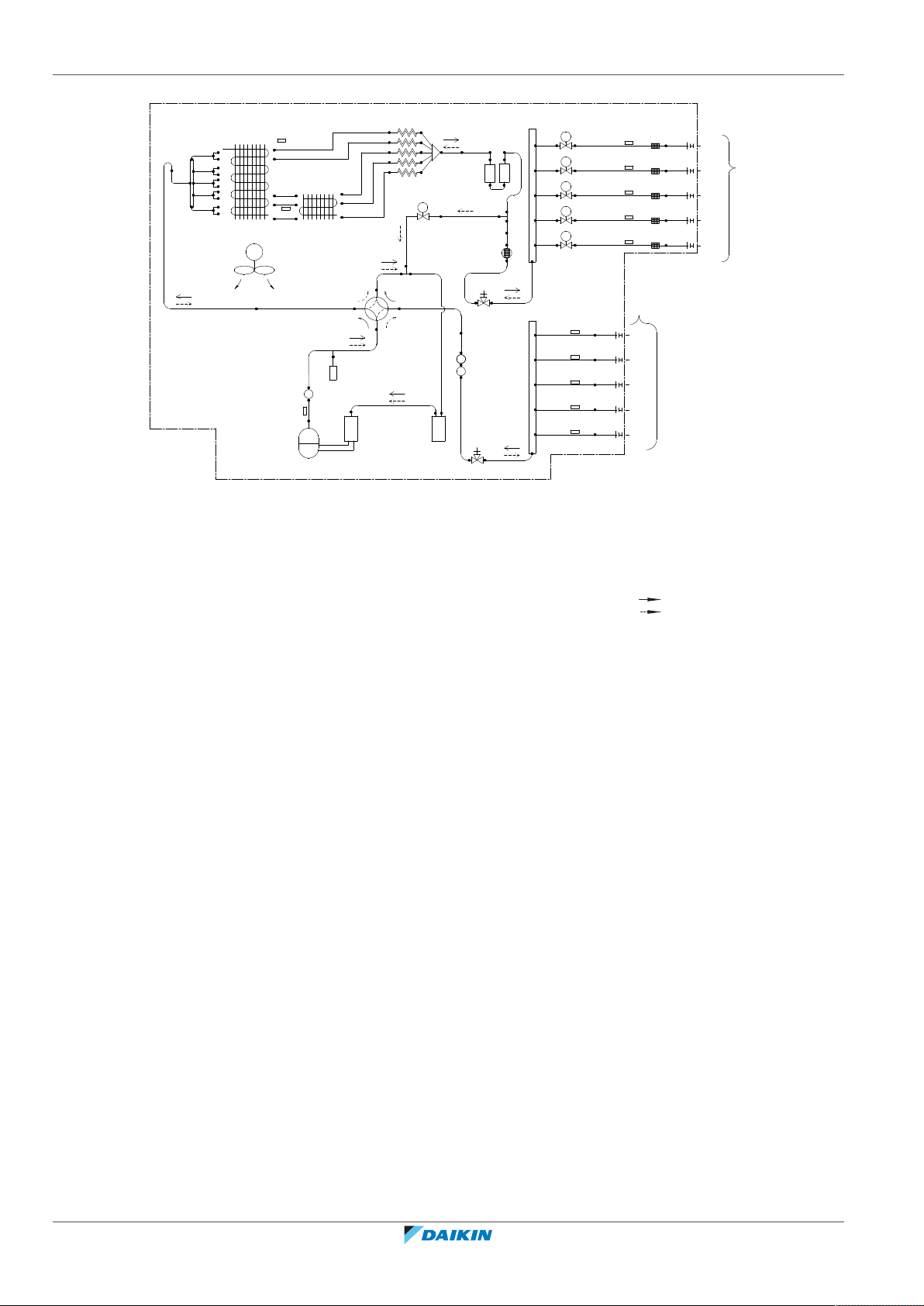

17.2 Piping diagram: Outdoor unit ......................................................................................................................................... 78

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

18 Glossary 83

Installer reference guide

1 | About the documentation

1 About the documentation

1.1 About this document

Target audience

Authorised installers

INFORMATION

This appliance is intended to be used by expert or trained users in shops, in light industry, and on farms, or for commercial and household use by lay persons.

WARNING

Make sure installation, servicing, maintenance, repair and applied materials follow the instructions from Daikin and, in addition, comply with applicable legislation and are performed by qualified persons only. In Europe and areas where IEC standards apply, EN/IEC 60335-2-40 is the applicable standard.

INFORMATION

This document only describes installation instructions specific to the outdoor unit. For installation of the indoor unit (mounting the indoor unit, connecting the refrigerant piping to the indoor unit, connecting the electrical wiring to the indoor unit …), see the installation manual of the indoor unit.

Documentation set

This document is part of a documentation set. The complete set consists of:

▪ General safety precautions:

- Safety instructions that you MUST read before installing

- Format: Paper (in the box of the outdoor unit)

▪ Outdoor unit installation manual:

- Installation instructions

- Format: Paper (in the box of the outdoor unit)

▪ Installer reference guide:

- Preparation of the installation, reference data,…

- Format: Digital files on http://www.daikineurope.com/support-and-manuals/

product-information/

Latest revisions of the supplied documentation may be available on the regional Daikin website or via your dealer.

Installer reference guide

The original documentation is written in English. All other languages are translations.

Technical engineering data

▪ A subset of the latest technical data is available on the regional Daikin website

(publicly accessible).

▪ The full set of latest technical data is available on the Daikin Business Portal

(authentication required).

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

2 General safety precautions

2.1 About the documentation

▪ The original documentation is written in English. All other languages are

translations.

▪ The precautions described in this document cover very important topics, follow

them carefully.

▪ The installation of the system, and all activities described in the installation

manual and in the installer reference guide MUST be performed by an authorised installer.

2.1.1 Meaning of warnings and symbols

DANGER

Indicates a situation that results in death or serious injury.

2 | General safety precautions

DANGER: RISK OF ELECTROCUTION

Indicates a situation that could result in electrocution.

DANGER: RISK OF BURNING/SCALDING

Indicates a situation that could result in burning/scalding because of extreme hot or cold temperatures.

DANGER: RISK OF EXPLOSION

Indicates a situation that could result in explosion.

WARNING

Indicates a situation that could result in death or serious injury.

WARNING: FLAMMABLE MATERIAL

CAUTION

Indicates a situation that could result in minor or moderate injury.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

NOTICE

Indicates a situation that could result in equipment or property damage.

INFORMATION

Indicates useful tips or additional information.

Symbols used on the unit:

Installer reference guide

2 | General safety precautions

Symbols used in the documentation:

Symbol Explanation

Before installation, read the installation and operation manual, and the wiring instruction sheet.

Before performing maintenance and service tasks, read the service manual.

For more information, see the installer and user reference guide.

The unit contains rotating parts. Be careful when servicing or inspecting the unit.

Symbol Explanation

Indicates a figure title or a reference to it.

Example: " 1–3 Figure title" means "Figure 3 in chapter 1".

Indicates a table title or a reference to it.

Example: " 1–3 Table title" means "Table 3 in chapter 1".

2.2 For the installer

2.2.1 General

If you are NOT sure how to install or operate the unit, contact your dealer.

DANGER: RISK OF BURNING/SCALDING

▪ Do NOT touch the refrigerant piping, water piping or internal parts during and

immediately after operation. It could be too hot or too cold. Give it time to return to normal temperature. If you must touch it, wear protective gloves.

▪ Do NOT touch any accidental leaking refrigerant.

WARNING

Improper installation or attachment of equipment or accessories could result in electrical shock, short-circuit, leaks, fire or other damage to the equipment. Only use accessories, optional equipment and spare parts made or approved by Daikin.

WARNING

Make sure installation, testing and applied materials comply with applicable legislation (on top of the instructions described in the Daikin documentation).

Installer reference guide

CAUTION

Wear adequate personal protective equipment (protective gloves, safety glasses,…) when installing, maintaining or servicing the system.

WARNING

Tear apart and throw away plastic packaging bags so that nobody, especially children, can play with them. Possible risk: suffocation.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

2 | General safety precautions

WARNING

Provide adequate measures to prevent that the unit can be used as a shelter by small animals. Small animals that make contact with electrical parts can cause malfunctions, smoke or fire.

CAUTION

Do NOT touch the air inlet or aluminium fins of the unit.

CAUTION

▪ Do NOT place any objects or equipment on top of the unit. ▪ Do NOT sit, climb or stand on the unit.

NOTICE

Works executed on the outdoor unit are best done under dry weather conditions to avoid water ingress.

In accordance with the applicable legislation, it might be necessary to provide a logbook with the product containing at least: information on maintenance, repair work, results of tests, stand-by periods,…

2.2.2 Installation site

Also, at least, following information MUST be provided at an accessible place at the product:

▪ Instructions for shutting down the system in case of an emergency

▪ Name and address of fire department, police and hospital

▪ Name, address and day and night telephone numbers for obtaining service

In Europe, EN378 provides the necessary guidance for this logbook.

▪ Provide sufficient space around the unit for servicing and air circulation.

▪ Make sure the installation site withstands the weight and vibration of the unit.

▪ Make sure the area is well ventilated. Do NOT block any ventilation openings.

▪ Make sure the unit is level.

Do NOT install the unit in the following places:

▪ In potentially explosive atmospheres.

▪ In places where there is machinery that emits electromagnetic waves.

Electromagnetic waves may disturb the control system, and cause malfunction of the equipment.

▪ In places where there is a risk of fire due to the leakage of flammable gases

(example: thinner or gasoline), carbon fibre, ignitable dust.

Instructions for equipment using R32 refrigerant

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

▪ In places where corrosive gas (example: sulphurous acid gas) is produced.

Corrosion of copper pipes or soldered parts may cause the refrigerant to leak.

WARNING: MILDLY FLAMMABLE MATERIAL

The refrigerant inside this unit is mildly flammable.

Installer reference guide

2 | General safety precautions

WARNING

▪ Do NOT pierce or burn. ▪ Do NOT use means to accelerate the defrosting process or to clean the

equipment, other than those recommended by the manufacturer.

▪ Be aware that R32 refrigerant does NOT contain an odour.

WARNING

The appliance shall be stored so as to prevent mechanical damage and in a wellventilated room without continuously operating ignition sources (example: open flames, an operating gas appliance or an operating electric heater) and have a room size as specified below.

WARNING

Make sure installation, servicing, maintenance and repair comply with instructions from Daikin and with applicable legislation (for example national gas regulation) and are executed only by authorised persons.

WARNING

If one or more rooms are connected to the unit using a duct system, make sure:

▪ there are no operating ignition sources (example: open flames, an operating gas

appliance or an operating electric heater) in case the floor area is less than the minimum floor area A (m²).

▪ no auxiliary devices, which may be a potential ignition source, are installed in the

duct work (example: hot surfaces with a temperature exceeding 700°C and electric switching device);

▪ only auxiliary devices approved by the manufacturer are used in the duct work; ▪ air inlet AND outlet are connected directly to the same room by ducting. Do NOT

use spaces such as a false ceiling as a duct for the air inlet or outlet.

NOTICE

▪ Precautions shall be taken to avoid excessive vibration or pulsation to

refrigeration piping.

▪ Protection devices, piping and fittings shall be protected as far as possible against

adverse environmental effects.

▪ Provision shall be made for expansion and contraction of long runs of piping. ▪ Piping in refrigerating systems shall be designed and installed such as to minimise

the likelihood of hydraulic shock damaging the system.

▪ The indoor equipment and pipes shall be securely mounted and guarded such

that accidental rupture of equipment or pipes cannot occur from events such as moving furniture or reconstruction activities.

CAUTION

Do NOT use potential sources of ignition in searching for or detection of refrigerant leaks.

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

NOTICE

Contains fluorinated greenhouse gases

tCO2eq

1000

GWP × kg

GWP: xxx

R32

▪ Do NOT re-use joints which have been used already. ▪ Joints made in installation between parts of refrigerant system shall be accessible

for maintenance purposes.

Installation space requirements

WARNING

If appliances contain R32 refrigerant, the floor area of the room in which the appliances are installed, operated and stored MUST be larger than the minimum floor area defined in table below A (m2). This applies to:

▪ Indoor units without a refrigerant leakage sensor; in case of indoor units with

refrigerant leakage sensor, consult the installation manual

▪ Outdoor units installed or stored indoors (e.g. winter garden, garage, machinery

room)

▪ Pipework in unventilated spaces

NOTICE

▪ Pipework shall be protected from physical damage. ▪ Installation of pipework shall be kept to a minimum.

2 | General safety precautions

To determine the minimum floor area

1 Determine the total refrigerant charge in the system (= factory refrigerant

charge + additional refrigerant amount charged).

2 Determine which graph or table to use.

▪ For indoor units: Is the unit ceiling-mounted, wall-mounted or floor-

standing?

▪ For outdoor units installed or stored indoors, and field piping in unventilated

spaces, this depends on the installation height:

If the installation height is… Then use the graph or table for…

<1.8m Floor-standing units

1.8≤x<2.2m Wall-mounted units

≥2.2m Ceiling-mounted units

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

3 Use the graph or table to determine the minimum floor area.

Installer reference guide

2 | General safety precautions

100

110

120

130

140

150

160

170

180

190

200

210

220

230

240

250

260

270

280

290

300

310

320

330

340

350

360

370

380

390

400

410

420

430

440

450

460

470

480

490

500

510

520

530

540

550

1.822.2

2.4

2.6

2.833.2

3.4

3.6

3.844.2

4.4

4.6

4.855.2

5.4

5.6

5.866.2

6.4

6.6

6.877.2

7.4

7.6

7.8

1.843 7.956

8.0

min

(m2)

Floor-standing unit

(c)

Wall-mounted unit

(b)

Ceiling-mounted unit

(a)

m (kg)

Ceiling-mounted

unit

(a)

4.6 13.4

4.6 180

4.8 14.6

4.8 196

5.0 15.8

5.0 213

≤1.842 —

5.2 17.1

≤1.842 —

5.2 230

1.843 3.64

5.4 18.5

1.843 28.9

5.4 248

2.0 3.95

5.6 19.9

2.0 34.0

5.6 267

2.2 4.34

5.8 21.3

2.2 41.2

5.8 286

2.4 4.74

6.0 22.8

2.4 49.0

6.0 306

2.6 5.13

6.2 24.3

2.6 57.5

6.2 327

2.8 5.53

6.4 25.9

2.8 66.7

6.4 349

3.0 5.92

6.6 27.6

3.0 76.6

6.6 371

3.2 6.48

6.8 29.3

3.2 87.2

6.8 394

3.4 7.32

7.0 31.0

3.4 98.4

7.0 417

3.6 8.20

7.2 32.8

3.6 110

7.2 441

3.8 9.14

7.4 34.7

3.8 123

7.4 466

4.0 10.1

7.6 36.6

4.0 136

7.6 492

4.2 11.2

7.8 38.5

4.2 150

7.8 518

4.4 12.3

7.956 40.1

4.4 165

7.956 539

m (kg)

min

(m2)

4.6 20.0

4.8 21.8

5.0 23.6

≤1.842 —

5.2 25.6

1.843 4.45

5.4 27.6

2.0 4.83

5.6 29.7

2.2 5.31

5.8 31.8

2.4 5.79

6.0 34.0

2.6 6.39

6.2 36.4

2.8 7.41

6.4 38.7

3.0 8.51

6.6 41.2

3.2 9.68

6.8 43.7

3.4 10.9

7.0 46.3

3.6 12.3

7.2 49.0

3.8 13.7

7.4 51.8

4.0 15.1

7.6 54.6

4.2 16.7

7.8 57.5

4.4 18.3

7.956 59.9

Wall-mounted

unit

(b)

m (kg)

min

(m2)

Floor-standing

unit

(c)

m (kg)

min

(m2)

Installer reference guide

m Total refrigerant charge in the system

Minimum floor area

min

(a) Ceiling-mounted unit (= Ceiling-mounted unit)

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

(b) Wall-mounted unit (= Wall-mounted unit)

2.2.3 Refrigerant — in case of R410A or R32

If applicable. See the installation manual or installer reference guide of your application for more information.

NOTICE

Make sure refrigerant piping installation complies with applicable legislation. In Europe, EN378 is the applicable standard.

NOTICE

Make sure the field piping and connections are NOT subjected to stress.

WARNING

During tests, NEVER pressurize the product with a pressure higher than the maximum allowable pressure (as indicated on the nameplate of the unit).

2 | General safety precautions

WARNING

Take sufficient precautions in case of refrigerant leakage. If refrigerant gas leaks, ventilate the area immediately. Possible risks:

▪ Excessive refrigerant concentrations in a closed room can lead to oxygen

deficiency.

▪ Toxic gas might be produced if refrigerant gas comes into contact with fire.

DANGER: RISK OF EXPLOSION

Pump down – Refrigerant leakage. If you want to pump down the system, and there

is a leak in the refrigerant circuit:

▪ Do NOT use the unit's automatic pump down function, with which you can collect

all refrigerant from the system into the outdoor unit. Possible consequence: Selfcombustion and explosion of the compressor because of air going into the operating compressor.

▪ Use a separate recovery system so that the unit's compressor does NOT have to

operate.

WARNING

ALWAYS recover the refrigerant. Do NOT release them directly into the environment. Use a vacuum pump to evacuate the installation.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

NOTICE

After all the piping has been connected, make sure there is no gas leak. Use nitrogen to perform a gas leak detection.

NOTICE

▪ To avoid compressor breakdown, do NOT charge more than the specified amount

of refrigerant.

▪ When the refrigerant system is to be opened, refrigerant MUST be treated

according to the applicable legislation.

Installer reference guide

2 | General safety precautions

▪ In case recharge is required, see the nameplate of the unit. It states the type of

refrigerant and necessary amount.

▪ The unit is factory charged with refrigerant and depending on pipe sizes and pipe

lengths some systems require additional charging of refrigerant.

▪ Only use tools exclusively for the refrigerant type used in the system, this to

ensure pressure resistance and prevent foreign materials from entering into the system.

▪ Charge the liquid refrigerant as follows:

WARNING

Make sure there is no oxygen in the system. Refrigerant may only be charged after performing the leak test and the vacuum drying.

Possible consequence: Self-combustion and explosion of the compressor because of oxygen going into the operating compressor.

If Then

A siphon tube is present

Charge with the cylinder upright.

(i.e., the cylinder is marked with "Liquid filling siphon attached")

A siphon tube is NOT present Charge with the cylinder upside down.

▪ Open refrigerant cylinders slowly.

▪ Charge the refrigerant in liquid form. Adding it in gas form may prevent normal

operation.

CAUTION

When the refrigerant charging procedure is done or when pausing, close the valve of the refrigerant tank immediately. If the valve is NOT closed immediately, remaining pressure might charge additional refrigerant. Possible consequence: Incorrect refrigerant amount.

2.2.4 Brine

Installer reference guide

If applicable. See the installation manual or installer reference guide of your application for more information.

WARNING

The selection of the brine MUST be in accordance with the applicable legislation.

WARNING

Take sufficient precautions in case of brine leakage. If brine leaks, ventilate the area immediately and contact your local dealer.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

2.2.5 Water

2.2.6 Electrical

2 | General safety precautions

WARNING

The ambient temperature inside the unit can get much higher than that of the room, e.g. 70°C. In case of a brine leak, hot parts inside the unit can create a hazardous situation.

WARNING

The use and installation of the application MUST comply with the safety and environmental precautions specified in the applicable legislation.

If applicable. See the installation manual or installer reference guide of your application for more information.

NOTICE

Make sure water quality complies with EU directive 98/83EC.

DANGER: RISK OF ELECTROCUTION

▪ Turn OFF all power supply before removing the switch box cover, connecting

electrical wiring or touching electrical parts.

▪ Disconnect the power supply for more than 10minutes, and measure the voltage

at the terminals of main circuit capacitors or electrical components before servicing. The voltage MUST be less than 50VDC before you can touch electrical components. For the location of the terminals, see the wiring diagram.

▪ Do NOT touch electrical components with wet hands. ▪ Do NOT leave the unit unattended when the service cover is removed.

WARNING

If NOT factory installed, a main switch or other means for disconnection, having a contact separation in all poles providing full disconnection under overvoltage categoryIII condition, MUST be installed in the fixed wiring.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Installer reference guide

2 | General safety precautions

WARNING

▪ ONLY use copper wires. ▪ Make sure the field wiring complies with the applicable legislation. ▪ All field wiring MUST be performed in accordance with the wiring diagram

supplied with the product.

▪ NEVER squeeze bundled cables and make sure they do NOT come in contact with

the piping and sharp edges. Make sure no external pressure is applied to the terminal connections.

▪ Make sure to install earth wiring. Do NOT earth the unit to a utility pipe, surge

absorber, or telephone earth. Incomplete earth may cause electrical shock.

▪ Make sure to use a dedicated power circuit. NEVER use a power supply shared by

another appliance.

▪ Make sure to install the required fuses or circuit breakers. ▪ Make sure to install an earth leakage protector. Failure to do so may cause

electrical shock or fire.

▪ When installing the earth leakage protector, make sure it is compatible with the

inverter (resistant to high frequency electric noise) to avoid unnecessary opening of the earth leakage protector.

CAUTION

▪ When connecting the power supply: connect the earth cable first, before making

the current-carrying connections.

▪ When disconnecting the power supply: disconnect the current-carrying cables

first, before separating the earth connection.

▪ The length of the conductors between the power supply stress relief and the

terminal block itself must be as such that the current-carrying wires are tautened before the earth wire is in case the power supply is pulled loose from the stress relief.

NOTICE

Precautions when laying power wiring:

▪ Do NOT connect wiring of different thicknesses to the power terminal block (slack

in the power wiring may cause abnormal heat).

▪ When connecting wiring which is the same thickness, do as shown in the figure

above.

▪ For wiring, use the designated power wire and connect firmly, then secure to

prevent outside pressure being exerted on the terminal board.

▪ Use an appropriate screwdriver for tightening the terminal screws. A screwdriver

with a small head will damage the head and make proper tightening impossible.

▪ Over-tightening the terminal screws may break them.

Installer reference guide

Install power cables at least 1 m away from televisions or radios to prevent interference. Depending on the radio waves, a distance of 1 m may not be sufficient.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

2 | General safety precautions

WARNING

▪ After finishing the electrical work, confirm that each electrical component and

terminal inside the electrical components box is connected securely.

▪ Make sure all covers are closed before starting up the unit.

NOTICE

Only applicable if the power supply is three‑phase, and the compressor has an ON/ OFF starting method.

If there exists the possibility of reversed phase after a momentary black out and the power goes on and off while the product is operating, attach a reversed phase protection circuit locally. Running the product in reversed phase can break the compressor and other parts.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Installer reference guide

3 | Specific installer safety instructions

3 Specific installer safety instructions

Always observe the following safety instructions and regulations.

Unit installation (see

WARNING

Installation shall be done by an installer, the choice of materials and installation shall comply with the applicable legislation. In Europe, EN378 is the applicable standard.

Installation site (see

CAUTION

▪ Check if the installation location can support the unit's weight. Poor installation is

hazardous. It can also cause vibrations or unusual operating noise.

▪ Provide sufficient service space. ▪ Do NOT install the unit so that it is in contact with a ceiling or a wall, as this may

cause vibrations.

WARNING

The appliance shall be stored in a room without continuously operating ignition sources (example: open flames, an operating gas appliance or an operating electric heater).

Opening the unit (see

"6Unit installation"[425]

)

"6.1Preparing the installation site"[425]

"6.2Opening the unit"[429]

)

DANGER: RISK OF ELECTROCUTION

Do NOT leave the unit unattended when the service cover is removed.

DANGER: RISK OF BURNING/SCALDING

DANGER: RISK OF ELECTROCUTION

Connecting the refrigerant piping (see

piping"[436]

)

CAUTION

▪ No brazing or welding on site for units with R32 refrigerant charge during

shipment.

▪ During installation of the refrigeration system, joining of parts with at least one

part charged shall be performed taking into account the following requirements:

ð inside occupied spaces non permanent joints are not allowed for R32 refrigerant

except for site made joints directly connecting the indoor unit to piping. Site made joints directly connecting piping to indoor units shall be of non permanent type.

"7.2Connecting the refrigerant

Installer reference guide

CAUTION

Do NOT connect the embedded branch piping and the outdoor unit when only carrying out piping work without connecting the indoor unit in order to add another indoor unit later.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

3 | Specific installer safety instructions

WARNING

▪ Only use R32 as refrigerant. Other substances may cause explosions and

accidents.

▪ R32 contains fluorinated greenhouse gases. Its global warming potential (GWP)

value is 675. Do NOT vent these gases into the atmosphere.

▪ When charging refrigerant, ALWAYS use protective gloves and safety glasses.

CAUTION

▪ Do NOT use mineral oil on flared part. ▪ Do NOT reuse piping from previous installations. ▪ NEVER install a drier to this R32 unit to guarantee its lifetime. The drying material

may dissolve and damage the system.

CAUTION

▪ Use the flare nut fixed to the unit. ▪ To prevent gas leakage, apply refrigeration oil only to the inside of the flare. Use

refrigeration oil for R32.

▪ Do NOT reuse joints.

WARNING

Connect the refrigerant piping securely before running the compressor. If the refrigerant piping is NOT connected and the stop valve is open when the compressor is run, air will be sucked in. This will cause abnormal pressure in the refrigeration cycle, which may result in equipment damage and even injury.

CAUTION

▪ Incomplete flaring may cause refrigerant gas leakage. ▪ Do NOT re-use flares. Use new flares to prevent refrigerant gas leakage. ▪ Use flare nuts that are included with the unit. Using different flare nuts may

cause refrigerant gas leakage.

Charging refrigerant (see

WARNING

The refrigerant inside the unit is mildly flammable, but normally does NOT leak. If the refrigerant leaks in the room and comes in contact with fire from a burner, a heater, or a cooker, this may result in fire, or the formation of a harmful gas.

Turn off any combustible heating devices, ventilate the room, and contact the dealer where you purchased the unit.

Do NOT use the unit until a service person confirms that the part from which the refrigerant leaked has been repaired.

"8Charging refrigerant"[447]

)

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

WARNING

NEVER directly touch any accidental leaking refrigerant. This could result in severe wounds caused by frostbite.

Installer reference guide

3 | Specific installer safety instructions

WARNING

▪ Only use R32 as refrigerant. Other substances may cause explosions and

accidents.

▪ R32 contains fluorinated greenhouse gases. Its global warming potential (GWP)

value is 675. Do NOT vent these gases into the atmosphere.

▪ When charging refrigerant, ALWAYS use protective gloves and safety glasses.

CAUTION

To avoid compressor breakdown, do NOT charge more than the specified amount of refrigerant.

Electrical installation (see

WARNING

▪ All wiring MUST be performed by an authorised electrician and MUST comply

with the applicable legislation.

▪ Make electrical connections to the fixed wiring. ▪ All components procured on-site and all electrical construction MUST comply

with the applicable legislation.

WARNING

▪ If the power supply has a missing or wrong N-phase, equipment might break

down.

▪ Establish proper earthing. Do NOT earth the unit to a utility pipe, surge absorber,

or telephone earth. Incomplete earthing may cause electrical shock.

▪ Install the required fuses or circuit breakers. ▪ Secure the electrical wiring with cable ties so that the cables do NOT come in

contact with sharp edges or piping, particularly on the high-pressure side.

▪ Do NOT use taped wires, stranded conductor wires, extension cords, or

connections from a star system. They can cause overheating, electrical shock or fire.

▪ Do NOT install a phase advancing capacitor, because this unit is equipped with an

inverter. A phase advancing capacitor will reduce performance and may cause accidents.

"9Electrical installation"[451]

)

Installer reference guide

WARNING

ALWAYS use multicore cable for power supply cables.

WARNING

Use an all-pole disconnection type breaker with at least 3mm between the contact point gaps that provide full disconnection under overvoltage category III.

WARNING

If the supply cord is damaged, it MUST be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

WARNING

Do NOT connect the power supply to the indoor unit. This could result in electrical shock or fire.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

3 | Specific installer safety instructions

WARNING

▪ Do NOT use locally purchased electrical parts inside the product. ▪ Do NOT branch the power supply for the drain pump, etc. from the terminal

block. This could result in electrical shock or fire.

WARNING

Keep the interconnection wiring away from copper pipes without thermal insulation as such pipes will be very hot.

DANGER: RISK OF ELECTROCUTION

All electrical parts (including thermistors) are powered by the power supply. Do not touch them with bare hands.

DANGER: RISK OF ELECTROCUTION

Disconnect the power supply for more than 10minutes, and measure the voltage at the terminals of main circuit capacitors or electrical components before servicing. The voltage MUST be less than 50VDC before you can touch electrical components. For the location of the terminals, see the wiring diagram.

Finishing the outdoor unit installation (see

installation"[457]

)

DANGER: RISK OF ELECTROCUTION

▪ Make sure that the system is earthed properly. ▪ Turn off the power supply before servicing. ▪ Install the switch box cover before turning on the power supply.

Maintenance and service (see

"14Maintenance and service"[467]

DANGER: RISK OF ELECTROCUTION

DANGER: RISK OF BURNING/SCALDING

WARNING

▪ Before carrying out any maintenance or repair activity, ALWAYS switch off the

circuit breaker on the supply panel, remove the fuses or open the protection devices of the unit.

▪ Do NOT touch live parts for 10 minutes after the power supply is turned off

because of high voltage risk.

▪ Please note that some sections of the electric component box are hot. ▪ Make sure you do NOT touch a conductive section. ▪ Do NOT rinse the unit. This may cause electric shocks or fire.

"10Finishing the outdoor unit

)

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Installer reference guide

3 | Specific installer safety instructions

DANGER: RISK OF ELECTROCUTION

▪ Use this compressor on a grounded system only. ▪ Turn the power off before servicing the compressor. ▪ Reattach the switch box cover and service lid after servicing.

CAUTION

Always wear safety goggles and protective gloves.

DANGER: RISK OF EXPLOSION

▪ Use a pipe cutter to remove the compressor. ▪ Do NOT use the brazing torch. ▪ Use approved refrigerants and lubricants only.

DANGER: RISK OF BURNING/SCALDING

Do NOT touch the compressor with bare hands.

Troubleshooting (see

DANGER: RISK OF ELECTROCUTION

DANGER: RISK OF BURNING/SCALDING

WARNING

▪ When carrying out an inspection on the switch box of the unit, ALWAYS make

sure that the unit is disconnected from the mains. Turn off the respective circuit breaker.

▪ When a safety device was activated, stop the unit and find out why the safety

device was activated before resetting it. NEVER shunt safety devices or change their values to a value other than the factory default setting. If you are unable to find the cause of the problem, call your dealer.

WARNING

Prevent hazards due to inadvertent resetting of the thermal cut-out: power to this appliance MUST NOT be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly turned ON and OFF by the utility.

"15Troubleshooting"[469]

)

Installer reference guide

DANGER: RISK OF ELECTROCUTION

▪ When the unit is not operating, the LEDs on the PCB are turned off in order to

save power.

▪ Even when the LEDs are off, the terminal block and the PCB may be powered.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

4 About the box

4.1 Overview: About the box

This chapter describes what you have to do after the boxes with the outdoor and indoor unit are delivered on-site.

Keep the following in mind:

▪ At delivery, the unit MUST be checked for damage. Any damage MUST be

reported immediately to the claims agent of the carrier.

▪ Bring the packed unit as close as possible to its final installation position to

prevent damage during transport.

▪ Prepare the path along which you want to bring the unit inside in advance.

4.2 Outdoor unit

4 | About the box

4.2.1 To unpack the outdoor unit

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Installer reference guide

4 | About the box

1× 1× 1×

1×

6×

1×

b c d e

3×

1×

i j

g h

4.2.2 To remove the accessories from the outdoor unit

1 Lift the outdoor unit.

CAUTION

Only handle the outdoor unit as follows:

2 Remove the accessories at the bottom of the package.

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

a Outdoor unit installation manual b General safety precautions c Fluorinated greenhouse gases label d Multilingual fluorinated greenhouse gases label e Drain socket

f Screw bag. The screws will be used for fixing the electrical wire anchor bands. g Drain cap (small) h Drain cap (large)

i Reducer assembly

j Energy label

4 | About the box

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Installer reference guide

5 | About the unit

5 About the unit

INFORMATION

It is NOT possible to connect an indoor unit of 1 room only. Be sure to connect indoor units of at least 2 rooms.

INFORMATION

Depending on the units and/or the installation conditions, it might be necessary to connect electrical wiring before you can charge refrigerant.

The Hybrid for Multi or the DHW generator for Multi are considered as 1 room connection.

For the correct combination, see the combination table and the installation manual of the Hybrid for Multi or the DHW generator for Multi.

WARNING: MILDLY FLAMMABLE MATERIAL

The refrigerant inside this unit is mildly flammable.

INFORMATION

For the operation limits see the latest technical data of the outdoor unit on the regional Daikin website (publicly accessible).

5.1 Overview: About the unit

This chapter contains information about:

5.2 Identification

NOTICE

When installing or servicing several units at the same time, make sure NOT to switch the service panels between different models.

5.2.1 Identification label: Outdoor unit

Location

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

6 Unit installation

WARNING

Installation shall be done by an installer, the choice of materials and installation shall comply with the applicable legislation. In Europe, EN378 is the applicable standard.

In this chapter

6.1 Preparing the installation site ................................................................................................................................................ 25

6.1.1 Installation site requirements of the outdoor unit ............................................................................................... 26

6.1.2 Additional installation site requirements of the outdoor unit in cold climates ................................................... 28

6.2 Opening the unit..................................................................................................................................................................... 29

6.2.1 About opening the unit .......................................................................................................................................... 29

6.2.2 To open the outdoor unit ...................................................................................................................................... 29

6.3 Mounting the outdoor unit .................................................................................................................................................... 29

6.3.1 About mounting the outdoor unit ......................................................................................................................... 29

6.3.2 Precautions when mounting the outdoor unit...................................................................................................... 30

6.3.3 To provide the installation structure ..................................................................................................................... 30

6.3.4 To install the outdoor unit ..................................................................................................................................... 31

6.3.5 To provide drainage ............................................................................................................................................... 31

6.3.6 To prevent the outdoor unit from falling over ...................................................................................................... 32

6 | Unit installation

6.1 Preparing the installation site

Do NOT install the unit in places often used as work place. In case of construction works (e.g. grinding works) where a lot of dust is created, the unit MUST be covered.

Choose an installation location with sufficient space for carrying the unit in and out of the site.

CAUTION

▪ Check if the installation location can support the unit's weight. Poor installation is

hazardous. It can also cause vibrations or unusual operating noise.

▪ Provide sufficient service space. ▪ Do NOT install the unit so that it is in contact with a ceiling or a wall, as this may

cause vibrations.

▪ Choose a location where the operation noise or the hot/cold air discharged from

the unit will not disturb anyone.

▪ Provide sufficient space around the unit for servicing and air circulation.

▪ Avoid areas where flammable gas or product might leak.

▪ Install units, power cables and communication wiring at least 3 m away from

televisions or radios to prevent interference. Depending on the radio waves, a distance of 3m may not be sufficient.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

NOTICE

Do NOT place objects below the indoor and/or outdoor unit that may get wet. Otherwise condensation on the unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping, and objects under the unit may get dirty or damaged.

Installer reference guide

6 | Unit installation

≤1200

>100

>50

>350

(mm)(mm)

>250

>300

(mm)

6.1.1 Installation site requirements of the outdoor unit

WARNING

The appliance shall be stored in a room without continuously operating ignition sources (example: open flames, an operating gas appliance or an operating electric heater).

INFORMATION

6.1.2 Additional installation site requirements of the outdoor unit in cold climates

a Sea wind b Building c Outdoor unit d Windbreaker

The outdoor unit is designed for outdoor installation only, and for ambient temperatures within the following ranges:

Cooling mode Heating mode

–10~46°C DB –15~24°C DB

Protect the outdoor unit against direct snowfall and take care that the outdoor unit is NEVER snowed up.

Installer reference guide

a Snow cover or shed b Pedestal c Prevailing wind direction d Air outlet

It is recommended to provide at least 150 mm of free space below the unit (300mm for heavy snowfall areas). Additionally, make sure the unit is positioned at least 100mm above the maximum expected level of snow. If necessary, construct a pedestal. See "6.3Mounting the outdoor unit"[429] for more details.

In heavy snowfall areas it is very important to select an installation site where the snow will NOT affect the unit. If lateral snowfall is possible, make sure that the heat exchanger coil is NOT affected by the snow. If necessary, install a snow cover or shed and a pedestal.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

6.2 Opening the unit

3×

6.2.1 About opening the unit

At certain times, you have to open the unit. Example:

▪ When connecting the refrigerant piping

▪ When connecting the electrical wiring

▪ When maintaining or servicing the unit

6.2.2 To open the outdoor unit

6 | Unit installation

DANGER: RISK OF ELECTROCUTION

Do NOT leave the unit unattended when the service cover is removed.

DANGER: RISK OF ELECTROCUTION

DANGER: RISK OF BURNING/SCALDING

6.3 Mounting the outdoor unit

6.3.1 About mounting the outdoor unit

When

The outdoor and indoor unit must be mounted before the refrigerant piping can be connected.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Typical workflow

Mounting the outdoor unit typically consists of the following stages:

1 Providing the installation structure. 2 Installing the outdoor unit. 3 Providing drainage. 4 Protecting the unit against snow and wind by installing a snow cover and baffle

plates. See "6.1Preparing the installation site"[425].

Installer reference guide

6 | Unit installation

20 mm

(mm)

353

600

240

6.3.2 Precautions when mounting the outdoor unit

6.3.3 To provide the installation structure

INFORMATION

Also read the precautions and requirements in the following chapters:

▪ "2General safety precautions"[45] ▪ "6.1Preparing the installation site"[425]

Check the strength and level of the installation ground so that the unit will not cause any operating vibration or noise.

Use a vibration-proof rubber (field supply) in cases where vibrations may be transmitted to the building.

The unit may be installed directly on a concrete veranda or another solid surface as long as it provides proper drainage.

Fix the unit securely by means of foundation bolts in accordance with the foundation drawing.

Prepare 4 sets of M8 or M10 anchor bolts, nuts and washers (field supply).

Installer reference guide

a 100mm above expected level of snow

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

6.3.4 To install the outdoor unit

4× M8/M10

6.3.5 To provide drainage

▪ Make sure that condensation water can be evacuated properly.

▪ Install the unit on a base to make sure that there is proper drainage in order to

avoid ice accumulation.

6 | Unit installation

▪ Prepare a water drainage channel around the foundation to drain waste water

away from the unit.

▪ Avoid drain water flowing over the footpath, so that it does NOT become slippery

in case of ambient freezing temperatures.

▪ If you install the unit on a frame, install a waterproof plate within 150mm of the

bottom side of the unit in order to prevent water from getting into the unit and to avoid drain water dripping (see the following figure).

NOTICE

In cold areas, do NOT use a drain socket, hose and caps (large, small) with the outdoor unit. Take adequate measures so that the evacuated condensate CANNOT freeze.

NOTICE

If the drain holes of the outdoor unit are blocked up by a mounting base or floor surface, place additional foot bases ≤30mm under the outdoor unit's feet.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

▪ Use a drain socket for drainage if necessary.

a Drain hole

Installer reference guide

6 | Unit installation

a cb b b

a a

To close the drain holes and attach the drain socket

6.3.6 To prevent the outdoor unit from falling over

1 Install drain caps (accessory f) and (accessory g). Make sure the edges of the

drain caps close off the holes completely.

2 Install the drain socket.

a Drain hole. Install a drain cap (large). b Drain hole. Install a drain cap (small). c Drain hole for drain socket

In case the unit is installed in places where strong wind can tilt the unit, take following measure:

1 Prepare 2 cables as indicated in the following illustration (field supply).

2 Place the 2 cables over the outdoor unit.

3 Insert a rubber sheet between the cables and the outdoor unit to prevent the

cables from scratching the paint (field supply).

4 Attach the ends of the cables.

5 Tighten the cables.

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

7 Piping installation

In this chapter

7.1 Preparing refrigerant piping................................................................................................................................................... 33

7.1.1 Refrigerant piping requirements ........................................................................................................................... 33

7.1.2 Refrigerant piping insulation.................................................................................................................................. 34

7.1.3 Refrigerant piping length and height difference ................................................................................................... 35

7.2 Connecting the refrigerant piping.......................................................................................................................................... 36

7.2.1 About connecting the refrigerant piping ............................................................................................................... 36

7.2.2 Precautions when connecting the refrigerant piping............................................................................................ 36

7.2.3 Guidelines when connecting the refrigerant piping.............................................................................................. 38

7.2.4 Pipe bending guidelines ......................................................................................................................................... 38

7.2.5 To flare the pipe end .............................................................................................................................................. 39

7.2.6 Connections between outdoor and indoor unit using reducers........................................................................... 39

7.2.7 Using the stop valve and service port.................................................................................................................... 42

7.2.8 To connect the refrigerant piping to the outdoor unit ......................................................................................... 43

7.3 Checking the refrigerant piping.............................................................................................................................................. 44

7.3.1 About checking the refrigerant piping................................................................................................................... 44

7.3.2 Precautions when checking the refrigerant piping ............................................................................................... 44

7.3.3 To check for leaks ................................................................................................................................................... 45

7.3.4 To perform vacuum drying .................................................................................................................................... 45

7 | Piping installation

7.1 Preparing refrigerant piping

7.1.1 Refrigerant piping requirements

INFORMATION

Also read the precautions and requirements in the "2 General safety

precautions"[45].

▪ Piping material: Phosphoric acid deoxidised seamless copper.

▪ Piping diameter:

2MXM68

Liquid piping 2× Ø6.4mm (1/4")

Gas piping 1× Ø9.5mm (3/8")

3MXM40, 3MXM52, 3MXM68, 3AMXM52, 3MXF52, 3AMXF52, 3MXF68

Liquid piping 3× Ø6.4mm (1/4")

Gas piping 1× Ø9.5mm (3/8")

1× Ø12.7mm (1/2")

2× Ø12.7mm (1/2")

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

4MXM68

Liquid piping 4× Ø6.4mm (1/4")

Gas piping 2× Ø9.5mm (3/8")

2× Ø12.7mm (1/2")

4MXM80

Liquid piping 4× Ø6.4mm (1/4")

Installer reference guide

7 | Piping installation

ØiØ

ØpØ

4MXM80

Gas piping 1× Ø9.5mm (3/8")

1× Ø12.7mm (1/2")

2× Ø15.9mm (5/8")

5MXM90

Liquid piping 5× Ø6.4mm (1/4")

Gas piping 2× Ø9.5mm (3/8")

1× Ø12.7mm (1/2")

2× Ø15.9mm (5/8")

▪ Piping temper grade and thickness:

Outer diameter (Ø) Temper grade Thickness (t)

(a)

6.4mm (1/4")

9.5mm (3/8")

12.7mm (1/2")

15.9mm (5/8") ≥1mm

(a)

Depending on the applicable legislation and the maximum working pressure of the unit (see "PS High" on the unit name plate), larger piping thickness might be required.

Usage of reducers might be required based on the indoor unit. See

"7.2.6 Connections between outdoor and indoor unit using reducers" [4 39] for

more information.

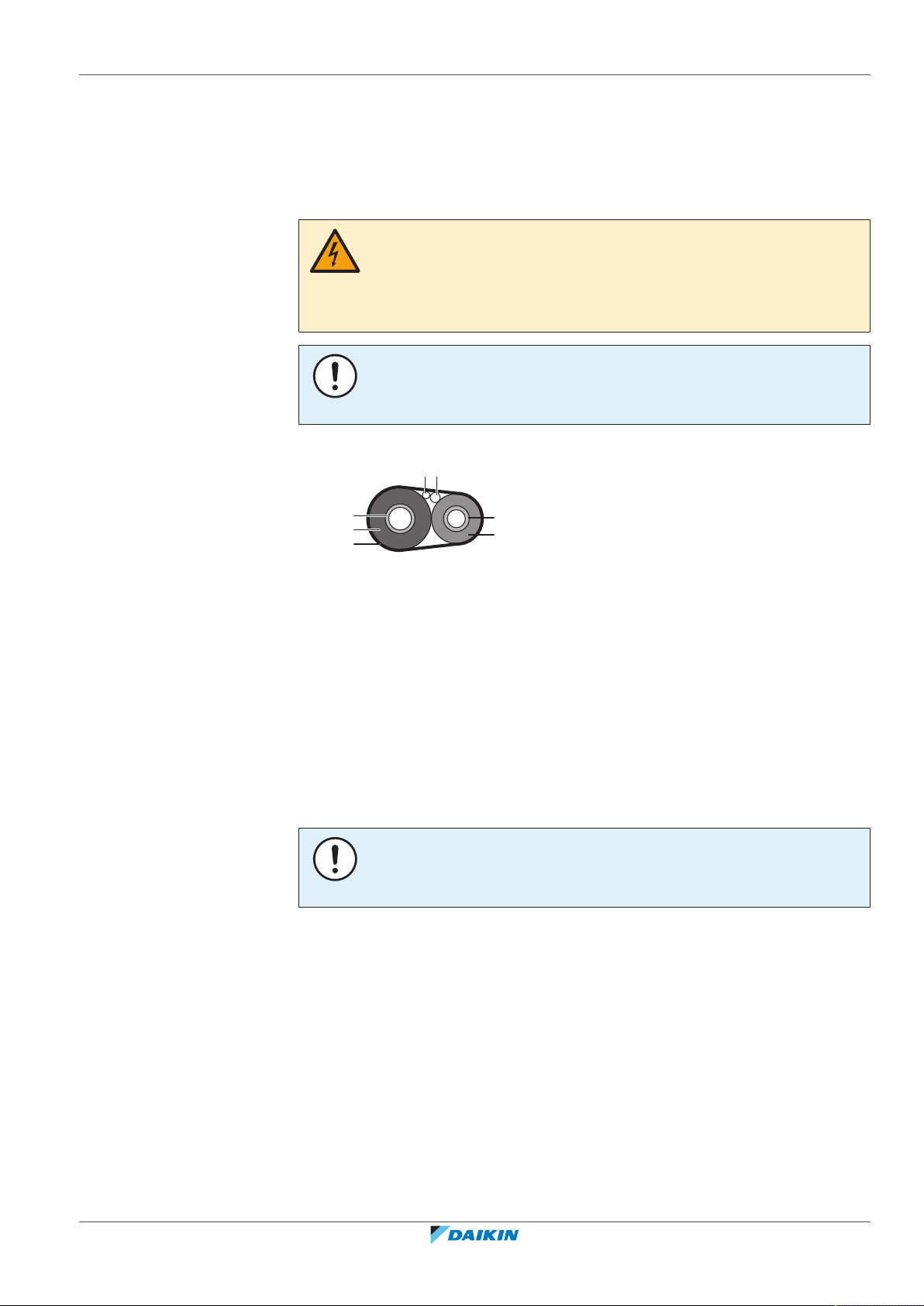

7.1.2 Refrigerant piping insulation

▪ Use polyethylene foam as insulation material:

- with a heat transfer rate between 0.041 and 0.052 W/mK (0.035 and

0.045kcal/mh°C)

- with a heat resistance of at least 120°C

▪ Insulation thickness

Pipe outer diameter (Øp) Insulation inner diameter

Annealed (O) ≥0.8mm

Insulation thickness (t)

(Øi)

6.4mm (1/4") 8~10mm ≥10mm

9.5mm (3/8") 10~14mm ≥13mm

12.7mm (1/2") 14~16mm ≥13mm

15.9mm (5/8") 16~20mm ≥13mm

If the temperature is higher than 30°C and the humidity is higher than RH80%, the thickness of the insulation materials should be at least 20 mm to prevent condensation on the surface of the insulation.

Use separate thermal insulation pipes for the gas and liquid refrigerant piping.

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

7.1.3 Refrigerant piping length and height difference

INFORMATION

For the Hybrid for Multi application and the DHW generator for Multi, see the indoor unit installation manual for the maximum allowable refrigerant piping length and height difference.

The shorter the refrigerant piping, the better the performance of the system.

The piping length and height differences must comply with the following requirements.

Model Minimum required space

2MXM68, 3MXM40, 3MXM52, 3AMXM52, 3MXF52, 3AMXF52

3MXM68, 3MXF68 5.5m

4MXM68 6.5m

4MXM80 9.8m

5MXM90 10.4m

7 | Piping installation

4.7m

Shortest allowable length per room is 3m.

Outdoor unit Refrigerant piping length to

each indoor unit

2MXM68, 3MXM40,

≤25m ≤50m

Refrigerant piping total length

3MXM52, 3AMXM52, 3MXM68, 3MXF52, 3AMXF52, 3MXF68,

4MXM68 ≤60m

4MXM80 ≤70m

5MXM90 ≤75m

INFORMATION

In case of combination of the outdoor unit 3MXM40N8 or 3MXM52N8 with the indoor units CVXM-A and/or FVXM-A, the total liquid refrigerant piping length MUST be ≤30m.

Outdoor unit installed

Height difference outdoor-indoor

≤15m ≤7.5m

Height difference indoorindoor

higher than indoor unit

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Outdoor unit installed lower than at least 1 indoor unit

≤7.5m ≤15m

Installer reference guide

7 | Piping installation

7.2 Connecting the refrigerant piping

CAUTION

▪ No brazing or welding on site for units with R32 refrigerant charge during

shipment.

▪ During installation of the refrigeration system, joining of parts with at least one

part charged shall be performed taking into account the following requirements:

ð inside occupied spaces non permanent joints are not allowed for R32 refrigerant

except for site made joints directly connecting the indoor unit to piping. Site made joints directly connecting piping to indoor units shall be of non permanent type.

CAUTION

Do NOT connect the embedded branch piping and the outdoor unit when only carrying out piping work without connecting the indoor unit in order to add another indoor unit later.

WARNING

▪ Only use R32 as refrigerant. Other substances may cause explosions and

accidents.

▪ R32 contains fluorinated greenhouse gases. Its global warming potential (GWP)

value is 675. Do NOT vent these gases into the atmosphere.

▪ When charging refrigerant, ALWAYS use protective gloves and safety glasses.

7.2.1 About connecting the refrigerant piping

Before connecting the refrigerant piping

Make sure the outdoor and indoor unit are mounted.

Typical workflow

Connecting the refrigerant piping involves:

▪ Connecting the refrigerant piping to the indoor unit

▪ Connecting the refrigerant piping to the outdoor unit

▪ Insulating the refrigerant piping

▪ Keeping in mind the guidelines for:

- Pipe bending

- Flaring pipe ends

- Using the stop valves

7.2.2 Precautions when connecting the refrigerant piping

INFORMATION

Also read the precautions and requirements in the following chapters:

▪ "2General safety precautions"[45] ▪ "7.1Preparing refrigerant piping"[433]

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

7 | Piping installation

DANGER: RISK OF BURNING/SCALDING

CAUTION

▪ Do NOT use mineral oil on flared part. ▪ Do NOT reuse piping from previous installations. ▪ NEVER install a drier to this R32 unit to guarantee its lifetime. The drying material

may dissolve and damage the system.

CAUTION

▪ Use the flare nut fixed to the main unit. ▪ To prevent gas leakage, apply refrigeration oil only to the inside of the flare. Use

refrigeration oil for R32.

▪ Do NOT reuse joints.

NOTICE

Take the following precautions on refrigerant piping into account:

▪ Avoid anything but the designated refrigerant to get mixed into the refrigerant

cycle (e.g. air).

▪ Only use R32 when adding refrigerant. ▪ Only use installation tools (e.g. manifold gauge set) that are exclusively used for

R32 installations to withstand the pressure and to prevent foreign materials (e.g. mineral oils and moisture) from mixing into the system.

▪ Install the piping so that the flare is NOT subjected to mechanical stress. ▪ Protect the piping as described in the following table to prevent dirt, liquid or

dust from entering the piping.

▪ Use caution when passing copper tubes through walls (see figure below).

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Unit Installation period Protection method

Outdoor unit >1month Pinch the pipe

<1month Pinch or tape the pipe

Indoor unit Regardless of the period

INFORMATION

Do NOT open the refrigerant stop valve before checking the refrigerant piping. When you need to charge additional refrigerant it is recommended to open the refrigerant stop valve after charging.

Installer reference guide

7 | Piping installation

0.4~0.8

±2

45°

90°

±2

ØA

7.2.3 Guidelines when connecting the refrigerant piping

WARNING

NOTICE

Even if the stop valve is fully closed, the refrigerant may slowly leak out. Do NOT leave the flare nut removed for long period of time.

Take the following guidelines into account when connecting pipes:

▪ Coat the flare inner surface with ether oil or ester oil when connecting a flare

nut. Tighten 3 or 4 turns by hand, before tightening firmly.

▪ ALWAYS use 2 wrenches together when loosening a flare nut.

▪ ALWAYS use a spanner and torque wrench together to tighten the flare nut when

connecting the piping. This to prevent nut cracking and leaks.

Piping size (mm) Tightening torque

Ø6.4 15~17 8.7~9.1

Ø9.5 33~39 12.8~13.2

Ø12.7 50~60 16.2~16.6

Ø15.9 62~75 19.3~19.7

7.2.4 Pipe bending guidelines

a Torque wrench b Spanner c Piping union d Flare nut

(N•m)

Flare dimensions

(A) (mm)

Flare shape (mm)

Use a pipe bender for bending. All pipe bends should be as gentle as possible (bending radius should be 30~40 mm or larger).

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

7.2.5 To flare the pipe end

a b

1 Cut the pipe end with a pipe cutter.

2 Remove burrs with the cut surface facing down so that the chips do NOT enter

the pipe.

3 Remove the flare nut from the stop valve and put the flare nut on the pipe.

4 Flare the pipe. Set exactly at the position as shown in the following figure.

7 | Piping installation

CAUTION

cause refrigerant gas leakage.

a Cut exactly at right angles. b Remove burrs.

Flare tool for R32

(clutch type)

Conventional flare tool

Clutch type

(Ridgid-type)

A 0~0.5mm 1.0~1.5mm 1.5~2.0mm

5 Check that the flaring is properly made.

a Flare’s inner surface MUST be flawless. b The pipe end MUST be evenly flared in a perfect circle. c Make sure the flare nut is fitted.

7.2.6 Connections between outdoor and indoor unit using reducers

INFORMATION

▪ For the DHW generator for Multi use the same reducer as for the 20 class indoor

unit.

▪ For the Hybrid for Multi, see the indoor unit installation manual for the capacity

class and applicable reducer.

Wing nut type

(Imperial-type)

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Total indoor unit capacity class that can be connected to this outdoor unit:

Outdoor unit Total indoor unit capacity class

2MXM68 ≤10.2kW

3MXM40 ≤7.0kW

Installer reference guide

7 | Piping installation

Outdoor unit Total indoor unit capacity class

3MXM52, 3AMXM52, 3MXF52,

≤9.0kW

3AMXF52

3MXM68, 4MXM68, 3MXF68 ≤11.0kW

4MXM80 ≤14.5kW

5MXM90 ≤15.6kW

Port Class Reducer

2MXM68

A (Ø9.5mm) 15, 20, 25, 35, (42)

B (Ø12.7mm) 15, 20, 25, 35, (42)

(a)

—

2+4

42, 50, 60 —

3MXM40

A (Ø9.5mm) 15, 20, 25, 35 —

B + C (Ø12.7mm) 15, 20, 25, 35 2+4

3MXM52, 3AMXM52

A (Ø9.5mm) 15, 20, 25, 35, (42)

(a)

—

B + C (Ø12.7mm) 15, 20, 25, 35 2+4

42, 50 —

3MXM68

A (Ø9.5mm) 15, 20, 25, 35, (42)

(a)

—

B + C (Ø12.7mm) 15, 20, 25, 35, 42 2+4

50, 60 —

3MXF52, 3AMXF52, 3MXF68

A (Ø9.5mm) 20, 25, 35 —

B + C (Ø12.7mm) 20, 25, 35 2+4

4MXM68

A + B (Ø9.5mm) 15, 20, 25, 35, (42)

C + D (Ø12.7mm) 15, 20, 25, 35, (42)

(a)

—

2+4

42, 50, 60 —

4MXM80

A (Ø9.5mm) 15, 20, 25, 35, (42)

B (Ø12.7mm) 15, 20, 25, 35, (42)

(a)

—

2+4

42, 50, 60 —

C + D (Ø15.9mm) 15, 20, 25, 35, (42)

(a)

5+6

Installer reference guide

42, 50, 60 1+3

71 —

5MXM90

A + B (Ø9.5mm) 15, 20, 25, 35, (42)

(a)

—

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

7 | Piping installation

1 2 3 4 5 6

a b d ec

Port Class Reducer

C (Ø12.7mm) 15, 20, 25, 35, (42)

42, 50, 60 —

D + E (Ø15.9mm) 15, 20, 25, 35, (42)

42, 50, 60 1+3

71 —

(a)

Only in case of connection with FTXM42R.

Reducer type Connection

1 Ø15.9mm → Ø12.7mm

2 Ø12.7mm → Ø9.5mm

(a)

2+4

5+6

3 Ø15.9mm → Ø12.7mm

4 Ø12.7mm → Ø9.5mm

5 Ø15.9mm → Ø9.5mm

6 Ø15.9mm → Ø9.5mm

Connection examples:

▪ Connecting a Ø12.7mm pipe to a Ø15.9mm gas pipe connection port

a Outdoor unit connection port b Reducer no. 1 c Reducer no. 3 d Flare nut for Ø15.9mm e Inter-unit piping

▪ Connecting a Ø9.5mm pipe to a Ø15.9mm gas pipe connection port

▪ Connecting a Ø9.5mm pipe to a Ø12.7mm gas pipe connection port

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

a Outdoor unit connection port b Reducer no. 6 c Reducer no. 5 d Flare nut for Ø9.5mm e Inter-unit piping

a Outdoor unit connection port b Reducer no. 2 c Reducer no. 4 d Flare nut for Ø12.7mm

Installer reference guide

7 | Piping installation

7.2.7 Using the stop valve and service port

To handle the stop valve

e Inter-unit piping

Coat the threaded connection port of the outdoor unit where the flare nut comes in with refrigeration oil.

Flare nut for (mm) Tightening torque (N•m)

Ø9.5 33~39

Ø12.7 50~60

Ø15.9 62~75

NOTICE

Use an appropriate wrench to avoid damaging the connection thread by overtightening the flare nut. Be careful NOT to overtighten the nut, or the smaller pipe may be damaged (about 2/3-1× the normal torque).

Take the following guidelines into account:

▪ The stop valves are factory closed.

▪ The following figure shows the stop valve parts required when handling the

valve.

a Service port and service port cap b Valve stem c Field piping connection d Stem cap

▪ Keep both stop valves open during operation.

▪ Do NOT apply excessive force to the valve stem. Doing so may break the valve

body.

▪ ALWAYS make sure to secure the stop valve with a spanner, then loosen or

tighten the flare nut with a torque wrench. Do NOT place the spanner on the stem cap, as this could cause a refrigerant leak.

a Spanner b Torque wrench

▪ When it is expected that the operating pressure will be low (e.g. when cooling

will be performed while the outside air temperature is low), sufficiently seal the flare nut in the stop valve on the gas line with silicon sealant to prevent freezing.

Silicon sealant, make sure there is no gap.

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

To open/close the stop valve

1 Remove the stop valve cover.

2 Insert a hexagon wrench (liquid side: 4 mm, gas side: 6mm) into the valve

stem and turn the valve stem:

3 When the stop valve CANNOT be turned any further, stop turning.

4 Install the stop valve cover.

Result: The valve is now open/closed.

To handle the stem cap

▪ The stem cap is sealed where indicated with the arrow. Do NOT damage it.

7 | Piping installation

Counterclockwise to open Clockwise to close

▪ After handling the stop valve, tighten the stem cap, and check for refrigerant

leaks.

Piping Ø (mm) Width across flats (mm) Tightening torque (N∙m)

6.4 17 15~17

9.5 19 18~20

12.7 22 22~27

15.9 27 48~59

To handle the service cap

▪ ALWAYS use a charge hose equipped with a valve depressor pin, since the service

port is a Schrader type valve.

▪ After handling the service port, tighten the service port cap, and check for

refrigerant leaks.

Item Tightening torque (N∙m)

Service port cap 11~14

7.2.8 To connect the refrigerant piping to the outdoor unit

▪ Piping length. Keep field piping as short as possible.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

▪ Piping protection. Protect the field piping against physical damage.

1 Connect the liquid refrigerant connection from the indoor unit to the liquid

stop valve of the outdoor unit.

Installer reference guide

7 | Piping installation

a c

b c

7.3 Checking the refrigerant piping

a Liquid stop valve b Gas stop valve c Service port

2 Connect the gas refrigerant connection from the indoor unit to the gas stop

valve of the outdoor unit.

NOTICE

It is recommended that the refrigerant piping between indoor and outdoor unit is installed in a ducting or the refrigerant piping is wrapped with finishing tape.

7.3.1 About checking the refrigerant piping

The outdoor unit's internal refrigerant piping has been factory tested for leaks. You only have to check the outdoor unit's external refrigerant piping.

Before checking the refrigerant piping

Make sure the refrigerant piping is connected between the outdoor unit and the indoor unit.

Typical workflow

Checking the refrigerant piping typically consists of the following stages:

1 Checking for leaks in the refrigerant piping. 2 Performing vacuum drying to remove all moisture, air or nitrogen from the

refrigerant piping.

If there is a possibility of moisture being present in the refrigerant piping (for example, water may have entered the piping), first carry out the vacuum drying procedure below until all moisture has been removed.

7.3.2 Precautions when checking the refrigerant piping

INFORMATION

Also read the precautions and requirements in the following chapters:

▪ "2General safety precautions"[45] ▪ "7.1Preparing refrigerant piping"[433]

Installer reference guide

NOTICE

Use a 2-stage vacuum pump with a non-return valve that can evacuate to a gauge pressure of −⁠100.7kPa (−⁠1.007bar)(5Torr absolute). Make sure the pump oil does not flow oppositely into the system while the pump is not working.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

7.3.3 To check for leaks

7 | Piping installation

NOTICE

Use this vacuum pump for R32 exclusively. Using the same pump for other refrigerants may damage the pump and the unit.

NOTICE

▪ Connect the vacuum pump to the service port of the gas stop valve. ▪ Make sure that the gas stop valve and liquid stop valve are firmly closed before

performing the leak test or vacuum drying.

NOTICE

Do NOT exceed the unit's maximum working pressure (see "PS High" on the unit name plate).

NOTICE

ALWAYS use a recommended bubble test solution from your wholesaler.

NEVER use soap water:

▪ Soap water may cause cracking of components, such as flare nuts or stop valve

caps.

▪ Soap water may contain salt, which absorbs moisture that will freeze when the

piping gets cold.

▪ Soap water contains ammonia which may lead to corrosion of flared joints

(between the brass flare nut and the copper flare).

1 Charge the system with nitrogen gas up to a gauge pressure of at least

200kPa (2bar). It is recommended to pressurize to 3000kPa (30bar) in order to detect small leaks.

2 Check for leaks by applying the bubble test solution to all connections.

3 Discharge all nitrogen gas.

7.3.4 To perform vacuum drying

Connect the vacuum pump and manifold as follows:

a Pressure meter b Gauge manifold c Low-pressure valeve (Lo) d High-pressure valve (Hi) e Charging hoses

f Vacuum pump g Service port h Valve lids

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

1 Vacuum the system until the pressure on the manifold indicates −0.1 MPa

i Gas stop valve

j Liquid stop valve

(−1bar).

Installer reference guide

7 | Piping installation

2 Leave as is for 4-5minutes and check the pressure:

If the pressure… Then…

Does not change There is no moisture in the system.

This procedure is finished.

Increases There is moisture in the system. Go

to the next step.

3 Vacuum the system for at least 2 hours to a manifold pressure of −0.1 MPa

(−1bar).

4 After turning the pump OFF, check the pressure for at least 1hour.

5 If you do NOT reach the target vacuum or CANNOT maintain the vacuum for

1hour, do the following:

▪ Check for leaks again. ▪ Perform vacuum drying again.

NOTICE

Be sure to open the gas stop valve after piping installation and vacuuming. Running the system with the valve closed, the compressor may break down.

INFORMATION

After opening the stop valve, it is possible that the pressure in the refrigerant piping does NOT increase. This might be caused by e.g. the closed state of the expansion valve in the outdoor unit circuit, but does NOT present any problem for correct operation of the unit.

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

8 Charging refrigerant

In this chapter

8.1 About charging refrigerant..................................................................................................................................................... 47

8.2 About the refrigerant ............................................................................................................................................................. 48

8.3 Precautions when charging refrigerant ................................................................................................................................. 49

8.4 To determine the additional refrigerant amount .................................................................................................................. 49

8.5 To determine the complete recharge amount ...................................................................................................................... 49

8.6 To charge additional refrigerant ............................................................................................................................................ 50

8.7 To fix the fluorinated greenhouse gases label....................................................................................................................... 50

8.1 About charging refrigerant

The outdoor unit is factory charged with refrigerant, but in some cases the following might be necessary:

What When

Charging additional refrigerant When the total liquid piping length is

8 | Charging refrigerant

more than specified (see later).

Completely recharging refrigerant Example:

▪ When relocating the system.

▪ After a leak.

Charging additional refrigerant

Before charging additional refrigerant, make sure the outdoor unit's external refrigerant piping is checked (leak test, vacuum drying).

INFORMATION

Depending on the units and/or the installation conditions, it might be necessary to connect electrical wiring before you can charge refrigerant.

Typical workflow – Charging additional refrigerant typically consists of the following stages:

1 Determining if and how much you have to charge additionally.

2 If necessary, charging additional refrigerant.

3 Filling in the fluorinated greenhouse gases label, and fixing it to the inside of

the outdoor unit.

Completely recharging refrigerant

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Before completely recharging refrigerant, make sure the following is done:

1 All refrigerant is recovered from the system.

2 The outdoor unit's external refrigerant piping is checked (leak test, vacuum

drying).

3 Vacuum drying on the outdoor unit's internal refrigerant piping is performed.

NOTICE

Before completely recharging, perform vacuum drying on the outdoor unit's internal refrigerant piping as well.

Installer reference guide

8 | Charging refrigerant

8.2 About the refrigerant

Typical workflow – Completely recharging refrigerant typically consists of the following stages:

1 Determining how much refrigerant to charge.

2 Charging refrigerant.

3 Filling in the fluorinated greenhouse gases label, and fixing it to the inside of

the outdoor unit.

This product contains fluorinated greenhouse gases. Do NOT vent gases into the atmosphere.

Refrigerant type: R32

Global warming potential (GWP) value: 675

NOTICE

Applicable legislation on fluorinated greenhouse gases requires that the refrigerant charge of the unit is indicated both in weight and CO2 equivalent.

Formula to calculate the quantity in CO2 equivalent tonnes: GWP value of the refrigerant × total refrigerant charge [in kg] / 1000

Please contact your installer for more information.

WARNING: MILDLY FLAMMABLE MATERIAL

The refrigerant inside this unit is mildly flammable.

WARNING

The appliance shall be stored in a room without continuously operating ignition sources (example: open flames, an operating gas appliance or an operating electric heater).

WARNING

▪ Do NOT pierce or burn refrigerant cycle parts. ▪ Do NOT use cleaning materials or means to accelerate the defrosting process

other than those recommended by the manufacturer.

▪ Be aware that the refrigerant inside the system is odourless.

WARNING

Turn off any combustible heating devices, ventilate the room, and contact the dealer where you purchased the unit.

Do NOT use the unit until a service person confirms that the part from which the refrigerant leaked has been repaired.

Installer reference guide

WARNING

NEVER directly touch any accidental leaking refrigerant. This could result in severe wounds caused by frostbite.

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

8.3 Precautions when charging refrigerant

INFORMATION

Also read the precautions and requirements in the following chapters:

▪ "2General safety precautions"[45] ▪ "7.1Preparing refrigerant piping"[433]

8.4 To determine the additional refrigerant amount

8 | Charging refrigerant

If the total liquid piping

Then…

length is…

≤30m Do NOT add additional refrigerant.

>30m R=(total length (m) of liquid piping–30m)×0.020

R=Additional charge (kg) (rounded in units of 0.1kg)

INFORMATION

Piping length is the one-way length of liquid piping.

INFORMATION

Additional refrigerant charge is NOT allowed in case of combination of the outdoor unit 3MXM40N8 or 3MXM52N8 with the indoor units CVXM-A and/or FVXM-A. The total piping length MUST be ≤30m.

Maximum allowable refrigerant charge amount

3MXM40, 3MXM52, 3AMXM52, 3MXF52, 3AMXF52 2.2kg

3MXM68, 3MXF68, 2MXM68 2.4kg

4MXM68 2.6kg

4MXM80 3.2kg

8.5 To determine the complete recharge amount

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

5MXM90 3.3kg

INFORMATION

If a complete recharge is necessary, the total refrigerant charge is: the factory refrigerant charge (see unit name plate) + the determined additional amount.

Installer reference guide

8 | Charging refrigerant

Contains fluorinated greenhouse gases

tCO2eq

GWP × kg

1000

GWP: XXX

RXXX

8.6 To charge additional refrigerant

WARNING

▪ Only use R32 as refrigerant. Other substances may cause explosions and

accidents.

▪ R32 contains fluorinated greenhouse gases. Its global warming potential (GWP)

value is 675. Do NOT vent these gases into the atmosphere.

▪ When charging refrigerant, ALWAYS use protective gloves and safety glasses.

CAUTION

To avoid compressor breakdown, do NOT charge more than the specified amount of refrigerant.

Prerequisite: Before charging refrigerant, make sure the refrigerant piping is connected and checked (leak test and vacuum drying).

1 Connect the refrigerant cylinder to the service port.

2 Charge the additional refrigerant amount.

3 Open the gas stop valve.

8.7 To fix the fluorinated greenhouse gases label

1 Fill in the label as follows:

a If a multilingual fluorinated greenhouse gases label is delivered with the unit (see accessories), peel off the

applicable language and stick it on top of a. b Factory refrigerant charge: see unit name plate c Additional refrigerant amount charged d Total refrigerant charge e Quantity of fluorinated greenhouse gases of the total refrigerant charge expressed as tonnes CO

equivalent.

f GWP = Global warming potential

NOTICE

Applicable legislation on fluorinated greenhouse gases requires that the refrigerant charge of the unit is indicated both in weight and CO2 equivalent.

Formula to calculate the quantity in CO2 equivalent tonnes: GWP value of the refrigerant × total refrigerant charge [in kg] / 1000

Use the GWP value mentioned on the refrigerant charge label.

2 Fix the label on the inside of the outdoor unit near the gas and liquid stop

valves.

Installer reference guide

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM

R32 Split series

4P600463-1C – 2020.08

9 Electrical installation

In this chapter

9.1 About connecting the electrical wiring .................................................................................................................................. 51

9.1.1 Precautions when connecting the electrical wiring .............................................................................................. 51

9.1.2 Guidelines when connecting the electrical wiring ................................................................................................ 53

9.1.3 Specifications of standard wiring components ..................................................................................................... 54

9.2 To connect the electrical wiring to the outdoor unit ............................................................................................................ 55

9.1 About connecting the electrical wiring

Typical workflow

Connecting the electrical wiring typically consists of the following stages:

1 Making sure the power supply system complies with the electrical

specifications of the heat pump.

2 Connecting the electrical wiring to the outdoor unit. 3 Connecting the electrical wiring to the indoor unit. 4 Connecting the main power supply of the indoor unit. 5 Connecting the main power supply of the gas boiler. 6 Connecting the communication cable between the gas boiler and the indoor

unit.

7 Connecting the user interface. 8 Connecting the shut-off valves. 9 Connecting the domestic hot water pump. 10 Connecting the alarm output. 11 Connecting the space heating ON/OFF output. 12 Connecting the safety thermostat.

9 | Electrical installation

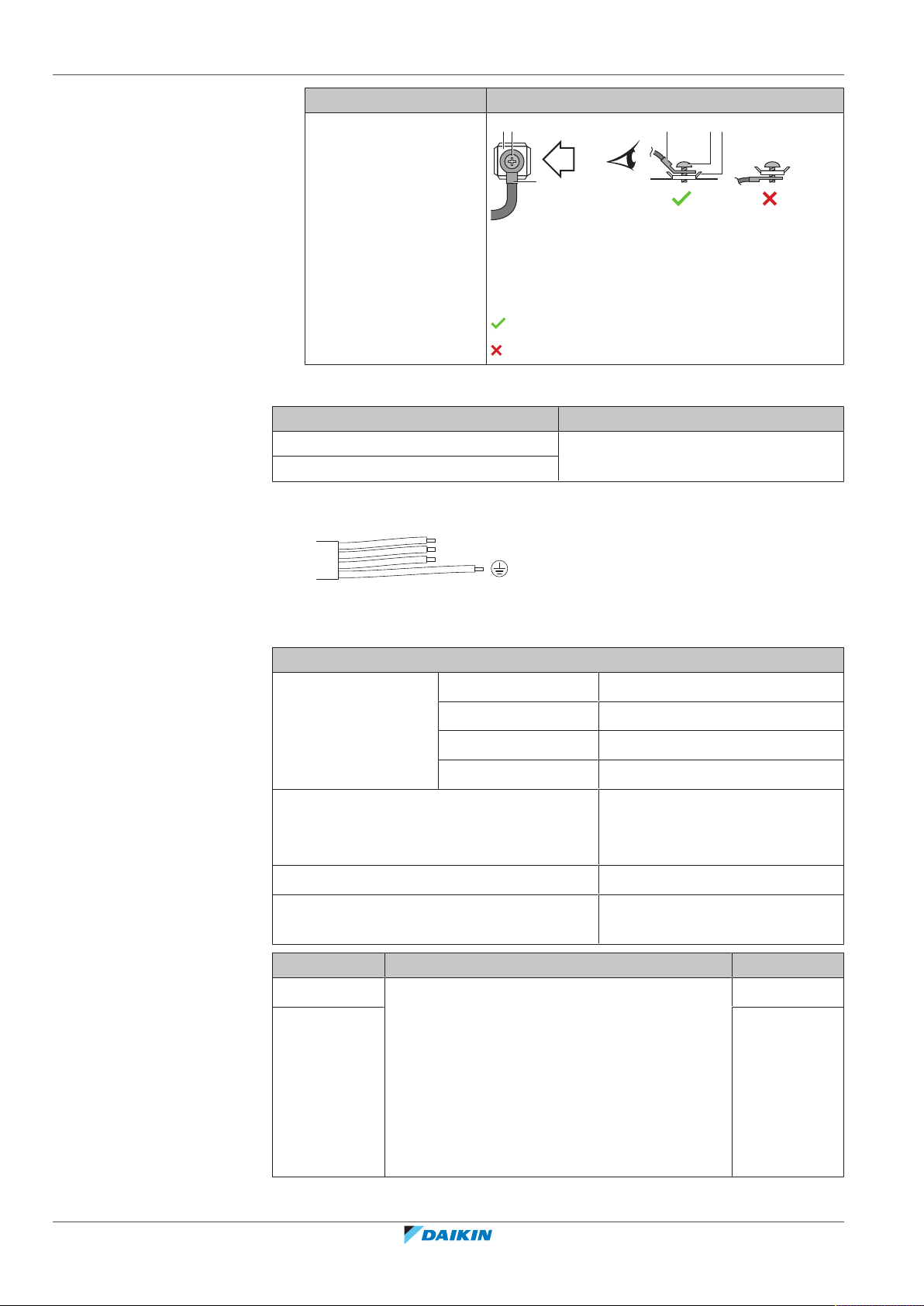

9.1.1 Precautions when connecting the electrical wiring

DANGER: RISK OF ELECTROCUTION

WARNING

Appliance shall be installed in accordance with national wiring regulations.

WARNING

ALWAYS use multicore cable for power supply cables.

INFORMATION

Also read the precautions and requirements in the "2 General safety

precautions"[45].

INFORMATION

Also read "9.1.3Specifications of standard wiring components"[454].

2MXM68+3(A)MXM+3(A)MXF+4MXM+5MXM R32 Split series 4P600463-1C – 2020.08

Installer reference guide
