Dahua DH-XVR5416L-I2 User Manual

| DH-XVR5416L-I2

DH-XVR5416L-I2

16 Channel Penta-brid 5M-N/1080P 1.5U WizSense Digital Video Recorder

· H.265+/H.265 dual-stream video compression

· Supports HDCVI/AHD/TVI/CVBS/IP video inputs

· Max 24 channels IP camera inputs, each channel up to 8MP; Max

128 Mbps incoming bandwidth

· Up to 2 channels video stream ( analog channel ) perimeter protecon

· Up to 16 channels video stream ( analog channel ) SMD plus

· Up to 2 channels video stream (analog channel ) human face recognion

· IoT & POS funconalies

Launched by Dahua Technology, WizSense is a series of AI products and

soluons that adopt independent AI chip and deep learning algorithm.

It focuses on human and vehicle with high accuracy, enabling users to

fast act on dened targets. Based on Dahua's advanced technologies,

WizSense provides intelligent, simple and inclusive products and

soluons.

System Overview

Dahua Technology, a world-leading video-centric smart IoT soluon and

service provider, debuted its new XVR series, XVR5000-I2 featuring

full-channel SMD Plus (except for 32-channel devices) to benet

customers from AI upgrade. The series are designated to reduce
false-alarm rates and human surveillance costs, thus bringing great value
to customers in search of products with accurate human/vehicle alarm

to raise the security level of various indoor and outdoor facilies.

Funcons

Real Time Face Recognion

Video stream real me face recognion. Facial aributes analysis

features including gender, age, expression, glasses, moustache, mouth

mask. Idenfy people and also capture, record faces with metadata.
Facial feature ltering while real me display, only show faces with target

features.

*Face Recognion takes eect when Face is selected in AI Mode.

Perimeter Protecon

Automacally ltering out false alarms caused by animals, rustling
leaves, bright lights, etc. Enables system to act secondary recognion for

the targets. Improving alarm accuracy.

*Perimeter Protecon takes eect when IVS&SMD is selected in AI

Mode.

based on moon detecon and send alarms only when person and

vehicle intrudes.

*SMD Plus takes eect when SMD or IVS&SMD is selected in AI Mode.

AI Coding

Compared with H.265, AI codec can reduce up to 50% bit rate and

storage requirements while have no loss of decoding compability,

providing clear human and vehicle details.

Smart H.265+

Smart Codec, H.265+ can reduce up to 90% bit rate and storage
requirements compared with H.264 without having to invest in new
cameras.

HDCVI/AHD/TVI/CVBS Auto-detect

The XVR can auto recognize the signal of front-camera without any

seng. It makes operaon more friendly and convenient.

Coaxial Audio/Upgrade/Alarm

The integrated design can reduce wiring troubles which makes it much

more cost-eecve and convenient for installaon.

Long Distance Transmission

The HDCVI system supports long distance transmission over coaxial cable
and UTP, max. 700m for 4K/4MP, 800m for 1080P and 1200m for 720P.

AI Search

Extract and classify person and vehicles from massive video data, easy
for end users to trace historical informaton and analyze. Person &
Vehicle optonal for playback to achieve quick target search, saving event
retrieval tme.

SMD Plus

SMD Plus, referred to as Smart Moon Detecon Plus, which is an

upgrading version of SMD that greatly improves the alarm accuracy by
loading deep-learning algorithm. It analyzes person and vehicle shapes

www.dahuasecurity.com

| DH-XVR5416L-I2

Technical Specificaon

System

Main Processor

Operating System

Perimeter Protecon

Performance

Object classification

AI Search

Face Recognion

Performance

Stranger Mode

AI Search

Database Management

Database Application

Trigger Events

Embedded Processor

Embedded LINUX

2 channels, 10 IVS for each channel

Human/Vehicle secondary recognition for tripwire and
intrusion

Search by target classification (Human, Vehicle)

2 channels, max 12 face pictures/sec processing

Detect strangers' faces (not in device's face database).

Similarity threshold can be set manually.

Up to 8 target face images search at same time, similarity
threshold can be set for each tar get face image.

Up to 10 face databases with 10,00 0 face images in
total. Name, gender, birthday, address, certificate type,
cerificate No., countries®ions and state can be added
to each fac e picture.

Each database can be applied to video channels
independently .

Buzzer, Voice Prompts, Email, Snapshot, Recording,
Alarm Out, PTZ Activation, etc.

Audio Compression

Audio Sample Rate

Audio Bit Rate

Display

Interface

Resolution

Multi-screen Display

OSD

Network

Interface

Network Function

Max. User Access

Smart Phone

Interoperability

G.711 A, G.711U, PCM

8 KHz, 16 bit Per Channel

64 Kbps Per Channel

2 HDMI, 1 VGA, 1 TV

VGA/HDMI2: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI1: 384 0 × 2160, 1920 × 1080, 1280 × 1024, 1280
× 720
It changes to 1920 × 1080, 1280 × 1024, 1280 × 720

when Face or IVS&SMD is selected in AI Mode.

When IP ex tension mode not enabled: 1/4/8/9/16
When IP ex tension mode enabled: 1/4/8/9/16/25

Camera title, Time, Video los s, Camer a lock, Motion
detection, Recording

1 RJ- 45 Port (1000 Mbps)

HTT P, HT TPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP,
UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,
PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports

Dahua IP camera, DVR, N VS, etc.)

128 users

iPhone, iPad, Android

ONVIF 16.12, CGI Conformant

SMD Plus

Performance

AI Search

Video and Audio

Analog Camera Input

HDCVI Camera Input

AHD Camera Input

TVI Camera Input

CVBS Camera Input

IP Camera Input

Audio In/Out

Two-way Talk

Recording

Compression

Resolution

Record Rate

Bit Rate

Record Mode

Record Interval

16 channels

Search by target classification (Human, Vehicle)

16 channels, BNC

5MP, 4MP, 1080P@25/30 fps, 720P@50/60fps,
720P@25/30fps

5MP, 4MP, 1080P@25/30, 720P@25/30fps

5MP, 4MP, 1080P@25/30, 720P@25/30fps

PAL/NTSC

16+8 channels, each channel up to 8MP

4/1, BNC

1 Mic In, 1 Mic Out, BNC

AI Coding/H.265+/H.265/H.264+/H.264

5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Main stream: All channel 5M-N (1fps–10fps);
4M-N/1080P (1fps–15fps); 1080N/720P/960H/

D1/CIF (1fps–25/30fps)
Sub stream: D1/CIF (1fps–15fps)

32 Kbps– 6144 Kbps Per Channel

Manual, Schedule (General, Continuous), MD (Video
detection: Motion Detection, Video Loss, Tampering),
Alarm, Stop

1 – 60 min (default: 60 min), Pre -record: 1 s–30 s, Post­record: 10 s–300 s

Video Detecon and Alarm

Trigger Events

Video Detection

Alarm input

Relay Output

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,

Buzzer and S creen Tips

Motion Detection, MD Zones: 39 6 (22 × 18), Video Loss,
Tampering and Diagnosis

16

6

Playback and Backup

1/4/ 9/16

Playback

Search Mode

Playback Function

Backup Mode

It changes to 1/4/9 split when Face or IVS&SMD is

selected in AI Mode.

Time /Date, Alarm, MD and Exact Search (accurate to
second)

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next
File, Previous File, Nex t Camera, Previous Camera, Full

Screen, Repeat, Shuffle, Backup Selection, Digital Zoom

USB Device/Network

Storage

Internal HDD

eS ATA

4 SATA Ports, up to 10 TB capacity for each disk

1 Port

Auxiliary Interface

USB

RS485

RS232

3 USB Ports (1 USB 2.0 , 2 U SB 3.0)

1 Port, fo r PTZ Control

1 Port, fo r PC Communication & Keyboard

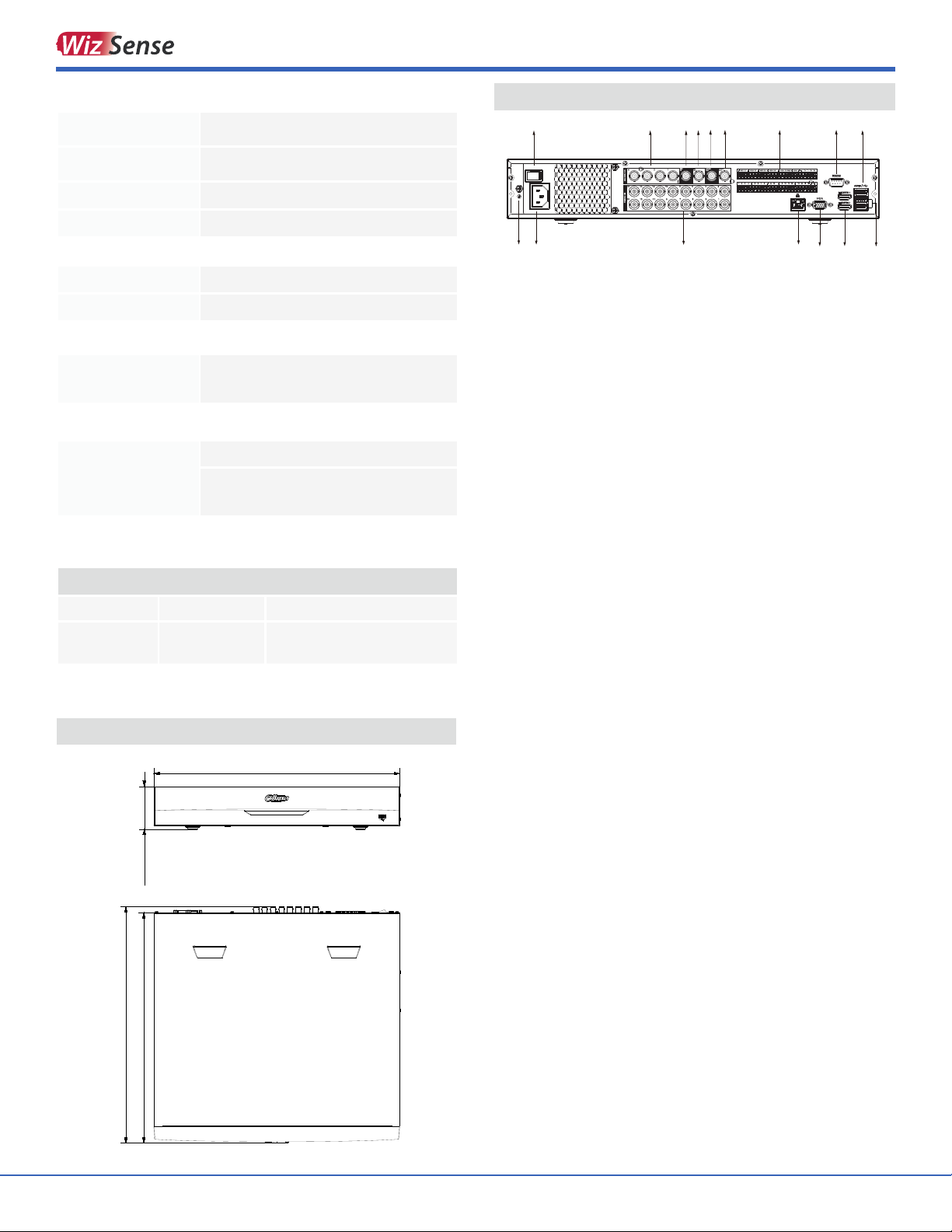

Electrical

Power Supply

Power Consumption

(Without HDD)

AC100V-240V, 50/60Hz

<15W
