Dahua DH-XVR5216AN-X-16P User Manual

Lite Series | DH-XVR5216AN-X-16P

Series

Lite

P2P

4K

HDMI

16CH

H.265

Plug&Play

Coax Audio

PoC

DH-XVR5216AN-X-16P

16 Channel Penta-brid 1080P Digital Video Recorder

· H.265+/H.265 dual-stream video compression

· Supports HDCVI/AHD/TVI/CVBS/IP video inputs

· Max 24 channels IP camera inputs, each channel up to 6MP;

Max 96Mbps Incoming Bandwidth

· Supports SMD, human face detecon, IVS

· All-channel support HDCVI PoC AT & AF camera

System Overview

With the surveillance operators pursuing to HD/UHD which further
adds the storage and transmission cost, HDCVI H.265+/H.265 has been
released to incredibly decrease the required bitrate while ensuring the

video quality in realizing high resoluon surveillance such as 4MP/4K.

The Lite Series is designed for high cost performance and quality. The

range oers a great soluon for users facing budget constraints who
both require quality and performance. And with the adopon of Smart
H.265+/H.265, the series improves encoding eciency, saving on
bandwidth/storage costs, and signicantly reducing the Total Cost of

Ownership (TCO).

Funcons

PoC

This series product supports PoC (Power over Coax) funcon. All-channel
support PoC AT & AF camera: AT camera power consumpon is less than
12W, AF power consumpon is less than 6W.
PoC power auto limitaon. PoC over current/short circuit auto
protecon, auto power o aer unplug the cable.
Auto recognize the PoC camera of dierent power consumpons.
Display PoC camera informaon such as current power consumpon

status, remaining power capability.

Manually disable PoC funcon, compable with the UTP transmission.
Disable PoC funcon before connecng to balun.

Smart H.265+
Smart Codec, H.265+ can reduce up to 90% bit rate and storage

requirements compared with H.264 without having to invest in new

cameras.

Coaxial Audio/Upgrade/Alarm

The integrated design can reduce wiring troubles which makes it much
more cost-eecve and convenient for installaon.

Long Distance Transmission

Non-PoC mode:The HDCVI system supports video no-loss long distance
transmission and coaxial cable control, min. 500m for 720P camera
(HDCVI, AHD, TVI), min.300m for 1080P or higher camera (HDCVI, AHD,
TVI).
PoC mode: The HDCVI system supports video no-loss long distance

transmission and coaxial cable control for 5MP, 4MP, 1080P, 720P
camera (HDCVI, AHD, TVI). Min. 100m for AT

camera,min. 200m for AF camera.

Smart Fan Design

The smart fan can automacally turn on or turn o according to the
CPU temperature. This funcon can eecvely reduce the fan noise to
provide a beer user experience.

Intelligent Video System (IVS)

With built-in intelligent video analycs, the XVR has the ability to detect

and analyze moving objects for improved video surveillance. The XVR

provides oponal standard intelligence at the edge allowing detecon of
mulple object behaviors such as abandoned or missing objects. IVS also
supports Tripwire analycs, allowing the camera to detect when a pre-

determined line has been crossed.

Face Detecon

It is a typical technology being used in a variety of applicaons for
searching or idencaon of individuals.

HDCVI/AHD/TVI/CVBS Auto-detect

The XVR can auto recognize the signal of front-camera without any

seng. It makes operaon more friendly and convenient.

High Denion Camera Input

The XVR supports up to 5MP HDCVI camera and 6MP IP camera input.

www.dahuasecurity.com

Smart Search

This funcon helps you get more moon detect video during a short
me through drawing a region when playback. It is very useful when an

emergency occurs.

Lite Series | DH-XVR5216AN-X-16P

Technical Specicaon

System

Main Processor

Operating System

Embedded Processor

Embedded LINUX

Video and Audio

Analog Camera Input

HDCVI Camera

AHD Camera

TVI Camera

CVBS Camera

IP Camera Input

Audio In/Out

Two-way Talk

16 Channel, BNC

5MP, 4MP, 1080P@25/30fps, 720P@50/6 0fps,
720P@25/30fps

5MP, 4MP, 1080P@25/30, 720P@25/30fps

5MP, 4MP, 1080P@25/30, 720P@25/30fps

PAL/NTSC

16+8 Channel, each channel up to 6MP

1/1, RCA

Reuse audio in/out, RCA

Recording

Compression

Resolution

Record Rate

H.265+/H.265/H. 264+/H.264

5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Main stream: 5M-N(1~10fps), 4M-N/1080P(1~15fps);
1080N/ 720P/960H/D1/CIF (1~25/30fps)
Sub stream: D1/CIF(1~15fps)

Video Detecon and Alarm

Trigger Events

Video Detection

Alarm input

Relay Output

Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and S creen Tips

Motion Detectio n, MD Zones: 396 (22 × 18), Video Loss,

Tampering and Diagnosis

N/A

N/A

Playback and Backup

Playback

Search Mode

Playback Function

Backup Mode

1/4/ 9/16

Time /Date, Alarm, MD and Exact Search (accurate to

second)

Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Nex t Camera, Previous Camera, Full Screen,

Repeat, Shuffle, Backup Selection, Digital Zoom

USB Device/Network

Storage

Internal HDD

eS ATA

2 SATA Ports, up to 10 TB capacity

N/A

Auxiliary Interface

USB

RS232

1 USB 2.0 , 1 USB 3.0

N/A

Bit Rate

Record Mode

Record Interval

Audio Compression

Audio Sample Rate

Audio Bit Rate

Display

Interface

Resolution

Multi-screen Display

OSD

Network

Interface

Network Function

Max. User Access

Smart Phone

Interoperability

32 kbps–6144 kbps Per Channel

Manual, Schedule (General, Continuous), MD (Video
detection: Motion Detection, Video Loss, Tamperin g), Alarm,

Stop

1min–60 min (default: 60 min), Pre- record: 1 sec–30 sec,
Post-rec ord: 10 sec–300 sec

G.711A, G.711U, PCM

8 KHz, 16 bit Per Channel

64 kbps Per Channel

1 HDMI, 1 VGA, 1 T V

HDMI:3840×2160, 2560×1440, 1920×1080, 1280×1024,
128 0×720
VGA: 1920×1080, 1280×1024, 1280×720

When IP ex tension mode not enabled: 1/4/8/9/16
When IP ex tension mode enabled: 1/4/8/9/16/25

Camera title, Time, Video loss, Camera lo ck, Motio n

detection, Recording

1 RJ-45 Port (100 0M)

HTT P, HTTPS, TCP/IP, IPv4/IPv 6, Wi-Fi, 3G/4G, U Pn P, RT S P,
UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP,

Alarm Server, P2P,IP Search (Supports Dahua IP camera,
DVR, NVS, etc.)

128 users

iPhone, iPad, Android

ONVIF 16.12, CGI Conformant

www.dahuasecurity.com

RS485

Electrical

Power Supply

Power Consumption

(without HDD)

Construcon

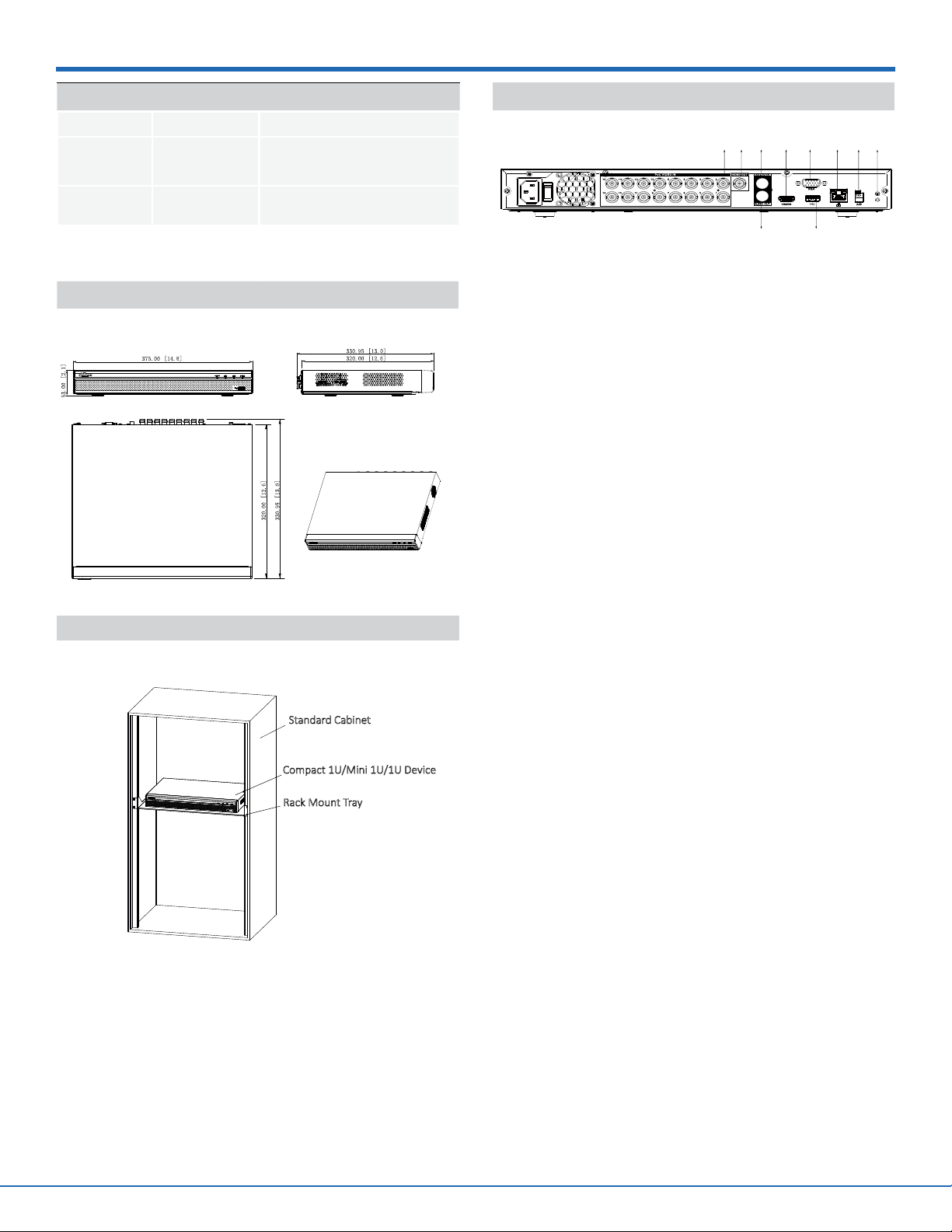

Dimensions

(W × L × H)

Net Wei ght

(without HDD)

Gross Weight

Installation

Environmental

Operating Conditions

Storage Conditions

Third-party Support

Third-part y Support

Cercaons

Certifications

1 Port, fo r PTZ Control

100V–250V AC 190W

≤12W

1U, 375.0 mm × 328.0 mm × 50.0 mm (14.8" × 12.9" × 2.0")

2.75 kg (6.0 lb)

3.98 Kg (8.8 lb)

Desktop installation

-10 °C to +55 °C (+14 °F to +131 °F), 10%RH–90%RH

-20 °C to +70 °C (-4 °F to +158 °F), 0%RH–9 0%RH

Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP

Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,

Sanyo, Sony, Videotec, Vivotek, and more

FCC: Par t 15 Subpart B

CE: CE-LVD: EN 60 950-1/IEC 60950-1

CE-EMC: EN 6100 0-3-2, EN 61000-3-3, EN 55032, EN 50130,
EN 55024
