Service Manual
DAEWOO DAT CO., LTD.
DVD MINI SYSTEM
XD-615[R]/616[R]/618[R]
XD-625[R]/626[R]/628[R]
9CD8304700
AUG. 2006
XD-625/626/628[R]
TEMPO ECHO KEY CON
XD-615/616/618[R]
Page 2
Table of Contents
DVD MINI SYSTEM
XD-615[R]/616[R]/618[R]
XD-625[R]/626[R]/628[R]
SAFETY PRECAUTIONS
........................................
1
SPECIFICATIONS, ADJUSTMENT
.........................
2
LOCATION OF USERS CONTROLS
......................
3
Front Panel
Display
Rear Panel
Remote Controller
CONNECTING TO EQUIPMENT
.............................
4
Connecting to TV
Connecting to Speaker
Connecting to the Supplied FM/AM(MW) Antennas
Connecting the Microphone for KARAOKE
FIRMWARE DOWNLOAD METHOD
......................
5
Preparing the Firmware Upgrade
Activating the Firmware Upgrade
Starting Update
Read the Disc or USB Card,
Checksum Check and Update New Firmware.
Completed Update.
Check the Update Version.
CODE FREE METHOD & EEPROM RESET
...........
6

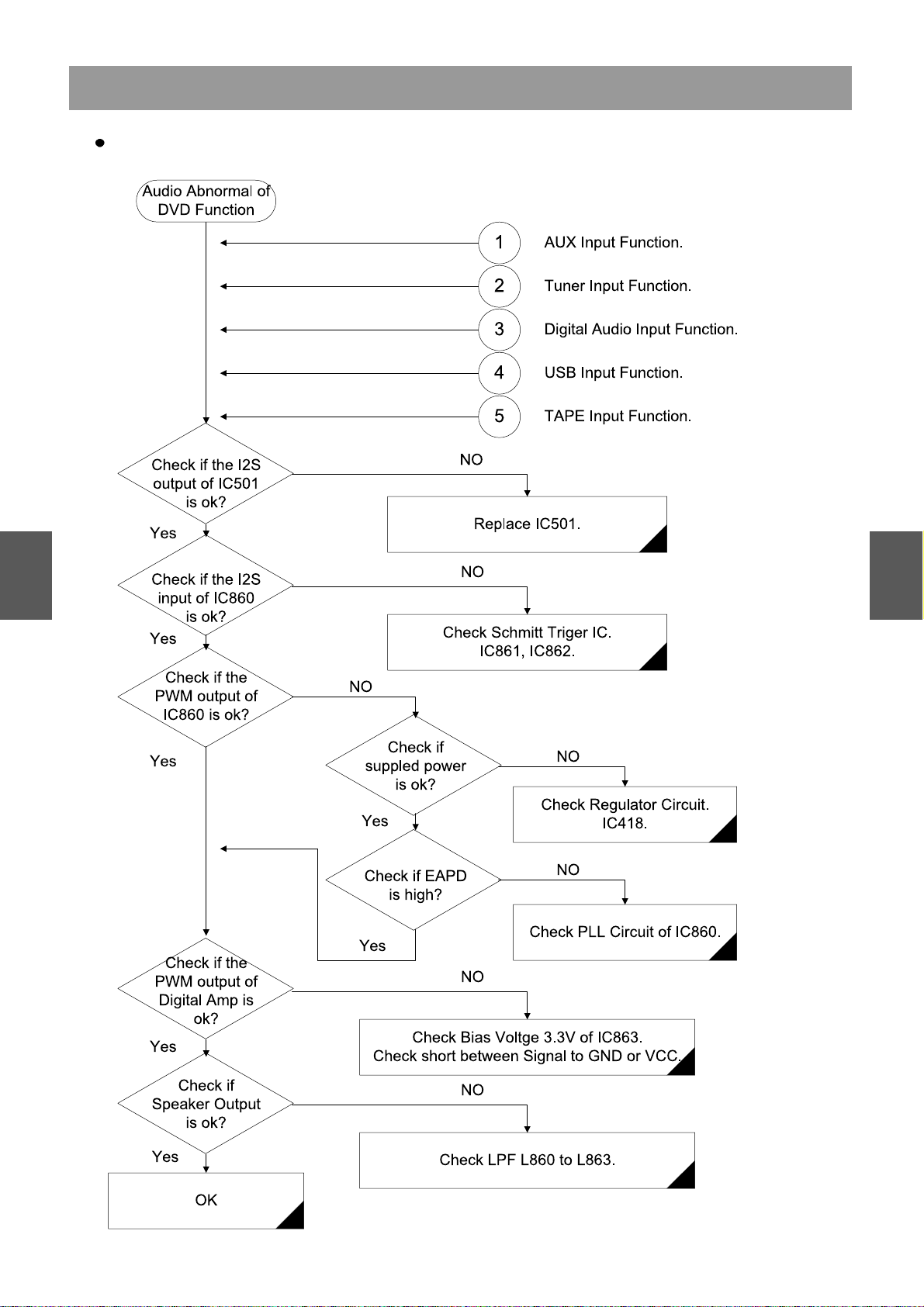

TROUBLE SHOOTING GUIDE
...............................
7
WAVEFORM OF MAJOR CHECK METHOD
..........
8
INTERNAL BLOCK DIAGRAM OF ICs
...................
9
EXPLODED VIEW AND
MECHANICAL PARTS LIST
.................................
10
Mechanical Exploded View : XD-615/ 616, XD-625/ 626
Mechanical Parts List : XD-615/ 616, XD-625/ 626
WIRING DIAGRAM
................................................
11
BLOCK DIAGRAM
................................................
12
SCHEMATIC DIAGRAM
........................................
13
Front Section : XD-615/ 616/ 625/ 626
Function/ Tape Section : XD-615/ 616/ 625/ 626
Video/ Analogue Section : XD-615/ 616/ 625/ 626
Digital Amp : XD-615/ 616/ 625/ 626
Scart Section(Only for EU Version) : XD-615/ 616/ 625/ 626
Mic Section : XD-615/ 616/ 625/ 626
DVD Processor : XD-615/ 616/ 625/ 626
Motor/ Pickup Section : XD-615/ 616/ 625/ 626
SMPS Section : XD-615/ 616/ 625/ 626
P.C.B PATTERN LAYOUT
....................................
14
MPEG : XD-615/ 616/ 625/ 626
FRONT : XD-615/ 616, XD-625/ 626
SMPS : XD-615/ 616/ 625/ 626
Amp : XD-615/ 616/ 625/ 626
Main : XD-615/ 616/ 625/ 626
Mic : XD-615/ 616/ 625/ 626
ELECTRICAL PARTS LIST
...................................
15
Electrical Parts List
Electrical Parts List [Option List]
Page 3
Safety Precautions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
WARNING
: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION :
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF UNINSULTED "DANGEROUS VOLTAGE"
WITHIN THE PRODUCT'S ENCLOSURE THAT MAY BE
SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF
ELECTRIC SHOCK TO PERSONS.
THIS SYMBOL IS INTENDED TO ALERT THE USER TO THE
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE
(SERVICING) INSTRUCTIONS IN THE LITERATURE
ACCOMPANYING THE APPLIANCE.
CAUTION
TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC
PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE
EXPOSURE.
LASER SAFETY
THIS UNIT EMPLOYS A LASER. ONLY QUALIFIED SERVICE PERSONNEL
SHOULD REMOVE THE COVER OR ATTEMPT TO SERVICE THIS DEVICE
DUE TO POSSIBLE EYE INJURY.
CAUTION :
USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
CAUTION :
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION :
POUR EVITER LES CHOCS ELECTRIQUES, INTRODUIRE
LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.
Important Safety Instructions
- All the safety and operating instructions should be read before
the appliance is operated.
- The safety and operating instructions should be retained for
future reference.
- All warnings on the appliance and in the operating instructions
should be adhered to.
- All operating and use instructions should be followed.
1. Water and Moisture - The appliance should not be used near
water - for example, near a bathtub, washbowl, kitchen sink,
laundry tub, in a wet basement, or near a swimming pool,
and the like.
2. Carts and Stands - The appliance
should be used only with a cart or
stand that is recommended by th
manufacturer.
3. An appliance and cart combination
should be moved with care. Quick
stops, excessive force, and uneven
surfaces may cause the appliance
and cart combination to overturn.
4. Wall or Ceiling Mounting - The appli-
ance should be mounted to a wall or
ceiling only as recommended by the manufacturer.
5. Ventilation - The appliance should be situated so that its
location or position does not interfere with its proper
ventilation. For example, the appliance should not be situated
on a bed, sofa, rug, or similar surface that may block the
ventilation openings; or, placed in a built-in installation, such
as a bookcase or cabinet that may impede the flow of air
through the ventilation openings.
6. Heat - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
7. Power Sources - The appliance should be connected to a
power supply only of the type described in the operating
instructions or as marked on the appliance.
8. Grounding or Polarization - The precautions that should be
taken so that the grounding or polarization means of an
appliance is not defeated.
9. Power - Cord Protection - Power-supply cords should be
routed so that they are not likely to be walked on or pinched
by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the
point where they exit from the appliance.
10.Protective Attachment Plug - If the appliance is equipped with
an attachment plug having overload protection. This is a
safety feature. See Instruction Manual for replacement or
resetting of protective device. If replacement of the plug is
required, be sure the service technician has used a
replacement plug specified by the manufacturer that has the
same overload protection as the original plug.
11.Cleaning - The appliance should be cleaned only as
recommended by the manufacturer.
12.Power Lines - An outdoor antenna should be located away
from power lines.
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN
PORTABLE CART
Figure 2
Page 4
Safety Precautions
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
13.Outdoor Antenna Grounding - If an outside antenna is
connected to the receiver be sure the antenna system is
grounded so as to provide some protection against voltage
surges and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna-dis
charge unit, size of grounding conductors,location of antennadischarge unit, connection to grounding electrodes and
requirements for the grounding electrode. See Figure 1.
14.Non-use Periods - The power cord of the appliance should be
unplugged from the outlet when left unused for a long period
of time.
15.Object and Liquid Entry - Care should be taken so that objects
do not fall and liquids are not spilled into the enclosure through
openings.
16.Damage Requiring Service - The appliance should be
serviced by qualified service personnel when:
a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the
appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or
exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure
damaged.
17.Servicing - The user should not attempt to service the
appliance beyond that described in the operating instructions.
All other servicing should be referred to qualified service
personnel.
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
ANTENNA LEAD
IN WIRE
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250 PART H)
GROUND CLAMP
ELECTRIC
SERVICE
EQUIPMENT
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
EXAMPLE OF ANTENNA
GROUNDING
NEC - NATIONAL ELECTRICAL CODE
Page 5
Specifications
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Input Sen./Impedance
Output Level/Impedance
Frequency Response
Crosstalk
S/N Ratio
Composite Video (Video)
Composite 75 ohm
S-Video (Y/C) 75 ohm (DVD only)
Component Out(Y/ Cb/ Cr) : Option
Ref 500 KHz
@1 MHz
DVD
1 Vp-p / 75 ohm
1 Vp-p / 75 ohm
1 Vp-p / 0.286 Vp-p
1V p-p / 0.7 Vp-p / 0.7 Vp-p
45 dB
60 dB
±
0.5 dB
±
0.5 dB
±
0.5 dB
±
0.5 dB
5 Hz ~ 5.7 MHz
40 dB
Video Section
Tape Section
Tuning Range
Scanning Frequency
Interval
Usable Sensitivity,
75 ohms
S/N Ratio
@1mV IHF-A FILTER
USA Version
Australia/Europe Version
USA Version
Australia/Europe Version
S/N = FM 30dB/MW 20dB, USA Version
S/N = FM 26dB/MW 20dB, Australia/Europe Version
FM Mono USA Version
FM Mono Australia/Europe Version
USA Version
Australia / Europe Version
FM
87.5 ~ 108.0 MHz
87.5 ~ 108.0 MHz
100 KHz
50 KHz
2 uV (17.2dBf)
3 uV (20.8dBf)
60 dB
60 dB
Stereo 65 dB
Stereo 63 dB
Tuner Section
MW(AM)
530 ~ 1,710 KHz
522 ~ 1,620 KHz
10 KHz
9 KHz
75 dBuV
75 dBuV
-
45 dB
45 dB
Item
Tape Speed
Frequency Response
S/N Ratio (with Filter)
Channel Separation
THD (Total Harmonic Distortion)
Wow & Flutter (JIS/WTD)
TCC-112, Normal
1KHz = 0dB
TCC-140 / AUX
MTT-141
Playback, TCC-142
TCC-112
3000
±
3%
150 Hz ~ 8KHz
Playback 50dB / Recording 45dB
40dB
1.5 %
0.2
±
0.35%
Model XD-615/ 616/ 625/ 626 XD-618/ 628
Operating Voltage
Power Consumption
AC 100V ~ 240V (50/ 60Hz) AC 230V (50Hz)
Operating 45 Watt Operating 100 Watt
General Specifications
Model XD-615/ 616/ 625/ 626 XD-618/ 628
Set
Speaker
275 x 363.3 x 317.5 / 6.15Kg 275 x 363.3 x 317.5 / 6.2Kg
AS-61VDS : 199 x 251 x 327 / 3.6Kg x 2EA
AS-62NYS : 230 x 458 x 390 / 6.1Kg x 2EA
AS-61WDS : 199 x 280 x 327 / 4.6Kg x 2 EA
POWER OUTPUT at 10 % THD (RMS)
THD (Total Harmonic Distortion)
Input Sen. / Impedance @ 1KHz, 47 K ohms
Output Level / Impedance @ 1KHz
Frequency Response (Analogue)
S/N Ratio IHF-A Weighted
At 1KHz, 6 ohms
At 1KHz, 8 ohms
At 1KHz, 10 W
VIDEO
Tape Rec
at 1W : VIDEO -3 dB
VIDEO
XD-615/625 : 50W / XD-616/626 : 65W
XD-618/628 : 150W
0.10 %
400 mV
±
30 mV / 47K
400 mV
±
30 mV / 2.2K
20 Hz ~ 20 KHz
60 dB
Audio Section
Page 6
Adjustments
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Page 7
Location of Users Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Front Panel : XD-615/616/618[R]
Front Panel : XD-625/626/628[R]
1. Disc tray
2. Display
3. STANDBY/ON button with lamp
4. DISC CHANGE button
5. DEMO button
6. Tape RECORD button
7. FUNCTION : DVD, TUNER(FM/AM),
TAPE1/2 and AUX/DIGITAL button
8. USB jack
9. PHONES jack
10. PAUSE (
II
) button
11. STOP ( ) button
12. PLAY ( ) button
13. ENTER button
14. TEMPO button
15. KEY button
16. Direction( ) buttons
17. Number(0~9) buttons
18. OPEN/CLOSE
()
buttons
19. DISC 1/2/3 buttons
20. MULTI JOG dial
21. MASTER VOLUME Control
22. Mic. VOLUME Control
23. Microphone 1/2 jacks
24. TAPE 1 EJECT button
25. TAPE 2 EJECT button
3
2
1
4
5
6
21
22
25
10 11 12
20
18
8
9
24
16 17
19
23
7
14 15
13
1. Disc tray
2. Display
3. STANDBY/ON button with lamp
4. DISC CHANGE button
5. DEMO button
6. Tape RECORD button
7. FUNCTION : DVD, TUNER(FM/AM),
TAPE1/2 and AUX/DIGITAL button
8. USB jack
9. PHONES jack
10. PAUSE (
II
) button
11. STOP ( ) button
12. PLAY ( ) button
13. FAST REVERSE ( ) /
FAST FORWARD ( ) buttons
14. SKIP PREV ( ) /
SKIP NEXT ( ) buttons
15. OPEN/CLOSE
()
buttons
16. DISC 1/2/3 buttons
17. MULTI JOG dial
18. MASTER VOLUME Control
19. Mic. VOLUME Control
20. Microphone 1/2 jacks
21. TAPE 1 EJECT button
22. TAPE 2 EJECT button
3
2
1
4
5
6
18
19
22
10 11 12
17
15
8
9
21
14
13
16
20
7
Page 8
Location of Users Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Rear Panel
Display
1 2 43 5 6
87 9 11
10 12
13 15
14
1716 18
1. Sound Mode indicator
2. Multi-Function Information Displaying Area
3. MIC indicator
4. REPEAT indicator
5. ALL/1 indicator
6. DISC indicator
7. Media indicator
8. PROGRESSIVE SCAN Mode indicator
9. Tape RECORD indicator
10. RDS indicator
11. PBC(Playback Control) indicator
12. DRC indicator
13. UBS indicator
14. EQ indicator
15. FM STEREO indicator
16. Lock indicator
17. Disc/Tape Play indicator
18. Disc Tray indicator
1. FM ANTENNA connector
2. AM(MW) ANTENNA connectors
3. COMPONENT VIDEO OUTPUT
Y/Pb/Pr jacks
4. MONITOR OUT jack
5. S-VIDEO OUT jack
6. COAXIAL INPUT jack
7. AUX INPUT jacks
8. LINE OUTPUT jacks
9. SUB WOOFER OUTPUT jacks
10. SPEAKER connectors
11. SCART jack (Optional)
12. Power cord
1
11
12
2
4
9
6
5
3
7
8
10
Page 9
Location of Users Controls
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Remote Controller
1. STAND BY/ON button
2. PROGRESSIVE button
3. DISC CHANGE button
4. OPEN/CLOSE( ) button
5. DVD/TV SYS(PAL/NTSC: DVD only) button
6. TUNER button
7. TAPE 1/2 button
8. AUX button
9. Number(0~9) buttons
10. GO TO/DEVICE button
11. MUTE button
12. UBS button
13. RECORD
()
button
14. ENTER button
15. Direction( ) button
16. SETUP button
17. MENU/RETURN
()
button
18. SKIP PREV ( ) button
19. STOP ( ) button
20. PLAY( ) button
21. SKIP NEXT ( ) button
22. FAST REVERSE ( ) button
23. SLOW button
24. PAUSE button
25. FAST FORWARD ( ) button
26. REPEAT/RDS MODE button
27. A-B REPEAT/PTY SEARCH button
28. AUTO MEMORY button
29. DISPLAY/FM MODE button
30. EQ button
31. TEMPO button
32. ECHO button
33. KEY CON button
34. AUDIO button
35. SUBTITLE/MPX button
36. ANGLE/DIGEST button
37. TITLE/PBC button
38. ZOOM button
39. SLEEP button
40. VOLUME -/+ buttons
11
10
14
27
9
13
17
29
28
5
6
7
8
12
15
16
26
23
25
24
22
19
21
20
18
2
4
3
1
31
33
32
30
35
37
36
34
39
40
38
Page 10
Connecting to Equipment
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Connecting to TV
Connecting speakers
If the TV or monitor is equipped with an S video input, make the S video connection in addition to the normal video
connection. The S video connection will provide higher quality picture playback.
21-Pin SCART Cable(not included) to 21-pin SCART input terminal on TV
SCART Specification(Europe model only) : Composite and Component Video output(DVD, Video)Audio L/R
Output(DVD only)
for EU version: optional
Before connecting
This machine is designed to reproduce optimum sound quality when speakers with the specified impedance below
are connected. Please check the following information and choose speakers with appropriate impedance for the
connections.
Front speakers(L/R) :
XD-615/616/625/626[R] : 6 ohms min. per speaker
XD-618/628[R] : 8 ohms min. per speaker
To prevent damage to circuits, never short-circuit the positive (+) and negative (-) speaker wires.
Do not connect the speaker cable to the L and R connectors at the same time and do not connect more than one
speaker to the same speaker connectors.
Right speaker Left speaker
Subwoofer speaker
(User Option)
R L
R L
NO!
NO!NO!
Page 11
Connecting to Equipment
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Connecting the supplied FM/MW(AM) antennas
Connecting the microphone for KARAOKE
Adjusting the position of the FM antenna
While listening to an FM program, extend the antenna and move it in various directions until the clearest signal is
received, then secure the antenna with push pins in the position with the least distortion.
Adjusting the position of the AM(MW) antenna
While listening to a AM(MW) program, set the antenna in the direction and position where you receive the clearest
sound.
Put it as far away as possible from the unit, TVs, speakers, cables, and power cords.
Plugging a dynamic microphone to sing along with CD, VCD, DVD
or AUX(also while recording).
Connect the plugs securely.
Page 12
Firmware Download Method
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Preparing the Firmware Upgrade
Activating the Firmware Upgrade
1. Write a disc to Update file by PC Writing Program.
2. A size of dummy folder is more than 10M bite. (ex : font_dw, attached picture)
3. Put Firmware file in a disc or USB Card.
<Update by CD-R>
1. Open the Door of DVD Receiver.
2. Insert the Update Disc into the Disc Tray.
3. Close the Door, then DVD Receiver reads the disc,
and Update the Firmware itself.
<Update by USB>
1. Insert the USB Card while the disc is stopped, and
Update the Firmware itself.
• Filename : A61L5_ 16.ROM
Starting Update.
1. Detect the Update Disc.
2. Display for Update Version.
• Basic Version : XD- 615/ 616/618, XD- 625/ 626/628 ( A61L5_ 16. ROM )
Note : Before using the USB devices, make sure
there is no disc on the machine. USB
function works only under the condition
that the display shows “NO DISC” or
“STOP” at DVD function mode.
Page 13
Firmware Download Method
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
• While updating, if the door opened or closed by touch, or power button is pressed, the Flash Memory
will be damaged (Same as USB).
• Must be press “Default” or “Reset” on the Setup Menu, Finished Update New Firmware.
Read the Disc or USB Card, Checksum Check and Update New Firmware.
Completed Update.
Caution
1. Automatically open the Door, after Read from Disc. (Disc only)
2. Take a disc out of a Tray. (Disc only)
1. Automatically Video Output off, after Complete Update.
2. Remove the USB Card.
3. Press Power Button twice(off
on)
4. The system is working.
Check the Update Version.
1. Open the Door of UNIT.
2. Press Audio Button or Subtitle Button.
• Audio Button : Check for MPEG Firmware Version.
• Subtitle Button : Check for Loader Firmware Version.
Page 14
Code Free Method & EEPROM Reset
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Preparing the Code Free Method
1. Press “Open” button.
2. Press “Setup” button.
3. Press Number button.
(5
4 2 5)
4. You can see window for Code Free.
5. Press “Enter”, or “Right Arrow”
button.
6. Select Region Number.
7. Press “Left Arrow” button.
8. If you Press “Setup”, The Setting of
Code Free is finished.
XD-610/620 Series EEPROM Reset
Use Only this case : change Flash Memory
1. Door Open.
2. Press Setup Key.
3. Press Number Key(2-5-8-0)
4. Display as follows,
“EEPROM CLEAR TWICE POWER ON/OFF”
Power off Power on Power off Power on.
Check Region Code.
Check Video Mode.
Notice
Page 15
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Basic Operating
Page 16
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Initial Operating
Page 17
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Initial Operating
Page 18
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Abnormal
Page 19
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Abnormal
Page 20
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Abnormal
Page 21
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Abnormal
Page 22
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Abnormal
Page 23
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Abnormal
Page 24
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Abnormal
Page 25
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Line Out Abnormal
Page 26
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Line Out Abnormal
Page 27
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Line Out Abnormal
Page 28
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Control Abnormal
Audio Control Abnormal
Page 29
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Video Output Abnormal
Page 30
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Mechanical Control Abnormal
Page 31
Trouble Shooting Guide
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Mechanical Control Abnormal
Page 32
Waveforms of Major Check Method
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Audio Out Signal Waveform
DAC Output Signal Waveform
Optical Output Audio Data Signal waveform
PWM Output Waveform During Normal Play
Serial Data Output Waveform During Normal Play
Test Point : DVD Test Disc MDVD-W111 TRACK2 Color Bar
Page 33
Waveforms of Major Check Method
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Pr Output Data Waveform in Component Output
Pb Output Data Waveform in Component Output
Y Output Data Waveform in Component Output
Test Point : DVD Test Disc MDVD-W111 TRACK2 Color Bar
Page 34
Waveforms of Major Check Method
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
MPEG
Composite Output Data Waveform in Monitor Output
S-Video Output Data Waveform
Test Point : DVD Test Disc MDVD-W111 TRACK2 Color Bar
Page 35
Internal Block Diagram of ICs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
74HC244
74HC14PWR
74HCU04PWR
2SB1132
2SK3018
Page 36
Internal Block Diagram of ICs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
AM5888
LD1117DT
LD1117A
BA6287F
Page 37
Internal Block Diagram of ICs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
MM1623
M29W160DB
Page 38
Internal Block Diagram of ICs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
PT6315
PCF8574
Page 39
Internal Block Diagram of ICs
1
2
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
STA308A
STA505
M12L64164A
Page 40
Internal Block Diagram of ICs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
BD3401KS2(Bi)
V6309
Page 41
Internal Block Diagram of ICs
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
ES8380FCA
M24C04
Page 42
APPENDIX - ELECTRICAL PART LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
ASS'Y LOC PART-CODE PART-NAME PART-DESC Q'TY
MAIN 10000 9CDC080100 PCB MAIN ASS'Y XD-610 MAIN ASS'Y
MAIN B400 9CD6502500 PCB MAIN 231.5X194X1.6T 1
MAIN
CF251 CF252 CF253 CF254 CF255 CF256
CF265 CF266 CF267 CF268 CF269 CF270 5P1H101MF- LC FILTER CFI 06B 1H 101MF 1
MAIN CN403 9728837000 CONN AS UL1007 #24 4P P2.0 250MM Board-in 1
MAIN CN406 9728837100 CONN AS UL1007 #26 8P P2.0 250MM Board-in 1
MAIN CN601 9738835000 CONN AS UL 2851 #28X2C0 3P 260MM 1
MAIN CN602 9728838700 CONN AS UL2851,1533 #28X4CO 6P+7P 270MM 1
MAIN CN902 9728836700 CONN AS UL1007 #24 8P P2.0 150MM Board-in 1
MAIN CW402 9CD6268700 WAFER 52806-2210 1
MAIN CW404 9CD6268500 WAFER 52806-2010 1
MAIN CW405 9728836900 CONN AS UL1007 #26 7P P2.0 270MM Shield 1
MAIN CW601 2503-WS-03 WAFER 3P 2.5MM 1
MAIN CW602 2503-WS-07 WAFER 7P 2.5MM 1
MAIN HD401 HD402 HD603 HD604 DZDS160--- DIODE SW CHIP KDS160 (KDS511) 1
MAIN HD403 D1SR156--- DIODE RECTIFIER 1SR156-400 TE25 1
MAIN HQ251 HQ254 TZRA102S-- TR CHIP KRA102S 1
MAIN HQ252 HQ253 HQ255 TZRC107S-- TR CHIP KRC107S 1
MAIN HQ404 HQ407 TZRA107S-- TR CHIP KRA107S 1
MAIN HQ405 HQ406 HQ409 HQ605 HQ644 TZRC231S-- TR CHIP KRC231S 1
MAIN HQ408 TZTD1304-- TR CHIP KTD1304 1
MAIN HQ601 HQ602 HQ647 HQ648 HQ649 HQ650 TZTC3875S- TR CHIP KTC3875Y 1
MAIN HQ604 HQ606 TZTD1304-- TR CHIP KTD1304 1
MAIN HQ645 T2SA2071-- TR CHIP 2SA2071 1
MAIN HQ646 T2SC5824-- TR CHIP 2SC5824 1
MAIN IC251 1MM1623--- IC MM1623 1
MAIN IC401 1BD3401KS2 IC BD3401KS2 1
MAIN IC402 1PCF8574AP IC PCF8574APWR 1
MAIN IC403 174HCU04PW IC SN74HCU04PWR TSSOP 1
MAIN IC405 IC406 IC407 IC409 IC601 1NJM4558M- IC NJM4558M 1
MAIN IC408 1BA4560F-- IC BA4560F 1
MAIN IC410 1LD1117S33 IC LD1117AS33TR SOT-223 1
MAIN IC602 1BA3126N-- IC BA3126N 1
MAIN J251 9736329600 JACK JACK_RGB_RCA305 1
MAIN J252 9736328100 JACK S-VIDEO R102-D04KA-07 1
MAIN J254 9736329500 JACK JACK_RCA-619A-01-01 1
MAIN L601 L602 L631 L632 5LC333K804 COIL CHOKE 33MH K 1
MAIN L641 5L0503K643 COIL BIAS OSC SM-10F 5.04MH 1
MAIN TU001 9737653301 TUNER MODULE KST-ML000MV0-J69L(USA) 1
MIC 11000 9CDC079800 PCB MIC ASS'Y XD-610 MIC ASS'Y
MIC B200 9CD6501800 PCB MIC 139X247X1.6T(2*3) 1
MIC CW405 2001-WS-07 WAFER 7P 2.0MM 1
MIC HD201 DZDS160--- DIODE SW CHIP KDS160 (KDS511) 1
MIC HQ201 HQ202 TZTC3875S- TR CHIP KTC3875Y 1
MIC IC201 IC203 1NJM4558M- IC NJM4558M 1
MIC J201 J202 9736329400 JACK MIC PJ-603A 1
MIC VR201 5V1503728B VR ROTARY RK09K1110AV8 1
MPEG 12000 9CDC080000 PCB MPEG ASS'Y XD-610 MPEG ASS'Y
MPEG B500 9CD6502100 PCB MPEG 160X130X1.6T 1
MPEG CN301 9728838000 CONN FFC FFC P=0.5X24PX195MM D 1
MPEG CW301 9CD6273600 WAFER JSYO.5S-5S-24PWB 1
MPEG CW302 2001-WS-12 WAFER 12P 2.0MM 1
MPEG CW303 2001-WS-06 WAFER 6P 2.0MM 1
MPEG CW403 2001-WS-04 WAFER 4P 2.0MM 1
MPEG CW406 2001-WS-08 WAFER 8P 2.0MM 1
MPEG CW501 9CD6268700 WAFER 52806-2210 1
MPEG CW502 9CD6267800 WAFER 52806-1310 1
MPEG HA501 HA510 HRTT8330J R ARRAY CHIP 1/16 33X4 OHM 1608 1
MPEG
HA502 HA503 HA504 HA505 HA506
HA507 HA508 HA509 HRTT8100J R ARRAY CHIP 1/16 10X4 OHM 1608 1
MPEG HD302 HD303 HD304 HD305 HD503 DZDS160--- DIODE SW CHIP KDS160 (KDS511) 1
MPEG HD501 HD502 D1SR156--- DIODE RECTIFIER 1SR156-400 TE25 1
MPEG HL304 HL305 5LF100K859 CHIP COIL 10UH 2012 1
MPEG
HL501 HL502 HL503 HL504 HL505 HL509
HL510 HL511 HL512 HL513 HL515 HL516
HL517 HL518 HL519 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012 1
MPEG HQ301 HQ302 T2SB1132T1 TR CHIP 2SB1132 1
MPEG HQ303 TZTC3875S- TR CHIP KTC3875Y 1
MPEG HQ304 HQ305 T2SK3018-- FET CHIP 2SK3018 1
MPEG HQ306 TZRC111S-- TR CHIP KRC111S 1
MPEG IC303 1BA6287F-- IC BA6287F DRIVER 1
MPEG IC501 1ES8380FCA IC ES8380 MPEG DECODER 1
MPEG IC502 1L128168AE IC M12L128168A SDRM(128M) (ESMT) 1
MPEG IC503 1M29W160EB IC M29W160DB FLASH(16M) 1
MPEG IC504 1M24C04MN- IC M24C04MN S0P 1
MPEG IC505 1LD1117A33 IC LD1117ADT33 DPAK 1
MPEG IC506 1LD1117A-R IC LD1117ADT-R DPAK 1
MPEG IC508 1V6309MSP3 IC RESET IC, V6309 MSP3B 1
MPEG IC509 1AM5888S-- IC AM5888S Motor Driver 1
MPEG XC501 5XJ27M000E X-TAL 27MHZ HC-49/US (RADIAL/SMD) 1
XD-615/ 616/618/ 625/ 626/628
Page 43
APPENDIX - ELECTRICAL PART LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
ASS'Y LOC PART-CODE PART-NAME PART-DESC Q'TY
FRONT 13000 9CDC080500 PCB FRONT ASS'
Y
XD-620 FRONT ASS'
Y
FRONT B700 9CD6505600 PCB FRONT 247X163X1.6T 1
FRONT CN702 9728837600 CONN FFC FFC P=1.0X13PX240MM C 1
FRONT CN703 9728837400 CONN FFC FFC P=1.0X20PX220MM R 1
FRONT CN704 9728837700 CONN FFC FFC P=1.25X16PX120MM D 1
FRONT CN903 9728836600 CONN AS UL1007 #26 11P P2.0 300MM Board-in 1
FRONT CW702 9CD6267800 WAFER 52806-1310 1
FRONT CW703 9CD6268500 WAFER 52806-2010 1
FRONT CW704 9CD6261600 WAFER 52492-1620 1
FRONT FD701 D25-1121FN VFD VFD25-1121FN 1
FRONT HD702 HD703 HD704 HD705 DZDS160--- DIODE SW CHIP KDS160 (KDS511) 1
FRONT HD706 D1SR156--- DIODE RECTIFIER 1SR156-400 TE25 1
FRONT HQ701 HQ703 TZTD1304-- TR CHIP KTD1304 1
FRONT HQ702 TZRA111S-- TR CHIP KRA111S 1
FRONT HQ704 TZRA107S-- TR CHIP KRA107S 1
FRONT HQ705 HQ706 HQ707 T2SA2071-- TR CHIP 2SA2071 1
FRONT HQ708 HQ709 HQ710 TZRC107S-- TR CHIP KRC107S 1
FRONT IC701 1PT6315--- IC PT6315 1
FRONT IC702 1M24C04MN- IC M24C04MN S0P 1
FRONT IC703 1HK381B-DW IC HK381BT-DW 1
FRONT IC704 1V6309MSP3 IC RESET IC, V6309 MSP3B 1
FRONT IC705 13776XD610 IC M37762 BASIC Version 1
FRONT IC706 174HC244PW IC SN74HC244PW 1
FRONT LD701 DMT463SRTT LED MT-463SRT/W60/TR1 1
FRONT LD702 LD703 LD704 LD705 DMT-463UBD LED MT-463UBD/W60 1
FRONT RV701 RV1417222- R SEMI FIXED 1/10 2.2K OHM B V6EK-PV1S 1
FRONT VR701 VR702 5SH1224375 SW ENCODER RE0123PVB25FINB 1-2-24 PCE 1
FRONT XC701 5XJ16R000C X-TAL JWT-16.000-US 1
FRONT 10
9CD4210000 CUSHION VFD EVA T4.5 2
H/P 9CDC080600 PCB HP ASS'Y XD-620 HP ASS'Y
H/P B701 9CD6501701 PCB H/P FR-1, HP XD-620 0
H/P CF701 CF702 5P1H101MF- LC FILTER CFI 06B 1H 101MF 1
H/P CN701 9728837200 CONN AS UL1007 #26 8P P2.0 70MM Board-in 1
H/P HL701 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012 1
H/P J701 9736325300 JACK H/P HTJ-035-18A (H/P) 1
H/P J702 9736329300 JACK USB USAF-046N-WP-01 1
SMPS 9CDC080200 PCB SMPS ASS'Y XD-610 SMPS ASS'Y
SMPS B900 9CD6502200 PCB SMPS 139X197X1.6T 1
SMPS AC901 9736915700 CORD AC KE-112 H03VVH2-F 5A 250V 2.18M 1
SMPS CC901 CC911 CCXB3A102K C CERA 1KV B 1000PF K (FORMING) 1
SMPS
CC902 CC903 CC906 CC908 CC909 CC910
CC912 CC914 CC916 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING) 1
SMPS CC904 CCXB3A103K C CERA 1KV B 0.01MF K (FORMING) 1
SMPS CC905 CL1GB1102K C CERA (Y-CAP) 250V 102PF Y-1 1
SMPS CC907 CC913 CC915 CCXB3A471K C CERA 1KV B 470PF K (FORMING) 1
SMPS CC917 CC918 CL1GB1101K C CERA (Y-CAP) 250V 100PF Y-1 1
SMPS CC919 CL1GB1102K C CERA (Y-CAP) 250V 102PF Y-1 1
SMPS CE904 CEXN4D331P C ELECTRO 400V 300UF LHS 1
SMPS CE906 CE907 CEXD1H331B C ELECTRO 50V RL(LK) 330MF (10X20) 1
SMPS CM901 CMXK2J333J C MYLAR MC 630V 0.033MF J 1
SMPS CW901 2001-WS-06 WAFER 6P 2.0MM 1
SMPS CW902 2001-WS-08 WAFER 8P 2.0MM 1
SMPS CW903 2001-WS-11 WAFER 11P 2.0MM 1
SMPS CW981 9CD6290900 WAFER 3.96 2P VH-02A(White) 1
SMPS CX901 CL1BB3334K C CERA (X-CAP) 275V 334(X-CAP) 436D 1
SMPS
D901 D902 D906 D907 D909 D910
D912 D913 D920 D925 D940 DHER108G-- DIODE(UFR) HER108G(UF4007) 1
SMPS D903 DSR106---- DIODE(Schottky) SR106 1
SMPS D904 DTS10P06G- DIODE(Bridge) TS10P06G 1
SMPS D908 DMBR20150C DIODE(Schottky) MBR20150CT 1
SMPS D914 D915 D916 D917 D918 DSR310---- DIODE(Schottky) SR310 1
SMPS D923 DSR106---- DIODE(Schottky) SR106 1
SMPS D926 DSR310---- DIODE(Schottky) SR310 1
SMPS DZ905 DP6KE200A- DIODE(TVS) P6KE200A 1
SMPS DZ911 DZTZ18B--- DIODE ZENER MTZ-18B 52MM TAPPING 1
SMPS DZ912 DZTZ4R7B-- DIODE ZENER MTZ-4.7B 52MM TAPPING 1
SMPS DZ924 DZTZ4R3B-- DIODE ZENER MTZ-4.3B 52MM TAPPING 1
SMPS F901 5FFPS5022S FUSE MINIATURE 250V 5.0A TL 1
SMPS IC901 1LNK353P-- IC(Switching) LNK353P 1
SMPS IC902 IC905 1TL431A--- IC(Shunt Regulator) TL431 1
SMPS IC903 1TOP245Y-- IC(Switching) TOP-245Y 1
SMPS IC904 1TOP248Y-- IC(Switching) TOP-248Y 1
SMPS IC907 IC908 IC909 IC910 1ET1103--- IC(Photocoupler) ET1103 1
SMPS L901 L908 L909 L910 5LC220K864 COIL CHOKE 22uH(1A) 1
SMPS L905 5LF203N865 COIL LINE FILTER KS-2930A1 LINE FILTER 1
SMPS L906 L907 5LC339N863 COIL CHOKE 3,3uH(5A) 1
SMPS PT901 5TMW015972 TRANS POWER EE1614 H 1
SMPS PT902 5TMW034971 TRANS POWER EE2834V_12P 1
SMPS PT903 5TMW028970 TRANS POWER EE2828 1
SMPS Q901 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO 1
SMPS R901 RS01Y104J- R METAL OXIDE FILM 1W 100K OHM J 1
Page 44
APPENDIX - ELECTRICAL PART LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
ASS'Y LOC PART-CODE PART-NAME PART-DESC Q'TY
SMPS R906 RN-AZ1122F R METAL FILM 1/6 11.2K OHM F(1%) 1
SMPS R907 RN-AZ1002F R METAL FILM 1/6 10K OHM F(1%) 1
SMPS R912 RS02Y104J- R METAL OXIDE FILM 2W 100K OHM J 1
SMPS R913 RS02Y104J- R METAL OXIDE FILM 2W 100K OHM J 1
SMPS R914 RD01Y470J- R CARBON FILM 1W 47 OHM J 1
SMPS R921 RS01Y101J- R METAL OXIDE FILM 1W 100 OHM J 1
SMPS R923 RS01Y103J- R METAL OXIDE FILM 1W 10K OHM J 1
SMPS R930 RS02Y563J- R METAL OXIDE FILM 2W 56K OHM J 1
SMPS R931 RS01Y470J- R METAL OXIDE FILM 1W 47 OHM J 1
SMPS R937 RN-AZ1122F R METAL FILM 1/6 11.2K OHM F(1%) 1
SMPS R938 RN-AZ1002F R METAL FILM 1/6 10K OHM F(1%) 1
SMPS R946 RD-2Y471J- R CARBON FILM 1/2 470 OHM J 1
SMPS R948 RD-2Y561J- R CARBON FILM 1/2 560 OHM J 1
SMPS R957 RD-2Y561J- R CARBON FILM 1/2 560 OHM J 1
SMPS TH901 DNTC-3D15F THERMISTER NTC-3D15F 1
SMPS VA901 D1NR10D471 VARISTOR 1NR10D471 1
SMPS 10 9CD0915600 PLATE IC 1
SMPS 20
9CD4411200 HEAT SINK S1 AL-EXT 1
SMPS 30
9CD4411400 HEAT SINK S3 AL-EXT 1
XD-615/ 616/ 625/ 626
XD-618/ 628
Page 45
APPENDIX - ELECTRICAL PART LIST
Page 46
APPENDIX - ELECTRICAL PART LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
XD-615/ 616/ 625/ 626
AMP 9CDC080100 PCB AMP ASS'Y XD-610 MAIN ASS'Y
AMP B800 9CD6502400 PCB AMP 220X115X1.6T(1*2) 1
AMP CM860 CM861 CMXK1J684J C MYLAR MC 63V 0.68MF J 1
AMP CN861 9728837900 CONN FFC FFC P=1.0X22PX330MM D 1
AMP CN802 9728837800 CONN FFC FFC P=1.0X22PX140MM C 1
AMP CN901 9728836800 CONN AS UL1007 #24 6P P2.0 200MM 1
AMP CW861 CW862 9CD6268700 WAFER 52806-2210 1
AMP HL860 HL861 5LX601K843 CHIP BEAD FB 600 OHM 100MHZ 2012 1
AMP IC860 1STA308A-- IC STA308A DDX 1
AMP IC861 IC862 174HC14PWR IC SN74HC14PWR TSSOP 1
AMP IC863 1STA505--- IC STA505 PWM AMP 1
AMP J801 9736329700 JACK SPEAKER JACK_SPK_PTB-408S 1
AMP L860 L861L862 L863 5LC220K866 COIL LPF 22UH LPF Digital Amp PI 13mm 1
AMP 10
9CD4410800 HEAT SINK AMP AL-EXT 1
REMOCON12000 REMOCON AS AM-67D
REMOCON 10 9CDM064300 REMOCON AM-67D 1
XD-618/ 628
NAME Loc Q't
y
S/N DESCRIPTION Remark
MAIN CONN WAFER CW201 1 2503-WS-02 2P 2.5MM
MAIN C Electro CE285 1 CEXF1E221V 25V 220uF
MAIN CHIP RES HR283 1 HRF8100JCA 1/8 10 OHM J 2012
MAIN TR HQ256 1
TZRC231S--
KRC231S
MAIN TR HQ257 1
TZRA107S--
KRA107S
FAN DC Fan 1 9738101700 SP602512M-03(DC12V, 0.11A) Use in RH-435
XD-618/ 628 Fan Option List
Page 47
APPENDIX - ELECTRICAL PART LIST
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Page 48
APPENDIX - ELECTRICAL PART LIST[OPTION LISTS]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1. SCART JACK OPTION LIST.
2006-08-26
NO NAME LOC Q'TY S/N DESCRIPTION W/O Scart With Scart REMARK
1 FFC Wafer CN201 1
9CD6264700
52045-1645 X O
2 PCB ASS'Y 1 9CDC080300 XD-610 SCART ASS'Y X O
2. TUNER MODULE OPTION LIST.
NO NAME LOC Q'TY S/N DESCRIPTION
1 TUNER MODULE TU001 1 9737653301 KST-ML000MV0-J69L(USA)
2 TUNER MODULE TU001 1 9737653401 KST-ML104MV1-J69L(Europe)
3 TUNER MODULE TU001 1 9737653501 KST-ML006MV1-J69L(JAPAN)
4 ANT LOOP 1 9736807100 S0160BL-25
5 ANT FM 1 9736806000-1 1.2M PIG TAIL BLK
Shield Type
REMARK
4. SMPS Option list
NO NAME LOC Q'TY S/N DESCRIPTION XD-615/625 XD-616/626 REMARK
1 DIODE(Zener) DZ911 1
DZTZ18B---
UZ18BSB O X
2 DIODE(Zener) DZ911 1
DZTZ22B---
UZ22BSB X O
5. AMP Option list
NO NAME LOC Q'TY S/N DESCRIPTION XD-615/625 XD-616/626 REMARK
1 IC IC863 1
1STA505---
STA505 O X
2 IC IC863 1
1STA506---
STA506 X O
6. XD-62X RDS Option list
NO NAME LOC Q'TY S/N DESCRIPTION RDS NO RDS REMARK
1 R CHIP HR008/009 2
HRFT101JBA
1/10 100 OHM J 1608 O X MAIN PCB
2 C CHIP CERA HC004/005 2
HCQK101JBA
50V CH 100PF J 1608 O X MAIN PCB
3 WIRE JUMPER JW704 1
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO O X FRONT PCB
7. XD-61X RDS Option list
NO NAME LOC Q'TY S/N DESCRIPTION RDS NO RDS REMARK
1 R CHIP HR008/009 2
HRFT101JBA
1/10 100 OHM J 1608 O X MAIN PCB
2 C CHIP CERA HC004/005 2
HCQK101JBA
50V CH 100PF J 1608 O X MAIN PCB
3 WIRE JUMPER JW714 1
W581GY7595
AWG22 1/0.65 SN 7.5 AUTO O X FRONT PCB
4 WIRE JUMPER JW745 1
W581GY1005
AWG22 1/0.65 SN 10 AUTO O X FRONT PCB
5 WIRE JUMPER JW748 1
W581GY12J5
AWG22 1/0.65 SN 12.5 AUTO O X FRONT PCB
8. AC CORD Option list
NO NAME LOC Q'TY S/N DESCRIPTION BUYER
1 AC CORD ———— 1
9736913700
KE-21,H03VVH2-F 1900MM WITH STOPPER
2 AC CORD ———— 1
9736913800
KE-01PÅêNISPT-2 18AWG 10A
3 AC CORD ———— 1
9736913900
4 AC CORD ———— 1
9736914000
5 AC CORD ———— 1
9736914100
6 AC CORD ———— 1
9736914200
7 AC CORD ———— 1
9736915700
KE-112 H03VVH2-F 5A 250V 2.18M
9. OTHER Option list
NO NAME LOC Q'TY S/N DESCRIPTION XD-61X XD-62X REMARK
1 CONN FFC CN703 1
9728837500
P=1.0X20PX250MM O X
2 CONN FFC CN703 1
9728837400
P=1.0X20PX220MM X O
EUROPE
AMERICA
ENGLAND
AUSTRALLIA
ARGENTINA
BRAZIL
SRI LANKA
Loading...
