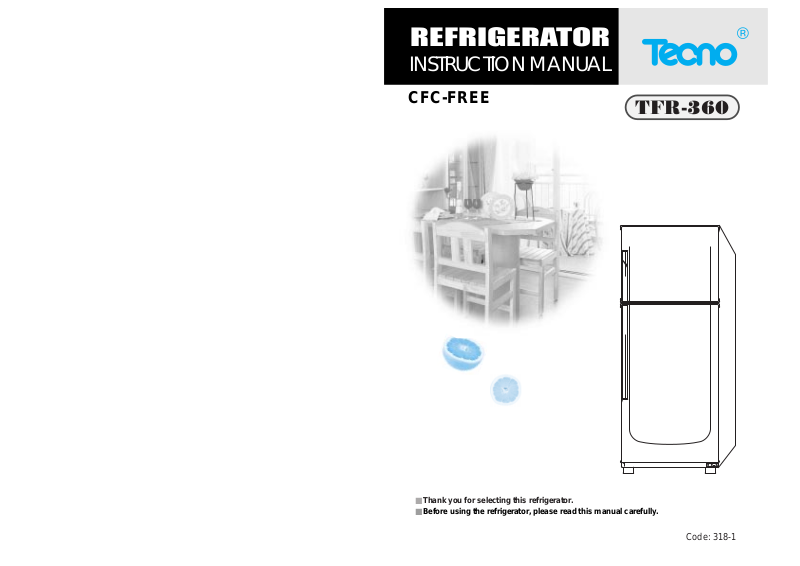

REFRIGERATOR

INSTRUCTION MANUAL

■ Thank you for selecting this refrigerator.

■ Before using the refrigerator, please read this manual carefully.

CFC-FREE

Code: 318-1

TFR-360

FEATURE CHART

(

)

5 4

! ICE TRAY @ F SHELF (MOVABLE) # FREEZER TEMPERATURE

CONTROL KNOB

$ ICE BOX % CHILLED CASE DOOR ^ CHILLED CASE & REFRIGERATOR

TEMPERATURE CONTROL SWITCH

* R SHELF (MOVABLE) ( LAMP COVER ) VEGETABLE CASE COVER 1 VEGETABLE CASE

2 FREEZER POCKET(SMALL) 3 FREEZER

POCKET(MIDDLE)

4 EGG CASE 5 UTILITY

POCKET(SMALL/LARGE)

6 UTILITY

POCKET(SMALL/SMALL)

7 BOTTLE

POCKET(LARGE/LARGE)

8 BOTTLE

POCKET(MIDDLE/LARGE)

Here are the features of your new refrigerator.

T ake a moment to know all the f eatures designed for the con venience of the user.

■ Ice T ra y

Fill 3/4 of the ice tray with water, as the volume expands when the water is frozen. Place the tray in the freezer compar tment. To release ice cubes, twist the ice tray slightly. Ice cubes will be easier to remove if it is held for a shor t while under running water.

■ Movable refrigerator and freezer shelves

Storage shelves should be adjusted depending on the height of the food stored. To do this, pull the shelves slightly forw ard.

■ Defrost-drain Vessel

Since dust accumulated on the drain case decreases the evaporation efficiency, you should clean the drain case at regular intervals.

■ Lamp cover

To remove the lamp cover

1. Push up the bottom end of lamp cover gently, then pull out.

2. Reverse procedure to join together.

■ Vegetable case

May be used for fruit and v egetable stor age. Both the vegetable case and its cov er shelf are removable f or easy cleaning. Simply slide forward to remove.

■ Utility Pocket (Top)

The Egg Case in this pocket can be turned upside down for the storage of small size goods.

■ For lock installed refrigerators only.

CAUTION

When you put or take out food fr om the refrigerator, be careful not to hit your head on the lock as there is a pr otrusion on the door of y our refrigerator.

1. Check your voltage before inserting the power supply cord into the sock et.

2. Contact the earthing conductor to this unit with an attachment earthing screw .

3. Do not spill liquid on this unit.

Do not use flammable spray, such as painting, near this unit.

5. Do not place ignitable material, such as benzine, L.P. gas, alcohol etc., into this unit.

6. Take precautions against leakage of any gas equipment near this unit.

7. Keep children from hanging on the door of this unit.

Do not reinsert the power supply cord within 5 minutes after releasing it from the socket. If not, there may be problems with the compressor.
