Daewoo TFR-330 User Manual

HERE ARE THE FEATURES OF YOUR NEW REFRIGERATOR

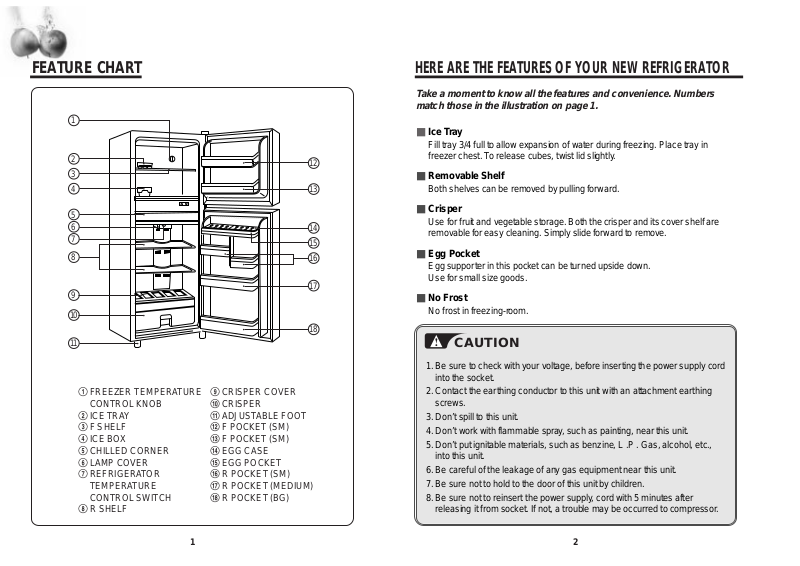

FEATURE CHART

7 8

15 16

! FREEZER TEMPERATURE

CONTROL KNOB

@ ICE TRAY # F SHELF $ ICE BOX % CHILLED CORNER ^ LAMP COVER & REFRIGERATOR

TEMPERATURE CONTROL SWITCH

* R SHELF

( CRISPER COVER ) CRISPER 1 ADJUSTABLE FOOT 2 F POCKET (SM) 3 F POCKET (SM) 4 EGG CASE 5 EGG POCKET 6 R POCKET (SM) 7 R POCKET (MEDIUM) 8 R POCKET (BG)

T ake a moment to know all the f eatures and con venience. Numbers match those in the illustration on page 1.

■ Ice T ra y

Fill tray 3/4 full to allow e xpansion of w ater during freezing. Place tra y in freezer chest. To release cubes, twist lid slightly.

■ Removable Shelf

Both shelves can be remov ed by pulling f orw ard.

■ Crisper

Use for fruit and vegetable stor age. Both the crisper and its cov er shelf are removable f or easy cleaning. Simply slide forward to remove.

■ Egg Poc ket

Egg supporter in this pocket can be turned upside down. Use for small size goods.

■ No Frost

No frost in freezing-room.

CAUTION

1. Be sure to check with your v oltage, bef ore inserting the power supply cord into the socket.

2. Contact the earthing conductor to this unit with an attachment earthing screws.

3. Don’t spill to this unit.

4. Don’t work with flammable spray, such as painting, near this unit.

5. Don’t put ignitable materials, such as benzine, L .P . Gas, alcohol, etc., into this unit.

6. Be careful of the leakage of any gas equipment near this unit.

7. Be sure not to hold to the door of this unit by children.

8. Be sure not to reinsert the power supply , cord with 5 min utes after releasing it from socket. If not, a trouble may be occurred to compressor.

METHODS OF SAFE INSTALLATION

1. SAFE INSTALLATION PLACE FOR YOUR REFRIGERATOR

¥ Place the refrigerator on

hard and level floor.

¥ Place your refrigerator

where there is no heat source nearby. High surrounding temperature will lower cooling efficiency and increases your electricity bill.

¥ Place the refrigerator in

an area with low moisture. Splashing water or a high moisture area may cause a short circuit and make rusting easier.

¥ Avoid places that are

exposed to smoke. The discoloring can occur to the refrigerator.

At least 15cm

At least 30cm

Carpet

Wooden Board, Rubber Mat

¥ For good ventilation

place refrigerator with the spaced specified on the figure. This helps cooling efficiency and lowers the electricity bill.

¥ Placing the refrigerator

on the carpet may cause heat to develop and discolor the appliance. In such a case put a hard wooden board or a rubber mat between the refrigerator and the carpet.

HOW TO OPERATE

1. TEMPERATURE CONTROL

Temperature is contr olled b y thermostat automaticall y. The Temperature Contr ol inside the refrigerator contr ols the degree of cooling for each compartment.

Freezer Temperature Contr ol

The control has four settings form MIN to WINTER. The WINTER mode is available only if atmosphere temperature is below 10°C.

Refrigerator Temperature Contr ol

The control has the four settings from MIN to WINTER. The WINTER mode is available only if atmosphere temperature is below 10°C.

WINTER

MAX

MED

MIN

TEMP. CONTROL

WINTER

MAX

MED

MIN

TEMP. CONTROL

Starting your new refrigerator

To control temperature

Many factors may influence the internal temperature of the refrigerator and freezer compartments.

■The temperature and humidity of the surrounding environment.

■The opening frequency of the doors and the amount of warm food placed in

the refrigerator.

■

The combination of food and containers stored in the refrigerator. For these reasons, you ma y w ant to adjust the control to suit the season and your needs .

1. Clean the refrigerator thoroughly. Wipe the outside with a dry cloth, and the inside with a damp cloth.

2. Set the temperature control knob at normal position.

3. Connect the power supply cord.
