Daewoo MCBR270B, MCBR270W User Manual

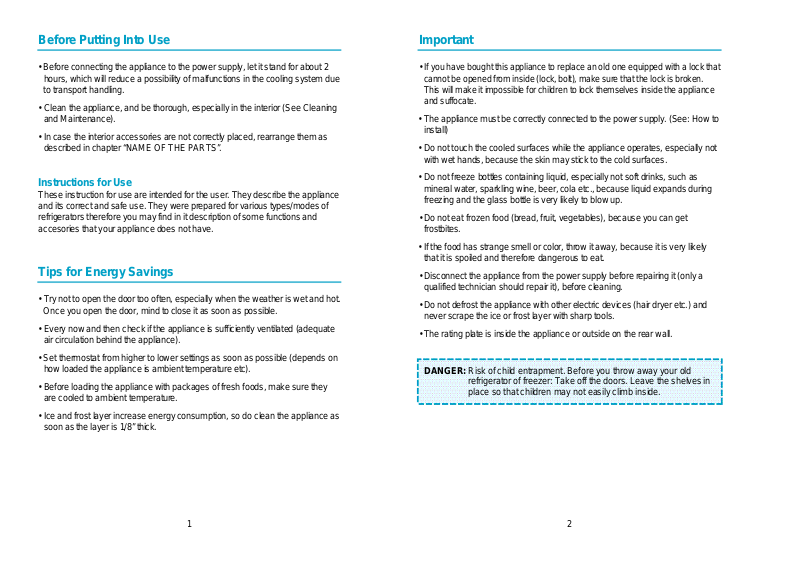

Before Putting Into Use

• Before connecting the appliance to the power supply, let it stand for about 2
hours, which will reduce a possibility of malfunctions in the cooling system due
to transport handling.

• Clean the appliance, and be thorough, especially in the interior (See Cleaning
and Maintenance).

• In case the interior accessories are not correctly placed, rearrange them as
described in chapter “NAME OF THE PA RT S ” .

I m p o r t a n t

•

If you have bought this appliance to replace an old one equipped with a lock that
cannot be opened from inside (lock, bolt), make sure that the lock is broken.
This will make it impossible for children to lock themselves inside the appliance
and suff o c a t e .

• The appliance must be correctly connected to the power supply. (See: How to
i n s t a l l )

• Do not touch the cooled surfaces while the appliance operates, especially not
with wet hands, because the skin may stick to the cold surfaces.

Instructions for Use

These instruction for use are intended for the user. They describe the appliance
and its correct and safe use. They were prepared for various types/modes of
refrigerators therefore you may find in it description of some functions and
accesories that your appliance does not have.

Tips for Energy Savings

• Try not to open the door too often, especially when the weather is wet and hot.
Once you open the door, mind to close it as soon as possible.

• Every now and then check if the appliance is sufficiently ventilated (adequate
air circulation behind the appliance).

• Set thermostat from higher to lower settings as soon as possible (depends on
how loaded the appliance is ambient temperature etc).

• Before loading the appliance with packages of fresh foods, make sure they
are cooled to ambient temperature.

• Ice and frost layer increase energy consumption, so do clean the appliance as
soon as the layer is 1/8” thick.

• Do not freeze bottles containing liquid, especially not soft drinks, such as
mineral water, sparkling wine, beer, cola etc., because liquid expands during
freezing and the glass bottle is very likely to blow up.

• Do not eat frozen food (bread, fruit, vegetables), because you can get
f r o s t b i t e s .

• If the food has strange smell or color, throw it away, because it is very likely
that it is spoiled and therefore dangerous to eat.

• Disconnect the appliance from the power supply before repairing it (only a
qualified technician should repair it), before cleaning.

• Do not defrost the appliance with other electric devices (hair dryer etc.) and
never scrape the ice or frost layer with sharp tools.

• The rating plate is inside the appliance or outside on the rear wall.

D A N G E R :Risk of child entrapment. Before you throw away your old

refrigerator of freezer: Take off the doors. Leave the shelves in
place so that children may not easily climb inside.

1

2

NAMES OF THE PA R T S

MCBR170B
MCBR170S
MCBR170W

MCBR440B
MCBR440S
MCBR440W

MCBR270B
MCBR270S
MCBR270W

C h i l l e r
Drain Pan
Control Box
S h e l f
Magnetic Door Seal
Ice Cube Tr a y
R a c k
Bottle Rack
C r i s p e r
Can Dispenser
Defrost Button

HOW TO OPERAT E

Starting your new Refrigerator

1. Clean the refrigerator thoroughly. Wipe the outside with a soft dry cloth, the
interior with a clean moist cloth.

2. Insert the power supply cord into the socket.

3. Turn the thermostat dial to “7”. Close the door and let the refrigerator
operate for 15-20 minutes.

Temperature control

To control the internal temperature, adjust

the thermostat dial. The dial is numbered

from 1-7. Number 1 is the warmest setting,
number 7 the coldest.
The dial may be set any place on the scale.
It does not have to be set exactly on a

n u m b e r. To make ice cubes in the freezer

compartment, adjust the thermostat to the
coldest setting.

N O T E : Wait 3-5 minutes before restarting if you unplug the refrigerator.

The unit may fail to operate properly if restarted too quickly.

How to defrost

󱇲

M C B R 2 7 0 B / M C B R 2 7 0 S / M C B R 2 7 0 W

Defrost the refrigerator when the frost accumulated on the evaporator is about
5mm (1/5inch) thick.
Set the thermostat dial to “OFF”. Remove frozen or perishable foods. keep drip
tray in place. Defrosting usually takes a few hours. To defrost quickly remove all
foods from the refrigerator and leave the door open.

metal instrument to scrape ice/frost from the evaporator. After defrosting,
empty water from drip tray and return the thermostat dial to the desired position.

Never use a knife or

o t h e r

3

4
