DV-K291DY-RB/E_cover 00.9.28 10:11 AM ˘`1

Precautions

WORTH

knowing

Please keep the video machine's guarantee card and receipt safe for warranty purposes.

◆ Read carefully through this manual to familiarize yourself with this

high-quality video recorder.

◆ Make sure the rating of your household electricity supply matches

that shown on the back of the video recorder.

◆ Refer to this chapter and the "Initial installation" chapter to help

you install and adjust your video recorder.

Do not ... ... expose the video recorder to high levels of humidity and heat, to

avoid the risk of fire and electric shock.

... open the video recorder. Have a qualified technician carry out

repairs.

... connect the video recorder to the power supply if you have just

moved it from a cold to warm environment. This can result in condensation inside the recorder and cause serious damage to the machine and cassettes. Wait around two hours to allow it to reach room temperature.

Make sure ... ... the recorder is placed on a steady, flat surface. ... you place the recorder where there is good ventilation all around. ... you clean the recorder only with a soft, lint-free cloth; do not use

aggressive or alcohol-based cleaning agents.

... you disconnect the power supply if the recorder appears to be

working incorrectly, is making an unusual sound, has a strange smell, has smoke emitting from it or liquids have got inside it. Have a qualified technician check the recorder.

... you disconnect the power supply and aerial if you will not be using

the recorder for a long period or during a thunderstorm.

For your own safety!

◆ There are no components in this video recorder you can

service or repair yourself.

◆ Do not open the case of the video recorder. Only allow

qualified personnel to repair or service your set.

◆ This video recorder is designed for continuous

operation. Switching it off does not disconnect it from the mains (stand-by). To disconnect it from the mains, you have to unplug it.

◆ Recording any copyright protected material may infringe

a copyright.

DV-K291DY-RB/E(GB) 00.9.28 10:16 AM ˘`b

AUTO SET

OP EJECT

CH.

Contents

knowing

WORTH

Before doing anything with the machine, please read the chapter "Initial installation".

◆ On the following pages, the pictures show the buttons you press on the remote control to

perform the function, and what you should see in the On Screen Display or machine display (if present).

Controls

The remote control unit .................................................................................... 2

The machine, On screen display ...................................................................... 3

Initial installation

Connecting up the video recorder, Fitting the remote control’s batteries ...... 4

Setting up the video recorder .......................................................................... 5

Playing cassettes

Playing back .......................................................................................................6

Still, Variable picture search, Variable slow motion,

Accessing new recordings (index scan) ........................................................... 7

16:9 Wide Screen Format Playing back /Recording, CM Skip......................... 8

Recording cassettes

Setting time and date.......................................................................................9

Simple recording ............................................................................................ 10

One touch recording (OTR) ............................................................................. 11

More functions

Normal timer recording .................................................................................. 12

Timer Review – changing and erasing .......................................................... 13

Clock/Counter display, Remaining time and Cassette length,

Accessing counter zero position, Resetting the counter to zero ................. 14

Menu languages, Child lock, Cassettes, and ... ............................................ 15

Tuning in new stations

Tuning ............................................................................................................. 16

Station names ................................................................................................ 17

Sorting programme locations, Clearing programme locations ...................... 18

Connections and copying

To the TV via antenna cable (if you are not using a SCART cable) .............. 19

Copying, Assembling ...................................................................................... 20

Appendix

Brief instruction for experienced users .................................................... 21/22

Before you ask a specialist ............................................................................ 23

Index, Technical data ..................................................................................... 24

DV-K291DY-RB/E(GB) 00.9.28 10:16 AM ˘`1

The remote control unit

CONTROLS

◆

The remote control is the principle means of control, but the main playback and record functions are also available on the front of the machine.

◆

Press any button to turn on the power.

power on/off

TV or video viewing selection (with the SCART connection, page 4)

a button for selecting input sources for recording: TV stations – input sockets

clock/counter on-screen display this button is not available for this set this button is not available for this set

CM skip button to cue the tape for 30 seconds

to eject the cassette

the variable slow motion button

this button is not available for this set

to search the beginnings of records (index)

a button that doubles the maximum recording time for very long recordings

the record or OTR button (One Touch Recording means: each time you press the

button recording is extended by 30 minutes)

pause (record), still (playback) playback start

playback stop rewinding/fast forwarding a cassette from stop, or

picture search backwards/forwards from playback mode

number buttons to select programmes (stations) or to type in numbers

the menu controls, programme (station) selection (PR +/–)

max. 7 m.

30°

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

The buttons to use are marked on the following pages.

this button is not available for this set

TV/VCR

Q.S

A.D

EJECT

SP/LP

A.SEL

PAL/SEC

INDEX

456

789

this button is not available for this set

DV-K291DY-RB/E(GB) 00.9.28 10:17 AM ˘`2

The machine

On screen display

CONTROLS

◆

Press any button to turn on the power.

STANDBY/ON

playback stop and ejecting the cassette

MAIN MENU

Timer Program PR Preset VCR Setup Tape Control

PR+/-:select OK:confirm MENU:end

VCR SETUP

Clock Set Language Set RF Output Set 16:9 Set

PR+/-:select OK:confirm MENU:end

example

“Tape Control” Menu appears only when a tape is in the VCR.

The menus show you which button to press for the next step.

In addition, some other functions appear on screen temporarily.

REW SP PR04 EURO

programme (station) selection

recording or OTR

(One Touch Recording means: each time you press the button recording is extended by 30 minutes)

rewinding / fast forwarding a cassette from stop, or picture search backwards / forwards from playback mode.

playback start

The video’s menu system gives you easy-tounderstand access to the less used functions such as tuning to stations, clock setting and more.

front input sockets for connecting a camcorder

DV-K291DY-RB/E(GB) 00.9.28 10:17 AM ˘`3

Connecting up the video recorder

Fitting the remote control's batteries

INSTALLATION

Initial

Place your video

◆

horizontally on a flat, steady base so that air can circulate around it for ventilation.

◆

away from humidity and heat, magnetic fields, such as those from loudspeakers etc., and with no heavy objects placed on top.

Switch off all components when connecting or disconnecting cables.

◆ Unplug the aerial cable from your TV and plug it into the "ANT.

IN" socket of the video. Plug the short coaxial cable provided into the "ANT.OUT" socket

of the video and the aerial socket of the TV.

◆ Plug an EURO AV (SCART) cable into the "EURO AV” socket of

the video and the AV socket on the TV if available.

This connection will provide best picture and sound quality. Ask your dealer for an appropriate cable if you do not have one. Without a SCART cable, you need to follow the steps described under "If

you are not using a SCART cable" (right page and page 19).

◆ Make sure the rating of the household mains supply matches the rating

shown on the back of the video.

Now plug in the mains lead. The display of the video should now light.

Fit the batteries as shown by the pictures in the bay.

–

1.5 V (AAA)

AC 230 V~ , 50 Hz

◆ Protect your environment by returning used batteries to your dealer. Since

batteries contain toxic substances they require special disposal methods.

◆ Make sure the batteries are always of the same type and age, and remove them

from the remote control if you are not using it for a long period.

The buttons to use are marked on the following pages.

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

DV-K291DY-RB/E(GB) 00.9.28 10:17 AM ˘`4

EURO AV

ANT. IN

ANT. OUT

Setting up the video recorder

INSTALLATION

Initial

◆

Switch the TV on.

◆

You can also start "Auto Search" in the menu "PR Preset" "Auto Search".

◆

To tune in new stations (manual tuning) and to enter station names see page 16-18.

You should see this picture the first time you switch on the TV and video.

Choose your language.

OK for "Auto Search!".

"AUTO SEARCH" tunes in all the stations you can receive in your country and ...

... sorts them in an order common for your country.

Should you wish the stations to have the same numbers as those used on the TV, follow the instructions in "Sorting programme locations" on page 18. Else ...

exit the basic installation function and enjoy your video recorder.

◆ If you don´t see this picture, because you don´t use a SCART cable, search this picture

now (CH 52) with the station tuning functions of your TV set (see its user manual).

◆ In case of interference problems on CH 52, type in an other

transmission channel between 21 and 69 using the number buttons.

LANGUAGE SET

English Deutsch Italiano Español Français Nederlands PYCCK SVENSKA

PR+/-:select OK:confirm MENU:end

Auto Search!

OK:confirm MENU:end

AUTO SEARCH

MENU:end

PR03

V-L - - - - - - - - - - - - - -

76%

Please wait...

MANUAL SET

PR01 P-01 PR08 P-08 PR02 P-02 PR09 P-09 PR03 P-03 PR10 P-10 PR04 P-04 PR11 P-11 PR05 P-05 PR12 ---PR06 P-06 PR13 ---PR07 P-07 PR14 ----

PR+/-:select OK:confirm MENU:end

AUTO SEARCH

Type in the current time and date.

CLOCK SET

0-9:setup(hour)

/ :correct MENU:end

Time - - : - Date - - / - - /- - - -

456

789

DV-K291DY-RB/E(GB) 00.9.28 10:17 AM ˘`5

Playing back

cassettes

PLAYING

◆

Your TV and your video recorder are switched on.

◆

To see the picture from your video, press the station button on the TV reserved for video input or the AV (Audio/Video) button.

Load the cassette by pushing it smoothly and squarely into the cassette bay, with its windows pointing up.

Start playback.

Stop playback.

Eject the cassette.

Fast forward or rewind the cassette from stop.

◆ Press the TV/VCR button to see TV's or the video's (VCR) picture on

the screen (with the SCART connection to the TV).

◆ When you load a protected cassette (e.g. pre-recorded film,

see page 15) playback starts automatically.

◆ PLAY switches back to normal playback.

◆ During still, slow or search, you don’t hear the sound.

◆ If the still picture is jittering, you can steady it by using the PR +/–

buttons.

◆ You can reduce horizontal interference stripesresulting from

inaccurate tracking (when playing tapes of poor quality or recorded on other machines) by using the PR +/– buttons during playback.

◆ After approx. 5 minutes in still, the cassette plays back

automatically.

◆ NTSC PLAYBACK on PAL TV ; If you playback the tapes, which have

been recorded on NTSC color system, on this VCR, you can watch the pictures on a PAL TV.

◆ Clock / Counter / Remaining time – page 14.

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

AUTO SET

20 : 10

VHS

VCR

DV-K291DY-RB/E(GB) 00.9.28 10:17 AM ˘`6

EJECT

PLAYING

cassettes

Still

Variable picture search

Variable slow motion

Accessing new recordings (index scan)

Still picture from playback. Each press of the button advances the picture

one frame.

“PLAY” blinks during still. PLAY switches back to normal playback.

Starting from playback you can control search speed in 2 steps either forwards ( ) or backwards ( ). Press repeatedly.

PLAY switches back to normal playback.

Starting from playback you can control slow motion speed in 6 steps (1/15, 1/10, 1/5, 1/30, 1/25, 1/20, 1/15, ...). Press repeatedly.

PLAY switches back to normal playback.

Select INDEX + or INDEX – to search forwards or backwards.

The video will now wind to the beginning of the first recording, play it for about 6 seconds then wind on to the next one.

When you see the recording you want, press PLAY.

Access the beginning of recordings in the middle of the tape using the Index + / – function. The video recorder automatically sets an electronic marker (index) at the beginning of each

recording. It is these markers which the Index + / – function detects.

FF SP INDEX 01

0:11:09

VCR

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`7

INDEX

cassettes

PLAYING

16 : 9 Wide Screen Format Playing back / Recording

CM Skip

If you press [CM Skip] button on the remote control, tape advances for 30 seconds segment.

VCR SETUP

Clock Set Language Set RF Output Set

16:9 set

PR+/-:select OK:confirm MENU:end

16:9 SET

AUTO OFF ON

PR+/-:select OK:confirm MENU:end

You can play and record the program of 16:9 Wide Screen format with this VCR.

◆ 16:9 Set

-Auto :This VCR perceives the recorded program format (16:9 Wide Screen format & 4:3 normal TV-format) and plays the program with that format.

-ON :For recording and playing the program with 16:9 Wide Screen format

-OFF : For recording and playing the program with 4:3 normal TVformat

◆ If you watch a program which is recorded by 16:9 wide screen format with this

VCR, your TV must have 16:9 wide screen function and you have to connect TV and VCR with the A/V scart.

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`8

456

789

SP/LP

PAL/SEC

INDEX

A.D

TV/VCR

Q.S

EJECT

A.SEL

RECORDING

Setting time and date

Call the video’s "MAIN MENU", choose "VCR Setup", then "Clock Set".

Move to the position you want to change and type in the new values.

Wait a few seconds after typing an one-digit number.

Store with OK button and exit with MENU button.

CLOCK SET

0-9:setup(hour)

/ :correct MENU:end

Time - - : - Date - - / - - /- - - -

CLOCK SET

0-9:setup(minute)

/ :correct

OK:confirm MENU:end

Time 06:05 Date 21/07/2000 (FRI)

cassettes

456

789

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`9

Simple recording

RECORDING

cassettes

◆

The TV stations on the video have been tuned in (page 5).

◆

The video is switched on.

◆

You can either watch the picture from the video on the TV by pressing the station button reserved for video input or the AV button, watch another TV station or switch off the TV altogether.

Load a cassette with its safety tab in place (see page 15).

Start your recording.

If you wish to interrupt recording briefly - then continue.

“REC” blinks during this period.

Stop your recording.

Choose the station whose programme you want to record.

If the programme you wish to record is very long, double the possible recording time with "LP" (Long Play).

Up to eight hours with an E-240 cassette.

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

VCR

STOP SP PR09 EURO

◆

The video stops automatically, if pause exceeds five minutes.

VCR

SP/LP PR

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`10

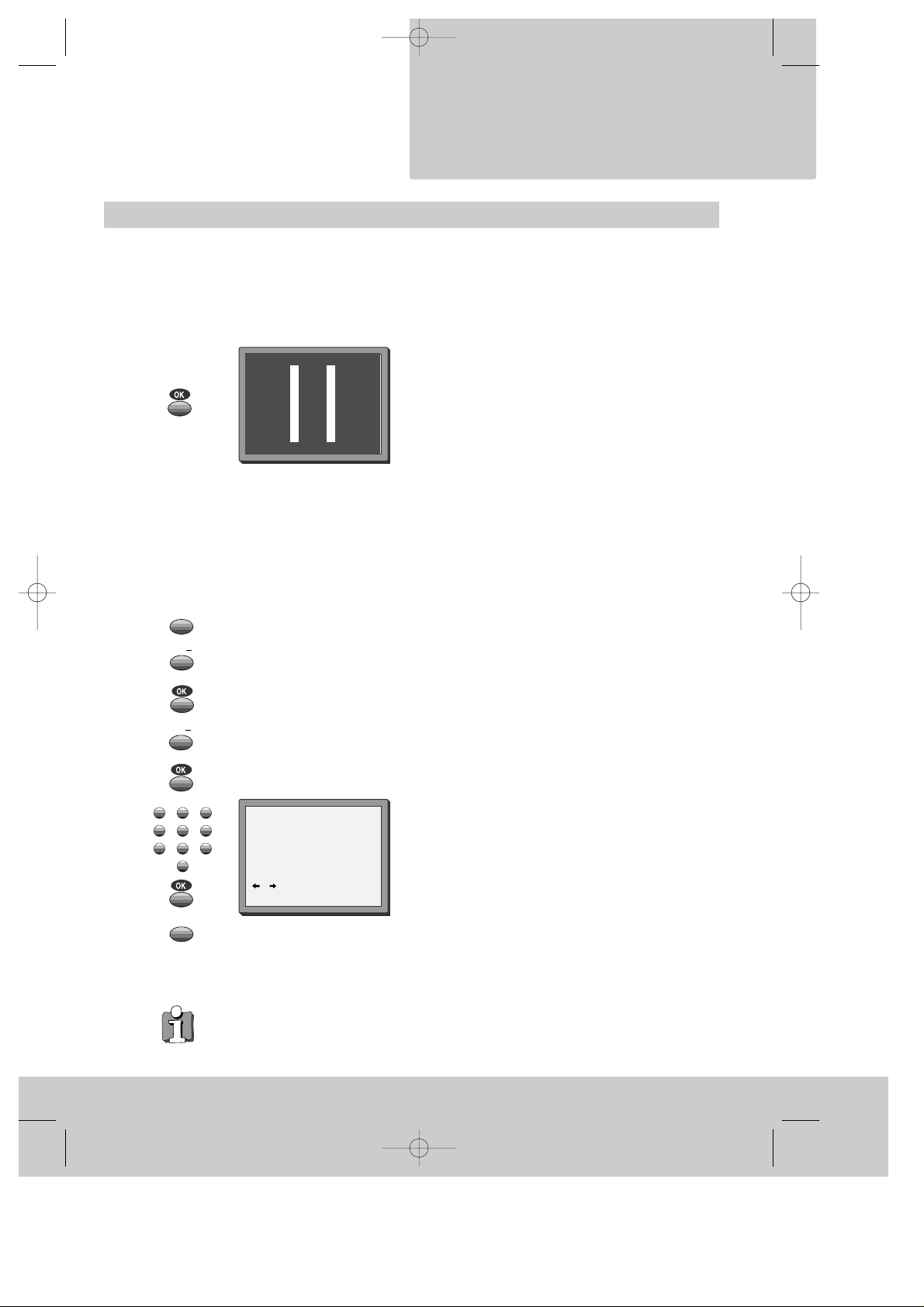

One touch recording – OTR

cassettes

RECORDING

◆

For timer recordings, clock, date, and stations must be set correctly.

◆

Load a cassette with its safety tab in place (see page 15) and with sufficient free space for the recording.

◆ If you want to record from a source connected to your video see page 20.

◆ To cancel OTRpress the button (stop) more than 5 seconds.

◆ If the programme you are recording is not visible on the TV, press the TV/VCR button

("VCR" in the display).

◆ Clock / Counter / Remaining time – page 14.

Choose the station you want and press the button once for every 30 minutes of programme you wish to record.

Up to ten hours are possible.

VCR TMR

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`11

If you wish to make changes: Move to the position you want to change using the / buttons. Change the setting using the PR+/- or number buttons. If all setting are ok, press or , till you see “OK : confirm” in the bottom line.

Confirm.

Switch your video off.

Type in one after the other:

◆ The programme location

number;

◆ the time the broadcast starts,

◆ the time the broadcast ends,

◆ the day of the broadcast, if it

is not today.

◆ Select LP if you wish to make

a very long recording

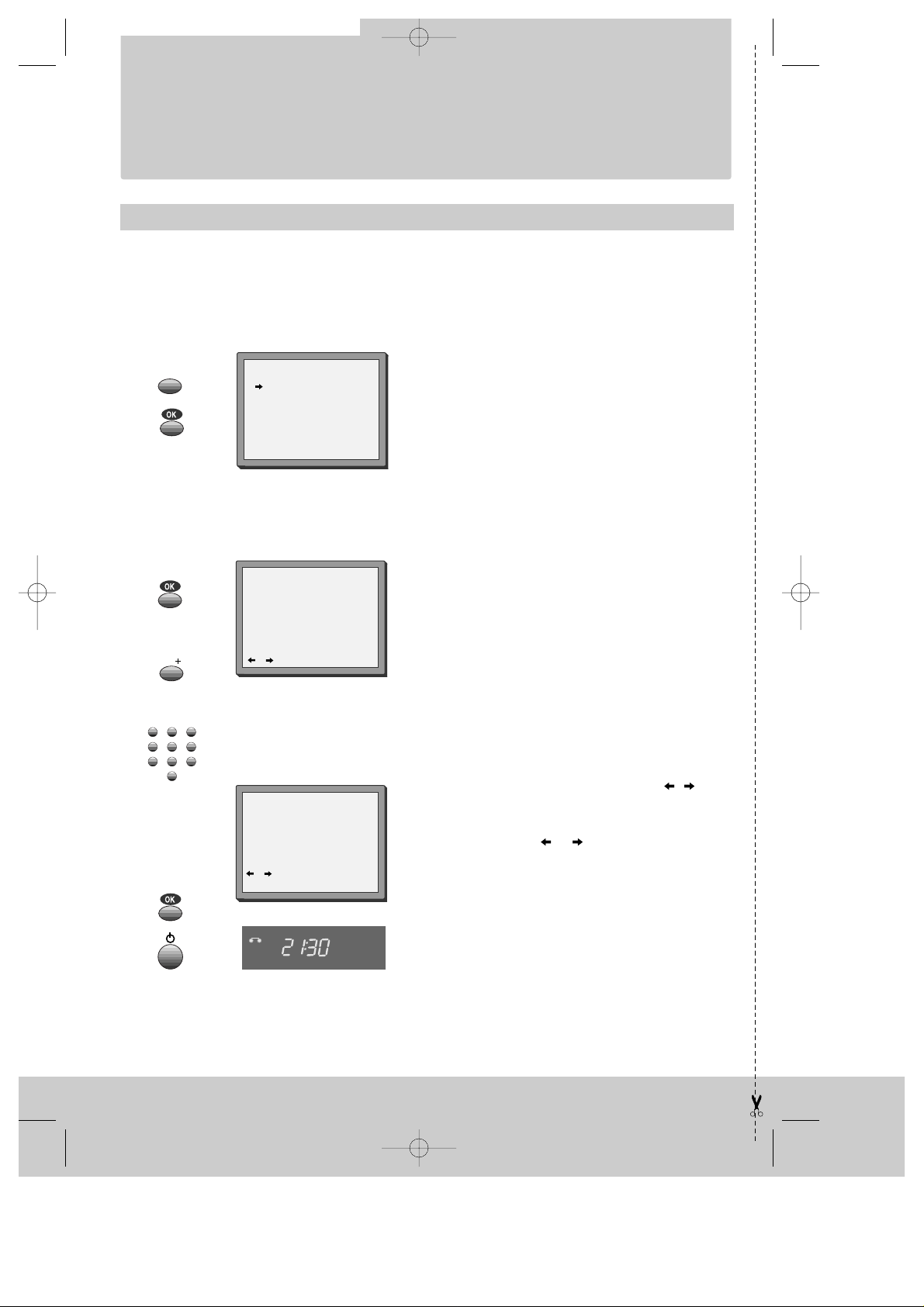

Normal timer recording

◆

For timer recordings, clock, date, and stations must be set correctly.

◆

Load a cassette with its safety tab in place (see page 15) and with sufficient free space for the recording.

Call the video’s "MAIN MENU", choose "Timer Program".

Decide if you want to record "Once", "Weekly" or "Daily"...

... and confirm.

◆ Wait a few seconds after typing an one-digit-number.

◆ If you have made a mistake, move to the position you want to change

using the / buttons and change the setting.

◆ If programme timings overlap, the machine will give a warning

message. If you don’t adjust the times, the machine will record the first programme completely then continue with the second one.

◆ If there is no sufficient free space for the recording on the cassette the

video switches automatically to “LP” for double recording capacity.

◆ The recorder will eject cassettes which have the safety tab removed

(page15).

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

How often do you want to record this program?

Once Weekly(Once a Week) Daily(Mon-Fri) Daily(Mon-Sat) Daily(Mon-Sun)

PR+/-:select OK:confirm MENU:end

PR+/-:select (AV) 0-9 :setup (PR)

/ :correct MENU:end

PR -Start Time --:-End Time --:-Start Date --/-Tape Speed SP

TIMER PROGRAM (Once) PR 01 Start Time 18:10 End Time 20:30 Start Date 22/07(SAT) Tape Speed SP

/ :correct

OK:confirm MENU:end

TMR

TIMER PROGRAM (Once)

functions

456

789

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`12

Timer Review – changing and erasing

functions

Call the video’s "MAIN MENU", choose "Timer Program".

Select the programming to change or erase. If you want to erase this programming press

button 0, confirm with OK. If you wish to make changes: Move to the position you want to change using

the

buttons.

Change the settings using the PR +/– or number buttons.

If all setting are ok, press or , till you see "OK: confirm" in the bottom line.

Confirm changes with OK. Exit the menus.

TIMER PROGRAM

PR START END DATE 03 21:20 22:20 23/07

01 18:10 20:30 22/07

-- -- : -- -- : -- -- / --

PR+/-:select OK:confirm MENU:end

TIMER PROGRAM (Once) PR 03 Start Time 21:20 End Time 22:20 Start Date 23/07(SUN) Tape Speed SP

0 :erase

/ :correct MENU:end

456

789

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`13

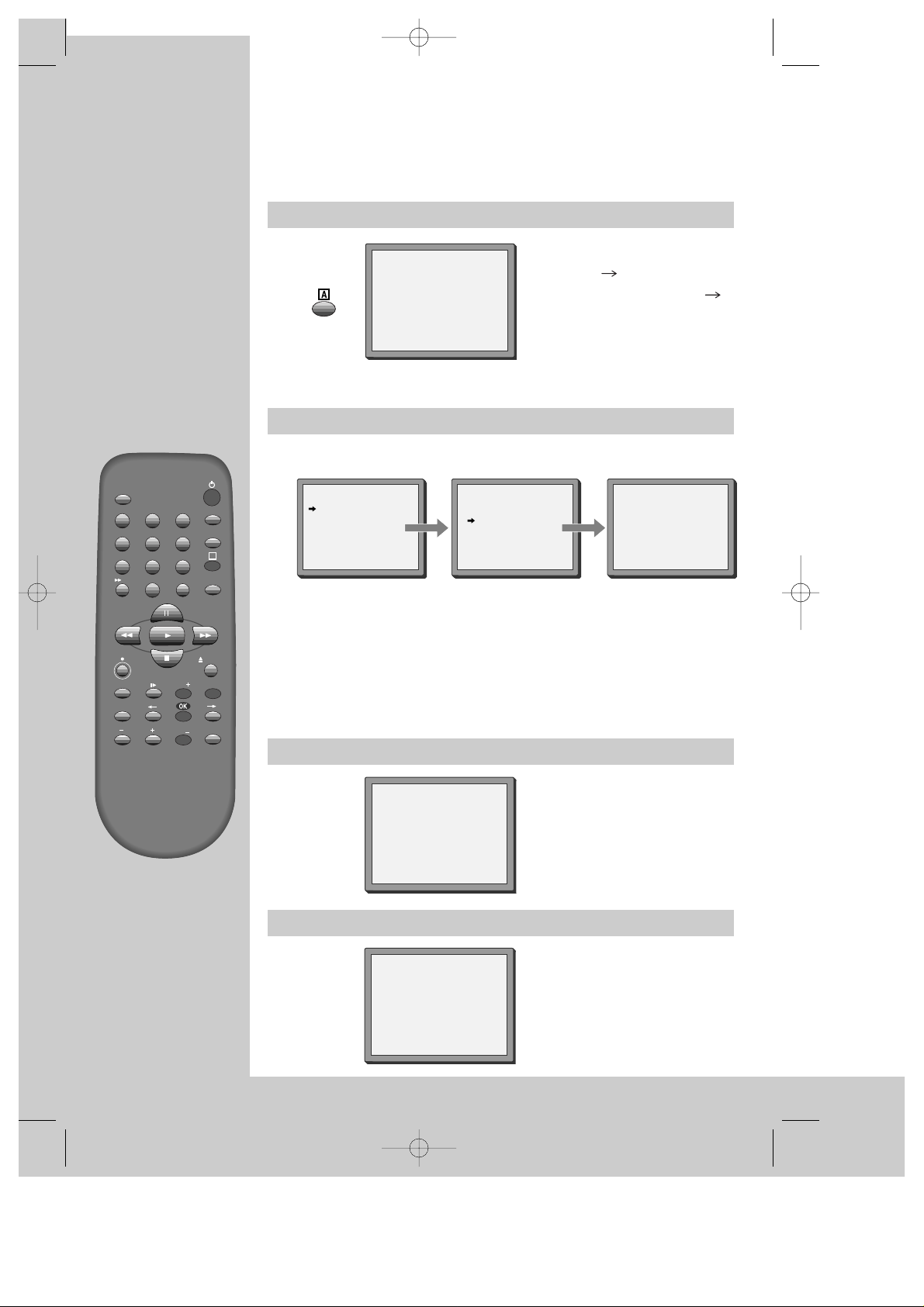

Clock / counter display

Remaining time and cassette length

Resetting the counter to zero

Accessing counter zero position

functions

◆

The counter counts in real time from the point you load the cassette. This does not have to be its beginning! The counter does not count unrecorded parts of the tape.

◆

If you rewind beyond the zero position, the counter counts in negative values (e.g. – 0:01:15).

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

STOP SP PR01 ARD

14:00 21/07

1x: Time and date+current

status Time and date

2x: Counter+current status

counter

3x: disappear

If didn’t wind tape (PLAY, FF, REW,...), it doesn’t appear the tape remain time.

Reset the counter.

The video will wind to the position 0:00:00 and stop.

When you want the video to show the time remaining from the current video tape position (to find out if there is sufficient space for a recording, for example).

To ensure the remaining time shown is accurate, select the length of cassette currently loaded by selecting this function until you reach the correct length.

Remaining time display is only possible when the cassette is loaded.

COUNTER RESET

0:00:00

REW SP GO TO ZERO

0:02:13

TAPE CONTROL

TAPE REMAIN

E-240 01:27

Tape Remain

Go To Zero Counter Reset

E-180 E-240 E-300

PR+/-:select OK:confirm MENU:end

Call the video’s “MAIN MENU”, choose “Tape Control”.

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`14

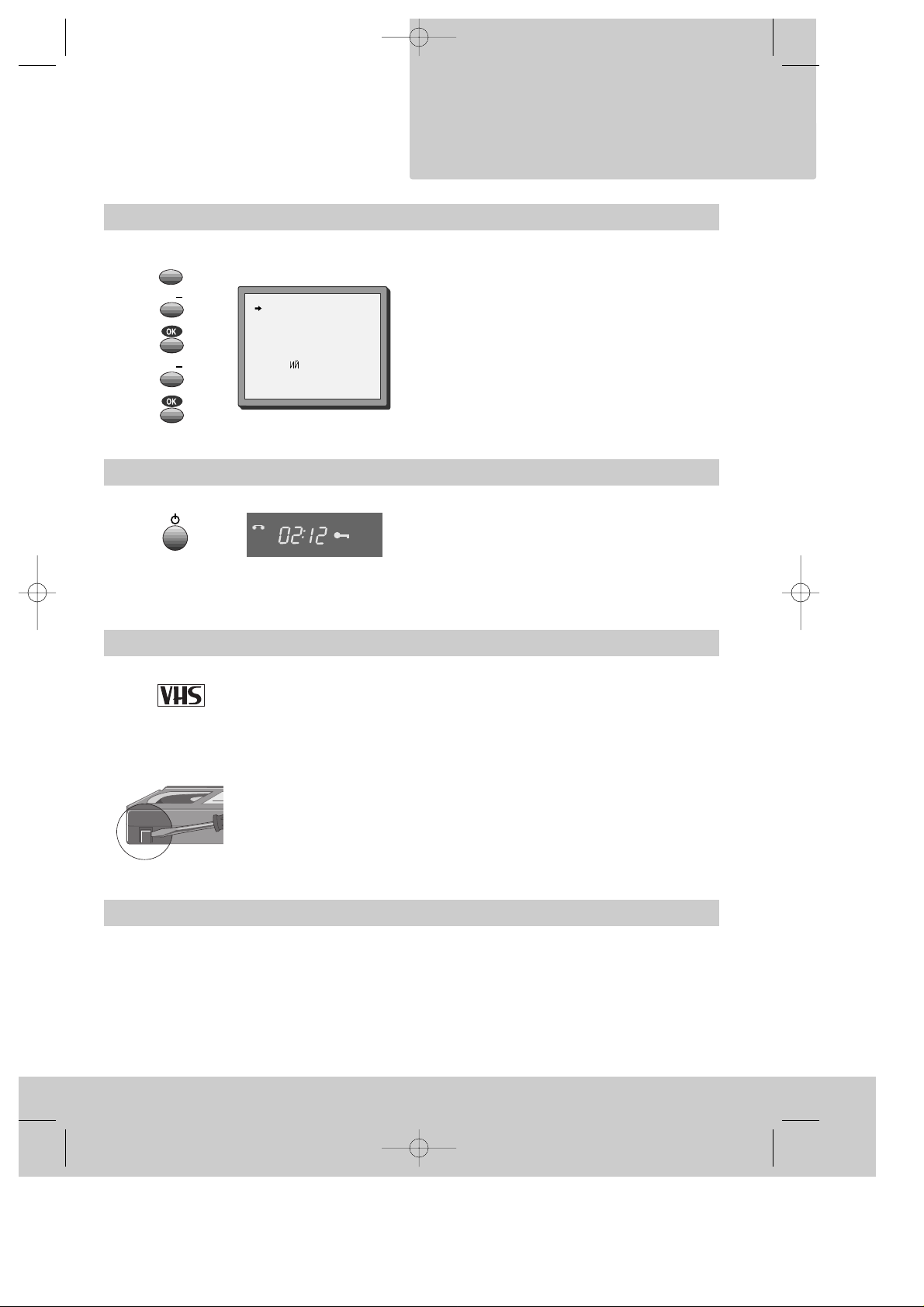

functions

Menu languages

Child lock

and ...

Cassettes

Call the video’s "MAIN MENU", choose "VCR Setup", then "Language Set".

Select your language. Confirm.

Press the button for about 5 seconds.

Your video can´t be operated now, only timer recordings will be performed. Keep your remote control in a safe place.

To release child lock, press the button again for 5 seconds.

Dimmer

Your video recorder dims its display when switched to stand-by mode.

Auto power off

Your video recorder switches to stand-by when no tape is played and no station is received for more than 5 minutes.

Use only good quality tape cassettes with the VHS logo.

◆ Keep cassettes away from excessive moisture or dust, magnetic and

electrical fields (loudspeakers and computer monitors, for example).

◆ Always wind the tape to the beginning when you have finished. Store

with the full spool at the bottom and with the cassette in its cover.

You can protect your precious recordings from being wiped by breaking out the safety tab on the side of the cassette (some cassettes have a slide).

Should you wish to re-use the tape after removing the tab, cover the hole with adhesive tape.

PAL

LANGUAGE SET

English

Deutsch

Italiano

Español

Français

Nederlands

PYCCK

SVENSKA

PR+/-:select OK:confirm MENU:end

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`15

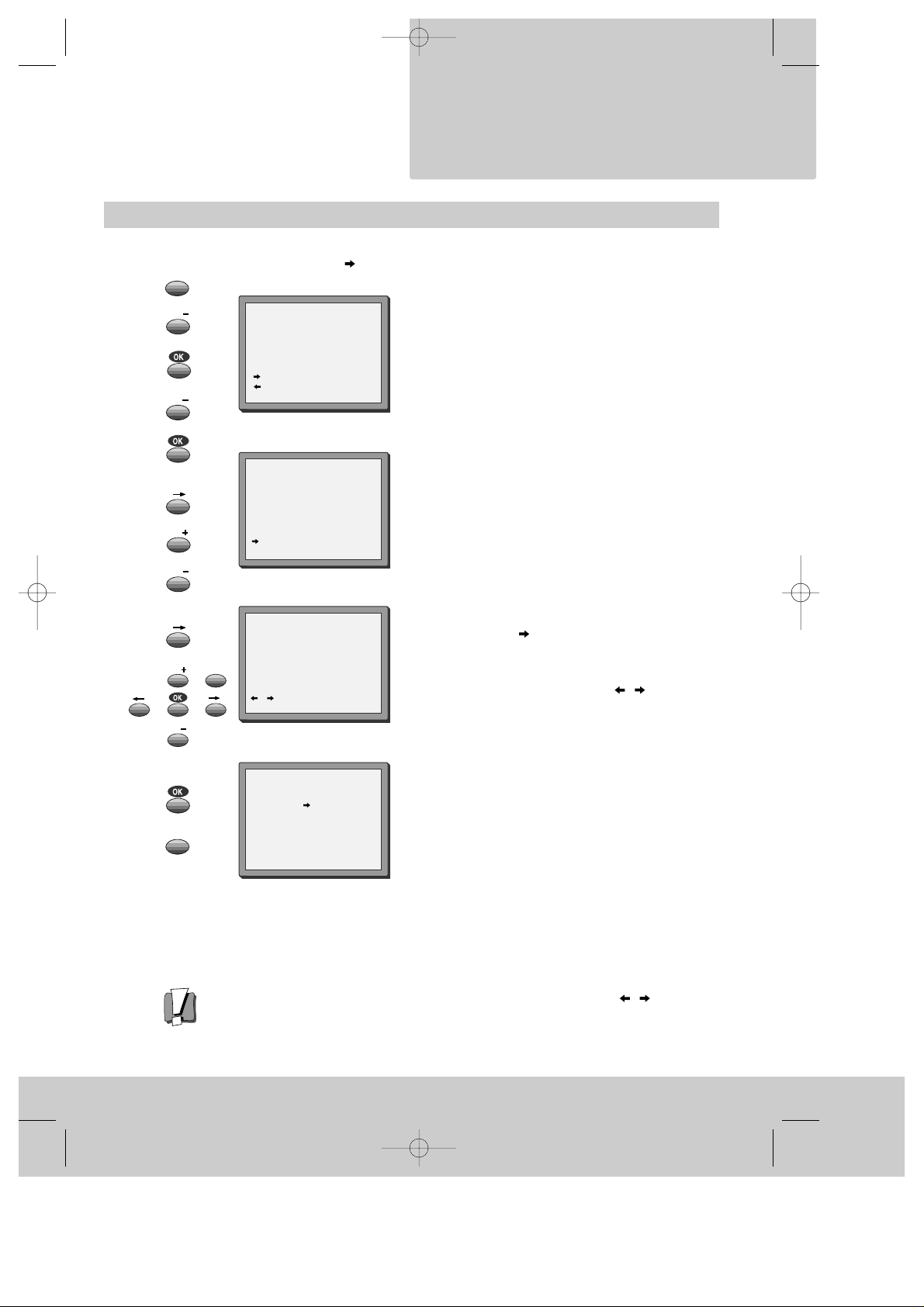

Tuning

NEW STATIONS

T u n i n g i n

◆

The TV and video recorder are switched on.

◆

To see the picture from your video, press the station button on the TV reserved for video input or the AV (Audio / Video) button.

◆

"AV" should not be selected with the AV button on the video.

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

Call the video’s "MAIN MENU", choose "PR Preset".

Select "Manual Set".

Choose any unused location number "----" or "P-xx" ...

It's simplest to use the same location number on both the TV and video.

... and confirm.

Tune in the station you want.

Press button to see the picture.

If it isn’t the station you want, or the picture is disturbed, carry on tuning.

Once you see the station you want, store it.

Tune in further stations (from step 3 onwards) or exit tuning mode.

PR PRESET

Auto Search

Manual Set

PR Erase PR Align

PR+/-:select OK:confirm MENU:end

MANUAL SET

PR29 P-29

PR+/-:search up/down

: name correct

: PR view

OK:confirm MENU:end

MANUAL SET

PR+/-:search up/down MENU :end

PR29

V-L ----------- -----

68%

MANUAL SET

PR+/-:search up/down

:name correct

:PR view

OK:confirm MENU:end

PR29 P-29

MANUAL SET

PR01 P-01 PR08 P-08 PR02 P-02 PR09 P-09 PR03 P-03 PR10 P-10 PR04 P-04 PR11 P-11 PR05 P-05 PR12 ---PR06 P-06 PR13 ---PR07 P-07 PR14 ----

PR+/-:select OK:confirm MENU:end

DV-K291DY-RB/E(GB) 00.9.8 11:8 AM ˘`16

Station names

NEW STATIONS

T u n i n g i n

◆ The video's automatic tuning system usually produces the best results. In poor reception areas,

fine tuning may improve reception. Choose the station and tune using the / buttons. Store, typing in the location number again.

◆ Should you wish to tune in all the channels available in your region, please refer to page 5.

◆ Should you wish to sort or clear stations, please refer to page 18.

If your video is showing no station name or is showing a station name incorrectly, you can correct this. Select “ : name correct” on the “MANUAL SET” menu.

Call this menu (just see the left page), if it isn't displayed.

Select "name correct". Either select the name from the stored list ...

MANUAL SET

PR+/-:name change

:name create

OK:confirm MENU:end

PR01 P-01

... or you select " : name create" and enter a 4-digit name.

Change the letters with the PR +/– buttons, move to the next letter with the

/ buttons.

MANUAL SET

PR+/-:select character

/ :select position

OK:confirm MENU:end

PR01 E-01

Store and exit.

MANUAL SET

PR+/-:select OK:confirm MENU:end

MANUAL SET

PR+/-:search up/down

:name correct

:PR view

OK:confirm MENU:end

PR01 P-01

PR01 P-01 PR08 P-08

PR02 P-02 PR09 P-09 PR03 P-03 PR10 P-10 PR04 P-04 PR11 P-11 PR05 P-05 PR12 ---PR06 P-06 PR13 ---PR07 P-07 PR14 ----

DV-K291DY-RB/E(GB) 00.9.8 11:9 AM ˘`17

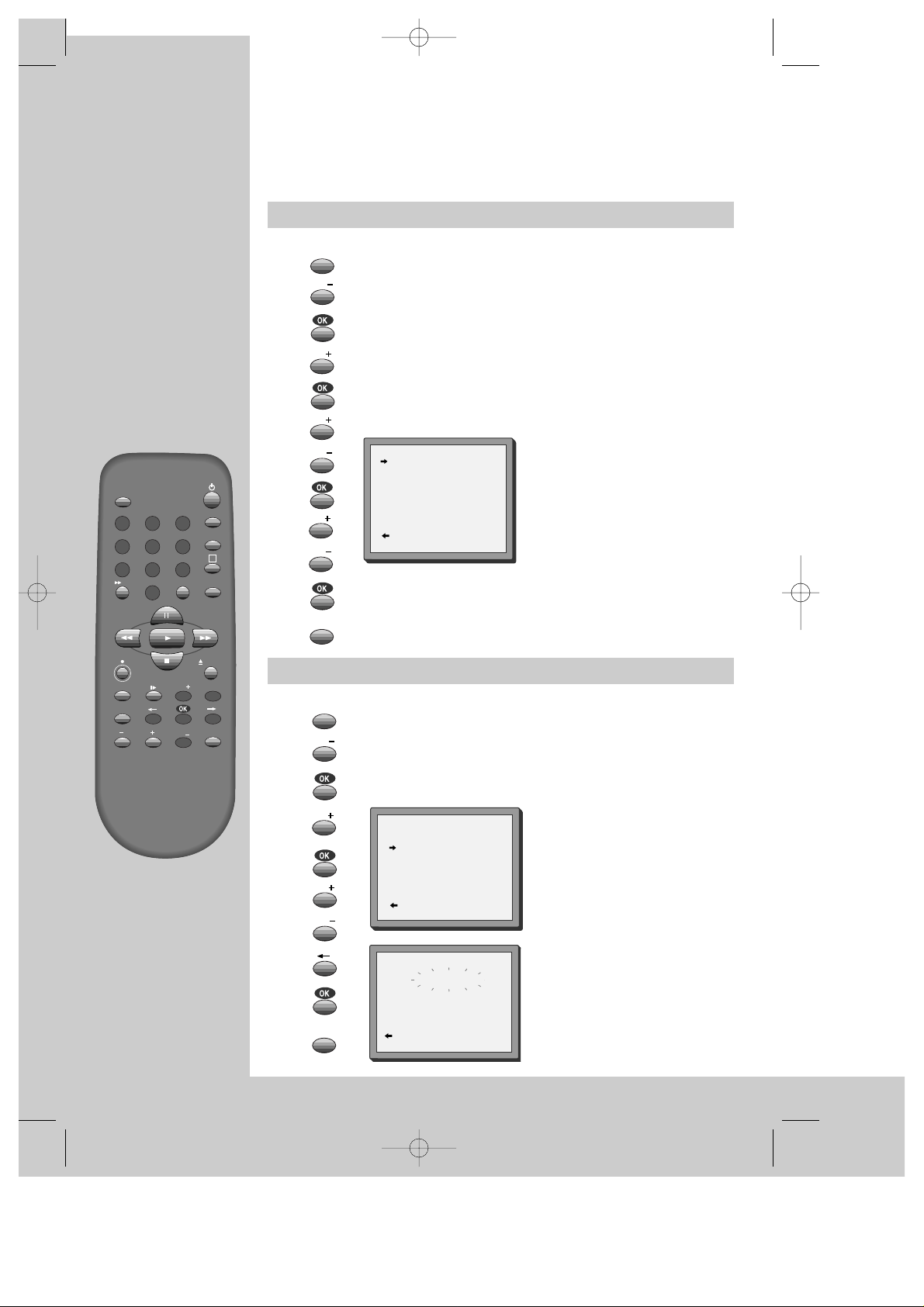

Sorting programme locations

Clearing programme locations

NEW STATIONS

T u n i n g i n

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

If the location numbers used for programmes stored in your TV and video are different, you can change them on the video.

To do this, move the stations to the right numbers, until they are arranged the way you want.

PR ERASE

PR+/-:select

:PR view

OK:erase MENU:end

Call the video’s "MAIN MENU", choose "PR Preset" then "PR Align".

Call the video’s "MAIN MENU", choose "PR Preset" then "PR Erase".

Select the programme to swap. Confirm.

Move the station to the desired location number.

Confirm.

Select the station (location number) you want to clear.

Review the picture.

Clear.

PR ALIGN

PR+/-:select

:PR view

OK:confirm MENU:end

PR01 P-01 PR08 P-08 PR02 P-02 PR09 P-09 PR03 P-03 PR10 P-10 PR04 P-04 PR11 P-11 PR05 P-05 PR12 ---PR06 P-06 PR13 ---PR07 P-07 PR14 ----

PR01 P-01 PR08 P-08 PR02 P-02 PR09 P-09

PR03 P-03 PR10 P-10

PR04 P-04 PR11 P-11 PR05 P-05 PR12 ---PR06 P-06 PR13 ---PR07 P-07 PR14 ----

PR03 P-03

IMPORTANT!

The ‘OK’button will erase this PR.

:PR view

OK:confirm MENU:end

PR PR

PRPRPR

DV-K291DY-RB/E(GB) 00.9.8 11:9 AM ˘`18

To the TV via antenna cable (if you are not using a SCART cable)

a n d c o p y i n g

CONNECTIONS

◆

If you are using a SCART cable, select the AV input on the TV to see the picture from the video.

◆

If you are not using a SCART cable, select the button number on the TV reserved for video input to see the picture from the video.

If you are not using a SCART cable, your video can transmit pictures and sound to the TV via the coax aerial cable. Just tune the TV to the video's transmitting channel (factory set to UHF CH 52). Tune the TV carefully to ensure the best pictures and sound.

Once you have carried out the steps in "Connecting up the video recorder" (page 4), switch on your TV.

Press the OK button of the video’s remote control longer than 5 seconds to call the video´s test picture.

Tune the TV to the test picture using the channel pre-set functions of your TV as described in its manual.

When you have found the test picture, store it under the button number on your TV for video input.

Press the OK button of the video’s remote control again longer than 5 seconds to release the test picture.

Call the video’s "MAIN MENU" choose "VCR Setup" then "RF Output Set".

Type in the free channel.

Store and exit.

If the quality of the test picture transmitted to the TV is poor due to interference caused by a station transmitting on channel 52, you can tune the video to a different transmitting channel. Find a free channel between 21 and 69 on your TV.

◆ If the quality of the test picture transmitted to the TV is poor, fine-tuning on the TV may

help (refer to the TV manual).

RF OUTPUT SET

0-9:select(21-69)

/ :select(BG/DK)

OK:confirm MENU:end

PR 52 SYSTEM BG DK

5 sek.

456

789

DV-K291DY-RB/E(GB) 00.9.8 11:9 AM ˘`19

Copying

Assembling

a n d c o p y i n g

CONNECTIONS

◆

Switch off all components when connecting or disconnecting cables.

For the best results, the source cassette from which you are recording should already be playing back when you start recording.

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

Should you wish to assemble your own film, from camcorder footage for example, use the assembly technique for smooth edit points:

To copy to your video from another video machine, connect the two machines with a cable between their EURO AV (SCART) sockets and select as programme "AV" using the AV button.

Set the other video machine to playback and your machine to record.

To copy to another video machine from your video, connect the two machines by means of their

EURO AV (SCART)

sockets. On the other video, select its

AV input and set the machine to record.

Switch your video to play back at the position you want copying to start.

◆ Move the tape to the

position at which the new scene is to be added using the play functions (pages 6/7).

◆ Wind back slightly before

the edit point and put the machine into pause

using the

button (do not press

STOP!).

◆ Now go directly into record.

TV (other VCR)

EURO-AV

ANT. OUT

ANT. IN

VCR

DV-K291DY-RB/E(GB) 00.9.8 11:9 AM ˘`20

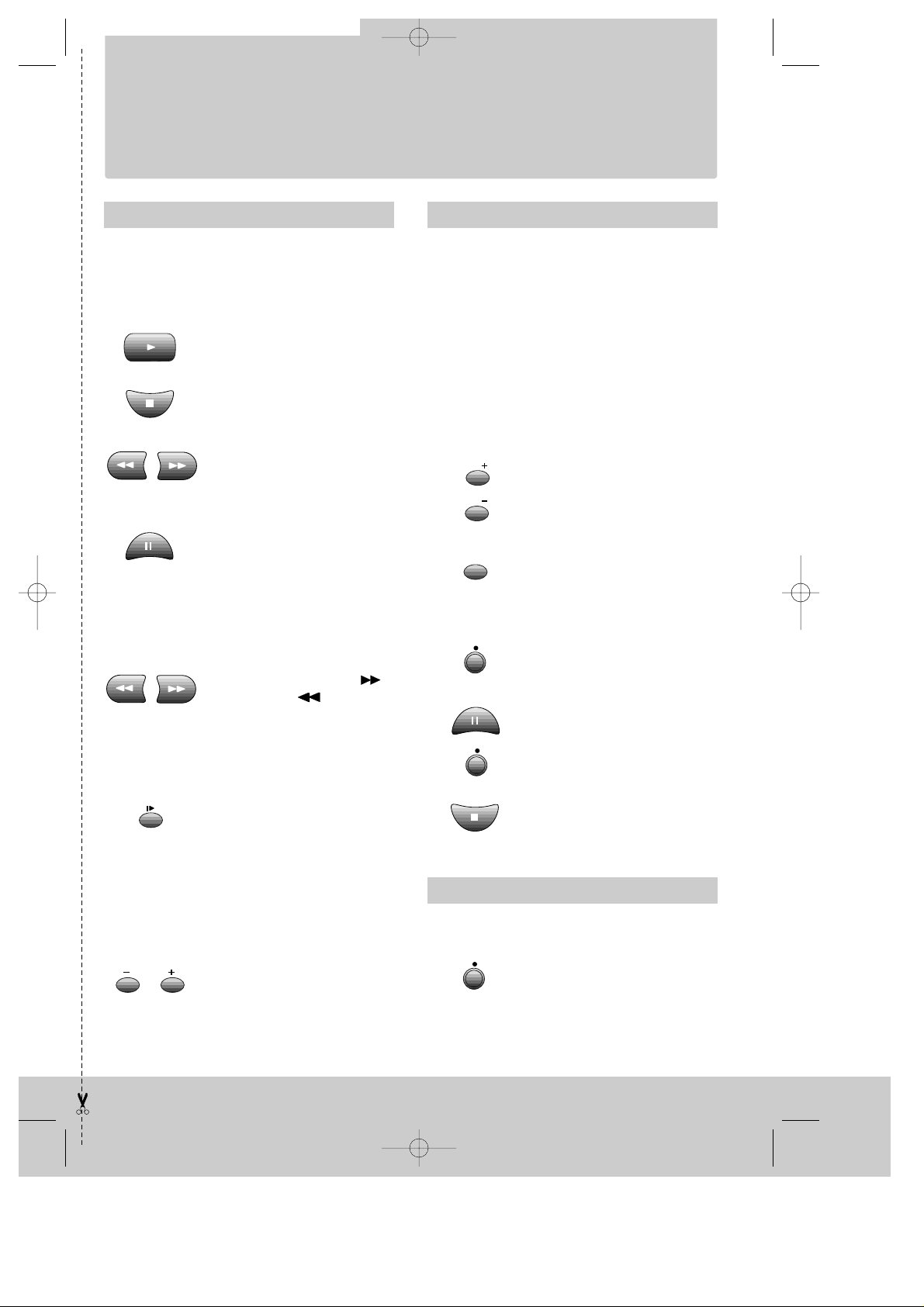

Playing back Simple recording

One touch recording – OTR

f o r e x p e r i e n c e d u s e r s

B R I E F I N S T R U C T I O N

◆ The TV stations on the video have been tuned in

(page 5).

◆ The video is switched on.

◆ You can either watch the picture from the video on

the TV by pressing the station button reserved for video input or the AV button, watch another TV station or switch off the TV altogether.

◆ Your TV and your video recorder are switched on.

◆ To see the picture from your video, press the station

button on the TV reserved for video input or the AV (Audio/Video) button.

Start playback.

Stop playback.

Fast forward or rewind the cassette from stop.

Still picture from playback. Each press of the button

advances the picture one frame.

PLAY switches back to normal playback.

Starting from playback you can control search speed in 2 steps either forwards ( ) or backwards ( ). Press repeatedly.

PLAY switches back to normal playback.

Starting from playback you can control slow motion speed in 6 steps (1/15, 1/10, 1/5, 1/30, 1/25, 1/20, 1/15, ...). Press repeatedly.

PLAY switches back to normal playback.

Select INDEX + or INDEX – to search forwards or backwards.

The video will now wind to the beginning of the first recording, play it for about 6 seconds then wind on to the next one.

When you see the recording you want, press PLAY.

Load a cassette with its safety tab in place (see page 15).

Start your recording.

If you wish to interrupt recording briefly – then continue.

Stop your recording.

Choose the station whose programme you want to record.

If the programme you wish to record is very long, double the possible recording time with "LP" (Long Play).

Up to eight hours with an E-240 cassette.

Choose the station you want and press the button once for every 30 minutes of programme you wish to record.

Up to ten hours are possible.

INDEX

SP/LP

DV-K291DY-RB/E(GB) 00.9.8 11:9 AM ˘`21

Normal timer

◆

For timer recordings, clock, date, and stations must be set correctly

◆

Load a cassette with safety tab in place (page 15) and with sufficient free space for the recording.

Call the video’s "MAIN MENU", choose "Timer Program".

Decide if you want to record "Once", "Weekly" or "Daily"...

... and confirm.

If you wish to make changes: Move to the position you want to change using the / button. Change the setting using the +/- or number buttons.

If all setting are ok, press or , till you see “OK:confirm” in the last line.

Confirm.

Switch your video off.

Type in one after the other:

◆ the programme location number,

◆ the time the broadcast starts,

◆ the time the broadcast ends,

◆ the day of the broadcast,

if it is not today.

◆ Select LP if you wish to make a very long

recording

How often do you want to record this program?

Once

Weekly(Once a Week)

Daily(Mon-Fri)

Daily(Mon-Sat)

Daily(Mon-Sun)

PR+/-:select OK:confirm MENU:end

PR+/-:select (AV) 0-9 :setup (PR)

/ :correct MENU:end

PR -Start Time --:-End Time --:-Start Date --/-Tape Speed SP

TIMER PROGRAM (Once)

PR 01 Start Time 18:10 End Time 20:30 Start Date 22/07(SAT) Tape Speed SP

/ :correct

OK:confirm MENU:end

TMR

TIMER PROGRAM (Once)

f o r e x p e r i e n c e d u s e r s

B R I E F I N S T R U C T I O N

456

789

DV-K291DY-RB/E(GB) 00.9.8 11:9 AM ˘`22

APPENDIX

Before you ask a specialist

- The mains lead is not connected to the wall socket.

- condensation may have formed when moving the video recorder from a cold to a warm room. Wait until the video (and cassette!) reach room temperature.

- Is a cassette loaded?

- the safety tab may be missing. Cover the hole with adhesive tape (page 15).

- Press TV/VCR button so that "VCR" appears on the video's display.

- Are the TV stations tuned in on the video (page 5)?

- Is there a recording on the video tape?

- Use PR. –/+ buttons to adjust tracking if horizontal stripes appear.

- Is the cassette of poor quality or worn out? Test with another cassette.

- If you are not using a SCART cable, have you tuned the location for video input on the TV properly? pages 5/19.

- Try a different cassette. The video head drum may need cleaning - ask your dealer.

- Press (pause) several times. Adjust with the PR +/- buttons until you get the best picture.

- are the batteries run down?

- is the distance between remote control and video more than 7 meters?

- is there an object blocking the direct line between remote control and video?

- is there a cassette already loaded? If so, the video’s display will indicate it.

- the cassette is already fully wound back or to the end.

- is the clock set correctly (page 9)?

- if no play or record function is used for about five minutes when left in Stop mode, the video switches its motor off to conserve the mechanism.

- Your video has detected abnormal conditions. Release this mode with any button , your video then safely switches to stand-by.

Before you ask a specialist

Mains supply

the video's display does not light the video doesn’t work

Recording

doesn’t start the cassette starts playback or is ejected

Playback

no picture

poor picture quality

poor still picture

Remote control doesn’t work

General

a cassette won’t load

the cassette won't rewind, fast forward, play or record mode timer is recording incorrectly

a loud noise when left in Stop mode

"ERR" occurs in the display

DV-K291DY-RB/E(GB) 00.9.8 11:9 AM ˘`23

Index

Technical data

Aerial ............................................................ 4

Assembling recordings .............................. 20

Cassette length .......................................... 14

Channel .............................................. 5/16-19

Child lock .................................................... 15

CM Skip ........................................................ 8

Condensation .............................. Precautions

Counter ....................................................... 14

Euro AV ................................................... 4/20

Fine-tuning ................................................. 17

Location number ................................ 5/16-19

LP (Long Play) ........................................ 10-12

Mains ...................................................... 4/24

Menu ............................................................ 3

OTR ............................................................. 11

Protected cassette ..................................... 15

Remaining time .......................................... 14

RF out ...................................................... 5/19

Satellite ...................................................... 20

SCART socket ......................................... 4/20

SP (Standard Play) ................................ 10-12

Stand-by ...................................... Precautions

Station ................................................5/16-19

Still frame adjustment ................................. 6

Test picture ................................................ 19

TV/VCR button ........................................ 6/10

Tracking ........................................................ 6

16:9 Set..........................................................8

Dimensions

W x H x D 360 x 90 x 288 mm Weight 3.85 kg

Power supply

Voltage AC 230 V ~, 50 Hz Power consumption 15 Watt

System

Video

PAL/SECAM-B/G, D/K

channel range VHF 2 - 12,

UHF 21 - 69, CATV S1 - S41, x, y, z

(Hyperband) channel locations 99 + AUX RF Out UHF CH 21 - 69 (52)

Video

System VHS Speeds SP/LP

General

Temperature range 5 - 35° C Humidity range < 80 % Timer 8 events,

1 month

Subject to technical alterations without notice.

APPENDIX

DV-K291DY-RB/E(GB) 00.9.8 11:9 AM ˘`24

TV/VCR

EJECT

PAL/SEC

A.SEL

A.D

SP/LP

Q.S

INDEX

456

789

132

Quick

Unplug the aerial cable from your TV and plug it into the "ANT.IN" socket

of the video.

Plug the short coaxial cable provided into the "ANT.OUT" socket of the

video and the aerial socket of the TV.

Plug an EURO AV (SCART) cable into the "EURO AV" socket of the video

and the AV socket on the TV if available.

Now plug in the main lead. The displayof the video should now light.

Fit the batteries as shown by the pictures in the bay.

Press any button to turn on the power.

1,5 V

AAA

Instruction Manual Pages 4-5

Exit the basic installation

function and enjoy your

video recorder.

MANUAL SET

PR01 P-01

PR02 P-02

PR03 P-03

PR04 P-04

PR05 P-05

PR+/-:select

OK:confirm MENU:end

Type in the current time

and date.

"AUTO SEARCH" tunes in

all the stations you can

receive in your country

and sorts them in an order

common for your country.

OK for "Auto Search!".

Auto Search!

You should see this

picture the first time you

switch on the TV and

video.

Choose your language.

LANGUAGE SET

PR+/-:select

OK:confirm MENU:end

English

Deutsch

Italiano

Español

Français

Nederlands

PYCCK

SVENSKA

OK:confirm MENU:end

PR06 P-06

PR07 P-07

PR08 P-08

PR09 P-09

PR10 P-10

PR11 P-11

PR12 ----

PR13 ----

PR14 ----

MC2128

Start Guide

AUTO SEARCH

CLOCK SET

TIME - - : - -

DATE - - / - -/ - - - -

V-L

-------------------

76%

PR 02

456

789

MENU:end

:correct MENU:end

0-9 :SETUP(hour)

DV-K291DY-RB/E(GB) 00.9.28 10:13 AM ˘`25

–

OUT

ANT

EURO-AV

Daewoo MC2128 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
