COLOR TELEVISION CHASSIS : CM-907/F

MODEL :

DTC-29M5ME/MP/MT/MZ DTC-29U1ME/MP/MT/MZ DTC-29U5ME/MP/MT/MZ KR29M5-ME/MP/MT/MZ

MODEL TEXT PIP

ME O O MP X O MT O X MZ X X

MODEL OPTION LIST

S/M No : TCM907FEF0

✔

Caution

: In this Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts information,please refer to PPL(Parts Price List) in Service Information Center (http://svc.dwe.co.kr).

-1-

1. SPECIFICATIONS 2

2. SAFETY INSTRUCTION

3. CIRCUIT BLOCK DIAGRAM

4. ALIGNMENT INSTRUCTIONS

5. CM-907 TYPICAL SERVICE DATA

6. ELECTRICAL PARTS LIST

7. EACH MODEL PARTS LIST

8. SCHEMATIC DIAGRAM

9. PRINTED CIRCUIT BOARD

10. MECHANICAL EXPLODED VIEW AND PARTS LIST

11. IC DESCRIPTION 27

12. TROUBLE SHOOTING CHARTS

TTABLE OF CONTENTS

ABLE OF CONTENTS

APPENDIX (“Appendix is provided only by internet [http://svc.dwe.co.kr]”)

-2-

1. SPECIFICATIONS

Items Model DTC-29M5ME/MP/MT/MZ

DTC-29U1ME/MP/MT/MZ DTC-29U5ME/MP/MT/MZ KR29M5-ME/MP/MT/MZ

TV Standard Color system PAL/SECAM, NTSC-4.43(AV)

Sound system B/G, D/K, I Rated Voltage AC 100~250V, 50/60Hz Power consumption NOMAL : 130W, FLAT : 135W Sound Output Power 7W+7W

VHF-L : IC1-S6CH (43.25MHz~140.25MHz)

Channel Coverage VHF-H : IC1-S36CH (147.25MHz~423.25MHz)

UHF : S37-C57CH(431.25MHz~863.25MHz) Tuning System FS Tuning System Program No. Indication ON-Screen Display Program Selection 100 Programs Aux. Terminal AV input 1< RCA : Input, Scart (Option) : Input, Output >

AV Input 2 < SIDE >

DVD1, DVD2

AV OUTPUT < TV Signal > Remote Control Unit R44C07 Screen size 67.6Cm

BEFORE SERVICING THIS CHASSIS READ THE “X-RAY RADIATION PRECAUTIONS”, “SAFETY PRECAUTIONS” AND “PRODUCT SAFETY NOTICE” BELOW.

-3-

2. SAFETY INSTRUCTION

NOTE

X-RAY RADIATION PRECAUTIONS

SAFETY PRECAUTIONS

PRODUCT SAFETY

1. Excessive high voltage can produce potentially hazardous X-RAY RADIATION. To avoid such hazards, the high voltage must not exceed the specified limit. The nominal value of the high voltage of this receiver is 25kV(21”) at max beam current. The high voltage must not, under any circumstances, exceed 27kV(21”). Each time a receiver requires servicing, the high volt-age should be checked. It is recommended the reading

of the high voltage recorded as a part of the service recorded as a part of the service records. It is important to use an accurate and reliable high voltage meter.

2. The only source of

X-RAY RADIATION

in this TV receiver is the picture tube. For continuous RADIATION protection, the replacement tube must be exactly the same type tube as specified in the “PART LIST”.

1. Potentials of high voltage are present when this receiver is operating. Operation of the receiver outside the cabinet or with the back cover removed involves a shock hazard from the receiver.

1) Servicing should not be attempted by anyone who is not

thoroughly familiar with the precautions necessary when working on high voltage equipment.

2) Always discharge the picture tube to avoid the shock

harzard before removing the anode cap.

3) Discharge the high potential of the picture tube before

handling the tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled.

2. If any FUSE in this TV receiver is blown, replace it will the FUSE specified in the “PART LIST”.

3. When replacing a high wattage resistor (oxide metal film resistor) in circuit board, keep the resistor 10mm away from circuit board.

4. Keep wires away from high voltage or high temperature components.

5. This receiver must operate between AC 100-240 volts,50/60Hz. NEVER connect to DC supply or any other power or frequency.

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the X-RAY RADIATION protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supple-

ments, electrical components having such features are identified by designated symbol on the “PART LIST”. Before replacing any of these components, read the “PARTLIST” in this manual carefully. The use of substitute replacement part which do not have the same safety characteristics as specified in the “PART LIST” may created X-RAY RADIATION.

-4-

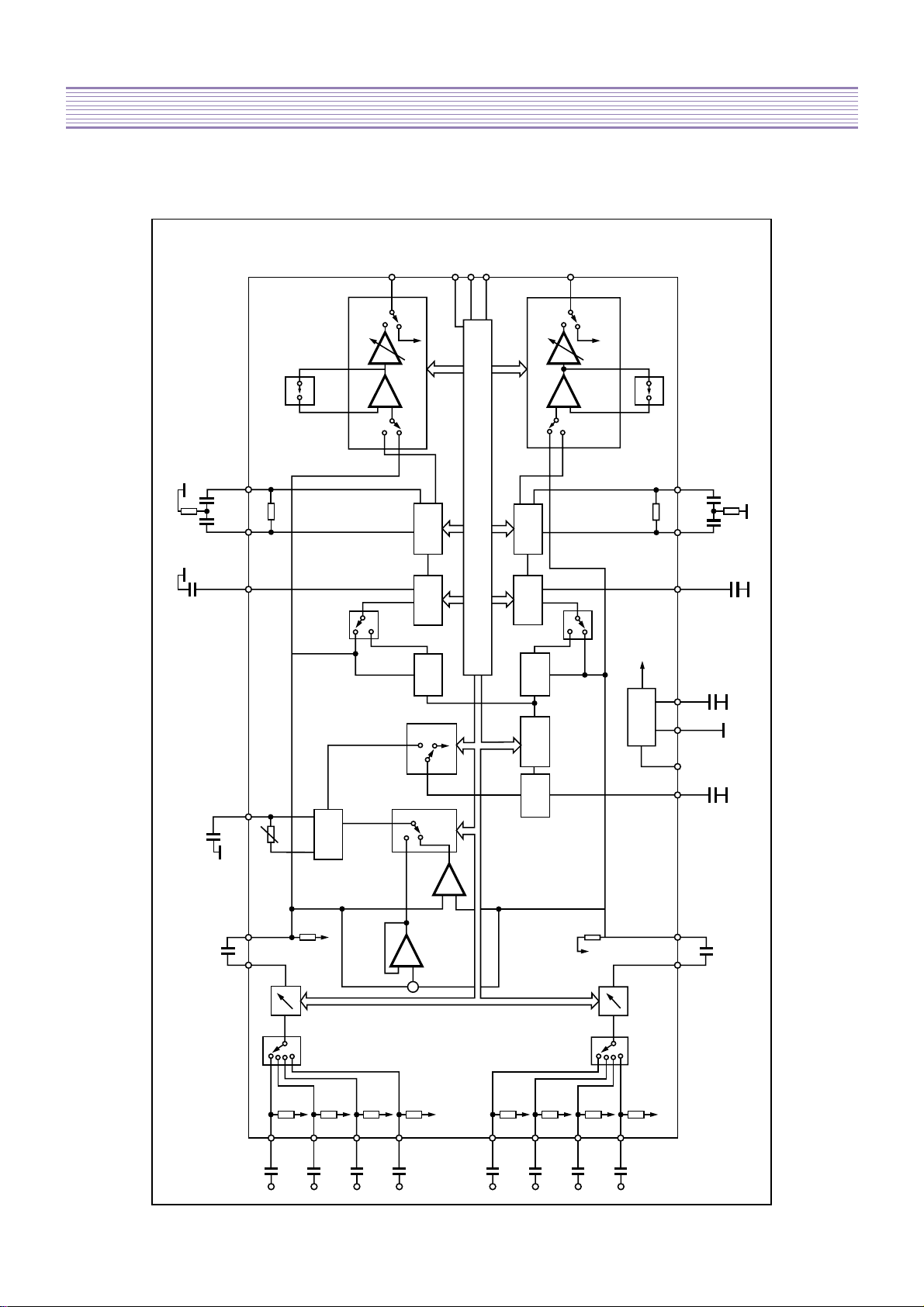

3. CIRCUIT BLOCK DIAGRAM

-5-

4. ALIGNMENT INSTRUCTIONS

1. SERVICE REMOCON & EEPROM PRESETTING DATA 1-1. SERVICE REMOCON : R-34SVC (S/N:48B3034SVC) 1-2. EEPROM PRESETTING DATA

KEY Name Details BARE NORMAL FLAT WIDE remark

PAL NTSC NT=PAL+xxx PAL NTSC PAL NTSC S1 Heat-Run - - S2 Screen - - S3 Sound Test - - S4 Picture Test - - S5 BCL BCL THR - 200 180

BCL GAIN 12 12 WHITE PEAK ON ON

S6 Geometry V-CENTER 3930 3952 182 4170 3550 ADJUST DATA

V-SIZE 121 120 -1 147 152 164 169 ADJUST DATA H-CENTER 82 83 1 86 88 ADJUST DATA H-SIZE -160 -294 -134 560 410 950 800 ADJUST DATA PARABOLA -160 -158 2 -92 -140 -71 ADJUST DATA EW TRAPEZ 36 -3 -39 66 41 CORNER 120 120 0 90 55 H BOW 143 140 -3 -277 -2 H PARALL -2 -2 0 20 10 ADJUST DATA V LINEAR -3 -5 +2 1 3 S CORRECT -27 -27 0 -22 -32

S7 PIP P H POS 29 33 33

P V POS 9 27 27 P R/G/B Peak 150/150/150 85/85/85 85/85/85 P CONT 04 10 10 P BRIGHT 01 15 15

S8 WHITE R/G/B DRIVE 170/170/170 195/195/195 175/175/175

BALANCE R/G/B BIAS 40/40/40 80/80/80 80/80/80 S9 SUB BRI BRM 140 140 140 For SUB-Bright Adjust Reference S10 NORMAL BRIGHT 32 32 32

DATA CONTRAST 58 63 63

COLOR 32 32 32 SHARPNESS 48 48 48

S11 OPTION PIP ME/MP:ON, MZ/MT:OFF

DIGIT.EYE ON ON OFF TEXT SEL. TELETEXT ME/MT:ON, MZ/MP:OFF LARGE OFF ON ON VID FRAME OFF ON ON HOTEL VOL +00000 +00000 +00000

HOTELMODE OFF OFF OFF S12 Shipping - - SVC Main Menu CONT 32 32 32

IBRM 140 30 30 For Screen Adjust Reference

-6-

ALIGNMENT INSTRUCTIONS

SVC KEY EXPLAIN

(S5) BCL THD : MAX BEAM CURRENT ADJUST,DIFFERENT DATA FOR INCH.

BCL GAIN : AVERAGE BEAM ADJUST.

(S6) GEOMETRY : PAL (50Hz) adjust.

AV NTSC is auto correction.

(S10) NORMAL : PICTURE NORMAL data setting. (SLEEP) : TXT CHECK ON LINE (SIZE) : GAME FUNCTION CHECK ON LINE (S11) OPTION

- HOTEL VOLUME : HOTEL MODE MAX VOL DATA SETTING

- HOTEL MODE OFF : ON--> VOL MAX SET& INSTALL DONT OPERATING

* Software option for Function Change

PIP (ON)

- ON : With PIP Models (xxxxME/MP seiese)

- OFF : Without PIP Models (xxxxMT/MZ seriese)

Digital EYE (ON)

- ON : Enable the Digital Sensor (DTC-29M5xx, KR29M5-xx)

- OFF : Disable the Digital Sensor (DTC-29U1xx, DTC-29U5xx)

LARGE (OFF)

- ON : For 29 inch Models CM-907/F

- OFF : For 14~21 inch Models CM-907S LATIN : English,French,Swedish,Czech,German,Spanish,Italian,Estonian EAST: English,Slovakian,Hungarian,Serbian,Albanian,Polish,Turkian,Rumanian RUSSIA : English,Russian,Bulgaian,Ukrainian,Serbian,Montenegro

TEXT sel. (OFF) PERSIAN : English,Farsi

ARAB : English,Arabic OFF : Teletext Language depends on OSD Language selection

Note : If OSD language & text selec. is different then Teletext depends on Text selec.

2.The confirmation of Protection circuit Protection circuit confirmation is omitted in case of mass production in the factory

2-1. Over Current Protecor (OCP) circuit confirmation

2-1-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B) and adjust

STANDARD MODE in PICTURE.

2-1-2. Connect 1M

1/2W between BASE of Q801 and GND, to confirm operating of

PROTECTOR.

The next place, to confirm normal operation when the resister(1M

) is removed.

2-1-3. After Main Power Switch OFF/ON, to confirm normal operation of picture and sound

when turn the set on by remocon.

-7-

ALIGNMENT INSTRUCTIONS

3.The adjustment of SCREEN 3-1. Confirm the presetting

IBRM data of EEPROM according to CRT. 3-2. Press the [S2] KEY of SVC Remocon, horizontal line will be displayed. 3-3. Adjust SCREEN V/R of FBT so that the horizontal line reach the cut-off point. 3-4 To be completed adjustment of screen. Press the [S2] key to escape screen adjustment mode.

4.The adjustment of FOCUS 4-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B). 4-2. Adjust the picture to best distinct picture of 350 Line by revolve Focus Volume.

5.The adjustment of WHITE BALANCE 5-1. NITSUKI Setting : Set Nitsuki to the Auto Mode , Reference to the B , and System to the PAL . 5-2. Setting the Normal Stats

5-2-1. Adjust Picture to Normal mode. 5-2-2. Adjust the Gain of Nitsuki to suitability by manual when condition is Normal.

- Adjust the standard illumination take within limit bright of Nitsuki and luminosity of SET into acount.

- Exhortative Standard illumination, : High 70Cd/

, LOW BEAM : about 15Cd/

5-2-3. Press the [S8]key of SVC remocon to adjustment of Whit Balance.

X=0.288, Y=0.301

5-2-4. Memorize in Nitsuki after Adjustment of White Balance.

5-3. Adjustment of White Balance

5-3-1.Receive Nitsuki signal. 5-3-2.Adjust Picture to Normal mode. 5-3-3.The Adjustment of High Beam : Adjust R-DRIVE and G-DRIVE to R,G,B BAR come to center. 5-3-4.The Adjustment of Low Beam : Adjust R-BIAS and G-BIAS to R,G,B BAR come to center. 5-3-5.Repeat 5-3-3 and 5-3-4 to R,G,B BAR come to within center

6.The adjustment of GEOMETRY 6-1. Press the [S-6]key on the SVC remocon to call up the Geometry mode.

And then, Geometry OSD will be displayed.

6-1-1. All adjustment is base on PAL(50Hz),

but it can be base on NTSC(60Hz) in case of need.

6-2. The adjustment of VERTICAL CENTER

6-2-1.Receive PAL RETMA pattern(signal of company:PAL-B 2CH). 6-2-2.Press the PR up/down Keys(

) to select V CENTER.

Adjust with Vol Up/Down (

) keys so that the center mark of the CRT may be located on the horizontal line in the middle of the pattern. In case of no center mark, adjust with Vol Up/Down (

) keys to obtain a vertically symmetrical pattern.

-8-

ALIGNMENT INSTRUCTIONS

6-3. The adjustment of VERTICAL SIZE

6-3-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH). 6-3-2. Press the PR up/down Keys

to select V-SIZE.

Adjust with Vol Up/Down (

/ ) keys so that the upper and the lower of RETMA

pattern may be located at the boundaries of the screen.

6-4. The adjustment of HORIZONTAL CENTER

6-4-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH). 6-4-2. Press the PR up/down Keys (

/ ) to select V-SIZE.

Referring to the both side scales, adjust with Vol Up/Down (

/ ) keys

so that RETMA pattern may be symmetrical.

6-5. The adjustment of Vertical Linearity

6-5-1. Receive PAL CROSSHATCH pattern(signal of company:PAL-B 5CH). 6-5-2. Fix adjustment of Vertical Linearity after EEPROM presetting,

but it can be adjusted in case of need.

6-5-3. Press the PR up/down Keys (

/ ) to select V LINEAR.

Adjust Vertical Linearity with Vol Up/Down (

/ ) keys.

6-6. The adjustment of VERTICAL S-Correction

6-6-1. Receive PAL CROSSHATCH pattern(signal of company:PAL-B 5CH). 6-6-2. Fix adjustment of Vertical S-Correction after EEPROM DATA presetting,

but it can be adjusted in case of need.

6-6-3. Press the PR up/down Keys (

/ ) to select S CORRECT.

Adjust S-Corrction with Vol Up/Down (

/ ) keys.

-9-

ALIGNMENT INSTRUCTIONS

7. THE ADJUSTMENT OF SUB-PICTURE (SUB-BRIGHT,SUB-CONTRAST) 7-1. Receive PAL RETMA PATTERN(signal of company:2CH., PAL-B) 7-2. Press the [S9] KEY of SVC Remocon, BRM OSD wil be displayed. 7-3. The adjustment of SUB-BRIGHT

7-3-1. Press the PR up/down Keys (

/ ) to select SUB-BRIGHT in SUB-PICTURE MENU.

Adjust SUB-BRIGHT with Vol Up/Down (

/ ) keys. 7-3-2. Adjust With BRM, When SUB-BRIGHT is lacking in margin of adjustment. 7-3-3. Standard of adjustment : Adjust till instant of 1, 2th cordon disappear in

RETMA CONTRAST CHART(signal of company).

7-3-4. When Sub-Picture mode was exited after SUB

s adjustment, Normal vlaue is brighter(about 18%) than adjustment-point(about 10%) of adjustment-mode because BRIGHT is set to rise 2~3 step.

8. THE ADJUSTMENT OF PIP 8-1. Receive PAL RETMA pattern(signal of company:PAL-B 2CH) and Color Bar. 8-2. Press the [S7] KEY of SVC Remocon, PIP-Adjustment OSD wil be displayed. 8-3. Fix adjustment of PIP after EEPROM DATA presetting,

but it can be adjusted in case of need. 8-4. Adjust PIP after GEOMETRY, WHITE BALANCE and SUB-BRIGHT are adjusted. 8-5. List of adjustment

PIP H POSITON : Adjustment of H-position Sub-Picture,

(Reference : Presetting Value of EEPROM = 38)

PIP V POSITON : Adjustment of V-position of Sub-Picture,

(Reference : Presetting Value of EEPROM = 27)

PIP R/G/B Peak : Adjustment of Gain of PIP IC R,G,B Output

(Reference : Presetting Value of EEPROM = 85)

P CONTRAST : Adjustment of AC Gain(Contrast) of PIP IC RGB Output

(Reference : Presetting Value of EEPROM = 10)

P BRIGHT : Adjustment of DC Level(SUB BRIGHT) of PIP IC RGB Output

(Reference : Presetting Value of EEPROM = 15)

-10-

ALIGNMENT INSTRUCTIONS

9. REMOCON

9-1. SERVICE REMOCON 9-2. USER REMOCON

9-3. SERVICE REMOCON

1) Enter SERVICE MODE : Press keys of User Remocon, as follows. Ch91, Sharpness 0, Skip(red), Move(green), Menu.

2) Choice SERVICE MENU : Pr-Up/Down

3) Enter SERVICE SUB MENU : Vol-Up/Down

S1 S2 S3

S4 S5 S6

S7 S8 S9

S11

RECALL

S10 S12

MUTE

POWER

TV/CATV

ADD/ERASE

TV/VIDEO

SOUND MODE

SURROUND

VOLVOL

PIP M/S

VOL

VPOSITION

POSITION

TV/VIDEO

PAUSE/

STILL

SIZE

SLEEP

R-34SVC

456

890

-11-

5. CM-907/F TYPICAL SERVICE DATA

NO CH PATTERN BAND V.FREQ. Sound SYSTEM Color SYSTEM ADJUSTMENT

2 PAL H-2CH VL 64.25 BG PAL

7 PAL H-7CH VH 182.25 BG PAL

9 PAL H-9CH VH 196.25 BG PAL

10 PAL H-10CH VH 209.25 BG PAL

28 PAL H-28CH U 527.25 BG PAL

30 PAL-40CH W/B U 623.25 AUTO W/B

31 PAL-2CH RETMA VL 48.25 BG AUTO

FOCUS, V-CENTER, V-SIZE,V-SLOPE H-CENTER,SCREEN

32 PAL-47CH C/HATCH U 679.25 I AUTO “ CONVERGENCE, ADJUSTMENT”

33 PAL-10CH COLOR BAR VH 210.25 BG PAL “ SCREEN, AGC”

34 PAL-4CH DEM VL 62.25 BG PAL “ SOUND, Teletext check”

35 PAL-12CH PHILIPS VH 224.25 BG SECAM SECAM COLOR CHECK

36 PAL-18CH RETMA U 511.25 DK AUTO SOUND

CM-907/F CHASSIS SETTING LIST

-12-

6. ELECTRICAL PARTS LIST

LOC PART CODE PART NAME DESCRIPTION REMARK

ZZ100 48B4844C07 TRANSMITTER REMOCON R-44C07 (AA) ZZ110 PTACPWD703 ACCESSORY AS DTC-29M5ME 00030 4850Q00810 BATTERY R6P/LN 0200 48586054K1 MANUAL INSTRUCTION DTM-2082CW M821 4858213801 BAG INSTRUCTION L.D.P.E T0.05X250X400 ZZ120 PTBCSHD703 COVER BACK AS DTC-29M5ME M211 4852161121 COVER BACK HIPS GY M781 4857817630 CLOTH BLACK FELT 400X20X0.7 ZZ130 PTPKCPD703 PACKING AS DTC-29M5ME 10 6520010100 STAPLE PIN AUTO W65 M801 4858057600 BOX CARTON DW-3 M811 4858199100 PAD EPS 29M5 M821 4858215601 BAG P.E PE FOAM t0.5x1600x1270 ZZ131 48519A6410 CRT GROUND NET 2902S-1015-1P ZZ132 58G0000149 COIL DEGAUSSING DC-29SF ZZ140 PTCACAD703 CABINET AS DTC-29M5ME M201A 4856015800 SCREW CRT FIX L=27 M201B 4856215402 WASHER RUBBER CR T2.0 M211A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK M211B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK M211C 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK M231A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK M541 4855419800 SPEC PLATE ART 150 M682 4856816300 CLAMP WIRE NYLON 6 (V0) M683 4856812001 TIE CABLE NYLON66 DA100 SP01A 7172401212 SCREW TAPPTITE TT2 TRS 4X12 MFZNBK SP02A 7172401212 SCREW TAPPTITE TT2 TRS 4X12 MFZNBK V901 4859626060 CRT A68QBC230X09 P38 ZZ200 PTFMSJD703 MASK FRONT AS DTC-29M5ME M201 4852079701 MASK FRONT HIPS GY M231A 7178301212 SCREW TAPPTITE TT2 WAS 3X12 MFZN BK M561 48556174SD MARK BRAND SILVER DIA-CUTTING M781 4857821102 CLOTH BLACK FELT 340X10X1.5 ZZ205 PTPCSWJ912 PANEL CONTROL AS DTQ-29M5 M191 4851945700 BUTTON CTRL 4951401+5545800 M191A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN M231 4852328201 PANEL DECO ABS GY M481 4854861401 BUTTON POWER ABS GY M481A 4856716000 SPRING SWPA PIE0.5 M591 4855933401 DECO EYE ABS BLUE M591A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN ZZ210 PTSPPWD703 SPEAKER AS DTC-29M5ME P601A 4850704S32 CONNECTOR YH025-04+YRT205+ULW900500

SP01 4858311110 SPEAKER 12W 8 OHM SP-58126F SP02 4858311110 SPEAKER 12W 8 OHM SP-58126F ZZ290 PTMPMSD703 PCB MAIN MANUAL AS DTC-29M5ME 10 2193102005 SOLDER BAR SN:PB=63:47 S63S-1320 30 2291050616 FLUX SOLDER JS-64T3 40 2291050301 FLUX SOLVENT IM-1000 C306 CEYF1E332V C ELECTRO 25V RSS 3300MF (16X31.5) C310 CEYD1H689W C ELECTRO 50V RHD 6.8MF (16X35.5) C405 CMYH3C123J C MYLAR 1.6KV BUP 0.012MF J C406 CMYH3C722J C MYLAR 1.6KV BUP 7200PF J C408 CMYE2D624J C MYLAR 200V PU 0.62MF J C801 CL1UC3474M C LINE ACROSS 0.47MF 1J(UCVSNDF/SV)+Q/O C804 CEYN2G221P C ELECTRO 400V LHS 220MF (35X30) C811 CH1BFE222M C CERA AC U/C/V AC400V 2200PF C817 CEYF2C221V C ELECTRO 160V RSS 220MF (18X35.5) D402 DRGP30J—- DIODE RGP30J D403 DDGP30L—- DIODE DGP30L D812 DRGP30J—- DIODE RGP30J D814 DRGP30J—- DIODE RGP30J

DTC-29M5ME

LOC PART CODE PART NAME DESCRIPTION REMARK

DC01 DLH2PR5MHS LED HOLDER AS LH-2P-R-5M-H3 F801 5F3GB6322L FUSE GLASS TUBE V/S TL 6.3A 250V MF51 I301 PTF2SW7921 HEAT SINK ASS`Y 1LA7848—- + 7174300811 00001 1LA7848—- IC VERTICAL LA7848 0000A 4857027921 HEAT SINK AL EX BK 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN I401 PT82SW6900 HEAT SINK ASS’Y 1K1A7809P1 + 7174300811 00001 1K1A7809P1 IC REGULATOR K1A7809API 0000A 4857026900 HEAT SINK AL EX 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN I501 1V3834DW08 IC MICOM MCM VCT3834F-DW08 I601 1TDA7442— IC AUDIO PROCESSOR TDA7442 I602 PTB2SW8228 HEAT SINK ASS`Y 1TDA8946J- + 7174301011 00001 1TDA8946J- IC AUDIO AMP TDA8946J 0000A 4857028228 HEAT SINK AL EX BK 0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN I701 124LC16B1B IC MEMORY 24LC16B1B I801 PTE2SW7920 HEAT SINK ASS`Y 1STRF6656- + 7174301211 00001 1STRF6656- IC POWER STR-F6656 0000A 4857027920 HEAT SINK AL EX BK 0000B 7174301211 SCREW TAPPTITE TT2 RND 3X12 MFZN I802 1LTV817C— IC PHOTO COUPLER LTV-817C I803 1DP133—— IC ERROR AMP DP133 I804 PTF2SW4902 HEAT SINK ASS`Y 1K78R05—- + 7174301011 00001 1K78R05—- IC REGULATOR KIA78R05PI 0000A 4857024902 HEAT SINK AL EX 0000B 7174301011 SCREW TAPPTITE TT2 RND 3X10 MFZN I806 1LP295033- IC REGULATOR LP2950 3.3V IF01 1KRT30—— IC PREAMP KRT30 JV01 4859111750 JACK PIN BOARD PH-JB-9515 JV02 4859110950 JACK PIN BOARD YS01-0001 L301 58C7070085 COIL CHOKE TLN-3062A L401 58H0000039 COIL H-LINEARITY TRL-200D LF801 5PLF3143G- FILTER LINE LF-3143G M371 4853747800 RETA PCB NYLON 66 P904 4859281320 CONN WAFER TAC-L18X-A3 PW801 4859908110 CORD POWER AS 1-L0+H03VVH2-F+HOU=2200 Q401 PTG2SW7609 HEAT SINK ASS`Y TST2009DH1 + 7174300811 00001 TST2009DH1 TR ST2009DHI 0000A 4857027609 HEAT SINK AL EX 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN Q402 TKTC3229— TR KTC3229 R801 DDC7R0M290 POSISTOR ECPCD7R0M290 R803 RX10T109KS R CEMENT 10W 1 OHM K TRIPOD SMALL R807 RM02Y158J- R METAL FLAT 2W 0.15 OHM J SW801 5S40101143 SW POWER PUSH PS3-22SP (P.C.B) T401 50H0000251 FBT FFA64039L T402 5TD0000018 TRANS DRIVE THD-120 T801 50M5345C1- TRANS SMPS TSM-5345C1 U101 4859723730 TUNER VARACTOR TMDG1-837 X501 5XE20R250E CRYSTAL QUARTZ HC-49/U 20.2500MHZ 30PPM ZZ200 PTMPJ0D703 PCB MAIN (RHU) AS DTC-29M5ME C105 CEXF1C222V C ELECTRO 16V RSS 2200MF (16X31.5) TP C407 CMXE2G273J C MYLAR 400V PU 0.027MF J (TP) C419 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP C422 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP C424 CEXF1V471V C ELECTRO 35V RSS 470MF (10X20) TP C631 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP C802 CCXB3A472K C CERA 1KV B 4700PF K (TAPPING) C803 CCXB3A472K C CERA 1KV B 4700PF K (TAPPING) C806 CMXH3C152J C MYLAR 1.6KV BUP 1500PF J (TP) C818 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP C820 CEXF1E222V C ELECTRO 25V RSS 2200MF (16X25) TP

✔ Caution:In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the

latest parts information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)

-13-

ELECTRICAL PARTS LIST

LOC PART CODE PART NAME DESCRIPTION REMARK

C821 CEXF1C332V C ELECTRO 16V RSS 3300MF (16X25) TP C837 CEXF1C222V C ELECTRO 16V RSS 2200MF (16X31.5) TP ZZ200 PTMPJBD703 PCB MAIN M-10 AS DTC-29M5ME 10 2TM18006BE TAPE MASKING 6.2X500 E001 4856310600 EYE LET BSR T0.2 (R2.3) E002 4856310600 EYE LET BSR T0.2 (R2.3) E003 4856310600 EYE LET BSR T0.2 (R2.3) E004 4856310600 EYE LET BSR T0.2 (R2.3) E005 4856310300 EYE LET BSR T0.2 (R1.6) E006 4856310300 EYE LET BSR T0.2 (R1.6) E007 4856310300 EYE LET BSR T0.2 (R1.6) E008 4856310300 EYE LET BSR T0.2 (R1.6) E009 4856310300 EYE LET BSR T0.2 (R1.6) E010 4856310300 EYE LET BSR T0.2 (R1.6) E011 4856310300 EYE LET BSR T0.2 (R1.6) E012 4856310600 EYE LET BSR T0.2 (R2.3) E013 4856310600 EYE LET BSR T0.2 (R2.3) E014 4856310300 EYE LET BSR T0.2 (R1.6) E015 4856310300 EYE LET BSR T0.2 (R1.6) E016 4856310300 EYE LET BSR T0.2 (R1.6) E017 4856310300 EYE LET BSR T0.2 (R1.6) E018 4856310300 EYE LET BSR T0.2 (R1.6) E019 4856310300 EYE LET BSR T0.2 (R1.6) E020 4856310300 EYE LET BSR T0.2 (R1.6) E021 4856310600 EYE LET BSR T0.2 (R2.3) E022 4856310600 EYE LET BSR T0.2 (R2.3) E023 4856310600 EYE LET BSR T0.2 (R2.3) E024 4856310600 EYE LET BSR T0.2 (R2.3) E025 4856310300 EYE LET BSR T0.2 (R1.6) E026 4856310300 EYE LET BSR T0.2 (R1.6) E027 4856310300 EYE LET BSR T0.2 (R1.6) E028 4856310300 EYE LET BSR T0.2 (R1.6) E029 4856310300 EYE LET BSR T0.2 (R1.6) E030 4856310300 EYE LET BSR T0.2 (R1.6) E031 4856310300 EYE LET BSR T0.2 (R1.6) E032 4856310300 EYE LET BSR T0.2 (R1.6) E033 4856310300 EYE LET BSR T0.2 (R1.6) E034 4856310300 EYE LET BSR T0.2 (R1.6) E035 4856310300 EYE LET BSR T0.2 (R1.6) E036 4856310600 EYE LET BSR T0.2 (R2.3) E037 4856310600 EYE LET BSR T0.2 (R2.3) E038 4856310600 EYE LET BSR T0.2 (R2.3) E039 4856310600 EYE LET BSR T0.2 (R2.3) E040 4856310600 EYE LET BSR T0.2 (R2.3) E041 4856310600 EYE LET BSR T0.2 (R2.3) E042 4856310600 EYE LET BSR T0.2 (R2.3) E043 4856310600 EYE LET BSR T0.2 (R2.3) E049 4856310600 EYE LET BSR T0.2 (R2.3) E050 4856310600 EYE LET BSR T0.2 (R2.3) E051 4856310600 EYE LET BSR T0.2 (R2.3) E054 4856310600 EYE LET BSR T0.2 (R2.3) E055 4856310600 EYE LET BSR T0.2 (R2.3) E056 4856310600 EYE LET BSR T0.2 (R2.3) E057 4856310600 EYE LET BSR T0.2 (R2.3) E058 4856310600 EYE LET BSR T0.2 (R2.3) E059 4856310600 EYE LET BSR T0.2 (R2.3) N001 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) N002 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) N003 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) N004 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) N005 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) N006 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) N007 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN)

LOC PART CODE PART NAME DESCRIPTION REMARK

N008 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) P501 485923192S CONN WAFER YW025-06 (STICK) P502 485923172S CONN WAFER YW025-04 (STICK) P601 485923172S CONN WAFER YW025-04 (STICK) P602 485923182S CONN WAFER YW025-05 (STICK) P603 485923202S CONN WAFER YW025-07 (STICK) P604 485923162S CONN WAFER YW025-03 (STICK) PD01 485923162S CONN WAFER YW025-03 (STICK) R105 RS02Z512JS R M-OXIDE FILM 2W 5.1K OHM J SMALL R317 RS02Z100J- R M-OXIDE FILM 2W 10 OHM J (TAPPING) R318 RS02Z271JS R M-OXIDE FILM 2W 270 OHM J SMALL R403 RS01Z472J- R M-OXIDE FILM 1W 4.7K OHM J (TAPPING) R404 RS01Z101J- R M-OXIDE FILM 1W 100 OHM J (TAPPING) R406 RS02Z243JS R M-OXIDE FILM 2W 24K OHM J SMALL R410 RF01Z229J- R FUSIBLE 1W 2.2 OHM J (TAPPING) R413 RF01Z100J- R FUSIBLE 1W 10 OHM J (TAPPING) R414 RS02Z472JS R M-OXIDE FILM 2W 4.7K OHM J SMALL R419 RF01Z229J- R FUSIBLE 1W 2.2 OHM J (TAPPING) R805 RS02Z683JS R M-OXIDE FILM 2W 68K OHM J SMALL R813 RF02Z398K- R FUSIBLE 2W 0.39 OHM K (TAPPING) R829 RF02Z568K- R FUSIBLE 2W 0.56 OHM K (TAPPING) ZZ200 PTMPJRD703 PCB MAIN RADIAL AS DTC-29M5ME C104 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP C108 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C301 CMXM2A563J C MYLAR 100V 0.056MF J (TP) C302 CMXM2A103J C MYLAR 100V 0.01MF J (TP) C303 CXSL2H100D C CERA 500V SL 10PF D (TAPPING) C304 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C305 CEXD1H109Q C ELECTRO 50V RT 1MF (6.3X11) TP C307 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP C309 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C311 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C312 CCXB2H561K C CERA 500V B 560PF K (TAPPING) C313 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C314 CMXM2A332J C MYLAR 100V 3300PF J (TP) C315 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP C320 CMXM2A104J C MYLAR 100V 0.1MF J (TP) C321 CMXM2A123J C MYLAR 100V 0.012MF J (TP) C402 CCXB2H102K C CERA 500V B 1000PF K (TAPPING) C403 CCXB2H222K C CERA 500V B 2200PF K (TAPPING) C404 CCXB2H471K C CERA 500V B 470PF K (TAPPING) C409 CEXF2C339V C ELECTRO 160V RSS 3.3MF (8X16) TP C410 CCXB2H561K C CERA 500V B 560PF K (TAPPING) C411 CEXF2E229V C ELECTRO 250V RSS 2.2MF (8X11.5)TP C413 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C415 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C417 CMXM2A104J C MYLAR 100V 0.1MF J (TP) C421 CMXM2A333J C MYLAR 100V 0.033MF J (TP) C425 CCXB2H102K C CERA 500V B 1000PF K (TAPPING) C502 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP C503 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C505 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C507 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C508 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C509 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C510 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C511 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C512 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C514 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C519 CMXL1J683J C MYLAR 63V MEU 0.068MF J C522 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C524 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C525 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP

-14-

ELECTRICAL PARTS LIST

LOC PART CODE PART NAME DESCRIPTION REMARK

C530 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C542 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C544 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C545 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP C548 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP C550 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP C551 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C562 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C581 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C582 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C583 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C585 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C601 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C606 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C608 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C609 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C610 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C611 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C612 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C615 CCXB1H152K C CERA 50V B 1500PF K (TAPPING) C617 CCXB1H682K C CERA 50V B 6800PF K (TAPPING) C618 CCXB1H682K C CERA 50V B 6800PF K (TAPPING) C619 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C622 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C623 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C624 CMXM2A224J C MYLAR 100V 0.22MF J C625 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C626 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP C627 CMXM2A224J C MYLAR 100V 0.22MF J C628 CMXM2A224J C MYLAR 100V 0.22MF J C629 CMXM2A224J C MYLAR 100V 0.22MF J C633 CMXM2A682J C MYLAR 100V 6800PF J (TP) C634 CMXM2A682J C MYLAR 100V 6800PF J (TP) C805 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C807 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C808 CCXB1H152K C CERA 50V B 1500PF K (TAPPING) C809 CCXB3A471K C CERA 1KV B 470PF K (T) C810 CCXB1H152K C CERA 50V B 1500PF K (TAPPING) C812 CCXB3A471K C CERA 1KV B 470PF K (T) C813 CCXB3A471K C CERA 1KV B 470PF K (T) C814 CCXB3A271K C CERA 1KV B 270PF K (TAPPING) C819 CEXF2A100V C ELECTRO 100V RSS 10MF (6.3X11) TP C825 CMXL1J224J C MYLAR 63V MEU 0.22MF J (TP) C826 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP C827 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C828 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C833 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C836 CMXM2A103J C MYLAR 100V 0.01MF J (TP) F801A 4857415001 CLIP FUSE PFC5000-0702 F801B 4857415001 CLIP FUSE PFC5000-0702 I702 1K1A7025AP IC RESET KIA7025AP L601 58CX430599 COIL CHOKE AZ-9004Y 940K TP L812 58CX430599 COIL CHOKE AZ-9004Y 940K TP Q101 TKTC3198Y- TR KTC3198Y Q301 TKTC3198Y- TR KTC3198Y Q403 TKTC3198Y- TR KTC3198Y Q502 TKTA1266Y- TR KTA1266Y (TP) Q503 TKTA1266Y- TR KTA1266Y (TP) Q504 TKTA1266Y- TR KTA1266Y (TP) Q505 TKTC3198Y- TR KTC3198Y Q507 TKTA1266Y- TR KTA1266Y (TP) Q508 TKTC3198Y- TR KTC3198Y Q509 TKTC3198Y- TR KTC3198Y

LOC PART CODE PART NAME DESCRIPTION REMARK

Q512 TKSC2330Y- TR KSC2330Y (TP) Q513 TKSC2330Y- TR KSC2330Y (TP) Q514 TKTC3198Y- TR KTC3198Y Q515 TKTC3198Y- TR KTC3198Y Q581 TKTC3198Y- TR KTC3198Y Q582 TKTC3198Y- TR KTC3198Y Q583 TKTC3198Y- TR KTC3198Y Q601 TKTC3198Y- TR KTC3198Y Q602 TKTC3198Y- TR KTC3198Y Q801 TKSA1013Y- TR KSA1013Y (TP) QF01 TKTC3198Y- TR KTC3198Y R111 RN02B200JS R METAL FILM 2W 20 OHM J SMALL R308 RN02B331JS R METAL FILM 2W 330 OHM J SMALL R309 RN02B121JS R METAL FILM 2W 120 OHM J SMALL R310 RN02B200JS R METAL FILM 2W 20 OHM J SMALL R312 RN01B913JS R METAL FILM 1W 91K OHM J SMALL R314 RN02B103JS R METAL FILM 2W 10K OHM J SMALL R315 RN01B562JS R METAL FILM 1W 5.6K OHM J SMALL R407 RN02B102JS R METAL FILM 2W 1K OHM J SMALL R420 RN02B101JS R METAL FILM 2W 100 OHM J SMALL R422 RN02B159JS R METAL FILM 2W 1.5 OHM J SMALL R426 RN02B333JS R METAL FILM 2W 33K OHM J SMALL R429 RN02B681JS R METAL FILM 2W 680 OHM J SMALL R824 RN01B102JS R METAL FILM 1W 1K OHM J SMALL R825 RN02B202JS R METAL FILM 2W 2K OHM J SMALL R828 RN02B132JS R METAL FILM 2W 1.3K OHM J SMALL SW701 5S50101090 SW TACT THVH472GCA SW702 5S50101090 SW TACT THVH472GCA SW703 5S50101090 SW TACT THVH472GCA SW704 5S50101090 SW TACT THVH472GCA SW705 5S50101090 SW TACT THVH472GCA SW706 5S50101090 SW TACT THVH472GCA ZZ200 PTMPJAD703 PCB MAIN AXIAL AS DTC-29M5ME 10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M 20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M A001 4859806793 PCB MAIN 330X246 D1B C103 CCZB1H102K C CERA 50V B 1000PF K (AXIAL) C308 CZCH1H200J C CERA 50V CH 20PF J (AXIAL) C501 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C504 CCZF1H473Z C CERA 50V F 0.047MF Z C506 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C513 CCZF1H103Z C CERA 50V F 0.01MF Z C515 CCZF1H223Z C CERA 50V F 0.022MF Z C516 CCZF1H223Z C CERA 50V F 0.022MF Z C517 CCZF1H223Z C CERA 50V F 0.022MF Z C520 CCZB1H151K C CERA 50V B 150PF K (AXIAL) C523 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C526 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C527 CZCH1H309C C CERA 50V CH 3PF C (AXIAL) C528 CZCH1H309C C CERA 50V CH 3PF C (AXIAL) C529 CCZB1H221K C CERA 50V B 220PF K (AXIAL) C531 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C532 CCZB1H221K C CERA 50V B 220PF K (AXIAL) C534 CCZF1H103Z C CERA 50V F 0.01MF Z C538 CCZB1H221K C CERA 50V B 220PF K (AXIAL) C539 CCZB1H221K C CERA 50V B 220PF K (AXIAL) C540 CCZB1H221K C CERA 50V B 220PF K (AXIAL) C543 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C546 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C584 CCZF1H473Z C CERA 50V F 0.047MF Z C586 CCZF1H473Z C CERA 50V F 0.047MF Z C602 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C603 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z

-15-

ELECTRICAL PARTS LIST

LOC PART CODE PART NAME DESCRIPTION REMARK

C604 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C605 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C607 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C613 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C614 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C616 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C630 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C642 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C643 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C823 CCZF1H103Z C CERA 50V F 0.01MF Z C830 CCZF1H103Z C CERA 50V F 0.01MF Z C832 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C834 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z D101 DUZ33B—— DIODE ZENER UZ-33B D102 DUZ5R6BM— DIODE ZENER UZ-5.6BM D301 D1N4004S— DIODE 1N4004S D304 DUZ33B—— DIODE ZENER UZ-33B D306 D1N4004S— DIODE 1N4004S D307 D1N4004S— DIODE 1N4004S D401 D1N4937G— DIODE 1N4937G (TAPPING) D405 DUZ9R1BM— DIODE ZENER UZ-9.1BM D406 D1N4937G— DIODE 1N4937G (TAPPING) D407 D1N4937G— DIODE 1N4937G (TAPPING) D410 D1N4937G— DIODE 1N4937G (TAPPING) D411 DUZ12BM—- DIODE ZENER UZ-12BM (UNIZON) D412 D1N4148—- DIODE 1N4148 (TAPPING) D501 D1N4148—- DIODE 1N4148 (TAPPING) D502 D1N4148—- DIODE 1N4148 (TAPPING) D503 DUZ5R1B—- DIODE ZENER UZ-5.1B D504 DUZ5R1B—- DIODE ZENER UZ-5.1B D505 DUZ5R1B—- DIODE ZENER UZ-5.1B D506 D1N4148—- DIODE 1N4148 (TAPPING) D507 D1N4148—- DIODE 1N4148 (TAPPING) D508 D1N4148—- DIODE 1N4148 (TAPPING) D509 DUZ2R7B—- DIODE ZENER UZ-2.7B D511 DUZ7R5BM— DIODE ZENER UZ-7.5BM D512 DUZ7R5BM— DIODE ZENER UZ-7.5BM D513 DUZ7R5BM— DIODE ZENER UZ-7.5BM D581 DUZ5R6BM— DIODE ZENER UZ-5.6BM D601 D1N4148—- DIODE 1N4148 (TAPPING) D602 D1N4148—- DIODE 1N4148 (TAPPING) D802 DLT2A05G— DIODE LT2A05G (TP) D803 DLT2A05G— DIODE LT2A05G (TP) D804 DLT2A05G— DIODE LT2A05G (TP) D805 DLT2A05G— DIODE LT2A05G (TP) D806 D1N4937G— DIODE 1N4937G (TAPPING) D807 D1N4937G— DIODE 1N4937G (TAPPING) D808 D1N4937G— DIODE 1N4937G (TAPPING) D809 D1N4937G— DIODE 1N4937G (TAPPING) D810 D1N4004S— DIODE 1N4004S D811 DUZ3R3B—- DIODE ZENER UZ-3.3B D813 D1N4937G— DIODE 1N4937G (TAPPING) D816 DRGP15J—- DIODE RGP15J DF01 DUZ5R1B—- DIODE ZENER UZ-5.1B DF02 DUZ5R1B—- DIODE ZENER UZ-5.1B J001 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J002 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J003 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J004 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J005 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J006 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J007 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J008 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

LOC PART CODE PART NAME DESCRIPTION REMARK

J009 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J010 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J011 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J012 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J013 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J014 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J015 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J016 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J017 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J018 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J019 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J020 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J021 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J022 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J023 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J024 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J025 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J026 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J027 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J028 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J029 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J031 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J032 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J033 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J034 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J035 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J036 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J037 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J038 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J039 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J040 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J041 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J042 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J043 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J044 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J045 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J046 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J047 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J048 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J049 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J050 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J051 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J052 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J053 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J054 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J055 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J056 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J058 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J059 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J060 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J061 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J062 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J063 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J064 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J065 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J067 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J068 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J069 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J070 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J071 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J072 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J073 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J074 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

-16-

ELECTRICAL PARTS LIST

LOC PART CODE PART NAME DESCRIPTION REMARK

J075 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J076 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J077 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J078 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J079 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J080 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J081 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J082 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J083 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J084 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J085 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J086 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J087 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J088 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J089 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J090 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J091 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J092 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J093 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J094 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J095 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J096 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J097 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J098 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J099 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J100 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J101 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J102 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J103 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J104 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J105 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J106 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J107 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J108 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J109 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J110 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J111 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J112 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J113 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J114 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J115 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J116 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J117 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J118 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J119 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J120 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J121 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J122 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J123 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J124 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J125 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J126 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J127 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J128 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J129 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J130 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J131 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J132 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J133 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J134 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J135 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L101 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L404 58C0000026 COIL BEAD HC-4035

LOC PART CODE PART NAME DESCRIPTION REMARK

L405 5CPZ109M02 COIL PEAKING 1UH M (AXIAL 3.5MM) L501 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM) L502 5CPZ220K02 COIL PEAKING 22UH K (AXIAL 3.5MM) L503 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM) L504 5CPZ101K02 COIL PEAKING 100UH K (AXIAL 3.5MM) L505 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM) L566 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM) L577 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM) L581 5CPZ470K02 COIL PEAKING 47UH K (AXIAL 3.5MM) L582 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM) L599 5CPZ479K02 COIL PEAKING 4.7UH K (AXIAL 3.5MM) L602 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L801 5MC0000100 COIL BEAD HC-3550 LD01 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM) R103 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R107 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R108 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R109 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J R110 RD-AZ471J- R CARBON FILM 1/6 470 OHM J R301 RN-AZ3601F R METAL FILM 1/6 3.60K OHM F R302 RN-4Z2002F R METAL FILM 1/4 20.0K OHM F R303 RN-4Z1003F R METAL FILM 1/4 100K OHM F R304 RN-4Z1102F R METAL FILM 1/4 11K OHM F R305 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J R306 RD-AZ563J- R CARBON FILM 1/6 56K OHM J R307 RD-AZ113J- R CARBON FILM 1/6 11K OHM J R311 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R313 RD-4Z103J- R CARBON FILM 1/4 10K OHM J R316 RD-4Z101J- R CARBON FILM 1/4 100 OHM J R319 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R320 RD-AZ479J- R CARBON FILM 1/6 4.7 OHM J R321 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R322 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R323 RD-4Z101J- R CARBON FILM 1/4 100 OHM J R324 RD-2Z109J- R CARBON FILM 1/2 1 OHM J R326 RD-AZ391J- R CARBON FILM 1/6 390 OHM J R327 RN-4Z2701F R METAL FILM 1/4 2.70K OHM F R328 RN-AZ3301F R METAL FILM 1/6 3.3K OHM F R401 RD-4Z121J- R CARBON FILM 1/4 120 OHM J R402 RD-4Z122J- R CARBON FILM 1/4 1.2K OHM J R405 RD-4Z330J- R CARBON FILM 1/4 33 OHM J R408 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R409 RD-4Z103J- R CARBON FILM 1/4 10K OHM J R411 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R412 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R418 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R421 RD-4Z914J- R CARBON FILM 1/4 910K OHM J R424 RD-4Z101J- R CARBON FILM 1/4 100 OHM J R501 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R502 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R503 RD-AZ203J- R CARBON FILM 1/6 20K OHM J R504 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R505 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R506 RD-AZ223J- R CARBON FILM 1/6 22K OHM J R507 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R510 RD-AZ912J- R CARBON FILM 1/6 9.1K OHM J R511 RD-AZ511J- R CARBON FILM 1/6 510 OHM J R512 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J R513 RD-AZ223J- R CARBON FILM 1/6 22K OHM J R514 RD-AZ271J- R CARBON FILM 1/6 270 OHM J R515 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J R516 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R517 RD-AZ181J- R CARBON FILM 1/6 180 OHM J

-17-

ELECTRICAL PARTS LIST

LOC PART CODE PART NAME DESCRIPTION REMARK

R518 RD-AZ181J- R CARBON FILM 1/6 180 OHM J R519 RD-AZ181J- R CARBON FILM 1/6 180 OHM J R520 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R521 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R522 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R523 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J R524 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J R525 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J R526 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R527 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R528 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R529 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R532 RD-AZ223J- R CARBON FILM 1/6 22K OHM J R533 RD-AZ271J- R CARBON FILM 1/6 270 OHM J R534 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R535 RD-AZ223J- R CARBON FILM 1/6 22K OHM J R536 RD-AZ271J- R CARBON FILM 1/6 270 OHM J R537 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R538 RD-AZ223J- R CARBON FILM 1/6 22K OHM J R539 RD-AZ271J- R CARBON FILM 1/6 270 OHM J R540 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R541 RD-AZ330J- R CARBON FILM 1/6 33 OHM J R542 RD-AZ330J- R CARBON FILM 1/6 33 OHM J R543 RD-AZ330J- R CARBON FILM 1/6 33 OHM J R544 RD-AZ220J- R CARBON FILM 1/6 22 OHM J R545 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R546 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R547 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J R548 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J R549 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J R550 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R551 RD-AZ201J- R CARBON FILM 1/6 200 OHM J R552 RD-2Z100J- R CARBON FILM 1/2 10 OHM J R556 RD-AZ513J- R CARBON FILM 1/6 51K OHM J R559 RD-AZ243J- R CARBON FILM 1/6 24K OHM J R560 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R561 RD-4Z103J- R CARBON FILM 1/4 10K OHM J R564 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J R566 RD-AZ361J- R CARBON FILM 1/6 360 OHM J R570 RD-2Z101J- R CARBON FILM 1/2 100 OHM J R573 RD-AZ560J- R CARBON FILM 1/6 56 OHM J R574 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R577 RD-AZ361J- R CARBON FILM 1/6 360 OHM J R580 RD-4Z331J- R CARBON FILM 1/4 330 OHM J R581 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R582 RD-AZ683J- R CARBON FILM 1/6 68K OHM J R583 RD-AZ683J- R CARBON FILM 1/6 68K OHM J R584 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R585 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R586 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R587 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R588 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R589 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R590 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R591 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R592 RD-AZ829J- R CARBON FILM 1/6 8.2 OHM J R593 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R594 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R595 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R596 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R597 RD-AZ750J- R CARBON FILM 1/6 75 OHM J R598 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R599 RD-AZ361J- R CARBON FILM 1/6 360 OHM J

LOC PART CODE PART NAME DESCRIPTION REMARK

R603 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R604 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R605 RD-AZ153J- R CARBON FILM 1/6 15K OHM J R606 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J R607 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J R608 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R609 RD-AZ331J- R CARBON FILM 1/6 330 OHM J R610 RD-AZ752J- R CARBON FILM 1/6 7.5K OHM J R611 RD-AZ752J- R CARBON FILM 1/6 7.5K OHM J R612 RD-AZ432J- R CARBON FILM 1/6 4.3K OHM J R613 RD-AZ432J- R CARBON FILM 1/6 4.3K OHM J R614 RD-AZ513J- R CARBON FILM 1/6 51K OHM J R615 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R616 RD-AZ181J- R CARBON FILM 1/6 180 OHM J R617 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R642 RD-AZ829J- R CARBON FILM 1/6 8.2 OHM J R643 RD-AZ829J- R CARBON FILM 1/6 8.2 OHM J R701 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R702 RD-AZ101J- R CARBON FILM 1/6 100 OHM J R802 RC-2Z824KP R CARBON COMP 1/2 820K OHM K R806 RD-4Z821J- R CARBON FILM 1/4 820 OHM J R809 RD-2Z332J- R CARBON FILM 1/2 3.3K OHM J R810 RD-2Z100J- R CARBON FILM 1/2 10 OHM J R811 RD-4Z123J- R CARBON FILM 1/4 12K OHM J R812 RC-2Z825KP R CARBON COMP 1/2 8.2M OHM K R814 RD-4Z473J- R CARBON FILM 1/4 47K OHM J R815 RD-4Z163J- R CARBON FILM 1/4 16K OHM J R816 RD-AZ473J- R CARBON FILM 1/6 47K OHM J R817 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R826 RD-4Z122J- R CARBON FILM 1/4 1.2K OHM J RF01 RD-AZ241J- R CARBON FILM 1/6 240 OHM J RF02 RD-AZ391J- R CARBON FILM 1/6 390 OHM J RF03 RD-AZ681J- R CARBON FILM 1/6 680 OHM J RF04 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J RF05 RD-AZ112J- R CARBON FILM 1/6 1.1K OHM J RF06 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J RF08 RD-AZ223J- R CARBON FILM 1/6 22K OHM J RF09 RD-AZ131J- R CARBON FILM 1/6 130 OHM J RF10 RD-AZ101J- R CARBON FILM 1/6 100 OHM J ZZ400 PTPMMSD703 PCB PIP MANUAL AS DTC-29M5ME IP02 1K78R33—- IC REGULATOR KIA78R33API PP01 4859279820 CONN WAFER TAC-L18P-A3 (ANGLE) XP01 5XE20R250E CRYSTAL QUARTZ HC-49/U 20.2500MHZ 30PPM ZZ200 PTPMJ2D703 PCB PIP CHIP B AS DTC-29M5ME IP01 1SDA9488XE IC CHIP PIP SDA9488X ZZ200 PTPMJRD703 PCB PIP RADIAL AS DTC-29M5ME CP01 CXCH1H240J C CERA 50V CH 24PF J (TAPPING) CP02 CXCH1H240J C CERA 50V CH 24PF J (TAPPING) CP03 CCXB1H222K C CERA 50V B 2200PF K (TAPPING) CP04 CCXB1H222K C CERA 50V B 2200PF K (TAPPING) CP05 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP CP08 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP CP10 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP CP11 CMXM2A103J C MYLAR 100V 0.01MF J (TP) CP12 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP CP14 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP CP16 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP CP18 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP CP20 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP CP21 CMXM2A473J C MYLAR 100V 0.047MF J (TP) CP22 CMXM2A473J C MYLAR 100V 0.047MF J (TP) CP23 CMXM2A473J C MYLAR 100V 0.047MF J (TP) QP01 TKTC3198Y- TR KTC3198Y

-18-

ELECTRICAL PARTS LIST

LOC PART CODE PART NAME DESCRIPTION REMARK

QP02 TKSA1013Y- TR KSA1013Y (TP) QP03 TKSA1013Y- TR KSA1013Y (TP) QP04 TKSA1013Y- TR KSA1013Y (TP) ZZ200 PTPMJAD703 PCB PIP AXIAL AS DTC-29M5ME 10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M 20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M A001 4859812524 PCB PIP 88X54.5(197X246/8) C1B CP06 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) CP09 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z CP13 CCZF1H103Z C CERA 50V F 0.01MF Z CP15 CCZF1H103Z C CERA 50V F 0.01MF Z CP17 CCZF1H103Z C CERA 50V F 0.01MF Z CP19 CCZF1H103Z C CERA 50V F 0.01MF Z CP24 CCZB1H820K C CERA 50V B 82PF K (AXIAL) DP02 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING DP03 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING DP04 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP02 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP03 RD-4Z569J- R CARBON FILM 1/4 5.6 OHM J JP04 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP05 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP06 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JP07 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING LP02 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM) LP03 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM) LP04 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM) LP05 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM) RP01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING RP02 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING RP03 RD-AZ221J- R CARBON FILM 1/6 220 OHM J RP04 RD-AZ221J- R CARBON FILM 1/6 220 OHM J RP05 RD-AZ331J- R CARBON FILM 1/6 330 OHM J RP06 RD-AZ273J- R CARBON FILM 1/6 27K OHM J RP07 RD-AZ101J- R CARBON FILM 1/6 100 OHM J RP08 RD-AZ101J- R CARBON FILM 1/6 100 OHM J RP09 RD-AZ101J- R CARBON FILM 1/6 100 OHM J RP10 RD-AZ151J- R CARBON FILM 1/6 150 OHM J RP11 RD-AZ151J- R CARBON FILM 1/6 150 OHM J RP12 RD-AZ151J- R CARBON FILM 1/6 150 OHM J RP13 RD-AZ102J- R CARBON FILM 1/6 1K OHM J RP14 RD-AZ102J- R CARBON FILM 1/6 1K OHM J RP15 RD-AZ102J- R CARBON FILM 1/6 1K OHM J ZZ600 PTUNSWD703 PCB UNION AS DTC-29M5ME C908 CCYB3D472K C CERA 2KV B 4700PF K HP01 4859105240 JACK PHONE LGT1516-0100 I901 PTB2SW5403 HEAT SINK ASS`Y 1TEA5101B- + 7174300811 I901 1TEA5101B- IC VIDEO AMP TEA5101B I901A 4857025403 HEAT SINK AL050P-H24 T=2 I901B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN ID01 1PNA4603H- IC PHOTO SENSOR PNA4603H JV03 4859105450 JACK PIN BOARD YSC03P-4120-9S M231 4851114004 PANEL AV ASSY 2326802+5934302 M231A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN M681 4856812001 TIE CABLE NYLON66 DA100 M781 4857821300 CLOTH BLACK CLOTH P501A 4850706S18 CONNECTOR YH025-06+YST025+ULW=500 P502A 4850704S04 CONNECTOR YH025-04+YST025+ULW=400 P602A 4850705S12 CONNECTOR YH025-05+YST025+ULW=500 P603A 4850707S09 CONNECTOR YH025-07+YST025+ULW=500

LOC PART CODE PART NAME DESCRIPTION REMARK

P604A 4850703S45 CONNECTOR YH025-03+YST025+USW=400 PDA1 4850703S18 CONNECTOR

YH025-03+YBNH250+ULW=200 SCT1 4859303530 SOCKET CRT PCS629-03C ZZ200 PTUNJ0D703 PCB UNION RHU AS DTC-29M5ME C904 CEXF2E100V C ELECTRO 250V RSS 10MF (10X20) TP C909 CEXF2E100V C ELECTRO 250V RSS 10MF (10X20) TP C910 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP ZZ200 PTUNJBD703 PCB UNION M-10 AS DTC-29M5ME R907 RS01Z683J- R M-OXIDE FILM 1W 68K OHM J (TAPPING) R908 RS01Z683J- R M-OXIDE FILM 1W 68K OHM J (TAPPING) R909 RS01Z683J- R M-OXIDE FILM 1W 68K OHM J (TAPPING) R919 RS02Z399JS R M-OXIDE FILM 2W 3.9 OHM J SMALL R922 RS02Z100JS R M-OXIDE FILM 2W 10 OHM J SMALL ZZ200 PTUNJRD703 PCB UNION RADIAL AS DTC-29M5ME C905 CMXL2E104K C MYLAR 250V MEU 0.1MF K C906 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C911 4SG0DX0001 SPARK GAP SSG-102-A1(1.0KV) TAP CS01 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP CS02 CEXF1H100A C ELECTRO 50V RSM 10MF (5X7) TP Q901 TKTA1266Y- TR KTA1266Y (TP) RS01 RN01B151JS R METAL FILM 1W 150 OHM J SMALL RS02 RN01B151JS R METAL FILM 1W 150 OHM J SMALL ZZ200 PTUNJAD703 PCB UNION AXIAL AS DTC-29M5ME A001 4859809460 PCB UNION 246X246 D1B C901 CCZB1H471K C CERA 50V B 470PF K (AXIAL) C902 CCZB1H471K C CERA 50V B 470PF K (AXIAL) C903 CCZB1H471K C CERA 50V B 470PF K (AXIAL) CD01 CCZB1H561K C CERA 50V B 560PF K D901 DLT2A05G— DIODE LT2A05G (TP) D902 D1N4937G— DIODE 1N4937G (TAPPING) D903 D1N4148—- DIODE 1N4148 (TAPPING) D904 D1N4148—- DIODE 1N4148 (TAPPING) D905 D1N4148—- DIODE 1N4148 (TAPPING) D906 D1N4148—- DIODE 1N4148 (TAPPING) DD01 DUZ7R5BM— DIODE ZENER UZ-7.5BM J901 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J902 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J903 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J904 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING JS01 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R901 RD-2Z102J- R CARBON FILM 1/2 1K OHM J R902 RD-2Z102J- R CARBON FILM 1/2 1K OHM J R903 RD-2Z102J- R CARBON FILM 1/2 1K OHM J R904 RD-AZ471J- R CARBON FILM 1/6 470 OHM J R905 RD-AZ471J- R CARBON FILM 1/6 470 OHM J R906 RD-AZ471J- R CARBON FILM 1/6 470 OHM J R910 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R911 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R912 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R913 RD-AZ561J- R CARBON FILM 1/6 560 OHM J R914 RD-AZ561J- R CARBON FILM 1/6 560 OHM J R915 RD-AZ561J- R CARBON FILM 1/6 560 OHM J R916 RD-AZ432J- R CARBON FILM 1/6 4.3K OHM J R917 RD-AZ432J- R CARBON FILM 1/6 4.3K OHM J R918 RD-AZ432J- R CARBON FILM 1/6 4.3K OHM J R920 RD-2Z102J- R CARBON FILM 1/2 1K OHM J R921 RD-2Z105J- R CARBON FILM 1/2 1M OHM J R923 RD-4Z471J- R CARBON FILM 1/4 470 OHM J RD01 RD-AZ511J- R CARBON FILM 1/6 510 OHM J

-19-

7. EACH MODEL PARTS LIST

LOC PART NAME NORMAL FLAT L401 COIL H-LINEARITY TRL-200D TRL-350B T401 FBT FFA64039L BSC29-0197 C408 C MYLAR 200V 0.62 MF 200V 0.39MF C405 C MYLAR 1.6KV 0.01MF 1.6KV 6900PF C406 C MYLAR 1.6KV 91200PF 1.6KV 8200PF R919 R M-OXIDE FILM 2W 3.9 OHM 2W 3.6 OHM R429 R METAL FILM 2W 680 OHM J SMALL N.C D515 DIODE ZENER N.C UZ-5.6BM A001 PCB MAIN 4859806793 4859807493 DIGITAL EYE MODULE O X

-20-

8. Schmetic Diagram

-21-

9. Printed Circuit Board (CM-907)

-22-

9. Printed Circuit Board (CM-907F)

-23-

9. Printed Circuit Board (Union)

-24-

10. Mechanical Exploded View

10-1 DTC-29M5

7 8 9

MODEL

REFERENCE

SCALE

UNITS

D N

Daewoo Electronics Corp.

Mechanical Design Team, TV Research Center

(1/1)

0.200

NO PART CODE PART NAME QTY MATERIAL REMARKS

1 PTPCSWJ912 PANEL ASSY 1 DTQ-29M5

2 48556174SD MARK BRAND 1 SILVER-DIA-GUTTING

3 4852079701 MASK FRONT 1 HIPS GY(340A)

4 SIDE AV UNION 1 CN-321

5 7172401612

SCREW TAPPTITE

TT2 TRS 4X16 MFZN BK

6 7178301212

SCREW TAPPTITE

TT2 WAS 3X12 MFZN BK

7 SPEAKER 2

8 7172401212

SCREW TAPPTITE

TT2 TRS 4X12 MFZN BK

9 CHASSIS 1 CN-321

10 4856215402 WASHER RUBBER 4 CR T2.0

11 4856015800 SCREW CRT FIX 4 L=27

12 CRT 1 OEC A68 KTB359X

13 4852161101 COVER BACK 1 HIPS GY(778A)

14 7172401612

SCREW TAPPTITE

TT2 TRS 4X16 MFZN BK

15 4855936400 DECO TERMINAL 1 PVC T0.3

16 7178301212

SCREW TAPPTITE

TT2 WAS 3X12 MFZN BK

17 7172401612

SCREW TAPPTITE

TT2 TRS 4X16 MFZN BK

18 4855419800 SPEC PLATE 1 ART 150

S.B.CHO

29M5

ASSY NAME

DEVELOPMENT DWG

485009H4

-25-

Mechanical Exploded View

10-2 DTC-29U1

12 3 4

5 6

10 11

4856716000 SPRING 4854864101 BUTTON POWER

1 SWPA PIE0.5 1 HIPS GY

DEVELOPMENT DWG

DTQ-29U1

485009KR

01.09.26

4921300100

4852083501

BRAND MARK

MASK FRONT

11A1

HIPS GY

4858311110

7172401212

SPEAKER

SCREW TAPTITE28

12W 8 OHM SP-58126F

TT2 TRS 4X12 MFZN BK

4851948401

7178301011

BUTTON CTRL

SEREW TAPTITE

124955101+5549200

TT2 WAS 3X10 MFZN

4859635262

CHASSIS

CRT

11CN-793F

29"F

4856215402

4856015821

WASHER RUBBER

SCREW CRT FIX

44CR T2.0

SWRM+SK5 L=35

4852163101 COVER BACK 11HIPS GY

4851114003

SIDE AV PCB

PANEL AV ASSY

11CN-321

2326802+5934301

7178301212 SCREW TAPTITE 2 TT2 WAS 3X12 MFZN BK

7172401212 SEREW TAPTITE TT2 TRS 4X12 MFZN BK

7172401612 SCREW TAPTITE TT2 TRS 4X16 MFZN BK

4855936700 DECO AV 1 PVC T0.25

PART CODE

Mechanical Design Team, TV Research Center

DAEWOO Electronics Corp.

No UNITS SCALE

1/1

m/m

REMARKS

Inspected by

PART NAME

Checked by

REFERENCE

MODEL

Approved by

Q’ty

PART NAME

D N

MATERIAL

-26-

Mechanical Exploded View

10-3 DTC-29U5

1234

6 7

11 12

4856716000

SPRING

4854864601

BUTTON POWER

1 SWPA PIE0.5 1 HIPS GY

DEVELOPMENT DWG

DTQ-29U5

485009KU

01.09.26

4921300100

4852084001

BRAND MARK

MASK FRONT

11A1

HIPS GY

4858311110

7172401212

SPEAKER

SCREW TAPTITE28

12W 8 OHM SP-58126F

TT2 TRS 4X12 MFZN BK

4854955501

7178301011

BUTTON CH

SEREW TAPTITE

12ABS GY

TT2 WAS 3X10 MFZN

4859635262

CHASSIS

CRT

11CN-794F

29"F

4856215402

4856015821

WASHER RUBBER

SCREW CRT FIX

44CR T2.0

SWRM+SK5 L=35

4852163101

COVER BACK 11HIPS GY

4851114003

SIDE AV PCB

PANEL AV ASSY

11CN-321

2326802+5934301

7178301212

SCREW TAPTITE 2 TT2 WAS 3X12 MFZN BK

7172401212

SEREW TAPTITE

7172401612

SCREW TAPTITE TT2 TRS 4X16 MFZN BK

7172401612

SCREW TAPTITE TT2 TRS 4X16 MFZN BK

4855549700

DECO SENSOR 1 PC SMOG

4855936700

DECO AV PVC T0.251

TT2 TRS 4X12 MFZN BK

PART CODE

Mechanical Design Team, TV Research Center

DAEWOO Electronics Corp.

No UNITS SCALE

1/1

m/m

REMARKS

Inspected by

PART NAME

Checked by

REFERENCE

MODEL

Approved by

Q’ty

PART NAME

D N

MATERIAL

-27-

11. IC DESCRIPTION

VCT 38xxA/B

1. Introduction

The VCT 38xxA/B is an IC family of high-quality singlechip TV processors. Modular design and a submicron technology allow the economic integration of features in all classes of TV sets. The VCT 38xxA/B family is based on functional blocks contained and approved in existing products like VDP 3120B, TPU 3050S, and CCZ 3005K.

Each member of the family contains the entire video,display, and deflection processing for 4:3 and 16:9 50/ 60-Hz TV sets. The integrated microcontroller is sup-ported by a powerful OSD generator with integrated teletext acquisition which can be upgraded with on-chip page memory. With volume control and audio input select the basic audio features for mono TV sets are integrated. An overview of the VCT 38xxA/B sin-gle-chip TV processor family is given in Fig. 1–1 on page 7.

The VCT 38xxA/B family offers a rich feature set, covering the whole range of state-of-the-art 50/60-Hz TV applications.

In comparison to the VCT 38xxA the VCT 38xxB offers the following features:

– one additional composite video input – analog luma/chroma adder for video output – closed caption module – additional 12k character ROM

VIN

VRT

SGND

VSUPAF

GNDAF

VSUPD

GNDD

VERTEWPROT

HOUT

HFLB

SENSE

RSW

GNDM

VRD

XREF

Video

Front-end

Comb

Filter

Color

Decoder

Panorama

Scaler

Display

Processor

Pict. Improv

Video

Back-end

Audio

CIN

VOUT

22 2

RGBOUT SVM

RGBIN VSUPAB

GNDAB AOUT

AIN

C Master

C MSync Color, Prio

VSync

8-bit PWM

14-bit PWM

15:1 Mux

10-bit ACD

2 Timer

2 CapCom

96 kB

CPU ROM

ADB, DB, CB

16 kB

Text

RAM

3 kB

OSD RAM

TPU

Video

24 kB ROM

1 kB

CPU RAM

CPUDMA

RDY

Watchdog

24 IO Ports

RESQ

TEST

XTAL1

XTAL2

CLK20

CNDP1

VSUPP1

Pxy

GNDS

VSUPS

Clock

Oscillator

Reset

Logic

VCT 38xxA/B

2. Chip Architecture

-28-

IC DESCRIPTION

VCT 38xxA/B

P17 P16

VSUPP1

GNDP1

P15 P14 P13 P12

P11

VIN5/P10

VOUT

VRT

SGND

GNDAF

VUSPAF

CBIN

CIN1

CIN2/CRIN

VIN1 VIN2 VIN3 VIN4

TEST

HOUT

VSUPD

GNDD FBLIN

RIN GIN

BIN

VPROT

SAFETY

P20 P21 P22 P23 SDA SCL RESQ XTAL2 XTAL1 GNDS VSUPS AOUT1 AOUT2 AIN1 AIN2 AIN3 XREF RRD GNDAB VSUPAB BOUT GOUT ROUT SVMOUT RSW2 RSW1 GNDM SENSE EW VERT VERTQ HFLB

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33

VCT 38xxA/B

3. Pin Configuration

VCT 38xxA/B

-29-

4. Pin Connections and Short descriptions

NC=not connected IN=Input LV=if not used, leave vacant OUT=Output X=obligatory;connect as described in circuit diagram SUPPLY=Supply Pin

Pin No.

PSDIP Pin Name Type Connection Short Description

64-pin (if not used)

1 P17 IN/OUT LV Port 1, Bit 7 2 P16 IN/OUT LV Port 1, Bit 6 3 VSUPP1 SUPPLY X Supply Voltage, Port 1 4 GNDP1 SUPPLY X Ground, Port 1 5 P15 IN/OUT LV Port 1, Bit 5 6 P14 IN/OUT LV Port 1, Bit 4 7 P13 IN/OUT LV Port 1, Bit 3 8 P12 IN/OUT LV Port 1, Bit 2 9 P11 IN/OUT LV Port 1, Bit 1

10 P10 / VIN5 IN/OUT LV Port 1, Bit 0

Analog Video 5 Input(VCT 38xxB only!) 11 VOUT OUT LV Analog Video Output 12 VRT IN X Reference Voltage Top, Video ADC 13 SGND IN GND

AF Signal Ground for Analog Input

14 GND

AF SUPPLY X Ground, Analog Front-end

15 VSUPAF SUPPLY X Supply Voltage, Analog Front-end 16 CBIN IN VRT Analog Component Cb Input 17 CIN1 IN VRT Analog Chroma 1 Input 18 CIN2/CRIN IN VRT Analog Chroma 2 Input

Analog Component Cr Input 19 VIN1 IN VRT Analog Video 1 Input 20 VIN2 IN VRT Analog Video 2 Input 21 VIN3 IN VRT Analog Video 3 Input 22 VIN4 IN VRT Analog Video 4 Input 23 TEST IN GND Test Pin, reserved for Test 24 HOUT OUT X Horizontal Drive Output 25 VSUPD SUPPLY X Supply Voltage, Digital Circuitry 26 GNDD SUPPLY X Supply, Digital Circuitry 27 FBLIN IN GNDAB Fast Blank Input 28 RIN IN GNDAB Analog Red Input 29 GIN IN GND

AB Analog Green Input

30 BIN IN GNDAB Analog Blue Input 31 VPROT IN GNDD Vertical Protection Input 32 SAFETY IN GNDD Sefety Input 33 HFLB IN HOUT Horizontal Flyback Input 34 VERTQ/ OUT LV Differential Vertical Sawtooth Output

INTLC Interlace Control Output

IC DESCRIPTION

VCT 38xxA/B

-30-

Pin No.

PSDIP Pin Name Type Connection Short Description

64-pin (if not used)

35 VERT OUT LV Differential Vertical Sawtooth Output 36 EW OUT LV Vertical Parabola Output 37 SENSE IN GND

AB Sense ADC Input

38 GNDM SUPPLY X Ground, MADC Input 39 RSW1 OUT LV Range Switch1 for Measurement ADC 40 RSW2 OUT LV Range Switch2 for Measurement ADC 41 SVMOUT OUT VSUPAB Scan Velocity Modulation Output 42 ROUT OUT VSUPAB Analog Red Output 43 GOUT OUT VSUPAB Analog Green Output 44 BOUT OUT VSUPAB Analog Blue Output 45 VSUP

AB SUPPLY X Supply Voltage, Analog Back-end

46 GNDAB SUPPLY X Ground, Analog Back-end 47 VRD IN X DAC Reference 48 XREF IN X Regerence Input for RGB DACs 49 AIN3 IN GND

Analog Audio 3Input

50 AIN2 IN GND

S Analog Audio 2Input

51 AIN1 IN GNDS Analog Audio 1Input 52 AOUT2 OUT LV Analog Audio 2 Output 53 AOUT1 OUT LV Analog Audio 1 Output 54 VSUP

S SUPPLY X Supply Voltage, Standby

55 GNDS SUPPLY X Ground, Standby 56 XTAL1 IN X Analog Crystal Input 57 XTAL2 OUT X Analog Crystal Output 58 RESQ IN/OUT X Reset Input/Output, Active Low 59 SCL IN/OUT X I2C Bus Clock 60 SDA IN/OUT X I2C Bus Data 61 P23 IN/OUT LV Port 2, Bit 3 62 P22 IN/OUT LV Port 2, Bit 2 63 P21 IN/OUT LV Port 2, Bit 1 64 P20 IN/OUT LV Port 2, Bit 0

IC DESCRIPTION

VCT 38xxA/B

-31-

5. Pin Descriptions for PSDIP64 package

Pin 1,2,5-10, P17 P10 I/O Port (Fig. 6–27) These pins provide CPU controlled I/O ports. P10 can be configured as video input VIN5 (Fig. 6–9) on VCT 38xxB only!

Pin 3, VSUPP1* Supply Voltage, Port 1 Driver This pin is used as supply for the I/O port 1 driver.

Pin 4, GNDP1* Ground, Port 1 Driver This is the ground reference for the I/O port 1 driver.

Pin 11, VOUT Analog Video Output (Fig. 6–12) The analog video signal that is selected for the main (luma, CVBS) adc is output at this pin. On VCT 38xxB this pin can also deliver the sum of luma and chroma input signals (S-VHS). An emitter follower is required at this pin.

Pin 12, VRT Reference Voltage Top (Fig. 6–13) Via this pin, the reference voltage for the A/D converters is decoupled. The pin is connected with 10 F/47 nF to the Signal Ground Pin.

Pin 13, SGND Signal GND for Analog Input This is the high quality ground reference for the video input signals.

Pin 14, GNDAF* Ground, Analog Front-end This pin has to be connected to the analog ground. No supply current for the digital stages should flow through this line. Pin 15, VSUPAF* Supply Voltage, Analog Front-end This pin has to be connected to the analog supply voltage. No supply current for the digital stages should flow through this line.

Pin 16,18, CBIN,CRIN Analog Chroma Component Input (Fig. 6–11) These pins are used as the chroma component (CB,CR) inputs required for the analog YUV Interface. The input signal must be AC-coupled. The CRIN pin can alternatively be used as the second SVHS chroma input (CIN2).

Pin 17,18, CIN1,CIN2 Analog Chroma Input (Fig. 6–10) These are the analog chroma inputs. A S-VHS chroma signal is converted using the chroma (Video 2) AD converter. A resistive divider is used to bias the input signal to the middle of the converter input range. The input signal must be AC-coupled. The CIN2 pin can alternatively be used as the chroma component (CR) input required for the analog YUV Interface.

Pins 1922, VIN1–4 Analog Video Input (Fig. 6–9) These are the analog video inputs. A CVBS or S-VHS luma signal is converted using the luma (Video 1) AD converter. The input signal must be AC-coupled.

Pin 23, TEST Test Input (Fig. 6–5) This pin enables factory test modes. For normal operation, it must be connected to ground.

Pin 24, HOUT Horizontal Drive Output (Fig. 6–16) This open drain output supplies the drive pulse for the horizontal output stage. The polarity and gating with the flyback pulse are selectable by software.

Pin 25, VSUPD* Supply Voltage, Digital Circuitry Pin 26, GNDD* Ground, Digital Circuitry

This is the ground reference for the digital circuitry. Pin 27, FBLIN Fast Blank Input (Fig. 6–18)

These pins are used to switch the RGB outputs to the external analog RGB inputs. The active level (low or high) can be selected by software.

Pin 28,29,30, RIN, GIN, BIN Analog RGB Input (Fig.6–14) These pins are used to insert an external analog RGB signal, e.g. from a SCART connector which can by switched to the analog RGB outputs with the fast blank signal. The analog back-end provides separate brightness and contrast settings for the external analog RGB signals.

Pin 31, VPROT Vertical Protection Input (Fig. 6–17) In the event of a malfunction of the vertical deflection stage, the vertical protection circuitry prevents the picture tube from burnig in. During vertical blanking, a signal level of 2.5 V is sensed. If a negative edge cannot be detected, the RGB output signals are blanked.

Pin 32, SAFETY Safety Input (Fig. 6–17) This is a three-level input. Low level means normal function. At the medium level RGB output signals are blanked. At high level RGB output signals are blanked and horizontal drive is shut off.

Pin 33, HFLB Horizontal Flyback Input (Fig. 6–17) Via this pin the horizontal flyback pulse is supplied to the VCT 38xxA/B.

Pin 34, VERTQ, INTLC Inverted Vertical Sawtooth Output (Fig. 6–20) / Interlace Output (Fig. 6–19) This pin supplies the inverted signal of VERT. Together with the VERT pin it can be used to drive symmetrical deflection amplifiers. The drive signal is generated with 15-bit precision. The analog voltage is generated by a 4 bit current-DAC with external resistor and uses digi-tal noise shaping. Alternatively this pin supplies the interlace information, the polarity is programmable.

IC DESCRIPTION

VCT 38xxA/B

-32-

Pin 35, VERT Vertical Sawtooth Output (Fig. 6–20) This pin supplies the drive signal for the vertical output stage. The drive signal is generated with 15-bit precision. The analog voltage is generated by a 4 bit current-DAC with external resistor and uses digital noise shaping.

Pin 36, EW East-West Parabola Output (Fig. 6–21) This pin supplies the parabola signal for the East-West correction. The drive signal is generated with 15 bit precision. The analog voltage is generated by a 4 bit current-DAC with external resistor and uses digital noise shaping.

Pin 37, SENSE Measurement ADC Input (Fig. 6–23) This is the input of the analog to digital converter for the picture and tube measurement. Three measurement ranges are selectable with RSW1 and RSW2.

Pin 38, GNDM Measurement ADC Reference Input This is the ground reference for the measurement A/D converter. Connect this pin to GND

Pin 39, 40, RSW1, RSW2 Range Switch for Measuring ADC (Fig. 6–22) These pins are open drain pull-down outputs. RSW1 is switched off during cutoff and whitedrive measurement. RSW2 is switched off during cutoff measurement only.

Pin 41, SVMOUT Scan Velocity Modulation Output (Fig. 6–15) This output delivers the analog SVM signal. The D/A converter is a current sink like the RGB D/A converters. At zero signal the output current is 50% of the maximum output current.

Pin 42, 43, 44, ROUT, GOUT, BOUT Analog RGB Output (Fig. 6–15) These pins are the analog Red/Green/Blue outputs of the back-end. The outputs are current sinks.

Pin 45, VSUPAB* Supply Voltage, Analog Back-end This pin has to be connected to the analog supply voltage. No supply current for the digital stages should flow through this line.

Pin 46, GNDAB* Ground, Analog Back-end This pin has to be connected to the analog ground. No supply current for the digital stages should flow through this line.

Pin 47, VRD DAC Reference Decoupling (Fig. 6–24) Via this pin the DAC reference voltage is decoupled by an external capacitor. The DAC output currents depend on this voltage, therefore a pull-down transistor can be used to shut off all beam currents. A decoupling capacitor of 4.7 F in parallel to 100 nF (low inductance) is required.

Pin 48, XREF DAC Current Reference (Fig. 6–24) External reference resistor for DAC output currents, typical 10 k ßŸ to adjust the output current of the D/A converters. (see recommended operating conditions). This resistor has to be connected to analog ground as closely as possible to the pin.

Pin 49, 50, 51, AIN13 Analog Audio Input (Fig. 6–25) The analog input signal from TUNER or SCART is fed to this pin. The input signal must be AC-coupled. Alternatively these pins can be used as digital input port (Fig. 6–25).

Pin 52, 53, AOUT1, AOUT2 Analog Audio Output (Fig. 6–26) These pins are the analog audio outputs. Connections to these pins must use a 680 ohm series resistor as closely as possible to these pins. The output signals are intended to be AC coupled. Alternatively these pins can be used as digital input port (Fig. 6–26).

Pin 54, VSUPS* Supply Voltage, Standby Pin 55, GNDS* Ground, Standby

This is the ground reference for the standby circuitry. Pins 56 and 57, XTAL1 Crystal Input and XTAL2 Crys-

tal Output (Fig. 6–7) These pins are connected to an 20.25 MHz crystal oscillator which is digitally tuned by integrated shunt capacitances. The CLK20 clock signal is derived from this oscillator.

Pin 58, RESQ Reset Input/Output (Fig. 6–6) A low level on this pin resets the VCT 38xxA/B. The internal CPU can pull down this pin to reset external devices connected to this pin.

Pin 59, SCL I2C Bus Clock (Fig. 6–6) This pin connects to the I2C bus clock line. The signal can be pulled down by external slave ICs to slow down data transfer.

Pin 60, SDA I2C Bus Data (Fig. 6–6) This pin connects to the I2C bus data line.

Pin 6164, P20P23 I/O Port (Fig. 6–27) These pins provide CPU controlled I/O ports.

IC DESCRIPTION

VCT 38xxA/B

-33-

VSUP

GND

6. Pin Circuits

VSUP

GND

T o ADC

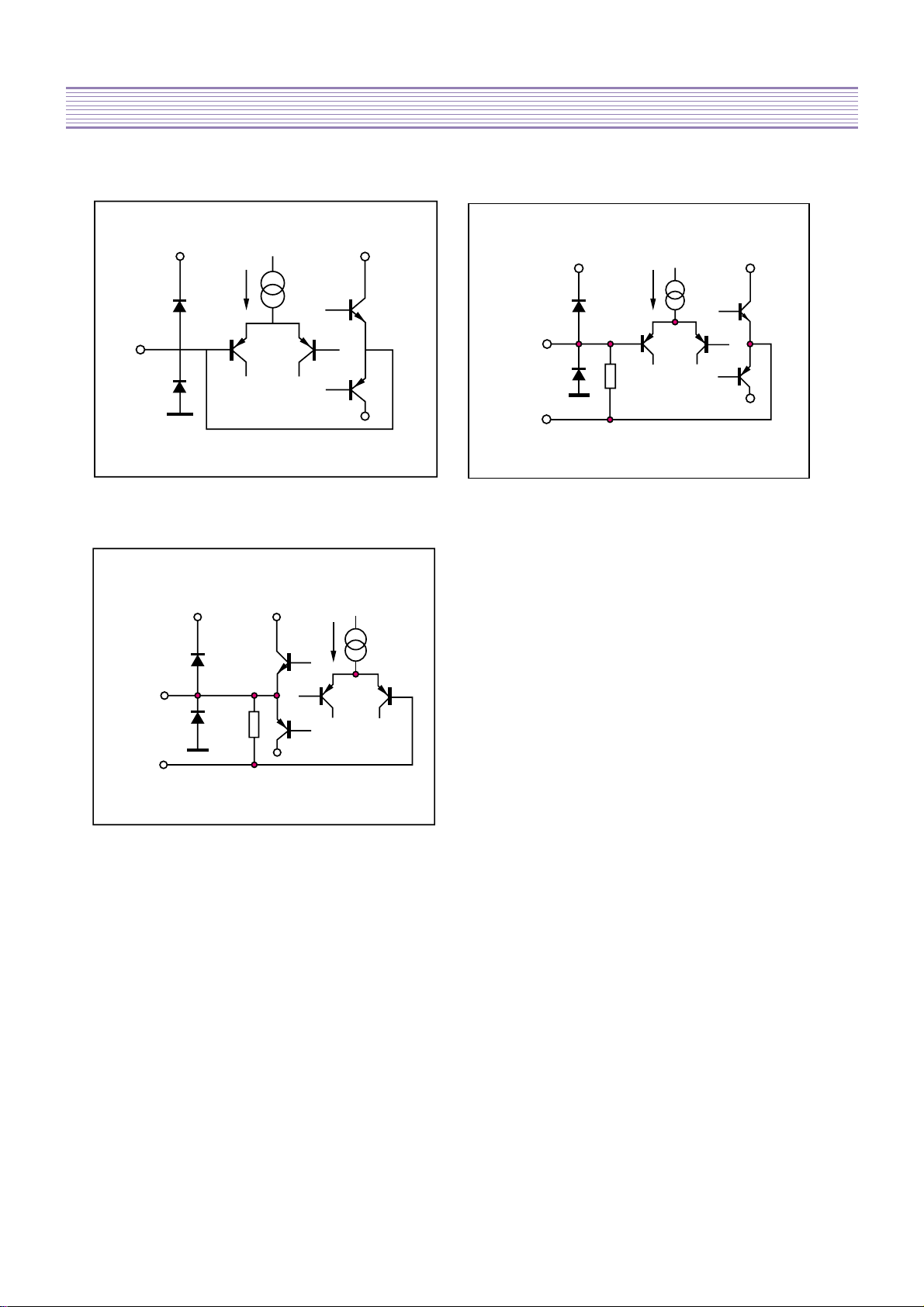

Fig. 6-5 : Input pins TEST, DISINTROM Fig. 6-9 : Input pins VIN1-VIN5

VSUP

GND

T o ADC

Fig. 6-10 : Input pins CIN1-CIN2

VSUP

GND

T o ADC

Fig. 6-11 : Input pins CRIN, CBIN

VINx

VERF N

GND

VSUP

Fig. 6-12 : Output pin VOUT

REF

VSUP

SGND

VRT ADC Reference

Fig. 6-13 : Supply pins VRT, SGND

VSUP

GND

Fig. 6-6 : Input/Output pins RESQ, SDA, SCL

P P

0.5M

VSUP

XTAL2

XTAL1

GND

N N

XTAL

Fig. 6-7 : Input/Output pins XTAL1, XTAL2

GND

VSUP

Fig. 6-8 : Output pin CLK20

IC DESCRIPTION

VCT 38xxA/B

-34-

VSUP

GND

Clamping

Fig. 6-14 : Input pins RIN, GIN, BIN

VSUP

GND

Fig. 6-19 : Output pin INTLC

VERT

VERTQ

VSUP

GND

Flyback

Fig. 6-20 : Output pins VERT, VERTQ

VSUP

GND

VEWXR

Fig. 6-21 : Output pin EW

GND

Fig. 6-22 : Output pins RSW1, RSW2

GND

Fig. 6-16 : put pins HOUT

GND

VSUP

REF

Fig. 6-17 : Input pins SAFETY, VPROT, HGLB

GND

VSUP

REF

Fig. 6-18 : Input pins FBIN

GND

N N

Bias

Fig. 6-15 : Output pin ROUT, GOUT,

BOUT, SVMOUT

IC DESCRIPTION

VCT 38xxA/B

-35-

P N

Fig. 6-23 : Input pins SENSE

VSUP

GND

VSUP

Fig. 6-28 : Input pins P42-P46

VSUP

GND

VSUP

Fig. 6-30 : Input/Output pins DB0-DB7

VSUP

GND

Fig. 6-31 : Input pins VB0-VB7, VBCLK

VSUP

ADB

GND

ADB

Fig. 6-29 : Outpin pins ADB0-ADB18,

OE1, OE2, WE1, WE2

VRD

int. ref. voltage

ref. current

VSUP

GND

XREF

Fig. 6-24 : Supply pins XREF, VRD

40 k

2.5V GND

Fig. 6-25 : Input pins AIN1-3

2.5V GND

80 k

Fig. 6-26 : Output pins AOUT1, AOUT2

VSUP

to ADC

GND

Fig. 6-27 : Input/Output pins P10-P17,

P20-P27, P30-P37

IC DESCRIPTION

VCT 38xxA/B

-36-

IC DESCRIPTION

TDA8946J

CC1

IN2-

TDA8946J

IN2+

MODE

SVR

STANDBY/

MUTE LOGIC

316

IN1-

IN1+

215

MBK929

OUT1-

OUT1+

OUT2-

OUT2+

GND2

GND1

SHORT CIRCUIT

AND

TEMPERATURE

PROTECTION

CC2

1. Block Diagram

-37-

IC DESCRIPTION

TDA8946J

MBK932

OUT1-

GND1

CC1

OUT1+

n.c.

IN1+

n.c.

IN1-

IN2-

MODE

SVR

IN2+

n.c

OUT2+

GND2

CC2

OUT2-

TDA8949J

2. Block Diagram 2-1 Pinning

2-2 Pin description

Symbol Pin Description OUT1- 1 negative loudspeaker terminal 1 GND1 2 ground channel 1 Vcc1 3 supply voltage channel 1 OUT1+ 4 positive loudspeaker terminal 1 n.c 5 not connected IN1+ 6 positive input 1 n.c 7 not connected IN1- 8 negative input 1 IN2- 9 negative input 2 MODE 10 mode selection input (standby, mute, operating) SVR 11 half supply voltage decoupling (ripple rejection) IN2+ 12 positive input 2 n.c 13 not connected OUT2+ 14 positive loudspeaker terminal 2 GND2 15 ground channel 2 Vcc2 16 supply voltage channel 2 OUT2- 17 negative loudspeaker terminal 2

-38-

IC DESCRIPTION

TDA7442D

4STEREOINPUTS INPUTATTENUATIONCONTROLIN0.5dB STEP TREBLEANDBASSCONTROL TWOSURROUNDMODEAVAILABLEWITH

4SELECTABLERESPONSES:

- MUSIC

- SIMULATEDSTEREO

TWOSPEAKERATTENUATORS:

- 2INDEPENDENTSPEAKERCONTROLS IN1dBSTEPSFORBALANCEFACILITY

- INDEPENDENTMUTEFUNCTION

ALLFUNCTIONSPROGRAMMABLEVIASE-RIALBUS 2MONITOROUTPUT(ONLYFORTDA7442)

SDIP32

L-IN2 L-IN3 L-IN4

MUXOUT(L)

IN(L)

N.C.

MUXOUT(R)

IN(R)

BIN(R)

4 5 6 7 8 9

PS1

TREBLE-L

N.C.

DIGGND TREBLE-R

SCL

SDA

CREF

27 26 25 24 23

20 19

D01AU1247

10 11 12 13 14

32 31 30 29 28

R-IN2 R-IN1

MONITOR(L)

MONITOR(R)

L-IN1 AGND

R-OUT

L-OUT

R-IN4

R-IN3

BIN(L) BOUT(L)1716

BOUT(R) LP1815

SDIP32

-39-

IC DESCRIPTION

TDA7442D

L-IN1

10 11 16 24 25 23 19 12 13

1514

L-R

0.47µF

SUPPLY

AGND

CREF

TREBLE

BASS

BIN(L)

MUTE

D01AU1248

C BUSDECODER +LATCHES

SPKR

ATT

TREBLE BASS

5.6nF

MUTE

SPKR

ATT

SCL

SDA

DIG GND

ROUT

LOUT

22µF

R-IN4

0.47µF

50K

PS1

90Hz

100nF

PS1

RPS1

SYMULATED

MUSIC

MUSIC/

SYMULATED

OFF

MIXING

AMP

LPF

9KHz

EFFECT

CONTROL

MIXING

AMP

1.2nF

LP TREBLE-R

5.6nF TREBLE-L

100nF

5.6K

100nF

BOUT(L)

100nF

5.6K

BIN(R) BOUT(R)

79dBCONTROL

50K

0.47µF

50K

0.47µF

50K

0.47µF

50K

0.47µF

50K

0.47µF

50K

0.47µF

50K

31.5dB

control

R-IN3

R-IN2

R-IN1

31.5dB

control

L-IN2

L-IN3

L-IN4

Vref

OFF

SURR

OFF

SURR

FIX

VAR

FIX

VAR

L+R

30K

2.2µF

MUXOUT(R)

IN(R)

MUXOUT(L)

IN(L)

BLOCK DIAGRAM(TDA7442D)

-40-

IC DESCRIPTION

TDA7442D

10K

D95AU233A

20µA

GND

PIN: VOUTREF

25K

D95AU309

20µA

GND

PIN: TREBLE-L,TREBLE-R

50K

GND

REF

D94AU200

20µA

PIN: L-IN, R-IN, L-IN2, R-IN2, L-IN3,R-IN3,

L-IN4, R-IN4,

20K

D95AU336

20µA

20K

GND

42K

PIN: CREF

D94AU205

20µA

GND

PIN: SCL, SDA

D95AU308

20µA

GND

PIN: LP

TDA7442 - TDA7442D

-41-

D95AU230

20µA

GND

PIN: L-OUT, R-OUT

45K

D98AU949

20µA

BASS-RO

BASS-LO

GND

: Bass

PIN: BASS-LI,BASS-RI

45K

D98AU950

20µA

BASS-LI,BASS-RI

GND

PIN: BASS-LO ,BASS-RO

IC DESCRIPTION

TDA7442D

-42-

IC DESCRIPTION

TEA5101B

BANDWIDTH : 10MHz TYPICAL RISE AND FALL TIME : 50ns TYPICAL CRT CATHODES CURRENT OUTPUTS FOR PARALLEL OR SEQUENTIAL CUT-OFF OR DRIVE ADJUSTMENT FLASHOVER PROTECTION POWER DISSIPATION : 3.5W ESD PROTECTED

Tab connected to Pin8

15 14 13 12 11 10

9 8 7 6 5 4 3 2 1

BLUE FEEDBACK BLUE CATHODE CURRENT BLUE OUTPUT GREEN FEEDBACK GREEN CATHODE CURRENT GREEN OUTPUT RED FEEDBACK GROUND RED OUTPUT TED CATHODE CURRENT V

HIGH VOLTAGE RED INPUT GREEN INPUT V

LOW VOLTAGE BLUE INPUT

-43-

N Function Description

1 Blue Input Input of the “blue” amplifier. It is a virtual ground with 3.8V bias voltage,

15 microamperss input bias current with 14KΩ input resistance. 2 Vcc Low voltage power supply, typically 12V. 3 Green Input See Pin 1. 4 Red Input See Pin 1. 5V

DD High voltage power supply, typcally 200V.

6 Red Cathode Current Provides the video processor with a copy of the DC current flowing into

the red cathode, for automatic cut-off or gain adjustment. If this control

is not used, Pin 6 must be grounded. 7 Red Output Output driving the red cathode. Pin 7 is internally protected ahainst CRT

arc discharges by a diode limiting the output voltage to VDD. 8 Ground Also connected to the heatsink. 9 Red Feedback Output driving the feedback resistor network for the red amplifier.

10 Green Output See Pin 7. 11 Green Cathode Current See Pin 6. 12 Green Feedback See Pin 9. 13 Blue Output See Pin 7. 14 Blue Cathode Current See Pin 6. 15 Blue Feedback See Pin 9.

PIN FUNCTION

BLOCK DIAGRAM OF EACH CHANNEL

40kΩ

0.8kΩ

1kΩ

(12, 9)15

(11, 6)

20k

Ω

350

Ω

35Ω 35Ω

GND

(3, 4)

(10, 7)

REFERENCE

VOLTAGE

5101B-02.EPS

BLOCK DIAGRAM OF EACH CHANNEL

-44-

TROUBLE SHOOTING CHARTS

1. NO RASTER

CHECK MAIN B+(133V)

NORMAL

ABNORMAL

CHECK VOLTAGE CHECK HEATER VOLTAGE OF C804(220MF) VIDEO B+(220V) LINE 295VDC AT AC 220V 28V & 15V

NORMAL NORMAL

ABNORMAL

CHECK/ REPLACE CHECK/REPLACE CHECK Horizontal F801 I801 plose AT PIN 24 OF I501

(STR-F6656) NORMAL

CHECK/REPLACE

ABNORMAL

D802~D805,R803 CHECK/REPLACE CHECK VCC

I802(LTV-817C) AT PIN 25(3.3V) OF I501

NORMAL CHECK VOLTAGE AT PIN 1 OF I501 CHECK SIGNAL AT ST-BY:L PIN 59,60 OF I501 POWER ON:H

CHECK VOLTAGE AT CHECK / REPLACE CHECK / REPLACE PIN I806(3.3V) I501 15(5V), 25(3.3V),45,54, of I501

I804(5V),Q508,Q509

NORMAL ABNORMAL CHECK SIGNAL AT PIN CHECK / REPLACE 59(SCL), 60(SDA) Q402, Q401,T402 OF I501 R404,D401

CHECK / REPLACE CRT BLOCK

CHECK/REPLACE X501(20.25MHZ), I501

CHECK VOLTAGE AT PIN 15(5V), 25(3.3V)

45(5V), 54(3.3V)

-45-

TROUBLE SHOOTING CHARTS

2. NO PICTURE(RASTER OK)

CHECK SIGNAL AT PIN 19 OF I501

ABNORMAL

NORMAL

CHANGE INPUT MODE RF --> AV --> RF

CHANGE SIGNAL CVBS OF TUNER

CHECK SIGNAL AT PIN 35, 33, OF I501

CHECK SIGNAL AT PIN 42, 43, 44, OF I501

CHECK VOLTAGE AT PIN 45 OF I501

CHECK / REPLACE Q502, Q503, Q504, Q505

CHECK SIGNAL AT CATHODE OF CRT

CHECK / REPLACE CRT BOARD

CHECK / REPLACE SCL, SDA OF I601

CHECK / REPLACE SCL, SDA, B+ OF I501

CHECK / REPLACE SCL, SDA, SIGNAL & TUNER

-46-

TROUBLE SHOOTING CHARTS

3. NO COLOR

CHECK SIGNAL AT

ABNORMAL

19TH PIN OF I501

NORMAL

CHANGE THE SYSTEM

CHECK / REPLACE

PAL ---> SECAM

CVBS OF TUNER

CHECK R,G,B SIGNAL 42,43,44TH OF I501

CHECK / REPLACE Q502,Q503,Q504,Q505

CHECK / REPLACE CRT PART

CHECK / REPLACE C509

-47-

TROUBLE SHOOTING CHARTS

4. NO PICTURE

CHECK NORMAL

NORMAL

CHECK SIGNAL OUT AT R,G,B

19TH PIN OF I501 OF I501

ABNORMAL

CHANGE INPUT MODE CHECK / REPLACE RF ->AV ->RF Q502,Q503,Q504,Q505

CHECK SIGNAL AT CHECK / REPLACE CVBS OF TUNER SCL, SDA, B+

OF TUNER

CHECK SIGNAL AT

CHECK 12V & 220V Line Heater Voltage

R,G,B INPUT AND R,G,B OUTPUT OF I901

CHECK Connection of AV JACK

CHECK AV Signal

CHECK / REPLACE I501

ABNORMAL

CHECK / REPLACE CRT

-48-

TROUBLE SHOOTING CHARTS

5. NO VERTICAL SCANNING(ONE HORIZONTAL LINE RASTER)

CHECK DY CONNECTOR

CHECK INPUT VOLTAGE OF I301

CHECK / REPLACE I301

CHECK / REPLACE I501

CHECK / REPLACE D410, D301 28V LINE, 15V LINE

CHECK 35TH PIN OF I501

CHECK VERTICAL INPUT (Vin) OF I301

CHECK VERTICAL OUTPUT (Vout) OF I301

CHECK / REPLACE DY

NORMAL

ABNORMAL

CHECK Vertical Output (Vont) of I301

CHECK / REPLACE R301, R328 R564, C301 C314, C302 C303

-49-

TROUBLE SHOOTING CHARTS

6. NO MIAN SOUND (RF)

Check Signal at Pin 1, 4, 14, 17, of I602

NORMAL

ABNORMAL

NORMAL

ABNORMAL

NORMAL

ABNORMAL

NORMAL

ABNORMAL

CHECK Speaker & Connector

Check Signal at Pin 6, 12 of I602

Replade I602

Check Signal at Pin 29, 30 I601

Check / Replace R610, R611, R612, R613 C633, C634

Check Signal at Pin 2, 5 of I601

Check / Replace I601

Check Signal of Q601

Check /Replace C603, C607, R605, R609 R617, Q601

Check Audio OUT of Tuner

Replace Tuner

Check Voltage at Pin 33V, 5V, SDA,SCL of Tuner

-50-

TROUBLE SHOOTING CHARTS

7. NO EXTERNAL AV(RF OK)

CHECK CONNECTION of AV1, AV2, DVD1, DVD2

CHECK Signal of AV1, AV2, DVD1, DVD2

CHECK / REPLACE I501

CHECK SIGNAL AT PIN 20, 21, 22, 16, 17, 18 OF I501

CHECK SIGNAL AT PIN R,G,B,42,43,44 OF I501

ABNORMAL

NORMAL

CHECK / REPLACE I901

ABNORMAL

CHECK Signal at R,G,B Input and R,G,B Output of I901

-51-

TROUBLE SHOOTING CHARTS

CHECK

ABNORMAL

BATTERY AND LED

OF REMOCON

NORMAL

CHECK IR OF PREAMP AND

VCC OF PREAMP IC(IF01)

NORMAL

CHECK/REPLACE

8TH PIN OF I501

ABNORMAL

REPLACE

PREAMP IC(IF01)

REPLACE BATTERY

8.REMOTE CONTROL UNIT TROUBLE

PRINTED DATE : Feb. 2003

Daewoo CM-907F, KR-29M5, KR-U1, KR-U5 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
