Page 1

Service Manual

Microwave Oven

KOR-61155

KOR-61151

DAEWOO ELECTRONICS CO., LTD.

Page 2

PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a)Do not operate or allow the oven to be operated with the door open. (b)Mark the following safety checks on all ovens to be serviced before activating the magnetron or other micro-

wave source, and make repairs as necessary: (1) Interlock operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and latches, (5) evidence of dropping or abuse.

partments, check the magnetron, wave guide or transmission line, and cavity for proper alignment, integrity, and connections.

(d) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation

and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual before the oven is released to the owner.

(e) A microwave leakage check to verify compliance with the Federal Performance Standard should be

performed on each oven prior to release to the owner.

T ABLE OF CONTENTS

PROPER USE AND SERVICE PRECAUTIONS 3 SPECIFICATIONS 4 FEATURE DIAGRAM 5 INSTALLATION 6 OPERATION 7 MEASUREMENT OF THE MICROWAVE OUTPUT POWER 8 MICROWAVE RADIATION TEST 9 KOR-6115 WIRING DIAGRAM 10 KOR-61151 WIRING DIAGRAM 11 CIRCUIT DESCRIPTION 12 PRECAUTIONS FOR DISASSEMBLY AND REPAIR 14 DISASSEMBLY AND ASSEMBLY 15 INTERLOCK MECHANISM 20 TROUBLE SHOOTING GUIDE 22 COMPONENT TEST PROCEDURE 24 EXPLODED VIEW AND PARTS LIST 26

Page 3

PROPER USE AND SERVICE PRECAUTIONS

CAUTION : THIS DEVICE IS TO BE SERVICED ONLY BY PROPERLY QUALIFIED SERVICE PERSONNEL.

CONSULT THE SERVICE MANUAL FOR PROPER SERVICE PROCEDURES TO ASSURE CONTINUED SAFETY OPERATION AND FOR PRECAUTIONS TO BE TAKEN TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.

1. For Safe Operation

Damage that allows the microwave energy (that cooks or heats the food) to escape will result in poor cooking and may cause serious bodily injury to the operator. IF ANY OF THE FOLLOWING CONDITIONS EXIST, OPERATOR MUST NOT USE THE APPLIANCE. (Only a trained service personnel should make repairs.)

1) A broken door hinge.

2) A broken door viewing screen.

3) A broken front panel, oven cavity.

4) A loosened door lock.

5) A broken door lock. The door gasket plate and even cavity surface should be kept clean. No grease, soil or spatter should be allowed to build up on these surfaces or inside the oven. DO NOT ATTEMPT TO OPERATE THIS APPLIANCE WITH THE DOOR OPEN. The microwave Oven has concealed switches to make sure the power is turned off when the door is opened. Do not attempt to defeat them. DO NOT ATTEMPT TO SERVICE THIS APPLIANCE UNTIL YOU HAVE READ THIS SERVICE MANUAL.

2. For Safe Service Procedures

1) If the oven is operative prior to servicing, a microwave emission check should be performed prior to servicing the oven.

2) If any certified oven unit is found to have excessive emission level 5mW/cm

, the service person should: (a) inform the manufacturer, importer or assembler, (b) repair the unit at no cost to the owner, (c) attempt to ascertain the cause of the excessive leakage, (d) tell the owner not to use the unit until the oven has been brought into compliance.

If the oven operates with the door open, the service person should tell the user not to operate the oven and contact the manufacturer immediately.

CAUTION

MICROWAVE RADIATION

PERSONNEL SHOULD NOT BE EXPOSED TO THE MICROWAVE ENERGY WHICH MAY RADIATE FROM THE MAGNETRON OR OTHER MICROWAVE GENERATING DEVICE IF IT IS IMPROPERLY USED OR CONNECTED. ALL INPUT AND OUTPUT MICROWAVE CONNECTIONS. WAVEGUIDES, FLANGES AND GASKETS MUST BE SECURE. NEVER OPERATE THE DEVICE WITHOUT A MICROWAVE ENERGY ABSORBING LOAD ATTACHED. NEVER LOOK INTO AN OPEN WAVEGUIDE OR ANTENNA WHILE THE DEVICE IS ENERGIZED

Page 4

SPECIFICATIONS

ITEM SPECIFICATION

POWER SUPPLY 120V~60Hz, SINGLE PHASE WITH EARTHING

POWER CONSUMPTION 920 W

MICROWAVE OUTPUT POWER 600 W (IEC 705) (FULL MICROWAVE POWER)

FREQUENCY 2450 MHz OUTPUT DIMENSIONS (W X H X D) 465 X 274 X 360 mm (18.3 X 10.8 X 14.2 in.) CAVITY DIMENSIONS (W X H X D) 290 X 200 X 290 mm (11.4 X 7.9 X 11.4 in) NET WEIGHT APPROX. 12.5 kg (27.6 Ibs.) TIMER 35 min. DUAL SPEED POWER SELECTIONS 5 LEVELS CAVITY VOLUME 0.64 Cu.Ft.

* Specifications are subject to change without notice.

465 360

274

Page 5

¤ Safety Interlock System ¤Ł Door Viewing Screen - Allows viewing of food. The screen is designed so that light can pass through, but not the

microwave.

¤Ø Door Hook

- When the door is closed, it will automatically shut. If the door is opened while the oven is operating,

the magnetron will immediately stop operating.

¤Œ Oven Cavity ¤º Door Seal - Door seal maintains the microwave energy within the oven cavity and prevents microwave leakage. ¤ Glass Cooking Tray - Made of special heat resistant glass. Food in a proper receptacle is placed on this tray for

cooking.

¤ Roller Guide - This must always be used for cooking together with the glass cooking tray. ¤ Coupler - This fits over the shaft in the center of the oven’s cavity floor. This is to remain in the oven for all

cooking.

¤ Knob V.P.C - Used to select a microwave power level. ¤ Knob Timer - Used in setting cooking time for all functions. ¤æ Door Release Button - By pushing this button the latch system cut off all circuits and stops the oven before the

door is opened.

FEATURES DIAGRAM

Page 6

Steady , flat location

This microwave oven should be set on a steady, flat surface.

Leave space behind and side

All air vents should be kept a clearance. If all vents are covered during operation, the oven may overheat and, eventually, cause oven failure.

Away from radio, and TV sets

Poor television reception and radio interference may result if the oven is located close to a TV, Radio or antenna, feeder and so on.

Away from heating appliances and water taps

Keep the oven away from hot air, steam or splash when choosing a place to position it, or the insulation might be adversely affected and breakdowns occur.

Power supply

• Check your local power source. This microwave oven requires a current of approximately 15 amperes, 120 Volts, 60Hz grounded outlet.

• Power supply cord is about 1.0 meters long.

1. A short power-supply cord is poovided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. Longer cord sets or extension cords are available and may be used if care is exercised in their use.

3. If a long cord or extension cord is used, (1) the marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance, (2) the extension cord must be a grounding-type 3-wire cord, and (3) the longer cord should be arranged so that will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

Examine the oven after unpacking for any damage such as:

A misaligned door, Broken door, A dents in cavity. If any of the above are visible, DO NOT INSTALL, and notify dealer immediately.

INSTALLATION

When use 3-pronged plug

3-prong Receptacle

Receptacle Box cover

3-prong plug

When use a grounding adaptor, make usre the receptacle box is fully grounded

Grounding Lead

Receptacle Box cover

Grounding Adaptor

Receptacle

Page 7

Connect the main lead to an electrical outlet.

After placing the food in a suitable container, open the oven door and put it on the glass tray. The glass tray must always be in place during cooking.

Close the door securely.

Choose cooking power by setting V.P.C. Knob to the desired position. Refer to cookbook for recommended power levels.

Determine cooking time. Consult cookbook for recipe timing.

¢”Oven light turns on and cooling fan starts to operate. Microwave cooking starts.

You may open the door while the oven is operating. As soon as the door is opened, the safety mechanisms stop microwave power and cooking timer. if you wish to change the time during cooking, simply adjust the Timer to the desired time.

When the timer reaches zero, a bell will ring and the unit will turns off. ¢”Oven light turns off. If additional cooking time is needed and the door has not been opened, the oven will automatically start when the Timer is reset.

OPERATION

Variable Power Cooking

ON and OFF cycle time of mechanicial V.P.C. switch is 30 seconds. When the V.P.C. knob is set to the desired position and timer knob turns to the desired position, the V.P.C. switch has a cycle (ON/OFF time (sec)) listed below.

NOTE :

1. When setting Timer for less than 2 minutes, turn the Timer past 2 minutes and then return to the correct timer setting.

2. Various clicking noises may be heard when turning the V.P.C. knob. This is normal and does not affect the operation of your microwave oven.

Variable power setting

(HIGH) (MED HIGH) (MEDIUM) (DEFROST) (WARM)

ON/OFF time (sec)

30/0

23.2/6.8

16.5/13.5

9.8/20.2 5/25

Power

100%

77% 55% 33% 17%

Page 8

Microwave output power can be checked by indirectly measuring the temperature rise of a certain amount of water exposed to the microwave as directed below.

PROCEDURE

1. Microwave power output measurement is made with the microwave oven supplied at rated voltage and operated at its maximum microwave power setting with a load of 1,000¡ 5cc of potable water.

2. The water is contained in a cylindrical borosilicate glass vessel having a maximum material thickness of 3 mm and an outside diameter of approximately 190 mm.

3. The oven and the empty vessel are at ambient temperature prior to the start of the test. The initial temperature of the water is 10¡ 2˚C (50¡ 3.6˚F). It is measured immediately before the water is added to the vessel. After addition of the water to the vessel, the load is immediately placed on the center of the shelf which is in the lowest normal position.

4. Microwave power is switched on.

5. Heating time should be exactly 49 seconds. Heating time is measured while the microwave generator is operating at full power. The filament heat-up time for magnetrons is not included.

6. The initial and final water temperatures are selected so that the maximum difference between the ambient and final water temperatures is 5K.

7. The microwave power output P in watts is calculated from the following formula:

• ∆T is actual temperature rise.

• t is the heating time. The power measured should be 600W¡ 10.0%.

P = 4187 X ∆T/t

MEASUREMENT OF THE MICROW AVE OUTPUT POWER

Water Load

Tray

CAUTION :

1. Water load should be measured exactly to 1 liters. 2 Input power voltage should be exactly 230V as specified.

3. Ambient temperature should be 20¡ 2˚C(68¡ 3.6˚F)

Page 9

WARNING

• Make sure to check the microwave leakage before and after repair of adjustment.

• Always, start measuring of an unknown field to assure safety for operating personnel from microwave energy.

• Do not place your hands into any suspected microwave radiation field unless the safe density level is known.

• Care should be taken not to place the eyes in direct line with the source of microwave energy.

• Slowly approach the unit under test until the radiometer reads an appreciable microwave leakage from the unit under the test.

PROCEDURE

A) Prepare Microwave Energy Survey Meter, 600cc glass beaker, glass thermometer 100˚C or 212˚F. B) Pour 275cc ¡ 15cc of tap water initially at 20 ¡ 5˚C(68¡ 9˚F) in the 600cc beaker with an inside diameter of approx.

9.5cm (3.5 in). C) Place it at the center of the tray and set it in a cavity. D) Close the door and operate the oven. E) Measure the leakage by using microwave energy survery meter with dual ranges, set to 2450 MHz.

ƒ¡ Measured radiation leakage must not exceed the values prescribed below.

• Leakage for a fully assembled oven with door normally closed must be less than 4mW/cm

ƒ¡When measuring the leakage, always use the 2 in (5cm) space cone with probe. Hold the probe perpendicular to the

cabinet and door. Place the space cone of the probe on the door, cabinet, door seam, door viewing screen, the exhaust air vents and the suction air vents.

ƒ¡Measuring should be in a counter-clockwise direc-

tion at a rate of 1 inch/sec. If the leakage of the cabinet door seam is unknow, move the probe more slowly.

ƒ¡When measuring near a corner of the door, keep the probe perpendicular to the areas making sure the probe end at

the base of the cone does not get closer than 2 inches from any metal.

If it does, erroneous reading may result.

MICROW AVE RADIATION TEST

Page 10

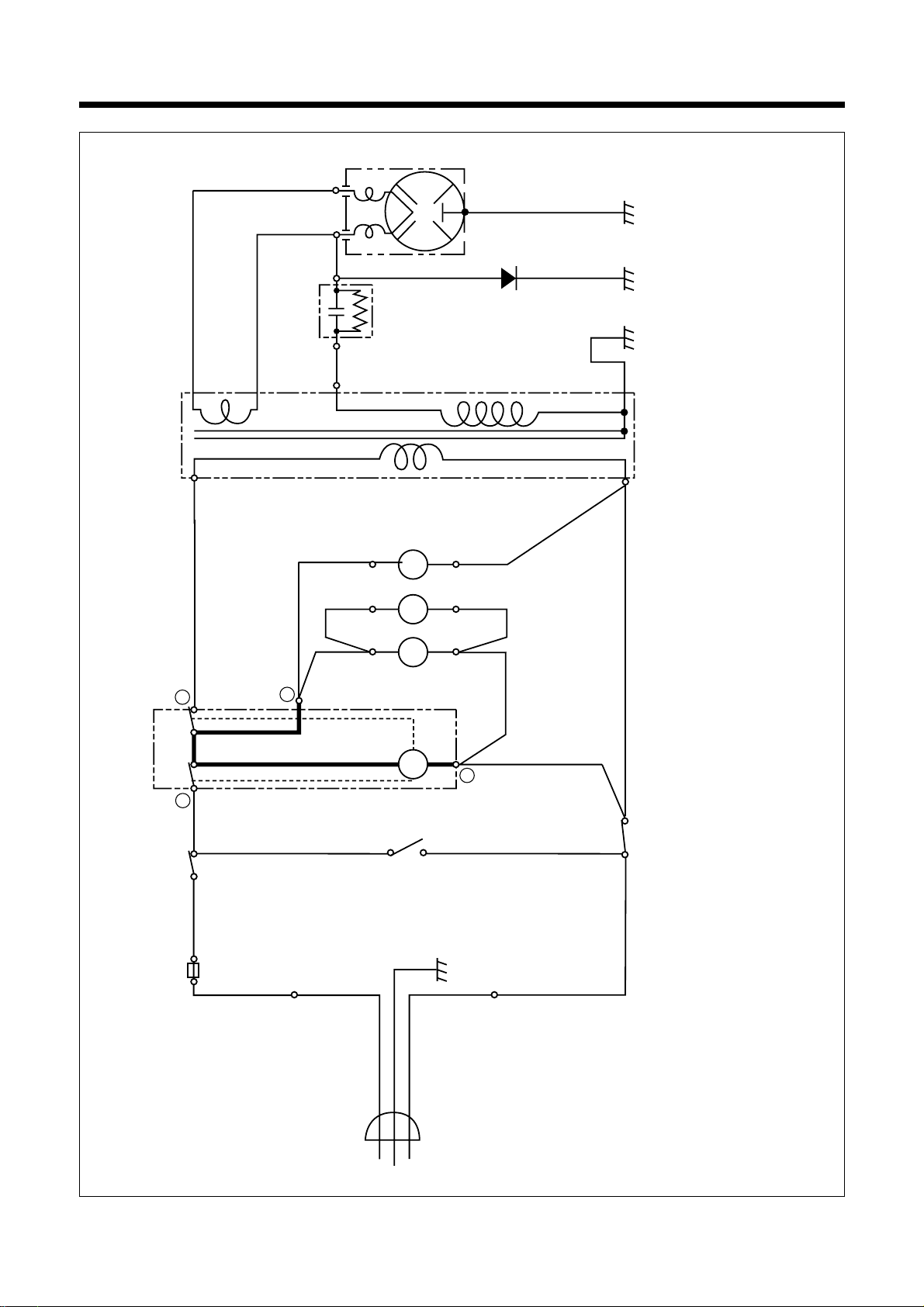

KOR-6115 WIRING DIAGRAM

POWER SUPPLY :

PRIMARY

INTERLOCK

SWITCH(UPPER)

TIMER

SWITCH

TIMER ASS'Y

V.P.C

FUSE

INTERLOCK

MONITOR

SWITCH

HIGH VOLTAGE

TRANSFORMER

H.V.

CAPACITOR

H.V. DIODE

MAGNETRON

LIVE

NEUTRAL

GYGY

CL GM FM

SECONDARY

INTERLOCK SWITCH

NOTE : RD : RED

WH : WHITE

BK : BLACK

GN : GREEN

BR : BROWN

OR : ORANGE

BL : BLUE

GY : GRAY

GE : GREEN/YELLOW

CL : CAVITY LAMP

FM : FAN(BLOWER) MOTOR

GM : GEARED MOTOR

TM : TIMER MOTOR

V.P.C. : VARIABLE POWER CONTROLLER

[ CONDITION ]

DOOR : CLOSED

TIMER : ON

V.P.C. : HIGH

OR OR

SINGLE PHASE

ONLY

Page 11

KOR-61151 WIRING DIAGRAM

POWER SUPPLY :

PRIMARY

INTERLOCK

SWITCH(UPPER)

TIMER

SWITCH

TIMER ASS'Y

V.P.C

CAVITY

THERMOSTAT

INTERLOCK

MONITOR

SWITCH

HIGH VOLTAGE

TRANSFORMER

H.V.

CAPACITOR

H.V. DIODE

MAGNETRON

GYGY

CL GM FM

SECONDARY

INTERLOCK SWITCH

NOTE : RD : RED

WH : WHITE

BK : BLACK

GN : GREEN

BR : BROWN

OR : ORANGE

BL : BLUE

GY : GRAY

GE : GREEN/YELLOW

CL : CAVITY LAMP

FM : FAN(BLOWER) MOTOR

GM : GEARED MOTOR

TM : TIMER MOTOR

V.P.C. : VARIABLE POWER CONTROLLER

[ CONDITION ]

DOOR : CLOSED

TIMER : ON

V.P.C. : HIGH

OR OR

SINGLE PHASE

ONLY

FILTER ASS’Y

FUSE

Page 12

1. When the food is placed in the oven cavity and door is closed.

• The contact of the interlock monitor switch open.

• The contacts of the primary interlock switch and secondary interlock switch close.

2. When the timer is set to the time desired.

• The contact of the timer switch close.

• Oven lamp turn on.

• 120V AC is applied to the high voltage transformer.

• Turntable motor start rotating and glass tray rotating.

• Fan motor rotating and cools the magnetron by blowing air.

• Timer motor operating and point to passing cooking time.

• 3.3 Volts AC is generated from the filament winding of the high voltage transformer. This filament voltage is applied to

the magnetron to heat the magnetron filament through two noise preventing choke coils.

• A high voltage of 2000 Volts AC is generated in the secondary of high voltage transformer and this secondary voltage

is increased by the action of the diode and the charging of the high voltage capacitor. This resultant D.C voltage is then applied to the anode of the magnetron. As shown in Fig. 2 the first half cycle of the high voltage produces in the high voltage transformer secondary charges the high voltage capacitor. Current flow is in the direction of the dotted-line during the second half cycle, the voltage produced by the transformer secondary, and the charge of the high voltage

capacitor are combined and applied to the magnetron as shown by the solid line so that oscillations begins. The disturbance wave generated by the magnetron is prevented by the choke coils of 1.5µH, filter capacitors of 500pF and the magnetron’s shielded case so that TV and radio programs are not impaired by noise.

CIRCUIT DESCRIPTION

TMTMCLCLGM

Timer motor Cavity lamp Geard motor Fan motor

Fig. 1

15A Fuse

Primary Interlock Switch

Interlock Monitor Switch

Timer Switch

Secondary Interlock Switch

Page 13

HIGH VOLTAGE TRANSFORMER

H.V. CAPACITOR

H.V.

FUSE

H.V. DIODE

Fig. 2

MAGNETRON

3. When the door is opened during cooking.

• Primary interlock switch and secondary interlock switch open to cut off the primary voltage to the high voltage transformer to stop microwave oscillation.

• Fan motor, timer motor and turntable motor stop rotating.

• Oven lamp turn off.

• As soon as the door is opened, monitor switch close (NC) to create the short circuit.

If the contacts of primary interlock switch and secondary interlock switch are both malfunction, the 15A fuse blows open due to the large current surge caused by monitor switch activation.

Page 14

ƒ¡Cautions to be observed when trouble shooting.

Unlike many other appliances, the microwave oven is a high-voltage, high-current equipment. It is completely safety during normal operation. However, carelessness in servicing the oven can result in an electric shock or possible danger from a short circuit. You are asked to observe the following precautions carefully.

(1)Always remove the power plug from the outlet before servicing.’

(2)Use an insulated screwdriver and ware rubber golves when servicing the high voltage side.

(3)Discharge the high voltage capacitor before touching any oven components or wiring.

1. Check the earthed.

Do not operate on a two wire extension cord. The microwave oven is designed to be used with earthed. It is imperative, therefore, to make sure it is earthed properly before beginning repair work.

2. Warning about the electric charge in the high voltage capacitor.

For about 30 seconds after the operation stopped, and electric charge remains in the high voltage capacitor. When replacing or checking parts, short between oven chassis and the negative high terminal of the high voltage capacitor, by using a properly insulated screw driver to discharge.

(4)When the 15A fuse is blown out due to the operation of the monitor switch; replace primary, secondary interlock switch

and monitor switch. Refer to next page for the necessary adjustment.

(5)After repair or replacement of parts, make sure that the screws are properly tightened, and all electrical connections are

tightened.

(6)Do not operate without cabinet.

PRECAUTIONS FOR DISASSEMBLY AND REP AIR

CAUTION : Service personnel should remove their watches whenever working close to or repairing the magnetron.

WARNING : When servicing the appliance, need a care of touching or replacing high potential parts because of

electrical shock or exposing microwave. These parts are as follows-H.V. Transformer, Magnetron, H.V. Capacitor, H.V. Diode.

Page 15

DISASSEMBLY AND ASSEMBL Y

1. To remove cabinet

Remove three screws on cabinet back.

2. To remove door assembly

(1) Remove two screws ¤ which secure the stopper

hinge top.

(2) Remove the door assembly ¤Ø from top plate of

cavity.

(3) Remove the above for reassembly.

3. To remove door parts

NOTE : After replacing the door perform a

check of correct alignment with the hinge and cavity front face.

1 2 3 4 5 6

Page 16

(1) Remove the gasket door ¤ from door plate ¤Œ. (2) Remove the barrier screen inner ¤ºfrom door plate ¤Œ. (3) Remove the door frame ¤Łfrom door plate ¤Œ. (4) Remove the stopper hinge top ¤Øfrom door plate ¤Œ. (5) Remove the spring ¤ and the hook ¤ . (6) Remove the barrier screen outer ¤ from door frame ¤Ł. (7) Remove the above steps for reassembly.

4. Method to reduce the gap between the door seal and the oven front surface.

(1) To reduce gap located on part ‘A’.

1) Loosen two screws on stopper hinge top, and then push the door to contact the door seal to oven front surface.

2) Tighten two screws.

(2) To reduce gap located on part ‘B’.

1) Loosen three screws on bottom hinge, and then the door to contact the door seal to oven front surface.

2) Tighten three screws.

(3) To reduce gap located on part ‘C’. (See Fig. A)

1) Loosen a screw on the interlock switch assembly located at the bottom of the oven body.

2) Draw the interlock switch assembly inward as possible to engage with hook on the door bottom.

3) Tighten a screw.

(4) To reduce gab located on part ‘D’.(See Fig. B)

1) Loosen a screw on the interlock switch assembly located at the top of the oven body.

2) Follow step (3) 2) and 3).

NOTE : A small gab may be acceptable if the microwave leakage does not exceed 4mW/cm

A D

Secondary Interlock Switch

Hook

Mounting Screw

Hook

Fig. A Fig. B

Primary Interlock Switch

Page 17

5. To remove control panel parts

(1) Remove the screw which secure the control panel,

push up two snap fits and draw forward the control panel assembly.

(2) Remove the door open lever ¤ from the control panel. (3) Remove two screws ¤Łwhich secure the timer assembly ¤Ø. (4) Remove the timer assembly ¤Ø. (5) Pull out the timer knob ¤Œfrom the timer assembly ¤Ø. (6) Pull out the timer coupler ¤ºfrom the timer assembly ¤Ø. (7) Remove the screw ¤ which secure the V.P.C. coupler ¤ . (8) Pull out the V.P.C coupler ¤ and V.P.C knob ¤ from the control panel. (9) Remove the door open button ¤ and button spring ¤ from the control panel. (10) Reverse the above steps for reassembly.

Control Panel

Page 18

6. To remove high voltage capacitor

(1) Remove a screw ¤ which secure the grounding

ring ring terminal of the H.V. diode ¤Łand the

capacitor holder ¤Ø. (2) Remove the H.V. diode ¤Łfrom the capacitor ¤Ø. (4) Reverse the above steps for reassembly.

High voltage circuit wiring

7. To remove magnetron

(1) Remove four screws ¤ which secure the

magnetron ¤Ł. (2) Remove the magnetron ¤Ł. (3) Reverse the above steps for reassembly.

Magnetron

H.V. Capacitor

H.V. Transformer

H.V. Diode

1 3

Page 19

8. To remove fan motor assembly

(1) Remove two screws ¤ which secure the back cover ¤Łfrom the cavity outer. (2) Remove two screws ¤Øwhich secure the fan motor ¤Œ from the back cover ¤Ł. (3) Pull out the fan ¤ºfrom the fan motor ¤Œ . (4) Reverse the above steps for reassembly.

9. To remove transformer

(1) Remove the two screws ¤ holding the H.V. trans-

former ¤Ł . (2) Remove the transformer ¤Ł. (3) Reverse the above steps for reassembly.

Filament Terminal

Cooling Fin

Magnetron Antenna

Magnetron

Metallic Gasket Plate

CAUTION : Never install the magnetron without the metallic gasket plate which is packed with each magnetron to

prevent microwave leakage. Whenever repair work is carried out on magnetron, check the microwave leakage. It shall not exceed 4mW/cm

for a fully assembled oven with door normally closed.

Metallic Gasket Plate

Magnetron AntennaWave Guide

Page 20

The door lock mechanism is a device which has been specially designed to completely eliminate microwave radiation when the door is opened during operation, and thus to perfectly prevent the danger resulting from the leakage of microwave.

(1) Primary interlock switch

When the door is closed, the hook locks the oven door. If the door is not closed properly, the oven will not operate. When the door is closed, the hook pushes the button of the micro switch. Then the button of the primary interlock switch bring it under on condition.

Adjustment 1

When the door is closed, the switch button is pushed by the hook. The movement of the switch button should exceed 1.2mm measured at the top of the button.

INTERLOCK MECHANISM

1.2mm

Latch

Mounting Screw

Button

Hook

Primary Interlock Switch

Page 21

(2) Secondary interlock switch and interlock monitor switch

When the door is closed, the hook pushes the push lever downward, the push lever presses the button of the interlock monitor switch to bring it under “OFF”, condition and presses the button of the secondary interlock switch to bring it under “ON”, condition.

Adjustment 2

•

Interlock monitor switch

When the door is closed, the interlock monitor switch should be opened before other switches close. When the door is opened, the interlock monitor switch should be closed after other switches open.

•

Secondary interlock switch

The movement of the switch button should exceed 1.2mm measured at the top of the button.

(3) Adjustment steps

a) Loosen the two mounting screws. b) Adjust interlock switch assembly position. c) Confirm the gap (1.2mm) described above. d) Make sure that push lever moves smoothly after adjustments is completed. e) Completely tighten the two mounting screws.

(4) Interlock switch replacement

Whenever safety interlock switch are replaced:

1) Refer to the following diagram.

2) Check the connection of monitor switch after replacement.

3) Perform the electrical continuity check of interlock switches and microwave emission test mentioned in this manual.

Interlock Monitor Swtich

Push Lever

Hook

Secondary Interlock Switch

NOTE : Microwave emission test should be performed after adjusting interlock machanism. If the microwave

emission exceed 4mW/cm

, readjust interlock mechanism.

Secondary Interlock Switch

Interlock Monitor Switch

Primary Interlock Switch

SYMBOL COLOR

RD RED

WH WHITE

BK BLACK

BL BLUE

Page 22

TROUBLE SHOOTING GUIDE

TROUBLE DOOR SHUT, TIMER SET BUT NO COOKING TAKES PLACE.

Does the fan motor work when you shut the door and turn the timer?

Does 15A fuse blow?

Check continuity of interlock monitor switch with door shuted.

Check continuity of both interlock switch’s contact and monitor switch’s contact with door partially open until monitor switch contact closes.

Replace primary interlock switch, secondary interlock switch and interlock monitor switch.

Replace primary, secondary interlock switch and interlock monitor switch.

Replace high voltage capacitor.

Replace high voltage transformer.

Replace Power supply cord.

NO continuity

Check continuity of power supply cord.

Outlet has Proper voltage.

Fuse again blows

Normal

One is continuity the other is not

Both no continuity

Both continuity

Replace fuse.

Disconnect one side of the lead wire connected from transformer to the high voltage capacitor, and operate oven.

YES

continuity

*All these switches must be

replace at the same time.

NO continuity

Page 23

Does the fan motor when you shut the door and turn the time?

No microwave oscillation.

Check continuity of filament of magnetron.

NO continuity

Replace or repair oven lamp, turntable motor.

Replace magnetron.

Replace high voltage transformer.

Replace high voltage diode.

Replace high voltage transformer.

Replace magnetron.

Check the isolation of filament winding of high voltage transformer.

continuity NO continuity

Continuity

in the

reverse

direction

Poor continuity

NO GOOD

GOOD

Faulty magnetron

Does the oven lamp light? Does the turntable turn?

Check continuity of filament of magnetron.

*Do not operate when you check this continuity

*Normal reading should be approx. 0 Ω

*Meter with 6V or higher voltage batteries should

be used to check the normal direction resistance of the diode.

Check continuity filament tap (3.3V) of high voltage transformer.

Check the diode for cintinuity in the reverse and normal direction

YES

Page 24

1. High voltage is present at the high voltage terminal of the voltage transformer during any cooking cycle.

2. It is neither necessary nor advisable to attempt measurement of the high voltage.

3. Before touching any oven components or wiring, always unplug the oven from its power source and discharge the capacitor (see page 13).

COMPONENT TEST PROCEDURE

1. High voltage transformer

(A) Remove connections from the transformer terminals

and check continuity.

(B) Normal readings should be as follows:

Secondary winding Approx. 150Ω ¡ 10% Filament winding Approx. 0Ω Primary winding Approx. 0Ω

2. High voltage capacitor

(A) Check continuity of capacitor with meter on the

highest OHM scale.

(B) A normal capacitor will show continuity for a short

time, and then indicate 9MΩ once the capacitor is

charged. (C) A shorted capacitor will show continuous continuity. (D) An open capacitor will show constant 9MΩ. (E) Resistance between each terminal and chassis should

be infinite.

3. High voltage diode

(A) Isolate the diode from the circuit by disconnecting the

leads. (B) With the ohmmeter set on the highest resistance

scale, measure the resistance across the diode

terminals.

Reverse the meter leads and again observe the

resistance reading. Meter with 6V, 9V or higher

voltage batteries should be used to check the front-

back resistance of the diode, otherwise an infinite

resistance may be read in both directions. A normal

didoes resistance will be infinite in one direction and

several hundred KΩ in the other direction.

4. Magnetron

For complete magnetron diagnosis, refer to “Measurement of the Microwave Output Power”. (Page 8) Continuity checks can only indicate and open filament or a shorted magnetron. To diagnose for an open filament or shorted magnetron,

(A) Isolate magnetron from the circuit by disconnecting

the leads.

(B) A continuity check across magnetron filament termi-

nals should indicate 0.1ohm or less.

and magnetron case should read open.

5. Fuse

If the fuse in the primary and monitor switch circuit is blown when the door is opened, check the primary and monitor switch before replacing the blown fuse. In case the fuse is blown by an improper switch operation, replace the defective switch and fuse at the same time. Replace just the fuse if the switches operate normally.

CAUTION :

REPLACE BLOWN FUSE WITH 15 AMPERE FUSE.

Page 25

6. Interlock switches

• You can test continuity of safety interlocks and monitor switch by using switch tester or ohmmeter.

• The switch operation is checked by zero/unlimited. the meter should indicate zero resistance.

• The sequence of check is interlock monitor switch; primary and secondary interlock switched check.

1) In case of interlock monitor switch check

Condition

1) Door is opened.

2) Common terminal of the monitor switch disconnected.

2) In case of primary interlock switch check.

Condition

1) Door is closed.

POWER SUPPLY CORD

PRIMARY INTERLOCK SWITCH

OHHMETER

INTERLOCK MONITOR SWITCH

POWER SUPPLY CORD

PRIMARY INTERLOCK SWITCH

INTERLOCK MONITOR SWITCH

OHHMETER

Page 26

NO PART NAME PARTS CODE Q’TY

A01 BARRIER-SCREEN *O 3517003000 1 A02 FRAME DOOR 3512202500 1 A03 STOPPER HINGE *T 3515201000 1 A04 DOOR WELD AS 3511705500 1 A05 BARRIER-SCREEN *I 3517002800 1 A06 GASKET DOOR 3512300200 1 A07 HOOK 3513100700 1 A08 SPRING HOOK 3515101300 1

1. Door Assembly

EXPLODED VIEW AND PARTS LIST

A01 A02 A03 A04 A05 A06

A07

A08

Page 27

2. Control Panel Ass’y

NO PART NAME PARTS CODE Q’TY

B01 KNOB VPC 3513402600 1 B02 CONTROL PANEL 3512202000 1 B03 COUPLER VPC KNOB 3517400500 1 B04 SCREW TAPPINGT2S PAN 4X12 PW 7621401211 1 B05 KNOB 3513402500 1 B06 COUPLER TIMER 3517400400 1 B07 TIMER 3518203800 1 B08 SCREW TAPPING T2S PAN 4X12 PW 7621401211 2 B09 LEVER DOOR OPEN 3513701400 1 B10 SPRING DOOR BUTTON 441B655072 1 B11 BUTTON DOOR OPEN 3516903600 1

Page 28

REE NO. PART CODE PART NAME DESCRIPTION Q’TY REMARKS

A00 3511706010 DOOR AS KOR-61150S 1 B00 3516713100 CONTROL-PANEL AS KOR-61150A 1

F01 3510801300 CABINET PCM T0.6 1 F02 7S312X40A1 SCREW SPECIAL T1 TRS 4X10 SE MFZN 3 F03 3516104800 CAVITY AS KOR-61150S 1 F04 7S341W40B1 SCREW SPECIAL T2S PAN 4X12 PW SE MFZN 2 F05 7S341W40B1 SCREW SPECIAL T2S PAN 4X12 PW SE MFZN 1 F06 4413A90012 CLAMP POWER CORD NYLON 66 1 F07 7S422X4081 SEREW SPECIAL TT2 TRS 4X8 SE MFZN 1 F08 35113NBND5 CORD POWER AS 3X1.45 60X60 200-RTML 1 F09 3518002200 MAGNETRON 2M218H (MF) I 1 F10 7S312X40A1 SCREW SPECIAL T1 TRS 4X10 SE MFZN 3 F11 7S312X40A1 SCREW SPECIAL T1 TRS 4X10 SE MFZN 2 F12 7S101W4081 SCREW MACHINE PAN FLANGE 4X8 MFZN 2 F13 3511402500 COVER *B SBHG T0.8 1 F14 3963820110 MOTOR SHADED POLE 120V 17W MW10XA-R01 1 F15 3511800300 FAN PP+30% GLASS 1 F16 7S422X4081 SCREW SPECIAL TT2 TRS 4X8 SE MFZN 1 F17 3513001900 HOLDER HV CAPACITOR SECC T0.8 1 F18 441L267010 CAPACITOR HV 2100VAC 0.7UF 1 F19 4416V24000 DIODE HV SANKEN HVR-1X-32B (D5.3) 1 F20 3518106600 TRANS HV JMOT-N60A0-61T 1 F21 7S427W40A1 SCREW SPECIAL TT2 HEX FG 4X10 SE MFZN 4 F22 3512100900 FOOT PP DASF-130 2 F23 3510308700 BASE SBHG T0.8 1 F24 7S422X4081 SCREW SPECIAL TT2 TRS 4X8 SE MFZN 2 F25 7S312X40A1 SCREW SPECIAL T1 TRS 4X10 SE MEZN 6 F26 3515201100 STOPPER HINGE *U SCP-1 T2.5 1 F27 5S762S10G0 SW MICRO V16-FA-63 SPNO #187 200G 1 F28 5S762M10G0 SW MICRO V16-FA-62 SPNC #187 200G 1 F29 5S762S10G0 SW MICRO V16-FA-63 SPNO #187 200G 1 F30 3513701300 LEVER LOCK POM 1 F31 3513805700 LOCK POM BLACK 1 F32 3513601500 LAMP BL 125V 25W T25 C5A H187 1 F33 7121400811 SCREW TAPPING T2S PAN 4X8 MFZN 2 F34 3966820200 MOTOR SYNCRO 120V 2W GM-16-12F17 1 F35 3511403200 COVER WAVE GUIDE HEATPROOF PP 1 F36 3517400600 COUPLER PPS 1 F37 3514700900 ROLLER TEFLON 3 F38 3512509200 GUIDE ROLLER PP 1

F 3512510600 GUIDE ROLLER AS KOR-61150S 1 F39 3517203600 TRAY GLASS 1 F40 7S427W40A1 SCREW SPECIAL TT2 HEX FG 4X10 SE MFZN 2

KOR-6115 Parts List

Page 29

KOR-61151 Parts List

REE NO. PART CODE PART NAME DESCRIPTION Q’TY REMARKS

A00 3511706010 DOOR AS KOR-61150S 1 B00 3516713100 CONTROL-PANEL AS KOR-61150A 1

F01 3510801300 CABINET PCM TO.6 1 F02 7S312X40A1 SCREW SPECIAL T1 TRS 4X10 SE MFZN 3 F03 3516104820 CAVITY AS KOR-61151A CSA 1 F04 7S341W40B1 SCREW SPECIAL T2S PAN 4X12 PW SE MFZN 2 F05 7S341W40B1 SCREW SPECIAL T2S PAN 4X12 PW SE MFZN 1 F06 4413A90012 CLAMP POWER CORD NYLON 66 1 F07 7S422X4081 SEREW SPECIAL TT2 TRS 4X8 SE MFZN 1 F08 35113YAR95 CORD POWER AS 3X1.45 60X60 120-RTML 1 F09 3518902400 THERMOSTAT OFF:80 ON:50 V PW-2N #187 1 F10 7121300811 SCREW TAPPING T2S PAN 3X8 MFZN 1 F11 3518002200 MAGNETRON 2M218H(MF) I 1 F12 7S312X40A1 SCREW SPECIAL T1 TRS 4X10 SE MFZN 3 F13 7S312X40A1 SCREW SPECIAL T1 TRS 4X10 SE MFZN 2 F14 7S101W4081 SCREW MACHINE PAN FLANGE 4X8 MFZN 2 F15 3511402510 COVER *B SBHG T0.8 1 F16 3963820110 MOTOR SHADED POLE 120V 17W MW10XA-R01 1 F17 3511800300 FAN PP+30% GLASS 1 F18 7S422X4081 SCREW SPECIAL TT2 TRS 4X8 SE MFZN 1 F19 3513001900 HOLDER HV CAPACITOR SECC TO.8 1 F20 441L267010 CAPACITOR HV 2100VAC 0.7UF 1 F21 4416V24000 DIODE HV SANKEN HVR-1X-32B (D5.3) 1 F22 3518106600 TRANS HV JMOT-N60A0-61T 1 F23 7S427W40A1 SCREW SPECIAL TT2 HEX FG 4X10 SE MFZN 4 F24 3512100900 FOOT PP DASF-130 2 F25 3510308700 BASE SBHG T0.8 1 F26 7S422X4081 SCREW SPECIAL TT2 TRS 4X8 SE MFZN 2 F27 7S312X40A1 SCREW SPECIAL T1 TRS 4X10 SE MEZN 6 F28 3515201100 STOPPER HINGE *U SCP-1 T2.5 1 F29 5S762S10G0 SW MICRO V16-FA-63 SPNO #187 200G 1 F30 5S762M10G0 SW MICRO V16-FA-62 SPNC #187 200G 1 F31 5S762S10G0 SM MICRO V16-FA-63 SPNO #187 200G 1 F32 3513701300 LEVER LOCK POM 1 F33 3513805700 LOCK POM BLACK 1 F34 3513601500 LAMP BL 125V 25W T25 C5A H187 1 F35 3518603700 NOISE-FILTER DWLF-M 1 F36 7121400811 SCREW TAPPING T2S PAN 4X8 MFZN 2 F37 3966820200 MOTOR SYNCRO 120V 2W GM-16-12F17 1 F38 3511403200 COVER WAVE GUIDE HEATPROOF PP 1 F39 3517400600 COUPLER PPS 1 F40 3514700900 ROLLER TEFLON 3 F41 3512509200 GUIDE ROLLER PP 1

F 3512510600 GUIDE ROLLER AS KOR-61150S 1

F42 3517203600 TRAY GLASS 1 F43 7S427W40A1 SCREW SPECIAL TT2 HEX FG 4X10 SE MFZN 2

Page 30

DAEWOO ELECTRONICS CO., L TD.

686, AHYEON-DONG, MAPO-GU, SEOUL, KOREA C.P.O. BOX 8003 SEOUL, KOREA TELEX: DWELEC K28177-8 CABLE: “DAEWOOELEC” FAX: 02) 364-5588/5305 TEL: 02) 360-7114/7315~7

PRINTED DATE: MAR., 1996

Daewoo KOR-61151 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
