FRS-4041I A L
FRS-4041WAL
FRS-4041CAL
Be sure to keep for safety 1~3
Installation Guide 4
Control Panel 5
Temperature Control 6

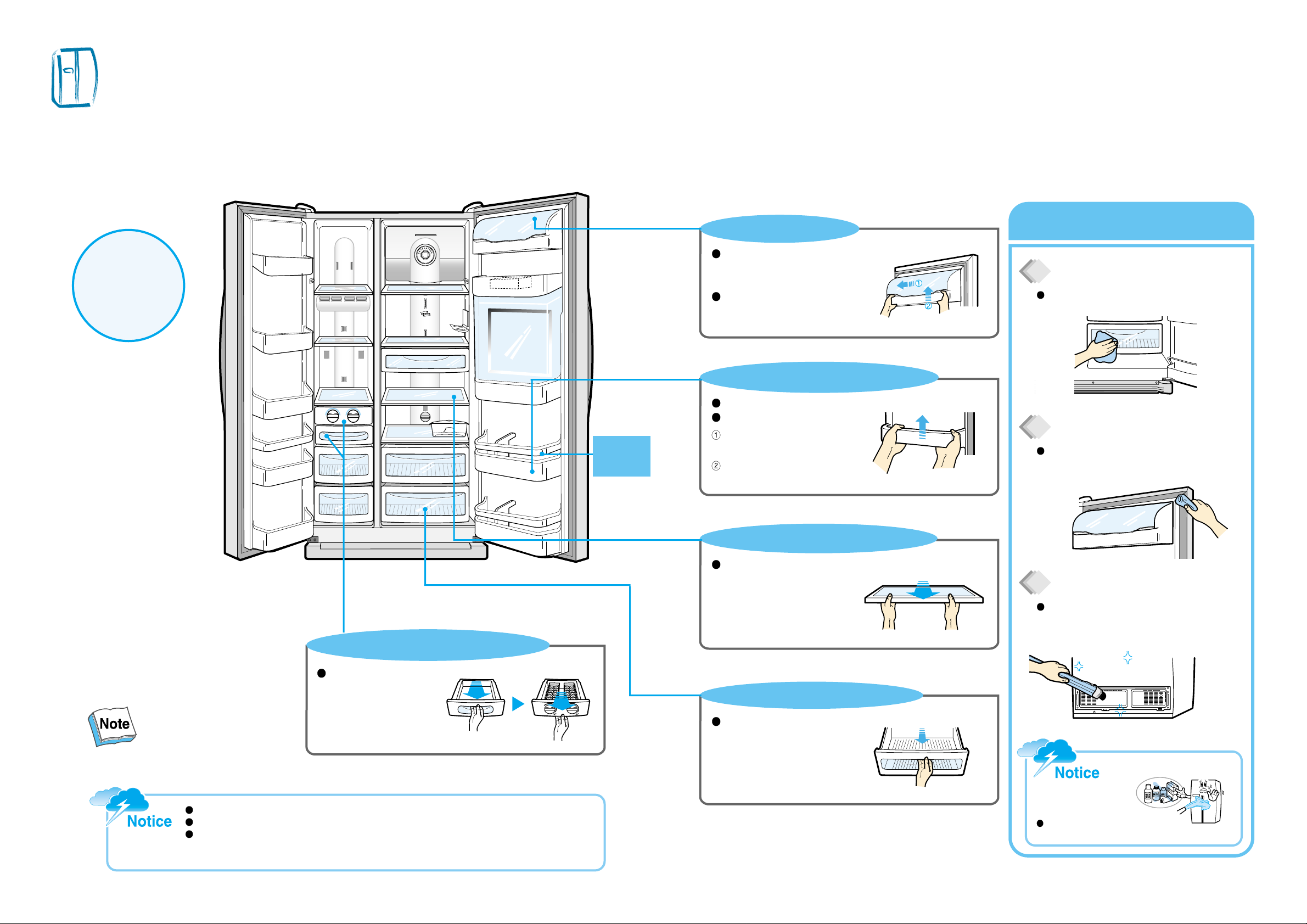

How to use interior Parts 7~9
Care & Cleaning |
10~11 |

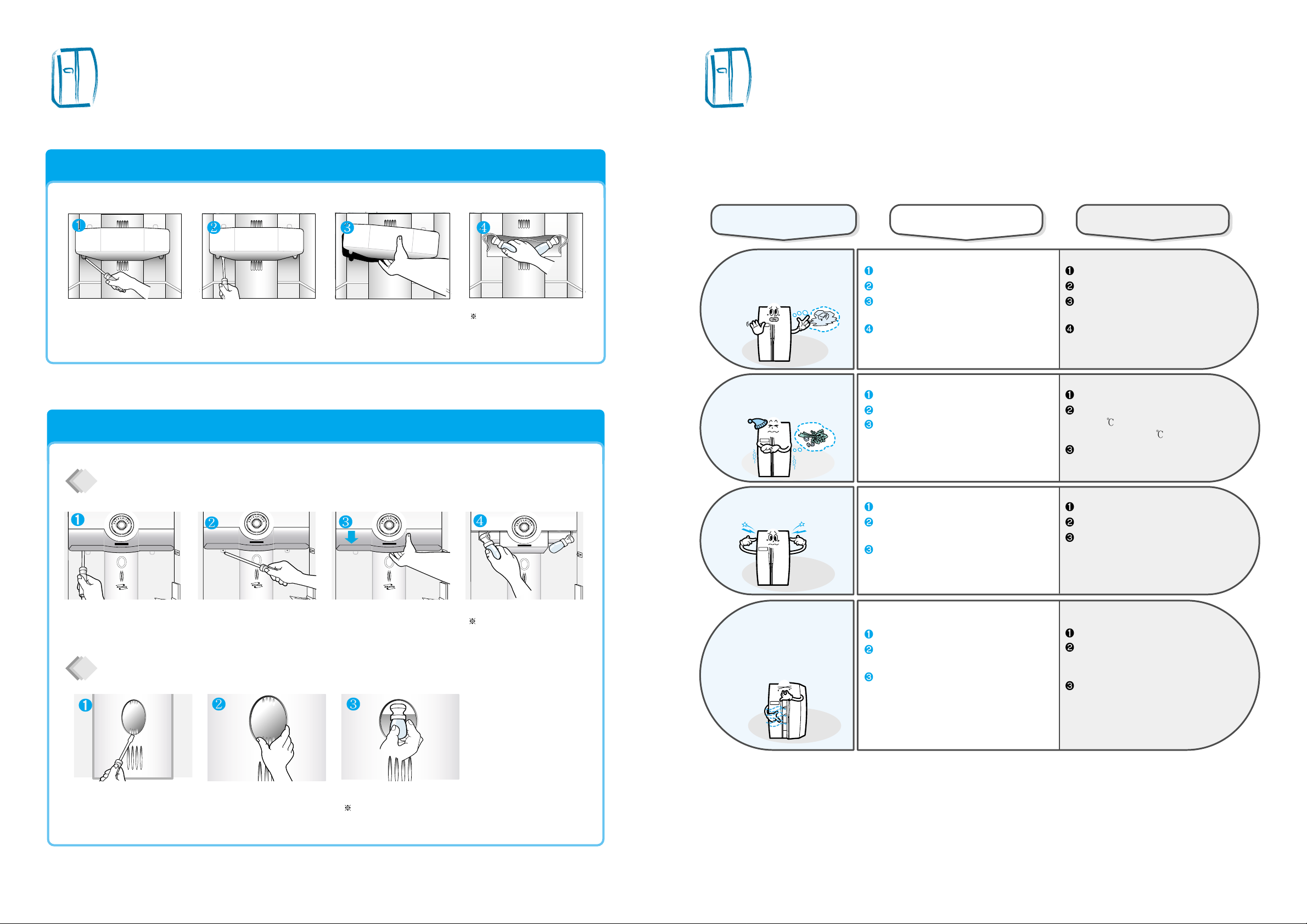

How To change Interior Light Bulb 12
Before You Call for Service... 13

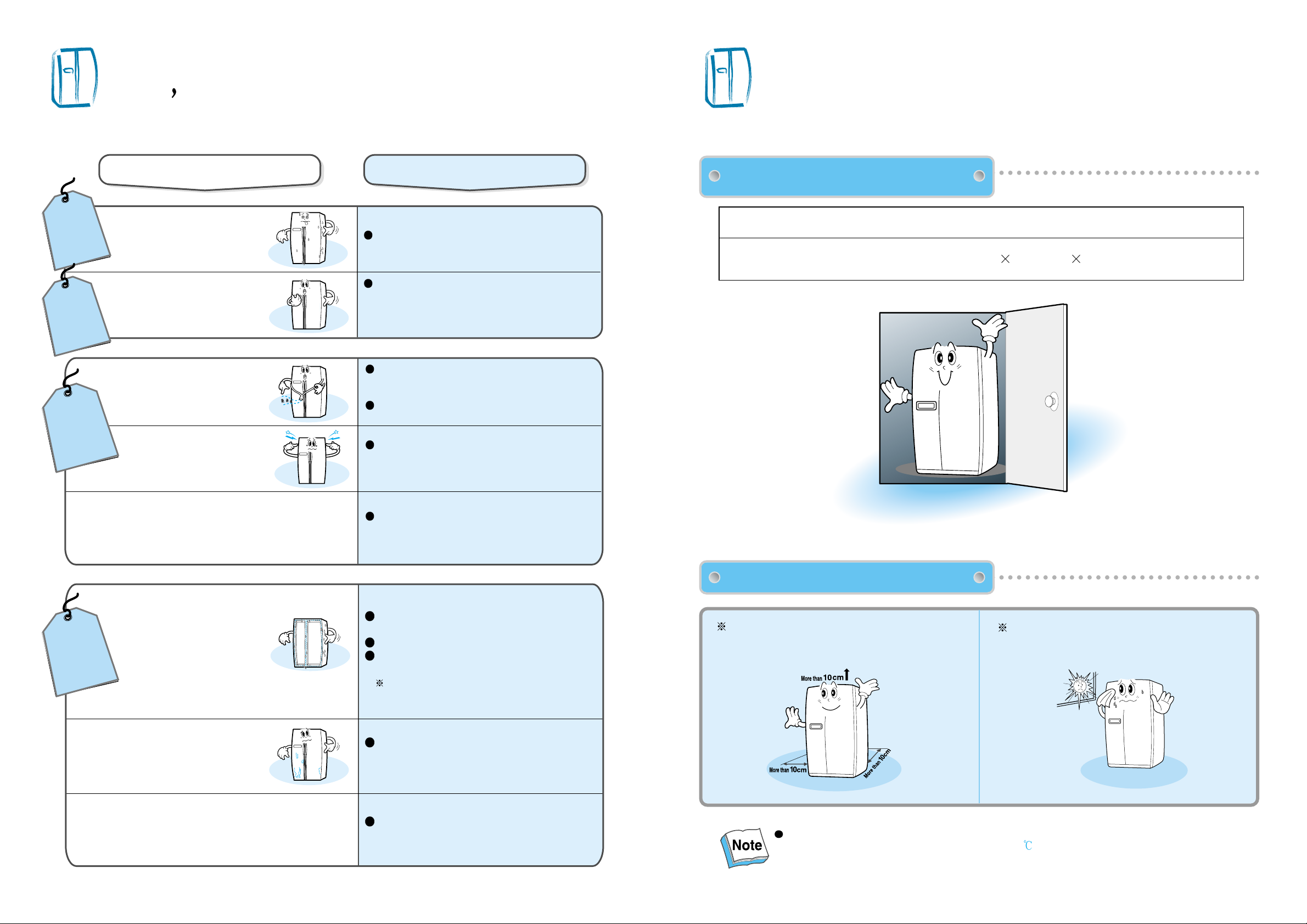

Something strange?
Don’t worry. Here is the answer 14
Installation Preparation 15

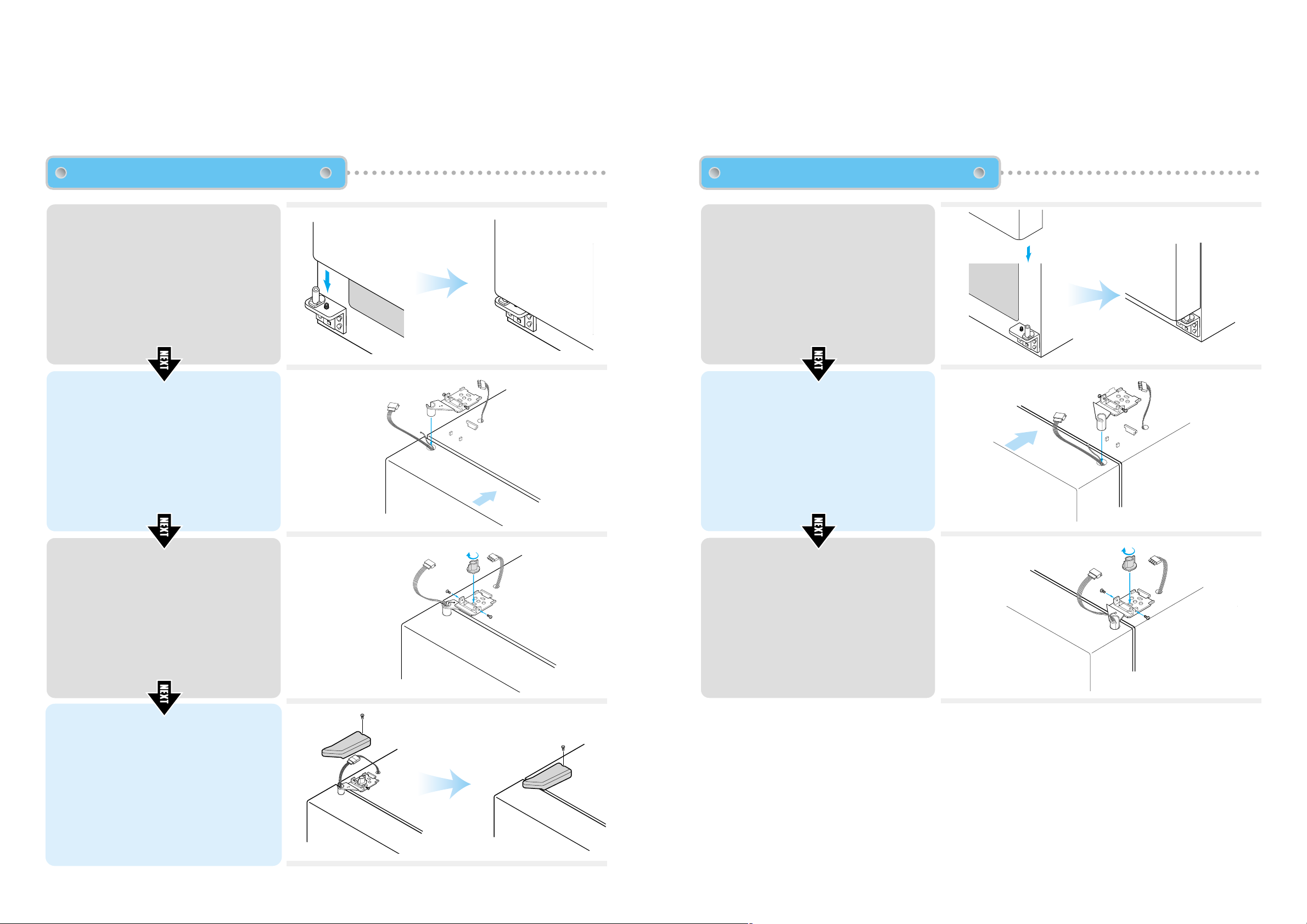

If the refrigerator can not enter
the door, follow these steps 16~19
Refrigerator Leveling &
Door Adjustment(if needed.) 20
Doorgap adjusting 21
Code: S201-14
Be sure to keep for safety !
Read this safety instructions thoroughly and carefully before using. Please keep this user guide at hand for future reference.
Indicates the possibility of danger of |
Indicates the possibility of risk of personal injury |
|
or material damage |
CAUTION
Other Signs
DO NOT remove or disassemble! |
NO., DO NOT... |
Be sure to unplug from receptacle(outlet/mains)! |
Be sure to keep and follow! |
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a simmilary qualified person in order to avoid a hazard.
|
|
WARNING |
|
|
|
|
|
|
Never let power cord be crushed |
|
Do not plug several appliances into same |
|
by refrigerator itself or other (heavy) objects. |
|
wall outlet (receptacle). |
|
Never bend power cord excessively. |
|
|
|
If cord is damaged or peeled, it can be a cause |
|
It can be a cause of overheating and/or fire. |
|
of fire and electric shock. |
|
Use an exclusive grounding receptacle for the |
|
|
|
refrigerator. |
|
Never hold the power cord or plug with wet |
|
Never use damaged power cord or plug, |
|
hands. |
|
loose receptacle. |
|
There is a risk of electric shock. |
|
There is a risk of fire, electric shock or serious |
|
|
|
injury. |
Be sure to ground. Check if your wall outlet is |
Never unplug by |
pulling only the power cord |
grounding (earthed) one. |
wire. Always grip |
the plug firmly. |
There is a risk of electric shock hazards.
1
|
|
WARNING |
|
|
|
|
|
|
|
|
Let the cord from the plug outlet be |
|
|
|
|
directed Downwards. |
|
|
|
|
If it directed up, the cord near the plug is |
|
Electric insulation gets weakened, resulting in |
|
|
bent and can be damaged, which can cause |
|
a risk of electric shock hazards. |
|
|
electric shock or fire. |
|
|
|
|
Never let the power cord touch or pass over |
|
|
|
|
heating appliances. |
|
|
|
|
Power cord can be damaged, resulting in a |
|
a risk of electric shock hazards. |
|
|
risk of electric shock hazards. |
|
|
|
|
Never pour or spray water into the |
|
|
|
|
refrigerator (both interior and exterior). |
|
|
|
|
|
|
Water can be poured into the refrigerator and |
|
|
Electric insulation gets weakened, resulting in |
|
can cause electric shock hazards or damage. |
|
|
a risk of electric shock hazards. |
|
|
|
|
Do not let children hang on the refrigerator |
|
|
remove compartment |
|
doors. |
|
|
while foods and containers |
|
Refrigerator can fall and do harm to them. |
|
Hard container (of glass, metal etc.) can fall to |
|
|
|
|
hurt you and can break shelf glass and interior |
|
|
|
|
parts. |
|
|
Never repair or disassemble or amend |
|
Never store any flammable gas or liquid |
|
|
refrigerator on your own |
|
in the refrigerator. |
|
|
There is a risk of personal injury or damage to |
|
|
|
|
the refrigerator. It is recommanded that any |
|
|
|
|
service be carried out by a qualified person. |
|
|
|
|
Never use flammable gas, |
|
If a gas leak found near the refrigerator or in |
|
|
gasoline, spray etc. near the |
|
the kitchen, ventilate it immediately without |
|
|
There is a risk of fire, explosion and personal |
|
touching power plug or refrigerator. |
|
|
|
|
|
|
|
injury or damage. |
|
|
|
|
|
WARNING |
|
|
|
|
|
|
Do not store medicine, academic research |
|
Never insert fingers or hands into the bottom |
|
samples which require strict temperature |
|
of refrigerator, especially into the bottom back. |
|
control in the refrigerator. |
|
You can be hurt by sharp metal edges or can |
|
|
|
|
|
|
|
receive an electric shock. |
|
Do not change fuse or light bulb on your |
|
When you find the power cord damaged or |
|
own. Call the service agent to change them. |
|
cut, call the service agent immediately. |
When you get rid of your old refrigerator, be sure to remove the door packings first.
Children can be entrapped and suffocated in an
abandoned refrigerator. |
|
Leave it just a few days! |
is very dangerous. |
|
|
CAUTION |
|
|
|
|
|
|
Be sure to unplug when the refrigerator |
|
Never touch foods and containers especially |
|
used for a long time. |
|
of metal with wet hands in the freezer |
|
|
|
compartment. |
|
|
|
You can be hurt by chilblains or cold bum. |
|
Never eat any decayed |
|
Never place bottles and containers of glass in |
|
|
|
the freezer compartment. |
|
Foods stored too long in the refrigerator can be |
|
Glass containers and bottles can be broken so |
|
decayed or deteriorated . |
|
|
|
|
can hurt you. |
|
|
|
|
|
|
When moving the refrigerator (layed or tilted), |
|
Be sure to turn up the wheel first before |
|
more than 2 persons are required to hold it. |
|
moving the refrigerator. |
|
( One to hold top back handles, the other, |
|
The wheels can damage or scratch the floor. |
|
bottom holder. ) |
|
|
|
If other parts gripped, it is very dangerous and |
|
If you move it a long distance, never forget to |
|
likely to slip. |
|
fasten the interior parts tightly with tapes. |
|
|
|
The parts can shake to break each other. |
3
Installation Guide
Read these safety instructions carefully before use and follow precautions for your safety.
Accessories
Egg case |
Egg cradle |
User guide |

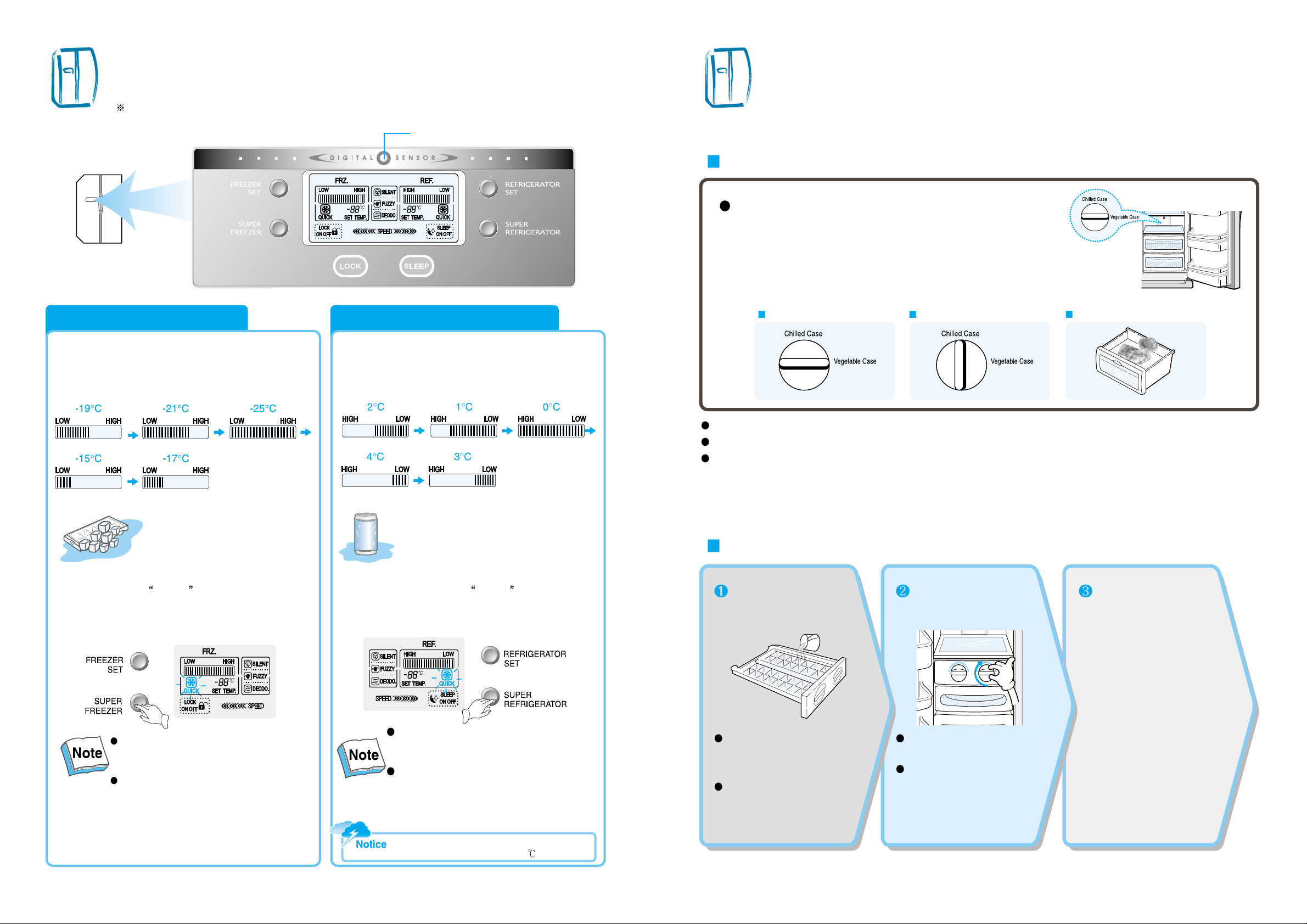

Control Panel
Optical Sensor
Optical Sensor in the top center of the panel senses the amount of light surrounding the refrigerator.
When it decides that it is dark (night), Silence Mode starts. Refrigerator works on in minimum operation condition, so it makes little or
less working noise.
[Notice] Do not let the Optical Sensor be covered by memo sheet (Post-it) ect.
It shows that the digital control system is working the refrigerator. (The icon is always on while the refrigerator is working.)
As long as the refrigerator is working deodorization is always on.
the doors are open for more than 10 minutes.
is open for more than a minute, door alarm rings for 5 minutes with
Children may push any button on the panel for fun, resulting in disorder of temperature and function of refrigerator. Press this button to lock out this case and to keep temperature and function setting.
Push Lock button again for more than a second to stop it.
If you fill the refrigerator with much foods or in case of frequent door openings, Speed Mode
starts automatically to maintain optimal condition of temperature.
If you need total silence from the refrigerator just push sleep button.
This mode works for maximum 12 hours and then it returns to the previously set mode. When you want to stop the mode, just push the
button again and it also returns to the previously set mode
LCD Background Light
The LCD light turns on in the following case to help you control the panel easily ;
When the refrigerator is pluged in
When you push a button (The background light turns on first, then button mode is activated.)
When you open the door
If you push a button when the backlight is off, only the backlight turns on and it does not affect any other button mode.
The LCD light turns off in the following case to save energy consumption ;
1 minute after power plug in
10 seconds after the door is closed
No other button is pushed for more than 1 minute after button selection
When you look at LCD display from side or down, not from front, the display (letters, icons and signs) can look faded or dim.
