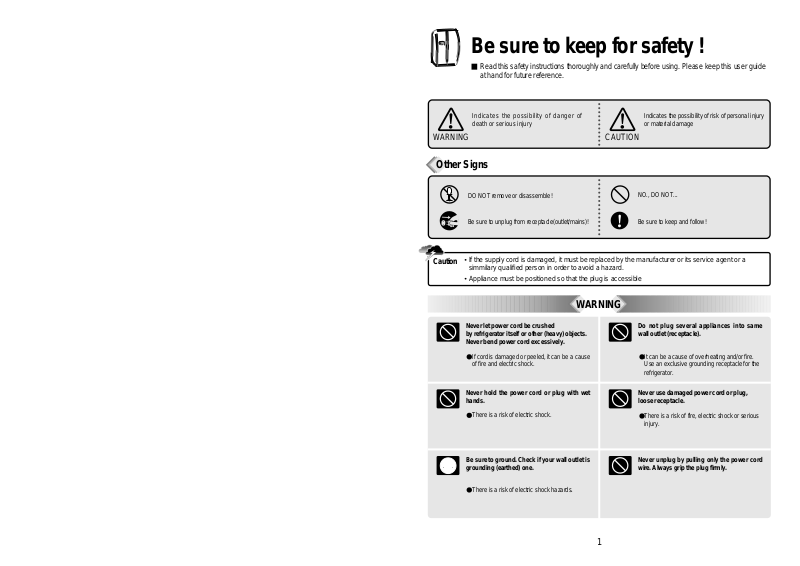

Be sure to keep for safety !
Read this safety instructions thoroughly and carefully before using. Please keep this user guide at hand for future reference.
Indicates the possibility of danger of |
Indicates the possibility of risk of personal injury |
|
or material damage |
CAUTION
Other Signs
DO NOT remove or disassemble! |
NO., DO NOT... |
Be sure to unplug from receptacle(outlet/mains)! |
Be sure to keep and follow! |
Caution |
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a simmilary qualified person in order to avoid a hazard.
Appliance must be positioned so that the plug is accessible
WARNING
Never let power cord be crushed |
Do not plug several appliances into same |
by refrigerator itself or other (heavy) objects. |
wall outlet (receptacle). |
Never bend power cord excessively. |
|
If cord is damaged or peeled, it can be a cause |
It can be a cause of overheating and/or fire. |
of fire and electric shock. |
Use an exclusive grounding receptacle for the |
|
refrigerator. |
Never hold the power cord or plug with wet |
Never use damaged power cord or plug, |
hands. |
loose receptacle. |
There is a risk of electric shock. |
There is a risk of fire, electric shock or serious |
|
injury. |
Be sure to ground. Check if your wall outlet is |
Never unplug by pulling only the power cord |
grounding (earthed) one. |
wire. Always grip the plug firmly. |
There is a risk of electric shock hazards.
1
|
|
WARNING |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Let the cord from the plug |
|
|
|
wet floor or in |
|
|
|
directed Downwards. |
|
|
|
moisture. |
|
|
|
If it directed up, the cord near the plug |
|
Electric insulation gets weakened, resulting in |
|
|||
|
bent and can be damaged, which can |
|
a risk of electric shock hazards. |
|
|||
|
electric shock or fire. |
|
|
|
|
|
|
|
Never let the power cord touch or |
|
|
|
wall outlet. |
|
|
|
heating appliances. |
|
|
|
|
resulting in |
|
|
Power cord can be damaged, resulting |
|
|
|
|
|
|
|
|
a risk of electric shock hazards. |
|
||||
|
risk of electric shock hazards. |
|
|
|
|
|
|
|
Never pour or spray water into the |
|
|
|
|
|
|
|
refrigerator (both interior and exterior) |
|
|
|
|
|
|
|
|
|
Water can be poured into the refrigerator and |
|
|||
|
Electric insulation gets weakened, |
|
can cause electric shock hazards or damage. |
|
|||
|
a risk of electric shock hazards. |
|
|
|
|
|
|
|
Do not let children hang on the |
|
|
move or remove compartment |
|
||
|
doors. |
|
shelves/pockets while foods and containers |
|
|||
|
|
|
|
them. |
|
||
|
Refrigerator can fall and do harm to |
|
Hard container (of glass, metal etc.) can fall to |
|
|||
|
|
|
hurt you and can break shelf glass and interior |
|
|||
|
|
|
parts. |
|
|||
|
Never repair or disassemble or amend |
|
Never store any flammable gas or liquid |
|
|||
|
refrigerator on your own |
|
in the refrigerator. |
|
|||
|
There is a risk of personal injury or |
|
|
|
|
|
|
|
the refrigerator. It is recommanded |
|
|
|
|
|
|
|
service be carried out by a qualified |
|
|
|
|
|
|
|
Never use flammable |
|
If a gas leak found near the refrigerator or in |
|
|||
|
gasoline, spray etc |
|
the kitchen, ventilate it immediately without |
|
|||
|
|
|
touching power plug or refrigerator. |
|
There is a risk of fire, explosion and personal injury or damage.
|
|
WARNING |
|
|
|
|
|
|
|
|
Do not store medicine, |
Never insert fingers or hands into the bottom |
|
|
|
samples which require |
of refrigerator, especially into the bottom back. |
|
|
|
control in the refrigerator |
You can be hurt by sharp metal edges or can |
|
|
|
|
|
|
|
|
|
|
receive an electric shock. |
|
|
Do not change fuse or light bulb on |
When you find the power cord damaged or |
|
|
|
own. Call the service agent to change them. |
cut, call the service agent immediately. |
|
When you get rid of your old refrigerator, be sure to remove the door packings first.
Children can be entrapped and |
in an |
abandoned refrigerator. |
|
Leave it just a few days! is very |
. |
CAUTION
Be sure to unplug |
is not |
Never touch foods and containers especially |
used for a long time |
|
of metal with wet hands in the freezer |
|
|
compartment. |
|
|
You can be hurt by chilblains or cold bum. |
Never eat any |
food at all. |
Never place bottles and containers of glass in |
|
|
the freezer compartment. |
Foods stored too long in the refrigerator can be |
Glass containers and bottles can be broken so |
|
decayed or deteriorated . |
|
|
|
can hurt you. |
|
|
|
|
When moving the refrigerator (layed or tilted), |
Be sure to turn up the wheel first before |
|
more than 2 persons are required to hold it. |
moving the refrigerator. |
|
( One to hold top back handles, the other, |
The wheels can damage or scratch the floor. |
|
bottom holder. ) |
|
|
If other parts gripped, it is very dangerous and |
If you move it a long distance, never forget to |
|
likely to slip. |
|
fasten the interior parts tightly with tapes. |
|
|
The parts can shake to break each other. |
3
Installation Guide
.
use and
Egg caset |
Filter Box t |
Water supply Kit |
User guide |
Control Panel
It shows that the digital control system is working the refrigerator. (The icon is always on while the refrigerator is working.)
As long as the refrigerator is working deodorization is always on.
The NORMAL (Red LED) is OFF for 6 months after the first installation of refrigerator.
- When the time comes to change the filter or RESET, press the [RESET WATER FILTER] for 5 seconds then the LED will change to NORMALL ( Red LED is off ).
For your convenience you can select WATER / CUBED ICE or CRUSHED ICE.
A LED lights up to indicate your selection is ON. To obtain the water or ice, push the pad smoothly with your cup and your selection will come out 1~2 seconds later.
-Try to avoid placing the rim of your glass near the bottom of the pad, otherwise Water or Icecubes may spill or splash.
-You will hear a snap sound 2 seconds after the icecubes come out. This is from the shut off ice-out valve.
-Wait 2~3 seconds after pushing the pad to get all the available water or ice cubes.
When cleaning the icecubes case assembly or when you do not use for a long period of time, remove the icecubes in the ice storage case and press the button to stop making icecubes.
Interior lights of refrigerator turn off when the doors are open for more than 10 minutes.
In case either freezer or refrigerator door is open for more than a minute, door alarm rings for 5 minutes with 1 minute interval.
4 |
5 |
Temperature Control
When this refrigerator is first plugged in, the temperature mode is set to [Middle].
Freezer Compartment |
Refrigerator Compartment |
||||||||
Push the FRZ SET. button and the setting |
|
Push the REF SET. button and the setting |
|||||||
temperature changes as the figure shows. |
|
temperature changes as the figure shows. |
|||||||
>>> Sequential Temperature Change <<< |
|
>>> Sequential Temperature Change <<< |
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Faster Freezing... |
Faster Cooling or |
|
Refrigeration |
||
|
||
When you want faster freezing, push the SUPER |
When you want faster refrigerating, push the |
|
FRZ. button, then QUICK icon turns on and the |
SUPER REF. button, then QUICK icon turns on |
|
mode starts. Just push the button once again when |
and the mode starts. Just push the button once |
|
you want to stop the mode. |
again when you want to stop the mode. |
The inside temperature can varies according to door
openings, amount of foods, surrounding temperature
etc.
The mode ends automatically and it returns to the previously set mode.
For example) The refrigerator is working on [LOW Mode]. --> [SUPER FRZ.] starts and ends. -->
Returns to [LOW Mode] again.
The inside temperature can varies according to door openings, amount of foods, surrounding temperature etc. The mode ends automatically and it returns to the previously set mode.
For example) The refrigerator is working on [LOW Mode]. --> [SUPER REF.] starts and ends. --> Returns to [LOW Mode] again.
Notice |
Foods in the refrigerator can be frozen if the ambient |
|
temperature of refrigerator is below 5 . |
||
|
How To change lnterior Light Bulb
The lamp shall be replaced only by a service agent or similarly qualified person.
Change of Freezer Lights
of light |
Hold the bottom of light cover |
Change the light bulb. |
|
and pull forward to remove. |
Follow the reverse order |
|
|
of disassembing after |
|
|
changing the light |
Change of Refrigerator Lights
Refrigerator Top Lights
screw caps |
Remove screws of light |
Hold the bottom of cover and |
Change the light bulbs. |
of light cover with a |
cover. |
pull forward to remove. |
Follow the reverse order |
screw driver. |
|
|
of disassembing when |
|
|
|
assembling back. |
Refrigerator Bottom Lights
out hte bottom hook |
Hold down the light cover to |
Change the light bulb. |
cover with a flat tip |
pull out. |
Follow the reverse order after |
driver. |
|
changing the light. |
