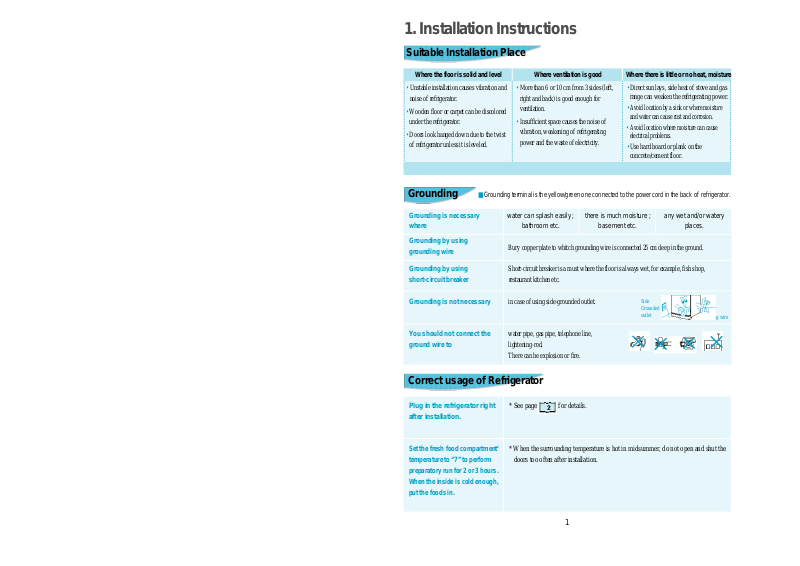

1. Installation Instructions
Suitable Installation Place
Where the floor is solid and level
• Unstable installation causes vibration and
noise of refrigerator.
• Wooden floor or carpet can be discolored
under the refrigerator.
• Doors look hanged down due to the twist
of refrigerator unless it is leveled.
Where ventilation is good
•More than 6 or 10 cm from 3 sides (left, right and back) is good enough for ventilation.
•Insufficient space causes the noise of vibration, weakening of refrigerating power and the waste of electricity.
Where there is little or no heat, moisture
• Direct sun lays, side heat of stove and gas range can weaken the refrigerating power.
• Avoid location by a sink or where moisture and water can cause rust and corrosion.
• Avoid location where moisture can cause electrical problems.
• Use hard board or plank on the concrete/cement floor.
|
|
|
|
|
Grounding |
■ Grounding terminal is the yellow/green one connected to the power cord in the back of refrigerator. |
|||
Grounding is necessary |
|
|
||
water can splash easily ; there is much moisture ; |
any wet and/or watery |
|||
where |
|
bathroom etc. |
basement etc. |
places. |
Grounding by using |
|
|
|
|
|
Bury copper plate to whitch grounding wire is connected 25 cm deep in the ground. |
|||
grounding wire |
|
|||
|
|
|
|
|
Grounding by using |
|
Short-circuit breaker is a must where the floor is always wet, for example, fish shop, |
||
short-circuit breaker |
|
restaurant kitchen etc. |
|
|
Grounding is not necessary |
in case of using side-grounded outlet. |
Side |
|
|
|
|
|
Grounded |
|
|
|
|
outlet |
wire |
You should not connect the ground wire to
water pipe, gas pipe, telephone line, lightening-rod.
There can be explosion or fire.
Correct usage of Refrigerator
Plug in the refrigerator right |
* See page |
for details. |
after installation. |
|
|
Set the fresh food compartment’ temperature to “7” to perform preparatory run for 2 or 3 hours. When the inside is cold enough, put the foods in.
*When the surrounding temperature is hot in midsummer, do not open and shut the doors too often after installation.
1
2. Safety Instructions
WARNING |
■ Improper use can cause physical damage - personal injury. |
|
|
ATTENTION |
■ Improper use can cause injury or material damage to the household |
|
|
BE SURE TO KEEP |
NO/NEVER DO NOT DISASSEMBLE DO NOT TOUCH |
UNPLUG |
GROUND |
CAUTION:
1.If the supply cord becomes damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
2.The appliance is not intended for use by young children or infirm persons without supervision.
3.Young children should be supervised to ensure that they do not play with the appliance.
WARNING
VENTILATION
In case of gas leak, ventilate the room instead of unplugging
the refrigerator.
•Explosion or fire may happen.
ATTENTION
Do not eat any frozen food immediately from the freezer compartment.
• It can get you cold-burns.
CLEAN PLUG
Unplug and clean it with dry cloth if dirty.
•Dusty and dirty
plug may cause fire.
NO
Never install the refrigerator where there is much moisture and water can splash.
•It can be a danger of short circuit or fire.
EXCLUSIVE
POWER OUTLET
Use exclusive power outlet for the refrigerator only.
•Several plugs in an outlet may cause fire.
Do not use a double outlet or extension cord.
DISCARDING
When discarding the refrigerator, remove the door packing.
• Children may be trapped inside it.
NO
Do not put heavy things or water contained tanks on top of refrigerator.
•It’s dangerous when they fall down and fire by short circuit can happen.
NO
Never install the refrigerator where there is much moisture and water can splash.
•It can be a danger of short circuit or fire.
NEVER USE
When you smell something strange burning out of refrigerator,
unplug it to stop running.
•It’s very dangerous to keep the abnormal refrigerator running on and on.
NEVER USE
Never use any spray near the refrigerator.
•It can cause danger of explosion.
NEVER STORE
This refrigerator is for storing only foods.
•Do not store medicines, flammable things, and study sample, etc.
NEVER TOUCH
Do not use any sharp tools when cleaning the inside.
•The cooling system can be damaged or there may be electric shock.
WARNING
NO
Do not allow children to hang on the doors.
•The refrigerator may be tipped over to hurt children.
NEVER USE
Never use plug if it is loose.
•There can be electric shock or fire by short circuit.
NEVER EAT
Never eat deteriorated food stored too long in the refrigerator or in the out-of-order refrigerator.
• You can be food-poisoned.
NEVER
DISASSEMBLE
Do not repair the refrigerator on your own.
•It can work abnormally and cause bigger trouble.
NEVER TOUCH
Do not pull and/or push the plug with wet hand.
•There can be danger of electric shock.
2 |
3 |
|
WARNING |
UNPLUG |
UNPLUG |
Unplug first when exchanging the |
If not using refrigerator for a long |
bulb and/or cleaning the |
time, unplug and take all the |
refrigerator. |
foods out. |
|
• In case of power failure, |
|
foods may decay and other |
|
accident (short circuit, fire etc.) |
|
can happen. |
UNPLUG |
GROUNDING |
Grip the whole plug body to pull |
Be sure to ground. |
when you unplug. |
• There is a danger of |
|
|
• Holding only the wire can cause |
electric shock due to short |
electric spark or short circuit. |
circuit or mal-function. |
WARNING
MOVING/ CARRYING
When you move the refrigerator, take all the foods out and empty the ice box and evaporation dish of water.
•Foods may be damaged and you can slip on watery floor.
MOVING/ CARRYING
Grip two handle bars front bottom and formed handle top back of refrigerator.
•Gripping other parts can be slippery and dangerous.
MOVING / CARRYING
Lift the refrigerator up enough not to scratch a soft floor.
•Front and rear wheels under the refrigerator may scratch the floor.
INSTALLATION
Place on a solid and level floor.
•Unstable installation causes distortion of cabinet and doors.
|
WARNING |
DOOR HANDLES |
FOOD STORAGE |
Opening and shutting |
When you store foods in the |
doors, hold door handles, |
pockets, push in to the |
not other part. |
pocket bottom. |
• Your fingers may be |
• Tall bottles may fall down |
jammed to be hurt. |
or the pockets can be broken. |
POWER FAILURE |
HAND OVER |
In case of power failure, open and shut |
Handing over this refrigerator, you’d |
the doors as seldom as possible. |
better give user’s guide together to him/her. |
• Cold air comes out and fresh |
• New user may not know well how to use this |
storage, impossible. |
refrigerator. |
DRIVE / RUN |
CAUTION |
After you unpluged refrigerator, wait 5 minutes or more to
plug in again.
•If you plug in again immediately, electric parts can be damaged.
If there is water or oil on the floor around refrigerator, wipe it out.
•There is danger of slipping over to be hurt.
ATTENTION |
FORBIDDEN |
Foods should not protrude from shelves.
•They can fall down and/ or be broken when opening the door.
DO NOT TOUCH
Do not touch cold surfaces of foods or food containers in the freezer compartment directly.
•They are in the state of like frozen metal, so skin can adhere to these cold surfaces. (Especially when your hands are wet and damp.)
Do not store bottles, cans or canned food in the freezer compartment.
•They can be broken or exploded by expansion of freezing.
DO NOT TOUCH
Do not reach out your hands or legs under the refrigerator (when cleaning under the refrigerator.
•You can be hurt by rough edges and parts under the refrigerator.
