Daewoo FR-490 DATASHEET [ar]
5

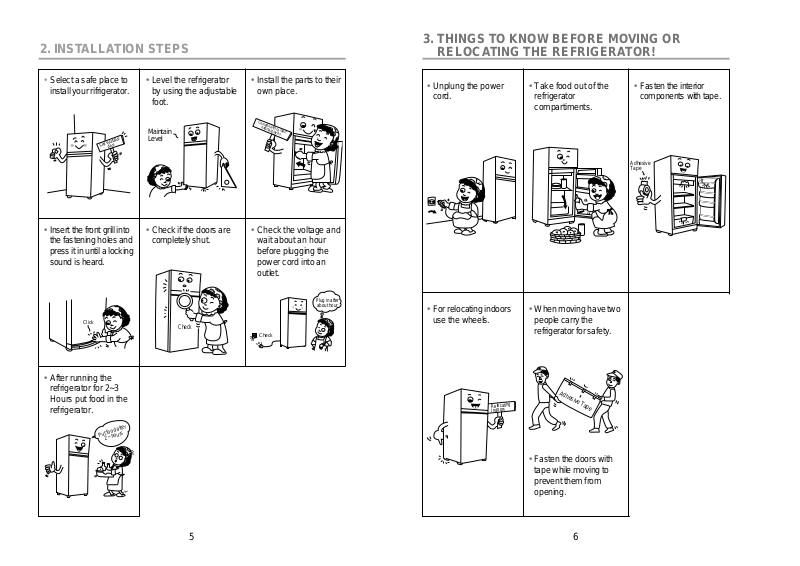

2. INSTALLATION STEPS
• Select a safe place to
install your rifrigerator.
• Level the refrigerator
by using the adjustable
foot.
• Install the parts to their
own place.
• Check if the doors are
completely shut.
• Check the voltage and
wait about an hour
before plugging the
power cord into an
outlet.
• After running the
refrigerator for 2~3
Hours put food in the
refrigerator.
Safe installation
place
Maintain
Level
Components to their
original places
Check
• Insert the front grill into
the fastening holes and
press it in until a locking
sound is heard.
Click
Plug in after
about hour
Check
Put food after
2~ hours
6
3. THINGS TO KNOW BEFORE MOVING OR
RELOCATING THE REFRIGERATOR!
• Unplung the power
cord.
• Take food out of the
refrigerator
compartiments.
• Fasten the interior
components with tape.
• For relocating indoors
use the wheels.
• When moving have two
people carry the
refrigerator for safety.
• Fasten the doors with
tape while moving to
prevent them from
opening.
Adhesive
Tape
Relocating
Indoors
Adhesive Tape
SPECIFICATION
Specification
Model : FR-
490
Voltage : AC 127V
Frequency : 50/60 Hz
Motor Input : 245W
Defrosting Current : 1.40A
Refrigerant : R-12
Charge : 135g
Gross Volume : 425\
Storage Volume : 410\
Shelf Area : 1.22 m
2
Electric Power Consumption : 2.5 KWh/24 hours
Percentage Running Time : 48%
Quantity of Ice Produced : 6kg/24 hours
Tropical Design : T
L/BLUE
BL
WH
TEMP
FUSE
GY
DEFROST
HEATER
BI-METAL
YW
LAMP
FAN
MOTOR
L/BLUE
DOOR
S/W
L/BLUE
GN/YW
PLUG
CM
P-RELAY
OLPTC
M
A
1
3
2
COMPRESSOR
PK
PK
S/C
RD
RD
WH
WH/BL
THERMOSTAT
BR
12
3
M
4
DEFROST
TIMER
BRYW
YW
YW
RD : RED
BR : BROWN
WH : WHITE
PK : PINK
BK : BLACK
YW : YELLOW
BL : BLUE
GY : GRAY
WH/BL : WHITE WITH
BLUE STRIPE
WH/BL
Manufacturer: DAEWOO ELECTRONICS CO., LTD.
Made in Korea
Wiring Diagram
SPECIFICATION
Specification
Model : FR-
490
Voltage : AC 220V
Frequency : 50/60 Hz
Motor Input : 210W
Defrosting Current : 0.72A
Refrigerant : R-12
Charge : 135g
Gross Volume : 425\
Storage Volume : 410\
Shelf Area : 1.22 m
2
Electric Power Consumption : 2.25 KWh/24 hours
Percentage Running Time : 45%
Quantity of Ice Produced : 6kg/24 hours
Tropical Design : T
L/BLUE
BL
WH
RD : RED
BR : BROWN
WH : WHITE
PK : PINK
BK : BLACK
YW : YELLOW
BL : BLUE
GY : GRAY
WH/BL : WHITE WITH
BLUE STRIPE
TEMP
FUSE
GY
DEFROST
HEATER
BI-METAL
YW
LAMP
FAN
MOTOR
L/BLUE
DOOR
S/W
L/BLUE
GN/YW
PLUG
CM
P-RELAY
OLPTC
M
A
1
3
2
COMPRESSOR
OR
PK
R/C
RD
RD
WH
WH/BL
WH/BL
THERMOSTAT
BR
12
3
M
4
DEFROST
TIMER
BRYW
YW
YW
Manufacturer: DAEWOO ELECTRONICS CO., LTD.
Made in Korea
Wiring Diagram
