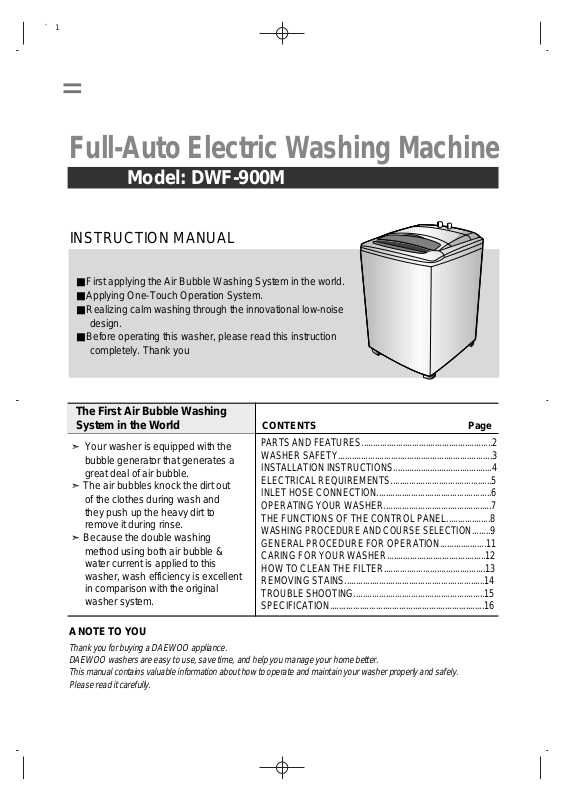

Full-Auto Electric Washing Machine

Model: DWF-900M

INSTRUCTION MANUAL

■First applying the Air Bubble Washing System in the world.

■Applying One-Touch Operation System.

■Realizing calm washing through the innovational low-noise design.

■Before operating this washer, please read this instruction

completely. Thank you

The First Air Bubble Washing
System in the World	CONTENTS	Page
	PARTS AND FEATURES.........................................................	2
Your washer is equipped with the
	WASHER SAFETY...................................................................	3
bubble generator that generates a
	INSTALLATION INSTRUCTIONS...........................................	4
great deal of air bubble.
	ELECTRICAL REQUIREMENTS............................................	5
The air bubbles knock the dirt out

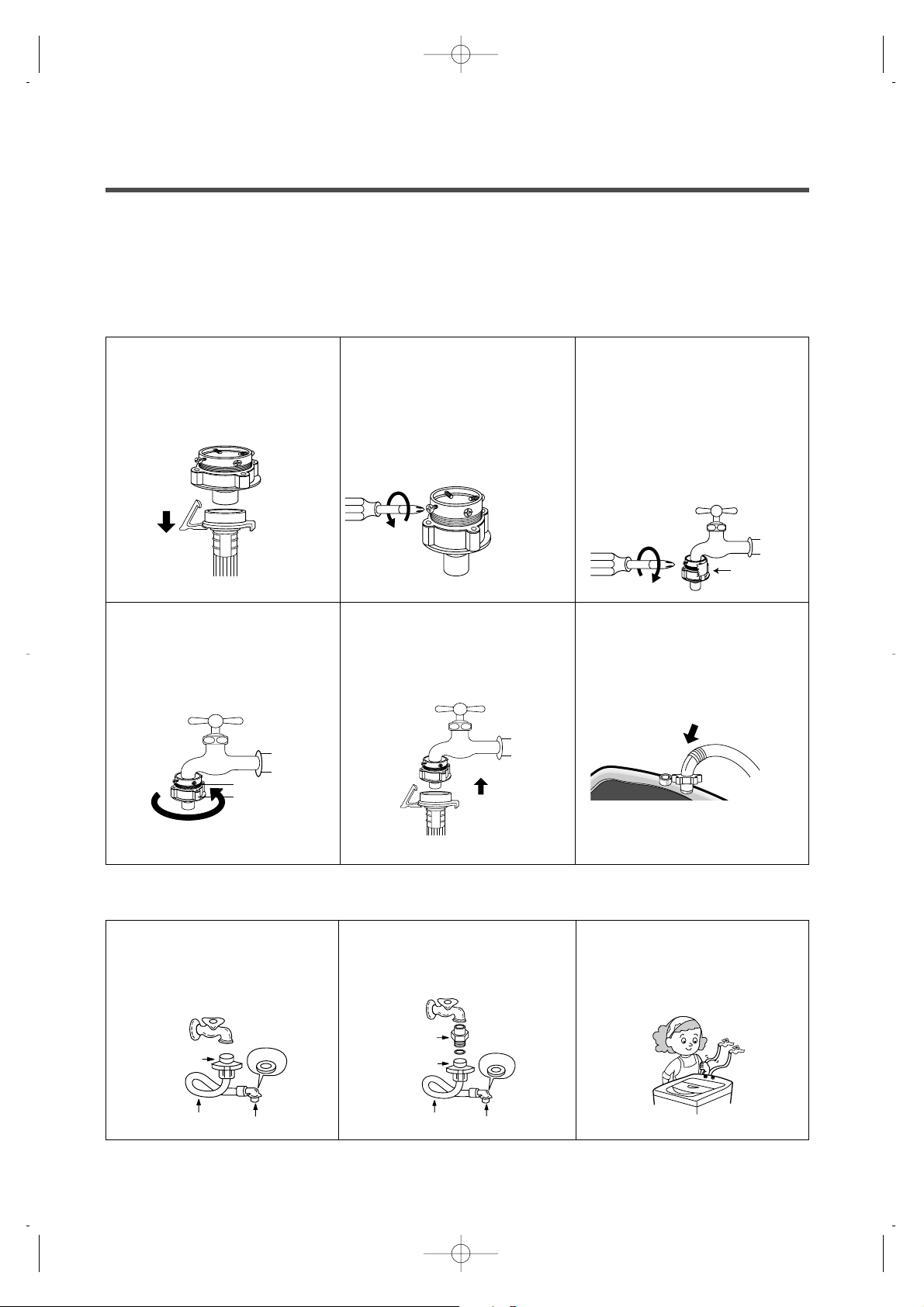

	INLET HOSE CONNECTION..................................................	6
of the clothes during wash and

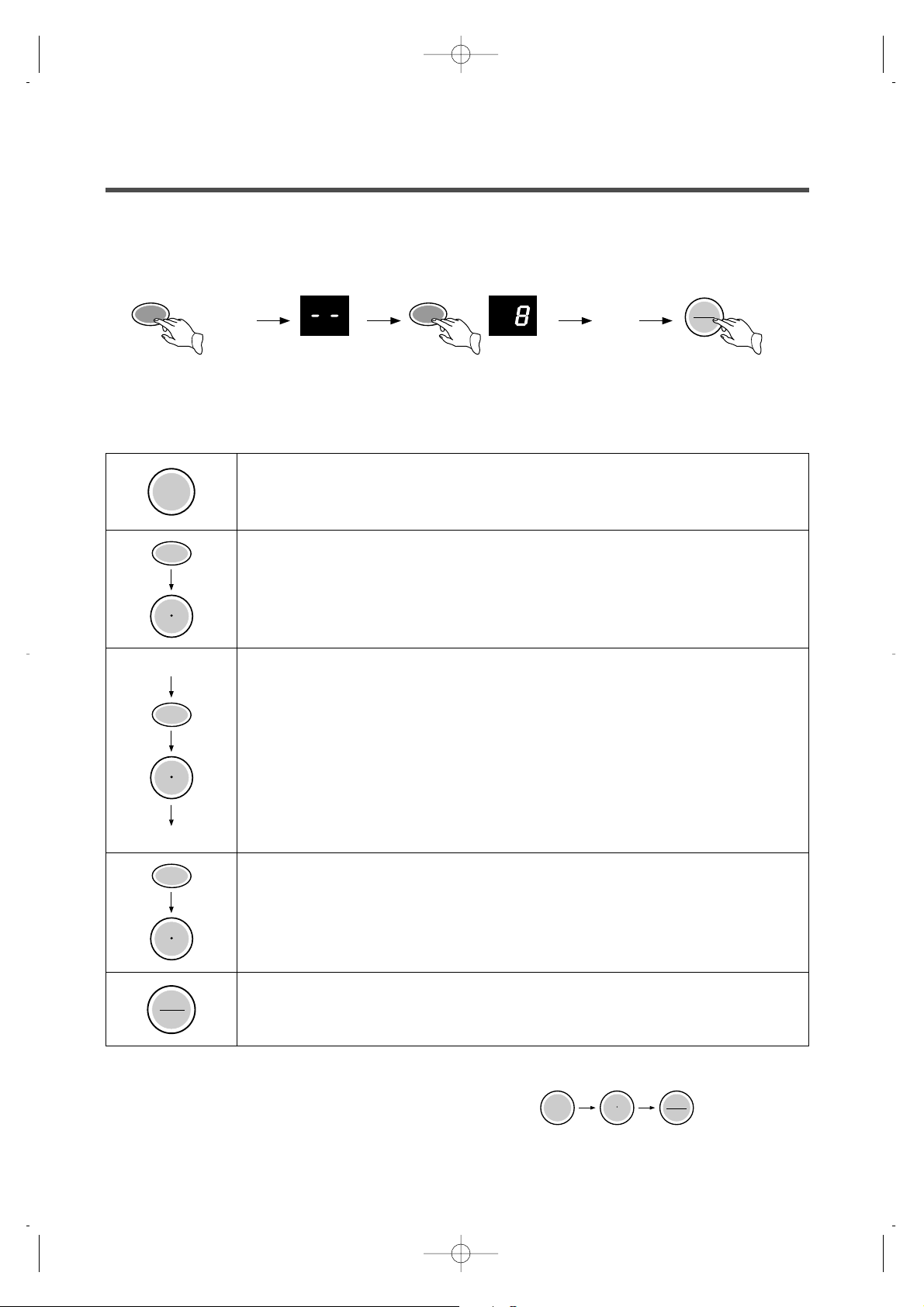

	OPERATING YOUR WASHER...............................................	7
they push up the heavy dirt to

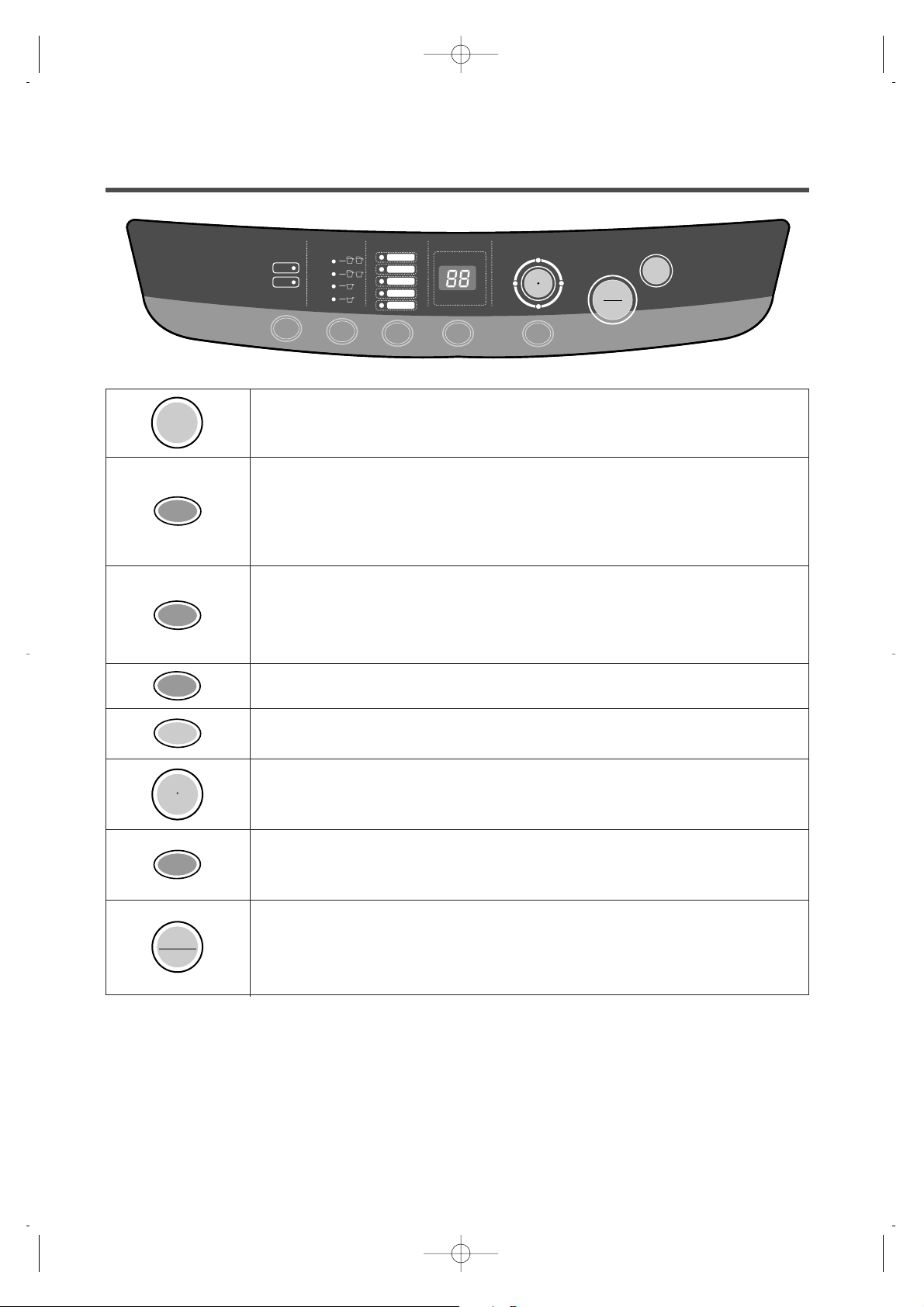

	THE FUNCTIONS OF THE CONTROL PANEL...................	8
remove it during rinse.

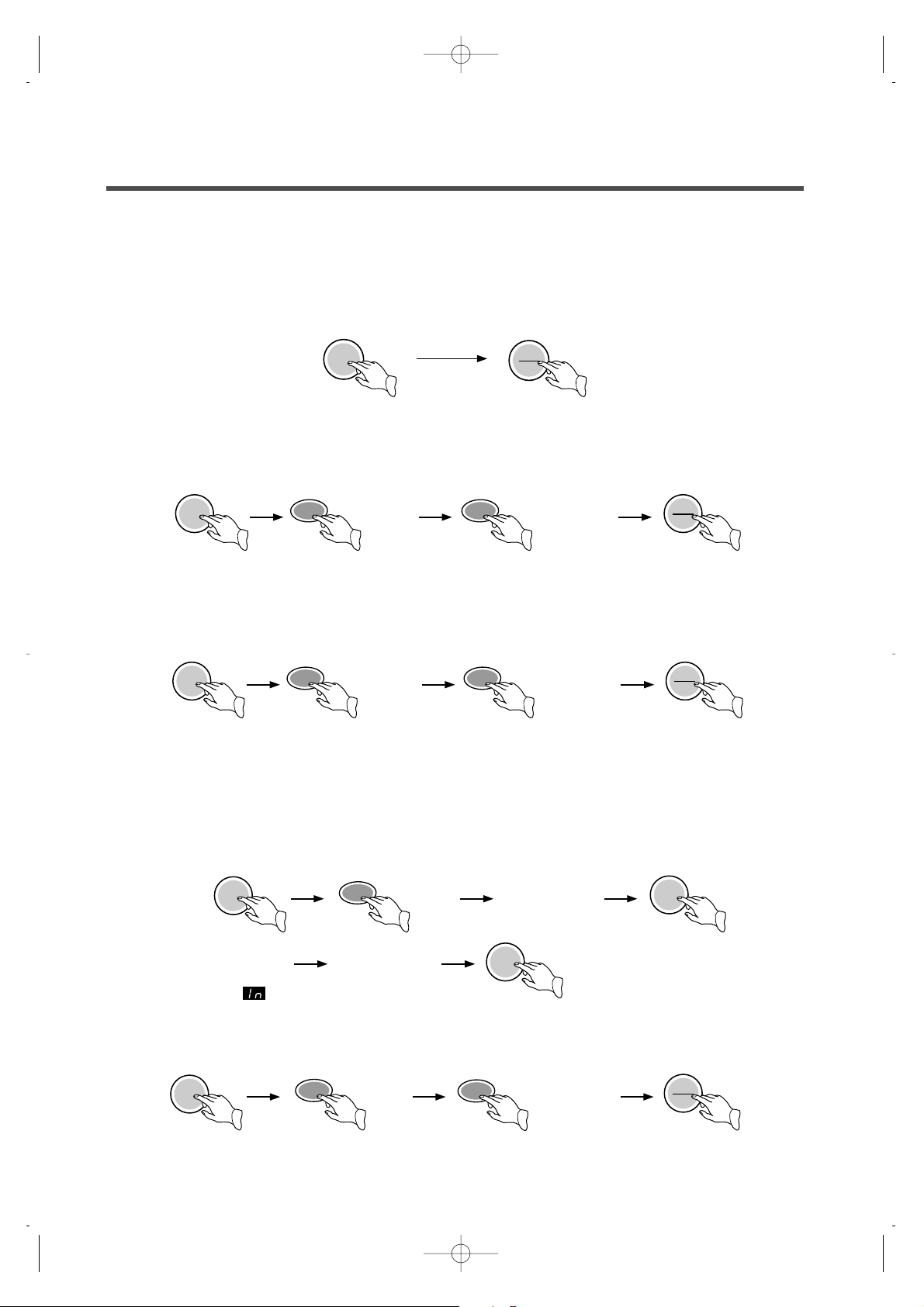

	WASHING PROCEDURE AND COURSE SELECTION........9
Because the double washing
	GENERAL PROCEDURE FOR OPERATION....................	11
method using both air bubble &

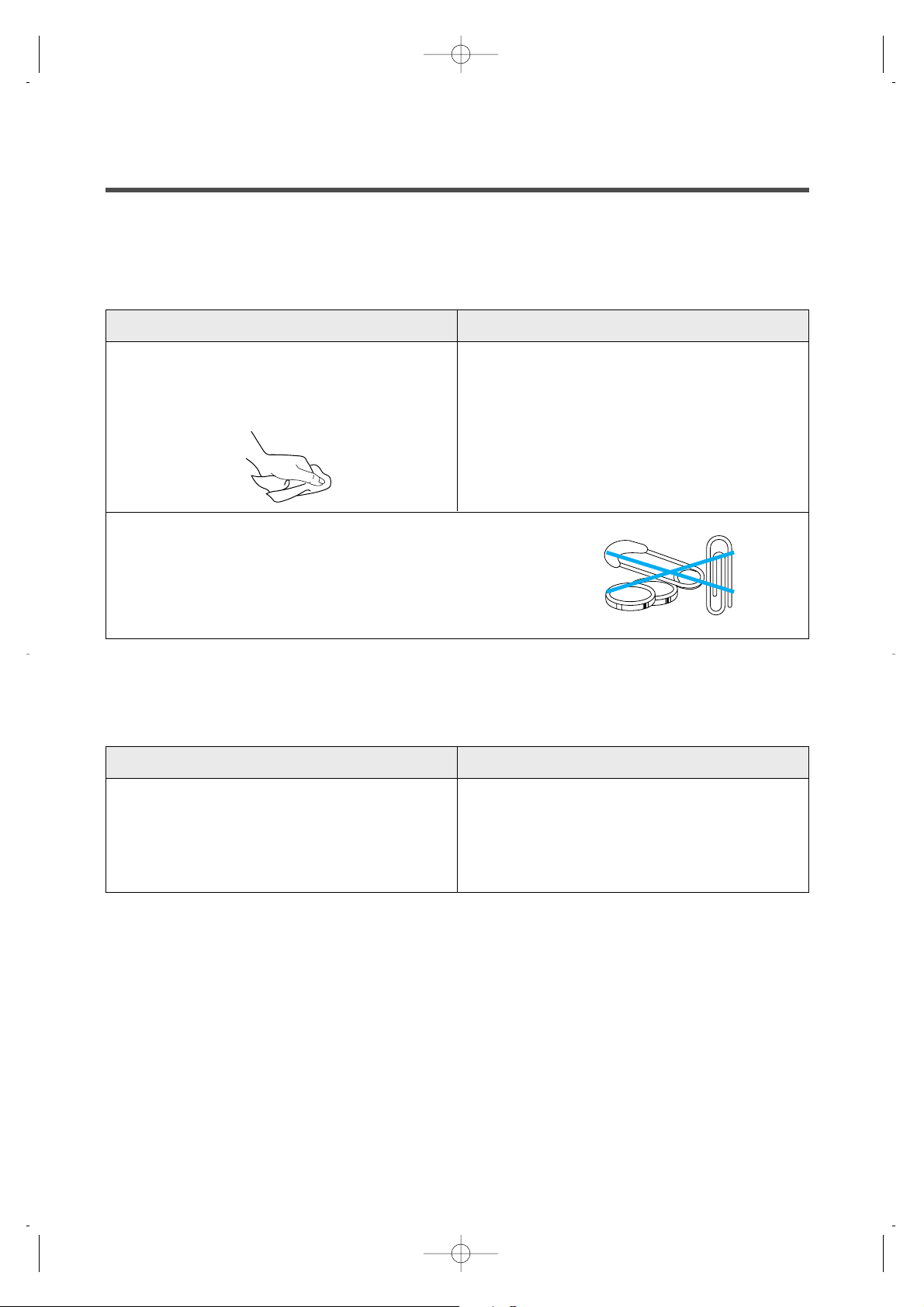

	CARING FOR YOUR WASHER...........................................	12
water current is applied to this
	HOW TO CLEAN THE FILTER............................................	13
washer, wash efficiency is excellent
	REMOVING STAINS.............................................................	14
in comparison with the original
	TROUBLE SHOOTING.........................................................	15
washer system.
	SPECIFICATION...................................................................	16

A NOTE TO YOU

Thank you for buying a DAEWOO appliance.

DAEWOO washers are easy to use, save time, and help you manage your home better.

This manual contains valuable information about how to operate and maintain your washer properly and safely. Please read it carefully.

PARTS AND FEATURES

The parts and features of your washer are illustrated on this page. Become familiar with all parts and features before using your washer.

NOTE

•The drawings in this book may vary from your washer model.

They are designed to show the different features of all models covered by this book, Your model may not include all features.

•HOT WATER TAP

After using the washer, close the water tap.

In case of the single valve model, there is no hot water valve.

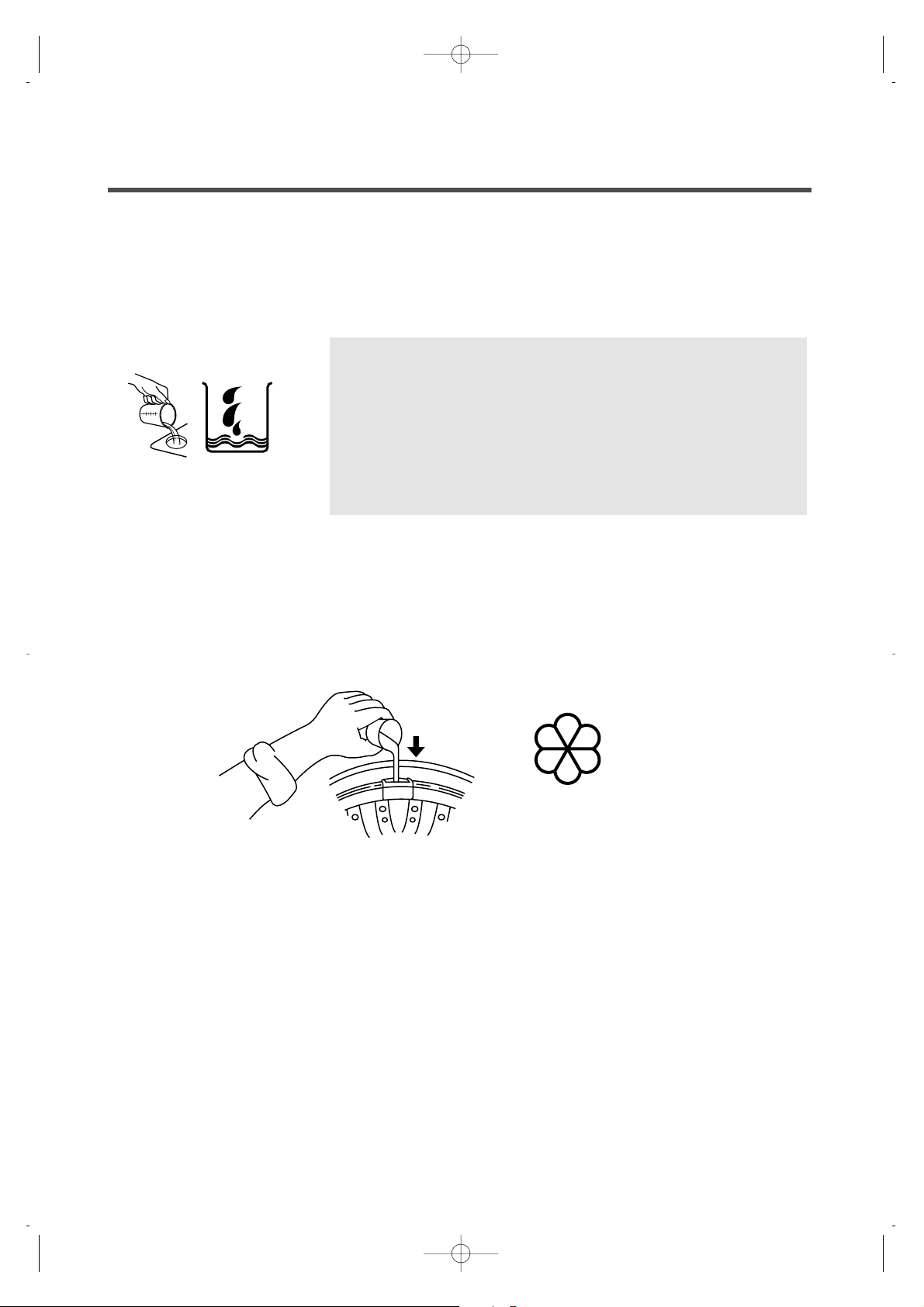

•SOFTENER INLET

•BLEACH INLET

• CONTROL PANEL

• POWER SWITCH

•PULSATOR

•ADJUSTABLE LEG

ACCESSORIES

• COLD WATER TAP

After using the washer, close the water tap

• DETERGENT CASE

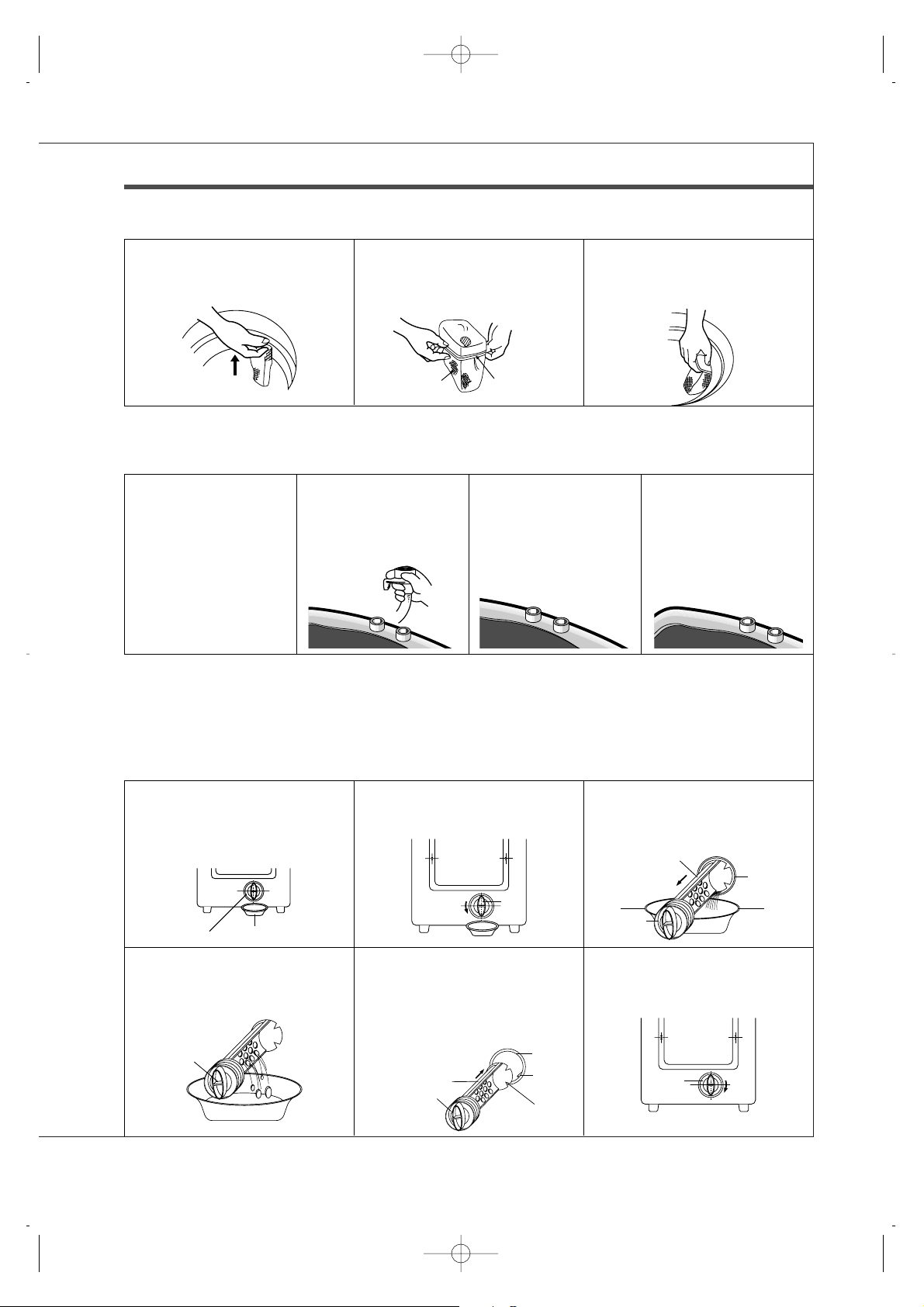

• LINT FILTER

• GROUND WIRE In case of 3-wire power cord, ground wire will not be

provided

• POWER CORD

• HOSE DRAIN

DRYTEN (OPTION)	COVER UNDER (OPTION)	WATER TAP ADAPTER	INLET HOSE
DRYTEN
	UP
HOSE DRAIN (FOR PUMP)	HOSE DRAIN CLAMP	HOSE DRAIN (FOR NON-PUMP)	CONNECTOR INLET(OPTION)

WASHER SAFETY

Save these instructions

Your safety is important to us.

To reduce the risk of fire, electrical shock, or injury when using your washer, follow basic precautions including the following:

Read all instructions before using your washer

•Flammable fluids (dry-cleaning solvents, kerosene, gasoline, etc.) should not be used or stored in or near your washer. Do not add flammable fluids to your wash water.These substances give off vapors that can create a fire hazard or explosion.

•Do not allow children to operate, play with, or crawl on or inside your washer. Supervise children closely when your washer is used near them.

•After starting a cycle, do not reach into the spin basket unless all motion stops.

•Do not tamper with the controls.

Please ...

•Have only a qualified person install, repair, or replace parts on washer.

•Maintain washer properly.

•Protect washer from the weather and keep it where the temperature will not fall below freezing.

•Do not install the washer at a place of extremely high humidity. It could cause an Electrical shock or a short circuit.

•Connect washer to the correct outlet, electrical supply, water supply, and drain.

•Ground washer properly.

Understanding your responsibilities

•Do not wash items that are soiled with vegetable or cooking oil. These items may contain some oil after laundering.

Due to the remaining oil, the fabric may smoke or catch fire by itself.

•Do not use chlorine bleach and ammonia or acid (Such as vinegar or rust remover) in the same wash. Hazardous fumes can form.

•Unplug power supply cord before attempting to service your washer.

•Do not wash fiberglass materials.

Small particles can stick to fabrics and cause skin irritation.

•Do not use hot water that temperature is over 50°C (120°F). It can cause a deformation of plastic parts.

•Do not spray water on the control panel and back cover of the washer. It can cause a fire or an electric shock.

INSTALLATION INSTRUCTIONS

Location of washer

Check location where washer will be installed. Make sure you have everything necessary for correct installation.

Proper installation is your responsibility.

•Do not place or store your washer below 0 °C (32°F) to avoid any damage from freezing.

•Install the washer on the horizontal solid floor.

DOWN

If the washer is installed on an unsuitable floor, it could make considerable noise, vibrate and cause a malfunction. If washer is not level, adjust the front leg(A) up or down for horizontal setting.

•Earthed electrical outlet(B) is required with 20cm of bottom back of washer cabinet.

•Hot and cold water faucets (C) must be within 1M of the upper back of the washer cabinet and provide water pressure 0.3kgf/cm 2-8kgf/cm 2 (2.94N/cm 2-78.4cm2).

Drain system

Never forget to install drain hose before operating your washer.

The packing box is opened, there are a drain hose, and a hose clamp in the washer.

Non-Pump Model	Pump Model

• Connect the drain hose to the drain outlet	• Connect the drain hose to the drain outlet
at the back side of the washer, and fasten	at the back side of the washing machine,
it tightly with the clamp attached.	and fasten it tightly with the clamp
	supplied.

Hose clamp Drain hose

Drain Outlet

Drain hose

Hose Clamp

NOTES

•The opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.

` 5

Non-Pump Model

1In case that it goes over a door sill.

Don’t let the height of the drain hose exceed 20cm from the bottom of washer.

20Cm

2In case of extending the drain hose.

Don’t let the total length exceed 3m.

3Be careful that the end of the drain hose is not immersed in water.

Pump Model

Laundry tub drain system	Standpipe drain system
• Top of tub must be at least 86cm	• Needs a 3cm minimum diameter
(34inches) high and no higher than 130cm	standpipe with minimum carry away
from bottom of washer (A)	capacity of 30liters per minute.
	• Top of tub must be at least 86cm
	(34inches) high and no higher than 130cm
	from bottom of washer (B)
A
	B

ELECTRICAL REQUIREMENTS

	WARNING	electrical shock hazard:failure to follow these instructions could result in
	WARNING	death or serious injury.
		death or serious injury.

•Electrical earth is required on this washer

•If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

•Don’t earth to a gas pipe

•Don’t change the power supply cord plug.

•Check with a qualified electrician if you are not sure the washer is properly earthed.

Recommended earthing method

For your personal safety, this washer must be earthed.

This washer is equipped with a power supply cord (A) having a earthing plug (B). To minimize possible shock hazard, the cord must be plugged into a mating earthing-type wall receptacle (C).

If a mating wall receptacle is not available, it is the personal responsibility and obligation of the customer to have the proper earthed wall receptacle installed by a qualified electrician.
