Daewoo DWD-MK121KK User Manual [nl]

Daewoo Model DWD-MH121KK

60 cm 6 kg Freestanding

Washing Machine

USER MANUAL FOR YOUR

Customer Helpline Number : 0844 887 2525

Spare Parts : 0844 557 0290 or www.4daewoo.co.uk / DAEWOO ELECTRONICS Web Site www.daewooelectronics.co.uk

DWD-MH121KK_영국향.indd 1 2013-07-16 오후 4:37:16

1

■

Economic washing system

The washing machine determines the water level and washing
time automatically by sensing the amount of laundry and water
temperature in order to minimize energy and water consumption.

■

Low noise system

The washing machine minimizes the spinning noise level by sensing
the amount of unbalance of laundry.

Washing Machine Instruction Manual

DWD-MH121KK

INSTRUCTION MANUAL

CONTENTS Page

PARTS AND FEATURES ..................................................................................................................2

SAFETY NOTICES ............................................................................................................................3

INSTALLATION ..................................................................................................................................5

THE FUNCTIONS OF THE CONTROL PANEL ................................................................................8

HOW TO USE WASHER ..................................................................................................................10

CLEANNESS ....................................................................................................................................13

POOR WASH RESULTS ..................................................................................................................15

STAIN REMOVAL GUIDE .................................................................................................................16

GENEAL TROUBLE SHOOTINGS ...................................................................................................17

TROUBLESHOOTING GUIDE .........................................................................................................18

SPECIFICATION ...............................................................................................................................19

A NOTE TO YOU

Thank you for buying a DAEWOO appliance.
DAEWOO washers are easy to use, save time, and help you manage your home better.
This manual contains valuable information about how to operate and maintain your washer properly and safely.
Please read it carefully.

DWD-MH121KK_영국향.indd 2 2013-07-16 오후 4:37:16

2

PARTS AND FEATURES

NOTE :

Unscrew the drain pump lter to let water run out when the machine is not used for a long time.

NOTE :

The drawing of machine in the manual is only used for instruction.
It may be vary from the model you buy.

Connection Cable

Hot water inlet valve

cold water inlet valve

Transit bolts

Back cover

Drawer
(for detergent or
fabric softener)

Door glass

Lower cover

Drain pump lter

Top cover

Knob

Case body

Door seal

Drain hose

Adjustable feet

Control panel

DWD-MH1211_영국향.indd 3 2013-07-04 오후 5:26:36

3

SAFETY NOTICES

Technical safety

● Before setting up the washing machine, check it for any externally visible

damage. Do not install or use a damaged washing machine.

● Before connecting the washing machine, ensure that the connection data

on the data plate (voltage and current) match the electricity supply. If in

any doubt, consult a qualied electrician.

● The electrical safety of this washing machine can only be guaranteed

when continuity is complete between it and an effective earthing system
which complies with current local and national safety regulations. It is
most important that this basic safety requirement is present and regularly
tested, and where there is any doubt the household wiring system should

be inspected by a qualied electrician. The manufacturer cannot be held liable for the consequences of

an inadequate earthing system.

● Do not connect the washing machine to the mains electricity supply by an extension lead. Extension

leads do not guarantee the required safety of the appliance.

● Unauthorized repairs could result in unforeseen dangers for the user, for which manufacturer cannot

accept liability. Repairs should only be undertaken by an approved service technician. Ensure current is
not supplied to the machine until after maintenance or repair work has been carried out.

● If the connection cable is damaged or broken it must only be replaced by an approved service technician

to protect the user from danger.

● Faulty components must only be replaced by genuine manufacturer original spare parts. Only when
these parts are tted can the safety standards of the machine be guaranteed.

WARNING :

Read and understand thoroughly these safety instructions before use. The items indicated here are
very important safety precautions, which must be followed. We cannot be held liable for damage
caused by non-compliance with the warning and safety instructions or resulting from incorrect use or
operation.

This washing machine is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised whilst

using it or have been shown how to use it by a person responsible for their safety.

NOTE :

THIS WASHING MACHINE MUST BE EARTHED.

DWD-MH1211_영국향.indd 4 2013-07-04 오후 5:26:37

4

Correct use

● To avoid the risk of personal injury or damage to the washing machine,

do not install it in place where it is damp and where it suffers from
rainfall.

● Do not install the washing machine in place where it suffers from the

sun directly, in which plastic or components will be damaged. It will be
shortened the life of your washing machine.

● Do not install the washing machine in place where temperatures below

freezing may occur. Frozen hoses may burst or split. The reliability
of the electronic control unit may be impaired at temperatures below
freezing point.

● Do not shoot the washing machine with water when you clean it.

● Keep the washing machine away from fire or heat sources.

● Before using the washing machine for the first time, check that the transit bolts at the rear of the

machine have been removed. During spinning, transit bolts which is still in place may result in damage
to both the machine and adjacent furniture or appliances.

● Turn off the tap if the machine is to be left for any length of time (e.g. holiday), especially if there is no

floor drain (gully) in the immediate vicinity.

● Take care to ensure that foreign objects (e.g. nails, pins, coins, paper clips) do not find their way into the

machine with the laundry. These may damage components of the machine (e.g. drum), which in turn
can result in damage to the laundry.

● Do not wash water-repellent things(e.g. raincoats) with washing machine.

● Only remove laundry from the washing machine once the drum has stopped turning. Reaching into a
moving drum is extremely dangerous and could result in injury.

Safety with children

● Keep children away from the washing machine at all times. To avoid

the risk of injury do not allow children to play on or near it or to play
with its controls. Supervise children whilst you are using it.

● Older children may only use the washing machine if its operation
has been clearly explained to them and they are able to use it safely,

recognising the dangers of misuse.

● For machines with a ‘porthole’ door, remember that the porthole

glass will be hot when washing at very high temperatures. Do not let
children touch it.

DWD-MH1211_영국향.indd 5 2013-07-04 오후 5:26:37

5

INSTALLATION

Packaging

● Remove all the packing (including the foam base) or the

vibration and noise may occur.

● Dispose all the wrappage safely and keep them out of the

reach of children. Danger of suffocation!

● It is normal that water drops appear on the packing plastic

bag and the door glass, which are resulted from the water left
in the tub for checking out.

Accessories

● Make sure that you have received all of the items shown below.

Accessories Name Qty. Accessories Name Qty.

Inlet hose 1 “U” piece 1

Transit bolts caps

4

Manual 1

Removing transit bolt

● Remove all the transit bolts at the back of the machine with tools.

● Plug the holes with the transit bolts caps supplied.

● Keep the transit bolts for future transportation. Whenever the

machine is transported, the transit bolts must be refitted.

NOTE :

Strong vibration,noise or failures may occur if the
transit bolts are not removed.

Transit bolts

DWD-MH1211_영국향.indd 6 2013-07-04 오후 5:26:39

6

Installation place requirement

● A concrete oor is the most suitable installation surface for a

washing machine, being far less prone to vibration during the

spin cycle than wooden oorboards or a carpeted surface.

● The machine must be level and securely positioned. The

distance between the machine and wall must be more than 10
cm.

● To avoid vibrations during spinning, the machine should not be
installed on soft oor coverings.

10cm

10cm

Level adjustment

The machine must stand perfectly level on all four feet to ensure safe and proper operation. Incorrect
installation may increase electricity and water consumption and may cause the machine to move about.
To do these when the machine is not level:

● Using the spanner turn locknut in a clockwise

direction. Then turn locknuts together with adjust
feet to unscrew.

● Use a spirit level to check the machine is standing

level.

● Hold adjust feet securely with a pipe wrench. Turn
locknut again using the spanner until it sits rmly up

against the housing.

Locknuts

Adjustable feet

Loose

Locked

High

Low

NOTE :

Vibration and noise may occur if the locknuts do not sit rmly up against the houses.

Drain hose connection

1. Direct into a sink

If the outlet spigot has not been used before, remove any blanking plug that may be in place.
Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the
drain hose to prevent waste from the sink entering the washing machine.

If required, the drain hose can be extended to a length of 4 m.

Loop

DWD-MH1211_영국향.indd 7 2013-07-04 오후 5:26:40

7

2. Connected securely to a standpipe.

Firstly form a hook in the end of the drain hose using the “U” piece” supplied.

Place the drain hose into your standpipe, which should have an internal diameter of approximately

38mm thus ensuring there is an air break between the drain hose and standpipe. When discharging into
a standpipe ensure that the top of the standpipe is no more than 90cm and no less than 60cm above

oor level.

“U” piece

supplied

30cm

60cm

90cm

inlet valve for hot water with a red grid

inlet valve for cold water

inlet hose for cold water with a white nut

inlet hose for hot water with a red nut

Water inlet connection

Connect the inlet hose supplied with the machine to a tap with a 3/4” thread.

Do not use previously employed hoses.

Installation should comply with local water authority and building regulations’ requirements.

When there is a inlet valve at the back of the machine, it must be connected to a cold water supply. If
there are two inlet valve, one is connected to a cold water supply and the other is connected to a hot water
supply. Follow the indication of the picture below to complete the connection.

NOTE :

The above diagram is only applicable to models that have hot and cold feeds.

DWD-MH1211_영국향.indd 8 2013-07-04 오후 5:26:42

8

T H E F U N C T I O N S O F T H E C O N T R O L P A N E L

1. Knob

Turn this knob clockwise or anticlockwise to select a required wash program. The available programs
are Synthetic, Wool, Delicate, Sterilization, Cotton, Standard, Quick Wash and Spin. Once the “Start/
Pause” button is pressed and the machine is running, the program can not be changed. The details of
programs are on page 9.

2.Temp.

Press this button and select a required wash temperature. The details are on page 9. When all the lights
of temperature are off, the wash temperature is “Cold”.

3. Start/Pause

Press this button to start or pause the machine. The LED of “Start/Pause” ickers when the machine is

in standby mode or pauses, and it is lighted when running.

4.Power

Press this button to switch the machine on or off.

Important : Be sure to switch the machine off at the end of a wash cycle.

PROGRAMME

NOTE :

‘ Standard Cotton

’ is for Standard Cotton program. Standard Cotton at 60 °C and 40 °C are

suitable to clean normally soiled cotton laundry and they are the most efcient programs in terms of

combined energy and water consumptions for washing that type of cotton laundry; in addition, the
actual water temperature may differ from the declared cycle temperature.

DWD-MH1211_영국향.indd 9 2013-07-04 오후 5:26:43

9

T H E F U N C T I O N S O F T H E C O N T R O L P A N E L

Program

Time
(min)

Temp.(℃) Rinse times

Spin speed

(rpm)

MAX. Load (kg)

Cotton 85 Cold/20/40/60 2 1200 6

Standard
Cotton

108 Cold/20/40/60 2 1200 6

Quick Wash 16 Cold/20/40 2 1200 1.5

Spin 13 -- 0 1200 6

Sterilization 138 90 2 1200 3.5

Delicate 50 Cold/20/40 2 400 2

Wool 58 Cold/20/40 2 600 1.5

Synthetic 59 Cold/20/40/60 2 800 3.5

NOTE :

The running time above is for the default programs, which is only for reference, and it may different
because of different laundries, weights and washing temperature. The default options of the programs
are in boldface.

DWD-MH1211_영국향.indd 10 2013-07-04 오후 5:26:43

10

H O W T O U S E WA S H E R

Before washing clothes for the rst time, you must run a complete cycle without clothes.

To do these:

1. Connect the power and turn on the tap.

2. Press the “Power’ button, then turn the knob to position “Cotton”.

3. Press “start/pause”.

It can remove the water which is left in the tub because of manufacturer’s testing.

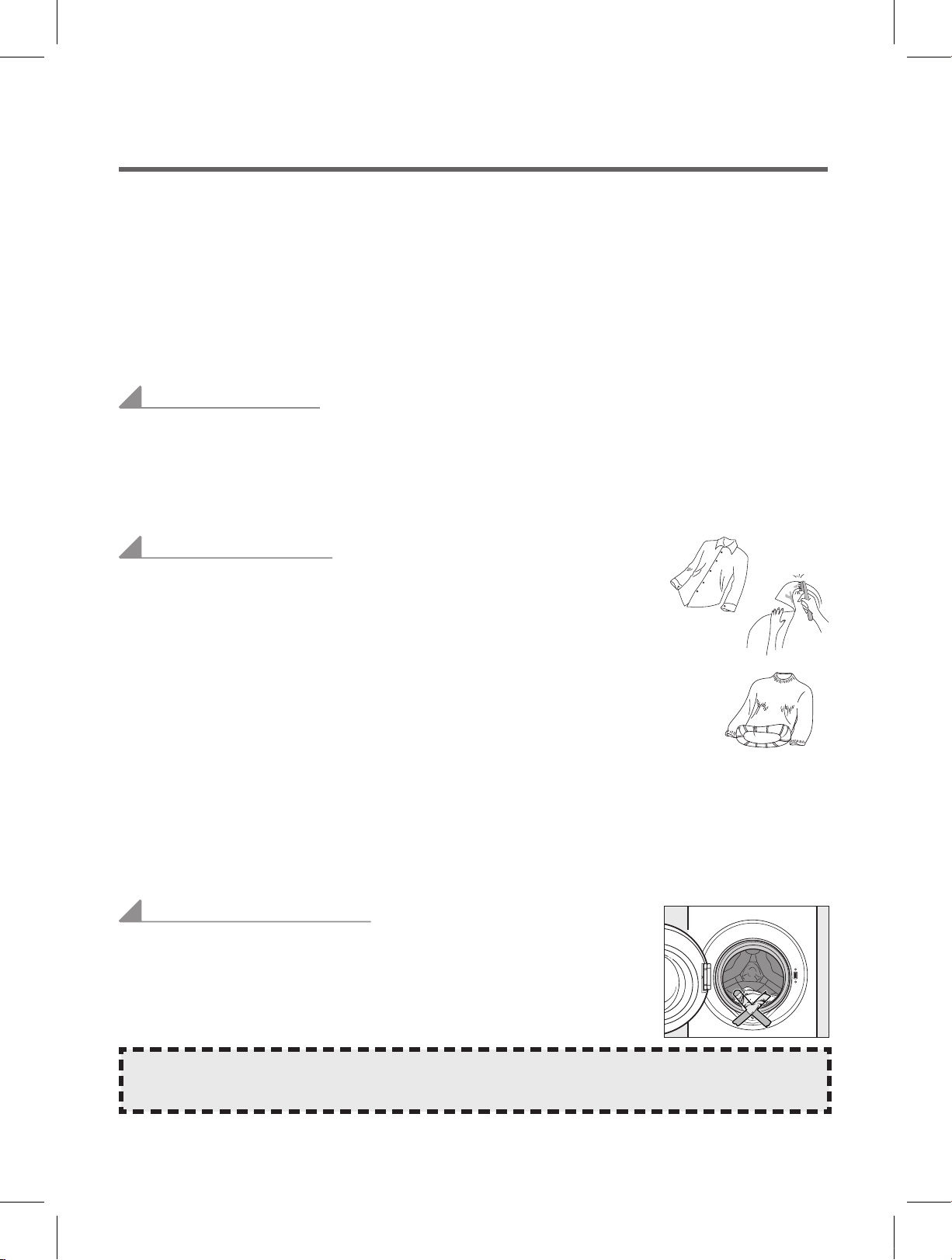

Washing preparation

1. Connect the inlet hoses well and turn on the tap.

2. After making sure the power socket is qrounded reliably, insert the power socket.

3. Place the drain hose well.

Preparation of clothes

1. Sort the laundry by colour and by care label. Most garments have a textile

care label in the collar or side seam.

2. Make sure all the pockets are empty, Foreign objects (e.g. nails, coins,

paper clips, etc.) can cause damage to garments and components in the
machine.

3. Close any zips, fasten hooks and eyes etc before washing.

4. Small delicate item (tights, baby socks) should be placed in a washing bag

or zipped pillow case.

5. Dark textiles often contain excess dye and should be washed separately

several times before being included in a mixed load. Always wash whites and coloureds separately.

6. Badly soiled areas, stains etc. should be pre-treated with liquid detergent, stain removers etc.

7. Turn over the clothes which pill easily and is with woolen surface before putting them into the machine.

Diagram 1

Diagram 2

Diagram 3

Put clothes into the washer

Unfold the laundry and load loosely in the drum. Mixing both large and small

items gives better wash results and also helps distribute the load evenly

during spinning. The most efcient use of energy and water is achieved

when a full load is washed. However, do not overload as this causes

creases and reduces cleaning efciency.

NOTE :

Make sure that no garments are caught between the door and the seal.

DWD-MH1211_영국향.indd 11 2013-07-04 오후 5:26:43

11

Using the detergent drawer

1. Open the drawer and add adequate detergent into main wash compartment marked “ ” or “ ”.

2. Add the fabric softener into compartment marked “ ” or “ ”. Do not exceed the maximum level mark.

It does not benet the appliance or improve performance.

3. Add the detergent into the pre-wash compartment marked “ ” or “ ” according to the programme you

select.

4. Close the drawer.

The right amount of detergent will depend on the following:

● The quantity of laundry

● The soiling level of the laundry

- Lightly soiled
No visible dirt or stains. Possibly slight body odour.

- Normally soiled
Visibly dirty and/or just a few slight stains.

- Heavily soiled
Visible dirt and stains and/or dried on soiling.

● The water hardness level.

Main wash compartment

Fabric softener compartment

Pre-wash compartment

NOTE :

It is recommended to use low foaming
powder.

Washing steps

1.Turn on the water tap, and connect the power.

2.Open the door, and put the cloth into the drum one by one.

3. Close the door, and put suitable amount of detergent and fabric softener into the dispenser, then close
the drawer.

4.Press the “Power” button, and choose a programme you need by turning the knob .

5.Press the “Temp.” button and select a wash temperature.

6.Press “ Start/Pause” button to start the washing machine.

7.When the cycle is nished, there is a warning tone sounds.

Important:
The rated voltage and frequency are 220-240V AC and 50Hz.
Please ensure the connection data quoted on the data plate match the household mains supply.

NOTE :

When washing cycle is nished, the machine will change into a standby mode.

And the power will be off after 10 minutes without any control on the control panel.

DWD-MH1211_영국향.indd 12 2013-07-04 오후 5:26:44

12

Programme Washing symbol Fabric

Cotton

Cottons, linens or cotton mix fabrics, e.g. table linen,

towelling, underwear, T-shirts etc.

Quick Wash

Small loads of items which require freshening up and which
can be washed in a Cotton programme.

Spin Separate spin for cotton and linen items

Standard Cotton

Cottons, linens or cotton mix fabrics, e.g. table linen,

towelling, underwear, T-shirts etc.

Synthetic

Synthetic or mixed fabrics, underwear, coloured garments,

non-shrink shirts.

Wool

Machine-washable or hand-washable wool or wool blend
fabrics. If the care label does not specify a temperature,
wash using the cold setting. Also suitable for hand-washable
silks. Reduce the spin speed.

Delicate

For delicate garments made of synthetic bres, mixed bres,

rayon and easy care cottons. Also suitable for
machine-washable silks.

Door lock

• When the machine is started, the door lock is locked though you press the “Start/Pause” button.

Press the “power” button to switch off the machine and the door lock is unlocked in two minutes.

• When the temperature inside the drum is above 53℃, the door lock is locked.

• When the water is above a certain level, the door lock is locked.

• When the washing cycle is nished, the door lock is unlocked after two minutes.

Important:

Do not try to open the door when the washing cycle is not nished or power supply is cut off during the
washing cycle, because the temperature may be high and you may be scalded.

NOTE :

The machine is tted with a balance control device, which ensures the machine is stable during the

spin. To protect the machine, it will cut in if the laundry is not evenly distributed in the drum. The
laundry is redistributed by reverse rotation of the drum. This may happen several times before the
unbalance disappears and normal spinning can resume. If, after 15 minutes, the laundry is still not
evenly distributed in the drum, the machine will not spin. In this case, redistributed the load manually
and reselect the spin programme.

DWD-MH1211_영국향.indd 13 2013-07-04 오후 5:26:44

13

C L E A N L I N E S S

Disconnect the machine from the mains electricity supply and withdraw the plug from the socket before
cleaning the machine.

The washing machine must not be hosed down.

Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents.

These might damage plastic surfaces and other components because of the chemicals
theycontain.

Cleaning the exterior

Clean the exterior with a mild non-abrasive cleaning agent or soap and water using a well wrung-out cloth.

Wipe dry with a soft cloth.

The washing drum

Clean the drum every 3 months by using the “Sterilization” programme.

Cleaning the drawer

Remove detergent residues regularly. Clear the drawer following these:

● Pull out the drawer until a resistance is felt. Press down the release catch and at the same time pull the

drawer right out of the machine.

● Remove the siphon from compartment and clean it.

● Clean the dispenser using a brush and warm water.

DWD-MH1211_영국향.indd 14 2013-07-04 오후 5:26:44

14

Cleaning the drawer housing

Use a bottle brush to remove detergent residues inside the drawer housing.

Cleaning the water inlet lter

Use pointed nose pliers to withdraw the plastic lter. Clean, put back and secure.
These lter should be checked every 6 months or so, or more often if there are

frequent interruptions to the water supply.

NOTE :

The lter must be put back in place after cleaning.

Important:

If the machine is exposed to temperatures below 0°C, certain precautions should be taken.

1. Turn off the water tap.

2. Unscrew the inlet hose.

3. Unhook the drain hose from the rear support and position the end of this hose and that of the inlet hose in

a bowl. Run the spin programme.

4. Disconnect the appliance.

5. Screw the inlet hose and reposition the drain hose.

6. When you intend to start the machine up again, make sure that the room temperature is above 0°C.

Cleaning the drain pump lter

1. Disconnect the machine from

the mains electricity supply and
open the pump cover with a
screwdriver.

2. Place a container under the
pump. Unscrew and remove

the lter.

3. Clean the lter carefully.

NOTE :

The lter should be cleaned every 2 months or so, or when there is fault that the “Rinse” and “Spin”
LEDs icker.

DWD-MH1211_영국향.indd 15 2013-07-04 오후 5:26:45

15

P O O R W A S H R E S U L T S

My garments are looking grey and there are limescale deposits present in
the drum of my washing machine.

● There is not enough detergent being added.

● The incorrect detergent is being used.

● Stains are not being pre-treated.

● The correct wash program or wash temperature was not selected.

I have followed the advice given above, but my garments are still coming out

with grey stains on them.

● The garments are soiled with oils, ointments or grease and were washed without enough detergent.

● The wash temperature selected was too low.

● Fabric conditioner has come into contact with the garments. If this happens try to wash out these stains

as quickly as you can and try to avoid getting conditioner on the garments in future.

After the final rinse, I can still see foam.

● Modern detergents can result in there still being foam in the final rinse, this does not mean that the

washing is not being rinsed properly.

There is white residue on my garments when I remove them from the
appliance.

● Modern detergents can contain insoluble contents; white residue after a wash cycle is not necessarily a

sign of the garments being insufficiently rinsed by the washing machine.

● You should shake out the garment or brush it off. In future possibly turn the garment inside out before it

is washed. You may wish to move from a powder detergent and switch to a liquid detergent instead.

DWD-MH1211_영국향.indd 16 2013-07-04 오후 5:26:45

16

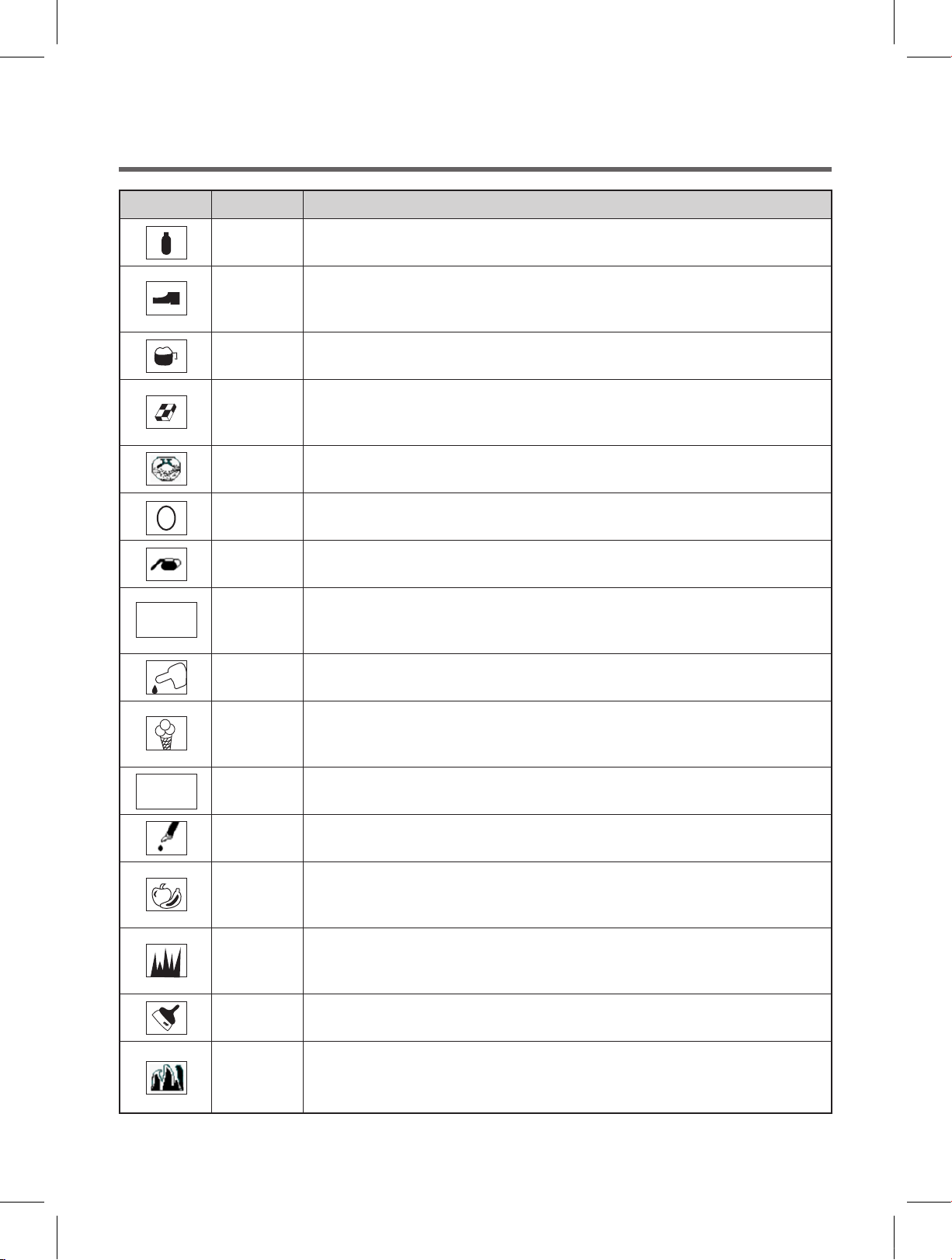

S T A I N R E M O V A L G U I D E

Stain Removal Method

Alcoholic
beverages

The stain should be rst washed with cold water, then wiped with glycerine and water and rinsed
with water mixed with vinegar.

Shoe polish The stain should be softly scratched without ruining the material, then rubbed with detergent and

rinsed. In case it is not eliminated, rub with 1 unit of pure alcohol (96 degrees) mixed in 2 units of

water and then washed with lukewarm water.

Tea and coffee Stretch the stained area of material on the top of a container and pour water as hot as the material

can endure on it. If the type of material is suitable, wash it with lye.

Chocolate and
cocoa

Leave your clothes in cold water and rub with soap or detergent, wash it in the highest temperature

that the material type can endure. If there is still a stain of oil left, wipe with oxygenated water (in

proportion of 3%).

Tomato paste Scrape the dried pieces without ruining the material, then leave in cold water for about 30 minutes

and wash by rubbing with detergent.

Meat broth/
egg

Eliminate the dried stain residues and wipe with a sponge or soft cloth wetted in cold water. Rub
with detergent and wash with diluted lye.

Grease and oil
stains

First wipe the residues. Rub the stain with detergent and then wash with lukewarm soapy water.

Mustard First apply glycerine to the stained area. Rub with detergent and then wash. If the stain still does

not disappear, wipe with alcohol (on synthetic and coloured cloth, a mixture of 1 unit alcohol, 2 units

water should be used).

Blood stain Lay your clothes in cold water for 30 minutes. If the stain still does not disappear, lay in mixture of

water and ammonia (3 table-spoons of ammonia in 4 litres of water) for 30 minutes.

Cream, ice­cream and milk

Lay your clothes in cold water and rub the stained area with detergent. If the stain has still not
disappeared, apply lye on the fabric of your clothes in proper proportion. (Do not use lye on coloured
clothes).

Mould Mould stains should be cleaned as soon as possible. The stain should be washed with detergent,

and if it does not disappear, it should be wiped with oxygenated water (in proportion of 3%).

Ink Hold the stained area under cold water and wait until the inky water completely runs off. Then rub

with water diluted with lemon juice and detergent. Wait ve minutes and then wash.

Fruit Stretch the stained area of your clothes on the top part of a container and pour cold water on it. Do

not pour hot water on the stain. Wipe with cold water and apply glycerine. Wait for 1-2 hours and
rinse after wiping with a few drops of white vinegar.

Grass stain Rub the stained part with detergent. If the type of fabric is suitable for use of lye, wash it with lye.

Rub your woolen clothes with alcohol (for coloured one, a mixture of 1 unit pure alcohol and 2 units

of water).

Oil paint The stain should be eliminated before it dries by applying thinner on it. Then it should be rubbed

with detergent and washed.

Burnt stain If your fabric is suitable for use of lye, you can add lye into your washing water. For woolen fabric, a

cloth dampened in oxygenated water should be pressed on the stain and it should be ironed with a

dry cloth on it. It should be washed after rinsing well.

MUSTARD

MOULD

DWD-MH1211_영국향.indd 17 2013-07-04 오후 5:26:45

17

G E N E R A L T R O U B L E S H O O T I N G S

Problem Possible solutions

The washing machine does not
work.

● Close the washing machine’s door.

● Conrm and press the start button.

● The control panel might be locked – see the “Child lock” section and try unlocking the control panel.

Water leakage. ● Correctly connect the inlet water pipe.

The spin of the clothes is
abnormal.

● Reload and distribute the laundry evenly in the drum.

There is a peculiar smell in the
washing machine.

● Run a “Cotton 90°C” cycle without any clothes.

No water is visible in the drum. ● No fault. The water is under the visible area.

There is remaining water in the
softener compartment.

● No fault. The effect of the softener will not be affected.

The remaining detergent is left
on the clothes.

● The water-fast component of the non-phosphorus detergent left on the clothes will cause lime scale. Select

the rinse and spin program or brush away the detergent when the clothes are dried.

The washing machine does not

ll.

● Open the water tap.

● Check the selection of the program.

● Check the water pressure to see if the water pressure is insufcient.

● Put through the feed-water.

● Close the machine’s door.

● Check if the inlet water pipe is bent or clocked.

Spinning starts late or the
machine does not spin.

● The imbalance control system has activated because the laundry is unevenly distributed in the drum,

● The appliance will redistribute the laundry by reversing the drum rotation. This may take several attempts

before the laundry is evenly distributed and normal spinning can resume.

● If the laundry is still not evenly distributed after 10 minutes, the machine will not spin. In the event of this,

redistribute the load manually and select the program again.

The washing machine lls and

empties at the same time.

● Make sure the end of the drainage pipe is higher than the water level in the machine.

● Check if the drainage pipe and sewage have been sealed. If they have been, there will be poor ventilation

which causes siphoning.

No drainage of the washing
machine.

● Check if the drainage pump is blocked.

● Check if the drainage pipe is bent or blocked.

● Check the height of the drainage nozzle and make sure it is 60-90cm from the bottom of the washing

machine.

Vibration of the washing
machine.

● Level the appliance.

● Fasten the footing.

● Check the transportation bolts have been removed.

The bubbles spill from the
detergent drawer.

● Check if the detergent use is excessive.

● Put one scoop of softener mixed with ½ litre of water into detergent compartment II.

● Reduce the usage amount of detergent in the next wash.

The machine stops when the

program has not nished.

● Power failure or water supply cut-off.

The drainage pump makes a
noise during operation when the
water has just been drained.

● The inner barrel water of the washing machine has been drained but there is still a small amount of water in

the drainage pump and pipe. The drainage pump continuously operates and takes in the air, and at this time
there is noise which is normal.

Machine stops for some time
during a cycle.

● The machine adds water automatically.

● There are too many bubbles in the tube so the machine is cleaning the tube.

DWD-MH1211_영국향.indd 18 2013-07-04 오후 5:26:45

18

T R O U B L E S H O O T I N G G U I D E

Problem Error Code Possible Cause Solutions

The machine

lls overtime.

“Spin” LED ickers. 1. The water tap is not open.

2. The drain hose is put down.

3. The water inlet valve is
damaged.

1. Open the water tap.

2. hook up the hose.

3. Change the water inlet
valve.

There is a Door
lock alarm.

“Rinse” LED ickers. 1. The door is not locked well.

2. garment is caught between
the door and the seal.

3. The door lock is damaged.

1. Lock the door well.

2. Put the garment into the
drum.

3. Change the door lock.

The machine
drains overtime.

“Rinse” and “Spin”

LEDs icker.

1. The drain hose is squashed
or kinked.

2. The drain pump lter is

block.

3. The drainage system pipes
are blocked.

1. Check the drain hose.

2. Clean the lter.

3. Check the drainage system
and clean it.

Water overows

the machine.
/ Water sensor
works abnormal.

“Washing” LED

ickers.

1. The water inlet valve is
damaged.

2. The connection between the
water sensor and wire is not
secure.

3. The water sensor is
damaged.

1. Change the water inlet.

2. Check the connection and
ensure it is secure.

3. Change the water sensor.

The motor does
not work.

“Washing” and “Spin”

LEDs icker.

1. The connection between the
motor and wire is not secure.

2. The motor is protected
because of over-heat.

3. The motor is damaged.

1. Check the connection and
ensure it is secure.

2. Check if the machine is
overloaded. Switch off the
machine, and retry when the
motor becomes cool.

3. Change the motor.

There is a
heating tube
fault.

“Washing” and

“Rinse” LEDs icker.

1. The connection between the
heating tube and wire is not
secure.

2. The heating tube is
damaged.

1. Check the connection and
ensure it is secure.

2. Change the heating tube.

There is a
temperature
sensor fault.

“Washing”, “Rinse”
and “Spin” LEDs

icker.

1. The connection between the
temperature sensor and wire
is not secure.

2. The temperature sensor is
damaged.

1. Check the connection and
ensure it is secure.

2. Change the temperature
sensor.

NOTE :

Technical repairs should only be undertaken by a suitably qualied person.

DWD-MH1211_영국향.indd 19 2013-07-04 오후 5:26:45

19

S P E C I F I C A T I O N

MODEL DWD-MH121KK

Power Source A.C 220~240V/50Hz

Power Consumption 2100W

Dimension (mm) 595 x 470 x 845 (W x D x H)

Maximum mass of textile (kg) 6 kg

Unit Weight (kg) 64(NET) / 68(GROSS)

Standard Water Consumption 43

ℓ

Operating Water Pressure 0.02MPA ~ 0.8MPa (0.2kgf/cm2 ~ 8kgf/cm2)

Power Of Off-Mode 0.1W

Power Of Left-On Mode 0.3W

NOTE :

Data can vary from the nominal values given depending on water pressure, water hardness, water

inlet temperature, room temperature, type and volume of load, uctuations in the electricity supply and
any extra options selected.

Symbol expalanation

V Volt ~ Alternating current

W Watt Hz Hertz

Safe test CE symbol

Environmental Protection

DWD-MH121KK_영국향.indd 20 2013-07-02 오전 10:00:42

20

DWD-MH1211_영국향.indd 21 2013-07-04 오후 5:26:46

21

PRODUCT FICHE

▪

Supplier : DAEWOO ELECTRONICS

▪

Model : DWD-MH121KK

▪

Capacity : 6.0 kg

▪

Energy eciency class : A+

▪

Energy consumption 174 kWh per year, based on 220 standard washing cycles for cotton

programmes at 60 °C and 40 °C at full and paral load, and the consumpon of the low-power
modes. Actual energy consumpon will depend on how the appliance is used.

▪

Energy consumpon : 0.78 kWh

▪

Power consumpon of the o-mode and of the le-on mode : 0.1/0.3 W

▪

Water consumption 9240 litres per year, based on 220 standard washing cycles for cotton

programmes at 60 °C and 40 °C at full and paral load. Actual water consumpon will depend

on how the appliance is used.

▪

Spin-drying eciency class B on a scale from G (least ecient) to A (most ecient)

▪

Maximum spin speed : 1200 rpm

▪

The ‘standard 60 °C coon programme’ and the ‘standard 40°C coon programme’ are the

standard washing programmes to which the information in the label and the fiche relates,

that these programmes are suitable to clean normally soiled coon laundry and that they are
the most ecient programmes in terms of combined energy and water consumpon.

▪

Programme me of the standard 60 °C coon programme : 189 minutes (or)

Programme me of the standard 40 °C coon programme : 179 minutes

▪

Duraon of the le-on mode (if the household washing machine is equipped with a power

management system) : 10 minutes

▪

Airborne acouscal noise emissions : 65/75 dB(A)

FREEPOST RSHU-HKUG-ZBRU

HOME APPLIANCE GUARD

4TH FLOOR KINGSLAND HOUSE

21 HINTON ROAD

BOURNEMOUTH - DORSET

BH1 2DE

Register your FREE Daewoo Electronics guarantee

HGD2YR (4)

WƌŽƵĚůLJ^ƵƉƉŽƌƟŶŐ

DWD-MH121KK_영국향.indd 22 2013-07-16 오후 4:37:24

22

FREEPOST RSHU-HKUG-ZBRU

HOME APPLIANCE GUARD

4TH FLOOR KINGSLAND HOUSE

21 HINTON ROAD

BOURNEMOUTH - DORSET

BH1 2DE

Register your FREE Daewoo Electronics guarantee

HGD2YR (4)

WƌŽƵĚůLJ^ƵƉƉŽƌƟŶŐ

DWD-MH121KK_영국향.indd 23 2013-07-16 오후 4:37:25

23

moisten here

Simply complete this form to register

your FREE guarantee

In order to register your free 2 year guarantee, please complete all sections below,

detach form, fold, seal and return it to the FREEPOST address. Alternatively, visit

www.registermenow.co.uk/daewoo to register or call FREE on 0808 165 2525

quoting HGD2YR.

Your details:

(please complete in CAPITALS – don’t forget your postcode).

Title Initials Surname

House No. Address

Town Postcode

Home Tel No. Mobile Tel No.

Email Address

Product type

Washing Machine Refrigerator

Model e.g. FRSU20DCB (Mandatory)

Serial number (if known)

Purchase date (Required) Store & place of purchase e.g. Dixons Manchester

Daewoo Electronics Sales UK and Home Appliance Guard Limited (including their respective group and

companies) may wish to contact you about product services and offers that might be of interest to you. By

submitting your details you are consenting to receiving marketing communications by post, phone, email and

SMS. If you do not consent to this, please tick boxes to indicate which methods we cannot use to communicate

with you. Post Phone Email SMS

Marie Curie Cancer Care

We would like to forward your contact details to our charity partner, Marie Curie Cancer Care, so that they

can contact you by phone or post to update you occasionally on their work and fundraising activities. If you

do not want us to pass on your details for this purpose please tick here

Email is a cost effective way of keeping in touch. We would like to pass your email address to our charity

partner, Marie Curie Cancer Care, for the same purpose. If you are happy for us to pass your email address to

Marie Curie Cancer Care, please tick here

HGD2YR (6)

HGD2YR

moisten here

moisten here

moisten here

We are delighted that you have chosen Daewoo Electronics, and hope that
you are looking forward to many years of trouble-free service.

Your free 24 month guarantee provided by Daewoo Electronics means that your appliance will be repaired or replaced in the event of a fault
or problem. And the best part is that it won’t cost you a penny.

At Daewoo Electronics, we want to offer you the very best advice and customer care, that’s why we recommend registering your free
24 month guarantee.

The Benets

To register your 24 month guarantee call FREE on 0808 165 2525
quoting HGD2YR, visit www.registermenow.co.uk/daewoo

or complete and return the attached form.

Lines open Monday – Friday 9am – 6pm and Saturday / Bank Holidays 10am – 4pm. Calls may be recorded
for quality control and training purposes. Daewoo is a trading name of Daewoo Electronics Sales U.K. Limited.
Registered in England under registration number: 2815872. Registered ofce address: Daewoo Electronics
Sales U.K. Limited, 640 Wharfedale Road, Winnersh Triangle, Wokingham, Berkshire, England RG41 5TP.
Your FREE Daewoo guarantee is administered by Home Appliance Guard Limited,Kingsland House,21 Hinton
Road,Bournemouth,Dorset,BH1 2DE. (Registered in England no. 05927936).

This information can be supplied in large print, braille or audio on request.

Daewoo is supporting Marie Curie by committing to
raise at least £60,000, which will fund a Marie Curie
Nurse for three years.

Marie Curie Nurses work day and night to care for
people with terminal illnesses, free of charge.

To nd out more about Marie Curie’s work and
how you can get involved, whether by donating or
fundraising, visit mariecurie.org.uk/daewoo

Charity reg no. 207994 (England & Wales) SC038731 (Scotland)

1. New for old replacement

If your appliance cannot be repaired
because it is deemed beyond economic
repair it will be replaced at Daewoo’s
discretion on a like for like basis.

2. No repair bills

You will never have to worry about footing
the bill. When you present your Guarantee
Summary, the Daewoo approved technician
will not ask you for a penny.

3. Fast & reliable service

Computerised reporting systems ensure
fast, efcient service from the network
of Daewoo approved repair agents
or resident engineers.

DWD-MH121KK_영국향.indd 24 2013-07-16 오후 4:37:25
