Daewoo DV1040 User Manual

DV1040

User’s Guide

P/N : 97P95600N0-F8

Congratulations!

Congratulations on your purchase of this DV1030 DVD+VCR.We know you will enjoy this product for many years to come.In case service is required,please take a moment to write down your serial number located on the rear panel of the DVD+VCR:______________________________________

CAUTION

THIS PRODUCT UTILIZES A LASER.USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN THE COVER AND DO NOT REPAIRYOURSELF REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING

TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK OR PRODUCT DAMAGE,DO NOT EXPOSE THIS APPARATUS TO MOISTURE AND ENSURE THAT OBJECTS FILLED WITH LIQUIDS,SUCH AS VASES, SHALL BE PLACED AWAY FROM THE APPARATUS.

Macrovision Notice

U.S.Patent Nos.4,631,603;4,577,216;4,819,098; 4,907,093;and 6,516,132.

This product incorporates copyright protection technology that is protected by U.S.patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision,and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

FCC Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates,uses

and can radiate radio frequency energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be determined by turning

the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/ TV technician for help.

Laser Product Notice

1CLASS 1 LASER PRODUCT

2DANGER:Visible and invisible laser radiation

when open and interlock failed or defeated. Avoid direct exposure to beam.

3CAUTION:Do not open the top cover.There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

For DVD Players with 525p,but not 625p, progressive scan output

CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE.IN CASE OF 525 PROGRESSIVE SCAN PICTURE PROBLEMS,IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’OUTPUT.IF THERE ARE QUESTIONS REGARDINGYOUR TV SET COMPATIBILITY WITH THIS MODEL 525p DVD PLAYER,PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.

2DVD+VCR User’s Guide

Table of Contents

1 - Welcome

Unpacking / 7 Compatible Media / 7 Front Panel / 8

Front Panel Display / 9 Rear Panel / 10 Remote Control / 11

2 - Connections

BASIC

Antenna/Basic Cable

Connections / 13

Cable Box/Satellite Receiver

Connections / 14

Basic TV Connections / 15

ADVANCED

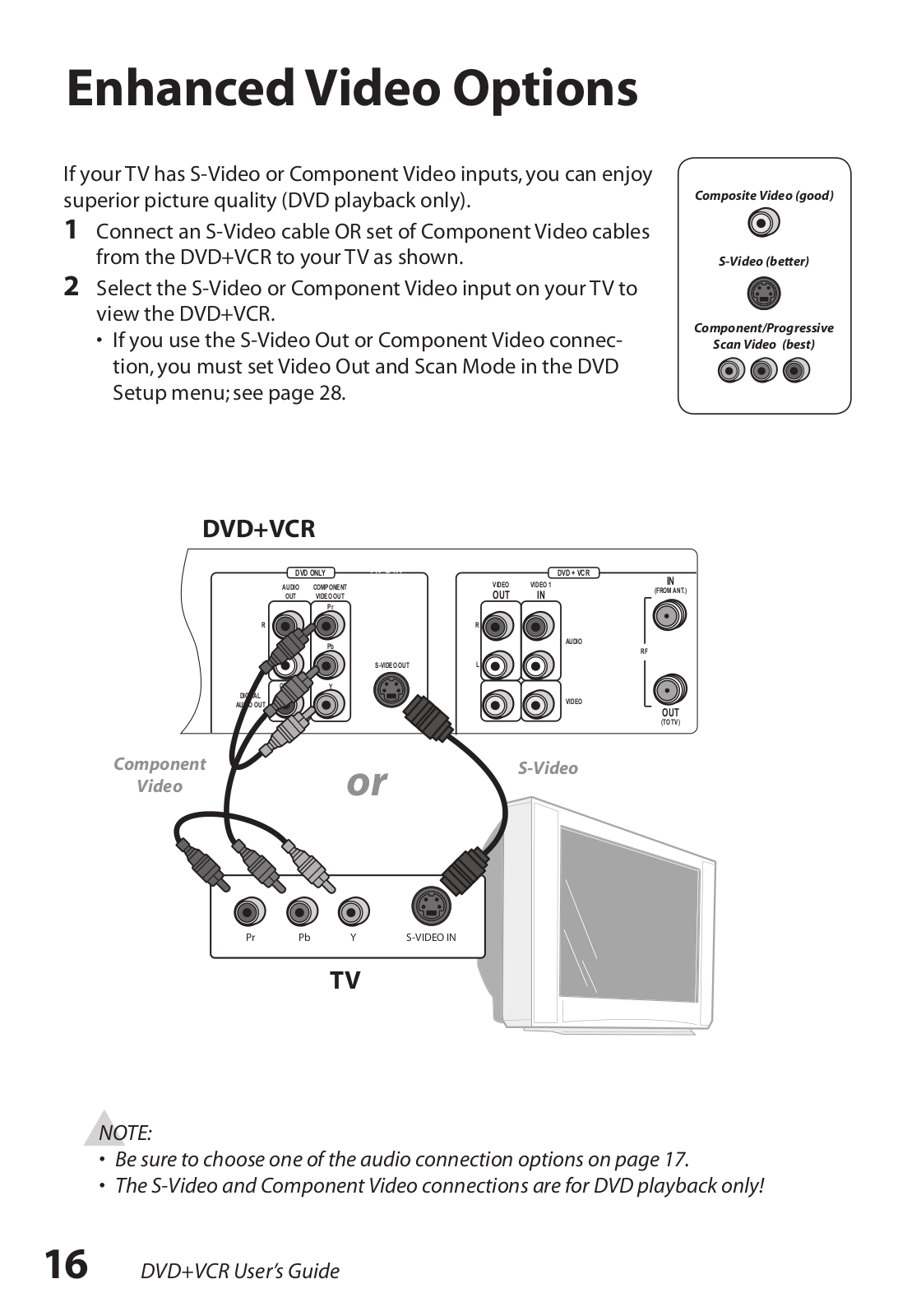

Enhanced Video Options / 16

Enhanced Audio Options / 17

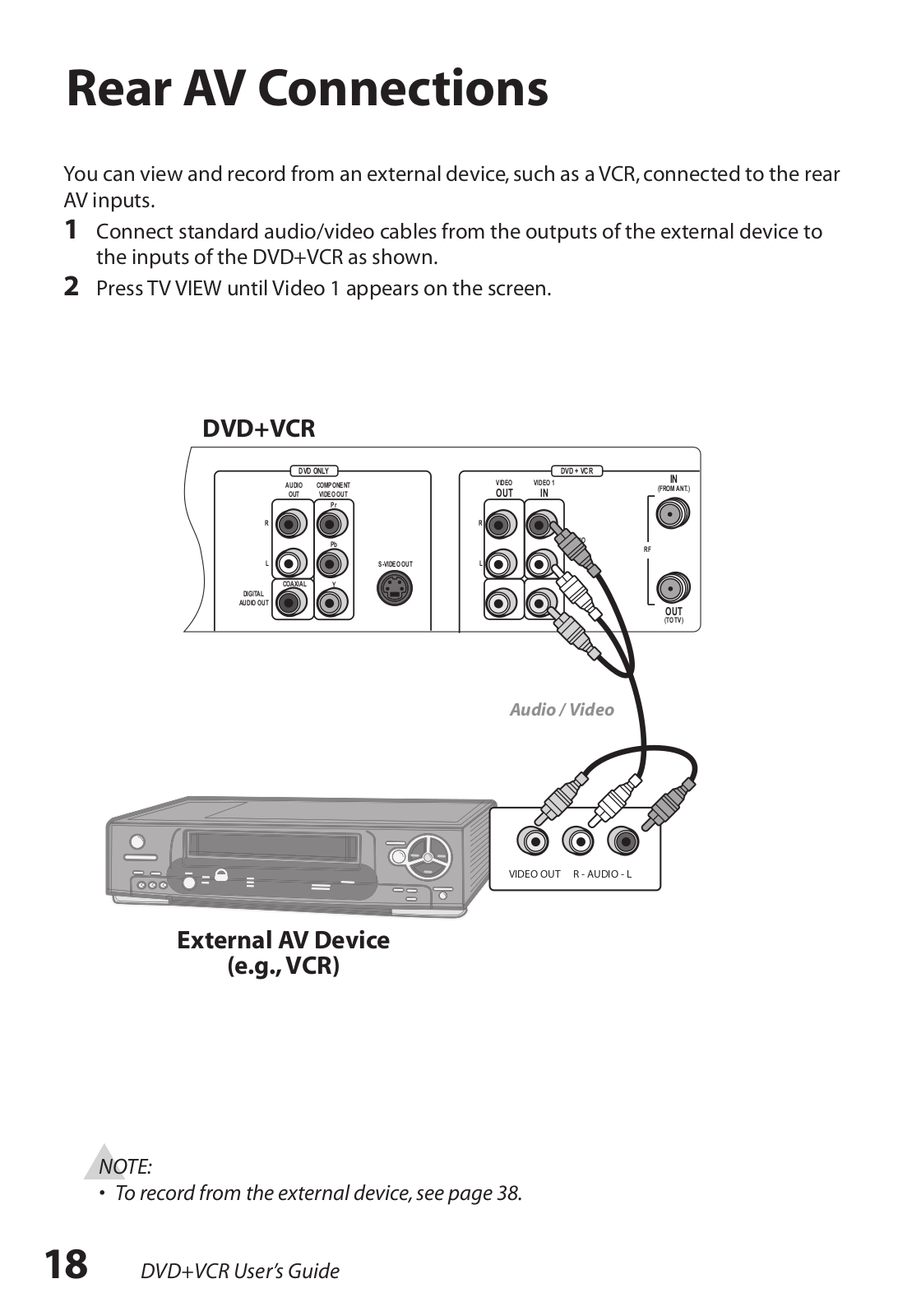

Rear AV Connections / 18

Front AV Connections / 19

3 - Setup

VCR

VCR Setup Menu Overview / 21

About VCR Menu Navigation / 21

Clock Settings / 22

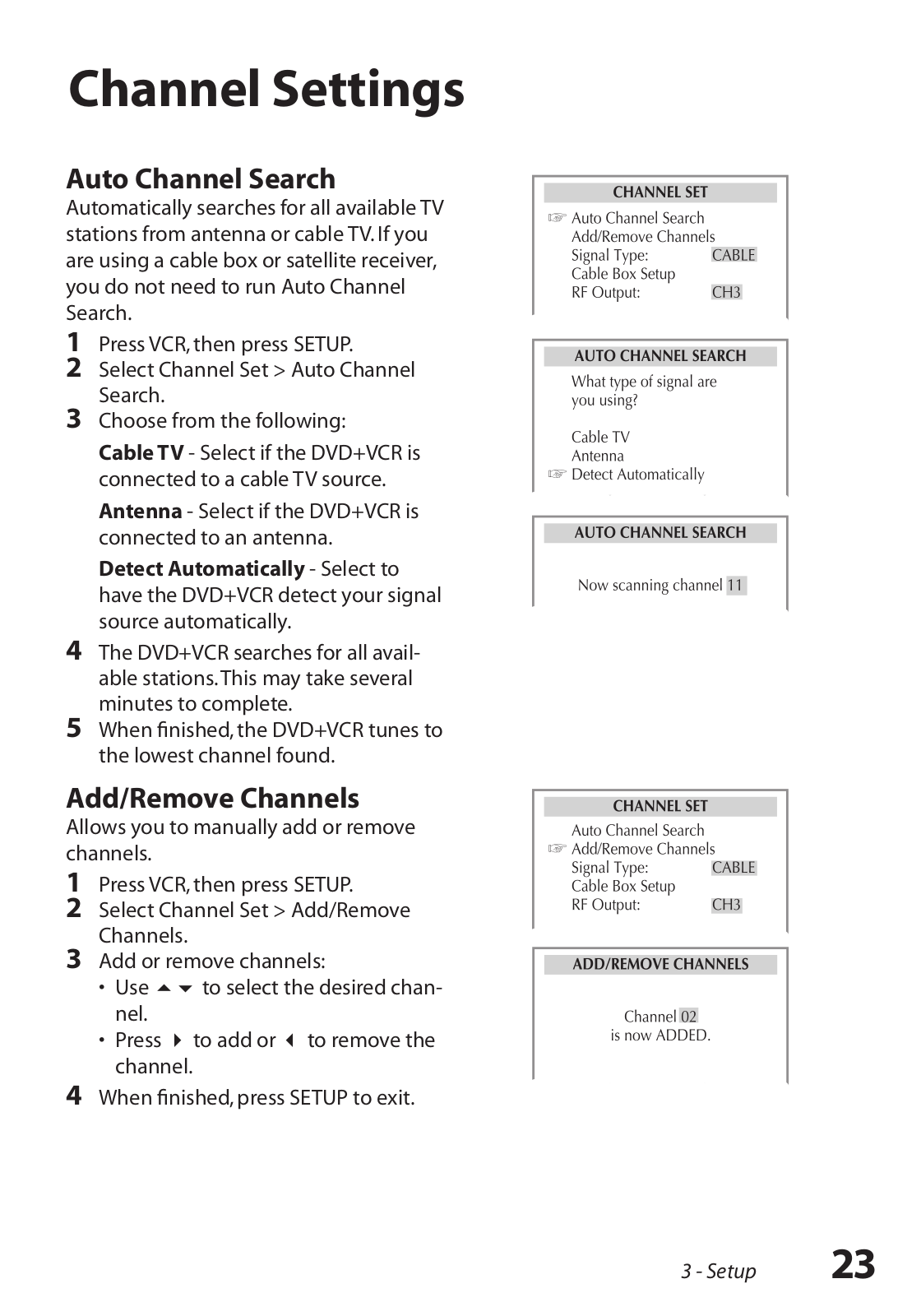

Channel Settings / 23

Other VCR Settings / 25

DVD

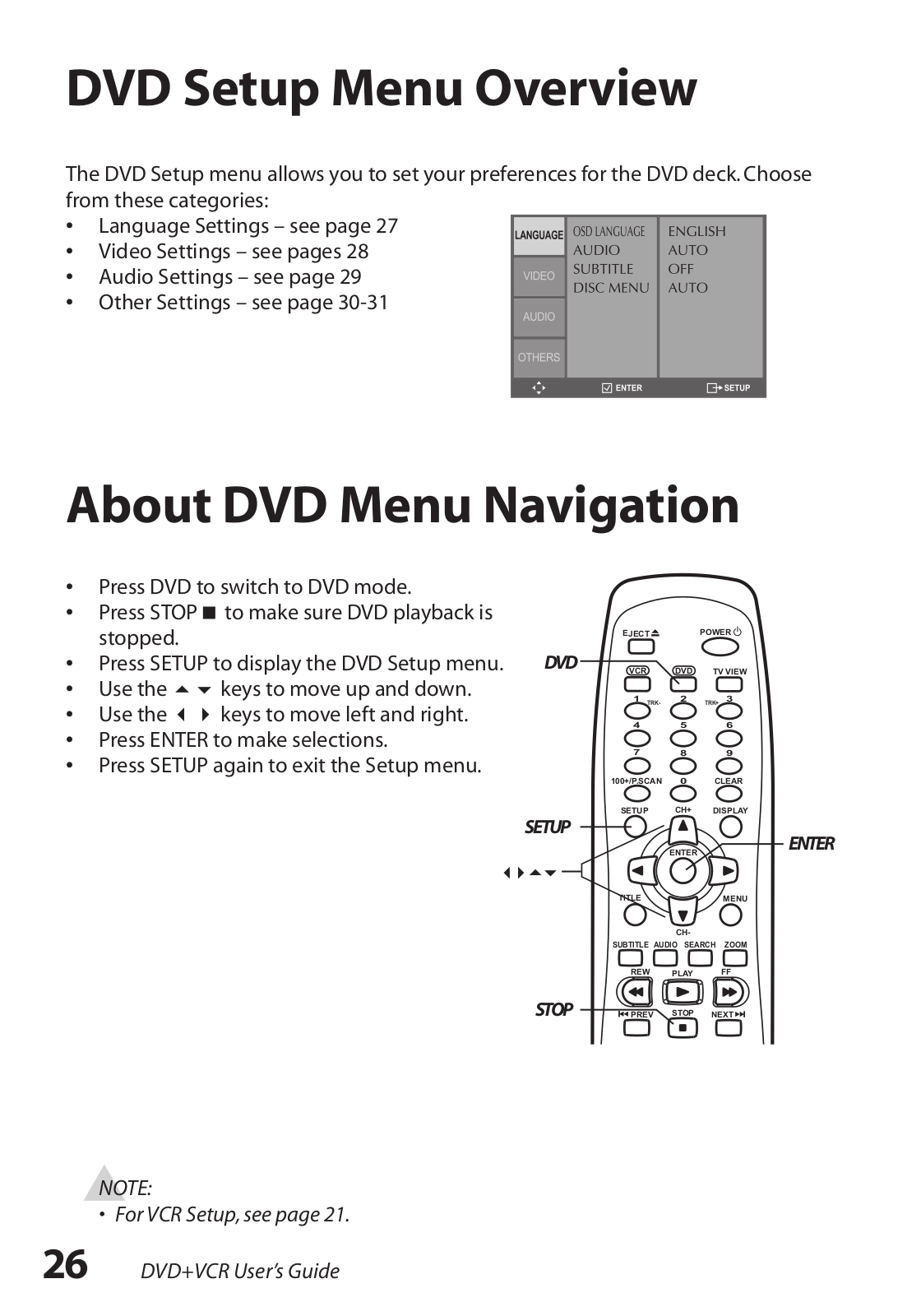

DVD Setup Menu Overview / 26

About DVD Menu Navigation / 26

Language Settings / 27

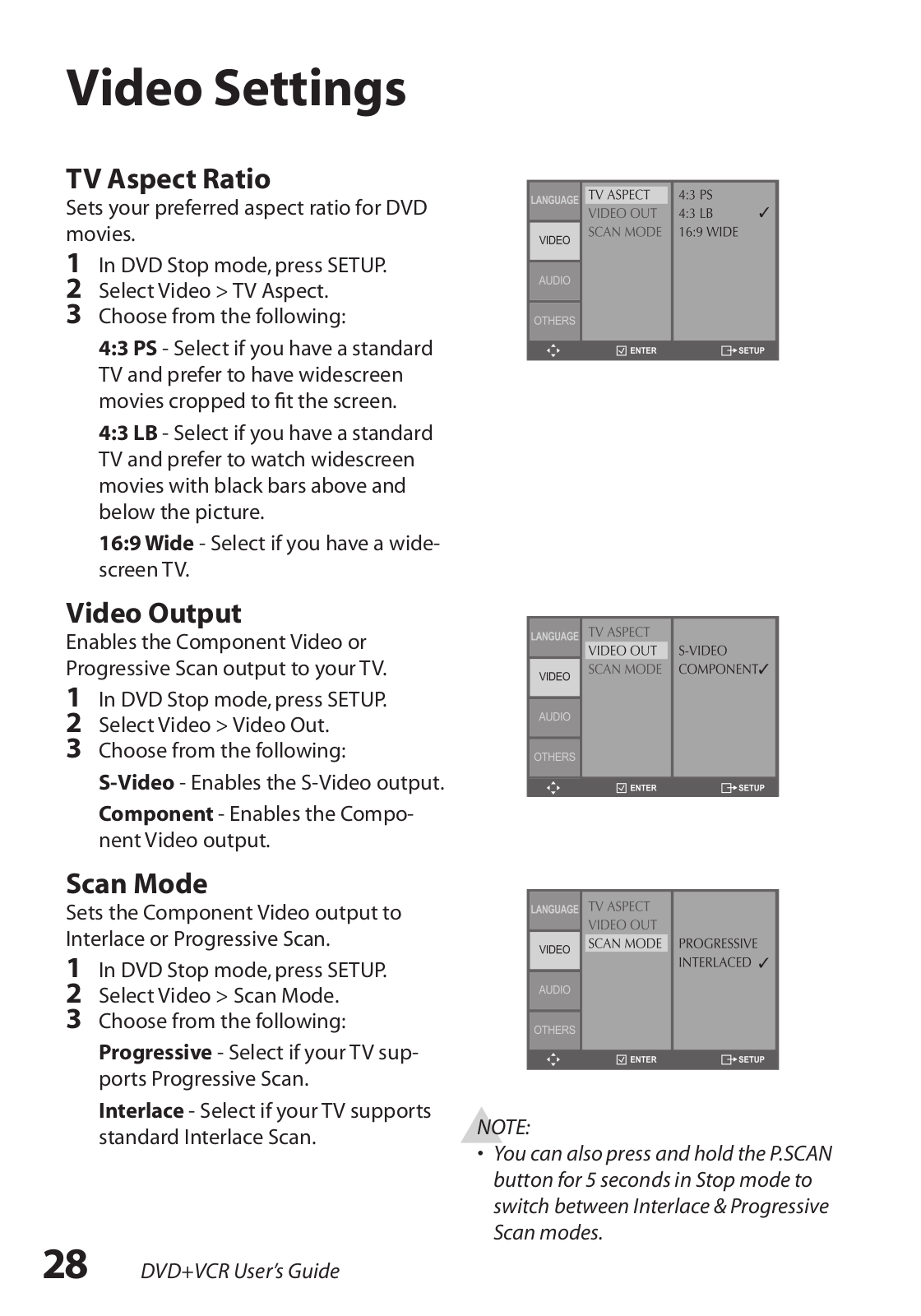

Video Settings / 28

Audio Settings / 29

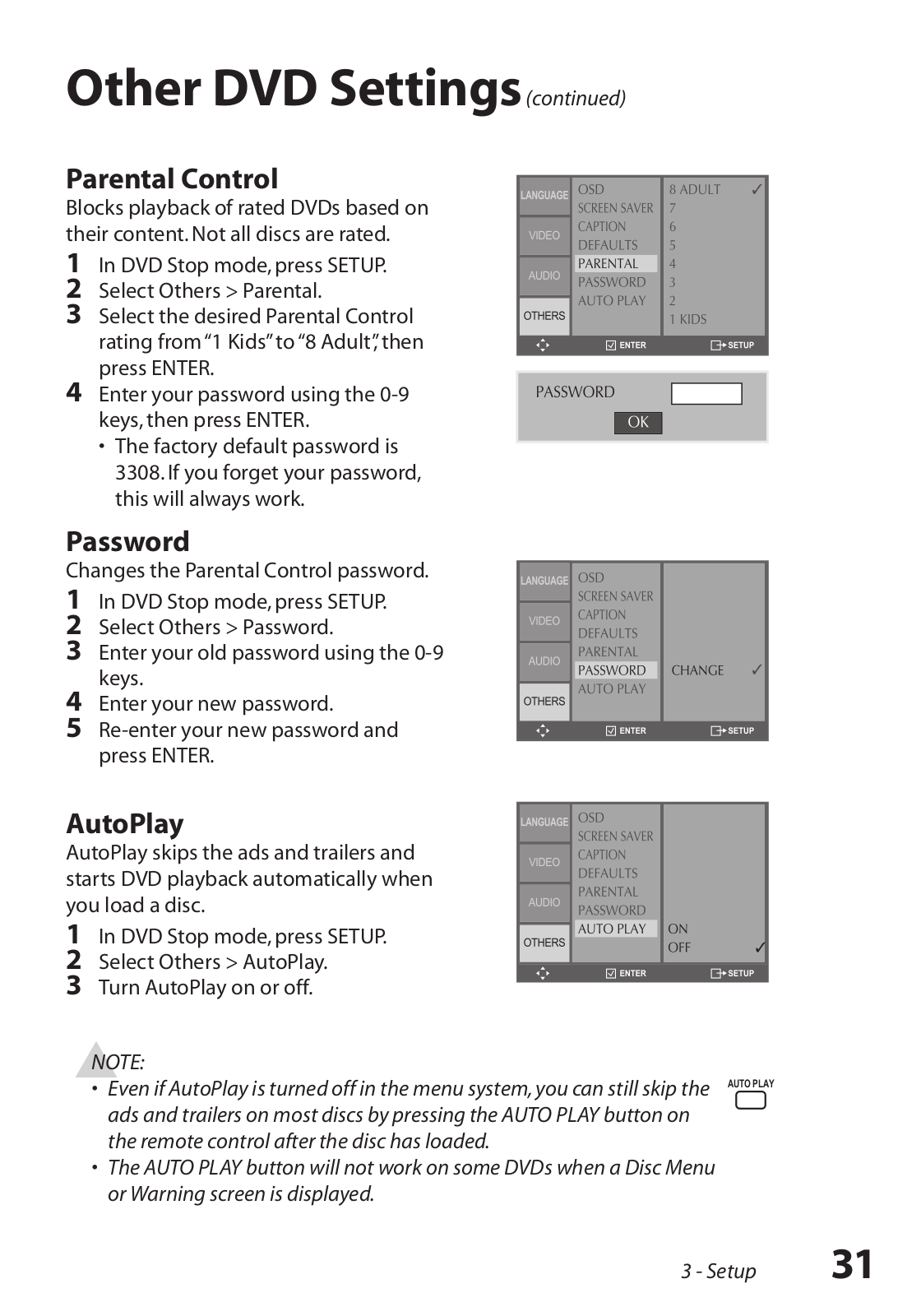

Other DVD Settings / 30

4 - Operations

PLAY

Basic DVD+VCR Playback / 33

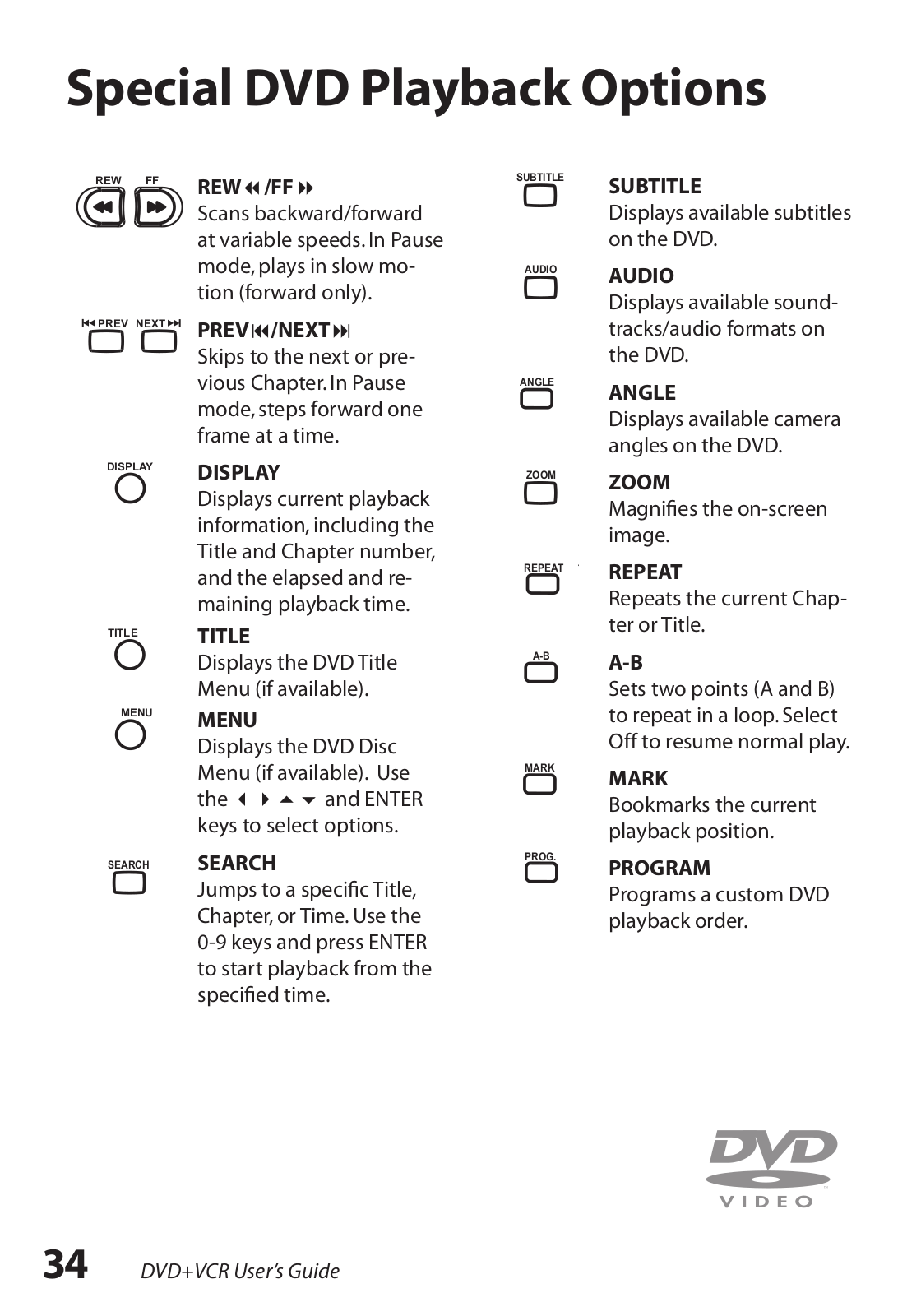

Special DVD Playback Options / 34

Special VCR Playback Options / 35

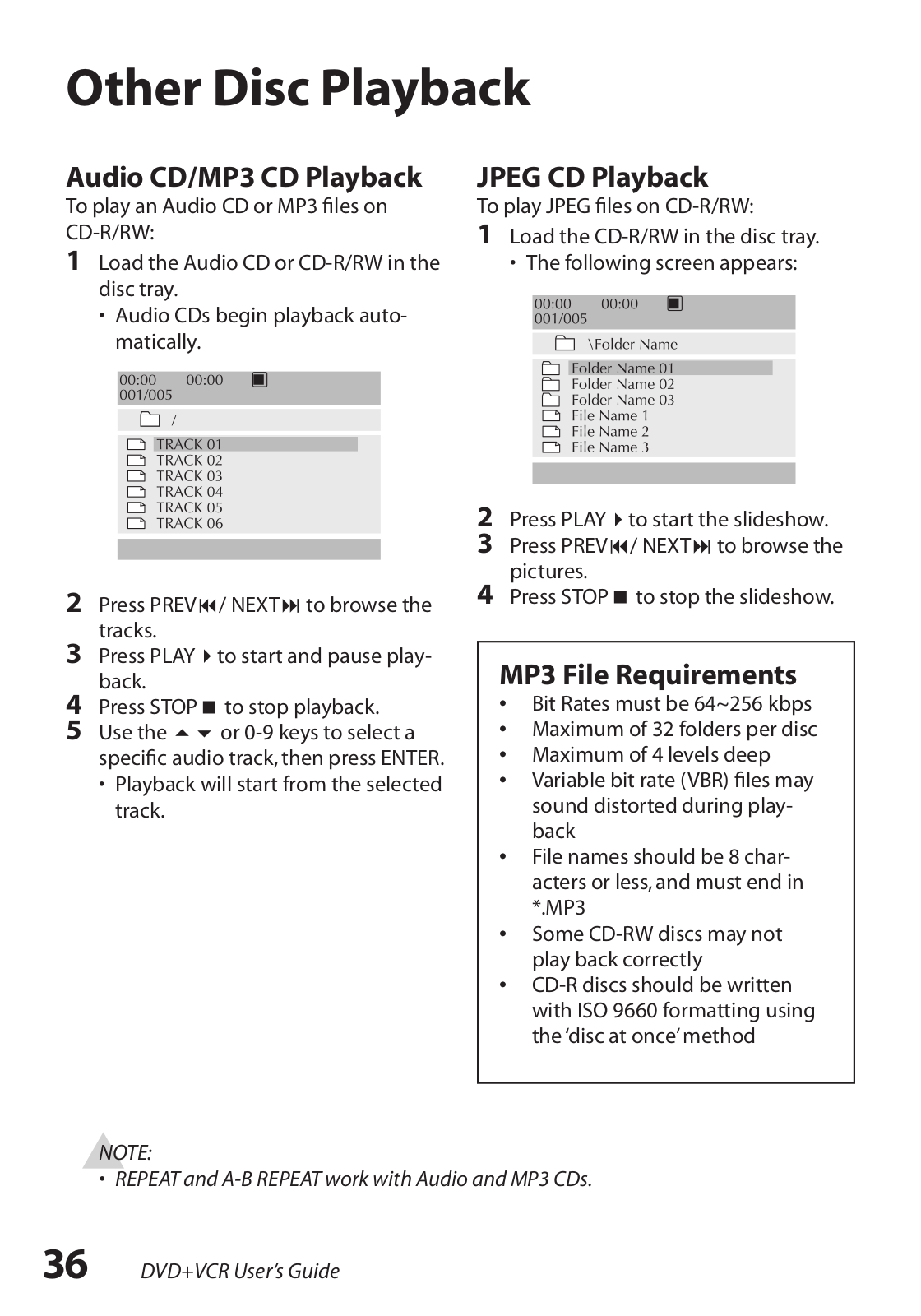

Other Disc Playback / 36

RECORD

Basic Recording / 37

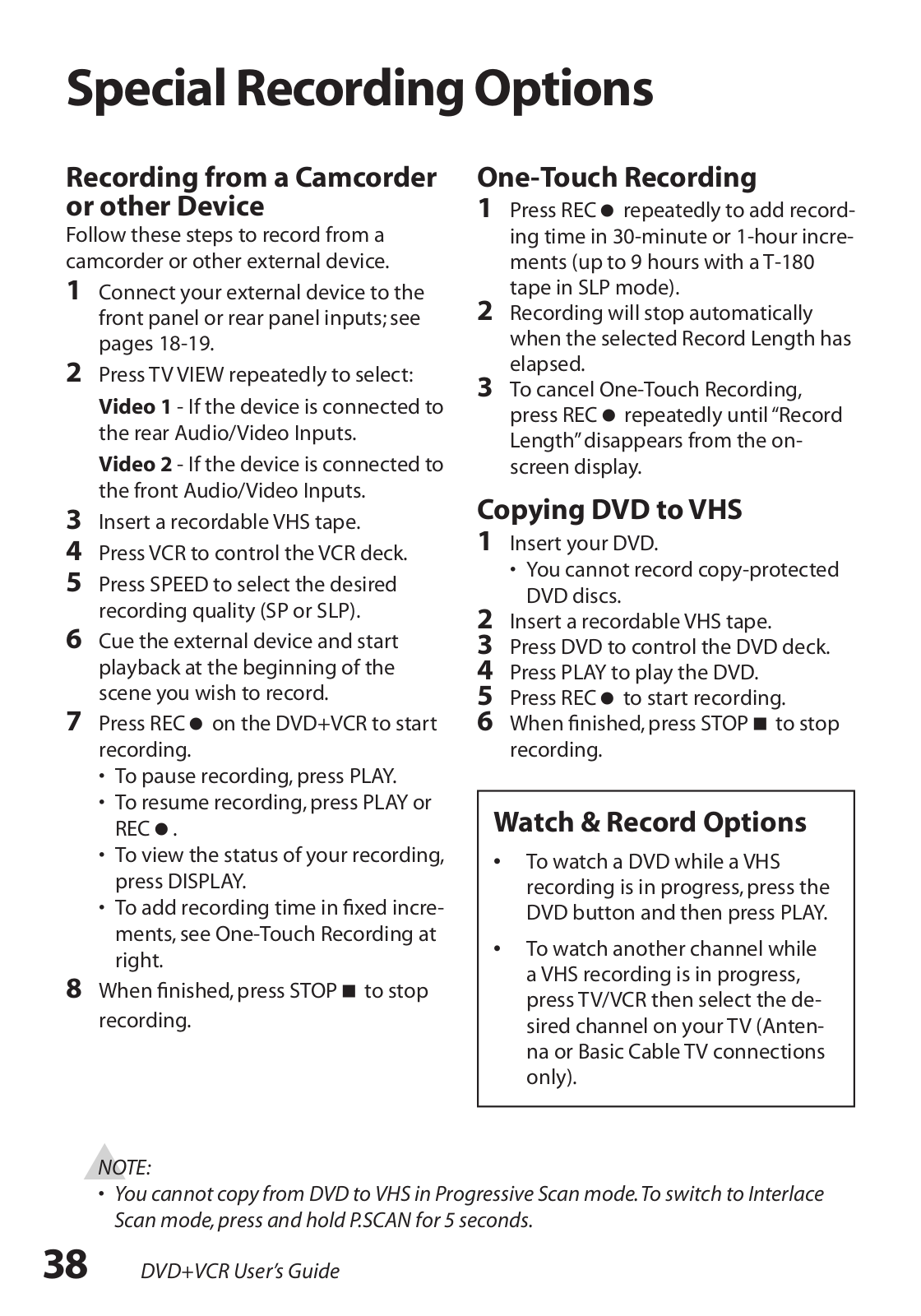

Special Recording Options / 38

Timer Recording / 39

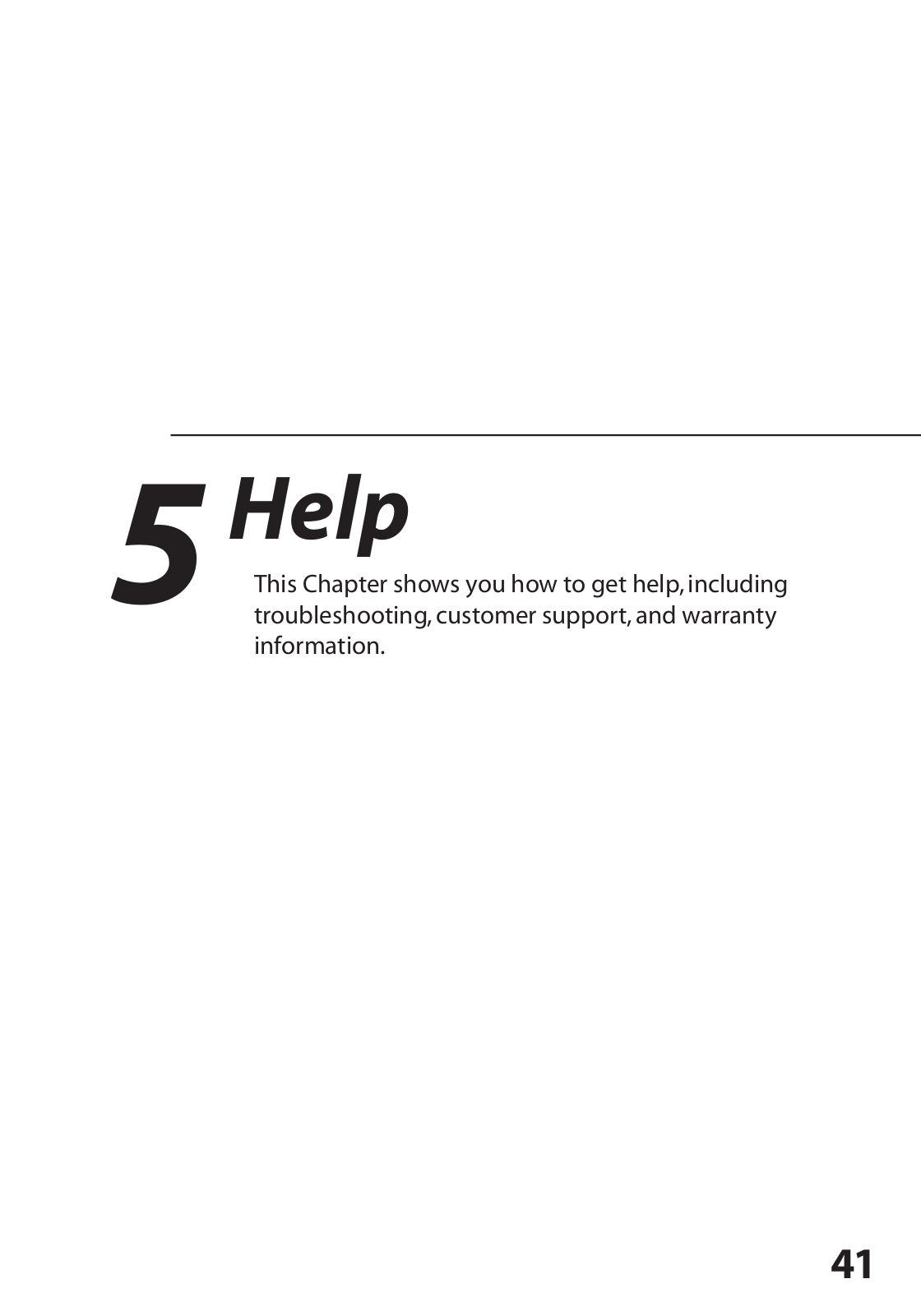

5 - Help

Customer Support / 42

Troubleshooting / 42

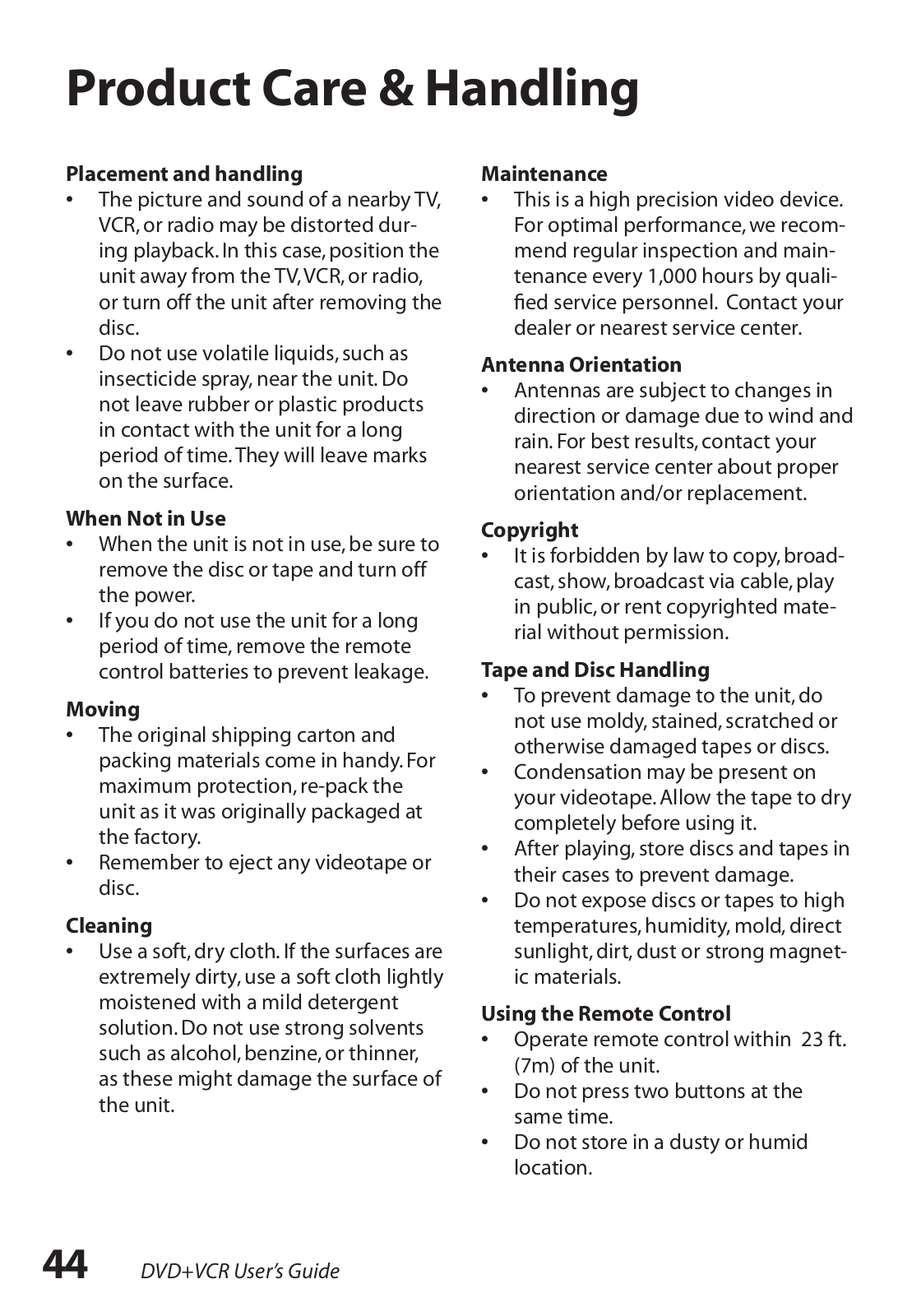

Product Care & Handling / 44

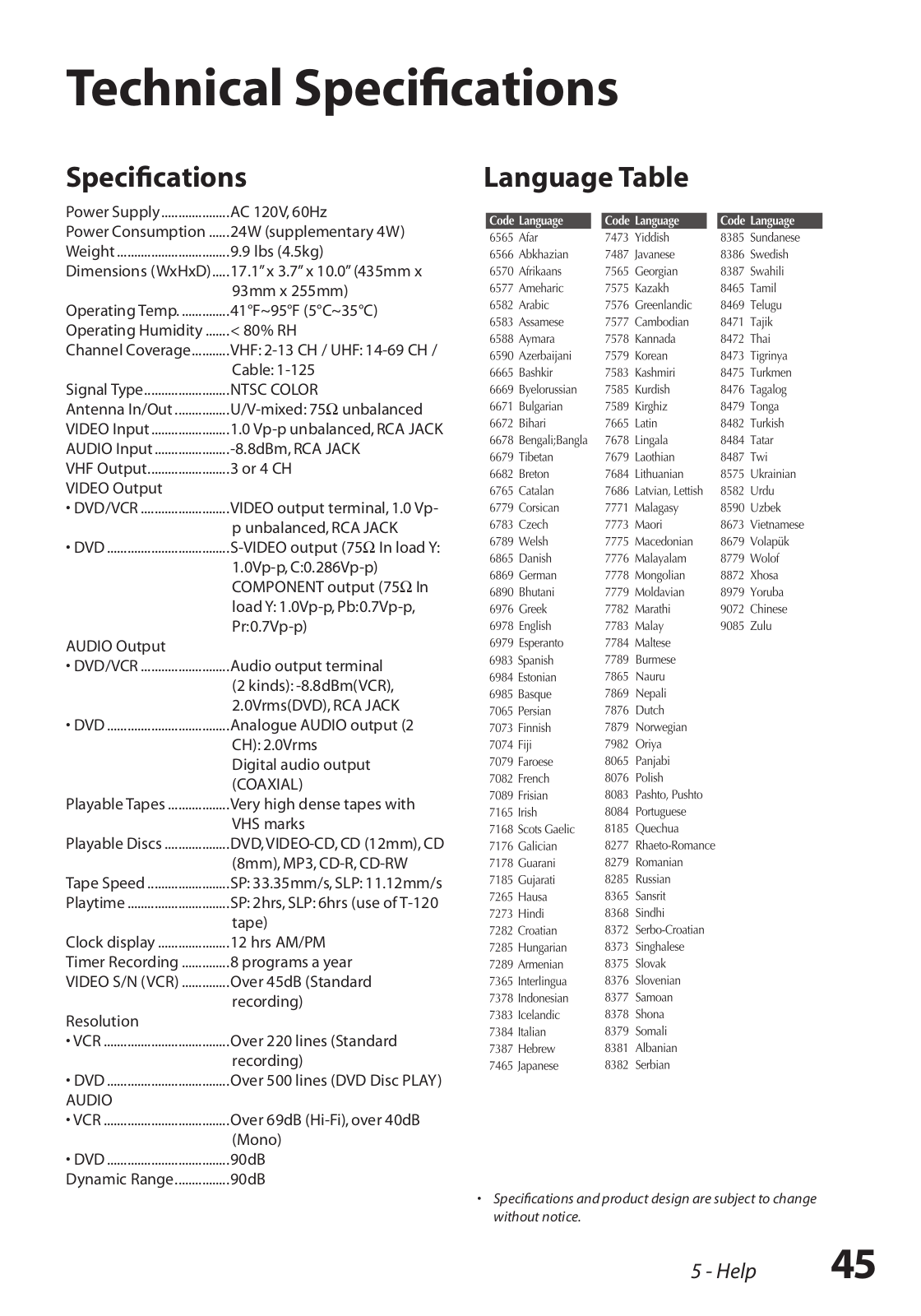

Technical Specifications / 45

Warranty / 46

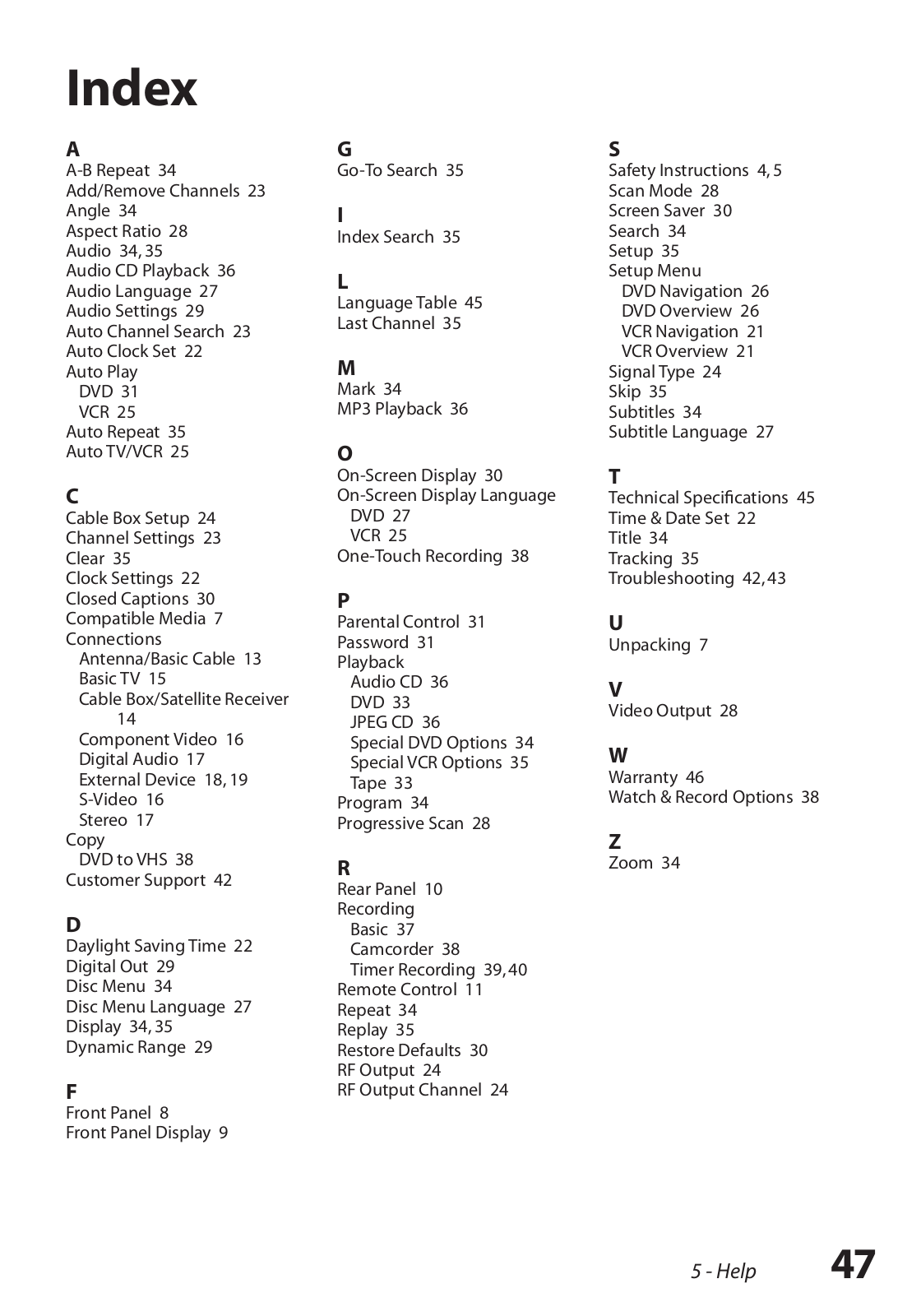

Index / 47

©2004 GoVideo.All rights reserved.Manufactured under license from Dolby Laboratories.“Dolby”and the double-D symbol are trademarks of Dolby Laboratories.“DTS”and“DTS Digital Surround”are trademarks of Digital Theater Systems,Inc.All other brand and product names are trademarks or registered trademarks of their respective companies.

3

Important Safety Instructions

1Read Instructions – All the safety and operating instructions should be read before the product is operated.

2Retain Instructions – The safety and operating instructions should be retained for future reference.

3Heed Warnings – All warnings on the product and in the operating instructions should be adhered to.

4Follow Instructions – All operating and use instructions should be followed.

5Cleaning – Unplug this product from the wall outlet before cleaning.Do not use liquid cleaners or aerosol cleaners.Use a damp cloth for cleaning.

6Attachments – Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7Water and Moisture – Do not use this product near water – for example,near a bathtub, wash bowl,kitchen sink,or laundry tub;in a wet basement;or near a swimming pool;and the like.

8Accessories – Do not place this product on an unstable cart,stand,tripod,bracket,or table.The product may fall,causing serious injury to a child or adult,and serious damage to the product.Use only with a cart,stand, tripod,bracket,or table recommended by the manufacturer,or sold with the product.Any mounting of the product should follow the manufacturer’s instructions,and should use a mounting accessory recommended by the manufacturer.

9A product and cart combination

should be moved with care.Quick

stops,excessive force,and

uneven surfaces

may cause the

product and cart

combination to overturn.

10Ventilation – Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating,and these openings must not be blocked or covered.

The openings should never be blocked by placing the product on a bed,sofa,rug,or other similar surface.This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11Power Sources – This product should be operated only from the type of power source indicated on the marking label.If you are not sure of the type of power supply to your home,consult your product dealer or local power company.For products intended to operate from battery power,or other sources, refer to the operating instructions.

12Grounding or Polarization – This product may be equipped with a polarized alternat- ing–current line plug (a plug having one blade wider than the other).This plug will fit into the power outlet only one way.This is a safety feature.If you are unable to insert the plug fully into the outlet,try reversing the plug.If the plug should still fail to fit,contact your electrician to replace your obsolete outlet.Do not defeat the safety purpose of the polarized plug.

13Power-Cord Protection – Power–supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them,paying particular attention to cords at plugs,convenience receptacles,and the point where they exit from the product.

14Protective Attachment Plug – The product is equipped with an attachment plug having overload protection.This is a safety feature. See Instruction Manual for replacement or resetting of protective device.If replacement of the plug is required,be sure the service technician has used a replacement plug specified by the manufacturer that has the same overload protection as the original plug.

15Outdoor Antenna Grounding – If an outside antenna or cable system is connected to the product,be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.Article 810 of the National Electrical Code,ANSI/NFPA 70,provides informa-

4DVD+VCR User’s Guide

Important Safety Instructions

tion with regard to proper grounding of the mast and supporting structure,grounding of the lead-in wire to an antenna discharge unit,size of grounding conductors,location of antenna–discharge unit,connection to grounding electrodes,and requirements for the grounding electrode.

16Lightning – For added protection for this product during a lightning storm,or when it is left unattended and unused for long

periods of time,unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power lines surges.

17Power Lines – An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits,or where it can fall into such power lines or circuits.When installing an outside antenna system,extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

18Overloading – Do not overload wall outlets, extension cords,or integral convenience receptacles as this can result in a risk of fire or electric shock.

19Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.Never spill liquid of any kind on the product.

20Servicing – Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards.Refer all servicing to qualified service personnel.

21Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a When the power-supply cord or plug is damaged,

b If liquid has been spilled,or objects have fallen into the product,

c If the product has been exposed to rain or water,

d If the product does not operate normally by following the operating instructions.Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,

e If the product has been dropped or damaged in any way,and

f When the product exhibits a distinct change in performance – this indicates a need for service.

22Replacement Parts – When replacement parts are required,be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.Unauthorized substitutions may result in fire,electric shock, or other hazards.

23Safety Check – Upon completion of any service or repairs to this product,ask the service technician to perform safety checks to determine that the product is in proper operating condition.

24Wall or Ceiling Mounting – The product should be mounted to a wall or ceiling only as recommended by the manufacturer.

25Heat – The product should be situated away from heat sources such as radiators,heat registers,stoves,or other products (including amplifiers) that produce heat.

5

1Welcome

This Chapter provides a basic introduction to the DVD+VCR,including an overview of the front panel,rear panel,and remote control.

6DVD+VCR User’s Guide

Unpacking

Check to make sure the following items are included with your DVD+VCR:

Compatible Media

This DVD+VCR will play the following media:

•DVD

•Audio CD

•Video CD/Super Video CD

•MP3 files on CD-R/RW

•JPEG files on CD-R/RW

•DVD-R/RW

•DVD+R/RW

•VHS tape

This DVD+VCR will record on the following media:

•VHS tape

1 - Welcome 7

Front Panel

Front panel overview:

1				2		3
4	5	6	7	8	9	10 111213 14

1	POWER button	8	Front Panel Display
2	VCR deck	9	DVD¥VCR SELECT button
3	DVD deck	10	STOP< button
4	AUDIO/VIDEO IN jacks	11	REW9 button
5	VCR EJECT button	12	PLAY4/; button
6	RECORD= button	13	FF: button
7	CHANNEL 5/6 buttons	14	DVD EJECT button

NOTE:

¥CHILD LOCK - To lock the DVD+VCR to prevent unwanted operation, press and hold the POWER button on the remote control for 8 seconds. SAFE will ßash on the front panel display. Press and hold POWER for 8 seconds to restore normal operation.

8	DVD+VCR UserÕs Guide

Front Panel Display

Front panel display overview:

1	VHS tape loaded indicator	5	Record indicator
2	VCR mode indicator	6	DVD+VCR status indicator
3	DVD mode indicator	7	Timer Record indicator
4	Disc loaded indicator

1 - Welcome 9

Rear Panel

Rear panel overview:

DVD ONLY

AUDIO	COMPONENT
OUT	VIDEO OUT
	Pr
R
	Pb
L	S-VIDEO OUT
COAXIAL	Y
DIGITAL
AUDIO OUT

DVD Playback Only

These jacks are for DVD playback only: 1 STEREO AUDIO OUT jacks

2 DIGITAL AUDIO OUT jack

3 COMPONENT VIDEO OUT jacks

4 S-VIDEO OUT jack

		DVD + VCR	IN
VIDEO	VIDEO 1
OUT	IN		(FROM ANT.)
R
		AUDIO	RF
L

VIDEO

OUT

(TO TV)

DVD+VCR Playback

These jacks are for both DVD and VCR playback:

5 AUDIO/VIDEO OUT jacks

6 AUDIO/VIDEO IN jacks

7 ANTENNA IN jack

8 ANTENNA OUT jack

10 DVD+VCR User’s Guide

Remote Control

Remote control overview:

	EJECT					POWER
	VCR			DVD			TV VIEW
	1	TRK-		2		TRK+		3
	4			5				6
	7			8				9
	100+/P.SCAN			0			CLEAR
	SETUP			CH+			DISPLAY
				ENTER
	TITLE							MENU
				CH-
	SUBTITLE		AUDIO		SEARCH			ZOOM
	REW							FF
				PLAY
	PREV			STOP			NEXT
	REC		SPEED		REPEAT			A-B
	TV/VCR	AUTO PLAY			MARK			ANGLE
	SKIP		REPLAY LAST CH. PROG.

1 EJECT button

2VCR button DVD button TV VIEW button

3 0-9 buttons TRACKING+/- buttons

4 100+/P.SCAN button

5 SETUP button

6ARROW buttons CH buttons

7 TITLE button

8 SUBTITLE button

AUDIO button SEARCH button

ZOOM button

9 REW /FF buttons

PLAY/PAUSE button

10PREV /NEXT buttons

STOP button

11RECORD button RECORD SPEED button REPEAT button

A-B REPEAT button

12TV/VCR button AUTO PLAY button MARK button ANGLE button

13SKIP button REPLAY button

LAST CHANNEL button PROGRAM button

14POWER button

15CLEAR button

16DISPLAY button

17ENTER button

18DISC MENU button

NOTE:

•Press VCR to control the VCR deck and press DVD to control the DVD deck.

•Press TV VIEW to switch among all inputs.

1 - Welcome 11

2Connections

This Chapter shows you how to connect the DVD+VCR to your TV and other home theater components.

•For basic connections,see pages 13-15.

•For advanced connections,see pages 16-19.

12 DVD+VCR User’s Guide

Antenna/Basic Cable Connections

If you are using an antenna or basic cable TV service:

1Connect the RF coaxial cable from the antenna or cable wall outlet to the rear panel of the DVD+VCR as shown.

2 Connect the DVD+VCR to your TV;see page 15.

	DVD ONLY				DVD + VCR
	AUDIO	COMPONENT	VIDEO	VIDEO 1	ANT.)
	OUT	VIDEO OUT	OUT	IN
		Pr
	R		R
		Pb			AUDIO
					RF
	L	S-VIDEO OUT	L
	COAXIAL	Y
	DIGITAL				VIDEO
	AUDIO OUT
					OUT
					(TO TV)

NOTE:

• Do not connect the AC power cord until all other connections have been made.

• The DVD+VCR receives broadcast channels 2-69 and cable TV channels 1-125.

2 - Connections 13

Cable Box/Satellite Receiver

Connections

If you are using a cable box or satellite receiver:

1 Connect an RF cable from the wall outlet to the cable box/receiver. 2 Connect an RF cable from the cable box/receiver to the DVD+VCR. 3 Connect the DVD+VCR to your TV;see page 15.

	DVD ONLY				DVD + VCR
	AUDIO	COMPONENT	VIDEO	VIDEO 1	(FROM
	OUT	VIDEO OUT	OUT	IN
		Pr
	R		R
		Pb			AUDIO
					RF
	L	S-VIDEO OUT	L
	COAXIAL	Y
	DIGITAL				VIDEO
	AUDIO OUT
					OUT
					(TO TV)

NOTE:

•With this connection,set the DVD+VCR to channel 3 or 4 and then select channels on the cable box/receiver.For Cable Box Setup options,see page 24.

•If your cable box/receiver is equipped with AV Out jacks,use the Rear or Front AV Connections for better picture and sound quality; see pages 18-19.

14 DVD+VCR User’s Guide

BasicTV Connections

If your TV has standard RF or AV inputs:

1 Connect the supplied RF cable from the DVD+VCR to your TV as shown. OR

Connect the supplied audio/video cables from the DVD+VCR to your TV as shown.

2

3

Connect the supplied power cable from the DVD+VCR to a standard wall outlet. Press POWER to turn on the DVD+VCR.

4Turn on your TV and set it to channel 3 or 4 (for the RF connection) or the appropriate Video input (for the AV connection).

• The GoVideo splash screen appears.

5 Continue with Chapter 3 to set up your DVD+VCR.

DVD ONLY				DVD + VCR	IN
AUDIO	COMPONENT	VIDEO	VIDEO 1
OUT	VIDEO OUT	OUT	IN		(FROM ANT.)
	Pr
R
	Pb			AUDIO	RF
L		S-VIDEO OUT
COAXIAL	Y
DIGITAL				VIDEO
AUDIO OUT

NOTE:

•If your TV has S-Video or Component Video inputs,see page 16.

•To change the RF Out channel to 3 or 4,see page 24.

2 - Connections 15
