Daewoo DT-42A1 User Manual

Download

Page 1

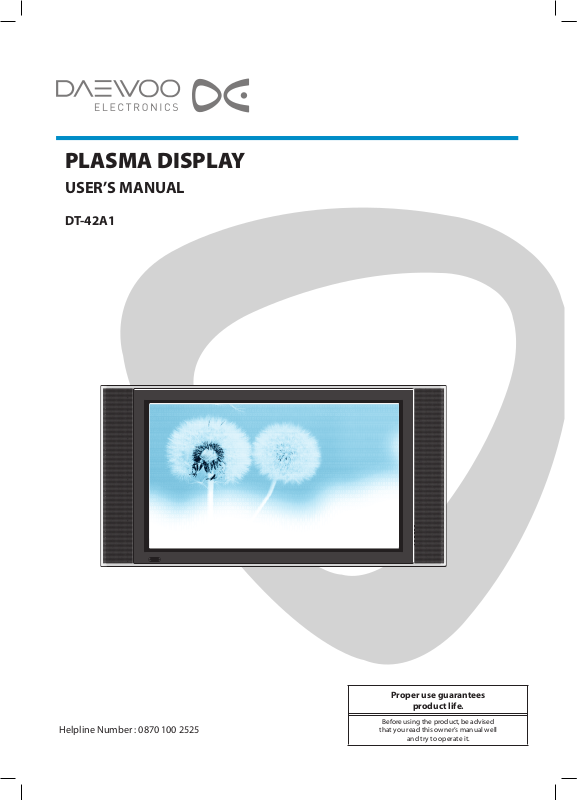

PLASMA DISPLAY

USER’S MANUAL

DT-42A1

Helpline Number : 0870 100 2525

Proper use guarantees

product life.

Before using the product, be advised

that you read this owner’s manual well

and try to operate it.

Page 2

Features

• 42” VGA wide Plasma Panel

• Built in 2-Analog Tuners

This PDP has 2-analog tuners inside for watching terrestrial broadcasting without the need to purchase a separate broadcasting receiver.

• Support Picture-in-Picture (PIP)

• DVD Direct Connection / Outstanding Picture Quality via a Digital Broadcast Receiver

DVD can be directly connected to the unit so that you can view clear digital images. You can enjoy even higher quality images by connecting a digital broadcasting receiver with which digital broadcasts can be viewed.

• PC Direct Connection

PC can be connected to the PDP without a separate device and can be used as a monitor making it ideal for presentation, various events and exhibitions.

• 160˚ Wide-Angle Viewing Area

• Flat Panel with No Distortion and Colour Blurring

Since Plasma TV has no problems such as distortion, blurring, ﬂickering unlike existing CRT type displays you can enjoy Home Cinema picture quality and sound.

• Various Video Control

- 17 Languages OSD - Full-screen still function

- Various aspect ratio (16:9, 4:3, Panorama, LB(16:9), LBS(16:9), 14:9, LB(14:9), LBS(14:9), Auto)

• Free Volt (100-240V~, 50/60Hz)

• DVI (Digital Visual Interface) Connection

Using the DVI Input, you can receive directly a digital signal from the computer. Consequently, pictures on the screen are much more clear and fresh.

• MGDI (Meta Genuine Digital Image) Engine

MGDI is the image enhancement technology designed by Daewoo Electronics, which provides more clear, realistic, and delicate images.

This Owner’s Manual presents safety precautions and how to use the product. After reading it thoroughly, use the product safely. Keep this manual where the user can see it easily.

Failure to comply with warnings and cautions for the safe use of electric appliances may cause ﬁre or human injury.

DISPOSAL OF USED ELECTRICAL & ELECTRONIC EQUIPMENT

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. In the European Union and Other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city oﬃce, your household waste disposal service or the shop where you purchased the product.

Page 3

Safety Precautions

Power

Always obey all

safety messages.

• All the safety and operating instructions should be read before the product is operated. If anything strange happens, unplug this product from the wall outlet.

• Do not disassemble or replace any parts of the TV. Refer to a qualiﬁed service personnel for repair.

WARNING

You can be Killed or seriously injured if you do not follow these instructions.

During a lightning storm, or when it is left unattended and unused for a long period of time, unplug it from the wall outlet.

It can result in ﬁre.

This product must be properly grounded.

• Improper grounding may cause malfunction or electric shock.

• When proper grounding is not possible, install circuit breaker.

• Do not ground to gas pipe, water pipe, lightning rod, or telephone line.

When unplugging your TV, always grip the plug ﬁrmly and pull straight out from the socket.

It can result in ﬁre or electric shock due to damaged power cord.

During a lightning storm, unplug the TV from the wall outlet, and do not touch the antenna.

It can cause ﬁre or electric shock.

Installation

Do not use this product in the neighborhood of a bath or shower.

It can result in electric shock or ﬁre.

Do not place this TV on an unstable cart, stand, or table

It may cause the product and cart to overturn, damaging equipment or causing possible injury.

Page 4

During Use

The apparatus shall not be exposed to dripping or splashing and that no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

Spilled liquids may cause electric shock or ﬁre.

Do not open the cover (or back) because high voltage is present within the TV enclosure.

It may cause electric shock.

Do not allow children to play or hang on the TV.

These actions may tip it over, causing personal injury.

Never push any kind of objects into this product through openings at the back of TV.

It may cause ﬁre or electric shock.

Do not place a candle or lighted cigarette on the TV.

If these fall into the inside of the tv, it may cause a ﬁre or explosion.

Do not disassemble batteries, and do not leave around in case children swallow them.

Heavy metal may contaminate environment, and can be harmful or detrimental to human health. (If children swallow the batteries, go to hospital and consult with a doctor.) Batteries could explode if ﬁtted incorrectly. Align the batteries according to the (+) and (-) indication inside the case.

Do not spray water onto the TV or wipe with damp cloth.

It may cause an electric shock or ﬁre.

Unplug the TV from the wall outlet when smoke or a strange smell occurs, then refer to a service personnel.

Leaving the TV on in this condition, may cause ﬁre or electric shock.

Page 5

Safety Precautions

Power

Always obey all

safety messages.

• All the safety and operating instructions should be read before the product is operated.

CAUTION

You can be injured, or this product or any other of your property can be damaged if you don’t follow instructions.

When moving your TV, remove the power plug, antenna, and cables, and be sure to move it by using two people..

Failure to follow this instruction can result in electric shock or personal injury.

Installation

Do not install the product where there is oil, smog, moist, or dust

It may cause malfunction.

Do not touch the power plug with wet hands when plugging or unplugging it into the wall socket.

It can result in a risk of electric shock.

Do not install the product where it will be exposed to the direct sunlight, and the product should not be near heat sources such as radiators, stoves, etc.

It may cause malfunction.

For proper ventilation, separate the product from the wall, and keep a distance of more than 10cm (4inches).

Due to the increase of temperature inside the TV, it may cause ﬁre.

If you wish to install this product on the wall or ceiling, refer to a professional.

Failure to do so may cause damage to product and injury to human.

Minimum distances around the apparatus for suﬃcient ventilation.

Due to the increase of temperature inside the TV, it may cause a ﬁre.

When using an outside antenna system, do not install it in the vicinity of overhead power lines.

If the antenna touches such power lines, it may cause electric shock.

Page 6

During Use

The plasma display panel consists of ﬁne cells. Although the panels are produced with more than 99.9 percent active cells, there may be some cells that do not produce light or remain lit.

Do not allow a still picture to be displayed for an extended period, as this can cause a permanent ghost image to remain on the Plasma Display.

Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.

The warranty does not cover any damage caused by image retention.

Do not wipe the TV using a cloth damped with chemicals (benzene, thinners, etc.).

The TV appearance may be marred. (Unplug the power plug and wipe with soft cloth.)

Do not place any object or cover on the TV.

In an event of improper ventilation, the TV will be overheated causing ﬁre.

Do not place heavy objects or heat sources on the power cord.

It may damage the power cord, causing ﬁre or electric shock.

When watching the TV, the distance between the TV screen and your eye should be 5~7 times the diagonal size of the TV.

Watching the TV for a long time may hurt your eye sight.

When cleaning of the inside of the TV is required, consult A qualiﬁed service personnel.

When the TV is not cleaned for a long period of time, dust in it may cause ﬁre or malfunction.

When the TV is placed on a cart or table, the front side of the TV should not project outward.

Unbalance may cause the TV to drop, resulting in personal injury or equipment malfunction and damage.

Do not grip speakers when moving the TV attached with speakers.

When moving the TV while gripping speakers, the speakers may fall from the TV due to its weight, causing personal injury.

Page 7

Checking Accessories

Supplied Accessories

Note

Check to be sure that the following items are packed with your Plasma panel.

Remote Control 1 UNIT

AC Cable 1 UNIT

Ferrite Core 1UNIT

For Scart

(1 unit)

Page 8

Optional Accessories

Note

The following items are optional accessories. Refer purchasing optional accessories from Daewoo Electronics Local Retailers or the retailer from where you purchased the unit.

Table Top Stand

Wall Mounting Unit

Page 9

Page 10

CONTENTS

PREPARATION

4 • Safety Precautions 8 • Checking Accessories 12 • Panel Controls 13 • Remote Control 14 • Remote Control Setup

CONNECTION

15 • Antenna Connection 18 • To Watch TV 20 • Install Program 26 • Watching Digital Broadcasts 28 • Watching Cable Broadcasts 30 • Watching Satellite Broadcasts 32 • Watching a DVD Image 34 • Watching a VCR Image 36 • Watching a Camcorder/Game Console Image 38 • Connecting PC(15Pin D-Sub) 40 • Connecting PC(DVI)

APPLICATION

44 • Selecting Picture Mode 45 • Customising Picture 47 • Adjusting Screen 50 • Watching a Still Image 51 • Watching Two Pictures Simultaneously 53 • Adjusting Auto Sound Mode 54 • Customising Sound Mode 57 • Selecting INPUT SIGNAL 58 • Checking the Current Input Signal 59 • MENU Background, Language and Child Lock Setting 61 • MGDI (Meta Genuine Digital Image) 63 • Time Setting 65 • Image Sticking Minimisation (ISM) 67 • Initialize Setting 69 • Setting Sleep Timer 70 • Teletext

MISC.

72 • Before Requesting Service 73 • Speciﬁcations

Page 11

Panel Controls

INPUT SELECT

VOLUME

MOVE / PR

OIDUA-R

O EDIV

SOEDIV

AV3

Front Panel, Rear Panel

* Items having the same names on the plasma display and the remote control would function in exactly the same way.

Front / Side

ON/OFF

• Power butto n

STAND-BY/OPERATE

• Power Standby: Red - Standb y Green - ON

• Power contro l sensor

Pozycja obejm

przeciwzakłóceniowych

Select when adjusting volume or select/adjust “MENU.”

Press when m oving “MENU” or “Program”.

Page 12

Rear

DVI-D INPUT ANT

AV1 AV2

DVI-D INPUT

PC INPUT (15 pin D -sub)

COMPONEN T A/V jack s (DTV/DVD INPUT jacks)

SCART, A/V INPUT/OUTPUT, Cable Receiver INPUT/OUTPUT jacks

ANT

Used when manufacturing (or manufact urer use only)

Power

Page 13

Remote Control

•

* The number in ( ) indicates the page in which

the function of each button is explained in detail.

Note

• Use two “AAA” batteries.

• Be sure to use replacement batteries of the same type as the original ones.

• The life of a battery depends on how much

it has been used.

TV/VCR/DVD/SAT/CATV

Channel Number (0-9)

Use to select channel directly (0-9).

RECALL

Indicates the current state and resolution.

Press to select TV Mode.

COMPONENT, PC/DVI

Press to select COMPONENT

or PC/DVI modes.

Menu button

Used to display a main menu.

Previous Program button

It returns to previous channel.

Mute button

Mute sound.

Power button

Pressing the power button of the TV allows the display to be put in standby. (A red light is shown in the remote control sensor.) At this time, if you press the power button of the remote control, the display is turned ON (And shows a green light in the sensor).

Still

Used to view a still picture whilst watching moving images.(Sound can be heard.)

Press to selet AV modes. It changes in the following sequence AV1 ->AV2 ->AV3

PR button ▲/▼: Adjusts the channel.

Volume button ◄/► : Adjusts the volume.

Screen Size button

Adjusts the size of the screen (16:9, 4:3, Panorama etc.)

Sleep Timer

Each time you press this button, a diﬀerent input mode appears. The sequence is as follows: 15Min. -> 30Min. - > 60Min. -> 90Min. -> 120Min. -> OFF After the time is selected, the TV automatically goes into a stand-by state.

Picture Mode button

Whenever pressing the button, it cycles in the

following order: Normal - Dynamic - Cinema - User

Sound Mode button

Whenever pressing the button, it cycles in the

following order: Normal - Movie - Music - News - User

Sound Eﬀect button

Press to use a spatial sound eﬀect

󱽯When using remote control:

• Be sure not to allow the remote control to drop or to become wet.

• Keep it away from hot or moist locations.

Teletext Function

I – II

- Selects the language during dual language broadcast.

- Selects mono sound during stereo broadcast.

PIP Mode Function

VIDEO/DVD Function

󱽯Installing the batteries in your remote control:

• Push to open the cover of the remote control

• Put the batteries in the battery cell after checking the polarities, and then

shut the cover.

Page 14

Remote Control Setup

Remote Control supporting the multi brand devices.

- The remote control provided is designed to operate the Daewoo PDP set.

- However, using the remote control, you can control the Cable Converter, VCR , DVD and Satellite Broadcasting Receiver of other brands after setting up the remote control.

Notices:

- All the preset codes are erased when replacing the battery. In this case, you must set the remote control again.

- Some of the products may not be applied because of diﬀerent signal system.

- This is only for the basic control of the devices.

󱾀

HOW TO SET UP THE REMOTE CONTROL FOR USING OTHER DEVICES .

• Turn on the device. (Cable Converter, VCR , DVD or Satellite Broadcasting Receiver)

• Press the device selection button of remote control until it is ﬂickering. It takes about 3 seconds.

• Press the assigned three digits code of the device using number key button of the remote control toward the IR receiver of the device. The code number is provided below. Whenever pressing the number, the device selection button will be ﬂicked once.

• If the code is set properly, the device will turn oﬀ automatically. If not, repeat the process 3.

• As the device is turned oﬀ, press the ﬂickering device selection button of the remote control once. Then the lamp of the button will be turned oﬀ.

• Now, the setting-up of the device can be controlled by Daewoo PDP remote control.

Remote Control Setup Code

VCR (STANDARD: 002) SAT (STANDARD: 002)

Maker (Brand) Name Code Number (3 digit) List Maker (Brand) Name Code Number (3 digit) List

DAEWOO

JVC

MITSUBISHI PANASONIC PHILIPS

SAMSUNG

SHARP SONY

DVD

DAEWOO LG PANASONIC PHILIPS SAMSUNG

002 008 060 062 063 067 068 003 006 009 043 044 046 084 089 111 114 124 046 052 075 122 016 070 087 088 106 005 040 042 045 048 049 053 064 078 081 090 108 041 055 056 059 061 065 066 091 095 048 049 057 074 047 050 051 076 080

152 160 150 168 169 157 170 155 151 163 16

DAEWOO PHILIPS SAMSUNG

002 018 031 032 079

Page 15

CTV Antenna Connection

Antenna Connection

CTV Antenna Connection

TV antenna installation may be found in most.

When a coaxial cable is used

Plug the coaxial cable to the antenna socket, and ﬁx it ﬁrmly.

Antenna socket on the wall Antenna socket at the back of the

PDP unit.

ANT/KABEL1

Coaxial cable

When a feeder cable is used

Antenna socket

on the wall

Feeder cable connection with the combining adapter

Antenna socket at the back of the

PDP unit.

ANT/KABEL 1

Page 16

Outdoor antenna connection-such as VHF or/and UHF-may be necessary for installation at private houses.

Single Antenna Connection.

VHF Antenna

UHF Antenna

Separate Antenna Connection.

Outdoor Antenna Connection

ANT/KABEL 1

VHF-Antenna

UHF-Antenna

In case of coaxial cable

In case of feeder cable

ANT/KABEL 1

Antenna combining

adapter

(separate purchase)

Page 17

To Watch TV

- The buttons on the keypad in the PDP unit, which have the same name as those on the remote control, perform

the same function as the remote control.

Press the “ON/OFF” button of the PDP unit.

• The „ PR ” or power button of the remote control and the keypad on the PDP unit would be operated only when the „AC Power” of the PDP unit is supplied. Otherwise, neither the remote control nor keypad of the PDP unit can turn on the PDP.

When pressing the program button

• Select two digits if using the number button for Program selection. For example, to watch Program No.9, press the number buttons 0 and 9. If pressing only number 9, it takes more time than pressing two digits for selecting a channel.

To mute the sound

1. Press the „

2. No sound is heard if “MUTE” is displayed

on the screen.

3. Sound is heard again if pressing the „ ”.

button once again. For example, you can use this button when telephone rings or when guest comes while watching TV.

Check of TV operation status

• If pressing the “RECALL” button, the status of the program or broadcasting being currently watched or entry status of video component is displayed on the screen.

Auto Power Oﬀ

• If TV broadcast for the day is ﬁnished, the TV will automatically turn oﬀ after about 30 minutes. However, if the Oﬀtimer or Sleep timer is operating, it takes precedence. This auto power oﬀ feature only operates in the TV mode.

” button.

Page 18

Press the “ON/OFF” button.

• Press the “ON/OFF” button of the PDP unit.

• The LED of the PDP unit turns red colour.

• Press the “ remote control, or any button on the keypad of the PDP unit.

• The LED of the PDP unit turns “green” colour and the TV turns on.

• To watch analog TV broadcasts, select the correct input, i.e. ‚PR’ in the on screen display box.

PR ”, power button of the

Select Program.

• Select the desired program by

pressing the „ PR ” ,button or the number button. Ex) Program 09

PR 09 _ _ _ _

MONO PM 12 : 00

Adjust Volume.

O L

V O L

• Sound reduces if pressing the

“ VOL” button.

• Sound increases if pressing the “

VOL” button.

Volume 10

Press the “Power” Button to Turn the TV oﬀ.

• TV turns oﬀ and the LED of the PDP unit changes to red colour.

Page 19

Install Program

Auto Setup

- This is the function for the TV to memorize the broadcasting channels. If the Auto Setup is done, you can simply ﬁnd programs with “ PR ” buttons and so need not select programs by pressing each program number.

- Up to 100 TV stations can be stored in this set by programme numbers (0 to 99). Once you have preset the

stations, you will be able to use the “ PR ” button or Number buttons to scan the stations you programmed. Stations can be tuned using “Auto Setup” or “Manual Setup”.

Press the “Menu” Button.

• The menu screen appears as follows.

• Press the “

PR ” button and select

“Install”.

Press the “◄ VOL ►” Button.

O L

V O L

Mode Normal


Brightness 32

Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Select Exit

Auto Setup


Edit

Manual Setup

Sound

Screen

Feature

Install

Move Select Exit

Page 20

Select the “Auto Setup”.

O L

• Select the “Auto Setup” with the “ PR ” button.

• Then press the “

V O L

Select the “Country”.

O L

Select the “Search”.

O L

• Press the “VOL ” key to start searching.

• Then it automatically searches

V O

channels as on the right.

• While searching, if you press the

“Menu” button, the automatic channel search is stopped. But, channels searched by that time are saved.

VOL ” button.

• There are 18 countries for selection. Choose the desired country before starting the search.

V O

• If there is no proper country,

select the “Others”.

Auto Setup


Edit

Manual Se tup

Sound

Screen

Feature

Install

Move Select Exit

Auto Searching ...

0 Channels Fo und...

Exit


Sound

Screen

Feature

Install

Move Adjust Exit

Auto Setup

Country PL

Auto Search is completed.

O L

• Edit menu appears as on the right if the search is completed.

• Refer to “Edit” on the following

pages.

• The order of stored program

may diﬀer among countries.

Adjust

Edit

Exit Skip

DeleteMove

PR CH Name Skip PR98 S41 _ _ _ _ o PR99 S41 _ _ _ _ o PR0 C69 _ _ _ _

PR1 S41 _ _ _ _ o

PR2 S41 _ _ _ _ o PR3 S41 _ _ _ _ o PR4 S41 _ _ _ _ o

Page 21

Edit

Deleting the Program.

• Place the selection bar on the program that you want to delete using the “ PR ” and “ VOL ” buttons.

• Press the Delete(Yellow) button.

• The deleted program goes to PR number 99 for recover.

Moving the Program Positions

Skipping the Channels

• Using “ PR ” an d “ VOL ” buttons, place the selection bar on the program that you want to skip.

• Press the Skip(red) button.

• The colour of the program changes to red.

• The program will be skipped.

• In order to cancel skip state,press the Skip(red) button again.

Adjust

Edit

Exit Skip

DeleteMove

PR CH Name Skip PR98 S41 _ _ _ _ o PR99 S41 _ _ _ _ o PR0 C69 _ _ _ _

PR1 S41 _ _ _ _ o

PR2 S41 _ _ _ _ o PR3 S41 _ _ _ _ o PR4 S41 _ _ _ _ o

• Place the selection bar on the program that you want to move.

• Press the Move(Green) button.

• It becomes ready for moving as the colour of selection changes to green.

• Move the program that you desire to move to the wanted PR number.

• Press the Move(Green) button again to ﬁnish. The colour of selection changes to yellow.

Page 22

Manual Setup

Press the Number Buttons(0~9) or the “ VOL ” Button to Select a Program Number You Want.


Program 01

Channel C0 6

Sound

Fine Tune 48

Name – – – – –

Screen

Video PAL

Audio D/K

Feature

Memory

Install

Move Adjust Exit

0~9

Adjust

Find the Desired Channel.

O L

• Using “ VOL ” button or number keys, select the desired channel directly, if you know it otherwise step through the numbers using the “VOL ”

button until you ﬁnd the right channel.

• By pressing red teletext button, you can toggle C

channel to S-channel.

Manual Setup


Sound

Screen

Feature

Install

Move Adjust Exit

0~9

Adjust

Manual Setup

Program 01

Channel C0 6

Fine Tune 48

Name – – – – –

Video PAL

Audio D/K

Memory

Cable/Air

Fine Tune

• If you are unable to get a good picture or sound because of a poor signal reception, it is possible to adjust it with the Fine Tune feature.

• Move the selection bar to Fine Tune and press the “ VOL ” buttons to activate Fine Tune up or down.

• Note that it operates while the “ VOL ” button is being pressed.

• It will be saved only when you select “OK” in Memory.


Sound

Screen

Feature

Install

Move Adjust Exit

0~9

Adjust

Manual Setup

Program 01

Channel C0 6

Fine Tune 48

Name – – – – –

Video PAL

Audio D/K

Memory

Cable/Air

Page 23

Manual Setup

Name the program

• Using ” VOL ” button, move the position where you want to write the character.

• Select the desired character with the “PR”

button.

O L

• There are A-Z, +, ., /, and 0-9 characters.

• After naming, you can exit by pressing the

”Menu” button.

Select the Video and Audio System.

V O L


Dźwiek

Screen

Feature

Install

Move Select Exit

Manual Setup

Program 01

Channel C0 6

Fine Tune 48

Name C06

Video PAL

Audio D/K

Memory


Sound

Screen

Feature

Install

Move Adjust Exit

0~9

Adjust

Manual Setup

Program 01

Channel C0 6

Fine Tune 48

Name C06

Video PAL

Audio D/K

Memory

Cable/Air

• You can select the Video (PAL,SECAM, SECAM-L) and Audio (B/G, DK, I, L) System with these functions.


Program 01

Channel C0 6

Dźwiek

Fine Tune 48

Name C06

Screen

Video PAL

Audio D/K

Feature

Memory

Install

Move Select Exit

Manual Setup

Page 24

Find the Desired Channel with ‘Search’.

• By selecting the Search function, you

O L

• If the nearest channel is found,

V O L

Memorize the Program.

O L

• Without Memorizing, the program will not be saved.

• Press “ VOL ” buttons to memorize the program after selecting ‘Memory’. “OK” will ﬂash green.

V O L


Sound

Screen

Feature

Install

Move Select Exit

can ﬁnd the desired channel, but it searches only one channel unlike Auto Setup.

the searching would be stopped automatically.


Dźwiek

Screen

Feature

Install

Move Select Exit

Manual Setup

Program 01

Channel C0 6

Fine Tune 48

Name C06

Video PAL

Audio D/K

Memory

Manual Setup

Program 01

Channel C0 6

Fine Tune 48

Name C06

Video PAL

Audio D/K

Memory

Page 25

Watching Digital Broadcasts

Connect a Digital Broadcasting Receiver to the PDP

Watching Digital

Broadcasts

• To watch digital broadcasts:

- Purchase a separate Digital Broadcasting Receiver(SET-TOP BOX)

- Connect the PDP to a Digital Broadcasting Receiver as shown right.

• Prepare A/V cables.

• Connect the cables from the digital TV Receiver output terminal to the PDP(Component 1, 2) input terminal.

• When connecting the cables, be sure to match the cable colours.

Video Audio

Digital Broadcasting Receiver

(Set-Top Box)

Press the Power Buttons

• Turn the PDP and the receiver ON.

Page 26

Input Select

Select the Desired Channel and Function

• Select [Component 1 or Component 2] by pressing the “COMPONENT” button of the remote control or using the “INPUT SELECT” button of the PDP unit.

• Each time you press the “COMPONENT” button, diﬀerent input modes appear. The sequence is as follows:

Component 1 Component 2

• N.B.: You cannot select component inputs if the picture in

picture mode is on.

• Select the desired channel and function by using the remote control of the Digital Broadcasting Receiver.

NOTES:

1) Possible digital broadcasting signals: 1080i, 720p, 576p, 480p.

2) Antenna connection: Apartment : Check if communal aerial receives digital broadcasts. Private Houses: Set the indoor/outdoor UHF antenna to the direction of the digital broadcasting transmitting company.

3) For detailed connection method, refer to the owner’s manual of Digital Broadcasting Receiver.

4) What is a component? : Signals with which luminance and

chrominance are separated, producing a sharp picture.

5) If the Digital Broadcasting Receiver has PC output terminal or DVI output terminal, connect to ‘PC INPUT’ or ‘DVI INPUT’ at the rear of the panel of the PDP.

Page 27

Watching Cable Broadcasts

Connect a Cable Broadcasting Receiver to the PDP.

Watching Cable

Broadcasts

• To watch cable broadcasts, subscribe to your local cable TV broadcasting, and then connect a cable Broadcasting Receiver to the PDP as shown right.

• Prepare the A/V cable.

• Connect the receiver(Output) to PDP(Video Input) as shown below.

• While using the scart cable for connection, put the ferrite core to the middle of the cable to prevent EMI (Electro Magnetic Interference).

AV3

O EDIV-S

AV1

Video/Audio

Cable Broadcasting Receiver

• N.B.: When using the AV3 input, there is no need to use both as S-Video will always take precedence on this input but you must have the right and left audio leads connected to produce sound when using S-Video.

AV2

S-Video

Ferrite Core

E D

-O IDU

-R

Video/Audio

Press the Power Buttons

• Turn the PDP and the receiver ON.

Page 28

Input Select

• N.B.: An S-Video input into AV3 will take precedence

Select the Desired Program and Function

• Select [AV 1(Scart), AV 2(Scart) or AV3(S-Video)] by pressing the [AV] button of the remote control or the “INPUT SELECT” in keypad of the PDP unit.

• Each time you press the [AV] button, diﬀerent input modes appear. The sequence is as follows:

AV1 AV2

AV(S)3

over the normal yellow video lead so no need to utilise this if S-Video lead is used but you must still use the right and left audio leads to produce sound.

* Select the desired program and function

by using the remote control of the Cable Broadcasting Receiver.

NOTES:

1) If your local cable company re-transmits digital broadcasts, you may watch normal broadcasts and digital broadcasts simultaneously. For detailed information, refer to your local cable company.

2) A/V OUT OF SCART TERMINAL will provide with TV signal output of the selected channel.

Page 29

Watching Satellite Broadcasts

Connect a Satellite Broadcasting Receiver to the PDP.

Watching Satellite

Broadcasts

• To watch satellite broadcasting, subscribe to Digital Satellite Broadcasting, then connect the satellite Broadcasting Receiver to the PDP as shown right.

• Prepare the A/V cable.

• Connect the receiver(Output) to PDP(Video Input) as shown below.

• When connecting to an external AV source, be sure to match the colours.

• If using the scart cable for connection, put the ferrite core to the middle of the cable for preventing EMI.

AV1

AV3

OED I

AV2

OEDI

-OIDUA-R

Video/Audio

S-Video

Video/Audio

Ferrite Core

Satellite Broadcasting Receiver

• N.B. : If using AV3 then S-Video takes precedence so no need for video lead if S-Video lead used the audio leads must still be used to produce sound.

Press the Power Buttons

• Turn the PDP and the Satellite receiver ON.

Page 30

Input Select

Select the Desired Program and Function

• Select [AV 1(Scart), AV 2(Scart) or AV3(S-Video)] by pressing the [AV] button of the remote control or the “INPUT SELECT” in keypad of the PDP unit.

• Each time you press the [AV] button, diﬀerent input modes appear. The sequence is as follows:

AV1 AV2

AV(S)3

• Select the desired program and function by using the Remote Control of the Satellite Broadcasting Receiver.

Page 31

Watching a DVD Image

Connect a DVD Player to the PDP.

Watching a

DVD Image

• Component Input is set to 480i/576i and 480p/576p mode.

• Connect the cable from the DVD Video output (Y, Pb/Cb, Pr/Cr) to the Component Input at the back of PDP, and connect the cable from DVD audio output (Left, Right) to the Audio Input at the back of PDP.

• Prepare the AV cable.

• Connect the DVD(Output) to the PDP(Component or Video Input) as shown below.

• When connecting to an external AV source, be sure to match the colours.

• If using the scart cable for connection, put the ferrite core to the middle of the cable for preventing EMI.

AV3

OEDIV-S

Video Audio

DVD

• N.B. : Video input can be via scart cable S-Video lead or yellow phono jack.

AV1

Video/Audio

Ferrite Core

DVD DVD

The red and white plugs are for left and right audio to accompany the yellow video lead or to be used with the S-Video lead to produce sound.

AV2

S-Video

DIV

IDUA-

Video/Audio

Press the Power Buttons

• Turn the PDP and the DVD ON.

Page 32

Input Select

• [COMPONENT] button

• [AV] button

• Select [Component 1 or Component 2, AV1(Scart), AV2(Scart) or AV3(S-Video)] by pressing the [COMPONENT] or [AV] button of the remote control or the “INPUT SELECT” in keypad of the PDP unit.

• Each time you press the [COMPONENT] or [AV] button, a diﬀerent input mode appears. The sequence is as follows:

Component 1 Component 2

AV1 AV2

AV(S)3

Select the Desired Title and Function

• Select the desired title and function by using the remote control of the DVD.

NOTES:

1) Y/Cb/Cr, which stands for component video DVD player’s output can also be written as Y/B-Y/R-Y, Y/Pb/Pr depending on the kinds of DVD model.

2) The way of connecting the DVD to the PDP is as follows: Y <---> Y Cb <---> Pb, B-Y, Cr <---> Pr, R-Y

3) The DVD output can be Video, S-Video or Component Video depending on the DVD model. There are various output modes, so be sure to check when you purchase it.

4) When connecting S-Video and Video simultaneously, only SVideo will be displayed on the screen as it takes precedence.

Page 33

Watching a VCR Image

Connect a VCR to the PDP.

Watching a

VCR Image

• Video can use either the video terminal or the S-video terminal.

• Prepare the AV cable.

• Connect the Video(Output) to PDP(Video Input) as shown below.

• If using the scart cable for connection, put the ferrite core to the middle of the cable for preventing EMI.

AV3

OE DI

V-S

AV1

AV2

DIV

L-OI

D UA-R

Video/Audio

S-Video

Video/Audio

Ferrite Core

VCR

Press the Power Buttons

Turn the PDP and the VCR ON.

Page 34

Input Select

Select the Desired Title and Function

• Select [AV 1(Scart), AV 2(Scart) or AV 3(SVideo)] by pressing the [AV] button of the remote control or the “INPUT SELECT” in keypad of the PDP unit.

• Each time you press the [AV] button, diﬀerent input modes appear. The sequence is as follows:

AV1 AV2

AV(S)3

* Select the desired title and function

by using the remote control of the VCR.

NOTES:

1) When connecting a VCR the S-Video terminal provides a better image than the Video terminal.

2) When connecting to the Video terminal, connect 3 colour AV cables (video, left audio, right audio) to the PDP; for the SVideo terminal, connect the Audio terminal (Left, Right) in the same way, and connect the S-Video cable (sold separately).

3) When connecting the Video terminal and the S-Video simultaneously, the S-Video terminal is selected. This can be checked by the [Recall] button of the remote control.

Page 35

Watching a Camcorder/Game Console Image

Connect a Camcorder/Game Console to the PDP.

Watching a

Camcorder/Game

Console Image

• Enjoy images recorded by camcorder or the game console after connecting to the

• Prepare the AV cable.

• Connect the Video(Output) to the PDP(Video Input) as shown below.

• When connecting to an external AV source, be sure to match the colours.

• If using the scart cable for connection, put the ferrite core to the middle of the cable for preventing EMI.

AV1

AV2

O EDIV

-OIDU

-R

AV3

Video/Audio

S-Video

Video/Audio

Ferrite Core

Game Console/Camcorder

Press the Power Buttons

• Turn the PDP and the Camcorder/Game Console ON.

Page 36

Input Select

Select Function

• Select [AV 1(Scart), AV 2(Scart) or AV 3] by pressing the [AV] button of the Remote Control or the “INPUT SELECT” in keypad of the PDP unit.

• Each time you press the [AV] button, diﬀerent input modes appear. The sequence is as follows:

AV1 AV2

AV(S)3

• Select the function by using the remote control of camcorder or game console.

NOTES:

1) When connecting the device, the S-Video terminal provides a better image than the Video terminal.

3) If connecting via component video, refer to “Watching a DVD

Image” on page 32-33.

Page 37

Connecting PC(15pin D-sub)

Before Connecting to the PDP, Set the Resolution of the PC.

Connecting PC

• This product supports resolutions of VGA, SVGA, XGA.

• Before connecting a PC to the PDP, be sure to adjust the resolution of the PC.

• Go to SETUP-CONTROL PANEL-DISPLAY PROPERTIES in Window Screen of the PC.

• Choose the SETTINGS tab in the DISPLAY menu.

• In the SETTINGS menu, select 640 x 480 or 800 x 600.

Connect the PC to the PDP.

• Prepare the PC cable (D-sub 15pin) and the PC audio cable.

• Connect the PC(Output) to the PDP(Input) as shown below.

Audio

15 PIN D-sub

Page 38

Press the Power Buttons.

• Turn on the PDP and the PC.

Input Select

• Select [PC] by pressing the [PC/DVI] button

of the remote control or PDP unit.

• Each time you press the [PC/DVI] button, a diﬀerent input mode appears. The sequence is as follows:

• N.B. : You cannot select PC or DVI if the picture in picture mode is on.

Enjoy Dynamic Ultra Screen Monitor by Using PC’s Keyboard or Mouse.

NOTES:

1) The resolution of the PC monitor is the best at 640 x 480 (VGA).

2) If there is a [Vertical Frequency]setting menu in the [Display] menu of the PC, adjust the frequency to 60Hz.

3) If the PC resolution is too high, it may be hard to read letters. Select a suitable resolution.

4) If the picture don’t ﬁt with the size or position of the screen, select the [Auto] function in the Screen Menu in order to make ﬁt automatically. Also, you can adjust the position of the picture with [H.position] and [V.position] functions manually.

DVI

Page 39

Connecting PC(DVI)

Connecting PC

• This product supports resolution of VGA, SVGA, XGA.

• Before connecting a PC to the PDP, be sure to adjust the resolution of PC.

• This product is supported by Plug and Play only at DVI.

Connecting PC(DVI)

Before Connecting to the PDP, Set the Resolution of the PC.

• Go to SETUP-CONTROL PANEL-DISPLAY PROPERTIES in Window Screen of the PC.

• Choose the SETTINGS tab in the DISPLAY menu.

• In the SETTINGS menu, select 640 x 480 or 800 x 600.

Connect the PC to the PDP.

• Prepare the DVI cable and the PC audio cable.

• Connect the PC(Output) to the PDP(Input) as shown below.

Audio

DVI-D INPUT

DVI

Page 40

Press the Power Buttons.

• Turn on the PDP and the PC.

Input Select

• Select [DVI] by pressing the [PC/DVI button

of the remote control or the Input button on the PDP unit.

• Each time you press the [PC/DVI] button, a diﬀerent input mode appears. The sequence is as follows:

• N.B. : You cannot select PC or DVI if the picture in picture mode is on.

Enjoy Dynamic Ultra Screen Monitor by Using PC’s Keyboard or Mouse.

NOTES:

1) The resolution of the PC monitor is the best at 640 x 480 (VGA).

2) If there is a [Vertical Frequency]setting menu in the [Display] menu of the PC, adjust the frequency to 60Hz.

3) If the PC resolution is too high, it may be hard to read letters. Select a suitable resolution.

4) DVI input port receives only digital signal.

5) Depending on the graphic card when plugged or unplugged the DVI connection the screen may not display correctly. Restart the computer if this happens.

DVI

Page 41

PC and DVI Input Resolution Available in PDP

• Depending on graphic card, problems like no signal detected or line noises can happen. If these problems happen, contact the graphic card company for help.

Resolution H Freq. (KHz) V Freq. (Hz)

640x400 37.861 85.080 VESA O

640x480 31.469 59.940 DOS O O

37.861 72.809 VESA O O

37.500 75.000 VESA O O

43.269 85.061 VESA O O

720x400 31.469 70.087 IBM O O

37.927 85.039 VESA O

800x600 35.156 56.250 VESA O O

37.879 60.317 VESA O O

48.077 72.188 VESA O O

46.875 75.000 VESA O O

53.674 85.061 VESA O O

1024x768 48.363 60.004 VESA O O

56.476 70.069 HP & VESA O O

60.023 75.029 VESA O O

68.677 84.997 VESA O

Remark DVI PC

Page 42

Page 43

Selecting Picture Mode

Selecting

Picture Mode

• Select the Picture mode that is appropriate depending on the kinds of pictures, you enjoy.

Selecting Picture Mode

• Press the [PICTURE MODE] on the remote control.

• While pressing the [PICTURE MODE] for the ﬁrst time, the current picture mode will be displayed.

Each Press of the Button Will Select One of Four Picture Modes.

• Each time you press the button, a diﬀerent picture mode appears. The sequence used is as follows:

Normal

* Normal : For a highly deﬁned image in a normally bright

* Dynamic: For a clear-cut image emphasizing high contrast

* Cinema: For a movie * User: Allows the user to customise settings as desired.

Menu on the Screen will disappear.

• After selecting a desired picture mode, the menu on the screen will disappear.

• If you want to customise the picture modes, refer to the following page.

Dynamic

󱽔

room

for sports viewing

󱽔

Cinema

NOTES:

1) Normal, Dynamic, and Cinema modes are factory preset values.

2) When adjusting sub-menus while you are in Normal, Dynamic, and Cinema modes, the Picture Mode will be automatically converted to User Mode, and the adjustments will be made.

3) Selecting [Initialise] in the [Features], menu will allow the Brightness, Contrast, etc. to return to the factory preset values.

󱽔

User

Page 44

Customising Picture

Press the MENU Button.

• The MENU shown below will display on the screen.


Sound

Screen

Feature

Press the ▼PR▲ Button.

• After selecting [Picture] by the “ PR ”, but-

tons, press the “VOL ” button. Then the sub menu of [Picture] will be displayed.

Customising Picture

Mode Normal

Brightness 32

Contrast 48

Sharpness 32

Color 32

Colour Temp. Normal

N.R. On

CTI On

Install

Move Select

Exit

• You can adjust the colour

Customising


tone and brightness to your preference.

Select the User Mode.

O L

• Select [User] by the ” VOL ” buttons in the [Mode].

V O L

Mode Normal

Brightness 32


Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Adjust

Mode User

Brightness 32


Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Adjust

Exit

Page 45

Select User Mode Adjustments

• While you are in [Picture Mode – User], press the “ PR ” buttons to select a speciﬁc adjustment item.

Picture Condition Adjustments

• Press the “ VOL ” buttons to adjust the picture of your preference.

• N.R. and CTI function adjust the noise reduction and color resolution level of picture respectively.

V O

O L

Mode User

Brightness 32


Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Adjust

Exit

Mode User


Brightness 32

Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Adjust

Exit

NOTES:

1) While you are in the PC or DVI input mode, you can only adjust brightness, contrast and colour temperature.

2) When you adjust Brightness, Contrast, and Colour in DTV mode or adjust Brightness and Contrast in PC and DVI mode, the picture is adjusted ﬁnely.

3) The Tint control is used when the input signal is NTSC or Component. If input signal is NTSC, Tint control is displayed in picture menu.

4) Selecting the colour temperature makes the mood : normal,

warm or cold.

Page 46

Adjusting Screen

Press the SCREEN SIZE Button.

• The current screen size will be displayed on the screen.

• Each time you press the SCREEN SIZE button on the remote control, a diﬀerent screen size appears. The sequence used is as follows in case of AV and TV modes :

Adjusting with

Screen Size button

• You can adjust screen size or aspect ratio as desired.

Auto

LBS(14:9)

LB(14:9)

14:9

• N.B. : You cannot select screen size if the picture in picture mode is on.

16:9

4:3

Panorama

LB(16:9)

LBS(16:9)

NOTES:

1) Displaying a picture in a 4:3 mode for a long time may cause phosphor of the PDP to be burned. So avoid displaying a picture in 4:3 screen size for a long time.

2) Under Component,PC and DVI inputs,only 16:9,4:3 and panorama are available.

3) Auto : Displays pictures of original picture size.

16:9 : 16:9 picture formats 14:9 : 14:9 picture formats 4:3 : 4:3 picture formats like an analog TV Panorama : 16:9 picture formats with panorama eﬀect LB : Enlarges the screen as to ﬁll the black part

above and below the picture.

LBS : Enlarges the screen, and shifts up as to see

the subtitles in case you are watching video with subtitles.

Page 47

Adjusting Screen in the MENU

Press the MENU Button.

• The MENU screen as shown below will appear.

Adjusting Screen

• You can adjust the screen in the menu.

Mode Normal


Brightness 32

Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Select

Exit

Press the “ ▼PR▲ ” Button.

• Press the ” PR ” buttons to select ‘Screen’.

Mode 16 : 9


H. Position. 32

V. Pos itio n 32

Sound

Auto

Screen

Feature

Install

Move Select

< In case of PC input >

Exit

Page 48

Adjusting Screen in the MENU

Press the Volume “ VOL ” Buttons.

O L

• Press the Volume “ VOL ” buttons to enter the sub menu “Screen”.

• While you are in ‘Screen’ menu, press the ”

“PR ” button to select a desired item, and then, ad-

V O L

just the value by pressing the “ VOL” or “VOL ”

Mode 16 : 9


H. Position. 32

V. Pos itio n 32

Sound

Auto

Screen

Feature

PR” or

Screen Mode

Function

• This function is same to the [Screen Size] of remote controller.

Install

Move Adjust

Exit

< In case of PC input >

NOTES:

1) Screen Menu is diﬀerent according to the input modes.

Input Available Screen Mode

AV / TV 16:9, 4:3, Panorama, LB(16:9), LBS(16:9),

14:9, LB(14:9), LBS(14:9), Auto

Component, PC, DVI 16:9, 4:3, Panorama

2) Other Screen adjustments

< Under PC mode >

[H. Position] : As the value increases, the screen moves to the

right. [V. Position] : As the value increases, the screen moves up. [Auto] : Adjusting automatically the screen to optimum states.

< Under PIP mode >

[PIP Size] : Adjusting the size of the sub-picture. [Alpha Blend] : Adjusting the translucent rate of the subpicture.

Page 49

Watching a STILL Image

Press the “STILL” Button.

Watching a

Still Image

• You can view still images with this function. However, displaying the same images such as still images for a long time may cause image burn.

• If you wish to freeze a picture, press the “STILL” button. You can still hear the sound.

• Press “STILL” button again to cancel the “STILL” function.

Still

NOTES:

1) Displaying the same images such as still images for a long time may cause image burn (after-image lagging).

2) In this case, such “image burn” may become less noticeable if moving images are later displayed for a long time.

3) However, an image burn may become a permanent one, damaging the Plasma Display; therefore, avoid displaying the same images for a long time.

4) Use the function [ISM], while displaying still images for a long period of time to minimize this eﬀect. ISM (on or oﬀ) is in the Feature menu.

Page 50

Watching Two Pictures Simultaneously

Main

Watching Two Pictures Simultaneously

• PIP (Picture-in-Picture) and P-by-P(Picture-by-Picture) modes allow users to watch two pictures simultaneously. POP mode is used in searching memorized 5 or 12 channels.

Engaging PIP mode

PIP

Main Main

Position of the Sub-picture

• When PIP mode is engaged, the sub-picture can be displayed in

• Whenever pressing the button, the sub-picture will be cycling in

• Press the ‘PIP’ button once on the remote control to engage the Picture-in-Picture mode.

• By pressing the button repeatedly, it will show the following cycle.

• If switched to P-by-P (Picture-by-Picture) mode, the screen will be split in half. The screen on the left side is the main picture, and the sub-picture will be on the right of the screen.

Sub1

POP5

Sub2 Sub3

Main

Sub4

Sub5

Sub1 Sub2

Sub12

Sub11

Sub10

P-by-P

Sub

one of the four corners by using ‚POSITION’ button.

the following order. Also, using “ can be moved to any position you want.

PR ” and “ VOL ” button, the sub-picture

POP12

Sub3

Main

Sub9

Sub8

Sub4

Sub5

Sub6

Sub7

Screen Adjustment

of the Sub-picture

• Size and Alpha Blend of the subpicture can be adjusted on Screen Menu of OSD.

• These fuctions are availible only in PIP Mode.

Pip Size

Adjusting the size of the sub-picture with buttons.

Alpha Blend

The adjustment of alpha blend allows the sub-picture to be translucent. The translucent rate is controlled with buttons.

“ VOL ”

Main

Sub

Main

Sub

Main

Sub

Main

< Using buttons

Swap the pictures

• In order to swap between the main picture and subpicture, press the ‘SWAP’ button.

• However, at POP5 and POP12, the pictures are not swapped. Main picture will change to the active subpicture.

• Also, only TV channels are available for the sub-pictures of POP5 and POP12. The sub-pictures search channels continuously until POP mode is exited.

„ PR ” and „ VOL ” >

Sub

Page 51

Watching Two Pictures Simultaneously

Select the program

• Using program Up/Down buttons

(PR /PR ), you may select the desired channels for sub-pictures.

• The PR Up/Down buttons select the TV channels.

Select the Input Source

• Various signal sources can be displayed within the sub-picture under PIP mode.

• Once the PIP mode is on, you may change the input source of the sub-picture by pressing the ‘SOURCE’ button.

• Pressing the ‚SOURCE’ button repeatedly will cycle through following order.

T V → AV1 → AV2 → AV3

Available PIP Input Combinations

• Main-pictue and sub-pictue input combinations

MAIN

AV1

AV2

AV3

PIP

(MAIN)

AV1

(CVBS)

AV2

(CVBS)

AV3

S-VIDEO

AV1

(RGB)

AV2

(RGB)

(MAIN)

(CVBS)

OOOOOOO

OXOOO XO

OOXOOO X

OOOX XOO

XXXXXXX

S-VIDEO

AV1

(RGB)

AV2

(RGB)

Page 52

Adjusting Auto Sound Mode

Select “SOUND MODE”.

• Press the “SOUND MODE” on the remote control.

• While pressing the “SOUND MODE” for the ﬁrst time, the current sound mode will be displayed.

KEvery Press of the Button Changes Modes.

Adjusting Auto

Sound Mode

• Enjoy various sound modes by selecting your favourite Sound Mode depending on the kinds of moving pictures.

• Each time you press the button, a diﬀerent sound mode appears. The sequence used is as follows:

Normal

󱽔

* Normal : Suitable for watching any motion picture * Movie : Select this mode to simulate being at a movie theatre * Music : Ideal for listening to music * News : Allows human voice to be heard more clearly * User : Allows the user to adjust as desired.

MENU will Disappear.

Movie

󱽔

• After selecting a desired Sound Mode, the on-screen menu will disappear in about 2~3 seconds.

• Normal, Movie, Music and News modes are factory preset values. If you want to customise the sound modes for your preference, refer to the following page.

Music

󱽔

News

󱽔

User

Page 53

Customising Sound Mode

Press the MENU Button.

Customising Sound Mode

• This feature allows the user to adjust for their preference.

Press the “ PR ” Button.

• The MENU screen as below will be displayed.

• Select [Sound] by the “ PR ” buttons, then press the “VOL ” button to display the following.

Mode Normal


Brightness 32

Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Select Exit

Select SOUND BALANCE.

O L

• Select “Sound-Balance” by the “ VOL ” buttons, then adjust it.

V O L


Sound

Screen

Feature

Install

Balance 0

Eﬀect Oﬀ


AVC Oﬀ

Mode Normal

Sound

120Hz 0

500HZ 0

Screen

1.5k Hz 0

5kHz 0

Feature

10kHz 0

Install

Move Select

Balance 0

Eﬀect Oﬀ

AVC Oﬀ

Mode Normal

120Hz 0

500HZ 0

1.5k Hz 0

5kHz 0

10kHz 0

Move Adjust

Exit

Page 54

Select the Eﬀect Mode.

• Select [Eﬀect] by pressing the “ PR ” then select the desire sound eﬀect by pressing the “VOL ” button.

• [Eﬀect]: Used to emphasize stereo eﬀect.


Sound

Screen

Feature

Install

Move Adjust

Balance 0

Eﬀect Oﬀ

AVC Oﬀ

Mode Normal

120Hz 0

500HZ 0

1.5k Hz 0

5kHz 0

10kHz 0

Exit

Language selection

for dual language

broadcast

• If a programme is received in two languages (dual language), you can switch to Dual I, Dual II or F mono by pressing the I/II button of the remote control repeatedly.

Dual I

Dual I sends the primary broadcast language to the loudspeakers.

Dual II

Dual II sends the secondary broadcast language to the loudspeakers.

F Mono

F Mono sends the Mono sound to the loudspeakers.

Page 55

Customising Sound Mode

Select the Sound Mode.

• Select the Sound Mode by pressing the “ PR ” buttons, then adjust it by pressing the “ VOL ” buttons.

V O L

O L

Balance 0

Eﬀect Oﬀ


AVC Oﬀ

Mode Normal

Sound

120Hz 0

500HZ 0

Screen

1.5k Hz 0

5kHz 0

Feature

10kHz 0

Install

Move Adjust

Exit

Normal

󱽔

Movie

󱽔

Music

󱽔

News

* Normal : Suitable for watching any motion picture * Movie : Select this mode to simulate being at a movie theatre * Music : Suitable for listening to music * News : Allows human voice to be heard more clearly * User : Allows the user to adjust as desired.

NOTES:

1) User Mode : Used as an equalizer with which the user can adjust the sound frequency as desired.

2) If you modify the sound frequency in auto Sound Mode (News, Movie, Music, etc.), it is automatically switched to the User Mode.

3) For a realistic sound eﬀect, lower than 120Hz frequency sound and greater than 12kHz frequency adjust the equalizer accordingly.

4) AVC function : This function adjusts volume to the set level

automatically. However, dependent on the sources, it may have diﬀerent volume levels because the sound sources have their own initially set up levels.

󱽔

User

Page 56

Selecting INPUT SIGNAL

Press the Input Signal Selecting Button.

• Press the “TV ”, “AV”, “COMPONENT” or “PC/DVI” button

VCR/DVD

SAT

CATV

on the remote control or the PDP Display to select the desired input signal.

• Each time you press input mode buttons, a diﬀerent input mode appears. The sequence used is as follows:

• “TV ” button

INPUT SIGNAL

• Used to select INPUT signal of external device connected to the PDP.

• “AV ” button

• “COMPONENT” button

• “PC/DVI” button

AV1 AV 2 AV3

Component1 Component2

PC DVI

Component 1

NOTES:

1) If an external device is not connected or INPUT signal is not applied a Warning Message (“No Signal”) will be displayed.

2) In this case, check if external device is connected and/or terminal connection is properly ﬁtted.

3) Also, you can select input using [INPUT SELECT] button in the keypad of the PDP unit. The sequence of selection is as follows:

TV -> AV1 -> AV2 -> AV3 ->Component1

-> Component2 -> PC -> DVI -> TV

Page 57

Checking the Current Input Signal

- Press the [RECALL] button on the remote control, then displays basic informations of the current input signal, Under this state, pressing the [RECALL] button once more, additional informations about the current input signal will be displayed on the OSD.

Press the RECALL Button.

Checking the

Current Input Signal

• Press the [RECALL] button on the Remote Control.

• Used to check the INPUT signal mode, current time, resolution, channel, etc.

Component 1

H:1920 V:1080

1. If you watch Component, PC, or DVI :

Comopnent 1

PM 12:00

H:1920 V:1080

Displays which input terminal is used, and indicates the input signal mode. Indicates the horizontal and vertical resolution of the current INPUT signal.

Indicates the mode and current time.

2. If you watch TV:

PR22 PR Name

PR22 PR Mono/Stereo Time

Mono

PM 12:00

Video PAL B/G Audio I Country GB Channel C35

Name

Displays the program number and its name.

Indicates the current sound state and time.

Displays additional informations of TV signal of TV signal, video and audio system. country, channel.

[RECALL] button

PM 12:00

[RECALL] button once more

3. If you watch VCR image:

AV1

PM 12:00

Video PAL B/G

Displays the program number and input terminal, which is used.

Indicates the mode and current time.

Displays the video system of input signal

NOTES:

1) “1920 x 1080” displayed in the INPUT signal is not the resolution of the monitor, but the signal that is sent by the Digital Broadcasting Receiver.

Page 58

MENU Background, Language and Child Lock Setting

Press the MENU Button.

• The MENU screen will be displayed as below.

Selecting

Mode Normal


Brightness 32

Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Select

Press the “ PR ” Button.

• Select [Features] by the “ PR ” button.

Background 10

Language English


Child Lock Oﬀ

MGDI On

Sound

Auto Power Oﬀ

Time Set ting

Screen

ISM

Initialize

Feature

Install

Move Select

Languages

• Used to select the tanslucent level of MENU background and language used in MENU.

Exit

Select the menu Background.

• Select the MENU [Background] by pressing the “VOL ” button.

• Adjust the tanslucent level of OSD back-

ground using “VOL ” buttons.

O L

Background 10

Language English


Child Lock Oﬀ

MGDI On

Sound

Auto Power Oﬀ

Time Setting

Screen

ISM

Initialize

Feature

Install

Move Adjust

Exit

Page 59

MENU Background, Language and Child Lock Setting

Select LANGUAGE by using the “ PR ”Button.

• Select [Language] by using the” PR ” button.

• Every press of the “VOL ” button while you are in the [Language] mode would cycle through the diﬀerent languages.

Background 10

Language English


Child Lock Oﬀ

MGDI On

Sound

Auto Power Oﬀ

Time Setting

Screen

ISM

Initialize

Feature

Install

Move Adjust

Exit

NOTES:

• When power is turned on the ﬁrst time, ‘SELECT LANGUAGE’ mode will be displayed, then, select the desired language by using “VOL ” button. (Displayed only once)

Child Lock Setting

• Select [Child Lock] by the “ PR ” buttons.

• Whenever “VOL ” button is pressed, the lock mode would cycle On and Oﬀ.

• While the Child Lock is ON, if you have not turned oﬀ the PDP, all of it’s keys will work normaly. However, after turning the PDP oﬀ, the PDP will not be turned on with the keypad on the PDP. Only by the remote controller, the PDP is turned on.

Background 10

Language English


Child Lock Oﬀ

MGDI Oﬀ

Sound

Auto Power Oﬀ

Time Setting

Screen

ISM

Initialize

Feature

Install

Move Adjust

Exit

Page 60

MGDI (Meta Genuine Digital Image)

MGDI is the image enhancement technology of Daewoo Electronics, which provides more clear, realistic, and delicate images.

Press the MENU Button.

• The MENU screen will be displayed as below.

Select Features

• Select [Features] by the “ PR ” button.

Mode Normal


Brightness 32

Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Select

• MGDI function can not be used In PC and DVI modes.

Exit

MGDI

MGDI Setting

Background 10

Language English


Child Lock Oﬀ

MGDI On

Sound

Auto Power Oﬀ

Time Set ting

Screen

ISM

Initialize

Feature

Install

Move Select

• Enter the sub Menu by using the “VOL ” button.

• Select the [MGDI] by pressing the “ PR ” button.

• You can select [MGDI] On or Oﬀ mode by using the “VOL ” button.

Background 10

Language English


Child Lock Oﬀ

MGDI Oﬀ

Sound

Auto Power Oﬀ

Time Setting

Screen

ISM

Initialize

Feature

Exit

Install

Move Select

Exit

Page 61

Auto Power Setting

POWER/STANDBY

Indicator

Front panel LED lights

• When the AC power is on : Green.

• When the AC power is in the standby mode : Red.

Auto Power Setting

• Select the [Auto Power] by pressing the “ PR ”

button from [Features].

• You can select [Auto Power] ON and OFF mode by using the “VOL ” button.

Background 10

Language English


Child Lock Oﬀ

MGDI Oﬀ

Sound

Auto Power Oﬀ

Time Setting

Screen

ISM

Initialize

Feature

Install

Move Adjust

Exit

Auto Power

1) ON : When the AC power is ON, the TV will be turned on automatically without pressing the power button on the remote control.

AC POWER ON PDP SET ON

Automatically

2) OFF : When the AC power is ON, the TV will be turned on by

pressing the power button on the remote control or the keypad of the front panel.

AC POWER ON STANDBY MODE

With the remote control or

the keypad of front panel.

PDP SET ON

3) If Child Lock function is ON, this function is not operated.

Page 62

Time Setting

Press the MENU Button.

• The MENU screen will be displayed as below.

Select Features

• Select [Features] by the “ PR ” button.

Mode Normal


Brightness 32

Contrast 48

Sound

Sharpness 32

Color 32

Screen

Colour Temp. Normal

N.R. On

Feature

CTI On

Install

Move Select

Background 10

Language English


Child Lock Oﬀ

MGDI On

Sound

Auto Power Oﬀ

Time Set ting

Screen

ISM

Initialize

Feature

Install

Move Select

Exit

Select Time Setting

• Enter the sub menu by using the “VOL ” button.

• Select the [Time Setting] with the “ PR ” button.

• Enter [Time Setting] by pressing the “VOL ” button.

Background 10

Language English


Child Lock Oﬀ

MGDI Oﬀ

Sound

Auto Power Oﬀ

Time Setting

Screen

ISM

Initialize

Feature

Install

Move Select

Exit

Page 63

Time Setting

• The “Current time” must be set up ahead of setting up other time memories.

Time Setting

Oﬀ-Time and Wake time setting

• Select Functions by pressing the “ PR ” button. First, set [Clock]- current time, and then You can setup oﬀ-time and wake time.

• [Clock] : Adjust the desired hour and minute with “◄VOL►” button.

• [Auto Clock] : Automatically setting the cur-

rent time by teletext signal.

• [Off Time] and [Wake Time] Setting methods

are same as [Clock] setting method.

• [Off Timer] and [Wake Timer] : Setting [On]

and [Off] of each Timer.

• [Wake Prog.] and [Wake Vol. ] : Setting

channel and volume when TV is turned on by [Wake Timer].

Clock AM 11:50


Auto Clock On

Oﬀ Timer Oﬀ

Sound

Off Time AM 12:00

Wake Timer Oﬀ

Screen

Wake Time AM 12:00

Wake Prog. 2

Feature

Wake Vol. 19

Install

Move Select

Time Setting

Exit

Time Setting Functions

1) This time memory function automatically turns the TV set “On” or “Oﬀ”at a desired time. Once set up, this function works every day unless the set time is canceled or the TV set is unplugged. Therefore, this function could be used for a “Get up” alarm (Wake up Call) by setting up the time for “On” in the morning.

2) However, if you once power oﬀ with ON/OFF in the PDP unit, the Current time (Clock) will be reset.

Page 64

ISM (Image Sticking Minimisation)

Press the MENU Button.

• The MENU screen will be displayed as below.


Sound

Screen

Feature

Install

Move Select

Press the “ PR ”Button.

• Select [Features] by the “ PR ” button.

Mode Normal

Brightness 32

Contrast 48

Sharpness 32

Color 32

Colour Temp. Normal

N.R. On

CTI On

Exit

ISM

• Image Burn Minimisation

• Displaying a still image for a long time causes part image sticking on the screen.

• The ISM function minimises this eﬀect.

Select ISM.

Background 10

Language English


Child Lock Oﬀ

MGDI On

Sound

Auto Power Oﬀ

Time Set ting

Screen

ISM

Initialize

Feature

Install

Move Select

• Enter the sub menu by using the “VOL►” button.

• Select the [ISM] by pressing the “▼PR▲” button.

• Press of the “VOL►” button while you are in the ISM.

Background 10

Language English


Child Lock Oﬀ

MGDI Oﬀ

Sound

Auto Power Oﬀ

Time Setting

Screen

ISM

Initialize

Feature

Exit

Install

Move Select

Exit

Page 65

ISM (Image Sticking Minimisation)

Select Functions.

• Every press of the “VOL ” button after select

function by the “ PR ” button would switch between ON/OFF.

Pixel Shif t On


Low Bright . Oﬀ

Img. Invert Oﬀ

Sound

Screen

Feature

Install

Move Adjust

ISM

Exit

NOTES:

* Pixel Shift : The whole screen shifts up/down, left/right at 15 sec

interval to minimize image sticking.

* Low Bright: When displaying a still picture or a ﬁxed pattern for

a long time (5Min), the brightness level decreases to minimize image sticking.

* Image Inverting: Inverting color of the original image to

minimisation image sticking.

Page 66

Initialize Setting

Press the MENU Button.

• The MENU screen will be displayed as below.


Sound

Screen

Feature

Install

Move Select

Select Features

• Select [Features] by the “ PR ” button.

Mode Normal

Brightness 32

Contrast 48

Sharpness 32

Color 32

Colour Temp. Normal

N.R. On

CTI On

Exit

Back to

Initialization

• You can restore the values of the adjustment setting made in the MENU back to factory settings.

Background 10

Language English


Child Lock Oﬀ

MGDI On

Sound

Auto Power Oﬀ

Time Set ting

Screen

ISM

Initialize

Feature

Install

Move Select

Exit

Page 67

Initialize Setting

INITIALISATION

• Enter the sub Menu by using the “VOL ” button.

• Select the [Initialize] by pressing the “ PR ” button, then press the “VOL ” button.

• A conﬁrmation message will be displayed.

• To perform initialization, press the “VOL ” button after selecting [YES] by the “ PR ” button.

• To return to MENU, press “MENU” button.

Background 10

Language English


Child Lock Oﬀ

MGDI Oﬀ

Sound

Auto Power Oﬀ

Time Setting

Screen

ISM

Initialize

Feature

Install

Move Select

Are You sure ?


Yes

Sound

Screen

Feature

Install

Exit

Move Select

When [INITIALIZATION] is completed:

1) When [INITIALIZATION] is completed, those values that have been set in the User Mode of [PICTURE MODE] and [SOUND MODE] will be returned to the factory preset values.

2) Once initialized, you can not undo.

3) The items in the [SCREEN] Menu are also initialized.

4) Language, program, time, volume, OSD background, input mode are not initialized.

Exit

Page 68

Setting Sleep Timer

Press the “SLEEP” Button.

• Press the “SLEEP” button on the Remote Control.

• Pressing the “SLEEP” button ﬁrst time will display the current setting for Sleep Timer.

• To cancel the Sleep Timer, press the “SLEEP” button to select ‘Oﬀ’.

Sleep Timer Oﬀ

Setting

Sleep Timer

• Sleep Timer turns the PDP oﬀ after a preset time.

Sleep Timer oﬀ

Sleep Timer 15

Sleep Timer 30

Sleep Timer 120

Sleep Timer 90

Sleep Timer 60

NOTES:

1) On-screen information disappears if you do not take any action for about two seconds after pressing the SLEEP button.

2) If you turn the PDP oﬀ after setting SLEEP, the setting is erased.

Page 69

Teletext

Switching Teletext ON/OFF

• Press the Text button ( viewed last will appear. Press the Text button again to return to the TV mode.

Colour buttons in TOP/FLOF Teletext

• A red, green, yellow and cyan ﬁeld is shown at the bottom of the screen. If TOP or FLOF Teletext is transmitted by the station, pressing the corresponding colour button on the remote control, you can select the desired page easily.

Selecting Pages

• The Page selector button 0~9 are used to enter a page number. The selected page number appears at the top of the screen and the page appears after a short time. The UP( the current page number by 1.

Index Page

or )/( or ) buttons increase or decrease

). The index page or the page

• You can switch directly to the program preview (with TOP text) or the overview page of the station you are currently viewing by pressing the Index (

Page Hold

• Several sub pages can be combined under a page

number and are scrolled at an interval determined by the television station. The presence of sub pages is indicated by, for example, 3/6 beneath the time, which means that you are looking at the 3rd page of a total of 6pages. If you want to look at a subpage for a longer period of time, press the Hold ( The contents of the subpage shown are kept no longer updated or switched to other subpages. Pressing the Hold button again, the current subpage appears.

) button.

)button.

Page 70

Calling Up Subpage Directly

• Pressing the Subpage (

) button. The subpage number is displayed at the bottom of the screen. To change the subpage, press the subpage number, for example, the 2nd page, sequence 02. The desired subpage will eventually be displayed on the screen and holds it there. Press this button again to exit this function.

Watching television during teletext mode

• Some pages are continually updated, for example, stock market reports, sports announcements, the latest news. If you want to watch television and stay informed at the same time, press Update (

)button. The regular program is still visible and the teletext page number appears at the top of the screen. Pressing the Update button, the teletext page appears with the updated information.

Reveal Answer

• This function can be used on certain pages to reveal the solution of riddles. Press the Reveal button (

) to

reveal a hidden answer and press again to hide it.

Doubling Character size

• Repeatedly pressing the Size button (

) doubles the

character size in the following order. Upper half of the page → Lower half of the page → Return to normal size.

Mix

• You can simultaneously watch TV and Teletext screen by pressing the mixed window button (

) in Teletext mode.

Page 71

Before Requesting Service

Before requesting for service, check the following points once again.

• Remote control does not

function properly.

Symptoms

• Check for any obstacle between the Remote Control and the Display.

• Check for dead batteries and incorrect battery orientation.

Checks

• Check if the Remote Control is the right one.

• Remove any obstacle between the Remote Control and the Display.

• Replace batteries and use the correct polarity (+) or (-) of the batteries.

Action

• Use the correct Remote Control proper to the model.

• The Display makes a snapping

sound.

• Check if the pictures and sound are

normal.

• This sound is produced due to variations in room temperature.

• This sound does not indicate that the Display has a problem if the pictures and sound can be viewed and heard properly.

• There are empty spots at the

top and the bottom area of the screen.

• Check if the screen size of an image is wider than 16:9 aspect ratio (theatre screen size).

• When video screen is wider than 16:9 aspect ratio, you may see dark areas at the top and the bottom of the screen.

Before Requesting for Service

• There are spots on the screen or screen rolls.

Symptoms

• Check if your product is aﬀected by

any interference from automobiles, high-voltage transmission lines, neon

Checks

signs or other potential sources.

Action

• Screen size is suddenly changed.

• The screen size of a video image may not

be matched to the size of the dark initial screen.

• Check by using other video tape.

Page 72

SPECIFICATIONS

DISPLAY UNIT

Diagonal Size 106 cm (42”)

Screen Aspect Ratio 16:9

System PAL B/G, I/I, SECAM B/G, D/K, L/L’

Display Resolution 852(H) x 480(V) dots

Pixel Pitch 1,08(H) x 1,08(V ) mm

Dimension 1260(Sz.) x 653(W) x 91(Gł.) mm

49.61(Sz.) x 25.71 (W ) x 3.50 (Gł) inch

Weight 33 kg (72.75Lbs)

Power Requirement 100-240V~, 50/60 Hz

Appearance and speciﬁcations of this product are subject to change for improving the product without prior notice.

CONNECTION TERMINAL

EXTERNAL INPUT

AUDIO OUTPUT

ITEMS VIDEO AUDIO

DVI INPUT DVI-D Digital Only Jack (LEFT/RIGHT)

PC INPUT one 15 pin D-sub jack (LEFT/RIGHT)

Component INPUT two Y, Pb/Cb, Pr/Cr RCA Jack 2sets (LEFT/RIGHT)

AV 1,2 SCART Jack

(Video In/Out, RGB In)

AV3 RCA Jack, S-VHS (LEFT/RIGHT)

TV Standard : PAL B/G, I/I, SECAM B/G, D/K, L/L’

Receiving Channel : VHF Low : E2 ~ S6 Ch. (48.25MHz ~ 140.25MHz) VHF High : S7 ~ S36 Ch. (147.25MHz ~ 423.25MHz) UHF : S37 ~ E69 Ch. (431.25MHz ~ 855.25MHz) L’-SECAM : FB, FC1, FC

20W (10W + 10W), 8 Ohm

(LEFT/RIGHT) (In/Out)

Daewoo DT-42A1 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
