Service Manual
Split System Air
Conditioner
Model: DSB-070LH/DSB-071LH
DSB-091LH/DSB-092LH
DSB-121LH/DSB-122LH
DSB-123LH
DSB-182LH/LH-R
DSB-183LH-R
DSA-183LH-R
DSB-240LH-R
DSA-240LH-R
DAEWOO ELECTRONICS CO., LTD.
by Nemko
S/M No. : 3113907100
✔
Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
CONTENTS
1. Specifications..........................................................................................................2
2. Outline and Dimensions.......................................................................................11
3. Operation ..............................................................................................................20

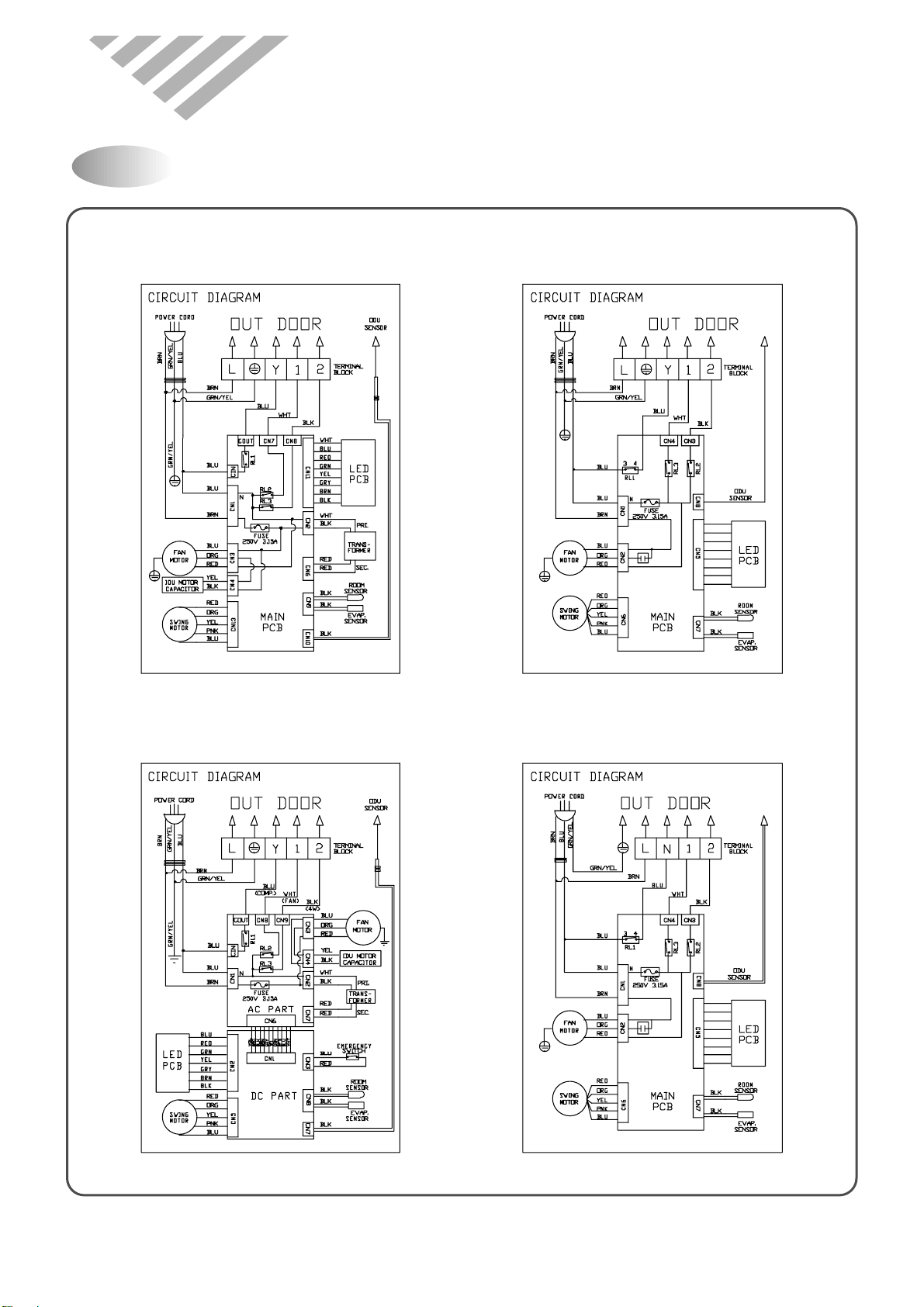

4. Wiring Diagram.....................................................................................................44
5. Refrigerant Cycle..................................................................................................50
6. Control Block Diagram.........................................................................................51
7. Trouble Shooting...................................................................................................53

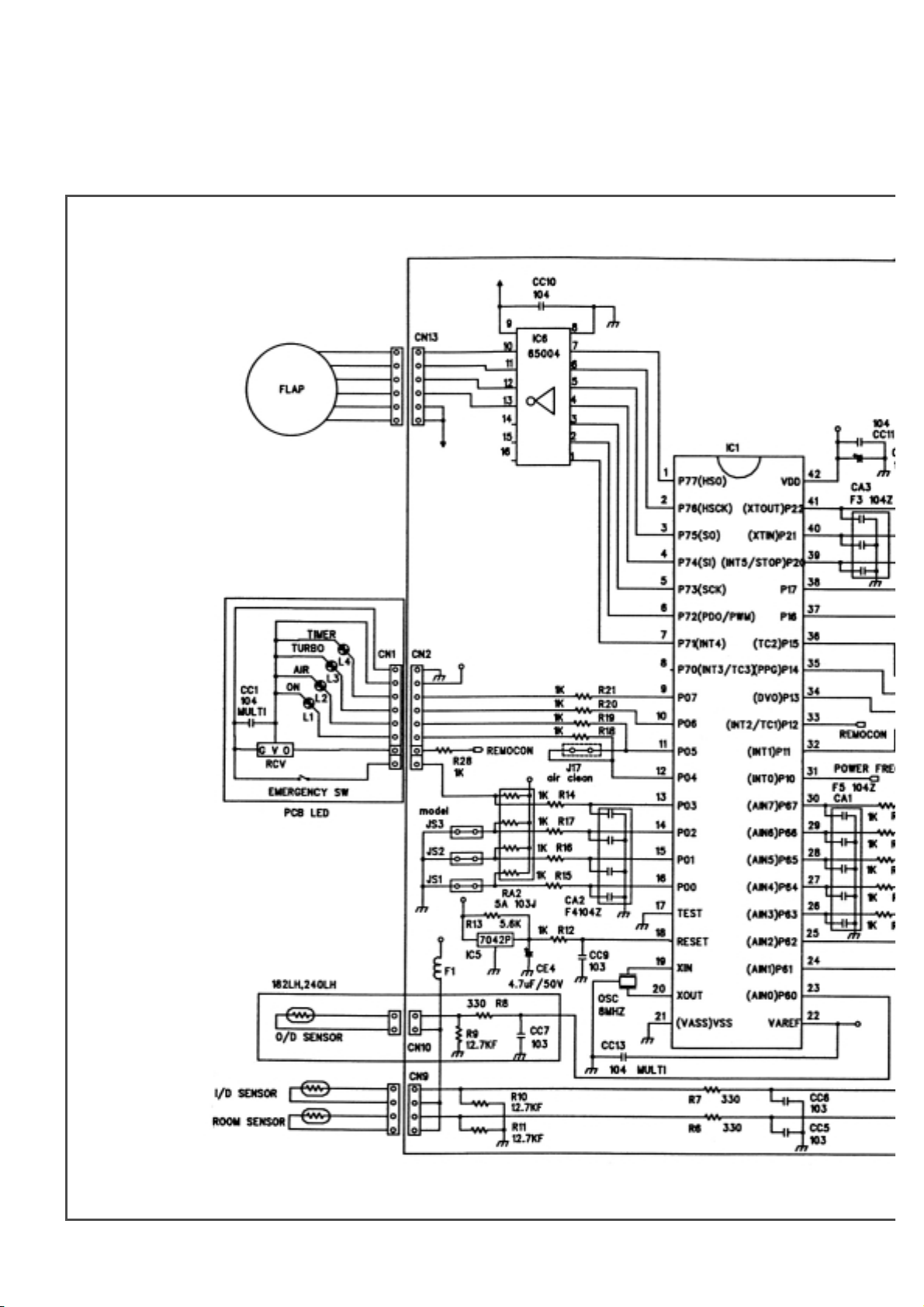

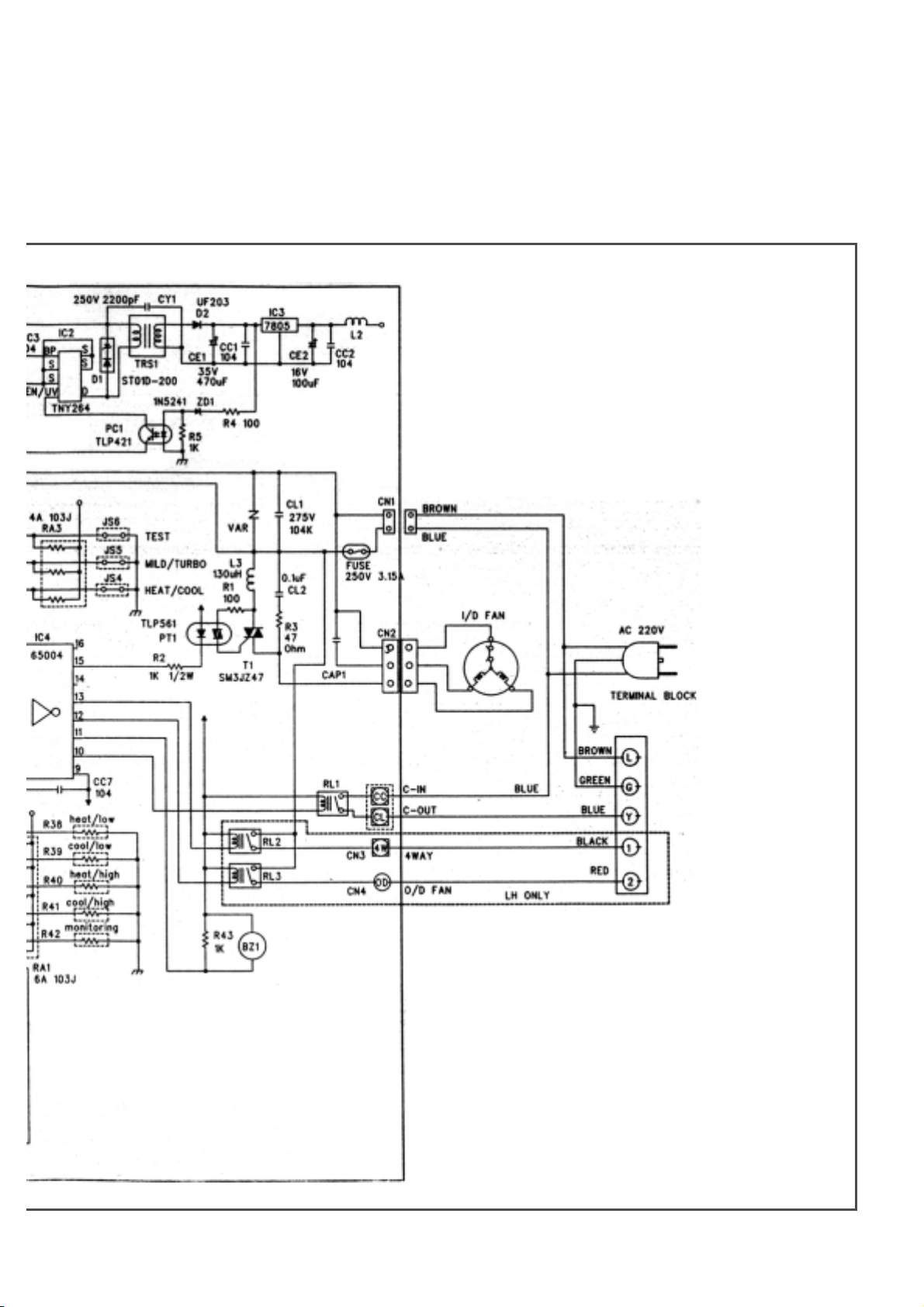

8. Key Components of Electronic Circuit.................................................................87
9. Disassembly Instructions .....................................................................................90
1) Indoor Unit........................................................................................................90
2) Outdoor Unit.....................................................................................................97
3) Exploded Diagram (Indoor Unit)....................................................................100
4) Exploded Diagram (Outdoor Unit).................................................................116
5) Control Box Assembly....................................................................................124
Contents
2
1. SPECIFICATIONS
MODEL
DSB-070LH/071LH
ITEM
Function Cooling & Heating
Class T
Power AC 220~ 240V/ 50Hz
Capacity W 2,051/2,051
Btu/h 7,000/7,000
Dehumidification l/h 0.89
Running Current A 3.1/3.1
Power Input W 740/720
Starting Current A 18
Type Rotary
Model RBB075A011
Capacitor 25µF/370VAC
Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.0µF 400VAC 1.8µF 400V
Motor Model Number YDK-8-4B YDK-30-6B/YDK-30-6B
Control Capillary
Charge Q'ty g 850
Type Flare
OD (Liquid/Gas) in(mm) 1/4 (6.35) 3/8 (9.52)
Dimensions (W x H x D) mm 750 x 245 x 174 654 x 549 x 256
Net Weight kg 7.0 34
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
DSB-070LH/071LH
◆
3
MODEL
DSB-091LH/092LH
ITEM
Function Cooling & Heating
Class T
Power AC 220~240V/ 50Hz
Capacity W 2,637/2,637
Btu/h 9,000/9,000
Dehumidification l/h 1.15
Running Current A 4.5/4.5
Power Input W 1,000/1,000
Starting Current A 24
Type Rotary
Model RBB100A011
Capacitor 30µF / 370VAC
Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.0µF 400VAC 1.8µF 400V
Motor Model Number YDK-8-4B A9530BD010/YDK-30-6B
Control Capillary
Charge Q'ty g 800
Type Flare
OD (Liquid/Gas) in(mm) 1/4 (6.35) 3/8 (9.52)
Dimensions (W x H x D) mm 750 x 245 x 174 654 x 549 x 256
Net Weight kg 7.0 34
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
DSB-091LH/092LH
◆
4
MODEL
DSB-121LH/122LH
ITEM
Function Cooling & Heating
Class T
Power AC 220~240V/ 50Hz
Capacity W 3,663/3,956
Btu/h 12,500/13,500
Dehumidification l/h 1.6
Running Current A 7.0/6.5
Power Input W 1,500/1,410
Starting Current A 37
Type Rotary
Model RCB 150A001
Capacitor 35µF/ 370VAC
Division Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.0µF 400VAC 3.5µF 400VAC
Motor Model Number YDK-8-4B/A YDK-40-4B
Control Capillary
Charge Q'ty g 1,060
Type Flare
OD (Liquid/Gas) in(mm) 1/4 (6.35) 1/2 (12.7)
Dimensions (W x H x D) mm 925 x 285 x 194 654 x 549 x 256
Net Weight kg 9.7 34
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
DSB-121LH/122LH
◆
5
MODEL
DSB-123LH
ITEM
Function Cooling & Heating
Class T
Power AC 220~240V/ 50Hz
Capacity W 3,517/3,810
Btu/h 12,000/13,000
Dehumidification l/h 1.28
Running Current A 6.8/7.3
Power Input W 1,500/1,550
Starting Current A 37
Type Rotary
Model RCB 150A001
Capacitor 35µF/ 370VAC
Division Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.5µF 400VAC 3.5µF 400VAC
Motor Model Number RP-13B YDK-40-4B
Control Capillary
Charge Q'ty g 1,230
Type Flare
OD (Liquid/Gas) in(mm) 1/4 (6.35) 3/8 (9.52)
Dimensions (W x H x D) mm 815 x 285 x 195 654 x 549 x 256
Net Weight kg 9.2 34
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
DSB-123LH
◆
6
MODEL
DSB-182LH
ITEM
Function Cooling & Heating
Class T1
Power AC 220~240V/ 50Hz
Capacity W 5,129/5,422
Btu/h 17,500/18,500
Dehumidification l/h 2.3
Running Current A 9.65/10
Power Input W 2,150/2,235
Starting Current A 49
Type Rotary
Model SHW33TC4-U
Capacitor 50µF / 370VAC
Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.2µF 450VAC 3µF 400V
Motor Model Number IC-9425DWKC5C YDK-50-6B
Control Capillary
Charge Q'ty g 1,480
Type Flare
OD (Liquid/Gas) in(mm) 1/4 (6.35) 1/2 (12.7)
Dimensions (W x H x D) mm 1035 x 322 x 205 800 x 615 x 320
Net Weight kg 12.1 51.9
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
DSB-182LH
◆
7
MODEL
DSB-182LH-R DSB-183LH-R
ITEM
Function Cooling & Heating
Class T1
Power AC 220~240V/ 50Hz
Capacity W 5,275/5,275 5,275/5,560
Btu/h 18,000/18,000 18,000/19,000
Dehumidification l/h 2.3
Running Current A 9.2/9.5 9.5/9.0
Power Input W 2,000/2,100 2,000/1,950
Starting Current A 54
Type Recipro
Model SHW33TC4-U AWG5524EXC
Capacitor 35µF / 370VAC
Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 1.2µF 450VAC 3µF 400V
Motor Model Number IC-9425DWKC5C YDK-50-6B
Control Capillary
Charge Q'ty g 1,550 1,600
Type Flare
OD (Liquid/Gas) in(mm) 1/4 (6.35) 1/2 (12.7)
Dimensions (W x H x D) mm 1035 x 322 x 205 800 x 615 x 320 1080 x 298 x 200 800 x 615 x 320
Net Weight kg 12.1 63.5 14.7 63.5
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
DSB-182LH-R/DSB-183LH-R
◆
8
MODEL
DSA-183LH-R
ITEM
Remark JIS C9812 SAA385386
Function Cooling & Heating
Class T1
Power AC 220V / 60Hz
Capacity
W 5275.5/5422 4500/5400
Btu/h 18,000/18,500 15354/18425
Dehumidification l/h 2.3
Running Current A 9.4/8.8 10.4/8.8
Power Input W 2,000/1,900 2,200/1,900
Starting Current A 52 52
Type Recipro
Model AWG5519EXN
Capacitor 35µF / 400VAC
Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 2µF / 400VAC 4µF / 440VAC
Motor Model Number IC-9430DWKF7A IC-1625DWCF6B
Control Capillary
Charge Q'ty g 1500
Type Flare
OD (Liquid/Gas) in(mm) 1/4 (6.35) 1/2 (12.7)
Dimensions (W x H x D) mm 1080 x 298 x 200 800 x 630 x 320
Net Weight kg 14.7 63.5
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
DSA-183LH-R
◆
9
MODEL
DSB-240LH-R
ITEM
Function Cooling & Heating
Class T1
Power AC 220~240V/ 50Hz
Capacity W 7,034/7,034
Btu/h 24,000/24,000
Dehumidification l/h 2.67
Running Current A 13.4 / 13.6
Power Input W 2,450 / 2,500
Starting Current A 83
Type Recipro
Model AWG5530EXC
Capacitor 45µF/ 400VAC
Division Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 2µF 400VAC 5µF 400VAC
Motor Model Number IC-9430DWKF7A OSME-806DERC
Control Capillary
Charge Q'ty g 2,050
Type Flare
OD
(Liquid/Suction)
in(mm) 3/8 (9.52) 5/8 (15.9)
Dimensions (W x H x D) mm 1080 x 298 x 200 872 x 675 x 325
Net Weight kg 14.7 65
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
DSB-240LH-R
◆
10
MODEL
DSA-240LH-R
ITEM
Remark JIS C9812 SAA385386
Function Cooling & Heating
Class T1
Power AC 220V / 60Hz
Capacity
W 7,034/7,034 5,129
Btu/h 24,000/24,000 17.5
Dehumidification l/h 2.67
Running Current A 11.5/11.8 13
Power Input W 2,500/2,500 2,800
Starting Current A 60 602
Type Recipro
Model AWG5524EXN
Capacitor 35µF / 400VAC
Indoor Unit Outdoor Unit
Type Cross flow fan Propeller fan
Capacitor 2µF / 400VAC 5µF / 400VAC
Motor Model Number IC-9430DWKF7A OSME-986DERC
Control Capillary
Charge Q'ty g 2,100
Type Flare
OD (Liquid/Gas) in(mm) 3/8 (9.52) 5/8 (15.9)
Dimensions (W x H x D) mm 1080 x 298 x 200 875 x 675 x 325
Net Weight kg 14.7 65
Electrical
Data
Compressor
Fan
Motor
Refrigerant
(R-22)
Connection
DSA-240LH-R
◆
2. OUTLINE AND DIMENSIONS
INDOOR UNIT
1
DSB-070LH/DSB-091LH
750
Connecting Pipe
Grille Insert
179
245
Frame Grille
Body
REMOCON
REMOTE CONTROLLER
Plate Mounting
Plate Mounting
11
DSB-071LH/DSB-092LH
750
Connecting Pipe
Grille Insert
179
245
Frame Grille
Body
REMOCON
REMOTE CONTROLLER
Plate Mounting
Plate Mounting
12
DSB-121LH/122LH
Filter - L Filter - R
Connecting Pipe
406
925
Plate Mounting
Grille Insert
Frame Grille
Plate Mounting
Body
194
REMOCON
REMOTE CONTROLLER
285
13
14
DSB-123LH
◆
DSB-182LH/LH-R
Filter-L Filter-R
1035
Grille Insert
453
Plate Mounting
REMOCON
Connecting Pipe
1035
Body
322
15
DSB-183LH-R/DSA-183LH-R/DSB-240LH-R/DSA-240LH-R
Filter-L Filter-R
1080
430
710
Connecting Pipe
Plate Mounting
Grille Insert
Frame Grille
Body
REMOCON
200
298
16
17
DSB-070LH/071LH/091LH/092LH/121LH/122LH/123LH
2
OUTDOOR UNIT
◆
DSB-182LH/LH-R/DSA-183LH-R/DSB-183LH-R
Outlet
Foot Cushion
Inlet
Outlet
800
Cabinet Front
Foot
320
Service Valve
Handle
615
Cabinet Side
Inlet
18
Panel Top
Guide Support
DSB-240LH-R/DSA-240LH-R
873
Inlet
Cabinet front
foot
323
380
Service Cover
Service valve
699
Cabinet Side
19
20
1

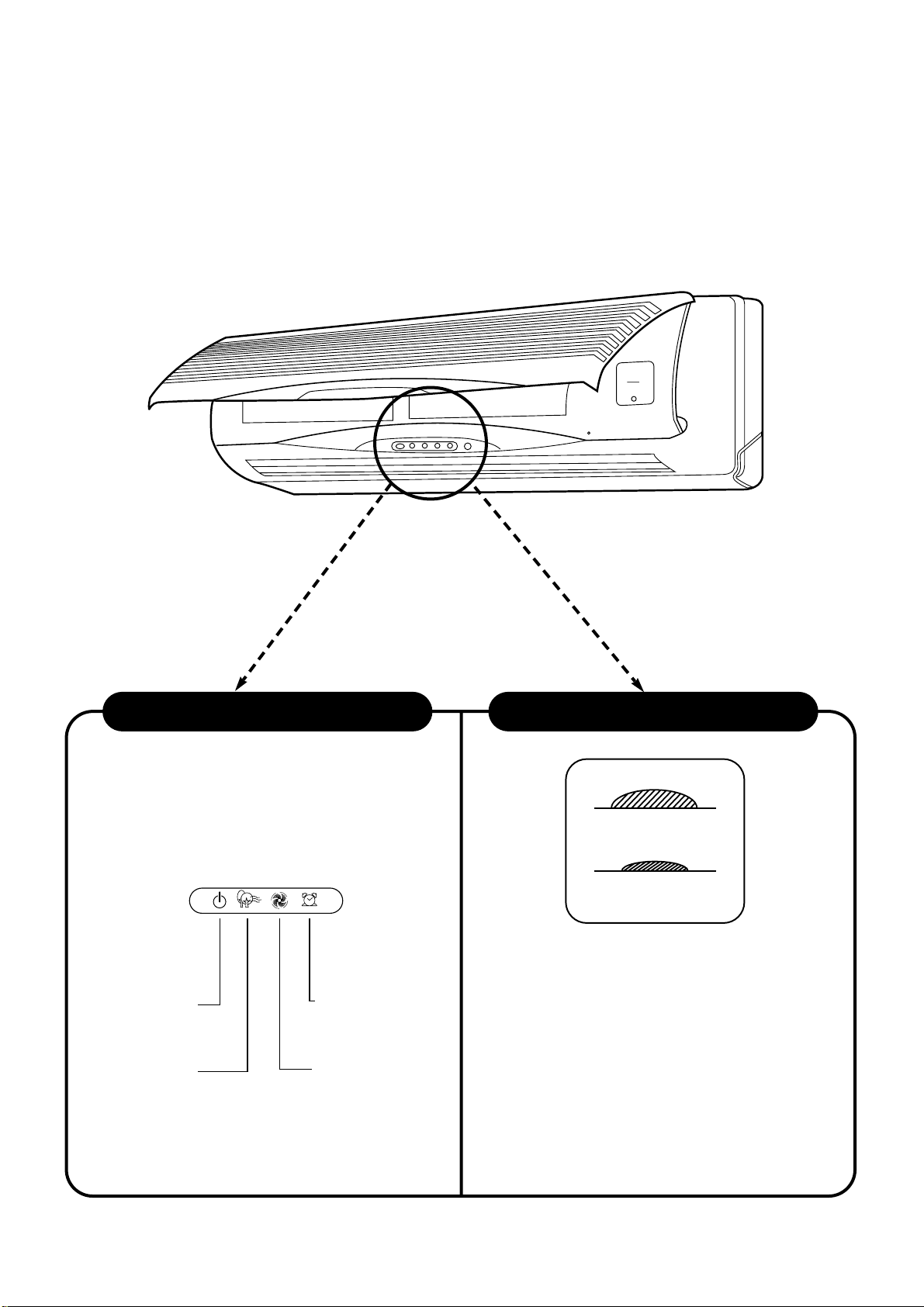

NAME AND FUNCTION OF PARTS
Indoor Unit
3. OPERA TION
REMOTE CONTROLLER
Electrostatic Filter(Option)
Removes dust and particles
from the air
Deodorizing Filter(Option)
Removes bad smells from the
air.
Air Inlet
Remote
Controller
Receiver
Power Plug
Remote Controller
Fan Direction
(Up, Down)
Air Outlet
Antibacterial Filter
Removes dust and
prohibits germs.
Lamp
DSB-070LH/DSB-091LH
◆
21
REMOTE CONTROLLER
Electrostatic Filter(Option)
Removes dust and particles
from the air
Deodorizing Filter(Option)
Removes bad smells from the
air.
Air Inlet
Remote
Controller
Receiver
Power Plug
Remote Controller
Fan Direction
(Up, Down)
Air Outlet
Antibacterial Filter
Removes dust and
prohibits germs.
Lamp
DSB-071LH/DSB-092LH
◆22 DSB-121LH/122LH
Power Plug
Electrostatic Filter Deodorizing FilterAir Inlet
Antibacterial
Filter
Air Outlet Fan Direction
(Up, Down)
Remote Controller
Remote
Controller
Receiver
Lamp
REMOTE CONTROLLER
Removes dust and
particles from the air
Removes dust and
prohibits germs.
Removes bad smells
from the air.
◆23 DSB-123LH
Power Plug
Electrostatic FilterDeodorizing Filter Air Inlet
Antibacterial
Filter
Air Outlet Fan Direction
(Up, Down)
Remote Controller
Remote
Controller
Receiver
Lamp
R
E
M
O
T
E
C
O
N
T
R
O
L
L
E
R
Removes bad smells
from the air.
Removes dust and
prohibits germs.
Removes dust and
particles from the air
◆24◆ DSB-182LH/DSB-182LH-R
Indoor Cover
Electrostatic Filter
Removes dust
particles from the air.
Deodorizing Filter
Removes bad
smells from the air.
Test/Emergency/
Remote Switch
Slide to select
the desired position.
Indicators
Indicate the
AC setting.
Remote Sensor
Power PlugLCD Remote Controller
Air Cleaning
Filters
Removes dust
and prohibits
germs.
Cold Air
Air In
Fan Direction
(Up/Down)
Fan Direction
(Left/Right)
O
N
O
F
F
E
N
T
E
R
C
A
N
C
E
L
T
I
M
E
R
R
E
S
E
T
F
A
N
D
I
R
.
F
A
N
S
P
E
E
D
M
O
D
E
S
L
E
E
P
O
N
/
O
F
F
T
E
M
P
.
25
Indoor Cover
Electrostatic Filter
Removes dust
particles from the air.
Deodorizing Filter
Removes bad
smells from the air.
Emergency/Remote Switch
Indicators
Indicate the
AC setting.
Remote
Sensor
Power Plug
LCD Remote
Controller
Air Cleaning Filters
Removes dust and
prohibits germs.
AIR OUT
AIR IN
Fan Direction
(Up/Down)
Fan Direction
(Left/Right)
M
O
D
E
S
L
E
E
P
O
N
/
O
F
F
T
I
M
E
R
E
N
T
E
R
/
C
A
N
C
E
L
F
A
N
S
P
E
E
D
T
U
R
B
O
/
M
I
L
D
F
A
N
D
I
R
.
◆ DSB-183LH-R/DSA-183LH-R/DSB-240LH-R/DSA-240LH-R
26
DSB-070LH/DSB-091LH
■
Remote Control Signal Receiver
This place is the part to receive the signal if it
receives the signal, you can hear the signal
“beep. “beep . beep.”
■
There is a switch panel at inside of Front
Panel. At the time of operating, open the
Front Panel.
Emergency switch can be used when the remote
controller is lost or Testing.
Remote switch is usually used by remote
controller.
Indoor Unit Display Switch Panel
Timer (Yellow)
Lights during the time
reservation mode.
Quick (Red)
ON (Red)
Lights when the
operation is going on.
Air clean (Green)
EMR. REMOCON
◆
27
DSB-071LH/DSB-092LH
■
Remote Control Signal Receiver
This place is the part to receive the signal if it
receives the signal, you can hear the signal
“beep. “beep. beep .”
■
There is a switch panel at inside of Front
Panel. At the time of operating, open the
Front Panel.
Emergency switch can be used when the remote
controller is lost or Testing.
Remote switch is usually used by remote
controller.
Indoor Unit Display Switch Panel
Timer (Yellow)
Lights during the time
reservation mode.
Quick (Red)
ON (Red)
Lights when the
operation is going on.
Air clean (Green)
EMR. REMOCON
◆
28
Remote Control Signal Receiver
This place is the part to receive the signal if it
receives
the signal, you can hear the signal "beep,
beep".
Timer (Y ello w)
Lights during the time
reservation mode.
ON (Red)
Lights when the
operation is
going on.
* There is a switch panel at inside of Front
Panel. At the time of operating, open the
Front Panel.
Air clean (Green)
Quick(Red)
EMERGENCY REMOTE
ON AIR CLEAN QUICK TIMER
Remote switch is usally used by Remote
Controller.
Emergency switch can be used when the remote
controller is lost or testing.
DSB-121LH/122LH
Indoor Unit Display Switch Panel
◆
◆
DSB-123LH
■ Remote Control Signal Receiver
This place is the part to receive the signal if it receives
the signal, you can hear the signal “beep. beep”.
■There is a switch panel at inside of Front Panel.
At the time of operating, open the Front Panel.
Emergency switch can be used when the remote
controller is lost or Testing.
Remote switch is usually used by remote controller.
Indoor Unit Display Switch P anel
29
REMOCON
EMERGENCY
ON (Red)
Lights when the
operation is going on.
Air clean
(Green)
Quick (Red)
Lights during the
time Quick
Mode.
Timer (Yellow)
Lights during the time
reservation mode.
EMERGENCY
REMOCON
◆
DSB-182LH/182LH-R
■ Remote Control Signal Receiver
This place is the part to receive the signal if it receives
the signal, you can hear the signal “beep. beep”.
■ There is a switch panel at inside of Front Panel.
At the time of operating, open the Front Panel.
Emergency switch can be used when the remote
controller is lost or Testing.
Remote switch is usually used by remote controller.
Indoor Unit Display Switch P anel
ON (Red)
Lights when the
operation is going on.
Air clean (Green)
Timer (Yellow)
Lights during the time
reservation mode.
Quick (Red)
Lights during the
time Quick
Mode.
Timer
Quick
Airclean
ON
EMERGENCY REMOTE
30
31
DSB-183LH-R/DSB-240LH-R/DSA-240LH-R
■
Remote Control Signal Receiver
This place is the part to receive the signal if it
receives the signal, you can hear the signal
“beep. “beep, beep .”
■
There is a switch panel at inside of
Front Panel. At the time of operating,
open the Front Panel.
Emergency switch can be used when the remote
controller is lost or Testing.
Remote switch is usually used by remote
controller.
Indoor Unit Display Switch Panel
Timer (Yellow)
Lights-on during the time
of reservation mode.
Quick (Red)
Lights-on during the time
of Quick Mode.
ON (Red)
Lights-on
during the operation
Air clean (Green)
Lights-on
during the operation
EMERGENCY
REMOCON
REMOCON
EMERGENCY
◆
32
◆
DSB-070LH/071LH/DSB-091LH/092LH/DSB-121LH/122LH/123LH
Connection Cover
Remove cover to access the
AC connection
to the indoor unit.
Service Valves
The indoor and outdoor units
are connected by copper tubes
which are connected here.
AIR IN
AIR OUT
Connection Wire
Connecting Pipe
Drain Hose
Outdoor Unit
33
◆
DSB-182LH/LH-R / DSA-183LH-R/DSB-183LH-R
AIR IN
AIR OUT
AC Cover
Remove cover to
access the AC
connection from
this unit to the
indoor unit.
Connection Wire
Drain Hose
COPPER TUBING
Service Valves
The indoor and outdoor
units are connected by
copper tubes which are
connected here.
Grounding Screw
Ground the unit here.
Ground Wire
(Not supplied)
34

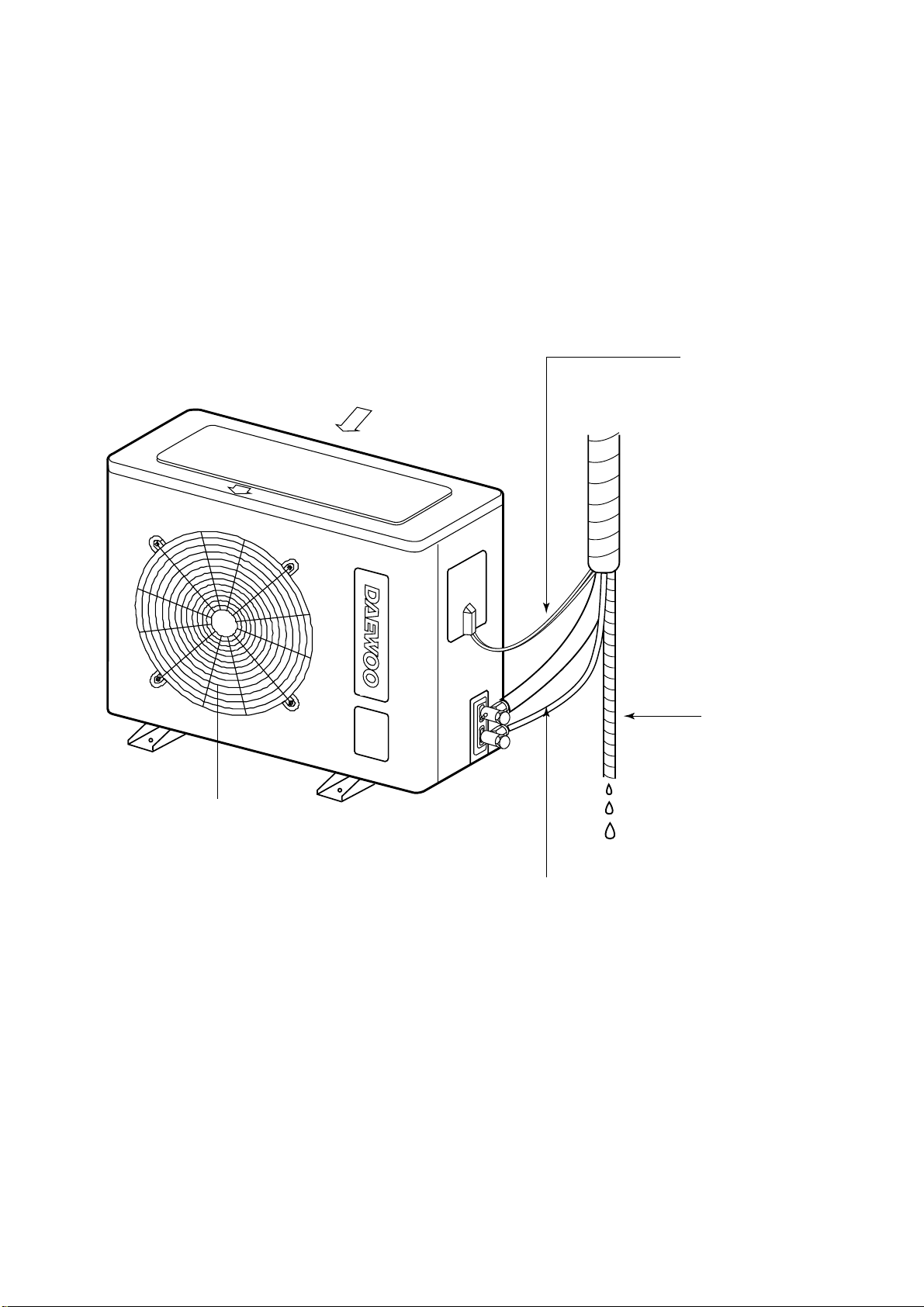

DSB-240LH-R / DSA-240LH-R
Air Inlet
Air Outlet
Connection Pipe
Connection wire
Drain Hose
◆
35
Name of Each Button
2
REMOTE CONTROLLER
DSB-070LH/DSB-071LH/DSB-091LH/DSB-092LH/DSB-121LH/DSB-122LH/
DSB-123LH/DSB-183LH-R/DSA-183LH-R/DSB-240LH-R/DSA-240LH-R
MODE
SLEEP
ON/OFF
TIMER
ENTER/
CANCEL
FAN SPEED
TURBO/MILD
Display
Displays information
pertaining to unit.
TURBO/MILD
Press to select super power
operation(Turbo) mode
TIMER ENTER/CANCEL Button
Press to enter a timer setting or
to cancel timer setting
TIMER ON/OFF Button
Press to set the unit off or on time.
(0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8,
10, 12, 16, 20, 24hr)
MODE Button
Press to cycle through the modes
(Auto/Quick/Cooling/Fan/Dry)
SLEEP Button
Press to set the unit for
the sleep mode.
FAN DIR.
FAN DIR. Button
Press to select up/down
direction for fan.
ON/OFF Button
Press to turn the unit
on or off.
TEMPERATURE Buttons
Press to raise or lower
the desired temperature.
FAN SPEED Button
Press to select the fan speed
(High " ", Middle " ",
Low " ").
COVER
Slide down to access most
of the remote buttons.
Slide down further to
access the battery
compartment.
AUTO
REMOTE CONTROLLER
◆
36
DSB-182LH/182LH-R
MODE
SLEEP
ON/OFF
TIMER
ENTER/
CANCEL
FAN SPEED
TURBO/MILD
Display
Displays information
pertaining to unit.
TURBO/MILD
Press to select super power
operation(Turbo) mode
TIMER ENTER/CANCEL Button
Press to enter a timer setting or
to cancel timer setting
TIMER ON/OFF Button
Press to set the unit off or on time.
(0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 8,
10, 12, 16, 20, 24hr)
MODE Button
Press to cycle through the modes
(Auto/Quick/Cool/Fan/Dehumidifier/
Heat)
SLEEP Button
Press to set the unit for
the sleep mode.
FAN DIR. Button
Press to select up/down
direction for fan.
FAN DIR. Button
Press to select left/right
direction for fan.
ON/OFF Button
Press to turn the unit
on or off.
TEMPERATURE Buttons
Press to raise or lower
the desired temperature.
FAN SPEED Button
Press to select the fan speed
(High " ", Middle " ", Low " ",
Natural).
COVER
Slide down to access most
of the remote buttons.
Slide down further to
access the battery
compartment.
AUTO
FAN DIR.
FAN DIR.
◆
REMOTE CONTROLLER DISPLAY
3
DSB-070LH/DSB-071LH/DSB-091LH/DSB-092LH/DSB-121LH/DSB-122LH/
DSB-123LH/DSB-183LH-R/DSA-183LH-R/DSB-240LH-R/DSA-240LH-R
MODE Indicators (Auto/Quick/Cool/Fan/Dehumidifier/Heat)
Light to indicate the mode selected.
AUTO
FAN Indicators
Light to indicate
the fan speed.
NATURAL Indicator
Light to indicate the
speeds simulating a breeze.
DSB-182LH/182LH-R
FAN Indicators
Lights to indicate
the fan speed.
NATURAL Indicator
Lights to indicate the
speeds simulating a breeze.
FAN
AUTO
NATURAL
AUTO
FAN
AUTO
NATURAL
HOUR
ON OFF
TIMER
TIMER Indicators (Include sleep)
Light to indicate the timer function mode.
TEMPERATURE & RESERVATION TIME lndicators
Light to indicate the temperature or time.
MODE Indicators (Auto/Quick/Cool/Fan/Dehumidifier/Heat)
Lights to indicate the mode selected.
HOUR
ON OFF
TIMER
TIMER Indicators (Include sleep)
Lights to indicate the timer function mode.
FAN DIRECTION Indicators
Light to indicate the
fan direction.
FAN DIRECTION Indicators
Lights to indicate the
fan direction.
Replacing Batteries
Open the cover after
pressing the arrow direction
1
and pulling out.
R
E
M
O
T
E
C
O
N
T
R
O
L
L
E
R
TEMPERATURE & RESERVATION TIME lndicat
Lights to indicate the temperature or time.
Put the drycell by +, direction.
2
+Ð
+Ð
37
Close the cover after
pushing into arrow
3
direction.
R
E
M
O
T
E
C
O
N
T
R
O
L
L
E
R
38
If you set time in OFF-Timer Mode, the unit will stop at the set time.
If you set time in ON-Timer Mode, the unit will run at the set time.
(1) Range of setting temperature: 18~32°C
(2) Setting temperature: Operating temperature of compressor
(3) During the time of test operating, Fan (Indoor , Outdoor) and Compressor is running regardless of room
temperature.
If the Indoor Unit Display receive the signal of Remote Controller , y ou can hear the signal "beep –" or "beep,
beep".
(1) In the case of receiving ON/OFF signal-"beep" "beep"
(2) And so on-"beep"
OFF-Timer
4
DESCRIPTION OF FUNCTIONS
Unit ON
Unit OFF
SET Time
HOUR
ON
OFF
ON-Timer
Unit ON
Unit OFF
SET Time
HOUR
ON
OFF
Control of Room Temperature
Buzzer
COMP (ON)
*RT: ROOM TEMPERATURE
DT: DESIRED TEMPERATURE
COMP (OFF)
-1°C0°C
(COOLING)
(RT-DT)
COMP (OFF)
COMP (ON)
-1°C0°C
HEATING
(RT-DT)
+1°C +1°C
39
Fan Speed (Indoor Unit)
(1) Motor speed (high speed, middle speed, low speed).
(2) Remote controller setting fan speed. (Auto , L, M, H, Natural)
(3) Relation of operating mode between fan speed.
(4) Automatic Operation
If the unit is set in 'AUT O' mode , the unit operates automatically according to the room temperature to keep the
room temperature comfortable.
0°C
L
M
H
1°C2°C
(R.T-D.T)
(D.T)
0°C
L
M
H
1°C2°C
(DT-RT)
(COOLING)
(HEATING)
FAN ONLY COOL
DEHUMI-
AUTO QUICK HEAT
DIFICATION
H HHLHH H
M MMLMH M
L LLLLH L
Auto X Auto L Auto H Auto
Natural Natural Natural L Natural H Natural
40
(1) When the remote controller is lost, damaged or the battery is discharged, the Emergency operation can be
used to run the unit.
(2) The setting conditions of Emergency operation are as follows.
• Operation mode: Quick
• Preset temperature:18°C: Cooling, 32°C: Heating)
• Fan speed: High
You cannot operate with remote controller.
(1) When you are going to sleep , select sleep s witch and the unit controls the room to the desired temper ature.
(The unit will not operate after 4 hour)
(2) For changing the temperature.
(3) To cancel sleep mode, press the SLEEP button again or press the MODE button once.: the SLEEP
indicator will disappear in the display.
Sleep Mode
Emergency Operation
0 0.5 1.0 HOUR
(COOLING CYCLE)
DT
+0.5°C
+0.5°C
+0.5°C
0 0.5 1.0 HOUR
(HEATING CYCLE)
DT
–0.5°C
–0.5°C
–0.5°C
Frost Prevention of Indoor Unit
When the unit operates at low ambient temperature, frost may appear on the Ev aporator. When the indoor coil
temperature is lower than 0°C at the end of 10 minutes of continuous compressor operation from the start, the
microcomputer of the unit stops the compressor to protect the unit from the frost. The control procedure for
indoor coil freeze protection.
1) The compressor and outdoor fan turn off.
2) Indoor fan operates according to user set speed.
3) The normal operation returns when the indoor coil
temperature is higher than 7°C or equal to 7°C.
-1°C+7°C
Compressor and
Outdoor Fan
ON ON
OFF
Indoor Fan
Set speed
(Indoor coil temperature)
41
Auto Mode
(1) In Auto Mode
After the indoor fan is operated f or 20 seconds in the Auto Mode the unit will operate automatically b y selecting
operating Mode according to the room temperature
(2) Selecting Operating Mode Again
Room temperature meets desired temperature and the compressor stops running over 30 minutes , then the unit
selects operating Mode again.
3 min. Time Delay of Compressor
In normal operation, there is a time delay of three minutes between turn off and turning back on including initial
power up.
ROOM TEMPERATURE
DT-2°C RT
DT-2°C
≤
RT ≤DT+3°C
DT+3°C RT
OPERA TING MODE
Heating
Dehumidifier
Cooling
FLAP POSITION
Heating Position
Cooling Position
Cooling Position
(RT: Room temperature)
>
<
Dehumidification Mode
Desired temperature < Room temperature
Outdoor Fan, Compressor : ON
Indoor Fan : Low speed
Desired temperature Room temperature
>
=
Compressor : 3 min/ON, 5 min/OFF
Fan Speed : low speed
Room temperature 18 C
<
=
Compressor : OFF
Fan speed : Low speed
Air Discharge Direction(only remocon operation)
The air discharge direction procedure is below.
Fixed Up/Down Fixed
Up/Down
Quick Mode(Powerful Cooling & Heating)
1) Cooling Mode
When the room temperature is higher than 22 C
*
Fan Speed: Super high speed
Air discharge direction: Fixed
Set temperature: 18 C (Fixed)
Compressor and Outdoor Fan
The air discharge direction procedure is below
Fixed Up/Down
Up/Down Fixed
The option is LEFT/RIGHT direction.
1) Heating Mode
When the room temperature is higher than 22 C
*
Fan Speed: Super high speed
Air discharge direction: Fixed
Set temperature: 18 C (Fixed)
Compressor and Outdoor Fan
The air discharge direction procedure is below
The option is LEFT/RIGHT direction.
COOLING POSITION
HEATING POSITION
Fixed Up/Down
Up/Down Fixed
42
Self-Diagnostic Function
The control will contain diagnostic test to verify the integrity of the system.
(1) Error Code Display Pattern
ON LAMP: Blink
LED BLINK PATTERN CASE NOTE
Room Sensor open or Short Continuously woorking to fix room
temperature 18¡C in heating mode.
0.5s
8s
I/D coil sensor open or short Do not woorking
1 times blink O/D coil sensor open or short
Compressor or electrical parts Continuously workiug
of compressor error.
2 times blink Gas leak
Continuously woorking to fix room
temperature 32¡C in cooling mode
43
44
4. WIRING DIA GRAM
Indoor Unit
◆DSB-070LH/091LH ◆DSB-071LH/092LH
◆DSA-121LH/122LH, DSB-121LH/122LH ◆DSB-123LH
45
◆DSA-181LH/182LH
DSB-181LH/182LH/182LH-R
◆DSA-183LH-R, DSB-183LH-R
DSA-240LH-R, DSB-240LH-R
46
Outdoor Unit
◆DSA-121LH/122LH, DSB-070LH/071LH
DSB-091LH/092LH/121LH/122LH
◆DSB-123LH
◆DSA-181LH/182LH
DSB-181LH/182LH/182LH-R
◆DSA-240LH-R/240PH-R
DSB-240LH-R/240PH-R
◆DSA-183LH-R, DSB-183LH-R
47
DSB-070LH/071LH
DSB-091LH/092LH
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108003800 YDK-8-4B 1
Fan Motor Capacitor 3106900300 1.0µF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Stepping Motor 3108003900 GSP-24SW-061 1
Terminal Block 3108912301 SN-DBW-05P 1
Compressor 3107101200 KH134VLLC 1
Fan Motor 3108004000 YDK-30-6B 1
Dual Capacitor 3109501201 1.8+25µF 400VAC 1
Terminal Block 3108912301 SN-DBW-05P 1
Outdoor
Unit
1
MAIN ELECTRIC PARTS
Indoor
Unit
DSB-121LH/122LH
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108001220 YDK-8-4B/A 1
Fan Motor Capacitor 3106900300 1.0uF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Transformer 5EPV050100 220V/18V 1
Stepping Motor 3108000100 MP28GA (L=400mm) 1
Terminal Block 3108912301 SN-DBW-05P 1
Compressor 3100030CE0 RCB150A001 1
Fan Motor 3108000800 YDK-40-4B 1
Dual Capacitor 3109500700 3.5+25µF 400VAC 1
Terminal Block 3108912301 SN-DBW-05P 1
Reversing Valve 3105401000 VH7-A TYPE 1
Solenoid coil 1
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108003800 YDK-8-4B 1
Fan Motor Capacitor 3106900300 1.0uF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Stepping Motor 3108003900 GSP-24SW-061 1
Terminal Block 3108912301 SN-DBW-05P 1
Compressor
3RC0020KE0 RBB100A001 1
3107101900 RBB100A011 1
Fan Motor 3108004100 YDK-30-6B 1
Dual Capacitor
3109502010 1.8+30µF 400VAC 1
3109502030 1.8+35µF 400VAC 1
Terminal Block 3108912301 SN-DBW-05P 1
Reversing Valve 3104401010 CHV-0104 1
Solenoid coil 3109700110 CHV01AJ 1
Indoor
Unit
Outdoor
Unit
Outdoor
Unit
Indoor
Unit
◆
◆
◆
48
DSB-182LH/182LH-R
DSA-183LH-R
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108000311 IC-9425DWKC5C 1
Fan Motor Capacitor 3106900200 1.2µF 450VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Transformer 5EPV633110 220V 50Hz 1
Stepping Motor
3108004300 DC12V, 400mm 2
3108004310 DC12V, 1300mm 1
Terminal Block 3108912320 SN-DBW-4P 1
Compressor
3107140100 SHW-33TC4-U 1 DSB-182LH
3100068010 SHW33TCA-U 1 DSB-182LH-R
Fan Motor 3108009100 YDK-50-6B 1
Dual Capacitor 3116901800 3+50µF 400VAC 1
Terminal Block 3108912300 SN-DBW-3P 1
Reversing Valve 3105400310 STF-0201 1
Solenoid Coil 3109700110 CHV-01AJ506BT 1
Outdoor
Unit
Indoor
Unit
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108007500 IC-9430DWKF7A 1
Fan Motor Capacitor 3106902400 2uF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Transformer 5EPV050120 DWA220B 1
Stepping Motor 3108007600 GSP-24RW-062 1
Terminal Block 3108912320 SN-DBW-4P 1
Compressor 3100068110 AWG5519EXN 1
Fan Motor 3108000521 IC-1625DWCF6B 1
Dual Capacitor 3116902500 4+25µF 440VAC 1
Terminal Block 3108912300 SN-DBW-3P 1
Reversing Valve 3105400310 STF-0201 1
Solenoid coil 3109700110 CHV-01AJ506BT 1
Indoor
Unit
Outdoor
Unit
DSB-123LH
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3118003500 RP13B 1
Fan Motor Capacitor CMXW2G155K 1.5uF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Stepping Motor 3108003910 MP24GA 1
Terminal Block 3118900200 JXO-CH-2P 1
Compressor 3100030CE0 RCB150A001 1
Fan Motor 3108000800 YDK-40-4B 1
Dual Capacitor 3109500700 3.5+25µF 400VAC 1
Terminal Block 3108912301 SN-DBW-05P 1
Reversing Valve 3105401000 VH7-A TYPE 1
Solenoid coil 1
Outdoor
Unit
Indoor
Unit
◆
◆
◆
49
DSB-240LH-R
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108003800 220/50/60Hz 1
Fan Motor Capacitor 3106902400 2.0uF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Transformer 5EPV050120 230V/50Hz 1
Stepping Motor 3108007600 GSP-24RW-062 1
Terminal Block 3108912320 SN-DBW-4P 1
Compressor 3100068201 AWG-5530EXC 1
Fan Motor 3108001500 220V/60Hz 1
Dual Capacitor 3100902500 5/30µF 400VAC 1
Terminal Block 3108912320 SN-DBW-4P 1
Reversing Valve 3105400310 CHV-0201 1
Solenoid coil 3109700110 CHV-01AJ506B1 1
Outdoor
Unit
Indoor
Unit
DSB-183LH-R
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108003800 220/50/60Hz 1
Fan Motor Capacitor 3106902400 2.0uF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Transformer 5EPV050120 230V/50Hz 1
Stepping Motor 3108007600 GSP-24RW-062 1
Terminal Block 3108912320 SN-DBW-4P 1
Compressor 3107140100 SHW-33TC4-U 1 DSB-182LH
Fan Motor 3108009100 YDK-50-6B 1
Dual Capacitor 3116901800 3+50µF 400VAC 1
Terminal Block 3108912300 SN-DBW-3P 1
Reversing Valve 3105400310 STF-0201 1
Solenoid Coil 3109700110 CHV-01AJ506BT 1
Outdoor
Unit
Indoor
Unit
DSA-240LH-R
PART NAME PART CODE SPEC. QUANTITY REMARK
Fan Motor 3108007500 IC-9430DWKF7A 1
Fan Motor Capacitor 3106902400 2µF 400VAC 1
Fuse 5FVLB3152L 250V 3.15A 1
Transformer 5EPV050120 230V/50Hz 1
Stepping Motor 3108007600 GSP-24RW-082 1
Terminal Block 3108912320 SN-DBW-4P 1
Compressor 3100068300 AWG5524EXN 1
Fan Motor 3108005800 OSME986DERC 1
Dual Capacitor 3109504810 5/35µF 400VAC 1
Terminal Block 3108912320 SN-DBW-4P 1
Reversing Valve 3105400310 CHV-0201 1
Solenoid coil 3109700110 CHV-01AJ506B1 1
Outdoor
Unit
Indoor
Unit
◆
◆
◆
50
5. REFRIGERANT CYCLE
Note) If the pipe length exceeds the standard length, add 30g of refrigerant per extra meter.
Contents
Cool
Heat
Charge Quantity
DSB-070LH/071LH
IDØ1.2 x L700
IDØ1.2 x L700
850 g
DSB-091LH/092LH
IDØ1.4 x L900
IDØ1.4 x L900
800 g
DSB-121LH/122LH
IDØ1.8 x ODØ3.2 x 500L
IDØ1.8 x ODØ3.2 x 900L
1,060 g
DSB-123LH
IDØ1.8 x L1,200
IDØ1.8 x L800
1,230 g
DSB-240LH
IDØ2.0 x ODØ3.2 x 600L
IDØ2.0 x ODØ3.2 x 300L
2,050 g
Capillary Tube
Model Name
Contents
Cool
Heat
Charge Quantity
DSB-182LH
ID Ø1.8 x L800
ID Ø2.0 x L600
1,480 g
DSB-182LH-R
ID Ø2.0 x L1,000
ID Ø2.0 x L600
1,550 g
DSA-183LH-R
ID Ø2.0 x L800
ID Ø2.0 x L600
1,500 g
DSB-183LH-R
ID Ø2.0 x L1000
ID Ø2.0 x L600
1,600 g
DSA-240LH-R
ID Ø2.0 x L600
ID Ø2.0 x L300
2,100 g
Capillary Tube
Model Name
Relay RL1
Indoor fan
motor
Compressor
Relay RL2
Outdoor
fan motor
Relay RL3
4 way
valve
TRIAC
DC12V
Operating Mode
Fan Speed
Timer Selection
Flap Position
Unit on lamp
Room air temp.
Indoor coil temp.
Outdoor coil
temp
Air clean lamp
Quick lamp
Remote
Emergency
Operation
Signal
receiver
Timer lamp
A/D converter lnitialization
Clock generation
DC power supply
Circuit for
relay driving
Circuit for
TRIAC control
SMPS
Circuit for signal receiver
MICRO
CONTROLLER
Beeper
circuit for
motor driving
Stepping
motor
Temp. Setting
ON/OFF
SLEEP
REMOCON
AC220V
50Hz
STEPPING MOTOR
ON/OFF
COMPRESSOR
ON/OFF
DC5V
51
6. CONTROL BLOCK DIAGRAM
DSB-071LH, 092LH, 123LH
◆
Relay RL1
Indoor fan
motor
Compressor
Relay RL2
Outdoor
fan motor
Relay RL3
4 way
valve
TRIAC
DC12V
Operating Mode
Fan Speed
Timer Selection
Flap Position
Unit on lamp
Room air temp.
Indoor coil temp.
Outdoor coil
temp
Air clean lamp
Quick lamp
Remote
Emergency
Operation
Signal
receiver
Timer lamp
A/D converter lnitialization
Clock generation
DC power supply
Circuit for
relay driving
Circuit for
TRIAC control
Transformer
Circuit for signal receiver
MICRO
CONTROLLER
Beeper
circuit for
motor driving
Stepping
motor
Temp. Setting
ON/OFF
SLEEP
REMOCON
AC220V
50Hz
STEPPING MOTOR
ON/OFF
COMPRESSOR
ON/OFF
DC5V
DSB-121LH/DSB-122LH/DSB-182LH/182LH-R/
DSB-183LH-R/DSA-183LH-R/DSB-240LH-R/DSA-240LH-R
◆
7. TROUBLE SHOOTING
the self-diagonostic
code according to
check the failure
(note 2)
YES
Is the unit
mormal?
display
NO
the self diagnostic
code according to
Check the failure
(note 2)
connecting
contactor
¥ Check the connector on display
PCB connected to control PCB
¥ Check the display PCB itself
YES
NO
Is the display
all off?
check the
magnetic
point of
YES
YES
Normal
beeper beep two
Does the
times?
Indoor unit does
not run(note 1)
YES
NO
button on remote controller
press the power ON/OFF
YES
the compressor run
normally?
Does
NO
YES
L & N of terminal
block
NO
Outdoor unit does
not run?(note. 1)
YES
check the voltage between
power normal?
Is the
YES
YES
unit display
normal?
Is the
applied to the
Is the power
unit
Trouble
¥ control PCB fault
¥ Micom or reset
IC fault
¥ Check the connection between signal
¥ Check the remote signal receiver
receiver and control PCB
YES
NO
status LED repeat one
second "on and
control PCB
off"?
Does
NO
on switch pannel at
YES
switch position
"Remote"
Is the
NO
"Remote" and then
Place the switch
Check it once
position to the
more
NO
Check the wiring of indoor
NO
Check power supply mains
or interconnection wires
53
54
Note 1)
1 Neither indoor unit nor outdoor unit runs .
Check the following points first. (There are f ollowing case in normal operation)
a. Is the timer mode set the "timer ON".
b. Is the timer mode set the "timer-OFF" and the time had passed?
2 Neither outdoor fan nor compressor runs while indoor fan runs.
Check following points first. (There are f ollo wing cases in normal operation)
a. Is the temperature set point suitable?
b. Has the 3 minutes time guard f or compressor operated?
• Error Code •
1 When the compressor do not run.
i) Check the voltage between and of terminal bloc k.
(Indoor Unit, Outdoor Unit)
ii) Check connecting wire of indoor unit and outdoor unit.
iii)Check relay RL1 on power P.C .B
2 Check fixing of indoor coil thermistor.
3 Check the GAS LEAKAGE of the pipe.
Y
L
Self-Diagnostic Function
55
Confirm following statement.
When the unit operate normally , Sometimes the outdoor unit and indoor unit cannot operate.
1 Check the function select switch. Is it timer mode?
2 The function select switch locate the sleep mode and is the setting time over?
3 Is the setting mode DEHUMIDIFIER mode?
4 When the unit is DEHUMIDIFIER mode while in the auto mode, the outdoor unit and indoor unit does
not run.
The power is applied to the unit
Check the voltge between and
of terminal block
Y
L
Check the
Breaker or Fuse
Self Diagnostic
function is ON
Check according to
self Diagnostic function
Control P.C.B def ect
Check the indoor unit display
is the display all off?
Press the ON/OFF switch of
Remote Control
Is the indoor unit display all off?
Pull out the power plug
and then insert the power plug
after 5 second
Control P.C.B is normal
Recheck from the beginning
Rating voltage more than 90%
Rating voltage
under 90%
No No
No
Yes
Yes
Neither Indoor Unit nor Outdoor Unit Runs
56
Check rotation of indoor fan
Rotate indoor fan by hand
Check input Voltage of F an
Motor connector at power P.C .B
Check the winding resistance of
Indoor unit fan motor
Check the fan motor capacitor
Check the connecting wire of
indoor fan motor
Run again
Check the starting of indoor fan motor
Run again
Check the F an Motor
bearing and fan
Check the power P.C .B .
The circuit for triac control
Change of fan motor
Normal
NO
Rating voltage
under 90%
Open or short
No
YES
Rating V oltage more than 90%
Normal
Outdoor Unit Runs but Indoor Fan does Not Run
57
Confirm following statement.
When the unit operate normally , Sometimes the outdoor unit and indoor unit cannot operate.
1 Is the setting temperature proper?
2 Is the unit during 3min. Time dela y of compressor.
3 During frost prevention of lndoor unit.
4 During dehumidifier mode.
Outdoor Fan and Compressor Do Not Run
Check the voltge between and
of indoor unit terminal
Y
L
Check the voltge between and
of outdoor unit terminal
Y
L
Check compressor ,
outdoor fan motor individually
Check the
connecting wire
Check the wiring
and voltage
within doors
Rating voltage
under 90%
Rating voltage
under 90%
58
- Check the following at cooling mode
Check the voltge between and
of indoor unit terminal
Y
L
Check the voltge between and
of outdoor unit terminal
Y
L
Check the wiring of outdoor unit
Check the compressor
(Check the winding resistance)
Check the compressor capacitor
Check the connecting
wire between indoor
and outdoor.
Change the control
P.C.B
Change the
compressor.
Check the control P.C.B
the circuit for relay
driving.
Rating voltage
less than 90%
NG
Open or Short
Rating voltage
less than 90%
Rating voltage more than 90%
Rating voltage more than 90%
OK
Only Compressor does not Run
PCB DRIVING DESCRIPTION
1
PCB CIRCUIT DIAGRAM
DSB-071LH, 092LH
◆
DSB-123LH
◆
DSB-121LH/DSB-122LH
◆
DSB-182LH/182LH-R/DSB-183LH-R/DSA-183LH-R/DSB-240LH-R/DSA-240LH-R
◆
64
◆DSB-071LH P ART LIST (INDOOR UNIT)
PART NAME SPEC QTY LOC.
FUSE 250V 50T 3.15A 1 FUSE
FUSE CLIP AFC-520 2 FUSE
VARISTOR 15G561K 1 VAR
WAFER YW396-05AVD 1 CN2
WAFER YW396-03AVD 1 CN1
WAFER YW396-03AVD(BL) CN9
C-CERA 104Z,50VDC 5 CC1,2,5,6,7
C-CERA 103Z,50VDC 6 CC3,4,9,10,11,12
C-MULTI 104Z,CR0561B-Z5U 1 CC8
C-ELEC 470uF 35V SD 1 CE1
C-ELEC 10uF 450V SD 2 CE3,CE4
C-ELEC 100uF 16V SD 1 CE2
C-ELEC 10uF 16V SS 1 CE5
C-ELEC 4.7uF 50V SS 1 CE6
C-ARRAY F3 104Z 1 CA3
C-ARRAY F4 104Z 1 CA2
C-ARRAY F5 104Z 1 CA1
RESISTOR 1/4W-12.7KF 3 R27,28,29
RESISTOR 1/4W-1KJ 21
R5,12,13,14,15,16,17,18,19,20,
R21,23,30,31,32,33,34,35,36,37,43
RESISTOR 1/4W-10KJ 1 R11
RESISTOR 1/4W-5.6KJ 1 R22
RESISTOR 1/4W-330J 3 R24,25,26
RESISTOR 1/4W-100J 2 R1,R4
RESISTOR 1/4W-68KJ 2 R8,R9
RESISTOR 1/4W-51KJ 1 R6
RESISTOR 1/4W-2KJ 1 R7
RESISTOR 1/2W-1KJ 1 R2
RESISTOR 1W-47J 1 R3
RESISTOR 1/4W-3.24KF 1 R41
RESISTOR 1/4W-24.9KF 2 R39,42
RESISTOR 1/4W-32.4KF 1 R38
RESISTOR 1/4W-49.9KF 1 R40
RESISTOR ARRAY 4A 103J 1 RA3
RESISTOR ARRAY 5A 103J 1 RA2
RESISTOR ARRAY 6A 103J 1 RA1
PIN GP881205-2(187) 1 CN4
PIN GP881206-2(250) C-IN,C-OUT
C-LINE ACROSS 275V 104K 2 CL1,CL2
WAFER YFW800-01D 1 CN3
WAFER SMAW250-06(WHITE) 1 CN6
WAFER SMAW250-08 1 CN5
WAFER YMAW250-04 1 CN7
WAFER YMAW250-02 1 CN8
65
PART NAME SPEC QTY LOC.
DIODE 1N4007 TAPE 1 D3
DIODE UF203 1 D2
DIODE ZENOR 1N5241B 1 ZD1
DIODE ST01D-200 1 D1
C-CERA 2200pF, 250V 1 CY1
CHOKE COIL 1mH, 0.5A 1 L1
FILTER EMI 0.6*10*3TURN 1 L2
BUZZER BM-20K 1 BZ1
COIL 130uH, 3A 1 L3
IC REGULATOR KIA7805P 1 IC3
TR KRC102M 1 TR1
IC RESET KIA7042P 1 IC5
RELAY US11-12S 2 RL3,4
RELAY UKH-12S 1 RL1
SW TRANS 264P,1916 1 TRS1
CAPACITOR 2.0uF,400VAC CAP1
CAPACITOR 1.5uF,400VAC CAP1
CAPACITOR 1uF,400VAC 1 CAP1
PCB CONTROL 165.5X140X1.6T PCB
PCB CONTROL 162.5X140X1.6T 1 PCB
IC SWITCHING TNY264P 1 IC2
DIODE BRIDGE S1NB80 1 BD1
TRIAC SM3JZ47 1 T1
PHOTO COUPLER TLP560J 1 PT1
IC DRIVE TD62004AP 2 IC4,IC6
RESONATOR CST8.00MGW 1 OSC
IC MICOM TMP87C846AN 1 IC1
PHOTO COUPLER TLP421 2 PC1,PC2
66
◆DSB-092LH P ART LIST (INDOOR UNIT)
PART NAME SPEC QTY LOC.
FUSE 250V 50T 3.15A 1 FUSE
FUSE CLIP AFC-520 2 FUSE
VARISTOR 15G561K 1 VAR
WAFER YW396-05AVD 1 CN2
WAFER YW396-03AVD 1 CN1
WAFER YW396-03AVD(BL) CN9
C-CERA 104Z,50VDC 5 CC1,2,5,6,7
C-CERA 103Z,50VDC 6 CC3,4,9,10,11,12
C-MULTI 104Z,CR0561B-Z5U 1 CC8
C-ELEC 470uF 35V SD 1 CE1
C-ELEC 10uF 450V SD 2 CE3,CE4
C-ELEC 100uF 16V SD 1 CE2
C-ELEC 10uF 16V SS 1 CE5
C-ELEC 4.7uF 50V SS 1 CE6
C-ARRAY F3 104Z 1 CA3
C-ARRAY F4 104Z 1 CA2
C-ARRAY F5 104Z 1 CA1
RESISTOR 1/4W-12.7KF 3 R27,28,29
RESISTOR 1/4W-1KJ 21
R5,12,13,14,15,16,17,18,19,20,
R21,23,30,31,32,33,34,35,36,37,43
RESISTOR 1/4W-10KJ 1 R11
RESISTOR 1/4W-5.6KJ 1 R22
RESISTOR 1/4W-330J 3 R24,25,26
RESISTOR 1/4W-100J 2 R1,R4
RESISTOR 1/4W-68KJ 2 R8,R9
RESISTOR 1/4W-51KJ 1 R6
RESISTOR 1/4W-2KJ 1 R7
RESISTOR 1/2W-1KJ 1 R2
RESISTOR 1W-47J 1 R3
RESISTOR 1/4W-3.24KF 1 R41
RESISTOR 1/4W-12.4KF 1 R40
RESISTOR 1/4W-15.0KF 1 R38
RESISTOR 1/4W-24.9KF 2 R39,42
RESISTOR ARRAY 4A 103J 1 RA3
RESISTOR ARRAY 5A 103J 1 RA2
RESISTOR ARRAY 6A 103J 1 RA1
PIN GP881205-2(187) 1 CN4
PIN GP881206-2(250) C-IN,C-OUT
C-LINE ACROSS 275V 104K 2 CL1,CL2
WAFER YFW800-01D 1 CN3
WAFER SMAW250-06(WHITE) 1 CN6
WAFER SMAW250-08 1 CN5
WAFER YMAW250-04 1 CN7
WAFER YMAW250-02 1 CN8
67
PART NAME SPEC QTY LOC.
DIODE 1N4007 TAPE 1 D3
DIODE UF203 1 D2
DIODE ZENOR 1N5241B 1 ZD1
DIODE ST01D-200 1 D1
C-CERA 2200pF, 250V 1 CY1
CHOKE COIL 1mH, 0.5A 1 L1
FILTER EMI 0.6*10*3TURN 1 L2
BUZZER BM-20K 1 BZ1
COIL 130uH, 3A 1 L3
IC REGULATOR KIA7805P 1 IC3
TR KRC102M 1 TR1
IC RESET KIA7042P 1 IC5
RELAY US11-12S 2 RL3,4
RELAY UKH-12S 1 RL1
SW TRANS 264P,1916 1 TRS1
CAPACITOR 2.0uF,400VAC CAP1
CAPACITOR 1.5uF,400VAC CAP1
CAPACITOR 1uF,400VAC 1 CAP1
PCB CONTROL 165.5X140X1.6T PCB
PCB CONTROL 162.5X140X1.6T 1 PCB
IC SWITCHING TNY264P 1 IC2
DIODE BRIDGE S1NB80 1 BD1
TRIAC SM3JZ47 1 T1
PHOTO COUPLER TLP560J 1 PT1
IC DRIVE TD62004AP 2 IC4,IC6
RESONATOR CST8.00MGW 1 OSC
IC MICOM TMP87C846AN 1 IC1
PHOTO COUPLER TLP421 2 PC1,PC2
68
◆DSB-123LH P ART LIST (INDOOR UNIT)
PART NAME SPEC QTY LOC.
FUSE 250V 50T 3.15A 1 FUSE
FUSE CLIP AFC-520 2 FUSE
VARISTOR 15G561K 1 VAR
WAFER YW396-05AVD 1 CN2
WAFER YW396-03AVD 1 CN1
C-CERA 104Z,50VDC 5 CC1,2,5,6,7
C-CERA 103Z,50VDC 6 CC3,4,9,10,11,12
C-MULTI 104Z,CR0561B-Z5U 1 CC8
C-ELEC 470uF 35V SD 1 CE1
C-ELEC 10uF 450V SD 2 CE3,CE4
C-ELEC 100uF 16V SD 1 CE2
C-ELEC 10uF 16V SS 1 CE5
C-ELEC 4.7uF 50V SS 1 CE6
C-ARRAY F3 104Z 1 CA3
C-ARRAY F4 104Z 1 CA2
C-ARRAY F5 104Z 1 CA1
RESISTOR 1/4W-12.7KF 3 R27,28,29
RESISTOR 1/4W-1KJ 22
R5,12,13,14,15,16,17,18,19,20,21,
R23,30,31,32,33,34,35,36,37,43,44
RESISTOR 1/4W-10KJ 1 R11
RESISTOR 1/4W-5.6KJ 1 R22
RESISTOR 1/4W-330J 3 R24,25,26
RESISTOR 1/4W-100J 2 R1,R4
RESISTOR 1/4W-68KJ 2 R8,R9
RESISTOR 1/4W-51KJ 1 R6
RESISTOR 1/4W-2KJ 1 R7
RESISTOR 1/2W-1KJ 1 R2
RESISTOR 1W-47J 1 R3
RESISTOR 1/4W-8.45KF 2 R41,40
RESISTOR 1/4W-11.1KF 2 R39,38
RESISTOR 1/4W-12.4KF 1 R42
RESISTOR ARRAY 4A 103J 1 RA3
RESISTOR ARRAY 5A 103J 1 RA2
RESISTOR ARRAY 6A 103J 1 RA1
PIN GP881205-2(187) 1 CN4
C-LINE ACROSS 275V 104K 2 CL1,CL2
WAFER YFW800-01D 1 CN3
WAFER SMAW250-06(WHITE) 1 CN6
WAFER SMAW250-08 1 CN5
WAFER YMAW250-04 1 CN7
WAFER YMAW250-02 1 CN8
69
PART NAME SPEC QTY LOC.
DIODE 1N4007 TAPE 1 D3
DIODE UF203 1 D2
DIODE ZENOR 1N5241B 1 ZD1
DIODE ST01D-200 1 D1
C-CERA 4700pF, 250V 2 CY1,CY2
CHOKE COIL 1mH, 0.5A 2 L1,L2,L4
BUZZER BM-20K 1 BZ1
COIL 130uH, 3A 1 L3
COIL UU,40mH 1 L5
IC REGULATOR KIA7805P 1 IC3
TR KRC102M 1 TR1
IC RESET KIA7042P 1 IC5
RELAY US11-12S 2 RL3,4
RELAY UKH-12S 1 RL1
SW TRANS 264P,1916 1 TRS1
CAPACITOR 1.5uF,400VAC 1 CAP1
PCB CONTROL 165.5X140X1.6T 1
IC SWITCHING TNY264P 1 IC2
DIODE BRIDGE S1NB80 1 BD1
TRIAC SM3JZ47 1 T1
PHOTO COUPLER TLP560J 1 PT1
IC DRIVE TD62004AP 2 IC4,IC6
RESONATOR CST8.00MGW 1 OSC
IC MICOM TMP87C846AN 1 IC1
PHOTO COUPLER TLP421 2 PC1,PC2
DSB-182LH/182LH-R/DSB-183LH-R/DSA-183LH-R/DSB-240LH-R/DSA-240LH-R PART LIST(INDOOR UNIT)
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
BZ1 3105698200 BUZZER DP-2520BA 1 EA
CA1 CN5XD104M- C-ARRAY F5 104Z 1 EA
CA2 CN4XD104M- C-ARRAY F4 104Z 1 EA
CA3 CN3XD104M- C-ARRAY F3 104Z 1 EA
CC 3108803500 PIN GP881206-2(250) 1 EA
CC1 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC10 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC11 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC13 CDXE1H104M C-MULTI CR501B-Z5U,104Z,50V 1 EA
CC2 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC3 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC4 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CC5 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CC6 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CC7 CCXE1H103M C-CERA 103Z 50VDC 1 EA 070LH,091LH,240LH-R
CC8 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC9 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CE1 CEXE1V108C C-ELEC 1000MF 35V SD 1 EA
CE2 CEXE1E477C C-ELEC 470MF 25V SD 1 EA
CE3 CEXE1C107C C-ELEC 100MF 16V SD 1 EA 070LH,091LH,240LH-R
CE4 CEXE1C475A C-ELEC 4.7MF 50V SS 1 EA
CE5 CEXE1C106A C-ELEC 10MF 16V SS 1 EA
CL 3108803500 PIN GP881206-2(250) 1 EA
CL1 CLV-B3104M C-LINE ACROSS 275V 104K(PILKOR) 1 EA
CL2 CLV-B3104M C-LINE ACROSS 275V 104K(PILKOR) 1 EA
CLIP 3107000600 FUSE CLIP AFC-520 2 EA
CN1 3108803900 WAFER YW396-05AV(RED) 1 EA
CN10 3108801100 WAFER 5267-02A 1 EA 070LH,091LH,240LH-R
CN11 3108804000 WAFER SMAW250-08 1 EA
CN13 3108802000 WAFER SMW250-06(WHITE) 1 EA
CN2 3108803800 WAFER YFW800-02 1 EA
CN3 3108802900 WAFER YW396-05AV 1 EA
CN4 3108802500 WAFER YW396-03AV 1 EA
CN6 3108800320 WAFER 5281-02A 1 EA
CN7 3108803400 PIN GP881205-2(187) 1 EA
CN8 3108803600 WAFER YFW800-01 1 EA
CN9 3108804500 WAFER 5267-04A 1 EA
D1 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D2 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D3 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D4 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D5 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D6 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
FUSE 5FVLB3152L FUSE GLASS TUBE 250V/50T 3.15A 1 EA
HS1 3105797200 HEAT SHINK 22(H)*23*17 1 EA
IC1 13GS1H13-- IC MICOM TMP87C846-1H13 1 EA
IC2 1KA7812AP- IC REGULATOR KIA 7812AP 1 EA
IC3 1KA7805AP- IC REGULATOR KIA 7805AP TO-220IS 1 EA
IC4 1KD65004AP IC DRIVER KID65004AP 1 EA
70
◆
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
IC5 1KA7042P-- IC RESET KIA7042P 5L 1 EA
IC6 1KD65004AP IC DRIVER KID65004AP 1 EA
L1 52C1374001 COIL 130UH 3A 1 EA
OSC 4850103610 RESONATOR CST8.00MTW,8MHZ 1 EA
PCB 3104398102 PCB CONTROL 160.5*140*1.6T.1(42) 1 EA
PT1 1TLP560J-- IC PHOTO COUPLER TLP 560J 1 EA
R-OPT 3104810000 RESISTOR OPTION NOTE OPTION TABLE 1 ST
R1 RD-4K101J- R CARBON FILM 1/4 100 OHM J 1 EA
R10 RN-4K1272F R METAL FILM 1/4 12.7K OHM F 1 EA
R11 RN-4K1272F R METAL FILM 1/4 12.7K OHM F 1 EA
R12 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R13 RD-4K562J- R CARBON FILM 1/4 5.6K OHM J 1 EA
R14 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R15 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R16 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R17 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R18 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R19 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R2 RD-4K562J- R CARBON FILM 1/4 5.6K OHM J 1 EA
R20 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R21 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R23 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R24 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R25 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R26 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R27 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R28 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R29 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R3 RD-4K103J- R CARBON FILM 1/4 10K OHM J 1 EA
R30 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R31 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R32 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R38 RS01F121J- R M-OXIDE FILM 1W 120 OHM J 1 EA
R4 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R5 RD-2K102J- RESISTOR 1/2W - 1K 1 EA
R6 RD-4K331J- R CARBON FILM 1/4 330 OHM J 1 EA
R7 RD-4K331J- R CARBON FILM 1/4 330 OHM J 1 EA
R8 RD-4K331J- R CARBON FILM 1/4 330 OHM J 1 EA 070LH,091LH,240LH-R
R9 RN-4K1272F R METAL FILM 1/4 12.7K OHM F 1 EA 070LH,091LH,240LH-R
RA1 RA8K5103J- RESISTOR ARRAY 6A 103J 1 EA
RA2 RA8K4103J- RESISTOR ARRAY 5A 103J 1 EA
RA3 RA8K3103J- RESISTOR ARRAY 4A 103J 1 EA
RL1 5SC0101220 RELAY UKH-12SP 1 EA
RL1 5SC0101128 RELAY CS11-12SH 1C 1P 1 EA 240L-R/LH-R
RL2 5SC0101128 SW RELAY CS11-12SH 1C 1P 1 EA
RL3 5SC0101128 SW RELAY CS11-12SH 1C 1P 1 EA
SCRW 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN 1 EA
T1 TSM3JZ47-- TRIAC SM3JZ47 1 EA
TEST 3108804300 WAFER YF254S-02 1 EA
TR1 TKRC102M-- TR KRC 102-M (TAPPING) 1 EA
VAR D15G561K-- VARISTOR 15G561K/350V 1 EA
WSHR 3106002900 WASHER 3*6 1 EA
71
CONTROL PCB ASS`Y (MODEL : 082M/H,102M/H,122M/H,151L,122L/LH,182L/L-R,182LH/LH-R)
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
CA1 CN4XD104M- C-ARRAY F4 104Z 1 EA
CA2 CN3XD104M- C-ARRAY F3 104Z 1 EA
CC1 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC10 CCXE1H103M C-CERA 103Z 50VDC 1 EA 122LH,182LH/LH-R
CC13 CDXE1H104M C-MULTI CR501B-Z5U,104Z,50V 1 EA
CC2 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC3 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CC4 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CC5 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CC6 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CC7 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC8 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CC9 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CE1 CEXE1C475A C-ELEC 4.7MF 50V SS 1 EA
CE2 CEXE1C106A C-ELEC 10MF 16V SS 1 EA
CN1 3108802400 WAFER SMAW250-10 1 EA
CN2 3108804100 WAFER SMW250-07 1 EA
CN3 3108804200 WAFER SMW250-02 1 EA
CN4 3108802010 WAFER SMW250-06(RED) 1 EA 182L/L-R, 182LH/LH-R
CN5 3108802000 WAFER SMW250-06(WHITE) 1 EA
CN6 3108802000 WAFER SMW250-06(WHITE) 1 EA 182L/L-R, 182LH/LH-R
CN7 3108801100 WAFER 5267-02A 1 EA 122LH,182LH/LH-R
CN8 3108804500 WAFER 5267-04A 1 EA
D1 DZN4148FTB DIODE 1N4148 AUTO 26MM 1 EA 182L/L-R, 182LH/LH-R
F1 52F6010100 FILTER EMI 0.6*10*3TUTN 1 EA 182LH/LH-R
IC1 13GS1H13-- IC MICOM TMP87C846-1H13 1 EA
IC2 1KA7042P-- IC RESET KIA7042P 5L 1 EA
IC3 1KD65004AP IC DRIVER KID65004AP 1 EA
IC4 1KD65004AP IC DRIVER KID65004AP 1 EA
OSC1 4850103610 RESONATOR CST8.00MTW,8MHZ 1 EA
PCB 3104397162 PCB CONTROL 110*90.5*1.6T(99) 1 EA
R-OPT 3104810000 RESISTOR OPTION NOTE OPTION TABLE 1 ST
R1 RD-4K103J- R CARBON FILM 1/4 10K OHM J 1 EA
R10 RD-4K562J- R CARBON FILM 1/4 5.6K OHM J 1 EA
R11 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R12 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R13 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R14 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R16 RD-4K103J- R CARBON FILM 1/4 10K OHM J 1 EA
R17 RD-4K103J- R CARBON FILM 1/4 10K OHM J 1 EA 182L/L-R, 182LH/LH-R
R18 RN-4K1272F R METAL FILM 1/4 12.7K OHM F 1 EA
R19 RD-4K331J- R CARBON FILM 1/4 330 OHM J 1 EA
72
◆
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
R2 RD-4K103J- R CARBON FILM 1/4 10K OHM J 1 EA
R20 RN-4K1272F R METAL FILM 1/4 12.7K OHM F 1 EA
R21 RD-4K331J- R CARBON FILM 1/4 330 OHM J 1 EA
R22 RN-4K1272F R METAL FILM 1/4 12.7K OHM F 1 EA 122LH,182LH/LH-R
R23 RD-4K331J- R CARBON FILM 1/4 330 OHM J 1 EA 122LH,182LH/LH-R
R26 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R3 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R32 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R33 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R34 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R4 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R5 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R6 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R7 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R8 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R9 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
RA1 RA8K5103J- RESISTOR ARRAY 6A 103J 1 EA
RA2 RA8K3103J- RESISTOR ARRAY 4A 103J 1 EA
TEST 3108804300 WAFER YF254S-02 1 EA
TR1 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) 1 EA 182L/L-R, 182LH/LH-R
TR2 TKRC102M-- TR KRC 102-M (TAPPING) 1 EA 182L/L-R, 182LH/LH-R
MODEL
LOCATION
DSB-121L
DSB-122LH
DSB-182L/L-R (151L)
DSB-182L/L-R
LOCATION
DSB-070L, 091L, 092L
DSB-070LH, 071LH
DSB-091LH, 092LH
DSB-240L-R
DSA-240L-R, DSA-183L-R
DSB-240LH-R
DSA-240LH-R, DSA-183LH-R
DSB-123L
DSB-123LH
Cool
R28
2.87K
2.87K
3.65K
3.65K
R33 (R41)
3.24K
3.24K
3.24K
3.76K
6.34K
5.76K
(6.34K)
8.45K
8.45K
Heat
R29
X
2.87K
X
3.65K
R34 (R40)
X
49.9K
12.4K
X
X
5.76K
(6.34K)
X
8.45K
Cool
R30
28.0K
28.0K
22.6K
22.6K
R35 (R39)
24.9K
24.9K
24.9K
36.5K
7.68K
36.5K
(7.68K)
11.1K
11.1K
Heat
R31
X
28.0K
X
22.6K
R36 (R38)
X
32.4K
15.0K
X
X
36.5K
(7.68K)
X
11.1K
Monitoring
R27
X
24.3K
X
22.1K
R37 (R42)
X
24.3K
24.3K
X
X
22.1K
(6.19K)
X
12.4K
High Low
73
* R-OPT. DETAIL LIST
POWER PCB ASS`Y (MODEL : 122L/LH,151L,182L/L-R,182LH/LH-R,082M/H,102M/H,122M/H)
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
BZ1 3105698200 BUZZER DP-2520BA 1 EA
C1 CLV-B3104M C-LINE ACROSS 275V 104K(PILKOR) 1 EA
C2 CLV-B3104M C-LINE ACROSS 275V 104K(PILKOR) 1 EA
CC 3108803500 PIN GP881206-2(250) 1 EA
CC1 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC2 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC3 CCXE1E104M C-CERA 104Z 25VDC 1 EA
CC4 CCXE1H103M C-CERA 103Z 50VDC 1 EA
CE1 CEXE1V108C C-ELEC 1000MF 35V SD 1 EA
CE2 CEXE1E477C C-ELEC 470MF 25V SD 1 EA
CE3 CEXE1C107C C-ELEC 100MF 16V SD 1 EA
CL 3108803500 PIN GP881206-2(250) 1 EA
CLIP 3107000600 FUSE CLIP AFC-520 2 EA
CN1 3108803900 WAFER YW396-05AV(RED) 1 EA
CN2 3108803800 WAFER YFW800-02 1 EA
CN3 3108802900 WAFER YW396-05AV 1 EA
CN4 3108802500 WAFER YW396-03AV 1 EA
CN5 3108802800 WAFER YW396-04AV(BLUE) 1 EA 082H,102H,122H
CN6 3108802100 WAFER SMW250-10 1 EA
CN7 3108800320 WAFER 5281-02A 1 EA
CN8 3108803400 PIN GP881205-2(187) 1 EA 122LH,182LH/LH-R
CN9 3108803600 WAFER YFW800-01 1 EA 122LH,182LH/LH-R
D1 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D2 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D3 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D4 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D5 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
D6 DZN4004A-- DIODE KN4004A AUTO 52MM 1 EA
FUSE 5FVLB3152L FUSE GLASS TUBE 250V/50T 3.15A 1 EA
HS1 3105797200 HEAT SHINK 22(H)*23*17 1 EA
IC1 1KA7812AP- IC REGULATOR KIA 7812AP 1 EA
IC2 1KA7805AP- IC REGULATOR KIA 7805AP TO-220IS 1 EA
L1 52C1374001 COIL 130UH 3A 1 EA
PCB 3104396142 PCB POWER 130*81*1.6T(84) 1 EA
PT1 1TLP560J-- IC PHOTO COUPLER TLP 560J 1 EA
R1 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R2 RD-4K103J- R CARBON FILM 1/4 10K OHM J 1 EA
R3 RD-4K562J- R CARBON FILM 1/4 5.6K OHM J 1 EA
R4 RD-2K102J- RESISTOR 1/2W - 1K 1 EA
R5 RD-4K101J- R CARBON FILM 1/4 100 OHM J 1 EA
R6 RD-4K102J- R CARBON FILM 1/4 1K OHM J 1 EA
R7 RS01F121J- R M-OXIDE FILM 1W 120 OHM J 1 EA
RL1 5SC0101220 RELAY UKH-12SP 1 EA 122L/LH,082M/H
RL1 5SC0101220 SW RELAY CS11-12SH 1C 1P 1 EA
RL2 5SC0101128 SW RELAY CS11-12SH 1C 1P 1 EA 122LH,182LH/LH-R
RL3 5SC0101128 SW RELAY CS11-12SH 1C 1P 1 EA 122LH,182LH/LH-R
RL4 5SC0101128 SW RELAY CS11-12SH 1C 1P 1 EA 082H,102H,122H
SCRW 7122401211 SCREW TAPPING T2S TRS 4*12 MFZN 1 EA
T1 TSM3JZ47-- TRIAC SM3JZ47 1 EA
TR1 TKRC102M-- TR KRC 102-M (TAPPING) 1 EA
VAR D15G561K-- VARISTOR 15G561K/350V 1 EA
WSHR 3106002900 WASHER 3*6 1 EA
74
◆
LED PCB ASS`Y (MODEL : 070L/LH, 071LH, 091L/LH, 092LH, 052M/H)
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
CC1 CDXE1H104M C-MULTI CR501B-Z5U,104Z,50V 1 EA
CN1 3108804800 WAFER SMAW250-08 1 EA
HOLD 3103002700 HOLDER LED ABS 1 EA
L1 DDLS05031D LED DLSO-5031D(RED) 1 EA
L2 DDLG05031D LED DLG-5031D(GRN) 1 EA
L3 DDLS05031D LED DLSO-5031D(RED) 1 EA
L4 DDLY05031D LED DLY-5031D(YLW) 1 EA
PCB 3104398201 PCB LED 110*31*1.6T.10(288) 1 EA
RCV 1TSP1838YA RECEIVER MODULE TSOP-1838YA1(HOLDER) 1 EA
SW1 5S40202000 S/W PUSH JPS2281 1 EA
LED PCB ASS`Y (MODEL : 123LH, 183L-R/LH-R, 240L-R/LH-R)
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
CC1 CDXE1H104M C-MULTI CR501B-Z5U,104Z,50V 1 EA
CN1 3108804800 WAFER SMAW250-08 1 EA
HOLD 3103004100 HOLDER LED 1 EA
L1 DDLS05031D LED DLSO-5031D(RED) 1 EA
L2 DDLG05031D LED DLG-5031D(GRN) 1 EA
L3 DDLS05031D LED DLSO-5031D(RED) 1 EA
L4 DDLY05031D LED DLY-5031D(YLW) 1 EA
PCB 3104398202 PCB LED 150*24.5*1.6T(240) 1 EA
RCV 1TSP1838YA RECEIVER MODULE TSOP-1838YA1(HOLDER) 1 EA
SW1 5S40202000 S/W PUSH JPS2281 1 EA
LED PCB ASS`Y (MODEL : 122L/LH,080M/H)
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
CC1 CXCH1H103M C CERA 103J/50 20% 1 EA
CN1 3108804600 WAFER SMAW250-07 1 EA
HOLD 3103001900 LED HOLDER ABS(VO) T2.0 1 EA
L1 DDSR302D-- LED DLSR-302D(RED) 1 EA
L2 DDLG302D-- LED DLG-302D 1 EA
L3 DDSR302D-- LED DLSR-302D(RED) 1 EA
L4 DDLY302D-- LED DLY-302D 1 EA
PCB 3104397402 LED PCB 72*50*1.6T(247) 1 EA
RCV 1TSP1838YA RECEIVER MODULE TSOP-1838YA1(HOLDER) 1 EA
LED PCB ASS`Y (MODEL : 182L/L-R,182LH/LH-R,151L/LH,102M/H,122M/H)
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
CC1 CXCH1H103M C CERA 103J/50 20% 1 EA
CN1 3108804600 WAFER SMAW250-07 1 EA
HOLD 3103001100 LED HOLDER ABS (BLK) 1 EA
L1 DDSR302D-- LED DLSR-302D(RED) 1 EA
L2 DDLG302D-- LED DLG-302D 1 EA
L3 DDSR302D-- LED DLSR-302D(RED) 1 EA
L4 DDLY302D-- LED DLY-302D 1 EA
PCB 3104395412 LED PCB 67.5*40*1.6T(350) 1 EA
RCV 1TSP1838YA RECEIVER MODULE TSOP-1838YA1(HOLDER) 1 EA
SWITCH PCB ASS`Y (MODEL : 182L/L-R,182LH/LH-R, 151L,102M/H,122M/H)
No PART CODE PART NAME SPEC Q'TY UNIT REMARK
CN1 3108804700 WAFER SMAW250-02 1 EA
PCB 3104395311 S/W PCB 36*29.5*1.6T(891) 1 EA
SW1 5S30101330 SWITCH SLIDE KSA-2340B 1 EA
75
◆
◆
◆
◆
◆
76
Power Supply(1)
DESCRIPTION
DC Po wer Supply in circuit needs +12V and +5V. +12V is used for Compressor Driving Relay, T riac Driving
Photo Triac, Buzzer Driving Swing, Sweep Motor. AC voltage of secondary Po wer Transformer is rectified by
Bridge Diode, and it is filtering by Main Condensor CE1.
Filtered DC voltage is about +18V, is regulated +12V DC by Regulator IC7812.
And it is regulated +5V DC by Regulator IC7805.
V AR is serge filter and CC1, CC2, CC3 is Noise filter .
AC 220V
CL1
275V
104K
VAR
FUSE1
3.15A
POWER TRANS
D2
CC1 CE1
D3
D1
D4
104
+
35V
1000µF
IC2
7812
VI VO
G
IC3
7805
VI VO
G
+
25V
470µF
CC2 CC3 CE3CE2
104
+
16V
100µF
104
12V 5V
Oscillator(2)
19
OSC
CC13
104
5V
8M
20
77
Room temperature and Evaporator temperature Sensor Input
DESCRIPTION
Number 24, 25 of Micom is Terminal of A/D convertor Input.
Room temperature and Evaporator temperature is sensing by change of Thermister Resistance, Micom is put
in 5V by ratio between R10 (12.7KΩ) and R11 (12.7KΩ).
Relation between temperature and voltage is follo wing Table 3-1.
CC5, 6 is Noise filter.
Temperature
(°C)
No. 1 No. 3
-5 1.127 1.127
0 1.378 1.378
5 1.650 1.650
10 1.936 1.936
15 2.228 2.228
Voltage (V)
Table 3-1
Sensor(3)
070LH,091LH
182LH, 240LH
O/C SENSOR
I/C SENSOR
ROOM SENSOR
CN10
330 R8
R7R6330
330
CC5
103
R9
12.7kF
CC7
103
103
CC6
23
24
25
MICOM
CN9
R10
12.7KF
R11
12.7KF
VDD-10%
V
SS+10%
Fig 2-1
DESCRIPTION
Oscillatory Frequency drive Micom, it is made up 8MHz resonator oscillatory Freqency.
Ocillatory wave is as follo wing Fig 2-1.
78
T riac Driving(4)
DESCRIPTION
Number 38 Terminal of Micom is put out Pulse Output, by way of Buffer it is driving Photo Triac is supplied
Trigger Signal.
Trigger Test of Triac is detected Zero Cross Part of AC input and it is triggered from Zero Cross part to Time
delay part according to Fan Speed. (Ref. Fig 4-1) SN1 is Snub ber .
N
L
AC 220V
TO MOTOR
T1
SM3JZ47
L1
12
130µH
3A
SN1
0.1µF
120Ohm
TLP561
PT1
12V
R5
1K
1/2W
IC4
KID 65004
MICOM
38
215
AC220V
TRIGGER
MOTOR
INPUT
LOW SPEED MEDIUM SPEED HIGH SPEED
Fig 4-1
LOW SPEED
MEDIUM SPEED
HIGH SPEED
Remote Controller(5)
DESCRIPTION
Signal from Remote Controller put in only Control Data Signal at Micom Terminal of Number 33, which is gotten
fid of Carrier (38KHz) from Receive Module. Signal Wave repeat third as following Fig 5-1.
But in Secondary Wave Custom Code is Reversed Face.
9ms 4.5ms 16bit 16bit24bit 8bit
0.56ms 0.56ms1.69ms
LEADER CODE
CUSTOM
CODE
Fig 5-1
Selecting Mode(6)
(SELECT S/W INPUT, OUTPUT)
MICOM
13
DATA
CODE
CHECK
SUM
R14
1K
CA1
F4104Z
TAILER
5V
RA1
1.12ms 2.25ms
bit 0 bit 1
Fig 5-2
BIT STRUCTURE
MODE
P2
SELECT
PUSH S/W
DESCRIPTION
There are Mode according to SW position as
following Table 6-1.
According as port of fixed Micom is Low, the unit is
operating as following Table 6-1.
POSITION MODE
OPEN REMOCON
GND EMERGENCY
Table 6-1
79
80
DESCRIPTION
MICOM Po wer is supplied 5V at Number 42 using VDD, Number 19, 20 Vsing Oscillator , CC13 is noise filter .
Micom Power Supply(7)
VDD 42
CE5
10µF
16V
CC11
104
CC13
104
+
5V
41
40
39
22
21
19
OSC
8MHz
20
VSS
MICOM
81
DESCRIPTION
V oltage less than about 0.8V put in Micom Terminal of Number 18 and then Micom reset. Reset IC detect
Po wer ON and Voltage less than 4.25V , and then send Reset Signal.
Reset(8)
R13 5.6K
1K R12
18
CC9
CE4
4.7uF/50V
IC5
7042P
10.3
MICOM
4.25V
H
L
t
t
POWER
ON
Vcc (+5V)
DELAY TIME
FOR POWER ON
RESET
82
DESCRIPTION
Micom 34 Ter minal put out Buzzer Driving Pulse,
its output is driving Buzzer through Buffer .
Ocillatory Frequency of buzzer is selected by
internal Micom.
This unit is setting at 4KHz.
VCC
12V
KID 65004
MICOM
34
611
R4
1K
BZ1
Buzzer Driving(10)
DESCRIPTION
Selecting function is as following table 9-1.
* When power source is put at fist, Funtion selection input is recognized.
And when the unit is running the microcomputer ignore variation of funtion selection input.
model
JS3
JS2
JS1
1K
14
15
16
30
29
28
41
40
39
27
26
1K
1K
1K
1K
JS5
JS4
1K
1K
1K
1K
1K
R28
R32
R31
R30
R25
R24
R23
R35
R34
R33
R37
R29
1K
R17
MICOM
R16
R15
CA2
CA1
F5 104Z
RA1 R36
heat/low
heat/high
cool/low
MILD/HIGH
HEAT/COOL
cool/high
monitoring
6A
RA3
RA3
4A 103J
CA3
F3 104Z
103J
RA2
Function Selecting(9)
FAN
FUNCTION
MODEL
MILD
HIGH
HEAT
COOL
070
091
122/240
181
JS1
–
–
–
–
SHORT
OPEN
SHORT
OPEN
JS2
–
–
–
–
SHORT
OPEN
OPEN
SHORT
JS4
–
–
SHORT
OPEN
–
–
–
–
JS5
SHORT
OPEN
–
–
–
–
–
–
83
DESCRIPTION
It defect Zero Cross part of Trans output v oltage, Transistor TR1 is used to put in the Micom.
Detail Driving is as following Fig 11-1.
R19 is Resistance to limit current.
MICOM
TRANS
OUTPUT
D5
D6
R2
5.6K
12
CC4
103
TR1
KRC120M
12 1
23
21
R3
10K
R27
1K
VCC
31
DETECT POINT
H
The
Number
31 of
Micom
terminal
AC18V
L
Fig 11-1
Zero Crossing Detect(11)
84
DESCRIPTION
There are one Stepping Motor for Flap (up and down) and it is used 4 face Drive Method.
It is driving as following Fig 12-1. (Ring Count Method of 8 Status)
Ø 4
Ø 3
Ø 2
Ø 1
B
+
6
5
4
3
2
1
12V
IC6
KID65004
CN13
1
MICOM
2
3
4
M1
FOR SWING
Fig 12-1
(Normal Rotating) (Reversed Rotating)
Stepping Motor Driving(12)
Ø 4
Ø 3
Ø 2
Ø 1
2
REMOTE CONTROLLER ASSMBLY FUNCTIONAL TEST METHOD
TEST START
Power Supply
Select ON/OFF button
Is Display at the
beginning ON?
Select Mode button
Is it normal?
Select FAN SPEED button
No
No
No
Power supply again
Is Display at the
beginning ON?
Ye s
ERROR
No
Check the Following
BATTERY SPRING
MICOM
PCB
LCD
Is it normal?
Select FAN DIR. button
Is it normal?
Is display at the
begining ON?
Select TEMP. Button ( , )
Is it normal?
No
( )
No
No
(Whenever you selectted Temp.
Button, it is changed by 1¡C (18~32¡C)
No
ERROR
ERROR
ERROR
ERROR
Select ON/OFF button
85
86
(0.5~24 HOUR)
ERROR
No
Select TIMER ON Button
Select Timer Enter Button
Select CANCEL Button
Select ON/OFF Button
Select OFF (Timer) Button
Select SLEEP Button
Select SLEEP Button
TEST OK!
Is LCD display OFF?
Is it normal
display?
TIMER
Is all display OFF?
Is it normal?
SLEEP MODE
Display ON?
Is display at the
beginning ON?
ERROR
No
ERROR
No
ERROR
No
ERROR
No
ERROR
No
ERROR
No
87
(1) U1 (MICOM)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
VDD
(XTOUT)P22
(XTIN)P21
(INT5/STOP)P20
P17
P16
(TC2)P15
(PPG)P14
(DVO)P13
(INT2/TC1)P12
(INT1)P11
(INTO)P10
(AIN7)P67
(AIN6)P66
(AIN5)P65
(AIN4)P64
(AIN3)P63
(AIN2)P62
(AIN1)P61
(AIN0)P60
VAREF
P77(HSO)
P76(HSCK)
P75(SO)
P74(SI)
P73(SCK)
P72(PDO/PWM)
P71(INT4)
P70(INT3/TC3)
P07
P06
P05
P04
P03
P02
P01
P00
TEST
RESET
XIN
XOUT
(VASS)VSS
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
Steppping Motor
Driving
Indoor Unit Motor Driving
Buzzer Driving
Remocon Input
Comp Relay Driving
Zero Crosing Detect
Function S/W
Temperature
Sensor Input
LED Driving
Emergency
Mode
Function
S/W
Reset Curcuit
Oscillation
8. KEY COMPONENTS OF ELECTRONIC CIRCUIT
88
(2) U2, 4 (KID65004) DARLINGTON ARRAYS
(3) U8 (KIA7805P) : VOLTAGE REGULATOR (5VDC)
(4) U7 (KIA7812P) : VOLTAGE REGULATOR (12VDC)
IN1 1 16 OUT 1
IN2 2 15 OUT 2
IN 3 3 14 OUT 3
IN 4 4 13 OUT 4
IN5 5 12 OUT 5
IN6 6 11 OUT 6
IN7 7 10 OUT 7
GND 8 9 COMMON FREE
WHEELING DIODES
COMMON
10.5KΩ
7.2KΩ
3KΩ
OUTPUT
GND
INPUT
100K 500
100
100
0.3
10K
6K
500
1K
5K
28K
6K
30pF
2K
5K
200
240
1.4
K
2.7
K
3.3
K
0.19K
INPUT
OUTPUT
GND
SCHEMATIC DIAGRAM
1
2
3
Fin 2 is ground
for Cose 221A.
Case is ground
for Case 1.
10K
INPUT
GND
10K
300
36K
64K
520
26K
60K
29K
20K
20K
40
pF
50K
50 200
300
200
100
16K
210
012
OUTPUT
(Top View)
Pin 1. INPUT
2. GROUND
3. OUTPUT
Pin 1. INPUT
2. GROUND
3. OUTPUT
(Equivalent Circuit)
KID65004AP
(Equivalent Ciircuit)
89
(5) U9 (KIA7042P) : RESET IC
KIA70
42P
OUTLINE
INPUT
GROUND
OUTPUT
VCC
1
3
2
OUT
GND
90
1
INDOOR UNIT
PROCEDURES PHOTOS
1. Stop the operation of the Air conditioner and disconnect the power cord
from the wall
outlet.
2. Removing the Insert Grille and Frame Grille. (Fig 1~2)
1 Draw up the Insert Grille and remove it.
2 Loosen the screw fixed at the Cover Ter-Block.
3 Loosen two screws fixed at the Fr ame Grille.
4 Remove the Frame Grille.
3. Removing the Control Box. (Fig 3)
1 Remove room and coil thermistors.
2 Disconnect the fan motor lead wire from connection at the
Control PCB.
3 Disconnect the stepping motor lead wire from connection at the
Control PCB.
4 Remove the select switch from connection at the Control PCB.
5 Loosen the screw fixed at the ground wire.
6 Remove the Control Box
4. Removing the Drain Pan. (Fig 4)
1 Disconnect the Body drain hole. (left and right Body)
2 Disconnect three hooks and remove the Drain Pan.
5. Removing the Indoor Evaporator . (Fig 5~6)
1 Remove the screw fixed at the indoor Ev aporator of the Body.
2 Remove the hook fixed at the Brack et Pipe of the back of Body.
3 Remove Indoor Evaporator .
6. Removing the Cross Flow F an. (Fig 7)
1 Remove set screw fixed at the Motor shaft.
2 Remove Cross Flow F an.
7. Remove Motor IDU and Bearing Plastic.
9. DISASSEMBLY INSTRUCTIONS
Fig 1
Fig 3
Fig 4
Fig 5
Fig 6
DSB-070LH/DSB-091LH
Fig 2
Fig 7
◆
91
PROCEDURES PHOTOS
1. Stop the operation of the Air conditioner and disconnect the power cord
from the wall
outlet.
2. Removing the Insert Grille and Frame Grille. (Fig 1~2)
1 Draw up the Insert Grille and remove it.
2 Loosen the screw fixed at the Cover Ter-Block.
3 Loosen two screws fixed at the Fr ame Grille.
4 Remove the Frame Grille.
3. Removing the Control Box. (Fig 3)
1 Remove room and coil thermistors.
2 Disconnect the fan motor lead wire from connection at the
Control PCB.
3 Disconnect the stepping motor lead wire from connection at the
Control PCB.
4 Remove the select switch from connection at the Control PCB.
5 Loosen the screw fixed at the ground wire.
6 Remove the Control Box
4. Removing the Drain Pan. (Fig 4)
1 Disconnect the Body drain hole. (left and right Body)
2 Disconnect three hooks and remove the Drain Pan.
5. Removing the Indoor Evaporator . (Fig 5~6)
1 Remove the screw fixed at the indoor Ev aporator of the Body.
2 Remove the hook fixed at the Brack et Pipe of the back of Body.
3 Remove Indoor Evaporator .
6. Removing the Cross Flow F an. (Fig 7)
1 Remove set screw fixed at the Motor shaft.
2 Remove Cross Flow F an.
7. Remove Motor IDU and Bearing Plastic.
Fig 1
Fig 3
Fig 4
Fig 5
Fig 6
DSB-071LH/DSB-092LH
Fig 2
Fig 7
◆
92
PROCEDURES PHOTOS
1. Stop the operation of the Air conditioner and disconnect the power cord
from the wall outlet.
2. Removing the Insert Grille and Frame Grille. (Fig 1~2)
1 Draw up the Insert Grille and remove it.
2 Loosen two special screws fixed at the Cover Ter-Block.
3 Loosen three screws fixed at the Body.
4 Remove the Frame Grille.
3. Removing the Control Box. (Fig 3)
1 Remove room and coil thermistors.
2 Disconnect the fan motor lead wire from connection at the
Control PCB.
3 Disconnect the stepping motor lead wire from connection at the
Control PCB.
4 Remove the select switch from connection at the Control PCB.
5 Loosen the screw fixed at the ground wire.
6 Remove the Control Box
4. Removing the Drain Pan. (Fig 4)
1 Disconnect the Body drain hole. (left and right Body)
2 Disconnect three hooks and remove the Drain Pan.
5. Removing the Indoor Evaporator . (Fig 5~6)
1 Remove three screws fixed at the indoor Ev aporator of the Body.
2 Remove the hook fixed at the Brack et Pipe of the back of Body.
3 Remove the Indoor Evaporator .
6. Removing the Cross Flow F an. (Fig 7)
1 Remove set screw fixed at the Motor shaft.
2 Remove the Cross Flow F an.
7. Remove Motor IDU and Bearing Plastic.
Fig 2
Fig 1
Fig 3
Fig 4
Fig 5
DSB-121LH/DSB-122LH
Fig 6
Fig 7
◆
93
PROCEDURES PHOTOS
1. Stop the operation of the Air conditioner and disconnect the power cord
from the wall
outlet.
2. Removing the Insert Grille and Frame Grille. (Fig 1~2)
1 Draw up the Insert Grille and remove it.
2 Loosen the screw fixed at the Cover Ter-Block.
3 Loosen four screws fixed at the F rame Grille.
4 Remove the Frame Grille.
3. Removing the Control Box. (Fig 3)
1 Remove room and coil thermistors.
2 Disconnect the fan motor lead wire from connection at the
Control PCB.
3 Disconnect the stepping motor lead wire from connection at the
Control PCB.
4 Remove the select switch from connection at the Control PCB.
5 Loosen the screw fixed at the ground wire.
6 Remove the Control Box
4. Removing the Drain Pan. (Fig 4)
1 Disconnect the Body drain hole. (left and right Body)
2 Disconnect three hooks and remove the Drain Pan.
5. Removing the Indoor Evaporator . (Fig 5~6)
1 Remove two screws fixed at the indoor Ev aporator of the Body.
2 Remove the hook fixed at the Brack et Pipe of the back of Body.
3 Remove Indoor Evaporator .
6. Removing the Cross Flow F an. (Fig 7)
1 Remove set screw fixed at the Motor shaft.
2 Remove Cross Flow F an.
7. Remove Motor IDU and Bearing Plastic.
Fig 1
Fig 3
Fig 4
Fig 5
Fig 6
DSB-123LH
Fig 2
Fig 7
◆
94
PROCEDURES PHOTOS
1. Stop the operation of the Air conditioner and disconnect the power cord
from the wall outlet.
2. Removing the Insert Grille and Frame.
1 Loosen three screws fixed at the the Insert Grille and Frame.
(Pull out the frame cap before loosening three screws) (Fig 1)
2 Loosen three screws fixed at the Drain Pan.
3 Remove the Insert Grille and Frame.
3. Removing the Control Box.
1 Disconnect indoor room and coil thermistors. (Fig 3)
2 Disconnect the fan motor lead wire from connection at the main
PCB. (Fig 3)
3 Disconnect the swing motor connection wire.
4 Loosen the screw fixed at the ground wire.
5 Loosen two screws fixed at the body.
4. Removing the Drain Pan.
1 Loosen the screw fixed at the body. (Fig 4)
2 Unhook the right part of Drain Pan.
5. Removing the Indoor Coil.
1 Loosen four screws fixed at the indoor coil of left and right side. (Fig 5)
2 Loosen the screw fixed at the bracket tube of the bac k side. (Fig 6)
3 Remove the indoor coil. (Fig. 6-1)
6. Removing the fan motor .
1 Loosen two screws fixed at the holder moter of left and right side.
(Fig 7, 8)
2 Loosen the screw fixed at the fan motor and the blo wer.
3 Renove the fan motor .
Fig 2
Fig 4
Fig 5
Fig 6
Fig 6-1
DSB-182LH/DSB-182LH-R
Fig 1
Fig 3
◆
95
PROCEDURES PHOTOS
7. Removing the blower.
! Loosen the screw fixed at the holder bearing.
@ Remove the blower .
Fig 8
Fig 7
Loading...
