Proper use guarantees

product life.

Before using the product, be advised
that you read this owner’s manual well
and try to operate it.

This Owner’s Manual presents safety precautions and how to use the product.
After reading it thoroughly, use the product safely .
Keep this manual where the user can see it easily.

Failure to comply with warnings and cautions for the safe use of electric
appliances may cause fire or human injury.

• 42” wide Plasma Panel

• Support Picture-in-Picture (PIP)

• DVD Direct Connection / Outstanding Picture Quality via a Digital
Broadcast Receiver

DVD can be directly connected to the Plasma unit so that you can view clear digital images. You can enjoy
even higher quality images by connecting a digital broadcasting receiver with which digital broadcasts can
be viewed.

•

PC Direct Connection

Plasma unit can be connected to the PC without a separate device and can be used as a monitor making it
ideal for presentation, various events and exhibitions.

•

Free-Angle Viewing Area

•

Flat Panel with No Distortion and Colour Blurring

Since Plasma TV has no problems such as distortion, blurring, flickering unlike existing CRT type
displays, you can enjoy Home Cinema picture quality and sound.

•

Various Video Control

- Various Languages OSD - Full-screen still function

- Various aspect ratio (16:9, 4:3, LB(16:9), LBS(16:9), 14:9, LB(14:9), LBS(14:9), Auto)

•

Free Volt (100-240V~, 50/60Hz)

•

HDMI (High Definition Multimedia Interface) Connection

HDMI provides you higher-quality pictures and sound with uncompressed and all digital audio/video
interface between a set-top box, PC, DVD player, and so on over a single cable.

•

MGDI Plus (Meta Genuine Digital Image) Engine

MGDI Plus is the image enhancement technology designed by Daewoo Electronics, which provides more
clear, realistic, and delicate images.

•

DDX (Direct Digital Amp)

DDX is the special audio signal processing technology of Daewoo Electronics, which reproduces the
original sound without passing through extra complex audio signal processors.

Features

Features

Always obey all

safety messages.

•All the safety and
operating
instructions should
be read before the
product is operated.
If anything strange
happens, unplug
this product from
the wall outlet.

•Do not disassemble
or replace any parts
of the TV.
Refer to a qualified
service personnel
for repair.

Safety Precautions

4

W ARNING

You can be Killed
or seriously
injured if you do
not follow these
instructions.

During a lightning storm, or when it is left
unattended and unused for a long period
of time, unplug it from the wall outlet.

It can result in fire.

When unplugging your TV, always grip
the plug firmly and pull straight out from
the socket.

It can result in fire or electric shock due to
damaged power cord.

This product must be properly grounded.

• Improper grounding may cause malfunction or
electric shock.

• When proper grounding is not possible, install
circuit breaker.

• Do not ground to gas pipe, water pipe, lightning
rod, or telephone line.

• An apparatus with CLASS I construction shall be
connected to a MAINS socket outlet with a
protective earthing connection.

During a lightning storm, unplug the TV
from the wall outlet, and do not touch the
antenna.

It can cause fire or electric shock.

Power

Installation

Do not use this product in the
neighborhood of a bath or shower.

It can result in electric shock or fire.

Do not place this TV on an unstable cart,
stand, or table

It may cause the product and cart to overturn,
damaging equipment or causing possible injury.

Please place the TV set in such a way that
the main plug can be easily disconnected.

5

During Use

Do not open the cover (or back)
because high voltage is present
within the TV enclosure.

It may cause electric shock.

Never push any kind of objects into
this product through openings at the
back of TV.

It may cause fire or electric shock.

The apparatus shall not be exposed to
dripping or splashing and that no objects
filled with liquids, such as vases, shall be
placed on the apparatus.

Spilled liquids may cause electric shock or
fire.

Do not allow children to play or hang
on the TV.

These actions may tip it over, causing
personal injury.

Do not place a candle or lighted
cigarette on the TV.

If these fall into the inside of the tv, it may
cause a fire or explosion.

Do not disassemble batteries, and
do not leave around in case children
swallow them.

Heavy metal may contaminate environment,
and can be harmful or detrimental to human
health. (If children swallow the batteries, go to
hospital and consult with a doctor.)
Batteries could explode if fitted incorrectly.
Align the batteries according to the (+) and (-)
indication inside the case.

Do not spray water onto the TV or
wipe with damp cloth.

It may cause an electric shock or fire.

Unplug the TV from the wall outlet
when smoke or a strange smell
occurs, then refer to a service
personnel.

Leaving the TV on in this condition, may
cause fire or electric shock.

Always obey all

safety messages.

• All the safety and
operating instructions
should be read before
the product is
operated.

Safety Precautions

6

Power

Installation

CAUTION

You can be injured,
or this product or
any other of your
property can be
damaged if you
don’t follow
instructions.

When moving your TV, remove the power
plug, antenna, and cables, and be sure to
move it by using two people..

Failure to follow this instruction can result in
electric shock or personal injury.

Do not touch the power plug with wet
hands when plugging or unplugging it
into the wall socket.

It can result in a risk of electric shock.

Do not install the product where it will be exposed to
the direct sunlight, and the product should not be
near heat sources such as radiators, stoves, etc.

It may cause malfunction.

Do not install the product where there is
oil, smog, moist, or dust

It may cause malfunction.

For proper ventilation, separate the product
from the wall, and keep a distance of more
than 10cm (4inches).

Due to the increase of temperature inside the TV,
it may cause fire.

Minimum distances around the apparatus
for sufficient ventilation.

Due to the increase of temperature inside the TV,
it may cause a fire.

If you wish to install this product on the
wall or ceiling, refer to a professional.

Failure to do so may cause damage to product
and injury to human.

When using an outside antenna system, do not
install it in the vicinity of overhead power lines.

If the antenna touches such power lines, it may
cause electric shock.

77

During Use

Do not wipe the TV using a cloth
damped with chemicals (benzene,
thinners, etc.).

The TV appearance may be marred.
(Unplug the power plug and wipe with soft
cloth.)

Do not place any object or cover on
the TV.

In an event of improper ventilation, the TV
will be overheated causing fire.

Do not place heavy objects or heat
sources on the power cord.

It may damage the power cord, causing fire
or electric shock.

When watching the TV, the distance
between the TV screen and your eye
should be 5~7 times the diagonal
size of the TV.

Watching the TV for a long time may hurt
your eye sight.

When cleaning of the inside of the
TV is required, consult A qualified
service personnel.

When the TV is not cleaned for a long
period of time, dust in it may cause fire or
malfunction.

When the TV is placed on a cart or
table, the front side of the TV should
not project outward.

Unbalance may cause the TV to drop,
resulting in personal injury or equipment
malfunction and damage.

Do not allow a still picture to be
displayed for an extended period, as
this can cause a permanent ghost
image to remain on the Plasma
Display.

Examples of still pictures include logos,
video games, computer images, teletext
and images displayed in 4:3 mode.

The warranty does not cover any damage
caused by image retention.

The plasma display panel consists
of fine cells. Although the panels are
produced with more than 99.9
percent active cells, there may be
some cells that do not produce light
or remain lit.

8

Checking Accessories

Note

The following items are optional accessories.
Refer purchasing optional accessories from

Daewoo Electronics Local Retailers or the retailer
from where you purchased the unit.

Optional Accessories

Wall Mounting Unit

Stand Unit

Remote Control

1 UNIT

Note

Check to be sure that the following items are
packed with your Plasma panel.

Supplied Accessories

Batteries (Option)

1 UNIT

AC Cable 1 UNIT

Cable holder

1 UNIT

Cover Bottom (Option)

1 UNIT

Scart to RCA Jack (Option)

1 UNIT

9

How to install Cable Holder

1

23

The method of wire arrangement

1 Assemble the cable holder enclosed on the back of TV.

(PICTURE 1)
(ASSEMBLY METHOD: After you push the "A"(prominence
part of cable holder) in the hole, rotate the cable holder
clockwise as an angle of 90°. You can separate in reverse
order of assembly.)

2 Open the cable holder. (PICTURE 2)

( you can open the cable holder then press and push "B" part.)

3 After arranging cables with the cable holder, lock "B" again.

(PICTURE 3)

How to Install Cover Bottom

Cover Bottom is used when you want to use the Wall Mounting Unit instead of the Stand Unit.
If you already use the wall Mounting unit, the Cover Bottom would be installed in the Plasma unit.

1

Stand Unit detachment: Remove the nine screws from the back cover as shown in the picture
below.

2

COVER BOTTOM installing: Bolt up the four screws as shown in the picture below.

Cable Holder
Installing Position

10

How to use Scart to RCA Jack

Scart to RCA Jack is provided with the specific models for changing Scart signal to RCA
signal or RCA signal to Scart signal.

Scart to RCA Jack has a 'INPUT / OUTPUT' selecting switch.
While Scart to RCA Jack is connected to AV1, you can select 'INPUT' or 'OUTPUT' with

the switch.
However, you cannot select 'OUTPUT' while the Scart to RCA Jack is connected to AV2
because AV2 doesn't support TV out function.

Refer to the picture below to connect Scart to RCA Jack on your Plasma unit.

1 2

3 4

11

4 • Safety Precautions
8 • Checking Accessories
12 • Panel Controls
14 • Remote Control

PREPARATION

CONNECTION

16 • Antenna Connection
18 • To Watch TV
20 • Install Program
26 • Watching Digital Broadcasts
28 • Watching Cable Broadcasts
30 • Watching Satellite Broadcasts
32 • Watching a DVD Image
34 • Watching a VCR Image
36 • Watching a Camcorder/Game Console Image
38 • Connecting PC(15Pin D-Sub)
40 • Connecting HDMI
42 • Connect with the Dolby Digital AMP.

APPLICATION

MISC.

74 • Before Requesting Service
75 • Specifications

CONTENTS

44 • Selecting Picture Mode 60 •

MENU Background, Language

45 • Customising Picture

and Child Lock Setting

48 •

Adjusting Screen

62 •

MGDI Plus (Meta Genuine

51 • Watching a Still Image

Digital Image)

52 • Watching Two Pictures 65 • Time Setting

Simultaneously 67 • Image Sticking
54 • Selecting Sound Mode Minimisation(ISM)
55 • Customising Sound Mode 69 • Initialize Setting
58 • Selecting INPUT SIGNAL 71 • Setting Sleep Timer
59 •

Checking the Current Input Signal

72 • Teletext

12

Panel Controls

Front Panel, Rear Panel

*

Items having the same name on the plasma display and the remote control would function in
exactly the same way.

Front / Side

MENU

PR

Control sensor

Power Standby:

Red - Standby
Blue - ON

STAND-BY/OPERATE

ON/OFF

Select when
adjusting
volume or
select/adjust
“MENU.”

Press when
moving

“MENU” or
“Channel”

13

Rear

ANT

SERVICE

OPTICAL

DIGITAL
AUDIO

INPUT
PC AUDIO

PCHDMI

COMPONENT

AV1 AV2

PC INPUT
(15 pin D-sub)

HDMI INPUT

COMPONENT A/V jacks

SCART, A/V INPUT/OUTPUT.

PC AUDIO
INPUT

ANT

14

Remote Control

Note

• Use two “AAA” batteries.

• Be sure to use replacement batteries of the

same type as the original ones.

• The life of a battery depends on how much
it has been used.

*

The number in ( ) indicates the page in which
the function of each button is explained in detail.

Use to select channel directly 0~9

Mute sound.

Press to select TV Mode.

Use this function to make video input
selection.
It changes in the following sequence
AV 1 -> AV 2 -> AV 3

Used to display a desired menu.

While the AC power cord is connected,
turn the display ON (blue light) or OFF
(red light stand-by)

- Selects the language during dual
language broadcast.

- Selects mono sound during stereo
broadcast.

Use this function to make video input
selection. It changes in the following
sequence Component -> PC ->
HDMI -> Component.

Mute button

TV button

Menu button

V olume button /

P.MODE button

S.MODE button

Power button

Channel number (0~9)

Multimedia

PR button

/

It returns to previous channel.

Previous Program button

19

27

54

44

Press to use a spatial sound effect.

S.EFFECT button

56

19

58

20

MGDI button

63

AV button

29

Image enhancement button.

Whenever pressing the button, it

cycles in the following order.

Normal -> Dynamic -> Cinema -> User

Whenever pressing the button, it

cycles in the following order.

Normal -> Movie -> Music -> News -> User

15

When using remote control:

•

Be sure not to allow the remote control to drop or to
become wet.

•

Keep it away from hot or moist locations.

Installing the batteries in your remote control:

•

Push to open the cover of the remote control

•

Put the batteries in the battery cell after checking the
polarities, and then shut the cover.

Delete the channel in EDIT and teletext.

Skip the channel in EDIT and teletext.

Press this button to freeze the picture.

RED button

STILL button

Each time you press this button, a
different input mode appears. The
sequence is as follows: 15Min. -> 30Min.

-> 60Min. -> 90Min. -> 120Min. -> OFF
After the time is selected, it automatically
becomes stand-by state.

Sleep button

Adjusts the size of the screen.

Teletext.

Screen Size button

48

71

72

GREEN button

72

TELETEXT

72

51

EDIT button

22

RECALL button

59

Move the channel in EDIT and teletext.

Blue button

72

Yellow button

72

COLOUR TEMP button

47

Indicates the current state and resolution.

Edit the searched program in TV mode.

Change the colour mood of the panel.

16

CTV Antenna Connection

TV antenna installation may be found in most.

When a coaxial cable is used

Plug the coaxial cable to the antenna socket, and fix it firmly.

When a feeder cable is used

ANT/CABLE

ANT/CABLE

Coaxial cable

Antenna Connection

17

Outdoor antenna connection-such as VHF or/and UHF-may be necessary for installation at private houses

Single Antenna Connection.

Separate Antenna Connection.

VHF Antenna

UHF Antenna

ANT/CABLE

ANT/CABLE

Outdoor Antenna Connection

VHF-Antenna

UHF-Antenna

In case of coaxial cable

In case of feeder cable

Antenna combining

adapter

(separate purchase)

18

To Watch TV

- The buttons on the keypad in the PDP unit, which have the same name as those on the remote control, perform
the same function as the remote control.

Press the “POWER” button of the PDP unit.

•The “+PR-” or power button of the remote
control and the keypad on the PDP unit
would be operated only when the "AC Power"
of the PDP unit is supplied. Otherwise,
neither the remote control nor keypad of the
PDP unit can turn on the PDP.

To mute the sound

1. Press the “ ” button.

2. No sound is heard if “MUTE” is displayed

on the screen.

3. Sound is heard again if pressing the “ ”

button once again.
For example, you can use this button when
telephone rings or when guest comes while
watching TV.

Check of TV operation status

• If pressing the “” button, the status of the

program or broadcasting being currently
watched or entry status of video component
is displayed on the screen.

To Watch TV

When pressing the program button

•Select two digits if using the number button
for Program selection.
For example, to watch Program No.9, press
the number buttons 0 and 9.
If pressing only number 9, it takes more time
than pressing two digits for selecting a
channel.

Auto Power Off

• If TV broadcast for the day is finished, the

TV will automatically turn off after about 30
minutes. However, if the Off-timer or Sleep
timer is operating, it takes precedence. This
auto power off feature only operates in the
TV mode.

19

Press the “POWER” button.

• Connect the AC power cord to PDP unit.

• The LED of the PDP unit turns red colour

when power cord connect AC power.

• Press the “+PR-” or “POWER” button of
the remote control or keypad of the PDP
unit.

• The LED of the PDP unit turns “Blue”
colour and the TV turns on.

• To watch analog TV broadcasts, select
the correct input, i.e. 'PR' in the on
screen display box.

Select Program.

• Select the desired program by
pressing the “+PR-” button or
the number button.

Ex) Program 09

Adjust V olume.

•Sound reduces if pressing the
“VOL-” button.

• Sound increases if pressing the

“VOL+” button.

3

1

2

MONO PM 12 : 00

PR 09

_____

10Volume

Press the “Power” Button to T urn the TV off.

• TV turns off and the LED of
the PDP unit changes to red
colour.

4

20

Install Program

- This is the function for the TV to memorize the broadcasting channels. If the Auto Setup is done, you can simply
find programs with “+PR-” buttons and so need not select programs by pressing each program number.

- Up to 100 TV stations can be stored in this set by programme numbers (0 to 99). Once you have preset the
stations, you will be able to use the “+PR-” button or Number buttons to scan the stations you programmed.
Stations can be tuned using “Auto Setup” or “Manual Setup”.

Auto Setup

Press the “Menu” Button.

• The menu screen appears as
follows.

Press the

“▼▲”

Button.

1

Move

Select

MENU

Exit

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal

Normal

On

50
50

50

8


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Auto Setup
Edit
Manual Setup


Screen

Sound

Feature

Install

2

• Press the “▼▲” button and
select “Install”.

21

Select the “Auto Setup”.

• Select the “Auto Setup” with the
“▼▲” button.

• Then press the “◀▶” button.

Select the “Country”.

• There are 20 countries for
selection. Choose the desired
country before starting the
search.

• If there is no proper country,
select the "Others".

Select the “Search”.

• Press the “▶” key to
start searching.

• Then it automatically searches
channels as on the right.

• While searching, if you press the
"Menu" button, the automatic
channel search is stopped. But,
channels searched by that time
are saved.

5

3

4

Move

Select

MENU

Exit

Auto Setup
Edit
Manual Setup


Screen

Sound

Feature

Install

Move

Adjust

MENU

Exit

Auto Setup
Country
Search

Others


Screen

Sound

Feature

Install

Auto Searching...

15%

0 Channels Found...

MENU

Exit

Auto Search is completed.

• Edit menu appears as on the
right if the search is completed.

• Refer to “Edit” on the following
pages.

• The order of stored program
may differ among countries.

6

Adjust
Skip

MENU

Exit

Edit

Move Delete

11
12

13
14
15
16
17
18
19
20

21
22
23
24
25
26
27
28
29
30

C39
C39

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

01
02
03
04
05
06
07
08
09
10

BBC1
C77
S06
C07
C11
C25
C33
C34
S4C
C36

22

Edit

Deleting the Program.

• Place the selection bar on the program that you want to delete using the
“▼▲” and

“◀▶”

buttons.

• Press the Delete(Yellow) button.

• The deleted program goes to PR number 99 for recover.

Moving the Program Positions

• Place the selection bar on the program that you
want to move.

• Press the Move(Green) button.

• It becomes ready for moving as the colour of

selection changes to green.

• Move the program that you desire to move to the
wanted PR number.

• Press the Move(Green) button again to finish.
The colour of selection changes to yellow.

Skipping the Channels

• Using “▼▲” and “◀▶” buttons, place the selection
bar on the program that you want to skip.

• Press the Skip(red) button.

• The colour of the program changes to red.

• The program will be skipped.

• In order to cancel skip state,press the Skip(red) button

again.

4

2

3

Adjust
Skip

MENU

Exit

Edit

Move Delete

11
12

13
14
15
16
17
18
19
20

21
22
23
24
25
26
27
28
29
30

C39
C39

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

01
02
03
04
05
06
07
08
09
10

BBC1
C77
S06
C07
C11
C25
C33
C34
S4C
C36

EDIT MENU.

• EDIT menu appears as on the right if the Auto search is completed, or

press the “EDIT” button on the remote control in order to see EDIT menu.

1

Adjust
Skip

MENU

Exit

Edit

Move Delete

11
12

13
14
15
16
17
18
19
20

21
22
23
24
25
26
27
28
29
30

C39
C39

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

-----

01
02
03
04
05
06
07
08
09
10

BBC1
C77
S06
C07
C11
C25
C33
C34
S4C
C36

23

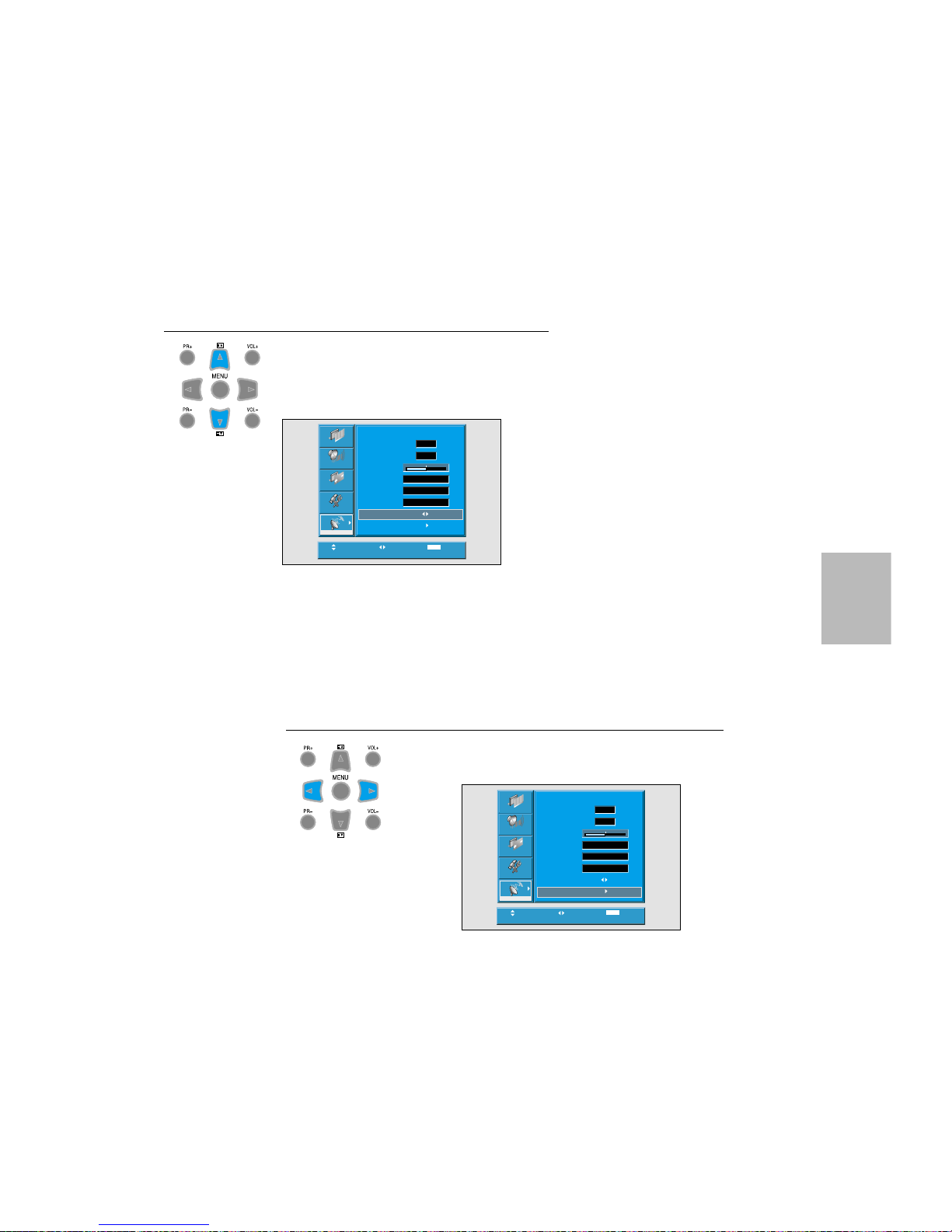

Press the Number Buttons(0~9) or the

“

◀◀▶▶

”

Button to Select a Program Number Y ou W ant.

Find the Desired Channel.

• Using “◀▶” button or number keys, select the
desired channel directly, if you know it otherwise
step through the numbers using the ▶ button until
you find the right channel.

• By pressing red teletext button, you can toggle C­channel to S-channel.

• If you are unable to get a good picture or sound
because of a poor signal reception, it is possible
to adjust it with the Fine Tune feature.

•

Move the selection bar to Fine Tune and press the

“◀▶” buttons to activate Fine Tune up or down.

• Note that it operates while the

“◀▶”

button is

being pressed.

•

It will be saved only when you select "OK" in Memory.

1

2

Manual Setup

Move

Adjust

MENU

Exit

0 ~ 9

Adjust

C06
PAL
D/K

0

C06

Manual Setup
Program
Channel
Fine Tune
Name
Video
Audio
Search
Memory

01


Screen

Sound

Feature

Install

Fine T une

3

Manual Setup
Program
Channel
Fine Tune
Name
Video
Audio
Search
Memory

01

C06

C06
PAL
D/K

0

Move

Adjust
Cable/Air

MENU

Exit

0 ~ 9

Adjust


Screen

Sound

Feature

Install

Manual Setup
Program
Channel
Fine Tune
Name
Video
Audio
Search
Memory

01

C06

C06
PAL
D/K

0

Move

Adjust

MENU

Exit


Screen

Sound

Feature

Install

24

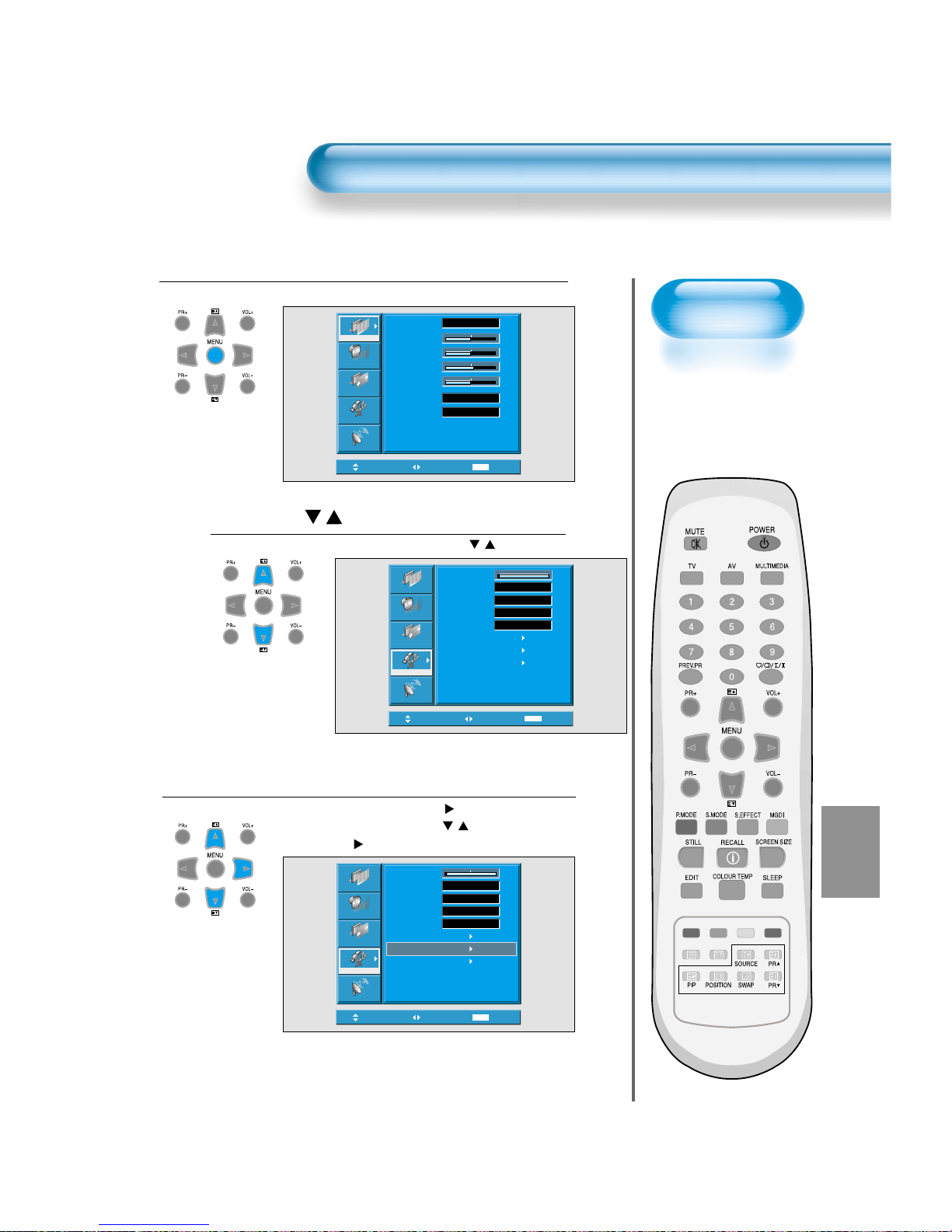

Manual Setup

Name the program

• Using “◀▶” button, move the position where you want
to write the character.

• Select the desired character with the “PR” button.

• There are A-Z, +, ., /, and 0-9 characters.

• After naming, It will be save when you select “OK” in

memory. you can exit by pressing the"Menu" button.

4

Select the Video and Audio System.

• You can select the Video (PAL,SECAM, SECAM-L)
and Audio (B/G, DK, I, L) System with these
functions.

5

Move

Adjust

MENU

Exit

Manual Setup
Program
Channel
Fine Tune
Name
Video
Audio
Search
Memory

01

C06

C06
PAL
D/K

0


Screen

Sound

Feature

Install

Move

Adjust

MENU

Exit

Manual Setup
Program
Channel
Fine Tune
Name
Video
Audio
Search
Memory

01

C06

C06
PAL
D/K

0


Screen

Sound

Feature

Install

Manual Setup
Program
Channel
Fine Tune
Name
Video
Audio
Search
Memory

01

C06

C06
PAL
D/K

0

Move

Adjust

MENU

Exit


Screen

Sound

Feature

Install

25

Memorize the Program.

Move

Select

MENU

Exit

Manual Setup
Program
Channel
Fine Tune
Name
Video
Audio
Search
Memory

01

C06

C06
PAL
D/K

0


Screen

Sound

Feature

Install

7

• Without Memorizing, the program will not be saved.

• Press “◀▶” buttons to memorize the program after
selecting ‘Memory’. “OK” will flash green.

Find the Desired Channel with 'Search'.

• By selecting the Search function, you can find the
desired channel, but it searches only one channel
unlike Auto Setup.

• If the nearest channel is found, the searching would
be stopped automatically.

6

Move

Select

MENU

Exit

Manual Setup
Program
Channel
Fine Tune
Name
Video
Audio
Search
Memory

01

C06

C06
PAL
D/K

0


Screen

Sound

Feature

Install

26

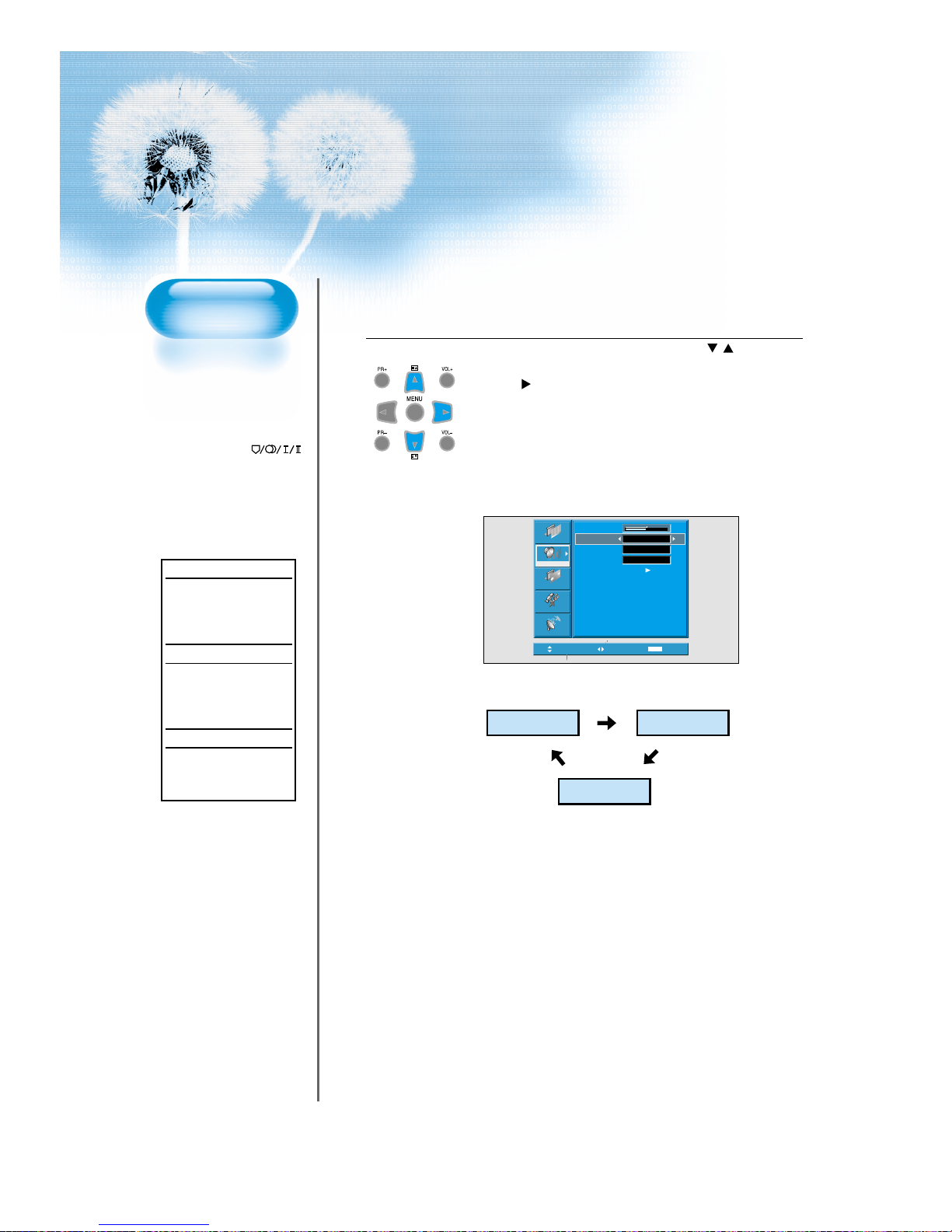

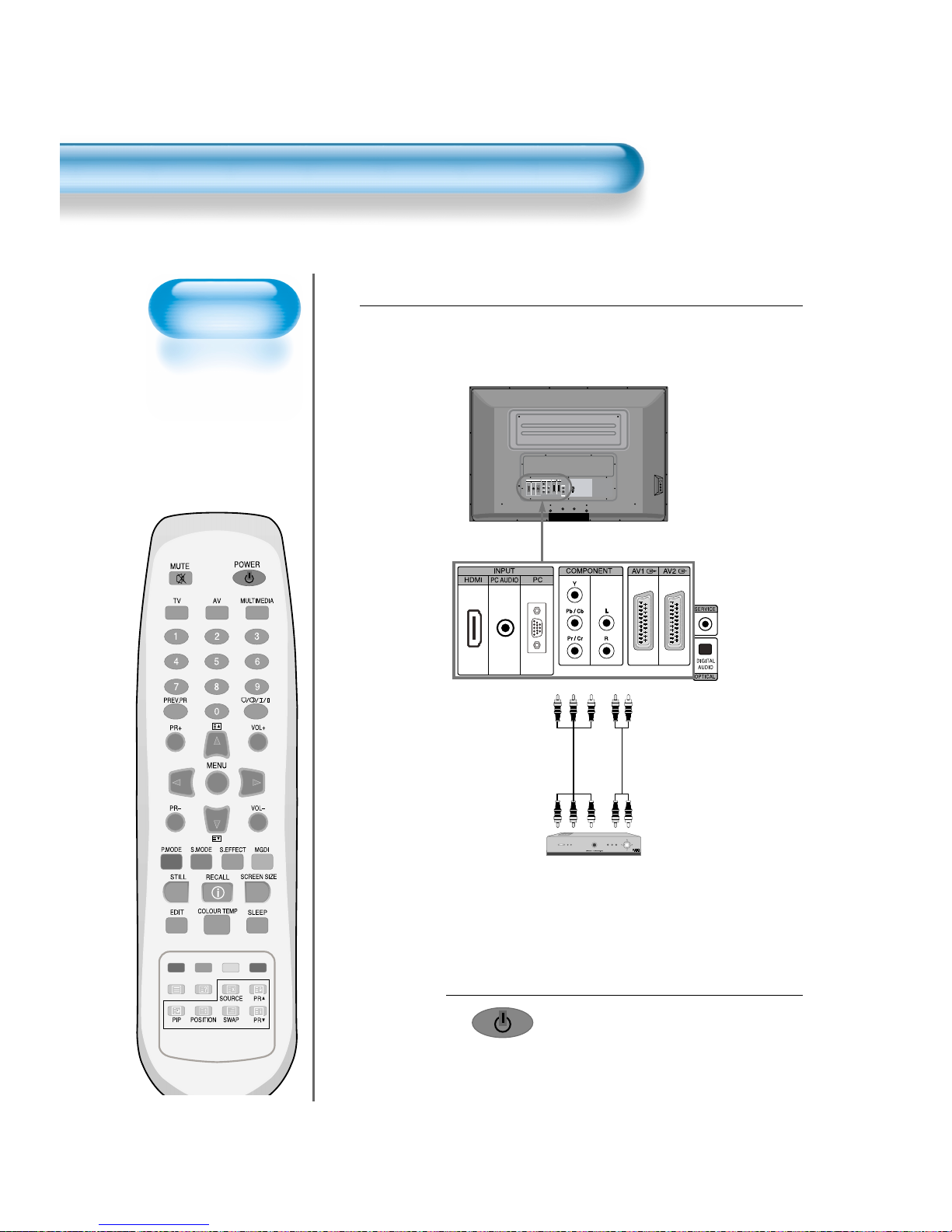

Watching Digital

Broadcasts

• To watch digital
broadcasts:

- Purchase a separate

Digital Broadcasting
Receiver(SET-TOP
BOX)

- Connect the PDP to a

Digital Broadcasting
Receiver as shown
right.

Watching Digital Broadcasts

Press the Power Buttons

• T urn the PDP and the receiver ON.

2

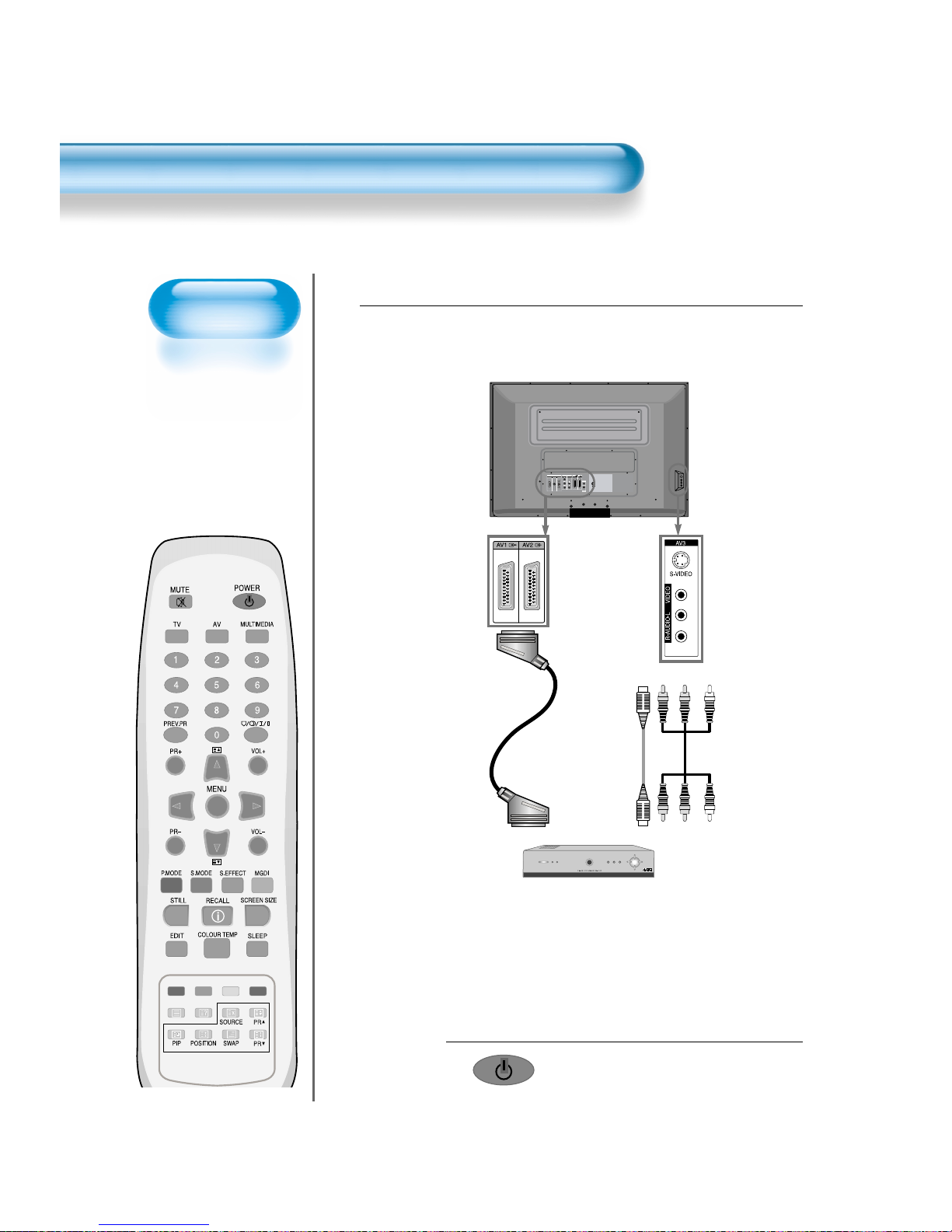

Connect a Digital Broadcasting Receiver to the
PDP

• Prepare A/V cables.

• Connect the cables from the digital TV Receiver output terminal to the

PDP(Component ) input terminal.

• When connecting the cables, be sure to match the cable colours.

1

ANT

SERVICE

OPTICAL

DIGITAL
AUDIO

INPUT
PC AUDIO

PCHDMI

COMPONENT

AV1 AV2

Video

Digital Broadcasting Receiver

(Set-T op Box)

Audio

27

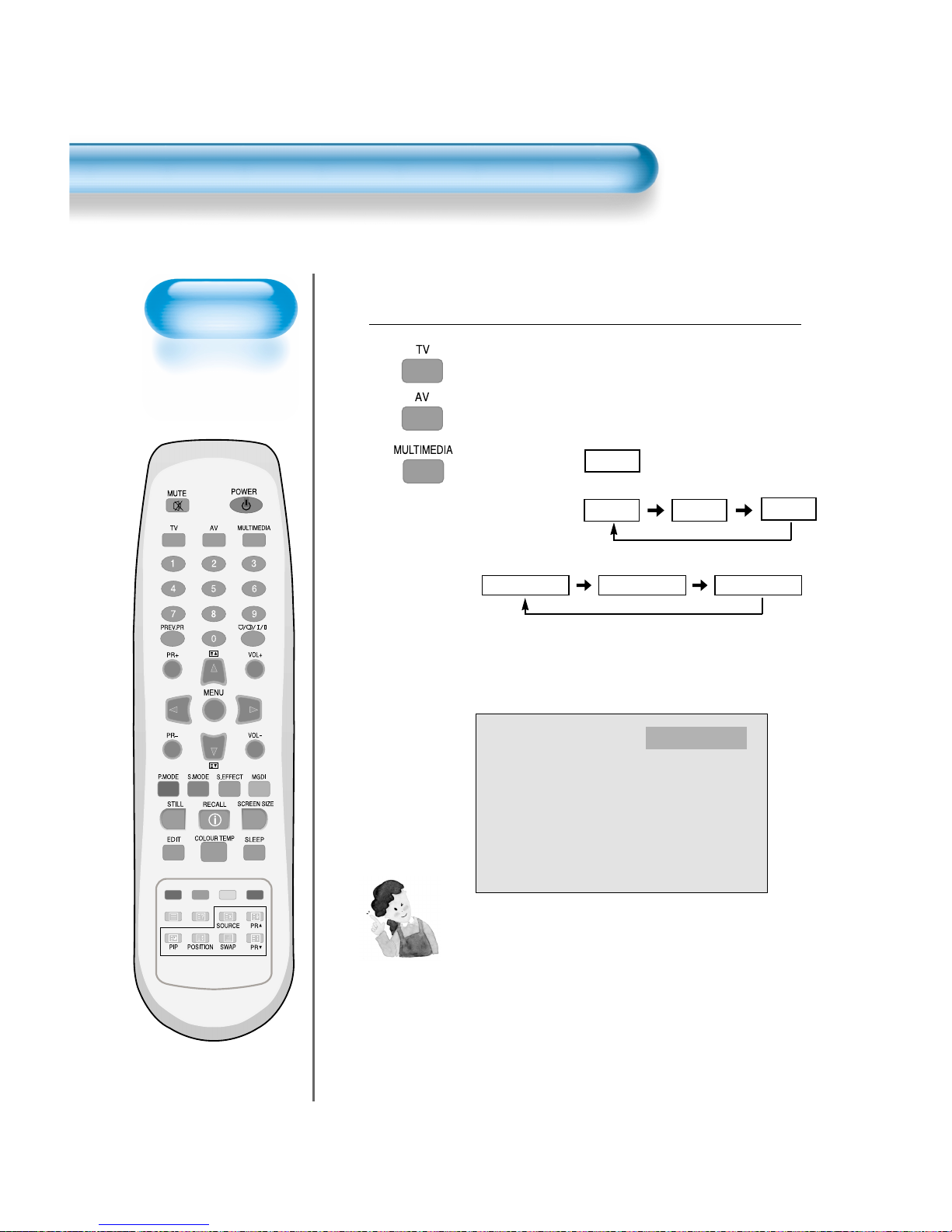

Input Select

• Select [Component] by pressing the
"MULTIMEDIA" button of the remote control or
using the “INPUT SELECT” button of the PDP
unit.

• Each time you press the “MULTIMEDIA”
button, different input modes appear. The
sequence is as follows:

Select the Desired Channel and Function

• Select the desired channel and function
by using the remote control of the Digital
Broadcasting Receiver.

3

4

NOTES:

1) Possible digital broadcasting signals: 1080p, 1080i, 720p, 576p, 576i,
480p, 480i.

2) Antenna connection:
Apartment : Check if communal aerial receives digital broadcasts.
Private Houses: Set the indoor/outdoor UHF antenna to the direction
of the digital broadcasting transmitting company.

3) For detailed connection method, refer to the owner’s manual of Digital
Broadcasting Receiver.

4) What is a component? : Signals with which luminance and
chrominance are separated, producing a sharp picture.

5) If the Digital Broadcasting Receiver has PC output terminal or HDMI
output terminal, connect to ‘PC INPUT’ or ‘HDMI INPUT’ at the rear of
the panel of the PDP.

Component P C HDMI

28

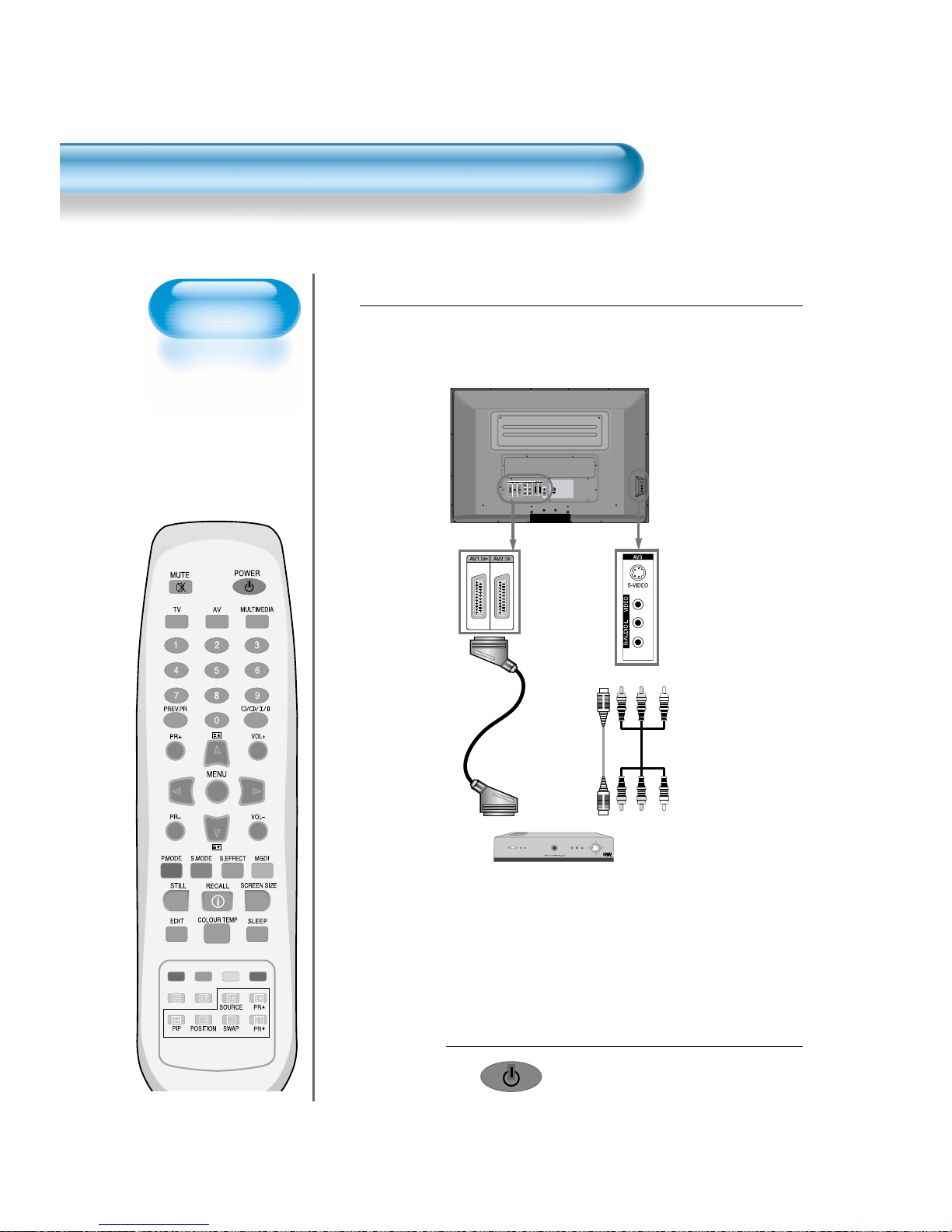

Watching Cable

Broadcasts

• To watch cable
broadcasts,
subscribe to your
local cable TV
broadcasting, and
then connect a cable
Broadcasting
Receiver to the PDP
as shown right.

Watching Cable Broadcasts

Press the Power Buttons

• T urn the PDP and the receiver ON.

2

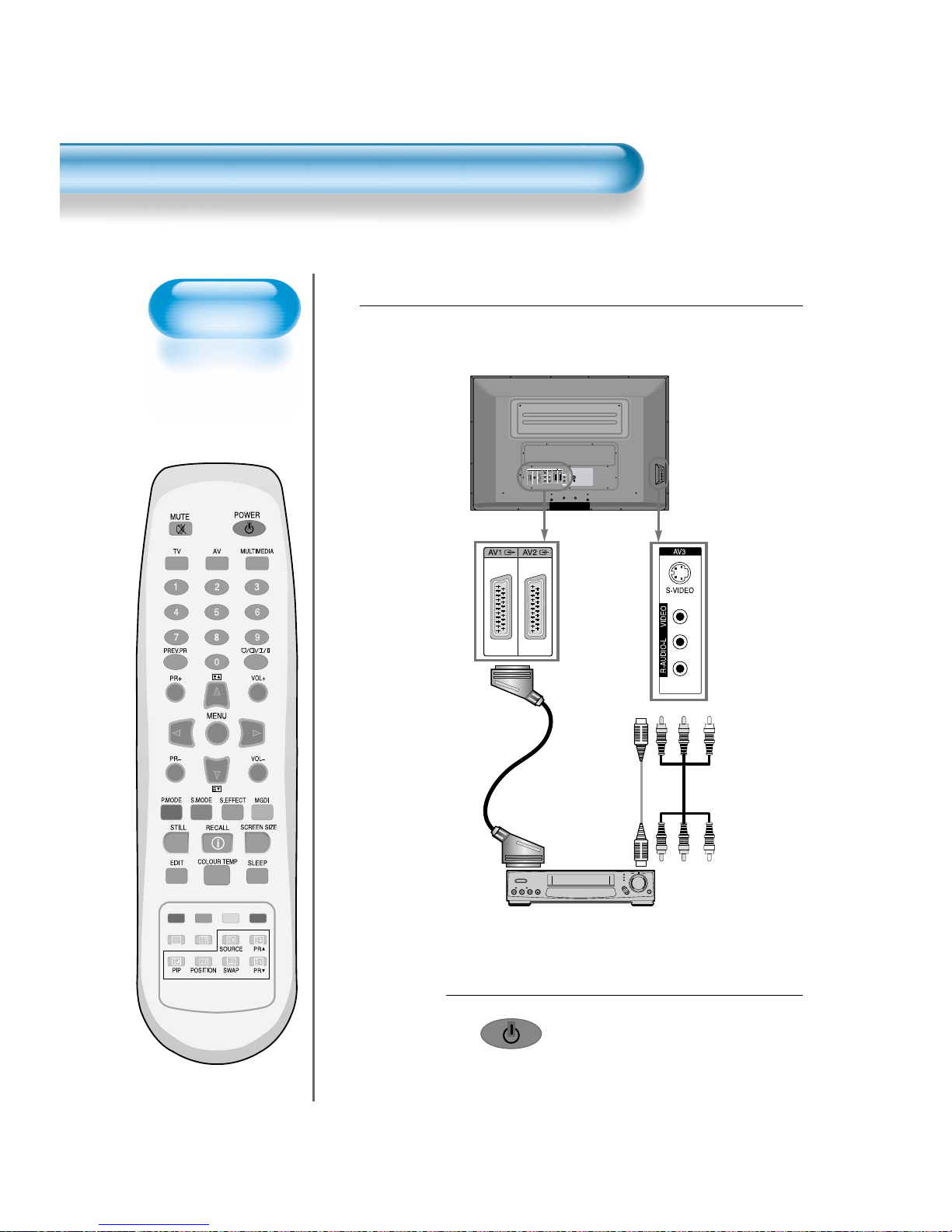

Connect a Cable Broadcasting Receiver to the
PDP.

• Prepare the A/V cable.

• Connect the receiver(Output) to PDP(V ideo Input) as shown below .

• N.B. :

If both S-Video and Video/Audio (RCA) cables are connected together
in AV3 input, S-Video always takes precedence. However, the left and
right audio leads should be connected for the sound even though you
would like to use S-Video as AV3 input.

1

Video/Audio

Cable Broadcasting Receiver

ANT

SERVICE

OPTICAL

DIGITAL
AUDIO

INPUT
PC AUDIO

PCHDMI

COMPONENT

AV1 AV2

S-

Video

Video/
Audio

29

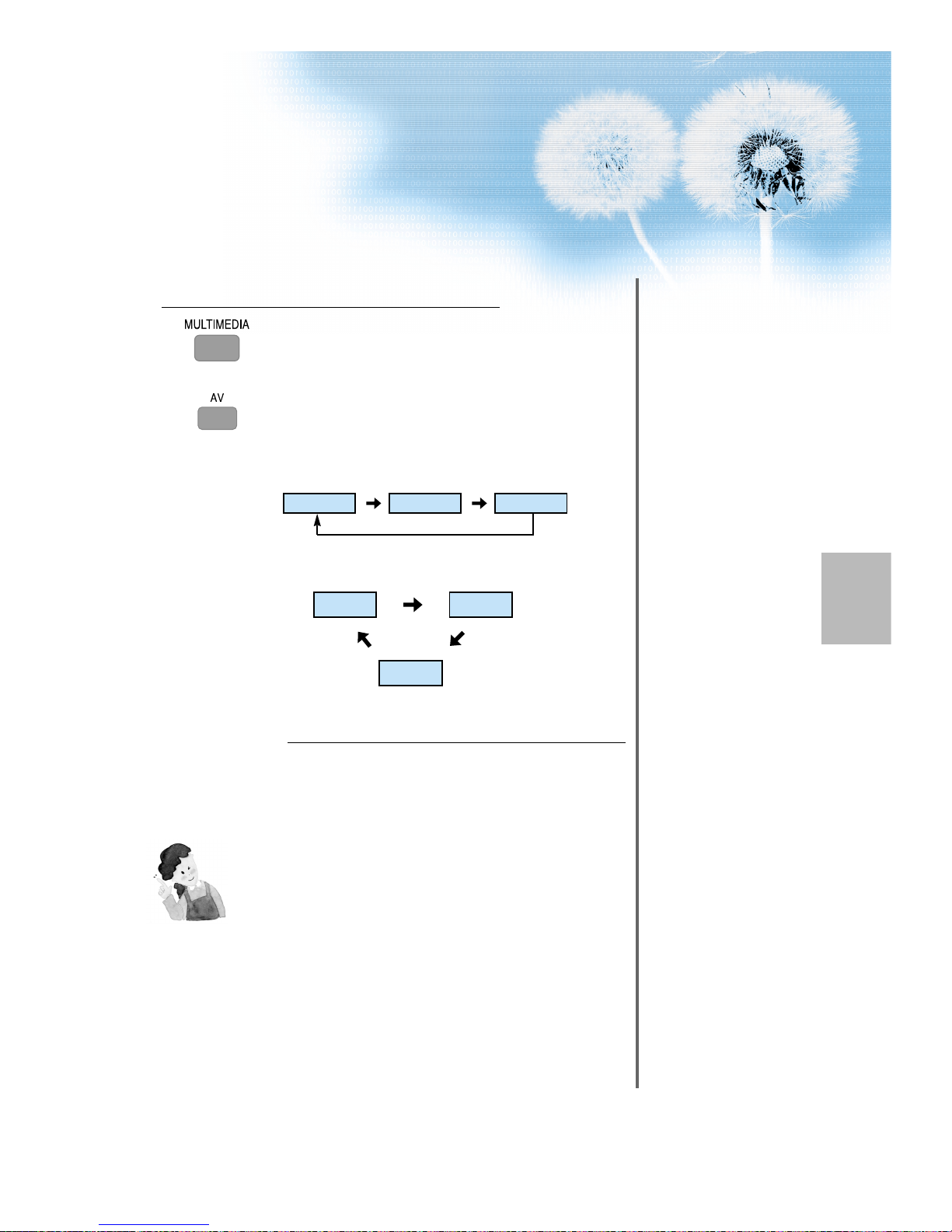

Input Select

• Select [AV 1(Scart), AV 2(Scart) or
AV3(S-Video)] by pressing the [AV]
button of the remote control or the
"INPUT SELECT" in keypad of the
PDP unit.

• Each time you press the [AV] button,
different input modes appear. The
sequence is as follows:

Select the Desired Program and Function

• Select the desired program and function
by using the remote control of the Cable
Broadcasting Receiver.

3

4

NOTES:

1) If your local cable company re-transmits digital broadcasts,
you may watch normal broadcasts and digital broadcasts
simultaneously. For detailed information, refer to your local
cable company.

2) Only A V1 provides ‘Monitor Out’ function with TV signal of the
selected channel.

3) AV1 full scart(RGB/CVBS)

4) AV2 half scart(CVBS)

AV1 AV2

AV(S)3

30

Watching Satellite

Broadcasts

• To watch satellite
broadcasting,
subscribe to Digital
Satellite
Broadcasting, then
connect the satellite
Broadcasting
Receiver to the PDP
as shown right.

Watching Satellite Broadcasts

Press the Power Buttons

• T urn the PDP and the Satellite receiver ON.

2

Connect a Satellite Broadcasting Receiver to
the PDP.

• Prepare the A/V cable.

• Connect the receiver(Output) to PDP(Video Input) as shown below.

• When connecting to an external AV source, be sure to match the colours.

1

Satellite Broadcasting Receiver

• N.B. : If both S-Video and Video/Audio (RCA) cables are connected
together in AV3 input, S-Video always takes precedence. However,
the left and right audio leads should be connected for the sound
even though you would like to use S-Video as AV3 input.

Video/Audio

ANT

SERVICE

OPTICAL

DIGITAL
AUDIO

INPUT
PC AUDIO

PCHDMI

COMPONENT

AV1 AV2

S-

Video

Video/
Audio

31

Input Select

Select the Desired Program and Function

• Select the desired program and function
by using the Remote Control of the
Satellite Broadcasting Receiver.

3

4

AV1 AV2

AV(S)3

• Select [AV 1(Scart), AV 2(Scart) or
AV3(S-Video)] by pressing the [AV]
button of the remote control or the
"INPUT SELECT" in keypad of the PDP
unit.

• Each time you press the [AV] button,
different input modes appear. The
sequence is as follows:

32

ANT

SERVICE

OPTICAL

DIGITAL
AUDIO

INPUT
PC AUDIO

PCHDMI

COMPONENT

AV1 AV2

Watching a DVD


• Component Input is
set to 480i/576i and
480p/576p mode.

• Connect the cable
from the DVD Video
output (Y, Pb/Cb,
Pr/Cr) to the
Component Input at
the back of PDP, and
connect the cable
from DVD audio
output (Left, Right)
to the Audio Input at
the back of PDP.

Watching a DVD Image

Press the Power Buttons

• T urn the PDP and the DVD ON.

2

Connect a DVD Player to the PDP.

• Prepare the AV cable.

• Connect the DVD(Output) to the PDP(Component or V ideo Input) as shown below .

• When connecting to an external AV source, be sure to match the colours.

1

Video

Component

DVD DVD

Video/
Audio

S-

Video

Audio

Video/
Audio

DVD

• N.B. :

Video input can be via scart cable, S-Video, or Yellow phono.

The red
and white plugs are for left and right audio to accompany the yellow
video lead or to be used with the S-Video lead to produce sound.

33

Input Select

• Select [Component, AV1(Scart), AV2(Scart) or
AV3(S-Video)] by pressing the [MULTIMEDIA]
or [AV] button of the remote control or the
"INPUT SELECT" in keypad of the PDP unit.

• Each time you press the [MUL TIMEDIA] or [AV]
button, a different input mode appears. The
sequence is as follows:

Select the Desired Title and Function

• Select the desired title and function by
using the remote control of the DVD.

3

4

NOTES:

1) Y/Cb/Cr, which stands for component video DVD player’s
output can also be written as Y/B-Y/R-Y, Y/Pb/Pr depending on
the kinds of DVD model.

2) The way of connecting the DVD to the PDP is as follows:

Y <---> Y Cb <---> Pb, B-Y, Cr <---> Pr, R-Y

3) The DVD output can be Video, S-Video or Component Video
depending on the DVD model. There are various output
modes, so be sure to check when you purchase it.

4) When connecting S-Video and Video simultaneously, only S­Video will be displayed on the screen as it takes precedence.

Component P C HDMI

AV1 AV2

AV(S)3

• [MULTIMEDIA]

button

• [AV]

button

34

Watching a
VCR Image

• Video can use either
the video terminal or
the S-video terminal.

Watching a VCR Image

Press the Power Buttons

• T urn the PDP and the VCR ON.

2

Connect a VCR to the PDP.

• Prepare the AV cable.

• Connect the Video(Output) to PDP(Video Input) as shown below.

1

S-Video

VCR

Video/
Audio

Video/
Audio

ANT

SERVICE

OPTICAL

DIGITAL
AUDIO

INPUT
PC AUDIO

PCHDMI

COMPONENT

AV1 AV2

35

Input Select

Select the Desired Title and Function

• Select the desired title and function
by using the remote control of the
VCR.

3

4

NOTES:

1) When connecting a VCR, the S-Video terminal provides a
better image than the Video terminal.

2) When connecting to the Video terminal, connect 3 colour AV
cables (video, left audio, right audio) to the PDP; for the S­Video terminal, connect the Audio terminal (Left, Right) in the
same way, and connect the S-Video cable (sold separately).

3) When connecting the Video terminal and the S-Video
simultaneously, the S-Video terminal is selected. This can be
checked by the [Recall] button of the remote control.

AV1 AV2

AV(S)3

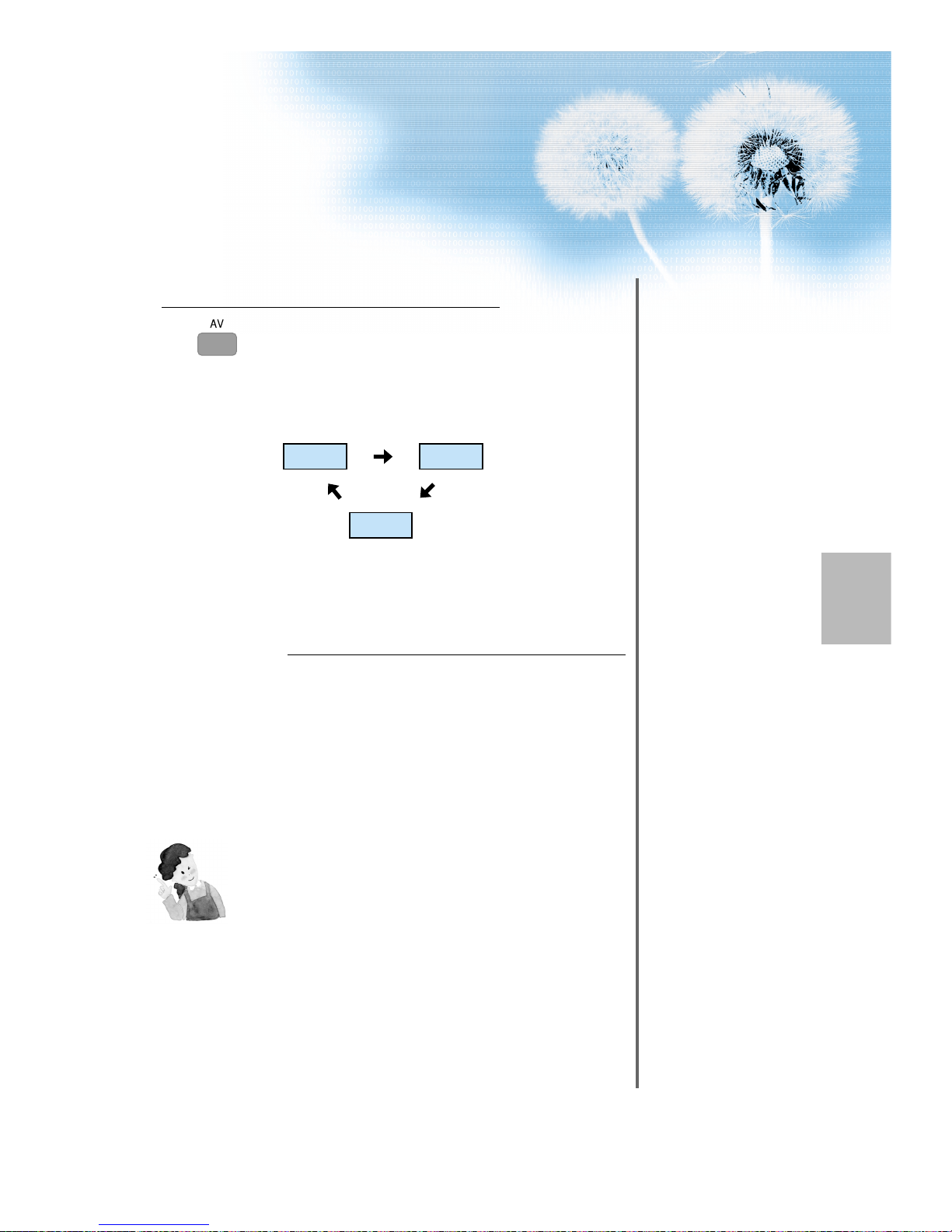

• Select [AV 1(Scart), AV 2(Scart) or AV
3(S-Video)] by pressing the [AV] button
of the remote control or the "INPUT
SELECT" in keypad of the PDP unit.

• Each time you press the [AV] button,
different input modes appear. The
sequence is as follows:

36

Watching a

Camcorder/Game

Console Image

• Enjoy images
recorded by
camcorder or the
game console after
connecting to the
PDP.

W atching a Camcorder/Game Console Image

Press the Power Buttons

• Turn the PDP and the
Camcorder/Game Console ON.

2

Connect a Camcorder/Game Console to the
PDP.

• Prepare the AV cable.

• Connect the Video(Output) to the PDP(Video Input) as shown below.

• When connecting to an external AV source, be sure to match the colours.

1

Video/
Audio

Game Console/Camcorder

S-Video

Video/
Audio

ANT

SERVICE

OPTICAL

DIGITAL
AUDIO

INPUT
PC AUDIO

PCHDMI

COMPONENT

AV1 AV2

37

Input Select

Select Function

• Select the function by using the
remote control of camcorder or
game console.

3

4

NOTES:

1) When connecting the device, the S-Video terminal provides a
better image than the Video terminal.

2) When connecting to the Video terminal, connect 3 colour AV
cables (video, left audio, right audio) to the PDP; for the S­Video terminal, connect the Audio terminal (Left, Right) in the
same way, and connect the S-Video cable(sold separately).

3) If connecting via component video, refer to “Watching a DVD
Image” on page 32-33.

AV1 AV2

AV(S)3

• Select [AV 1(Scart), AV 2(Scart) or AV 3]
by pressing the [AV] button of the
Remote Control or the "INPUT SELECT"
in keypad of the PDP unit.

• Each time you press the [AV] button,
different input modes appear. The
sequence is as follows:

38

ANT

SERVICE

OPTICAL

DIGITAL
AUDIO

INPUT
PC AUDIO

PCHDMI

COMPONENT

AV1 AV2

Connecting PC

• This product
supports resolutions
of VGA, SVGA,
XGA, SXGA, UXGA.

• Before connecting a
PC to the PDP, be
sure to adjust the
resolution of the PC.

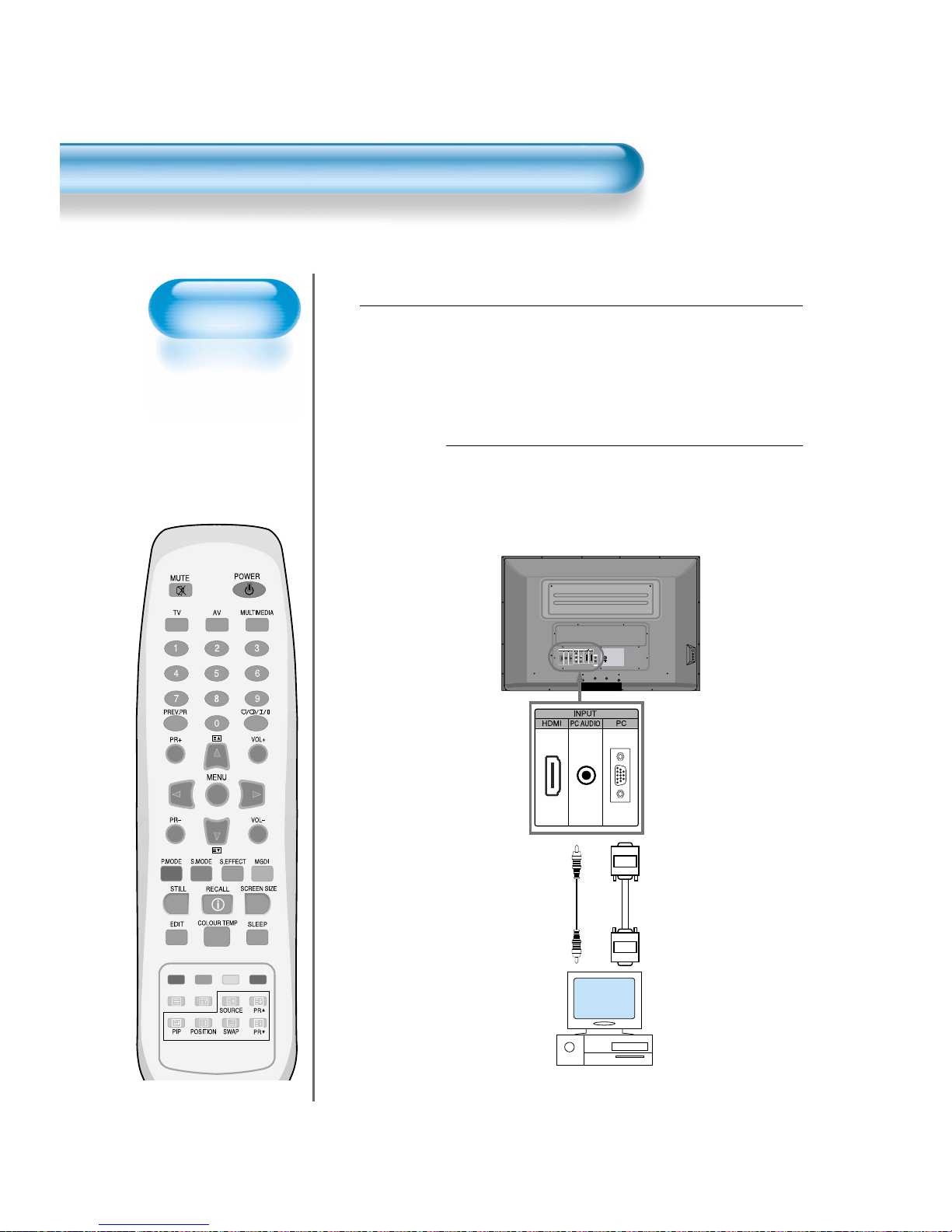

Connecting PC(15pin D-sub)

Connect the PC to the PDP.

• Prepare the PC cable (D-sub 15pin) and
the PC audio cable.

• Connect the PC(Output) to the
PDP(Input) as shown below.

2

Before Connecting to the PDP, Set the
Resolution of the PC.

• Go to SETUP-CONTROL PANEL-DISPLAY PROPERTIES in Window
Screen of the PC.

• Choose the SETTINGS tab in the DISPLAY menu.

•

In the SETTINGS menu, select 640 x 480, 800 x 600, 1024 x 768, 1028 x 1024
or 1600 x 1200

1

15 PIN D-sub

Audio

39

Input Select

• Select [PC] by pressing the [MULIMEDIA]
button of the remote control or PDP unit.

• Each time you press the [MULIMEDIA]
button, a different input mode appears. The
sequence is as follows:

• N.B. : You cannot select PC if the picture

in picture mode is on.

Enjoy Dynamic Ultra Screen Monitor by
Using PC’s Keyboard or Mouse.

4

5

Press the Power Buttons.

• Turn on the PDP and the PC.

3

NOTES:

1) The resolution of the PC monitor is the best at 800 X 600
(SVGA) for SD panel and at 1024 X 768 (XGA) for HD panel.

2) If there is a [Vertical Frequency]setting menu in the [Display]
menu of the PC, adjust the frequency to 60Hz.

3) If the PC resolution is too high, it may be hard to read letters.
Select a suitable resolution.

4) If the picture don't fit with the size or position of the screen,
select the [Auto] function in the Screen Menu in order to make fit
automatically. Also, you can adjust the position of the picture with
[H.position] and [V.position] functions manually.

PC

COMPONENT

HDMI

40

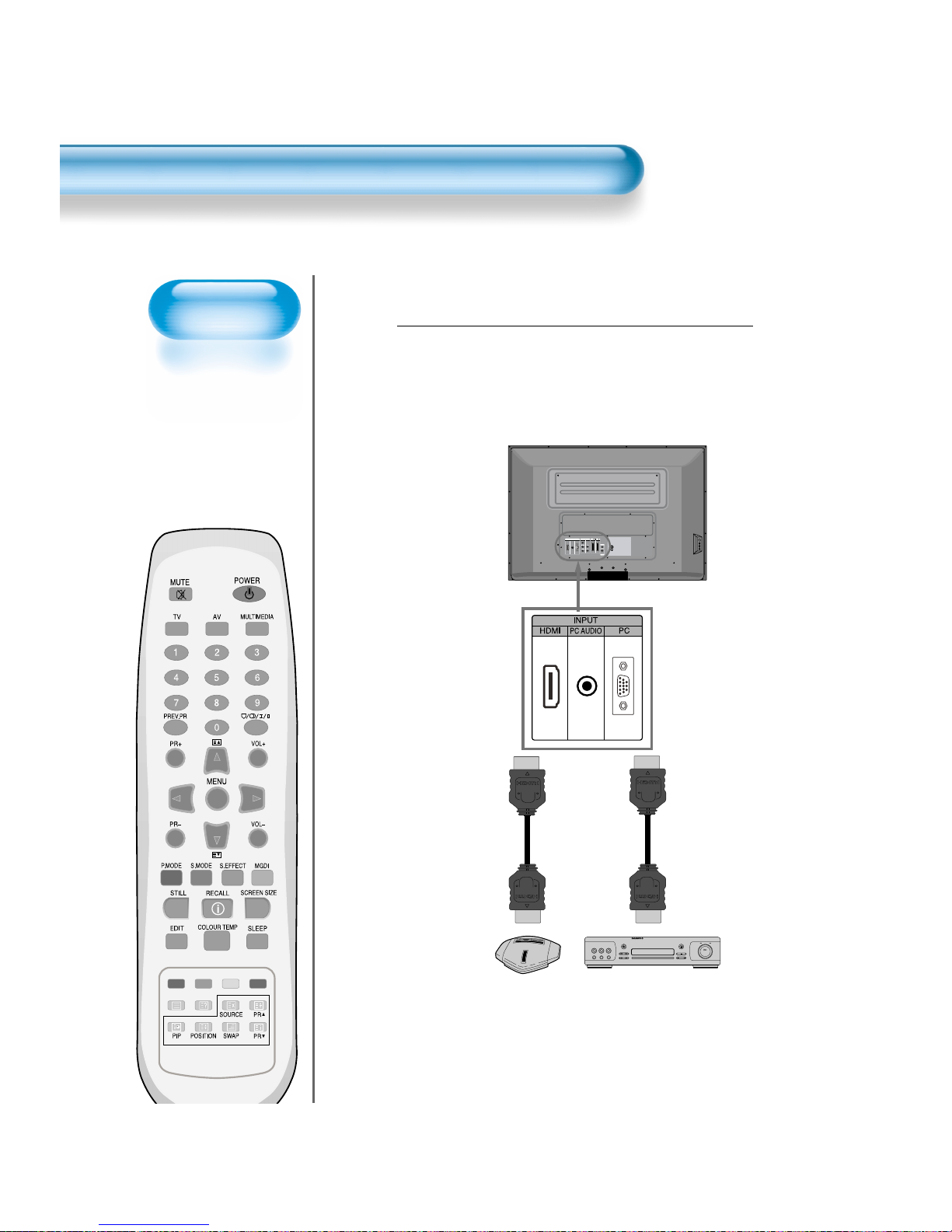

Connecting HDMI

• This product supports
resolution of VGA, SVGA,
XGA, SXGA, UXGA.

• Before connecting a PC to
the PDP, be sure to adjust the
resolution of PC.

• This product is supported by
Plug and Play only at HDMI.

• This Plasma unit is compliant
with HDMI 1.1 version.

Connecting HDMI

Connect the HDMI to the PDP.

• Prepare the HDMI cable.

• Connect the HDMI(Output) to the PDP(Input) as

shown below.

1

HDMI

ANT

SERVICE

OPTICAL

DIGITAL
AUDIO

INPUT
PC AUDIO

PCHDMI

COMPONENT

AV1 AV2

Game console

DVD

41

Input Select

• Select [HDMI] by pressing the [MULTIMEDIA]
button of the remote control or the Input button
on the PDP unit.

• Each time you press the [MULTIMEDIA] button,
a different input mode appears. The sequence
is as follows:

3

Press the Power Buttons.

• Turn on the PDP and DVD or Game console.

2

NOTES:

HDMI input port receives only digital signal.

PC

COMPONENT

HDMI

42

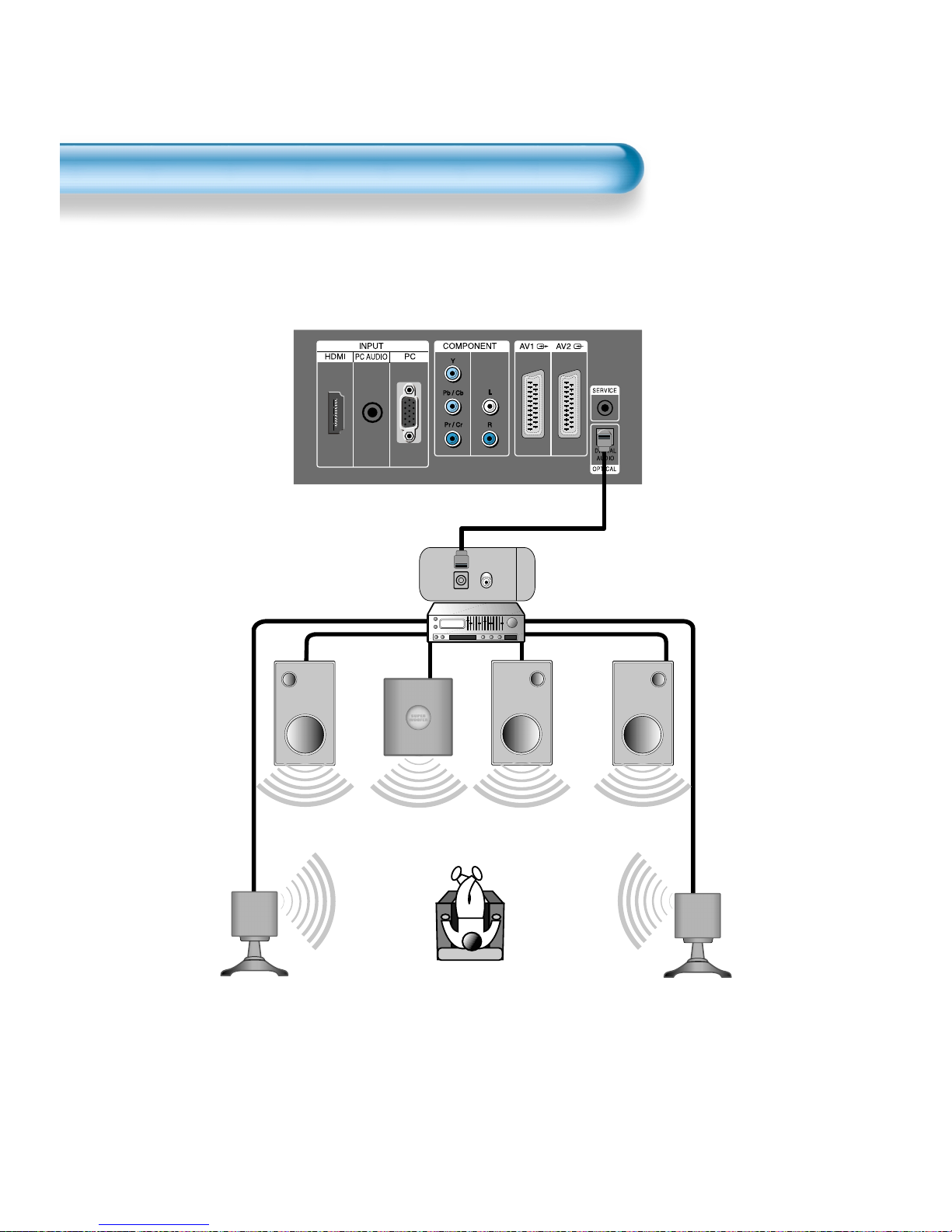

Connect with the Dolby Digital AMP.

Surround L Surround R

RL CenterWoofer

Dolby Digital AMP

I

N

P

U

T

Optical output

If you connect the optical output to a Dolby digital AMP, you can listen to better sound.

43

PC and HDMI Input Resolution Available in PDP

• Depending on graphic card, problems like no signal detected or line noises can happen. If these
problems happen, contact the graphic card company for help.

Resolution H Freq. (KHz) V Freq. (Hz) Remark HDMI PC

31.469

37.861

37.500

31.469

35.156

37.879

48.363

63.981

75.000

640 x 480

720 x 400
800 x 600

1024 x 768
1280 x 1024
1600 x 1200

59.940

72.809

75.000

70.087

56.250

60.317

60.004

60.020

60.000

DOS
VESA
VESA

IBM
VESA
VESA
VESA
VESA
VESA

O
O
O
O
O
O
O
O
O

O
O
O
O
O
O
O
O
O

Selecting Picture Mode

Selecting Picture Mode

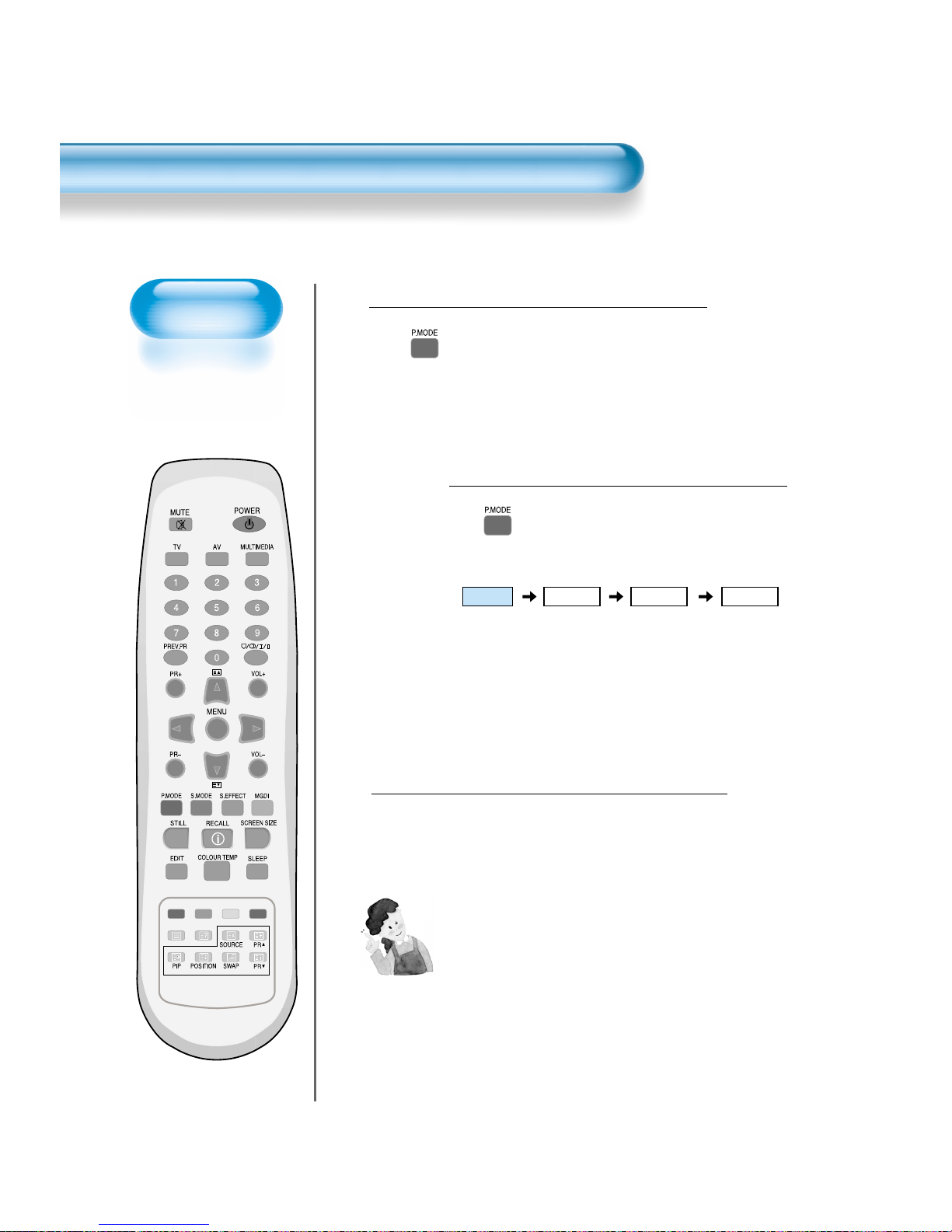

• Press the [P.MODE] on the remote control.

• While pressing the [P.MODE] for the first
time, the current picture mode will be
displayed.

Each Press of the Button Will Select
One of Four Picture Modes.

• Each time you press the button, a
different picture mode appears. The
sequence used is as follows:

* Normal : For a highly defined image in a normally bright

room

* Dynamic: For a clear-cut image emphasizing high contrast

for sports viewing
* Cinema: For a movie
* User: Allows the user to customise settings as desired.

Menu on the Screen will disappear.

• After selecting a desired picture mode, the
menu on the screen will be disappeared.

• If you want to customise the picture mode,
refer to the following page.

3

1

2

NOTES:

1) Normal, Dynamic, and Cinema modes are factory preset values.

2) When adjusting sub-menus while you are in Normal, Dynamic,
and Cinema modes, the Picture Mode will be automatically
converted to User Mode, and the adjustments will be made.

3) Selecting [Initialize] in the [Feature], menu will allow the
Brightness, Contrast, etc. to return to the factory preset values.

Normal Dynamic

Cinema User

Selecting Picture

Mode

• Select the Picture mode
that is appropriate
depending on the kinds
of pictures, you enjoy.

44

45

Customising


• You can adjust the
colour tone and
brightness to your
preference.

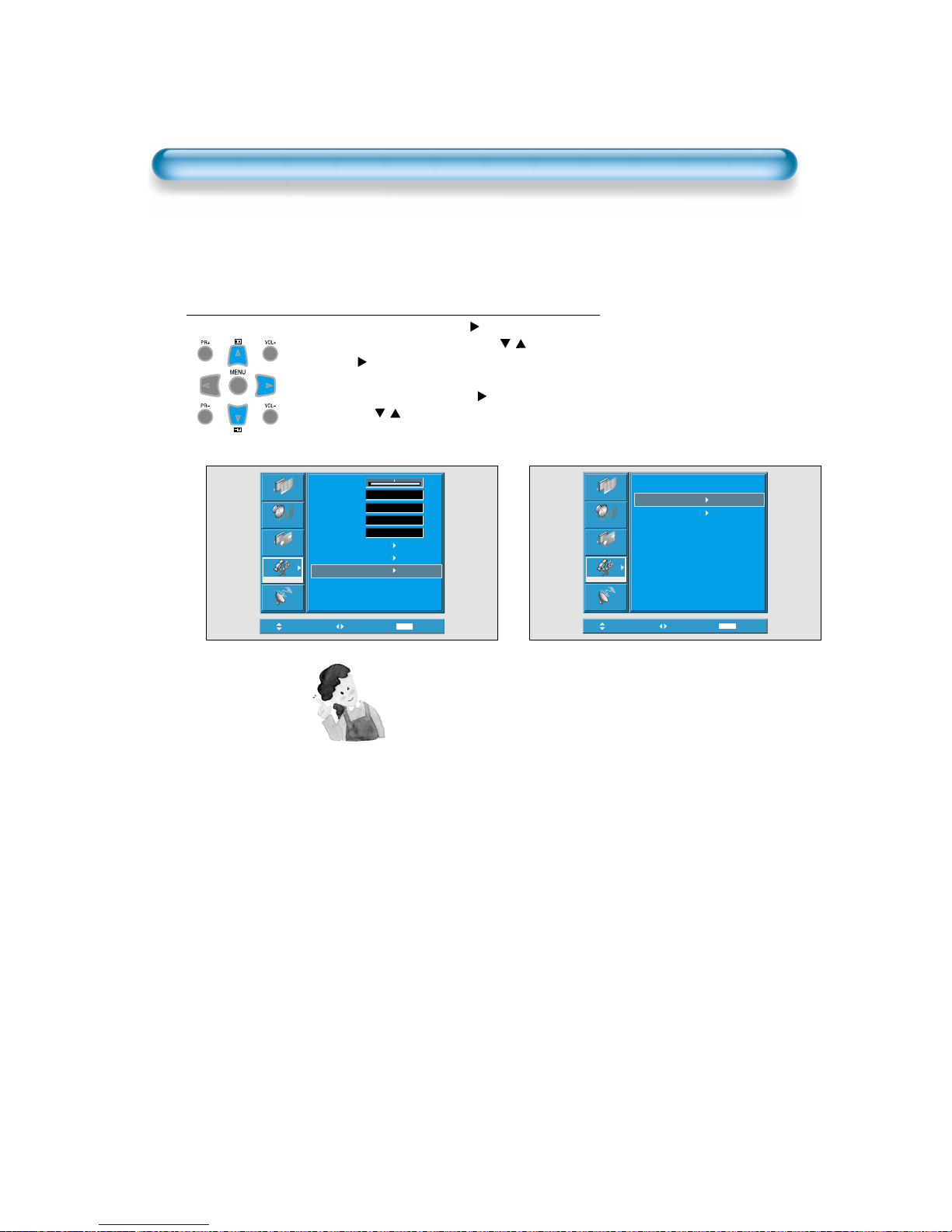

Press the Button.

• After selecting [Picture] by the

“”

buttons, press the

“”button. Then the sub menu of [Picture] will be

displayed.

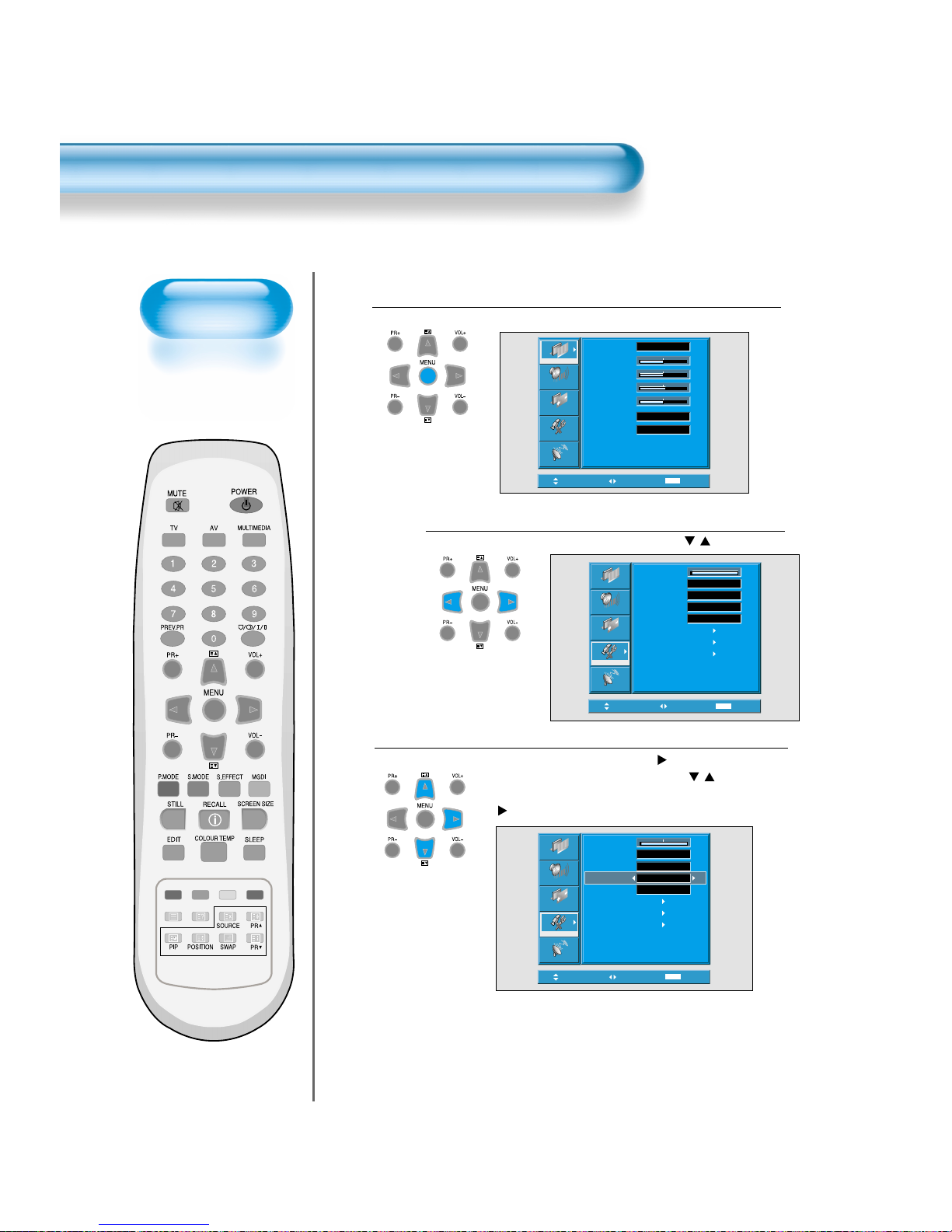

Select the User Mode.

• Select [User] by the “”buttons in the [Mode].

3

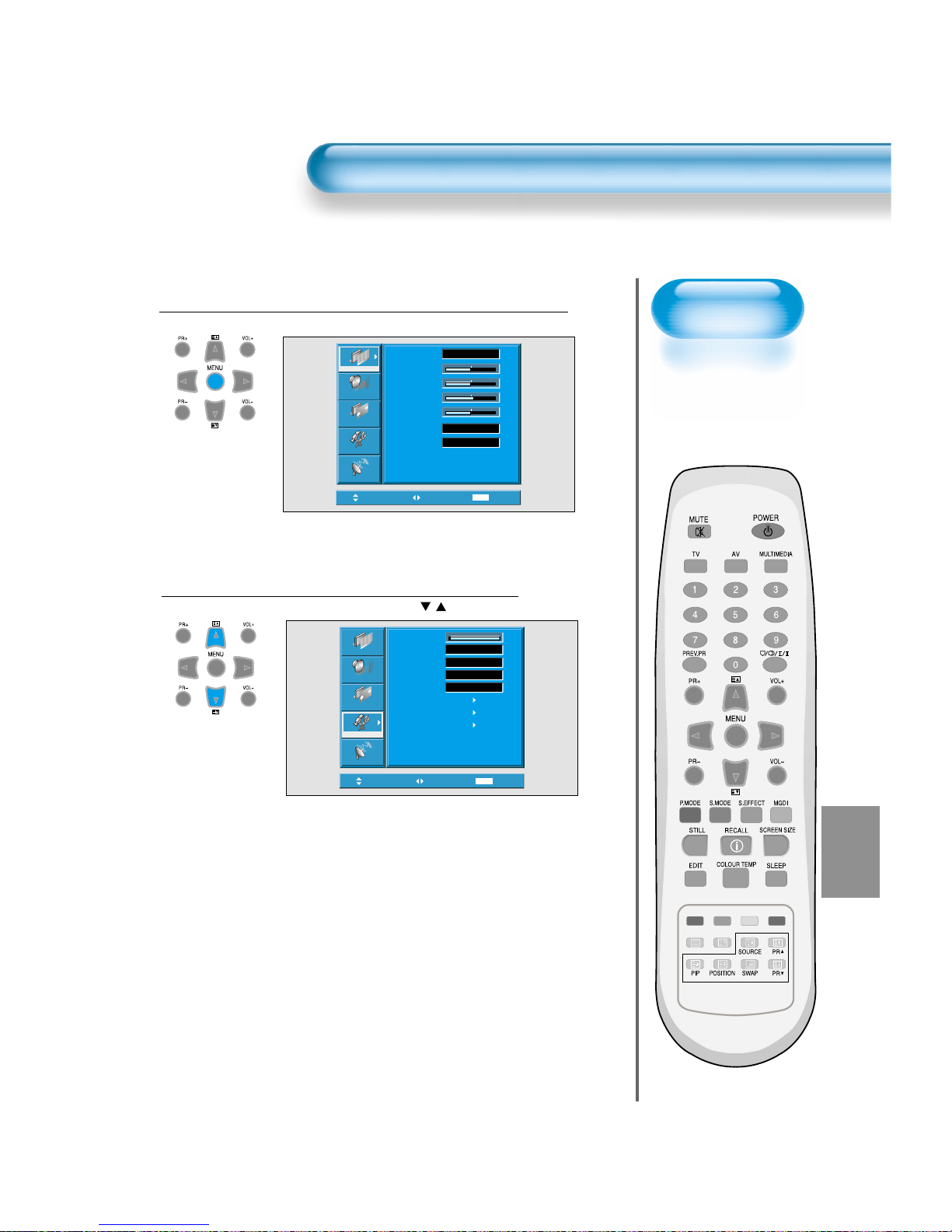

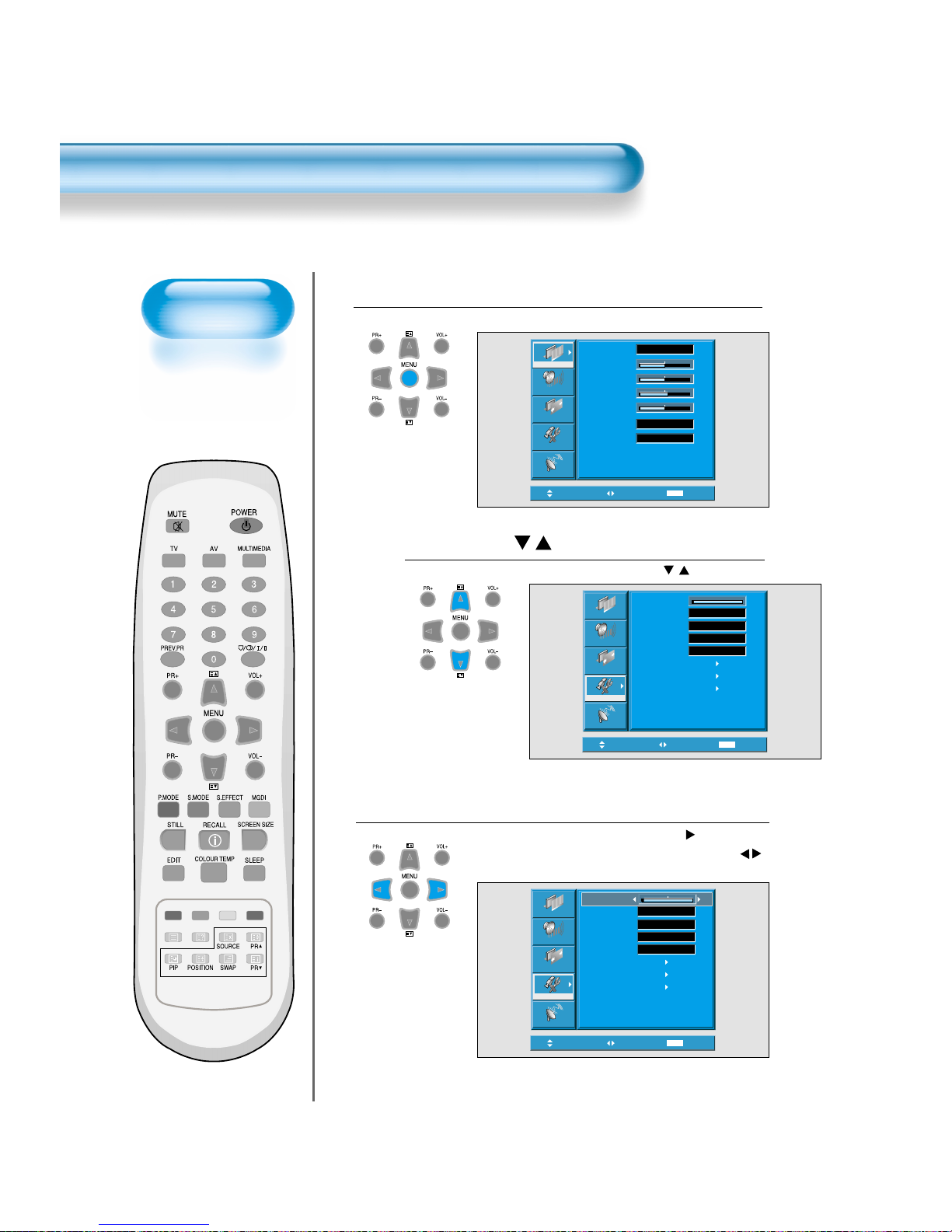

Press the MENU Button.

• The MENU shown below will display on the screen.

1

2

Move

Adjust

MENU

Exit

Normal

On

50
50

8

50

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal


Screen

Sound

Feature

Install

Move

Adjust

MENU

Exit

Normal

On

50
50

8

50

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

User


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal

Normal

On

50
50

50

8


Screen

Sound

Feature

Install

Customising Picture

46

Select User Mode Adjustments

Picture Condition Adjustments

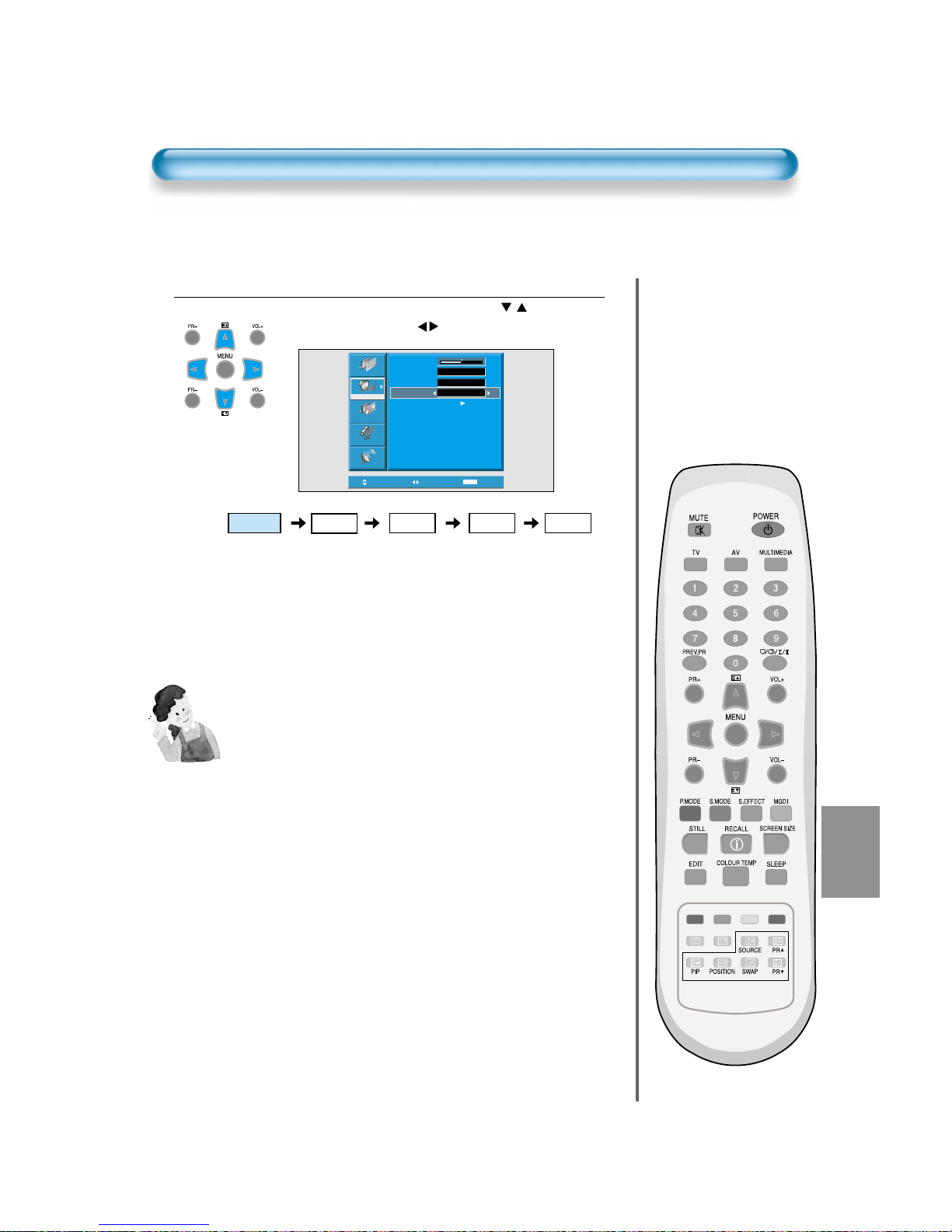

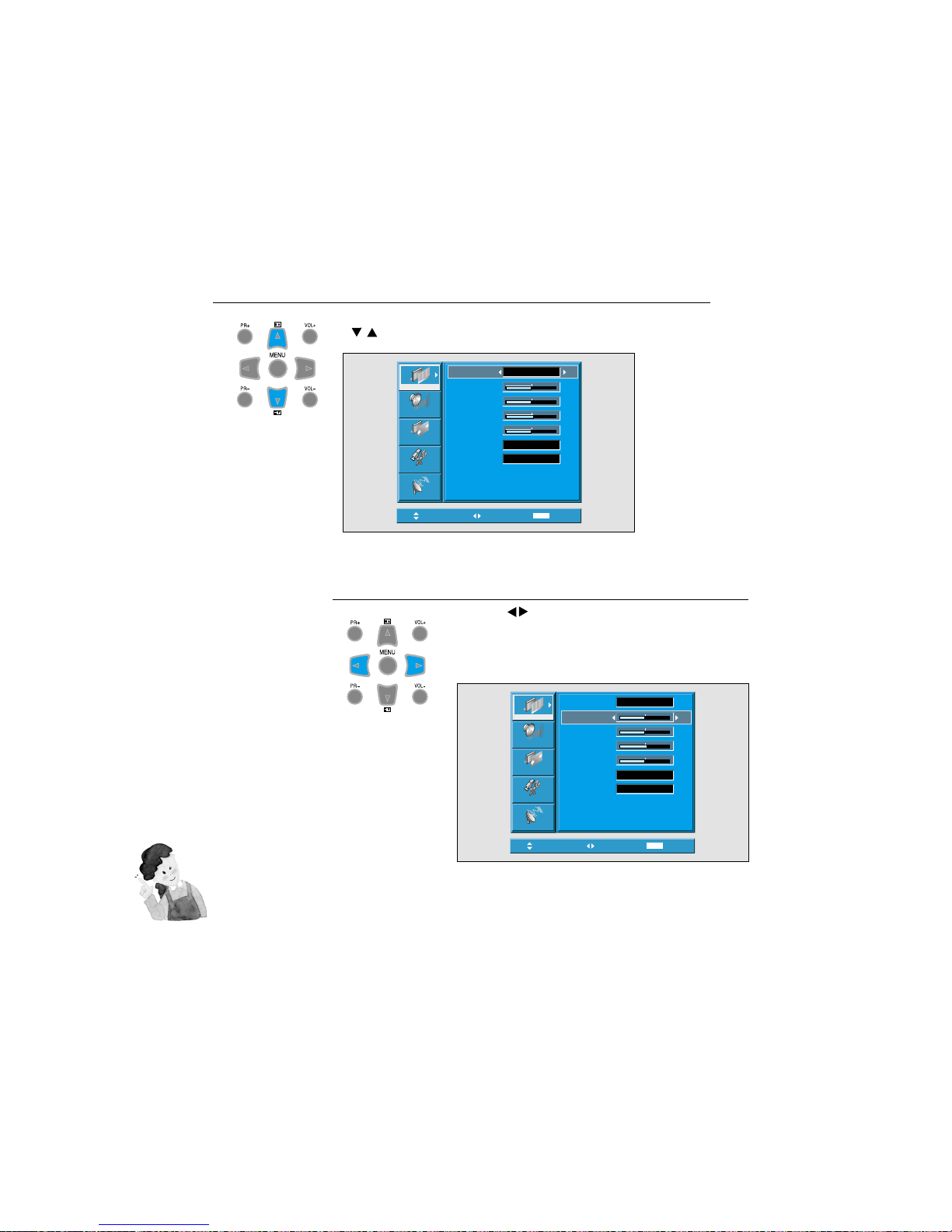

• Press the “”buttons to adjust the picture of your preference.

• N.R. functions the noise reduction.

4

5

Move

Adjust

MENU

Exit

Normal

On

50
50

8

50

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

User


Screen

Sound

Feature

Install

Move

Adjust

MENU

Exit

Normal

On

50

8

50

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

User

50


Screen

Sound

Feature

Install

• While you are in [Picture Mode – User], press the

“”

buttons to select a specific adjustment item.

NOTES:

1) While you are in the PC or HDMI input mode, you can only
adjust brightness, contrast and colour temperature.

2) When you adjust Brightness, Contrast, and Colour in DTV
mode or adjust Brightness and Contrast in PC and HDMI
mode, the picture is adjusted finely.

3) The Tint control is used when the input signal is NTSC or
Component. If input signal is NTSC, Tint control is displayed in
picture menu.

4) Selecting the colour temperature makes the mood : normal,
warm or cool.

47

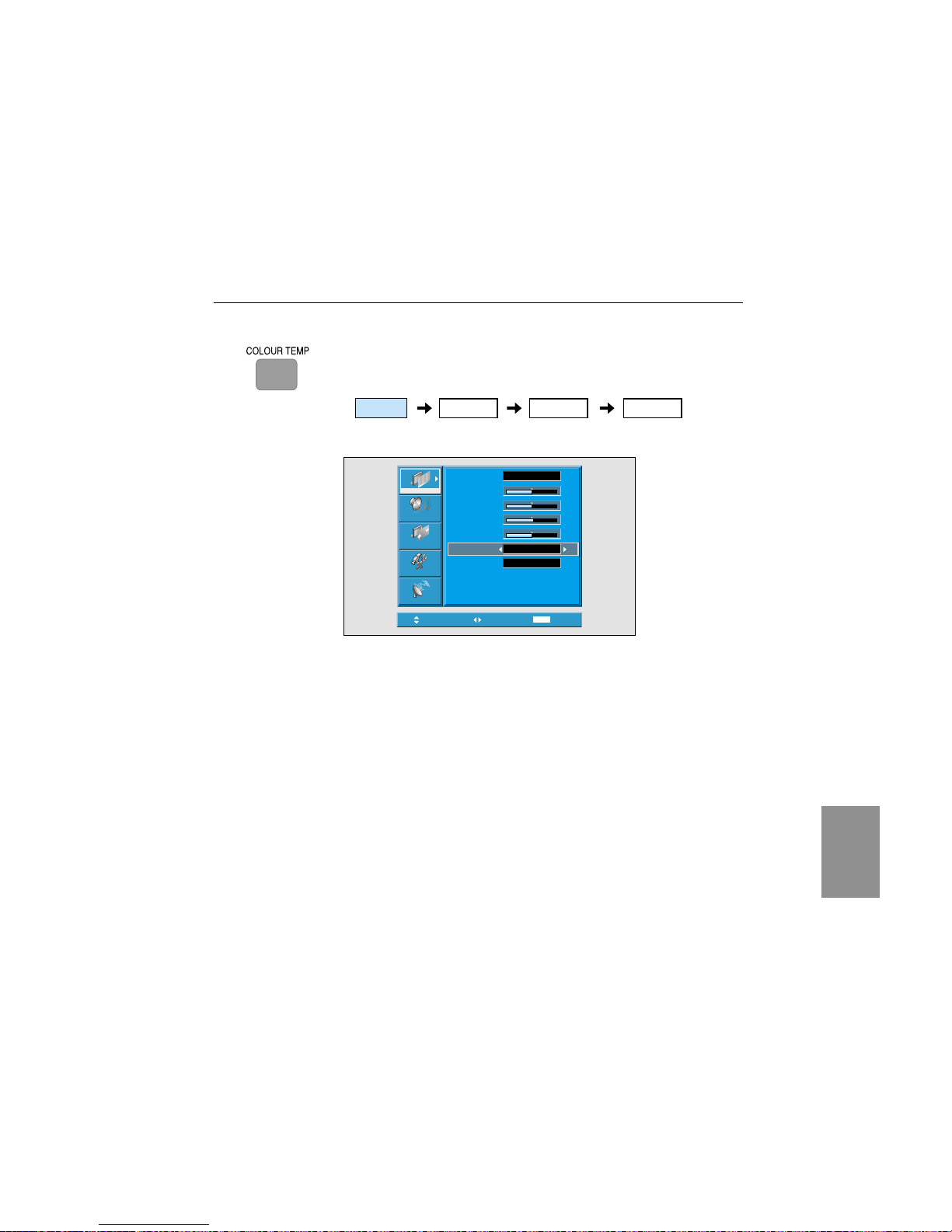

Press the “COLOUR TEMP” button on the remote control.

6

Move

Adjust

MENU

Exit

50
50

8

User

Normal

On

50

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.


Screen

Sound

Feature

Install

• Pressing the “COLOUR TEMP” button first time will display the
current setting for COLOUR TEMP.

• Each time you press the button, a different colour temp appears.

The

sequence

used is as follows :

Normal Dynamic

Cinema User

48

Adjusting Screen

Adjusting with

Screen Size button

• You can adjust
screen size or
aspect ratio as
desired.

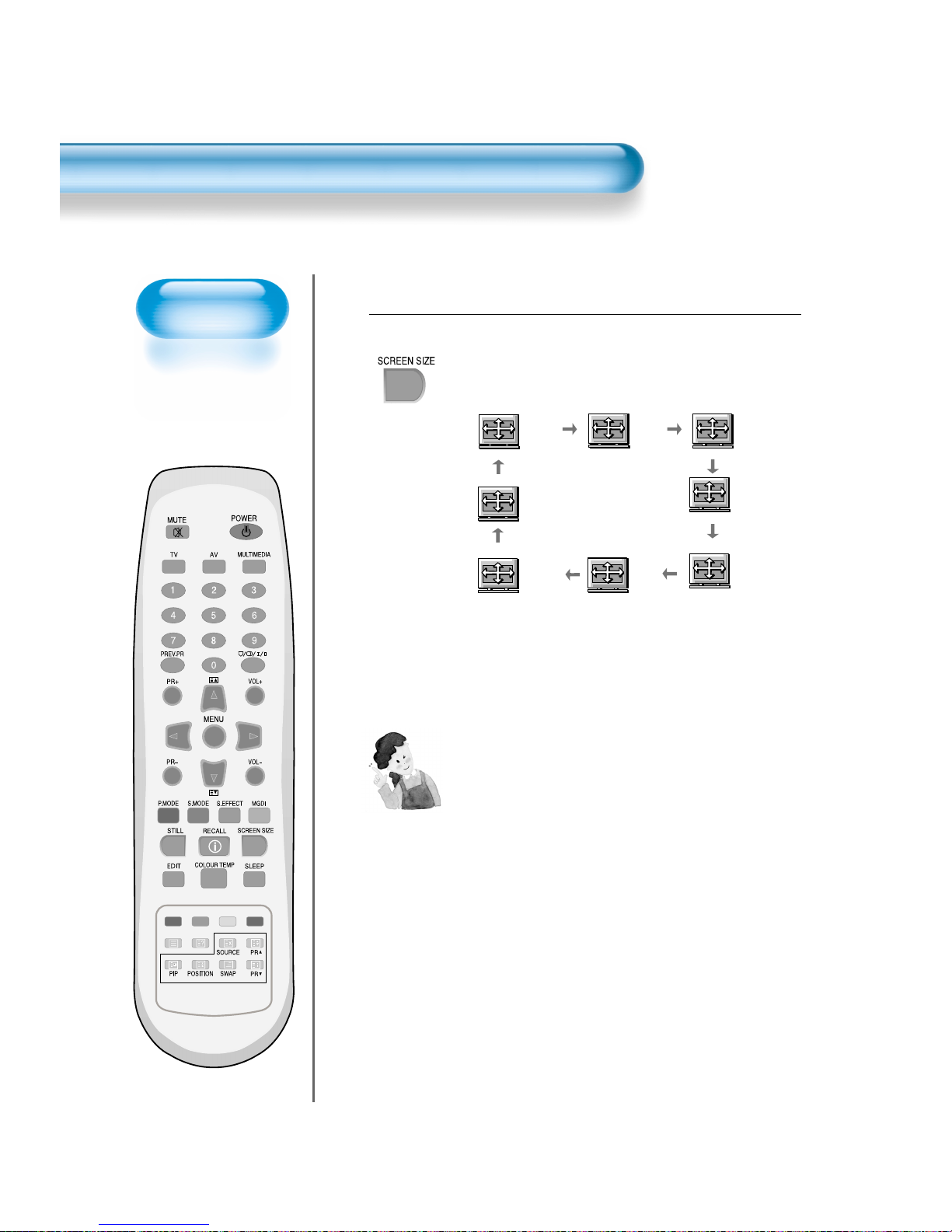

Press the SCREEN SIZE Button.

• The current screen size will be displayed on the screen.

• Each time you press the SCREEN SIZE button on the

remote control, a different screen size appears. The
sequence used is as follows in case of AV and TV modes :

1

14:9

LB
(14:9)

LBS(14:9)

LB(16:9)

Auto

16:9

4:3

NOTES:

1) Displaying a picture in a 4:3 mode for a long time may cause
phosphor of the PDP to be burned. So avoid displaying a
picture in 4:3 screen size for a long time.

2) Under Component,PC and HDMI inputs,only 16:9 and 4:3 are

available.

3) Auto : Displays pictures of original picture size.
16:9 : 16:9 picture formats
14:9 : 14:9 picture formats
4:3 : 4:3 picture formats like an analog TV
LB : Enlarges the screen as to fill the black part

above and below the picture.

LBS : Enlarges the screen, and shifts up as to see

the subtitles in case you are watching video
with subtitles.

4) If the picture shows unclear image in the 480P component

input source, try to toggle the resolution from the DTV/DVD of
the Screen Mode.

• N.B. : Y ou cannot select screen size if the picture in
picture mode is on.

LBS(16:9)

49

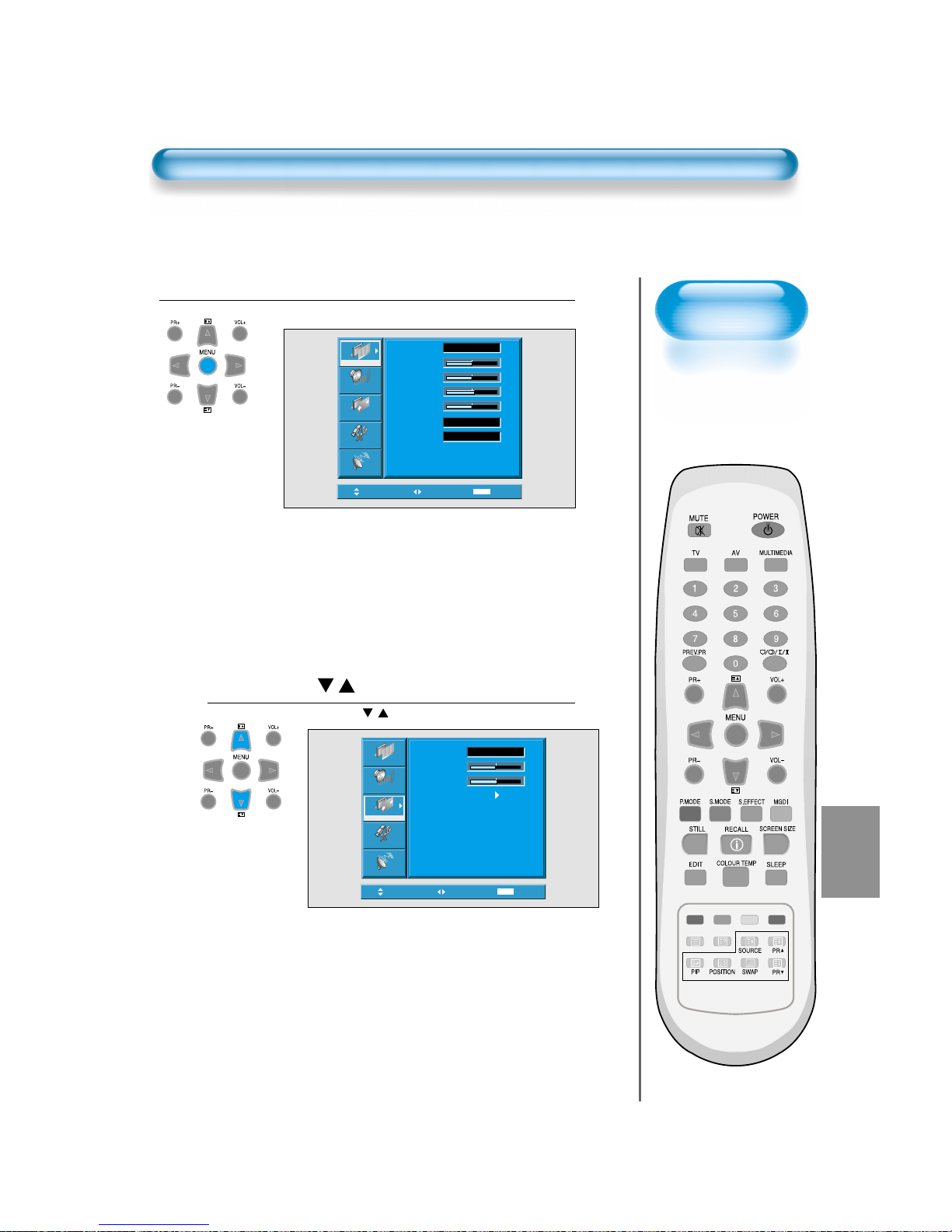

Adjusting Screen in the MENU

Adjusting Screen

• You can adjust the
screen in the menu.

Press the MENU Button.

• The MENU screen as shown below will appear.

Press the “ ” Button.

• Press the

“”

buttons to select ‘Screen’.

< In case of PC input >

1

2

MENU

Move

Select

Exit

Mode
H. Position
V. Position
Auto

48
51

16 : 9


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal

Normal

On

50
50

50

8


Screen

Sound

Feature

Install

50

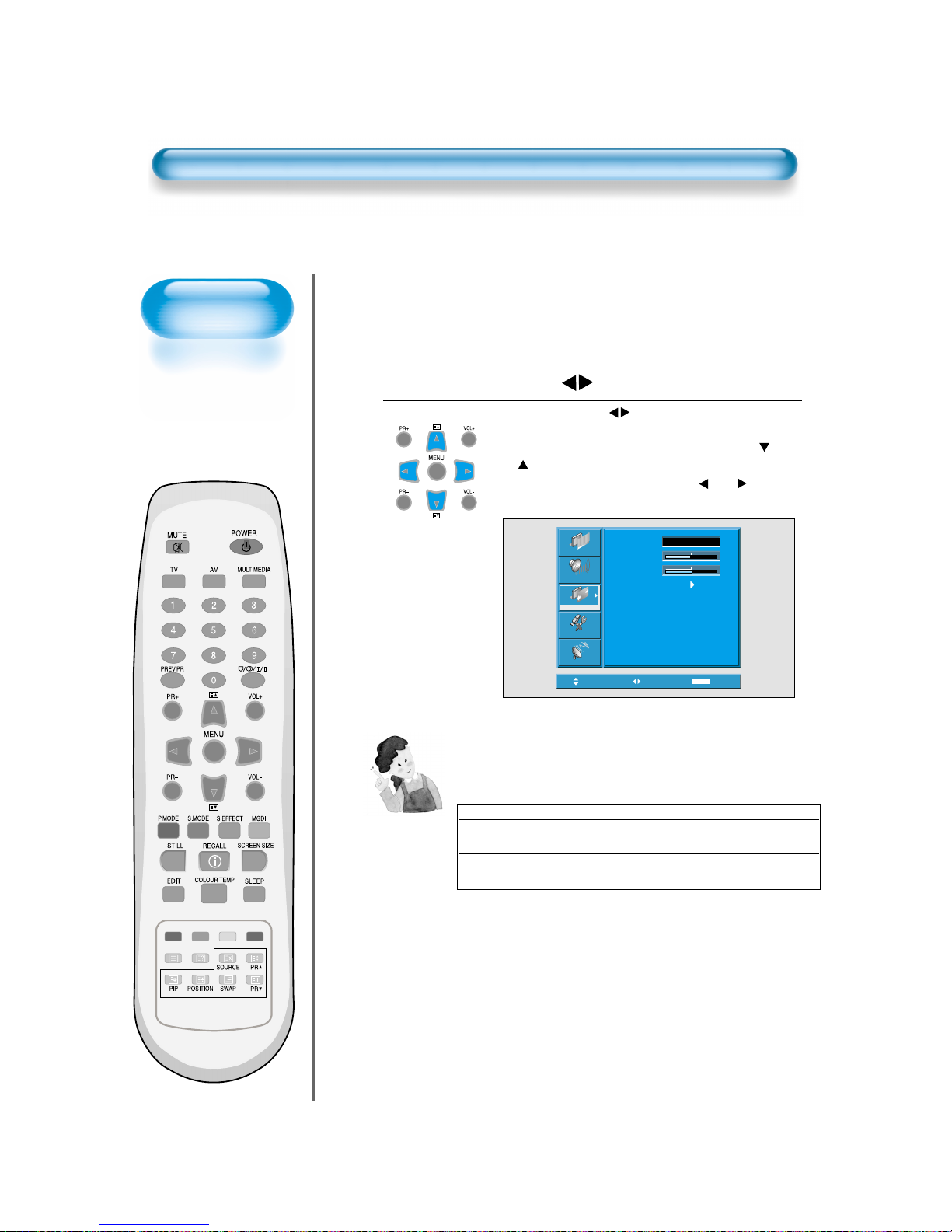

Adjusting Screen in the MENU

Press the V olume “

”

Buttons.

• Press the Volume “”buttons to enter the sub menu
“Screen”.

• While you are in ‘Screen’ menu, press the “” or
“”button to select a desired item, and then,

adjust the value by pressing the “” or “”.

3

MENU

Move

Select

Exit

Mode
H. Position
V. Position
Auto

48
51

16 : 9


Screen

Sound

Feature

Install

NOTES:

1) Screen Mode is different according to the input modes.
input Available Screen Mode

A V/TV

16:9, 4:3, LB(16:9), LBS(16:9)

14:9, LB(14:9), LBS(14:9), Auto

Component,

16:9, 4:3

PC,HDMI

2) Other Screen adjustments

< Under PC mode >

[H. Position] : As the value increases, the screen moves

to the right.

[V. Position] :

As the value increases, the screen moves up.

[Auto] :

Adjusting automatically the screen to optimum
states.

< Under PIP mode >

[Alpha Blend] : Adjusting the translucent rate of the sub-

picture.

< In case of PC input >

Screen Mode

Function

This function is same
to the [Screen Size] of
remote controller.

51

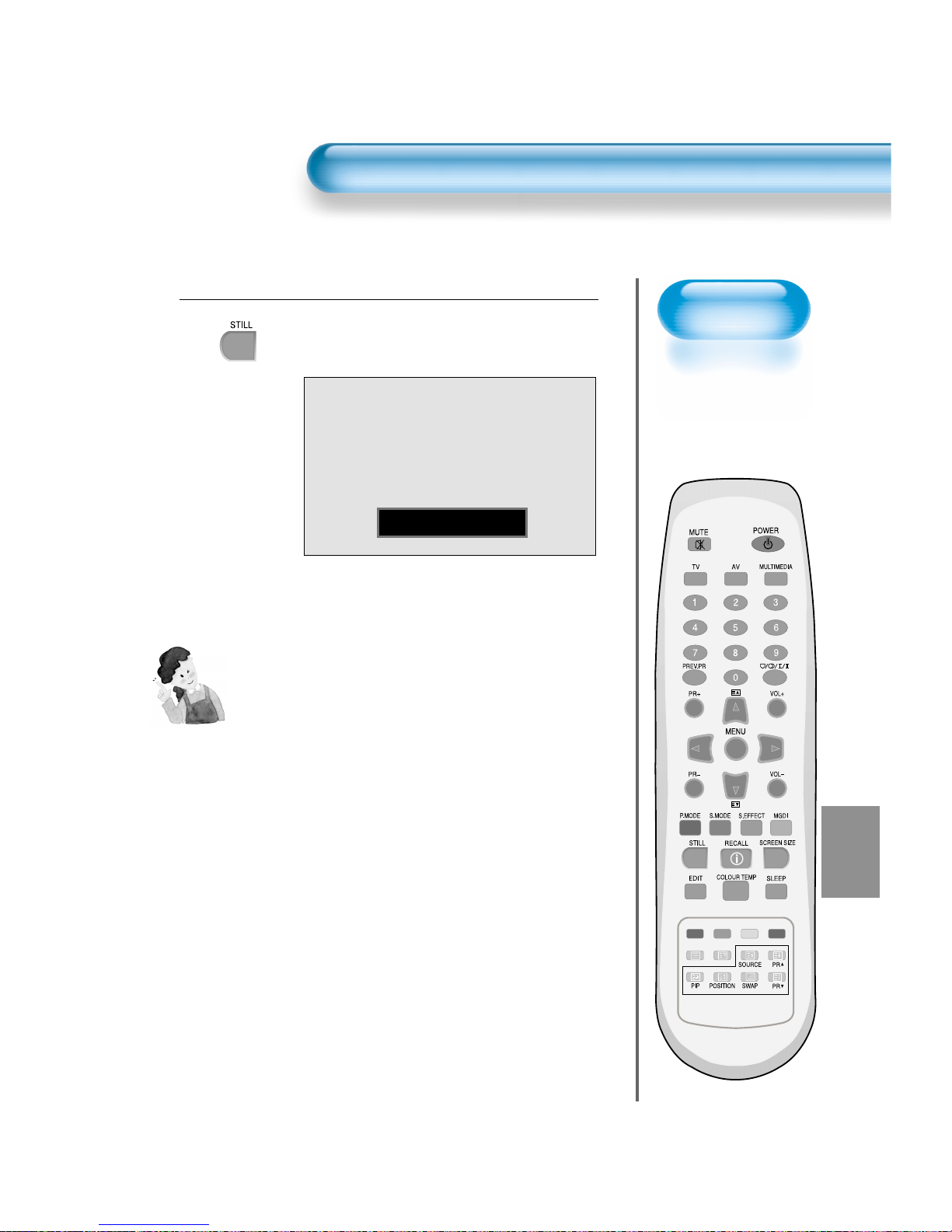

Press the “STILL” Button.

• If you wish to freeze a picture, press the “STILL” button.
Y ou can still hear the sound.

• Press “STILL” button again to cancel the “STILL” function.

1

Watching a

Still Image

• You can view still
images with this
function. However,
displaying the same
images such as still
images for a long
time may cause
image burn.

NOTES:

1) Displaying the same images such as still images for a long
time may cause image burn (after-image lagging).

2) In this case, such “image burn” may become less noticeable
if moving images are later displayed for a long time.

3) However, an image burn may become a permanent one,
damaging the Plasma Display; therefore, avoid displaying
the same images for a long time.

4) Use the function [ISM], while displaying still images for a long

period of time to minimize this effect.
ISM (on or off) is in the Feature menu.

Still

Watching a STILL Image

52

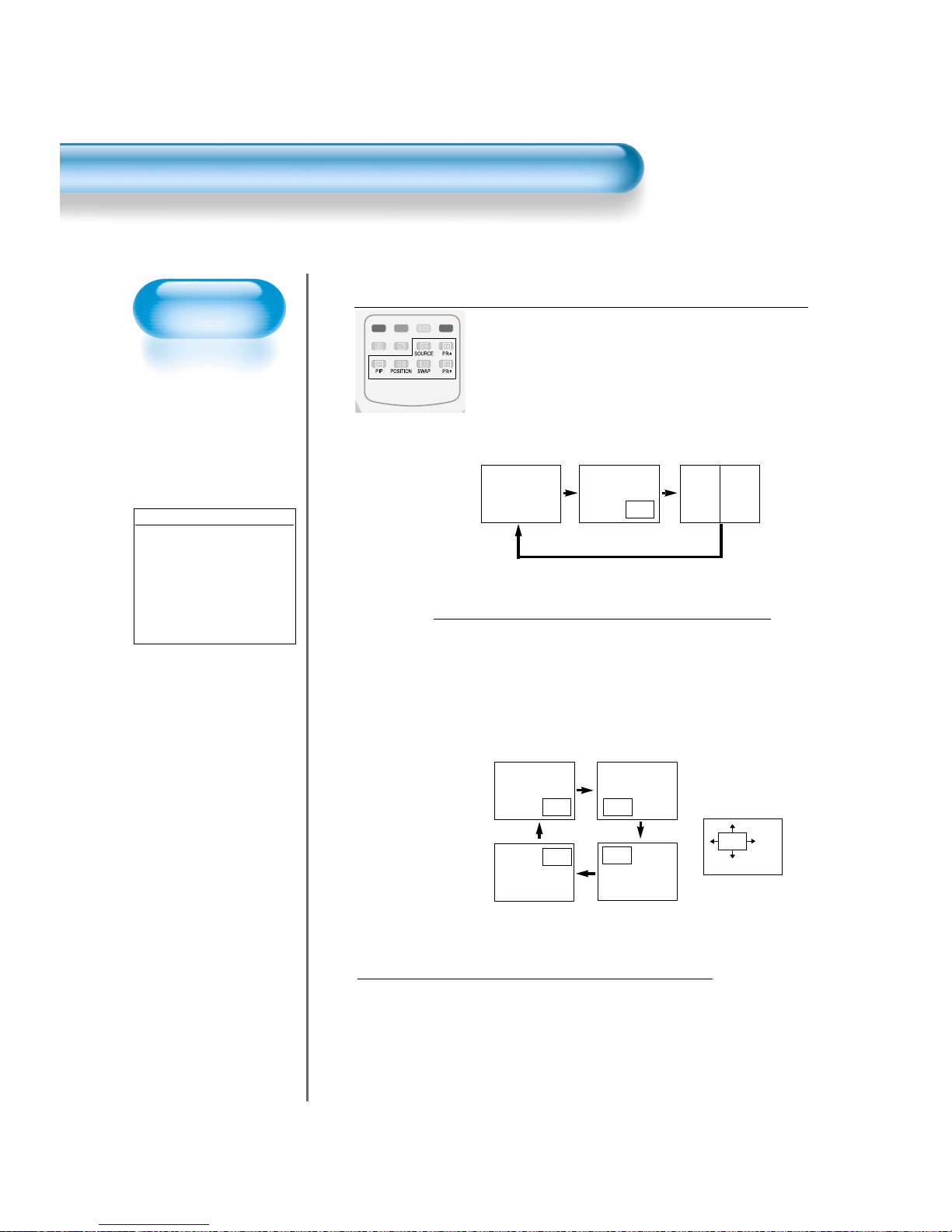

Watching Two Pictures Simultaneously

Engaging PIP mode

• Press the ‘PIP’ button once on the remote control to engage
the Picture-in-Picture mode.

• By pressing the button repeatedly , it will show the following
cycle.

• If switched to P-by-P (Picture-by-Picture) mode, the screen
will be split in half. The screen on the left side is the main
picture, and the sub-picture will be on the right of the screen.

Position of the Sub-picture

• When PIP mode is engaged, the sub-picture can be displayed in
one of the four corners by using 'POSITION' button.

• Whenever pressing the button, the sub-picture will be cycling in
the following order.

• If you would like to move the sub-picture to specific position you
desire, use navigation keys.

Swap the pictures

• In order to swap between the main picture and sub-picture,
press the ‘SWAP’ button.

3

1

2

<Using ‘Position’ button>

P-by-P

PIP

Main

Sub

Main Main Sub

Main

Sub

Sub

Sub

Sub

Main

Main

Main

Screen Adjustment

of the Sub-picture

• Alpha Blend of the
sub-picture can be
adjusted on Screen
Menu of OSD.

• Alpha Blend is only
available in PIP mode.

Alpha Blend

The adjustment of alpha
blend allows the sub­picture to be translucent.
The translucent rate is
controlled with “

◀▶”

buttons.

•

PIP (Picture-in-Picture) and P-by-P(Picture-by-Picture) modes allow users to watch two pictures simultaneously.

<Using “CB” and
“WV” button>

Sub

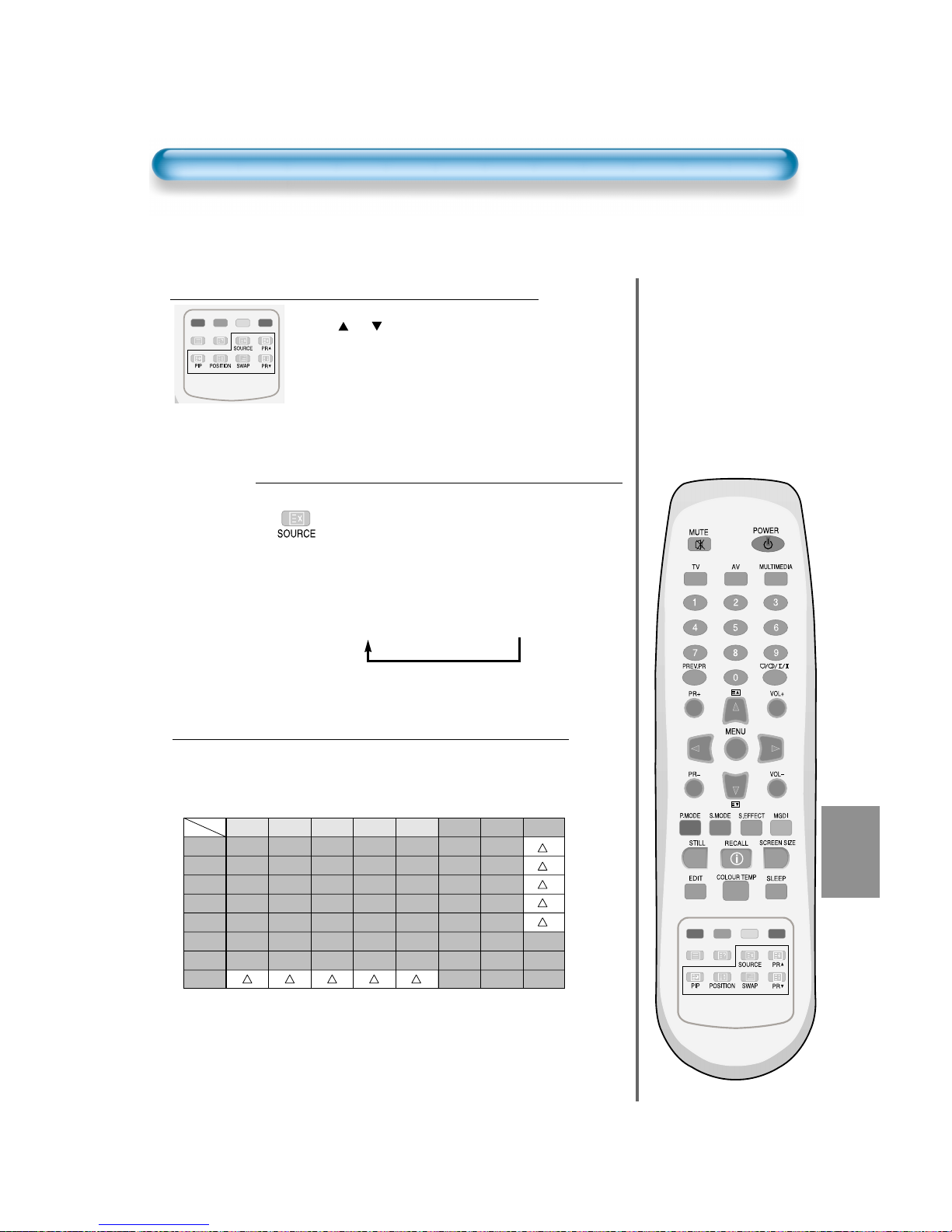

Select the program

• Using program Up/Down buttons
(

PR /PR )

, you may select the

desired channels for sub-pictures.

• The PR Up/Down buttons select the
TV channels.

Available PIP Input Combinations

• Main-picture and sub-picture input combinations
are listed below for reference.

6

4

Select the Input Source

• Various signal sources can be displayed within
the sub-picture under PIP mode.

• Once the PIP mode is on, you may change the
input source of the sub-picture by pressing the
'SOURCE' button.

• Pressing the 'SOURCE' button repeatedly will
cycle through following order.

T V -> AV1 -> AV2 -> AV3

5

53

MAIN TV AV1 AV2 AV3 AV1

COMP PC HDMI

(CVBS) (CVBS) (CVBS/S)

(RGB/Comp)

PIP
TV

AV1
(CVBS)

AV2
(CVBS)

AV3
(CVBS/S)

AV1
(RGB/Comp)

COMP
PC
HDMI

X
X
X
X
X
X

X
X
X
X
X
X

X
X
X
X
X
X

X
X
X
X
X
X

X
X
X
X
X
X

X
X
X
X
X
X

X
X
X
X
X
XX

XXXXXXXX

XXX

Watching Two Pictures Simultaneously

Selecting Sound Mode

54

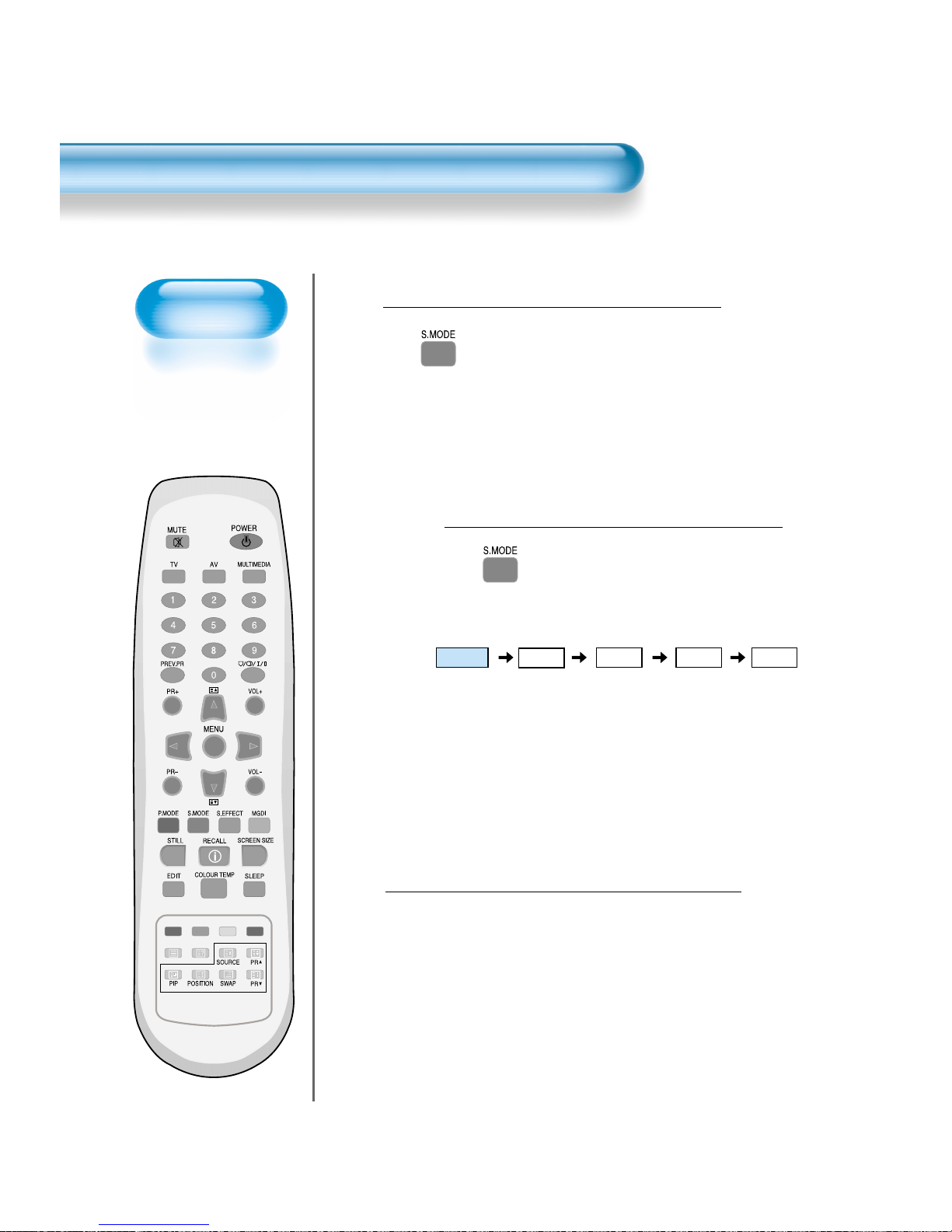

Selecting

Sound Mode

• Enjoy various sound
modes by selecting
your favourite Sound
Mode depending on
the kinds of moving
pictures.

Select “SOUND MODE”.

• Press the “S.MODE” on the remote
control.

• While pressing the “S.MODE” for the
first time, the current sound mode will

be displayed.

Every Press of the Button Changes Modes.

• Each time you press the button, a
different sound mode appears.

The sequence used is as follows:

* Normal : Suitable for watching any motion picture
* Movie : Select this mode to simulate being at a movie theatre
* Music : Ideal for listening to music
* News : Allows human voice to be heard more clearly
* User : Allows the user to adjust as desired.

MENU will Disappear .

• After selecting a desired Sound Mode, the
on-screen menu will disappear in about 2~3
seconds.

• Normal, Movie, Music and News modes are
factory preset values.

If you want to customise the sound modes for
your preference, refer to the following page.

3

1

2

Normal

Music User

News

Movie

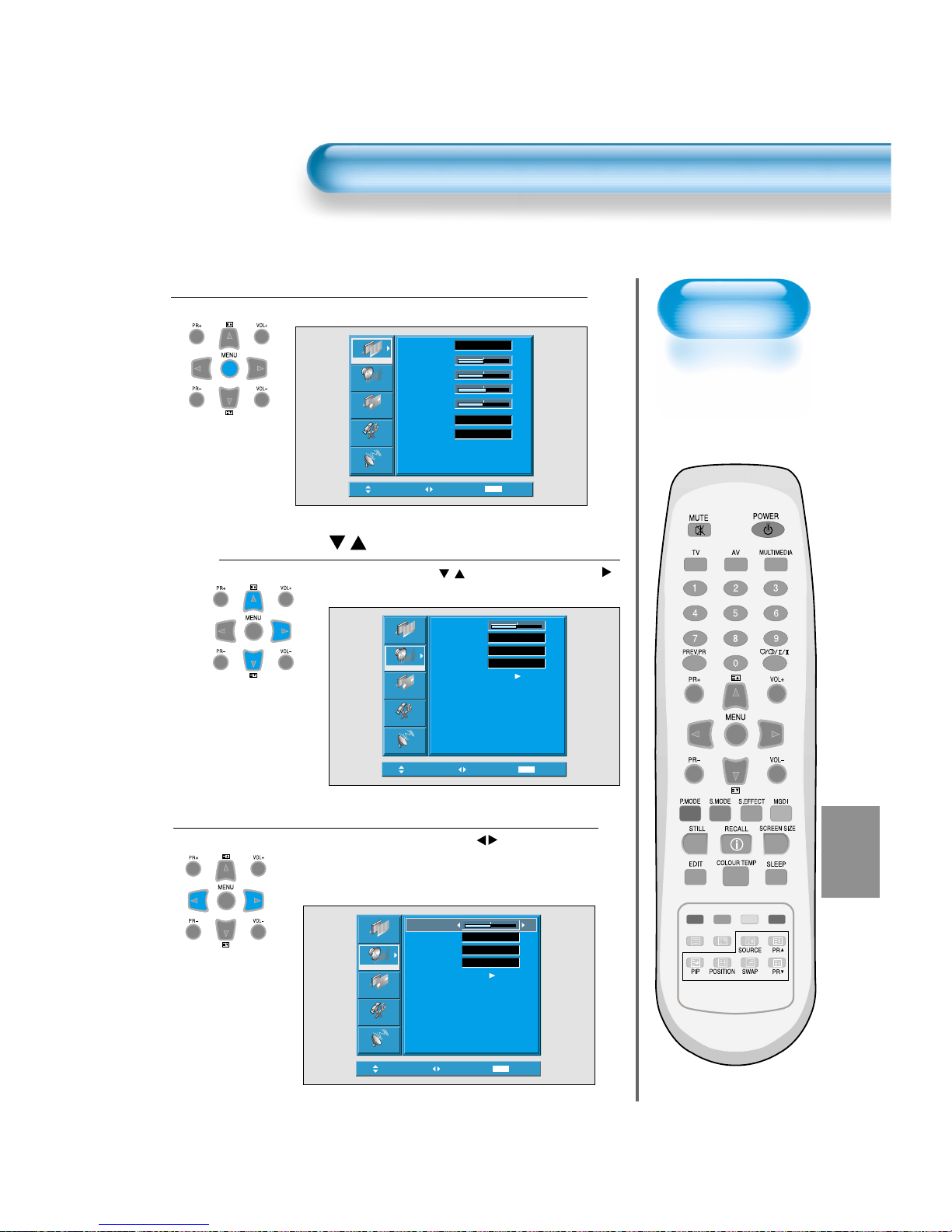

Customising
Sound Mode

• This feature allows
the user to adjust for
their preference.

55

Press the “ ” Button.

• Select [Sound] by the

“”

buttons, then press the “”

button to display the following.

Select SOUND BALANCE.

• Select “Sound-Balance” by the “

”

buttons, then

adjust it.

3

Press the MENU Button.

• The MENU screen as below will be displayed.

1

2

Move

Select

MENU

Exit

Balance
Effect
AVC
Mode
Equalizer

Off
Off

Normal

0


Screen

Sound

Feature

Install

Move

Adjust

MENU

Exit

Balance
Effect
AVC
Mode
Equalizer

Off
Off

Normal

0


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal

Normal

On

50
50

50

8


Screen

Sound

Feature

Install

Customising Sound Mode

56

Language selection

for dual language

broadcast

• If a programme is
received in two
languages (dual
language), you can
switch to Dual I,
Dual II or F mono by
pressing the
button of the remote
control repeatedly.

Dual I

Dual I sends the
primary broadcast
language to the
loudspeakers.

Dual II

Dual II sends the
secondary broadcast
language to the
loudspeakers.

F Mono

F Mono sends the
Mono sound to the
loudspeakers.

Select the Effect Mode.

• Select [Effect] by pressing the “”buttons,
then select the desire sound effect by pressing

the “”button.

• [Effect]: Used to emphasize stereo effect.

• BBE is the sound enhancement clarifying the

sound and outputs finest quality. And M.Voice is
the function that you can hear clearer voice.

• Effect Mode also can be selected by pressing
“S.EFFECT” button on the remote controller.

4

Move

Adjust

MENU

Exit

Balance
Effect
AVC
Mode
Equalizer

Off
Off

Normal

0


Screen

Sound

Feature

Install

Effect off

Effect BBE

Effect M.Voice

57

Select the Sound Mode.

5

Move

Adjust

MENU

Exit

Balance
Effect
AVC
Mode
Equalizer

Off
Off

Normal

0


Screen

Sound

Feature

Install

• Select the Sound Mode by pressing the

“”

buttons, then

adjust it by pressing the “”buttons.

* Normal : Suitable for watching any motion picture
* Movie : Select this mode to simulate being at a movie theater
* Music : Suitable for listening to music
* News : Allows human voice to be heard more clearly
* User : Allows the user to adjust as desired.

NOTES:

1) User Mode : Used as an equalizer with which the user can
adjust the sound frequency as desired.

2) If you modify the sound frequency in auto Sound Mode
(News, Movie, Music, etc.), it is automatically switched to the
User Mode.

3) For a realistic sound effect, lower than 120Hz frequency
sound and greater than 12kHz frequency adjust the
equalizer accordingly.

4) AVC function : This function adjusts volume to the set level

automatically. However, dependent on the
sources, it may have different volume levels
because the sound sources have their own
initially set up levels.

Normal

Music User

News

Movie

Customising Sound Mode

Selecting INPUT SIGNAL

58

NOTES:

1) If an external device is not connected or INPUT signal is not
applied a Warning Message (“No Signal”) will be displayed.

2) In this case, check if external device is connected and/or
terminal connection is properly fitted.

3) Also, you can select input using [INPUT SELECT] button in

the keypad of the PDP unit. The sequence of selection is as
follows:

TV -> AV1 -> AV2 -> AV3 -> Component ->
PC -> HDMI -> TV

Component

TV

•“

TV ” button

AV1 AV2

AV(S)3

•“

AV ” button

Component PC HDMI

•“

MULTIMEDIA” button

Press the Input Signal Selecting Button.

• Press the “TV”, “AV” or “MULTIMEDIA” button on the
remote control, or select the desire input signal using
Keypad of the PDP unit.

• Each time you press input mode buttons, a dif ferent input mode

appears. The sequence used is as follows:

1

INPUT SIGNAL

• Used to select
INPUT signal of
external device
connected to the
PDP.

5959

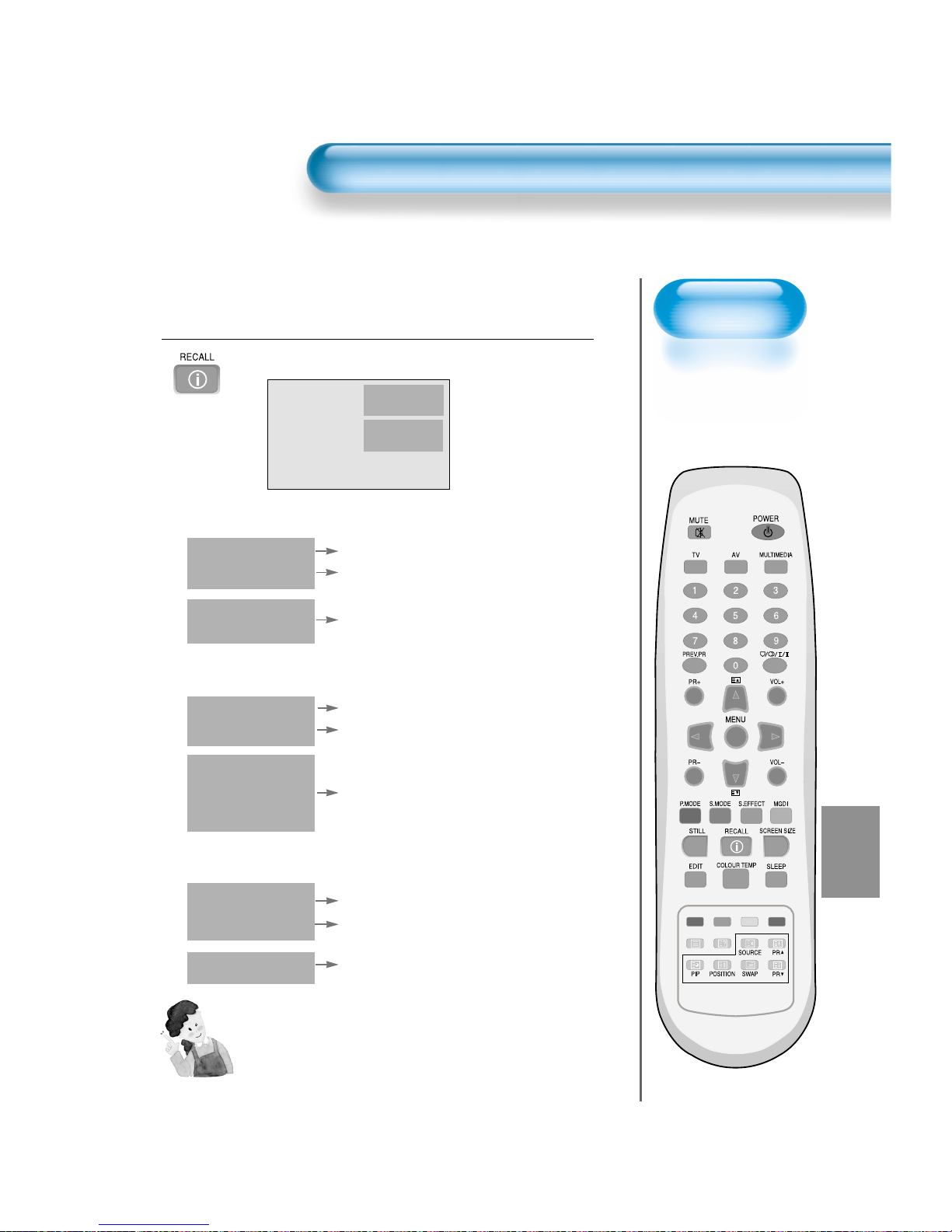

Checking the

Current Input Signal

• Used to check the
INPUT signal mode,
current time,
resolution, channel,
etc.

Press the RECALL Button.

• Press the [RECALL] button on the Remote Control.

1

1. If you watch Component, PC, or HDMI:

Displays which input terminal is used, and indicates the input signal mode.
Indicates the mode and current time.

Component

PM 12:00

Indicates the horizontal and vertical resolution of the current input signal

H:1920
V:1080

Component

PM 12:00

H:1920
V:1080

2. If you watch TV:

Displays the program number and its name.

Indicates the current sound state and time.

PR 22 PR Name

Mono PM 12:00

Displays additional informations of TV signal of TV signal, video and
audio system. country, channel.

Video PAL B/G
Audio I
Country GB
Channel C35

3. If you watch VCR image:

Displays the program number and input terminal, which is used.
Indicates the mode and current time.

AV1

PM 12:00

Displays the video system of input signal

Video PAL B/G

NOTES:

1) “1920 x 1080” displayed in the INPUT signal is not the
resolution of the set, but the signal that is sent by the Digital
Broadcasting Receiver.

- Press the [RECALL] button on the remote control, then displays basic informations of the current input signal,
Under this state, pressing the [RECALL] button once more, additional informations about the current input signal
will be displayed on the OSD.

Checking the Current Input Signal

60

MENU Background, Language and Child Lock Setting

Press the MENU Button.

• The MENU screen will be displayed as below .

Press the “ ” Button.

• Select [Feature] by the

“”

button.

Select the menu Background.

• Select the MENU [Background] by pressing the “ ”button.

• Adjust the translucent level of OSD background using “

”

buttons.

3

1

2

Move

Select

MENU

Exit

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal

Normal

On

50
50

50

8


Screen

Sound

Feature

Install

Move

Adjust

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialise

English

Off
On
Off

10


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
Off
Off

10


Screen

Sound

Feature

Install

Selecting

Languages

• Used to select the
translucent level of
MENU background
and language used
in MENU.

61

Select LANGUAGE by using the

“”

Button.

• Select [Language] by using the

“”

button.

• Every press of the “”button while you are in the
[Language] mode would cycle through the different
languages.

Child Lock Setting

• Select [Child Lock] by the

“”

buttons.

• Whenever “” button is pressed, the lock mode would
cycle On and Off.

• While the Child Lock is ON, if you have not turned off
the PDP, all of it’s keys will work normaly. However,
after turning the PDP off, the PDP will not be turned
on with the keypad on the PDP. Only by the remote
controller, the PDP is turned on.

• At Stand-By state while the Child Lock is ON, the LED
of the Plasma unit will be flickering in red.

4

5

Move

Adjust

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialise

English

Off

On
Off

10


Screen

Sound

Feature

Install

Move

Adjust

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialise

English

Off
On
Off

10


Screen

Sound

Feature

Install

NOTES:

*

When power is turned on the first time, ‘SELECT
LANGUAGE’ mode will be displayed, then, select the

desired language by using “” button. (Displayed only
once)

MENU Background, Language and Child Lock Setting

62

MGDI Plus (Meta Genuine Digital Image)

Press the MENU Button.

• The MENU screen will be displayed as below .

Select Feature

• Select [Feature] by the

“”

button.

MGDI Plus Setting

• Enter the sub Menu by using the “”button.

• Select the [MGDI Plus] by pressing the

“”

button.

• You can select [MGDI Plus] On or Off mode by using the
“

” button.

3

1

2

Move

Select

MENU

Exit

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal

Normal

On

50
50

50

8


Screen

Sound

Feature

Install

Move

Adjust

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
On
Off

10


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
Off
Off

10


Screen

Sound

Feature

Install

MGDI Plus is the image enhancement technology of Daewoo Electronics, which provides more clear,
realistic, and delicate images.

MGDI Plus

MGDI Plus function can
not be used In PC and
HDMI modes.

63

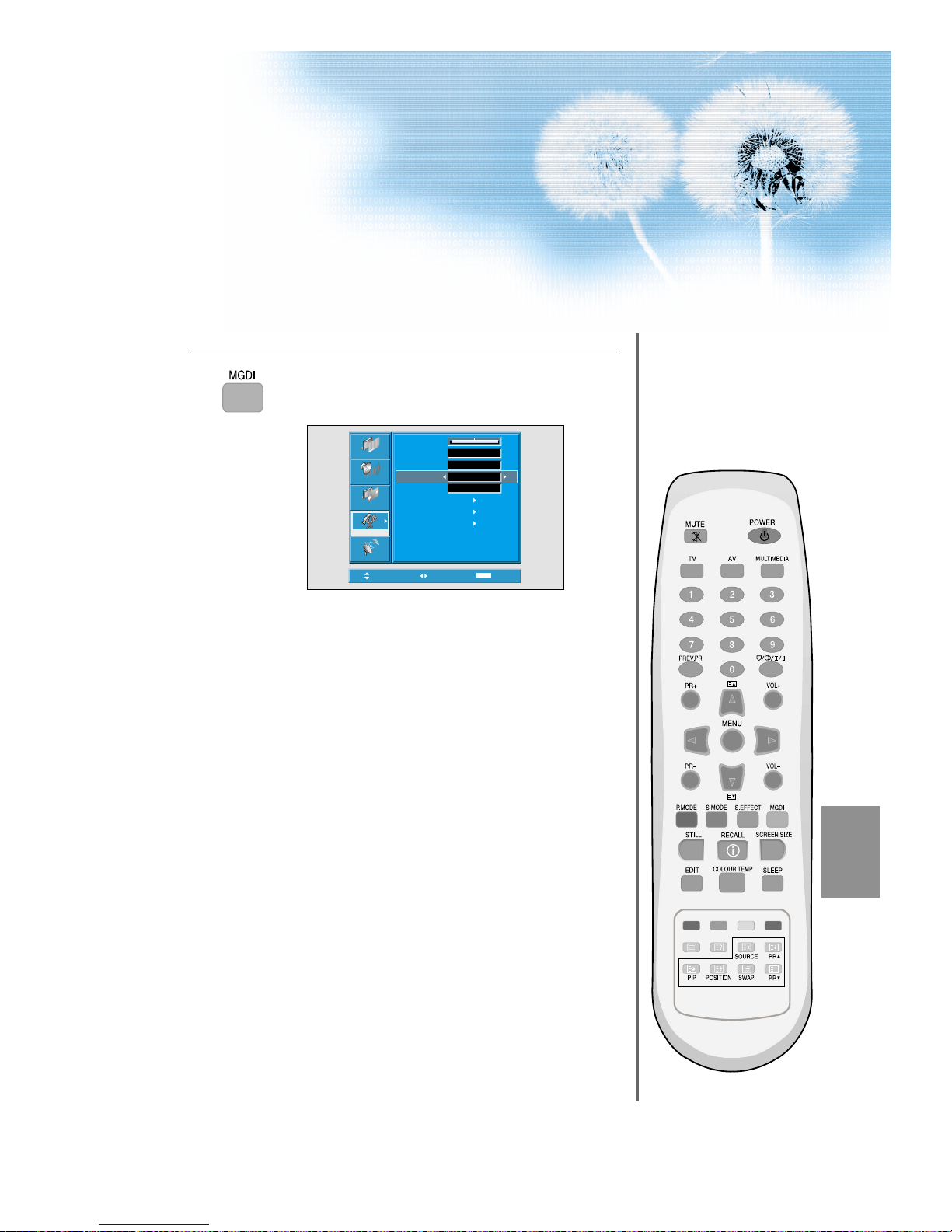

Press the MGDI button on the remote control.

• Pressing the “MGDI” button first time will display the
current setting for MGDI Plus.

• To cancel the MGDI Plus, press the “MGDI” button
to select ‘Off’.

4

Move

Adjust

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
Off
Off

10


Screen

Sound

Feature

Install

64

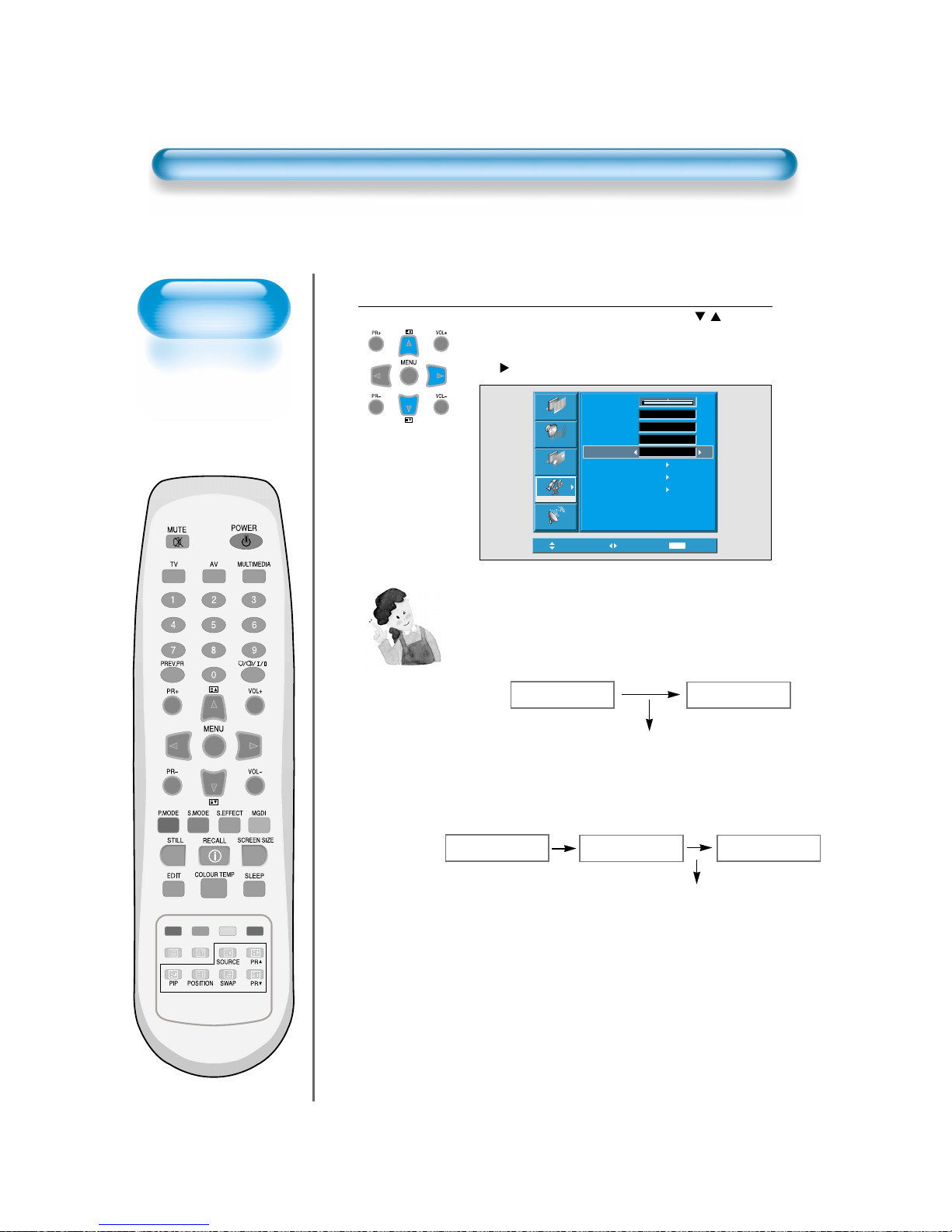

Auto Power Setting

Auto Power Setting

• Select the [Auto Power] by pressing the

“”

button

from [Feature].

• You can select [Auto Power] ON and OFF mode by using
the “

” button.

1

Move

Adjust

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
On
Off

10


Screen

Sound

Feature

Install

Auto Power

1) ON : When the AC power is ON, the TV will be turned on
automatically without pressing the power button on the remote
control.

2) OFF : When the AC power is ON, the TV will be turned on by

pressing the power button on the remote control or the keypad
of the front panel.

3) If Child Lock function is ON, this function is not operated.

AC POWER ON

PDP SET ON

Automatically

AC POWER ON

PDP SET ON

With the remote control or
the keypad of front panel.

STANDBY MODE

POWER/STANDBY

Indicator

Front panel LED lights

• When the AC power
is on : Blue.

• When the AC power
is in the standby
mode : Red.

65

Press the MENU Button.

• The MENU screen will be displayed as below .

Select Feature

• Select [Feature] by the

“”

button.

Select Time Setting

• Enter the sub menu by using the “” button.

• Select the [Time Setting] with the

“”

button.

• Enter [Time Setting] by pressing the “” button.

3

1

2

Move

Select

MENU

Exit

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal

Normal

On

50
50

50

8


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
Off
Off

10


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
Off
Off

10


Screen

Sound

Feature

Install

Time Setting

66

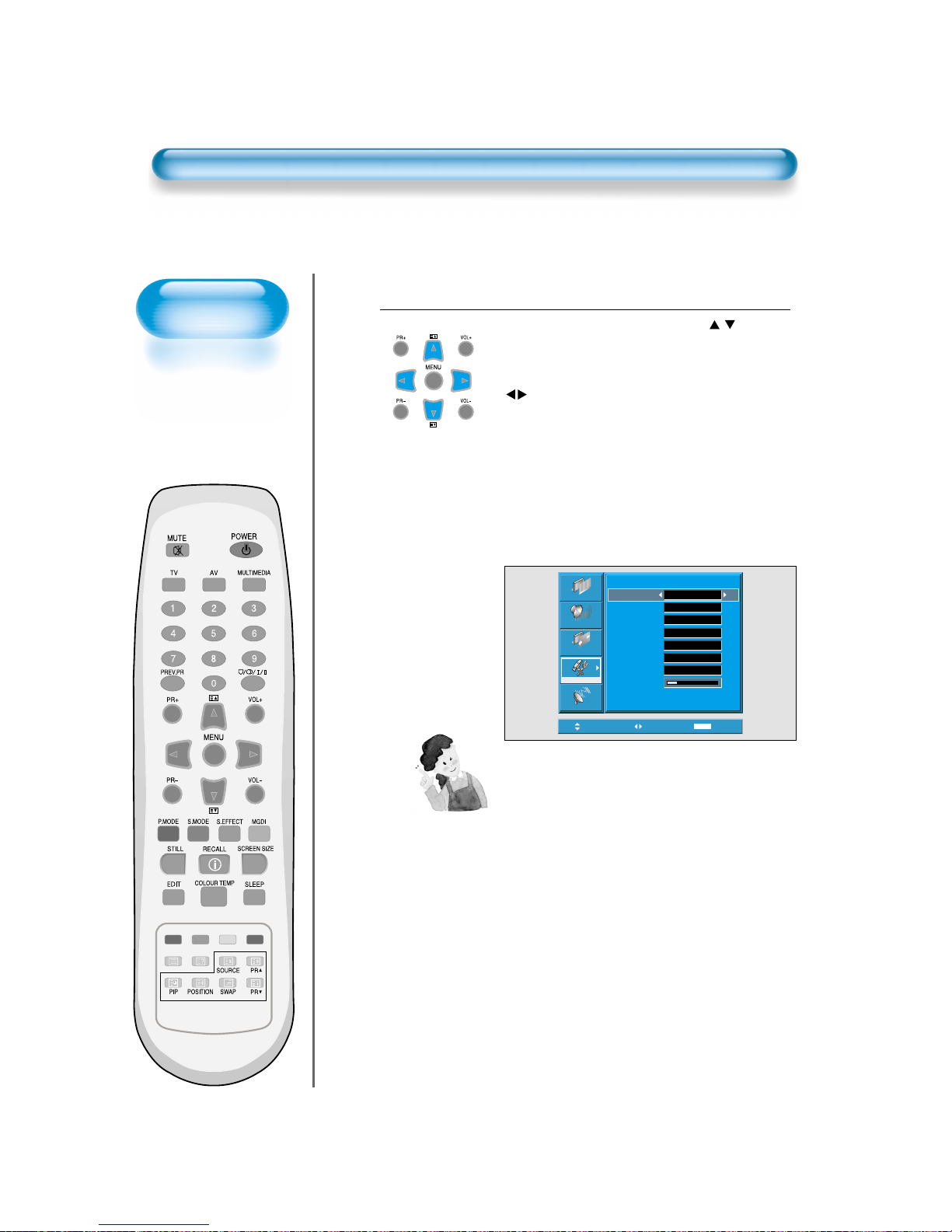

Time Setting

Time Setting

• The “Current time”
must be set up ahead
of setting up other time
memories.

Off-Time and W ake time setting

• Select Functions by pressing the

“”

button.
First, set [Clock]- current time, and then You can
setup off-time and wake time.

• [Clock] : Adjust the desired hour and minute with
“”

button.

•

[Auto Clock] : Automatically setting the current time by
teletext signal.

• [Off Time] and [Wake Time] Setting methods are
same as [Clock] setting method.

• [Off Timer] and [Wake Timer] : Setting [On] and
[Off] of each Timer.

• [Wake Prog.] and [Wake Vol. ] : Setting channel
and volume when TV is turned on by [Wake Timer].

4

Move

Adjust

MENU

Exit

Time Setting
Clock
Auto Clock
Off Timer
Off Time
Wake Timer
Wake Time
Wake Prog.
Wake Vol.

AM 11 : 50

On
Off

Off

19

2

AM 12 : 00

AM 12 : 00


Screen

Sound

Feature

Install

Time Setting Functions

1) This time memory function automatically turns the

TV set “On” or “Off”at a desired time. Once set up,
this function works every day unless the set time is
canceled or the TV set is unplugged. Therefore, this
function could be used for a “Get up” alarm (Wake
up Call) by setting up the time for “On” in the
morning.

2) However, if you once power off with ON/OFF in the

PDP unit, the Current time (Clock) will be reset.

67

Press the MENU Button.

• The MENU screen will be displayed as below .

Press the “”Button.

• Select [Feature] by the

“”

button.

Select ISM.

• Enter the sub menu by using the “”button.

• Select the [ISM] by pressing the

“”

button.

• Press of the “”button while you are in the ISM.

3

1

2

Move

Select

MENU

Exit

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal

Normal

On

50
50

50

8


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
On
Off

10


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
Off
Off

10


Screen

Sound

Feature

Install

ISM

• Image sticking Minimisation

• Displaying a still image for a

long time causes part image
sticking on the screen.

• The ISM function minimises
this effect.

Image Sticking Minimisation(ISM)

68

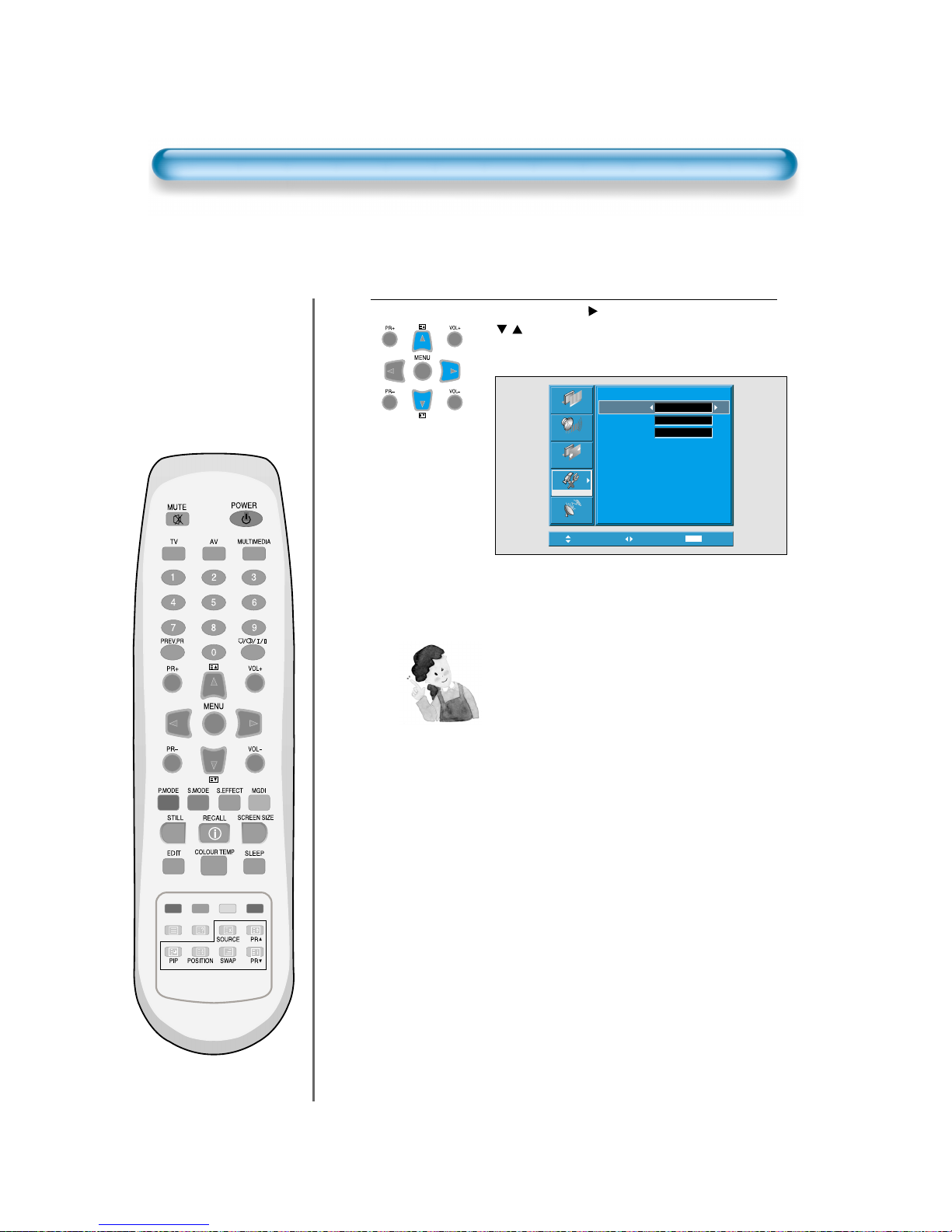

Image Sticking Minimisation(ISM)

Select Functions.

• Every press of the “”button after select function by the

“”

button would switch between ON/OFF .

4

Move

Adjust

MENU

Exit

ISM
Pixel Shift
Low Bright
Image Invert

Off
Off

Off


Screen

Sound

Feature

Install

NOTES:

*

Pixel Shift : The whole screen shifts up/down,

left/right at 15 sec interval to
minimize image sticking.

*

Low Bright : When displaying a still picture or a

fixed pattern for a long time (5Min),
the brightness level decreases to
minimize image sticking, and the
initial default value of Low Bright is
'On' state.

*

Image Invert : Inverting color of the original

image to minimisation image
sticking.

69

Back to

Initialization

•

You can restore the
values of the adjustment
setting made in the
MENU back to factory
settings.

Press the MENU Button.

• The MENU screen will be displayed as below .

1

Move

Select

MENU

Exit

Mode
Brightness
Contrast
Sharpness
Colour
Colour Temp.
N.R.

Normal

Normal

On

50
50

50

8


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize

English

Off
Off
Off

10


Screen

Sound

Feature

Install

Initialize Setting

Select Feature

• Select [Feature] by the

“”

button.

2

70

Initialize Setting

When [INITIALIZA TION] is completed:

1) When [INITIALIZATION] is completed, those values that have been
set in the User Mode of [PICTURE MODE] and [SOUND MODE] will
be returned to the factory preset values.

2) Once initialized, you can not undo.

3) The items in the [SCREEN] Menu are also initialized.

4) Language, program, time, volume, OSD background, input mode are
not initialized.

INITIALIZATION

• Enter the sub Menu by using the “” button.

• Select the [Initialize] by pressing the “” button, then
press the “” button.

• A confirmation message will be displayed.

• To perform initialization, press the “”button after selecting
[YES] by the “” button.

• To return to MENU, press "MENU" button.

3

Move

Select

MENU

Exit

Are you Sure?

No
Yes


Screen

Sound

Feature

Install

Move

Select

MENU

Exit

English

Off
On
Off

10

Background
Language
Child Lock
MGDI Plus
Auto Power
Time Setting
ISM
Initialize


Screen

Sound

Feature

Install

71

Setting Sleep Timer

Setting

Sleep Timer

• Sleep Timer turns
the PDP off after a
preset time.

Press the “SLEEP” Button.

• Press the “SLEEP” button on the Remote Control.

• Pressing the “SLEEP” button first time will display the

current setting for Sleep Timer .

• To cancel the Sleep Timer, press the “SLEEP” button to
select ‘Off’.

1

NOTES:

1) On-screen information disappears if you do not
take any action for about two seconds after
pressing the SLEEP button.

2) If you turn the PDP off after setting SLEEP, the
setting is erased.

Sleep Timer Off

Sleep Timer off

Sleep Timer 15

Sleep Timer 30

Sleep Timer 120

Sleep Timer 90

Sleep Timer 60

72

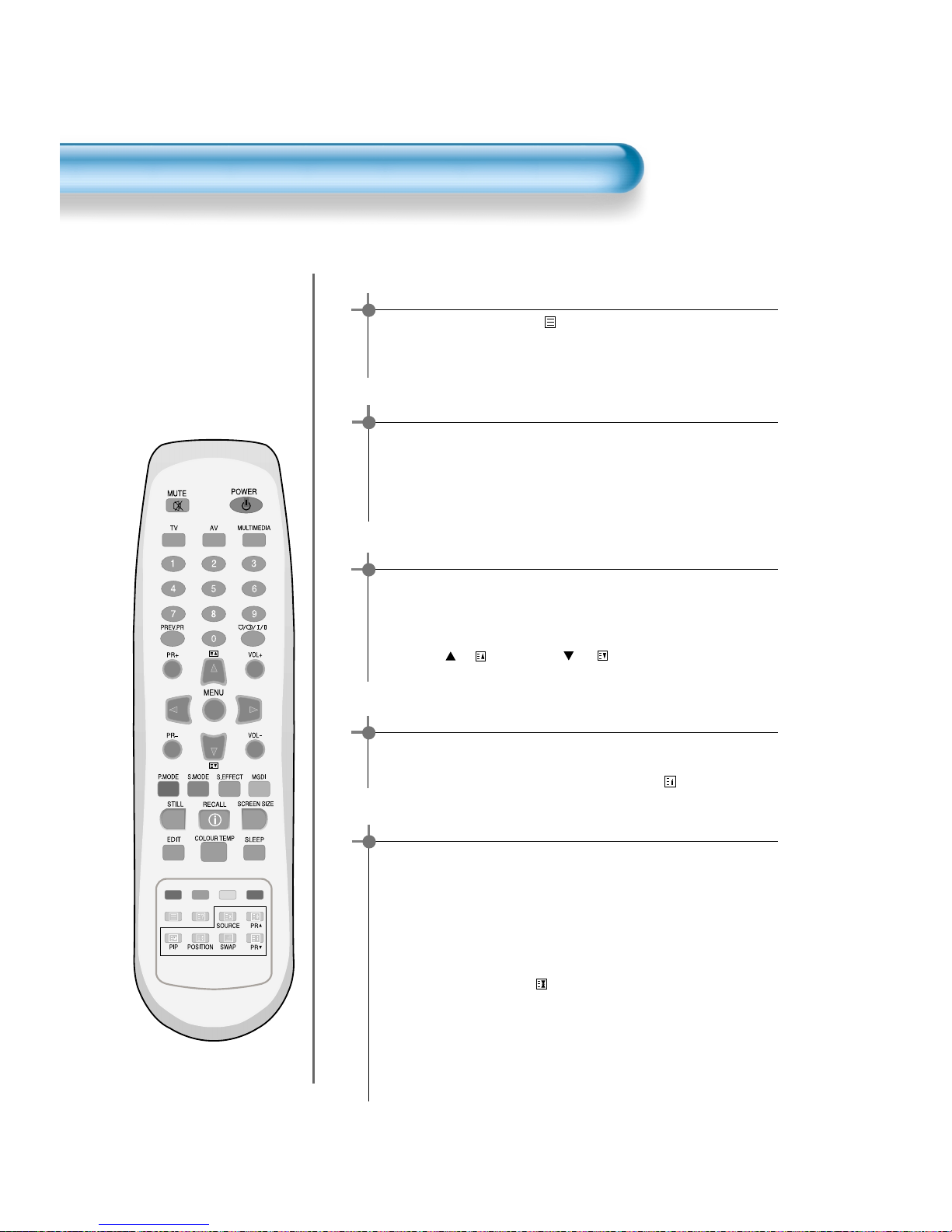

Teletext

Switching Teletext ON/OFF

• Press the Text button ( ) The index page or the page
viewed last will appear. Press the Text button again to
return to the TV mode.

Selecting Pages

• The Page selector button 0~9 are used to enter a page
number.
The selected page number appears at the top of the
screen and the page appears after a short time.
The UP( or ) / DOWN( or ) buttons increase or
decrease the current page number by 1.

Index Page

• You can switch directly to the program preview (with

TOP text) or the overview page of the station you are
currently viewing by pressing the Index ( ) button.

Colour buttons in TOP/FLOF Teletext

• A red, green, yellow and cyan field is shown at the

bottom of the screen. If TOP or FLOF Teletext is
transmitted by the station, pressing the corresponding
colour button on the remote control, you can select the
desired page easily.

Page Hold

• Several sub pages can be combined under a page
number and are scrolled at an interval determined by the
television station.

The presence of sub pages is indicated by, for example,
3/6 beneath the time, which means that you are looking
at the 3rd page of a total of 6pages.
If you want to look at a subpage for a longer period of
time, press the Hold ( ) button.
The contents of the subpage shown are kept no longer
updated or switched to other subpages.
Pressing the Hold button again, the current subpage
appears.

73

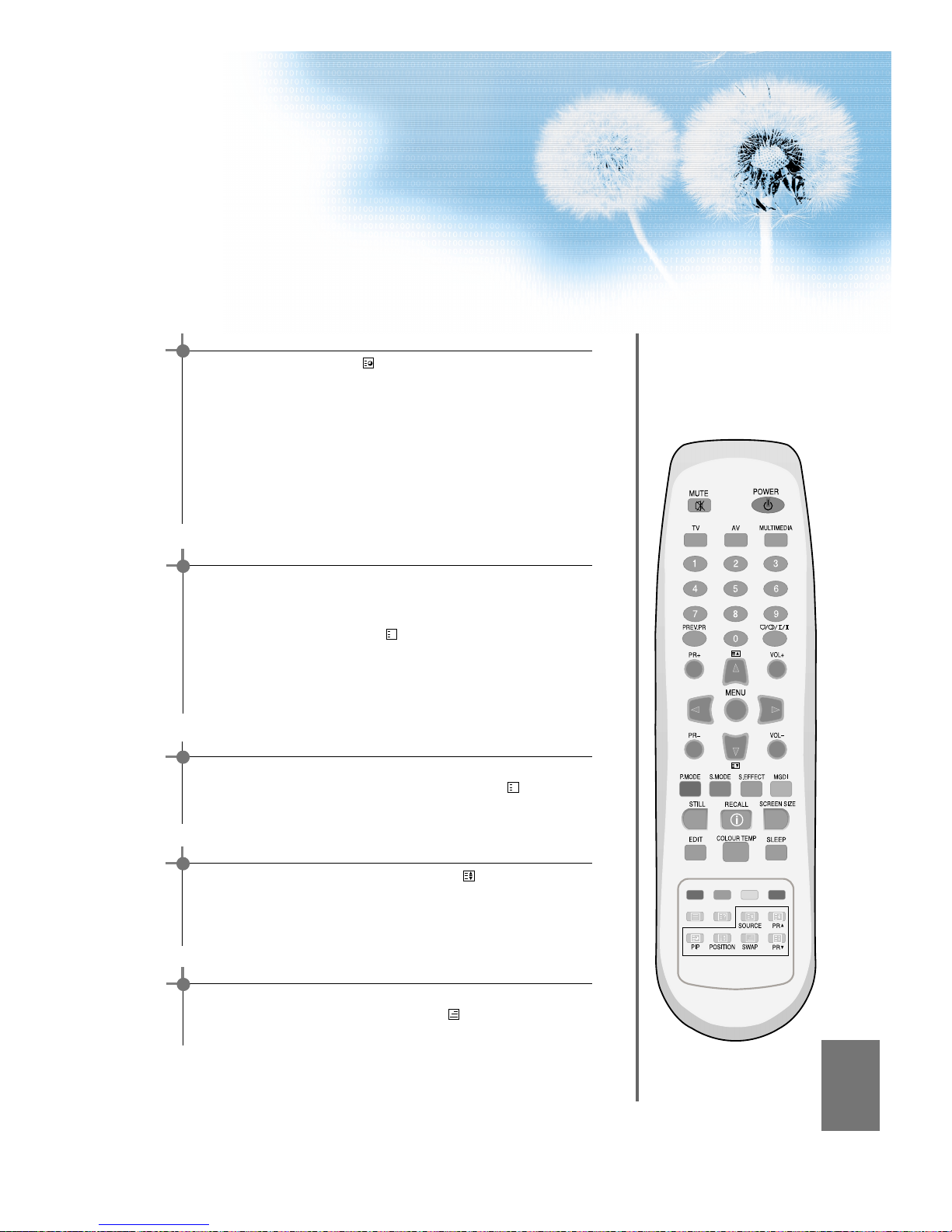

Reveal Answer

• This function can be used on certain pages to reveal the
solution of riddles. Press the Reveal button ( ) to
reveal a hidden answer and press again to hide it.

Doubling Character size

• Repeatedly pressing the Size button ( ) doubles the
character size in the following order. Upper half of the
page --> Lower half of the page --> Return to normal
size

Watching television during teletext mode

• Some pages are continually updated, for example, stock
market reports, sports announcements, the latest news.
If you want to watch television and stay informed at the
same time, press Update ( ) button.
The regular program is still visible and the teletext page
number appears at the top of the screen. Pressing the
Update button, the teletext page appears with the
updated information.

Mix

• You can simultaneously watch TV and Teletext screen by
pressing the mixed window button ( ) in Teletext mode.

X

?

Calling Up Subpage Directly

• Pressing the Subpage( ) button. The subpage number
is displayed at the bottom of the screen. To change the
subpage, press the subpage number, for example, the
2nd page, sequence 02.

The desired subpage will eventually be displayed on the
screen and holds it there.
Press this button again to exit this function.

7474

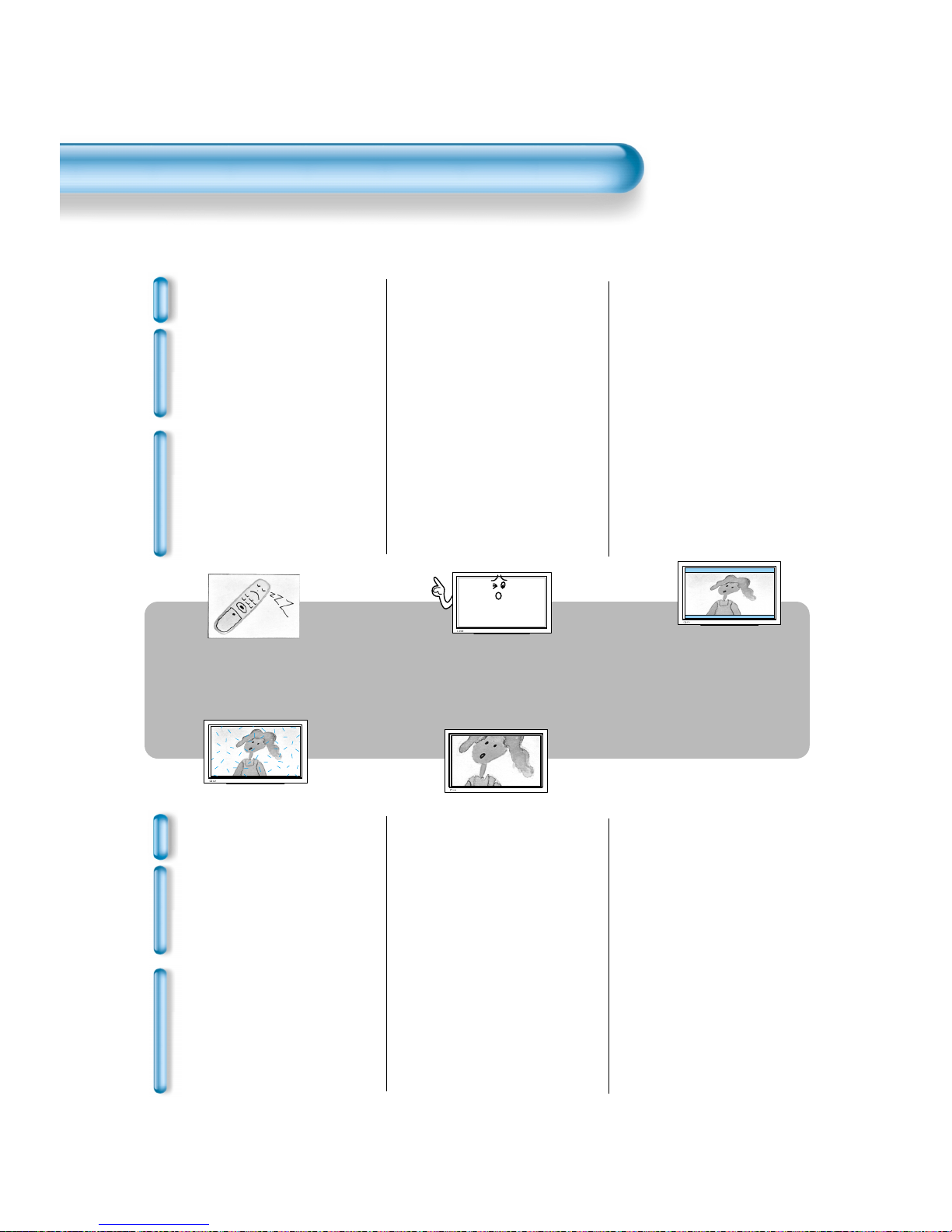

Before Requesting Service

Before

Requesting for

Service

St
yo
mm

ps

C

h
e
c
k
s

A

c

t

i
o
n

• There are empty spots at the top
and the bottom area of the screen.

• Check if the screen size of an image
is wider than 16:9 aspect ratio
(theatre screen size).

• When video screen is wider than
16:9 aspect ratio, you may see dark
areas at the top and the bottom of
the screen.

• The Display makes a snapping
sound.

• Check if the pictures and sound are
normal.

• This sound is produced due to
variations in room temperature.

• This sound does not indicate that the
Display has a problem if the pictures
and sound can be viewed and heard
properly.

• Remote control does not
function properly.

• Check for any obstacle between the

Remote Control and the Display.

• Check for dead batteries and

incorrect battery orientation.

• Check if the Remote Control is the

right one.

• Remove any obstacle between the

Remote Control and the Display.

• Replace batteries and use the correct

polarity (+) or (-) of the batteries.

• Use the correct Remote Control

proper to the model.

St
yo
mm

ps

C

h
e
c
k
s

A

c

t

i
o
n

• Screen size is suddenly
changed.

• The screen size of a video image
may not be matched to the size of
the dark initial screen.

• Check by using other video tape.

• There are spots on the screen
or screen rolls.

• Check if your product is affected by

any interference from automobiles,
high-voltage transmission lines, neon
signs or other potential sources.

Before requesting for service, check the following points once again.

SPECIFICA TIONS

*

Appearance and specifications of this product are subject to change for improving the product without prior notice.

DISPLAY UNIT

CONNECTION TERMINAL

AUDIO FEATURES

ITEMS VIDEO AUDIO

HDMI INPUT HDMI Jack
PC INPUT one 15 pin D-sub jack PHONE JACK
Component INPUT one Y, Pb/Cb, Pr/Cr RCA Jack

(LEFT/RIGHT)

AV 1, 2 SCART Jack (LEFT/RIGHT)

EXTERNAL (Video In/Out, RGB In-AV1, Video In-AV2) (In/Out)

INPUT AV 3 RCA Jack, S-VHS (LEFT/RIGHT)

TV Standard :

PAL B/G, I/I, SECAM B/G, D/K, L/L’
Receiving Channel :
VHF Low : E2 ~ S6 Ch. (48.25MHz ~ 140.25MHz)
VHF High : S7 ~ S36 Ch. (147.25MHz ~ 423.25MHz)
UHF : S37 ~ E69 Ch. (431.25MHz ~ 855.25MHz)
L'-SECAM : FB, FC1, FC

AUDIO OUTPUT 20W (10W + 10W), 8 Ohm

Diagonal Size 106cm (42 )
Screen Aspect Ratio 16 : 9
System PAL B/G, I/I, SECAM B/G, D/K, L/L’
Display Resolution SD Panel : 852(H)

480(V) dots

HD Panel : 1024(H) 768(V) dots

Pixel Pitch SD Panel : 1.08(H)

1.08(V) mm

HD Panel : 0.90(H) 0.676(V) mm

Dimension 1052(W)

715.5(H) 85(D) mm (without Stand)

1052(W) 770.5(H) 308.2(D) mm (with Stand)

Power Requirement 100 - 240V~, 50/60Hz

75

48586900E10U-R0
