Daewoo DLX-26C2, DLX-26C3, DLX-32C1, DLX-32C2, DLX-32C3 Service Manual

...

Caution

: In this Manual, some parts can be changed for improving. their performance without notice in the parts list. So, if you need the latest parts information, please refer to PPL(Parts Price List)in Service Information Center.

Service Manual

LCD TV

CHASSIS :

Model :

S/M NO. : DSL223XEF0

SL-223X

DLX-26C2 DLX-26C3 DLX-32C1 DLX-32C2 DLX-32C3 DLX-37C3 DLX-42C1

OCT. 2006

Contents

1. Safety Precautions 3

2. Product Specification 4

2-1. PRODUCT SPECIFICATION 4

2-2. Available Input Signal 6

3. Block Diagram 7

4. Description of Each Block 8

4-1. Block Diagram of Main IC and TP 8

4-2. Overview 9

4-2-1. Composite video, Y/C(S-Video) and SCART(CVBS, RGB) composite video 9

4-2-2. DTV/DVD signal 11

4-2-3. PC(Personal Computer) signal 13

4-2-4. HDMI signal 15

4-2-5. R/G/B PROCESSING(SCART1, TELETEXT R/G/B) 15

4-2-6. Audio signal processing, KEY, and LED 17

4-3. POWER PCB 22

5. SERVICE MODE 25

5-1. Check initial Menu Data 25

5-2. Entering SERVICE MODE 26

6. WHITE BALANCE Adjusting Method 29

7. Main PCBs Trouble Diagnosis 30

7-1. MAIN PCB Trouble Diagnosis 30

7-1-1. Common checking process when “No signal of Noraster” 30

7-1-2. When No Sound 37

7-1-3. When Control Key does not operate 39

7-1-4. When Remote Controller does not operate 40

7-2. POWER PCB 42

8. Trouble Diagnosis 43

8-1. Facts you must know when Diagnosis and Repairing 43

8-2. Typical Symptoms of PCB problem or bad connection 44

9. Structure of LCD Set 45

10. EXPLODED VIEW 47

11. Part List 53

12. Circuit Diagram 67

-2-

-3-

1. Safety Precautions

(1) When moving or laying down a LCD Set, please deal with care.

Avoid any impact towards the LCD Set.

(2) Do not leave the broken LCD Set on for a long time. To prevent any further damages, after

check the broken Set’s condition, make sure to turn the power(AC) off.

(3) When opening the BACK COVER, turn off the power(AC) to prevent electric shock.

(4) When loosening screws, check the connecting position and type of the screw.

Sort out the screws and store them separately. Because screws holding PCB are working as electric circuit GROUNDING, make sure to check if any screw is missing when assembling.

(5) A LCD Set contain different kind of connector cables.

When connecting or disconnecting connector cables, check the direction and position of the cable beforehand.

(6) When disconnecting connectors, unplug the connectors slowly with care.

(7) Connectors are designed so that if the number of pins or the direction does not match,

connectors will not fit. When having problem in plugging the connectors, make sure to check their kind, position, and direction.

-4-

2. Product Specification

2-1. PRODUCT SPECIFICATION

Features DLX-26C2AMSB DLX-32C2AMSB

LCD Panel Screen Size 26” 32”

Aspect Ratio 16 : 9 16 : 9

Resolution 1366 X 768(WXGA) 1366 X 768(WXGA)

Pixel Pitch 0.4215mm 0.51075

Contrast Ratio 1000 : 1 800 : 1

TV System Receiving System PAL, SECAM PAL, SECAM

Stereo System 2-Carrer/NICAM 2-Carrer/NICAM

Channel Memory 99ch, Auto Preset 99ch, Auto Preset

Input Connector RF 75 Ohm Coaxial 75 Ohm Coaxial

S-Video 1 1

SCART 2 2

Component RCA X 1 RCA X 1

PC RGB D-Sub X 1 D-Sub X 1

PC Audio 3.5mm Mini-Jack 3.5mm Mini-Jack

HDMI 1 1

Output Connector SPDIF Optical-Jack Optical-Jack

Headphone 3.5mm Mini-Jack 3.5mm Mini-Jack

RF-out 1 1

Sound Output 10W 10W

Power Consumption Max. 120W 160W

Power Source 110-240V, 50-60Hz 110-240V, 50-60Hz

Dimension(W X H X D) Set Dimension 812 X 502.7 X 240 944 X 585.5 X 240

Product Specification

-5-

Features DLX-37C3LMBS DLX-42C1LMR

LCD Panel Screen Size 37” 42”

Aspect Ratio 16 : 9 16 : 9

Resolution 1366 X 768(WXGA) 1366 X 768(WXGA)

Pixel Pitch

0.2mm X 0.6mm X RGB

0.227mm X 0.681mm X RGB

Contrast Ratio 800 : 1 550 : 1

TV System Receiving System PAL, SECAM PAL, SECAM

Stereo System 2-Carrer/NICAM 2-Carrer/NICAM

Channel Memory 99ch, Auto Preset 99ch, Auto Preset

Input Connector RF 75 Ohm Coaxial 75 Ohm Coaxial

S-Video 1 1

SCART 2 2

Component RCA X 1 RCA X 1

PC RGB D-Sub X 1 D-Sub X 1

PC Audio 3.5mm Mini-Jack 3.5mm Mini-Jack

HDMI 1 1

Output Connector SPDIF Optical-Jack Optical-Jack

Headphone 3.5mm Mini-Jack 3.5mm Mini-Jack

RF-out 1 1

Sound Output 10W 10W

Power Consumption Max. 200W 220W

Power Source 110-240V, 50-60Hz 110-240V, 50-60Hz

Dimension(W X H X D) Set Dimension 940 X 655 X 129 1060 X 758 X 133

Product Specification

-6-

2-2. Available Input Signal

2-2-1. HDMI/ PC/COMPONENT

2-2-2. VIDEO

- PAL, PAL-M, PAL-N

- NTSC, NTSC4.43

- SECAM

Resolution V-freq HDMI PC(D-Sub) Component Standard

60Hz O O X

640 X 480 72Hz O O X

75Hz O O X VESA Standard

60Hz O O X VESA Standard

800 X 600 72Hz O O X VESA Standard

75Hz O O X

60Hz O O X VESA Standard

1024 X 768 70Hz O O X VESA Standard

75Hz O O X VESA Standard

720 X 480P 60Hz O X O

720 X 576P 50Hz O O O

1280 X 720P

50Hz O X O

60Hz O O O

1920 X 1080i

50Hz O X O

60Hz O O O

720 X 480i 60Hz X X O

720 X 576i 50Hz X X O

-7-

3. Block Diagram

-8-

4. Description of Each Block

4-1. Block Diagram of Main IC and TP

-9-

4-2. Overview

Digital PCB is Multi Media circuit board that can process various input signals such as video, component, PC, HDMI, and analog TV signal.

4-2-1. Composite video, Y/C(S-Video) and SCART(CVBS, RGB) composite video

- Flow Chart of RF, Video, S-Video Signal

Description of Each Block

-10-

Description of Each Block

Y signal(input to IC505) Location : CC451

Color signal(input to IC505) Location : CC456

Description of Each Block

-11-

CVBS signal(input to IC505) Location : CC455

4-2-2. DTV/DVD signal

Y signal(input to IC505) Location : CC445

Description of Each Block

-12-

Pb signal(input to IC505) Location : CC446

Pr signal(input to IC505) Location : CC447

Description of Each Block

-13-

G signal(input to IC505) Location : CC452

B signal(input to IC505) Location : CC453

4-2-3. PC(Personal Computer) signal

R signal(input to IC505) Location : CC454

Description of Each Block

-14-

Horizontal sync(Output of IC505) Location : RC458

Vertical sync(Output of IC505) Location : RC459

Description of Each Block

-15-

4-2-4. HDMI signal

Location : RC465, RC466, RC467, RC468, RC469, RC470, RC471, RC472

4-2-5. R/G/B PROCESSING(SCART1, TELETEXT R/G/B)

R signal (input to IC505) Location : RC450

Description of Each Block

-16-

G signal(input to IC505) Location : RC448

B signal(input to IC505) Location : RC449

Description of Each Block

-17-

4-2-6. Audio signal processing, KEY, and LED

- Flow Chart of Audio signal

COMP-L sound Location : ZA225

Description of Each Block

-18-

IC602 output Location : L606, L610

IC602 input Location : RC685, RC687

-19-

Description of Each Block

Headphone out Location : RC611, RC612

SIF input Location : CC654

-20-

Description of Each Block

I2S input Location : RC622(CLK)

SPDIF out Location : RC655

-21-

Description of Each Block

Remote control signal Location : RC722

Location : RC623(WS)

-22-

Description of Each Block

Output

Minimum Maximum

Output Current

Board

Voltage

output output Condition

voltage voltage MIN NOR MAX

+29Vdc +27.0Vdc +32.0Vdc 0.1A 0.5A 1A

+24Vdc +22.3Vdc +25.4Vdc 0.1A 6.0A 7.0A PWR-CTL

DEP +12Vdc +11.00Vdc +12.00Vdc 0.1A 1.5A 2.0A ON

+5Vdc +4.75Vdc +5.25Vdc 0.1A 1.5A 2.5A

ST +5Vdc

+4.75Vdc +5.25Vdc 0.1A 0.5A 0.6A

PWR-CTL

OFF

• Ripple and Noise

AC ripple,

Output Voltage switching ripple

Output and noise

Condition

Name Minimum Maximum

output output Continuous

voltage voltage

+29V +27.0Vdc +32.0Vdc

PWR-CTL

+24V +22.3Vdc +25.4Vdc

500mVp-p

+12V +11.00Vdc +12.00Vdc

+5V +4.75Vdc +5.25Vdc MAX LOAD

ST +5V +4.75Vdc +5.25Vdc 500mVp-p PWR-CTL

Other Lines Don’t Care OFF

4-3. POWER PCB

4-3-1. POWER SPEC

• Rating : 110V~240V

• Regulating Method :

• Input Frequency : 50/60Hz

• Inrush Current : Below 80A at AC230V

• Output Voltage and Current are shown below.

-23-

Description of Each Block

4-3-2. Connectors

A. CN7, CN8 pin Spec(YEN-HO 20010WS-14 14P)

B. CN5, CN6 Pin Spec(YEON-HO 20010WS -12 12P)

CN7(AUO PANNEL)

PIN NO. OUTPUT

1 +24V

2 +24V

3 +24V

4 +24V

5 +24V

6 GND

7 GND

8 GND

9 GND

10 GND

11 DIMIMING

12 INV ON/OFF

13 N/C

14 GND

CN5, CN6(LG PANNEL)

PIN NO. OUTPUT

1 +24V

2 +24V

3 +24V

4 +24V

5 +24V

6 GND

7 GND

8 GND

9 GND

10 GND

11 DIMIMING

12 INV ON/OFF

CN8(SAMSUNG PANNEL)

PIN NO. OUTPUT

1 +24V

2 +24V

3 +24V

4 +24V

5 +24V

6 GND

7 GND

8 GND

9 GND

10 GND

11 N/C

12 INV ON/OFF

13 DIMIMING

14 N/C

-24-

Description of Each Block

D. CN4 Pin Spec(YEON HO SMW025-09 9P)

PIN NO. OUTPUT

1 +12V

2 +12V

3 GND

4 GND

5 +5VS

6 PWR ON/OFF

7 GND

8 GND

9 +5VS

E. CN3 Pin Spec(CA3237W-300-08P)

PIN NO. OUTPUT

1 DIMIMING

2 INV ON/OFF

3 N/C

4 GND

5 GND

6 +5VS

7 +5VS

8 +12V

C. CN2 Pin Spec(YEON-HO YW025-04 4P)

PIN NO. OUTPUT

1 +29V

2 +29V

3 GND

4 GND

5. SERVICE MODE

-25-

5-1. Checking initial Menu Data

5-1-1. Check initial data of User Menu

A. Picture

- Mode : Standard

- Brightness : 32

- Contrast : 58

- Color : 32

- Sharpness : 32

- Tint : 0

- ColourTemp : Normal

B. Screen

- Aspect : 16:9

C. Sound

- Mode : News

- 100Hz : 0

- 300Hz : 0

- 1KHz : 0

- 3KHz : 0

- 10KHz : 0

- 3D-Panorama : Off

- Dynamic Bass : Off

- Balance : 0

D. Function

- Language

- Timer

• Clock : --:--

• Auto Clock : No

• Auto Clock Pr : __

• Wake up : No

• Wake up Time : --:--

• Wake up Pr : __

• Off Timer : No

• Off Time : --:--

- Child Lock : Off

- MGDI DEMO

E. Install

- Auto Tuning

• Country Set : Austria

- Manual Tuning

- Setup

• Program : 00

• Channel : _ __

SERVICE MODE

-26-

• Name : _____

• System : PAL

• Sound : BG

• Fine Tuning : 0

- Edit

5-2. Entering SERVICE MODE

Using the Service Remote controller, you can enter service mode directly.

5-2-1. Adjustment REMOCON and EEPROM initial DATA

A. The adjustment Specification use the SERVICE REMOCON R-34SVC

(S/N: 48B3034SVC)

B. Adjustment DATA

Key Name Details

Function

Remark

Default Adjustment

S1 Heat-Run

S2 - Gumi Channel Map Write

S3 Volume Test Volume : 0 -> 32 -> 63 -> L -> R

1. Connect P701(Jumper) of Main PCB.

2. Press the "S4" key of service remocon.

S4 EDID write Operating Method And then, TV set display "EDID WRITE OK"

upper left of screen.

3. After EDID WRITE, remove P701(Jumper)

S5 PANEL TEST PATTEN : BLACK -> WHITE -> RED -> GREEN -> BLUE

PATTEN : BRIGHT MIN -> CEN -> MAX ->

PICTURE TEST

CONTRAST MIN -> CEN -> MAX ->

COLOR MIN -> CEN -> MAX

S7 - DEMPOL Channel Map Write

1. Press the "S8"key of service remocon.

EEPROM Erase 2. Press the "OK"key of user remocon.

operating method And then, TV set display "EEPROM CLEARED"

upper left of screen.

White

3. When you turn off/on AC, EEPROM data will be cleared.

balance Default Adjustment

S8 /EEPROM 26"(32") - FIX

Erase CUT OFF R 379(400) - FIX

CUT OFF G 447(448) - FIX

CUT OFF B 431(403) - FIX

DRIVE R 373(340) - FIX

DRIVE G 328(310) - FIX

DRIVE B 322(330) - FIX

AUTO Y CLAMP DO NOT USE

AUTO Y GAIN DO NOT USE

SERVICE MODE

-27-

Key Name Details

Function

Remark

Default Adjustment

Video sub bri 35 FIX Do Not Use

Video sub cont 118 FIX Do Not Use

Video sub Cb 112 FIX Do Not Use

Video sub Cr 112 FIX Do Not Use

Video sub hue 0 FIX Do Not Use

Video YC delay 0 FIX Do Not Use

Pedestal level On FIX Do Not Use

Anti alias On FIX Do Not Use

PIP Brightness 9 FIX Do Not Use

PIP Contrast 109 FIX Do Not Use

Device Y/G clamp 0 FIX Do Not Use

Control Pb clamp 0 FIX Do Not Use

Pr clamp 0 FIX Do Not Use

Y/G gain 0 FIX Do Not Use

Peaking Threshold 23 FIX Do Not Use

Peaking Pos_Gain 163 FIX Do Not Use

Peaking Neg_Gain 163 FIX Do Not Use

AOL 112 FIX Do Not Use

Threshold 0 FIX Do Not Use

Tuner AGC +2 FIX Do Not Use

Cb Offset 1 FIX Do Not Use

Cr Offset 1 FIX Do Not Use

ADC1 AGC 120 FIX Do Not Use

SSC Enable SSC ON/OFF.

SSC Data

SSC Enable On

Value : 0 -> 1 -> ... -> 7

Default Adjustment

Dimming Control 26" : 255(MAX) 0 - 255 FIX

32" : 0(MAX) 0 - 255 FIX

S10 - Panel Type 26 -> 32 -> 37 -> 42

Key Type C1/C3 -> C2

Default Adjustment

Normal Brightness 76 -

Normal Contrast 95 -

A/V Audio Delay 0 - Fix

Comp Audio Delay 0 - Fix

S11 I2C Stop For debuging mode.

S12 Shipping -

SERVICE MODE

-28-

5-2-2. Description of SERVICE MODE ITEM

A. S1(1) : Heat-Run Key B. S2(2) : Gumi Channel Map Write C. S3(3) : Volume Test

=> This key can check sound

D. S4(4) : EDIE WRITE

=> Using this key, you can update EDID data.

E. S5(5) : PANEL TEST

=> Using this key, you can test problem of PANEL, as confirm white pattern,

red pattern, blue pattern, green pattern.

F. S6(6) : PICTURE TEST

=> Using this key, you can test brightness, contrast and color. G. S7(7) : DEMPOL CHANNEL MAP WRITE H. S8(8) : EEPROM Erase and White Balance adjustment

=> Using this key, you can erase EEPROM data and adjust White balance.

I. S9(9) : Device control

=> This key only use for R&D. J. S10(10) : Option key

=> Using this key, you can adjust SSC, Dimming, Panel Type, Control key and etc. K. S11(11) : I2C STOP key

=> This key only use for R&D. L. S12(SLEEP) : Shipping key

=> Using this key, you can set up at shipping mode.

6. WHITE BALANCE Adjusting Method

-29-

To adjust WHITE BALANCE, refer to below process.

6-1. Insert white pattern to component input

Signal Generator : 802BT (By Quantum Data) Resolution : 1280x720p @60Hz, Pattern : Grey Scale (11 step)

6-2. Confirm ‘dimming’ in service mode (=s10)

32C3 = 0, 26C3 = 255 6-3. Attach white balance meter(CA-210) on center of Panel 6-4. Press the service key s8 6-5. Adjust white balance with valiable R.G.B cutoff / drive.

Color coordinates

X = 0.280 0.01, Y = 0.285 0.01, cd/m2 = 50cd/m2 X = 0.280 0.01, Y = 0.290 0.01, cd/m2 = 300cd/m2

6-6. Press s8 buttorn to escape SERVICE MODE

The difference of LCD Panel is not so much, therefore we don’t adjust white balance.

7. Main PCBs Trouble Diagnosis

-30-

7-1. MAIN PCB Trouble Diagnosis

7-1-1. Common checking process when “No signal of Noraster”

No signal : OSD is working but no images are displaying No raster : OSD as well as images in not working

Check Start

Does No signal screen

appear?

Is a weak

Discharge detected

in the screen?

1. Check AC connection

2. Check Power S/ W ON

3. Check other PCBs

Is the signal

input Jack properly

Check the connection

of Jack

(LCD and AV device)

Is LVDS connection

Correctly connected?

Check LVDS connection

Panel & PW30 of Main

PCB

Does input source (AV device) work?

Check AV device

Is waveform of H/V,

CLK in the Main PCB

Normal?

Replace Main PCB

and / or Sub PCB

Is input selection

in the Correct mode?

Check input mode

Replace Main PCB

And / or Sub PCB

Check other PCBs

and connectors

Main PCBs Trouble Diagnosis

-31-

A. When “No signal” in CVBS(RF, AV)

1) First check if other inputs are working

-> if other inputs are not working, replace MAIN PCB

2) Checking waveforms with Color Bar Pattern(Using the oscilloscope)

- Main TP(RF) : CC455, C102

- Main TP(AV) : LC205, CC444

Main PCBs Trouble Diagnosis

-32-

B. When “No signal” in Y/C signal(S-Video)

1) First check if other inputs are working

-> if other inputs are not working, replace MAIN PCB

2) Checking waveforms with Color Bar Pattern(Using the oscilloscope)

- Main TP(Y signal) : CC451

- Main TP(C signal) : LC202, CC456

Main PCBs Trouble Diagnosis

-33-

C. When “No signal” in Y/Pb/Pr signal(Component)

1) First check if other inputs are working

-> if other inputs are not working, replace MAIN PCB

2) Checking waveforms with Color Bar Pattern(Using the oscilloscope)

- Main TP(COMP1_Y) : CC445, LC224, LC221

- Main TP(COMP1_Pb) : CC446, LC222, LC225

Main PCBs Trouble Diagnosis

-34-

D. When “No signal” in PC

1) First check if other inputs are working

-> if other inputs are not working, replace MAIN PCB

2) Checking waveforms with Color Bar Pattern(Using the oscilloscope)

- Main TP(R signal) : LC217, CC454

- Main TP(COMP1_Pr) : CC447, LC226, LC223

Main PCBs Trouble Diagnosis

-35-

- Main TP(G signal) : CC452, LC218

- Main TP(B signal) : LC219, CC453

- Main TP(H-sync) : RC458

Main PCBs Trouble Diagnosis

-36-

- Main TP(V-sync) : RC459

E. When “No signal” in HDMI

1) First check if other inputs are working

-> if other inputs are not working, replace MAIN PCB

2) Checking waveforms with Color Bar Pattern(Using the oscilloscope)

- Main TP : RC465, RC466, RC467, RC468, RC469, RC470, RC471, RC472

Main PCBs Trouble Diagnosis

-37-

7-1-2. When No Sound

A. Overview

Check Start

Do images displ-ay on screen?

1.Check AC connection

2.Check Power S/W ON

3.Check Main PCB

Check Sound Mute On?

Cancel Sound MUTE

Is the Speaker con-nection connected?

Check the connection of

Speaker

Check RC685, RC687

Perhaps IC601 Problem Replace MAIN PCB

Check L606, L610

Problem of speaker or

Sound cable

IC602 Problem Replace MAIN PCB

Main PCBs Trouble Diagnosis

-38-

1) First check if images are displaying

-> If images are not displaying, replace MAIN PCB

2) Checking waveforms with 1KHz Sound pattern

B. Main TP

- Input to IC601 : CC614, CC615(Scart 1) , CC612, CC613(Scart2), CC611, CC610(AV), CC650, CC651(COMP), CC625 ,CC626(PC L/R)

- Output of IC602 : L606, L610

7-1-3. When Control Key does not operate

A. First check connection, and then check the output of first pin of PA912(ST-BY 3.3V) B. Check waveform first pin and third pin of PA911.

If waveform does not appear, replace connector or KEY PCB.

-main TP : RC398, RC399

Check Start

After turn on the power, does LED turn on red light?

After ST-BY on Does LED turn on green light?

Is output first pin PW7 normal?

Check Main PCB

1. Check AC connection

2. Check Power S/W ON

3. Check other PCBs

Check the connection of KEY PCB to MAIN PCB

-> Check the connection between KEY PCB and MAIN PCB

1. Replace the CON NECTOR

2. Replace KEY PCB

Main PCBs Trouble Diagnosis

-39-

7-1-4. When Remote Controller does not operate.

A. Check the connection between Main PCB and LED PCB. B. Check the waveform first pin(IR) of PA912 to confirm IR operation.

If IR is not working, replace the LED PCB.

Check Start

After turn on the power,

does LED turn on red light?

1. Check AC connection

2. Check Power S/W ON

3. Check other BLOCks

Is Remote Controller working?

Check the Battery of Remote Controller

Does set working by pressing

a KEY button?

Check the connection between LED PCB and MAIN PCB.

When you press button,

does waveform from first pin of PW7 normal?

1. IR receiving BLOCK of MAIN PCB is not working.

2. Replace MAIN PCB

Replace LED PCB

Main PCBs Trouble Diagnosis

-40-

Main PCBs Trouble Diagnosis

-41-

Remote control signal (First pin of PA912)

Main PCBs Trouble Diagnosis

-42-

7-2. POWER PCB

Check Start

After turn on The power, Does LED turn on light?

After Power on, Does Picture on?

Replace POWER PCB

1.Check AC connection

2.Check Power S/W On

3.Check F801(F1)

4.Check C811(C23)

5.Check P802(CN4)5Vpin

6.Check the Connector

1.Check the Connector

2.Check input Voltage

3.Check P802(CN4)P/O

4.Check P802(CN4)12V

7-2-1. Check AC connection is correct. 7-2-2. Check AC Switch ON. 7-2-3. Check F801(FUSE) is working. 7-2-4. Check all wafer output is correct.

-43-

8. Trouble Diagnosis

8-1. Facts you must know when trouble Diagnosing or Repairing.

A. Trouble diagnosing and repairing of set mean find out which PCBs or blocks are not

working and replace them with new PCBs. Repairing the broken PCBs are not necessary. Keep the broken PCBs and return them to service center or R&D center.

B. This TROUBLE DIAGNOSIS list only contains representative and simple PCB trouble

diagnosis and Module Exchange method. Therefore, if you find Sets that are difficult to diagnosis or to repair, contact R&D center.

C. Basic TROUBLE DIAGNOSIS process.

Note: HEATRUN is conducted for at least 30 minutes with input TEST PATTERN FULL WHITE

D. Required equipments for trouble diagnosis

- Digital Multimeter User Mode: measure DC VOLTAGE, DIODE VOLTAGE, SHORT/OPEN TEST

- Screwdriver or electric screwdriver, plastic adjusting tool

- Oscilloscope(for detailed examination only)

E. Each BLOCK operations explained in this manual include oscilloscope waveforms,

but these are for reference only and utilizing them to repair PCBs is not necessary. F. Before replacing PCBs, you MUST turn off the AC switch. G. After replacing POWER, MAIN and SUB PCB, extra adjustment might be needed.

(Refer to 6. Adjusting Method) H. After the set is repaired, leave BACK COVER open for followings. Run HEATRUN for at

least 30 minutes by displaying TEST PATTERN(Full White) of SERVICE MODE(Refer

to Service Manual, 5. Service Mode). Check the screen conditions and basic functions.

(Remote Controller operation etc.)

I. After BACK COVER is closed, redo HEATRUN for at least one hour with Full White input

using TEST PATTERN of SERVICE MODE.

Check the screen conditions and basic functions.

Check problem

Symptoms

Open

BACK COVER

Trouble Diagnosis

& Replace broken

PCB

Adjust new PCB

module

HEATRUN and

Full Function test

Repair Complete

-44-

Trouble Diagnosis

8-2. Typical Symptoms of PCBs problem or bad connection

A. Symptom of initial latch up

- Define initial latch up : When turn on the power, both LEDs light up red and TV is not working.

- Repairing method : This is typical symptom when ROM(ICU3) is incorrectly connected at socket. So if you find this symptom, you must try to that ROM(ICU3) and socket have correct contact.

- As this method, TV set is not repaired, replace MAIN PCB.

B. Symptom of No image when LED and Back Light are working.

- Define No image : LED and BACK LIGHT of panel are correctly working but any image does not display.

- Repairing method : This is typical symptom when LVDS cable incorrectly connects. So if you find this symptom, check LVDS connection.

- As this method, TV set is not repaired, replace Main or Sub PCB.

C. Representative Symptom caused by bad Connection between PCBs

=> Note: Dust or extraneous material may cause bad connections. Most of the time,

applying soft brush, AIR FRESHIER, or breath to clean dust or extraneous materials can solve it. And then reassemble the Connector.

-45-

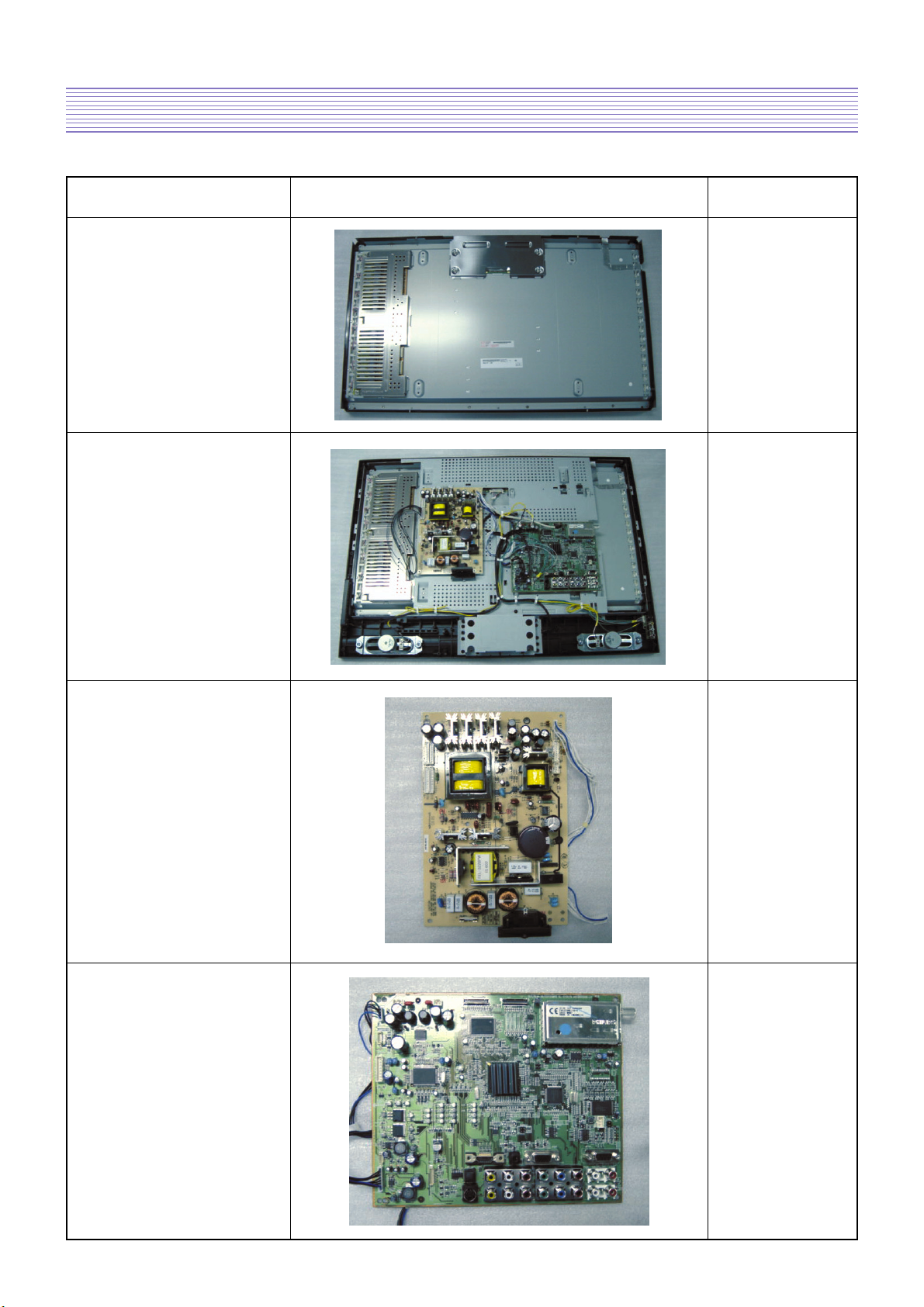

9. Structure of LCD Set

COMPONENT PICTURE REMARK

LCD PANET

ALL CONNECTOR

CONNECTION

POWER BOARD

MAIN BOARD

-46-

Structure of LCD Set

COMPONENT PICTURE REMARK

FRONT MASK

BACK COVER

STAND

10. EXPLODED VIEW

-47-

DLX-26C2

EXPLODED VIEW

-48-

DLX-26C3

EXPLODED VIEW

-49-

DLX-32C2

EXPLODED VIEW

-50-

DLX-32C3

EXPLODED VIEW

-51-

DLX-37C3

EXPLODED VIEW

-52-

DLX-42C1

-53-

11. Part List

ZZ100 48B5454D06 TRANSMITTER REMOCON R-54D06 (AAA) ZZ110 PTACPWG151 ACCESSORY AS DLP-26C3AMBS 60 4850Q01210 BATTERY LR03 AAA ALKALINE M212 4852176101 COVER BOTTOM ABS BK M681 4856819300 CLAMP WIRE NYLON 66 M821 4858213803 BAG INSTRUCTION L.D.P.E TO.05X250X400(+20) M861 48586210E1 MANUAL INSTRUCTION ENGLISH P801A 48599DM000 CORD POWER AS EU LP-33+LS-60L=2.0M(LF) ZZ120 PTBCSHG149 COVER BACK AS DLT-26C3AMBS M211 4852176901 COVER BACK HIPS BK M211A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR M211B 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR M322 4853829200 FRAME WALL KIT SECC T=2.0 M322A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR ZZ130 PTPKCPG146 PACKING AS DLX-26C3AMBS M681 4856812400 BAND PP AUTO T1.1XW17MMXL770M M801 4858071500 BOX CARTON DW-3 M811 485819CS00 PAD EPS M822 4858215701 BAG P.E PE FOAM t0.5x1050x950 ZZ140 PTCACAG151 CABINET AS DLP-26C3AMBS M191 4851957400 SHIELD CASE AS 7255700+5944600 M201C 4856815900 CLAMP WIRE EGI T0.4+TUBE+PIE 3.2 M201D 7173301052 SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR M321 4853296800 BRKT STAND SECC T1.6 M321A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR M322 4853296900 BRKT STAND BOX SECC T1.0 M322A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR M381C 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR M381G 7003401052 SCREW MACHINE BIN 4X10 MFZN BK 3CR M383 4853828900 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL) M383A 7003401052 SCREW MACHINE BIN 4X10 MFZN BK 3CR M383B 7172401652 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR M541 4855421200 SPEC PLATE P.E 149X59 M721A 7173301052 SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR M723 4857255900 SHIELD JACK AL 1100 T=1.0 (A-1 : SL-223P) M723A 7173301052 SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR M723B 7173301052 SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR MK625 4850K01700 CORE FERRITE BNF-1130 P520A 4859004160 CABLE LVDS 1001-31FC-N+FH10002-30+3212APSB=300 P803B 4850714N06 CONNECTOR 20022HS-14S+SMH200-14P+ULW=300 V901 485LD13265 LCD PANEL T260XW02 V5 ZZ200 PTFMSJG146 MASK FRONT AS DLX-26C3AMBS M201 4852093601 MASK FRONT HIPS BK M561 4855625500 MARK BRAND SILVER DIA-CUTTING

(DOUBLE FACED TAPE), L=80, P=30 M591 4855945100 DECO PLATE PC T2.0 ZZ210 PTSPPWG151 SPEAKER AS DLP-26C3AMBS P625 4850702N24 CONNECTOR SMH250-02+YRT205+YRT110+USW=1000 P626 4850703N42 CONNECTOR SMH250-03+YRT205+YRT110+USW=1000 SP01 4858318510 SPEAKER SP-45165F01C SP01A 4856017800 SCREW SPKR FIX SWRM+SECC 3CR SP02 4858318510 SPEAKER SP-45165F01C SP02A 4856017800 SCREW SPKR FIX SWRM+SECC 3CR ZZ250 PTSNSWG118 STAND AS DLD-32C1SMR M213 4852177301 COVER STAND BASE HIPS BK M383 4853831001 FRAME STAND ABS BK M383A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR M521 4855219100 PLATE BASE STAND SECC T2.0 M521A 7115401051 SCREW TAPPING FLT 4X10 MFZN 3CR M521C 4852937500 RUBBER BOTTOM CR60 BK PHI 18.0 X T 3.0 ZZ300 PTDGMSG117 PCB DIGITAL MANUAL AS DLP-26C2AMSB 100 2193110012 SOLDER WIRE SAC3000 3.0MM (LFA3C0-W3.0) 200 2193110024 SOLDER WIRE SAC3005 1.6MM (LFA3-107-W1.6) 300 2291050623 FLUX SOLDER LF SV-PBF-304P(0.823) 400 2291050312 FLUX SOLVENT S-3000 C216 CEXE1C471E C ELECTRO 16V RM 470MF (8X11.5) TP C255 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP C267 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP

LOC PART CODE PART NAME DESCRIPTION REMARK

C638 CEXF1H471V C ELECTRO 50V RSS 470MF (13X20) TP C681 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP C682 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP C683 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP C684 CEXF1E331V C ELECTRO 25V RSS 330MF (10X12.5)TP HS505 4857032501 HEAT SINK AL EX BK L=26 IC703 124LC32A-P IC EEPROM 24LC32A-I/P 32K 8 PIN DIP STICK JP201 4959200160 CONN D-SUB SHF-015-B111-22/BR2-J0.6 JP205 4959102340 JACK PHONE YKB21-5157 JP207 4859112950 JACK SCART DSSM-0378 STR JP208 4859112950 JACK SCART DSSM-0378 STR JP209 4859105340 JACK S-VHS DSW-10 (STRAIGHT) JP210 4859117450 JACK PIN DPSS-0173S JP211 4859117550 JACK PIN DPSE-0375S JP603 97P6316100 JACK HEAD PHONE DHSE-9959 JP604 4859201170 CONN OPTICAL SENSOR OJ107A-T050-SHS JP705 4859201460 CONN D-SUB 9P SHRA0209011 L606 58C0000166 COIL CHOKE CH-220N L610 58C0000166 COIL CHOKE CH-220N M321 4853294100 BRKT POWER SW SECC 1T M321A 7172401452 SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR M381 4853828700 FRAME MAIN PCB SECC T=1.0 M381D 7178301052 SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR M381E 7008300851 SCREW MACHINE WAS 3X8 MFZN 3CR M381F 4956800200 CLAMP WIRE WS-A-2-19 M381H 4853748800 RETA PCB NYLON 66 P540 4859295420 CONN WAFER 4602-04MV2-60-1 PLUG 4P ST P625A 4959240520 CONN WAFER SMW250-02 P626A 4859284420 CONN WAFER SMW250-03 P701 4859295420 CONN WAFER 4602-04MV2-60-1 PLUG 4P ST P702 4859295420 CONN WAFER 4602-04MV2-60-1 PLUG 4P ST P705 485923162S CONN WAFER YW025-03 (STICK) P802A 4850708S28 CONNECTOR YH025-08+YBNH250-08+ULW=550 P803A 4850704S62 CONNECTOR YH025-04+YBNH250-04+ULW=150 P804A 4859235120 CONN WAFER YW025-08 TU101 4859728530 TUNER VARACTOR FQ1216ME/IH-5 (HORI/DIN) X401 5XJ28R32GE CRYSTAL QUARTZ HC-49/S 28.322MHZ 30PPM 16PF X601 5XE18R432E CRYSTAL QUARTZ HC-49/U 18.43200MHZ 30PPM X701 5XE10R000E CRYSTAL QUARTZ HC-49/U 10.00000MHZ 30PPM ZZ200 PTDGJ2G117 PCB DIGITAL CHIP B AS DLP-26C2AMSB CC147 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC148 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 CC213 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC234 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC243 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC249 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 CC251 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 CC270 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC277 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CC283 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 CC285 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 CC288 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC406 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC407 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC409 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC412 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608 CC413 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC414 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC415 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC416 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC417 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC418 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC419 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC471 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC472 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC473 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC474 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC475 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

DLX-26C3

-54-

Part List

CC476 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC477 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC478 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC479 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC480 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC481 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC482 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC483 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC484 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC486 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC487 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC488 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC489 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC490 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC491 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC492 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC493 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC494 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC495 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC496 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC497 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC498 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC499 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC536 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC537 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC539 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC540 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC541 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC542 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC544 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC545 HCBK272KBA C CHIP CERA 50V X7R 2700PF K 1608 CC546 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC547 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC548 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC549 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC550 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC565 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC588 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC589 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC590 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC591 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC592 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC593 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC594 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC619 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 CC624 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608 CC626 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 CC639 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC661 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC664 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC666 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC667 HCFK154ZBA C CHIP CERA Y5V 50V 0.15MF Z 1608 CC668 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC669 HCFK154ZBA C CHIP CERA Y5V 50V 0.15MF Z 1608 CC685 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 CC687 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 DC213 DBAV99ML-B DIODE CHIP BAV99ML DC214 DBAV99ML-B DIODE CHIP BAV99ML DC215 DBAV99ML-B DIODE CHIP BAV99ML DC225 DBAV99ML-B DIODE CHIP BAV99ML DC228 DBAV99ML-B DIODE CHIP BAV99ML DC229 DBAV99ML-B DIODE CHIP BAV99ML DC230 DBAV99ML-B DIODE CHIP BAV99ML DC231 DBAV99ML-B DIODE CHIP BAV99ML DC232 DBAV99ML-B DIODE CHIP BAV99ML DC233 DBAV99ML-B DIODE CHIP BAV99ML DC234 DBAV99ML-B DIODE CHIP BAV99ML DC235 DBAV99ML-B DIODE CHIP BAV99ML

LOC PART CODE PART NAME DESCRIPTION REMARK

DC236 DBAV99ML-B DIODE CHIP BAV99ML DC238 DBAV99ML-B DIODE CHIP BAV99ML DC239 DBAV99ML-B DIODE CHIP BAV99ML DC240 DBAV99ML-B DIODE CHIP BAV99ML DC241 DBAV99ML-B DIODE CHIP BAV99ML DC280 DBAV99ML-B DIODE CHIP BAV99ML DC281 DBAV99ML-B DIODE CHIP BAV99ML DC283 DBAV99ML-B DIODE CHIP BAV99ML LC207 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC209 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC217 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC218 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC219 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC221 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC222 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC224 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC225 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 QC601 T2SC2412KB TR CHIP 2SC2412K-T146-BR RC211 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC217 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC218 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC219 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC220 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC221 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC222 HRFT274JBA R CHIP 1/10 270K OHM J 1608 RC223 HRFT104JBA R CHIP 1/10 100K OHM J 1608 RC237 HRFT274JBA R CHIP 1/10 270K OHM J 1608 RC238 HRFT104JBA R CHIP 1/10 100K OHM J 1608 RC248 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC251 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC252 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC254 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC255 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC256 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC288 HRFT473JBA R CHIP 1/10 47K OHM J 1608 RC290 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RC292 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RC295 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC299 HRFT202JBA R CHIP 1/10 2K OHM J 1608 RC427 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC434 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RC586 HRFT105JBA R CHIP 1/10 1M OHM J 1608 RC587 HRFT105JBA R CHIP 1/10 1M OHM J 1608 RC606 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608 RC608 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608 RC615 HRFT153JBA R CHIP 1/10 15K OHM J 1608 RC616 HRFT153JBA R CHIP 1/10 15K OHM J 1608 RC651 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC653 HRFT131JBA R CHIP 1/10 130 OHM J 1608 RC664 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC669 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RC670 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC671 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC685 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC687 HRFT000-BA R CHIP 1/10 0 OHM 1608 ZZ200 PTDGJ0G117 PCB DIGITAL RHU AS DLP-26C2AMSB ZZ200 PTDGJBG117 PCB DIGITAL M-10 AS DLP-26C2AMSB ZZ200 PTDGJRG117 PCB DIGITAL RADIAL AS DLP-26C2AMSB C101 CEXF1C331V C ELECTRO 16V RSS 330MF (8X11.5) TP C102 CEXF1C100V C ELECTRO 16V RSS 10MF 4X7 C103 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C104 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C266 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA C277 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA C508 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA C521 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA C522 CEXF1E470V C ELECTRO RSS 25V 47MF 5X11 P5.0 TA C551 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)

LOC PART CODE PART NAME DESCRIPTION REMARK

-55-

Part List

C552 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) C555 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) C563 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP C585 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C601 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C627 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C628 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C631 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7 C633 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C641 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C642 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) C701 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 C761 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7) C764 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 CM677 CMXL1J474J C MYLAR 63V MEU 0.47MF J CM678 CMXL1J474J C MYLAR 63V MEU 0.47MF J L101 5CPX829K-- COIL PEAKING 8.2UH K (RADIAL) L102 5CPX829K-- COIL PEAKING 8.2UH K (RADIAL) L604 5CPX829K-- COIL PEAKING 8.2UH K (RADIAL) L605 5CPX829K-- COIL PEAKING 8.2UH K (RADIAL) L607 5CPX829K-- COIL PEAKING 8.2UH K (RADIAL) L608 5CPX829K-- COIL PEAKING 8.2UH K (RADIAL) L611 58C0000116 COIL BEAD HC-3550R R601 RN01B102JS R METAL FILM 1W 1K OHM J SMALL R602 RN01B102JS R METAL FILM 1W 1K OHM J SMALL R603 RN01B102JS R METAL FILM 1W 1K OHM J SMALL R604 RN01B102JS R METAL FILM 1W 1K OHM J SMALL S701 5S50101Z90 SW TACT THVV502GDA ZZ200 PTDGJAG117 PCB DIGITAL AXIAL AS DLP-26C2AMSB ZZ200 PTDGJ1G117 PCB DIGITAL CHIP A AS DLP-26C2AMSB 110 2193220010 SOLDER CREAM(PB-FREE) LST309-M(SN+3.0AG/0.5CU) A001 4859813793 PCB DIGITAL 189X234 K4V CC128 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC129 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC215 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC216 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC226 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 CC228 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 CC250 HCQK100JBA C CHIP CERA 50V CH 10PF J 1608 CC267 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC268 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 CC269 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC278 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CC279 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CC280 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CC284 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 CC286 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 CC289 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC401 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC402 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC403 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC408 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC410 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608 CC411 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608 CC420 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC421 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC443 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC444 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC445 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC446 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC447 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC448 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC449 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC450 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC451 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC452 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC453 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC454 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

CC455 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC456 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC458 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC459 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC460 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC462 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC465 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608 CC466 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608 CC468 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC485 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC551 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC552 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC556 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC557 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC558 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC561 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC563 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC564 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC566 HCBK272KBA C CHIP CERA 50V X7R 2700PF K 1608 CC567 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC569 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC570 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC577 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC578 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC584 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC601 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608 CC602 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 CC603 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC604 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608 CC605 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608 CC606 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608 CC607 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608 CC608 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC609 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC610 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 CC611 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 CC612 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 CC613 HCFF334ZBA C CHIP CERA 16V Y5V 0.33MF Z 1608 CC614 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 CC615 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 CC616 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC617 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC620 HCQK509CBA C CHIP CERA 50V CH 5PF C 1608 CC621 HCQK509CBA C CHIP CERA 50V CH 5PF C 1608 CC622 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608 CC623 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608 CC625 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 CC640 HCBK562KBA C CHIP CERA X7R 50V 5600PF K 1608 CC641 HCBK562KBA C CHIP CERA X7R 50V 5600PF K 1608 CC645 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 CC646 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 CC650 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 CC651 HCBH224KBA C CHIP CERA 25V X7R 0.22MF K 1608 CC654 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 CC655 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 CC662 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC665 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC671 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC672 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC673 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC675 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 CC676 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC677 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC678 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 CC679 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC680 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC681 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC682 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

-56-

Part List

CC686 HCFF474ZBA C CHIP CERA Y5V 16V 0.47MF Z 1608 CC701 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608 CC702 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608 CC703 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 CC704 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC707 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC747 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC755 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC756 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC757 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC758 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC759 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC760 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC765 HCBH104KBA C CHIP CERA 25V X7R 0.1MF K 1608 CC767 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC768 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CC775 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC776 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CC777 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 CC778 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CE275 HCEJF221MC C CHIP ELECTRO 16V 220MF CS 8010 CE401 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE402 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE435 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE539 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE540 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE541 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE542 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE544 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE546 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE547 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE548 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE549 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE550 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE556 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 CE557 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 CE558 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 CE559 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 CE560 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 CE561 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 CE562 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 CE564 HCELF220MD C CHIP ELECTRO 16V 22MF CM 4052 CE565 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE584 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE586 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE587 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE590 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE591 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE592 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE593 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE594 HCEJF100MC C CHIP ELECTRO 16V 10MF MV 4052 CE618 HCEEF101MC C CHIP ELECTRO MV 16V 100MF 6.3DX5.7H CE619 HCEEF101MC C CHIP ELECTRO MV 16V 100MF 6.3DX5.7H CE755 HCELH100MC C CHIP ELECTRO 25V 10MF CM 4052 DA501 D0514M---- DIODE ARRAY RCLAMP0514M DA502 D0514M---- DIODE ARRAY RCLAMP0514M DC221 DBAV99ML-B DIODE CHIP BAV99ML DC222 DBAV99ML-B DIODE CHIP BAV99ML DC223 DBAV99ML-B DIODE CHIP BAV99ML DC224 DBAV99ML-B DIODE CHIP BAV99ML DC226 DBAV99ML-B DIODE CHIP BAV99ML DC227 DBAV99ML-B DIODE CHIP BAV99ML DC277 DBAV99ML-B DIODE CHIP BAV99ML DC278 DBAV99ML-B DIODE CHIP BAV99ML DC279 DBAV99ML-B DIODE CHIP BAV99ML DC282 DBAV99ML-B DIODE CHIP BAV99ML DC291 DBAV99ML-B DIODE CHIP BAV99ML DC292 DBAV99ML-B DIODE CHIP BAV99ML

LOC PART CODE PART NAME DESCRIPTION REMARK

DC293 DBAV99ML-B DIODE CHIP BAV99ML DC401 DMMBD1204B DIODE CHIP MMBD1204 DC704 DMMBD1204B DIODE CHIP MMBD1204 DC705 DMMBD1203B DIODE CHIP MMBD1203 DC708 TBSS138--A TR CHIP BSS138 DC709 TBSS138--A TR CHIP BSS138 DZ204 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING) DZ255 DSFPA73--- DIODE SCHOTTKY SFPA-73 DZ256 DSFPA73--- DIODE SCHOTTKY SFPA-73 DZ403 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING) DZ703 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING) DZ704 DUMZ8R2T-B DIODE CHIP ZENER UMZ-8.2T (TAPING) IC201 1K1A78L08C IC CHIP REGULATOR KIA78L08F IC202 1CD74HC53D IC CHIP LOGIC CD74HC4053M SOIC 16 REEL IC402 124LC22A-C IC CHIP EEPROM 24LC22AT-ISN SOIC8 REEL IC501 1M74HC14RD IC CHIP HEX SCHMITT INVERTER M74HC14RM13TR IC505 1SVPPX66-Q IC CHIP VIDEO PROCESSOR SVP-PX66(7266-LF) IC507 1085D2M25C IC CHIP REGULATOR LD1085D2M25 IC508 1P1084K33D IC CHIP REGULATOR AP1084 33 TO-263-3L IC511 TFDS4953-C FET CHIP FDS4953 SO-8 -30V -5A REEL IC512 1MP1583--D IC CHIP CONVERTER MP1583DN IC513 1MP1583--D IC CHIP CONVERTER MP1583DN IC601 1MSP4610KQ IC CHIP SOUND MSP4610K IC602 1STA515W-D IC CHIP AUDIO AMP STA515W IC603 1TDA1308TC IC CHIP HEDPHONE DRIVER TDA1308T IC605 1K1A7027TB IC CHIP RESET KIA7027AT 2.7V TSM TYPE IC701 10620SPGPQ IC CHIP MICRO PROCESSOR M30620SPGP IC702 1ST232CD-Q IC CHIP DRIVE ST232CD IC704 1S29AL008Q IC CHIP FLASH ROM S29AL008D90TF1010 8M 48PIN TSOP TRAY IC707 1K1A7027TB IC CHIP RESET KIA7027AT 2.7V TSM TYPE IC711 1AP117E33C IC CHIP REGULATOR AP1117E33A 3.3V SOT-223 IC766 1K1A7027TB IC CHIP RESET KIA7027AT 2.7V TSM TYPE IC901 1D263238FQ IC CHIP DDR SDRAM K4D263238F-UC50 JP506 4859201360 CONN HDMI 51V019S-36WT-A1R LC201 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC202 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC205 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC210 HLC151K01E L CHIP COIL 150UH K 120120 LC211 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC212 HLC151K01E L CHIP COIL 150UH K 120120 LC213 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC223 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC226 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC522 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC523 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC530 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC541 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC542 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC543 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC544 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC546 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC555 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC556 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC560 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC561 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC562 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC563 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC564 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC565 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC566 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC567 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC568 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC569 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC570 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC577 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC578 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC591 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC592 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

-57-

Part List

LC593 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC594 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC595 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC711 HFFH1M501B F CHIP FERRITE BEAD HH-1M3216-501J LC754 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LC931 HFF300B01A F CHIP FERRITE BEAD 30 OHM UPB 1608 LCA5 HFEACM201A F CHIP EMI 90 OHM ACM 2012 LCA6 HFEACM201A F CHIP EMI 90 OHM ACM 2012 LCA7 HFEACM201A F CHIP EMI 90 OHM ACM 2012 LCA8 HFEACM201A F CHIP EMI 90 OHM ACM 2012 P520 4859293820 CONN WAFER GT121-31P-TD-A 31P ST PA911 4859295120 CONN WAFER 12505WS-05A00 PA912 4859295220 CONN WAFER 12505WS-06A00 QC101 T2SC2412KB TR CHIP 2SC2412K-T146-BR QC254 T2SC2412KB TR CHIP 2SC2412K-T146-BR QC302 TUPA672T-B TR CHIP UPA672T QC402 TBSS138--A TR CHIP BSS138 QC403 TBSS138--A TR CHIP BSS138 QC451 T2SC2412KB TR CHIP 2SC2412K-T146-BR QC503 T2SC2412KB TR CHIP 2SC2412K-T146-BR QC602 T2SC2412KB TR CHIP 2SC2412K-T146-BR QC605 T2SC2412KB TR CHIP 2SC2412K-T146-BR QC755 TUPA672T-B TR CHIP UPA672T QC901 T2SC2412KB TR CHIP 2SC2412K-T146-BR QC902 T2SC2412KB TR CHIP 2SC2412K-T146-BR RA401 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA402 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA403 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA404 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA405 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA406 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA407 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA408 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA417 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA418 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA419 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA420 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA701 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA702 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA703 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA704 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA705 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA706 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA707 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA708 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA709 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA710 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA711 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA712 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA713 HRTS8E100J R CHIP ARRAY 1/16 8P 10 OHM 3216 RA730 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA731 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RA732 HRTS8E470J R CHIP ARRAY 1/16 8P 47 OHM J 3216 RC101 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC102 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC103 HRFT123JBA R CHIP 1/10 12K OHM J 1608 RC104 HRFT123JBA R CHIP 1/10 12K OHM J 1608 RC105 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC119 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC121 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC122 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC201 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC202 HRFT224JBA R CHIP 1/10 220K OHM J 1608 RC203 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC204 HRFT224JBA R CHIP 1/10 220K OHM J 1608 RC205 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC208 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC212 HRFT243JBA R CHIP 1/10 24K OHM J 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

RC213 HRFT123JBA R CHIP 1/10 12K OHM J 1608 RC216 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC224 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC225 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC226 HRFT224JBA R CHIP 1/10 220K OHM J 1608 RC227 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC228 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC229 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC230 HRFT224JBA R CHIP 1/10 220K OHM J 1608 RC231 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC239 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC240 HRFT224JBA R CHIP 1/10 220K OHM J 1608 RC241 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC242 HRFT224JBA R CHIP 1/10 220K OHM J 1608 RC267 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC268 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC269 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608 RC275 HRFT223JBA R CHIP 1/10 22K OHM J 1608 RC276 HRFT223JBA R CHIP 1/10 22K OHM J 1608 RC279 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC285 HRFT473JBA R CHIP 1/10 47K OHM J 1608 RC286 HRFT473JBA R CHIP 1/10 47K OHM J 1608 RC287 HRFT473JBA R CHIP 1/10 47K OHM J 1608 RC289 HRFT333JBA R CHIP 1/10 33K OHM J 1608 RC294 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RC296 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC297 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC298 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC331 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC332 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC333 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC334 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC335 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC336 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC338 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC339 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC340 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC362 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608 RC363 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC364 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC365 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC366 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC398 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC399 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC402 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RC403 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC404 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC406 HRFT302JBA R CHIP 1/10 3K OHM J 1608 RC407 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC408 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC409 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC410 HRFT510JBA R CHIP 1/10 51 OHM J 1608 RC411 HRFT510JBA R CHIP 1/10 51 OHM J 1608 RC413 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC414 HRFT510JBA R CHIP 1/10 51 OHM J 1608 RC415 HRFT181JBA R CHIP 1/10 180 OHM J 1608 RC420 HRFT181JBA R CHIP 1/10 180 OHM J 1608 RC421 HRFT201JBA R CHIP 1/10 200 OHM J 1608 RC423 HRFT102FBA R CHIP 1/10 1K OHM F 1608 RC424 HRFT102FBA R CHIP 1/10 1K OHM F 1608 RC425 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC426 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC429 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC430 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC431 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC433 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RC444 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC445 HRFT470JBA R CHIP 1/10 47 OHM J 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

-58-

Part List

RC446 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC447 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC448 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC449 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC450 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC451 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC452 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC453 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC454 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC455 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC456 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC457 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC458 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC459 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC460 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC462 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC463 HRFT105JBA R CHIP 1/10 1M OHM J 1608 RC464 HRFT330JBA R CHIP 1/10 33 OHM J 1608 RC465 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC466 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC467 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC468 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC469 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC470 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC471 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC472 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC473 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC474 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC475 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC476 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC477 HRFT330JBA R CHIP 1/10 33 OHM J 1608 RC478 HRFT330JBA R CHIP 1/10 33 OHM J 1608 RC479 HRFT330JBA R CHIP 1/10 33 OHM J 1608 RC480 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC481 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC482 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC484 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC487 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC491 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC492 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC493 HRFT203JBA R CHIP 1/10 20K OHM J 1608 RC494 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC495 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC496 HRFT474JBA R CHIP 1/10 470K OHM J 1608 RC497 HRFT474JBA R CHIP 1/10 470K OHM J 1608 RC498 HRFT201JBA R CHIP 1/10 200 OHM J 1608 RC499 HRFT201JBA R CHIP 1/10 200 OHM J 1608 RC501 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC502 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC503 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC504 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC505 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC506 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC507 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC508 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC509 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC510 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC511 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC514 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC519 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608 RC520 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC521 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC548 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC549 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC550 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC551 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC552 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC553 HRFT000-BA R CHIP 1/10 0 OHM 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

RC554 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC555 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC558 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC559 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC573 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC574 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC575 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 RC576 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC577 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC578 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC579 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 RC580 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC581 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC582 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC584 HRFT105JBA R CHIP 1/10 1M OHM J 1608 RC588 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC589 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC590 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC591 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC592 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC598 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC599 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RC601 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC602 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC603 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC604 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC605 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608 RC607 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608 RC611 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608 RC612 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608 RC613 HRFT103FBA R CHIP 1/10 10K OHM F 1608 RC614 HRFT103FBA R CHIP 1/10 10K OHM F 1608 RC620 HRFT519JBA R CHIP 1/10 5.1 OHM J 1608 RC621 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC622 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC623 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC628 HRFT202JBA R CHIP 1/10 2K OHM J 1608 RC632 HRFT220JBA R CHIP 1/10 22 OHM J 1608 RC634 HRFT103FBA R CHIP 1/10 10K OHM F 1608 RC635 HRFT103FBA R CHIP 1/10 10K OHM F 1608 RC636 HRFT220JBA R CHIP 1/10 22 OHM J 1608 RC637 HRFT519JBA R CHIP 1/10 5.1 OHM J 1608 RC655 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC666 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC667 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC668 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC675 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC679 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC680 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC697 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC698 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC700 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC701 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC702 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC703 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC704 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC705 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC706 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC707 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC709 HRFT331JBA R CHIP 1/10 330 OHM J 1608 RC710 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC711 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC712 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC713 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC714 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC715 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC716 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC717 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

Part List

-59-

RC718 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC719 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC720 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC721 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC722 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC723 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC724 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC725 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC726 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC727 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC728 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC729 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC730 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC731 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RC732 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC733 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC734 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC735 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 RC736 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC737 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC738 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC739 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC740 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC741 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC743 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC744 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC745 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC746 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 RC747 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 RC748 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 RC749 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 RC750 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC751 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC752 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC753 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC754 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC755 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC756 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC757 HRFT202JBA R CHIP 1/10 2K OHM J 1608 RC758 HRFT220JBA R CHIP 1/10 22 OHM J 1608 RC759 HRFT220JBA R CHIP 1/10 22 OHM J 1608 RC760 HRFT330JBA R CHIP 1/10 33 OHM J 1608 RC761 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC762 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC764 HRFT100JBA R CHIP 1/10 10 OHM J 1608 RC765 HRFT220JBA R CHIP 1/10 22 OHM J 1608 RC766 HRFT220JBA R CHIP 1/10 22 OHM J 1608 RC767 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC768 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC769 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC770 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC771 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC772 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC773 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC774 HRFT330JBA R CHIP 1/10 33 OHM J 1608 RC775 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC776 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC777 HRFT220JBA R CHIP 1/10 22 OHM J 1608 RC778 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC779 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC780 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC781 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC782 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC783 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC784 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC786 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC787 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC788 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

RC789 HRFT000JBA R CHIP 1/10 0 OHM J 1608 RC790 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608 RC791 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 RC792 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC793 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC795 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC796 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC797 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC798 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC931 HRFT511JBA R CHIP 1/10 510 OHM J 1608 RC932 HRFT511JBA R CHIP 1/10 510 OHM J 1608 RC933 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC934 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC935 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 ZA201 HFEACF470B F CHIP EMI ACF321825 47P ZA203 HFEACF470B F CHIP EMI ACF321825 47P ZA204 HFEACF470B F CHIP EMI ACF321825 47P ZA205 HFEACF470B F CHIP EMI ACF321825 47P ZA206 HFEACF470B F CHIP EMI ACF321825 47P ZA207 HFEACF470B F CHIP EMI ACF321825 47P ZA208 HFEACF470B F CHIP EMI ACF321825 47P ZA224 HFEACF470B F CHIP EMI ACF321825 47P ZA225 HFEACF470B F CHIP EMI ACF321825 47P ZA226 HFEACF470B F CHIP EMI ACF321825 47P ZA227 HFEACF470B F CHIP EMI ACF321825 47P ZA501 HFEACF470B F CHIP EMI ACF321825 47P ZA601 HFEACF470B F CHIP EMI ACF321825 47P ZA602 HFEACF470B F CHIP EMI ACF321825 47P ZZ310 PTPWMSG116 PCB POWER MANUAL AS DLP-32C2AMSB 100 2193110012 SOLDER WIRE SAC3000 3.0MM (LFA3C0-W3.0) 200 2193110024 SOLDER WIRE SAC3005 1.6MM (LFA3-107-W1.6) 300 2291050623 FLUX SOLDER LF SV-PBF-304P(0.823) 400 2291050312 FLUX SOLVENT S-3000 C801 CL1UC3474M C LINE ACROSS 0.47MF 1J(UCVSNDF/SV)+Q/O C802 CL1UC3224M C LINE ACROSS 0.22MF 1J(UCVSNDF/SV)+Q/O C804 CH1BFB471K C CERA AC AC400V 470PF K SD C805 CH1BFB471K C CERA AC AC400V 470PF K SD C810 CL1UC3105M C LINE ACROSS AC275V 1MF PCX2 337M C811 CEYP2W181D C ELECTRO 450V FUX 180MF (35X30) C825 CMYF2J104J C MYLAR 630V MPP 0.1MF J C890 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V C891 CH1BFE472M C CERA AC AC400V 4700PF M U/C/V C899 CH1BFB471K C CERA AC AC400V 470PF K SD CS812 CCXR3D221K C CERA 2KV R 220PF K 125C D801 PTA3SW2900 HEAT SINK ASS`Y DGBJ606--- + 7218301212 00001 DGBJ606--- DIODE BRIDGE GBJ606 0000A 4857032900 HEAT SINK AL EX 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR D803 DSF8L60USM DIODE SF8L60USM D815 PTC2SW4508 HEAT SINK ASS`Y DFME210B-- + 7128301252 00001 DFME210B-- DIODE FME-210B 0000A 4857024508 HEAT SINK AL EX BK 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR D816 DFML12S--- DIODE FML-12S D840 PTB2SW4508 HEAT SINK ASS`Y DFMX22SL-- + 7128301252 00001 DFMX22SL-- DIODE FMX-22SL 0000A 4857024508 HEAT SINK AL EX BK 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR D841 PTB2SW4508 HEAT SINK ASS`Y DFMX22SL-- + 7128301252 00001 DFMX22SL-- DIODE FMX-22SL 0000A 4857024508 HEAT SINK AL EX BK 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR D842 PTB2SW4508 HEAT SINK ASS`Y DFMX22SL-- + 7128301252 00001 DFMX22SL-- DIODE FMX-22SL 0000A 4857024508 HEAT SINK AL EX BK 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR DS801 DD2SB80--- DIODE BRIDGE D2SB80 F801 5FKGB5022R FUSE GLASS TUBE KS MF51 5A 250V NR

LOC PART CODE PART NAME DESCRIPTION REMARK

Part List

-60-

I801 1FA5501AP- IC FA5501AP I802 PTA3SW3100 HEAT SINK ASS`Y 1STRT2268- + 7128301252 00001 1STRT2268- IC POWER STR-T2268 0000A 4857033100 HEAT SINK AL EX BK 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR I803 1LTV817C-- IC PHOTO COUPLER LTV-817C I804 1LTV817C-- IC PHOTO COUPLER LTV-817C I806 PTA2SW4519 HEAT SINK ASS`Y 1LA5752--- + 7128301252 00001 1LA5752--- IC SW REG LA5752 0000A 4857024519 HEAT SINK AL EX (NO ANODIZING) 0000B 7174300851 SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR IS801 1STRA6151- IC STAND-BY STR-A6151 IS802 1K1A431B-- IC REGULATOR(SHUNT) KIA431B 2.495V 0.5% TO-92 L801 5PTR19A1-- FILTER LINE TR19-A1 L802 5PTR19A1-- FILTER LINE TR19-A1 L803 5PTR19A2-- FILTER LINE TR19-A2 L842 58C0000131 COIL CHOKE CH-101A M001 2224050077 BOND SILICON SE-9590 RTV(V0) MP804 4850K01700 CORE FERRITE BNF-1130 P803 4859298620 CONN WAFER SMW200-14P P804 4850708S20 CONNECTOR YH025-08+YBNH250-08+ULW=400 PA801 PTSKSWG084 SOCKET ASS'Y DLD-3210SMS P801 4859301020 SOCKET AC 0714-CP7N Q801 PTE2SW4508 HEAT SINK ASS`Y TW20NM60-- + 7174301251 00001 TW20NM60-- FET STW20NM60 0000A 4857024508 HEAT SINK AL EX BK 0000B 4857619500 INSU PLATE SILICON RUBBER T0.3 0000C 7174301251 SCREW TAPPTITE TT2 RND 3X12 MFZN 3CR R836 RM02Y228J- R METAL FLAT 2W 0.22 OHM J T802 58C0000156 COIL CHOKE PFC CPC-321A T803 50M2577A1- TRANS SMPS TSM-2577A1 TH800 DSCK15056- THERMISTOR SCK15056MS TS801 50MST25A1- TRANS SMPS ST-25A1 YS801 5SC0101339 SW RELAY SDT-S-105LMR Z801 DSVC471D14 VARISTOR SVC471D14A (BULK) ZZ200 PTPWJ2G116 PCB POWER CHIP B AS DLP-32C2AMSB CC813 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 CC817 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608 CC835 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CC837 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 CC856 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 DC814 DM2FM3---C DIODE CHIP SCHOTTKY M2FM3 M2F TYPE RC807 HRFT202FBA R CHIP 1/10 2K OHM F 1608 RC808 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC809 HRFT222FBA R CHIP 1/10 2.2K OHM F 1608 RC810 HRFT681JBA R CHIP 1/10 680 OHM J 1608 RC814 HRFT681JBA R CHIP 1/10 680 OHM J 1608 RC817 HRFT223JBA R CHIP 1/10 22K OHM J 1608 RC819 HRFT103FBA R CHIP 1/10 10K OHM F 1608 RC826 HRFT223JBA R CHIP 1/10 22K OHM J 1608 RC830 HRFT123JBA R CHIP 1/10 12K OHM J 1608 RC832 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608 RC835 HRFT391JBA R CHIP 1/10 390 OHM J 1608 RC840 HRFT113JBA R CHIP 1/10 11K OHM J 1608 RC841 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608 RC844 HRFT202FBA R CHIP 1/10 2K OHM F 1608 RC845 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC846 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608 RC847 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC850 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC851 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC854 HRFT183JBA R CHIP 1/10 18K OHM J 1608 RC855 HRFT183JBA R CHIP 1/10 18K OHM J 1608 RC856 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 ZZ200 PTPWJ0G116

PCB POWER ODD SHAPE (RHU) AS DLP-32C2AMSB

C808 CH1BEE222M C CERA AC U/C/V 2.5KV 2200PF TP C809 CH1BEE222M C CERA AC U/C/V 2.5KV 2200PF TP C823 CCXR3D221K C CERA 2KV R 220PF K 125C

LOC PART CODE PART NAME DESCRIPTION REMARK

C826 CMXM2A224J C MYLAR 100V 0.22MF J C827 CEXF1H101C C ELECTRO 50V RUS 100MF (8X11.5) TP C833 CMXM2A224J C MYLAR 100V 0.22MF J C840 CCXB3D471K C CERA 2KV B 470PF K (TAPPING) C842 CEXF1V102C C ELECTRO 35V RUS 1000MF (13X25) TP C843 CEXF1V102C C ELECTRO 35V RUS 1000MF (13X25) TP C845 CEXF1C471C C ELECTRO 16V RUS 470MF (10X12.5)TP C848 CEXF1C222C C ELECTRO 16V RUS 2200MF (13X25) TP C849 CCXB3D471K C CERA 2KV B 470PF K (TAPPING) C850 CEXF1H102V C ELECTRO 50V RSS 1000MF (16X25) TP C851 CEXF1H102V C ELECTRO 50V RSS 1000MF (16X25) TP C853 CEXF1C222C C ELECTRO 16V RUS 2200MF (13X25) TP CS801 CEXF2G220V C ELECTRO 400V RSS 22MF (16X25) TP CS804 CH1BEE222M C CERA AC U/C/V 2.5KV 2200PF TP CS805 CH1BEE222M C CERA AC U/C/V 2.5KV 2200PF TP CS807 CBXB3D102K C CERA SEMI 2KV BL(N) 1000PF K (T) CS814 CCXB3D221K C CERA 2KV B 220PF K (TAPPING) ZZ200 PTPWJBG116 PCB POWER M-10 AS DLP-32C2AMSB 500 2TM18006BE TAPE MASKING 6.2X500 E1 4856310300 EYE LET BSR T0.2 (R1.6) E10 4856310300 EYE LET BSR T0.2 (R1.6) E11 4856310300 EYE LET BSR T0.2 (R1.6) E12 4856310300 EYE LET BSR T0.2 (R1.6) E13 4856310300 EYE LET BSR T0.2 (R1.6) E14 4856310300 EYE LET BSR T0.2 (R1.6) E15 4856310300 EYE LET BSR T0.2 (R1.6) E16 4856310300 EYE LET BSR T0.2 (R1.6) E17 4856310300 EYE LET BSR T0.2 (R1.6) E19 4856310600 EYE LET BSR T0.2 (R2.3) E2 4856310300 EYE LET BSR T0.2 (R1.6) E20 4856310600 EYE LET BSR T0.2 (R2.3) E21 4856310300 EYE LET BSR T0.2 (R1.6) E22 4856310300 EYE LET BSR T0.2 (R1.6) E23 4856310300 EYE LET BSR T0.2 (R1.6) E24 4856310300 EYE LET BSR T0.2 (R1.6) E25 4856310300 EYE LET BSR T0.2 (R1.6) E26 4856310600 EYE LET BSR T0.2 (R2.3) E27 4856310300 EYE LET BSR T0.2 (R1.6) E28 4856310300 EYE LET BSR T0.2 (R1.6) E29 4856310300 EYE LET BSR T0.2 (R1.6) E30 4856310300 EYE LET BSR T0.2 (R1.6) E31 4856310600 EYE LET BSR T0.2 (R2.3) E32 4856310300 EYE LET BSR T0.2 (R1.6) E4 4856310300 EYE LET BSR T0.2 (R1.6) E40 4856310300 EYE LET BSR T0.2 (R1.6) E41 4856310300 EYE LET BSR T0.2 (R1.6) E42 4856310300 EYE LET BSR T0.2 (R1.6) E43 4856310300 EYE LET BSR T0.2 (R1.6) E44 4856310300 EYE LET BSR T0.2 (R1.6) E45 4856310300 EYE LET BSR T0.2 (R1.6) E46 4856310300 EYE LET BSR T0.2 (R1.6) E47 4856310300 EYE LET BSR T0.2 (R1.6) E48 4856310300 EYE LET BSR T0.2 (R1.6) E49 4856310300 EYE LET BSR T0.2 (R1.6) E5 4856310300 EYE LET BSR T0.2 (R1.6) E50 4856310300 EYE LET BSR T0.2 (R1.6) E51 4856310300 EYE LET BSR T0.2 (R1.6) E6 4856310300 EYE LET BSR T0.2 (R1.6) E7 4856310300 EYE LET BSR T0.2 (R1.6) E8 4856310300 EYE LET BSR T0.2 (R1.6) E9 4856310300 EYE LET BSR T0.2 (R1.6) P802 485923512S CONN WAFER YW025-08 (STICK) P805 485923172S CONN WAFER YW025-04 (STICK) R822 RS02Z228J- R M-OXIDE FILM 2W 0.22 OHM J (TAPPING) R833 RS01Z220J- R M-OXIDE FILM 1W 22 OHM J (TAPPING) R840 RS02Z151J- R M-OXIDE FILM 2W 150 OHM J (TAPPING) R849 RS02Z151J- R M-OXIDE FILM 2W 150 OHM J (TAPPING) RS801 RS02Z101JS R M-OXIDE FILM 2W 100 OHM J SMALL

LOC PART CODE PART NAME DESCRIPTION REMARK

Part List

-61-

RS803 RS01Z823J- R M-OXIDE FILM 1W 82K OHM J (TAPPING) ZZ200 PTPWJRG116 PCB POWER RADIAL AS DLP-32C2AMSB C812 CCXR3A101K C CERA 1KV R 100PF K C815 CMXM2A223J C MYLAR 100V 0.022MF J TP C816 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C817 CMXL1J105J C MYLAR 63V MEU 1MF J C818 CMXM2A102J C MYLAR 100V 1000PF J (TP) C819 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP C820 CXSL2H100D C CERA 500V SL 10PF D (TAPPING) C821 CXSL2H100D C CERA 500V SL 10PF D (TAPPING) C829 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP C831 CMXL1J105J C MYLAR 63V MEU 1MF J C836 CEXF1H470C C ELECTRO 50V RUS 47MF (6.3X11) TP C838 CMXM2A683J C MYLAR 100V 0.068MF J (TP) C846 CMXM2A104J C MYLAR 100V 0.1MF J (TP) C855 CMXL1J474J C MYLAR 63V MEU 0.47MF J CS808 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP CS809 CMXM2A104J C MYLAR 100V 0.1MF J (TP) CS810 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP CS815 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP F801A 4857415001 CLIP FUSE PFC5000-0702 F801B 4857415001 CLIP FUSE PFC5000-0702 I805 1K1A431B-- IC REGULATOR(SHUNT) KIA431B 2.495V 0.5% TO-92 L841 58C0000096 COIL CHOKE 610G0233(470K) Q804 TKTC3203Y- TR KTC3203-Y Q805 TKTC3203Y- TR KTC3203-Y ZZ200 PTPWJAG116 PCB POWER AXIAL AS DLP-32C2AMSB 510 2TM14006LB TAPE MASKING 3M #232 6.0X2000M 520 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M A001 4859816111 PCB POWER 246X246 D1L D805 DD1NS47060 DIODE D1NS4-7060 D806 DZEG01C--- DIODE EG01C D807 DUF4007--- DIODE UF4007 DO-41 1000V 1A D809 DUF4007--- DIODE UF4007 DO-41 1000V 1A D810 DUF4007--- DIODE UF4007 DO-41 1000V 1A D812 DUZ24BM--- DIODE ZENER UZ-24BM D813 DZEG01C--- DIODE EG01C D845 D1N4937G-- DIODE 1N4937G (TAPPING) D850 D1N4148--- DIODE 1N4148 (TAPPING) DS806 DRU1P----- DIODE RU1P DS807 DRGP15JP-- DIODE RGP-15JP DS808 DUZ6R2BM-- DIODE ZENER UZ-6.2BM DS810 DRGP15JP-- DIODE RGP-15JP J800 85801060GY WIRE COPPER 1/0.6 TIN COATING J801 85801060GY WIRE COPPER 1/0.6 TIN COATING J802 85801060GY WIRE COPPER 1/0.6 TIN COATING J804 85801060GY WIRE COPPER 1/0.6 TIN COATING J805 85801060GY WIRE COPPER 1/0.6 TIN COATING J806 85801060GY WIRE COPPER 1/0.6 TIN COATING J807 85801060GY WIRE COPPER 1/0.6 TIN COATING J809 85801060GY WIRE COPPER 1/0.6 TIN COATING J810 85801060GY WIRE COPPER 1/0.6 TIN COATING J811 85801060GY WIRE COPPER 1/0.6 TIN COATING J812 85801060GY WIRE COPPER 1/0.6 TIN COATING J813 85801060GY WIRE COPPER 1/0.6 TIN COATING J814 85801060GY WIRE COPPER 1/0.6 TIN COATING J815 85801060GY WIRE COPPER 1/0.6 TIN COATING J816 85801060GY WIRE COPPER 1/0.6 TIN COATING J858 85801060GY WIRE COPPER 1/0.6 TIN COATING L804 5MC0000100 COIL BEAD HC-3550 L805 5MC0000100 COIL BEAD HC-3550 L806 5MC0000100 COIL BEAD HC-3550 R804 RD-2Z474J- R CARBON FILM 1/2 470K OHM J R811 RN-4Z4703F R METAL FILM 1/4 470K OHM F R812 RN-4Z4703F R METAL FILM 1/4 470K OHM F R813 RN-4Z3003F R METAL FILM 1/4 300K OHM F R814 RN-4Z8203F R METAL FILM 1/4 820K OHM F R815 RN-4Z8203F R METAL FILM 1/4 820K OHM F

LOC PART CODE PART NAME DESCRIPTION REMARK

R816 RN-4Z8203F R METAL FILM 1/4 820K OHM F R817 RN-4Z7500F R METAL FILM 1/4 750 OHM F R818 RN-4Z1602F R METAL FILM 1/4 16.0K OHM F R824 RD-4Z101J- R CARBON FILM 1/4 100 OHM J R825 RD-4Z100J- R CARBON FILM 1/4 10 OHM J R827 RD-4Z101J- R CARBON FILM 1/4 100 OHM J R828 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J R829 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J R831 RD-4Z105J- R CARBON FILM 1/4 1M OHM J R837 RD-4Z331J- R CARBON FILM 1/4 330 OHM J R838 RD-4Z333J- R CARBON FILM 1/4 33K OHM J R848 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R853 RD-4Z223J- R CARBON FILM 1/4 22K OHM J R855 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R885 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K RS805 RD-4Z100J- R CARBON FILM 1/4 10 OHM J RS806 RD-2Z129J- R CARBON FILM 1/2 1.2 OHM J ZZ330 PTUNSWG151 PCB UNION AS DLP-26C3AMBS 100 2193110012 SOLDER WIRE SAC3000 3.0MM (LFA3C0-W3.0) 200 2193110024 SOLDER WIRE SAC3005 1.6MM (LFA3-107-W1.6) 300 2291050623 FLUX SOLDER LF SV-PBF-304P(0.823) 400 2291050312 FLUX SOLVENT S-3000 IC290 1TS0P34838 IC PREAMP TSOP34838SJ LED1 DSPR39MVW- LED SPR-39MVW (DUAL) M232 4852333201 PANEL CTRL HIPS BK M491 4854964311 BUTTON CH ABS GY M491A 7178301051 SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR P911C 4850705N40 CONNECTOR 12505HS-05+12505HS-05+ULW+CORE=600 P912C 4850706N26 CONNECTOR 12505HS-06+12505HS-06+ULW+CORE=550 ZZ200 PTUNJRG151 PCB UNION RADIAL AS DLP-26C3AMBS SW201 5S50101Z90 SW TACT THVV502GDA SW202 5S50101Z90 SW TACT THVV502GDA SW203 5S50101Z90 SW TACT THVV502GDA SW204 5S50101Z90 SW TACT THVV502GDA SW205 5S50101Z90 SW TACT THVV502GDA SW206 5S50101Z90 SW TACT THVV502GDA SW207 5S50101Z90 SW TACT THVV502GDA ZZ200 PTUNJ1G151 PCB UNION CHIP A AS DLP-26C3AMBS 110 2193220010 SOLDER CREAM(PB-FREE) LST309-M(SN+3.0AG/0.5CU) A001 4859814760 PCB UNION 189X235.5 CC293 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608 PW201 49590009S0 CONN WAFER 12505WR-05A00 PW202 49590001S0 CONN WAFER 12505WR-06A00 RC270 HRFT432JBA R CHIP 1/10 4.3K OHM J 1608 RC271 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608 RC272 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608 RC273 HRFT432JBA R CHIP 1/10 4.3K OHM J 1608 RC274 HRFT113JBA R CHIP 1/10 11K OHM J 1608

LOC PART CODE PART NAME DESCRIPTION REMARK

Part List

-62-

A001 PCB UNION 122.5X51(330X246/2X4) D1B PTUNJAG117 A001 PCB UNION 189X235.5 PTUNJ1G151 C996 C CERA 50V F 0.1MF Z AXL(1608) PTUNJAG117 CC293 C CHIP CERA 50V X7R 0.1MF K 1608 PTUNJ1G151 IC290 IC PREAMP TSOP34838SJ PTUNSWG151 IC703 IC PREAMP TSOP34838SJ PTUNSWG117 M191 COVER ASSY C2 STAND SUB ASSY PTSNSWG117 M201 MASK FRONT HIPS BK PTFMSJG146 M201 MASK FRONT HIPS GY PTFMSJG117 M201A CUSION PANEL PVC 400 X 10 T=1.0 PTFMSJG117 M201B CUSION PANEL PVC 300 X 10 T=1.0 PTFMSJG117 M201C CLAMP WIRE EGI T0.4+TUBE+PIE 3.2 PTCACAG151 M201D SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M211 COVER BACK HIPS BK PTBCSHG149 M211 COVER BACK HIPS BK PTBCSHG117 M211A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTBCSHG117 M211B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTBCSHG117 M211C CLOTH BLACK FELT 300X20X0.7 PTBCSHG117 M211D CLOTH BLACK FELT 300X15XT1.0 PTBCSHG117 M211E CLOTH BLACK CLOTH 150X20X0.7 PTBCSHG117 M211F CLOTH BLACK FELT 220X12X2 PTBCSHG117 M213 COVER WIRE ABS BK PTBCSHG117 M213 COVER STAND BASE HIPS BK PTSNSWG118 M232 PANEL CTRL HIPS BK PTUNSWG151 M321 BRKT STAND SECC T=1.6 PTCACAG117 M321 BRKT STAND SECC T1.6 PTCACAG151 M322 BRKT STAND BOX SECC T=1.0 PTCACAG117 M322 BRKT STAND BOX SECC T1.0 PTCACAG151 M322A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTBCSHG117 M381C SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG151 PTCACAG117 M381G SCREW MACHINE TRS 4X8 MFZN BK 3CR PTCACAG117 M381G SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M383 FRAME STAND ABS BK PTSNSWG118 M383A SCREW MACHINE TRS 4X8 MFZN BK 3CR PTCACAG117 M383A SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M383A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTSNSWG118 M383B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG117 M383B SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR PTCACAG151 M384 FRAME STAND ABS GY PTSNSWG117 M481 BUTTON POWER B GPPS CL PTUNSWG117 M481A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTUNSWG117 M491 BUTTON CH ABS GY PTUNSWG117 M491 BUTTON CH ABS GY PTUNSWG151 M491A SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTUNSWG151 M491A SCREW TAPPTITE TT2 WAS 3X8 MFZN 3CR PTUNSWG117 M491B SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTUNSWG117 M521 PLATE BASE STAND SECC T2.0 PTSNSWG118 M521A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTSNSWG117 M521A SCREW TAPPING FLT 4X10 MFZN 3CR PTSNSWG118 M521C RUBBER BOTTOM CR60 BK PHI 18.0 X T 3.0 PTSNSWG118 M551 DECO SENSOR PC GY PTUNSWG117 M551A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTUNSWG117 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=80,P=30 PTFMSJG146 M561 MARK BRAND SILVER DIA-CUTTING PTFMSJG117 M591 DECO PLATE PC T2.0 PTFMSJG146 M681 CLAMP WIRE NYLON 66 PTACPWG151 M721A SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M721A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTCACAG117 M723A SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M723A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTCACAG117 M723B SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M723B SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTCACAG117 M801 BOX CARTON DW-3 PTPKCPG146 M801 BOX CARTON DW-3 PTPKCPG117 M811 PAD EPS PTPKCPG146 M811 PAD EPS PTPKCPG117 M822 BAG P.E PE FOAM t0.5x1050x950 PTPKCPG146 M822 BAG P.E PE FOAM t0.5x1600x1270 PTPKCPG117

LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-26C2 LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-26C2

P801A CORD POWER AS EU LP-33+LS-60=2.0M(LF) PTACPWG116 P801A CORD POWER AS EU LP-33+LS-60L=2.0M(LF) PTACPWG151 P911A CONN WAFER 20017WR-05A PTUNSWG117 P911C CONNECTOR 12505HS-05+12505HS-05+ULW+CORE=600 PTUNSWG151 P911C CONNECTOR 20017HR-05+12505HS-05+ULW+CORE=600 PTCACAG117 P912A CONN WAFER 20017WR-06A PTUNSWG117 P912C CONNECTOR 12505HS-06+12505HS-06+ULW+CORE=550 PTUNSWG151 P912C CONNECTOR 20017HR-06+12505HS-06+ULW+CORE=700 PTCACAG117 PW201 CONN WAFER 12505WR-05A00 PTUNJ1G151 PW202 CONN WAFER 12505WR-06A00 PTUNJ1G151 R201 WIRE COPPER 1/0.6 TIN COATING PTUNJAG117 R202 R CARBON FILM 1/6 1.5K OHM J PTUNJAG117 R203 R CARBON FILM 1/6 4.3K OHM J PTUNJAG117 R204 WIRE COPPER 1/0.6 TIN COATING PTUNJAG117 R205 R CARBON FILM 1/6 1.5K OHM J PTUNJAG117 R206 R CARBON FILM 1/6 4.3K OHM J PTUNJAG117 R207 R CARBON FILM 1/6 11K OHM J PTUNJAG117 RC270 R CHIP 1/10 4.3K OHM J 1608 PTUNJ1G151 RC271 R CHIP 1/10 1.5K OHM J 1608 PTUNJ1G151 RC272 R CHIP 1/10 1.5K OHM J 1608 PTUNJ1G151 RC273 R CHIP 1/10 4.3K OHM J 1608 PTUNJ1G151 RC274 R CHIP 1/10 11K OHM J 1608 PTUNJ1G151 SP01 SPEAKER SP-45165F01C PTSPPWG151 SP01 SPEAKER SP-57165F01C PTSPPWG117 SP02 SPEAKER SP-45165F01C PTSPPWG151 SP02 SPEAKER SP-57165F01C PTSPPWG117

DLX-26C2

Part List

-63-

M191A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTCACAG155 M201 MASK FRONT HIPS BK PTFMSJG146 M201 MASK FRONT HIPS BK PTFMSJG155 M201B SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG155 M201D SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M201D SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG155 M207 SHEET MICRO FIBER 180X180 T=0.7 PTACPWG155 M207A SHEET MICRO FIBER 180X180 T=0.7 PTCACAG155 M211 COVER BACK HIPS BK PTBCSHG149 M211 COVER BACK HIPS BK PTBCSHG155 M211A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTCACAG155 M211B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 M211B SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR PTCACAG155 M211C SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG155 M211D CLOTH BLACK FELT T0.7 L=350 W=15 PTBCSHG155 M213 COVER STAND BASE HIPS BK PTSNSWG118 M213 COVER STAND BASE ABS BK(URETHANE SPRAY) PTSNSWG155 M231 PANEL FRONT ABS+PMMA BK PTFMSJG155 M231A SCREW TAPPTITE TT2 WAS 3X12 MFZN BK 3CR PTFMSJG155 M231B PROTECTOR FILM PE FILM (EVA) 52WX200MX0.05T PTFMSJG155 M322 FRAME WALL KIT SECC T=2.0 PTBCSHG149 M322A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTCACAG155 M322B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG155 M381 FRAME MAIN PCB SECC T=1.0 PTDGMSG117 M381 FRAME MAIN PCB SECC T=1.2 (A-2 : 32C1/32C3) PTDGMSG155 M381A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTDGMSG155 M381C SCREW MACHINE WAS 3X8 MFZN 3CR PTDGMSG155 M381C SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG151 M381D SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTDGMSG117 M381E CLAMP WIRE EGI T0.4+TUBE+PIE 3.2 PTDGMSG155 M381E SCREW MACHINE WAS 3X8 MFZN 3CR PTDGMSG117 M381E SCREW MACHINE TRS 4X8 MFZN BK 3CR PTCACAG155 M381F CLAMP WIRE WS-A-2-19 PTDGMSG117 PTDGMSG155 M381G SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M382 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL) PTCACAG155 M382A SCREW MACHINE TRS 4X8 MFZN BK 3CR PTCACAG155 M382B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG155 M383 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL) PTCACAG151 M383A SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M383A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTSNSWG118 M383B SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR PTCACAG151 M384 FRAME WALL KIT SECC T=2.0 PTBCSHG155 M384A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG155 M491B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG155 M521A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTSNSWG155 M521A SCREW TAPPING FLT 4X10 MFZN 3CR PTSNSWG118 M521B SCREW TAPPING FLT 4X10 MFZN 3CR PTSNSWG155 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=80,P=30 PTFMSJG146 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=85,P=30 PTFMSJG155 M591 DECO PLATE PC T2.0 PTFMSJG155 M591 DECO PLATE PC T2.0 PTFMSJG146 M721A SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M723B SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 PTCACAG155 M801 BOX CARTON DW-3 PTPKCPG146 M801 BOX CARTON DW-3 PTPKCPG155 M811 PAD EPS PTPKCPG146 M811 PAD EPS PTPKCPG155 M822 BAG P.E PE FOAM t0.5x1050x950 PTPKCPG146 M822 BAG P.E P.E FOAM T0.5X1100X950 PTPKCPG155 P801A CORD POWER AS EU LP-33+LS-60=2.0M(LF) PTACPWG155 P801A CORD POWER AS EU LP-33+LS-60L=2.0M(LF) PTACPWG151 V901 LCD PANEL T260XW02 V5 PTCACAG151 V901 LCD PANEL T315XW01-V5 PTCACAG155

LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-32C1 LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-32C2

A001 PCB UNION 122.5X51(330X246/2X4) D1B PTUNJAG117 A001 PCB UNION 189X235.5 PTUNJ1G151 C996 C CERA 50V F 0.1MF Z AXL(1608) PTUNJAG117 CC293 C CHIP CERA 50V X7R 0.1MF K 1608 PTUNJ1G151 IC290 IC PREAMP TSOP34838SJ PTUNSWG151 IC703 IC PREAMP TSOP34838SJ PTUNSWG117 M191 COVER ASSY C2 STAND SUB ASSY PTSNSWG116 M201 MASK FRONT HIPS BK PTFMSJG146 M201 MASK FRONT HIPS GY PTFMSJG116 M201A CUSION PANEL PVC 400 X 10 T=1.0 PTFMSJG116 M201B CUSION PANEL PVC 300 X 10 T=1.0 PTFMSJG116 M201C CLAMP WIRE EGI T0.4+TUBE+PIE 3.2 PTCACAG151 M201D SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M211 COVER BACK HIPS BK PTBCSHG149 M211 COVER BACK HIPS BK PTBCSHG116 M211B CLOTH BLACK FELT 300X20X0.7 PTBCSHG116 M211B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 M211C CLOTH BLACK FELT 200X20X0.7 PTBCSHG116 M211D CLOTH BLACK FELT 400X20X0.7 PTBCSHG116 M211E SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG116 M211F CLOTH BLACK FELT 220X12X2 PTBCSHG116 M213 COVER WIRE ABS BK PTBCSHG116 M213 COVER STAND BASE HIPS BK PTSNSWG118 M232 PANEL CTRL HIPS BK PTUNSWG151 M321 BRKT STAND SECC T=1.6 PTCACAG116 M321 BRKT STAND SECC T1.6 PTCACAG151 M321A SCREW TAPPTITE TT2 TRS 4X12 MFZN BK 3CR PTDGMSG116 M321A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG151 PTCACAG116 M322 BRKT STAND BOX SECC T=1.0 PTCACAG116 M322 BRKT STAND BOX SECC T1.0 PTCACAG151 M322A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTBCSHG116 M381 FRAME MAIN PCB SECC T=1.0 PTDGMSG117 M381 FRAME MAIN PCB SECC T=1.2 (A-2 : 32C1/32C3) PTDGMSG116 M381D SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTDGMSG117 PTDGMSG116 M381F CLAMP WIRE WS-A-2-19 PTDGMSG117 PTDGMSG116 M381G SCREW MACHINE TRS 4X8 MFZN BK 3CR PTCACAG116 M381G SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M382C CLAMP WIRE WS-A-2-19 PTDGMSG116 M383 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL) PTCACAG151 M383 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL) PTCACAG116 M383 FRAME STAND ABS BK PTSNSWG118 M383A SCREW MACHINE TRS 4X8 MFZN BK 3CR PTCACAG116 M383A SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M383A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTSNSWG118 M383B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG116 M383B SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR PTCACAG151 M384 FRAME STAND ABS GY PTSNSWG116 M481 BUTTON POWER B GPPS CL PTUNSWG117 M481A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTUNSWG117 M491 BUTTON CH ABS GY PTUNSWG117 M491 BUTTON CH ABS GY PTUNSWG151 M491A SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTUNSWG151 M491A SCREW TAPPTITE TT2 WAS 3X8 MFZN 3CR PTUNSWG117 M491B SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTUNSWG117 M521 PLATE BASE STAND SECC T2.0 PTSNSWG118 M521A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTSNSWG116 M521A SCREW TAPPING FLT 4X10 MFZN 3CR PTSNSWG118 M521C RUBBER BOTTOM CR60 BK PHI 18.0 X T 3.0 PTSNSWG118 M551 DECO SENSOR PC GY PTUNSWG117 M551A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTUNSWG117 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=80,P=30 PTFMSJG146 M561 MARK BRAND SILVER DIA-CUTTING PTFMSJG116 M591 DECO PLATE PC T2.0 PTFMSJG146 M681 CLAMP WIRE NYLON 66 PTACPWG151 M721A SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M721A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTCACAG116 M723A SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M723A SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTCACAG116

DLX-32C1 DLX-32C2

Part List

-64-

M723B SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M723B SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTCACAG116 M801 BOX CARTON DW-3 PTPKCPG146 M801 BOX CARTON DW-3 PTPKCPG116 M811 PAD EPS PTPKCPG146 M811 PAD EPS PTPKCPG116 M822 BAG P.E PE FOAM t0.5x1050x950 PTPKCPG146 M822 BAG P.E PE FOAM t0.5x1600x1270 PTPKCPG116 P801A CORD POWER AS EU LP-33+LS-60=2.0M(LF) PTACPWG116 P801A CORD POWER AS EU LP-33+LS-60L=2.0M(LF) PTACPWG151 P911A CONN WAFER 20017WR-05A PTUNSWG117 P911C CONNECTOR 12505HS-05+12505HS-05+ULW+CORE=600 PTUNSWG151 P911C CONNECTOR 20017HR-05+12505HS-05+ULW+CORE=600 PTCACAG116 P912A CONN WAFER 20017WR-06A PTUNSWG117 P912C CONNECTOR 12505HS-06+12505HS-06+ULW+CORE=550 PTUNSWG151 P912C CONNECTOR 20017HR-06+12505HS-06+ULW+CORE=700 PTCACAG116 PW201 CONN WAFER 12505WR-05A00 PTUNJ1G151 PW202 CONN WAFER 12505WR-06A00 PTUNJ1G151 R201 WIRE COPPER 1/0.6 TIN COATING PTUNJAG117 R202 R CARBON FILM 1/6 1.5K OHM J PTUNJAG117 R203 R CARBON FILM 1/6 4.3K OHM J PTUNJAG117 R204 WIRE COPPER 1/0.6 TIN COATING PTUNJAG117 R205 R CARBON FILM 1/6 1.5K OHM J PTUNJAG117 R206 R CARBON FILM 1/6 4.3K OHM J PTUNJAG117 R207 R CARBON FILM 1/6 11K OHM J PTUNJAG117 RC270 R CHIP 1/10 4.3K OHM J 1608 PTUNJ1G151 RC271 R CHIP 1/10 1.5K OHM J 1608 PTUNJ1G151 RC272 R CHIP 1/10 1.5K OHM J 1608 PTUNJ1G151 RC273 R CHIP 1/10 4.3K OHM J 1608 PTUNJ1G151 RC274 R CHIP 1/10 11K OHM J 1608 PTUNJ1G151 SP01 SPEAKER SP-45165F01C PTSPPWG151 SP01 SPEAKER SP-57165F01C PTSPPWG116 SP02 SPEAKER SP-45165F01C PTSPPWG151 SP02 SPEAKER SP-57165F01C PTSPPWG116 V901 LCD PANEL T260XW02 V5 PTCACAG151 V901 LCD PANEL T315XW01-V5 PTCACAG116

LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-32C2 LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-32C3

M201 MASK FRONT HIPS BK PTFMSJG146 M201 MASK FRONT HIPS BK PTFMSJG147 M201B SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG152 M201C CLAMP WIRE EGI T0.4+TUBE+PIE 3.2 PTCACAG151 M201C SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG152 M201D SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M201E SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG152 M201F CLAMP WIRE EGI T0.4+TUBE+PIE 4.2 PTCACAG152 M211 COVER BACK HIPS BK PTBCSHG149 M211 COVER BACK HIPS BK PTBCSHG147 M211A CLOTH BLACK FELT T0.7 L=350 W=15 PTBCSHG147 M211A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTCACAG152 M211B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 M211B SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR PTCACAG152 M211C SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG152 M321A SCREW TAPPTITE TT2 TRS 4X12 MFZN BK 3CR PTDGMSG116 M321A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG151 PTCACAG152 M322 FRAME WALL KIT SECC T=2.0 PTBCSHG149 M322A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTCACAG152 M322B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG152 M381 FRAME MAIN PCB SECC T=1.0 PTDGMSG117 M381 FRAME MAIN PCB SECC T=1.2 (A-2 : 32C1/32C3) PTDGMSG116 M381C SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG151 M381D SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTDGMSG117 PTDGMSG116 M381F CLAMP WIRE WS-A-2-19 PTDGMSG117 PTDGMSG116 M381G SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M382 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL) PTCACAG152 M382A SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG152 M382B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG152 M382C CLAMP WIRE WS-A-2-19 PTDGMSG116 M383 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL) PTCACAG151 M383A SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M383B SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR PTCACAG151 M384 FRAME WALL KIT SECC T=2.0 PTBCSHG147 M384A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG147 M491B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG152 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=80,P=30 PTFMSJG146 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=85,P=30 PTFMSJG147 M591 DECO PLATE PC T2.0 PTFMSJG146 M591 DECO PLATE PC T2.0 PTFMSJG147 M723B SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 PTCACAG152 M801 BOX CARTON DW-3 PTPKCPG146 M801 BOX CARTON DW-3 PTPKCPG147 M811 PAD EPS PTPKCPG146 M811 PAD EPS PTPKCPG147 M822 BAG P.E PE FOAM t0.5x1050x950 PTPKCPG146 M822 BAG P.E P.E FOAM T0.5X1100X950 PTPKCPG147 V901 LCD PANEL T260XW02 V5 PTCACAG151 V901 LCD PANEL T315XW01-V5 PTCACAG152

DLX-32C3

Part List

-65-

00001 DIODE BRIDGE GBJ606 PTA3SW2900 00001 DIODE FMX-22SL PTB2SW4508 00001 DIODE FME-210B PTC2SW4508 00001 FET STW20NM60 PTE2SW4508 00001 IC POWER STR-T2268 PTA3SW3100 00001 IC SW REG LA5752 PTA2SW4519 0000A HEAT SINK AL EX BK PTC2SW4508 0000A HEAT SINK AL EX (NO ANODIZING) PTA2SW4519 0000A HEAT SINK AL EX PTA3SW2900 0000A HEAT SINK AL EX BK PTA3SW3100 0000B SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR PTA3SW2900 0000B INSU PLATE SILICON RUBBER T0.3 PTE2SW4508 0000C SCREW TAPPTITE TT2 RND 3X12 MFZN 3CR PTE2SW4508 100 SOLDER WIRE SAC3000 3.0MM (LFA3C0-W3.0) PTDGMSG117 PTDGMSG140 200 SOLDER WIRE SAC3005 1.6MM (LFA3-107-W1.6) PTDGMSG117 PTDGMSG140 300 FLUX SOLDER LF SV-PBF-304P(0.823) PTDGMSG117 PTDGMSG140 400 FLUX SOLVENT S-3000 PTDGMSG117 PTDGMSG140 M192 COVER ASSY STAND SUB ASSY (NORMAL SPRAY) PTCACAG140 M201 MASK FRONT HIPS BK PTFMSJG146 M201 MASK FRONT HIPS BK PTFMSJG140 M201A CUSION PANEL PVC 400 X 10 T=1.0 PTFMSJG140 M201A SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTUNSWG140 M201C CLAMP WIRE EGI T0.4+TUBE+PIE 3.2 PTCACAG151 M201D SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M211 COVER BACK HIPS BK PTBCSHG149 M211 COVER BACK HIPS BK PTBCSHG140 M211A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTBCSHG140 M211B SCREW MACHINE TRS 4X14 MFZN BK 3CR PTBCSHG140 M211B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 M212 COVER BOTTOM ABS BK PTACPWG151 M212 COVER BOTTOM HIPS BK PTACPWG140 M213 COVER STAND BASE HIPS BK PTSNSWG118 M321 BRKT POWER SW SECC 1T PTDGMSG117 M321 BRKT STAND SECC T1.6 PTCACAG151 M321 BRKT STAND SECC T1.6 PTFMSJG140 M321A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG151 PTFMSJG140 M322 FRAME WALL KIT SECC T=2.0 PTBCSHG149 M322 BRKT STAND BOX SECC T1.0 PTCACAG151 M322 BRKT STAND BOX SECC T1.0 PTFMSJG140 M322A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTFMSJG140 M323 BRKT POWER SW SECC 1T PTCACAG140 M381 FRAME MAIN PCB SECC T=1.0 PTDGMSG117 M381 PLATE LOWER SECC, T=1.2 PTDGMSG140 M381A SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTDGMSG140 M381B SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTDGMSG140 M381C SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTDGMSG140 M381C SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG151 M381D SCREW MACHINE WAS 3X8 MFZN 3CR PTDGMSG140 M381D SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTDGMSG117 M381E CLAMP WIRE EGI T0.4+TUBE+PIE 3.2 PTDGMSG140 M381E SCREW MACHINE WAS 3X8 MFZN 3CR PTDGMSG117 M381F CLAMP WIRE WS-A-2-19 PTDGMSG117 M381G SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M381H RETA PCB NYLON 66 PTDGMSG117 M382 FRAME SURPORT SECC T1.2 PTCACAG140 M382A SCREW MACHINE TRS 4X8 MFZN BK 3CR PTCACAG140 M383 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL) PTCACAG151 M383 FRAME SIDE T SECC T1.2 (LPL) PTCACAG140 M383 FRAME STAND ABS BK PTSNSWG118 M383A SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M383A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTSNSWG118 PTCACAG140 M383B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG140 M383B SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR PTCACAG151 M384 FRAME SIDE B SECC T1.6 (LPL) PTCACAG140 M384A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG140 M384B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG140 M384C CLAMP WIRE EGI T0.4+TUBE+PIE 3.2 PTCACAG140 M385 FRAME SIDE L/R SECC T1.2 (LPL) PTCACAG140

LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-37C3 LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-37C3

M385A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG140 M387 FRAME STAND ABS BK PTCACAG140 M387A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG140 M388 FRAME WALL KIT SECC T=2.0 PTBCSHG140 M388A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG140 M491B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTUNSWG140 M521 PLATE BASE STAND SECC T2.0 PTSNSWG118 M521A SCREW TAPPING FLT 4X10 MFZN 3CR PTSNSWG118 M521C RUBBER BOTTOM CR60 BK PHI 18.0 X T 3.0 PTSNSWG118 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=80,P=30 PTFMSJG146 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=90.5,P=30 PTFMSJG140 M591 DECO PLATE PC T2.0 PTFMSJG146 M591 DECO PLATE PC T2.0 PTFMSJG140 P501 CONN WAFER GT121-31P-TD-A 31P ST PTDGJ1G140 P501A CABLE LVDS 1001-31FC-N+FH10001-30+42C1LMR=400 PTCACAG140 P520 CONN WAFER GT121-31P-TD-A 31P ST PTDGJ1G117 P520A CABLE LVDS 1001-31FC-N+FH10002-30+3212APSB=300 PTCACAG151 P625 CONNECTOR SMH250-02+YRT205+YRT110+USW=1000 PTSPPWG151 P626 CONNECTOR SMH250-03+YRT205+YRT110+USW=1000 PTSPPWG151 P801 SOCKET AC 0714-CP7N PTSKSWG084 P802 CONN WAFER YW025-08 (STICK) PTPWJBG116 P803 CONN WAFER SMW200-14P PTPWMSG116 P803B CONNECTOR 20022HS-12S+20022HS-12S+ULW=800 PTCACAG140 P803B CONNECTOR 20022HS-14S+SMH200-14P+ULW=300 PTCACAG151 P803C CONNECTOR 20022HS-12S+20022HS-12S+ULW=300 PTCACAG140 P911C CONNECTOR 12505HS-05+12505HS-05+ULW+CORE=600 PTUNSWG151 P911C CONNECTOR 12505HS-05+12505HS-05+ULW+CORE=800 PTUNSWG140 PW1 CONN WAFER 12505WS-10A00 PTDGJ1G140 RC401 R CHIP 1/10 0 OHM J 1608 PTDGJ1G140 RC402 R CHIP 1/10 0 OHM J 1608 PTDGJ1G117 RC514 R CHIP 1/10 3.3K OHM J 1608 PTDGJ1G117 RC515 R CHIP 1/10 3.3K OHM J 1608 PTDGJ1G140 SP01 SPEAKER SYSTEM SS-57165F01CR PTCACAG140 SP01 SPEAKER SP-45165F01C PTSPPWG151 SP02 SPEAKER SYSTEM SS-57165F01CL PTCACAG140 SP02 SPEAKER SP-45165F01C PTSPPWG151 SP03A SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTCACAG140 SP04A SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTCACAG140 V901 LCD PANEL T260XW02 V5 PTCACAG151 V901 LCD PANEL LC370WX1-SL01 PTCACAG140 V902 MODULE POWER FEL-3237UB PTDGMSG140

DLX-37C3

Part List

-66-

00001 DIODE BRIDGE GBJ606 PTA3SW2900 00001 DIODE FMX-22SL PTB2SW4508 00001 DIODE FME-210B PTC2SW4508 00001 FET STW20NM60 PTE2SW4508 00001 IC POWER STR-T2268 PTA3SW3100 00001 IC SW REG LA5752 PTA2SW4519 0000A HEAT SINK AL EX BK PTC2SW4508 0000A HEAT SINK AL EX (NO ANODIZING) PTA2SW4519 0000A HEAT SINK AL EX PTA3SW2900 0000A HEAT SINK AL EX BK PTA3SW3100 0000B SCREW TAPPTITE TT2 RND 3X8 MFZN 3CR PTA3SW2900 0000B INSU PLATE SILICON RUBBER T0.3 PTE2SW4508 0000C SCREW TAPPTITE TT2 RND 3X12 MFZN 3CR PTE2SW4508 100 SOLDER WIRE SAC3000 3.0MM (LFA3C0-W3.0) PTDGMSG117 PTDGMSG141 200 SOLDER WIRE SAC3005 1.6MM (LFA3-107-W1.6) PTDGMSG117 PTDGMSG141 300 FLUX SOLDER LF SV-PBF-304P(0.823) PTDGMSG117 PTDGMSG141 400 FLUX SOLVENT S-3000 PTDGMSG117 PTDGMSG141 M191 SHIELD CASE AS 7255700+5944600 PTCACAG151 M201 MASK FRONT HIPS BK PTFMSJG146 M201 MASK FRONT ABS BK PTFMSJG141 M201B SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG141 M201C CLAMP WIRE EGI T0.4+TUBE+PIE 3.2 PTCACAG151 M201D SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 M211 COVER BACK HIPS BK PTBCSHG149 M211 COVER BACK ABS BK PTBCSHG141 M211A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTCACAG141 M211B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 M211B SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR PTCACAG141 M212 COVER BOTTOM ABS BK PTACPWG151 M212 COVER BOTTOM HIPS BK PTACPWG141 M213 COVER STAND BASE HIPS BK PTSNSWG118 M231 PANEL FRONT ABS+PMMA BK PTFMSJG141 M231A SCREW TAPPTITE TT2 WAS 3X12 MFZN BK 3CR PTFMSJG141 M321 BRKT POWER SW SECC 1T PTDGMSG117 M321 BRKT STAND SECC T1.6 PTCACAG151 M321 BRKT STAND SECC, T=1.6 PTCACAG141 M321A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG151 PTCACAG141 M322 FRAME WALL KIT SECC T=2.0 PTBCSHG149 M322 BRKT STAND BOX SECC T1.0 PTCACAG151 M322 BRKT STAND BOX SECC T1.0 PTCACAG141 M322A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG149 PTCACAG141 M381 FRAME MAIN PCB SECC T=1.0 PTDGMSG117 M381 PLATE LOWER SECC, T=1.2 PTDGMSG141 M381A SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTDGMSG141 M381B SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTDGMSG141 M381C SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTDGMSG141 M381C SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG151 M381D SCREW TAPPTITE TT2 WAS 3X10 MFZN 3CR PTDGMSG141 M381D SCREW TAPPTITE TT2 WAS 3X10 MFZN BK 3CR PTDGMSG117 M381E SCREW MACHINE WAS 3X8 MFZN 3CR PTDGMSG117 M381E CLAMP WIRE WS-A-2-19 PTDGMSG141 M381F CLAMP WIRE WS-A-2-19 PTDGMSG117 M381G SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M381H RETA PCB NYLON 66 PTDGMSG117 M382 FRAME SURPORT SECC, T=1.2 PTCACAG141 M382A SCREW MACHINE TRS 4X8 MFZN BK 3CR PTCACAG141 M383 FRAME BAR SECC T=1.2 (A-1 : AUO,SSE PANEL) PTCACAG151 M383 FRAME SIDE T SECC, T=1.2 PTCACAG141 M383 FRAME STAND ABS BK PTSNSWG118 M383A SCREW MACHINE BIN 4X10 MFZN BK 3CR PTCACAG151 M383A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTSNSWG118 PTCACAG141 M383B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG141 M383B SCREW TAPPTITE TT2 TRS 4X16 MFZN BK 3CR PTCACAG151 M384 FRAME SIDE B SECC, T=1.6 PTCACAG141 M384A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG141 M384B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG141 M384C CLAMP WIRE WS-A-2-19 PTCACAG141 M385 FRAME SIDE L/R SECC, T=1.2 PTCACAG141

LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-42C1 LOC PART NAME PART DESCRIPTION DLX-26C3 DLX-42C1

M385A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG141 M386 FRAME HORIZONTAL SECC T=1.6 PTCACAG141 M386A SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG141 M387 FRAME STAND ABS BK PTSNSWG138 M387A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTSNSWG138 M388 FRAME WALL KIT SECC, T=1.6 PTBCSHG141 M388A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTBCSHG141 M491B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG141 M520 COVER ASSY STAND SUB ASSY (URETHANE-SPRAY) PTSNSWG138 M521 PLATE BASE STAND SECC T2.0 PTSNSWG118 M521A SCREW TAPPING FLT 4X10 MFZN 3CR PTSNSWG118 M521C RUBBER BOTTOM CR60 BK PHI 18.0 X T 3.0 PTSNSWG118 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=80,P=30 PTFMSJG146 M561 MARK BRAND SILVER DIA-CUTTING(DOUBLE FACED TAPE),L=90.5,P=30 PTFMSJG141 M562 PROTECTOR FILM PE FILM (EVA) 62WX200MX0.05T PTFMSJG141 M591 DECO PLATE PC T2.0 PTFMSJG146 M591 DECO PLATE PC, T=2.0 PTFMSJG141 M681 BAND PP AUTO T1.1XW17MMXL770M PTPKCPG146 M683 SHEET MICRO FIBER 180X180 T=0.7 PTACPWG141 M720 BRKT POWER SW SECC 1T PTDGMSG141 M720A SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTDGMSG141 M720B SCREW TAPPTITE TT2 TRS 4X14 MFZN BK 3CR PTCACAG141 M721 SHIELD CASE AS 7255700+5944600 PTCACAG141 M721A SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 PTCACAG141 M723B SCREW TAPPTITE TT2 BIN 3X10 MFZN BK 3CR PTCACAG151 PTCACAG141 M801 BOX CARTON DW-3 PTPKCPG146 M801 BOX CARTON DW-3 PTPKCPG141 M811 PAD EPS PTPKCPG146 M811 PAD EPS PTPKCPG141 M822 BAG P.E PE FOAM t0.5x1050x950 PTPKCPG146 M822 BAG P.E PE FOAM T0.5X1430X1270 PTPKCPG141 P501 CONN WAFER GT121-31P-TD-A 31P ST PTDGJ1G141 P501A CABLE LVDS 1001-31FC-N+FH10001-30+42C1LMR=400 PTCACAG141 P520 CONN WAFER GT121-31P-TD-A 31P ST PTDGJ1G117 P520A CABLE LVDS 1001-31FC-N+FH10002-30+3212APSB=300 PTCACAG151 P625 CONNECTOR SMH250-02+YRT205+YRT110+USW=1000 PTSPPWG151 P626 CONNECTOR SMH250-03+YRT205+YRT110+USW=1000 PTSPPWG151 P801 SOCKET AC 0714-CP7N PTSKSWG084 P802 CONN WAFER YW025-08 (STICK) PTPWJBG116 P803 CONN WAFER SMW200-14P PTPWMSG116 P803B CONNECTOR 20022HS-12S+20022HS-12S+ULW=800 PTCACAG141 P803B CONNECTOR 20022HS-14S+SMH200-14P+ULW=300 PTCACAG151 P803C CONNECTOR 20022HS-12S+20022HS-12S+ULW=300 PTCACAG141 P804 CONNECTOR YH025-08+YBNH250-08+ULW=400 PTPWMSG116 P805 CONN WAFER YW025-04 (STICK) PTPWJBG116 P911C CONNECTOR 12505HS-05+12505HS-05+ULW+CORE=600 PTUNSWG151 P911C CONNECTOR 12505HS-05+12505HS-05+ULW+CORE=800 PTUNSWG141 PW1 CONN WAFER 12505WS-10A00 PTDGJ1G141 RC365 R CHIP 1/10 100 OHM J 1608 PTDGJ1G117 RC365 R CHIP 1/10 330 OHM J 1608 PTDGJ1G141 RC401 R CHIP 1/10 0 OHM J 1608 PTDGJ1G141 RC402 R CHIP 1/10 0 OHM J 1608 PTDGJ1G117 RC514 R CHIP 1/10 3.3K OHM J 1608 PTDGJ1G117 RC515 R CHIP 1/10 3.3K OHM J 1608 PTDGJ1G141

DLX-42C1
