S/M No. : VTBA84PET0
Service Manual
MODEL:DC-A84D1D
DC-A84D1P
DC-A84D1S
DC-A83D1D
DC-A83D1P
DC-A83D1S
DC-A24D1D
DC-A24D1S
DC-A23D1D
DC-A23D1S
✔ Caution :
In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the latest
parts information,please refer to PPL(Parts Price List) in Service
Information Center (http://svc.dwe.co.kr).
DAEWOO ELECTRONICS Corp.
July. 2003
http : //svc.dwe.co.kr
DVH-56J
1
SPECIFICATIONS...............................................................................................................2
ADVANTAGES OF THIS PRODUCT....................................................................................3
TROUBLE SHOOTING....................................................................................................................5

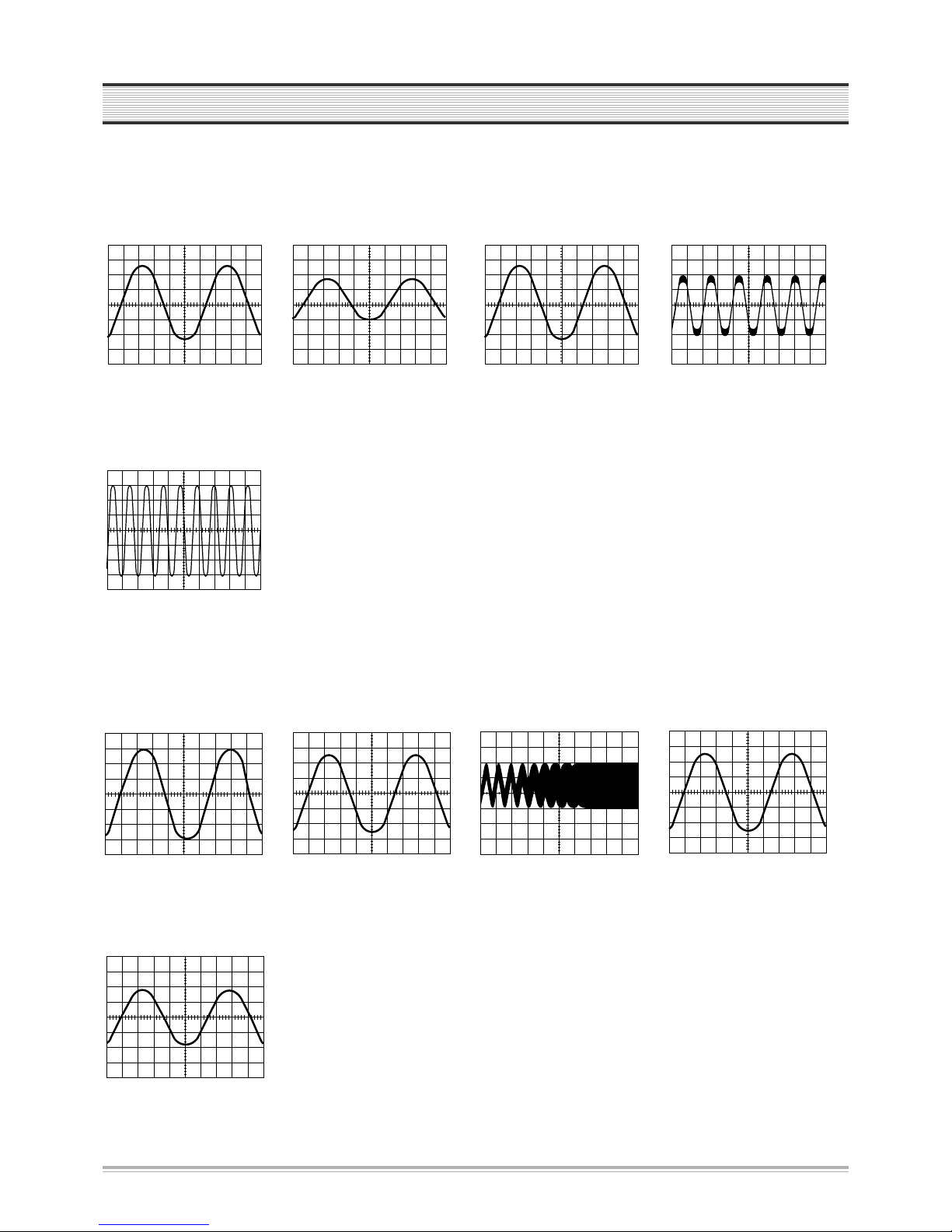

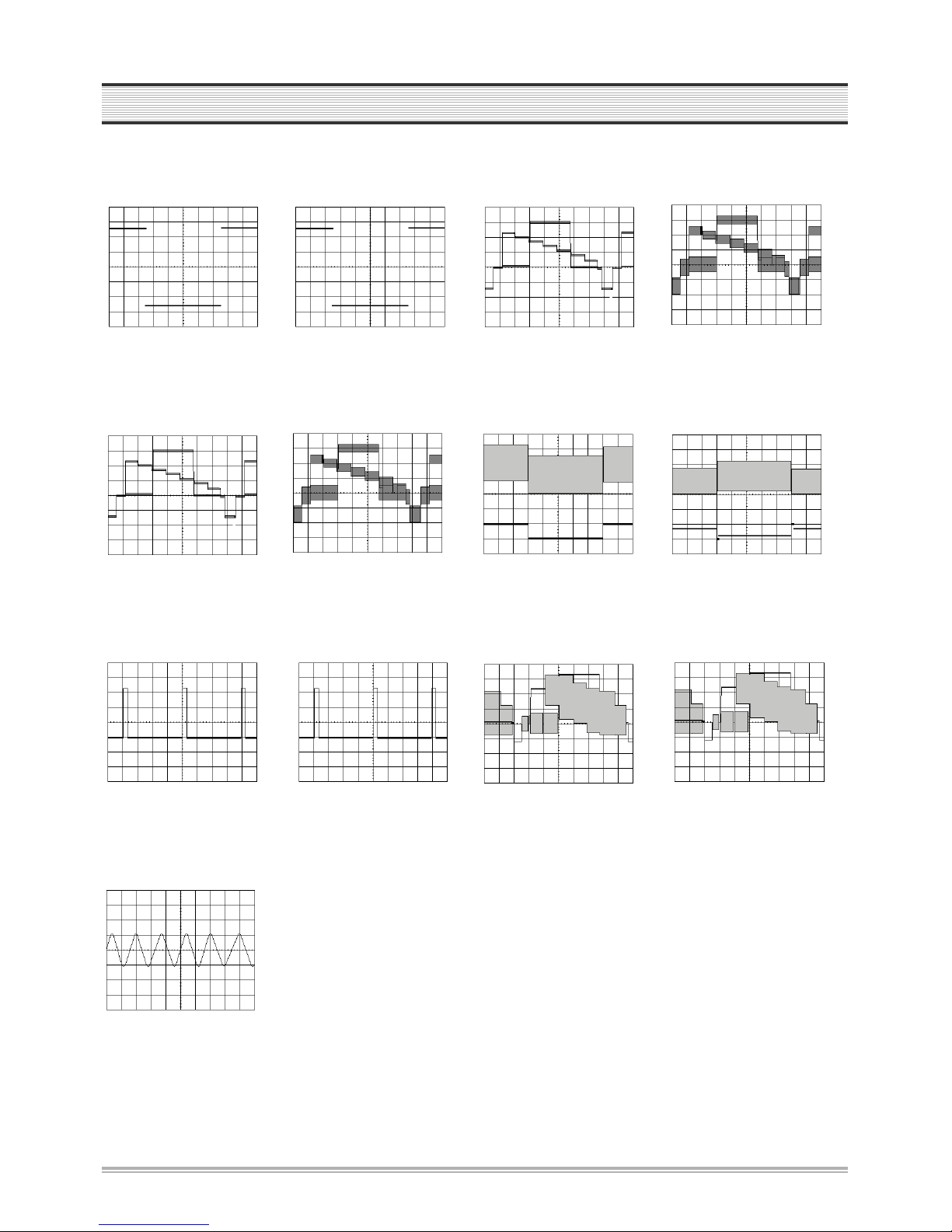

WAVEFORMS................................................................................................................................23
CIRCUIT DIAGRAM.......................................................................................................................26
PCB CIRCUIT BOARD..................................................................................................................36
INSTRUMENT DISASSEMBLY.....................................................................................................39
ELECTRICAL PARTSLIST............................................................................................................45
CONTENTS
2
SPECIFICATIONS
DVD Audio output standards
Disc type
DVD VIDEO-CD CD
Analogue Audio output 48/96KHz sampling 44.1KHz sampling 44.1KHz sampling
Digital Audio output 48KHz sampling 44.1KHz sampling 44.1KHz sampling
Optical digital audio output 48KHz sampling 44.1KHz sampling 44.1KHz sampling
Output
Power 230V~, 50/60Hz
Consumed electricity 26W
Weight 4.6kg
Dimension (W x H x D) 435mmx93mmx255mm
Operative temperature +5¡C~40¡C
Installation condition Horizontal / Relative humidity under 80%
Signal type PAL COLOR
Antenna Input/output U/V-mixed: 75Ωunbalanced
VIDEO input 1.0Vp-p (unbalanced, RCA JACK)
AUDIO input -8.8dBm, RCA JACK
VIDEO output (common use of DVD and VCR) VIDEO output terminal, 1.0 Vp-p unbalanced, RCA JACK, SCART JACK
VIDEO output (DVD only) RGB output (75ΩIn load R: 0.7Vp-p, G:0.7Vp-p, B:0.7Vp-p)
AUDIO output (common use of DVD and VCR) Audio output terminal (2 kinds): -5.8dBm(VCR), 2Vrms(DVD), RCA JACK
AUDIO output (DVD only) Analogue AUDIO output : 2.0Vrms
Digital audio output (OPTICAL, COAXIAL)
Playable tape Very high dense tapes with VHS marks
Playable disc DVD, VIDEO-CD, CD (12cm), CD (8cm), MP3, CD-R, CD-RW
Tape speed SP: 23.39mm/s, LP: 11.70mm/s
Playtime SP: 3hrs, LP: 6hrs (use of E180tape)
Clock display 24 hrs
Time Recording 8 programs a month
Persistence in power failure 1min
VIDEO S/N (VCR) Over 43dB(Standard recording)
Resolution VCR Over 240 lines (Standard recording)
DVD Over 400 lines (Playback DVD)
AUDIO (VCR) Over 65dB
AUDIO (DVD) 90dB
AUDIO dynamic range 90dB
ADVANTAGES OF THIS PRODUCT
3
¥ DVD, VCD, CD, CD-R(MP3), CD-RW, VHS
¥ Watching DVD for recording broadcast
¥ Integrated remote control (VCR, DVD)
¥ VISS function
¥ Multiplex sound playback/record
¥ High Sound Quality of 6 head Hi-Fi
¥ Simple record function
¥ MP3 file playback function (CD-R disc having records of MP3 files)
¥ GUI (Graphical User Interface) through OSD (On Screen Display)
By using the [DISPLAY] button on the remote control, information on the DVD/VCD/CD player and disc,
can be displayed on the TV screen.
¥ Screensaver function (DVD)
¥ 3D sound (3D sound effect using 2 speakers)
¥ High bit / High sampling with 27MHz / 10bit video encoder
¥ High bit / High sampling with 96MHz / 24bit Audio D/A Converter
¥ Coaxial, Optical digital Audio output (PCM, Dolby Digital, dts)
You can enjoy high-level digital audio by connecting with amp embedded with Dolby Digital / dts decoder.
¥ Built-in Dolby Digital decoder (DVD)
¥ Analog audio 2-channels output for DOWNMIX (x1)
¥ Composite video output (x1)
¥ Slow Forward / Reverse playback (DVD)
¥ Fast Forward / Reverse playback
¥ Search of title, chapter, and time in DVD disc, and search of time and track time in VCD and CD
¥ Various TV aspect (DVD)
4:3 for Pan and Scan, 4:3 for Letter Box, and 16:9 for Wide
¥ Repeat playback (title, chapter, and part for DVD/ track, disc, and part for VCD/CD)
¥ Selective Play (DVD/VCD/CD)
You can select and play the desired title / chapter of DVD and track of Video CD/CD in STOP mode.
¥ 10 languages OSD (On Screen Display) function (DVD)
You can select and display OSD in 10 languages. (E/ F/ S/ G/ I/ D/ R/ C/ H/ P)
¥ Parental Lock function (DVD)
This function can prevent playback of software that may be unsuitable for children.
¥ Multi Audio function (DVD)
The audio soundtrack can be heard in up to 8 languages. In the case of SVCD or VCD, it depends on the
disc. (The number of audio languages depends on the software.)
4
ADVANTAGES OF THIS PRODUCT
¥ Multi Subtitle function (DVD)
The subtitle can be seem in up to 32 languages. In the case of SVCD or VCD, it depends on the disc.
(The number of subtitle languages depends on the software.)
¥ Multi Angle function (DVD)
This function allows you to choose the viewing angle of scenes which were shot from a number of
different angles. (The number of angles depends on the software.)
¥ Screen zoom function (DVD/VCD)
5
TROUBLESHOOTING
1. POWER CIRCUIT
✓ CAUTION
You must use insulated transformer during the first part test of POWER circuit.
Check IC501, IC701
No power
POWER cord is ok?
Is 400V~200V voltage
obtained at C804 +?
Output voltage of 2
nd
parts is normal?
Check
rectifier diode of 2
nd
parts ;
D821, D822, D823, D826,
D827, D828, D830
Switching
pulse of Q801 collector is
normal?
OK
Exchange POWER CORD
Check F801.
Exchange rectifier diode of 2
nd
parts ; D821, D822, D823, D826,
D827, D828, D830.
Check Q801.
NO
YES
YES
YES
YES
YES
NO
NO
NO
NO
2. SYSTEM CIRCUIT
6
TROUBLESHOOTING
No LED display.
Is 5V obtained at IC701
pin #9, 25?
Oscillation at IC701pin #1?
Specific GRID/SEG doesnÕt function.
Check R588, D857, L503, L860
Exchange IC701.
Check IC 701 pin #22~24, 27,
28, 30, 31.
Check IC 701 pin #10~12, 14~21.
NO
YES
YES
NO
NO
GRID output at PORT of IC701?
YES
SEGoutput at PORT of IC701?
Exchange IC701.
YES
A. LED DISPLAY
NO
7
TROUBLESHOOTING
Noise appears on the
playback screen.
Is noise diminished by tracking
adjustment.
Noise band is trembled up and
down?
Re-adjust PATH.
Is the height of CTL HEAD normal?
No dust?
Is there problem in CTL Input
circuit and amplifier.
YES
NO
NO
NO
Is there CTL pulse at IC501
pin#97?
Check IC501.
Noise appears on the screen even
though changing tape.
Re-adjust the height of AC HEAD.
Remove the dust.
Check C510,R545~R547
IC 501 pin #91, 92, 98.
NO
Re-adjust PATH.
B-1. Bad playback quality (1)
YES
YES
YES
YES
Noise appears on the Full
playback screen.
Are SW pulse and HA SW normal?
Recheck step B-1
(Bad playback quallty (1)).
Check HEAD AMP connector
and HEAD.
YES
YES
NO
NO
ENVE Wave at P502 pin #4?
Check VIDEO circuit.
Are there SW, HA SW pulse at
IC501 pin #16, 18?
Check PCB Pattern.
Check IC501.
B-2. Bad playback quality (2)
YES
NO
YES
8
TROUBLESHOOTING
No broadcasting signal
received
Is the output at IC501 pin# 61(CLK),
62 (DATA) normal?
Is SIF,Video output at TMI(RF101)
pin#22,24 normal?
Check IC 501.
Check IC301.
Check IC501.
YES
YES
NO
NO
NO
Is Video Signal input at IC501
pin#50?
Is there Video output at IC501
pin#52?
Check TMI (RF101) Block.
NO
Check Video Buffer Q670, Q671
C. No broadcasting signal received
YES
YES
YES
9
TROUBLESHOOTING
Cassette tape isnÕt inserted.
Is 5V voltage obtained at Loading
parts IC501 pin#2?
Is 14V voltage obtained at
Capstan Motor P501 pin#2?
Check at EVER 14V
Check Q850.
Connect Capstan and Loading Motor.
Check connector and Capstan Motor.
YES
NO
NO
NO
Is 13V voltage obtained at Each
parts of Loading Motor?
Replace Loading Motor.
Check D851 and POWER circuit.
D. No CASSETTE Loading
YES
YES
E. AUTO STOP in Playback mode
VCR stops automatically in
playback mode.
Check R544,C516 and P510
pin#11.
Check S603, S604 REEL Sensor.
Is D.PG/FG pulse at IC501
pin#90 normal ?
Is C. FG pulse at IC501 pin#87
normal ?
Is there REEL Pulse at IC501
pin#79, 80?
Check and replace IC501.
NO
YES
YES
YES
NO
Check C.FG(R543,C517) and
P510 pin#1.
NO
10
TROUBLESHOOTING
F. DRUM Motor stops
G. CAPSTAN doesnÕt rotate
CAPSTAN doesnÕt rotate.
Is EVER 14V voltage obtained
at P501 pin#2?
YES
NO
NO
NO
YES
YES
Is Capstan PWM fit to
IC501 pin#77?
Is 3.2V voltage obtained
at P501 pin#5?
Is 2.7V voltage obtained
at P501 pin#9?
Check P501 Connector and
Capstan Motor.
Check EVER 14V.
(Q850)
Check Capstan FG
(IC 501 pin# 87).
Check
R541,R540,R539,R538,C518
Check R537,R536,C521
DRUM Motor stops.
Is 14V voltage obtained at P501
pin#8?
YES
NO
NO
NO
YES
YES
Is DRUM PWM fit to IC 501
pin#76?
Is 2.6V voltage obtained at
P501 pin#12?
Check Capstan Motor and
DRUM Motor.
Check EVER 14V
(Q850).
Check DRUM PG/FG
(IC 501 pin# 90).
Check R534,R535,C519,C520.
NO
11
TROUBLESHOOTING
3. VIDEO circuit
A. EE screen doesnÕt appear
EE MODE Picture NG
Is Video signal input at
IC301 pin#48,50,52,54?
Is 5V supplied at
pin#42,55,72,91of IC301?
Is C.S, DATA, CLOCK signal
input pin#67,68,69 of IC301?
Check IF and LINE IN JACK.
Check POWER circuit.
Check IC501
pin #58,71,72.
NO
YES
YES
NO
NO
YES
Is signal output from pin#65 of
IC301?
YES
NO
Check IC301
pin#62 Q-V Sync.
Is signal input into pin#50
of IC501?
YES
NO
Check PCB Pattern.
Is signal output from
pin#52 of IC501?
YES
NO
Is 5V supplied to pin#53, 98,
99 of IC501?
Is signal output at IC301
pin#61?
YES
NO
Check PCB Pattern
Q309, Q310.
Check IC 501
YES
Check POWER circuit.
NO
Is signal input at IC301
pin#56?
Check RF Output.
Check PCB Pattern & LINE
out.
YES
YES
Check IC301.
NO
12
TROUBLESHOOTING
B. Playback picture doesnÕt appear
YES
YES
Is Y SIGNAL output at IC301
pin#46?
Is VIDEO SIGNAL output at IC301
pin#65?
Check and Replace IC301.
PB video signal missing.
Is Envelope output from IC301
pin#79?
NO
NO
Same as EE MODE check.
Is 5V supplied at IC301 pin#91?
Is SW Pulse input at IC301
pin#70?
Is 5V obtained at IC301 pin#24,
42,55,72,91?
Check POWER 5V.
Check IC601 pin#18.
Clean head or Replace head.
Check POWER 5V.
NO
NO
Check PATTERN
NO
YES
YES
YES
YES
YES
YES
NO
Does X301(4.43MHz)
oscillate?
Is Y SIGNAL input at IC301
pin#43?
NO
Check PATTERN
YES
NO
Replace X301.
NO
Check and replace IC301.
13
TROUBLESHOOTING
Is +5V supplied at IC301 pin#91?
NO
NO
YES
YES
Is VIDEO SW Pulse input at IC301
pin#70?
Is REC signal output from IC301
pin#94,95,89,90?
LP MODE: 89,90 Pin
SP MODE: 94,95Pin
Check video HEAD and Connector.
Is signal input into IC301
pin# 48,50,52,54,56?
Check POWER circuit.
Check IC501 pin#18.
Record video signal poor.
Check EE MODE.
YES
Is luminance and color signal
output from IC301 pin#78?
Replace IC301.
NO
NO
YES
C. No recording
YES
Is IC301 pin#80 REC(H) HIGH?
Check IC501 pin#45.
NO
14
TROUBLESHOOTING
NO
Is Video signal input at IC501
pin#50?
Check POWER circuit.
No OSD appears.
Is 5V obtained at IC501 pin# 53,
98, 99?
Is Video signal output at IC501
pin#52?
NO
Replace IC501.
D. No OSD(On Screen Display) appears
YES
YES
NO
Check IC 501.
Check IC 501.
NO
Check PCB Pattern
Check FFC CABLE & DVD
Module
DVD Composite signal doesnÕt
appear
Is signal output at PD01
pin# 7?
Is signal at IC301 pin#56?
NO
E. No DVD Video
YES
YES
Remark previous 3-A
Is signal at IC301 pin#61?
Check IC301
NO
Check RF output.
YES
YES
Check Line output
15
TROUBLESHOOTING
4. AUDIO (Hi-Fi MODEL)
No sound in RF E-E mode
Is Audio signal output at IC601 pin
#3, 13?
A. No sound in E-E mode
a. RF E-E
Check IC501.
Is Audio signal output at IC251
pin#16,17?
Are CLK and DATA obtained at
IC251 pin#42,43?
NO
Is 5V obtained at IC251 pin#40?
Replace IC251.
YES
YES
Is 12V obtained at IC251 pin#34?
NO
YES
Check POWER circuit.
YES
Replace IC601.
Is 5V obtained at IC051 pin#1?
Check Power circuit.
NO
Is there SIF signal at IC051 pin#2
in RF mode?
Check RF101.
NO
YES
Is there SIF signal out at IC051
pin#30, 31?
Check IC051.
NO
YES
YES
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
16
TROUBLESHOOTING
b. AV1 E-E
No sound in AV1 E-E mode.
NO
Check Input AV1 JACK
Is Audio signal at IC251 pin#6, 7?
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
Is Audio signal output at IC251
pin#16,17?
Are CLK and DATA obtained at
IC251 pin#42,43?
NO
Is 5V obtained at IC251 pin#40?
Replace IC251.
YES
YES
Is 12V obtained at IC251 pin#34?
NO
YES
Check POWER circuit.
YES
Replace IC601.
YES
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
17
TROUBLESHOOTING
c. AV2 E-E
No sound in AV2 E-E mode.
NO
Check Input AV2 JACK
Is Audio signal at IC251 pin#8, 9?
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
Is Audio signal output at IC251
pin#19, 20?
Are CLK and DATA obtained at
IC251 pin#42,43?
NO
Is 5V obtained at IC251 pin#40?
Replace IC251.
YES
YES
Is 12V obtained at IC251 pin#34?
NO
YES
Check POWER circuit.
YES
Replace IC601.
YES
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
18
TROUBLESHOOTING
d. DVD E-E
No sound in DVD
E-E mode.
Is there DVD Audio at PD01 pin#1,
3?
Is 12V obtained at ICD03 pin#8?
Is Audio(DVD) signal at IC601
pin#2,15?
YES
YES
Check ICD03.
NO
Check DVD board
NO
Check POWER circuit.
NO
Is DVD Audio signaloutput at
ICD03 pin#1,7?
Check ICD03.
NO
YES
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
YES
Replace IC601.
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
19
TROUBLESHOOTING
Is Audio signal at IC601 pin#1,
12?
Check Input Front JACK.
NO
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
YES
Replace IC601.
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
e. FRONT E-E
No sound in Front
E-E mode.
20
B. No Hi-Fi Playback audio(PLAY MODE)
NO
Check A.SW at IC501
pin#19.
Is Audio signal at IC251 pin#41?
Is Audio signal output at IC601 pin
#3, 13?
Check IC501.
Is Audio signal output at IC251
pin#16,17?
Are CLK and DATA obtained at
IC251 pin#42,43?
NO
Is 5V obtained at IC251 pin#40?
Replace IC251.
YES
YES
Is 12V obtained at IC251 pin#34?
NO
YES
Check POWER circuit.
YES
Replace IC601.
Comparing with switching table, are SWA, B CTL SIGNAL
right at IC601 pin #9,10?
NO
Check Output JACK.
YES
YES
NO
21
C. No Hi-Fi playback in record/playback mode (REC MODE)
Are there Audio signal
at IC251 pin#4~9?
Is FM OSC signal at IC251
pin#36?
Check input LINE1 JACK.
Check input LINE2 JACK.
Check ICD03(DVD).
Replace DRUM.
YES
NO
NO
NO
Is FM OSC signal at P401 pin#2?
Replace IC251
YES
HEAD CLEANING.
YES
D. No NORMAL AUDIO playback (PLAY MODE)
Is Playback Audio signal at
IC301 pin#11?
Replace IC251.
YES
NO
NO
Is there Playback Normal Audio
signal at IC251 pin #17,18?
Check A/C HEAD and IC301
YES
Check Output JACK.
YES
Is there normal Audio signal at
IC251 pin#17, 18?
NO
Check power circuit.
NO
Voltage at IC251 pin#34 is 12V?
Voltage at IC251 pin#40 and at
IC301 pin#18 is 5V?
22
TROUBLESHOOTING
E. No NORMAL AUDIO playback in record/playback mode(Check in REC mode)
No Normal Audio playback in
record/playback mode
Are there Audio signal at IC251
pin#4~9?
Is there recording signal at
IC251 pin#21?
Check Input LINE1 JACK.
Check Input LINE2 JACK.
Check ICD03(DVD).
Check signal flow circuit.
YES
NO
NO
NO
Signal at IC251 pin#21 is transferred to
IC301 pin#13,15,17?
Collect signal at C222 is about
70Vp-p at 70KHz?
Check IC251.
YES
YES
Check Q203.
NO
Check P201 pin#2, 4, 8 and A/C
HEAD.
YES
REC (H) BASE voltage at Q206
is 5V?
Check IC501 pin#45.
NO
YES
23
WAVEFORMS
1. VIDEO
!
(IC301-70) 5Vp-p
1V/2msec/cm
REC
!
(IC301-70)5Vp-p
1V/2msec/cm
PLAY
@
(IC301-46) 520mVp-p
200mV/5usec/cm
REC
@
(IC301-46) 520mVp-p
200mV/5usec/cm
PLAY
#
(IC301-43) 520mVp-p
100mV/5usec
REC
#
(IC301-43) 520mVp-p
100mV/5usec
PLAY
$
(IC301-21) 600mVp-p
200mV/2msec/cm
PLAY(SP) VIDEO SW TRIG
$
(IC301-21) 350mVp-p
200mV/2msec/cm
PLAY(EP) VIDEO SW TRIG
%
(IC301-67) 4.6Vp-p
2V/10usec/cm
REC/PLAY
%
(IC301-67) 4.6Vp-p
2V/10usec/cm
PICTURE SEARCH
^
(IC301-65) 2.2Vp-p
500mV/5usec/cm
REC
^
(IC301-65) 2.2Vp-p
500mV/5usec/cm
PLAY
&
(IC301-28) 450mVp-p
200mV/0.1usec/cm
24
WAVEFORMS
2. AUDIO
2-1 AUDIO(Normal)
2-2 AUDIO(Hi-Fi)
*
(IC301-15) 100mVp-p
20mV/0.5msec/cm
REC
(
(IC301-11) 1.5Vp-p
0.5V/0.5msec/cm
REC
)
(IC301-100) 2.3Vp-p
0.5V/0.5msec/cm
REC
1
(IC301-8) 120mVp-p
50mV/0.5msec/cm
PLAY
2
(P202-2) 75Vp-p
10V/20µsec/cm
REC
3
(IC251-2) 80mVp-p
20mV/0.5msec
EE/REC/PLAY
4
(IC251-24) 200mVp-p
50mV/0.5msec
EE/REC
5
(IC251-34) 1.4Vp-p
0.5V/1msec
REC
6
(IC251-32) 200mVp-p
50mV/0.5msec
EE/REC
7
(IC251-16) 1.4Vp-p
0.5V/0.5msec
EE/REC
25
WAVEFORMS
3. SERVO/SYSCON
8
(IC601-18) 5Vp-p
2V/5msec/cm
REC/PLAY
9
(IC601-77) 5Vp-p
2V/5µsec/cm
REC/PLAY
0
(IC601-76) 5Vp-p
2V/5µsec/cm
REC/PLAY
“
(IC601-94) 3Vp-p
1V/5msec/cm
REC
‘
(IC601-97) 4.4Vp-p
1V/5msec/cm
PLAY
+
(IC601-90)25Vp-p&5Vp-p
1V/5msec/cm
REC/PLAY
=
(IC601-87) 2.5Vp-p
1V/0.2msec/cm
REC/PLAY
Q
(IC601-38) 2.6Vp-p
0.5V/0.1µsec/cm
REC/PLAY
26
CIRCUIT DIAGRAM
1. POWER SUPPLY CIRCUIT DIAGRAM
27
CIRCUIT DIAGRAM
2. SERVO & SYSCON CIRCUIT DIAGRAM
VCR
AM
REC
COPY
C
dts
T
DVD
28
CIRCUIT DIAGRAM
3. VIDEO/AUDIO CIRCUIT DIAGRAM
29
4. HiFi & SW & INPUT CIRCUIT DIAGRAM
CIRCUIT DIAGRAM
30
CIRCUIT DIAGRAM
5. PIF CIRCUIT DIAGRAM
31
CIRCUIT DIAGRAM
6. DVD CIRCUIT DIAGRAM
32
CIRCUIT DIAGRAM
33
CIRCUIT DIAGRAM
34
CIRCUIT DIAGRAM
35
CIRCUIT DIAGRAM
36
PCB CIRCUIT BOARD
1-1 . VCR (MAIN)
37
PCB CIRCUIT BOARD
1-2. POWER
38
PCB CIRCUIT BOARD
1-3. DVD (MAIN)
INSTRUMENT DISASSEMBLY
1. DECK DISASSEMBLY
Perform all disassembly procedures in the order presented.
When reassembling, use the reverse procedure.
Make sure that all leads/ wiring are routed correctly when reassembling.
FIG. 1
A. TOP COVER REMOVAL
@ Remove two screws
! Remove three screws
# Remove two screws
39
40
B. PANEL FRONT DISASSEMBLY
C. LOGIC PCB DISASSEMBLY
FIG.2
FIG.3
! Remove 3
Hooks at
bottom
@ Remove 2 Hooks at left and right sides,
Simultaneously, remove panel.
Remove 2
screws, then
remove Logic
INSTRUMENT DISASSEMBLY
41
INSTRUMENT DISASSEMBLY
FIG. 4
D. DECK AND MAIN PARTS DISASSEMBLY
! Remove 6 screws, then remove DECK
@ Remove 4 screws, then remove LOADER
# Remove 3 screws, then remove
POWER PCB
42
INSTRUMENT DISASSEMBLY
FIG. 5
E. MAIN PCB DISASSEMBLY
@ Remove 2 screws, then remove MAIN PCB
! Remove 2 screws
43
INSTRUMENT DISASSEMBLY
F. MAIN CHASSIS DISASSEMBLY
FIG. 6
! Remove 4 screws, then remove MAIN
44
INSTRUMENT DISASSEMBLY
G. Explode view
45
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
03 PVMCASS179 CHASSIS MAIN AS DC-A84D1S-NA
D100 97P1R2ZJA6 REMOCON HANDSET AS VR-F2ZJA6(AA)-GY331A
DP08 97P882TF12 CABLE SCART SCART-SCART 21P 1.2M
M01 97PP328100 PANEL FRONT AS HIPS(HB)
M100 97Q6010000 DVD MECHA DDM-4001(HOP1200)+PLATE EARTH LOADER
M1000 PVDKARSC60 DECK VCR AS(T60) DRS-T610R NON SECAM ONLY
M1000 PVDKARPC60 DECK VCR AS(T60) DRP-T610R NON PAL ONLY
M100A 97P1825800 DOOR DVD ABS
PD01A 97P88FAJ22 CABLE FFC 1.0 K 18P 220MM
PW01 97P69DB90B CORD POWER EU KKP-419C YFH800 1.7M
Z001 PVMPMSS179 PCB MAIN MANUAL AS DC-A84D1S-NA
C852 CEXK1E681L C ELECTRO 25V 680UF KXL
C853 CEXK1C102L C ELECTRO 16V 1000UF KXL (10X20)
C854 CEXK1E681L C ELECTRO 25V 680UF KXL
C855 CEXK1C681L C ELECTRO 16V 680UF KXL
E001 97P0993100 PLATE EARTH C5210(PBS) T0.15(1/2H)
G501 DS6T834NÑ LED DISPLAY S6T834N G75R2Y3
H501 10RC356VF4 IC UNIT R/RECE1VER ORC-356VF4(38KHZ)
IC851 1K1A278R05 IC REGULATOR K1A278R05P1 5.0V 2.0A T0-220
JK601 97P6313300 JACK DOUBLE SCART DSAM-9621
JK603 97P6318230 JACK PIN DPAM-0286
JK604 97P6316900 JACK PIN DPSE-9946
JK606 97P0S03000 JACK SENSOR OPTIC VST5B-12M
M401 97P0478200 CASE SHI PREAMP ET T0.4
P201 97P62Y1318 CONN WAFER DVW250 PLUG 2.5MM 8P
P202 97P62T14B2 CONN HOUSING TMC-EX-B1 RECEP 2.0MM 2P
P401 97P62G06DA CONN FFC GF120-10S-TS 10P ST
P501 97P62J012C CONN B/B JE612 PLUG 2.0 12P
P502 97P6269000 CONN WAFER 00-8283-0612-00000
P503 97P62M05A6 CONN B/B 35238 RECEP 2.5MM 6P
P702 97P62M06A6 CONN B/B 35337 PLUG 2.5MM 6P
P851 97P62Y17AA CONN WAFER YW025-10
PD01 97P62G08EJ CONN FFC GF102-18S-TS 18P ST
PJ501 97P885X167 CONN AS 5S-5A 150MM
PJD02 97P885X187 CONN AS 6H-6S 180MM(2.0)
PJD03 97P885X169 CONN AS 6H-6S 170MM
Q857 TFQP20N06- FET FQP20N06
RF101 97P7618700 TUNER 3 IN 1 SSTBI-SLQ2 SECAM ONLY
RF101 97P7615500 TUNER 3 IN 1 SSTMI-GKIQ1 PAL ONLY
S501 97P0S02500 SENSOR REEL RPI-303N
S502 97P0S02500 SENSOR REEL RPI-303N
SW501 5S10104100 SW MODE MMS00402ZMB0
SW510 5SD0101100 SW DETE MXS00921MPC0
X051 5XJ18R4LAE CRYSTAL QUARTZ HC-49/S 18.43200MHZ 30PP
X501 5XJ17R7LAD CRYSTAL QUARTZ HC-49/S 17.73447MHZ 25PPM
Z0011 PVMPJ1S179 MAIN CHIP MOUNT A AS DC-A84D1S-NA
C008 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C009 HCQK300JBA C CHIP CERA 50V CH 30PF J 1608
C017 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608
C018 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608
C028 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C051 HCQK390JBA C CHIP CERA 50V CH 39PF J 1608
C052 HCQK209CBA C CHIP CERA 50V CH 2PF C 1608
C053 HCQK209CBA C CHIP CERA 50V CH 2PF C 1608
C054 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
C056 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C058 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C060 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C062 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C067 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C153 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C157 HCBK563KBA C CHIP CERA 50V X7R 0.056MF K 1608
C159 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C161 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
C202 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608
C203 HCBK122KBA C CHIP CERA 50V X7R 1200PF K 1608
C206 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C212 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C220 HCQK391JBA C CHIP CERA 50V CH 390PF J 1608
C251 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C252 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C253 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C254 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C255 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C256 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C257 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C258 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C259 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C260 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C269 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C271 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
C277 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
C281 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C282 HCBK122KBA C CHIP CERA 50V X7R 1200PF K 1608
C286 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C301 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
C303 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C306 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C307 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
C308 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C310 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
C311 HCBF224KCA C CHIP CERA 16V X7R 0.22MF K 2012
C312 HCBK822KBA C CHIP CERA 50V X7R 8200PF K 1608
C314 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C315 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C316 HCQK561JBA C CHIP CERA 50V CH 560PF J 1608
C317 HCQK131JBA C CHIP CERA 50V CH 130PF J 1608
C318 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608
C319 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608
C325 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C328 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C330 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608
C333 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C335 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C339 HCQK131JBA C CHIP CERA 50V CH 130PF J 1608
C340 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
C362 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608 SECAM ONLY
C363 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 SECAM ONLY
C365 HCFF105ZBA C CHIP CERA 16V Y5V 1MF Z 1608 SECAM ONLY
C368 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608 SECAM ONLY
✔ Caution: In this Service Manual, some parts can be changed for improving, their performance without notice in the parts list. So, if you need the latest parts
information, please refer to PPL(Parts Price List) in Service information Center(http://svc.dwe.co.kr)
46
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
C369 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 SECAM ONLY
C370 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 SECAM ONLY
C371 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 SECAM ONLY
C372 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 SECAM ONLY
C373 HCFH474ZBA C CHIP CERA 25V Y5V 0.47MF Z 1608 SECAM ONLY
C379 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 SECAM ONLY
C384 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 SECAM ONLY
C401 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C404 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C505 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C506 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C507 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C509 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C510 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
C514 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C515 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C516 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
C518 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C519 HCBK272KBA C CHIP CERA 50V X7R 2700PF K 1608
C520 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C521 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C523 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C525 HCQK201JBA C CHIP CERA 50V CH 200PF J 1608
C527 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C528 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C529 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
C531 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
C532 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
C536 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C537 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C596 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C597 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C598 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C599 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C5A1 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
C613 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C614 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C615 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C616 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C625 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C626 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608
C627 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C628 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
C630 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C631 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C632 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
C633 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
C634 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C640 HCQK201JBA C CHIP CERA 50V CH 200PF J 1608
C641 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
C698 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
C699 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
C888 HCFH223ZBA C CHIP CERA 25V Y5V 0.022MF Z 1608
CD06 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CD09 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
CD10 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CD21 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608
CD53 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CD55 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CD60 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
IC051 1MSP3417G3 IC NICAM MSP3417G-V3
IC151 1LC74793Ñ IC VPS LC74793JM
IC251 1TDA9605H- IC HI-FI TDA9605H
IC301 1LA71750M- IC A/V 1 CHIP LA71750M
IC361 1LA70100M- IC SECAM-L LA70100M SECAM ONLY
IC501 168KT87CTS IC MICOM M37762MCA-1M2GP
IC502 14CAT2416J IC EEPROM CAT24WC16J(16K SOP)
IC601 1HEF4052BD IC CHIP SW HEF4052B
IC701 1PT6961Ñ- IC DRIVER P76961 32P.M SOP
ICD01 1DM74LS04M IC INVERT DM74LS04MX
ICD03 1KA4558DÑ IC OP AMP KA4558D(8 SOP)
JP049 HRF8000-EA R CHIP 1/8 0 OHM 3216
JP245 HRFS000-BA R CHIP 1/16 0 OHM 1608
JP249 HRFS000-BA R CHIP 1/16 0 OHM 1608
L607 HLX1210001 BEAD CHIP TB201209Z121
L608 HLX1210001 BEAD CHIP TB201209Z121
L688 HLX1210001 BEAD CHIP TB201209Z121
L689 HLX1210001 BEAD CHIP TB201209Z121
Q006 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q007 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q301 T2SC2412KB TR CHIP 2SC2412K-T146-BR SECAM ONLY
Q302 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q303 T2SA1037KB TR CHIP 2SA1037AKT146-R
Q304 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q305 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q306 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q307 T2SA1037KB TR CHIP 2SA1037AKT146-R
Q308 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q309 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q310 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q311 T2SC2412KB TR CHIP 2SC2412K-T146-BR
Q333 T2SA1037KB TR CHIP 2SA1037AKT146-R
QD03 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QD04 T2SC2412KB TR CHIP 2SC2412K-T146-BR
QD50 T2SA1037KB TR CHIP 2SA1037AKT146-R
QD51 T2SA1037KB TR CHIP 2SA1037AKT146-R
QD52 T2SA1037KB TR CHIP 2SA1037AKT146-R
QD56 T2SC2412KB TR CHIP 2SC2412K-T146-BR
R007 HRFS225JBA R CHIP 1/16 2.2M OHM J 1608
R022 HRFS225JBA R CHIP 1/16 2.2M OHM J 1608
R023 HRFS153JBA R CHIP 1/16 15K OHM J 1608
R055 HRFS562JBA R CHIP 1/16 5.6K OHM J 1608
R056 HRFS562JBA R CHIP 1/16 5.6K OHM J 1608
R088 HRFS153JBA R CHIP 1/16 15K OHM J 1608
R098 HRFS133JBA R CHIP 1/16 13K OHM J 1608
R099 HRFS133JBA R CHIP 1/16 13K OHM J 1608
R15A HRFS912JBA R CHIP 1/16 9.1K OHM J 1608 PAL ONLY
R152 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R153 HRFS562JBA R CHIP 1/16 5.6K OHM J 1608
R154 HRFS103JBA R CHIP 1/16 10K OHM J 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
R155 HRFS272JBA R CHIP 1/16 2.7K OHM J 1608
R201 HRFS273JBA R CHIP 1/16 27K OHM J 1608
R202 HRFS334JBA R CHIP 1/16 330K OHM J 1608
R203 HRFS181JBA R CHIP 1/16 180 OHM J 1608
R205 HRFS752JBA R CHIP 1/16 7.5K OHM J 1608
R206 HRFS273JBA R CHIP 1/16 27K OHM J 1608
R208 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R209 HRFS123JBA R CHIP 1/16 12K OHM J 1608
R216 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R225 HRFS101JBA R CHIP 1/16 100 OHM J 1608
R226 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R227 HRFS181JBA R CHIP 1/16 180 OHM J 1608
R231 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R264 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R270 HRFS333JBA R CHIP 1/16 33K OHM J 1608
R271 HRFS470JBA R CHIP 1/16 47 OHM J 1608
R301 HRFS122JBA R CHIP 1/16 1.2K OHM J 1608
R302 HRFS822JBA R CHIP 1/16 8.2K OHM J 1608
R304 HRFS202JBA R CHIP 1/16 2K OHM J 1608 SECAM ONLY
R307 HRFS392JBA R CHIP 1/16 3.9K OHM J 1608
R308 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R309 HRFS155JBA R CHIP 1/16 1.5M OHM J 1608
R310 HRFS155JBA R CHIP 1/16 1.5M OHM J 1608
R312 HRFS152JBA R CHIP 1/16 1.5K OHM J 1608
R313 HRFS152JBA R CHIP 1/16 1.5K OHM J 1608
R314 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R315 HRFS183JBA R CHIP 1/16 18K OHM J 1608
R317 HRFS221JBA R CHIP 1/16 220 OHM J 1608
R318 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R319 HRFS105JBA R CHIP 1/16 1M OHM J 1608
R320 HRFS471JBA R CHIP 1/16 470 OHM J 1608
R324 HRFS202JBA R CHIP 1/16 2K OHM J 1608
R326 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
R327 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
R328 HRFS104JBA R CHIP 1/16 100K OHM J 1608
R333 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R347 HRFS101JBA R CHIP 1/16 100 OHM J 1608
R349 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R352 HRFS820JBA R CHIP 1/16 82 OHM J 1608
R353 HRFS101JBA R CHIP 1/16 100 OHM J 1608
R354 HRFS101JBA R CHIP 1/16 100 OHM J 1608
R355 HRFS221JBA R CHIP 1/16 220 OHM J 1608
R356 HRFS151JBA R CHIP 1/16 150 OHM J 1608
R362 HRFS102JBA R CHIP 1/16 1K OHM J 1608 SECAM ONLY
R366 HRFS103JBA R CHIP 1/16 10K OHM J 1608 SECAM ONLY
R377 HRFS154JBA R CHIP 1/16 150K OHM J 1608 SECAM ONLY
R380 HRFS103JBA R CHIP 1/16 10K OHM J 1608 SECAM ONLY
R401 HRFS473JBA R CHIP 1/16 47K OHM J 1608
R505 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R506 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
R509 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
R510 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R511 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R515 HRFS222JBA R CHIP 1/16 2.2K OHM J 1608
R516 HRFS103JBA R CHIP 1/16 10K OHM J 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
R517 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R518 HRFS182JBA R CHIP 1/16 1.8K OHM J 1608
R520 HRFS561JBA R CHIP 1/16 560 OHM J 1608
R521 HRFS561JBA R CHIP 1/16 560 OHM J 1608
R523 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
R524 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
R526 HRFS273JBA R CHIP 1/16 27K OHM J 1608
R527 HRFS273JBA R CHIP 1/16 27K OHM J 1608
R528 HRFS201JBA R CHIP 1/16 200 OHM J 1608
R529 HRFS201JBA R CHIP 1/16 200 OHM J 1608
R530 HRFS244JBA R CHIP 1/16W 240K OHM J 1608
R531 HRFS244JBA R CHIP 1/16W 240K OHM J 1608
R532 HRFS244JBA R CHIP 1/16W 240K OHM J 1608
R533 HRFS244JBA R CHIP 1/16W 240K OHM J 1608
R534 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R536 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R538 HRFS912JBA R CHIP 1/16 9.1K OHM J 1608
R539 HRFS431JBA R CHIP 1/16 430 OHM J 1608
R543 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R544 HRFS102JBA R CHIP 1/16 1K OHM J 1608
R547 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
R549 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R554 HRFS513JBA R CHIP 1/16 51K OHM J 1608
R604 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R605 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R606 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R607 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R608 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R611 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R613 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R614 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R615 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R621 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R622 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R623 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R624 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R629 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R630 HRFS474JBA R CHIP 1/16 470K OHM J 1608
R632 HRFS000-BA R CHIP 1/16 0 OHM 1608
R640 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R641 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
R645 HRFS750JBA R CHIP 1/16 75 OHM J 1608
R653 HRFS103JBA R CHIP 1/16 10K OHM J 1608
R677 HRFS221JBA R CHIP 1/16 220 OHM J 1608
R680 HRFS301JBA R CHIP 1/16 300 OHM J 1608
R681 HRFS301JBA R CHIP 1/16 300 OHM J 1608
R688 HRFS221JBA R CHIP 1/16 220 OHM J 1608
R858 HRFS223JBA R CHIP 1/16 22K OHM J 1608
RD05 HRFS113JBA R CHIP 1/16 11K OHM J 1608
RD10 HRFS471JBA R CHIP 1/16 470 OHM J 1608
RD11 HRFS471JBA R CHIP 1/16 470 OHM J 1608
RD13 HRFS221JBA R CHIP 1/16 220 OHM J 1608
RD19 HRFS471JBA R CHIP 1/16 470 OHM J 1608
RD20 HRFS471JBA R CHIP 1/16 470 OHM J 1608
RD53 HRFS102JBA R CHIP 1/16 1K OHM J 1608
47
ELECTRICAL PARTSLIST
48
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
RD54 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RD55 HRFS680JBA R CHIP 1/16 68 OHM J 1608
RD59 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RD60 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RD62 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RD63 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD65 HRFS331JBA R CHIP 1/16 330 OHM J 1608
RD70 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
RD71 HRFS222JBA R CHIP 1/16 2.2K OHM J 1608
RJ001 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ003 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ005 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ007 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ008 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ009 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ010 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ012 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ017 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ082 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ300 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ312 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ313 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ400 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ402 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ403 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ444 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ601 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ602 HRF8000-EA R CHIP 1/8 0 OHM 3216
RJ666 HRFS000-BA R CHIP 1/16 0 OHM 1608
RJ812 HRFS000-BA R CHIP 1/16 0 OHM 1608
Z0012 PVMPJRS179 PCB MAIN RADIAL AS DC-A84D1S-NA
C001 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7 PAL ONLY
C004 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
C013 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C016 CEXF1H478A C ELECTRO 50V RSM 0.47MF 4X7
C025 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C026 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C027 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C029 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C055 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C057 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C059 CEXF1H339A C ELECTRO 50V RSM 3.3MF 4X7
C061 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C063 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C064 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C065 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C066 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C068 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C151 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C152 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C154 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C158 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7
C201 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C204 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
C205 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
C208 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7
C210 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
C213 CEXF1H478A C ELECTRO 50V RSM 0.47MF 4X7
C214 CEXF1C330A C ELECTRO 16V RSM 33MF (6.3X7) TP
C219 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C222 CMXM2A153J C MYLAR 100V 0.015MF J (TP)
C223 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7
C225 CMXM2A333J C MYLAR 100V 0.033MF J (TP)
C261 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C262 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C263 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C264 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C270 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C272 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C273 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C274 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP
C275 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C276 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C278 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C279 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C283 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C292 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C302 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C304 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C305 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C309 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C313 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C320 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C322 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C327 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C331 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C332 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C334 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C336 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C338 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C375 CMXM2A222J C MYLAR 100V 2200PF J (TP) SECAM ONLY
C376 CMXM2A222J C MYLAR 100V 2200PF J (TP) SECAM ONLY
C377 CEXF1H229A C ELECTRO 50V RSM 2.2MF (4X7) TP SECAM ONLY
C378 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP SECAM ONLY
C389 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C402 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C403 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C501 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C508 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C512 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C513 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C522 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C524 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C526 CEXF1H109A C ELECTRO 50V RSM 1MF (4X7) TP
C530 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C535 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C5A4 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C617 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C618 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C620 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
C635 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C637 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C643 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C644 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C645 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C647 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C648 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C649 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C650 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
C851 CEXK1H470L C ELECTRO 50V 47MF KXL
C856 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C857 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C858 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C859 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C860 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
C861 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
C862 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
C863 CEXF1H330V C ELECTRO 50V RSS 33MF (6.3X11) TP
CD07 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
CD15 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
CD16 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
CD19 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
CD24 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
CD50 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
CD51 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
CD52 CEXF1A471V C ELECTRO 10V RSS 470MF (8X11.5) TP
CD54 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CD62 CEXF1C470A C ELECTRO 16V RSM 47MF (5X7) TP
L001 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L002 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L004 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L051 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L052 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L053 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L201 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L202 5CPX680J2T COIL PEAKING 68UH(BLU-BLK)
L203 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L250 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L251 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
L301 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L302 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L303 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L365 5CPX100J2T COIL PEAKING 10UH(BRN-BLK) SECAM ONLY
L501 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L503 5CPX680J2T COIL PEAKING 68UH(BLU-BLK)
L603 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
L852 56C220K695 COIL CHOKE(CAP TYPE) 22UH K (CAP TYPE) 9X11.1
L853 56C220K695 COIL CHOKE(CAP TYPE) 22UH K (CAP TYPE) 9X11.1
L854 56C220K695 COIL CHOKE(CAP TYPE) 22UH K (CAP TYPE) 9X11.1
L855 56C220K695 COIL CHOKE(CAP TYPE) 22UH K (CAP TYPE) 9X11.1
L860 56C220K695 COIL CHOKE(CAP TYPE) 22UH K (CAP TYPE) 9X11.1
LD02 5CPX101J2T COIL PEAKING 100UH(BRN-BRN)
LD51 5CPX100J2T COIL PEAKING 10UH(BRN-BLK)
Q201 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q203 TZTC3202Y- TR KTC3202Y (AUTO)(1959Y)
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
Q204 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q205 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q206 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q207 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q208 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q601 TZSR2001Ñ TR KSR2001 (AUTO)
Q602 TZRC104MÑ TR KRC104M AUTO
Q603 TZRC104MÑ TR KRC104M AUTO
Q644 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q670 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q671 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
Q844 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q850 TZTC3205Y- TR KTC3205Y (2236Y)
Q851 TZTC3205Y- TR KTC3205Y (2236Y)
Q852 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
Q853 TZTA1273Y- TR KTA1273Y(966Y)
Q856 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
QD01 TZTC3198Y- TRANSISTOR KTC3198Y-(1815Y) (AUTO)
QD02 TZTA1266Y- TR KTA1266Y- (AUTO)(1015Y)
QD55 TZTA1273Y- TR KTA1273Y(966Y)
SW511 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
SW512 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
SW513 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
SW5B6 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
SW5B7 5S50101Z97 SW TACT THVV952GBA 9.5M AUTO
SW714 5S50101Z90 SW TACT THVV502GDA
SW7B1 5S50101Z90 SW TACT THVV502GDA
SW7B2 5S50101Z90 SW TACT THVV502GDA
SW7B3 5S50101Z90 SW TACT THVV502GDA
SW7B4 5S50101Z90 SW TACT THVV502GDA
SW7B5 5S50101Z90 SW TACT THVV502GDA
X301 5XE4R433TB CRYSTAL QUARTZ HC-49/U 4.433619MHZ 15PPM (FORMING)
Z0013 PVMPJAS179 PCB MAIN AXIAL AS DC-A84D1S-NA
C002 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C003 CCZB1H101K C CERA 50V B 100PF K (AXIAL) PAL ONLY
C005 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C006 CCZB1H101K C CERA 50V B 100PF K (AXIAL) PAL ONLY
C007 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C012 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C014 CCZB1H101K C CERA 50V B 100PF K (AXIAL)
C160 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C207 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C321 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C323 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C324 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C326 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C329 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C337 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C341 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
C342 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C350 CCZB1H221K C CERA 50V B 220PF K (AXIAL)
C361 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL) SECAM ONLY
C511 CBZP1C103M C CERA SEMI 16V Y5S 0.01MF M (AXIAL)
C517 CCZB1H102K C CERA 50V B 1000PF K (AXIAL)
C652 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
49
ELECTRICAL PARTSLIST
50
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
CD14 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
CD17 CZCH1H201J C CERA 50V CH 200PF J (AXIAL)
CD18 CCZB1H182K C CERA 50V B 1800PF K (AXIAL)
CD20 CCZB1H471K C CERA 50V B 470PF K (AXIAL)
CD22 CCZB1H471K C CERA 50V B 470PF K (AXIAL)
CD25 CZCH1H201J C CERA 50V CH 200PF J (AXIAL)
CD26 CCZB1H182K C CERA 50V B 1800PF K (AXIAL)
CD61 CCZF1H104Z C CERA HIKF 50V 0.1MF Z AXIAL
D001 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D003 DZN4003Ñ- DIODE IN4003
D301 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D501 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D503 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D510 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D511 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D512 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D513 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D518 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D519 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D520 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D521 DZN4003Ñ- DIODE IN4003
D523 DZN4003Ñ- DIODE IN4003
D524 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D525 DZN4004Ñ- DIODE 1N4004(AUTO)
D531 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V)
D614 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
D615 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
D616 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
D617 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
D619 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V)
D630 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D850 DZUZ33BSB- DIODE ZENER UZ-33BSB(30.32-31.38V)
D851 DZUZ13BSB- DIODE ZENER UZ-13BSB(12.59-13.16V)
D852 DZUZ5R6BSB DIODE ZENER UZ-5.6BSB(5.46-5.70V)
D857 DZN4003Ñ- DIODE IN4003
D859 DZGDZP18B- DIODE ZENER GDZP18B1
D888 DZN4003Ñ- DIODE IN4003
DD01 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
DD02 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
DD50 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
JP038 85801060TA WIRE COPPER 0.6X52MM TAPING SECAM ONLY
JP056 RD-AZ301J- R CARBON FILM 1/6 300 OHM J
JP057 RD-AZ301J- R CARBON FILM 1/6 300 OHM J
JP063 85801060TA WIRE COPPER 0.6X52MM TAPING SECAM ONLY
JP147 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
JP204 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
JP227 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
JP300 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
L151 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM)
L304 85801060TA WIRE COPPER 0.6X52MM TAPING
L311 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
L340 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L341 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L342 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L526 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
L602 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L604 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L605 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L606 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L612 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L613 5CPZ229K02 COIL PEAKING 2.2UH K(AXIAL 3.5MM)
L851 5PB13857Ñ COIL BEAD BI3857(AXIAL)
LD00 5PB13857Ñ COIL BEAD BI3857(AXIAL)
R001 RD-AZ221J- R CARBON FILM 1/6 220 OHM J PAL ONLY
R002 RD-AZ221J- R CARBON FILM 1/6 220 OHM J PAL ONLY
R003 RD-AZ102J- R CARBON FILM 1/6 1K OHM J PAL ONLY
R004 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R005 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R006 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R051 RD-AZ751J- R CARBON FILM 1/6 750 OHM J
R052 RD-AZ751J- R CARBON FILM 1/6 750 OHM J
R054 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R15B RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J PAL ONLY
R190 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R204 RD-AZ113J- R CARBON FILM 1/6 11K OHM J
R207 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R214 RD-AZ511J- R CARBON FILM 1/6 510 OHM J
R215 RD-AZ911J- R CARBON FILM 1/6 910 OHM J
R217 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R218 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R219 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R228 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R229 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R230 RD-AZ512J- R CARBON FILM 1/6 5.1K OHM J
R232 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R265 85801060TA WIRE COPPER 0.6X52MM TAPING
R266 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
R267 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R268 RN-AZ3902F R METAL FILM 1/6 39K OHM F
R269 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R276 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R277 RD-AZ511J- R CARBON FILM 1/6 510 OHM J
R278 RD-AZ511J- R CARBON FILM 1/6 510 OHM J
R303 RD-AZ102J- R CARBON FILM 1/6 1K OHM J SECAM ONLY
R305A RD-AZ434J- R CARBON FILM 1/6 430K OHM J
R306 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R316 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R321 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R322 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R323 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R325 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R329 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R330 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R331 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R350 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R351 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R370 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R381 RD-AZ103J- R CARBON FILM 1/6 10K OHM J SECAM ONLY
R399 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R402 RD-AZ393J- R CARBON FILM 1/6 39K OHM J
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
R403 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R423 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R512 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R513 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R514 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R525 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R535 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R537 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R540 RN-AZ103F- R METAL FILM 1/6 10K OHM F
R541 RN-AZ103F- R METAL FILM 1/6 10K OHM F
R545 RD-AZ121J- R CARBON FILM 1/6 120 OHM J
R546 RD-AZ121J- R CARBON FILM 1/6 120 OHM J
R550 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R551 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R588 RD-2Z189JS R CARBON FILM 1/2 1.8 OHM J SMALL
R601 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R602 RD-AZ391J- R CARBON FILM 1/6 390 OHM J
R603 RD-AZ391J- R CARBON FILM 1/6 390 OHM J
R610 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R612 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R625 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R626 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R627 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R628 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R631 85801060TA WIRE COPPER 0.6X52MM TAPING
R635 RD-AZ203J- R CARBON FILM 1/6 20K OHM J
R636 RD-AZ203J- R CARBON FILM 1/6 20K OHM J
R637 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R638 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R644 RD-4Z751J- R CARBON FILM 1/4 750 OHM J
R670 RD-4Z751J- R CARBON FILM 1/4 750 OHM J
R671 RD-4Z751J- R CARBON FILM 1/4 750 OHM J
R678 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R844 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R850 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R851 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R852 RD-AZ180J- R CARBON FILM 1/6 18 OHM J
R853 RD-2Z751JS R CARBON FILM 1/2 750 OHM J SMALL
R854 RD-4Z102JS R CARBON FILM 1/4 1K OHM J SMALL
R855 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R856 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R857 RD-AZ202J- R CARBON FILM 1/6 2K OHM J
RD01 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RD02 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RD03 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RD04 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RD06 RD-AZ911J- R CARBON FILM 1/6 910 OHM J
RD07 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RD09 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
RD12 RD-AZ302J- R CARBON FILM 1/6 3K OHM J
RD14 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RD15 RD-AZ113J- R CARBON FILM 1/6 11K OHM J
RD16 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
RD17 RD-AZ911J- R CARBON FILM 1/6 910 OHM J
RD18 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
RD21 RD-AZ302J- R CARBON FILM 1/6 3K OHM J
RD22 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RD26 RD-AZ303J- R CARBON FILM 1/6 30K OHM J
RD27 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
RD28 RD-AZ303J- R CARBON FILM 1/6 30K OHM J
RD29 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
RD31 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RD32 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RD50 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RD51 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RD52 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
RD56 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RD57 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RD58 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
RD61 RD-AZ750J- R CARBON FILM 1/6 75 OHM J
RD64 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
UM01 97P65334MA PCB MAIN 330X246X1.6T
Z004 PVMGMSDA03 PCB MPEG MANUAL AS DQL-1003-3S0
CN01 97P62Z04A6 CONN WAFER A2501WV2-6P ST PLUG 6P
CN02 97P62G08EJ CONN FFC GF102-18S-TS 18P ST
CN03 97P62A23B6 CONN WAFER 440054-6 ST PLUG 6P
CN08 97P62G09E9 CONN FFC GF106-09S-LS 09P RA
LM01 97L4400300 RADIATOR TR SKD-11
XC01 5XJ27R00AC CRYSTAL QUARTZ HC-49/S 27MHZ 20PPM
Z0011 PVMGJ1DA00 PCB MPEG CHIP AS DQL-1003 BAGIC(2CH)
CA01 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA02 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA03 HCBK821KBA C CHIP CERA 50V X7R 820PF K 1608
CA04 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CA05 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CA06 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CA07 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
CA08 HCQK121JBA C CHIP CERA 50V CH 120PF J 1608
CA09 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA10 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA11 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA12 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA13 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CA14 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CA15 HCBK393KBA C CHIP CERA 50V X7R 0.039MF K 1608
CA16 HCQK151JBA C CHIP CERA 50V CH 150PF J 1608
CA17 HCBF224KCA C CHIP CERA 16V X7R 0.22MF K 2012
CA18 HRFS000-BA R CHIP 1/16 0 OHM 1608
CA19 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CA20 HCFH474ZCA C CHIP CERA 25V Y5V 0.47MF Z 2012
CA21 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA22 HCFH473ZBA C CHIP CERA 25V Y5V 0.047MF Z 1608
CA23 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA24 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CA25 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA26 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA27 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CA28 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA29 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA31 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
51
ELECTRICAL PARTSLIST
52
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
CA32 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA33 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA37 HCBK561KBA C CHIP CERA 50V X7R 560PF K 1608
CA51 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CA52 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CA53 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA54 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA55 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA56 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA57 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA58 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA59 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA60 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA61 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA62 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA63 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CA64 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CB03 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CB04 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC01 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC02 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC03 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC04 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
CC05 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC06 HCFH105ZCA C CHIP CERA 25V Y5V 1MF Z 2012
CC07 HCFH105ZCA C CHIP CERA 25V Y5V 1MF Z 2012
CC08 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
CC11 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
CC13 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
CC14 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC15 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC16 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC17 HCFH105ZCA C CHIP CERA 25V Y5V 1MF Z 2012
CC20 HCFH473ZBA C CHIP CERA 25V Y5V 0.047MF Z 1608
CC21 HCBK561KBA C CHIP CERA 50V X7R 560PF K 1608
CC22 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC23 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC24 HCQK470JBA C CHIP CERA 50V CH 47PF J 1608
CC25 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC26 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC27 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
CC28 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
CC30 HCBK561KBA C CHIP CERA 50V X7R 560PF K 1608
CC31 HCBK561KBA C CHIP CERA 50V X7R 560PF K 1608
CC33 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608
CC34 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CC35 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CC36 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
CC37 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC38 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC39 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC40 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC41 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC42 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC43 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
CC44 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC45 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC46 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC47 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC48 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC50 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608
CC52 HCQK200JBA C CHIP CERA 50V CH 20PF J 1608
CC53 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC54 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC55 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC56 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC57 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC58 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC59 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
CC60 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC61 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC62 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
CC63 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC64 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC65 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC66 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC67 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC68 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC69 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC70 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC71 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC72 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC73 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC74 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC75 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC76 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC77 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC78 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC79 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC80 HCBK393KBA C CHIP CERA 50V X7R 0.039MF K 1608
CC83 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CC86 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CD01 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
CN04 97P62E18SQ CONN FFC 08-6210-024-340-800
CP02 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP03 HCFH105ZCA C CHIP CERA 25V Y5V 1MF Z 2012
CP04 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CP05 HCFH105ZCA C CHIP CERA 25V Y5V 1MF Z 2012
CP06 HCFH105ZCA C CHIP CERA 25V Y5V 1MF Z 2012
CP07 HCBK471KBA C CHIP CERA 50V X7R 470PF K 1608
CP08 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP09 HCFH105ZCA C CHIP CERA 25V Y5V 1MF Z 2012
CP10 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP11 HCFH105ZCA C CHIP CERA 25V Y5V 1MF Z 2012
CP12 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP13 HCFH105ZCA C CHIP CERA 25V Y5V 1MF Z 2012
CP14 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
CP15 HCFH104ZBA C CHIP CERA 25V Y5V 0.1MF Z 1608
DA01 DRLS4148-B DIODE CHIP RLS4148TE-11 3415
DA02 DRLS4148-B DIODE CHIP RLS4148TE-11 3415
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
DA03 DRLS4148-B DIODE CHIP RLS4148TE-11 3415
DB01 DDAN202K-B DIODE CHIP DAN202K T96 (AUTO)
DC01 DRLS4148-B DIODE CHIP RLS4148TE-11 3415
DC03 D1SR154ÑC DIODE CHIP 1SR154-400TE25
DC04 D1SR154ÑC DIODE CHIP 1SR154-400TE25
DP11 D1SR154ÑC DIODE CHIP 1SR154-400TE25
DP12 D1SR154ÑC DIODE CHIP 1SR154-400TE25
FB03 HLX1210001 BEAD CHIP TB201209Z121
FB04 HLX1210001 BEAD CHIP TB201209Z121
IA01 1M5709Ñ-Q IC CHIP RF M5709 64PIN TQFP TRAY
IA02 1BA5810FPE IC CHIP DRIVER BA5810FP-E2 28 PIN HSOP REEL
IA03 1TL3472CDC IC CHIP AMP TL3472CDR 12MM TP
IB02 1PCM1748KE IC DAC PCM1748KE
IC01 1M3351Ñ-Q IC DVD 1 CHIP M3351 208-PIN PQFP TRAY
IC02 1BD5229G-B IC CHIP RESET BD5229G-TR 2.9V 5 PIN SSOP5 REEL
IC03 1MX29LV80Q IC CHIP FLASH ROM MX29LV800ABTC-70 48 PIN TSOP TRAY
IC04 1M48LC32BQ IC CHIP SDRAM MT48LC2M32B2TG-6
IC05 14ATM24D08 IC CHIP EEPROM AT24C08N 10SI-2.7 SOIC
IC06 174HC573AD IC CHIP LATCH SN74HC573APWR 20 PIN TSSOP REEL
IC07 174HC573AD IC CHIP LATCH SN74HC573APWR 20 PIN TSSOP REEL
IP01 1LD1117D25 IC CHIP REGULATOR LD117ADT25TR 2.5V 2% TO-252
IP02 1LD1117D33 IC CHIP REGULATOR LD117ADT33TR 3.3V 2% TO-252
IP03 1BA178M05D IC CHIP REGUALTOR BA178M05FP 5.0V 0.5A TO-252 REEL
LA01 HLX1210001 BEAD CHIP TB201209Z121
LA02 HLX1210001 BEAD CHIP TB201209Z121
LA03 HLX1210001 BEAD CHIP TB201209Z121
LA05 HLX1210001 BEAD CHIP TB201209Z121
LA06 HLX1210001 BEAD CHIP TB201209Z121
LP01 HLX1210001 BEAD CHIP TB201209Z121
LP02 HLX1210001 BEAD CHIP TB201209Z121
LP03 HLX1210001 BEAD CHIP TB201209Z121
LP04 HLX1210001 BEAD CHIP TB201209Z121
LP05 HLX1210001 BEAD CHIP TB201209Z121
LP06 HLX1210001 BEAD CHIP TB201209Z121
LP07 HLX1210001 BEAD CHIP TB201209Z121
LP08 HLX1210001 BEAD CHIP TB201209Z121
LP09 HLX1210001 BEAD CHIP TB201209Z121
LP10 HLX1210001 BEAD CHIP TB201209Z121
LP11 HLX1210001 BEAD CHIP TB201209Z121
QA01 T2SB1132-B TR CHIP 2SB1132 R MTP3 T100
QA02 T2SB1132-B TR CHIP 2SB1132 R MTP3 T100
RA02 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RA03 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RA04 HRFS561JBA R CHIP 1/16 560 OHM J 1608
RA05 HRFS000-BA R CHIP 1/16 0 OHM 1608
RA08 HRFS100JBA R CHIP 1/16W 10 OHM J 1608
RA09 HRFS000-BA R CHIP 1/16 0 OHM 1608
RA12 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
RA13 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
RA14 HRFS220JBA R CHIP 1/16W 22 OHM J 1608
RA17 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RA18 HRFS220JBA R CHIP 1/16W 22 OHM J 1608
RA20 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
RA22 HRFS000-BA R CHIP 1/16 0 OHM 1608
RA23 HRFS000-BA R CHIP 1/16 0 OHM 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
RA24 HRFS123JBA R CHIP 1/16 12K OHM J 1608
RA26 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RA27 HRFS474JBA R CHIP 1/16 470K OHM J 1608
RA28 HRFS563JBA R CHIP 1/16 56K OHM J 1608
RA30 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RA31 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RA32 HRFS152JBA R CHIP 1/16 1.5K OHM J 1608
RA33 HRFS223JBA R CHIP 1/16 22K OHM J 1608
RA34 HRFS152JBA R CHIP 1/16 1.5K OHM J 1608
RA35 HRFS243JBA R CHIP 1/16 24K OHM J 1608
RA36 HRFS105JBA R CHIP 1/16 1M OHM J 1608
RA37 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RA38 HRFS123JBA R CHIP 1/16 12K OHM J 1608
RA39 HRFS362JBA R CHIP 1/16 3.6K OHM J 1608
RA40 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RA42 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RA43 HRFS203JBA R CHIP 1/16 20K OHM J 1608
RA44 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RA45 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RA54 HRFS223JBA R CHIP 1/16 22K OHM J 1608
RA55 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RA57 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RA58 HRFS473JBA R CHIP 1/16 47K OHM J 1608
RA60 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RA62 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RA63 HRFS223JBA R CHIP 1/16 22K OHM J 1608
RA64 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RA65 HRFS000-BA R CHIP 1/16 0 OHM 1608
RA70 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RB07 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RB08 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RB10 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RB12 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RB18 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
RC01 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
RC02 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
RC03 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
RC04 HRFS332JBA R CHIP 1/16 3.3K OHM J 1608
RC05 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC06 HRFS683JBA R CHIP 1/16 68K OHM J 1608
RC07 HRFS203JBA R CHIP 1/16 20K OHM J 1608
RC08 HRFS000-BA R CHIP 1/16 0 OHM 1608
RC11 HRFS333JBA R CHIP 1/16 33K OHM J 1608
RC13 HRFS122JBA R CHIP 1/16 1.2K OHM J 1608
RC14 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC15 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
RC17 HRFS682JBA R CHIP 1/16 6.8K OHM J 1608
RC18 HRFS682JBA R CHIP 1/16 6.8K OHM J 1608
RC20 HRFS512JBA R CHIP 1/16 5.1K OHM J 1608
RC21 HRFS682JBA R CHIP 1/16 6.8K OHM J 1608
RC22 HRFS682JBA R CHIP 1/16 6.8K OHM J 1608
RC23 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC24 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC25 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC26 HRFS102JBA R CHIP 1/16 1K OHM J 1608
53
ELECTRICAL PARTSLIST
54
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
RC27 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC29 HRFS201JBA R CHIP 1/16 200 OHM J 1608
RC30 HRFS105JBA R CHIP 1/16 1M OHM J 1608
RC31 HRFS100JBA R CHIP 1/16W 10 OHM J 1608
RC33 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC34 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC35 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC36 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC37 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC38 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC39 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RC40 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RC41 HRFS101JBA R CHIP 1/16 100 OHM J 1608
RC43 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC44 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC45 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC46 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC47 HRFS511JBA R CHIP 1/16 510 OHM J 1608
RC48 HRFS000-BA R CHIP 1/16 0 OHM 1608
RC49 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC50 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC53 HRFS102JBA R CHIP 1/16 1K OHM J 1608
RC55 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC57 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC61 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC63 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC65 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC66 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC67 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC68 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC69 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC70 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC71 HRFS121JBA R CHIP 1/16 120 OHM J 1608
RC72 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC73 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC75 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC76 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC78 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC80 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC81 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC82 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC83 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC84 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC85 HRFS472JBA R CHIP 1/16 4.7K OHM J 1608
RC86 HRFS330JBA R CHIP 1/16 33 OHM J 1608
RC87 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC88 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC89 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RC90 HRFS103JBA R CHIP 1/16 10K OHM J 1608
RD01 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RD02 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RD03 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RD04 HRFS750JBA R CHIP 1/16 75 OHM J 1608
RP01 HRFS689JBA R CHIP 1/16 6.8 OHM J 1608
RP02 HRFS689JBA R CHIP 1/16 6.8 OHM J 1608
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
RP03 HRFS689JBA R CHIP 1/16 6.8 OHM J 1608
RP04 HRFS689JBA R CHIP 1/16 6.8 OHM J 1608
UL01 97Q65288DA PCB DVD 245X246X1.6T/4(CEM-3)
Z0012 PVMGJRDA00 PCB MPEG RADIAL AS DQL-1003 BAGIC(2CH)
CA41 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CA42 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CA44 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
CB13 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CB15 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
CC81 CEXF1H479A C ELECTRO 50V RSM 4.7MF 4X7
CC84 CEXF1C100A C ELECTRO 16V RSM 10MF 5X7
CC85 CEXF1C220A C ELECTRO 16V RSM 22MF (5X7)
CP21 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7
CP22 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP23 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP24 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP25 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP26 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP27 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP28 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP29 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP30 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7
CP31 CEXE0J221S C ELECTRO 6.3V RSA 220MF 6.3X7
CP32 CEXF1A101A C ELECTRO 10V RSM 100MF 6.3X7
CP33 CEXF1C101A C ELECTRO 16V RSM 100MF (6.3X7) TP
Z008 PVPWMSE253 PCB POWER MANUAL AS DC-A84D1D-NB
C801 CL2EE3104M C LINE ACROSS AC 275V 0.1MF M PCX2 335M
C802 CH1CEE332M C CERA AC 2.5KV 3300PF M DE AC250V
C803 CH1TFE332M C CERA AC 4.0KV 3300PF M AD AC250V
C804 CEXF2G470V C ELECTRO 400V RSS 47MF 16X25
C826 CEXK1C102L C ELECTRO 16V 1000UF KXL (10X20)
D821 D31DQ06ÑF DIODE SCHOTTKY 31DQ06-FC5
D822 D31DQ06ÑF DIODE SCHOTTKY 31DQ06-FC5
D823 DS2L20UÑF DIODE S2L20U 4004 P15
D826 D31DQ06ÑF DIODE SCHOTTKY 31DQ06-FC5
D827 DS2L20UÑF DIODE S2L20U 4004 P15
IC801 1K1010HE01 IC PHOTO COUPLER K1010HE01
L801 5PLFSF212A FILTER LINE SF-2120A
L802 5PLFBLF216 FILTER LINE BLF-2116
P802 97P62Y02X2 CONN WAFER YFW800 STR 10MM 2P
P803 97P885X206 CONN AS 10H-10S 60MM
Q801 TKSC5027FR TR KSC5027FR
R802 RW02B229J- R WIRE WOUND 2W 2.2 OHM J
R802A 2224050033 BOND SILICON RTV 252
R806 RS02F104JS R M-OXIDE FILM 2W 100K OHM J SMALL
T801 57M8282309 TRANS SMPS TSW-DC L84D1D
Z0081 PVPWJRE253 PCB POWER RADIAL AS DC-A84D1D-NB
C805 CEXF2C109V C ELECTRO 160V RSS 1MF (6.3X11) TP
C806 CBXB3A101K C CERA SEMI 1KV RR 100PF K
C807 CMXL2G333K C MYLAR 400V MEU 0.033MF K
C808 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
C809 CMXM2A472J C MYLAR 100V 4700PF J (TP)
C810 CMXM2A473J C MYLAR 100V 0.047MF J (TP)
C831 CMXL1J104K C MYLAR MEU 63V 0.1MF K
C835 CEXK1A471L C ELECTRO 10V470UF KXL
ELECTRICAL PARTSLIST
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
F801 5FWPS2022L FUSE WIDE TL 250V 2A CASE
IC802 1KA431AZÑ IC REGULATOR KA431AZ
Q802 TZTC3203Y- TR KTC3203Y (2120Y)
Z0082 PVPWJAE253 POWER AXIAL AUTO AS DC-A84D1D-NB
D802 DZEG01CÑ- DIODE EG01C
D803 DZN4003Ñ- DIODE IN4003
D804 DZN4148Ñ- DIODE 1N4148 AUTO 52MM
D805 DZUZ3R0BSB DIODE ZENER UZ-3.0BSB(3.01-3.22V)
D806 DZN4005SÑ DIODE IN4005S 1A 600V
D807 DZN4005SÑ DIODE IN4005S 1A 600V
D808 DZN4005SÑ DIODE IN4005S 1A 600V
D809 DZN4005SÑ DIODE IN4005S 1A 600V
D828 DZEU01ZÑ- DIODE EU01ZD830
DZEU01ZÑ- DIODE EU01Z
LOC PARTS_CODE PARTS_NAME PARTS_DESCR REMARK
JP801 85801060TA WIRE COPPER 0.6X52MM TAPING
L805 5PB13857Ñ COIL BEAD BI3857(AXIAL)
R803 RD-4Z394JS R CARBON FILM 1/4 390K OHM J SMALL
R804 RD-4Z394JS R CARBON FILM 1/4 390K OHM J SMALL
R805 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R807 RD-2Z820JS R CARBON FILM 1/2 82 OHM J SMALL
R808 RD-2Z560JS R CARBON FILM 1/2 56 OHM J SMALL
R809 RD-AZ681J- R CARBON FILM 1/6 680 OHM J
R810 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K
R821 RD-AZ470J- R CARBON FILM 1/6 47 OHM J
R822 RN-AZ182F- R METAL FILM 1/6 1.8K OHM F
R823 RN-AZ132F- R METAL FILM 1/6 1.3K OHM F
U001 97P65332PA PCB POWER 330X199X1.6T/5
55
ELECTRICAL PARTSLIST
* OPTION TABLE
OPTION DIODE(D50*) : DZN4148Ñ-(1N4148 AUTO 52MM)
SYSTEM D501 D502 D503
PAL BG X X X
PAL BG(AUSTRALIA) X X O
PAL BG/DK(MIDDLE EAST) X O X
PAL II(S.AFRICA) X O O
PAL II O X X
SECAM LLÕ O X O
SECAM LLÕ(SWISS) O O X
PAL BG/DK O O O
HI-FI/MONO D504
HI-FI X
MONO 0
SHOWVIEW D505
SHOWVIEW X
NON SHOWVIEW 0
686, AHYEON-DONG MAPO-GU
SEOUL, KOREA
C.P.O. BOX 8003 SEOUL, KOREA
DAEWOO ELECTRONICS Corp.
Loading...
