DAEWOO cn001mk Diagram

Download

Page 1

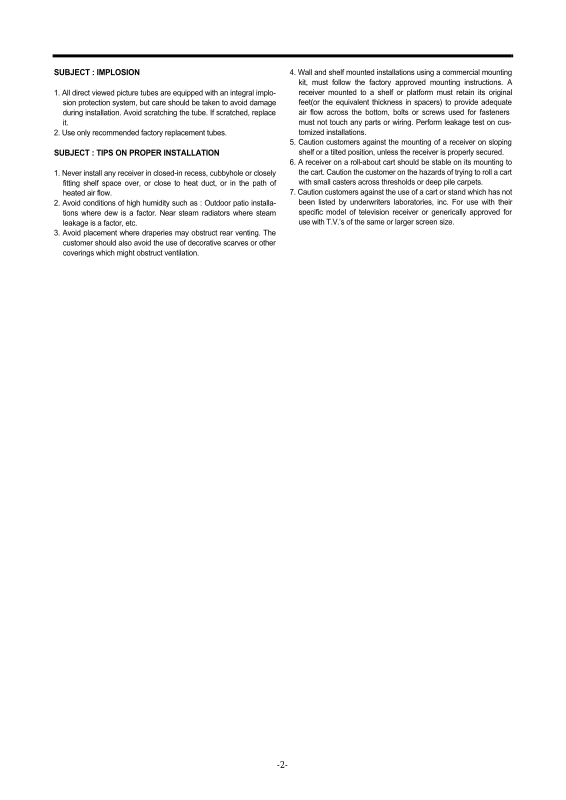

-2-

Page 2

-3-M-4-

Page 3

Page 4

-5-

Page 5

-6-

Page 6

-7-

Page 7

-8- -9-

Page 8

Page 9

-10-

Page 10

-11-

Page 11

-12-

Page 12

-13-

Page 13

-14-

Page 14

-15-

Page 15

-16-

Page 16

-17-

SCHEMATIC DIAGRAM

Page 17

-18-

Page 18

LOC PART NUMBER PART NAME DESCRIPTION

ELECTRICAL PARTS LIST

-19-

Caution :

In this Manual, some parts can be changed for improving, their performance without notice in the aprts list. So, if you need the latest parts information, please refer to PPL(Prats Price List) in Service information Center (http://svc.dwe.co.kr)

ZZ100 48B4343A06 TRANSMITTER REMOCON R-43A06 (AA) ZZ110 PTACPWH552 ACCESSORY AS DTQ-14V6NK 00010 4850A02510 ANT ROD S3BW216B (L=600 MM) 00040 4850A00650 TRANS ANT MATCHING YSC-T-07 BR 10000 48586001E2 MANUAL INSTRUCTION DTQ-20V1FS M821 4858213802 BAG INSTRUCTION L.D.P.E T0.05X250X400 ZZ120 PTBCSHH552 COVER BACK AS DTQ-14V6NK M211 4852157740 COVER BACK FR HIPS PK M781 4857817611 CLOTH BLACK FELT 200X20X0.7 ZZ130 PTPKCPH552 PACKING AS DTQ-14V6NK 10 6520010100 STAPLE PIN AUTO W65 M801 485803871D BOX CARTON SW-2 M802 485806280D BOX CARTON SW-2(B) M811 4858195400 PAD EPS M821 4858215702 BAG P.E PE FOAM t0.5x1000x950 ZZ131 58G0000078 COIL DEGAUSSING DC-1400 ZZ132 48519A4710 CRT GROUND NET 1401S-1015-1P ZZ140 PTCACAH625 CABINET AS DTQ-14V6MK CRT1 PTRTPWH394 CRT AS “NTSC 14”” ITC CRT AS” V01 58D0000082 COIL DY ODY-M1489 V04 2224050029 BOND SILICON LDC7091 CARTRIDGE V05 4850PM001- MAGNET CP NY-225 (MINI NECK) V06 48A96R004- RUBBER WEDGE HMR 28 SR (/0X54) V901 48A96314C2 CRT BARE A34AGT13X M201A 4856013350 SCREW CRT FIXING 25X80 BK M201B 4856215402 WASHER RUBBER CR T2.0 M201C 4856013351 SCREW CRT FIXING 25X140 YL M211A 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK M211B 7172401612 SCREW TAPPTITE TT2 TRS 4X16 MFZN BK M541 4855415800 SPEC PLATE 150ART P/E FILM (C/TV) M681 4856812001 TIE CABLE NYLON66 DA100 SP01A 7178301011 SCREW TAPPTITE TT2 WAS 3X10 MFZN ZZ200 PTFMSJH552 MASK FRONT AS DTQ-14V6NK M191 4851941300 BUTTON CTRL 4947700+5542501 M201 4852075960 MASK FRONT FR HIPS PK 14V6 M321 4853214800 BRKT FR HIPS BK M351 4853535300 HOLDER BRKT FR HIPS BK ZZ202 PTSPPWH407 SPEAKER AS DTQ-14J4FC PA601 4850703S50 CONNECTOR YH025-03+35098+ULW=200 SP01 4858314010 SPEAKER SP-5070F01 3W 8 OHM ZZ290 PTMPMSH625 PCB MAIN MANUAL AS DTQ-14V6MK

Page 19

ELECTRICAL PARTS LIST

-20-

LOC PART NUMBER PART NAME DESCRIPTION

10 2193102005 SOLDER BAR SN:PB=63:47 S63S-1320 100 2291130215 GREASE SILICON G-600 20 2193011101 SOLDER WIRE RS 60-1.2 1.6A 30 2291050616 FLUX SOLDER JS-64T3 40 2291050301 FLUX SOLVENT IM-1000 80 2TP07545CL TAPE OPP 45X50 CLEAR C404 CMYH3C722H C MYLAR 1.6KV BUP 7200PF H C406 CMYE2D434J C MYLAR 200V PU 0.43MF J C801 CL1UC3104M C LINE ACROSS WORLD AC250V 0.1UF M R.47 C804 CEYN2D331P C ELECTRO 200V LHS 330MF C809 CBYB3D152K C CERA SEMI 2KV BL(N) 1500PF K C912 CH1BEE472M C CERA AC U/C/V 2.5KV 4700PF TP D703 DLH2PR—— LED BLOCK LH-2P-R I101 1DCT814B— IC CHROMA DCT814B I301 PTD2SW7100 HEAT SINK ASS`Y 1LA78041— + 7174300811 00001 1LA78041— IC VERTICAL LA78041 0000A 4857027100 HEAT SINK SPCC T1.0+SN 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN I401 1K1A7805P1 IC REGULATOR KIA7805API I601 1TDA7267— IC AUDIO AMP TDA7267 I701 1DW8634PA1 IC MICOM DW863440V-PA1(5Y56) I703 124LC04B— IC MEMORY 24LC04B I705 1AN5862K— IC AN5862K I707 1DW5525PA1 IC MICOM DW5525-PA1(A023) I804 1LTV817C— IC PHOTO COUPLER LTV-817C IL701 1SRV21M—- IC PREAMP SRV-21M JP02 4859109950 JACK PIN BOARD PH-JB-9710A JP03 4859109150 JACK PIN BOARD PH-JB-9615C L501 58N0000042 COIL VCO TRF-V008 L801 5PLF24A1— FILTER LINE LF-24A1 M352 4853535500 HOLDER AC CORD NYLON 66 M681 4856812001 TIE CABLE NYLON66 DA100 P401 4859240020 CONN WAFER YFW500-05 P501 4850705N17 CONNECTOR YBNH250-05+YBNT250+ULW300 P502A 4850703S19 CONNECTOR YH025-03+YBNH250+ULW=300 PWC1 4859908010 CORD POWER AS ME301P+WH+TER=2100 Q402 PTA2SW7201 HEAT SINK ASS`Y T2SD2627YB + 7174300811 00001 T2SD2627YB TR HORI 2SD2627LS-YB 0000A 4857027201 HEAT SINK AL T1.0 0000B 7174300811 SCREW TAPPTITE TT2 RND 3X8 MFZN R801 RX07B229JP R CEMENT 7W 2.2 OHM J BEN 15MM 4P R881 DEC7R0M140 POSISTOR ECPAC7R0M140 RLY1 5SC0101338 SW RELAY GJ-SS-105LM RS801 DSVC471D14 VARISTOR SVC471D14A SCT1 4859303930 SOCKET CRT ISMG03S INCHANG SF101 5PTSF5241P FILTER SAW TSF5241P

Page 20

ELECTRICAL PARTS LIST

-21-

LOC PART NUMBER PART NAME DESCRIPTION

T401 50D10A3—- TRANS DRIVE TD-10A3 T402 50H0000243 FBT LTC-519 U102 4859721730 TUNER VARACTOR DT5-NF20F N X701 5XYR03276C CRYSTAL QUARTZ C-001R 32.768000KHZ 20PPM X702 5XE6R0000C CRYSTAL QUARTZ HC-49/U 6.000MHZ 20PPM ZZ200 PTMPJ2H625 PCB CHIP MOUNT B AS DTQ-14V6MK CC151 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC152 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC153 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC154 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC155 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC528 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CC551 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 CC552 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 CC556 HCQK809DBA C CHIP CERA 50V CH 8PF D 1608 CC560 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC562 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608 CC567 HCQK181JBA C CHIP CERA 50V CH 180PF J 1608 CC568 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC569 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC570 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 CC571 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 CC573 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 CC575 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608 CC580 HCBK152KBA C CHIP CERA 50V X7R 1500PF K 1608 CC612 HCFK104ZBA C CHIP CERA 50V Y5V 0.1MF Z 1608 CC662 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608 CC720 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC721 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC724 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC725 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 CC726 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC727 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608 CC731 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC732 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC735 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 CC752 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608 CC753 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608 CC754 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC755 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC756 HCQK221JBA C CHIP CERA 50V CH 220PF J 1608 CC757 HCBK333KBA C CHIP CERA 50V X7R 0.033MF K 1608 CC758 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 CC759 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 CC760 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 CC768 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608

Page 21

ELECTRICAL PARTS LIST

-22-

LOC PART NUMBER PART NAME DESCRIPTION

CC780 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 CC796 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 E011 4856310300 EYE LET BSR T0.2 (R1.6) JC001 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC002 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC124 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC125 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC126 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC127 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC198 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC199 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC203 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC550 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC551 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC553 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC557 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC558 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC701 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC702 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC703 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC704 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC710 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC750 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC751 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC752 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC753 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC754 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC755 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC756 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC757 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC758 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC760 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC761 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC764 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC765 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC784 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC785 HRFT000-BA R CHIP 1/10 0 OHM 1608 JC786 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC105 HRFT153JBA R CHIP 1/10 15K OHM J 1608 RC150 HRFT153JBA R CHIP 1/10 15K OHM J 1608 RC151 HRFT104JBA R CHIP 1/10 100K OHM J 1608 RC154 HRFT473JBA R CHIP 1/10 47K OHM J 1608 RC156 HRFT473JBA R CHIP 1/10 47K OHM J 1608 RC223 HRFT224JBA R CHIP 1/10 220K OHM J 1608 RC224 HRFT224JBA R CHIP 1/10 220K OHM J 1608 RC225 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608

Page 22

ELECTRICAL PARTS LIST

-23-

LOC PART NUMBER PART NAME DESCRIPTION

RC226 HRFT101JBA R CHIP 1/10 100 OHM J 1608 RC228 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC229 HRFT750JBA R CHIP 1/10 75 OHM J 1608 RC453 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC454 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC455 HRFT331JBA R CHIP 1/10 330 OHM J 1608 RC503 HRFT752JBA R CHIP 1/10 7.5K OHM J 1608 RC508 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC509 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC510 HRFT561JBA R CHIP 1/10 560 OHM J 1608 RC511 HRFT123JBA R CHIP 1/10 12K OHM J 1608 RC525 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC526 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC530 HRFT561JBA R CHIP 1/10 560 OHM J 1608 RC531 HRFT561JBA R CHIP 1/10 560 OHM J 1608 RC533 HRFT390JBA R CHIP 1/10 39 OHM J 1608 RC541 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608 RC542 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 RC548 HRFT824JBA R CHIP 1/10 820K OHM J 1608 RC551 HRFT121JBA R CHIP 1/10 120 OHM J 1608 RC556 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC557 HRFT182JBA R CHIP 1/10 1.8K OHM J 1608 RC558 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC559 HRFT331JBA R CHIP 1/10 330 OHM J 1608 RC561 HRFT561JBA R CHIP 1/10 560 OHM J 1608 RC562 HRFT914JBA R CHIP 1/10 910K OHM J 1608 RC565 HRFT123JBA R CHIP 1/10 12K OHM J 1608 RC566 HRFT123JBA R CHIP 1/10 12K OHM J 1608 RC567 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC568 HRFT472FBA R CHIP 1/10 4.7K OHM F 1608 RC570 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC572 HRFT223JBA R CHIP 1/10 22K OHM J 1608 RC573 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC576 HRFT000-BA R CHIP 1/10 0 OHM 1608 RC591 HRFT331JBA R CHIP 1/10 330 OHM J 1608 RC592 HRFT331JBA R CHIP 1/10 330 OHM J 1608 RC593 HRFT331JBA R CHIP 1/10 330 OHM J 1608 RC629 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC630 HRFT104JBA R CHIP 1/10 100K OHM J 1608 RC655 HRFT162JBA R CHIP 1/10 1.6K OHM J 1608 RC701 HRFT220JBA R CHIP 1/10W 22 OHM J 1608 RC704 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC705 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC706 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC707 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC710 HRFT132JBA R CHIP 1/10 1.3K OHM J 1608

Page 23

ELECTRICAL PARTS LIST

-24-

LOC PART NUMBER PART NAME DESCRIPTION

RC711 HRFT473JBA R CHIP 1/10 47K OHM J 1608 RC712 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC713 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC721 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC722 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC723 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC724 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC725 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608 RC731 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC732 HRFT132JBA R CHIP 1/10 1.3K OHM J 1608 RC733 HRFT132JBA R CHIP 1/10 1.3K OHM J 1608 RC734 HRFT132JBA R CHIP 1/10 1.3K OHM J 1608 RC735 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608 RC736 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC737 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC738 HRFT471JBA R CHIP 1/10 470 OHM J 1608 RC740 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC741 HRFT471JBA R CHIP 1/10 470 OHM J 1608 RC742 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC743 HRFT472FBA R CHIP 1/10 4.7K OHM F 1608 RC744 HRFT242JBA R CHIP 1/10 2.4K OHM J 1608 RC745 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608 RC746 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC747 HRFT752JBA R CHIP 1/10 7.5K OHM J 1608 RC748 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608 RC749 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC750 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC751 HRFT471JBA R CHIP 1/10 470 OHM J 1608 RC752 HRFT471JBA R CHIP 1/10 470 OHM J 1608 RC754 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608 RC755 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC756 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC757 HRFT243JBA R CHIP 1/10 24K OHM J 1608 RC761 HRFT622JBA R CHIP 1/10 6.2K OHM J 1608 RC762 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608 RC763 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC764 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608 RC765 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC767 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC768 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608 RC769 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC770 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC775 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC776 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC778 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC781 HRFT102JBA R CHIP 1/10 1K OHM J 1608

Page 24

ELECTRICAL PARTS LIST

-25-

LOC PART NUMBER PART NAME DESCRIPTION

RC782 HRFT331JBA R CHIP 1/10 330 OHM J 1608 RC783 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC784 HRFT514JBA R CHIP 1/10 510K OHM J 1608 RC785 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC786 HRFT102JBA R CHIP 1/10 1K OHM J 1608 RC787 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC788 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608 RC789 HRFT201JBA R CHIP 1/10 200 OHM J 1608 RC792 HRFT302JBA R CHIP 1/10W 3.0K J 1608 RC793 HRFT302JBA R CHIP 1/10W 3.0K J 1608 RC794 HRFT302JBA R CHIP 1/10W 3.0K J 1608 RC799 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RC917 HRFT241JBA R CHIP 1/10 240 OHM J 1608 RC918 HRFT241JBA R CHIP 1/10 240 OHM J 1608 RC919 HRFT241JBA R CHIP 1/10 240 OHM J 1608 RC923 HRFT471JBA R CHIP 1/10 470 OHM J 1608 RC924 HRFT471JBA R CHIP 1/10 470 OHM J 1608 RC925 HRFT471JBA R CHIP 1/10 470 OHM J 1608 RC933 HRFT121JBA R CHIP 1/10 120 OHM J 1608 RC934 HRFT121JBA R CHIP 1/10 120 OHM J 1608 RC935 HRFT121JBA R CHIP 1/10 120 OHM J 1608 RC977 HRFT201JBA R CHIP 1/10 200 OHM J 1608 ZZ200 PTMPJ0H625 PCB MAIN (RHU) AS DTQ-14V6MK C105 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP C310 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP C410 CEXF2E100V C ELECTRO 250V RSS 10MF (10X20) TP C414 CEXF1V471V C ELECTRO 35V RSS 470MF (10X20) TP C415 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP C502 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP C510 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP C514 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP C602 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP C646 CEXF1C471V C ELECTRO 16V RSS 470MF (8X12)TP C812 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP C813 CBXB3D471K C CERA SEMI 2KV BL(N) 470PF K (T) C814 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP C815 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20) TP C820 CEXF2C101V C ELECTRO 160V RSS 100MF (16X25) TP C841 CCXB3A221K C CERA 1KV B 220PF K (TAPPING) C881 CH1BEE472M C CERA AC U/C/V 2.5KV 4700PF TP C882 CH1BEE472M C CERA AC U/C/V 2.5KV 4700PF TP F801 5FUMK4021L FUSE GLASS TUBE UL TL 4.0A 125V CASE ZZ200 PTMPJBH625 PCB MAIN M-10 AS DTQ-14V6MK 10 2TM18006BE TAPE MASKING 6.2X500 D807 DRGP15J—- DIODE RGP15J D882 DLT2A05G— DIODE LT2A05G (TP)

Page 25

ELECTRICAL PARTS LIST

-26-

LOC PART NUMBER PART NAME DESCRIPTION

D883 DLT2A05G— DIODE LT2A05G (TP) D884 DLT2A05G— DIODE LT2A05G (TP) E001 4856310300 EYE LET BSR T0.2 (R1.6) E002 4856310300 EYE LET BSR T0.2 (R1.6) E003 4856310300 EYE LET BSR T0.2 (R1.6) E004 4856310300 EYE LET BSR T0.2 (R1.6) E007 4856310300 EYE LET BSR T0.2 (R1.6) E008 4856310300 EYE LET BSR T0.2 (R1.6) E009 4856310300 EYE LET BSR T0.2 (R1.6) E012 4856310300 EYE LET BSR T0.2 (R1.6) E013 4856310300 EYE LET BSR T0.2 (R1.6) E014 4856310300 EYE LET BSR T0.2 (R1.6) E017 4856310300 EYE LET BSR T0.2 (R1.6) E018 4856310300 EYE LET BSR T0.2 (R1.6) E019 4856310300 EYE LET BSR T0.2 (R1.6) E020 4856310300 EYE LET BSR T0.2 (R1.6) E021 4856310300 EYE LET BSR T0.2 (R1.6) E100 4856310600 EYE LET BSR T0.2 (R2.3) E101 4856310600 EYE LET BSR T0.2 (R2.3) E103 4856310600 EYE LET BSR T0.2 (R2.3) E105 4856310600 EYE LET BSR T0.2 (R2.3) E106 4856310600 EYE LET BSR T0.2 (R2.3) E110 4856310600 EYE LET BSR T0.2 (R2.3) E111 4856310600 EYE LET BSR T0.2 (R2.3) E114 4856310600 EYE LET BSR T0.2 (R2.3) E115 4856310600 EYE LET BSR T0.2 (R2.3) E116 4856310600 EYE LET BSR T0.2 (R2.3) E117 4856310600 EYE LET BSR T0.2 (R2.3) P502 485923162S CONN WAFER YW025-03 (STICK) P601 485923162S CONN WAFER YW025-03 (STICK) P801A 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) P801B 4857417500 TERM PIN DA-IB0214(D2.3/DY PIN) R442 RS01Z369J- R M-OXIDE FILM 1W 3.6 OHM J (TAPPING) R601 RF01Z688K- R FUSIBLE 1W 0.68 OHM K (TAPPING) R805 RS02Z338JS R M-OXIDE FILM 2W 0.33 OHM J SMALL ZZ200 PTMPJRH625 PCB MAIN RADIAL AS DTQ-14V6MK C101 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C102 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C103 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP C104 CMXM2A333J C MYLAR 100V 0.033MF J (TP) C106 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C107 CEXF1H228V C ELECTRO 50V RSS 0.22MF (5X11) TP C212 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C235 CEXD1H229F C ELECTRO 50V RND 2.2MF (5X11) TP C301 CMXM2A103J C MYLAR 100V 0.01MF J (TP) C302 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP

Page 26

ELECTRICAL PARTS LIST

-27-

LOC PART NUMBER PART NAME DESCRIPTION

C303 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C305 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP C307 CXSL2H100D C CERA 500V SL 10PF D (TAPPING) C308 CMXM2A104J C MYLAR 100V 0.1MF J (TP) C311 CEXD1H229Q C ELECTRO 50V RT 2.2MF (6.3X11) TP C401 CCXB2H102K C CERA 500V B 1000PF K (TAPPING) C403 CMXM2A103J C MYLAR 100V 0.01MF J (TP) C405 CEXF2C109V C ELECTRO 160V RSS 1MF (6.3X11) TP C408 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP C411 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C413 CCXB2H102K C CERA 500V B 1000PF K (TAPPING) C418 CMXM2A104J C MYLAR 100V 0.1MF J (TP) C451 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C452 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP C501 CMXL1J105J C MYLAR 63V MEU 1MF J C507 CMXM2A224J C MYLAR 100V 0.22MF J C508 CMXM2A224J C MYLAR 100V 0.22MF J C509 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C511 CMXM2A333J C MYLAR 100V 0.033MF J (TP) C512 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP C513 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C516 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP C517 CMXM2A473J C MYLAR 100V 0.047MF J (TP) C518 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C519 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP C520 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C525 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C555 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C575 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP C601 CMXM2A103J C MYLAR 100V 0.01MF J (TP) C603 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11) TP C604 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C634 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP C701 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C702 CEXF1C221V C ELECTRO 16V RSS 220MF (8X11.5) TP C703 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C704 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP C705 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C721 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C722 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C724 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP C725 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C726 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C727 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C729 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C732 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP

Page 27

ELECTRICAL PARTS LIST

-28-

LOC PART NUMBER PART NAME DESCRIPTION

C780 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP C810 CCXB2H222K C CERA 500V B 2200PF K (TAPPING) C811 CCXB2H222K C CERA 500V B 2200PF K (TAPPING) C845 CEXF2A100V C ELECTRO 100V RSS 10MF (6.3X11) TP C871 CMXM2A154J C MYLAR 100V 0.15MF J (TP) C876 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP C878 CMXL2E104K C MYLAR 250V MEU 0.1MF K C890 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP C893 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP I706 1S78DL33— IC REGULATOR S78DL33 I803 1KA431L—- IC KA431L L601 58CX430599 COIL CHOKE AZ-9004Y 940K TP L805 58CX430599 COIL CHOKE AZ-9004Y 940K TP L901 5CPX121J— COIL PEAKING 120UH J (RADIAL) Q201 TKSC945CY- TR KSC 945C-Y (TAPPING) Q401 TKTC3207— TR KTC3207 (TP) Q403 TKSC945CY- TR KSC 945C-Y (TAPPING) Q404 TKSC945CY- TR KSC 945C-Y (TAPPING) Q501 TKSC945CY- TR KSC 945C-Y (TAPPING) Q575 TKTA1275Y- TR KTA1275Y (TP) Q701 TKSC945CY- TR KSC 945C-Y (TAPPING) Q702 TKSC945CY- TR KSC 945C-Y (TAPPING) Q703 TKSC945CY- TR KSC 945C-Y (TAPPING) Q704 TKTA1266Y- TR KTA1266Y (TP) Q707 TKSC945CY- TR KSC 945C-Y (TAPPING) Q708 TKSC945CY- TR KSC 945C-Y (TAPPING) Q720 TKTA1266Y- TR KTA1266Y (TP) Q805 TKTC3205Y- TR KTC3205Y (TP) Q851 TKSC945CY- TR KSC 945C-Y (TAPPING) Q902 TKSC2330Y- TR KSC2330Y (TP) Q903 TKSC2330Y- TR KSC2330Y (TP) Q904 TKSC2330Y- TR KSC2330Y (TP) Q977 TKTA1266Y- TR KTA1266Y (TP) R301 RN01B471JS R METAL FILM 1W 470 OHM J SMALL R302 RN01B471JS R METAL FILM 1W 470 OHM J SMALL R303 RN01B129JS R METAL FILM 1W 1.2 OHM J SMALL R305 RN01B331JS R METAL FILM 1W 330 OHM J SMALL R403 RN01B562JS R METAL FILM 1W 5.6K OHM J SMALL R411 RN02B150JS R METAL FILM 2W 15 OHM J SMALL R413 RN01B229JS R METAL FILM 1W 2.2 OHM J SMALL R414 RN01B229JS R METAL FILM 1W 2.2 OHM J SMALL R418 RN02B569JS R METAL FILM 2W 5.6 OHM J SMALL R420 RN02B620JS R METAL FILM 2W 62 OHM J SMALL R817 RN01B561JS R METAL FILM 1W 560 OHM J SMALL R913 RN02B153JS R METAL FILM 2W 15K OHM J SMALL R914 RN02B153JS R METAL FILM 2W 15K OHM J SMALL

Page 28

ELECTRICAL PARTS LIST

-29-

LOC PART NUMBER PART NAME DESCRIPTION

R915 RN02B153JS R METAL FILM 2W 15K OHM J SMALL SW701 5S50101090 SW TACT THVH472GCA SW702 5S50101090 SW TACT THVH472GCA SW703 5S50101090 SW TACT THVH472GCA SW704 5S50101090 SW TACT THVH472GCA SW705 5S50101090 SW TACT THVH472GCA SW706 5S50101090 SW TACT THVH472GCA X502 5XEX3R579C CRYSTAL QUARTZ HC-49/U 3.579545M (TP) Z501 5PXXT4R5MB FILTER CERA XT 4.5MB-TP ZZ200 PTMPJAH625 PCB MAIN AXIAL AS DTQ-14V6MK 10 2TM14006LB TAPE MASKING 3M #232 6.0X2000M 20 2TM10006LB TAPE MASKING 3M #232-MAP-C 6.2X2000M C870 CBZF1H104Z C CERA SEMI 50V F 0.1MF Z C891 CCXB1H821K C CERA 50V B 820PF K (TAPPING) C892 CCXB1H471K C CERA 50V B 470PF K (TAPPING) C894 CCXF1H333Z C CERA 50V F 0.033MF Z (TAPPING) C902 CCZB1H271K C CERA 50V B 270PF K C903 CCZB1H271K C CERA 50V B 270PF K C904 CCZB1H271K C CERA 50V B 270PF K D101 DUZ33B—— DIODE ZENER UZ-33B D102 DUZ5R1B—- DIODE ZENER UZ-5.1B D221 D1N4148—- DIODE 1N4148 (TAPPING) D301 D1N4004S— DIODE 1N4004S D311 DBZX55C62- DIODE ZENER BZX55C-62 D312 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING D401 D1N4937G— DIODE 1N4937G (TAPPING) D405 D1N4937G— DIODE 1N4937G (TAPPING) D406 D1N4937G— DIODE 1N4937G (TAPPING) D407 D1N4937G— DIODE 1N4937G (TAPPING) D408 D1N4937G— DIODE 1N4937G (TAPPING) D409 D1N4148—- DIODE 1N4148 (TAPPING) D502 D1N4148—- DIODE 1N4148 (TAPPING) D503 DUZ9R1BM— DIODE ZENER UZ-9.1BM D504 D1N4148—- DIODE 1N4148 (TAPPING) D505 DUZ9R1BM— DIODE ZENER UZ-9.1BM D541 D1N4148—- DIODE 1N4148 (TAPPING) D571 D1N4148—- DIODE 1N4148 (TAPPING) D572 D1N4148—- DIODE 1N4148 (TAPPING) D573 D1N4148—- DIODE 1N4148 (TAPPING) D574 D1N4148—- DIODE 1N4148 (TAPPING) D701 D1N4148—- DIODE 1N4148 (TAPPING) D704 DUZ3R9B—- DIODE ZENER UZ-3.9B D721 D1N4148—- DIODE 1N4148 (TAPPING) D722 D1N4148—- DIODE 1N4148 (TAPPING) D723 DUZ3R9B—- DIODE ZENER UZ-3.9B D724 D1N4148—- DIODE 1N4148 (TAPPING)

Page 29

ELECTRICAL PARTS LIST

-30-

LOC PART NUMBER PART NAME DESCRIPTION

D725 D1N4148—- DIODE 1N4148 (TAPPING) D790 D1N4148—- DIODE 1N4148 (TAPPING) D804 D1N4937G— DIODE 1N4937G (TAPPING) D809 DUZ6R8BM— DIODE ZENER UZ-6.8BM D811 D1N4937G— DIODE 1N4937G (TAPPING) D812 D1N4937G— DIODE 1N4937G (TAPPING) D813 D1N4937G— DIODE 1N4937G (TAPPING) D841 D1N4937G— DIODE 1N4937G (TAPPING) D851 DUZ9R1BM— DIODE ZENER UZ-9.1BM D878 D1N4937G— DIODE 1N4937G (TAPPING) D881 DLT2A05G— DIODE LT2A05G (TP) D890 DUZ5R6BM— DIODE ZENER UZ-5.6BM J001 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J009 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J025 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J050 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J057 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J123 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J126 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J127 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J128 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J129 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J130 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J131 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J132 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J133 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J134 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J135 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J136 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J138 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J139 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J140 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J141 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J142 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J143 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J144 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J145 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J146 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J147 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J148 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J149 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J150 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J151 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J152 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J153 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J154 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

Page 30

ELECTRICAL PARTS LIST

-31-

LOC PART NUMBER PART NAME DESCRIPTION

J155 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J156 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J157 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J158 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J159 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J160 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J161 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J162 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J163 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J164 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J165 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J166 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J167 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J168 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J169 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J170 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J171 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J172 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J173 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J174 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J175 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J177 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J178 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J179 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J180 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J181 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J190 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J191 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J197 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J199 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J200 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J201 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J202 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J502 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J511 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J533 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J551 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J601 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J705 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J709 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J711 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J727 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J750 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J758 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J801 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J802 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING

Page 31

ELECTRICAL PARTS LIST

-32-

LOC PART NUMBER PART NAME DESCRIPTION

J803 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J804 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J805 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J806 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J807 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J901 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J902 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J903 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J904 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J922 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J923 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J925 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J926 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J927 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J928 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J953 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J954 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J959 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J963 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J966 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING J967 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING L111 5CPZ568M02 COIL PEAKING 0.56UH M (AXIAL 3.5MM) L112 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM) L502 5CPZ470K04 COIL PEAKING 47UH 10.5MM K (LAL04TB) L533 5CPZ150K02 COIL PEAKING 15UH K (AXIAL 3.5MM) L701 5CPZ220K02 COIL PEAKING 22UH K (AXIAL 3.5MM) L720 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM) L721 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM) L722 5CPZ569K02 COIL PEAKING 5.6UH K (AXIAL 3.5MM) L807 5MC0000100 COIL BEAD HC-3550 L811 5MC0000100 COIL BEAD HC-3550 L841 5MC0000100 COIL BEAD HC-3550 R165 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J R227 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R351 RD-4Z682J- R CARBON FILM 1/4 6.8K OHM J R352 RN-4Z1603F R METAL FILM 1/4 160K OHM F R353 RN-4Z1502F R METAL FILM 1/4 15K OHM F R359 RD-4Z273J- R CARBON FILM 1/4 27K OHM J R360 RD-4Z333J- R CARBON FILM 1/4 33K OHM J R361 RD-4Z222J- R CARBON FILM 1/4 2.2K OHM J R362 RD-4Z113J- R CARBON FILM 1/4 11K OHM J R401 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J R405 RD-2Z751J- R CARBON FILM 1/2 750 OHM J R416 RD-2Z121J- R CARBON FILM 1/2 120 OHM J R417 RD-4Z302J- R CARBON FILM 1/4 3K OHM J R451 RD-4Z153J- R CARBON FILM 1/4 15K OHM J

Page 32

ELECTRICAL PARTS LIST

-33-

LOC PART NUMBER PART NAME DESCRIPTION

R452 RD-4Z113J- R CARBON FILM 1/4 11K OHM J R501 RD-2Z151J- R CARBON FILM 1/2 150 OHM J R502 RD-2Z151J- R CARBON FILM 1/2 150 OHM J R554 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R569 RD-4Z152J- R CARBON FILM 1/4 1.5K OHM J R602 RD-2Z271J- R CARBON FILM 1/2 270 OHM J R604 RD-4Z682J- R CARBON FILM 1/4 6.8K OHM J R703 RD-4Z101J- R CARBON FILM 1/4 100 OHM J R776 RD-4Z473J- R CARBON FILM 1/4 47K OHM J R777 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R780 RD-4Z471J- R CARBON FILM 1/4 470 OHM J R789 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R790 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R796 RD-4Z472J- R CARBON FILM 1/4 4.7K OHM J R819 RD-4Z561J- R CARBON FILM 1/4 560 OHM J R820 RD-4Z392J- R CARBON FILM 1/4 3.9K OHM J R868 RN-4Z2201F R METAL FILM 1/4 2.20K OHM F R869 RD-4Z102J- R CARBON FILM 1/4 1K OHM J R871 RD-4Z184J- R CARBON FILM 1/4 180K OHM J R872 RD-4Z152J- R CARBON FILM 1/4 1.5K OHM J R874 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R875 85801065GY WIRE COPPER AWG22 1/0.65 TIN COATING R876 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J R877 RD-AZ103J- R CARBON FILM 1/6 10K OHM J R878 RN-4Z1003F R METAL FILM 1/4 100K OHM F R879 RN-4Z1502F R METAL FILM 1/4 15K OHM F R888 RC-2Z565KP R CARBON COMP 1/2 5.6M OHM K R890 RD-4Z152J- R CARBON FILM 1/4 1.5K OHM J R892 RD-4Z152J- R CARBON FILM 1/4 1.5K OHM J R893 RD-4Z331J- R CARBON FILM 1/4 330 OHM J R894 RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J R901 RD-4Z474J- R CARBON FILM 1/4 470K OHM J R910 RD-2Z332J- R CARBON FILM 1/2 3.3K OHM J R911 RD-2Z332J- R CARBON FILM 1/2 3.3K OHM J R912 RD-2Z332J- R CARBON FILM 1/2 3.3K OHM J R978 RD-AZ102J- R CARBON FILM 1/6 1K OHM J R979 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J I801 ISTRW6735- IC POWER STR-W6735 T801 50M2834A1- TRANS SMPS TSM-2834A1 A001 4859817391 PCB MAIN 246 x 246

Page 33
