CRTOAdjust items related to picture tube only.(White Balance adjustment)
5
ALIGNMENT INSTRUCTIONS
Table-B
MODEADJUSTMENT ITEMS
S2Screen Adjustment- -
Auto RF AGC- Video Level (VIDEOL)70 ~ 7 Must be set to 7
RF AGC Delay (RFAGCD)*0 ~ 63Align RF AGC threshold
S5
S6
S7
S8
S9
S12Forwarding Mode-Factory Initialization
FM Level (FM.LEV)80 ~ 31Must be set to 20
AGC Point3.75-Select AGC reference voltage
A/D VALUE- Horizontal Phase(H.PHASE)*0 ~ 31Align sync to flyback pulse, using internal cross pattern(S7)
Vertical Position (V.POSI)*0 ~ 63Align vertical DC bias, using internal cross pattern(S7)
Vertical Size (V.SIZE)*0 ~ 127Align vertical amplitude, using internal cross pattern(S7)
NO SD POWER OFFYES-Automatically turn off in 15min for no received signal.
Vertical S-Correction (V SC)00 ~ 31Must be set to 6
Vertical Linearity (V LIN)200 ~ 31Must be set to 16
Internal Black - -Display internal BLACK pattern
Internal 100% White- -Display internal 100% WHITE
Internal 60% White- -Display internal 60% WHITE
Internal Cross Pattern- -Display internal CROSS pattern
Red Drive (RD)*0 ~ 127Align RED OUT AC level
Green Drive (GD)100 ~ 15Must be set to 10
Blue Drive (BD)*0 ~ 127Align BLUE OUT AC level
Red Bias (RB)*0 ~ 255Align RED OUT DC level
Green Bias (GB)*0 ~ 255Align GREEN OUT DC level
Blue Bias (BB)*0 ~ 255Align BLUE OUT DC level
Subbrightness*0 ~ 127Align common RGB DC level
Contrast100 ~ 27
Tint270 ~ 27
Color150 ~ 27
DATA
INITIAL RANGE
REMARKS
*
indicates the items with different settings each of sets
ASSEMBLY ADJUSTMENTS
1) SCREEN ADJUSTMENT (S2)
·
Enter the service mode and select service adjustment S2.
·
You cna see the one horizontal line on the screen.
·
Adjust the Screen Control Volume (located on FBT) so that the horizontal line onscreen may be
disappeared.
·
Press the volume up or down button to exit in the screen adjustment mode.
NOTE
IN THE SCREEN ADJUSTMENT MODE, DONT PRESS OTHER BUTTONS EXCEPT VOLUME UP OR DOWN BUTTON.
6
ALIGNMENT INSTRUCTIONS
4-3. Vertical Size Adjustment
·
Select “ V.SIZE” item, adjust “ V.SIZE” data value to proper vertical size as follows.
5) WHITE BALANCE ADJUSTMENT(S8)
·
Receive a good local channel.
·
Enter the service mode and select service adjustment S8.
·
You can see the OSD as shown in below.
RD58
GD10
BD65
RB105
GB160
BB100
MOVE ADJUST RECALL : SET
·
Using volume up or volume down, adjust service adjustment data of RD/GD/BD and RB/GB/BB until a good gray
scale with normal whites is obtained.ALIGNMENT INSTRUCTIONS
·
Press the DISPLAY button to memorize the data.
6) DIGITAL PRESET(D.P) ADJUSTMENTS(S9)
SUBBRIGHTNESS ADJUSTMENT
·
Receive a good local channel.
·
Enter the service mode and select service adjustment S9.
·
You can see the OSD as shoown in below.
D.P.
SUB BRIGHTNESS64
CONTRAST10
TINT 27
COLOR15
MOVE ADJUST RECALL : SET
8
·
Select Subbrightness item, adjust Subbrightness data value
·
Press the DISPLAY button to memorize the data.
CONTRAST
·
Fixed value = 10
TINT
·
Fixed value = 27
COLOR
·
Fixed value = 15
7) FACTORY OUTGOING MODE (S12 : FACT)
·
If you select the S12, then the set becomes factory outgoing status.
·
You can see the OSD “outgoing OK”
ALIGNMENT INSTRUCTIONS
to obtain normal
brightness level.
9
SCHEMATIC DIAGRAM
CM-220B CHASSIS
10

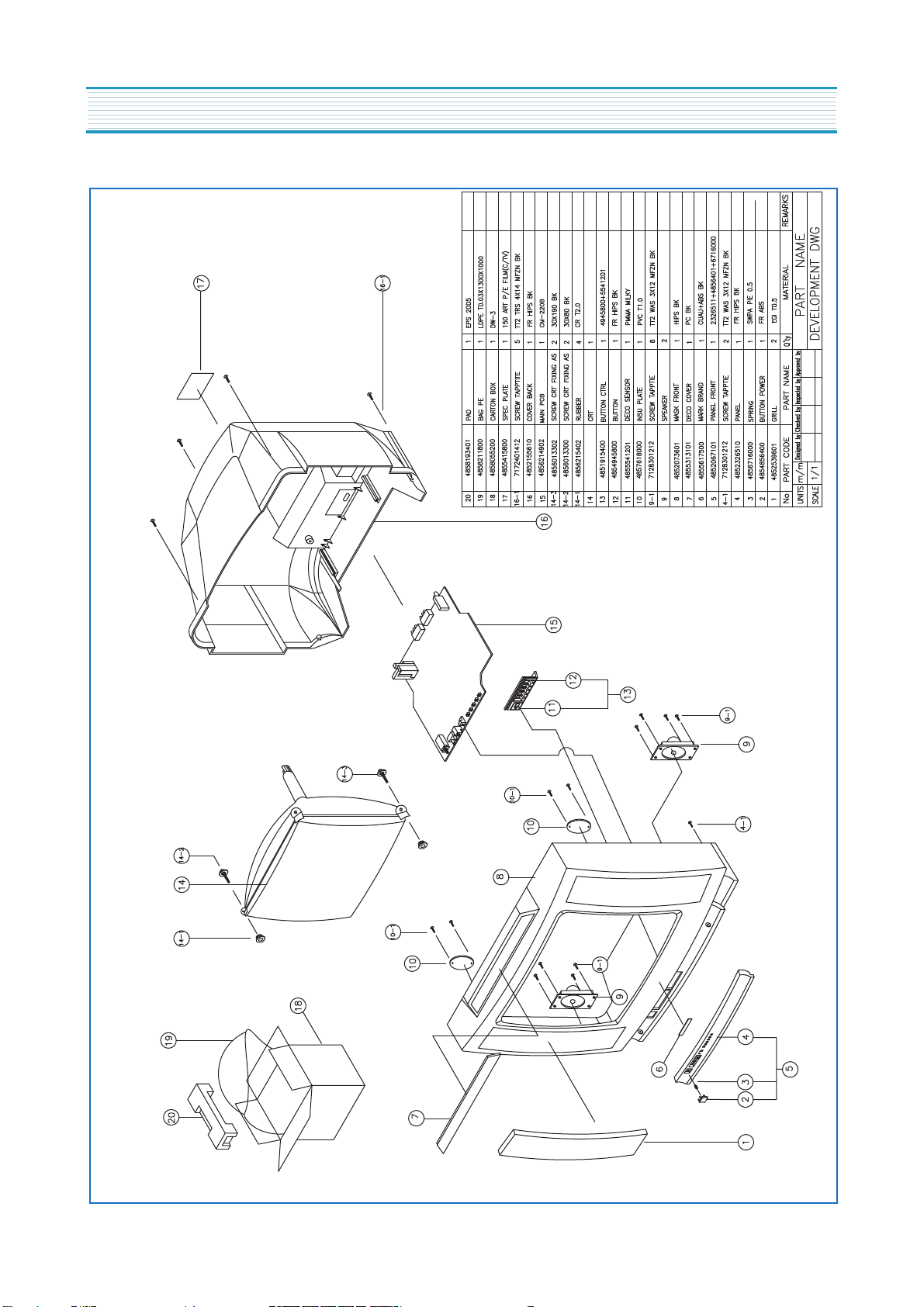

EXPLODED VIEW
