DAEWOO C-2890EES Service Manual

Download

C-2890EES

SERVICE MANUAL

SE00C2890EE00

Issued: 28th April 2004

AK- 45 CHASSIS

PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION

MODEL C-2890EES

In the interests of user safety (required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

In order to service the model C-2890EES, refer to the AK-45 Chassis Service Manual (SE00AK45CHA00).

CONTENTS

ELECTRICAL SPECIFICATIONS ........................................................................................ 3

IMPORTANT SERVICING NOTES ...................................................................................... 4

CONTROLS & TERMINALS ................................................................................................ 5

PRINTED WIRING BOARD LAYOUT ................................................................................. 7

PARTS LISTING ................................................................................................................... 8

HOW TO UPDATE THE TECHNICAL INFORMATION ...................................................... 15

SHARP CORPORATION

This document has been published to be used for after sales service only.

C-2890EES

SERVICE MANUAL UPDATE LOG SHEET

Technical Report No. Technical Bulletin No.

Cause / Solution

Part No.

Page No.

Application Data /Serial No.

Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc. If only part number changes are required, just change part number directly the part number in the Parts Listing Section. If you need more information, please refer to the Technical Report (Bulletin).

ELECTRICAL SPECIFICATIONS

C-2890EES

•Power Input .................... 220V-240 Volts AC 50 Hz

•Power Consumption

Normal Operation (Method IEC60107) ............... 70 W

Stand-by Operation .......................................... < 4 W

•Audio Power Output Rating (MPO) / Impedance

Internal Left Speaker ................................. 10 W, 8 Ω

Internal Right Speaker ............................... 10 W, 8 Ω

•Speakers

2 ways speaker elliptic (2 pcs) ............ 42 x 180 mm

•Convergence (Maximum Misconvergence)

AREA 28”/29”

A0.4 BC 1.0 DE 1.0 FGHJ 1.5 KLMN 1.3 F’G’H’J’ 1.3 STUV 1.0

•Picture Intermediate frequency

L’ ................................................ 33.9MHz

L, B/G, D/K,I .............................. 38.9MHz

•Sound Carrier Trap

L’ ................................................ 40.4MHz

L, D/K ......................................... 32.4MHz

B/G ............................................ 33.4MHz

I .................................................. 32.9MHz

•Adjacent Sound Carrier Trap

L’ ................................................ 32.4MHz

L, D/K, B/G ................................ 40.4MHz

I .................................................. 40.9MHz

•Adjacent Picture Carrier Trap

L’ ................................................ 41.9MHz

L, D/K, I ...................................... 30.9MHz

B/G ............................................ 31.9MHz

•Aerial Input Impedance

VHF/UHF ................. 75 ohm Unbalanced

•Tuning Ranges ..... 45.75MHz thru 855.25 MHz

VHF: IR A - J / S1 - S41 CH (Hiperband) E2 - E12 / F2 - F10 UHF: I21 - I69 CH / E21 - E69

•White Level Apply the rated voltage at the rated frequency to the TV set, while it is receiving full white pattern RF signal of 60 dB/µV from its RF input via the pattern generator. Turn all picture controls to maximum value. Measure the colour temperatures at the center of the screen by using the colour analyzer.

X=0.290 ± 0.015 Y=0.300 ± 0.015

Specifications are subject to change without prior notice.

MODEL DESTINATION (Operation Manual Languages)

C-28L90EES: Español, Português.

WARNING

The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug and power receptacle, when servicing this chassis. To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to qualified service personnel.

C-2890EES

Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.

Servicing of High Voltage System and CRT

It is important that the static charge is removed from the high voltage system when carrying out work on the receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the receiver.

Note the following:

•

The CRT in this receiver employs Integral Implosion Protection.

• If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.

• DO NOT lift the CRT by its neck.

• When handing the CRT, ensure that shatterproof goggles are worn.

• Ensure that the CRT is discharge before handling.

IMPORTANT SERVICING NOTES

X-Ray

This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in close proximity to the receiver for long periods of time. To reduce any risks associated with this, please observe the following precautions:

1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 29.9 KV, (at a

instantaneous beam current of 1000 µA).

2. Ensure that during normal operation the EHT does not exceed 26.5 KV (at a beam current of 1145 µA). This level has been preset in the factory. Always check that this level has not been exceeded after carrying out any repair on the receiver.

3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause excessive x-ray radiation.

Before returning the receiver to the customer

In addition to the above checks, the following should also be carried out before returning the receiver to the customer.

1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched by any other parts.

2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs, insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

CONTROLS & TERMINALS



C-2890EES

FRONT PANEL

32:(5

92/3&K



0(18

REAR PANEL

$17

(;7

(;7

Speakers (left + right)

POWER = Power On / Off

- VOL + = Volume -/+

- P/Ch + = Program -/+

MENU = Menu

ANT = Antenna (75 W)

EXT.1 = Scart Socket 1 (with RGB)

EXT.2 = Scart Socket 2 (with SVHS)

Power Cable

C-2890EES



= Stand By

= Cursor Up

= Cursor Right

OK = OK

= Info (Program Menu)

0 - 9 = Direct Program

-/-- = Double Digit

= Wide mode button

P/CH+ = Program +

+ = Volume +

= TV / Quit Menu

(;7

= EXT button

(EXT-1, RGB, EXT-2, EXT-2S)

Yellow = Feature Menu

Blue = Installation Menu

= Hold



= Update

= Index Page

= Reveal

= Expand

= Mix



= Teletext

= Time



Red = Sound Menu

Green = Picture Menu = Mute

I-II = Mono/Stereo - Dual I-II

- = - Volume

- P/CH = -Program

= Flash back button



M = Menu



= Cursor Down



= Cursor Left

REMOTE CONTROL

Mother Unit

C-2890EES

CHASSIS LAYOUT

CRT Unit Control Panel Unit

C-2890EES

PARTS LISTING

REPLACEMENT PARTS

Replacement parts which have special safety characteristics are identified in this manual. Electrical components having such features are identified by in the Replacement Parts Listing. The use of a substitute replacement part which does not have the same safety characteristics as the factory recommended is not permitted. Replacement parts not shown in this service manual may create shock fire, or other hazards.

HOW TO ORDER REPLACEMENT PARTS

To have your order completed promptly and correctly please supply the following information.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. (*) 4. DESCRIPTION

5. CODE 6. QUANTITY

(*) When ordering any part, a “V” should be added before the Part No.

(*)

REF No. PARTS DESCRIPTION SN CODE EX CODE

PICTURE TUBE

. 30002751 28" CPT TUBE SAFE 50 HZ FLAT IRON CD CX . 30028443 28 DEG COIL&EARTH CB. SAFE WO/UL FTZ S AK AW

TUNER

TU200 30009637 TUNER WSP (PLL) CTF5510A AR BC

INTEGRATED CIRCUITS

IC1 30001669 PREAMPLIFIER TFMS1380 AD AM IC100 30015087 IC SAFE OPTOCOUPLER TCET1102G AA AE IC101 30001622 IC 7805 (1A) AB AF IC101 30018063 IC HT48RA0A OTP AF AR IC102 30001668 IC LM317T AC AH IC103 30001668 IC LM317T AC AH IC104 30001500 IC LM7808 AC AH IC106 30011968 IC SMPS MC44608 DIP8 AF AQ IC116 30001506 IC TL431 AC AH IC200 30019492 IC VDP3134Y AP BA IC201 30001619 IC VIDEO SWITCH TEA6415C DIP20 AM AY IC206 30021083 IC TDA9886T/V3-SO24 AL AX IC301 30016113 IC AAMP TDA7269A 2*14W MULTIWATT11 AH AV IC500 20152368 PR.IC.45-SHARP 1.2.77-L.1 AS BD IC502 20140957 IC 24C16 V042L3324A00040100112 AB AG IC600 30007793 IC STV9379FA AK AW IC601 30001506 IC TL431 AC AH IC700 30013658 IC MSP3410G SDIP64 AS BD IC900 30018768 IC TDA6109 AK AW IC901 30014346 IC 78L05 TO-92 (100mA) AA AE IC902 30014346 IC 78L05 TO-92 (100mA) AA AE

TRANSISTORS

Q100 30001453 TR BC337 AA AC Q102 30001386 TR MTP6N60E (PLASTIC) AE AP Q103 30001454 TR BC548B AA AC Q106 30001454 TR BC548B AA AC Q107 30001428 TR BF423 AA AC Q108 30001457 TR BC848B SMD AA AC Q109 30001457 TR BC848B SMD AA AC Q110 30001384 TR MCR22-6 AB AG Q112 30001458 TR BC858B SMD AA AB Q113 30001457 TR BC848B SMD AA AC Q114 30001457 TR BC848B SMD AA AC Q200 30001457 TR BC848B SMD AA AC Q201 30001457 TR BC848B SMD AA AC

REF No. PARTS DESCRIPTION SN CODE EX CODE

Q202 30001457 TR BC848B SMD AA AC Q203 30001457 TR BC848B SMD AA AC Q208 30001457 TR BC848B SMD AA AC Q216 30001457 TR BC848B SMD AA AC Q218 30001458 TR BC858B SMD AA AB Q220 30001457 TR BC848B SMD AA AC Q221 30001457 TR BC848B SMD AA AC Q222 30001457 TR BC848B SMD AA AC Q223 30001457 TR BC848B SMD AA AC Q500 30001457 TR BC848B SMD AA AC Q501 30001457 TR BC848B SMD AA AC Q502 30001457 TR BC848B SMD AA AC Q503 30001457 TR BC848B SMD AA AC Q504 30001457 TR BC848B SMD AA AC Q505 30001458 TR BC858B SMD AA AB Q508 30001457 TR BC848B SMD AA AC Q511 30001457 TR BC848B SMD AA AC Q513 30001458 TR BC858B SMD AA AB Q600 30001429 TR BUK444-200A AD AM Q601 30001435 TR NBJT BC639 1A/100V TO92 AA AB Q602 30001441 TR BU2508AF AE AP Q603 30001458 TR BC858B SMD AA AB Q605 30001458 TR BC858B SMD AA AB Q606 30001458 TR BC858B SMD AA AB Q700 30001458 TR BC858B SMD AA AB Q703 30001458 TR BC858B SMD AA AB Q704 30001457 TR BC848B SMD AA AC Q900 30001427 TR BF422 AA AE Q901 30001458 TR BC858B SMD AA AB Q902 30001458 TR BC858B SMD AA AB Q903 30001458 TR BC858B SMD AA AB Q904 30001458 TR BC858B SMD AA AB Q905 30001458 TR BC858B SMD AA AB Q906 30001452 TR BC327 AA AC

DIODES

D1 30001279 LED RED/GREEN LTL293SJ AC AH D100 30001329 DIODE 1N4007 1A/1000V 30A AA AB D100 30002733 LED INFRARED IR333 AA AC D101 20108354 DIODE BRIDGE GBU4M 4A/1000V 150A(FORMLU) AB AE D103 30001318 DIODE BA159 1A/800V 20A AA AB D104 30001318 DIODE BA159 1A/800V 20A AA AB D105 30001318 DIODE BA159 1A/800V 20A AA AB D106 30001344 DIODE ZENER 6.2V 1/2W AA AB D108 30001315 DIODE BYD33D 1A/200V 20A AA AE D110 30001288 DIODE BYV27-200 2A/200V 50A AA AD D111 30001323 DIODE BY299 2A/800V 70A AA AD D112 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D113 30003720 DIODE ZENER BZT55C5V6 5.6V SMD AA AB D114 30001285 DIODE 1N4148 SMD AA AB D118 30009366 DIODE UF5402 3A/200V 150A AB AF D119 30009366 DIODE UF5402 3A/200V 150A AB AF D121 20092405 CN.ASY.37-DIODE UF5407+FERRITE BAR 5*8 AB AE D125 30001285 DIODE 1N4148 SMD AA AB D127 30001315 DIODE BYD33D 1A/200V 20A AA AE D129 30001285 DIODE 1N4148 SMD AA AB D130 30001329 DIODE 1N4007 1A/1000V 30A AA AB D131 30001318 DIODE BA159 1A/800V 20A AA AB D132 30001285 DIODE 1N4148 SMD AA AB

C-2890EES

REF No. PARTS DESCRIPTION SN CODE EX CODE

D133 30003722 DIODE ZENER ZPD15V AA AA D134 30001285 DIODE 1N4148 SMD AA AB D200 30001285 DIODE 1N4148 SMD AA AB D204 30001285 DIODE 1N4148 SMD AA AB D205 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D206 30018735 DIODE ZENER BZT55C15 15V SMD AA AB D207 30018735 DIODE ZENER BZT55C15 15V SMD AA AB D208 30018735 DIODE ZENER BZT55C15 15V SMD AA AB D209 30018735 DIODE ZENER BZT55C15 15V SMD AA AB D212 30001285 DIODE 1N4148 SMD AA AB D213 30012411 DIODE BA782 SMD AA AD D214 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D215 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D216 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D217 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D218 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D219 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D220 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D221Y 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D222Y 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D506 30012412 DIODE ZENER 2.4V SMD AA AB D601 30001377 DIODE ZENER 33V UZT 33B AB AF D602 30001318 DIODE BA159 1A/800V 20A AA AB D603 30001299 DIODE UF5404 3A/400V 150A AA AD D604 30001299 DIODE UF5404 3A/400V 150A AA AD D609 30001318 DIODE BA159 1A/800V 20A AA AB D610 30001318 DIODE BA159 1A/800V 20A AA AB D611 30007681 DIODE UF5407 3A/800V 150A AB AF D612 30001285 DIODE 1N4148 SMD AA AB D613 30001291 DIODE HER107 1A/800V 30A AA AB D614 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D615 30001318 DIODE BA159 1A/800V 20A AA AB D617 30025773 DIODE ZENER SMD BZT55B5V1 AA AA D622 30001285 DIODE 1N4148 SMD AA AB D623 30001285 DIODE 1N4148 SMD AA AB D624 30001285 DIODE 1N4148 SMD AA AB D625 30001320 DIODE GUC BY228 AB AF D627 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB D628 30001285 DIODE 1N4148 SMD AA AB D701 30007761 DIODE ZENER SMD BZT55C3V6 AA AB D702 30001285 DIODE 1N4148 SMD AA AB D706 30001285 DIODE 1N4148 SMD AA AB D902 30001318 DIODE BA159 1A/800V 20A AA AB D903 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB D904 30001318 DIODE BA159 1A/800V 20A AA AB D905 30001318 DIODE BA159 1A/800V 20A AA AB D907 30001318 DIODE BA159 1A/800V 20A AA AB D908 30014353 DIODE BAT85 AA AC D909 30001285 DIODE 1N4148 SMD AA AB D910 30001285 DIODE 1N4148 SMD AA AB

PACKAGED CIRCUITS

X100 30002852 XTAL REZ 455KHZ AA AD X200 30002851 XTAL 4MHZ L.C=30PF AC AH X201 30008778 XTAL 20.25MHZ AB AF X500 30006662 XTAL 6MHZ AC AH X700 30001756 XTAL 18.432MHZ AE AP

COILS

REF No. PARTS DESCRIPTION SN CODE EX CODE

L101 30018866 LINE FILTER SAFE 2X22MH 10mmX12.5mm AC AH L102 30001971 FERRITE BEAT (805) BLM21A601S AA AD L103 30001992 FIXED COIL 10UH Q65 K-A AA AB L107(NOT2) 30007308 CAP CER 220PF 1KV K (PULSE) AA AD L203 30001996 FIXED COIL 22UH Q40 K AA AB L206 30001979 FIXED COIL 1UH Q45 M-A AA AB L207 30001979 FIXED COIL 1UH Q45 M-A AA AB L212 30001971 FERRITE BEAT (805) BLM21A601S AA AD L213 30001971 FERRITE BEAT (805) BLM21A601S AA AD L214 30001971 FERRITE BEAT (805) BLM21A601S AA AD L215 30001971 FERRITE BEAT (805) BLM21A601S AA AD L216 30001971 FERRITE BEAT (805) BLM21A601S AA AD L217 30001971 FERRITE BEAT (805) BLM21A601S AA AD L218 30001971 FERRITE BEAT (805) BLM21A601S AA AD L220 30001971 FERRITE BEAT (805) BLM21A601S AA AD L227 30001971 FERRITE BEAT (805) BLM21A601S AA AD L232 30001971 FERRITE BEAT (805) BLM21A601S AA AD L236 30001971 FERRITE BEAT (805) BLM21A601S AA AD L239 30001971 FERRITE BEAT (805) BLM21A601S AA AD L247 30001971 FERRITE BEAT (805) BLM21A601S AA AD L251 30001971 FERRITE BEAT (805) BLM21A601S AA AD L252 30001971 FERRITE BEAT (805) BLM21A601S AA AD L263 30001979 FIXED COIL 1UH Q45 M-A AA AB L264 30001979 FIXED COIL 1UH Q45 M-A AA AB L265 30001979 FIXED COIL 1UH Q45 M-A AA AB L266 30001987 FIXED COIL 4.7UH Q70 K-A AA AB L500 30001992 FIXED COIL 10UH Q65 K-A AA AB L501 30001992 FIXED COIL 10UH Q65 K-A AA AB L502 30001992 FIXED COIL 10UH Q65 K-A AA AB L503 30001992 FIXED COIL 10UH Q65 K-A AA AB L504 30001992 FIXED COIL 10UH Q65 K-A AA AB L505 30001992 FIXED COIL 10UH Q65 K-A AA AB L506 30006770 FIXED COIL 0.22UH AA AB L601 30002031 FIXED COIL INJECTION 15MH AD AL L602 30002156 LINEARITY COIL 30UH 110' (AK19) AD AL L603 30002829 FIXED COIL BRIDGE 1.5MH AD AL L700 30001996 FIXED COIL 22UH Q40 K AA AB L701 30001996 FIXED COIL 22UH Q40 K AA AB L702 30001996 FIXED COIL 22UH Q40 K AA AB L703 30001996 FIXED COIL 22UH Q40 K AA AB L711 30001996 FIXED COIL 22UH Q40 K AA AB L717 30001979 FIXED COIL 1UH Q45 M-A AA AB L719 30001968 FERRITE BEAD (0805) BLM21B201S AA AE

CERAMIC FILTERS

Z200 30014261 FILTER SAW K3958M AF AR Z201 30012545 FILTER SAW K9656M AG AR

TRANSFORMERS

TR100 30019432 TRF SMPS SAFE AK45 110° (170-270V) AG AS TR600 30021290 TRF FBT SAFE 110° 50HZ LAYER AS BC TR601 30002090 LINE DRIVER NEW TYPE AD AM . 30015614 TRF PFC SAFE 0,9A 42 MH EP AL AX

CAPACITORS

C100 30000352 CAP EL 100UF 16V M AA AB C101 30012560 CAP SMD 100PF 50V J (0603) AA AB C102 30000084 CAP MKT SAFE 150NF 275V M AC P=15 AC AG C102 30012560 CAP SMD 100PF 50V J (0603) AA AB

C-2890EES

REF No. PARTS DESCRIPTION SN CODE EX CODE

C103 30000094 CAP MKT SAFE 220NF 275V M AC AA AB C103 30016654 CAP SMD 100NF 16V K R (0603) AA AB C104 30016654 CAP SMD 100NF 16V K R (0603) AA AB C105 30012603 CAP SMD 100NF 25V K R (0603) AA AB C106 30000371 CAP EL 22UF 50V M AA AB C107 30000420 CAP EL 150UF 400V M AF AQ C108 30000161 CAP MKP SAFE 47NF 630V J AB AE C111 30007308 CAP CER 220PF 1KV K (PULSE) AA AD C113 30006940 CAP CER 2.7NF 1KV K B AA AB C114 30007308 CAP CER 220PF 1KV K (PULSE) AA AD C115 30000440 CAP CER SAFE 2.2NF 4KV M AA AC C118 30007308 CAP CER 220PF 1KV K (PULSE) AA AD C119 30000090 CAP MKT 22NF 100V J AA AB C120 30007308 CAP CER 220PF 1KV K (PULSE) AA AD C121 30012560 CAP SMD 100PF 50V J (0603) AA AB C122 30007308 CAP CER 220PF 1KV K (PULSE) AA AD C124 30000376 CAP EL 220UF 25V M AA AB C125 30028072 CAP EL 100UF 200V M (HR) AE AQ C126 30012603 CAP SMD 100NF 25V K R (0603) AA AB C127 30012603 CAP SMD 100NF 25V K R (0603) AA AB C129 30012603 CAP SMD 100NF 25V K R (0603) AA AB C130 30000436 CAP CER 10NF 1KV ZE AA AC C133 30018259 CAP EL 4700UF 25V M AC AG C134 30018259 CAP EL 4700UF 25V M AC AG C135 30018259 CAP EL 4700UF 25V M AC AG C137 30000367 CAP EL 1UF 250V M AA AB C138 30016654 CAP SMD 100NF 16V K R (0603) AA AB C140 30000393 CAP EL 3.3UF 50V M AA AB C141 30000359 CAP EL 1000UF 16V M AA AC C142 30000387 CAP EL 33UF 50V M AA AB C145 30000375 CAP EL 220UF 16V M AA AB C146 30012603 CAP SMD 100NF 25V K R (0603) AA AB C147 30016654 CAP SMD 100NF 16V K R (0603) AA AB C148 30000360 CAP EL 1000UF 25V M AA AE C149 30012581 CAP SMD 1NF 50V K R (0603) AA AB C150 30016654 CAP SMD 100NF 16V K R (0603) AA AB C152 30000375 CAP EL 220UF 16V M AA AB C154 30000375 CAP EL 220UF 16V M AA AB C155 30000375 CAP EL 220UF 16V M AA AB C156 30016654 CAP SMD 100NF 16V K R (0603) AA AB C157 30016654 CAP SMD 100NF 16V K R (0603) AA AB C160 30000076 CAP MKT SAFE 100NF 275V M AC AB AE C161 30000440 CAP CER SAFE 2.2NF 4KV M AA AC C162 30007708 CAP CER 1NF 1KV K (PULSE) AA AD C164 30000362 CAP EL 1UF 50V M AA AB C165 30000362 CAP EL 1UF 50V M AA AB C166 30000225 CAP CER 220PF 50V J SL AA AB C168 30000161 CAP MKP SAFE 47NF 630V J AB AE C170 30012566 CAP SMD 22PF 50V J (0603) AA AB C171 30012590 CAP SMD 47NF 50V K (0603) AA AA C172 30000313 CAP CER 22NF 50V Z F AA AB C173 30012603 CAP SMD 100NF 25V K R (0603) AA AB C174 30012603 CAP SMD 100NF 25V K R (0603) AA AB C175 30012603 CAP SMD 100NF 25V K R (0603) AA AB C176 30012603 CAP SMD 100NF 25V K R (0603) AA AB C202 30012643 RES SMD 1/16W 120R J (0603) AA AA C208 30016126 CAP SMD 220NF 16V K R (0603) AA AB C209 30016126 CAP SMD 220NF 16V K R (0603) AA AB

REF No. PARTS DESCRIPTION SN CODE EX CODE

C210 30016126 CAP SMD 220NF 16V K R (0603) AA AB C212 30000352 CAP EL 100UF 16V M AA AB C213 30012609 CAP SMD 68NF 50V K (0603) AA AB C214 30016126 CAP SMD 220NF 16V K R (0603) AA AB C215 30016126 CAP SMD 220NF 16V K R (0603) AA AB C217 30016126 CAP SMD 220NF 16V K R (0603) AA AB C218 30012610 CAP SMD 10NF 50V J (0603) AA AB C222 30016126 CAP SMD 220NF 16V K R (0603) AA AB C225 30000109 CAP MKT 470NF 63V J AA AD C226 30000352 CAP EL 100UF 16V M AA AB C227 30016654 CAP SMD 100NF 16V K R (0603) AA AB C229 30000345 CAP EL 10UF 50V M AA AB C231 30016654 CAP SMD 100NF 16V K R (0603) AA AB C233 30016654 CAP SMD 100NF 16V K R (0603) AA AB C234 30016126 CAP SMD 220NF 16V K R (0603) AA AB C235 30012610 CAP SMD 10NF 50V J (0603) AA AB C237 30012583 CAP SMD 1.5NF 50V K (0603) AA AA C238 30012610 CAP SMD 10NF 50V J (0603) AA AB C240 30012559 CAP SMD 10PF 50V D COG (0603) AA AA C242 30012560 CAP SMD 100PF 50V J (0603) AA AB C246 30012586 CAP SMD 22NF 50V K (0603) AA AB C248 30012586 CAP SMD 22NF 50V K (0603) AA AB C249 30012610 CAP SMD 10NF 50V J (0603) AA AB C252 30000387 CAP EL 33UF 50V M AA AB C253 30000345 CAP EL 10UF 50V M AA AB C255 30016126 CAP SMD 220NF 16V K R (0603) AA AB C258 30012581 CAP SMD 1NF 50V K R (0603) AA AB C259 30000345 CAP EL 10UF 50V M AA AB C260 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB C261 30012588 CAP SMD 33NF 50V K (0603) AA AA C262 30012610 CAP SMD 10NF 50V J (0603) AA AB C263 30012588 CAP SMD 33NF 50V K (0603) AA AA C264 30012603 CAP SMD 100NF 25V K R (0603) AA AB C265 30000109 CAP MKT 470NF 63V J AA AD C266 30000109 CAP MKT 470NF 63V J AA AD C267 30012581 CAP SMD 1NF 50V K R (0603) AA AB C268 30012590 CAP SMD 47NF 50V K (0603) AA AA C269 30016654 CAP SMD 100NF 16V K R (0603) AA AB C270 30016654 CAP SMD 100NF 16V K R (0603) AA AB C271 30016654 CAP SMD 100NF 16V K R (0603) AA AB C273 30012590 CAP SMD 47NF 50V K (0603) AA AA C274 30016654 CAP SMD 100NF 16V K R (0603) AA AB C275 30016654 CAP SMD 100NF 16V K R (0603) AA AB C276 30016654 CAP SMD 100NF 16V K R (0603) AA AB C277 30000345 CAP EL 10UF 50V M AA AB C278 30012559 CAP SMD 10PF 50V D COG (0603) AA AA C279 30012559 CAP SMD 10PF 50V D COG (0603) AA AA C280 30000345 CAP EL 10UF 50V M AA AB C282 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB C283 30000345 CAP EL 10UF 50V M AA AB C284 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB C286 30000345 CAP EL 10UF 50V M AA AB C287 30012607 CAP SMD 150PF 50V J (0603) AA AA C288 30012589 CAP SMD 4.7NF 50V K (0603) AA AB C289 30012589 CAP SMD 4.7NF 50V K (0603) AA AB C290 30012581 CAP SMD 1NF 50V K R (0603) AA AB C292 30012589 CAP SMD 4.7NF 50V K (0603) AA AB C293 30012607 CAP SMD 150PF 50V J (0603) AA AA

C-2890EES

REF No. PARTS DESCRIPTION SN CODE EX CODE

C296 30012589 CAP SMD 4.7NF 50V K (0603) AA AB C300 30012589 CAP SMD 4.7NF 50V K (0603) AA AB C301 30012607 CAP SMD 150PF 50V J (0603) AA AA C302 30012581 CAP SMD 1NF 50V K R (0603) AA AB C304 30012607 CAP SMD 150PF 50V J (0603) AA AA C308 30012589 CAP SMD 4.7NF 50V K (0603) AA AB C327 30000109 CAP MKT 470NF 63V J AA AD C331 30012572 CAP SMD 390PF 50V J (0603) AA AA C333 30012579 CAP SMD 82PF 50V J (0603) AA AB C348 30000109 CAP MKT 470NF 63V J AA AD C349 30012581 CAP SMD 1NF 50V K R (0603) AA AB C350 30016654 CAP SMD 100NF 16V K R (0603) AA AB C351 30000345 CAP EL 10UF 50V M AA AB C352 30016654 CAP SMD 100NF 16V K R (0603) AA AB C353 30012581 CAP SMD 1NF 50V K R (0603) AA AB C355 30012603 CAP SMD 100NF 25V K R (0603) AA AB C356 30000109 CAP MKT 470NF 63V J AA AD C357 30000345 CAP EL 10UF 50V M AA AB C358 30000345 CAP EL 10UF 50V M AA AB C359 30012581 CAP SMD 1NF 50V K R (0603) AA AB C360 30012581 CAP SMD 1NF 50V K R (0603) AA AB C361 30012603 CAP SMD 100NF 25V K R (0603) AA AB C362 30012603 CAP SMD 100NF 25V K R (0603) AA AB C506 30000345 CAP EL 10UF 50V M AA AB C507 30000393 CAP EL 3.3UF 50V M AA AB C508 30000345 CAP EL 10UF 50V M AA AB C509 30016654 CAP SMD 100NF 16V K R (0603) AA AB C510 30016654 CAP SMD 100NF 16V K R (0603) AA AB C511 30016654 CAP SMD 100NF 16V K R (0603) AA AB C514 30016654 CAP SMD 100NF 16V K R (0603) AA AB C515 30016654 CAP SMD 100NF 16V K R (0603) AA AB C516 30016654 CAP SMD 100NF 16V K R (0603) AA AB C517 30016654 CAP SMD 100NF 16V K R (0603) AA AB C518 30016654 CAP SMD 100NF 16V K R (0603) AA AB C519 30016654 CAP SMD 100NF 16V K R (0603) AA AB C520 30012573 CAP SMD 47PF 50V J (0603) AA AB C521 30012573 CAP SMD 47PF 50V J (0603) AA AB C522 30000345 CAP EL 10UF 50V M AA AB C523 30000345 CAP EL 10UF 50V M AA AB C524 30000345 CAP EL 10UF 50V M AA AB C525 30000345 CAP EL 10UF 50V M AA AB C527 30016654 CAP SMD 100NF 16V K R (0603) AA AB C530 30000375 CAP EL 220UF 16V M AA AB C537 30016654 CAP SMD 100NF 16V K R (0603) AA AB C601 30000351 CAP EL 10UF 350V M AA AE C603 30000402 CAP EL 47UF 100V M AA AB C604 30000075 CAP MKT 100NF 250V K (DC) AA AD C605 30028072 CAP EL 100UF 200V M (HR) AE AQ C607 30012610 CAP SMD 10NF 50V J (0603) AA AB C608 30000409 CAP EL 470UF 25V M AA AD C609 30000082 CAP MKT 15NF 63V J AA AB C612 30000348 CAP EL 10UF 160V M AA AB C613 30000360 CAP EL 1000UF 25V M AA AE C614 30000360 CAP EL 1000UF 25V M AA AE C616 30023448 CAP MKP 4.3NF 2KV J AA AD C617 30000123 CAP PP 33NF 630V K AC AG C618 30000444 CAP CER 470PF 1KV KB AA AB C619 30000367 CAP EL 1UF 250V M AA AB

REF No. PARTS DESCRIPTION SN CODE EX CODE

C621 30023480 CAP MKP 10NF 2KV %3.5 AB AF C622 30000137 CAP MKP 15NF 630V J AC AG C623 30000167 CAP MKP SAFE 560NF 250V J AC AK C624 30000172 CAP MKP SAFE 680NF 250V J (P=15) AC AH C628 30016126 CAP SMD 220NF 16V K R (0603) AA AB C630 30012603 CAP SMD 100NF 25V K R (0603) AA AB C631 30000296 CAP CER 100NF 100V Z F AA AB C632 30000074 CAP MKT 100NF 63V J AA AC C633 30012603 CAP SMD 100NF 25V K R (0603) AA AB C635 30012584 CAP SMD 1.8NF 50V K R (0603) AA AA C636 30009208 CAP CER 470PF 1KV K (PULSE) AA AC C637 30000332 CAP SMD 4.7NF 50V K (0805) AA AB C638 30000092 CAP MKT 220NF 63V J AA AD C643 30000092 CAP MKT 220NF 63V J AA AD C644 30012591 CAP SMD 5.6NF 50V K (0603) AA AA C645 30012591 CAP SMD 5.6NF 50V K (0603) AA AA C646 30000296 CAP CER 100NF 100V Z F AA AB C648 30000069 CAP MKT 1NF 100V J AA AC C700 30000352 CAP EL 100UF 16V M AA AB C701 30000345 CAP EL 10UF 50V M AA AB C702 30012583 CAP SMD 1.5NF 50V K (0603) AA AA C707 30016654 CAP SMD 100NF 16V K R (0603) AA AB C708 30000407 CAP EL 470UF 16V M AA AC C712 30012581 CAP SMD 1NF 50V K R (0603) AA AB C713 30012581 CAP SMD 1NF 50V K R (0603) AA AB C716 30016654 CAP SMD 100NF 16V K R (0603) AA AB C717 30000092 CAP MKT 220NF 63V J AA AD C718 30000092 CAP MKT 220NF 63V J AA AD C719 30016126 CAP SMD 220NF 16V K R (0603) AA AB C720 30000345 CAP EL 10UF 50V M AA AB C721 30012576 CAP SMD 56PF 50V J CH (0603) AA AA C722 30012576 CAP SMD 56PF 50V J CH (0603) AA AA C724 30000345 CAP EL 10UF 50V M AA AB C725 30016654 CAP SMD 100NF 16V K R (0603) AA AB C728 30012581 CAP SMD 1NF 50V K R (0603) AA AB C731 30012583 CAP SMD 1.5NF 50V K (0603) AA AA C732 30012581 CAP SMD 1NF 50V K R (0603) AA AB C733 30016126 CAP SMD 220NF 16V K R (0603) AA AB C734 30016654 CAP SMD 100NF 16V K R (0603) AA AB C735 30000393 CAP EL 3.3UF 50V M AA AB C736 30000345 CAP EL 10UF 50V M AA AB C737 30000345 CAP EL 10UF 50V M AA AB C738 30012576 CAP SMD 56PF 50V J CH (0603) AA AA C739 30000345 CAP EL 10UF 50V M AA AB C742 30012565 CAP SMD 1.8PF 50V J CH (0603) AA AA C743 30012565 CAP SMD 1.8PF 50V J CH (0603) AA AA C744 30000345 CAP EL 10UF 50V M AA AB C745 30012581 CAP SMD 1NF 50V K R (0603) AA AB C746 30012581 CAP SMD 1NF 50V K R (0603) AA AB C747 30012581 CAP SMD 1NF 50V K R (0603) AA AB C748 30012583 CAP SMD 1.5NF 50V K (0603) AA AA C749 30012581 CAP SMD 1NF 50V K R (0603) AA AB C750 30012581 CAP SMD 1NF 50V K R (0603) AA AB C751 30012581 CAP SMD 1NF 50V K R (0603) AA AB C754 30000352 CAP EL 100UF 16V M AA AB C764 30012567 CAP SMD 220PF 50V J (0603) AA AB C771 30000345 CAP EL 10UF 50V M AA AB C772 30000345 CAP EL 10UF 50V M AA AB

C-2890EES

REF No. PARTS DESCRIPTION SN CODE EX CODE

C774 30012567 CAP SMD 220PF 50V J (0603) AA AB C781 30012590 CAP SMD 47NF 50V K (0603) AA AA C783 30012590 CAP SMD 47NF 50V K (0603) AA AA C789 30000362 CAP EL 1UF 50V M AA AB C791 30000362 CAP EL 1UF 50V M AA AB C793 30012581 CAP SMD 1NF 50V K R (0603) AA AB C794 30012581 CAP SMD 1NF 50V K R (0603) AA AB C803 30012573 CAP SMD 47PF 50V J (0603) AA AB C808 30000345 CAP EL 10UF 50V M AA AB C809 30000409 CAP EL 470UF 25V M AA AD C810 30012574 CAP SMD 470PF 50V J (0603) AA AA C811 30012574 CAP SMD 470PF 50V J (0603) AA AA C900 30000075 CAP MKT 100NF 250V K (DC) AA AD C902 30000415 CAP EL 4.7UF 250V M AA AC C904 30000287 CAP CER 10NF 50V K B AA AA C905 30000350 CAP EL 10UF 250V M AA AD C906 30000075 CAP MKT 100NF 250V K (DC) AA AD C908 30000438 CAP CER 2.2NF 2KV AA AD C909 30000359 CAP EL 1000UF 16V M AA AC C910 30000294 CAP SMD 100NF 50V K (0805) AA AB C913 30000294 CAP SMD 100NF 50V K (0805) AA AB C914 30012577 CAP SMD 560PF 50V J (0603) AA AA C915 30000407 CAP EL 470UF 16V M AA AC C916 30000352 CAP EL 100UF 16V M AA AB C918 30012577 CAP SMD 560PF 50V J (0603) AA AA C919 30012577 CAP SMD 560PF 50V J (0603) AA AA C920 30012577 CAP SMD 560PF 50V J (0603) AA AA C921 30000294 CAP SMD 100NF 50V K (0805) AA AB C931 30000075 CAP MKT 100NF 250V K (DC) AA AD C932 30000367 CAP EL 1UF 250V M AA AB C934 30012603 CAP SMD 100NF 25V K R (0603) AA AB C TUNER 30000285 CAP CER 1NF 100V KB AA AA CXXX 30000371 CAP EL 22UF 50V M AA AB

RESISTORS

R1 30000689 RES CF 1/4W 3.9K J AA AB R100 30000718 RES CF 1/4W 4.7K J AA AB R100 30012510 RES SMD 1/16W 100R J (0603) AA AB R101 30000896 RES MF 1/4W 160K G AA AA R101 30000489 RES SMD 1/10W 1R J (0805) AA AB R103 30012509 RES SMD 1/16W 100K J (0603) AA AB R105 30000982 RES MF 1/4W 4.7K J AA AA R106 30000593 RES SMD 1/10W 2.2K J (0805) AA AB R108 30000452 RES CF 1/4W 10R J AA AB R110 30012657 RES SMD 1/16W 1K J (0603) AA AB R112 30012657 RES SMD 1/16W 1K J (0603) AA AB R116 30001173 RES MO 1W 0.47R J AA AB R117 30001257 RES MG SAFE 1/2W 4.7M J AA AD R118 30000580 RES CF 1/4W 22R J AA AB R119 30012641 RES SMD 1/16W 10K J (0603) AA AB R122 30014022 RES SMD 1/16W 47R J (0603) AA AA R126 30012641 RES SMD 1/16W 10K J (0603) AA AB R127 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R129 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R130 30012641 RES SMD 1/16W 10K J (0603) AA AB R131 30000886 RES MF 1/4W 1.5K F AA AB R132 30000886 RES MF 1/4W 1.5K F AA AB R133 30000880 RES MF 1/4W 130K F AA AA R134 30000575 RES SMD 1/10W 2K J AA AB

REF No. PARTS DESCRIPTION SN CODE EX CODE

R137 30000481 RES CF 1/4W 1M J AA AB R138 30000660 RES CF 1/4W 3.3K J AA AB R139 30000593 RES SMD 1/10W 2.2K J (0805) AA AB R140 30001174 RES MO 2W 0.47R J AA AB R141 30012641 RES SMD 1/16W 10K J (0603) AA AB R142 30012657 RES SMD 1/16W 1K J (0603) AA AB R143 30020455 RES SMD 1/16W 1.5K F (0603) AA AA R144 30000480 RES SMD 1/10W 100K J (0805) AA AB R145 30020457 RES SMD 1/16W 910R F (0603) AA AA R146 30012697 RES SMD 1/16W 5.1K J (0603) AA AA R147 30020455 RES SMD 1/16W 1.5K F (0603) AA AA R148 30020457 RES SMD 1/16W 910R F (0603) AA AA R149 30012657 RES SMD 1/16W 1K J (0603) AA AB R150 30000466 RES CF 1/4W 1K J AA AB R151 30012641 RES SMD 1/16W 10K J (0603) AA AB R152 30001224 RES FUSE SAFE 1/2W 0.22R J AA AB R153 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R154 30012641 RES SMD 1/16W 10K J (0603) AA AB R155 30012641 RES SMD 1/16W 10K J (0603) AA AB R156 30012641 RES SMD 1/16W 10K J (0603) AA AB R157 30012641 RES SMD 1/16W 10K J (0603) AA AB R158 30012657 RES SMD 1/16W 1K J (0603) AA AB R161 30012657 RES SMD 1/16W 1K J (0603) AA AB R162 30000494 RES SMD 1/10W 120R J (0805) AA AA R164 30000593 RES SMD 1/10W 2.2K J (0805) AA AB R165 30001159 RES MO 1W 0.33R J AA AB R166 30012641 RES SMD 1/16W 10K J (0603) AA AB R167 30018085 CAP VAR SAFE 510V K MFCN14D511 AA AD R168 30018085 CAP VAR SAFE 510V K MFCN14D511 AA AD R2 30000526 RES CF 1/4W 1.5K J AA AB R200 30012713 RES SMD 1/16W 75R J (0603) AA AB R201 30012713 RES SMD 1/16W 75R J (0603) AA AB R202 30012713 RES SMD 1/16W 75R J (0603) AA AB R203 30012713 RES SMD 1/16W 75R J (0603) AA AB R204 30012713 RES SMD 1/16W 75R J (0603) AA AB R205 30012713 RES SMD 1/16W 75R J (0603) AA AB R206 30000459 RES CF 1/4W 100R J AA AB R207 30000459 RES CF 1/4W 100R J AA AB R208 30012510 RES SMD 1/16W 100R J (0603) AA AB R209 30012510 RES SMD 1/16W 100R J (0603) AA AB R210 30012662 RES SMD 1/16W 2.7K J (0603) AA AB R211 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R215 30012713 RES SMD 1/16W 75R J (0603) AA AB R217 30012641 RES SMD 1/16W 10K J (0603) AA AB R219 30000792 RES CF 1/4W 75R J AA AB R220 30012641 RES SMD 1/16W 10K J (0603) AA AB R221 30000792 RES CF 1/4W 75R J AA AB R222 30012641 RES SMD 1/16W 10K J (0603) AA AB R230 30012641 RES SMD 1/16W 10K J (0603) AA AB R231 30000792 RES CF 1/4W 75R J AA AB R232 30012713 RES SMD 1/16W 75R J (0603) AA AB R233 30012657 RES SMD 1/16W 1K J (0603) AA AB R234 30012702 RES SMD 1/16W 560R J (0603) AA AA R235 30000655 RES CF 1/4W 330R J AA AB R236 30012713 RES SMD 1/16W 75R J (0603) AA AB R237 30012641 RES SMD 1/16W 10K J (0603) AA AB R238 30012641 RES SMD 1/16W 10K J (0603) AA AB R239 30012713 RES SMD 1/16W 75R J (0603) AA AB

C-2890EES

R355

30012643

RES SMD 1/16W 120R J (0603)

R356

30012707

RES SMD 1/16W 680R J (0603)

R357

30012644

RES SMD 1/16W 12K J (0603)

R358

30012655

RES SMD 1/16W 180R J (0603)

R359

30012669

RES SMD 1/16W 22K J (0603)

REF No. PARTS DESCRIPTION SN CODE EX CODE

R241 30012510 RES SMD 1/16W 100R J (0603) AA AB R242 30012696 RES SMD 1/16W 47K J (0603) AA AB R247 30000500 RES CF 1/4W 12K J AA AB R248 30012641 RES SMD 1/16W 10K J (0603) AA AB R254 30012657 RES SMD 1/16W 1K J (0603) AA AB R256 30012655 RES SMD 1/16W 180R J (0603) AA AA R259 30000593 RES SMD 1/10W 2.2K J (0805) AA AB R260 30012669 RES SMD 1/16W 22K J (0603) AA AB R261 30012677 RES SMD 1/16W 3.3K J (0603) AA AA R265 30000459 RES CF 1/4W 100R J AA AB R266 30000459 RES CF 1/4W 100R J AA AB R267 30012657 RES SMD 1/16W 1K J (0603) AA AB R268 30012641 RES SMD 1/16W 10K J (0603) AA AB R269 30012641 RES SMD 1/16W 10K J (0603) AA AB R270 30012641 RES SMD 1/16W 10K J (0603) AA AB R272 30012713 RES SMD 1/16W 75R J (0603) AA AB R274 30012702 RES SMD 1/16W 560R J (0603) AA AA R276 30000593 RES SMD 1/10W 2.2K J (0805) AA AB R277 30012679 RES SMD 1/16W 3.9K J (0603) AA AB R278 30012713 RES SMD 1/16W 75R J (0603) AA AB R279 30012713 RES SMD 1/16W 75R J (0603) AA AB R280 30012713 RES SMD 1/16W 75R J (0603) AA AB R281 30012673 RES SMD 1/16W 270R J (0603) AA AB R282 30012668 RES SMD 1/16W 220R J (0603) AA AA R283 30012707 RES SMD 1/16W 680R J (0603) AA AB R284 30012684 RES SMD 1/16W 330R J (0603) AA AA R285 30012707 RES SMD 1/16W 680R J (0603) AA AB R286 30012707 RES SMD 1/16W 680R J (0603) AA AB R288 30000770 RES CF 1/4W 680R J AA AB R289 30012707 RES SMD 1/16W 680R J (0603) AA AB R299 30012510 RES SMD 1/16W 100R J (0603) AA AB R3 30000770 RES CF 1/4W 680R J AA AB R308 30012641 RES SMD 1/16W 10K J (0603) AA AB R310 30012713 RES SMD 1/16W 75R J (0603) AA AB R316 30012641 RES SMD 1/16W 10K J (0603) AA AB R317 30000792 RES CF 1/4W 75R J AA AB R318 30012657 RES SMD 1/16W 1K J (0603) AA AB R326 30000815 RES CF 1/4W 8.2K J AA AB R327 30000480 RES SMD 1/10W 100K J (0805) AA AB R330 30012657 RES SMD 1/16W 1K J (0603) AA AB R334 30012713 RES SMD 1/16W 75R J (0603) AA AB R336 30000466 RES CF 1/4W 1K J AA AB R337 30000466 RES CF 1/4W 1K J AA AB R338 30000466 RES CF 1/4W 1K J AA AB R342 30012657 RES SMD 1/16W 1K J (0603) AA AB R343 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R349 30012641 RES SMD 1/16W 10K J (0603) AA AB R350 30012510 RES SMD 1/16W 100R J (0603) AA AB R351 30012510 RES SMD 1/16W 100R J (0603) AA AB R352 30012698 RES SMD 1/16W 5.6K J (0603) AA AB R353 30012685 RES SMD 1/16W 33K J (0603) AA AA R354 30012677 RES SMD 1/16W 3.3K J (0603) AA AA

R4 30000712 RES CF 1/4W 470R J AA AB R400 30012669 RES SMD 1/16W 22K J (0603) AA AB

REF No. PARTS DESCRIPTION SN CODE EX CODE

R404 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R406 30012650 RES SMD 1/16W 15K J (0603) AA AB R409 30012713 RES SMD 1/16W 75R J (0603) AA AB R411 30012657 RES SMD 1/16W 1K J (0603) AA AB R412 30012657 RES SMD 1/16W 1K J (0603) AA AB R413 30012713 RES SMD 1/16W 75R J (0603) AA AB R414 30012713 RES SMD 1/16W 75R J (0603) AA AB R415 30012679 RES SMD 1/16W 3.9K J (0603) AA AB R416 30012695 RES SMD 1/16W 470R J (0603) AA AB R417 30012695 RES SMD 1/16W 470R J (0603) AA AB R418 30012695 RES SMD 1/16W 470R J (0603) AA AB R419 30012695 RES SMD 1/16W 470R J (0603) AA AB R420 30012695 RES SMD 1/16W 470R J (0603) AA AB R421 30012695 RES SMD 1/16W 470R J (0603) AA AB R422 30012695 RES SMD 1/16W 470R J (0603) AA AB R423 30012695 RES SMD 1/16W 470R J (0603) AA AB R424 30012695 RES SMD 1/16W 470R J (0603) AA AB R425 30012695 RES SMD 1/16W 470R J (0603) AA AB R426 30012695 RES SMD 1/16W 470R J (0603) AA AB R427 30012661 RES SMD 1/16W 2.4K J (0603) AA AA R428 30012510 RES SMD 1/16W 100R J (0603) AA AB R429 30012510 RES SMD 1/16W 100R J (0603) AA AB R430 30012510 RES SMD 1/16W 100R J (0603) AA AB R5 30000622 RES CF 1/4W 270R J AA AB R503 30012510 RES SMD 1/16W 100R J (0603) AA AB R504 30012510 RES SMD 1/16W 100R J (0603) AA AB R505 30000471 RES CF 1/4W 10K J AA AB R506 30000471 RES CF 1/4W 10K J AA AB R507 30012696 RES SMD 1/16W 47K J (0603) AA AB R508 30012696 RES SMD 1/16W 47K J (0603) AA AB R509 30012696 RES SMD 1/16W 47K J (0603) AA AB R510 30012696 RES SMD 1/16W 47K J (0603) AA AB R512 30012668 RES SMD 1/16W 220R J (0603) AA AA R513 30012662 RES SMD 1/16W 2.7K J (0603) AA AB R516 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R518 30012662 RES SMD 1/16W 2.7K J (0603) AA AB R519 30000466 RES CF 1/4W 1K J AA AB R520 30012650 RES SMD 1/16W 15K J (0603) AA AB R521 30012679 RES SMD 1/16W 3.9K J (0603) AA AB R522 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R523 30012712 RES SMD 1/16W 8.2K J (0603) AA AB R524 30012679 RES SMD 1/16W 3.9K J (0603) AA AB R526 30012679 RES SMD 1/16W 3.9K J (0603) AA AB R527 30012679 RES SMD 1/16W 3.9K J (0603) AA AB R528 30012650 RES SMD 1/16W 15K J (0603) AA AB R533 30012685 RES SMD 1/16W 33K J (0603) AA AA R535 30012641 RES SMD 1/16W 10K J (0603) AA AB R537 30000466 RES CF 1/4W 1K J AA AB R538 30012508 RES SMD 1/16W 1.8K J (0603) AA AB R539 30012508 RES SMD 1/16W 1.8K J (0603) AA AB R540 30012508 RES SMD 1/16W 1.8K J (0603) AA AB R541 30012662 RES SMD 1/16W 2.7K J (0603) AA AB R548 30012641 RES SMD 1/16W 10K J (0603) AA AB R549 30012657 RES SMD 1/16W 1K J (0603) AA AB R550 30012679 RES SMD 1/16W 3.9K J (0603) AA AB R553 30012695 RES SMD 1/16W 470R J (0603) AA AB R554 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R555 30012506 RES SMD 1/16W 1.5K J (0603) AA AB

C-2890EES

REF No. PARTS DESCRIPTION SN CODE EX CODE

R561 30012510 RES SMD 1/16W 100R J (0603) AA AB R564 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R565 30012510 RES SMD 1/16W 100R J (0603) AA AB R566 30012641 RES SMD 1/16W 10K J (0603) AA AB R567 30000459 RES CF 1/4W 100R J AA AB R568 30000459 RES CF 1/4W 100R J AA AB R571 30012657 RES SMD 1/16W 1K J (0603) AA AB R582 30012641 RES SMD 1/16W 10K J (0603) AA AB R585 30012641 RES SMD 1/16W 10K J (0603) AA AB R586 30012641 RES SMD 1/16W 10K J (0603) AA AB R587 30012641 RES SMD 1/16W 10K J (0603) AA AB R588 30012641 RES SMD 1/16W 10K J (0603) AA AB R589 30012641 RES SMD 1/16W 10K J (0603) AA AB R590 30012679 RES SMD 1/16W 3.9K J (0603) AA AB R591 30012711 RES SMD 1/16W 75K J (0603) AA AA R600 30012510 RES SMD 1/16W 100R J (0603) AA AB R601 30000470 RES CF 1/2W 10K J AA AA R603 30001244 RES FUSE SAFE 1/2W 0.47R J AA AB R604 30001244 RES FUSE SAFE 1/2W 0.47R J AA AB R605 30000927 RES MF 1/4W 220K J AA AB R607 30012695 RES SMD 1/16W 470R J (0603) AA AB R608 30001100 RES MO 1W 150R J AA AB R611 30001244 RES FUSE SAFE 1/2W 0.47R J AA AB R612 30000471 RES CF 1/4W 10K J AA AB R614 30001244 RES FUSE SAFE 1/2W 0.47R J AA AB R616 30018904 RES MO 5W 4.7k J AA AD R618 30001215 RES FUSE SAFE 1W 1R J AA AC R621 30012696 RES SMD 1/16W 47K J (0603) AA AB R622 30012696 RES SMD 1/16W 47K J (0603) AA AB R623 30012641 RES SMD 1/16W 10K J (0603) AA AB R624 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R625 30000480 RES SMD 1/10W 100K J (0805) AA AB R626 30012692 RES SMD 1/16W 4.7K J (0603) AA AB R627 30000480 RES SMD 1/10W 100K J (0805) AA AB R628 30012657 RES SMD 1/16W 1K J (0603) AA AB R629 30012674 RES SMD 1/16W 27K J (0603) AA AB R630 30000872 RES MF 1/4W 120K F AA AA R631 30000872 RES MF 1/4W 120K F AA AA R632 30014465 RES SMD 1/16W 2.7K F (603) AA AA R636 30012641 RES SMD 1/16W 10K J (0603) AA AB R637 30012657 RES SMD 1/16W 1K J (0603) AA AB R638 30012674 RES SMD 1/16W 27K J (0603) AA AB R639 30001162 RES MO 1W 390R J AA AB R640 30001134 RES MO 2W 2.2R J AA AB R641 30000965 RES MF 1/2W 0.33R J AA AA R644 30000649 RES CF 1/2W 33R J AA AB R645 30000580 RES CF 1/4W 22R J AA AB R646 30012654 RES SMD 1/16W 180K J (0603) AA AA R647 30012650 RES SMD 1/16W 15K J (0603) AA AB R648 30012658 RES SMD 1/16W 1M J (0603) AA AA R649 30001228 RES FUSE SAFE 1/2W 2.2R J AA AB R650 30001082 RES MO 1/2W 1K J AA AB R652 30000848 RES MF 1/4W 1K F AA AB R653 30012509 RES SMD 1/16W 100K J (0603) AA AB R654 30012708 RES SMD 1/16W 68K J (0603) AA AA R655 30012674 RES SMD 1/16W 27K J (0603) AA AB R656 30012641 RES SMD 1/16W 10K J (0603) AA AB R657 30000466 RES CF 1/4W 1K J AA AB

REF No. PARTS DESCRIPTION SN CODE EX CODE

R658 30000466 RES CF 1/4W 1K J AA AB R700 30012695 RES SMD 1/16W 470R J (0603) AA AB R701 30012695 RES SMD 1/16W 470R J (0603) AA AB R702 30012657 RES SMD 1/16W 1K J (0603) AA AB R703 30012510 RES SMD 1/16W 100R J (0603) AA AB R704 30012510 RES SMD 1/16W 100R J (0603) AA AB R705 30012510 RES SMD 1/16W 100R J (0603) AA AB R710 30012657 RES SMD 1/16W 1K J (0603) AA AB R713 30012510 RES SMD 1/16W 100R J (0603) AA AB R714 30012510 RES SMD 1/16W 100R J (0603) AA AB R715 30012657 RES SMD 1/16W 1K J (0603) AA AB R718 30012657 RES SMD 1/16W 1K J (0603) AA AB R719 30012657 RES SMD 1/16W 1K J (0603) AA AB R723 30000459 RES CF 1/4W 100R J AA AB R724 30012510 RES SMD 1/16W 100R J (0603) AA AB R753 30014076 RES SMD 1/16W 4.7R J (0603) AA AA R755 30014076 RES SMD 1/16W 4.7R J (0603) AA AA R759 30012641 RES SMD 1/16W 10K J (0603) AA AB R760 30012702 RES SMD 1/16W 560R J (0603) AA AA R762 30012641 RES SMD 1/16W 10K J (0603) AA AB R763 30012702 RES SMD 1/16W 560R J (0603) AA AA R765 30012669 RES SMD 1/16W 22K J (0603) AA AB R766 30012669 RES SMD 1/16W 22K J (0603) AA AB R793 30012695 RES SMD 1/16W 470R J (0603) AA AB R794 30012695 RES SMD 1/16W 470R J (0603) AA AB R815 30012644 RES SMD 1/16W 12K J (0603) AA AB R817 30012641 RES SMD 1/16W 10K J (0603) AA AB R818 30000723 RES CF 1/4W 47K J AA AB R819 30012679 RES SMD 1/16W 3.9K J (0603) AA AB R820 30012696 RES SMD 1/16W 47K J (0603) AA AB R900 30000788 RES CF 1/4W 6.8M J AA AB R901 30000459 RES CF 1/4W 100R J AA AB R902 30000459 RES CF 1/4W 100R J AA AB R903 30000459 RES CF 1/4W 100R J AA AB R904 30000535 RES CF 1/2W 150K J AA AB R905 30000477 RES CF 1/4W 100K J AA AB R906 30000477 RES CF 1/4W 100K J AA AB R907 30023197 RES CC 1W 1.5K K AA AD R908 30023197 RES CC 1W 1.5K K AA AD R909 30000477 RES CF 1/4W 100K J AA AB R910 30023197 RES CC 1W 1.5K K AA AD R911 30000466 RES CF 1/4W 1K J AA AB R912 30000458 RES CF 1/2W 100R J AA AB R913 30021483 RES CC 1W 2.2K K AA AD R914 30000459 RES CF 1/4W 100R J AA AB R915 30012649 RES SMD 1/16W 150R J (0603) AA AB R916 30014128 RES SMD 1/16W 33R J (0603) AA AA R917 30000583 RES CF 1/4W 220R J AA AB R919 30012644 RES SMD 1/16W 12K J (0603) AA AB R920 30012698 RES SMD 1/16W 5.6K J (0603) AA AB R921 30012649 RES SMD 1/16W 150R J (0603) AA AB R922 30014128 RES SMD 1/16W 33R J (0603) AA AA R923 30000583 RES CF 1/4W 220R J AA AB R925 30012649 RES SMD 1/16W 150R J (0603) AA AB R926 30014128 RES SMD 1/16W 33R J (0603) AA AA R927 30000583 RES CF 1/4W 220R J AA AB R928 30012510 RES SMD 1/16W 100R J (0603) AA AB R930 30000477 RES CF 1/4W 100K J AA AB

C-2890EES

REF No. PARTS DESCRIPTION SN CODE EX CODE

R931 30012667 RES SMD 1/16W 220K J (0603) AA AB R932 30012707 RES SMD 1/16W 680R J (0603) AA AB R933 30012707 RES SMD 1/16W 680R J (0603) AA AB

MISCELLANEOUS PARTS

. 20024343 SNOW BOX ASSY.2850/51 AL AX . 20024254 SNOW BOX-BOTTOM 2850/51 AE AP . 20024255 SNOW BOX-TOP 2850/51 AE AP . 20072943 FRONT 2850M W/H HIT.FUME (P) AQ BB . 20094177 BASE 2850-51 (I) WO/CHASSIS FRAME AK28 AH AT . 20004519 CABLE HOLDER CRT (I) AA AB . 20095238 BACK CVR.2850/51 AK28 H.FUME (P) AT BE . 20126784 BUTTON ASSY.2850M (HIT.FUME/P) AA AD . 20035216 LENS 2850 (I) AB AG . 20035214 BUTTON FUNCTION 2850 5T (I) AC AG . 20035209 BUTTON ON/OFF 2850 (I) (SM BASKI) AB AG . 60000003 ABS BLACK AK AV . 35000013 SPRING ON/OFF SWITCH AA AB . 20140227 MD.ASY.TK123-2850/51 5SW (AK41)(SHARP) AF AR . 20140956 CHS.ASSY.45-315C21514111121B1122B BP CE . 30018087 CNAS 2P/350 TRFPFC DIS W/C AA AE . 35000217 SCREW S C SYF YFMB 3.5*9.5 AA AB . 35000136 FUSE HOLDER TK79-A (GRAY) AA AD . 20093231 CHS. FRAME JVC AK37 (I) V-0 (3.kalýp) AD AL . 20095322 PASIF PFC 37-TRF0,9A (25-28-29-28"16/9) AL AX . 35005061 SCREW RB C SK ZN YFMB 2.9*9.5 AA AA . 30007728 CABLE 1P R2.6 50 W/CLIPS AA AC . 30009833 CABL 1P/100 SIS AA AB . 30009833 CABL 1P/100 SIS AA AB . 30019101 CABL 1P/350 DIS UL1672AWG22 AA AB . 20149936 ON/OFF SW ASSY.FTZ AK45 SHARP (MAKARONLU AH AU . 30022450 SWITCH SAFE ON/OFF 8A/128A AC AK . 30028208 POWER CORD SAFE EURO 2.2M SHARP W/FILTER AG AT . 30028092 SPEAKER 8R 15W 57*160 (improved) AE AN . 30028092 SPEAKER 8R 15W 57*160 (improved) AE AN . 35000010 EARTH SPRING (4CM) AA AB . 20152057 CRT B.ASSY.TP45B-5-SING.FOCUS(AK45)SHARP AS BD . 20157327 SCREW ASSY.2850/51 HP/2SC(45) AC AK . 20108124 BACK DOOR AK45/52 (I) AC AH . 35000199 SCREW S C ZN YSMB 3.9*25 AA AA . 35000212 SCREW S C ZNSY YSMB 2.9*13 AA AB . 35000212 SCREW S C ZNSY YSMB 2.9*13 AA AB . 35000214 SCREW S C ZNSY YSMB 3.5*19 AA AA . 35000224 SCREW C SK ZN YFMB 2.9*9.5 AA AB . 35000231 SCREW SK C NI YFMB 2.9*6.5 AA AB . 35000235 SCREW P C ZN AKBR 7*32 AA AC . 35004572 SCREW P C AgSYF YSB 4x20 AA AB . 20157329 R/C 1548 SHARP (GRAY/S) AM AY . 50043630 WARRANTY CARD SHARP (ESP) AB AF . 50049951 I/B SHARP C2890E P/AK45/1548/ESP/POR AC AK . 20157362 LBL.BCK.CVR.SHA.EL.SHARP C2890E(ES)"45" AA AC . 30009005 IC 24C16 AF AQ . 40014959 LOGO BADGE SHARP (W/P-SILVER BRUSH/H.ST) AA AE F100 30001731 FUSE SAFE 2.5A 250V 5*20MM AA AC J344 30001996 FIXED COIL 22UH Q40 K AA AB NOT 30011742 CABL 1P/25 SIS AA AB PL1 30002302 CNAS 6P/450 TB FLT W/C UL2468AWG24 AB AF PL100 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC PL101 30001795 CONN HEADER 3P 5/7.5MM TOP WHT AA AC

REF No. PARTS DESCRIPTION SN CODE EX CODE

PL102 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC PL204 30010921 DOUBLE-DECK SCART SOCKET AD AM PL206 30010039 CONN HEADER 8P 2.5MM TOP WHT AA AB PL214 35000135 TEST PIN 1.1MM AA AB PL500 30001783 CONN HEADER 5P 2.5MM TOP BD AA AC PL502 30001784 CONN HEADER 6P 2.5MM TOP BD AA AC PL602 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC PL602 30016483 CNAS 2P/600 HRZ DIS W/C UL1672AWG24 AA AE PL603 30001829 CONN HEADER 2P 2.5MM TOP WHT SD AA AB PL603 30019083 CNAS 2P/600 SIS W/C+FER UL1007AWG24 AB AF PL604 30001850 CONN HEADER 6P 2.5MM TOP WHT SD AA AC PL708 30001762 CONN HEADER 2P 2.5MM(9.7MM) TOP AA AC PL709 30001764 CONN HEADER 2P 2.5MM(9.7MM) TOP BLACK AA AC PL901 30028447 SOCKET CRT SAFE NARROWNECK W/GND INCHANG AA AE PL902 30010039 CONN HEADER 8P 2.5MM TOP WHT AA AB PL902 30027546 CNAS 5P/350 SHL+3P/350 SIS RGB W/DC+FER AD AM PL903 30001850 CONN HEADER 6P 2.5MM TOP WHT SD AA AC PL903 30027043 CNAS 6P-4P+1P/600 SIS W/3C+FER UL1007 AC AH PL905 35000135 TEST PIN 1.1MM AA AB PL909 35000135 TEST PIN 1.1MM AA AB S224 30000792 RES CF 1/4W 75R J AA AB S225 30012713 RES SMD 1/16W 75R J (0603) AA AB S226 30012713 RES SMD 1/16W 75R J (0603) AA AB S227 30012713 RES SMD 1/16W 75R J (0603) AA AB SG901 30000428 SPARK GAP 300V AB AG SG902 30000428 SPARK GAP 300V AB AG SG903 30000428 SPARK GAP 300V AB AG SG904 30000428 SPARK GAP 300V AB AG SG905 30021532 SPARK GAP 1500V AC AG SW1 30002181 SWITCH TACT(4) AA AC SW2 30002181 SWITCH TACT(4) AA AC SW3 30002181 SWITCH TACT(4) AA AC SW4 30002181 SWITCH TACT(4) AA AC SW5 30002181 SWITCH TACT(4) AA AC TH101 30001268 THERMISTOR 3P AD AM

How to update the Technical Information appeared on this Service Manual

1. Web site: https://www.vestelservice.com

2. Select: Technical Support

3. Login: 101278

4. Password: SHPII278

By this access you can consult the latest schematic diagram or request the Parts Listing of a concrete Production Date / Serial Number.

By this way it can be also consulted the issued Technical Reports (Service Bulletins).

C-2890EES

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

Technical information and Production:

Vestel Electronik AS

PRINTED BY: ON:

Technical information re-issued:

SHARP ELECTRONICA ESPAÑA S.A. Service Manual Group Engineering Dept. Polígono Industrial Can Sant Joan 08190 Sant Cugat del Vallès Barcelona Spain

Think Ecology, please use

RECYCLED PAPER

AK - 45

CHASSIS

SERVICE MANUAL

SE00AK45CHA00

Issued: 20

Jan. 2004

PAL B/G, I / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION

CHASSIS AK-45

In the interests of user safety (required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

CONTENTS

TABLE OF CONTENTS ....................................................................................................... 3

INTRODUCTION .................................................................................................................. 6

CIRCUIT DESCRIPTIONS ................................................................................................... 6

INTEGRATED CIRCUIT DESCRIPTIONS ....................................................................... 10

SERVICE MODE ADJUSTMENTS ...................................................................................... 23

BLOCK DIAGRAM ................................................................................................................ 61

CIRCUIT DIAGRAMS ..................................................................................................... 62

HOW TO UPDATE THE TECHNICAL INFORMATION ...................................................... 73

SHARP CORPORATION

This document has been published to be used for after sales service only.

AK - 45

CHASSIS

SERVICE MANUAL UPDATE LOG SHEET

Technical Report No. Technical Bulletin No.

Cause / Solution

Part No.

Page No.

Application Data /Serial No.

TABLE OF CONTENTS

1.INTRODUCTION

2.TUNER

.................................................................................................................................................6

3.IF PART (TDA9885/86)

4.VIDEO SWITCH TEA6415

5.MULTI STANDARD SOUND PROCESSOR

6.SOUND OUTPUT STAGE WITH TDA7269A

7.VERTICAL OUTPUT STAGE WITH STV9379FA

8.VIDEO OUTPUT AMPLIFIER TDA6108

9.POWER SUPPLY (SMPS)

10.MICROCONTROLLER SDA55XX

10.1.General Features..........................................................................................................................8

10.2.External Crystal and Programmable Clock Speed ...................................................................8

10.3.Microcontroller Features ............................................................................................................. 8

10.4.Memory..........................................................................................................................................8

10.5.Display Features...........................................................................................................................8

10.6.Acquisition Features....................................................................................................................9

10.7.Ports ..............................................................................................................................................9

11.CLASS AB STEREO HEADPHONE DRIVER TDA1308

12.SAW FILTERS

13.IC DESCRIPTIONS

13.1.LM317T

13.1.1.Description...........................................................................................................................10

13.1.2.Features................................................................................................................................10

13.2.TDA1308T

13.2.1.General Description ............................................................................................................10

13.2.2.Features................................................................................................................................10

13.2.3.Pinning..................................................................................................................................11

13.3.MSP34X0G (MSP3410G)

13.3.1.Description...........................................................................................................................11

13.3.2.Features................................................................................................................................12

13.3.3.Pin connections...................................................................................................................12

13.4.VDP313xY

13.4.1.Introduction..........................................................................................................................13

13.4.2.Features................................................................................................................................14

13.4.3.Pin Connections and short descriptions ..........................................................................14

13.5.TEA6415C

13.5.1.General Description ............................................................................................................15

13.5.2.Features................................................................................................................................15

13.5.3.Pinning..................................................................................................................................16

13.6.STV9379FA

13.6.1.Description...........................................................................................................................16

13.6.2.Features................................................................................................................................16

13.6.3.Pinning..................................................................................................................................16

13.7.TDA7269A

13.7.1.Description...........................................................................................................................17

13.7.2.Features................................................................................................................................17

13.8.LM7800 (LM7805/LM7808)

13.8.1.Description...........................................................................................................................17

13.8.2.Features................................................................................................................................17

13.9.AT24C08

13.9.1.Description...........................................................................................................................17

13.9.2.Features................................................................................................................................17

13.9.3.Pin Configurations ..............................................................................................................18

..............................................................................................................................6

..................................................................................................................6

............................................................................................................7

...........................................................................7

.........................................................................7

.................................................................7

...................................................................................7

............................................................................................................8

...........................................................................................8

.................................................9

................................................................................................................................9

.....................................................................................................................10

....................................................................................................................................10

...............................................................................................................................10

..................................................................................................11

..............................................................................................................................13

..............................................................................................................................15

............................................................................................................................16

..............................................................................................................................17

...............................................................................................17

.................................................................................................................................17

AK - 45

CHASSIS

AK - 45

CHASSIS

13.10.SDA5555

13.10.1.General definition .............................................................................................................. 18

13.10.2.Features..............................................................................................................................18

13.11.MC44608

13.11.1.Description.........................................................................................................................19

13.11.2.General Features ...............................................................................................................20

13.11.3.Pin Connections ................................................................................................................20

13.12.TCET1102G

13.12.1.Description.........................................................................................................................21

13.12.2.Applications ....................................................................................................................... 21

13.12.3.Features..............................................................................................................................21

13.13.TDA9885T

13.13.1.General Description ..........................................................................................................21

13.13.2.Features..............................................................................................................................21

13.13.3.Pinning................................................................................................................................22

13.14.PI5V330

13.14.1.General Description .............................................................................................................. 22

14.AK45 CHASSIS PRODUCTION SERVICE MODE ADJUSTMENTS

14.1.SERVICE MENU.......................................................................................................................... 23

14.2.ADJUST MENU ...........................................................................................................................23

14.3.OPTIONS MENU..........................................................................................................................35

Option 0. Video Processor Crystal Indication ............................................................................. 35

Option 1. (0x01) Video Processor Decoder Mode Register........................................................35

Option 2. (0x18) Video Processor Blanking Control...................................................................35

Option 3. (0x19) Video Processor Cathode Drive Level ............................................................. 36

Option 4. ..........................................................................................................................................36

Option 5. CTI Available, Mono AVL...............................................................................................36

Option 6. ..........................................................................................................................................36

Option 7. OPTIONHOTELACTIVE, PLL_VST, PIP Zoom Mode, PIP Position ...........................36

Option 8. IF Frequency...................................................................................................................37

Option 9. Standard Available.........................................................................................................37

Option 10. Scart, Combfilter, Teletext, Language .......................................................................38

Option 11. PLL Tuner Control 1 Byte............................................................................................38

Option 12. PLL Tuner Control 2 Low Byte ................................................................................... 38

Option 13. PLL Tuner Control 2 Mid Byte .................................................................................... 39

Option 14. PLL Tuner Control 2 High Byte ..................................................................................39

Option 15. PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte ..........................................39

Option 16. PLL Tuner VHF LOW – VHF HIGH Crossover High Byte ......................................... 39

Option 17. PLL Tuner VHF HIGH – UHF Crossover Low Byte ...................................................39

Option 18. PLL Tuner VHF HIGH – UHF Crossover High Byte...................................................39

Option 19. PIP PLL Tuner Control 1 Byte.....................................................................................40

Option 20. PIP PLL Tuner Control 2 Low Byte ............................................................................40

Option 21. PIP PLL Tuner Control 2 Mid Byte .............................................................................40

Option 22. PIP PLL Tuner Control 2 High Byte............................................................................40

Option 23. PIP PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte ................................... 40

Option 24. PIP PLL Tuner VHF LOW – VHF HIGH Crossover High Byte...................................40

Option 25. PIP PLL Tuner VHF HIGH – UHF Crossover Low Byte.............................................41

Option 26. PIP PLL Tuner VHF HIGH – UHF Crossover High Byte............................................ 41

Option 27. Language Available 1 ..................................................................................................41

Option 28. Language Available 2 ..................................................................................................41

Option 29. Language Available 3 and Zoom Mode Available ....................................................41

Option 30. Country ......................................................................................................................... 42

Option 31. Prescaler MSP FM (AVL=OFF).................................................................................... 42

Option 32. Prescaler MSP NICAM (AVL=OFF) .............................................................................42

Option 33. Prescaler MSP SCART (AVL=OFF) ............................................................................43

Option 34. Prescaler MSP I2S (AVL=OFF)....................................................................................43

Option 35. Not used........................................................................................................................43

Option 36. Not used........................................................................................................................43

Option 37. Reserved for USA ........................................................................................................43

Option 38. TV Teletext Mode Selection, Child Lock, Equalizer Country................................... 43

...............................................................................................................................18

...............................................................................................................................19

.........................................................................................................................21

............................................................................................................................21

.................................................................................................................................22

.........................23

AK - 45

CHASSIS

Option 39. Personal Preference Equalizer Band 1 ...................................................................... 44

Option 40. Personal Preference Equalizer Band 2 ...................................................................... 44

Option 41. Personal Preference Equalizer Band 3 ...................................................................... 44

Option 42. Personal Preference Equalizer Band 4 ...................................................................... 44

Option 43. Personal Preference Equalizer Band 5 ...................................................................... 44

Option 44. Sound Effect (Standard; Music; Speech; Jazz; Pp) .................................................44

Option 45. Volume Offset Left....................................................................................................... 44

Option 46. Volume Offset Right ....................................................................................................44

Option 47. Volume Offset Center ..................................................................................................45

Option 48. Volume Offset Rear......................................................................................................45

Option 49. Surround Delay ............................................................................................................45

Option 50. FM Prescaler.................................................................................................................45

Option 51. NICAM Prescaler .......................................................................................................... 45

Option 52. Scart Input Prescaler...................................................................................................45

Option 53. I2S Prescaler ................................................................................................................45

Option 54. Scart Output Prescaler................................................................................................45

Option 55. Speaker Setup ............................................................................................................. 46

Option 56. Audio Options Available Or Not ................................................................................. 46

Option 57. Stereo Threshold .........................................................................................................46

Option 58. MSP Audio Flags..........................................................................................................47

Option 59. NICAM Threshold......................................................................................................... 47

Option 60. Power Delay Time ........................................................................................................47

14.4.OPTION TABLE RECOMMENDED VALUES.............................................................................50

14.5.SCREEN ADJUSTMENT (FBT SCREEN) .................................................................................. 52

14.6.GEOMETRY ADJUSTMENT ....................................................................................................... 53

4:3 FORMATS..................................................................................................................................53

16:9 FORMATS................................................................................................................................54

15.BLOCK DIAGRAM

16.CIRCUIT DIAGRAMS

17. HOW TO UPDATE THE TECHNICAL INFORMATION

17.1. HOW TO UPDATE THE TECHNICAL INFORMATION APPEARED ON THIS SERVICE

MANUAL (AND RELATIVES) .................................................................................................... 73

17.2. NVM / EEPROM RECORDER .................................................................................................... 73

17.3. CHASSIS LABEL INFORMATION............................................................................................. 73

17.4. CODE BAR LABEL INFORMATION..........................................................................................74

......................................................................................................................61

.................................................................................................................62

………………………………… 73

AK - 45

CHASSIS

1.INTRODUCTION

11AK45 is a 50Hz colour television capable of driving 24” + CRT sizes (beginning from 24” 16:9 up to 33”). The chassis is capable of operation in PAL, SECAM, NTSC (playback) colour standards and multiple transmission standards as B/G, D/K, I/I’, and L/L´. Sound system output is supplying 2x10W (10%THD) for left and right outputs of 8ohm speakers. TV supports FASTTEXT. It is possible to decode transmissions including high graphical data. The chassis is equipped with three full EuroScarts; only one of them supports RGB input, one headphone output, one FAV input, one SVHS input (via SCART)

2.TUNER

The hardware and software of the TV is suitable for tuners, supplied by different companies, which are selected from the Service Menu. These tuners can be combined VHF, UHF tuners suitable for CCIR systems B/G, H, L, L´, I/I´, and D/K. The tuning is available through the digitally controlled I

C bus

(PLL). Below you will find info on one of the Tuners in use.

General description of UV1316:

The UV1316 tuner belongs to the UV 1300 family of tuners, which are designed to meet a wide range of applications. It is a combined VHF, UHF tuner suitable for CCIR systems B/G, H, L, L’, I and I’. The low IF output impedance has been designed for direct drive of a wide variety of SAW filters with sufficient suppression of triple transient.

Features of UV1316:

1. Member of the UV1300 family small sized UHF/VHF tuners

2. Systems CCIR: B/G, H, L, L’, I and I’; OIRT: D/K

3. Digitally controlled (PLL) tuning via I

C-bus

4. Off-air channels, S-cable channels and Hyperband

5. World standardized mechanical dimensions and world standard pinning

6. Compact size

7. Complies to “CENELEC EN55020” and “EN55013”

Pinning:

1. Gain control voltage (AGC) : 4.0V, Max: 4.5V

2. Tuning voltage

3. I²C-bus address select : Max: 5.5V

4. I²C-bus serial clock : Min:-0.3V, Max: 5.5V

5. I²C-bus serial data : Min:-0.3V, Max: 5.5V

6. Not connected

7. PLL supply voltage : 5.0V, Min: 4.75V, Max: 5.5V

8. ADC input

9. Tuner supply voltage : 33V, Min: 30V, Max: 35V

10. Symmetrical IF output 1

11. Symmetrical IF output 2

3.IF PART (TDA9885/86)

The TDA9885 is an alignment-free single standard (without positive modulation) vision and sound IF signal PLL. The TDA9886 is an alignment-free multistandard (PAL, SECAM and NTSC) vision and sound IF signal PLL Both devices can be used for TV, VTR, PC and set-top box applications. The following figure shows the simplified block diagram of the integrated circuit. The integrated circuit comprises the following functional blocks: VIF amplifier, Tuner and VIF-AGC, VIF-AGC detector, Frequency Phase-Locked Loop (FPLL) detector, VCO and divider, Digital acquisition help and AFC, Video demodulator and amplifier, Sound carrier trap, SIF amplifier, SIF-AGC detector, Single reference QSS mixer, AM demodulator, FM demodulator and acquisition help, Audio amplifier and mute time constant, I voltage stabilizer.

C-bus transceivers and MAD (module address), Internal

VAGC(pos)

(1)

TAGC

TOP

14 (15)

AGC(neg)

TUNER AGC

VIF2

2 (31)

1 (30)

VIF1

SIF2

24 (27)

23 (26)

SIF1

SUPPLY SIF-AGC

(1) Not connected for TDA9885.

Pin numbers for TDA9885HN and TDA9886HN in parenthesis.

VAGC

VIF-AGC

SINGLE REFERENCE QSS MIXER

INTERCARRIER MIXER

AND AM DEMODULATOR

AGC

(6, 12, 13, 14, 17, 19, 25, 28, 29, 32) 13

n.c.AGND

VIF-PLL

ll pagewidth

external reference signal

VIF-PLL

filter

VPLL

19 (21)9 (8) 16 (17) 15 (16) 21 (23)

RC VCO

MAD

OUTPUT

I2C-BUS TRANSCEIVER

PORTS

11 (10)

22 (24)3 (1)

OP1 OP2 FMPLL

or 4 MHz crystal

REF AFC

DIGITAL VCO CONTROL AFC DETECTOR

SOUND CARRIER

TRAPS

FM-PLL DEMODULATOR

12 (11)18 (20)20 (22)

SIOMADSDASCL

4.5 to 6.5 MHz

AUDIO PROCESSING

AND SWITCHES

NARROW-BAND

TDA9885 TDA9886

7 (5)

DGND

sound intercarrier output

and MAD select

4 (2)10 (9)

FM-PLL

filter

(18) 17

(7) 8

(3) 5

(4) 6

MHC108

CVBS

video output: 2 V (p-p) [1.1 V (p-p) without trap]

AUD

audio output

DEEM

de-emphasis

network

AFD

AK - 45

CHASSIS

4.VIDEO SWITCH TEA6415

In case of three or more external sources are used, the video switch IC TEA6415 is used. The main function of this device is to switch 8 video-input sources on the 6 outputs. Each output can be switched on only one of each input. On each input an alignment of the lowest level of the signal is made (bottom of sync. top for CVBS or black level for RGB signals). Each nominal gain between any input and output is 6.5dB.For D2MAC or Chroma signal the alignment is switched off by forcing, with an external resistor bridge, 5VDC on the input. Each input can be used as a normal input or as a MAC or Chroma input (with external Resistor Bridge). All the switching possibilities are changed through the BUS. Driving 75ohm load needs an external resistor. It is possible to have the same input connected to several outputs.

5.MULTI STANDARD SOUND PROCESSOR

The MSP 34x10G family of single-chip Multi-standard Sound Processors covers the sound processing of all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on a single chip. The DBX noise reduction, or alternatively, MICRONAS Noise Reduction (MNR) is performed alignment free.

6.SOUND OUTPUT STAGE WITH TDA7269A

The TDA7269A is class AB dual Audio power amplifier assembled in the Multi-watt package, specially designed for high quality sound application as Hi-Fi music centers and stereo TV sets.

7.VERTICAL OUTPUT STAGE WITH STV9379FA

The IC STV9379FA is the vertical deflection booster circuit. Two supply voltages, +14V and –14V are needed to scan the inputs VERT+ and VERT-, respectively. And a third supply voltage, +60V for the flyback limiting is needed. The vertical deflection coil is connected in series between the output and feedback to the input.

8.VIDEO OUTPUT AMPLIFIER TDA6108

The TDA6108Q includes three video output amplifiers is intended to drive the three cathodes of a colour picture tube.

AK - 45

CHASSIS

9.POWER SUPPLY (SMPS)

The DC voltages required at various parts of the chassis are provided by an SMPS transformer controlled by the IC MC44608, which is designed for driving, controlling and protecting switching transistor of SMPS. The transformer generates 145V for Horizontal output stage, +/-14V for audio

amplifier, 5V and 3.3V stand by voltage and 8V, 12V and 5V supplies for other different parts of the chassis.

An optocoupler is used to control the regulation of line voltage and stand-by power consumption. There is a regulation circuit in secondary side. This circuit produces a control voltage according to the changes in 145V DC voltage, via an optocoupler (TCET1102G) to pin3 of the IC. During the switch on period of the transistor, energy is stored in the transformer. During the switch off period energy is fed to the load via secondary winding. By varying switch-on time of the power transistor, it controls each portion of energy transferred to the secondary side such that the output voltage level remains nearly independent of load variations.

10.MICROCONTROLLER SDA55XX

10.1.General Features

• Feature selection via special function register

• Simultaneous reception of TTX, VPS, PDC, and WSS (line 23)

• Supply Voltage 2.5 and 3.3 V

• ROM version package PSDIP52-2, PMQFP64-1

• Romless version package PMQFP100-2, PLCC84-2

10.2.External Crystal and Programmable Clock Speed

• Single external 6MHz crystal, all necessary clocks are generated internally

• CPU clock speed selectable via special function registers.

• Normal Mode 33.33 MHz CPU clock, Power Save mode 8.33 MHz

10.3.Microcontroller Features

• 8bit 8051 instruction set compatible CPU.

• 33.33-MHz internal clock (max.)

• 0.360 ms (min.) instruction cycle

• Two 16-bit timers

• Watchdog timer

• Capture compare timer for infrared remote control decoding

• Pulse width modulation unit (2 channels 14 bit, 6 channels 8 bit)

• ADC (4 channels, 8 bit)

• UART (rxd, txd)

10.4.Memory

• Non-multiplexed 8-bit data and 16 … 20-bit address bus (ROMless Version)

• Memory banking up to 1Mbyte (Romless version)

• Up to 128 Kilobyte on Chip Program ROM

• Eight 16-bit data pointer registers (DPTR)

• 256-bytes on-chip Processor Internal RAM (IRAM)

• 128bytes extended stack memory.

• Display RAM and TXT/VPS/PDC/WSS-Acquisition-Buffer directly accessible via MOVX

• UP to 16KByte on Chip Extended RAM (XRAM) consisting of;

- 1 Kilobyte on-chip ACQ-buffer-RAM (access via MOVX)

- 1 Kilobyte on-chip extended-RAM (XRAM, access via MOVX) for user software

- 3 Kilobyte Display Memory

10.5.Display Features

• ROM Character Set Supports all East and West European Languages in single device

• Mosaic Graphic Character Set

• Parallel Display Attributes

• Single/Double Width/Height of Characters

• Variable Flash Rate

• Programmable Screen Size (25 Rows x 33...64 Columns)

• Flexible Character Matrixes (HxV) 12 x 9...16

• Up to 256 Dynamical Redefinable Characters in standard mode; 1024 Dynamical Redefinable Characters in Enhanced Mode

• CLUT with up to 4096 colour combinations

AK - 45

CHASSIS

• Up to 16 Colours per DRCS Character

• One out of Eight Colours for Foreground and Background Colours for 1-bit DRCS and ROM Characters

• Shadowing

• Contrast Reduction

• Pixel by Pixel Shiftable Cursor With up to 4 Different Colours

• Support of Progressive Scan and 100 Hz.

• 3 X 4Bits RGB-DACs On-Chip

• Free Programmable Pixel Clock from 10 MHz to 32MHz

• Pixel Clock Independent from CPU Clock

• Multinorm H/V-Display Synchronization in Master or Slave Mode

10.6.Acquisition Features

• Multi-standard Digital Data Slicer

• Parallel Multi-norm Slicing (TTX, VPS, WSS, CC, G+)

• Four Different Framing Codes Available

• Data Caption only limited by available Memory

• Programmable VBI-buffer

• Full Channel Data Slicing Supported

• Fully Digital Signal Processing

• Noise Measurement and Controlled Noise Compensation

• Attenuation Measurement and Compensation

• Group Delay Measurement and Compensation

• Exact Decoding of Echo Disturbed Signals

10.7.Ports

• One 8-bit I/O-port with open drain output and optional I

C Bus emulation support (Port0)

• Two 8-bit multifunction I/O-ports (Port1, Port3)

• One 4-bit port working as digital or analogue inputs for the ADC (Port2)

• One 2-bit I/O port with secondary function (P4.2, 4.3, 4.7)

• One 4-bit I/O-port with secondary function (P4.0, 4.1, 4.4) (Not available in P-SDIP 52)

11.CLASS AB STEREO HEADPHONE DRIVER TDA1308

The TDA1308 is an integrated class AB stereo headphone driver contained in a DIP8 plastic package. The device is fabricated in a 1 mm CMOS process and has been primarily developed for portable digital audio applications.

12.SAW FILTERS

K3953M:

Standard

B/G, D/K, I, L/L’

Features

TV IF filter with Nyquist slopes at 33,90 MHz and 38,90 MHz Constant group delay Suitable for CENELEC EN 55020

Terminals

Tinned CuFe alloy

Pin configuration

1 Input 2 Input - ground 3 Chip carrier - ground 4 Output 5 Output

K3958M:

Standard

B/G, D/K, I, L/L’

Features

TV IF filter with Nyquist slopes at 33.90 MHz and 38.90 MHz Constant group delay Terminal and Pin configuration are the same with

K3953M

AK - 45

CHASSIS

K9356M:

Standard

B/G, D/K, I, L

Features

TV IF audio filter with pass band for sound carriers at 32,40 MHz (D/K, L), 32,90 MHz (I) and 33,40 MHz (B/G) Terminal and Pin configuration are the same with

K3953M

K9656M:

Standard

B/G, D/K, I, L/L’

Features

TV IF audio filter with two channels Channel 1 (L’) with one pass band for sound carriers at 40,40 MHz (L’) and 39,75 MHz (L’- NICAM) Channel 2 (B/G, D/K, L, I) with one pass band for sound carriers between 32,35 MHz and 33,40 MHz Terminal and Pin configuration are the same with

K3953M

13.IC DESCRIPTIONS

LM317T TDA1308T MSP3410G VDP3130Y TEA6415 STV9379FA TDA7269A LM7805/LM7808 24C08 SDA55XX MC44608 TCET1102G TDA9885T

13.1.LM317T

13.1.1.Description

The LM317T is an adjustable 3 terminal positive voltage regulator capable of supplying in excess of 1.5 amps over an output range of 1.25 to 37 volts. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow–out proof. The LM317 serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317 can be used as a precision current regulator.

13.1.2.Features

• Output Current in Excess of 1.5 A

• Output Adjustable between 1.2 V and 37 V

• Internal Thermal Overload Protection

• Internal Short Circuit Current Limiting Constant with Temperature

• Output Transistor Safe–Area Compensation

• Floating Operation for High Voltage Applications

• Available in Surface Mount D

PAK, and Standard 3–Lead Transistor Package

• Eliminates Stocking many Fixed Voltages

13.2.TDA1308T

13.2.1.General Description

The TDA1308 is an integrated class AB stereo headphone driver contained in an SO8 or a DIP8 plastic package. The device is fabricated in a 1 mm CMOS process and has been primarily developed for portable digital audio applications. It gets its input from two analog audio outputs (DACA_L and DACA_R) of MSP 34x0G. The gain of the output is adjustable by the feedback resistor between the inputs and outputs.

13.2.2.Features

Wide temperature range

•

No switch ON/OFF clicks

•

Excellent power supply ripple rejection

•

Low power consumption

•

Short-circuit resistant

•

High performance

•

high signal-to-noise ratio

•

High slew rate

•

Low distortion

•

Large output voltage swing.

•

13.2.3.Pinning

SYMBOL PIN DESCRIPTION

OUTA 1 Output A INA(neg) 2 Inverting input A INA(pos) 3 Non-inverting input A VSS 4 Negative supply INB(pos) 5 Non-inverting input B INB(neg) 6 Inverting input B OUTB 7 Output B VDD 8 Positive supply

13.3.MSP34X0G (MSP3410G)

AK - 45

CHASSIS

13.3.1.Description

The MSP 34x0G family of single-chip Multi standard Sound Processors covers the sound processing of all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on a single chip. Figure shows a simplified functional block diagram of the MSP 34x0G.

Sound IF1

Sound IF2

I2S1

I2S2

SCART1

SCART2

SCART3

SCART4

MONO

ADC

SCART

DSP

Input

Select

De-

modulator

ADC

Pre-

processing

Prescale

Source Select

Loud-

speaker

Sound

Processing

Headphone

Sound

Processing

DAC

SCART Output

Select

Loudspeaker

Subwoofer

Headphone

I2S

SCART1

SCART2

This new generation of TV sound processing ICs now includes versions for processing the multi channel television sound (MTS) signal conforming to the standard recommended by the Broadcast Television Systems Committee (BTSC). The DBX noise reduction, or alternatively, MICRONAS Noise Reduction (MNR) is performed alignment free. Other processed standards are the Japanese FM-FM multiplex standard (EIA-J) and the FM Stereo Radio standard. Current ICs have to perform adjustment procedures in order to achieve good stereo separation for BTSC and EIA-J. The MSP 34x0G has optimum stereo performance without any adjustments. All MSP 34x0G versions are pin and software downward compatible to the MSP34x0D. The MSP34x0G further simplifies controlling software. Standard selection requires a single I

C transmission only. The MSP 34x0G has built-in automatic functions: The IC is able to detect the actual sound standard automatically (Automatic Standard Detection). Furthermore, pilot levels and identification signals can be

evaluated internally with subsequent switching between mono/stereo/bilingual; no I

C interaction is

necessary (Automatic Sound Selection).

AK - 45

CHASSIS

13.3.2.Features

Standard Selection with single I

C transmission Automatic Standard Detection of terrestrial TV standards Automatic Sound Selection (mono/stereo/bilingual), new registers MODUS, STATUS Two selectable sound IF (SIF) inputs Automatic Carrier Mute function Interrupt output programmable (indicating status change) Loudspeaker / Headphone channel with volume, balance, bass, treble, loudness AVC: Automatic Volume Correction Subwoofer output with programmable low-pass and complementary high-pass filter 5-band graphic equalizer for loudspeaker channel Spatial effect for loudspeaker channel Four Stereo SCART (line) inputs, one Mono input; two Stereo SCART outputs Complete SCART in/out switching matrix

Two I

S inputs; one I2S output Dolby Pro Logic with DPL 351xA coprocessor All analog FM-Stereo A2 and satellite standards; AM-SECAM L standard Simultaneous demodulation of (very) high-deviation FM-Mono and NICAM Adaptive deemphasis for satellite (Wegener-Panda, acc. to ASTRA specification) ASTRA Digital Radio (ADR) together with DRP 3510A All NICAM standards Korean FM-Stereo A2 standard

13.3.3.Pin connections

NC = not connected; leave vacant LV = if not used, leave vacant X = obligatory; connect as described in circuit diagram DVSS: if not used, connect to DVSS AHVSS: connect to AHVSS

Pin No.

PLCC 68-pin

1 16 14 9 8 ADR_WS OUT LV ADR word strobe 2 - - - - NC LV Not connected 3 15 13 8 7 ADR_DA OUT LV ADR Data Output 4 14 12 7 6 I2S_DA_IN1 IN LV I2S1 data input 5 13 11 6 5 I2S_DA_OUT OUT LV I2S data output 6 12 10 5 4 I2S_WS IN/OUT LV I2S word strobe 7 11 9 4 3 I2S_CL IN/OUT LV I2S clock 8 10 8 3 2 I2C_DA IN/OUT X I2C data 9 9 7 2 1 I2C_CL IN/OUT X I2C data 10 8 - 1 64 NC LV Not connected 11 7 6 80 63 STANDBYQ IN X Stand-by (low-active) 12 6 5 79 62 ADR_SEL IN X I2C bus address select 13 5 4 78 61 D_CTR_I/O_0 IN/OUT LV D_CTR_I/O_0 14 4 3 77 60 D_CTR_I/O_1 IN/OUT LV D_CTR_I/O_1 15 3 - 76 59 NC LV Not connected 16 2 - 75 58 NC LV Not connected 17 - - - - NC LV Not connected

18 1 2 74 57 AUD_CL_OUT OUT LV

19 64 1 73 56 TP LV Test pin 20 63 52 72 55 XTAL_OUT OUT X Crystal oscillator 21 62 51 71 54 XTAL_IN IN X Crystal oscillator 22 61 50 70 53 TESTEN IN X Test pin

23 60 49 69 52 ANA_IN2+ IN

24 59 48 68 51 ANA_IN- IN

25 58 47 67 50 ANA_IN1+ IN LV IF input 2 26 57 46 66 49 AVSUP X Analog power supply 5v

- - - 65 - AVSUP X Analog power supply 5v

PSDIP 64-pin

PSDIP 52-pin

PQFP 80-pin

PLQFP 64-pin

Pin Name

Type

Connection (if not used)

AVSS via 56 pF/LV

Short Description

Audio clock output (18.432 MHz)

IF Input 2 (can be left vacant, only if IF input 1 is also not in use) IF common (can be left vacant, only if IF input 1 is also not in use)

AK - 45

CHASSIS

- - - 64 - NC LV Not connected

- - - 63 - NC LV Not connected 27 56 45 62 48 AVSS X Analog ground

- - - 61 - AVSS X Analog ground 28 55 44 60 47 MONO_IN IN LV Mono input

- - - 59 - NC LV Not connected

29 54 43 58 46 VREFTOP X

30 53 42 57 45 SC1_IN_R IN LV SCART 1 input, right 31 52 41 56 44 SC1_IN_L IN LV SCART 1 input, left 32 51 - 55 43 ASG1 AHVSS Analog Shield Ground 1 33 50 40 54 42 SC2_IN_R IN LV SCART 2 input, right 34 49 39 53 41 SC2_IN_L IN LV SCART 2 input, left 35 48 - 52 40 ASG2 AHVSS Analog Shield Ground 2 36 47 38 51 39 SC3_IN_R IN LV SCART 3 input, right 37 46 37 50 38 SC3_IN_L IN LV SCART 3 input, left 38 45 - 49 37 ASG4 AHVSS Analog Shield Ground 4 39 44 - 48 36 SC4_IN_R IN LV SCART 4 input, right 40 43 - 47 35 SC4_IN_L IN LV SCART 4 input, left 41 - - 46 - NC LV or AHVSS Not connected 42 42 36 45 34 AGNDC X Analog reference voltage 43 41 35 44 33 AHVSS X Analog ground

- - - 43 - AHVSS X Analog ground

- - - 42 - NC LV Not connected

- - - 41 - NC LV Not connected 44 40 34 40 32 CAPL_M X Volume capacitor MAIN 45 39 33 39 31 AHVSUP X Analog power supply 8V 46 38 32 38 30 CAPL_A X Volume capacitor AUX 47 37 31 37 29 SC1_OUT_L OUT LV SCART output 1, left 48 36 30 36 28 SC1_OUT_R OUT LV SCART output 1, right 49 35 29 35 27 VREF1 X Reference ground 1 50 34 28 34 26 SC2_OUT_L OUT LV SCART output 2, left 51 33 27 33 25 SC2_OUT_R OUT LV SCART output 2, right 52 - - 32 - NC LV Not connected 53 32 - 31 24 NC LV Not connected 54 31 26 30 23 DACM_SUB OUT LV Subwoofer output 55 30 - 29 22 NC LV Not connected 56 29 25 28 21 DACM_L OUT LV Loudspeaker out, left 57 28 24 27 20 DACM_R OUT LV Loudspeaker out, right 58 27 23 26 19 VREF2 X Reference ground 2 59 26 22 25 18 DACA_L OUT LV Headphone out, left 60 25 21 24 17 DACA_R OUT LV Headphone out, right

- - - 23 - NC LV Not connected

- - - 22 - NC LV Not connected 61 24 20 21 16 RESETQ IN X Power-on-reset 62 23 - 20 15 NC LV Not connected 63 22 - 19 14 NC LV Not connected 64 21 19 18 13 NC LV Not connected 65 20 18 17 12 I2S_DA_IN2 IN LV I2S2-data input 66 19 17 16 11 DVSS X Digital ground

- - - 15 - DVSS X Digital ground

- - - 14 - DVSS X Digital ground 67 18 16 13 10 DVSUP X Digital power supply 5V

- - - 12 - DVSUP X Digital power supply 5V

- - - 11 - DVSUP X Digital power supply 5V 68 17 15 10 9 ADR_CL OUT LV ADR clock

Reference voltage IF A/D converter

13.4.VDP313xY

13.4.1.Introduction

The VDP 313xY is a video IC family of high-quality single-chip video processors. Modular design and a sub-micron technology allow the economic integration of features in all classes of TV sets. The VDP

RCB

313xY family is based on the VDP 31xxB including YC

inputs for DVD component signals. The VDP 313xY includes complete video, display and deflection processing. All processing is done digitally, the video front-end and video backend are interfacing to the analog world. Most functions of the VDP can be controlled by software via I

C-Bus interface

AK - 45

CHASSIS

13.4.2.Features Video Decoding and Processing

R C B

– four CVBS, one S-VHS input, one YC

component input – integrated high-quality A/D converters and associated clamp and AGC circuits – adaptive 2H comb filter Y/C separator – multistandard colour decoder PAL/NTSC/SECAM including all substandards – multistandard sync decoder – automatic standard recognition – black-line detector – linear horizontal scaling (0.25...4), as well as non-linear horizontal scaling “Panoramavision” – black-level expander – dynamic peaking – soft limiter (gamma correction) – colour transient improvement

RGB Processing and Deflection

– programmable RGB matrix – two analog RGB / Fastblank inputs – half-contrast switch – picture frame generator – scan velocity modulation output – high-performance H/V deflection – separate ADC for tube measurements – EHT compensation – angle and bow correction – one 20.25 MHz crystal, few external components

–I

C-Bus Interface

– 64-pin PSDIP package

13.4.3.Pin Connections and short descriptions

NC = not connected LV = if not used, leave vacant X = obligatory; connect as described in circuit diagram IN = Input OUT = Output SUPPLY = Supply Pin

Pin no PSDIP 64-pin

1 TEST IN GNDD Test Input 2 RESQ IN X Reset Input 3 SCL IN/OUT X I2C Bus Clock 4 SDA IN/OUT X I2C Bus Data 5 GNDD SUPPLY X Digital Ground 6 HCS IN LV Half Contrast Switch Input 7 FSY OUT LV Front Sync Output 8 CSY OUT LV Composite Sync Output 9 VS OUT LV Vertical Sync Output

10 INTLC OUT LV Interface Control Output 11 VPROT IN GNDAB Vertical Protection Input 12 SAFETY IN GNDAB Safety Input 13 HFLB IN HOUT Horizontal Flyback Input 14 GNDD SUPPLY X Digital Ground 15 VSUPD SUPPLY X Digital Supply Voltage (3.3V) 16 GNDD SUPPLY X Digital Ground 17 VSUPD SUPPLY LV Digital Supply Voltage (3.3V) 18 P0 IN/OUT LV Port 1, Bit 0 19 P1 IN/OUT LV Port 1, Bit 1 20 P2 IN/OUT GNDD Port 1, Bit 2 21 P3 IN/OUT GNDD Port 1, Bit 3 22 P4 IN/OUT GNDD Port 1, Bit 4 23 P5 IN/OUT GNDD Port 1, Bit 5 24 P6 IN/OUT GNDD Port 1, Bit 6

Pin name Type Connection

(if not used)

Short description

(=VS Bit of MSY for TPU)

25 GNDD SUPPLY X Digital Ground 26 RSW2 OUT GNDAB Range Switch 2 for Measurement ADC 27 RSW1 OUT GNDAB Range Switch 1 for Measurement ADC 28 SENSE IN GNDAB Sense ADC Input 29 GNDM SUPPLY X Ground, MADC Input 30 VERTQ OUT LV Inverted Vertical Sawtooth Output 31 VERT OUT LV Vertical Sawtooth Output 32 E/w OUT LV Vertical Parabola Output 33 XREF IN X Reference Input for RGB DACs 34 SVMOUT OUT VSUPAB Analog Scan Velocity Modulation Output 35 GNDAB SUPPLY X Analog Ground Backend 36 VSUPAB SUPPLY X Analog Supply Voltage (5.0V) Backend 37 ROUT OUT VSUPAB Analog Red Output 38 GOUT OUT VSUPAB Analog Green Output 39 BOUT OUT VSUPAB Analog Blue Output 40 VRD IN X DAC Reference 41 RIN IN GNDAB Analog Red Input 42 GIN IN GNDAB Analog Green Input 43 BIN IN GNDAB Analog Blue Input 44 FBLIN IN GNDAB Fast Blank Input 45 RIN2 IN GNDAB Analog Red Input2 46 GIN2 IN GNDAB Analog Green Input2 47 BIN2 IN GNDAB Analog Blue Input2 48 FBLIN2 IN GNDAB Fast Blank Input2 49 CLK20 OUT LV 20.25 MHz System Clock Output 50 HOUT OUT X Horizontal Drive Output 51 XTAL 1 IN X Analog Crystal Input 52 XTAL 2 OUT X Analog Crystal Output 53 CIN 2/CRIN LV Analog Chroma 2/Component CR Input 54 CBIN IN LV Component CB Input 55 GNDAF SUPPLY X Analog Ground Front-end 56 SGND IN GNDAF Signal Ground for Analog Input 57 VRT IN X Reference Voltage Top, Video ADC 58 VSUPAF SUPPLY X Analog Supply Voltage (5.0V) Front-end 59 VOUT OUT LV Analog Video Output 60 CIN1 IN VRT Analog Chroma 1 Input 61 VIN1 IN VRT Analog Video 1 Input 62 VIN2 IN VRT Analog Video 2 Input 63 VIN3 IN VRT Analog Video 3 Input 64 VIN4 IN VRT Analog Video 4 Input

13.5.TEA6415C

AK - 45

CHASSIS

13.5.1.General Description

The main function of the IC is to switch 8 video input sources on 6 outputs. Each output can be switched on only one of each input. On each input an alignment of the lowest level of the signal is made (bottom of synch. top for CVBS or black level for RGB signals). Each nominal gain between any input and output is 6.5dB. For D2MAC or Chroma signal the alignment is switched off by forcing, with an

external resistor bridge, 5 V

on the input. Each input can be used as a normal input or as a MAC or

Chroma input (with external resistor bridge). All the switching possibilities are changed through the BUS. Driving 75 load needs an external transistor. It is possible to have the same input connected to several outputs. The starting configuration upon power on (power supply: 0 to 10V) is undetermined. In this case, 6 words of 16 bits are necessary to determine one configuration. In other case, 1 word of 16 bits is necessary to determine one configuration.

13.5.2.Features

• 20MHz Bandwidth

• Cascadable with another TEA6415C (Internal address can be changed by pin 7 voltage)

• 8 Inputs (CVBS, RGB, MAC, CHROMA,...)

• 6 Outputs

• Possibility of MAC or chroma signal for each input by switching-off the clamp with an external resistor bridge

• Bus controlled

AK - 45

CHASSIS

• 6.5dB gain between any input and output

• 55dB crosstalk at 5mHz

• Fully ESD protected

13.5.3.Pinning

1. Input: Max: 2Vpp, Input Current: 1mA, Max: 3mA

2. Data : Low level: -0.3V Max: 1.5V, High level: 3.0V Max: Vcc+0.5V

3. Input: Max: 2Vpp, Input Current: 1mA, Max: 3mA

4. Clock: Low level : -0.3V Max: 1.5V, High level: 3.0V Max: Vcc+0.5V

5. Input: Max : 2Vpp, Input Current: 1mA, Max: 3mA

6. Input: Max: 2Vpp, Input Current: 1mA, Max: 3mA

7. Prog

8. Input: Max : 2Vpp, Input Current: 1mA, Max: 3mA

9. Vcc: 12V

10. Input: Max : 2Vpp, Input Current: 1mA, Max: 3mA

11. Input: Max : 2Vpp, Input Current: 1mA, Max: 3mA

12. Ground

13. Output: 5.5Vpp, Min: 4.5Vpp

14. Output: 5.5Vpp, Min: 4.5Vpp

15. Output: 5.5Vpp, Min: 4.5Vpp

16. Output: 5.5Vpp, Min: 4.5Vpp

17. Output: 5.5Vpp, Min: 4.5Vpp

18. Output: 5.5Vpp, Min: 4.5Vpp

19. Ground

20. Input: Max: 2Vpp, Input Current: 1mA, Max: 3mA

13.6.STV9379FA

13.6.1.Description

Designed for monitors and high performance TVs, the STV9379FA vertical deflection booster can handle flyback voltage up to 90V. Further to this, it is possible to have a flyback voltage, which is more than the double of the supply (Pin 2). This allows to decrease the power consumption, or to decrease the flyback time for a given supply voltage. The STV9379FA operates with supplies up to 42V and provides up to 2.6APP output current to drive the yoke. The STV9379FA is offered in HEPTAWATT package.

13.6.2.Features

Power Amplifier Thermal Protection Output Current Up To 2.6

APP

Flyback Voltage Up To 90V (on Pin 5) Suitable For DC Coupling Application External Flyback Supply

13.6.3.Pinning

Pin1 : Output Stage Supply Pin2 : Output Pin3 : GND or Negative Supply Pin4 : Flyback Supply Pin5 : Supply Voltage Pin6 : Inverting Input Pin7 : Non-inverting Input

AK - 45

CHASSIS

13.7.TDA7269A

13.7.1.Description

The TDA7269A is class AB dual Audio power amplifier assembled in the Multiwatt package, specially designed for high quality sound application as Hi-Fi music centers and stereo TV sets.

13.7.2.Features

Wide Supply Voltage Range Up To ±20V Split Supply High Output Power 14 + 14W @THD =10%, R

=ȍ,V

= +16V

No Pop at Turn-On/Off Mute (Pop Free) Stand-By Feature (Low I

)

Short Circuit Protection To Gnd Thermal Overload Protection

13.8.LM7800 (LM7805/LM7808)

13.8.1.Description

The L7800 series of three-terminal positive regulators is available in TO-220 TO-220FP TO-3 and D 2 PAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltages and currents.

13.8.2.Features

Output Current Up To 1.5 A Output Voltages of 5; 5.2; 6; 8; 8.5; 9; 12; 15; 18; 24V Thermal Over load protection Short Circuit Protection Output Transition SOA Protection

13.9.AT24C08

13.9.1.Description

The AT24C01A/02/04/08/16 provides 1024/2048/4096/8192/16384 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 128/256/512/1024/2048 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The AT24C01A/02/04/08/16 is available in space-saving 8-pin PDIP, (AT24C01A/02/04/08/16), 8-lead TSSOP (AT24C01A/02/04/08/16) and 8-lead JEDEC SOIC (AT24C01A/02/04/08/16) packages and is accessed via a 2-wire serial interface. In addition, the entire family is available in 5.0V (4.5V to 5.5V), 2.7V (2.7V to 5.5V), 2.5V (2.5V to 5.5V) and 1.8V (1.8V to

5.5V) versions.

13.9.2.Features

• Low-voltage and Standard-voltage Operation – 5.0 (V CC = 4.5V to 5.5V) – 2.7 (V CC = 2.7V to 5.5V) – 2.5 (V CC = 2.5V to 5.5V) – 1.8 (V CC = 1.8V to 5.5V)

• Internally Organized 128 x 8 (1K), 256 x 8 (2K), 512 x 8 (4K), 1024 x 8 (8K) or 2048 x 8 (16K)

• 2-wire Serial Interface

• Schmitt Trigger, Filtered Inputs for Noise Suppression

• Bi-directional Data Transfer Protocol

• 100 kHz (1.8V, 2.5V, 2.7V) and 400 kHz (5V) Compatibility

• Write Protect Pin for Hardware Data Protection

AK - 45

CHASSIS

• 8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes

• Partial Page Writes are Allowed

• Self-timed Write Cycle (10 ms max)

• High-reliability – Endurance: 1 Million Write Cycles – Data Retention: 100 Years

• Automotive Grade and Extended Temperature Devices Available

• 8-lead JEDEC SOIC, 8-pin PDIP and 8-lead TSSOP Packages

13.9.3.Pin Configurations

Pin name Function

A0-A2 Address Inputs SDA Serial Data SCL Serial Clock Input WP Write Protect NC No Connect

13.10.SDA5555

13.10.1.General definition

The SDA55XX is a single chip teletext decoder for decoding World System Teletext data as well as Video Programming System (VPS), Program Delivery Control (PDC), and Wide Screen Signalling (WSS) data used for PAL plus transmissions (Line 23). The device also supports Closed caption acquisition and decoding. The device provides an integrated general-purpose, fully 8051-compatible Microcontroller with television specific hardware features. Microcontroller has been enhanced to provide powerful features such as memory banking, data pointers, and additional interrupts etc. The onchip display unit for displaying Level 1.5 teletext data can also be used for customer defined on screen displays. Internal XRAM consists of up to 16 Kbytes. Device has an internal ROM of up to 128 KBytes. ROMless versions can access up to 1 MByte of external RAM and ROM. The SDA 55XX supports a wide range of standards including PAL, NTSC and contains a digital slicer for VPS, WSS, PDC, TTX and Closed Caption, an accelerating acquisition hardware module, a display generator for Level 1.5 TTX data and powerful On screen Display capabilities based on parallel attributes, and Pixel oriented characters (DRCS).

13.10.2.Features General

• Feature selection via special function register

• Simultaneous reception of TTX, VPS, PDC, and WSS (line 23)

• Supply Voltage 2.5 and 3.3 V

• ROM version package PSDIP52-2, PMQFP64-1

• Romless version package PMQFP100-2, PLCC84-2

External Crystal and Programmable Clock Speed

• Single external 6MHz crystal, all necessary clocks are generated internally

• CPU clock speed selectable via special function registers.

• Normal Mode 33.33 MHz CPU clock, Power Save mode 8.33 MHz

Microcontroller Features

• 8bit 8051 instruction set compatible CPU.

• 33.33-MHz internal clock (max.)

• 0.360ms (min.) instruction cycle

• Two 16-bit timers

• Watchdog timer

• Capture compare timer for infrared remote control decoding

• Pulse width modulation unit (2 channels 14 bit, 6 channels 8 bit)

• ADC (4 channels, 8 bit)

• UART

Memory

• Non-multiplexed 8-bit data and 16 … 20-bit address bus (ROMless Version)

• Memory banking up to 1Mbyte (ROMless version)

• Up to 128 Kilobyte on Chip Program ROM

• Eight 16-bit data pointer registers (DPTR)

• 256-bytes on-chip Processor Internal RAM (IRAM)

• 128bytes extended stack memory.

• Display RAM and TXT/VPS/PDC/WSS-Acquisition-Buffer directly accessible via MOVX

• UP to 16KByte on Chip Extended RAM (XRAM) consisting of;

- 1 Kilobyte on-chip ACQ-buffer-RAM (access via MOVX)

- 1 Kilobyte on-chip extended-RAM (XRAM, access via MOVX) for user software

- 3 Kilobyte Display Memory

Display Features

• ROM Character Set Supports all East and West European Languages in single device

• Mosaic Graphic Character Set

• Parallel Display Attributes

• Single/Double Width/Height of Characters

• Variable Flash Rate

• Programmable Screen Size (25 Rows x 33...64 Columns)

• Flexible Character Matrixes (HxV) 12 x 9...16

• Up to 256 Dynamical Redefinable Characters in standard mode; 1024 Dynamical Redefinable Characters in Enhanced Mode

• CLUT with up to 4096 colour combinations

• Up to 16 Colours per DRCS Character

• One out of Eight Colours for Foreground and Background Colours for 1-bit DRCS and ROM Characters

• Shadowing

• Contrast Reduction

• Pixel by Pixel Shiftable Cursor With up to 4 Different Colours

• Support of Progressive Scan and 100 Hz.

• 3 X 4Bits RGB-DACs On-Chip

• Free Programmable Pixel Clock from 10 MHz to 32MHz

• Pixel Clock Independent from CPU Clock

• Multinorm H/V-Display Synchronization in Master or Slave Mode

Acquisition Features

• Multistandard Digital Data Slicer

• Parallel Multi-norm Slicing (TTX, VPS, WSS, CC, G+)

• Four Different Framing Codes Available

• Data Caption only Limited by available Memory

• Programmable VBI-buffer

• Full Channel Data Slicing Supported

• Fully Digital Signal Processing

• Noise Measurement and Controlled Noise Compensation

• Attenuation Measurement and Compensation

• Group Delay Measurement and Compensation

• Exact Decoding of Echo Disturbed Signals

Ports

• One 8-bit I/O-port with open drain output and optional I

• Two 8-bit multifunction I/O-ports (Port 1, Port 3)

• One 4-bit port working as digital or analog inputs for the ADC (Port 2)

• One 2-bit I/O port with secondary functions (P4.2, 4.3, 4.7)

• One 4-bit I/O-port with secondary function (P4.0, 4.1, 4.4) (Not available in P-SDIP 52)

C Bus emulation support (Port 0)

13.11.MC44608

AK - 45

CHASSIS

13.11.1.Description

The MC44608 is a high performance voltage mode controller designed for off–line converters. This high

e circuit that integrates the start–up current source and the oscillator capacitor, requires few

volta

AK - 45

CHASSIS

external components while offering a high flexibility and reliability. The device also features a very high efficiency stand–by management consisting of an effective Pulsed Mode operation. This technique enables the reduction of the stand–by power consumption to approximately 1W while delivering 300mW in a 150W SMPS.

• Integrated Start–Up Current Source

• Lossless Off–Line Start–Up

• Direct Off–Line Operation

• Fast Start–Up

13.11.2.General Features

• Flexibility

• Duty Cycle Control

• Under voltage Lockout with Hysteresis

• On Chip Oscillator Switching Frequency 40, or 75kHz

• Secondary Control with Few External Components

Protections

• Maximum Duty Cycle Limitation

• Cycle by Cycle Current Limitation

• Demagnetization (Zero Current Detection) Protection

• “Over V

Protection” Against Open Loop

• Programmable Low Inertia Over Voltage Protection Against Open Loop

• Internal Thermal Protection

GreenLine

Controller

• Pulsed Mode Techniques for a Very High Efficiency Low Power Mode

• Lossless Start-up

• Low dV/dT for Low EMI Radiations

13.11.3.Pin Connections

1 8

Demag

sense

Control Input

GND

AWL = Manufacturing Code YYWW = Date Code

(Top View)

44608Pxxx

(Top View)

AWL

YYWW

Driver

13.11.4.Pin Function description

Pin Name Description

1 Demag The Demag pin offers 3 different functions: Zero voltage crossing detection (50mV), 24mA current

2 ISENSE The Current Sense pin senses the voltage developed on the series resistor inserted in the source

3 Control Input A feedback current from the secondary side of the SMPS via the opto–coupler is injected into this

4 Ground This pin is the ground of the primary side of the SMPS. 5 Driver The current and slew rate capability of this pin are suited to drive Power MOSFETs. 6 VCC This pin is the positive supply of the IC. The driver output gets disabled when the voltage becomes

7 This pin is to provide isolation between the Vi pin 8 and the VCC pin 6. 8 Vi This pin can be directly connected to a 500V voltage source for start–up function of the IC. During

detection and 120mA current detection. The 24mA level is used to detect the secondary reconfiguration status and the 120mA level to detect an Over Voltage status called Quick OVP.

of the power MOSFET. When I sense reaches 1V, the Driver output (pin 5) is disabled. This is known as the Over Current Protection function. A 200mA current source is flowing out of the pin 3 during the start–up phase and during the switching phase in case of the Pulsed Mode of operation. A resistor can be inserted between the sense resistor and the pin 3; thus a programmable peak current detection can be performed during the SMPS stand–by mode.

pin. A resistor can be connected between this pin and GND to allow the programming of the Burst duty cycle during the Stand–by mode.

higher than 15V and the operating range is between 6.6V and 13V. An intermediate voltage level of 10V creates a disabling condition called Latched Off phase.

the Start–up phase a 9 mA current source is internally delivered to the VCC pin 6 allowing a rapid charge of the VCC capacitor. As soon as the IC starts–up, this current source is disabled.

AK - 45

CHASSIS

13.12.TCET1102G

13.12.1.Description

The TCET110/ TCET2100/ TCET4100 consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode in a 4-lead up to 16-lead plastic dual inline package. The elements are mounted on one lead frame using a coplanar technique, providing a fixed distance between input and output for highest safety requirements.

13.12.2.Applications

Circuits for safe protective separation against electrical shock according to safety class II (reinforced isolation): For appl. class I – IV at mains voltage 300 V For appl. class I – III at mains voltage 600 V According to VDE 0884, table 2, suitable for: Switch-mode power supplies, line receiver, computer

peripheral interface, and microprocessor system interface.

13.12.3.Features VDE 0884 related features:

IOTM

Rated impulse voltage (transient overvoltage) V Isolation test voltage (partial discharge test voltage) V Rated isolation voltage (RMS includes DC) V Rated recurring peak voltage (repetitive) V

IOWM

IORM

= 8 kV peak

= 600 V

= 1.6 kV

RMS

(848 V peak)

General features:

CTR offered in 9 groups Isolation materials according to UL94-VO Pollution degree 2 (DIN/VDE 0110 / resp. IEC 664) Climatic classification 55/100/21 (IEC 68 part 1) Special construction: Therefore, extra low coupling capacity of typical 0.2pF, high Common Mode Rejection Low temperature coefficient of CTR G = Leadform 10.16 mm; provides creepage distance > 8 mm, for TCET2100/ TCET4100 optional; suffix letter ‘G’ is not marked on the optocoupler Coupling System U

13.13.TDA9885T

13.13.1.General Description

The TDA9885 is an alignment-free single standard (without positive modulation) vision and sound IF signal PLL.

13.13.2.Features

5 V supply voltage Gain controlled wide-band Vision Intermediate Frequency (VIF) amplifier (AC-coupled) Multistandard true synchronous demodulation with active carrier regeneration (very linear demodulation, good intermodulation figures, reduced harmonics, excellent pulse response) Gated phase detector for L/L accent standard Fully integrated VIF Voltage Controlled Oscillator (VCO), alignment-free; frequencies switchable for all negative and positive modulated standards via I Digital acquisition help, VIF frequencies of 33.4, 33.9, 38.0, 38.9, 45.75 and 58.75 MHz 4 MHz reference frequency input [signal from Phase-Locked Loop (PLL) tuning system] or operating as crystal oscillator VIF Automatic Gain Control (AGC) detector for gain control, operating as peak sync detector for negative modulated signals and as a peak white detector for positive modulated signals Precise fully digital Automatic Frequency Control (AFC) detector with 4-bit digital-to-analog converter; AFC bits via I TakeOver Point (TOP) adjustable via I Fully integrated sound carrier trap for 4.5, 5.5, 6.0 and 6.5 MHz, controlled by FM-PLL oscillator Sound IF (SIF) input for single reference Quasi Split Sound (QSS) mode (PLL controlled)

C -bus readable

C-bus or alternatively with potentiometer

C-bus

AK - 45

CHASSIS

SIF AGC for gain controlled SIF amplifier; single reference QSS mixer able to operate in high performance single reference QSS mode and in intercarrier mode, switchable via I AM demodulator without extra reference circuit Alignment-free selective FM-PLL demodulator with high linearity and low noise

C-bus control for all functions

C-bus transceiver with pin programmable Module Address (MAD).

C-bus

13.13.3.Pinning

SYMBOL PIN DESCRIPTION

VIF1 1

VIF2 OP1 FMPLL DEEM AFD DGND AUD TOP SDA SCL SIOMA n.c. TAGC REF VAGC CVBS AGND VPLL

2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

VP 20

AFC OP2 SIF1 SIF2

21 22 23 24

VIF differential input 1 VIF differential input 2 output 1 (open-collector) FM-PLL for loop filter de-emphasis output for capacitor AF decoupling input for capacitor digital ground audio output tuner AGC TakeOver Point (TOP) I2C-bus data input/output I2C-bus clock input sound intercarrier output and MAD select not connected tuner AGC output 4 MHz crystal or reference input VIF-AGC for capacitor; note 1 video output analog ground VIF-PLL for loop filter supply voltage (+5 V) AFC output output 2 (open-collector) SIF differential input 1 SIF differential input 2

13.14.PI5V330

13.14.1.General Description

The PI5V330 is well suited for video applications when switching composite or RGB analog.

AK - 45

CHASSIS

14.AK45 CHASSIS PRODUCTION SERVICE MODE ADJUSTMENTS

14.1.SERVICE MENU

All system, geometry and white balance alignments are performed in production service mode. Before starting the production mode alignments, make sure that all manual adjustments are done correctly. To start production mode alignments enter the MAIN MENU and then press the digits 4, 7, 2 and 5 respectively or press MUTE and INFO buttons at the same time. The following first menu appears on the screen.

ADJUST...

OPTIONS...

You can select Adjust or Options items by pressing Up/Down buttons. Selected parameter will be highlighted. In order to enter the selected parameter, press Left or Right button. To exit the service menu press MENU button. Entire service menu parameters of AK45 CHASSIS are listed below.

14.2.ADJUST MENU

Select the parameter by pressing up/down buttons. Adjust the parameter by pressing Left/Right buttons. In ADJUST menu, changed values are stored automatically.

000 255

001 036 002 019 003 020 004 030 005 026 006 003 007 004 008 005 009 005

White Point Red, White Point Green, White Point Blue:

Not used.

AGC

Apply PAL BG signal, VHF-3 Channel-12 and 60dBµV signal level. Adjust AGC (Automatic Gain Control) item by pressing Left/Right buttons till the voltage at AGC point (pin1 of the tuner) becomes 3.0 volts.

If PLL negative

Not used.

If PLL positive

Not used.

Y-Delay

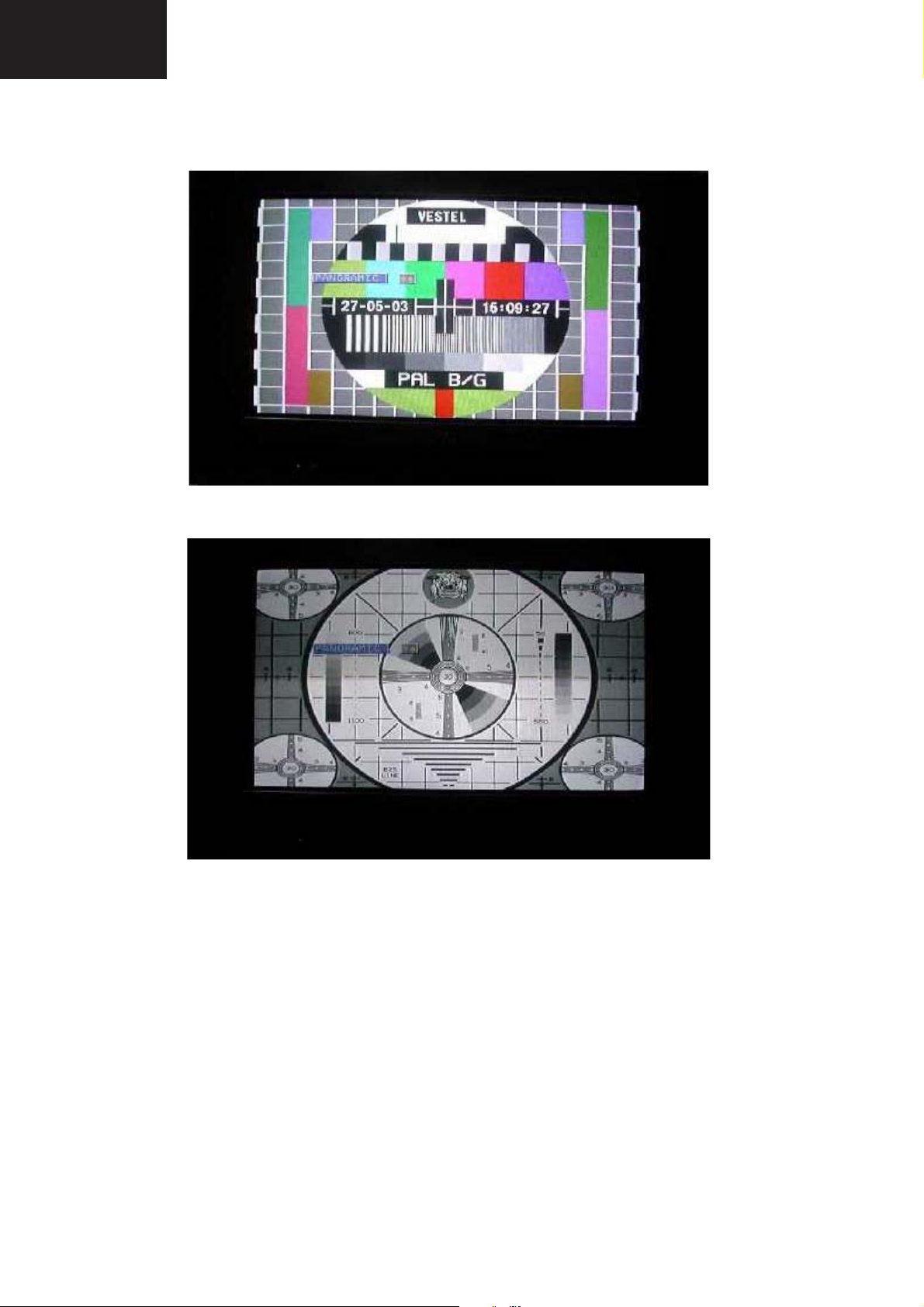

Enter a PAL B/G colour and black-white bar test pattern via RF. Adjust Y-Delay for PAL till the colour transients on the colour bar of the pattern become as sharper and colours between transients do not mix with each other as possible.

SERVICE

AK45JA0XX

ADJUST...

AK - 45

CHASSIS

Y-Delay SECAM

Enter a SECAM B/G colour and black-white bar test pattern via RF. Adjust Y-Delay SECAM till the colour transients on the colour bar of the pattern become as sharper and colours between transients do not mix with each other as possible.

Y-Delay NTSC

Enter an NTSC colour and black-white bar test pattern via RF. Adjust Y-Delay NTSC till the colour transients on the colour bar of the pattern become as sharper and colours between transients do not mix with each other as possible.

Y-Delay other

Not used.

Vertical Position Offset

This value is fixed (127)

Vertical Position Offset

This value is fixed (127)

Horizontal Position Offset

This value is fixed (127)

Horizontal Position Offset

This value is fixed (127)

Vertical Blank Start

This register will be used only at 4:3 tubes for 16:9 mode adjustment. It adjusts the vertical blank start position.

Vertical Blank Stop

This register will be used only at 4:3 tubes for 16:9 mode adjustment. It adjusts the vertical blank stop position.

Angle

Change Angle by pressing Left/Right buttons till the vertical lines of the crosshatch pattern become completely perpendicular to horizontal lines without any angle of vertical deviation. Check and readjust ANGLE item if the adjustment becomes improper after some other geometric adjustments are done.

Bow

Change Bow by pressing Left/Right buttons till the vertical lines especially ones close to the left and right sides will of equal and symmetrical bending, i.e. they together will neither be towards left side nor right side. Check and readjust BOW item if the adjustment becomes improper after some other geometric adjustments are done.

4:3 Horizontal Blank Start

This register will be used only at 16:9 tube for 4:3 mode adjustment. It adjusts the horizontal blank start position.

4:3 Horizontal Blank Stop

This register will be used only at 16:9 tube for 4:3 mode adjustment. It adjusts the horizontal blank stop position.

EHTV Compensation

It’s used to adjust the EHT compensation vertical gain coefficient.

EHTTM Compensation

It’s used to adjust the EHT compensation time constant.

EHTEW Compensation

It’s used to adjust the EHT compensation east/west gain coefficient.

AK - 45

CHASSIS

WDR

The amplitude of R of RGB output can be adjusted with the drive parameter WDR.

WDG

The amplitude of G of RGB output can be adjusted with the drive parameter WDG.

WDB

The amplitude of B of RGB output can be adjusted with the drive parameter WDB.

The DC offset values of R of RGB output can be adjusted with the cutoff parameter CR.

The DC offset values of G of RGB output can be adjusted with the cutoff parameter CG.

The DC offset values of B of RGB output can be adjusted with the cutoff parameter CB.

COR coring level

The amplitude of the correction signal is adjustable. Small noise amplitudes in the correction signal are suppressed by an adjustable coring circuit.

REGULAR VERT_POS (Regular mode Vertical Position)

Enter a PAL B/G circle test pattern via RF. Change Vertical Position till the test pattern is vertically centered. Horizontal line at the center pattern is in equal distance both to upper and lower side of the picture tube. Check and readjust Vertical Position item if the adjustment becomes improper after some other geometric adjustments are done. It’s used to adjust the vertical position of regular mode.

REGULAR VERT_AMPL (Regular mode Vertical Amplitude)

It’s used to adjust the vertical amplitude of regular mode.

REGULAR VERT_SCOR (Regular mode Vertical S-Correction)

It’s used to adjust the vertical s-correction of regular mode.

REGULAR VERT_SSYM(Regular mode Vertical S Symmetry)

It’s used to adjust the vertical s-symmetry of regular mode.

REGULAR TRAPEZE (Regular mode Trapeze)

Change Trapezium by pressing Left/Right buttons till vertical lines, especially lines at the sides of the picture frame became parallel to the both sides of picture tube as close as possible. Check and readjust TRPEZ item if the adjustment becomes improper after some other geometric adjustments are done. It’s used to adjust the trapeze of regular mode.

REGULAR CUSHION (Regular mode Cushion)

It’s used to adjust the cushion of regular mode.

REGULAR HOR_COR_SYM (Regular mode Horizontal Corner Symmetry)

It’s used to adjust the horizontal corners symmetry of regular mode.

REGULAR HOR_CORNER (Regular mode Horizontal Corner)

It’s used to adjust the horizontal corners of regular mode.

REGULAR HORZ_POS (Regular mode Horizontal Position)

Enter a PAL B/G circle test pattern via RF. Change Horizontal Position until the picture is horizontally centered. Check and readjust Horizontal Position item if the adjustment becomes improper after some other geometric adjustments are done. It’s used to adjust the horizontal position of regular mode.

REGULAR HORZ_AMPL (Regular mode Horizontal Amplitude)

It’s used to ad

ust the horizontal amplitude of regular mode.

AK - 45

CHASSIS

PANORAMIC VERT_POS (Panoramic mode Vertical Position)

It’s used to adjust the vertical position of panoramic mode.

PANORAMIC VERT_AMPL (Panoramic mode Vertical Amplitude)

It’s used to adjust the vertical amplitude of panoramic mode.

PANORAMIC VERT_SCOR (Panoramic mode Vertical S-Correction)

It’s used to adjust the vertical s-correction of panoramic mode.

PANORAMIC VERT_SSYM (Panoramic mode Vertical S-Symmetry)

It’s used to adjust the vertical s-symmetry of panoramic mode.

PANORAMIC TRAPEZE (Panoramic mode Trapeze)

It’s used to adjust the trapeze of panoramic mode.

PANORAMIC CUSHION (Panoramic mode Cushion)

It’s used to adjust the cushion of panoramic mode.

PANORAMIC HOR_COR_SYM (Panoramic mode Horizontal corner symmetry)

It’s used to adjust the horizontal corners symmetry of panoramic mode.

PANORAMIC HOR_CORNER (Panoramic mode Horizontal corner)

It’s used to adjust the horizontal corners of panoramic mode.

PANORAMIC HORZ_POS (Panoramic mode Horizontal position)

It’s used to adjust the horizontal position of panoramic mode.

PANORAMIC HORZ_AMPL (Panoramic mode Horizontal amplitude)

It’s used to adjust the horizontal amplitude of panoramic mode.

14:9 ZOOM VERT_POS (14:9 Zoom mode Vertical Position)

It’s used to adjust the vertical position of 14:9 zoom mode.

14:9 ZOOM VERT_AMPL (14:9 Zoom mode Vertical Amplitude)

It’s used to adjust the vertical amplitude of 14:9 zoom mode.

14:9 ZOOM VERT_SCOR (14:9 Zoom mode Vertical S-Correction)

It’s used to adjust the vertical s-correction of 14:9 zoom mode.

14:9 ZOOM VERT_SSYM (14:9 Zoom mode Vertical S-Symmetry)

It’s used to adjust the vertical s-symmetry of 14:9 zoom mode.

14:9 ZOOM TRAPEZE (14:9 Zoom mode Trapeze)

It’s used to adjust the trapeze of 14:9 zoom mode.

14:9 ZOOM CUSHION (14:9 Zoom mode Cushion)

It’s used to adjust the cushion of 14:9 zoom mode.

14:9 ZOOM HOR_COR_SYM (14:9 Zoom mode Corner Symmetry)

It’s used to adjust the horizontal corners symmetry of 14:9 zoom mode.

14:9 ZOOM HOR_CORNER (14:9 Zoom mode Horizontal Corner)

It’s used to adjust the horizontal corners of 14:9 zoom mode.

14:9 ZOOM HORZ_POS (14:9 Zoom mode Horizontal Position)

It’s used to adjust the horizontal position of 14:9 zoom mode.

14:9 ZOOM HORZ_AMPL (14:9 Zoom mode Horizontal Amplitude)

It’s used to adjust the horizontal amplitude of 14:9 zoom mode.

AK - 45

CHASSIS

16:9 ZOOM VERT_POS (16:9 Zoom mode Vertical Position)

It’s used to adjust the vertical position of 16:9 zoom mode.

16:9 ZOOM VERT_AMPL (16:9 Zoom mode Vertical Amplitude)

It’s used to adjust the vertical amplitude of 16:9 zoom mode.

16:9 ZOOM VERT_SCOR (16:9 Zoom mode Vertical S-Correction)

It’s used to adjust the vertical s-correction of 16:9 zoom mode.

16:9 ZOOM VERT_SSYM (16:9 Zoom mode Vertical S-Symmetry)

It’s used to adjust the vertical s-symmetry of 16:9 zoom mode.

16:9 ZOOM TRAPEZE (16:9 Zoom mode Trapeze)

It’s used to adjust the trapeze of 16:9 zoom mode.

16:9 ZOOM CUSHION (16:9 Zoom mode Cushion)

It’s used to adjust the cushion of 16:9 zoom mode.

16:9 ZOOM HOR_COR_SYM (16:9 Zoom mode Horizontal corner symmetry)

It’s used to adjust the horizontal corners symmetry of 16:9 zoom mode.

16:9 ZOOM HOR_CORNER (16:9 Zoom mode Horizontal corner)

It’s used to adjust the horizontal corners of 16:9 zoom mode.

16:9 ZOOM HORZ_POS (16:9 Zoom mode Horizontal position)

It’s used to adjust the horizontal position of 16:9 zoom mode.

16:9 ZOOM HORZ_AMPL (16:9 Zoom mode Horizontal amplitude)

It’s used to adjust the horizontal amplitude of 16:9 zoom mode.

16:9 ZOOM SUBTITLE VERT_POS (16:9 Zoom Subtitle mode Vertical position)

It’s used to adjust the vertical position of 16:9 zoom subtitle mode.

16:9 ZOOM SUBTITLE VERT_AMPL (16:9 Zoom Subtitle mode Vertical amplitude)

It’s used to adjust the vertical amplitude of 16:9 zoom subtitle mode.

16:9 ZOOM SUBTITLE VERT_SCOR (16:9 Zoom Subtitle mode Vertical S-Correction)

It’s used to adjust the vertical s-correction of 16:9 zoom subtitle mode.

16:9 ZOOM SUBTITLE VERT_SSYM (16:9 Zoom Subtitle mode Vertical S-Symmetry)

It’s used to adjust the vertical s-symmetry of 16:9 zoom subtitle mode.

16:9 ZOOM SUBTITLE TRAPEZE (16:9 Zoom Subtitle mode Trapeze)

It’s used to adjust the trapeze of 16:9 zoom subtitle mode.

16:9 ZOOM SUBTITLE CUSHION (16:9 Zoom Subtitle mode Cushion)

It’s used to adjust the cushion of 16:9 zoom subtitle mode.

16:9 ZOOM SUBTITLE HOR_COR_SYM (16:9 Zoom Subtitle mode Horizontal Corner Symmetry)

It’s used to adjust the horizontal corners symmetry of 16:9 zoom subtitle mode.

16:9 ZOOM SUBTITLE HOR_CORNER (16:9 Zoom Subtitle mode Horizontal corner)

It’s used to adjust the horizontal corners of 16:9 zoom subtitle mode.

16:9 ZOOM SUBTITLE HORZ_POS (16:9 Zoom Subtitle mode Horizontal position)

It’s used to adjust the horizontal position of 16:9 zoom subtitle mode.

16:9 ZOOM SUBTITLE HORZ_AMPL (16:9 Zoom Subtitle mode Horizontal amplitude)

It’s used to adjust the horizontal amplitude of 16:9 zoom subtitle mode.

AK - 45

CHASSIS

OSD Position

It’s used to adjust the horizontal position of the OSD.

BCLTHR

Beam current threshold

BCLG

Beam current loop gain

ROTATION (TILT)

This adjustment only works when the TV has rotation option. Change TILT by pressing Left/Right buttons to rotate the complete raster clock-wise and counter clock-wise depending on the CRT. Check and readjust TRPEZ item if the adjustment becomes improper after some other geometric adjustments are done.

LSLSA, LSLSB, LSL2, LSLTA, LSLTB (Luma soft limiter)

LSLSA: Luma soft limiter slope A (fixed) LSLSB: Luma soft limiter slope B (fixed) LSL2: Luma soft limiter absolute limit (fixed) LSLTA: L LSLTB: L

REFERENCE WDR RED (NORMAL)

The amplitude of R of RGB output can be adjusted with the drive parameter WDR for the colour temperature of normal mode.

REFERENCE WDR GREEN (NORMAL)

The amplitude of G of RGB output can be adjusted with the drive parameter WDR for the colour temperature of normal mode.

REFERENCE WDR BLUE (NORMAL)

The amplitude of B of RGB output can be adjusted with the drive parameter WDR for the colour temperature of normal mode.

REFERENCE CUTOFF RED

It’s fixed.

REFERENCE CUTOFF GREEN

It’s fixed.

REFERENCE CUTOFF BLUE

It’s fixed.

IBRM

Internal Brightness, the brightness for measurement can be set to measure at higher cutoff current. The measurement brightness is independent of the drive values. It’s used to adjust the maximum brightness level.

WDRV

White drive measurement control. It is used to adjust the maximum contrast level.

ACC_SAT (COLOUR OFFSET)

It’s used to adjust the max. colour level.

G2 CUTOFF REFERENCE

It’s fixed.

G2 WDR REFERENCE

It’s fixed.

uma soft limiter segment A tilt point (fixed) uma soft limiter segment A tilt point (fixed)

AK - 45

CHASSIS

POFS2 (RGB HORIZONTAL SHIFT)

It’s used to adjust the horizontal position of RGB signal.

REFERENCE WDR RED COOL

The amplitude of R of RGB output can be adjusted with the drive parameter WDR for the colour temp of cool mode.

REFERENCE WDR GREEN COOL

The amplitude of G of RGB output can be adjusted with the drive parameter WDR for the colour temp of cool mode.

REFERENCE WDR BLUE COOL

The amplitude of B of RGB output can be adjusted with the drive parameter WDR for the colour temp of cool mode.

REFERENCE WDR RED WARM

The amplitude of R of RGB output can be adjusted with the drive parameter WDR for the colour temp of warm mode.

REFERENCE WDR GREEN WARM

The amplitude of G of RGB output can be adjusted with the drive parameter WDR for the colour temp of cool mode.

REFERENCE WDR BLUE WARM

The amplitude of B of RGB output can be adjusted with the drive parameter WDR for the colour temp of cool mode.

STANDARD MODE BRIGHTNESS

It’s used to adjust the brightness value of standard mode.

STANDARD MODE COLOUR

It’s used to adjust the colour value of standard mode.

STANDARD MODE CONTRAST

It’s used to adjust the contrast value of standard mode.

FULL VERT_POS (16:9 MODE)

It’s used to adjust the vertical position of 16:9 mode (full mode).

FULL VERT_AMPL

It’s used to adjust the vertical amplitude of 16:9 mode (full mode).

FULL VERT_SCOR

It’s used to adjust the vertical s-correction of 16:9 mode (full mode).

FULL VERT_SSYM

It’s used to adjust the vertical s-symmetry of 16:9 mode (full mode).

FULL TRAPEZE

It’s used to adjust the trapeze of 16:9 mode (full mode).

FULL CUSHION

It’s used to adjust the cushion of 16:9 mode (full mode).

FULL HOR_COR_SYM

It’s used to adjust the horizontal corners symmetry of 16:9 mode (full mode).

FULL HOR_CORNER

It’s used to adjust the horizontal corners of 16:9 mode (full mode).

AK - 45

CHASSIS

FULL HORZ_POS

It’s used to adjust the horizontal position of 16:9 mode (full mode).

FULL HORZ_AMPL

It’s used to adjust the horizontal amplitude of 16:9 mode (full mode).

BRIGHT MODE BRIGHTNESS

It’s used to adjust the brightness value of bright mode.

BRIGHT MODE COLOUR

It’s used to adjust the colour value of bright mode.

BRIGHT MODE CONTRAST

It’s used to adjust the contrast value of bright mode.

SOFT MODE BRIGHTNESS

It’s used to adjust the brightness value of soft mode.

SOFT MODE COLOUR

It’s used to adjust the colour value of soft mode.

SOFT MODE CONTRAST

It’s used to adjust the contrast value of soft mode.

PERSONAL MODE FACTORY SETTING BRIGHTNESS

It’s fixed.

PERSONAL MODE FACTORY SETTING COLOUR

It’s fixed.

PERSONAL MODE FACTORY SETTING CONTRAST

It’s fixed.

SCINC FOR PANORAMIC MODE

scaler1 coefficient, this scaler is compressing the signal.

SCINC1 FOR PANORAMIC MODE

scaler2 coefficient, this scaler is expanding the signal.

VOLUME AFTER APS

It’s used to adjust the volume level after APS.

VERTICAL SCROLL

It’s used to adjust the step width for scroll function.

14:9 HORIZONTAL START

It’s used to adjust the horizontal blank start position for 14:9 mode.

14:9 HORIZONTAL STOP

It’s used to adjust the horizontal blank stop position for 14:9 mode.

4:3 RGB HORIZONTAL AMPLITUDE

It’s used to adjust the horizontal amplitude in 4:3 mode for RGB signals.

4:3 RGB CUSHION

It’s used to adjust the cushion in 4:3 mode for RGB signals.

14:9 RGB HORIZONTAL AMPLITUDE

It’s used to adjust the horizontal amplitude in 14:9 mode for RGB signals.

14:9 RGB CUSHION

It’s used to adjust the cushion in 14:9 mode for RGB signals.

PANORAMIC RGB HORIZONTAL AMPLITUDE

It’s used to adjust the horizontal amplitude in panoramic mode for RGB signals.

16:9 RGB HORIZONTAL AMPLITUDE

It’s used to adjust the horizontal amplitude in 16:9 mode for RGB signals.

16:9 SUBTITLE RGB HORIZONTAL AMPLITUDE

It’s used to adjust the horizontal amplitude in 16:9 subtitle mode for RGB signals.

FULL RGB HORIZONTAL AMPLITUDE

It’s used to adjust the horizontal amplitude in full mode for RGB signals.

TELETEXT HORZ_POS

It’s used to adjust the horizontal position of teletext signal.

AK - 45

CHASSIS

AK - 45

CHASSIS

SHARP 11AK45 TVs ADJUST VALUES

SETTING VALUES

ADJUST

ADJUST 0 Not used 255 255 255 ADJUST 1 Not used 36 36 36 ADJUST 2 Not used 19 19 19 ADJUST 3 AGC (Autamatic Gain Control) ADJUST 4 Not used 30 30 30 ADJUST 5 Not used 26 26 26 ADJUST 6 Y-Delay 2 2 2 ADJUST 7 Y-Delay SECAM 3 3 3 ADJUST 8 Y-Delay NTSC 5 5 5 ADJUST 9 Y-Delay OTHER 5 5 5 ADJUST 10 Vertical Position Offset 127 127 127 ADJUST 11 Vertical Amplitude Offset 127 127 127 ADJUST 12 Horizontal Position Offset 127 127 127 ADJUST 13 Horizontal Amplitude Offset 127 127 127

ADJUST 14

ADJUST 15 ADJUST 16 Angle 129 124 139 ADJUST 17 Bow 131 127 127

ADJUST 18

ADJUST 19 ADJUST 20 EHTV compensation 66 55 66 ADJUST 21 EHTTM compensation 2 2 5 ADJUST 22 EHTEW compensation 160 219 160 ADJUST 23 WDR ADJUST 24 WDG ADJUST 25 WDB ADJUST 26 CR ADJUST 27 CG ADJUST 28 CB ADJUST 29 COR coring level 15 ADJUST 30 NORMAL VERT_POS 127 128 127 ADJUST 31 NORMAL VERT_AMPL 53 81 53 ADJUST 32 NORMAL VERT_SCOR 129 132 133 ADJUST 33 NORMAL VERT_SSYM 136 136 131 ADJUST 34 NORMAL TRAPEZE 129 129 131 ADJUST 35 NORMAL CUSHION 149 155 141 ADJUST 36 NORMAL HOR_COR_SYM 128 123 118 ADJUST 37 NORMAL HOR_CORNER 113 107 137 ADJUST 38 NORMAL HORZ_POS 50 54 45 ADJUST 39 NORMAL HORZ_AMPL 98 16 107 ADJUST 40 PANORAMIC VERT_POS 127 127 ADJUST 41 PANORAMIC VERT_AMPL 52 48 ADJUST 42 PANORAMIC VERT_SCOR 134 133 ADJUST 43 PANORAMIC VERT_SSYM 139 131 ADJUST 44 PANORAMIC TRAPEZE 129 131 ADJUST 45 PANORAMIC CUSHION 150 146 ADJUST 46 PANORAMIC HOR_COR_SYM 134 121 ADJUST 47 PANORAMIC HOR_CORNER 113 134 ADJUST 48 PANORAMIC HORZ_POS 48 48 ADJUST 49 PANORAMIC HORZ_AMPL 36 44 ADJUST 50 ZOOM 14:9 VERT_POS 128 125 ADJUST 51 ZOOM 14:9 VERT_AMPL 41 42 ADJUST 52 ZOOM 14:9 VERT_SCOR 134 133 ADJUST 53 ZOOM 14:9VERT_SSYM 140 131 ADJUST 54 ZOOM 14:9 TRAPEZE 128 131 ADJUST 55 ZOOM 14:9 CUSHION 156 148 ADJUST 56 ZOOM 14:9 HOR_COR_SYM 145 123 ADJUST 57 ZOOM 14:9 HOR_CORNER 113 135 ADJUST 58 ZOOM 14:9 HORZ_POS 49 47

Vertical Blank Start (It will be used only at 4.3 tube for 16:9 mode adjustment) Vertical Blank Stop (It will be used only at 4.3 tube for 16:9 mode adjustment)

Horz. Blank Start (It will be used only at 16:9 tube for 4:3 and 14:9 mode adjustments) Horz. Blank Stop (It will be used only at 16:9 tube for 4:3 and 14:9 mode adjustments)

EXPLANATION

THOMSON

28'' 16:9 SF TV

W66EJU023X215

It will be adjusted to below 1V of max. AGC for each TV

No use 150 119

No use 12 34

19 No use 19

201 No use 201

THOMSON

28" 4:3 SF

A66EHJ13X01

VDP ADJUSTS ITSELF VDP ADJUSTS ITSELF VDP ADJUSTS ITSELF VDP ADJUSTS ITSELF VDP ADJUSTS ITSELF VDP ADJUSTS ITSELF

THOMSON

32" 16:9 SF

W7EGV023X215

SHARP 11AK45 TVs ADJUST VALUES

)

SETTING VALUES

ADJUST

ADJUST 59 ZOOM 14:9 HORZ_AMPL 59 63 ADJUST 60 CINEMA VERT_POS 128 127 ADJUST 61 CINEMA VERT_AMPL 28 32 ADJUST 62 CINEMA VERT_SCOR 129 126 ADJUST 63 CINEMA VERT_SSYM 146 131 ADJUST 64 CINEMA TRAPEZE 128 130 ADJUST 65 CINEMA CUSHION 164 154 ADJUST 66 CINEMA HOR_COR_SYM 135 128 ADJUST 67 CINEMA HOR_CORNER 117 131 ADJUST 68 CINEMA HORZ_POS 48 48 ADJUST 69 CINEMA HORZ_AMPL 36 44 ADJUST 70 16:9 ZOOM SUBTITLE VERT_POS 147 145 ADJUST 71 16:9 ZOOM SUBTITLE VERT_AMPL 33 39 ADJUST 72 16:9 ZOOM SUBTITLE VERT_SCOR 123 133 ADJUST 73 16:9 ZOOM SUBTITLE VERT_SSYM 156 129 ADJUST 74 16:9 ZOOM SUBTITLE TRAPEZE 121 122 ADJUST 75 16:9 ZOOM SUBTITLE CUSHION 162 152 ADJUST 76 16:9 ZOOM SUBTITLE HOR_COR_SYM 125 128 ADJUST 77 16:9 ZOOM SUBTITLE HOR_CORNER 114 125 ADJUST 78 16:9 ZOOM SUBTITLE HORZ_POS 48 44 ADJUST 79 16:9 ZOOM SUBTITLE HORZ_AMPL 36 43 ADJUST 80 OSD Position 205 217 205 ADJUST 81 BCLTHR beam current threshold 30 39 74 ADJUST 82 BCLG beam current loop gain 6 7 7 ADJUST 83 ROTATION (TILT) 2 2 2 ADJUST 84 LSLSA luma soft limiter 2 2 2 ADJUST 85 LSLSB 0 0 0 ADJUST 86 LSL2 255 255 255 ADJUST 87 LSLTA 0 0 0 ADJUST 88 LSLTB 1 1 0 ADJUST 89 REFERENCE WDR RED (NORMAL) X X X ADJUST 90 REFERENCE WDR GREEN (NORMAL) X X X ADJUST 91 REFERENCE WDR BLUE (NORMAL) X X X ADJUST 92 REFERENCE CUTOFF RED 55 65 55 ADJUST 93 REFERENCE CUTOFF GREEN 69 68 69 ADJUST 94 REFERENCE CUTOFF BLUE 69 77 69 ADJUST 95 IBRM 215 200 215 ADJUST 96 WDRV 68 75 68 ADJUST 97 ACC_SAT (COLOR OFFSET) 130 154 130 ADJUST 98 G2 CUTOFF REFERENCE 220 200 220 ADJUST 99 G2 WDR REFERENCE 90 90 90 ADJUST 100 ADJUST POFS2 (RGB HORIZONTAL SHIFT ADJUST 101 REFERENCE WDR RED COOL X X X ADJUST 102 REFERENCE WDR GREEN COOL X X X ADJUST 103 REFERENCE WDR BLUE COOL X X X ADJUST 104 REFERENCE WDR RED WARM X X X ADJUST 105 REFERENCE WDR GREEN WARM X X X ADJUST 106 REFERENCE WDR BLUE WARM X X X ADJUST 107 STANDARD MODE BRIGHTNESS 32 32 32 ADJUST 108 STANDARD MODE COLOR 47 47 47 ADJUST 109 STANDARD MODE CONTRAST 32 32 32 ADJUST 110 FULL VERT_POS 128 126 126 ADJUST 111 FULL VERT_AMPL 51 94 53 ADJUST 112 FULL VERT_SCOR 132 132 133 ADJUST 113 FULL VERT_SSYM 139 131 131 ADJUST 114 FULL TRAPEZE 128 129 129 ADJUST 115 FULL CUSHION 151 143 144 ADJUST 116 FULL HOR_COR_SYM 134 129 128 ADJUST 117 FULL HOR_CORNER 49 114 135 ADJUST 118 FULL HORZ_POS 35 54 46 ADJUST 119 FULL HORZ_AMPL 30 16 46 ADJUST 120 BRIGHT MODE BRIGHTNESS 43 43 43 ADJUST 121 BRIGHT MODE COLOR 50 50 50 ADJUST 122 BRIGHT MODE CONTRAST 32 32 32 ADJUST 123 SOFT MODE BRIGHTNESS 43 43 43 ADJUST 124 SOFT MODE COLOR 58 58 58 ADJUST 125 SOFT MODE CONTRAST 20 20 20

EXPLANATION

THOMSON

28'' 16:9 SF TV

W66EJU023X215

60 50 60

THOMSON

28" 4:3 SF

A66EHJ13X01

THOMSON

32" 16:9 SF

W7EGV023X215

AK - 45

CHASSIS

AK - 45

CHASSIS

SHARP 11AK45 TVs ADJUST VALUES

SETTING VALUES

ADJUST

PERSONAL MODE FACTORY

ADJUST 126

ADJUST 127

ADJUST 128 ADJUST 129 SCINC FOR PANORAMIC MODE 56 56 56 ADJUST 130 SCINC1 FOR PANORAMIC MODE 125 125 125 ADJUST 131 VOLUME AFTER APS 5 ADJUST 132 VERTICAL SCROLL 11 11 11

ADJUST 133

ADJUST 134 ADJUST 135 NORMAL RGB HORIZONTAL AMPLITUDE 99 19 98 ADJUST 136 NORMAL RGB CUSHION 151 159 142 ADJUST 137 14:9 RGB HORIZONTAL AMPLITUDE 70 No use 71 ADJUST 138 14:9 RGB CUSHION 156 No use 149

ADJUST 139

ADJUST 140

ADJUST 141 ADJUST 142 FULL RGB HORIZONTAL AMPLITUDE 40 18 48 ADJUST 143 TELETEXT HORZ_POS 95 104 98 ADJUST 144 RGB BRIGHTNESS OFFSET 0 80 0 ADJUST 145 RGB CONTRAST OFFSET 0 75 0 ADJUST 146 TELETEXT BRIGHTNESS 100 150 100 ADJUST 147 TELETEXT CONTRAST 120 135 120 ADJUST 148 SVG1 3 3 3 ADJUST 149 SVD1 7 7 7 ADJUST 150 SVLIM 127 127 127 ADJUST 151 SVDEL 4 4 4 ADJUST 152 SVCOR 0 0 0

ADJUST 153

ADJUST 154

ADJUST 155

ADJUST 156 ADJUST 157 PøP BRIGHTNESS 5 5 5 ADJUST 158 PøP CONTRAST 15 15 15

SETTING BRIGHTNESS PERSONAL MODE FACTORY SETTING COLOR PERSONAL MODE FACTORY SETTING CONTRAST

14:9 HORIZONTAL START (It will be used only at 4.3 tube for 16:9 mode adjustment) 14:9 HORIZONTAL STOP (It will be used only at 4.3 tube for 16:9 mode adjustment)

PANORAMIC RGB HORIZONTAL AMPLITUDE CINEMA RGB HORIZONTAL AMPLITUDE ZOOM 16:9 SUBTITLE RGB HORIZONTAL AMPLITUDE

RASTER Horz. Blank Start (It will be used only at 16:9 tube for 4:3 and 14:9 mode adjustments) RASTER Horz. Blank Stop (It will be used only at 16:9 tube for 4:3 and 14:9 mode adjustments) RASTER RGB Horz. Blank Start (It will be used only at 16:9 tube for 4:3 and 14:9 mode adjustments) RASTER RGB Horz. Blank Stop (It will be used only at 16:9 tube for 4:3 and 14:9 mode adjustments)

EXPLANATION

THOMSON

28'' 16:9 SF TV

W66EJU023X215

32 32 32

47 47 47

32 32 32

19 No use 19

201 No use 201

40 No use 49

40 No use 48

117 No use 115

178 No use 176

116 No use 116

177 No use 176

THOMSON 28" 4:3 SF

A66EHJ13X01

THOMSON

32" 16:9 SF

W7EGV023X215

X: WILL BE ADJUSTED AUTOMATICALLY ACCORDING TO THE SHARP SPECIFICATION.

COLOR TEMPERATURE SHOULD BE (SHARP SPECIFICATION);

FOR NORMAL (x, y) (290, 300) (304, 306) (290, 284) FOR COOL (x, y) (274, 273) (288, 269) (274, 257) FOR WARM (x, y) (310, 294) (324, 300) (310, 278)

WESTERN EUROPE EASTERN EUROPE UK

AK - 45

CHASSIS

14.3.OPTIONS MENU

Select the parameter by pressing up/down buttons. Adjust the parameter by pressing Left/Right buttons. . In OPTIONS menu, some of the changed parameters are not stored automatically. To store the adjusted parameters, you should turn off and on TV.

000 02

001 00 002 22 003 08 004 00 005 10 006 00 007 56 008 39 009 0F

Option 0. Video Processor Crystal Indication

B7: x = x B6: x = x B5: x = x B4: x = x B3: x = x B2: x = x B1: Xa = note1 (Crystal indication) B0: Xb = note1 (Crystal indication)

note 1:

Xa,Xb 0,1 : Pal M, Pal N, NTSC M

Pin 34 : 3.58 (1, 2 or 3 crystals) Pin 35 : No crystal

1,0 : Pal BG, Pal DK, Pal I/I+, Secam BG, Secam DK, Secam L/L’, Secam K1

Pin 34 : No crystal

Pin 35 : 4.43 (1 crystal)

1,1 : Pal BG, Pal DK, Pal I/I+, Secam BG, Secam DK, Secam L/L’, Secam K1, Pal M, Pal N, Ntsc M

Pin 34 : 3.58 (1, 2 or 3 crystals) Pin 35 : 4.43 (1 crystal)

OPTIONS...

00000010

00000000 00100010 00001000 00000000 00010000 00000000 01010110 00111001 00001111

Option 1. (0x01) Video Processor Decoder Mode Register

B7: x = x B6: x = x B5: x = x B4: x = x B3: x = x B2: x = x B1: x = x B0: x = x

Option 2. (0x18) Video Processor Blanking Control

B7: SWF = 1 (Subwoofer item at menu) B6: Vsd = 0 (Vertical scan disable) B5: x = x

AK - 45

CHASSIS

B4: x = x B3: x = x B2: x = x B1: LUMA = 1 Luma Soft Limiter Enabled B0: BB = 1 Blue Background Option

Option 3. (0x19) Video Processor Cathode Drive Level

B7: x = x B6: x = x B5: x = x B4: x = x B3: x = x B2: x = x B1: x = x B0: country = note 0

Note 0: choice for others country option 1 : BG 0 : DK

Option 4.

B7: x = x B6: x = x B5: x = x B4: x = x B3: x = x B2: x = x B1: x = x B0: x = x

Option 5. CTI Available, Mono AVL

B7: x = x B6: x = x B5: x = x B4: x = x B3: x = x B2: x = x B1: x = x B0: x = x

Option 6.

B7: = TEXT LANGUAGE 3 B6: = TEXT LANGUAGE 2 B5: = TEXT LANGUAGE 1 B4: x = x B3: x = x B2: x = x B1: x = x B0: x = x

Option 7. OPTIONHOTELACTIVE, PLL_VST, PIP Zoom Mode, PIP Position

B7: x = x B6: x = x B5: F = note 1 B4: x = x B3: x = x B2: PZM = x B1: AV2 = 1 AV2 Output enabled B0: x = x

Note 1:

F :Frequency Mode 1: = Frequency Menu Item available 0: = Frequency Menu Item not available

Option 8. IF Frequency

B7: x = x B6: x = x B5: IfI = 0 note 3 B4: IfD = 0 note 4 B3: IfM = note 5 B2: Aps = note 6 B1: Hp = note 7 B0: Hue = note 8

Note 3:

IfI 1 = IF I 39.5 MHz Great Britain I , Only UHF Tuner 0 = IF I 38.9 MHz Ireland I+ , Standard Tuner

Note 4:

IfD 1 = IF DK 38.0 MHz 0 = IF DK 38.9 MHz

Note 5:

IfM 1 = IF M,N 45.75 MHz S&N American Models , Tuner UV1336 (Only Pal M/N, Ntsc M) 0 = IF M,N 38.9 MHz Euro M,N Models , Standard Tuner

Note 6:

Aps ( Only for PLL ) 0 = A.P.S. done 1 = A.P.S. set

Note 7:

Hp : Headphone available 0 = No headphone 1 = Headphone available

Note 8:

Hue : Hue Available 0 = No Hue 1 = Hue available

AK - 45

CHASSIS

Option 9. Standard Available

B7: NM = note 1 B6: PN = note 1 B5: PM = note 1 B4: K1 = note 1 B3: L = note 1 B2: I = note 1 B1: DK = note 1 B0: BG = note 1

Note 1:

0 = Standard not supported 1 = Standard available

AK - 45

CHASSIS

Option 10. Scart, Combfilter, Teletext, Language

B7: x = x B6: RGB = note 2 B5: FAV = B4: AV2S = B3: FSVHS = note 3 B2: BAV = note 4 B1: Sc2 = note 5 B0: BSVHS = note 6

Note 2 :

RGB = RGB Menu Item active/inactive

0 = RGB Menu Item inactive 1 = RGB Menu Item active

Note 3:

0 = Front S-VHS not supported 1 = Front S-VHS available

Note 4:

0 = Back AV (AV-3) not supported 1 = Back AV (AV-3) available

Note 5:

0 = Scart 2 not supported 1 = Scart 2 available

Note 6:

0 = Back SVHS not supported 1 = Back SVHS available

Option 11. PLL Tuner Control 1 Byte

Pll tuner control 1 byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316T MK3 1 0 0 0 1 1 1 0 Philips UV1316MK2 1 0 0 0 1 1 1 0 Alps TELE9X062A 1 0 0 0 1 1 1 0 Samsung TEXX2949PG28A 1 0 0 0 1 1 1 0 Siel PT060 1 0 0 0 1 1 1 0 Temic 5001PH5-3X0003 1 0 0 0 1 1 1 0 Thomson CTT5020 1 0 0 0 1 1 1 0

Option 12. PLL Tuner Control 2 Low Byte

Pll tuner control 2 low byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316T MK3 0 0 0 0 0 0 0 1 Philips UV1316MK2 1 0 1 0 0 0 0 1 Alps TELE9X062A 0 0 0 0 0 0 0 1 Samsung TEXX2949PG28A 0 0 0 0 0 0 0 1 Siel PT060 0 1 1 0 0 0 0 0 Temic 5001PH5-3X0003 0 0 0 0 0 0 1 0 Thomson CTT5020 0 0 0 0 0 0 1 1

Option 13. PLL Tuner Control 2 Mid Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316T MK3 0 0 0 0 0 0 1 0 Philips UV1316MK2 1 0 0 1 0 0 1 0 Alps TELE9X062A 0 0 0 0 0 0 1 0 Samsung TEXX2949PG28A 0 0 0 0 0 0 1 0 Siel PT060 1 1 0 1 0 0 0 0 Temic 5001PH5-3X0003 0 0 0 0 0 1 0 0 Thomson CTT5020 0 0 0 0 0 1 1 0

Option 14. PLL Tuner Control 2 High Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316T MK3 0 0 0 0 0 1 0 0 Philips UV1316MK2 0 0 1 1 0 1 0 0 Alps TELE9X062A 0 0 0 0 1 0 0 0 Samsung TEXX2949PG28A 0 0 0 0 1 0 0 0 Siel PT060 0 0 1 1 0 0 0 0 Temic 5001PH5-3X0003 0 0 0 0 0 0 0 1 Thomson CTT5020 1 0 0 0 0 1 0 1

AK - 45

CHASSIS

Option 15. PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316T MK3 0 0 1 0 0 0 0 0 Philips UV1316MK2 0 0 0 0 1 0 1 0 (0A hex) Alps TELE9X062A 0 0 0 0 0 0 0 0 Samsung TEXX2949PG28A 0 0 0 0 1 0 0 0 Siel PT060 0 0 0 0 1 0 1 0 Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0 Thomson CTT5020 1 0 1 0 1 0 1 0 (AA hex)

Option 16. PLL Tuner VHF LOW – VHF HIGH Crossover High Byte

Pll tuner VHF LOW - VHF HIGH crossover high byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316T MK3 0 0 0 0 1 1 0 0 Philips UV1316MK2 0 0 0 0 1 1 0 0 (0C hex) Alps TELE9X062A 0 0 0 0 0 0 0 0 Samsung TEXX2949PG28A 0 0 0 0 1 1 0 1 Siel PT060 0 0 0 0 1 1 0 1 Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0 Thomson CTT5020 0 0 0 0 1 0 0 1 (09 hex)

Option 17. PLL Tuner VHF HIGH – UHF Crossover Low Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316T MK3 0 0 0 0 0 0 1 0 Philips UV1316MK2 1 1 1 0 0 0 1 0 (E2 hex) Alps TELE9X062A 0 0 0 0 0 0 0 0 Samsung TEXX2949PG28A 1 0 1 0 0 0 1 0 Siel PT060 1 0 1 0 0 1 0 0 Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0 Thomson CTT5020 1 0 1 0 0 0 1 0 (A2 hex)

Option 18. PLL Tuner VHF HIGH – UHF Crossover High Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316T MK3 0 0 0 1 1 1 1 0 Philips UV1316MK2 0 0 0 1 1 1 1 0 (1D hex) Alps TELE9X062A 0 0 0 0 0 0 0 0 Samsung TEXX2949PG28A 0 0 0 1 1 1 1 0 Siel PT060 0 0 0 1 1 1 1 0

AK - 45

CHASSIS

Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0 Thomson CTT5020 0 0 0 1 1 0 1 1 (1B hex)

Option 19. PIP PLL Tuner Control 1 Byte

b7 b6 b5 b4 b3 b2 b1 b0

Philips UV1316MK2 1 0 0 0 1 1 1 0 Alps TELE9X062A 1 0 0 0 1 1 1 0 Samsung TEXX2949PG28A 1 0 0 0 1 1 1 0 Siel PT060 1 0 0 0 1 1 1 0 Temic 5001PH5-3X0003 1 0 0 0 1 1 1 0 Thomson CTT5020 1 0 0 0 1 1 1 0

Option 20. PIP PLL Tuner Control 2 Low Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316MK2 1 0 1 0 0 0 0 1 Alps TELE9X062A 0 0 0 0 0 0 0 1 Samsung TEXX2949PG28A 0 0 0 0 0 0 0 1 Siel PT060 0 1 1 0 0 0 0 0 Temic 5001PH5-3X0003 0 0 0 0 0 0 1 0 Thomson CTT5020 0 0 0 0 0 0 1 1

Option 21. PIP PLL Tuner Control 2 Mid Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316MK2 1 0 0 1 0 0 1 0 Alps TELE9X062A 0 0 0 0 0 0 1 0 Samsung TEXX2949PG28A 0 0 0 0 0 0 1 0 Siel PT060 1 1 0 1 0 0 0 0 Temic 5001PH5-3X0003 0 0 0 0 0 1 0 0 Thomson CTT5020 0 0 0 0 0 1 1 0

Option 22. PIP PLL Tuner Control 2 High Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316MK2 0 0 1 1 0 1 0 0 Alps TELE9X062A 0 0 0 0 1 0 0 0 Samsung TEXX2949PG28A 0 0 0 0 1 0 0 0 Siel PT060 0 0 1 1 0 0 0 0 Temic 5001PH5-3X0003 0 0 0 0 0 0 0 1 Thomson CTT5020 1 0 0 0 0 1 0 1

Option 23. PIP PLL Tuner VHF LOW – VHF HIGH Crossover Low Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316MK2 0 0 0 0 1 0 1 0 (0A hex) Alps TELE9X062A 0 0 0 0 0 0 0 0 Samsung TEXX2949PG28A 0 0 0 0 1 0 0 0 Siel PT060 0 0 0 0 1 0 1 0 Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0 Thomson CTT5020 1 0 1 0 1 0 1 0 (AA hex)

Option 24. PIP PLL Tuner VHF LOW – VHF HIGH Crossover High Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316MK2 0 0 0 0 1 1 0 0 (0C hex) Alps TELE9X062A 0 0 0 0 0 0 0 0 Samsung TEXX2949PG28A 0 0 0 0 1 1 0 1 Siel PT060 0 0 0 0 1 1 0 1 Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0 Thomson CTT5020 0 0 0 0 1 0 0 1 (09 hex)

Option 25. PIP PLL Tuner VHF HIGH – UHF Crossover Low Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316MK2 1 1 1 0 0 0 1 0 (E2 hex) Alps TELE9X062A 0 0 0 0 0 0 0 0 Samsung TEXX2949PG28A 1 0 1 0 0 0 1 0 Siel PT060 1 0 1 0 0 1 0 0 Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0 Thomson CTT5020 1 0 1 0 0 0 1 0 (A2 hex)

Option 26. PIP PLL Tuner VHF HIGH – UHF Crossover High Byte

b7 b6 b5 b4 b3 b2 b1 b0 Philips UV1316MK2 0 0 0 1 1 1 1 0 (1D hex) Alps TELE9X062A 0 0 0 0 0 0 0 0 Samsung TEXX2949PG28A 0 0 0 1 1 1 1 0 Siel PT060 0 0 0 1 1 1 1 0 Temic 5001PH5-3X0003 0 0 0 0 0 0 0 0 Thomson CTT5020 0 0 0 1 1 0 1 1 (1B hex)

Option 27. Language Available 1

B7: L7 = DANISH B6: L6 = SWEDISH B5: L5 = ITALIAN B4: L4 = PORTUGUESE B3: L3 = SPANISH B2: L2 = FRENCH B1: L1 = GERMAN B0: L0 = ENGLISH 1: Language available 0: Language not available

AK - 45

CHASSIS

Option 28. Language Available 2

B7: L15 = CROATIC B6: L14 = POLISH B5: L13 = SLOVAK B4: L12 = CZECH B3: L11 = HUNGARY B2: L10 = GREEK B1: L9 = TURKEY B0: L8 = NORWEGIAN 1: Language available 0: Language not available

Option 29. Language Available 3 and Zoom Mode Available

B7: ZSP = 16:9 ZOOM SUBTITLE MODE B6: ZSB = 16:9 ZOOM MODE B5: ZCN = 14:9 ZOOM MODE B4: PNM = 1 (Panoramic zoom mode) B3: Tub = note 2 B2: Z.Def = note 3 B1: PMK = note 1 B0:

1: Available 0: Not available

Note 1 : PMK : Picture mode key 0 : Not available picture mode key from RC 1 : available

icture mode key from RC

AK - 45

CHASSIS

Note 2:

Tub : Tube size

0 = 16:9 Tube size 1 = 4:3 Tube size

Note 3:

Z.Def : Zoom Default Mode

0 = 16:9 mode default 1 = 4:3 mode default

Option 30. Country

B7: C4 = note 1 B6: C3 = note 1 B5: C2 = note 1 B4: C1 = note 1 B3: C0 = note 1 B2: x = x B1: x = x B0: x = x

Note 1:

C5,C4,C3,C2,C1,C0 = Country

0, 0, 0,0,0 = OTHER, Not allowed 0, 0, 0,0,1 = D, Germany 0, 0, 0,1,0 = A, 0, 0, 0,1,1 = CH, 0, 0, 1,0,0 = I, 0, 0, 1,0,1 = F, 0, 0, 1,1,0 = RSM, 0, 0, 1,1,1 = B, 0, 1, 0,0,0 = DK, 0, 1, 0,0,1 = S, 0, 1, 0,1,0 = N, 0, 1,0,1,1 = FIN, 0, 1,1,0,0 = GB, 0, 1,1,0,1 = IRL, 0, 1,1,1,0 = IS, 0, 1,1,1,1 = NL, 1, 0,0,0,0 = E, 1, 0,0,0,1 = P, 1, 0,0,1,0 = PL, 1, 0,0,1,1 = CZ, 1, 0,1,0,0 = H, 1, 0,1,0,1 = HR, 1, 0,1,1,0 = GR, 1, 0,1,1,1 = TR

Option 31. Prescaler MSP FM (AVL=OFF)

b7 b6 b5 b4 b3 b2 b1 b0

Prescaler MSP FM (AVL = OFF) 0 0 0 0 1 0 0 0

b7 b6 b5 b4 b3 b2 b1 b0

Prescaler MSP FM (AVL = OFF) 0 0 0 0 1 0 0 0 (if virtual Dolby option is available)

Option 32. Prescaler MSP NICAM (AVL=OFF)

b7 b6 b5 b4 b3 b2 b1 b0

Prescaler MSP NICAM (AVL = OFF) 0 0 0 1 1 1 1 1

b7 b6 b5 b4 b3 b2 b1 b0 Prescaler MSP NICAM (AVL = OFF) 0 0 0 1 1 1 1 1 (if virtual Dolby option is available)

Option 33. Prescaler MSP SCART (AVL=OFF)

b7 b6 b5 b4 b3 b2 b1 b0 Prescaler MSP SCART (AVL = OFF) 0 0 0 0 1 1 0 0

b7 b6 b5 b4 b3 b2 b1 b0 Prescaler MSP SCART (AVL = OFF) 0 0 0 1 1 0 0 1 (if virtual Dolby option is available)

Option 34. Prescaler MSP I2S (AVL=OFF)

b7 b6 b5 b4 b3 b2 b1 b0 Prescaler MSP I2S (AVL = OFF) not defined yet (if virtual Dolby option is available)

Option 35. Not used

B7: x = note 7 B6: x = note 6 B5: x = note 5 B4: x = note 4 B3: AV2S = Scart2 SVHS B2: Macro = Macrovision B1: DP = Dolby Prologic B0: VD = Virtual Dolby

AK - 45

CHASSIS

Option 36. Not used

B7: x = note 7 B6: TAT = 1 Tilt and trapeze enabled B5: SWF = 1 Subwoofer enabled B4: VLO = 1 Variable line out B3: VBUS = 1 Vestelbus enabled B2: x = x B1: DVD = 1 DVD enabled B0: DVB = 1 DVB enabled

Option 37. Reserved for USA

Option 38. TV Teletext Mode Selection, Child Lock, Equalizer Country

B7: VCR = note 7 B6: C = note 6 B5: LM = note 5 B4: EQ = note 4 B3: x = x B2: CL = note 2 B1: T1 = note 1 B0: T0 = note 1

Note 1:

Teletext selection T1, T0: 0,0 = No TV Text 0,1 = Simple TV Text (One page) 1,1 = Fasttext/Toptext TV Text (Eight pages)

Note 2:

CL = Child Lock 0 = Off 1 = On (Active)

AK - 45

CHASSIS

Note 3:

RGB = RGB Menu Item active/inactive 0 = RGB Menu Item inactive 1 = RGB Menu Item active

Note 4:

EQ = Equalizer available 0 = Equalizer not available 1 = Equalizer available

Note 5:

LM = List Mode available 0 = List Mode not available 1 = List Mode available

Note 6:

C = Country Line available / Aps available or not 0 = Country Line not available / Aps not available 1 = Country Line available / Aps available

Note 7:

VCR = VCR Menu Item available / not available 0 = VCR Menu Item not available 1 = VCR Menu Item available

Option 39. Personal Preference Equalizer Band 1

b7 b6 b5 b4 b3 b2 b1 b0

EQUALIZER BAND 1 0 0 0 0 0 1 1 0

Option 40. Personal Preference Equalizer Band 2

b7 b6 b5 b4 b3 b2 b1 b0

EQUALIZER BAND 2 0 0 0 0 0 1 1 0

Option 41. Personal Preference Equalizer Band 3

b7 b6 b5 b4 b3 b2 b1 b0

EQUALIZER BAND 3 0 0 0 0 0 1 1 0

Option 42. Personal Preference Equalizer Band 4

b7 b6 b5 b4 b3 b2 b1 b0

EQUALIZER BAND 4 0 0 0 0 0 1 1 0

Option 43. Personal Preference Equalizer Band 5

b7 b6 b5 b4 b3 b2 b1 b0

EQUALIZER BAND 5 0 0 0 0 0 1 1 0

Option 44. Sound Effect (Standard; Music; Speech; Jazz; Pp)

b7 b6 b5 b4 b3 b2 b1 b0

SOUND EFFECT 0 0 0 0 0 1 1 0

Option 45. Volume Offset Left

b7 b6 b5 b4 b3 b2 b1 b0

VOLUME OFFSET LEFT 0 0 0 0 0 1 1 0

Option 46. Volume Offset Right

b7 b6 b5 b4 b3 b2 b1 b0

VOLUME OFFSET RIGHT 0 0 0 0 0 1 1 0

Option 47. Volume Offset Center

b7 b6 b5 b4 b3 b2 b1 b0 VOLUME OFFSET CENTER 0 0 0 0 0 1 1 0

Option 48. Volume Offset Rear

b7 b6 b5 b4 b3 b2 b1 b0 VOLUME OFFSET REAR 0 0 0 0 0 1 1 0

Option 49. Surround Delay

b7 b6 b5 b4 b3 b2 b1 b0 SURROUND DELAY 0 0 0 0 0 0 0 1

Option 50. FM Prescaler

b7 b6 b5 b4 b3 b2 b1 b0 FM PRESCALER for Stereo 0 0 0 0 1 1 0 0

b7 b6 b5 b4 b3 b2 b1 b0 FM PRESCALER for Dolby 0 0 0 0 1 0 0 1

Note: if virtual Dolby is available, this option is not used.

AK - 45

CHASSIS

Option 51. NICAM Prescaler

b7 b6 b5 b4 b3 b2 b1 b0 NICAM Prescaler for Stereo 0 0 1 0 1 1 0 1

b7 b6 b5 b4 b3 b2 b1 b0 3D Panorama 0 0 0 0 1 0 1 1

b7 b6 b5 b4 b3 b2 b1 b0

NICAM Prescaler for Dolby 0 0 0 0 1 1 1 0

Note: if virtual Dolby is available, this option is not used.

Option 52. Scart Input Prescaler

b7 b6 b5 b4 b3 b2 b1 b0 Scart Input Prescaler for Stereo 0 0 0 0 1 0 0 0

b7 b6 b5 b4 b3 b2 b1 b0

Scart Input Prescaler for Dolby 0 0 0 0 1 1 1 1

b7 b6 b5 b4 b3 b2 b1 b0 Prescaler MSP Scart (AVL = OFF) 0 0 0 1 1 0 0 1 (if virtual Dolby option is available)

Note: if virtual Dolby is available, this option is not used.

Option 53. I2S Prescaler

b7 b6 b5 b4 b3 b2 b1 b0 I2S Prescaler for Stereo 0 0 0 0 0 1 1 0

b7 b6 b5 b4 b3 b2 b1 b0

I2S Prescaler for Dolby 0 0 0 0 0 1 1 0

Note: if virtual Dolby is available, this option is not used.

Option 54. Scart Output Prescaler

b7 b6 b5 b4 b3 b2 b1 b0 Scart Output Prescaler 0 1 1 1 1 1 1 1

AK - 45

CHASSIS

Option 55. Speaker Setup

b7 b6 b5 b4 b3 b2 b1 b0

Speaker Setup (L/R, L/C/R, L/R/S, L/C/R/S) 0 0 0 0 0 0 0 0

Option 56. Audio Options Available Or Not

Attention: All bits on the Option 56 must be the “0” for MONO TV SETS

B7: Nicam = note 7 B6: ASD = note 6 B5: VRS = note 5 B4: CRM = note 4 B3: … = x B2: LBE = note 2 B1: Spa = note 1 B0: Avl = note 0

Note 7:

Nicam = Nicam available 0 = Nicam not available 1 = Nicam available

Note 6:

ASD = Auto Sound Detection available/not available 0 = Auto Sound Detection not available 1 = Auto Sound Detection available

Note 5:

VRS = Virtual Surround 0 = VRS not available 1 = VRS available

Note 4:

CRM = CARRIER MUTE OFF/ON 0 = Sound carrier mute is ON in the Stereo Sound IC 1 = Sound carrier mute is OFF in the Stereo Sound IC (i.e. option available)

Note 2:

LBE = LBE (Dynamic Bass) 0 = LBE not available 1 = LBE available

Note 1:

Spa = Spatial Effect available 0 = Spatial Effect not available 1 = Spatial Effect available

Note 0:

Avl = Automatic volume level available on the Menu 0 = Automatic volume level not available 1 = Automatic volume level available

Option 57. Stereo Threshold

B7: b7 = note 1 Remark: B6: b6 = note 1 B5: b5 = note 1 -Threshold for all FM A2 signals to switch from MONO to STEREO. B4: b4 = note 1 -For first check after programme change half value is changed (0Ch) 19h/2 B3: b3 = note 1 -For switching from STEREO back to MONO: 19h/4 *3 B2: b2 = note 1 B1: b1 = note 1 B0: b0 = note 1

Note 1:

b7 b6 b5 b4 b3 b2 b1 b0 MSP Stereo/Mono Threshold 0 0 0 1 1 0 0 1

Option 58. MSP Audio Flags

B7: b7 = x B6: b6 = x B5: b5 = x B4: Trs = note 1 B3: Trb = note 1 B2: Bbe = note 1 B1: Spa = note 1 B0: Avl = note 1

Note 1:

Defines whether the feature is toggled ON or OFF in the menu and stored. 0 : OFF 1 : ON

Option 59. NICAM Threshold

b7 b6 b5 b4 b3 b2 b1 b0 MSP NICAM Threshold 0 1 1 0 0 1 0 0

AK - 45

CHASSIS

Option 60. Power Delay Time

B7: NZ = x B6: HM = x B5: L5 = note 3 B4: L4 = note 3 B3: L3 = note 3 B2: L2 = note 3 B1: L1 = note 3 B0: L0 = note 3 Note 3: L7 L6 L5 L4 L3 L2 L1 L0 Default Value: x x 1 1 0 0 0 0 1000 MSEC = 1SN

Number

L7L6L5L4L3L2L1L0

Delay Number

L7L6L5L4L3L2L1L0

Delay

0 00000000 = 4 Sec 32 00100000 = 12 Sec 1 00000001 = 4,25 Sec 33 00100001 = 12,25 Sec 2 00000010 = 4,5 Sec 34 00100010 = 12,5 Sec 3 00000011 = 4,75 Sec 35 00100011 = 12,75 Sec 4 00000100 = 5 Sec 36 00100100 = 13 Sec 5 00000101 = 5,25 Sec 37 00100101 = 13,25 Sec 6 00000110 = 5,5 Sec 38 00100110 = 13,5 Sec 7 00000111 = 5,75 Sec 39 00100111 = 13,75 Sec 8 00001000 = 6 Sec 40 00101000 = 14 Sec

9 00001001 = 6,25 Sec 41 00101001 = 14,25 Sec 10 00001010 = 6,5 Sec 42 00101010 = 14,5 Sec 11 00001011 = 6,75 Sec 43 00101011 = 14,75 Sec 12 00001100 = 7 Sec 44 00101100 = 15 Sec 13 00001101 = 7,25 Sec 45 00101101 = 15,25 Sec 14 00001110 = 7,5 Sec 46 00101110 = 15,5 Sec 15 00001111 = 7,75 Sec 47 00101111 = 15,75 Sec 16 00010000 = 8 Sec 48 00110000 = 16 Sec 17 00010001 = 8,25 Sec 49 00110001 = 16,25 Sec 18 00010010 = 8,5 Sec 50 00110010 = 16,5 Sec 19 00010011 = 8,75 Sec

51 00110011 = 16,75 Sec

AK - 45

CHASSIS

20 00010100 = 9 Sec 52 00110100 = 17 Sec 21 00010101 = 9,25 Sec 53 00110101 = 17,25 Sec 22 00010110 = 9,5 Sec 54 00110110 = 17,5 Sec 23 00010111 = 9,75 Sec 55 00110111 = 17,75 Sec 24 00011000 = 10 Sec 56 00111000 = 18 Sec 25 00011001 = 10,25 Sec 57 00111001 = 18,25 Sec 26 00011010 = 10,5 Sec 58 00111010 = 18,5 Sec 27 00011011 = 10,75 Sec 59 00111011 = 18,75 Sec 28 00011100 = 12 Sec 60 00111100 = 19 Sec 29 00011101 = 12,25 Sec 61 00111101 = 19,25 Sec 30 00011110 = 12,5 Sec 62 00111110 = 19,5 Sec 31 00011111 = 12,75 Sec

63 00111111 = 19,75 Sec

AK - 45

CHASSIS

Decimal - Binary Conversion Table

76543210 0 00000000 32 00100000 1 00000001 33 00100001 2 00000010 34 00100010 3 00000011 35 00100011 4 00000100 36 00100100 5 00000101 37 00100101 6 00000110 38 00100110 7 00000111 39 00100111 8 00001000 40 00101000 9 00001001 41 00101001

10 00001010 42 00101010 11 00001011 43 00101011 12 00001100 44 00101100 13 00001101 45 00101101 14 00001110 46 00101110 15 00001111 47 00101111 16 00010000 48 00110000 17 00010001 49 00110001 18 00010010 50 00110010 19 00010011 51 00110011 20 00010100 52 00110100 21 00010101 53 00110101 22 00010110 54 00110110 23 00010111 55 00110111 24 00011000 56 00111000 25 00011001 57 00111001 26 00011010 58 00111010 27 00011011 59 00111011 28 00011100 60 00111100 29 00011101 61 00111101 30 00011110 62 00111110 31 00011111

Bit Position

76543210

63 00111111

AK - 45

CHASSIS

14.4.OPTION TABLE RECOMMENDED VALUES

X listed in the option can be 0 or 1

OPTION 28" 4:3 MULTI 28" 16:9 MULTI 28" 16:9 PAL I

000 X2 XXXXXX10 X2 XXXXXX10 X2 XXXXXX10 001 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 002 23 001XXX11 23 001XXX11 23 001XXX11 003 XX XXXXXXX0 XX XXXXXXX0 XX XXXXXXX0 004 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 005 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 006 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 007 XX XX0XXX1X XX XX0XXX1X XX XX0XXX1X 008 A1 11000001 01 00000001 01 00000001 009 0B 00001111 0B 00001111 04 00001111 010 X2 XXXXX011 X7 XXXXX111 X7 XXXXX111 011 8E 10001110 8E 10001110 8E 10001110 012 03 00000011 03 00000011 03 00000011 013 06 00000110 06 00000110 06 00000110 014 15 10000101 15 10000101 15 10000101 015 AA 10101010 AA 10101010 AA 10101010 016 09 00001001 09 00001001 09 00001001 017 A2 10100010 A2 10100010 A2 10100010 018 1B 00011011 1B 00011011 1B 00011011 019 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 020 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 021 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 022 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 023 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 024 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 025 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 026 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 027 FF 11111111 FF 11111111 FF 11111111 028 FF 11111111 FF 11111111 FF 11111111 029 FF 11111111 EF 11101111 EF 11101111 030 XX XXXXXXX XX XXXXXXX XX XXXXXXX 031 0F 00001111 0F 00001111 0F 00001111 032 23 00100011 23 00100011 23 00100011 033 0E 00001110 0E 00001110 0E 00001110 034 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 035 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 036 X4 XXXXX1XX X4 XXXXX1XX X4 XXXXX1XX 037 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 038 AF 11001111 AF 11001111 AF 11001111 039 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 040 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 041 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 042 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 043 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 044 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 045 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 046 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 047 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 048 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 049 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 050 XX XXXXXXXX XX XXXXXXXX XX XXXXXXXX 051 41 01000001 41 01000001 41 01000001 052 1B 00011011 1B 00011011 1B 00011011 053 06 00000110 06 00000110 06 00000110

054 75 01110101 75 01110101 75 01110101 055 00 00000000 00 00000000 00 00000000 056 DE 11011110 DE 11011110 DE 11011110 057 19 00011001 19 00011001 19 00011001 058 00 00000000 00 00000000 00 00000000 059 64 01100100 64 01100100 64 01100100 060 10 00010000 10 00010000 10 00010000

AK - 45

CHASSIS

AK - 45

CHASSIS

14.5.SCREEN ADJUSTMENT (FBT SCREEN)

SCREEN ADJUST POT

From the option list change option 2 bit 6 from 0 to 1 for disabling vertical scan. Adjust horizontal line via screen adjust pot. as thin as possible. Then press 0 to leave service menu.

14.6.GEOMETRY ADJUSTMENT

4:3 FORMATS

AK - 45

CHASSIS

4:3 MODE

16:9 MODE

AK - 45

CHASSIS

16:9 FORMATS

AUTO MODE

REGULAR MODE

AK - 45

CHASSIS

AK - 45

CHASSIS

ZOOM 14:9 MODE

ZOOM 16:9 MODE

AK - 45

CHASSIS

AK - 45

CHASSIS

SUBTITLE ZOOM MODE

FULL MODE

AK - 45

CHASSIS

AK - 45

CHASSIS

PANORAMIC MODE

15. BLOCK DIAGRAM

General Block Diagram of chassis 11AK45

Yoke

Vertical Stage

STV9379FA

TDA 6107

(PHILIPS)

RGB AMPLIFIER

Horizontal

CRT

OSD_R

OSD_G

OSD_B

AK - 45

CHASSIS

12W

8 ohm

Headphone

OSD_FBL

AUDIO

TDA7269A

12W

8 ohm

AMPLIFIER

SC3_V_OUT

CVBS

SC1_V_OUT

QSS

TDA9885T

PIP

VDP313XY

SCL

SDA

SYNC

SC2_V_OUT

EXT_CVBS/Y

SDA5555

(MicroController)

SCL

SDA

CVBS_TEXT

TV_LINK

24CO8

(E2PROM)

TO_PIP

TDA1308

SCL

SDA

SC1

MSP34XXG

SC2

DVD/DVB/BAV

FRONT/SC3

EPCOS

K3958M

Video

SAW

TU200

Filter

38.9MHz-TV TUNER

K9656M

Sound

RGB SW

Filter

SAW

EPCOS

PI5V330-SOIC

SC1_RGB

SDA

SC2_RGB/DVD/DVB

SCL

SC1

TEA615C

VIDEO SW

SC2

SC3

SVHS-Y

AK - 45

CHASSIS

16. CIRCUIT DIAGRAMS

16.1 Schematic Diagram of Video-IF Circuit

Page 63

4567

16.1 Schematic Diagram of Video-IF Circuit

AK - 45

CHASSIS

Page 62

8 9

11 12 13 14

AK - 45

CHASSIS

16.2 Schematic Diagram of µ-Controller Circuit

4567

16.3 Schematic Diagram of Deflection Circuit

AK - 45

CHASSIS

16.4 Schematic Diagram of Power Switch Circuit

8 9

11SW01-3

11 12 13 14

AK - 45

CHASSIS

16.5 Schematic Diagram of SMPS Circuit

Page 67

4567

16.5 Schematic Diagram of SMPS Circuit

AK - 45

CHASSIS

Page 66

8 9

11 12 13 14

AK - 45

CHASSIS

16.6 Schematic Diagram of Sound Circuit

Page 69

4 567

16.6 Schematic Diagram of Sound Circuit

AK - 45

CHASSIS

Page 68

8 9

11 12 13 14

AK - 45

CHASSIS

16.7 Schematic Diagram of CRT Socket Circuit

4567

16.8 Schematic Diagrams of Control Panel Unit

AK - 45

CHASSIS

8 9

11 12 13 14

AK - 45

CHASSIS

16.9 Schematic Diagram of Remote Control Circuit

4567

AK - 45

CHASSIS

17. HOW TO UPDATE THE TECHNICAL INFORMATION

17.1 How to update the Technical Information appeared on this Service Manual (and relatives)

17.1.1. Web site: https://www.vestelservice.com

17.1.2.Select: Technical Support

17.1.3. Login: 101278

17.1.4. Password: SHPII278

By this access you can consult the latest schematic diagram or request the Parts Listing of a concrete Production Date / Serial Number.

By this way it can be also consulted the issued Technical Reports (Service Bulletins).

It can be found a Label in every chassis with additional information, i.e. the used EEPROM. See below. On the next page are given details about the Code Bar Label.

17.2 NVM / EEPROM recorder

There is available the NVM / EEPROM recorder as spare part:

Part Reference: V20096887

Description: MD.ASY.PONYPROG

Dom. Price Code: AT

Exp. Price Code: BE

This EEPROM recorder uses the free software “Pony” available at http://www.lancos.com/ppwin95.html Note: In case of Windows platform it is recomended the PonyProg v1.17h version.

17.3 Chassis Label Information

B+ Voltage

Batch number

Chassis code number

25423426 - 150V 200101577 PAL /BG

Y237 - 1902 - 277

EEPROM number

Consecutive serial number of the related batch

Production line number

AK - 45

CHASSIS

17.4 Code Bar Label Information

Product Code

From the beginning of September.2002, the production month and year will be indicated inside the box as shown.

Year

Month

Year

Consecutive number

Batch number

Product code:

Year :

Month :

Batch number :

Consecutive Number:

Consecutive number

Year

It is the code that indicates Vestel internal identification number of the complete TV set.

Production year in two digits, e.g.: 02 for 2002

Production month in two digits; e.g.: 04 for April.

It is a Vestel number that is assigned by the Planning Dept. according to the customer orders. (For internal use by Vestel)

The number that indicates the sequence of the product related to the same batch number.

Notes:

AK - 45

CHASSIS

AK - 45

CHASSIS

Technical information and Production:

Vestel Electronik AS

PRINTED BY: ON:

Technical information re-issued:

SHARP ELECTRONICA ESPAÑA S.A. Service Manual Group Engineering Dept. Polígono Industrial Can Sant Joan 08190 Sant Cugat del Vallès Barcelona Spain

Think Ecology, please use

RECYCLED PAPER

DAEWOO C-2890EES Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
