Service Manual
S/N No. :
Jun. 2003
D AEW OO ELECTR ONICS CO., LTD.
http : //svc.dwe .co.kr
Mini Component System
Model:
AXG-327[K ]/328(K)
AXW-327[K]/328(K)
9CD83001200
AXG-327[K]/328(K)
AXW-327[K]/328(K)
Exploded View and Mechanical Parts List
6
Exploded View and Mechanical Parts List
7
40-2 CHASSIS BOTTOM 9CD0607100 SECC 1.0T 1 324/325/326/327/328
41-1 COVER BACK 9CD0409800 MIPS 1 322/324/325/326
41-2 COVER BACK 9CD0414800 SECC 1.0T 1 327/328
42 HOLDER AC CORD 9CD2303300 ABS 1 324/325/326/327/328
43 COVER ANT 9CD0410400 ABS 1
44 HOLDER PCB 9CD2304800 MIPS 1 327/328
45-1 HEAT SINK 10 9CD4404500 AL 1 322
45-2 HEAT SINK N30 9CD4406200 AL 1 324
45-3 HEAT SINK N50 9CD4405800 AL 1 325
45-4 HEAT SINK N65 9CD4408200 AL 1 326
45-5 HEAT SINK N100 9CD4406100 AL 1 327
45-6 HEAT SINK N150A 9CD4407900 AL 1 328
46 BRACKET HEAT TR 9CD2414600 SECC 1.0T 2 324/325/326
47 BRACKET HEAT TR 9CD2414600 SUS 0.5T 1 322
48 FRAME BOTTOM 9CD0607800 SECC 1.0T 1 327/328
49 BRKT PCB C 9CD2414500 SECC 1.0T 1 327/328
50 BRKT PCB A 9CD2413100 SECC 1.0T 1 327DP
51 HEAT SINK PW 9CD4404200 AL 1 327/328
52 BRACKET TUNER PCB L 9CD24159L0 SECC 1.0T 1 327/328
53 BRACKET TUNER PCB R 9CD24159R0 SECC 1.0T 1 327/328
54 FOOT RUBBER 9CD0801000 RUBBER 2 327/328
55 STOPPER AC CORD 9CD5700500 66NYLON 1 327/328
SCREW TYPE
322
324 325 326 327 328
S1 SCREW TAPTTITE 7173261011
TT2 BIN 2.6 X 10 MFZN
14 14 14 14 14 14
S2 SCREW TAPTTITE 7173301011
TT2 BIN 3.0X10 MFZN
16 15 15 15 15 15
S3 SCREW TAPTTITE 7173301212
TT2 BIN 3.0X12 BK
21 21 21 21 21 23
S4 SCREW TAPTTITE 7173301612
TT2 BIN 3.0X16 BK
22 2222
S5 SCREW TAPTTITE 7173300411
TT2 BIN 3.0X6 MFZN
5 8 8 8 12 13
S6 SCREW TAPTTITE 7173301411
TT2 BIN 3.0X14 MFZN
* 4 4448
S7 SCREW TAPTTITE 7173400611
TT2 BIN 4.0X6 MFZN
* 4 4444
S8 SCREW TAPTTITE 7173401011
TT2 BIN 4.0X10 MFZN
4* **4*
S9 WASHER SCREW 9CD3102401
TT2 BIN 3.0X8 + D12
1* ****
S10 WASHER SCREW 9CD3102400
TT2 BIN 3.0X10 + D14
11 11**
W1 WASHER PLAIN
1* ****
P2 1
P3 1
P4 1
P5 1
P6 1
P7 1
P8 1
P9 1
PCB TUNER
328
option
PCB MAIN
PCB POWER
PCB TAPE
PCB JACK
PCB CD
PCB MIC
PCB MP3
option
327/328
Part NameNo.
No.
No.
Part Code
Part Code
Description
Description
Qty Remark
Part Name
Qty
Qty
Remark
1 WINDOW DOOR A 9CD16197A0 ACRYL 1
2 WINDOW DOOR B 9CD16197B0 ACRYL 1
3 DOOR COVER A 9CD18136A0 MIPS 1
4 DOOR COVER B 9CD18136B0 MIPS 1
5 SRING DOOR EJECT L 9CD30080L0 STS 0.9 1
6 SRING DOOR EJECT R 9CD30080R0 STS 0.9 1
7 DOOR FRAME A 9CD18113A0 MIPS 1
8 DOOR FRAME B 9CD18113B0 MIPS 1
9 CUSHION FOOT 9CD4207700 URETHAN 2
10-A DAMPER GEAR B 9CD2603200 ACETAL 2
10-B DAMPER BASE B 9CD2603300 ABS 2
11-A LOCKER BASE 9CDOB01900 ABS 2
11-B LOCKER CAM 9CDOB02000 ABS 2
11-C LOCKER SPRING 9CDOB01600 STS 2
12 BRKT SIDE 9CD2412900 ABS 2
13 KNOB POWER 9CD1348700 MIPS 1
14 LENS LED 9CD1619900 ACRYL 1
15 KNOB CD 9CD1348710 MIPS 1
16 KNOB CONTROL 9CD1348400 MIPS 1
17 KNOB FUNCTION 9CD1348600 ACRYL 1
18 PLATE FILTER 9CD0912800 T0.15 1 option
19 KNOB SET 9CD1348500 MIPS 1
20 PANEL FRONT 9CD0311100 MIPS 1
21-A CASSETTE DECK LOGIC 9CD6010000 1 322
21-B CASSETTE DECK LOGIC 9CD6010100 1 324/325/327/328
22 BADGE DAEWOO 9CD1500900 ABS 1
23 DECO VOLUME 9CD3104200 ABS 1
24 KNOB CAP 9CD1349300 MIPS 1
25 KNOB VOLUME 9CD1348200 MIPS 1
26 RING REFLECTOR 9CD3104210 ACRYL 1
27 KNOB JOG 9CD1348210 MIPS 1 327/328
28 KNOB TUNE 9CD1349400 MIPS 1 322/324/325/326
29 LENS DECO 9CD1620000 ACRYL 2
30 WINDOW FLT 9CD1619500 ACRYL 1
31 CD DECK MECHA 9CD6009300 1
32 DOOR CD 9CD1813700 MIPS 1
33 WINDOW CD DOOR 9CD1619600 ACRYL 1
34 KNOB MIC 9CD1332000 MIPS 1 AMI-810
35 BRACKET MIC PCB 9CD2415500 SECC 1.0T 1
36-A GUIDE FLT 9CD2506500 ABS 1 322/324/325/326
36-B GUIDE FLT 9CD2506300 ABS 1 327/328
37 COVER TOP 9CD0411400 MIPS 1
38 COVER SIDE L 9CD04115L0 MIPS 1
39 COVER SIDE R 9CD04115R0 MIPS 1
40-1 CHASSIS BOTTOM 9CD0607500 ABS 1 322
Part Name
No.
Part Code
Description
Qty Remark
Wiring Diagram
8
PCB MP3 CD
9CD6588600-00
CW505
CW506
CW503
CW502
CW504
CW501
PCB FRONT
9CD6589100
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CW702
CN302
CW508
CW708
CW401
CW402
CN902
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
CN701
J001
TU001
PCB KARAOKE
9CD6589000
AXG-327K Only
J301
CN301
CW302
PCB MAIN
9CD6590100
IC402
CN401
CN402
CW509
IC204
IC201
IC202
CW901
IC401
ICBD3872
CW603
CW303
IC901
IC801
L4959
STK411-210E
CD MECHA. ASS'Y
M
M
LC72723
LC72723
BA1450S
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN301 [9728818900] #8P 220 P=2.5 Shield
CW502 [2001-WS-06] 6P 2.0mm
CN500 [9718813800] 16P 1.0 X 120mm
CW503 [2001-WS-12] 12P 2.0mm
CN504 [9728816700] FFC 7P 1.25 X 120mm R
CN701 [9738836200] #26 FLAT 10P 160mm
CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P
CN402 [9736407800] 53095-1010 10P
CN603 [9728814000] #28 8P 200mm
CN505 [9728816800] #24 3P+UL1007 3P 250mm
AXG-327(K) Only
Wiring Diagram
9
PCB MP3 CD
9CD6588600-00
CW505
CW506
CW503
CW502
CW504
CW501
PCB FRONT
9CD6589100
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CW702
CN302
CW508
CW708
CW401
CW402
CN902
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
CN701
PCB TUNER
9CD6590200
J001
CW201
TU001
PCB KARAOKE
9CD6589000
AXG-328K Only
J301
CN301
CW302
PCB MAIN
9CD6589400
FAN
IC803
CN401
CN402
CW303
IC402
CW509
CN201
CW901
IC404IC403
4558
4558
CN509
ICBD3872
CW603
CW905
IC901
IC801
IC802
STK402-050
L4959
STK411-210E
CD MECHA. ASS'Y
M
M
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN505 [9728816800] #24 3P+UL1007 3P 250mm
CN201 [9728819200] #24 12P 250mm
CW502 [2001-WS-06] 6P 2.0 X 170mm
CN500 [9718813800] 16P 1.0 X 120mm
CW503 [2001-WS-12] 12P 2.0mm
CN504 [9728816700] FFC 7P 1.25 X 120mm R
CN701 [9738836200] #26 FLAT 10P 160mm
CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P
CN402 [9736407800] 53095-1010 10P
CN603 [9728814000] #28 8P 200mm
CN301 [9728818900] #8P 220 P=2.5 Shield
AXG-328(K) Only
PCB FRONT
9CD6589100
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CW702
CN302
CW508
CW708
CW401
CW402
CN902
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
CN701
PCB KARAOKE
9CD6589000
AXW-327K Only
J301
CN301
CW302
PCB CD
9CD6585000
CN509
CW510
OPTICAL JACK
CW500
CW501
CW504
SONY
CW508
CW506
S/S
CD MECHA. ASS'Y
M
M
J001
TU001
PCB MAIN
9CD6590100
IC402
CN401
CN402
CW509
IC204
IC201
IC202
CW901
IC401
ICBD3872
CW603
CW303
IC901
IC801
L4959
STK411-210E
LC72723
LC72723
BA1450S
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN509 [9728817500] UL2547 & 1007 P=2.5X250 8P
CN501 [2001-WS-06] 6P 2.0 X 170mm
CN500 [9718813800] 16P 1.0 X 120mm
CN504 [2001-WS-12] 12P 2.0mm
CN508 [9728818700] FFC 17P 330mm
CN701 [9738836200] #26 FLAT 10P 160mm
CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16P 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P
CN402 [9736407800] 53095-1010 10P
CN603 [9728814000] #28 8P 200mm
CN301 [9728818900] #8P 220 P=2.5 Shield
Wiring Diagram
10
AXW-327(K) Only
PCB FRONT
9CD6589100
PCB TAPE
9CD6584200
CASSETTE MECHA. ASS'Y
PCB POWER
9CD6581000
FD710
CW702
CN302
CW508
CW708
CW401
CW402
CN902
CN601
CN602
CN701
CN702
CN601
PLAY HEAD
CN602
R/P HEAD
CW902
CW901
CN602
R/P HEAD
CN602
R/P HEAD
CN603
CN701
PCB TUNER
9CD6590200
J001
CW201
TU001
PCB KARAOKE
9CD6589000
AXW-328K Only
J301
CN301
CW302
PCB CD
9CD6585000
PCB MAIN
9CD6589400
FAN
CN509
IC803
CN401
CN402
CW303
IC402
CW509
CN201
CW901
IC404IC403
4558
4558
CN509
ICBD3872
CW603
CW905
IC901
IC801
IC802
STK402-050
L4959
STK411-210E
CW510
OPTICAL JACK
CW500
CW501
CW504
SONY
CW508
CW506
S/S
CD MECHA. ASS'Y
M
M
CW901 [9728804100 #22 10P 2.5 350mm Board-In
CN509 [9728817500] UL2547 & 1007 P=2.5X250 8P
CN201 [9728819200] #24 12P 250mm
CN501 [2001-WS-06] 6P 2.0 X 170mm
CN500 [9718813800] 16P 1.0 X 120mm
CN504 [2001-WS-12] 12P 2.0mm
CN701 [9738836200] #26 FLAT 10P 160mm
CN302 [9728804200] UL1007 #26 1P 100mm
CN702 [9728812100] FFC 16 1.25 X 150mm R
CW902 [9728804200] #26 2P 2.5 350mm
CN602 [9738828800] #28 7P P2.5 100mm Shield
CN601 [9738828700] #28 3P 220mm Shield
CN401 [9736407600] Pin Base 53095-1310 13P
CN402 [9736407800] 53095-1010 10P
CN603 [9728814000] #28 8P 200mm
CN301 [9728818900] #8P 220 P=2.5 Shield
CN508 [9728818700] FFC 17P 330mm
11
AXW-328(K) Only
Wiring Diagram
Block Diagram
12
VFD FD701
REC. OSC
L601
IC602:UPC1330HA
R/P
SW
TAPE
MECHA
PLAY
REC
IC601 : M51167BFP
PLAY/REC
EQ
TU001 : FTE4-401TC
(KST-F404VA)
FM
RF
IF+MPX
IC201 : BA1450S
PLL
IC202 : LC72131D
AM RF+OSC
L101 : 5LR0000832
(MW2BAND)
SLED
SPINDLE
TRACKING
FOCUSING
ROULETTE
CD MECHA
IC501
S1L9226
ASSP
D-RAM
IC506
SDRM16M
IC503
BA5939S
MOTOR
DRIVER
IC504
S3C825A
SUB
MICOM
IC502
S5L9290
DSP
DECODER
IC505
TMD2104
MP3CD
RECEIVER
IC705 : LTM97CT-38P
EEEP ROM
IC702 : 24LC04B
KEY CONTROL
IC701 : M38199
MI-COM
MP3 CD Option
AXG-327(K)/328(K) Only
KARAOKE Option
AXG-327K/328K, AXW-327K/328K Only
REGULATOR
-12V
Q902
POWER
TRANS
PT991
IC901 : L4959
RECULATOR
+12V
UN/SW
+5.6V
UN/SW
+8.6V
SW
+12V
SW
SPEAKER
J802
POWER AMP
IC801 : STK411-210E
PRE AMP
IC402
AUX
IC402
FUNCTION
PRE AMP + PRESET EQ + VR
IC401 : BD3872FS
J801
HEAD
PHONE
KARAOKE
AXG-327(K)/AXW-327(K) Only
Block Diagram
13
VFD FD701
REC. OSC
L601
IC602:UPC1330HA
R/P
SW
TAPE
MECHA
PLAY
REC
IC601 : M51167BFP
PLAY/REC
EQ
TU001 : FTE4-401TC
(KST-F404VA)
FM
RF
IF+MPX
IC201 : BA1450S
PLL
IC202 : LC72131D
AM RF+OSC
L101 : 5LR0000832
(MW2BAND)
SLED
SPINDLE
TRACKING
FOCUSING
ROULETTE
CD MECHA
IC501
S1L9226
ASSP
D-RAM
IC506
SDRM16M
IC503
BA5939S
MOTOR
DRIVER
IC504
S3C825A
SUB
MICOM
IC502
S5L9290
DSP
DECODER
IC505
TMD2104
MP3CD
RECEIVER
IC705 : LTM97CT-38P
EEEP ROM
IC702 : 24LC04B
KEY CONTROL
IC701 : M38199
MI-COM
MP3 CD Option
AXG-327(K)/328(K) Only
KARAOKE Option
AXG-327K/328K, AXW-327K/328K Only
AUX
IC402
FUNCTION
PRE AMP + PRESET EQ + VR
IC401 : BD3872FS
KARAOKE
REGULATOR
-12V
Q902
POWER
TRANS
PT991
IC901 : L4959
RECULATOR
+12V
UN/SW
+5.6V
UN/SW
+8.6V
SW
+12V
SW
POWER AMP
IC802 : STK411-210E
POWER AMP
IC801 : STK402-050
HPF
IC460
IC461
PRE AMP
IC402
LPF
IC403
IC404
J803
HEAD
PHONE
IC875
HEAD
PHONE AMP
SPEAKER
J801
SPEAKER
J802
AXG-328(K)/AXW-328(K) Only
Schematic Diagram MODEL XG-328
14
MAIN [AXG-327(K)/AXW-327(K) Only]
Schematic Diagram MODEL XG-328
15
MAIN [AXG-328(K)/AXW-328(K) Only]
21 20
19
11
15
14
2
12
17
4
5
7
8
6
18
9
16
13
3
10
22
1
VSS VT
N.C
MUTE
AM OSC
1/2
VT-IN FM/AM IF N.C VDD
IF REQ
DO
DI
CL
C B
I/F
AM/FM
PD
FM OSC
ST/MO
X-OUT
X-IN
FM
CE
1
ANT5VT8OSC3GND4GND6B+
2
ANT7IFOUT
OUT
3
14
13
1
2
10
6 5 4 9 8 7 11 12
2
3
1 4 7
5 8
69
13
11 14
1210
1 2 3 4 5
24
22 21 2023 1718 1619 15 14 13
10
9876
1211
VCC
SD
DET
GND
LED
DRIVER
V REG
FM
IF
AM
OSCAMMIX
FM
DET
AGC
AM
DET
SW
1/2
1/2
SD
DECORDER
COMP
PD
VCO
Schematic Diagram MODEL XG-328
16
TUNER [AXG-327(K)/AXW-327(K) Only]
21 20
19
11
15
14
2
12
17
4
5
7
8
6
18
9
16
13
3
10
22
1
VSS VT
N.C
MUTE
AM OSC
1/2
VT-IN FM/AM IF N.C VDD
IF REQ
DO
DI
CL
C B
I/F
AM/FM
PD
FM OSC
ST/MO
X-OUT
X-IN
FM
CE
1
ANT5VT8OSC3GND4GND6B+
2
ANT7IFOUT
OUT
3
14
13
1
2
10
6 5 4 9 8 7 11 12
2
3
1 4 7
5 8
69
13
11 14
1210
1 2 3 4 5
24
22 21 2023 1718 1619 15 14 13
10
9876
1211
VCC
SD
DET
GND
LED
DRIVER
V REG
FM
IF
AM
OSCAMMIX
FM
DET
AGC
AM
DET
SW
1/2
1/2
SD
DECORDER
COMP
PD
VCO
Schematic Diagram MODEL XG-328
17
TUNER [AXG-328(K)/AXW-328(K) Only]
Schematic Diagram MODEL XG-328
18
TAPE
Schematic Diagram MODEL XG-328
19
FRONT
Schematic Diagram MODEL XG-328
20
CD [AXW-327(K)/328(K) Only]
Schematic Diagram MODEL XG-328
MP3 CD [AXG-327(K)/328(K) Only]
21
Schematic Diagram MODEL XG-328
22

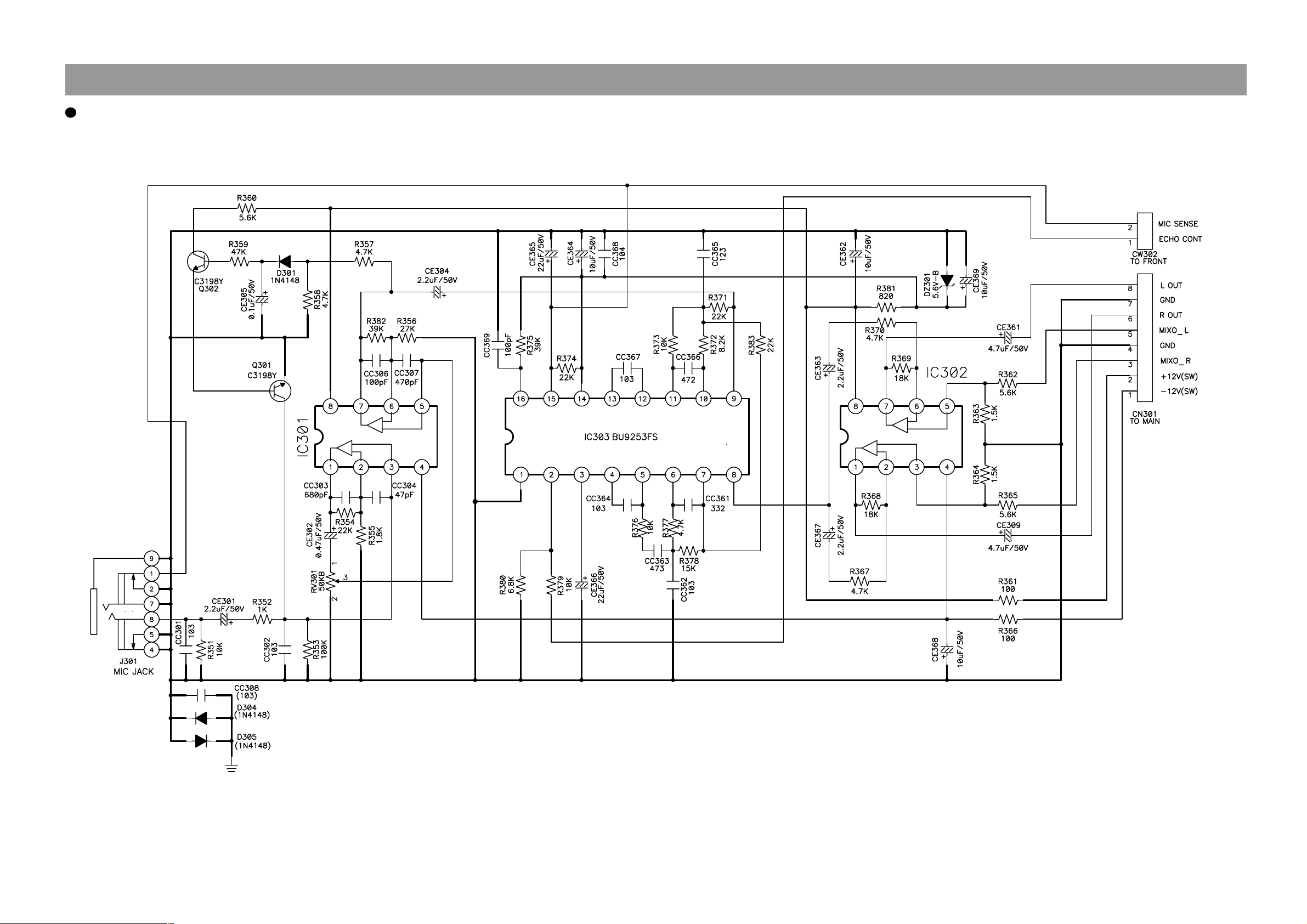

KARAOKE [AXG-327K/328K/AXW-327K/328K Only]
Schematic Diagram MODEL XG-328
POWER
23
Electrical Parts List
34
Loc. Part Code Part Name Description Option
B001 9CD6590100 PCB MAIN 247X197
CC000 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC001 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC002 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC004 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC005 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC006 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC101 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC102 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC103 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC104 CZCH1H150J C CERA CH 50V 15PF J (AXIAL)
CC201 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC202 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC203 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL)
CCZB1H682K C CERA HIKB 50V 6800PF K (AXIAL) EMI
CZCH1E101J C CERA CH 25V 100PF J AXL 52MM EMS
CC205 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC206 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC207 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC208 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608 EMS
CC209 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC210 CCZB1H561K C CERA HIKB 50V 560PF K (AXIAL) EMI
CC211 CCZB1H561K C CERA HIKB 50V 560PF K (AXIAL) EMI
CC212 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC213 CCZB1H472K C CERA HIKB 50V 4700PF K (AXIAL)
CC251 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC252 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC253 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC254 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC255 CZSL1H330J C CERA SL 50V 33PF J (AXIAL)
CC256 CZSL1H330J C CERA SL 50V 33PF J (AXIAL)
CC270 CCZB1H331K C CERA HIKB 50V 330PF K (AXIAL) RDS
CC271 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL) RDS
CC272 CZSL1H220J C CERA SL 50V 22PF J (AXIAL) RDS
CC274 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL) RDS
CC276 CZSL1H220J C CERA SL 50V 22PF J (AXIAL) RDS
CC277 CZSL1H220J C CERA SL 50V 22PF J (AXIAL) RDS
CC401 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL)
CC402 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL)
CC403 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC409 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL)
CC410 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL)
CC411 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC412 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC413 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC803 CCZB1H221K C CERA HIKB 50V 220PF K (AXIAL)
CC804 CCZB1H221K C CERA HIKB 50V 220PF K (AXIAL)
CC805 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC806 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC807 CZCH1H309K C CERA CH 50V 3.3PF K (AXIAL)
CC808 CZCH1H309K C CERA CH 50V 3.3PF K (AXIAL)
CC815 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC816 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC817 CCZB1H472K C CERA HIKB 50V 4700PF K (AXIAL)
CC818 CCZB1H472K C CERA HIKB 50V 4700PF K (AXIAL)
CC819 CCZB1H472K C CERA HIKB 50V 4700PF K (AXIAL)
CC820 CCZF1H333Z C CERA HIKF 50V 0.033MF Z (AXIAL)
CC901 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC902 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC903 CCZF1E223Z C CERA HIKF 25V 0.022MF Z (AXIAL)
CC904 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC905 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC906 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC907 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC908 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC909 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC910 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CE001 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE101 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE102 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
CE201 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE202 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE203 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE204 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP
CE205 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE206 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE207 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE208 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE209 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE210 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE211 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE212 CEXF1H228V C ELECTRO 50V RSS 0.22MF (5X11) TP
CE213 CEXF1E221V C ELECTRO 25V RSS 220MF (8X11.5) TP
CE214 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE270 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP RDS
CE272 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP RDS
CE410 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE411 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE412 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE413 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE414 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE415 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
MAIN PCB ASS'Y [9CDC066500] : AXG-327(K)/AXW-327(K) Only
CC204
Loc. Part Code Part Name Description Option
CE417 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE418 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE419 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE420 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE421 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE422 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE423 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE424 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE426 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE427 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE428 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE429 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE430 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE431 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE432 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE433 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE434 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE435 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE801 CEXF1K562V C ELECTRO RSS 80V 5600MF (5600/75V)
CE802 CEXF1K562V C ELECTRO RSS 80V 5600MF (5600/75V)
CE803 CEXF1H332V C ELECTRO RSS 50V 3300MF 26*41
CE804 CEXF1H332V C ELECTRO RSS 50V 3300MF 26*41
CE805 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE806 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE807 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE808 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE809 CEXF1J101V C ELECTRO 63V RSS 100MF (6.3X11) TP
CE810 CEXF1J101V C ELECTRO 63V RSS 100MF (6.3X11) TP
CE812 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE813 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE815 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE816 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE817 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE818 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE901 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE902 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE903 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE904 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE905 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
CE906 CEXF1E471V C ELECTRO 25V RSS 470MF (10X16)
CE907 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE908 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CE909 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
CE910 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CE911 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CE912 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE913 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
5PLT107MS3 FILTER CERA LT10.7MS3 EMI
5PE107MJA- FILTER CERA SFE 10.7MJ-A10 EMS
5PLT107MS3 FILTER CERA LT10.7MS3 EMI
5PE107MJA- FILTER CERA SFE 10.7MJ-A10 EMS
CMXM2A183J C MYLAR 100V 0.018MF J EMI
CMXM1H223J C MYLAR 50V 2200PF J EMS
CM202 CMXM2A103J C MYLAR 100V 0.01MF J
CM203 CMXM2A103J C MYLAR 100V 0.01MF J
CM204 CMXM2A103J C MYLAR 100V 0.01MF J EMI
CM205 CMXM2A103J C MYLAR 100V 0.01MF J EMI
CM206 CMXM2A562J C MYLAR 100V 5600PF J EMI
CM207 CMXM2A562J C MYLAR 100V 5600PF J EMI
CM208 CMXM1H822J C MYLAR 50V 8200PF J EMS
CM209 CMXM1H822J C MYLAR 50V 8200PF J EMS
CM410 CMXM2A102J C MYLAR 100V 1000PF J
CM411 CMXM2A223J C MYLAR 100V 0.022MF J
CM412 CMXM2A102J C MYLAR 100V 1000PF J
CM413 CMXM2A104J C MYLAR 100V 0.1MF J
CM414 CMXM2A104J C MYLAR 100V 0.1MF J
CM415 CMXM2A104J C MYLAR 100V 0.1MF J
CM416 CMXM2A104J C MYLAR 100V 0.1MF J
CM417 CMXM2A334J C MYLAR 100V 0.33MF J
CM420 CMXM2A222J C MYLAR 100V 2200PF J
CM421 CMXM2A222J C MYLAR 100V 2200PF J
CM801 CMXM2A273J C MYLAR 100V 0.027MF J
CM802 CMXM2A273J C MYLAR 100V 0.027MF J
CM803 CMXM2A102J C MYLAR 100V 1000PF J
CM804 CMXM2A102J C MYLAR 100V 1000PF J
CM805 CMXM2A104J C MYLAR 100V 0.1MF J
CM806 CMXM2A104J C MYLAR 100V 0.1MF J
CM807 CMXM2A473J C MYLAR 100V 0.047MF J
CM808 CMXM2A473J C MYLAR 100V 0.047MF J
CM809 CMXM2A104J C MYLAR 100V 0.1MF J
CM905 CMXM2A103J C MYLAR 100V 0.01MF J
CM906 CMXM2A103J C MYLAR 100V 0.01MF J
CM907 CMXM2A104J C MYLAR 100V 0.1MF J
CN401 9736407600 CONN PIN 53095-1310 13PIN BASE
CN402 9736407800 CONN PIN 53095-1010 10PIN BASE
CW101 2503-WR-02 WAFER 2P S2B-XH-A
CW303 2503-WS-07 WAFER 7P 2.5MM KARAOKE
2503-WS-06 WAFER 6P 2.5MM MP3
2503-WS-08 WAFER 8P 2.5MM without MP3
CW603 2503-WS-08 WAFER 8P 2.5MM
CW901 9728804100 CONN AS #22 10P 350MM BOARD-IN
D201 DZN4148--- DIODE IN4148 AUTO 52MM
D400 DZN4148--- DIODE IN4148 AUTO 52MM
CW509
CF001
CF002
CM201
Electrical Parts List
35
Loc. Part Code Part Name Description Option
D401 DZN4148--- DIODE IN4148 AUTO 52MM
D402 DZN4148--- DIODE IN4148 AUTO 52MM
D403 DZN4148--- DIODE IN4148 AUTO 52MM
D801 DZN4148--- DIODE IN4148 AUTO 52MM
D802 DZN4148--- DIODE IN4148 AUTO 52MM
D803 DZN4148--- DIODE IN4148 AUTO 52MM
D804 DZN4148--- DIODE IN4148 AUTO 52MM
D805 DZN4148--- DIODE IN4148 AUTO 52MM
D806 DZN4148--- DIODE IN4148 AUTO 52MM
D807 DZN4148--- DIODE IN4148 AUTO 52MM
D808 DZN4148--- DIODE IN4148 AUTO 52MM
D809 DZN4148--- DIODE IN4148 AUTO 52MM
D901 DRL202---- DIODE RL202
D902 DRL202---- DIODE RL202
D903 DRL202---- DIODE RL202
D904 DRL202---- DIODE RL202
D905 DIN4001--- DIODE IN4001
D906 DIN4001--- DIODE IN4001
D907 DIN4001--- DIODE IN4001
DZ801 DZTZ8R2B-- DIODE ZENER MTZ-8.2B 52MM TAPPING
DZ802 DZTZ8R2B-- DIODE ZENER MTZ-8.2B 52MM TAPPING
DZ901 DZTZ12B--- DIODE ZENER MTZ-12B 52MM TAPPING
DZ902 DZTZ33B--- DIODE ZENER MTZ-33B 52MM TAPPING
DZ903 DZTZ6R2B-- DIODE ZENER MTZ-6.2B 52MM TAPPING
IC201 1BA1450S-- IC BA1450S
IC202 1LC72131D- IC PLL LC72131D
IC204 1LC72723M- IC LC72723M RDS
IC401 1BD3872FS- IC ICBD3872FS
IC402 1BA4560N-- IC BA4560N(H/P AMP)
IC801 1STK411210 IC POWER STK 411-210E
IC901 1L4959---- IC L4959
J001 9736321900 JACK ANT PAT-645
J401 9CD6313700 JACK RCA S-436P
J801 9766319501 JACK HEADPHONE HTJ-064-05B GOLD
J802 9736320500 JACK SPEAKER CJ-9007-040
JW001 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW101 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO EMI
5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM) EMS
JW104 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW105 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW106 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW108 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW109 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW110 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW111 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW112 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW114 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW115 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW116 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW117 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW201 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW202 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW203 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW204 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW205 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW206 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW207 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW208 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW209 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW210 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW211 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW212 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW213 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW214 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW215 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW216 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW217 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW218 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO EMI
JW219 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW220 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO EMI
JW221 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW222 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW223 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW224 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW225 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW226 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW227 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW228 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW229 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW230 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW231 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW232 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW401 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW402 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW403 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW404 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW405 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW406 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW407 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW410 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW411 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW412 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW103
Loc. Part Code Part Name Description Option
JW413 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW414 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW415 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW416 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO without KARAOKE
JW417 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO without KARAOKE
JW418 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW419 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW421 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW422 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW423 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW424 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW425 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW426 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW427 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW428 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW429 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW430 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW431 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW432 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW433 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW434 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW435 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW436 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW437 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW438 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW439 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW440 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW441 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW442 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW443 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW444 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW445 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW447 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW448 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW449 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW450 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW451 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW452 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW453 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW454 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW455 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW456 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW457 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW458 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW459 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW460 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO without PSM
JW801 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW802 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW803 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW804 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW805 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW806 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW807 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW808 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW809 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW810 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW811 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW812 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW813 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW814 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW815 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW816 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW817 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW818 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW819 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW820 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW821 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW822 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW823 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW824 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW825 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW826 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW827 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW828 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW829 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW831 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW832 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW833 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW834 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW835 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW836 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW837 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW839 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW840 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW841 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW842 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW843 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW844 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW845 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW846 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW847 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW902 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW903 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
Electrical Parts List
36
Loc. Part Code Part Name Description Option
JW905 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW906 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW907 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW908 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW909 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW910 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW911 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW912 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW913 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW914 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW915 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW916 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW917 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW919 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW920 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW921 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW922 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW923 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW924 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW925 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW926 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW927 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW928 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW929 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW930 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW931 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW932 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW933 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
L001 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
L101 5LR0000835 AM RF UNIT KSNT-213M-1
L202 5PPCFAZ077 FILTER PCFAZ077
L203 5107FBK473 COIL DESCRIMINATOR 7X7 BLK KSZ-73S
L204 5LC682K822 COIL CHOKE 6.8MH EMI
L205 5LC682K822 COIL CHOKE 6.8MH EMI
L206 5P75J207-- COIL 75J-207 EMS
L207 5P75J207-- COIL 75J-207 EMS
RD-AZ103J- R CARBON FILM 1/6 10K OHM J EMI
5LC213K828 COIL 20.8MH EMS
L251 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
L901 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
L902 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
Q001 TZTC3194Y- TR KTC3194Y (KTC1923Y) AUTO
Q003 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q201 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q202 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q401 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q402 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q403 TZTD1302Y- TR KTD1302Y AUTO
Q404 TZTD1302Y- TR KTD1302Y AUTO
Q803 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q804 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q805 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q806 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q807 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q808 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q809 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q810 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q811 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q812 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q813 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q814 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q815 TZTA1275Y- TR KTA1275-Y (AUTO)
Q816 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q901 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q902 TZTA1046Y- TR KTA1046Y (KTA1366Y) AUTO
Q903 TZRA111M-- TR KRA111M (KSR2010) AUTO
Q904 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q905 TZTA1274Y- TR KTA1274YÂQ906 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q907 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q908 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q909 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
R002 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
RD-AZ470J- R CARBON FILM 1/6 47 OHM J EMI
RD-AZ330J- R CARBON FILM 1/6 33 OHM J EMS
R004 RD-AZ100J- R CARBON FILM 1/6 10 OHM J
R005 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R006 RD-AZ681J- R CARBON FILM 1/6 680 OHM J
R007 RD-AZ331J- R CARBON FILM 1/6 330 OHM J
R008 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R009 RD-AZ100J- R CARBON FILM 1/6 10 OHM J
R101 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R102 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R103 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R104 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R105 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R106 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R107 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R113 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R201 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
RD-AZ183J- R CARBON FILM 1/6 18K OHM J EMI
RD-AZ223J- R CARBON FILM 1/6 22K OHM J EMS
R206 RD-AZ100J- R CARBON FILM 1/6 10 OHM J
R203
R003
L208
Loc. Part Code Part Name Description Option
R207 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R208 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R209 RD-AZ470J- R CARBON FILM 1/6 47 OHM J
R210 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R211 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R212 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R213 RD-AZ103J- R CARBON FILM 1/6 10K OHM J EMI
R214 RD-AZ103J- R CARBON FILM 1/6 10K OHM J EMI
R215 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R216 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R217 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R218 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R219 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R221 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R222 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R223 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R225 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J EMS
R226 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J EMS
R227 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R228 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R251 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R252 RD-AZ470J- R CARBON FILM 1/6 47 OHM J
R253 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R254 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R255 RD-AZ100J- R CARBON FILM 1/6 10 OHM J
R256 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R257 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R258 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R259 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R260 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R261 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R262 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R263 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R264 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R265 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R270 RD-AZ470J- R CARBON FILM 1/6 47 OHM J RDS
R271 RD-AZ103J- R CARBON FILM 1/6 10K OHM J RDS
R272 RD-AZ103J- R CARBON FILM 1/6 10K OHM J RDS
R401 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R402 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R403 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R404 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R409 RD-AZ393J- R CARBON FILM 1/6 39K OHM J
R410 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R411 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R412 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R413 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R414 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R415 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R416 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R417 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R418 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R419 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R420 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R421 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R422 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R423 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R424 RD-AZ393J- R CARBON FILM 1/6 39K OHM J
R425 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R426 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R427 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R428 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R429 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R430 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R431 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R432 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R433 RD-AZ394J- R CARBON FILM 1/6 390K OHM J
R434 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R435 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R436 RD-AZ394J- R CARBON FILM 1/6 390K OHM J
R437 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
R438 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R439 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R440 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R441 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R442 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R443 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R444 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
R445 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R446 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R447 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R448 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R449 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R450 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R451 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R452 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R453 RD-AZ683J- R CARBON FILM 1/6 68K OHM J
R454 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R801 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R802 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R803 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R804 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R805 RD-AZ683J- R CARBON FILM 1/6 68K OHM J
Electrical Parts List
37
Loc. Part Code Part Name Description Option
R806 RD-AZ683J- R CARBON FILM 1/6 68K OHM J
R807 RD-4Z333J- R CARBON FILM 1/4 33K OHM J
R808 RD-4Z683J- R CARBON FILM 1/4 68K OHM J
R809 RX02L228J- R CEMENT 2W 0.22 OHM J
R810 RX02L228J- R CEMENT 2W 0.22 OHM J
R811 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R812 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R813 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R814 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R815 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
R816 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
R817 RD-AZ823J- R CARBON FILM 1/6 82K OHM J
R818 RD-AZ823J- R CARBON FILM 1/6 82K OHM J
R819 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R820 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R821 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R822 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R823 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R824 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R825 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R826 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R827 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R828 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R829 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R830 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R831 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R832 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R833 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R834 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R835 RD01Y101J- R METAL FILM 1W 100 OHM J
R836 RD01Y101J- R METAL FILM 1W 100 OHM J
R837 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R838 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R839 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R840 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R841 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R843 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R844 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
R845 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
R846 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
R847 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
R848 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
R849 RD-4Z689J- R CARBON FILM 1/4 6.8 OHM J
R850 RD-4Z689J- R CARBON FILM 1/4 6.8 OHM J
R851 RD-4Z689J- R CARBON FILM 1/4 6.8 OHM J
R852 RD-4Z689J- R CARBON FILM 1/4 6.8 OHM J
R854 RD-4Z471J- R CARBON FILM 1/4 470 OHM J
R855 RD-4Z471J- R CARBON FILM 1/4 470 OHM J
R856 RD-4Z471J- R CARBON FILM 1/4 470 OHM J
R857 RD-4Z471J- R CARBON FILM 1/4 470 OHM J
R901 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R902 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R903 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R904 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R905 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R906 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R907 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R908 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R909 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R910 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R911 RD-AZ100J- R CARBON FILM 1/6 10 OHM J
R912 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R913 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R914 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R915 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R916 RD-AZ109J- R CARBON FILM 1/6 1 OHM J
R917 RD-AZ109J- R CARBON FILM 1/6 1 OHM J
R919 RD-AZ100J- R CARBON FILM 1/6 10 OHM J
R920 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R921 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R922 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R923 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R924 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R925 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R926 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
RF901 RF01F4780J-32 R FUSIBLE
1W 0.47 OHM J (32X)
RF902 RF01F4780J-32 R FUSIBLE
1W 0.47 OHM J (32X)
RV201 RV6417223- R SEMI FIXED VM6CK-PV(1S) B 22K OHM
RY901 5SC0201103 SW RELAY HR-CR323 2C-1P DC12V
9737613201 TUNER PACK KST-F401VA-3 EMI
9737613501 TUNER PACK KST-F404VA EMS
XC251 5XA7R2000D X-TAL 7.2M
XC270 5XA4R332M- X-TAL 4.332M RDS
Loc. Part Code Part Name Description Option
B801 9CD6589400 PCB MAIN 247X197
CC401 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL) AUX2
CC402 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL) AUX2
CC404 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL)
CC405 CCZB1H101K C CERA HIKB 50V 100PF K (AXIAL)
CC411 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC440 CCZB1H221K C CERA HIKB 50V 220PF K (AXIAL)
TU001
MAIN PCB ASS'Y [9CDC066000] : AXG-328(K)/AXW-328(K) Only
Loc. Part Code Part Name Description Option
CC441 CCZB1H221K C CERA HIKB 50V 220PF K (AXIAL)
CC442 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC443 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC460 CZSL1H220J C CERA SL 50V 22PF J (AXIAL)
CC461 CZSL1H220J C CERA SL 50V 22PF J (AXIAL)
CC801 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC803 CZCH1H309K C CERA CH 50V 3.3PF K (AXIAL)
CC804 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC805 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC806 CZCH1H309K C CERA CH 50V 3.3PF K (AXIAL)
CC808 CCZB1H102K C CERA HIKB 50V 1000PF K (AXIAL)
CC825 CMXM2A103J C MYLAR 100V 0.01MF J
CC826 CMXM2A103J C MYLAR 100V 0.01MF J
CC827 CCZB1H221K C CERA HIKB 50V 220PF K (AXIAL)
CC828 CCZB1H221K C CERA HIKB 50V 220PF K (AXIAL)
CC829 CZCH1H309K C CERA CH 50V 3.3PF K (AXIAL)
CC830 CZCH1H309K C CERA CH 50V 3.3PF K (AXIAL)
CC831 CCZB1H472K C CERA HIKB 50V 4700PF K (AXIAL)
CC832 CCZF1H333Z C CERA HIKF 50V 0.033MF Z (AXIAL)
CC875 CCZB1H331K C CERA HIKB 50V 330PF K (AXIAL)
CC876 CCZB1H221K C CERA HIKB 50V 220PF K (AXIAL)
CC877 CCZB1H331K C CERA HIKB 50V 330PF K (AXIAL)
CC878 CCZB1H221K C CERA HIKB 50V 220PF K (AXIAL)
CC879 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC880 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC881 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC901 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC902 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC903 CCZF1E223Z C CERA HIKF 25V 0.022MF Z (AXIAL)
CC904 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC905 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC906 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC908 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CC911 CCZF1H473Z C CERA HIKF 50V 0.047MF Z (AXIAL)
CC931 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC932 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC933 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CC934 CCZF1E103Z C CERA HIKF 25V 0.01MF Z (AXIAL)
CE410 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE411 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE412 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE413 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE414 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE415 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE416 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE417 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE418 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE419 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE420 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE421 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE422 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE423 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE424 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE425 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE426 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE427 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE428 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE440 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE441 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE442 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE443 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE444 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE460 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE461 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE462 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE463 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE475 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
CE476 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
CE477 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE478 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE479 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE480 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE481 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE482 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE495 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE496 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE801 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE802 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE803 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE804 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
CE805 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE806 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE807 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
CE808 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE809 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE810 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE825 CEXF1J101V C ELECTRO 63V RSS 100MF (6.3X11) TP
CE826 CEXF1J101V C ELECTRO 63V RSS 100MF (6.3X11) TP
CE827 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE828 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE829 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE830 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE831 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
Electrical Parts List
38
Loc. Part Code Part Name Description Option
CE832 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE833 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE834 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE835 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE836 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE837 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE838 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE855 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE856 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE875 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE876 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE877 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE878 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE901 CEXF1K562V C ELECTRO RSS 80V 5600MF (5600/75V)
CE902 CEXF1K562V C ELECTRO RSS 80V 5600MF (5600/75V)
CE903 CEXF1H332V C ELECTRO RSS 50V 3300MF 26*41
CE904 CEXF1H332V C ELECTRO RSS 50V 3300MF 26*41
CE907 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
CE908 CEXF1E102V C ELECTRO 25V RSS 1000MF (13X20) TP
CE909 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE911 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CE912 CEXF1H101V C ELECTRO 50V RSS 100MF (8X11.5) TP
CE913 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CE914 CEXF1H470V C ELECTRO 50V RSS 47MF (6.3X11) TP
CE915 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE916 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE931 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE932 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE933 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE934 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CM410 CMXM2A102J C MYLAR 100V 1000PF J
CM411 CMXM2A223J C MYLAR 100V 0.022MF J
CM412 CMXM2A102J C MYLAR 100V 1000PF J
CM413 CMXM2A104J C MYLAR 100V 0.1MF J
CM414 CMXM2A104J C MYLAR 100V 0.1MF J
CM415 CMXM2A104J C MYLAR 100V 0.1MF J
CM416 CMXM2A104J C MYLAR 100V 0.1MF J
CM417 CMXM2A334J C MYLAR 100V 0.33MF J
CM420 CMXM2A222J C MYLAR 100V 2200PF J
CM421 CMXM2A222J C MYLAR 100V 2200PF J
CM460 CMXM2A333J C MYLAR 100V 0.033MF J
CM461 CMXM2A333J C MYLAR 100V 0.033MF J
CM462 CMXM2A333J C MYLAR 100V 0.033MF J
CM463 CMXM2A333J C MYLAR 100V 0.033MF J
CM475 CMXM2A273J C MYLAR 100V 0.027MF J
CM476 CMXM2A273J C MYLAR 100V 0.027MF J
CM477 CMXM2A273J C MYLAR 100V 0.027MF J
CM478 CMXM2A562J C MYLAR 100V 5600PF J
CM479 CMXM2A273J C MYLAR 100V 0.027MF J
CM480 CMXM2A273J C MYLAR 100V 0.027MF J
CM481 CMXM2A562J C MYLAR 100V 5600PF J
CM482 CMXM2A273J C MYLAR 100V 0.027MF J
CM801B CMXM2A104J C MYLAR 100V 0.1MF J
CM802B CMXM2A104J C MYLAR 100V 0.1MF J
CM805 CMXM2A104J C MYLAR 100V 0.1MF J
CM806 CMXM2A104J C MYLAR 100V 0.1MF J
CM825 CMXM2A102J C MYLAR 100V 1000PF J
CM826 CMXM2A102J C MYLAR 100V 1000PF J
CM827 CMXM2A104J C MYLAR 100V 0.1MF J
CM828 CMXM2A273J C MYLAR 100V 0.027MF J
CM829 CMXM2A273J C MYLAR 100V 0.027MF J
CM905 CMXM2A103J C MYLAR 100V 0.01MF J
CM906 CMXM2A103J C MYLAR 100V 0.01MF J
CM907 CMXM2A104J C MYLAR 100V 0.1MF J
CN201 9728819200 C MYLAR UL1007 #24 12P 250MM
CN401 9736407600 C MYLAR 53095-1310 13PIN BASE
CN402 9736407800 C MYLAR 53095-1010 10PIN BASE
CW905 2503-WS-02 WAFER 2P 2.5MM
CW303 2503-WS-05 WAFER 2503-WS-07 7P 2.5MM KARAOKE
2503-WS-06 WAFER 6P 2.5MM MP3
2503-WS-08 WAFER 8P 2.5MM without MP3
CW603 2503-WS-08 WAFER 8P 2.5MM
CW901 9728804100 CONN AS #22 10P P2.5 350 BOARD-IN
D400 DZN4148--- DIODE IN4148 AUTO 52MM
D495 DZN4148--- DIODE IN4148 AUTO 52MM
D496 DZN4148--- DIODE IN4148 AUTO 52MM
D825 DZN4148--- DIODE IN4148 AUTO 52MM
D826 DZN4148--- DIODE IN4148 AUTO 52MM
D827 DZN4148--- DIODE IN4148 AUTO 52MM
D828 DZN4148--- DIODE IN4148 AUTO 52MM
D829 DZN4148--- DIODE IN4148 AUTO 52MM
D830 DZN4148--- DIODE IN4148 AUTO 52MM
D831 DZN4148--- DIODE IN4148 AUTO 52MM
D832 DZN4148--- DIODE IN4148 AUTO 52MM
D833 DZN4148--- DIODE IN4148 AUTO 52MM
D834 DZN4148--- DIODE IN4148 AUTO 52MM
D835 DZN4148--- DIODE IN4148 AUTO 52MM
D836 DZN4148--- DIODE IN4148 AUTO 52MM
D870 DZN4148--- DIODE IN4148 AUTO 52MM
D901 DRL202---- DIODE RL202
D902 DRL202---- DIODE RL202
D903 DRL202---- DIODE RL202
D904 DRL202---- DIODE RL202
CW509
Loc. Part Code Part Name Description Option
JW874 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW875 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW876 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW877 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW880 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW881 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW882 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW883 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW884 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW885 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW886 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW887 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW888 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW889 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW890 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW891 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW892 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW893 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW894 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW895 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW896 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW897 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW898 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW899 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW900 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW901 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW902 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW903 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW904 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW905 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW906 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW907 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW908 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW909 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW910 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW911 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW912 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW913 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW914 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW915 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW916 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW917 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW918 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW919 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW920 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW921 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW922 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW923 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW924 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW925 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW926 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW927 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW928 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW929 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW930 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW931 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW932 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW933 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
Q460 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q461 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q462 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q495 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q499 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q801 TZTD1302Y- TR KTD1302Y AUTO
Q807 TZTD1302Y- TR KTD1302Y AUTO
Q827 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q828 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q829 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q830 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q831 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q832 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q833 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q834 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q835 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q836 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q837 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q838 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q839 TZTD1302Y- TR KTD1302Y AUTO
Q840 TZTD1302Y- TR KTD1302Y AUTO
Q875 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q876 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q877 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q878 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q901 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q902 TZTA1046Y- TR KTA1046Y (KTA1366Y) AUTO
Q903 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q904 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006
Q905 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q911 TZTA1274Y- TR KTA1274YÂQ920 TZTC3205Y- TR KTC3205Y (KTC2236Y) AUTO
Q921 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
R401 RD-AZ103J- R CARBON FILM 1/6 10K OHM J AUX2
R402 RD-AZ103J- R CARBON FILM 1/6 10K OHM J AUX2
Electrical Parts List
39
Loc. Part Code Part Name Description Option
JW874 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW875 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW876 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW877 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW880 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW881 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW882 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW883 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW884 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW885 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW886 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW887 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW888 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW889 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW890 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW891 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW892 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW893 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW894 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW895 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW896 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW897 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW898 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW899 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW900 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW901 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW902 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW903 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW904 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW905 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW906 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW907 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW908 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW909 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW910 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW911 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW912 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW913 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW914 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW915 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW916 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW917 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW918 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW919 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW920 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW921 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW922 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW923 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW924 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW925 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW926 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW927 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW928 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW929 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW930 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW931 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW932 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW933 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
Q460 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q461 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q462 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q495 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q499 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q801 TZTD1302Y- TR KTD1302Y AUTO
Q807 TZTD1302Y- TR KTD1302Y AUTO
Q827 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q828 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q829 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q830 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q831 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q832 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q833 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q834 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q835 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q836 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q837 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q838 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q839 TZTD1302Y- TR KTD1302Y AUTO
Q840 TZTD1302Y- TR KTD1302Y AUTO
Q875 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q876 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q877 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q878 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q901 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q902 TZTA1046Y- TR KTA1046Y (KTA1366Y) AUTO
Q903 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q904 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006
Q905 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q911 TZTA1274Y- TR KTA1274YÂQ920 TZTC3205Y- TR KTC3205Y (KTC2236Y) AUTO
Q921 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
R401 RD-AZ103J- R CARBON FILM 1/6 10K OHM J AUX2
R402 RD-AZ103J- R CARBON FILM 1/6 10K OHM J AUX2
Loc. Part Code Part Name Description Option
R403 RD-AZ153J- R CARBON FILM 1/6 15K OHM J AUX2
R404 RD-AZ153J- R CARBON FILM 1/6 15K OHM J AUX2
R405 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R406 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R407 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R408 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R410 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R411 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R412 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R413 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R414 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R415 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R416 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R417 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R418 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R419 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R420 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R421 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R422 RD-AZ393J- R CARBON FILM 1/6 39K OHM J
R423 RD-AZ393J- R CARBON FILM 1/6 39K OHM J
R424 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R425 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R426 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R427 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R428 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R429 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R430 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R431 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
R432 RD-AZ224J- R CARBON FILM 1/6 220K OHM J
R433 RD-AZ394J- R CARBON FILM 1/6 390K OHM J
R434 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R435 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R436 RD-AZ394J- R CARBON FILM 1/6 390K OHM J
R437 RD-AZ683J- R CARBON FILM 1/6 68K OHM J
R438 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R439 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R440 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R441 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R442 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R443 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R444 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R445 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R446 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R447 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R448 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R449 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R450 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R451 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R452 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R453 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R454 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R455 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R456 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R460 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R461 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R462 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R463 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R464 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R465 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R466 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R467 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R468 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R469 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R470 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R471 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R472 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R473 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R475 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R476 RD-AZ274J- R CARBON FILM 1/6 270K OHM J
R477 RD-AZ274J- R CARBON FILM 1/6 270K OHM J
R478 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R479 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R480 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R481 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R482 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R483 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R484 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R485 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R486 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R487 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R488 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R489 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R490 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R491 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R492 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R493 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R494 RD-4Z220J- R CARBON FILM 1/4 22 OHM J
R495 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R496 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R497 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R498 RD-AZ271J- R CARBON FILM 1/6 270 OHM J
R499 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R499A RD-AZ563J- R CARBON FILM 1/6 56K OHM J
Electrical Parts List
40
Loc. Part Code Part Name Description Option
R801 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R802 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R803 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R804 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R805 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R806 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R807 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R808 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
R809 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
R810 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R811 RD-4Z101J- R CARBON FILM 1/4 100 OHM J
R812 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R813 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R814 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R815 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R816B RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
R821B RD-4Z479J- R CARBON FILM 1/4 4.7 OHM J
R822 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R823 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R825 RD01Y101J- R METAL FILM 1W 100 OHM J
R826 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R827 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R828 RD01Y101J- R METAL FILM 1W 100 OHM J
R829 RD-4Z333J- R CARBON FILM 1/4 33K OHM J
R830 RD-AZ683J- R CARBON FILM 1/6 68K OHM J
R831 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R832 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R833 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R834 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J
R835 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R836 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R837 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R838 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R839 RD-AZ823J- R CARBON FILM 1/6 82K OHM J
R840 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R841 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R842 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R843 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R844 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R845 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R846 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R849 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R850 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R851 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R852 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R853 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R854 RD-AZ220J- R CARBON FILM 1/6 22 OHM J
R855 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R856 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R857 RD-AZ823J- R CARBON FILM 1/6 82K OHM J
R858 RX02L228J- R CEMENT 2W 0.22 OHM J
R859 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R860 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R861 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R862 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
R863 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R864 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
R865 RD-AZ273J- R CARBON FILM 1/6 27K OHM J
R866 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R867 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R868 RD-AZ272J- R CARBON FILM 1/6 2.7K OHM J
R869 RX02L228J- R CEMENT 2W 0.22 OHM J
R870 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R871 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R875 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R876 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R877 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R878 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R879 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R880 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R881 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R882 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R883 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R884 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
R885 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R886 RD-AZ333J- R CARBON FILM 1/6 33K OHM J
R890 RD-4Z689J- R CARBON FILM 1/4 6.8 OHM J
R891 RD-4Z689J- R CARBON FILM 1/4 6.8 OHM J
R892 RD-4Z689J- R CARBON FILM 1/4 6.8 OHM J
R893 RD-4Z689J- R CARBON FILM 1/4 6.8 OHM J
R901 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R902 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R903 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
R904 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R911 RD-AZ100J- R CARBON FILM 1/6 10 OHM J
R912 RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J
R913 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R914 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R915 RD-AZ221J- R CARBON FILM 1/6 220 OHM J
R916 RD-AZ109J- R CARBON FILM 1/6 1 OHM J
R917 RD-AZ109J- R CARBON FILM 1/6 1 OHM J
R920 RD-2Z100J- R CARBON FILM 1/2 10 OHM J
R921 RD-AZ222J- R CARBON FILM 1/6 2.2K OHM J
Loc. Part Code Part Name Description Option
R922 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R923 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R931 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R932 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R933 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R934 RD-AZ223J- R CARBON FILM 1/6 22K OHM J
R935 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
R936 RD-AZ473J- R CARBON FILM 1/6 47K OHM J
RF901 RF01F4780J-32 R FUSIBLE
1W 0.47 OHM J (32X)
RF902 RF01F4780J-32 R FUSIBLE
1W 0.47 OHM J (32X)
RY920 5SC0201103 SW RELAY HR-CR323 2C-1P DC12V
RY921 5SC0201103 SW RELAY HR-CR323 2C-1P DC12V
10 9738101500 DC FAN SP601012M
Loc. Part Code Part Name Description Option
B001 9CD6590200 PCB TUNER 122X163
CE001 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE101 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE102 CEXF1E221V C ELECTRO 25V RSS 220MF (8X12) TP
CE201 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE202 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE203 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE204 CEXF1H220V C ELECTRO 50V RSS 22MF (5X11) TP
CE205 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE206 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE207 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE208 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE209 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE210 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE211 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE212 CEXF1H228V C ELECTRO 50V RSS 0.22MF (5X11) TP
CE213 CEXF1E221V C ELECTRO 25V RSS 220MF (8X12) TP
CE214 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE215 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE270 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP RDS
CE272 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP RDS
5PLT107MJA FILTER CERA LT10.7MJA10 EMS
5PLT107MS3 FILTER CERA LT10.7MS3 EMI
5PLT107MJA FILTER CERA LT10.7MJA10 EMS
5PLT107MS3 FILTER CERA LT10.7MS3 EMI
CMXM2A223J C MYLAR 100V 0.022MF J EMS
CMXM1H183J C MYLAR 50V 1800PF J EMI
CM202 CMXM2A103J C MYLAR 100V 0.01MF J
CM203 CMXM2A103J C MYLAR 100V 0.01MF J
CM204 CMXM2A103J C MYLAR 100V 0.01MF J EMI
CM205 CMXM2A103J C MYLAR 100V 0.01MF J EMI
CM206 CMXM2A562J C MYLAR 100V 5600PF J EMI
CM207 CMXM2A562J C MYLAR 100V 5600PF J EMI
CM208 CMXM2A822J C MYLAR 100V 8200PF J EMS
CM209 CMXM2A822J C MYLAR 100V 8200PF J EMS
CW101 2503-WR-02 WAFER 2P S2B-XH-A
CW201 2001-WS-12 WAFER 12P 2.0MM
D201 DZN4148--- DIODE IN4148 AUTO 52MM
DZ201 DZTZ5R6B-- DIODE ZENER MTZ-5.6B 52MM TAPPING
HC000 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
HC001 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC002 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC004 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC005 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC006 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC101 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC102 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC103 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC104 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
HC201 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC202 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC203 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HCQK101JBA C CHIP CERA 50V CH 100PF J 1608 EMS
HCBK682KBA C CHIP CERA 50V X7R 6800PF J 1608 EMI
HC206 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC207 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC208 HCQK471JBA C CHIP CERA 50V CH 470PF J 1608 EMS
HC209 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC210 HCQK561JBA C CHIP CERA 50V CH 560PF K 1608 EMI
HC211 HCQK561JBA C CHIP CERA 50V CH 560PF K 1608 EMI
HC212 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
HC213 HCBK472KBA C CHIP CERA 50V X7R 4700PF K 1608
HC251 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC252 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC253 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC254 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC255 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
HC256 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
HC270 HCQK331JBA C CHIP CERA 50V CH 330PF J 1608 RDS
HC271 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 RDS
HC272 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 RDS
HC274 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608 RDS
HC276 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 RDS
HC277 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 RDS
HQ003 TZRA107S-- TR CHIP KRA107S
HQ201 TZTC3875S- TR CHIP KTC3875Y
HQ202 TZTC3875S- TR CHIP KTC3875Y
TUNER PCB ASS'Y [9CDC066400] : AXG-328(K)/AXW-328(K) Only
CF001
CF002
CM201
HC204
Electrical Parts List
41
Loc. Part Code Part Name Description Option
HRFT330JBA R CHIP 1/10 33 OHM J 1608 EMS
HRFT470JBA R CHIP 1/10 47 OHM J 1608 EMI
HR004 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR005 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR006 HRFT681JBA R CHIP 1/10 680 OHM J 1608
HR007 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR008 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR009 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR101 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR102 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR103 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR104 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR105 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR106 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR107 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR113 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR201 HRFT183JBA R CHIP 1/10 18K OHM J 1608
HRFT223JBA R CHIP 1/10 22K OHM J 1608 EMS
HRFT183JBA R CHIP 1/10 18K OHM J 1608 EMI
HR206 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR207 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR208 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR209 HRFT470JBA R CHIP 1/10 47 OHM J 1608
HR210 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR211 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR212 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR213 HRFT103JBA R CHIP 1/10 10K OHM J 1608 EMI
HR214 HRFT103JBA R CHIP 1/10 10K OHM J 1608 EMI
HR215 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR216 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR217 HRFT474JBA R CHIP 1/10 470K OHM J 1608
HR218 HRFT474JBA R CHIP 1/10 470K OHM J 1608
HR219 HRFT682JBA R CHIP 1/10 6.8K OHM J 1608
HR221 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608
HR222 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
HR223 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
HR225 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 EMS
HR226 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 EMS
HR227 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR228 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR229 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR251 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR252 HRFT470JBA R CHIP 1/10 47 OHM J 1608
HR253 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR254 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR255 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR256 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR257 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR258 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR259 HRFT123JBA R CHIP 1/10 12K OHM J 1608
HR260 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR261 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR262 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR263 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR264 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR265 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR270 HRFT470JBA R CHIP 1/10 47 OHM J 1608 RDS
HR271 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RDS
HR272 HRFT103JBA R CHIP 1/10 10K OHM J 1608 RDS
IC201 1BA1450S-- IC BA1450S
IC202 1LC72131D- IC PLL LC72131D
IC204 1LC72723M- IC LC72723M RDS
J001 9736326000 JACK ANT
A
J-01 ( )
JW001 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW201 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW202 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW203 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW204 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW205 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW206 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW207 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW208 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW209 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW210 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW211 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW212 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW213 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO EMS
JW214 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO EMS
JW215 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW216 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW217 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW218 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO EMI
JW219 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW220 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO EMI
JW221 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW222 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW223 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW224 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW225 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW226 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW227 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW228 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW229 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
HR003
HR203
Loc. Part Code Part Name Description Option
JW230 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW231 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW232 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW233 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW234 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW235 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW236 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW237 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW238 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW239 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW240 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW241 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW242 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW243 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW244 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW246 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW247 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
L001 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
L101 5LR0000835 AM RF UNIT KSNT 213M-1
L202 5PPCFAZ077 FILTER PCFAZ077
L203 5107FBK473 COIL DESCRIMINATOR 7X7 BLK KSZ-73S
L204 5LC682K822 COIL CHOKE 6.8MH EMI
L205 5LC682K822 COIL CHOKE 6.8MH EMI
L206 5P75J207-- COIL 75J-207 EMS
L207 5P75J207-- COIL 75J-207 EMS
5LC213K828 COIL 20.8MH EMS
RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J EMI
L251 5CPZ100K02 COIL PEAKING 10UH K (AXIAL 3.5MM)
Q001 TZTC3194Y- TR KTC3194Y (KTC1923Y) AUTO
RV201 RV6417223- R SEMI FIXED VM6CK-PV(1S) B 22K OHM
9737613501 TUNER PACK KST-F404VA EMS
9737613201 TUNER PACK KST-F401VA-3 EMI
XC251 5XA7R2000D X-TAL 7.2M
XC270 5XA4R332M- X-TAL 4.332MHz RDS
Loc. Part Code Part Name Description Option
B001 9CD6580503 PCB OPTICAL 29X21X1.6T
CC561 CCZF1H104Z C CERA HIKF 50V 0.1MF Z (AXIAL)
CN509 2503-WS-03 WAFER 3P 2.5MM
IC507 1TXOC0805- IC TX OC0805-TX
JW581 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
Loc. Part Code Part Name Description Option
B001 9CD6588600 PCB MP3CD 110X110
CE501 CEXF1E330V C ELECTRO 25V RSS 33MF (5X11) TP
CE502 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE503 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE504 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE505 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
CE506 CEXF1H478V C ELECTRO 50V RSS 0.47MF (5X11) TP
CE507 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE508 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE509 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE510 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE511 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE512 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE514 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20)
CE515 CEXF1C102V C ELECTRO 16V RSS 1000MF (10X20)
CE516 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE517 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE518 CEXF1C101V C ELECTRO 16V RSS 100MF (6.3X11) TP
CE520 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE524 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE525 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CN501 9738840800 CONN AS FFC 16P P1.0X250MM R
CN504 9728816700 CONN AS FFC 7P P1.25X120MM R
CN505 9728816800 CONN AS #24 3P+UL1007 SHIELD 3P 250MM
CN506 9738841800 CONN AS UL 2468 #26 500MM 2.5 OPTICAL OUT
CW501 9CD6259300 WAFER 52807-1610 SID ENTRY
CW502 2001-WS-06 WAFER 6P 2.0MM
CW503 2001-WS-12 WAFER 12P 2.0MM
CW504 9CD6260300 WAFER 52045-0745 TOP EMTRY
DZ501 DZTZ5R6B-- DIODE ZENER MTZ-5.6B 52MM TAPPING
HC501 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC502 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC503 HCQK409DBA C CHIP CERA 50V CH 4PF D 1608
HC504 HCBK562KBA C CHIP CERA 50V X7R 5600PF K 1608
HC505 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC508 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC509 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC510 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC511 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC512 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
HC513 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC514 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC515 HCBK683KBA C CHIP CERA 50V X7R 0.068MF K 1608
HC516 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC517 HCQK391JBA C CHIP CERA 50V CH 390PF J 1608
HC518 HCQK681JBA C CHIP CERA 50V CH 680PF J 1608
HC519 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC520 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
OPTICAL JACK PCB ASS'Y [9CDC050700] : Optional
L208
TU001
MP3CD PCB ASS'Y [9CDC063500] : AXG-327(K)/AXG-328(K) Only
Electrical Parts List
42
Loc. Part Code Part Name Description Option
HC521 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC522 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC523 HCBK682KBA C CHIP CERA 50V X7R 6800PF K 1608
HC524 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC525 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC526 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC527 HCBK473KBA C CHIP CERA 50V X7R 0.047MF K 1608
HC530 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC532 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC533 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC534 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC535 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC536 HCBK222KBA C CHIP CERA 50V X7R 2200PF K 1608
HC538 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC539 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC540 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC541 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC542 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC543 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC544 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC545 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC546 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC547 HCBK103KBA C CHIP CERA 50V X7R 0.01MF K 1608
HC548 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC549 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC550 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC551 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC553 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC554 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC555 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC556 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608
HC557 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC559 HCBK563KBA C CHIP CERA 50V X7R 0.056MF K 1608
HC560 HCBK563KBA C CHIP CERA 50V X7R 0.056MF K 1608
HC561 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC562 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC565 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC566 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC567 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC568 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC569 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC570 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC571 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
AXG/AXW-327(K)
OPTICALOUT EMI
HR501 HRFT220JBA R CHIP 1/10W 22 OHM J 1608
HR502 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR503 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR504 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR505 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR506 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR507 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR508 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR509 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR510 HRFT822JBA R CHIP 1/10 8.2K OHM J 1608
HR511 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR514 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR515 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR516 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR517 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR518 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR519 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR523 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR524 HRFT822JBA R CHIP 1/10 8.2K OHM J 1608
HR525 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR526 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR527 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR528 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR529 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR530 HRFT563JBA R CHIP 1/10 56K OHM J 1608
HR531 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR532 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR533 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR534 HRFT124JBA R CHIP 1/10 120K OHM J 1608
HR535 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR536 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR537 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR538 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR539 HRFT823JBA R CHIP 1/10 82K OHM J 1608
HR540 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR541 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR542 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR543 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR544 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR545 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR546 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR548 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR550 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR551 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR552 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR553 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR554 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR555 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR556 HRF4150JEA R CHIP 1/4 15 OHM J 3216
Loc. Part Code Part Name Description Option
HR557 HRF4150JEA R CHIP 1/4 15 OHM J 3216
HR558 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR559 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR560 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR561 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR562 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR563 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR564 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR565 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR566 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR567 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR568 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR569 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR570 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR571 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR572 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR573 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR575 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR576 HRFT121JBA R CHIP 1/10 120 OHM J 1608
HR577 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR581 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR582 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR583 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR584 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR585 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR586 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR587 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR588 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR589 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR590 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
HR591 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR592 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR593 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR594 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR595 HRFT105JBA R CHIP 1/10 1M OHM J 1608
HR596 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR597 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR598 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR599 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR600 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR601 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR602 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR603 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR604 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR605 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR606 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR609 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR610 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR611 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR612 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR613 HRFT223JBA R CHIP 1/10 22K OHM J 1608
HR614 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR615 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR616 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR617 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR618 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR619 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR620 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR621 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR622 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR623 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR624 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR625 HRF4150JEA R CHIP 1/4 15 OHM J 3216
HR626 HRF4150JEA R CHIP 1/4 15 OHM J 3216
HR627 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR628 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR629 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR630 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR631 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR632 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR633 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR634 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR635 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR636 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR637 HRFT102JBA R CHIP 1/10 1K OHM J 1608
IC501 1S1L9226-- IC SSP S1L9226
IC502 1S5L9290-- IC DSP S5L9290
IC503 1BA5939S-- IC MOTOR DRIVE BA5939S
IC504 1S3C825-1- IC S3C825-1
IC505 1TMD2104-- IC TMD2104
IC506 1HY57V1616 IC SDRAM HY57V1616
IC507 1TC74HCT04AF IC TC74HCT04AF
IC508 1LD1117S33 IC REGULATOR LD117AS33TR 3.3V (TO-223)
IC509 1LD1117S33 IC REGULATOR LD117AS33TR 3.3V (TO-223)
IC510 1LD1117S33 IC REGULATOR LD117AS33TR 3.3V (TO-223)
IC511 1LD1117S33 IC REGULATOR LD117AS33TR 3.3V (TO-223)
L501 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
L502 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
L503 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
L504 HLC104J01A COIL CHIP BEAD 120 OHM 100MHZ 2012
Q501 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q502 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q503 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Electrical Parts List
43
Loc. Part Code Part Name Description Option
Q504 TZTC3205Y- TR KTC3205Y (KTC2236Y) AUTO
XC501 5PQZTT1693 RESONATOR CERA QZTT16.93MMX(3PIN)
XC502 5PCSA8MTZ- RESONATOR CSALA8M00T55-B0 (8.00MTZ)
XC503 5PQZTT1693 RESONATOR CERA QZTT16.93MMX(3PIN)
Loc. Part Code Part Name Description Option
B001 9CD6584200-04 PCB TAPE(PIGEON) 247X139X1.6T (1/2)
CC601 CCFB1H821K C CERA HIKB 50V 820PF K (FORMING)
CC602 CCFB1H821K C CERA HIKB 50V 820PF K (FORMING)
CC603 CCFB1H821K C CERA HIKB 50V 820PF K (FORMING)
CC604 CCFB1H821K C CERA HIKB 50V 820PF K (FORMING)
CC605 CCFB1H821K C CERA HIKB 50V 820PF K (FORMING)
CC606 CCFB1H821K C CERA HIKB 50V 820PF K (FORMING)
CC607 CCFB1H821K C CERA HIKB 50V 820PF K (FORMING)
CC608 CCFB1H821K C CERA HIKB 50V 820PF K (FORMING)
CC609 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING)
CC611 CFSL1H470J C CERA SL 50V 47PF J (FORMING)
CC612 CFSL1H470J C CERA SL 50V 47PF J (FORMING)
CC613 CCFB1H121K C CERA HIKB 50V 120PF K (FORMING)
CC614 CCFB1H121K C CERA HIKB 50V 120PF K (FORMING)
CC615 CCFB1H331K C CERA HIKB 50V 330PF K (FORMING) FTZ
CC616 CCFB1H331K C CERA HIKB 50V 330PF K (FORMING) FTZ
CC617 CCFB1H331K C CERA HIKB 50V 330PF K (FORMING) FTZ
CC618 CCFB1H331K C CERA HIKB 50V 330PF K (FORMING) FTZ
CE601 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE602 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE603 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE604 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE605 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE606 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE607 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE608 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE609 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE610 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE611 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE612 CEXF1H479V C ELECTRO 50V RSS 4.7MF (5X11) TP
CE613 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11)
CE614 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11)
CE615 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE616 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE617 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE618 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE619 CEXF1E220V C ELECTRO 25V RSS 22MF 5X11
CE620 CEXF1H108V C ELECTRO 50V RSS 0.1MF (5X11)
CE621 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE631 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE632 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP
CE633 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE634 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE635 CEXF1H339V C ELECTRO 50V RSS 3.3MF (5X11) TP
CE636 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CM601 CMXM2A273J C MYLAR 100V 0.027MF J
CM602 CMXM2A273J C MYLAR 100V 0.027MF J
CM603 CMXM2A183J C MYLAR 100V 0.018MF J
CM604 CMXM2A183J C MYLAR 100V 0.018MF J
CM605 CMXM2A152J C MYLAR 100V 1500PF J
CM606 CMXM2A152J C MYLAR 100V 1500PF J
CM607 CMXM2A103J C MYLAR 100V 0.01MF J
CM608 CMXM2A103J C MYLAR 100V 0.01MF J
CM611 CMXM2A102J C MYLAR 100V 1000PF J
CM612 CMXM2A102J C MYLAR 100V 1000PF J
CM613 CMXM2A102J C MYLAR 100V 1000PF J
CM614 CMXM2A102J C MYLAR 100V 1000PF J
CM615 CMXM2A332J C MYLAR 100V 3300PF J
CM616 CMXM2A332J C MYLAR 100V 3300PF J
CM617 CMXM2A223J C MYLAR 100V 0.022MF J
CM618 CMXM2A332J C MYLAR 100V 3300PF J
CN601 9738828700 CONN AS AWG28 3P SHIELD 220MM
CN602 9738828801 CONN AS AWG28 7P SHIELD 120MM
CN603 9728814000 CONN AS UL2547 1533 8P 220MM
CW601 2503-WS-03 WAFER 3P 2.5MM
CW602 2503-WS-07 WAFER 7P 2.5MM
CW701 2001-WS-10 WAFER 10P 2.0MM
D606 DZN4148--- DIODE IN4148 AUTO 52MM
D607 DZN4148--- DIODE IN4148 AUTO 52MM
D608 DZN4148--- DIODE IN4148 AUTO 52MM
IC601 1M51167BFP IC M51167BFP (SOP36S)
IC602 1BA3126N-- IC BA3126N
IC603 1F4094BM1T IC HCF4094M013TR
JW601 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW602 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW603 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW604 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW606 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW607 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW608 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW609 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW610 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW611 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW612 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW613 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW614 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
TAPE PCB ASS'Y [9CDC050504] : AXG-327(K)/328(K)/AXW327(K)/328(K) Only
Loc. Part Code Part Name Description Option
JW615 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW617 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
L601 5LC333K804 COIL CHOKE 33MH K
L602 5LC333K804 COIL CHOKE 33MH K
L603 5L0503K643 COIL BIAS OSC SM-10F 5.04MH
Q601 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q602 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q605 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q606 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q607 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q608 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q611 TZTD1302Y- TR KTD1302Y AUTO
Q612 TZTD1302Y- TR KTD1302Y AUTO
Q613 TZRA111M-- TR KRA111M (KSR2010) AUTO
Q614 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q615 TZRA107M-- TR KRA107M (KSR2006) AUTO
Q621 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q622 TZTC3198Y- TR KTC3198Y (2SC5343) AUTO
Q623 TZRA111M-- TR KRA111M (KSR2010) AUTO
Q624 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q625 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
Q628 TZTC3205Y- TR KTC3205Y (KTC2236Y) AUTO
Q637 TZSA1980Y- TR 2SA1980Y (KTA1266Y) AUTO
Q638 TZRC111M-- TR KRC111M (DTC114TS) (KSR1010)
R601 RD-AZ680J- R CARBON FILM 1/6 68 OHM J
R602 RD-AZ680J- R CARBON FILM 1/6 68 OHM J
R603 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R604 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R605 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R606 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R607 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R608 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R609 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R610 RD-AZ152J- R CARBON FILM 1/6 1.5K OHM J
R611 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R612 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R613 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R614 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R615 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R616 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R617 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R618 RD-AZ562J- R CARBON FILM 1/6 5.6K OHM J
R619 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R620 RD-AZ123J- R CARBON FILM 1/6 12K OHM J
R621 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R622 RD-AZ183J- R CARBON FILM 1/6 18K OHM J
R625 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R626 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R627 RD-AZ274J- R CARBON FILM 1/6 270K OHM J
R628 RD-AZ274J- R CARBON FILM 1/6 270K OHM J
R629 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R630 RD-AZ561J- R CARBON FILM 1/6 560 OHM J
R631 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R632 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R633 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R634 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R635 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R638 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R639 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
R640 RD-AZ471J- R CARBON FILM 1/6 470 OHM J
R641 RD-AZ105J- R CARBON FILM 1/6 1M OHM J
R642 RD-AZ474J- R CARBON FILM 1/6 470K OHM J
R643 RD-AZ101J- R CARBON FILM 1/6 100 OHM J
R644 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R645 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R646 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R647 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R649 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R650 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R651 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R652 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R653 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R654 RD-AZ153J- R CARBON FILM 1/6 15K OHM J
R655 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R656 RD-4Z121J- R CARBON FILM 1/4 120 OHM J
R658 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R659 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R660 RD-AZ479J- R CARBON FILM 1/6 4.7 OHM J
R661 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R662 RD-AZ563J- R CARBON FILM 1/6 56K OHM J
R663 RD-AZ470J- R CARBON FILM 1/6 47 OHM J
R665 RD-AZ472J- R CARBON FILM 1/6 4.7K OHM J
R671 RD-AZ390J- R CARBON FILM 1/6 39 OHM J
R672 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R673 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R674 RD-AZ102J- R CARBON FILM 1/6 1K OHM J
R675 RD-AZ103J- R CARBON FILM 1/6 10K OHM J
R686 RD-AZ332J- R CARBON FILM 1/6 3.3K OHM J
R687 RD-AZ392J- R CARBON FILM 1/6 3.9K OHM J
R688 RD-AZ821J- R CARBON FILM 1/6 820 OHM J
R689 RD-AZ682J- R CARBON FILM 1/6 6.8K OHM J
R690 RD-AZ104J- R CARBON FILM 1/6 100K OHM J
RV601 RV1417222- R SEMI FIXED 1/10 2.2K OHM B V6EK-PV1S
Electrical Parts List
44
Loc. Part Code Part Name Description Option
10 9CD2506300 GUIDE FLT ABS B.K 10.7G
B701 9CD6589100 PCB FRONT 247X139X1.6T
CE701 CEXF1H109V C ELECTRO 50V RSS 1MF (5X11) TP
CE702 CEXF1A102V C ELECTRO 10V RSS 1000MF (8X12.5)
CE703 CEXF1E101V C ELECTRO 25V RSS 100MF (6.3X11) TP
CE704 CEXF1H100V C ELECTRO 50V RSS 10MF (5X11) TP
CE705 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CE707 CEXF1H229V C ELECTRO 50V RSS 2.2MF (5X11) TP
CN701 9738835900 CONN AS UL2468 200MM P2.0 10P
CN702 9728812100 CONN AS FFC 16P P1.25X150MM R
CN902 9728804200 CONN AS #26 2P P2.0 350 BOARD-IN PSM
CW401 9736407700 PIN WAFER 52084-1310 13P BOTTOM
CW402 9736407900 PIN WAFER 52084-1010 10P BOTTOM
CW702 9CD6261600 WAFER 52492-1620 BOTTOM
CW708 9CD6259900 WAFER 52492-0720 MP3
CW508 9CD6261700 WAFER 52492-1720 BOTTOM ENTRY without MP3
D701 DZN4148--- DIODE IN4148 AUTO 52MM
D702 DZN4148--- DIODE IN4148 AUTO 52MM
D703 DZN4148--- DIODE IN4148 AUTO 52MM
D704 DZN4148--- DIODE IN4148 AUTO 52MM
D705 DZN4148--- DIODE IN4148 AUTO 52MM
D706 DZN4148--- DIODE IN4148 AUTO 52MM
DZN4148--- DIODE IN4148 AUTO 52MM PSM
W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO without PSM
D709 DZN4148--- DIODE IN4148 AUTO 52MM
D710 DZN4148--- DIODE IN4148 AUTO 52MM
D712 DZN4148--- DIODE IN4148 AUTO 52MM
FD710 DNAC13MM27 VFD HNAC13MM27
HC701 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC702 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC703 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC704 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC705 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC706 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC707 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC708 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC709 HCBK102KBA C CHIP CERA 50V X7R 1000PF K 1608
HC710 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC711 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC712 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC713 HCQK150JBA C CHIP CERA 50V CH 15PF J 1608
HC714 HCQK180JBA C CHIP CERA 50V CH 18PF J 1608
HC715 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
HC716 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
HC717 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC718 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC719 HCQK330JBA C CHIP CERA 50V CH 33PF J 1608
HC720 HCBK223KBA C CHIP CERA 50V X7R 0.022MF K 1608
HC721 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC722 HCBK562KBA C CHIP CERA 50V X7R 5600PF K 1608
HC723 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC724 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC725 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HC728 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC729 HCQK101JBA C CHIP CERA 50V CH 100PF J 1608
HC730 HCBK104KBA C CHIP CERA 50V X7R 0.1MF K 1608
HQ701 TZRC107S-- TR CHIP KRC107S
HQ702 TZRC111S-- TR CHIP KRC111S
HQ703 TZRC111S-- TR CHIP KRC111S
HQ704 TZTC3875S- TR CHIP KTC3875Y
HQ711 TZRA111S-- TR CHIP KRA111S
HQ712 TZRA111S-- TR CHIP KRA111S
HQ713 TZRA111S-- TR CHIP KRA111S
HQ714 TZRA111S-- TR CHIP KRA111S
HQ715 TZRA111S-- TR CHIP KRA111S
HQ716 TZRC107S-- TR CHIP KRC107S
HQ718 TZRC107S-- TR CHIP KRC107S
HQ719 TZRA107S-- TR CHIP KRA107S
HR301 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR302 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR303 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR304 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR307 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608
HR310 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
HR311 HRFT272JBA R CHIP 1/10 2.7K OHM J 1608
HR312 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR313 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR314 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR315 HRFT181JBA R CHIP 1/10 180 OHM J 1608
HR316 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR317 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR318 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR319 HRFT471JBA R CHIP 1/10 470 OHM J 1608
HR320 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR321 HRFT821JBA R CHIP 1/10 820 OHM J 1608
HR322 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR325 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR326 HRFT151JBA R CHIP 1/10 150 OHM J 1608
HR328 HRFT331JBA R CHIP 1/10 330 OHM J 1608
HR329 HRFT331JBA R CHIP 1/10 330 OHM J 1608
FRONT PCB ASS'Y [9CDC066100] : AXG-327(K)/AXW-327(K) Only
D708
HR330 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR331 HRFT471JBA R CHIP 1/10 470 OHM J 1608
Loc. Part Code Part Name Description Option
HR332 HRFT561JBA R CHIP 1/10 560 OHM J 1608
HR333 HRFT821JBA R CHIP 1/10 820 OHM J 1608 MUTE
HR701 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR702 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR703 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR706 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR708 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR709 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR710 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR711 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR712 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR713 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR714 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR715 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR716 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR717 HRFT152JBA R CHIP 1/10 1.5K OHM J 1608
HR718 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR719 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR722 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR723 HRFT683JBA R CHIP 1/10 68K OHM J 1608
HR724 HRFT393JBA R CHIP 1/10 39K OHM J 1608
HR725 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR726 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR727 HRFT333JBA R CHIP 1/10 33K OHM J 1608
HR728 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR729 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR730 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR731 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR732 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR733 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR734 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR735 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR736 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR737 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR738 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR739 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
HR740 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR741 HRFT182JBA R CHIP 1/10 1.8K OHM J 1608
HR742 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR743 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR745 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR746 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR747 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR748 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR749 HRFT222JBA R CHIP 1/10 2.2K OHM J 1608
HR751 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR752 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR753 HRFT224JBA R CHIP 1/10 220K OHM J 1608
HR754 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR755 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR756 HRFT102JBA R CHIP 1/10 1K OHM J 1608
HR757 HRFT224JBA R CHIP 1/10 220K OHM J 1608
HR758 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR759 HRFT104JBA R CHIP 1/10 100K OHM J 1608
HR761 HRFT106JBA R CHIP 1/10 10M OHM J 1608
HR762 HRFT334JBA R CHIP 1/10 330K OHM J 1608
HR763 HRFT101JBA R CHIP 1/10 100 OHM J 1608
HR764 HRFT100JBA R CHIP 1/10 10 OHM J 1608
HR765 HRFT390JBA R CHIP 1/10 39 OHM J 1608
HR766 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR767 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR768 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR769 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR770 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR771 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR772 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR773 HRFT271JBA R CHIP 1/10 270 OHM J 1608
HR774 HRFT561JBA R CHIP 1/10 560 OHM J 1608 PSM
HR775 HRFT392JBA R CHIP 1/10 3.9K OHM J 1608 PSM
HR776 HRFT103JBA R CHIP 1/10 10K OHM J 1608 without PSM
HR777 HRFT391JBA R CHIP 1/10 390 OHM J 1608
HR778 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR779 HRFT473JBA R CHIP 1/10 47K OHM J 1608
HR780 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR781 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR783 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR785 HRFT473JBA R CHIP 1/10 47K OHM J 1608 SONY P/U
HR786 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR787 HRFT103JBA R CHIP 1/10 10K OHM J 1608
HR788 HRFT473JBA R CHIP 1/10 47K OHM J 1608 S/S P/U
HR789 HRFT562JBA R CHIP 1/10 5.6K OHM J 1608
HR790 HRFT472JBA R CHIP 1/10 4.7K OHM J 1608
IC701 1M38199328 IC MICOM M38199MF-293FP
IC702 1M24C04--- IC MEMORY M24C04-BN6
IC703 1MSGEQ5A-- IC MSGEQ5A
IC704 1F4094BM1T IC HCF4094M013TR
IC705 1HK381B-DW IC PRE AMP HK381BT-DW
JW300 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW301 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW302 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW303 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW304 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW305 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
Electrical Parts List
45
Loc. Part Code Part Name Description Option
JW306 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW307 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW308 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO FCS
JW309 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO MUTE
JW310 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW311 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW312 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW702 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW703 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW704 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW705 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW706 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW707 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW708 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW709 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW710 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO MP3
JW711 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO MP3
JW712 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO MP3
JW713 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO MP3
JW714 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO without MP3
JW715 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO without MP3
JW716 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW717 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW718 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW719 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW720 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW721 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW722 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW723 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW724 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW725 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW726 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW727 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW728 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW729 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW730 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW731 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW732 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO ECHO
JW733 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO CLOCK
JW734 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO TIMER
JW735 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO PRESET/INTRO
JW736 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW737 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW738 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW739 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW740 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW741 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW742 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW743 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW744 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW745 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW746 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW747 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW748 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW749 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW750 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW751 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW752 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW753 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW754 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW755 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW756 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW757 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW758 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW759 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW760 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW761 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW762 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW763 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW764 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW765 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW766 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW767 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW768 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW769 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW770 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW771 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW772 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW773 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW774 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW775 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW776 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW777 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW778 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW779 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW780 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW781 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW782 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW783 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW784 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW785 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW786 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW787 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
Loc. Part Code Part Name Description Option
JW788 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW789 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW790 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW791 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW792 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW793 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW794 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW795 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
JW797 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW798 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW799 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
LD701 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
LD702 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
DSLR332VC3F LED SLR332VC3F(RED)PI3 RED
DLBH4155-- LED LBH4155(BL) 4PI OVAL BLUE
LD704 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
LD705 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
DSLR332VC3F LED SLR332VC3F(RED)PI3 RED
DLBH4155-- LED LBH4155(BL) 4PI OVAL BLUE
LD707 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
LD708 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
DSLR332VC3F LED SLR332VC3F(RED)PI3 RED
DLBH4155-- LED LBH4155(BL) 4PI OVAL BLUE
LD710 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
LD711 DSLR332MC3F LED SLR332MC3F(GREEN)PI3
DSLR332VC3F LED SLR332VC3F(RED)PI3 RED
DLBH4155-- LED LBH4155(BL) 4PI OVAL BLUE
LD713 DLBH4155-- LED LBH4155(BL) 4PI OVAL
LD715 DLBH4155-- LED LBH4155(BL) 4PI OVAL
LD716 DSLR56VC3F LED SLR56VC3F(RED)PI5 PSM
Q705 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q706 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q707 TZTA1273Y- TR KTA1273Y (A966Y) (KSA928A-Y)
Q708 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006
Q709 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006
Q710 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006)
Q717 TZRC107M-- TR KRC107M (DTC114YS) (KSR1006) PSM
RD-AZ122J- R CARBON FILM 1/6 1.2K OHM J : Model Option D/W, A/R, MP3
W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO D/W, A/R, AUX2, MP3
RD-AZ301J- R CARBON FILM 300 OHM D/W, A/R, AUX2
RD-AZ681J- R CARBON FILM 680 OHM D/W, A/S, AUX2
RD-AZ182J- R CARBON FILM 1.8K OHM D/W, A/R
RD-AZ272J- R CARBON FILM 2.7k OHM D/W, A/S
RD-AZ392J- R CARBON FILM 3.9K OHM S/S, A/R, AUX2, MP3
RD-AZ682J- R CARBON FILM 6.8K OHM S/S, A/R, AUX2
RD-AZ103J- R CARBON FILM 10K OHM S/S, A/S, AUX2
RD-AZ153J- R CARBON FILM 15K OHM S/S, A/R
RD-AZ223J- R CARBON FILM 22K OHM S/S, A/R
RD-AZ473J- R CARBON FILM 47K OHM S/S, A/S
RD-AZ223J- R CARBON FILM 1/6 22K OHM J : Tuner Band Option E2-2 with RDS
W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO AM1
RD-AZ301J- R CARBON FILM 300 OHM AM2
RD-AZ122J- R CARBON FILM 1.2K OHM E/2B
RD-AZ182J- R CARBON FILM 1.8K OHM JAPAN
RD-AZ272J- R CARBON FILM 2.7K OHM ASIA1/12
RD-AZ392J- R CARBON FILM 3.9K OHM ASIA2/24
RD-AZ682J- R CARBON FILM 6.8K OHM CIS
RD-AZ103J- R CARBON FILM 10K OHM S/AM
R744 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
R750 RD-4Z229J- R CARBON FILM 1/4 2.2 OHM J
SW701 5S50101001 SW TACT KPT-1105A 1C-1P
SW702 5S50101001 SW TACT KPT-1105A 1C-1P
SW703 5S50101001 SW TACT KPT-1105A 1C-1P
SW704 5S50101001 SW TACT KPT-1105A 1C-1P
SW705 5S50101001 SW TACT KPT-1105A 1C-1P
SW708 5S50101001 SW TACT KPT-1105A 1C-1P
SW712 5S50101001 SW TACT KPT-1105A 1C-1P
SW714 5S50101001 SW TACT KPT-1105A 1C-1P
SW715 5S50101001 SW TACT KPT-1105A 1C-1P
SW716 5S50101001 SW TACT KPT-1105A 1C-1P
SW717 5S50101001 SW TACT KPT-1105A 1C-1P
SW718 5S50101001 SW TACT KPT-1105A 1C-1P
SW719 5S50101001 SW TACT KPT-1105A 1C-1P
SW720 5S50101001 SW TACT KPT-1105A 1C-1P
SW721 5S50101001 SW TACT KPT-1105A 1C-1P
SW722 5S50101001 SW TACT KPT-1105A 1C-1P
SW723 5S50101001 SW TACT KPT-1105A 1C-1P
SW724 5S50101001 SW TACT KPT-1105A 1C-1P
SW728 5S50101001 SW TACT KPT-1105A 1C-1P
SW729 5S50101001 SW TACT KPT-1105A 1C-1P
SW731 5S50101001 SW TACT KPT-1105A 1C-1P
SW732 5S50101001 SW TACT KPT-1105A 1C-1P
SW733 5S50101001 SW TACT KPT-1105A 1C-1P
SW734 5S50101001 SW TACT KPT-1105A 1C-1P
SW735 5S50101001 SW TACT KPT-1105A 1C-1P
VR701 5SH122403- SW ENCORDER EC12E24204A9
VR702 5SH122403- SW ENCORDER EC12E24204A9
XC701 5PQZTA80MT RESONATOR CERA 8 MHz RESONATOR(2PIN)
XC702 5XA32R768C X-TAL C38T 32.768KHz 20PPM
R721
R720
LD712
LD709
LD706
LD703
Electrical Parts List
46
Loc. Part Code Part Name Description Option
AC901 9736900200 CORD AC KKP419C,KLCE-2F,0.75SQURE
B901 9CD6581005 PCB POWER 247X197
CM908 CMXM2A104J C MYLAR 100V 0.1MF J
CM909 CMXM2A104J C MYLAR 100V 0.1MF J
CM910 CMXM2A104J C MYLAR 100V 0.1MF J
CM911 CMXM2A104J C MYLAR 100V 0.1MF J
CM912 CMXM2A104J C MYLAR 100V 0.1MF J
CM913 CMXM2A104J C MYLAR 100V 0.1MF J
CM914 CMXM2A104J C MYLAR 100V 0.1MF J
CM915 CMXM2A104J C MYLAR 100V 0.1MF J
CW901 2503-WS-10 WAFER 10P 2.5MM
DB901 DKBJ604G-- DIODE KBJ604G
DB902 DKBJ604G-- DIODE KBJ604G
F901 5FSGB3122L FUSE GLASS TUBE VDE TL 3.15A MF51 250V
FC901 9734600700 CLIP FUSE FC-5N
FC902 9734600700 CLIP FUSE FC-5N
JW905 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW907 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW908 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW909 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW910 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW911 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW912 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW913 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW914 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
5TP8074904 TRANS POWER EI=85.8X57 230V 50HZ AXG/AWG-327(K)
AXG/AWG-328(K)
R918 RN-2Y475J- R METAL FILM 1/2 4.7M OHM J
TP903 9716404000 PIN WRAPPING MFZN1.1X1.1 PANASERT
TP904 9716404000 PIN WRAPPING MFZN1.1X1.1 PANASERT
10 9CD4404200 HEAT SINK P AL T2.0
20 7173301011 SCREW TAPPTITE TT2 BIN 3X10 MFZN
Loc. Part Code Part Name Description Option
AC901 9736900200 CORD AC KKP419C,KLCE-2F,0.75SQURE
BD901 9768602000 TOROIDAL CORE 25X15X12H
B001 9CD6581005 PCB POWER 247X197
CE915 CEXF1E222V C ELECTRO 25V RSS 2200MF (16X25) PSM
CM908 CMXM2A104J C MYLAR 100V 0.1MF J
CM909 CMXM2A104J C MYLAR 100V 0.1MF J
CM910 CMXM2A104J C MYLAR 100V 0.1MF J
CM911 CMXM2A104J C MYLAR 100V 0.1MF J
CM912 CMXM2A104J C MYLAR 100V 0.1MF J
CM913 CMXM2A104J C MYLAR 100V 0.1MF J
CM914 CMXM2A104J C MYLAR 100V 0.1MF J
CM915 CMXM2A104J C MYLAR 100V 0.1MF J
CM916 CMXM2A103J C MYLAR 100V 0.01MF J PSM
CM917 CMXM2A104J C MYLAR 100V 0.1MF J
CW901 2503-WS-10 WAFER 10P 2.5MM
CW902 2001-WS-0 WAFER 2001-WS-02 2P 2.0MM PSM
D911 DIN4001--- DIODE IN4001 PSM
D912 DIN4001--- DIODE IN4001 PSM
D913 DIN4001--- DIODE IN4001 PSM
D914 DIN4001--- DIODE IN4001 PSM
D915 DIN4001--- DIODE IN4001 PSM
D916 DZN4148--- DIODE IN4148 AUTO 52MM PSM
DB901 DKBJ604G-- DIODE KBJ604G
DB902 DKBJ604G-- DIODE KBJ604G
F901 5FSGB3122L FUSE GLASS TUBE VDE TL 3.15A MF51 250V
FC901 9734600700 CLIP FUSE FC-5N
FC902 9734600700 CLIP FUSE FC-5N
IC902 1KIA7805AP IC REGULATOR KIA7805AP PSM
JW906 W581GY17J5 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO
JW907 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO
JW908 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW909 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW910 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW911 W581GY1505 WIRE JUMPER AWG22 1/0.65 GY 15 AUTO
JW912 W581GY7595 WIRE JUMPER AWG22 1/0.65 SN 7.5 AUTO
JW913 W581GY1005 WIRE JUMPER AWG22 1/0.65 SN 10 AUTO
JW914 W581GY6095 WIRE JUMPER AWG22 1/0.65 SN 6 AUTO
PT901
5TP8086900 TRANS POWER EI=85.8X57 230V 50HZ
5TP8028829 TRANS POWER EI=28X12 230V 50HZ
AXG/AWG-328(K)
5TP8074904 TRANS POWER EI=85.8X57 230V 50HZ AXG/AWG-327(K)
Q911 TZTC3205Y- TR KTC3205Y (KTC2236Y) AUTO PSM
R918 RN-2Y475J- R METAL FILM 1/2 4.7M OHM J
R922 RD-AZ100J- R CARBON FILM 1/6 10 OHM J PSM
R925 RD-AZ103J- R CARBON FILM 1/6 10K OHM J PSM
R926 RD-AZ103J- R CARBON FILM 1/6 10K OHM J PSM
RF903 RF-2F478J- R FUSIBLE 1/2 0.47 OHM J PSM
RY902 5SC2001A01 SW RELAY SDT-S-105LMR PSM
TP903 9716404000 PIN WRAPPING MFZN1.1X1.1 PANASERT
TP904 9716404000 PIN WRAPPING MFZN1.1X1.1 PANASERT
10 9CD4404200 HEAT SINK P AL T2.0
20 7173301011 SCREW TAPPTITE TT2 BIN 3X10 MFZN
PT902
PT901
POWER PCB ASS'Y [9CDC066201] : AXG-327(K)/328(K), AXW-327(K)/328(K) with PSM,FTZ Only
POWER PCB ASS'Y [9CDC066600] : AXG-327(K)/328(K), AXW-327(K)/328(K) CE Only
5TP8086900 TRANS POWER EI=85.8X57 230V 50HZ
Loading...
