Installation Instructions
Warming Drawer
Models: DWD30, ERWD27, ERWD30, EWD24, EWD27,
EWD30, EWD36, IWD24, IWD27, IWD30, MRWD27,
MRWD30, MWDH27, MWDH30, MWDV27,
MWDV30, OWD24, RWDV30
Part No. 102345 Rev. T
Preliminary - For Review Only
All specifications are subject to change without notice. Dacor ® assumes no liability for changes to specifications.
© 2007 Dacor, all rights reserved.
Table of Contents
Before You Begin... ........................................................... 1
Important Safety Instructions .......................................... 1
General Safety Precautions ............................................. 2
Installation Specifications ................................................ 3
Verifying the Package Contents ....................................... 3
Installation Planning ......................................................... 3
Install Support Platform in Cabinet .................................. 6
Electrical and Environmental Specifications .................... 6
Installation Instructions .................................................... 7
Remove the Drawer ........................................................ 7
Installing the Chassis ....................................................... 7
Re-installing the Drawer ................................................... 8
Towel Rack Installation ................................................... 8
Verify Warming Drawer Operation ................................... 9
Installation Checklist ........................................................ 9
Before You Begin...
Important:
Installer: In the interest of safety and to minimize problems, read these installation instructions completely and carefully
before you begin the installation process. Leave these installation instructions with the customer.
Customer: Keep these installation instructions for future reference and the local electrical inspector’s use.
If you have questions or problems with installation, contact
your Dacor dealer or the Dacor Customer Service Team.
For repairs to Dacor appliances under warranty call the
Dacor Distinctive Service line. Whenever you call, have
the complete model and serial number for your appliance
available. The numbers are found on the product data label
located on back of the drawer front.
The data label also contains the product electrical
requirements.
Dacor Customer Service
Phone: (800) 793-0093 ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00
Web site: www.dacor.com
Dacor Distinctive Service (repairs under warranty only)
Phone: (800) 793-0093 ex. 2822 (U.S.A. and Canada)
Monday — Friday 6:00
a.m. to 5:00 p.m. Pacific Time
a.m. to 5:00 p.m. Pacific Time
Product data label
on back for drawer
front
Important Safety Instructions
Important Information About
Safety Instructions
• The Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or
operating this or any other appliance.
• Always contact the Dacor Customer Service Team
about problems and conditions that you don’t
understand.
Safety Symbols and Labels
DANGER
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that COULD result in minor
personal injury or property damage.
1
Important Safety Instructions
General Safety Precautions
To reduce risk of fire, electric shock, serious injury or death when using your appliance, follow basic precautions, including
the following:
WARNING
• Use this appliance only for its intended use as
described in this manual. Use it only to warm food
and heat plates and utensils. It is not designed for
commercial, industrial or laboratory use.
• Only model OWD24 is approved for use in outdoor
installations and near water (bathrooms). Do not
use, store or install warming drawer models other
than OWD24 near water, for example, near sinks,
swimming pools or in a wet basement.
• Model OWD24, when installed as a towel warmer,
must be installed indoors and have the supplied wire
rack installed in the drawer bottom according to these
instructions.
• Do not install or operate a product that is
damaged, has a damaged power cord or plug, or is
malfunctioning in any manner. Return the appliance to
the nearest authorized service facility for examination,
repair or adjustment.
• Make sure that the appliance has been properly
installed and grounded by a qualified installer
according to the accompanying installation
instructions. Have the installer show you the location
of the electrical outlet so that you know where to
disconnect power to the appliance.
• Do not repair or replace any part of the warming
drawer unless specifically recommended in the
literature accompanying it. All other service should be
done by a qualified technician.
• Use of accessory attachments not recommended by
the appliance manufacturer may cause injuries.
• Before cleaning or performing any type of service,
make sure that the power plug is disconnected from
the electrical outlet and that the unit is cool.
• DO NOT TOUCH ANY HOT SURFACES IN OR
ON THE WARMING DRAWER DURING OR
IMMEDIATELY AFTER USE. Use the handle instead.
After use, make sure these surfaces have had
sufficient time to cool before touching them. Heating
elements may be hot, even though they are dark in
color.
• To avoid the possibility of fire or burns, do not allow
clothing, potholders, towels or rags to come into
contact with any part of the warming drawer during
and immediately after use. Do not wear loose or
hanging apparel while using the appliance.
WARNING
• Clean the warming drawer thoroughly before
operating it for the first time.
• To reduce the risk of fire in the warming drawer, do
not overcook food. Do not leave it unattended with
paper, plastic or other combustible materials inside.
• If materials inside the warming drawer should ignite,
keep the drawer closed and shut off the power at the
circuit breaker panel or fuse box.
• Exercise caution when opening the warming drawer.
Let hot air or steam escape before looking or reaching
into the warming drawer.
• Use only dry pot holders when removing food and
cookware from the warming drawer. Wet pot holders
can cause steam burns.
• Do not put items like whole eggs, sealed containers
or closed glass jars in the drawer. They may explode
when heated, causing injury.
• When the warming drawer is on in continuous mode
(∞),itwillremainonuntilturnedoffmanually.Exercise
caution when operating the unit in continuous mode.
• Do not place more than 50 pounds in the drawer.
• Properly clean and maintain the unit regularly as
instructed in the use and care manual. Clean only
those parts listed, in the manner specified.
• Do not use abrasive scrubbers or abrasive/caustic
cleaners or detergents on this appliance. They may
permanently damage the finishes. Do not use aerosol
cleaners, because they may be flammable or cause
corrosion of metal parts.
• Make sure the warming drawer is used only by those
individuals who are able to operate it properly.
• Do not tamper with the controls.
• Never allow anyone, including children to sit, stand
or climb on any part of the appliance, including the
drawer. Doing so may cause tipping, damage, serious
injury or death.
• Do not leave children unattended in the area around
the appliance. Do not allow children to operate it, play
with the controls, pull on the handle or touch other
parts. Do not store items of interest to children above
the warming drawer. Children could be burned or
injured while climbing on the appliance.
2
Installation Specifications
Verifying the Package Contents
• (3) mounting screws - PN 83569
• Wire rack with mounting hardware (OWD24 only)
(1) PN 83619 (screw), (1) PN 83267 (clamp)

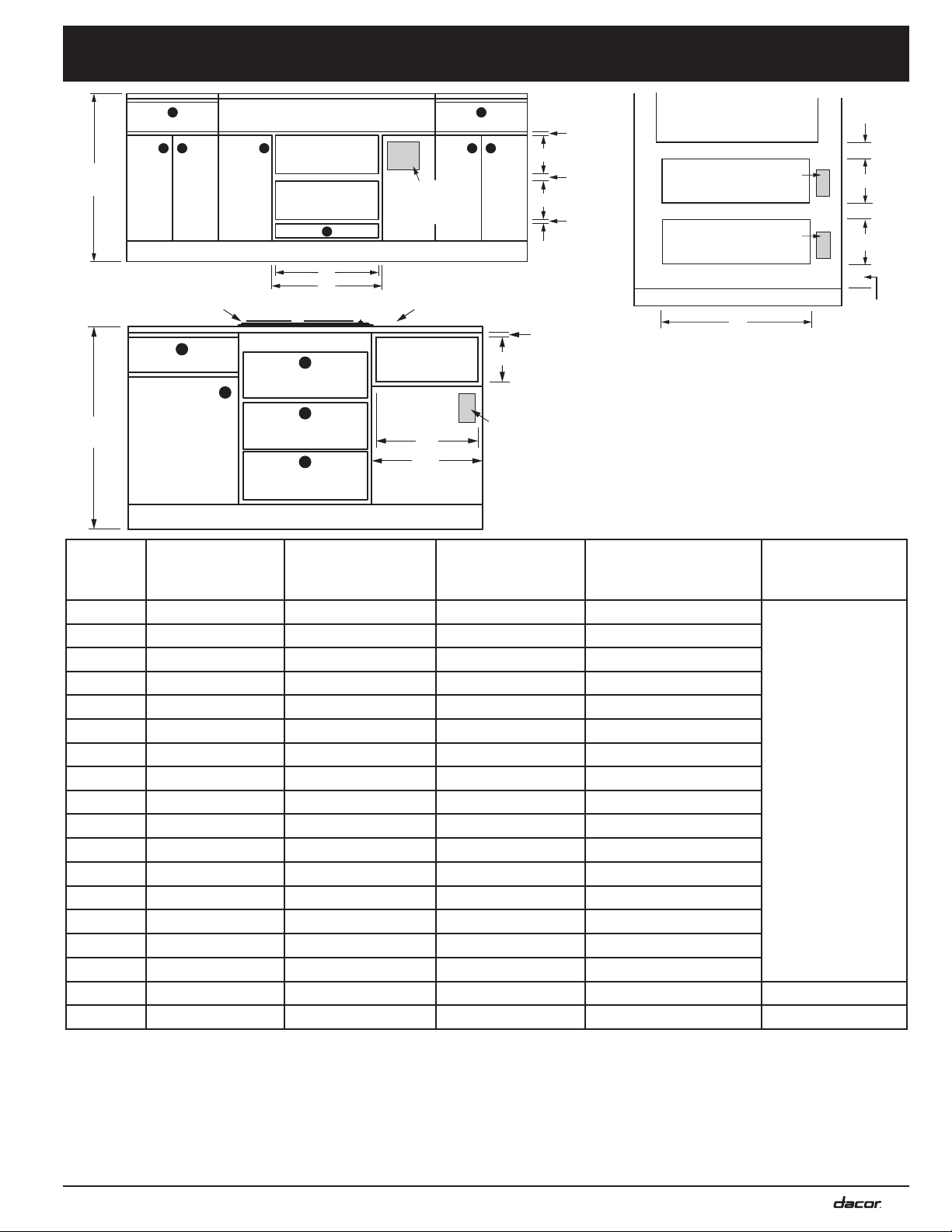

Installation Planning
• A qualified technician must complete the installation of this builtin appliance. Proper installation is the customer's responsibility.
• Carefully check the location where the drawer is to be installed.
The drawer should be placed for convenient access. Make
certain that electrical power can be provided in the selected
location. Install the warming drawer in wood cabinets only.
• Plan the installation so that all minimum clearances are met or
exceeded. Dimensions shown provide minimum clearances,
unless otherwise noted. Be certain that proper clearance is
provided for the drawer when it is in the open position.
• The specified minimum cabinet depth and width must be
provided. The cabinet depth and width must completely enclose
the recessed portion of the drawer.
• Cabinet cutout dimensions must be used as indicated. All
contact surfaces between the appliance and the cabinet must
be solid and level. The drawer support platform must be flush
with the bottom edge of the cabinet cutout.
• Make certain that you have everything necessary to ensure a
proper installation before proceeding.
• A custom front panel is required for IWD
series models and optional for OWD24.
®
• An optional Epicure
is available for model OWD24.
style front panel kit
**
**
C
B
Chassis
(8 mm)
Drawer open
Overall Dimensions - IWD/OWD Series
Top View
Mounting hole,
9 places
**
40" (101.6 cm)
3 prong
120 Vac power cord
**
E
5/16”
F
G
D
Model
IWD24
IWD27
IWD30
OWD24
A
Drawer Face Dimensions
(IWD/OWD Series)
(A) Dimension
Drawer Face
Width
22 5/16” (56.7 cm) 22 1/4” (56.5 cm) 22 3/8” (56.8 cm)
25 5/16” (64.3 cm) 25 1/4” (64.1 cm) 25 3/8” (64.5 cm)
28 5/16” (71.9 cm) 28 1/4” (71.8 cm) 28 3/8” (72.1 cm)
22 1/2” (57.1 cm) 22 1/2” (57.1 cm) 22 1/2” (57.1 cm)
(B) Dimension
Chassis Width
(C) Dimension
Chassis Face
Width
Chassis without
drawer installed
** = OWD24 mounting holes
Chassis Dimensions
(IWD/OWD Series)
(D)
Dimension
Drawer
Face Height
8 15/16”
(22.7 cm)
11 7/8”
(30.2 cm)
(E)
Dimension
Chassis
Depth
23 3/8”
(59.4 cm)
20”
(50.8 cm)
(F)
Dimension
Drawer
Depth
23 13/16”
(60.5 cm)
18”
(45.7 cm)
(G)
Dimension
Chassis
Height
9 1/16”
(23.0 cm)
11 7/8”
(30.2 cm)
See following page for chassis dimensions for other models
3
B
Installation Specifications
10 1/8”
(25.7 cm)
Drawer Face Dimensions
(MWD series shown)
C
Chassis
Model
(A) Drawer Face
Width
(B) Chassis Face
Width
(C) Chassis Width
DWD30 30” (76.2 cm) 29 5/8” (75.2 cm) 28 1/4” (71.8 cm)
ERWD27 27” (68.6 cm) 26 5/8” (67.6 cm) 25 1/4” (64.1 cm)
ERWD30 30” (76.2 cm) 29 5/8” (75.2 cm) 28 1/4” (71.8 cm)
EWD24 24” (61.0 cm) 23 5/8” (60.0 cm) 22 1/4” (56.5 cm)
EWD27 27” (68.6 cm) 26 5/8” (67.6 cm) 25 1/4” (64.1 cm)
EWD30 30” (76.2 cm) 29 5/8” (75.2 cm) 28 1/4” (71.8 cm)
EWD36 36” (91.4 cm) 35 5/8” (90.5 cm) 34 1/4” (87.0 cm)
A
MRWD27 26 3/4” (67.9 cm) 26 5/8” (67.6 cm) 25 1/4” (64.1 cm)
MRWD30 29 3/4” (75.6 cm) 29 5/8” (75.2 cm) 28 1/4” (71.8 cm)
MWDH27 27” (68.6 cm) 26 5/8” (67.6 cm) 25 1/4” (64.1 cm)
MWDH30 30” (76.2 cm) 29 5/8” (75.2 cm) 28 1/4” (71.8 cm)
MWDV27 27” (68.6 cm) 26 5/8” (67.6 cm) 25 1/4” (64.1 cm)
MWDV30 30” (76.2 cm) 29 5/8” (75.2 cm) 28 1/4” (71.8 cm)
RWDV30 30” (76.2 cm) 29 5/8” (75.2 cm) 28 1/4” (71.8 cm)
Warming Drawer Overall Dimensions
See page 3 for IWD and OWD series chassis dimensions
23 3/8”
(59.4 cm)
1”
(2.5 cm)
3 1/2”
(8.9 cm)
1 1/8”
(2.9 cm)
ERWDDWD
3 7/16”
(8.7 cm)
EWD
1”
(2.5 cm)
Drawer open
Overall Dimensions
Top View
(EWD series shown)
5/64"
(2 mm)
23 13/16”
(60.5 cm)
10"
(25.4 cm)
MRWD30B
1 7/16”
(3.7 cm)
All other MRWD
(only)
series
1”
(2.5 cm)
Handle Dimensions
hole 9 places
1/2" (1.3 cm)
Chassis without
drawer inserted
1/2" (1.3 cm)
Chassis Dimensions
Mounting
MWDH, MWDV,
RWDV
3 1/4”
(8.3 cm)
1”
(2.5 cm)
40” (101.6 cm)
3-prong 120 Vac
power cord
9"
(22.9 cm)
4
B
36" typ.
1 1/2" (3.8 cm)
(91.4 cm)
36" typ.
(91.4 cm)
Cooktop
Installation Specifications
Warming
drawer
Warming
drawer
A
120 Vac
electrical
outlet
Typical countertop
Warming
drawer
A
B
C
120 Vac
electrical
outlet
3/4" min.*
(1.9 cm)
C
D
C
3/4" min.*
(1.9 cm)
3/4” min.*
(1.9 cm)
NOTES:
• Models EWD36 and OWD24 cannot
be installed above or below another
warming drawer (any type).
• Model OWD24 is not approved for
installation above, below or adjacent
to a wall oven or a warming drawer,
including the same model.
27"/30"/36" Dacor
single wall oven
Warming
drawer
Warming
drawer
120 Vac
elect.
120 Vac
elect.
Toe kick
A
Cutouts Dimensions
D
C
D
C
3/4" min.*
(1.9 cm)
Model (A) Cutout Width
(B) Min. Width to
Adjacent Doors/
Drawers
(C) Cutout Height
(D) Min. Vertical Gap
Between Cutouts
Min. Cutout
Depth
DWD30 28 1/2” (72.4 cm) 30 1/4” (76.8 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
ERWD27 25 1/2” (64.8 cm) 27 1/4” (69.2 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
ERWD30 28 1/2” (72.4 cm) 30 1/4” (76.8 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
EWD24 22 1/2” (57.2 cm) 24 1/4” (61.6 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
EWD27 25 1/2” (64.8 cm) 27 1/4” (69.2 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
EWD30 28 1/2” (72.4 cm) 30 1/4” (76.8 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
EWD36 34 1/2” (87.6 cm) 36 1/4” (92.1 cm)* 9 1/8” (23.2 cm) NA
IWD24 22 1/2” (57.2 cm) ** 9 1/8” (23.2 cm) 1 1/16” (2.7 cm)
IWD27 25 1/2” (64.8 cm) ** 9 1/8” (23.2 cm) 1 1/16” (2.7 cm)
24” (61.0 cm)
IWD30 28 1/2” (72.4 cm) ** 9 1/8” (23.2 cm) 1 1/16” (2.7 cm)
MRWD27 25 1/2” (64.8 cm) 27” (68.6 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
MRWD30 28 1/2” (72.4 cm) 30” (76.2 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
MWDH27 25 1/2” (64.8 cm) 27 1/4” (69.2 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
MWDH30 28 1/2” (72.4 cm) 30 1/4” (76.8 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
MWDV27 25 1/2” (64.8 cm) 27 1/4” (69.2 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
MWDV30 28 1/2” (72.4 cm) 30 1/4” (76.8 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)*
OWD24 22 5/8” (57.5 cm) 24 1/4” (61.6 cm)*** 11 15/16” (30.3 cm) NA 20 1/8” (51.1 cm)
RWDV30 28 1/2” (72.4 cm) 30 1/4” (76.8 cm)* 9 1/8” (23.2 cm) 1 1/4” (3.2 cm)* 24” (61.0 cm)
* Bare minimum spacing to allow for ventilation and avoid scraping on DWD, ERW, EWD, MRW, MWD and RWD models.
** IWD models or OWD24 without the optional front panel kit: The chassis and drawer faceplate are smaller than the
cutout. The custom front panel mounts to the drawer faceplate. The height and width of the custom front panel must
exceed the cutout dimensions (A and C above) to cover the hole. Allow 1/4" minimum additional space on the top, bottom
and sides from the custom front panel edge to prevent scraping against adjacent doors, drawers and the countertop.
*** OWD24 with optional factory front panel kit only. Bare minimum spacing shown to avoid scraping. Gap above and
below cutout is 3/4” minimum. See ** above for OWD24 with custom front panel.
5
Installation Specifications
Install Support Platform in
Cabinet
Provide a platform (100 lb. load capacity) within the cabinet
upon which the warming drawer will be supported. The
platform must be installed level and straight. The top edge
of the platform must be flush with the cutout at the front of
the cabinet. There are no provisions to level the warming
drawer after it has been installed. 3/4” (1.9 cm) thick
plywood is recommended.
NOTE: If the drawer is not installed in a level fashion, the
drawer may slide open on its own or may not seal tightly,
allowing heat to escape and resulting in poor warming
drawer performance.
Electrical and Environmental
Specifications
WARNING
IMPORTANT: This appliance is equipped with a three
prong grounding electric plug for protection against
possible electric shock hazards. It must be plugged into
a dedicated, grounded, electrical outlet. If only a two
prong electrical outlet is available, it is the responsibility
of the customer to have it replaced with a dedicated,
properly grounded three prong electrical outlet. To
avoid an electric shock hazard, do not under any
circumstances:
Chassis
face
Support
platform
• Minimum ambient operating temperature: 32°F (0°C).
• The correct voltage, frequency and amperage must be
supplied to the electrical outlet from a grounded, single
phase circuit that is protected by a properly sized circuit
breaker or time-delay fuse.
• The required voltage, frequency and amperage ratings
are listed on the product data label. See page 1 for
location.
Nominal Electrical Supply Requirements
120 Vac, 60 Hz, 15 Amp., dedicated circuit
The warming drawer is supplied with a 40” (101.6 cm)
power cord with a three prong grounded plug.
Total Connected Load 0.5 kW (4 Amp.)
• Cut or remove the third (ground) prong from the power
cord.
• Use an adapter plug.
• Use a power cord that is frayed or damaged.
• Immerse the power cord or plug in water or other
liquid.
• Connect the appliance to an extension cord.
NOTE: Use of a ground fault interrupter (GFI) is not
recommended.
Three prong plug
Three prong
grounded outlet
• The power supply requirements shown above are for
reference only. If they do not agree with those listed
on the product data label, use the requirements on the
product data label.
• It is the owner’s responsibility to ensure that the
electrical outlet is installed by a qualified electrician.
The electrical installation must comply with the latest
revision of the National Electric Code ANSI/NFPA 70
and local codes and ordinances.
• If the electrical service provided does not meet the
product specification, or does not conform to the NEC
or local standards, do not proceed with the installation.
Call a licensed electrician to correct the electrical
service before proceeding.
• Be certain to locate the electrical outlet in an
accessible location, so that the warming drawer may
be easily unplugged in the event that service becomes
necessary.
• Keep the electrical cord away from hot surfaces.
6
Installation Instructions
WARNING
• To avoid personal injury caused by the appliance
falling forward when the drawer is opened, secure
the chassis to the cabinet and support platform as
instructed.
• Be certain that the power plug is disconnected from
the electrical outlet before installation.
• Verify that the electrical supply matches the ratings
found on the appliance data plate and the installation
specifications before proceeding.
Remove the Drawer
Remove the drawer from the appliance to allow access
to the mounting holes during installation, and to reduce
weight:
1. Pull the drawer out to the fully open position.
2. Push in on the locking tab on one side as you pull the
drawer up.
3. When the drawer comes loose from the slide, repeat
the same process on the opposite side.
4. Grip the drawer on both sides and pull it free.
5. For safety, push both drawer slides into the drawer
opening.
Installing the Chassis
1. Grasp the warming drawer chassis on opposite
sides and slide it partially into the cabinet opening.
Temporarily support the chassis in place so that it will
not tilt or fall.
2. From an adjoining cabinet, reach in behind the drawer
and pull the power cord until the plug is next to the
electrical outlet. Do not plug in the power cord at this
time.
3. After positioning the power cord and plug, slide the
chassis completely into the cabinet until the front frame
is positioned flush against the cabinet face.
4. Use the screws provided to secure the warming drawer
chassis to the cabinet and support platform, insert them
into the mounting holes and tighten into place. You may
want to drill pilot holes prior to installing the mounting
screws.
Mounting hole, 9 places
STEP 2: Push
locking tab
STEP 3: Pull up on
front of drawer
Mounting Hole Locations - ERW, EWD, IWD, MRW and
MWD Series Models
(IWD series models do not have a flange around
the edge of the faceplate)
Mounting hole, 4 places
Mounting Hole Locations -
OWD24
Continued...
Style varies, EWD27 shown
7
Installation Instructions
Re-installing the Drawer
1. Pull the drawer slides all the way out of the drawer
opening.
2. Gently lower the drawer between the extended slides
until it is suspended by them.
3. Slide the back of the drawer mounting brackets under
the drawer mounting clips on the slides.
4. Push one side of the drawer down onto its locking tab,
until the tab locks into place.
5. Repeat the same process on the opposite side.
6. Gently open and close the drawer to make sure that it
is properly installed.
STEP 3: Slide mounting
bracket under clip on slide
Towel Rack Installation
(OWD24 Only)
Model OWD24 is designed so that it can be used as a
towel warmer if desired. Other models are not equipped for
this application. To use model OWD24 as a towel warmer,
you must install the towel rack included with the unit in the
bottom of the drawer.
To install the towel rack:
1. Open the drawer completely.
2. Insert the towel rack into the drawer in the orientation
shown below.
STEP 4: Push front
of drawer down until
tabs lock into place
Clip on slide
Slide
3. Use the clamp and screw included with the rack to
attach it to the back of the drawer face as shown
below. There is a hole for the screw in the back of the
face plate near the bottom.
8
Installation Instructions
Warming Drawer Control Panel Layout
Verify Warming Drawer
Operation
1. Connect power plug to the electrical outlet.
2. Open the drawer and press the ON/OFF key on the
control panel.
3. Press the PROOF, LOW, MED and HIGH keys each
in turn. When you press each key, the indicator directly
above it should light. Leave the control panel set to
HIGH.
4. Press the SELECT key. The 1 HOUR indicator should
light. Press and release the SELECT key three (3)
more times. Each time you press the SELECT key, the
2 HOUR, 3 HOUR and 4 HOUR indicator lights should
come on. All lights should be on after pressing the
SELECT key the third time.
5. Press the "∞" key. The indicator light above it
should come on and the 1, 2 , 3 and 4 HOUR
lights should go out.
6. The warming drawer should begin to heat.
You should begin to feel the inside of the
drawer begin to heat within five (5) to ten (10)
minutes.
7. When you have determined that the heating
element is working, press the ON/OFF k ey.
If the warming drawer does not operate properly, follow
these troubleshooting steps:
• Verify that the circuit breaker for the electrical outlet
is on and not tripped. Make sure the power plug is
connected.
• Repeat the above tests.
• If the appliance still does not work, contact Dacor
Distinctive Service at (800) 793-0093 ex. 2822. Do not
attempt to repair the appliance yourself. Be sure to
have the model and serial numbers available when you
call. See page 1 for model/serial number location.
Dacor is not responsible for the cost of correcting problems
resulting from a faulty installation.
Installation Checklist
WARNING
• To ensure a safe and proper installation, the following
checklist should be completed by the installer to
ensure that no part of the installation has been
overlooked.
• Proper installation is the responsibility of the
homeowner. The importance of proper installation of
your warming drawer cannot be overemphasized.
□ Support platform has been installed according to the
instructions on page 6.
□ Properly grounded, dedicated, three prong electrical
outlet has been installed for the appliance by a licensed
electrician. See page 6.
□ The chassis has been properly fastened to the support
platform and sides of the cabinet.
See page 7.
□ The drawer has been properly installed. See page
8.
□ Model OWD24 for use as towel warmer: The towel rack
has been installed. See page 8.
□ Proper operation has been verified?
□ The warranty has been activated on-line or the
warranty card filled out completely and mailed?
□ Save these instructions for future reference.
9
Dacor●14425ClarkAvenue,CityofIndustry,CA91745●Phone:(800)793-0093●Fax:(626)403-3130●www.dacor.com
Loading...
