Dacor IHL30 Specs

IHL30, IHL36, IHL42, IHL48, IHL54

21"

(533mm)

4" (102mm)

"A"

IVS1 Mounting

studs (typ)

IVS1 Power Pack

IHL Mounting

hole (typ)

2"

(51mm)

FRONT

BACK

21"

(533mm)

4" (102mm)

"A"

IVS2 Mounting

studs (typ)

IVS2 Power Pack

IHL Mounting

hole (typ)

2"

(51mm)

FRONT

BACK

30”, 36”, 42”, 48”, 54” Wide,

Custom Hood Liners

PLANNING

1/1062805

GUIDE

Web: http://www.dacor.com
Corporate Phone: [phone]

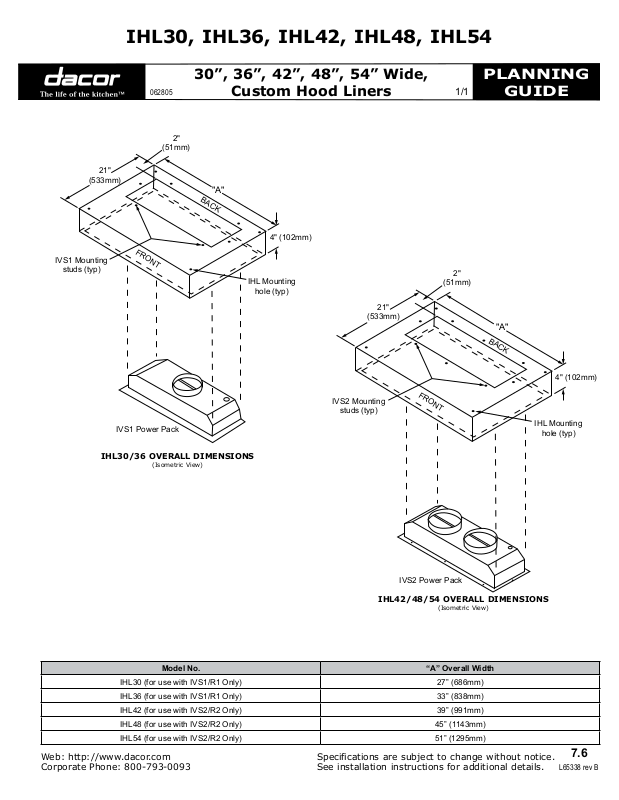

IHL30/36 OVERALL DIMENSIONS

(Isometric View)

Model No. “A” Overall Width

IHL30 (for use with IVS1/R1 Only) 27” (686mm)

IHL36 (for use with IVS1/R1 Only) 33” (838mm)

IHL42 (for use with IVS2/R2 Only) 39” (991mm)

IHL48 (for use with IVS2/R2 Only) 45” (1143mm)

IHL54 (for use with IVS2/R2 Only) 51” (1295mm)

IHL42/48/54 OVERALL DIMENSIONS

(Isometric View)

Specifications are subject to change without notice.
See installation instructions for additional details.
