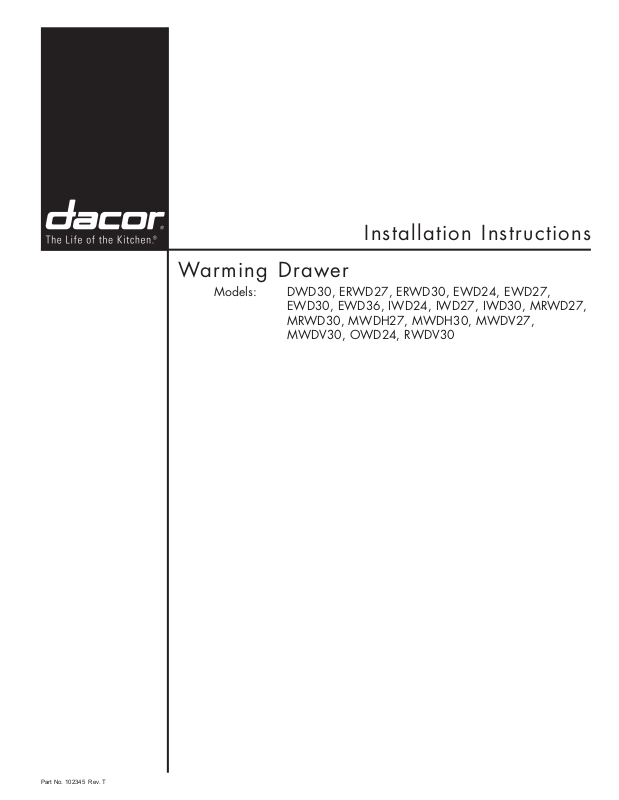

Installation Instructions
Warming Drawer
Models: DWD30, ERWD27, ERWD30, EWD24, EWD27,
EWD30, EWD36, IWD24, IWD27, IWD30, MRWD27,
MRWD30, MWDH27, MWDH30, MWDV27,
MWDV30, OWD24, RWDV30
Part No. 102345 Rev. T
Preliminary - For Review Only
![](/html/61/61e0/61e027c192e52c009b06c8892cc4888b13f46f8b7df55b781977cc409de6e234/bg2.png)
All specifications are subject to change without notice. Dacor ® assumes no liability for changes to specifications.
© 2007 Dacor, all rights reserved.
![](/html/61/61e0/61e027c192e52c009b06c8892cc4888b13f46f8b7df55b781977cc409de6e234/bg3.png)
Table of Contents
Before You Begin... ........................................................... 1
Important Safety Instructions .......................................... 1
General Safety Precautions ............................................. 2
Installation Specifications ................................................ 3
Verifying the Package Contents ....................................... 3
Installation Planning ......................................................... 3
Install Support Platform in Cabinet .................................. 6
Electrical and Environmental Specifications .................... 6
Installation Instructions .................................................... 7
Remove the Drawer ........................................................ 7
Installing the Chassis ....................................................... 7
Re-installing the Drawer ................................................... 8
Towel Rack Installation ................................................... 8
Verify Warming Drawer Operation ................................... 9
Installation Checklist ........................................................ 9
Before You Begin...
Important:
Installer: In the interest of safety and to minimize problems, read these installation instructions completely and carefully
before you begin the installation process. Leave these installation instructions with the customer.
Customer: Keep these installation instructions for future reference and the local electrical inspector’s use.
If you have questions or problems with installation, contact
your Dacor dealer or the Dacor Customer Service Team.
For repairs to Dacor appliances under warranty call the
Dacor Distinctive Service line. Whenever you call, have
the complete model and serial number for your appliance
available. The numbers are found on the product data label
located on back of the drawer front.
The data label also contains the product electrical
requirements.
Dacor Customer Service
Phone: (800) 793-0093 ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00
Web site: www.dacor.com
Dacor Distinctive Service (repairs under warranty only)
Phone: (800) 793-0093 ex. 2822 (U.S.A. and Canada)
Monday — Friday 6:00
a.m. to 5:00 p.m. Pacific Time
a.m. to 5:00 p.m. Pacific Time
Product data label
on back for drawer
front
Important Safety Instructions
Important Information About
Safety Instructions
• The Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or
operating this or any other appliance.
• Always contact the Dacor Customer Service Team
about problems and conditions that you don’t
understand.
Safety Symbols and Labels
DANGER
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that COULD result in minor
personal injury or property damage.
1
![](/html/61/61e0/61e027c192e52c009b06c8892cc4888b13f46f8b7df55b781977cc409de6e234/bg4.png)
Important Safety Instructions
General Safety Precautions
To reduce risk of fire, electric shock, serious injury or death when using your appliance, follow basic precautions, including
the following:
WARNING
• Use this appliance only for its intended use as
described in this manual. Use it only to warm food
and heat plates and utensils. It is not designed for
commercial, industrial or laboratory use.
• Only model OWD24 is approved for use in outdoor
installations and near water (bathrooms). Do not
use, store or install warming drawer models other
than OWD24 near water, for example, near sinks,
swimming pools or in a wet basement.
• Model OWD24, when installed as a towel warmer,
must be installed indoors and have the supplied wire
rack installed in the drawer bottom according to these
instructions.
• Do not install or operate a product that is
damaged, has a damaged power cord or plug, or is
malfunctioning in any manner. Return the appliance to
the nearest authorized service facility for examination,
repair or adjustment.
• Make sure that the appliance has been properly
installed and grounded by a qualified installer
according to the accompanying installation
instructions. Have the installer show you the location
of the electrical outlet so that you know where to
disconnect power to the appliance.
• Do not repair or replace any part of the warming
drawer unless specifically recommended in the
literature accompanying it. All other service should be
done by a qualified technician.
• Use of accessory attachments not recommended by
the appliance manufacturer may cause injuries.
• Before cleaning or performing any type of service,
make sure that the power plug is disconnected from
the electrical outlet and that the unit is cool.
• DO NOT TOUCH ANY HOT SURFACES IN OR
ON THE WARMING DRAWER DURING OR
IMMEDIATELY AFTER USE. Use the handle instead.
After use, make sure these surfaces have had
sufficient time to cool before touching them. Heating
elements may be hot, even though they are dark in
color.
• To avoid the possibility of fire or burns, do not allow
clothing, potholders, towels or rags to come into
contact with any part of the warming drawer during
and immediately after use. Do not wear loose or
hanging apparel while using the appliance.
WARNING
• Clean the warming drawer thoroughly before
operating it for the first time.
• To reduce the risk of fire in the warming drawer, do
not overcook food. Do not leave it unattended with
paper, plastic or other combustible materials inside.
• If materials inside the warming drawer should ignite,
keep the drawer closed and shut off the power at the
circuit breaker panel or fuse box.
• Exercise caution when opening the warming drawer.
Let hot air or steam escape before looking or reaching
into the warming drawer.
• Use only dry pot holders when removing food and
cookware from the warming drawer. Wet pot holders
can cause steam burns.
• Do not put items like whole eggs, sealed containers
or closed glass jars in the drawer. They may explode
when heated, causing injury.
• When the warming drawer is on in continuous mode
(∞),itwillremainonuntilturnedoffmanually.Exercise
caution when operating the unit in continuous mode.
• Do not place more than 50 pounds in the drawer.
• Properly clean and maintain the unit regularly as
instructed in the use and care manual. Clean only
those parts listed, in the manner specified.
• Do not use abrasive scrubbers or abrasive/caustic
cleaners or detergents on this appliance. They may
permanently damage the finishes. Do not use aerosol
cleaners, because they may be flammable or cause
corrosion of metal parts.
• Make sure the warming drawer is used only by those
individuals who are able to operate it properly.
• Do not tamper with the controls.
• Never allow anyone, including children to sit, stand
or climb on any part of the appliance, including the
drawer. Doing so may cause tipping, damage, serious
injury or death.
• Do not leave children unattended in the area around
the appliance. Do not allow children to operate it, play
with the controls, pull on the handle or touch other
parts. Do not store items of interest to children above
the warming drawer. Children could be burned or
injured while climbing on the appliance.
