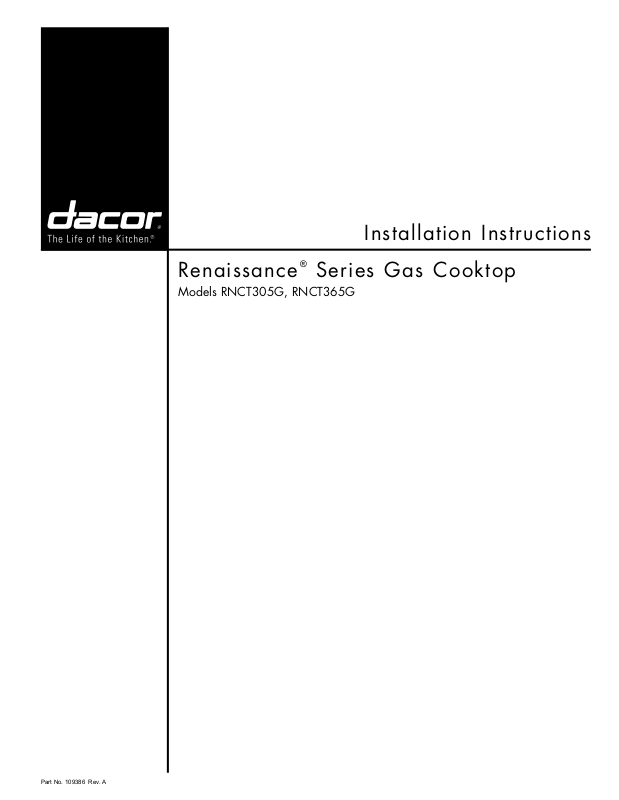

Page 1
Installation Instructions
Renaissance® Series Gas Cooktop
Models RNCT305G, RNCT365G
Part No. 109386 Rev. A
Page 2
Table of Contents
Important Safety Instructions ......................................1
Important Information About Safety Instructions ..........1
General Safety Precautions .........................................2
Electrical Requirements ...............................................3
Gas Supply Requirements ...........................................3
Installation Specifications ............................................4
Product Dimensions .....................................................4
Cabinet and Countertop Layout ...................................6
Downdraft Compatibility ...............................................6
Verifying the Package Contents ...................................8
Installing the Cooktop ...................................................8
Connecting the Gas Line..............................................8
Assembling the Burners ...............................................9
Verifying the Correct Setup ........................................11
Installation Checklist ...................................................10
Wiring Diagrams .............................................................. 11
Before You Begin...
Important
Installer: In the interest of safety and to minimize problems, read this Installation Instruction manual completely and
carefully before you begin the installation process.
• Leave this Installation Instructions with the consumer.
• Write the Product Data Label information inside the Use and Care manual for the consumer’s future reference.
Consumer: Keep these Installation Instructions for future reference and for the local electrical inspector’s use.
®
Note: Dacor
is not responsible for service required to correct a faulty installation.
Customer Service Information
If You Need Help...
If you have questions or problems with installation, contact
your Dacor dealer or the Dacor Customer Service Team. For
repairs to Dacor appliances under warranty call the Dacor
Distinctive Service line. Whenever you call, have the model
and serial number of the appliance ready. The model and
serial number are printed on the product data label.
Dacor Customer Service
Phone: (800) 793-0093 ex. 2813 (U.S.A. and Canada)
Monday — Friday 6:00
Website: www.dacor.com
Dacor Distinctive Service (repairs under warranty only)
Phone: (800) 793-0093, ex. 2822 (U.S.A. and Canada)
Monday — Friday 6:00
a.m. to 5:00 p.m. Pacific Time
a.m. to 5:00 p.m. Pacific Time
Product Data Label
The product data label is attached to the chassis, underneath the unit.
The label contains:
• the model number and serial number
• the electrical requirement and gas supply
requirements
Front of unit
Product data label
Product Data Label Location
All specifications are subject to change without notice. Dacor assumes no liability for changes to specifications.
© 2015 Dacor, all rights reserved.
Page 3
Important Safety Instructions
Important Information About Safety Instructions
• The Important Safety Instructions and warnings in
these instructions are not meant to cover all possible
problems and conditions that can occur. Use common
sense and caution when installing, maintaining or operating this or any other appliance.
• Always contact the Dacor Customer Service Team
about problems and conditions that you don’t understand. See Customer Service Information.
Safety Symbols, Labels, and Alerts
These danger and warning alerts signal the reader to the
risk of death or serious injury:
DANGER
Immediate hazards that WILL result in severe personal
injury or death.
WARNING
Hazards or unsafe practices that COULD result in severe
personal injury or death.
DANGER
IMPORTANT: If you smell gas:
• Do not use or light any appliance.
• Do not touch any electrical switch or use any electrical devices, including the telephone, in your building.
• From a neighbor’s phone, immediately call the gas
supplier. Follow the gas supplier’s instructions.
• If you cannot contact the gas supplier, call the fire
department.
DANGER
IMPORTANT: Do not store or use combustible, flammable
or explosive vapors and liquids (such as gasoline) on or
in the vicinity of this or any other appliance. Also keep
items that could explode, such as aerosol cans, away
from the cooktop. Do not store flammable or explosive
materials in adjacent cabinets or areas (including above
and below the cooktop).
WARNING
WARNING: NEVER use this appliance as a space heater
to heat or warm the room. Doing so may result in carbon
monoxide poisoning and overheating of the appliance.
WARNING
TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A RANGE TOP GREASE FIRE:
a. SMOTHER FLAMES with a close-fitting lid, cookie
sheet or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.
b. NEVER PICK UP A FLAMING PAN - you may be
burned.
c. DO NOT USE WATER, including wet dish cloths or
towels - a violent steam explosion may result.
d. Use a fire extinguisher ONLY if:
◊ You have a Class ABC extinguisher, and you
already know how to operate it.
◊ The fire is small and contained in the area where
it started.
◊ The fire department is being called.
◊ You can fight the fire with your back to an exit.
WARNING
WARNING: NEVER cover any slots, holes, or passages
on the cooktop and cooktop chassis. Doing so blocks
air flow through the cooktop and may cause carbon
monoxide poisoning. Aluminum foil linings may also trap
heat, causing a fire hazard. Keep all slots, holes, and
passages clear of grease and grime.
CALIFORNIA PROPOSITION 65 WARNING
The burning of gas cooking fuel generates some
by-products that are on the list of substances which
are known by the State of California to cause cancer or
reproductive harm. California law requires businesses
to warn customers of potential exposure to such
substances. To minimize exposure to these substances,
always operate this unit according to the Use and Care
manual, ensuring you provide good ventilation when
cooking with gas.
PROLONGED POWER FAILURE
Do not attempt to use this appliance during a continuous
power failure.
READ AND SAVE THESE INSTRUCTIONS
1
Page 4
Important Safety Instructions
General Safety Precautions
To reduce the risk of fire, electric shock, or serious injury
or death when using your appliance, follow basic safety
precautions, including the following:
WARNING
• Read the accompanying use and care manual completely before operating this appliance.
• Keep packaging materials away from children.
Plastic sheets and bags can cause suffocation.
• If you receive a damaged product, immediately contact your dealer or builder. Do not install or use a
damaged appliance.
• This cooktop must be properly installed and grounded by a qualified installer according to these installation instructions prior to use. The installer should
show the customer the location of the gas shut off
valve and the power cord so that they know where
and how to turn off the gas supply and disconnect
power to the cooktop.
• Do not install, repair or replace any part of the
cooktop unless specifically recommended in the literature accompanying it. A qualified service technician
should perform all other service.
• Before servicing or installing this cooktop, make sure
that the gas supply is turned OFF at the gas supply
valve and that the power plug is disconnected from
the electrical outlet.
• Disconnect the power plug from the electrical outlet
before cleaning. Clean this appliance only in the
manner specified in the Use and Care Manual.
• Only use the cooktop for cooking tasks expected of
a home appliance as outlined in the literature accompanying it. This cooktop is not intended for commercial or laboratory use.
• DO NOT TOUCH THE SURFACES OF THE
COOKTOP DURING OR IMMEDIATELY AFTER
USE.
• Do not operate this appliance if the power cord is
damaged.
• Turn the knobs to the OFF position prior to removing
them from the valve stems.
• Clean the cooktop thoroughly before operating it for
the first time. Make sure that all the cooktop parts
are dry before lighting a burner.
• To avoid a fire hazard, do not hang flammable or
heat sensitive objects over the cooktop.
• Do not climb on any part of the appliance.
WARNING
• Do not leave the cooktop unattended while in use to
avoid the possibility of a fire.
• Do not leave children alone or unattended in the
area around the cooktop. Do not allow children to
play with the controls or touch other parts of the
cooktop. Do not store items of interest to children
on top of or above the cooktop. Children could be
burned or injured while climbing on the appliance.
• Keep flammable items, such as paper, cardboard,
plastic, and cloth away from the burners and other
hot surfaces. Do not place such items on the
cooktop. Do not allow pot holders to touch hot surfaces or gas burners.
• Do not wear loose or hanging apparel while using
the cooktop. Do not allow clothing to come into contact with the cooktop and surrounding areas during
and immediately after use.
• If the cooktop is near a window, do not use long curtains as window treatment. The curtains could blow
over the cooktop and create a fire hazard.
• Do not use towels or bulky cloth as pot holders.
• Do not use the cooktop to heat sealed containers.
The container and contents may explode, causing
personal injury.
• Non-stick coatings, when heated, can be harmful
to pet birds. Relocate pet birds to a separate, wellventilated room when using the cooktop.
IMPORTANT - This appliance is equipped with a
three-prong grounding plug for your protection against
possible electric shock hazards. Plug it only into a
dedicated, grounded three-prong electrical outlet. It is the
responsibility of the customer to make sure the proper
type of outlet is installed.
Under any circumstances:
• DO NOT cut or remove the
third (ground) prong from
the power cord.
• DO NOT use an adapter
plug.
• DO NOT use an extension
cord.
• DO NOT use a power cord
that is frayed or damaged.
• DO NOT connect to an electrical outlet with a ground
fault interrupter (GFI).
3-prong
plug
3-prong
outlet
2
Page 5
Important Safety Instructions
Electrical Requirements
WARNING
To prevent an electric shock hazard, the power supply
must meet the specifications stated below. It is the owner’s responsibility to make sure that the electrical service
meets electrical requirements and that the electrical outlet
has been properly installed by a licensed electrician.
• The cooktop is supplied with a factory installed,
40-inch, three-prong, grounding electrical cord. It is
connected to the chassis at the bottom right rear corner
(see Chassis Bottom Diagrams below). It must be
connected to a dedicated, grounded three-prong electrical outlet installed by a licensed electrician.
• The electrical installation, including minimum supply
wire size and grounding, must be done in accordance
with National Electric Code ANSI/NFPA 70* and local
codes and ordinances. A copy of this standard may be
obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02269-9101
• The correct voltage, frequency, and amperage must be
supplied to the electrical outlet according to the product
data label located on the bottom of the chassis. See
the Gas and Electrical Requirements table on this
page for reference.
• Be certain to position the electrical outlet so that the
power cord may be easily disconnected if the unit
needs service.
Chassis Bottom of RNCT305G
RNCT365G
Gas Supply Requirements
• Be certain that the cooktop being installed is correct
for the gas service being provided (Natural Gas or LP
gas). Also, if using the cooktop at an altitude above
4000 ft. (1219 m) make sure it is equipped for high altitude (“H”) operation.
• Units equipped for high altitude operation have an “H”
at the end of the model number listed on the product
data label.
• Units equipped for LP operation have “LP” in the
model number listed on the product data label. See the
Product Data Label section for label location.
• Check your local building codes for the proper method
of installation. In the absence of local codes, this
appliance should be installed in accordance with the
National Fuel Gas Code ANSI Z223.1/NFPA 54.
• An external manual shut-off valve must be installed
between the gas supply line and the cooktop for the
purpose of turning on or shutting off gas to the appliance.
• The cooktop is shipped from the factory with a regulator in the carton. Use only the regulator provided. The
regulator must be installed between the gas inlet on the
cooktop and the gas shut-off valve.
• The regulator inlet accommodates a 3/4” gas line. The
cooktop inlet itself is equipped with a 3/4” male NPT fitting.
See the RNCT305G and RNCT365G image on the left.
RNCT305G_NG
RNCT365G_NG
Gas Type Natural Gas LP Gas
Manifold
Pressure
Min. Gas
Supply
Pressure **
Max. Gas
Supply
Pressure
Total Connected
Load
Circuit
Requirement
5” Water
column
6” Water
column
1/2 psi 1/2 psi
0.25 Amp.
(30 Watts)
120 Vac,
60 Hz, 15 Amp.
RNCT305G_LP
RNCT365G_LP
10” Water
column
11” Water
column
0.25 Amp.
(30 Watts)
120 Vac,
60 Hz, 15 Amp.
Gas and Electrical Requirements*
* The electrical and gas data on this page is for reference
only. If the above data does not agree with the product data
label, use the data on the product data label.
** The gas supply pressure for testing the regulator setting
shall be at least 1-inch water column (249 Pa) above the
specified manifold pressure.
3
Page 6
Installation Specifications
Product Dimensions
WARNING
Observe all governing codes and ordinances during planning and installation. Contact your local building department for
further information.
All tolerances: ±1/16” (±1.6 mm) unless otherwise noted.
Front of unit
Power cord
42” (106.7 cm) long
RNCT305G and RNCT365G
Utility Locations
1/2” male
NPT gas inlet
Power
cord
1 3/4”
(4.4 cm)
Front of cooktop
1/2” male NPT
gas inlet*
1 3/4”
(4.4 cm)
Chassis
2”
(5.1 cm)
Top panel overhang
*Gas inlet extends 1” (2.5 cm) from bottom
RNCT305G and RNCT365G
Utility Dimensions
4
Page 7
Installation Specifications
A
2" (5.1 cm)
from countertop
to cooking surface
21"
(53.3 cm)
4" (10.2 cm)
chassis height
Side View
Rear
overhang
Front
overhang
19 9/32” (49.0 cm)
17/32”
(1.3 cm)
1 3/16
”
(3.0 cm)
Front View
B
1 11/32”
(3.4 cm)
1 11/32”
(3.4 cm)
Product Dimensions
All tolerances ±1/16” (±1.6 mm)
unless otherwise noted.
RNCT305G and RNCT365G
W x H x D Dimensions
Model A (width) B (width)
RNCT305G 30” (76.2 cm) 27 5/16” (69.4 cm)
RNCT365G 36” (91.4 cm) 33 5/16” (84.6 cm)
A
RNCT305G and RNCT365G
Surface vs Chassis Overhang Dimensions
5
Page 8
Installation Specifications
Cabinet and Countertop Layout
WARNING
• To reduce the risk of personal injury caused by
reaching over a hot appliance, avoid locating cabinet
storage space directly above the cooktop.
• Failure to meet or exceed the maximum and minimum dimensions/clearances stated in these instructions may result in a fire hazard.
• Follow the countertop manufacturer’s instructions
regarding the minimum corner radius, use of heat
reflective tape, reinforcement of corners, etc.
• Carefully check the location where the cooktop will be
installed. For best performance, the cooktop should be
placed away from drafts that may be caused by doors,
windows, and heating and air conditioning vents.
• This appliance is to be used in conjunction with a suitable vent hood or approved Dacor downdraft vent.
Minimum Required Clearances
Around the Cooktop
Refer to the following illustrations, notes, and tables for
clearance allowances.
All tolerances: +1/16” -0” unless otherwise noted.
A
13” max.
(33.0 cm)
Combustible
surface to rear
See cutout
dimensions
1
Distance to combustible surfaces measured from cooking
surface (top of cooktop grate).
2
If installing with an overhead range hood, check the hood
specifications for minimum required clearances.
3
This specification does not apply for cabinets located
greater than a horizontal distance of 5 1/2” (14.0 cm) from
edge of cooktop. Allow 6 7/8” (17.5 cm) from cutout edge.
3
1, 3
1 5/8” min.
(4.1 cm)
30” min.
(76.2 cm)
18” min.
(45.7 cm)
1, 2
See cutout
dimensions
Model (A) Minimum (A) Recommended
RNCT305G 30” (76.2 cm) 36” (91.4 cm)
RNCT365G 36” (91.4 cm) 42” (106.7 cm)
1/4” (6 mm)
mimimum clearance
B
to combustible
surfaces
* Allows for clearance between hold down brackets
• Allow a minimum 1/4” (6 mm) clearance between the
bottom of the cooktop chassis and all combustible surfaces, including the upper edge of a drawer installed
below the cooktop.
Model (B) Minimum
RNCT305G 29 1/4” (74.3 cm)
RNCT365G 35 1/4” (89.5 cm)
Under Cabinet Clearances
• The gas supply piping, gas shut-off valve and the electrical outlet must be located so that they do not interfere with the cooktop when it is installed. If installing
another appliance in the cabinet below, allow for the
routing of gas and electrical service behind it.
The installation must allow for the following:
• Access to the gas shut-off valve and regulator when
the unit is installed.
• Access to the electrical outlet when the cooktop is in
place. The 42” (106.7 cm) power cord must be able to
reach the electrical outlet.
• Access to the underside of the cooktop for service and
inspection purposes.
• Clearance inside the cabinet to allow for proper hold
down bracket installation.
To allow access to the utilities and cooktop bottom, a fixed
shelf should not be installed below the cooktop. See the
following pages for countertop cutout dimensions.
Downdraft Compatibility
If installing the cooktop with a downdraft, use only the
approved Dacor downdraft model numbers below.
Cooktop Model Approved Downdraft
RNCT305G ERV3015
RNCT365G ERV3615
6
Page 9
Installation Specifications
Stiffener
Cabinet face
Countertop
Floor
3/8” min. (1.0 cm)
behind downdraft
to clear stiffener
3/8” min. (1.0 cm)
clearance required
behind cutout
ERVxx15 Downdraft
Check downdraft
dimensions/specifications
to determine proper fit
RNCT Series Cooktop
Cutout Dimensions
Countertop Cutout View
Vertical
combustible
surface
C
Countertop Cutout
Dimensions
Rear
wall
D
1 5/8” min.
(4.1 cm)
All tolerances +1/16” -0” (+1.6 mm) unless otherwise noted.
4 1/4” (10.8 cm) min.
from mounting surface to
combustibles below
cooktop chassis
E
F
Minimum distance to combustible side
wall above countertop (both sides)
F
Configuration (C) Minimum (D) (E) (F) Minimum
RNCT305G with no downdraft 3 1/4” (8.3 cm) 19 5/8” (49.9 cm) 27 5/8” (70.2 cm)
RNCT305G with ERV3015 downdraft 3/8” (1.0 cm) 22 3/4” (57.8 cm) 27 5/8” (70.2 cm)
RNCT365G with no downdraft 3 1/4” (8.3 cm) 19 5/8” (49.9 cm) 33 5/8” (85.4 cm)
RNCT365G with ERV3615 downdraft 3/8” (1.0 cm) 22 3/4” (57.8 cm) 33 5/8” (85.4 cm)
Cooktop with
Downdraft: ERV Series
6 7/8” (17.5 cm)
7
Page 10
Installation Instructions
Verifying the Package Contents
• Hold-down brackets (2)
• Grates: (3)
• Burner sets: (5)
• Gas pressure regulator: (1)
• Stainless steel cleaner: (1)
(stainless steel models only)
If any parts are missing, please refer to the Customer
Service Information section on the inside cover.
Installing the Cooktop
WARNING
• Verify that the power supply meets the specifications
on page 3 before proceeding.
• To prevent damage to the gas pressure regulator,
install it only after the cooktop is mounted in its permanent position.
IMPORTANT
• Do not over-tighten the hold-down bolts. Over tightening the hold down bolts may result in improper
operation of the dual gas burners.
• Do not use a hardening compound or caulk to permanently seal the cooktop into place. The cooktop must
be readily removable if service is required. Removal
of sealant to service the unit will be performed at the
customer’s expense.
1. If the cooktop will be used with a downdraft, first install
the downdraft according to the downdraft installation
instructions.
2. Lower the cooktop into the cutout and center it.
3. Secure the cooktop to the countertop using the two (2)
hold-down brackets as shown (included).
Hold-down
bracket mounting holes
(both sides)
Gas inlet
Power cord
Connecting the Gas Line
WARNING
• Verify that the gas supply meets specifications before
connection. See page 3.
• Do not install or use the cooktop without the included
gas regulator installed.
• Ensure that the arrow on the regulator points in the
direction of the gas flow, toward the cooktop.
• Do not apply excessive pressure when tightening gas
connections and fittings.
• Do not use Teflon tape or plumber’s putty on flexible
gas line connections.
• Before use, test the gas lines for leaks as instructed.
Do not use a flame to check for leaks.
• The maximum gas supply pressure to the regulator
must never exceed 1/2 pounds per square inch (psi)
or 3.5 kPa.
• The cooktop and shut-off valve must be disconnected
from the gas supply piping system during any pressure testing exceeding 1/2 psi (3.5 kPa).
• The cooktop must be isolated from the gas supply
piping system by closing the shut-off valve to the
cooktop during any gas supply piping system pressure testing equal to or less than 1/2 psi (3.5 kPa).
• For LP gas installations, the LP gas tank must have
its own high-pressure regulator in addition to the
pressure regulator supplied with the cooktop.
Refer to the figure Underneath the Cooktop on the left
while following these gas hookup instructions.
1. Attach the gas pressure regulator (included) to the gas
inlet on the cooktop.
• When working in tight space constraints, the regulator
can be installed anywhere between the cooktop and
gas supply/shut-off valve.
• For best performance, attach the regulator as close as
possible to the cooktop. This will minimize gas pressure
loss.
2. Connect regulator to the gas supply/shut-off valve with
a minimum 1/2” flexible gas line (not included).
3. Check for gas leaks:
◊ Turn all cooktop control valves to OFF.
◊ Make a soap and water solution or use a gas leak
detector and check all lines and connections for
gas leaks.
* Make sure the gas supply/shut-off valve is ON.
◊ Turn the gas supply/shut-off valve OFF.
Underneath the Cooktop
8
Page 11
Installation Instructions
Assembling the Burners
WARNING
• Never attempt to operate the cooktop with any of the burner parts removed.
• Do not attempt to adjust the burner air mixture settings. All adjustments are preset at the factory.
1. Remove the burner heads, burner rings, burner caps,
and grates from their shipping packages.
2. Assemble the burners as shown below.
When assembling the burner components:
• match the sizes of components together, i.e., the large
burner cap with the large burner ring.
• center and turn each piece back and forth until it drops
completely into place.
• The burners will not properly function unless all of the
burner pieces are correctly seated.
3. Gently set the grates on top of the spill tray. Make sure
that the feet are placed in the indentations located in
the spill tray.
* Model RNCT305G, has a different style of burner on the
left, rear of the cooktop.
Inner burner cap
(bottom shown)
Outer burner cap
Burner ring
Line up
indentations with
pins.
Burner cap
(bottom shown)
Burner ring
Burner base
Standard
Fit igniter in
hole
Igniter
CAUTION: Top of
igniter is sharp
Burner Assembly
SimmerSear™ Burner Assembly
Burner cap
(bottom shown)
Burner ring
Burner base
Burner base
Fit igniter in hole
Igniter
CAUTION: Top of
igniter is sharp
Standard Burner Assembly on the
RNCT305G Left Rear Burner
The burner base is permanently attached to the unit and cannot be removed by the user.
9
Page 12
Installation Instructions
IMPORTANT:
Assemble the grates as instructed below. When installed correctly, the openings in the grates are centered over the
burners.
1. Locate the notch on the bottom of each grate.
2. Use the notch on the bottom of each grate to determine where the grate is placed and orientated.
• The notches underneath the grates fit in the back of the cooktop.
• The notches on the left and right grates fit in the sides of the cooktop.
3. Gently lower the legs of the grates into their corresponding indentations on the cooktop.
NOTE: The burner and grate size vary with the model number.
Detail of Notch:
Side view of the grate with notch
Notch underneath
the grate
Left Grate
curved fingers
left to right
Standard
burner
Center Grate
No curved fingers;
middle is open
SimmerSear™
burner
Notch underneath
the grate
Right Grate
curved fingers
right to left
10
NOTE: Burner and grate size vary with model
Page 13
Installation Instructions
Verifying the Correct Setup
WARNING
• Make sure that power to the electrical outlet is turned
off at the circuit breaker panel or fuse box and that
the gas is turned off at the gas supply valve before
proceeding.
• The cooktop must be properly grounded at all times
when electrical power is applied.
Prior to using the cooktop, read the accompanying Use
and Care Manual carefully.
1. Make sure all the cooktop burner controls are in the
OFF position.
2. Plug the power cord to an electrical outlet.
3. Turn the power ON to the electrical outlet at the circuit
breaker or fuse box.
4. Press and turn ONE burner control knob slowly left to
the HIGH position. Verify that the associated burner
igniter sparks, and the burner indicator lights. Then
return the knob to the OFF position. Repeat for all of
the remaining control knobs.
5. Turn gas supply valve ON.
6. Perform this IGNITION TEST on all burners:
• Press and turn the control knob slowly left to the
HIGH position. Only the selected burner will spark.
It may take up to four seconds for the burner to
ignite, at which time the igniter will stop sparking.
If ignition does not occur within four seconds, turn
the knob OFF, wait for at least five minutes to allow
any gas to dissipate, then repeat this step.
• Once the burner lights, rotate the control knob
from HIGH toward LOW to adjust the flame height.
SimmerSear™ burners: turn the control knob to
the simmer setting, and make sure the low-level
flame can be adjusted. Make sure the burner indicator lights.
• When the unit is installed correctly, the flame will
burn steadily. It will have a sharp, blue inner cone
that will vary in length proportional to the burner
size. The flame will be reduced by the Smart
Flame™ feature under the grate fingers to increase
the life of the grate.
NOTE: If the cooktop does not function correctly, follow these troubleshooting steps:
• Verify that power and gas are supplied to the cooktop.
• Check to make sure that the power cord is connected
to an electrical outlet and that power is turned on at the
circuit breaker, fuse box, or light switch.
• Check to make sure that all the burners are correctly
assembled and seated.
• If the burner continues sparking after ignition, have a
licensed electrician check the electrical outlet for correct grounding or reversed polarity.
• Repeat the IGNITION TEST (Step 6).
• If the appliance still does not work, contact Dacor
Distinctive Service at (800) 793-0093, ex. 2822. Do not
attempt to repair the appliance yourself. If you need
service, be sure to have the model and serial number
available when you call. Refer to the inside cover.
Burner Indicator
OFF
On
Light
Flame
High
Flame
Short Flame
Tail
Low
Flame
Standard Burner Knob
OFF
On
Light
Flame
Long Flame
Tail
Correct Flame Appearance
Low
Flame
SimmerSear™ Burner Knob
High
Flame
11
Page 14
Installation Instructions
Installation Checklist
WARNING
To ensure a safe and proper installation, the following
checklist should be completed by the installer to ensure
that no part of the installation has been overlooked.
Proper installation is the responsibility of the homeowner.
The importance of proper installation of your Dacor
cooktop cannot be overemphasized.
□ Is the electrical outlet for the cooktop grounded and
located according to these instructions and in accordance with all applicable electrical codes?
See page 3.
□ Is the gas service for the cooktop located and installed
according to these instructions and in accordance with
all applicable codes? See page 3.
□ Has the gas supply inlet pressure been measured to
ensure that it does not exceed the maximums stated in
these instructions? See page 3.
□ Is the cooktop secured using the provided hold-down
brackets? See page 8.
□ Is the cooktop connected to the gas supply according
to these instructions and in accordance with all applicable codes? Did the installer check the gas supply for
leaks? See page 8.
□ Are the burners and grates correctly assembled
according to these instructions? See page 8-9.
□ Has the correct setup been verified? See page 11.
□ Has the warranty been activated on-line or the warranty
card filled out completely and mailed?
10
Page 15
Wiring Diagrams
WARNING
Label all wires prior to disconnection when servicing
controls. Miswiring can cause malfunction and
dangerous operation.
Verify that the unit is
working correctly after
servicing.
120 Vac, 60 Hz.
Power Pupply
Wiring Diagram: RNCT305G
RNCT365G
11
Page 16
Dacor ● 14425 Clark Avenue, City of Industry, CA 91745 ● Phone: (800) 793-0093 ● Fax: (626) 403-3130 ● www.dacor.com
Loading...
