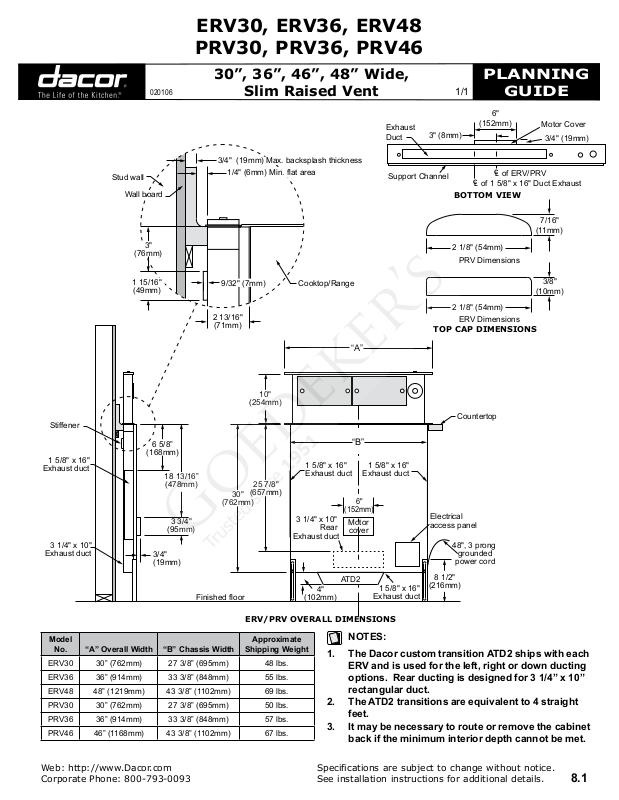

Dacor ERV36 User Manual 2
ERV30, ERV36, ERV48
2 1/8" (54mm)
2 1/8" (54mm)
3/8"
(10mm)
7/16"
(11mm)
PRV Dimensions
ERV Dimensions
3" (8mm)
Motor Cover
C
L
C
L
6"
(152mm)
3/4" (19mm)
of ERV/PRV
of 1 5/8" x 16" Duct Exhaust
Support Channel
Exhaust
Duct
8 1/2"
(216mm)
6 5/8”
(168mm)
10"
(254mm)
30"
(762mm)
18 13/16”
(478mm)
1 5/8" x 16"
Exhaust duct
Stiffener
3 3/4"
(95mm)
3/4"
(19mm)
Finished floor
1 5/8" x 16"
Exhaust duct
3 1/4" x 10"
Rear
Exhaust duct
1 5/8" x 16"
Exhaust duct
1 5/8" x 16"
Exhaust duct
48", 3 prong
grounded
power cord
Electrical
access panel
Countertop
Motor
cover
6"
(152mm)
3 1/4" x 10"
Exhaust duct
25 7/8"
(657mm)
2 13/16"
(71mm)
Cooktop/Range
Stud wall
Wall board
3/4" (19mm) Max. backsplash thickness
1/4" (6mm) Min. flat area
3"
(76mm)
9/32" (7mm)
1 15/16"
(49mm)
“B”
“A”
ATD2
4"
(102mm)
PRV30, PRV36, PRV46
30”, 36”, 46”, 48” Wide,
Slim Raised Vent
PLANNING
1/1020106
BOTTOM VIEW
TOP CAP DIMENSIONS
GUIDE
Model
No. “A” Overall Width “B” Chassis Width
ERV30 30” (762mm) 27 3/8” (695mm) 48 lbs.
ERV36 36” (914mm) 33 3/8” (848mm) 55 lbs.
ERV48 48” (1219mm) 43 3/8” (1102mm) 69 lbs.
PRV30 30” (762mm) 27 3/8” (695mm) 50 lbs.
PRV36 36” (914mm) 33 3/8” (848mm) 57 lbs.
PRV46 46” (1168mm) 43 3/8” (1102mm) 67 lbs.
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
ERV/PRV OVERALL DIMENSIONS
Approximate
Shipping Weight
NOTES:
1. The Dacor custom transition ATD2 ships with each
ERV and is used for the left, right or down ducting
options. Rear ducting is designed for 3 1/4” x 10”
rectangular duct.
The ATD2 transitions are equivalent to 4 straight
2.
feet.
It may be necessary to route or remove the cabinet
3.
back if the minimum interior depth cannot be met.
Specifications are subject to change without notice.
See installation instructions for additional details.
8.1
