ERD30
27" (686mm)
26" (660mm)
28 1/2" (724mm)
37”
(940mm)
to
35 3/4"
(908mm)
Finished Side Panel
24 3/8" (619mm)
Rear of Control Panel/Oven Door
Face of Control Panel/Oven Door
Front Edge of Bullnose
Handle
6” (152mm) Backguard
When Backguard and
Side Panels are
removed, the overall
depth decreases
by 1" (25mm)
Accessory 3” (76mm) Side Panels
(Dacor Model No. AESP03)
1 9/16"
(40mm)
Revised
07/30/08
30” Wide,
Epicure™ Range
All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted.
Observe all governing codes and ordinances during ◊
planning and installation. Contact your local building
department for further information.
This appliance must be installed in accordance with the ◊
accompanying installation instructions.

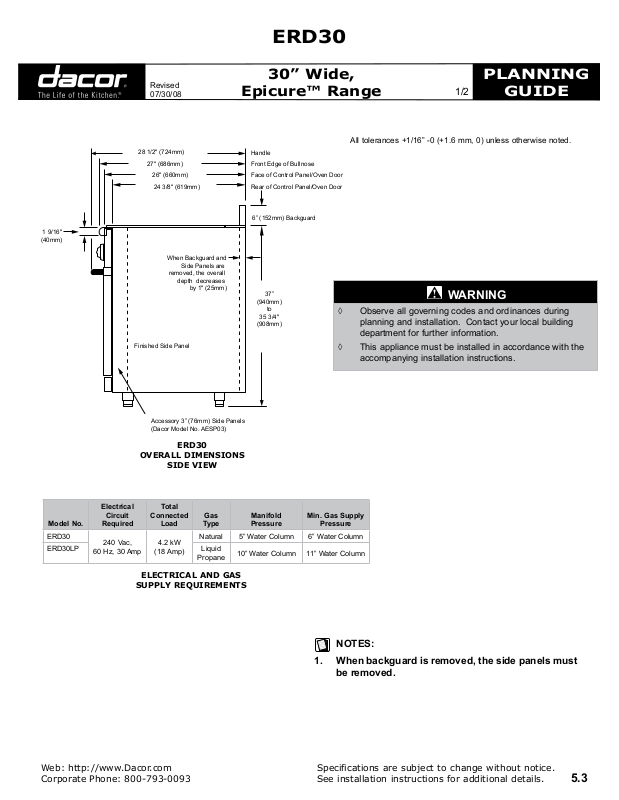

PLANNING
1/2
WARNING
GUIDE
OVERALL DIMENSIONS
ERD30
SIDE VIEW
Electrical
Circuit
Model No.
ERD30
ERD30LP Liquid
Required
240 Vac,
60 Hz, 30 Amp
Total
Connected
Load
4.2 kW
(18 Amp)
Gas
Type
Natural 5” Water Column 6” Water Column
Propane
ELECTRICAL AND GAS
SUPPLY REQUIREMENTS
Manifold
Pressure
10” Water Column 11” Water Column
Min. Gas Supply
1. When backguard is removed, the side panels must
Pressure
NOTES:
be removed.
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
Specifications are subject to change without notice.
See installation instructions for additional details.
5.3
ERD30
29 1/4" (743mm)
30 1/16" (764mm)
3/4" (19mm)
Max. backsplash
1/4" (6mm)
Min. flat ledge
13/16" (21mm)
23 3/16"
(589mm)
20 3/16"
(513mm)
29 1/4" (743mm)
30 1/16" (764mm)
Vertical
non-combustible
surface
Vertical
non-combustible
surface
Rear wall Rear wall
3 13/16”
(97mm)
25”
(635mm)
Countertop
Countertop
Countertop
Countertop
**
** Cabinet depth is at discretion of customer
but cabinet face MUST NOT protrude further
than rear of front panel, see product dimesions
* Vertical to combustible surface
B
A
Non-Combustible
surface along
back wall
Suggested
location of
utilities
30” (762mm)
min.*
Revised
07/30/08
30” Wide,
Epicure™ Range
All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted.
1. Utilities may be located in the lower left
2. Contact your local building department
3. For ERD all front-to-back dimensions are
4. Dacor rear top trim (part #26793; shipped
5. Dacor 3” wide side panels (left and right
6. ERD30 Range can be installed with slim
7. See the Combination Installation (CI)
8. Toe skirt sold separately (part #AETS30).
PLANNING
2/2
NOTES:
corner of the adjacent right cabinet.
(Recommended)
to verify compliance with local code
interpretation.
reduced by 1” (25mm) when backguard
and full side panels are removed.
with unit) must be used if backguard and
side panels are removed.
side: part #AESP03; available as an
accessory).
(ERV/PRV) downdraft ventilation.
section if installing with a downdraft.
GUIDE
Model Number “A” Minimum Cutout Width “B” Hood Width
ERD30
ERD36LP
Web: http://www.Dacor.com
Corporate Phone: 800-793-0093
CABINET DIMENSIONS
30 1/16” (764mm)
(Slide-In, Self-Rimming Installation with Side
Panels and Backguard Removed)
30” (762mm) Minimum
36” (914mm) Recommended
TOP VIEW
Specifications are subject to change without notice.
See installation instructions for additional details.
(Slide-In, Self-Rimming Installation using 3” Side
Panels, Backguard Removed)
5.4
Loading...
