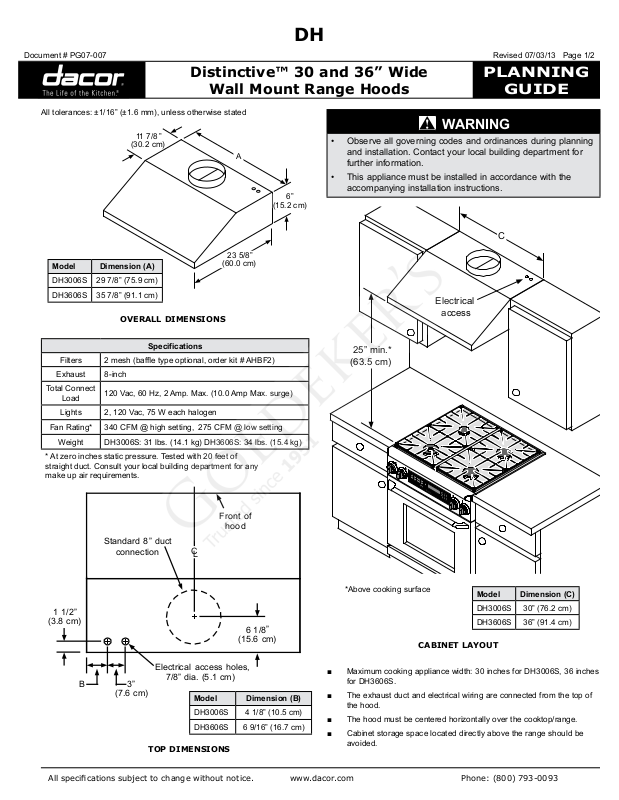

Document # PG07-007
Standard 8” duct
connection
Front of
hood
1 1/2”
(3.8 cm)
3”
(7.6 cm)
B
6 1/8
”
(15.6 cm)
Electrical access holes,
7/8” dia. (5.1 cm)
C
L
DH
Revised 07/03/13 Page 1/2
Distinctive™ 30 and 36” Wide
Wall Mount Range Hoods
All tolerances: ±1/16” (±1.6 mm), unless otherwise stated
11 7/8 ”
(30.2 cm)
Model Dimension (A)
DH3006S 29 7/8” (75.9 cm)
DH3606S 35 7/8” (91.1 cm)
OVERALL DIMENSIONS
Specifications
Filters 2 mesh (bafe type optional, order kit # AHBF2)
Exhaust 8-inch
Total Connect
Load
Lights 2, 120 Vac, 75 W each halogen
Fan Rating* 340 CFM @ high setting, 275 CFM @ low setting
Weight DH3006S: 31 lbs. (14.1 kg) DH3606S: 34 lbs. (15.4 kg)
* At zero inches static pressure. Tested with 20 feet of
straight duct. Consult your local building department for any
make up air requirements.
120 Vac, 60 Hz, 2 Amp. Max. (10.0 Amp Max. surge)
A
23 5/8”
(60.0 cm)
6”
(15.2 cm)
PLANNING
GUIDE
WARNING
• Observe all governing codes and ordinances during planning
and installation. Contact your local building department for
further information.
• This appliance must be installed in accordance with the
accompanying installation instructions.
C
Electrical
access
25” min.*
(63.5 cm)
All specications subject to change without notice.
TOP DIMENSIONS
Model Dimension (B)
DH3006S 4 1/8” (10.5 cm)
DH3606S 6 9/16” (16.7 cm)
*Above cooking surface
CABINET LAYOUT
■ Maximum cooking appliance width: 30 inches for DH3006S, 36 inches
for DH3606S.
■ The exhaust duct and electrical wiring are connected from the top of
the hood.
■ The hood must be centered horizontally over the cooktop/range.
■ Cabinet storage space located directly above the range should be
avoided.
Model Dimension (C)
DH3006S 30” (76.2 cm)
DH3606S 36” (91.4 cm)
Phone: (800) 793-0093www.dacor.com
Document # PG07-007
DH
Revised 07/03/13 Page 2/2
Distinctive 30 and 36” Wide
Wall Mount Range Hood
Planning the Duct Work
■ For optimal performance, consult a qualified HVAC specialist when
designing the duct system.
■ All duct work materials (including screws and duct tape) must be
purchased separately by the customer.
■ When planning new duct work, always look for the shortest, most
direct route to the outside.
elbow (not
included)
fanfan
■ You may increase the duct size over the duct run if desired. To
prevent a back draft, never decrease the duct size over the run. If
existing duct work is smaller than 8 inches, remove and replace with
8-inch duct work.
■ To prevent back-drafts, a damper at the duct outlet may be required.
Make sure duct work does not interfere with floor joists or wall studs.
Duct Work Design Tips
■ Wherever possible, reduce the number of transitions and turns to as
few sharp angles as possible. Two staggered 45° angles are better
than one 90°.
■ Keep turns as far away from the hood exhaust as possible, and as
much space between bends as possible.
■ For best performance, use round duct instead of rectangular,
especially when elbows are required.
■ If multiple elbows are used, try to keep a minimum of 24” straight duct
between them. Avoid “S” or “back to back” use of adjacent elbows.
■ In regions where the weather gets extremely cold, use thermal
breaks, such as a short section of non-metallic duct, to avoid indoor
heat loss. Locate the break as close as possible to the outside pass
through point.
■ Do not use flexible metal duct.
■ Do not use duct work that is smaller in cross-sectional area than the
recommended types above.
PLANNING
GUIDE
Calculating the Maximum Duct Run Length
The maximum straight duct length for the hood is determined by the type of
duct used. See the chart below.
Duct Size
8” round 60 feet
10” round 50 feet
3¼” X 10” rectangular 50 feet
For each elbow and transition added to the duct work, a certain number of
feet must be subtracted from the maximum duct run to compensate for wind
resistance. To determine the length the duct work cannot exceed, subtract
all of the equivalent lengths of the elbows and transitions listed below from
the maximum duct run above.
Duct Work Equivalent Lengths
Equivalent Number of Feet -
Duct Elbows and Transitions
45° elbow, 8 inch 3 feet 3 ¼” X 10”, 45° elbow 7 feet
45° elbow, 10 inch 2 feet 3 ¼” X 10”, 90° elbow 15 feet
90° elbow, 8 inch 7 feet 3 ¼” X 10”, 90° at elbow 20 feet
90° elbow, 10 inch 5 feet
90° 3 ¼” X 10” to
8” round transition
Roof cap * Wall cap** *
* The equivalent lengths of roof and wall caps vary with model and
configuration. For equivalent length, contact the manufacturer or a qualified
HVAC specialist.
25 feet
Maximum Straight
Duct Run
3 ¼” X 10” to 8” round
transition
3 ¼” X 10” to 10” round
transition
4 feet
4 feet
All specications subject to change without notice.
Phone: (800) 793-0093www.dacor.com
