Dacor DECT304, DECT365 Installation Guide

Installation Instructions

Distinctive TM Electric Cooktop

Models DECT304, DECT365

PJ

eo

_o

Lr)

O

_D

Fran_:is •voir page 11

Espa_ol: consuhe la p6gina 21

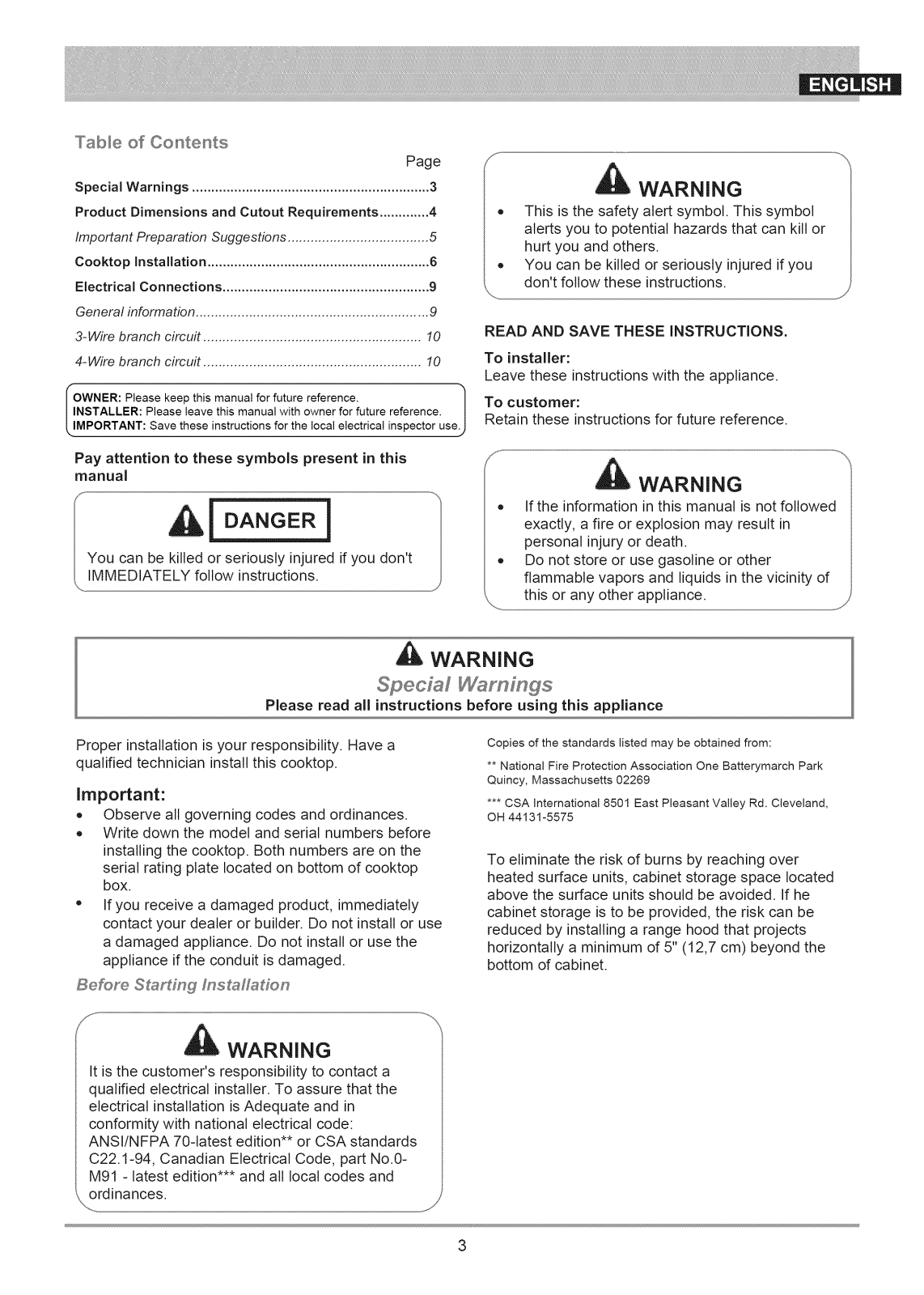

Table of Contents

Page

Special Warnings .............................................................. 3

Product Dimensions and Cutout Requirements .............4

Important Preparation Suggestions ..................................... 5

Cooktop installation .......................................................... 6

Electrical Connections ...................................................... 9

General information ............................................................. 9

3-Wire branch circuit ......................................................... 10

4-Wire branch circuit ......................................................... 10

OWNER: Please keep this manual for future reference.

INSTALLER: Please leave this manual with owner for future reference.
IMPORTANT: Save these instructions for the local electrical inspector use

Pay attention to these symbols present in this
manual

You can be killed or seriously injured if you don't

IMMEDIATELY follow instructions.

J

WARNING

,, This is the safety alert symbol. This symbol

alerts you to potential hazards that can kill or
hurt you and others.

• You can be killed or seriously injured if you
don't follow these instructions.

\,

READ AND SAVE THESE iNSTRUCTiONS.
To installer:

Leave these instructions with the appliance.
To customer:

Retain these instructions for future reference.

WARNING

,, If the information in this manual is not followed

exactly, a fire or explosion may result in
personal injury or death.

,, Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of
this or any other appliance.

....... ,J

Spec[aJ Wam_ngs

Please read all instructions before using this appliance

Proper installation is your responsibility. Have a

qualified technician install this cooktop.

Important:

,, Observe all governing codes and ordinances.
,, Write clown the model and serial numbers before

installing the cooktop. Both numbers are on the
serial rating plate located on bottom of cooktop

box.

• If you receive a damaged product, immediately
contact your dealer or builder. Do not install or use

a damaged appliance. Do not install or use the
appliance if the conduit is damaged.

Before S_ardn£ _ns_a_adon

WARNING

It is the customer's responsibility to contact a
qualified electrical installer. To assure that the
electrical installation isAdequate and in

conformity with national electrical code:
ANSI/NFPA 70-latest edition** or CSA standards

C22.1-94, Canadian Electrical Code, part No.0-

M91 -latest edition*** and all local codes and
ordinances.

WARNING

Copies of the standards listed may be obtained from:
** National Fire Protection Association One Batterymarch Park

Quincy, Massachusetts 02269
*** CSA International 8501 East Pleasant Valley Rd. Cleveland,

OH 44131-5575

To eliminate the risk of burns by reaching over
heated surface units, cabinet storage space located

above the surface units should be avoided. If he
cabinet storage is to be provided, the risk can be

reduced by installing a range hood that projects
horizontally a minimum of 5" (12,7 cm) beyond the

bottom of cabinet.

DECT304

DECT365

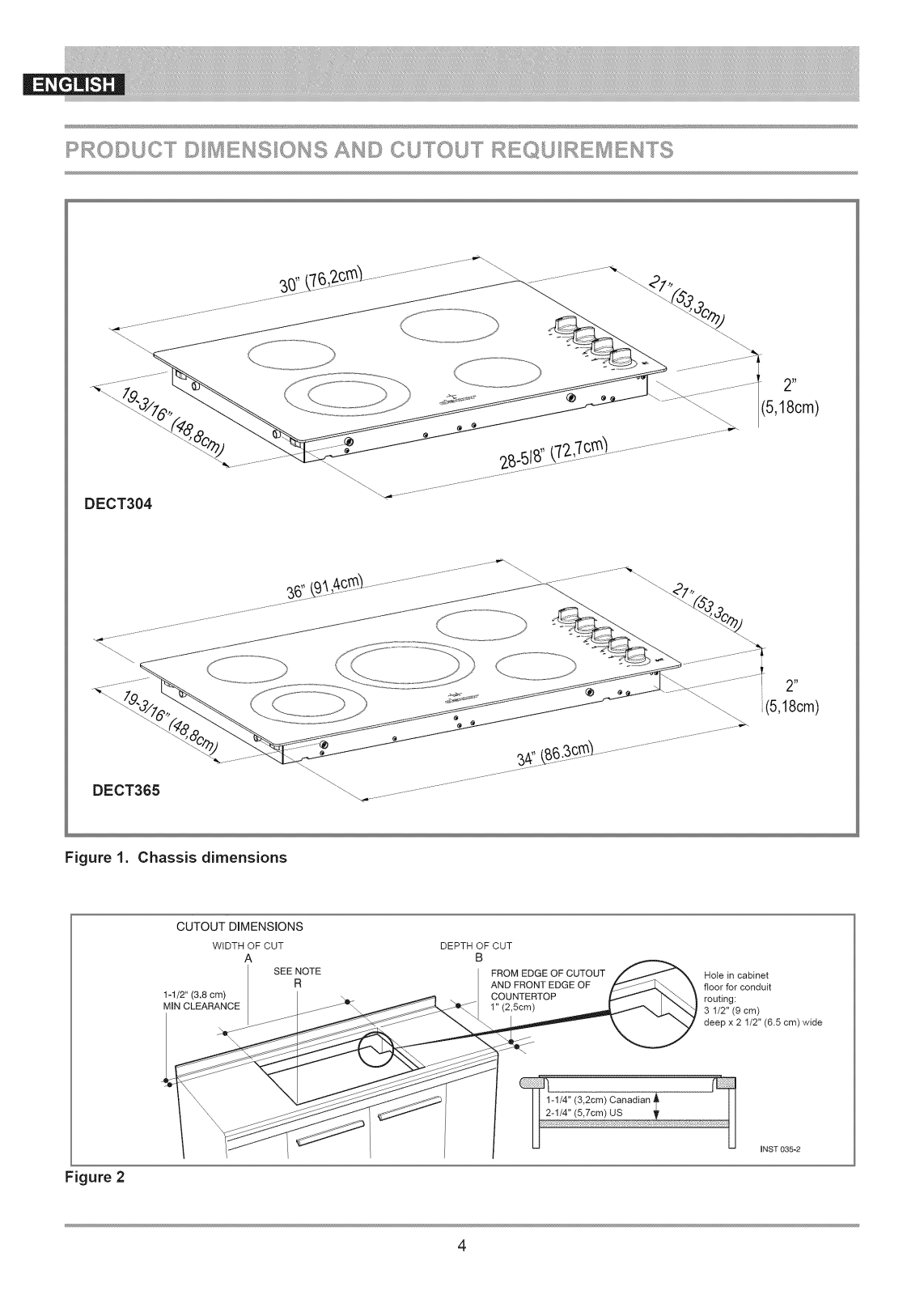

Figure 1. Chassis dimensions

m)

2_

J(5,18cm)

Figure 2

CUTOUT DiMENSiONS

WIDTH OF CUT DEPTH OF CUT

A B

SEE NOTE FROM EDGE OF CUTOUT Hole in cabinet

1-1/2" (3.8 cm) COUNTERTOP routing:
MIN CLEARANCE 1" (2,5cm) 3 1/2" (9 cm)

R AND FRONT EDGE OF floor for conduit

deep x 2 1/2" (6.5 cm) wide

JNST 035-2

CABINET REQUIREMENTS

G

INST 023-2

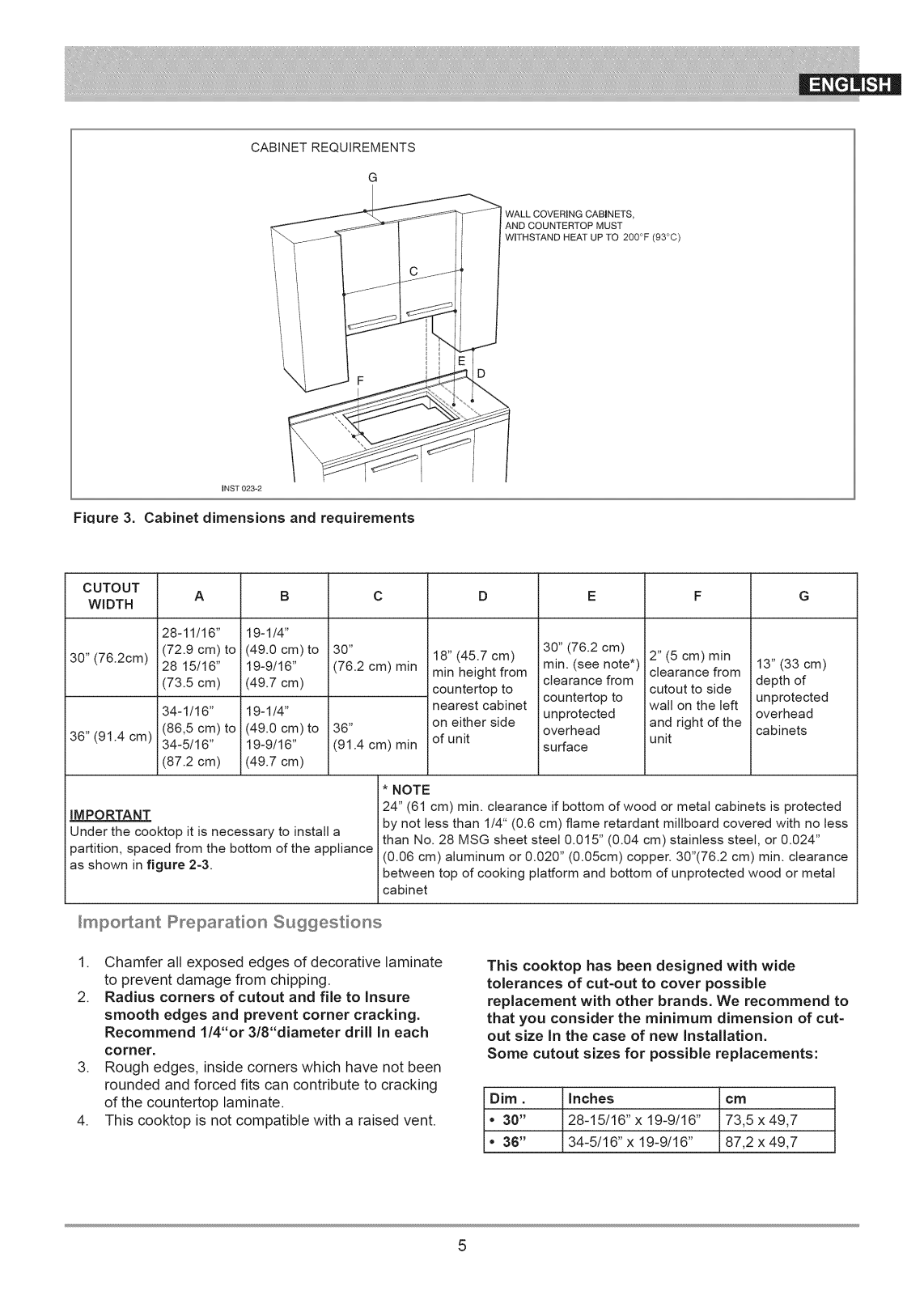

Fiaure 3. Cabinet dimensions and reauirements

WALL COVERING CABINETS,
AND COUNTERTOP MUST

WITHSTAND HEAT UP TO 200°F (93°C)

CUTOUT

WIDTH

30" (76.2cm)

36" (91.4 cm)

IMPORTANT
Under the cooktop it is necessary to install a

partition, spaced from the bottom of the appliance

as shown in figure 2-3.

A B C D E F G

28-11/16"
(72.9 cm) to

28 15/16"
(73.5 cm)

34-1/16"
(86,5 cm) to

34-5/16"
(87.2 cm)

i 19-1/4"
I(49.0 cm) to

i 19-9/16"

(49.7 cm)

i 19-1/4"

(49.0 cm) to

i 19-9/16"

i(49.7 cm)

130"

(76.2 cm) min

36"

(91.4 cm) min

* NOTE
24" (61 cm) min. clearance if bottom of wood or metal cabinets is protected

by not less than 1/4" (0.6 cm) flame retardant millboard covered with no less

than No. 28 MSG sheet steel 0.015" (0.04 cm)stainless steel, or 0.024"

(0.06 cm) aluminum or 0.020" (0.05cm) copper. 30"(76.2 cm) min. clearance
between top of cooking platform and bottom of unprotected wood or metal
cabinet

_mportant Preparation Suggestions

1. Chamfer all exposed edges of decorative laminate
to prevent damage from chipping.

2. Radius corners of cutout and file to Insure
smooth edges and prevent corner cracking.

Recommend 1/4"or 3/8"diameter drill in each
corner.

3. Rough edges, inside corners which have not been
rounded and forced fits can contribute to cracking

of the countertop laminate.

4. This cooktop is not compatible with a raised vent.

18" (45.7 cm)

min height from
countertop to

nearest cabinet
on either side

of unit

This cooktop has been designed with wide
tolerances of cut-out to cover possible

replacement with other brands. We recommend to
that you consider the minimum dimension of cut-

out size in the case of new Installation.
Some cutout sizes for possible replacements:

Dim .

, 30"
, 36"

30" (76.2 cm)
min. (see note*)

clearance from
countertop to

unprotected
overhead

surface

2" (5 cm) min
clearance from

cutout to side
wall on the left

and right of the
unit

Inches cm

28-15/16" x 19-9/16" 73,5 x 49,7
34-5/16" x 19-9/16" 87,2 x 49,7

13" (33 cm)

depth of

unprotected

overhead

cabinets

_00 10 _ Ho [)%LLA 0_

WARNING

= Excessive Weight Hazard

Use two or more people to move and install

cooktop. Failure to do so can result in back
or other injury.

• Cut Hazard
Beware of sharp edges. Use the polystyrene ends

when carrying the product. Failure to use caution

• Always consult the countertop manufacturer for
specific instructions.

o Ensure the countertop is square and level and

ensure no structural members interfere with space
requirements.

• Prepare the cut-out according to the instructions
(see cut-out dimensions).

,, Make sure the wall coverings, countertop and

cabinets around the cooktop can withstand heat
(up to 200 °F / 93 °C).

(((,'

Step 1
Remove packaging materials and literature package

from the cooktop before beginning installation.
Remove installation manual from literature pack and

read them carefully before you begin.

COOKTOP_.

INTRENAL PACKAGING

BOTTOM PACKAGING

..... J

CARDBOARD

/

/

/

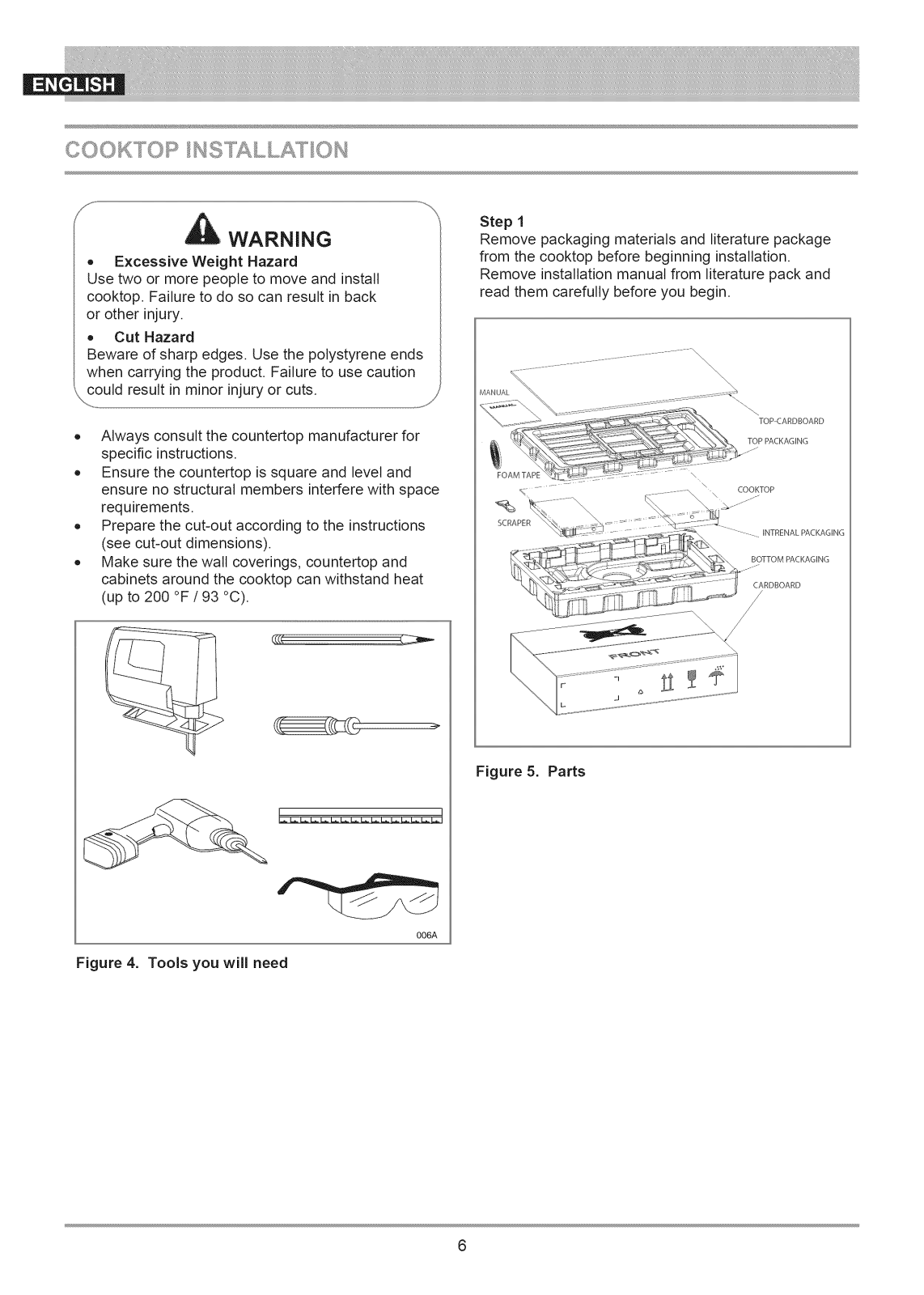

Figure 4. Tools you will need

Figure 5. Parts

O06A

Step 2

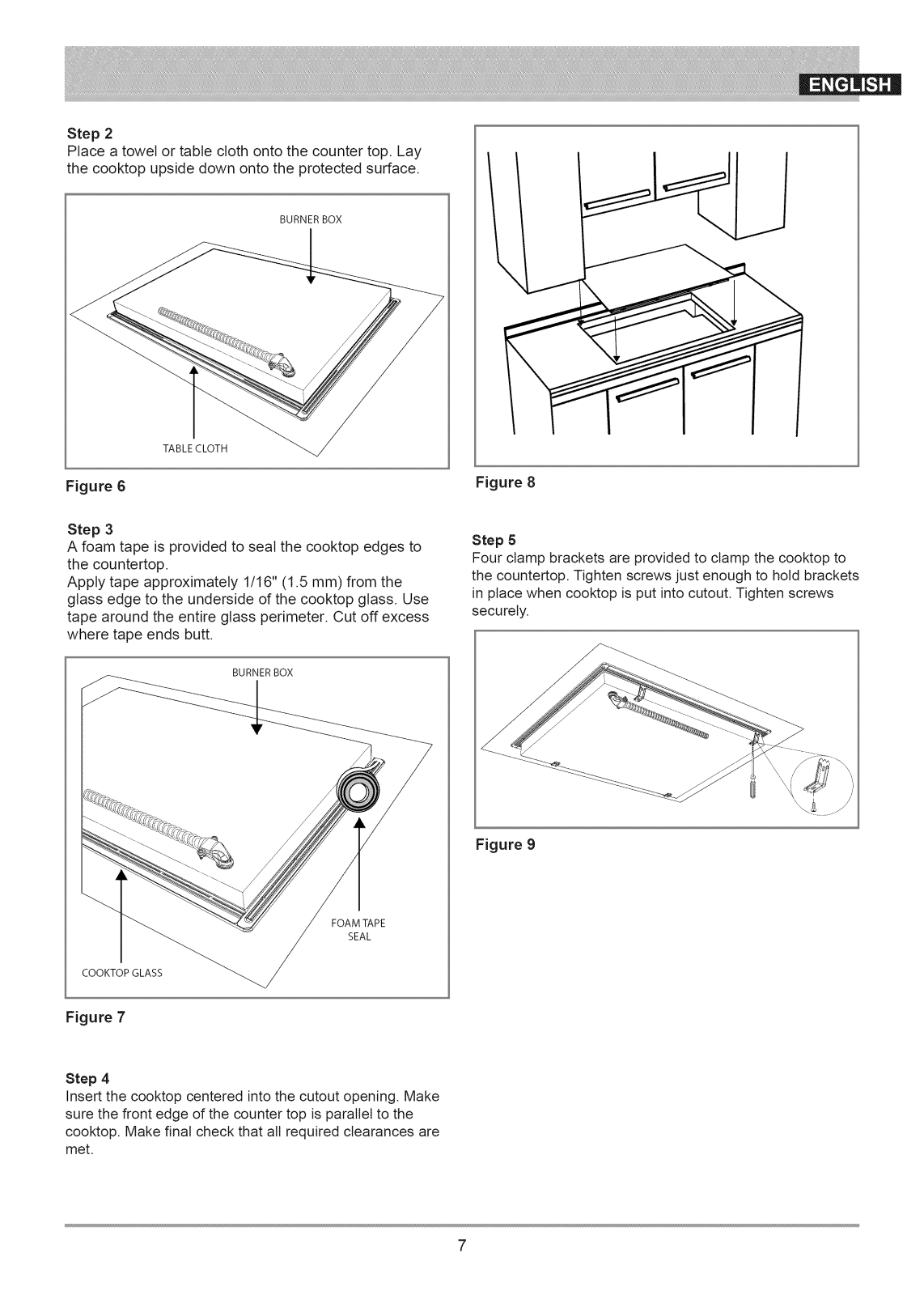

Place a towel or table cloth onto the counter top. Lay

the cooktop upside down onto the protected surface.

BURNER BOX

TABLECLOTH

Figure 6

Step 3
A foam tape is provided to seal the cooktop edges to
the countertop.

Apply tape approximately 1/16" (1.5 mm) from the
glass edge to the underside of the cooktop glass. Use
tape around the entire glass perimeter. Cut off excess

where tape ends butt.

BURNER BOX

FOAM TAPE

SEAL

Figure 8

Step 5

Four clamp brackets are provided to clamp the cooktop to

the countertop. Tighten screws just enough to hold brackets

in place when cooktop is put into cutout. Tighten screws

securely.

Figure 9

COOKTOP GLASS

Figure 7

Step 4

Insert the cooktop centered into the cutout opening. Make
sure the front edge of the counter top is parallel to the
cooktop. Make final check that all required clearances are

met.

CONDUIT OPENING

A: 12" (30,5 cm) MIN FROM

BOTTOM OF COUNTERTOP
AND ADJACENT CABINET

(RIGHT SIDE)

f I

LOCATIONS
OF ALUMINUM
REFLECTIVE TAPE

TAPE TOP AND
VERTICAL SIDES
OF ;UTOUT

INST 030-2

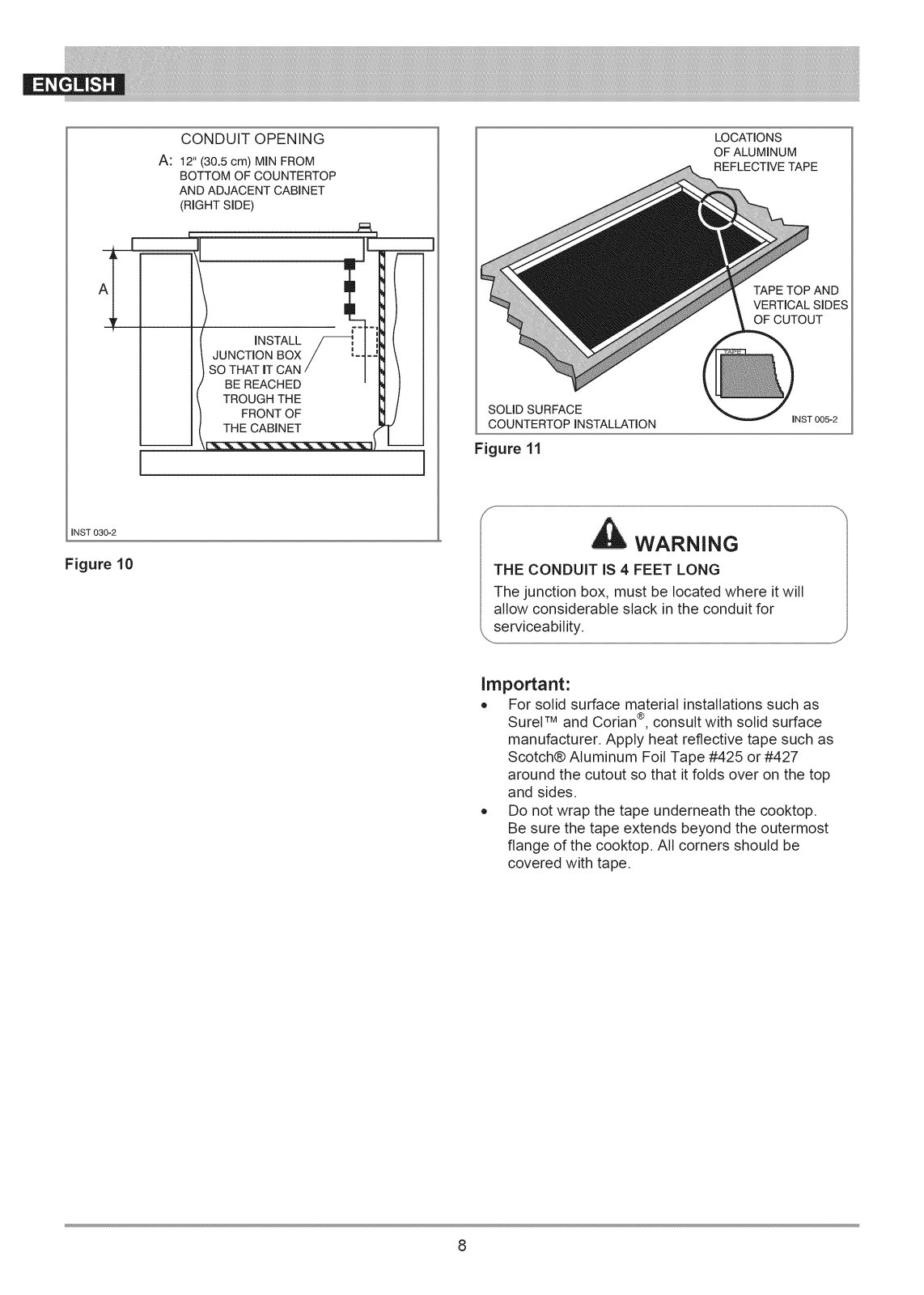

Figure 10

SOLID SURFACE
COUNTERTOP INSTALLATION

Figure 11

f ..................................................................................................................

WARNING

THE CONDUIT IS 4 FEET LONG
The junction box, must be located where it will

allow considerable slack in the conduit for
serviceability.

Important:

• For solid surface material installations such as
Surel TM and Corian ®, consult with solid surface

manufacturer. Apply heat reflective tape such as
Scotch® Aluminum Foil Tape #425 or #427

around the cutout so that itfolds over on the top
and sides.

,, Do not wrap the tape underneath the cooktop.

Be sure the tape extends beyond the outermost

flange of the cooktop. All corners should be

covered with tape.

INST 005-2

Disconnectpower before servicing the product.

Failure to do so could result in death or
electrical shock.

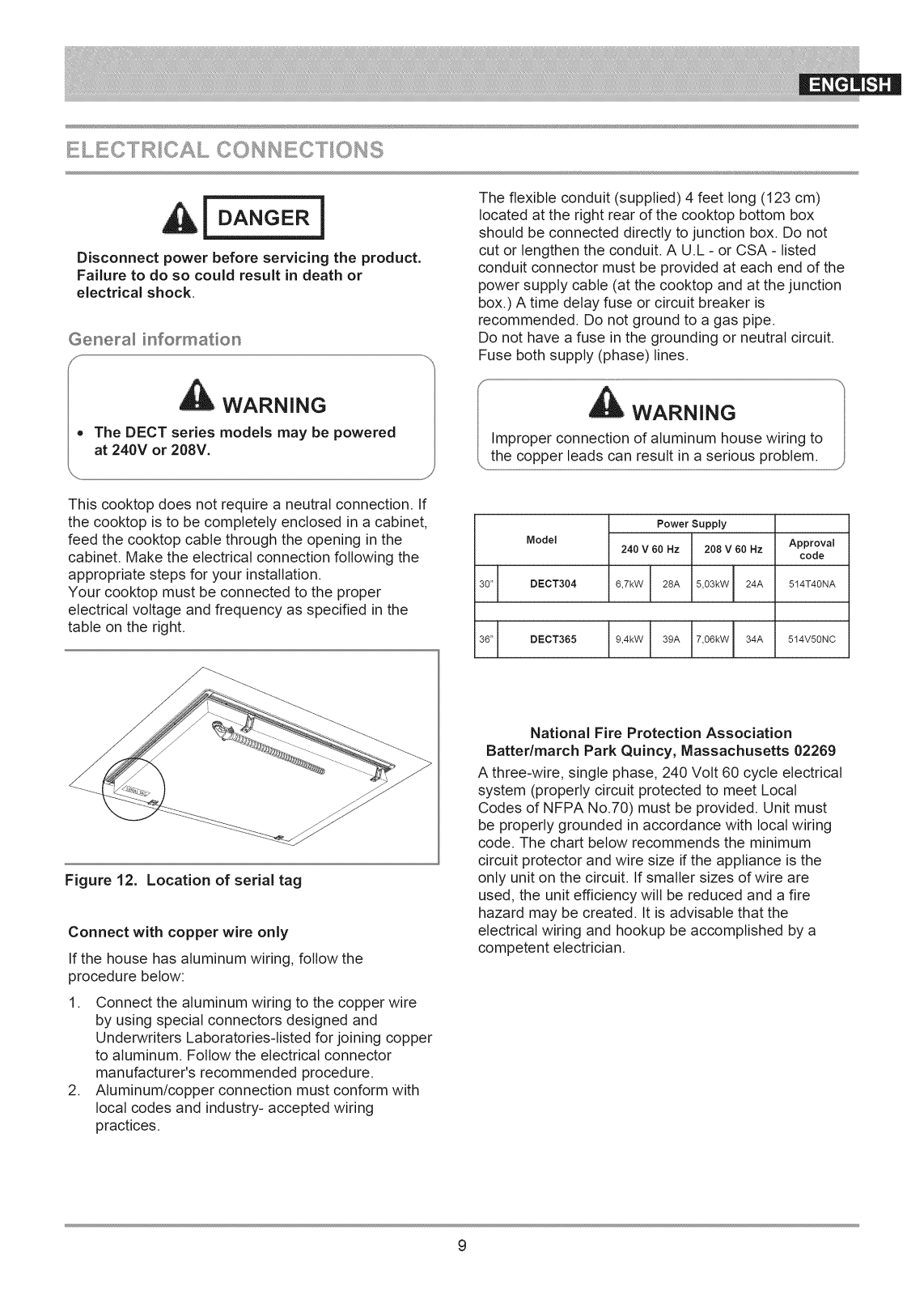

®eneral information

s ...........

The flexible conduit (supplied) 4 feet long (123 cm)
located at the right rear of the cooktop bottom box

should be connected directly to junction box. Do not
cut or lengthen the conduit. A U.L - or CSA - listed

conduit connector must be provided at each end of the
power supply cable (at the cooktop and at the junction

box.) A time delay fuse or circuit breaker is
recommended. Do not ground to a gas pipe.

Do not have a fuse in the grounding or neutral circuit.
Fuse both supply (phase) lines.

WARNING

* The DECT series models may be powered

at 240V or 208V.

This cooktop does not require a neutral connection. If
the cooktop is to be completely enclosed in a cabinet,

feed the cooktop cable through the opening in the

cabinet. Make the electrical connection following the
appropriate steps for your installation.
Your cooktop must be connected to the proper

electrical voltage and frequency as specified in the
table on the right.

Figure 12. Location of serial tag

Connect with copper wire only
If the house has aluminum wiring, follow the

procedure below:

1. Connect the aluminum wiring to the copper wire
by using special connectors designed and
Underwriters Laboratories-listed for joining copper

to aluminum. Follow the electrical connector

manufacturer's recommended procedure.

2. Aluminum/copper connection must conform with
local codes and industry- accepted wiring

practices.

WARNING

Improper connection of aluminum house wiring to /

Lthe copper leads can result in a serious problem, ,_

Model

30" DECT304

36" DECT365

National Fire Protection Association

Batter/march Park Quincy, Massachusetts 02269

A three-wire, single phase, 240 Volt 60 cycle electrical
system (properly circuit protected to meet Local
Codes of NFPA No.70) must be provided. Unit must

be properly grounded in accordance with local wiring
code. The chart below recommends the minimum

circuit protector and wire size if the appliance is the
only unit on the circuit. If smaller sizes of wire are

used, the unit efficiency will be reduced and a fire
hazard may be created. It is advisable that the

electrical wiring and hookup be accomplished by a
competent electrician.

Power Supply

240 V 60 Hz 208 V 60 Hz

6,7kW 28A 5,03kW I

9,4kW 39A 7,06kW I 34A

24A

I

Approval

code

514T40NA

514V50NC

Recommended Minimum

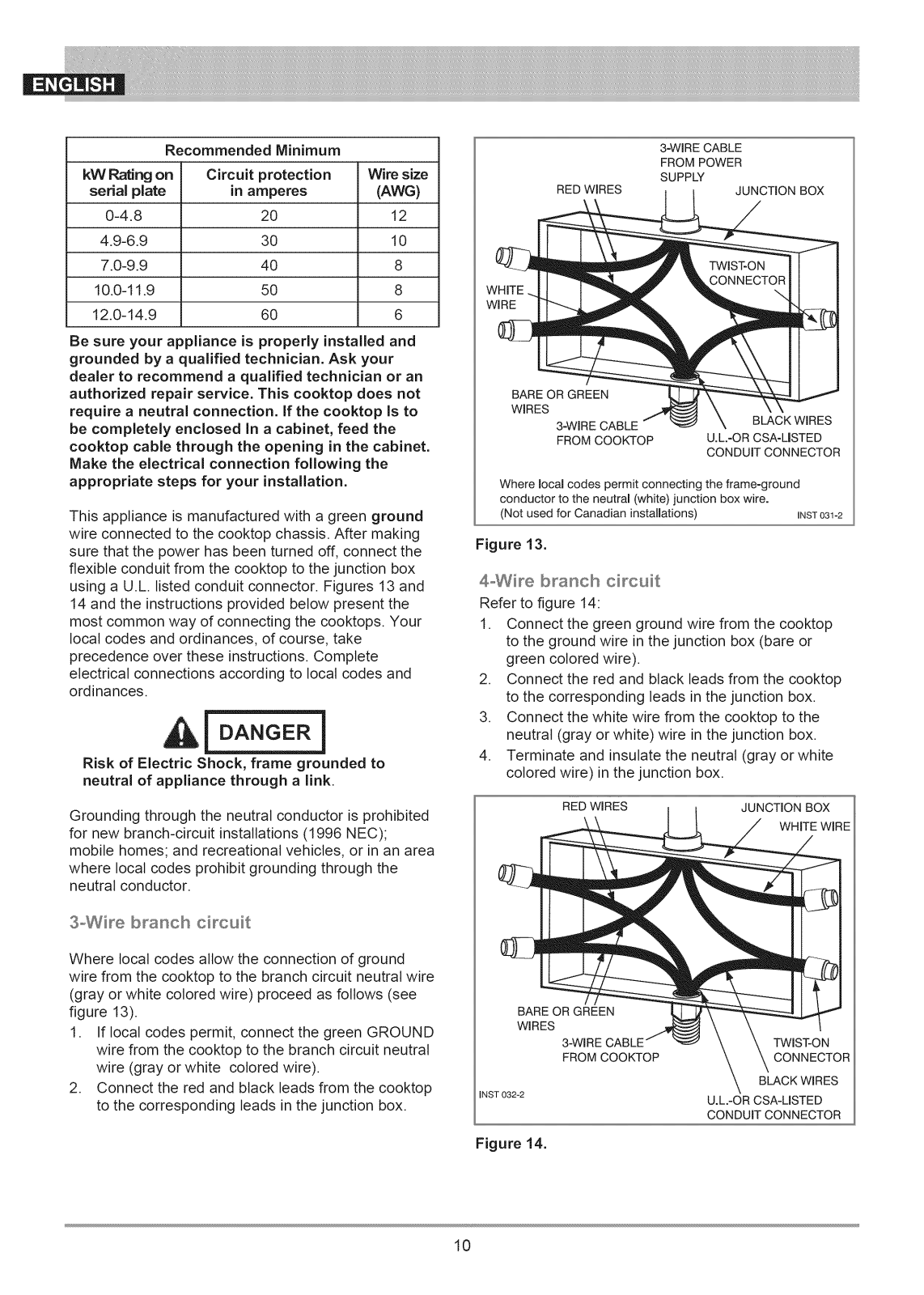

kW Rating on Circuit protection Wire size

serial plate in amperes (AWG)

0-4.8 20 12

4.9-6.9 30 10

7.0-9.9 40 8

10.0-11.9 50 8

12.0-14.9 60 6

Be sure your appliance is properly installed and

grounded by a qualified technician. Ask your
dealer to recommend a qualified technician or an

authorized repair service. This cooktop does not

require a neutral connection, if the cooktop is to
be completely enclosed in a cabinet, feed the

cooktop cable through the opening in the cabinet.

Make the electrical connection following the

appropriate steps for your installation.

This appliance is manufactured with a green ground
wire connected to the cooktop chassis. After making
sure that the power has been turned off, connect the

flexible conduit from the cooktop to the junction box

using a U.L. listed conduit connector. Figures 13 and
14 and the instructions provided below present the
most common way of connecting the cooktops. Your

local codes and ordinances, of course, take

precedence over these instructions. Complete
electrical connections according to local codes and
ordinances.

Risk of Electric Shock, frame grounded to
neutral of appliance through a link.

Grounding through the neutral conductor is prohibited
for new branch-circuit installations (1996 NEC);

mobile homes; and recreational vehicles, or in an area

where local codes prohibit grounding through the

neutral conductor.

3-WIRE CABLE
FROM POWER

RED WIRES

SUPPLY

JUNCTION BOX

7

w
WIRE

BARE OR GREEN /

WIRES

3=WIRE CABLE BLACK WlRES

FROM COOKTOP U.L.-OR CSA-MSTED

Where local codes permit connecting the frame-ground
conductor to the neutral (white) junction box wire.

(Not used for Canadian installations) INST031-2

Figure 13.

4oWire branch circuit
Refer to figure 14:

1. Connect the green ground wire from the cooktop
to the ground wire in the junction box (bare or

green colored wire).

2. Connect the red and black leads from the cooktop
to the corresponding leads in the junction box.

3. Connect the white wire from the cooktop to the

neutral (gray or white) wire in the junction box.

4. Terminate and insulate the neutral (gray or white

colored wire) in the junction box.

RED WIRES

CONDUIT CONNECTOR

JUNCTION BOX

WHITE WiRE

3,,,,,,Wirebranch circuit

Where local codes allow the connection of ground
wire from the cooktop to the branch circuit neutral wire
(gray or white colored wire) proceed as follows (see
figure 13).

1. If local codes permit, connect the green GROUND
wire from the cooktop to the branch circuit neutral
wire (gray or white colored wire).

2. Connect the red and black leads from the cooktop
to the corresponding leads in the junction box.

INST 032-2

Figure 14.

10

BARE OR GREEN

WIRES

3-WIRE CABLE TWIST-ON
FROM COOKTOP CONNECTOR

BLACK WIRES

U.L.-OR CSA-LISTED

CONDUIT CONNECTOR

The Life of the Kitchen?

Dacor • 600 Anton Blvd. Suite 1000 Costa Mesa, CA 92626 • Phone: [phone] • Fax: [phone] • www.dacor.com

%3

©

O
O

oO

LO
C_d

C3

O'.

o

_J

©

©
