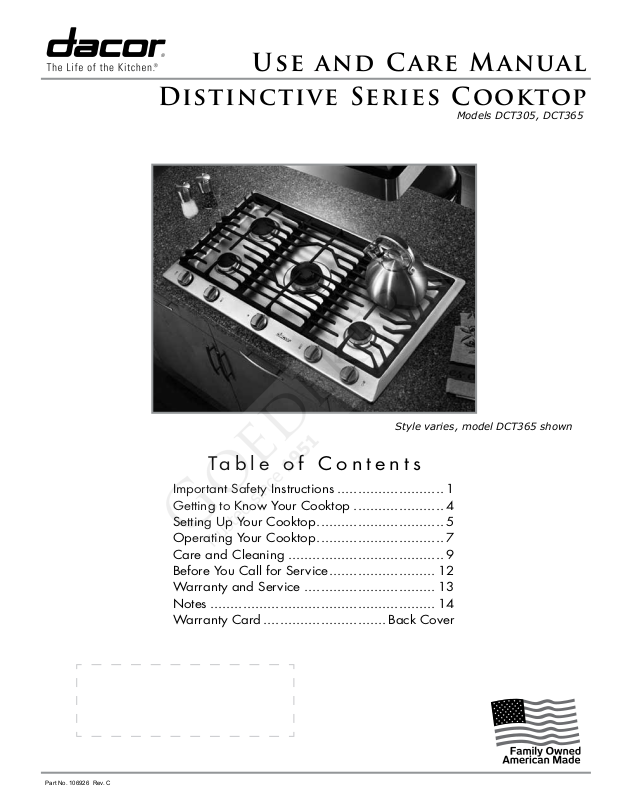

Dacor DCT365 User Manual

Use and Care Manual

Distinctive Series Cooktop

Models DCT305, DCT365

Style varies, model DCT365 shown

Table of Contents

Important Safety Instructions .......................... 1

Getting to Know Your Cooktop ...................... 4

Setting Up Your Cooktop ............................... 5

Operating Your Cooktop ............................... 7

Care and Cleaning ...................................... 9

Before You Call for Service .......................... 12

Warranty and Service ................................ 13

Notes ....................................................... 14

Warranty Card .............................. Back Cover

Part No. 106926 Rev. C

© 2011 Dacor, all rights reserved

Important Safety Instructions

Installer: Leave these instructions with the appli­ance.

Consumer: Read this use and care manual com­pletely before using this appliance. Save it for future
reference. It contains important use and care infor­mation. Keep your sales receipt or canceled check.
Proof of original purchase date is required for war­ranty service.

For service and warranty information, see page 13.

If you have any questions (other than warranty
questions), call:

Dacor Customer Service
[phone] (U.S.A. and Canada)

Monday — Friday 6:00 a.m. to 5:00 p.m. Pacific Time
Web site: www.dacor.com
Have the complete model and serial number identifi-

cation of your cooktop ready. Record these numbers
below for easy access. The numbers are found on a
label on the under side of the chassis.

Model number ______________________________

Serial number ______________________________

Important Information About
Safety Instructions

The Important Safety Instructions and warn­ings in this manual are not meant to cover all pos­sible problems and situations that can occur. Use
common sense and caution when installing, main­taining or operating this or any other appliance.

Always contact the Dacor Customer Service Team
about problems or situations that you do not under­stand.

Safety Symbols and Labels

DANGER

Immediate hazards that WILL result in severe personal
injury or death.

WARNING

Hazards or unsafe practices that COULD result in severe
personal injury or death.

Date of purchase ____________________________

CAUTION

Since we continuously improve the quality and per-
formance of our products, we may make changes
to the appliance without updating this manual. Visit
www.Dacor.com to download the latest version of
this manual.

DANGER

IMPORTANT: If you smell gas:

• Do not use or light any appliance.

• Do not touch any electrical switch or use any electrical devices including the telephone in your building.

• From a neighbor’s phone, immediately call the gas supplier. Follow the gas supplier’s instructions.

• If you cannot contact the gas supplier, call the fire department.

IMPORTANT: To avoid the possibility of explosion or fire, do not store or use combustible, flammable or explosive
vapors and liquids (such as gasoline) inside or in the vicinity of this or any other appliance. Also keep items that could
explode, such as aerosol cans away from the cooktop. Do not store flammable or explosive materials in adjacent
cabinets or areas.

WARNING

NEVER use this appliance as a space heater to heat or
warm the room. Doing so may result in carbon monoxide
poisoning and overheating of the appliance.

WARNING

NEVER cover the slots or holes anywhere on the
cooktop. Doing so blocks air flow through the cooktop
and may cause carbon monoxide poisoning. Aluminum
foil linings may also trap heat, causing a fire hazard.
Keep all slots clear of grease and grime.

Hazards or unsafe practices that COULD result in minor
personal injury or property damage.

CALIFORNIA PROPOSITION 65 WARNING

The burning of gas cooking fuel generates some
by-products that are on the list of substances which
are known by the State of California to cause cancer or
reproductive harm. California law requires businesses
to warn customers of potential exposure to such
substances. To minimize exposure to these substances,
always operate this unit according to the use and care
manual, ensuring you provide good ventilation when
cooking with gas.

READ AND SAVE

THESE INSTRUCTIONS

1

Important Safety Instructions

General Safety Precautions

To reduce the risk of fire, electric shock, serious injury or death when using your cooktop, follow basic
safety precautions, including the following:

WARNING

• If you receive a damaged product, immediately
contact your dealer or builder. Do not install or use a
damaged appliance.

• Make sure that the cooktop has been properly
installed and grounded by a qualified installer
according to the accompanying installation
instructions. Have the installer show you the location
of the gas shut off valve and the power cord so that
you know where and how to turn off the gas supply
and disconnect power to the cooktop.

• Do not install, repair or replace any part of the
cooktop unless specifically recommended in the
literature accompanying it. A qualified service
technician should perform all other service.

• Before performing any type of service, make sure that
the gas supply is turned off and the power cord to the
cooktop is disconnected.

• Only use this cooktop for cooking tasks expected of
a home appliance as outlined in this manual. This
cooktop is not intended for commercial use.

• DO NOT TOUCH ANY OF THE SURFACES OF THE
COOKTOP DURING OR IMMEDIATELY AFTER
USE. After use, make sure these surfaces have had
sufficient time to cool before touching them.

• Make sure individuals who use the cooktop are able
to operate it properly.

• Never allow anyone, including children to sit, stand or
climb on any part of the cooktop. Doing so may cause
damage, serious injury or death. Do not leave children
alone or unattended in the area around the cooktop.
Do not allow children to play with the controls or touch
other parts of the cooktop.

• Do not store items of interest to children on top of
or above the cooktop. Children could be burned or
injured while climbing on the appliance.

• Do not attempt to use this appliance in the event of a
power failure. If a power failure occurs while operating
the cooktop, turn all control knobs to the OFF position.

• Do not tamper with the controls. Do not adjust or alter
any part of the cooktop unless specifically instructed
to do so in these instructions.

• Do not cover the burners and grates with anything
except properly selected utensils. Decorative covers
may cause a fire hazard or damage to the cooktop
if a burner is accidentally turned on with the cover in
place.

WARNING

• Do not heat unopened food containers such as baby
food jars and cans. Pressure build up may cause the
container to burst and cause injury.

• Clean the cooktop thoroughly before operating it for
the first time.

• Keep flammable items, such as paper, cardboard,
plastic and cloth away from the burners and other
hot surfaces. Do not allow pot holders to touch hot
surfaces or gas burners.

• Do not wear loose or hanging apparel while using the
cooktop. Do not allow clothing to come into contact
with the cooktop and surrounding areas during and
immediately after use.

• Do not use towels or bulky cloth as pot holders.

• Do not hang flammable or heat sensitive objects over

the cooktop.

• If the cooktop is near a window, do not use long
curtains as window treatment. The curtains could blow
over the cooktop and create a fire hazard.

• To avoid the possibility of fire, do not leave the
cooktop unattended when in use.

• Clean and maintain the cooktop regularly as
instructed in this manual. Keep the entire cooktop,
ventilation filters and cooktop hoods free of grease
that could catch fire.

• Use cookware only for its intended purpose. Check
the manufacture’s recommendations before use to
determine if a utensil is suitable for use on a cooktop.
Certain types of glass, ceramic and earthenware are
not suitable for use on a cooktop. Personal injury
or damage may result from the improper use of
cookware.

• Select cookware carefully. Use utensils of the proper
size, material and construction for the particular type
of cooking being done. Utensils need to be large
enough to contain the desired quantity of food without
boil-overs or spill-overs. Choose pans with easy to
hold handles that will stay cool while cooking. Do not
use utensils with loose handles. Avoid using pans that
are too heavy to lift safely.

• Do not allow pots or pans to boil dry.

• Use extreme caution if adding water to food on a

hot cooktop. The steam can cause serious burns or
scalds.

• Use only dry pot holders when removing food and
cookware from the cooktop. Wet pot holders can
cause steam burns.

2

Important Safety Instructions

WARNING

• Make sure that all the cooktop parts are dry before
lighting a burner.

• Turn the knobs to the OFF position prior to removing
them from the valve stems.

• The cooktop should never be operated without the
knobs in place.

• Non-stick coatings, when heated, can be harmful to
birds. Remove birds to a separate, well-ventilated
room during cooking.

TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A RANGE TOP GREASE FIRE:

a. SMOTHER FLAMES with a close-fitting lid, cookie

sheet or metal tray, then turn off the burner. BE
CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL THE
FIRE DEPARTMENT.

b. NEVER PICK UP A FLAMING PAN - you may be

burned.

c. DO NOT USE WATER, including wet dish cloths or

towels - a violent steam explosion may result.

d. Use a fire extinguisher ONLY if:

◊ You have a Class ABC extinguisher, and you

already know how to operate it.

◊ The fire is small and contained in the area where it

started.

◊ The fire department is being called.

◊ You can fight the fire with your back to an exit.

• This appliance is equipped with a three prong

grounding plug for your protection against possible
electric shock hazards. If
only a two prong outlet is
available, it is the cust­omer’s responsibility to
have it replaced with a
dedicated, grounded 3
prong electrical outlet by
a licensed electrician.

Do not under any circumstances:

◊ Cut or remove the third (ground) prong from the

power cord.

◊ Use an adapter plug.

◊ Use an extension cord.

◊ Use a power cord that is frayed or damaged.

◊ Plug the cooktop into an electrical outlet with a

ground fault interrupter (GFI).

WARNING

• When deep fat frying:

◊ Be certain that the pan is large enough to contain

the desired volume of food without overflow caused
by the bubbling of the fat. Never leave a deep fat
fryer unattended.

◊ Avoid frying moist or frost-covered foods. Foods

with high water content may cause spattering or
spilling of the hot fat.

◊ Heat fat slowly, and stir together any combination

of oils and fats prior to applying heat. Utilize a deep
fat frying thermometer to avoid heating the fat to
temperatures above the flash point.

CAUTION

• Do not allow acids (citrus juices, tomato sauces, etc.)
to remain on the cooktop’s surfaces. The finish may
stain.

• Never use the cooktop surface as a cutting board.

• Do not try to remove heavy spills with a sharp object

such as a knife or metal spatula. Sharp objects may
scratch the cooktop’s surfaces.

• Do not expose the knobs to direct flame, hot utensils
or other sources of heat.

3

Getting to Know Your Cooktop

Cooktop Features

SimmerSear™ Burner: Dacor’s exclusive precision
burner control system. Your cooktop is equipped
with one SimmerSear burner. The SimmerSear
burner has a wider range of heat settings than the
standard burners. The wider range allows you pre­cise heat control from simmer to sear (high).

Sealed Burners: Gaskets around the underside of
all burner bases prevent spilled liquids from leaking
into the cooktop’s internal parts.

Long Life Grates: The porcelain coated cast iron
grates support the cooking utensils during cooking.
They are removable to allow the area below and
around the burners to be cleaned easily.

Spill Tray: The spill tray catches any food that falls
through the cooktop grates.

Burner Control Indicator Lights: Each knob has
an indicator light that corresponds to the burner
that it controls. The light illuminates when a burner
is on.

Flame-less Ignition: The cooktop generates a
spark to light a burner when you turn the knob ON.

Perma-Flame™: The Perma-Flame instant re-igni­tion feature automatically re-lights a burner quickly
if it goes out. With Perma-Flame, your cooking
experience is uninterrupted because the flame is re­ignited at the same level as when it went out.

Smart Flame™ Technology: All burners are
equipped with Dacor’s Smart Flame technology. It
reduces the temperature under the fingers of the
porcelain-coated cast iron grates. Smart-Flame
extends grate life and protects the finish.

A

C

D

B

D

Model DCT305 - Top View

E E

C

D

D

Grate

Indicator light

Burner

control knob

Spill tray

A Standard burner:

800 - 7000 BTU

B Standard burner:

1700 - 11000 BTU

C SimmerSear burner:

800-18000 BTU

D Standard burner:

1300-9000 BTU

E Standard burner:

2500-12000 BTU

Model DCT365 - Top View

4

Burner Assembly

Setting Up Your Cooktop

WARNING

Never attempt to operate the cooktop with any of the
burner parts removed. Assemble the burners and grates
only when the cooktop is cool.

SimmerSear Burner

1. Install the SimmerSear burner ring on the
SimerSear burner base (located on the center
of the cooktop). Line up the indentations on the
bottom of the burner ring with the pins on top of
the burner base.

2. Set the outer SimmerSear burner cap on top of
the burner ring. Make sure it is centered on top.

3. Set the inner SimmerSear burner cap on the
center of the burner base. Line up the ridge
on the bottom of the cap with the pins on the
center of the burner base.

Ridge on bottom

Standard Burners

1. Install the standard burner rings on the standard
burner bases (match sizes). Put the holes on the
edge of each ring over the igniter. Center the
tabs on the bottom of each ring in the hole in
the center of each base.

2. Install all the standard burner caps. The ridge
on the bottom of each cap must surround the
top of each ring. On model DCT305, the left rear
burner cap has tabs on the bottom that fit into
the slots on the top of the burner ring.

continued...

Ridge on bottom

of burner cap

Igniter hole

Burner ring,

top view

Inner burner cap

Outer burner cap

Burner ring

Pin on

burner base

Igniter

CAUTION: Top of
igniter is sharp!

Burner base

Standard Burner Assembly

Tabs on bottom of

burner cap

Burner ring,

top view

Igniter hole

Igniter

SimmerSear Burner Assembly

(Center Burner)

CAUTION: Top of
igniter is sharp!

Burner base

Left Rear Standard Burner Assembly on DCT305

5

Grate Assembly

Setting Up Your Cooktop

IMPORTANT: Install the grates as instructed below
for longest life. When installed properly, the open­ings in the grates are centered over the burners.

1. Locate the notch on the bottom of each grate.

2. Use the notch on the bottom of each grate to
determine location and orientation. See below.
The notch on the bottom of each grate goes
towards the back of the cooktop. The notches on
the left and right grates go toward the outside.

Notch on bottom

Left grate,

curved fingers

on left

3. Gently lower the legs of each grate into the cor­responding dimples on the cooktop.

NOTE: Burner and grate size vary with model.

toward back

Center grate -

Notch on bottom

toward back

Notch on

bottom toward

back

Standard

burner

SimmerSear

burner

NOTE: Burner and grate size vary with model

6

Right grate,

curved fingers

on right

Operating Your Cooktop

Selecting the Cookware

WARNING

• NEVER cover any slots or holes anywhere on the
cooktop. Doing so will block air flow through the
cooktop and may cause carbon monoxide poisoning.
Keep all slots and holes clear of grease and grime.

• To avoid burns and scalding, always turn pan handles
to a position where they cannot be easily hit. Also,
handles should not extend over adjacent burners.
Always set utensils gently onto the grates and center
them so that they are well-balanced.

• Do not drag cookware across the grates. Sliding may
damage the finish. Lift utensils to reposition them. Do
not drop them on the grate.

• Cookware with rough bottoms can cause permanent
damage to the coated surfaces on the grates.

• To avoid burns or fire hazard, reduce the flame level
if it extends beyond the bottom of the utensil. A flame
that extends up the sides of the utensil is potentially
dangerous.

For overall safety and best cooktop performance,
select the correct cooking utensil for the food being
cooked. Improperly selected cooking utensils will
not cook evenly or efficiently.

Use cookware that:

• Has flat, smooth bottoms.

• Is well balanced.

• Has tight fitting lids to keep heat, odors and

steam in.

IMPORTANT: Avoid spills as much as possible. The
porcelain surfaces of the grates and burner caps are
acid-resistant but not acid-proof. Some foods can
cause permanent damage if allowed to remain on
porcelain surfaces.

Optional WOK Ring

CAUTION

To prevent damage:

• Place the optional accessories only in the position(s)
indicated below.

• Follow the heat setting instructions below.

Wok Ring (Dacor Model# AWR4): The wok ring
is a safe, convenient way to stir fry. Place it on top
of the center grate, aligning the wok ring feet with
the grate fingers. It will hold most standard sized
woks.

Cooking Tips

For superior cooking performance and to save
energy:

• Reduce the flame height to the minimum level
necessary to perform the desired cooking pro­cess. Food cooks just as quickly at a gentle boil
as it does at a vigorous, rolling boil. A higher boil
than is necessary wastes energy, cooks away
moisture and causes a loss in food flavor and
nutrients.

• Use low or medium flame heights when cooking
in utensils that are poor conductors of heat, such
as glass, ceramic and cast iron cooking vessels.
Reduce the flame height until it covers approxi­mately 1/3 of the utensil diameter to ensure
even heating and reduce scorching.

• Minimize the amount of liquid or fat to reduce
cooking times.

• Use a timer rather than repeatedly removing the
lid to check food. Doing so will decrease cooking
time and save energy.

• Thaw foods first to reduce cooking time.

continued...

7

Operating Your Cooktop

Lighting a Burner

WARNING

• To avoid the chance of fire, explosion or carbon
monoxide poisoning, do not attempt to use your
cooktop without the burners completely and properly
assembled (see page 5). The burner rings spread
the flame evenly around the burner cap. The burner
rings and burner caps must be properly seated for
proper burner lighting and operation.

• In the interest of safety, always light the burner before
putting the cooking utensil on the grate. Turn the
burner knob to the off position before removing the
utensil. Always check the position of the control knobs
to make sure the cooktop is off when you are finished
cooking.

• Do not turn the knob farther than the HIGH position
until lit. Doing so may result in a burst of flame that
could cause burns or damage to the surrounding area.

• Do not touch any part of the burner while the igniter is
sparking. An electrical shock could result.

• Never light the burners with a match or other open
flame.

• If the gas does not ignite after four seconds or if the
flame goes out and gas escapes, turn the knob to the
OFF position. Open a window and allow at least five
minutes for the gas to dissipate. Repeat the lighting
procedure.

1. To light a burner, press down on the correspond-
ing control knob and turn it slowly counterclock-
wise to the HIGH position (see below). As you
turn the knob, the indicator light for the burner
will come on and the burner igniters will spark.
The igniters will stop sparking when ignition for
the selected burner occurs.

2. Once the burner is lit, set the flame height to the
desired level by rotating the control knob further
counterclockwise, then place the utensil on the
grate. The thickness of the flame level indicator
on the knob edge indicates the flame setting.

Knob position
indicator

Standard

Burner Knob

LOW

position

ON

HIGH

position

Area of

operation

NOTE: The center burner, with it’s SimmerSear
feature, allows a higher precision of flame control.
Turning the knob further counterclockwise reduces
the flame to the simmer setting. Once in simmer
mode, only the small inner portion of the burner
operates.

Knob position
indicator

LOW

position

Area of

operation

SimmerSear

Burner Knob

IMPORTANT:

• When the cooktop is cool, the igniters may con-
tinue to spark if the control knob is set to the
LOW position. The sparking will stop when the
burner is warm. The tendency to spark when
cold can be reduced by operating the burner at a
higher flame setting for about 60 seconds. After
60 seconds, lower the flame to the desired level
for cooking. The burner will also warm up faster
if a utensil is placed on the grate. The ignit­ers will also spark automatically if the flame is
distorted by a draft or by the household ventila­tion system. Eliminate any drafts or reduce the
ventilation blower speed to reduce this type of
problem.

• To keep the burners operating properly, keep the
burner igniters, burner rings and burner caps
clean and dry. See Care and Cleaning starting
on page 9. Dirty or wet igniters will result in
constant sparking, even if there is a flame pres­ent.

• The flame should burn evenly around the perim­eter of the burner, except underneath each grate
support finger, where the flame height is reduced
by Dacor’s Smart-Flame feature. A normal flame
is steady and blue in color. Foreign material in
the gas line, especially in new construction, may
cause an orange flame during initial operation.
The orange color will disappear with further use.
Small yellow tips on the ends of the flames are
normal when using LP gas.

ON

HIGH

position

8

Care and Cleaning

Cleaning the Cooktop

WARNING

• Clean only the parts of the cooktop listed in this
manual. Clean them only in the manner specified.

• To avoid dangerous fumes or damage to your
cooktop’s surfaces and accessories, use only the
types of cleaning solutions specified in this manual.

• To avoid electrical shock or burns, turn off the burners
and make sure that all parts are cool before cleaning.
DO NOT turn the burners on during cleaning.

• Do not use a steam cleaner to clean the cooktop.
Steam could penetrate the electrical components and
cause a short circuit.

• To prevent damage, do not use abrasive or corrosive
cleaners or applicators such as steel wool or scouring
pads, on any part of the cooktop unless instructed to
do so. Use only a sponge, soft cloth, fibrous or plastic
brush, or nylon cleaning pad for cleaning the surfaces
of your cooktop.

• Do not try to remove heavy spills with a sharp object
such as a knife or metal spatula. Sharp objects may
scratch your cooktop’s surfaces.

• After cleaning the burners, always dry and reassemble
the cooktop parts completely before use. See page

5.

Disassembly

CAUTION

There is a plastic spill protector located under each knob
to help prevent liquids from getting inside the cooktop
chassis. To prevent damage, do not remove them from
the cooktop.

1. Turn the knobs to the OFF position.

2. For safety, disconnect the cooktop power cord
from the electrical outlet.

3. When the cooktop is cool, remove the grates
from the top of the cooktop.

4. Disassemble the burners: Lift the burner caps
and burner rings off of the burner bases.

To keep the cooktop looking and operating its best,
clean it after every use. Also, quickly wipe up spills
that occur while cooking. Be careful not to touch any
hot areas.

If you allow spills to sit on hot burner parts, they
will burn on and be very difficult to clean. Certain
types of food, such as tomatoes, citrus juices, vin­egar, alcohol and milk can damage the finishes if
you allow them to stand for any length of time.

IMPORTANT: The cooktop is exposed to extremely
high temperatures. The grates are under high stress
when hot utensils are placed on them. Also, the
cooktop parts are occasionally exposed to acidic
food spill-overs. These severe operating conditions,
cause the porcelain enamel parts on your cooktop
to undergo a change in appearance over time. If
you care for and clean these parts carefully, you will
slow down, but not eliminate, the aging process.

5. Grasp each knob and pull straight up to remove.

Knob

Valve shaft

Spill protector

DO NOT remove!

9

Care and Cleaning

Cleaning the Burners and Igniters

CAUTION

Use care while cleaning the igniters. The porcelain is
fragile and can crack or break.

IMPORTANT: Dirty or wet igniters may not work
properly or may not spark at all. Also the ignit­ers may not work if any other burner parts are not
clean.

Check for any dirt or grime deposited on the indi­vidual burner parts, or the igniters.

1. Clean completely around the igniter, including
over and under the edge of the metal top and
porcelain base. A firm toothbrush is also ideal for
this task. Use care while cleaning because the
porcelain is fragile and can crack or break. Do
not use water to clean the igniters. If necessary,
use a small amount of rubbing alcohol to help
dissolve grime.

2. Examine the burner rings and the top of the
SimmerSear burner base. Remove anything
stuck in the slots with a straightened paper clip,
wire or needle. Be careful not to scratch, deform
or damage the ring and base. Do not distort the
shape of the slots. Since the SimmerSear burner
base is not removable, it must be cleaned in
place.

3. Clean all the burner parts, including the Sim-
merSear burner base, with window cleaner
or rubbing alcohol. Use a cleaning brush with
plastic bristles or a firm tooth brush. When done,
rinse the parts well with clean water. Dry all the
parts thoroughly before re-assembling them.

4. Reassemble the cooktop according to the burner
and grate assembly instructions on pages 5
and 6. Test the burners after reassembling
them. If the flame is uneven, be sure that all the
burner parts are properly positioned, then check
for any remaining dirt or grime on the burner
parts or igniter. If erratic clicking is still present,
make sure the igniter is completely dry. If the
unit still exhibits problems after drying, call your
local Dacor Authorized Service Agent.

Inner burner cap

Outer burner cap

Burner ring

slots

Igniter on

burner base

Top of burner

base

SimmerSear Burner Assembly

Burner cap

Burner ring

slots

Igniter on

burner base

CAUTION: Top of
igniter is sharp

Standard Burner Assembly

Burner cap

Burner ring

slots

Igniter on

burner base

CAUTION: Top of
igniter is sharp

Left Rear Standard Burner Assembly on DCT305

10

Care and Cleaning

Stainless Steel Surfaces Including Spill Tray

CAUTION

• Always wipe stainless steel (silver colored) surfaces
with the grain. To prevent scratching, do not use
abrasive cleaners or scrubbers on stainless steel
surfaces.

• Use stainless steel cleaner only on stainless steel
surfaces.

• The spill tray and the panels surrounding it
are made of high quality stainless steel. Clean
stainless steel surfaces with the Dacor Stainless
Steel Cleaner included with your cooktop. Use it
according to the directions on the package. You
may order additional stainless steel cleaner at
www.everythingdacor.com. Order part# A302.

• You may also clean the stainless steel surfaces
with a mild solution of detergent and warm
water. Rinse and dry with a soft, lint-free cloth.

Cleaning the Grates and WOK Ring

CAUTION

• DO NOT use any of the cleaners listed below to clean
the burners, igniters or stainless steel surfaces.

• Do not clean the cooktop grates, burner parts or WOK
ring in a dishwasher. They will be damaged.

Cleaning the Knobs

CAUTION

Do not soak the knobs in water or put them in the
dishwasher.

1. Turn the knobs to the OFF position.

2. Disconnect the cooktop power plug from the
electrical outlet.

3. Grasp each knob and pull up to remove.

4. Wash the knobs with a solution of warm soapy
water. Dacor recommends hand dishwashing
liquid.

5. To replace the knobs, align the “D-shaped”
opening on the bottom of the knob with the end
of the valve shaft. Carefully push the knob on
until it stops.

IMPORTANT:

• The knob for the center burner is different

from the standard burner knobs. It has a
longer adjustment range indicator.

The grates and optional WOK ring are coated with a
porcelain finish.

• For everyday cleaning, use
a soft cloth or non-abra­sive pad with warm soapy
water to clean all of the
porcelain parts.

• If necessary, tough stains
may be removed by applying full-strength sprays
such as Simple Green™, Ajax™ All-Purpose
Cleaner or Formula 409™. To minimize wear, use
the mildest cleaner needed to get the surface
clean.

• For extremely stubborn stains, you may use a
mildly abrasive cleaner or applicator, such as
Soft Scrub™, Bon Ami™, S.O.S.
soap-filled steel wool pads. Use these cleaners
with extreme care and only on occasion. Exten­sive use of these types of abrasives will eventu­ally damage the porcelain enamel.

®

pads or other

Longer adjustment

range indicator

SimmerSear

Burner Knob

6. Connect the cooktop power plug to the electrical
outlet.

Shorter adjustment

range indicator

Standard

Burner Knob

11

Before You Call for Service

Problem Solution Guide

Problem May Be Caused By What to Do

Nothing works. Cooktop not connected to elec-

trical power.

Power to electrical outlet is off. Turn on power at circuit breaker or fuse

Power outage. Contact power company.

Igniters do not spark. Power not supplied to unit. See Nothing Works above.

Wet or dirty igniter(s). Clean and dry igniter(s) and burner

No flame. Igniter not working (no clicking

sound).

Wet or dirty igniter(s). Clean and dry according to Care and

Gas is turned off. Make sure the gas supply valve is in the

Gas supply interrupted. Contact gas company.

Burner goes out at low set­ting.

Flame is distorted, yellow or
very large.

Igniters continue to spark
(click) after flame ignites.

Low gas pressure. Contact gas company to have pressure

Burner parts are dirty or
clogged.

Burner parts are not properly
positioned.

Cooktop set up to use a differ­ent type of gas (Natural or LP)
or set up for different altitude.

Gas regulator is not installed or
faulty.

Burner is cold. Igniters may continue to spark for up to

Flame distorted by air draft. Minimize any air drafts around the cook-

Wet or dirty igniter(s). Clean and dry according to Care and

Burner parts wet or dirty. Clean and dry according to Care and

Burner parts not properly posi­tioned.

Power supply polarity is
reversed.

Check to make sure power cord is con­nected to electrical outlet.

box. Check for tripped breaker or blown
fuse.

assemblies according to Care and Clean-
ing section.

See Igniters do not spark above.

Cleaning section.

on position.

tested.

Clean and dry according to Care and
Cleaning section.

Make sure burner is assembled according
to the Setting Up Your Cooktop sec­tion.

Have a qualified service technician check
to make sure that the cooktop is set up
for the type of gas and the correct alti­tude.

Have a qualified service technician check
the gas regulator.

60 seconds when burner is cold and set
to low. See Operating Your Cooktop
section for more information on how to
minimize.

top.

Cleaning section.

Cleaning section.

Make sure burner is assembled according
to the Setting Up Your Cooktop sec­tion.

Have a licensed electrician check the
polarity of electrical outlet.

12

Warranty and Service

Getting Help

Before you request service, please review the
Before You Call for Service section on page 12.
If you have performed the checks in the Problem
Solution Guide and the problem has not been
remedied, please contact us at one of the numbers
below. Prior to requesting service, it is helpful to
be familiar with the warranty terms and conditions
listed in the Warranty section on this page.

For warranty repairs, call:

Dacor Distinctive Service

Phone: [phone] (U.S.A. and Canada)
Business Hours: 6:00

For non-warranty repairs, call:

Dacor Customer Service

Phone: [phone] (U.S.A. and Canada)
Business Hours: 6:00

Contact us through our web site at:

www.dacor.com

At Dacor, we believe that our quality of service
equals that of our product. Should your experience
with our service network or product be different,
please contact our Customer Service Team and
share your encounter with us. We will do our utmost
to resolve the situation for you and deliver on our
Dacor promise.

If you need anything clarified, just let us know.

Warranty

What Is Covered

CERTIFICATE OF WARRANTIES: DACOR
COOKTOPS

WITHIN THE FIFTY STATES OF THE U.S.A., THE
DISTRICT OF COLUMBIA AND CANADA*:

FULL ONE-YEAR WARRANTY

If your DACOR product fails to function within one
year of the original date of purchase, due to a defect
in material or workmanship, DACOR will remedy the
defect without charge to you or subsequent users.
The owner must provide proof of purchase upon
request, and have the appliance accessible for ser­vice.

*Warranty is null and void if non-ETL approved
product is transported from the U.S.

a.m. - 4:00 p.m. Pacific Time

a.m. - 5:00 p.m. Pacific Time

OUTSIDE THE FIFTY STATES OF THE U.S.A.,
THE DISTRICT OF COLUMBIA AND CANADA:

LIMITED FIRST YEAR WARRANTY

If your DACOR product fails to function within one
year of the original date of purchase, due to a defect
in material or workmanship, DACOR will furnish a
new part, F.O.B. factory to replace the defective
part. All delivery, installation and labor costs are the
responsibility of the purchaser. The owner must pro­vide proof of purchase, upon request, and have the
appliance accessible for service.

What Is Not Covered

• Failure of the product caused by faulty instal­lation, improper usage or neglect of required
maintenance.

• Service calls to educate the customer in the
proper use and care of the product.

• Failure of the product when used for commercial,
business, rental or any application other than for
residential consumer use.

• Replacement of house fuses or fuse boxes or
resetting of circuit breakers.

• Damage to the product caused by accident, fire,
flood or other acts of God.

• Breakage, discoloration or damage to glass,
metal surfaces, plastic components, trim, paint
or other cosmetic finish, caused by improper
usage or care, abuse or neglect.

THE REMEDIES PROVIDED FOR IN THE ABOVE
EXPRESS WARRANTIES ARE THE SOLE AND EXCLU­SIVE REMEDIES. THEREFORE, NO OTHER EXPRESS
WARRANTIES ARE MADE, AND OUTSIDE THE FIFTY
STATES OF THE UNITED STATES, THE DISTRICT
OF COLUMBIA AND CANADA, ALL IMPLIED WAR­RANTIES, INCLUDING BUT NOT LIMITED TO, ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR USE OR PURPOSE, ARE
LIMITED IN DURATION TO ONE YEAR FROM THE
DATE OF ORIGINAL PURCHASE. IN NO EVENT SHALL
DACOR BE LIABLE FOR INCIDENTAL EXPENSE OR
CONSEQUENTIAL DAMAGES. NO WARRANTIES,
EXPRESS OR IMPLIED, ARE MADE TO ANY BUYER
FOR RESALE.

Some states do not allow limitations on how long
an implied warranty lasts, or do not allow the exclu­sion or limitation of inconsequential damages, so
the above limitations or exclusions may not apply
to you. This warranty gives you specific legal rights,
and you may also have other rights that vary from
state to state.

13

Notes

14

Notes

15

Notes

16

fold here

BUSINESS REPLY MAIL

FIRST-CLASS MAIL CITY OF INDUSTRY CAPERMIT NO 1600

POSTAGE WILL BE PAID BY ADDRESSEE

DACOR

ATTN WARRANTY PROCESSING DEPT

PO BOX 90070

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

CITY OF INDUSTRY CA 91715-9907

Please visit www.Dacor.com to activate your warranty online.

WARRANTY INFORMATION

IMPORTANT:

Your warranty will not be activated until you activate it online or return this form to Dacor. If you have purchased more
than one Dacor product, please return all forms in one envelope or activate the warranty for each product online.

Please rest assured that under no conditions will Dacor sell your name or any of the information on this form for mailing list purposes. We
are very grateful that you have chosen Dacor products for your home and do not consider the sale of such information to be a proper way
of expressing our gratitude!

Owner’s Name:

Street:

City: State: Zip:

Purchase Date: Email: Telephone:

Dealer:

City: State: Zip:

Your willingness to take a few seconds to fill in the section below will be sincerely appreciated. Thank you.

1. How were you first exposed to Dacor products? (Please check one only.)
 A. T.V. Cooking Show  F Builder
 B. Magazine  G. Architect/Designer
 C. Appliance Dealer Showroom  H. Another Dacor Owner
 D. Kitchen Dealer Showroom  I. Model Home
 E. Home Show  J. Other

2. Where did you buy your Dacor appliances?

 A. Appliance Dealer  D. Builder
 B. Kitchen Dealer  E. Other

 C. Builder Supplier

3. For what purpose was the product purchased?
 A. Replacement only  C. New Home
 B. Part of a Remodel  D. Other

(Please Print or Type)

Last First Middle

cut here cut here

4. What is your household income?
 A. Under $75,000  D. $150,000 – $200,000
 B. $75,000 – $100,000  E. $200,000 – $250,000
 C. $100,000 – $150,000  F. Over $250,000

5. What other brands of appliances do you have in your kitchen?
A. Cooktop C. Dishwasher
B. Oven D. Refrigerator

6. Would you buy or recommend another Dacor product?
 Yes  No
Comments:

Thank you very much for your assistance. The information you have
provided will be extremely valuable in helping us plan for the future
and giving you the support you deserve.

Web site: www.Dacor.com
Corporate phone: [phone]
